User Guide
H5s Series
Machine type: 10093/2561/4746
31501722

Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or damage
to your product.
Danger: Be aware of extremely hazardous or lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2012. All rights reserved.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered
pursuant a General Services Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
© 2012. Lenovo

1
Contents
Contents
Important Safety Information
Chapter 1 Using the Computer Hardware.............................. 1
1.1 Front view of the chassis .........................................................2
1.2 Rear view of the chassis ..........................................................3
1.3 Connecting your computer ......................................................4
1.4 Audio configuration instruction.................................................6
1.5 Connect the power cords properly to grounded electrical
outlets .....................................................................................7
1.6 How to play Blu-ray Discs (selected models only) ....................7
1.7 Wired keyboard (selected models only)....................................8
Chapter 2 Using the Rescue System ...................................... 9
2.1 OneKey Recovery..................................................................10
2.2 Driver and Application Installation ..........................................10
2.3 System Setup........................................................................11
2.4 System Backup .....................................................................12
2.5 System Recovery ..................................................................12
2.6 Create Recovery Disc ............................................................12
Chapter 3 Troubleshooting and Confirming Setup.............. 13
3.1 Troubleshooting Display Problems .........................................14
3.2 Troubleshooting Audio Problems ...........................................15
3.3 Troubleshooting Software Problems.......................................15
3.4 Troubleshooting Problems with Optical Drives and
Hard Disks.............................................................................16
3.5 Special considerations for troubleshooting Windows .............17
3.6 Performing Daily Maintenance Tasks......................................18

2Contents
Chapter 4 Hardware Replacement Guide............................. 19
4.1 Locations ..............................................................................22
4.2 Replacing hardware...............................................................25
Appendix. ....................................................................................35
Energy Star Statement.................................................................37

Chapter
This chapter contains the following
topics:
Computer hardware introduction
Information on computer connections
Note: The descriptions in this chapter
might be different from what you see on
your computer, depending on the computer
models and configurations.
User Guide 1
Using the Computer Hardware

2User Guide
1.1 Front view of the chassis
Attention: Be careful not to block any air vents on the computer. Blocked
air vents can cause overheating.
Power button
Memory card reader (selected models only)
USB connectors
Optical drive eject button
Headphone connector
Optical Drive (selected models only)
Hard disk drive indicator
Microphone connector
Note: This computer only can be placed in a vertical position.
Attention: Do not insert 3-inch discs into the optical drive.

3
User Guide

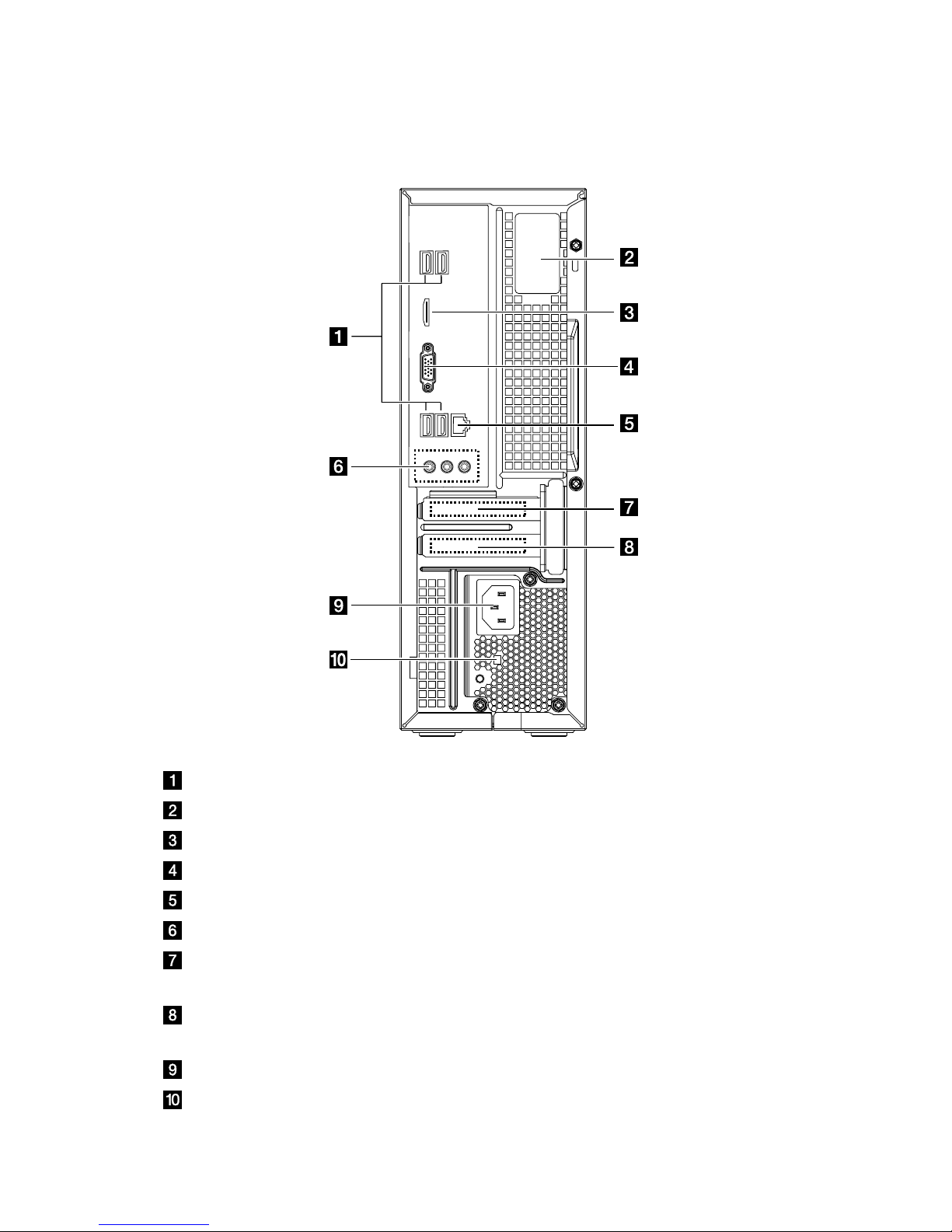

1.2 Rear view of the chassis
(If the rear view configuration shown in this chapter is different from the rear of your
computer, please refer to the rear of your computer.)
USB connectors
WiFi antenna (selected models only)
HDMI connector (selected models only)
On-board VGA connector
Ethernet connector
Audio connectors
PCI Express X 16 graphics adapter connector (some models are equipped
with a graphics card)
PCI Express X 1 adapter connector (some models are equipped with USB
3.0 or TV tuner card)
Power connector
Voltage selection switch (selected models only)

4User Guide
Note: If your model has two VGA monitor connectors, be sure to use the
connector on the graphics adapter.
Attention: Do not open the WiFi antenna cover.
1.3 Connecting your computer
Use the following information when connecting your computer.
• Lookforthesmallconnectoriconsonthebackofyourcomputer.Matchthe
connectors to the icons.
• Ifyourcomputercablesandconnectorpanelhavecolor-codedconnectors,
match the color of the cable end with the color of the connector.
Note: Your computer may not have all of the connectors described in this
section.
1.3.1 Check the position of the voltage-selection switch on
the rear of the computer. Use a ballpoint pen to slide the
switch if necessary.
Note: Some computers do not have a voltage switch. These computers
control voltage automatically.
• Ifthevoltagesupplyrangeis100-127VAC,settheswitchto115V.
• Ifthevoltagesupplyrangeis200-240VAC,settheswitchto230V.
115
230
1.3.2 Basic connector instructions
Connector Description
Microphone Use this connector to attach a microphone to your
computer when you want to record sound or if you
use speech-recognition software.

5
User Guide
Headphone Use this connector to attach headphones to your
computer when you want to listen to music or
other sounds without disturbing anyone.
Audio line-in connector Used to receive audio signals from an external
audio device, such as a stereo system. When
you attach an external audio device, a cable is
connected between the audio line-out connector
of the device and the audio line-in connector of
the computer.
Audio line-out connector Used to send audio signals from the computer
to external devices, such as powered stereo
speakers (speakers with built-in amplifiers),
headphones, multimedia keyboards, or the audio
line-in connector on a stereo system or other
external recording device.
USB connector Use this connector to attach a device that requires
a USB connection.
Ethernet connector Use this connector to attach the computer to an
Ethernet-type local area network.
VGA connector Used to attach a VGA monitor or other devices
that use a VGA monitor connector.
DVI connector Used to attach a DVI monitor or other devices that
use a DVI monitor connector.
HDMI connector (optional) Connects to the HDMI connector on your display
or TV.
TV-Tuner connector (optional) Only supported on systems with optional TV tuner
card.
Note: If your computer is equipped with a wireless keyboard or mouse,
follow the installation instructions for those devices.

6User Guide
1.4 Audio configuration instruction
(This instruction is only for PC models whose mainboard
supports audio transforming from 2.0 stereo to 5.1
surround.)
This model of computer supports transforming stereo sound into 5.1 surround
sound.
Use the following guides when connecting to the 5.1 surround audio device:
Front channel
Surround
Center-LEF
Blue line-in connector
Green line-out connector
Pink Mic-in connector
The configurations are as follows:
1. Right click the sound icon in system property bar and select the sounds option
to setup the sounds in the pop-up dialog box.
2. Select a playback device from the playback dialog box, and then click the
configure button to configure it.
3. Select 5.1 surround from audio channels in the pop-up speaker setup dialog
box to proceed with the speaker setup by following as prompted.
4. After the configuration, 5.1 surround can be used.
Note: If the audio configuration interfaces in above differ from your actual
computer, you may use the above steps as reference to configure the 5.1
surround audio device in your actual audio configuration interface and read
the electronic help information for further assistance.

7
User Guide
1.5 Connect the power cords properly to grounded
electrical outlets
1.6 How to play Blu-ray Discs (selected models only)
Check the connectors available on your computer and display and select an
appropriate cable according to this table. Because other types of cables do not
meet the requirements of the Blu-ray standard.
You need to purchase the cable separately if the computer is not equipped with
the corresponding cable.
This table will help you to identify the connectors on your computer and display.
Connection Type Computer Cable Display
DVI to DVI
(DVI cable)

DVI to HDMI
(DVI-HDMI
cable)

HDMI to HDMI
(HDMI cable)

HDMI to DVI
(HDMI-DVI
cable)


8User Guide
1.7 Wired keyboard (selected models only)
LVT —— After entering Windows, press this key to launch the LVT (Lenovo
Vantage Technology) program, Lenovo’s pre-loaded Home PC software.
In addition to its own functions, the LVT program will allow you to start
other Windows compatible software, specially configured to run on this
model of computer.
F2 —— Your computer has the Lenovo Rescue System installed. To learn more
about this program, repeatedly press and release the F2 key once
turning on the computer until the Lenovo Rescue System open.

Chapter
Using the Rescue System
This chapter contains the following
topics:
OneKey Recovery
Driver and Application Installation
System Setup
System Backup
System Recovery
Create Recovery Disc
Attention: Using this program will result in
loss of data.
• YoucanrestoretheC:driveofthecomputer
to factory default settings or to the last
system backup status using OneKey
Recovery. If you do this, all of the existing
dataondriveC:willbelost,butthecontent
and format of the other partitions of the hard
disk drive will remain unchanged.
• If you want to install an operating system
and back it up with OneKey Recovery, you
mustformattheC:partitioninNTFS format
andinstalltheoperatingsystemontheC:
partition. Otherwise, the OneKey Recovery
system cannot run.
User Guide 9

10 User Guide
Note about the service partition:
The files and relevant data used by the rescue system are saved in the service
partition. Deleting this partition will make the rescue system unusable. For more
detailed information, see the following instructions:
By selecting Control Panel →Administrative Tools →Computer Management
→Disk Management, you can see the service partition, which must not be
deleted.
Note: The recovery files and relevant data used by the rescue system are
saved in the service partition. If the service partition is deleted or damaged
by someone other than authorized Lenovo service personnel, Lenovo will
not be liable for any losses arising therefrom in any way.
2.1 OneKey Recovery
OneKey Recovery is an easy-to-use application. You can use it to restore your
computer to the system default or to a previously backed up state.
Detailed Operation Procedure
1. Repeatedly press and release the F2 key once turning on the computer until
the Lenovo Rescue System open, then select OneKey Recovery.
Note: SystemRecoverywilloverwriteallofthedataontheC:drive.To
prevent loss of data, be sure to back up relevant data before performing
system recovery.
2. Follow the on-screen instructions to select the backup task you want to restore
from and the disk where you want to install the operating system, then press
Next to start the restore.
3. Please wait during the process of system recovery. Do not interrupt the
operation during the recovery process.
4. After the system is recovered successfully, the software will prompt you to
restart the computer. Restart the computer and start the operating system.
2.2 Driver and Application Installation
The Driver and Application Installation function in the rescue system provides a
way for the user to conveniently reinstall all of the Lenovo applications and drivers
that were shipped with your Lenovo hardware.

11
User Guide
Method 1: Automatic Installation
Repeatedly press and release the F2 key once turning on the computer until the
Lenovo Rescue System open, then select Drivers and Application Installation.
Follow the on-screen prompts to install the Lenovo drivers and applications.
Click Install to start installing the Lenovo Drivers and Application Installation
software.
The system will restart. After the system has restarted, the installation process will
continue until it has completed.
Method 2: Manual Installation
In the Windows system, Click Start →All Programs →Lenovo →Lenovo
Drivers and Application Installation.
After starting the procedure, install all the drivers and software manually by
following the prompts.
Notes:
1. Do not install software which is already installed on the computer.
2. Make sure that the Drivers and Application Installation software has
been automatically installed before starting the operating system. The
manual installation function can only be used after the software has
been installed.
2.3 System Setup
System Setup configures the network configuration for the Lenovo Rescue
System to ensure your Rescue System can connect to internet. In addition, System
Setup sets and manages all passwords for the Lenovo Rescue system.
2.3.1 Launch
Repeatedly press and release the F2 key once turning on the computer until the
Lenovo Rescue System open, then select System Setup.
2.3.2 Network Settings
Depending on the network access mode of the computer, select “ADSL” or “LAN
Connection” in the network connection modes.
1. If you select “ADSL” input the username and password of the ADSL
connection.

12 User Guide
2. If you select “LAN connection” configure the IP address and proxy server of the
LAN.
2.3.3 Password Management
Password Management allows you to set and manage the password for Lenovo
Rescue System.
The default password is blank.
Set a password when you access Password Management for the first time.
If you don’t want to set a password, access the system directly and operate it
accordingly.
2.4 System Backup
This backs up your system partition to an image file. In case of a system failure,
you can restore your system from this image file.
In the Windows system, click Start → All Programs → Lenovo → Lenovo
Rescue System.
After starting Rescue System, click System Backup to back up your system
partition by following the prompts.
2.5 System Recovery
Reboot your computer into the system recovery environment. You can choose to
restore to a system backup point or the initial state (factory default settings).
2.6 Create Recovery Disc
Create a bootable recovery disc from the current system. These recovery discs
are used to boot your computer and will guide you through the entire restoration
process.
In the Windows system, click Start → All Programs → Lenovo → Lenovo
Rescue System.
After starting Rescue System, click Create Recovery Disc to create a bootable
recovery disc from the current system.
Follow the on-screen prompts to create recovery discs.

Chapter
Troubleshooting and
Confirming Setup
This chapter contains the following
topics:
Troubleshooting and Problem Resolution
Note: The description of the TV tuner card
in this manual is only used for the machines
which have the TV tuner card. It does not
apply to those machines that do not have a
TV tuner card.
User Guide 13

14 User Guide
Solving Problems
Follow these tips when troubleshooting your computer:
• Ifyouaddedorremovedapartbeforetheproblemstarted,reviewthe
installation procedures to ensure that the part is correctly installed.
• Ifaperipheraldevicedoesnotwork,ensurethatthedeviceisproperly
connected.
• Ifanerrormessageappearsonthescreen,writedowntheexactmessage.
This message may help support personnel diagnose and fix the problem(s).
• Ifanerrormessageoccursinaprogram,seetheprogram’sdocumentation.
Note: The procedures in this document were written for the Windows
default view, so they may not apply if you set your Lenovo® computer to
the Windows Classic view.
3.1 Troubleshooting Display Problems
Problem: Blank screen or no image is displayed on the monitor.
Troubleshooting and problem resolution:
1. Check to see if the monitor has been turned on; if not, press the Power button.
2. Check to see if the monitor power cord is loose; if so, plug the power cord
securely into the monitor.
3. Check to see if the signal cable to the monitor is securely connected to the
connector on the computer graphics card; if not, shut down the computer
then connect the signal cable of the monitor securely to the connector on the
computer graphics card.
Problem: You need to change the display property settings.
Setting display background and icon properties:
1. Right-click the desktop anywhere except over an icon, then select Personalize
from the pop-up menu.
2. From here, select the appropriate options to:
• Changethedesktopbackground
• Selectascreensaver
• Selectcolorsandappearanceoptionsforiconsandtext
• SetresolutionandcolorsintheDisplaySettingsoptions

15
User Guide
Problem: Ripple on screen.
Troubleshooting and problem resolution:
1. Check to see if any of the following devices are located less than one meter
from the computer: refrigerators, electric fans, electric dryers, UPS systems,
regulators, fluorescent lamps or other computers that may be generating
magnetic interference.
2. Move any interfering devices away from the computer.
3. If the problem persists, contact Lenovo Service.
3.2 Troubleshooting Audio Problems
Problem: No sound from the integrated speakers.
Troubleshooting and problem resolution:
• AdjusttheWindowsvolumecontrol—double-clickthespeakericoninthe
lower-right corner of your screen. Ensure that the volume is turned up and the
sound is not muted. Adjust the volume, bass, or treble controls to eliminate
distortion.
• Reinstalltheaudiodriver.
• Disconnectanyheadphonesfromtheheadphoneconnector—soundfrom
the speakers is automatically disabled when headphones are connected to the
computer’s side-panel headphone connector.
Problem: No sound from headphones.
Troubleshooting and problem resolution:
• Checktheheadphonecableconnection—ensurethattheheadphonecableis
securely inserted into the headphone connector.
• AdjusttheWindowsvolumecontrol—clickordouble-clickthespeakericonin
the lower-right corner of your screen. Ensure that the volume is turned up and
the sound is not muted.
3.3 Troubleshooting Software Problems
Problem: You are unable exit a running program normally.
Troubleshooting and problem resolution:
1. Open the Task Manager window by pressing Ctrl, Alt and Delete at the same
time.
2. Select the Application tab, select the problem program, then click the End
Task button.
