Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or damage
to your product.
Danger: Be aware of extremely hazardous or lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2009.
31040007_IC B5_UG_EN_V1.0.indd 1 2009.10.21 4:49:45 PM

31040007_IC B5_UG_EN_V1.0.indd 2 2009.10.21 4:49:45 PM

1
Contents
Contents
Important Safety Information
Chapter 1 Using the Computer Hardware.............................. 1
1.1 Front view................................................................................2
1.2 Left and right view of the computer..........................................3
1.3 Rear view of the computer.......................................................4
1.4 Computer stand ......................................................................5
1.5 Connecting your computer ......................................................6
1.6 Important information about using the computer .....................9
1.7 Keyboard...............................................................................11
1.8 Using the Infra-red (IR) Remote Control ................................12
1.9 Using the Bluetooth remote control .......................................15
Chapter 2 Using the Rescue System .................................... 27
2.1 OneKey Recovery..................................................................28
2.2 Driver and Application Installation ..........................................28
2.3 System Setup ........................................................................29
2.4 System Backup .....................................................................30
2.5 System Recovery ..................................................................30
2.6 Create Recovery Disc ............................................................30
Chapter 3 Using the Computer Software ............................. 31
3.1 Power2Go - Burning Discs ....................................................32
3.2 WinDVD.................................................................................33
3.3 McAfee Security Center.........................................................34
3.4 Media Show ..........................................................................35
3.5 Lenovo CamSuite ..................................................................36
31040007_IC B5_UG_EN_V1.0.indd 1 2009.10.21 4:49:46 PM

2Contents
Chapter 4 System Maintenance and Recovery.................... 37
4.1 Restoring the System ............................................................38
4.2 Backup and Restore..............................................................38
4.3 Cleaning Up the Disk .............................................................38
4.4 Checking For, and Correcting Disk Errors ..............................39
4.5 Defragmenting the Disk(s)......................................................39
4.6 Performing Daily Maintenance Tasks......................................39
Chapter 5 Troubleshooting and Confirming Setup.............. 41
5.1 Troubleshooting Display Problems .........................................42
5.2 Troubleshooting Audio Problems ...........................................43
5.3 Troubleshooting Software Problems.......................................43
5.4 Troubleshooting Problems with Optical Drives and
Hard Disks.............................................................................44
5.5 Special considerations for troubleshooting Windows .............45
5.6 Wireless keyboard and mouse instructions ............................46
31040007_IC B5_UG_EN_V1.0.indd 2 2009.10.21 4:49:46 PM

1
2
3
4
5
Chapter
This chapter contains the following
topics:
ÿComputer hardware introduction
ÿInformation on computer connections
Note: The descriptions in this chapter might
vary from your computer, depending on
computer models and configurations.
User Guide 1
Using the Computer Hardware
31040007_IC B5_UG_EN_V1.0.indd 1 2009.10.21 4:49:47 PM

2User Guide
1.1 Front view
Volume down
Volume up
Brightness down
Brightness up
LCD On/Off
Camera
Built-in microphone
Wireless reset button (or Indicator lights ON/OFF button)
31040007_IC B5_UG_EN_V1.0.indd 2 2009.10.21 4:49:49 PM

3
User Guide
1.2 Left and right view of the computer
Attention: Be sure not to block any air vents on the computer. Blocked
air vents may cause thermal problems.
1
2
3
45
6
Optical drive USB ports (2)
Power button Headphone connector
Card reader Microphone connector
31040007_IC B5_UG_EN_V1.0.indd 3 2009.10.21 4:49:50 PM

4User Guide

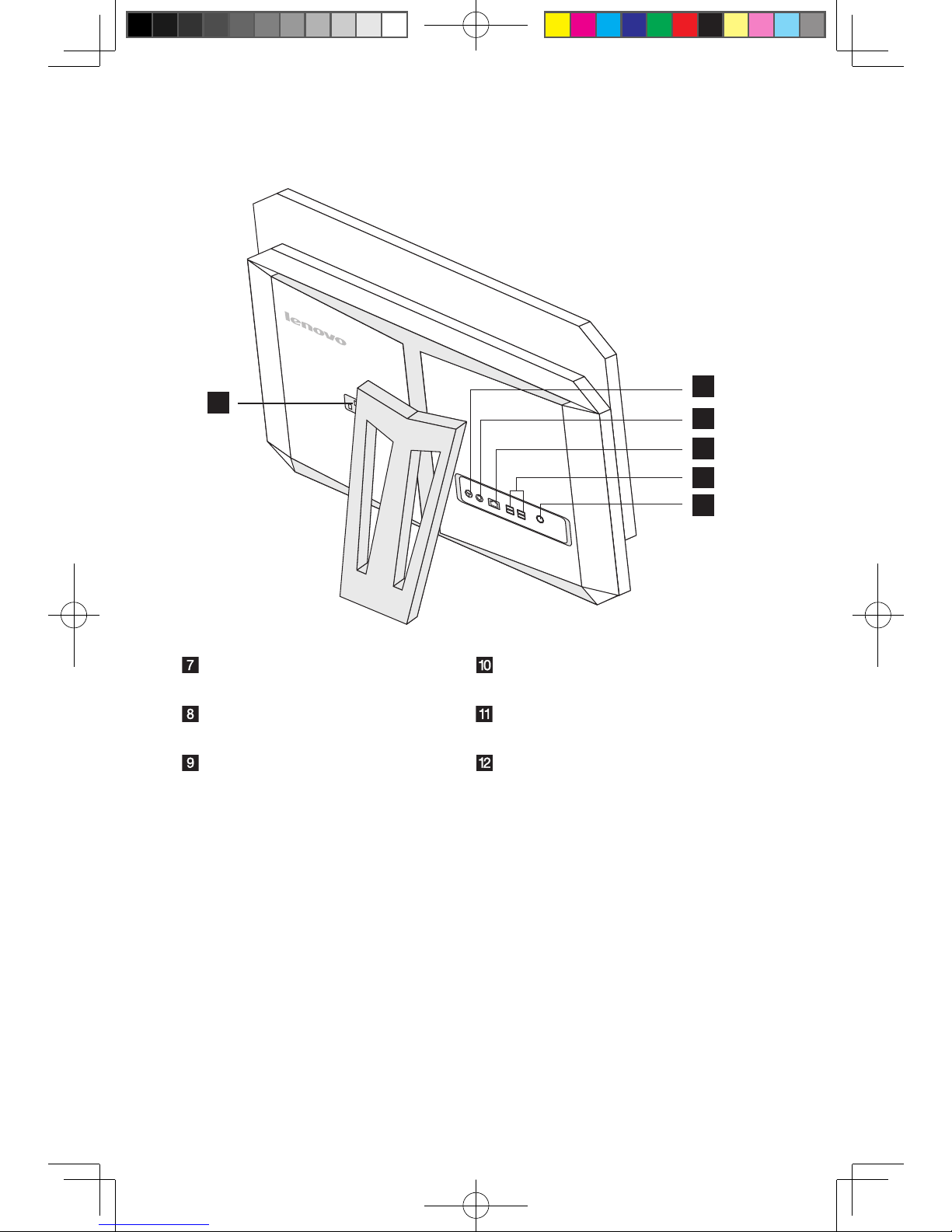

1.3 Rear view of the computer
12
8
9
7
10
11
AV-IN connector
(Selected models only)
USB ports (2)
PS/2 Keyboard connector TV-Tuner connector
(Selected models only)
Ethernet connector Power connector
31040007_IC B5_UG_EN_V1.0.indd 4 2009.10.21 4:49:51 PM

5
User Guide

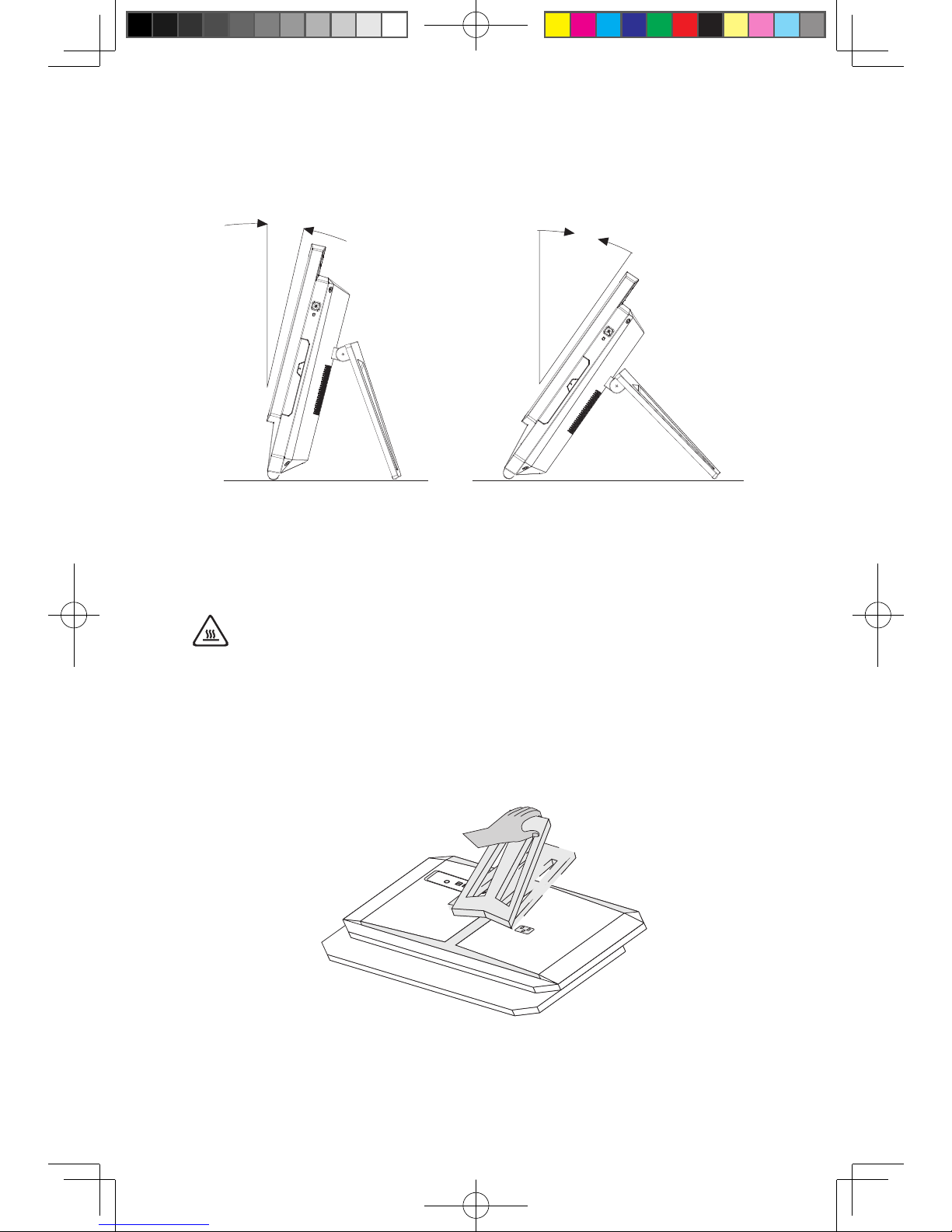

1.4 Computer stand
15° min.
35° max.
Use the stand to position the display to your preference. It can be rotated between
15º and 35º from the vertical.
The stand provides stability to the computer; it is not a removable part.
Attention:
1. The computer stand must remain installed at all times to ensure
maximum system stability.
2. Make sure the angle of the computer is at least 15 degrees from the
vertical; otherwise the computer will be unstable and could fall over.
To open the computer stand, do the following:
31040007_IC B5_UG_EN_V1.0.indd 5 2009.10.21 4:49:54 PM

6User Guide
1.5 Connecting your computer
Use the following information to connect your computer:
• Look for the small connector icons on the back of your computer. Match the
connectors to the icons.
Note: Your computer might not have all of the connectors that are
described in this section.
1.5.1 Check the voltage rating before you connect the
equipment to an electrical outlet to ensure that the
required voltage and frequency match the available
power source.
1.5.2 Connect the keyboard cable to the appropriate keyboard
connector (PS2 connector or USB connector).
1.5.3 Connect the mouse cable to the appropriate mouse
connector (USB connector).
31040007_IC B5_UG_EN_V1.0.indd 6 2009.10.21 4:49:55 PM

7
User Guide

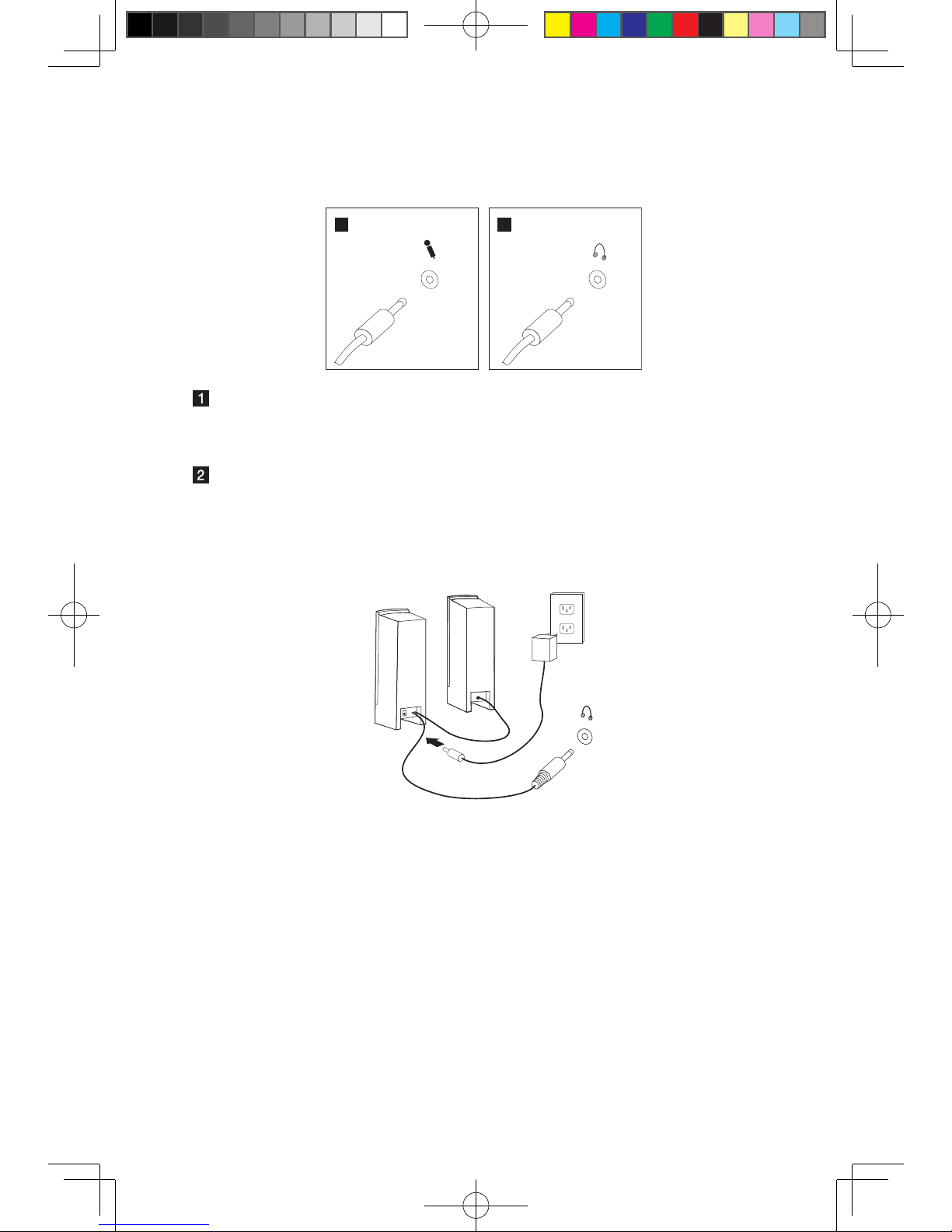

1.5.4 If you have audio devices, attach them using the
following instructions:
1 2
Microphone Use this connector to attach a microphone (purchased separately)
to your computer when you want to record sound or if you use
speech-recognition software.
Headphone Use this connector to attach headphones (purchased separately)
to your computer when you want to listen to music or other
sounds without disturbing anyone.
1.5.5 If you have powered speakers with an adapter:
(This picture is only a sketch print, it does not show the actual figure of the speaker)
a. Connect the cable that runs between the speakers if necessary. On some
speakers, this cable is permanently attached.
b. Connect the adapter cable to the speaker if necessary. On some speakers, this
cable is permanently attached.
c. Connect the speakers to the Headphone port on the computer.
d. Connect the adapter to the power source.
31040007_IC B5_UG_EN_V1.0.indd 7 2009.10.21 4:49:56 PM

8User Guide
1.5.6 If you have powered speakers without an adapter:
(This picture is only a sketch print, it does not show the actual figure of the speaker)
a. Connect the cable that runs between the speakers if necessary. On some
speakers, this cable is permanently attached.
b. Connect the cable to the speaker if necessary. On some speakers, this cable is
permanently attached.
c. Connect the speakers to the Headphone port on the computer.
d. Connect the plug to the power source.
Note: Some models are not equipped with external speakers.
1.5.7 Connect any additional devices that you have. Your
computer might not have all connectors shown.
1 2 3
USB connector Use this connector to attach a device that requires a
USB connection.
Network adapter
connector
Use this connector to attach the computer to an
ethernet-type local area network
TV-Tuner
connector
Only supported on systems with optional TV tuner card.
31040007_IC B5_UG_EN_V1.0.indd 8 2009.10.21 4:49:57 PM

9
User Guide
1.5.8 Connect the power cords properly to grounded electrical
outlets.
1.5.9 Your computer is equipped with a Memory Card Reader
Connector, it is able to read/write data from:
SD/MMC, xD, MS, MS pro, SD Pro
1.6 Important information about using the computer
Press the power button on the side of the computer to turn it on.
31040007_IC B5_UG_EN_V1.0.indd 9 2009.10.21 4:49:58 PM

10 User Guide

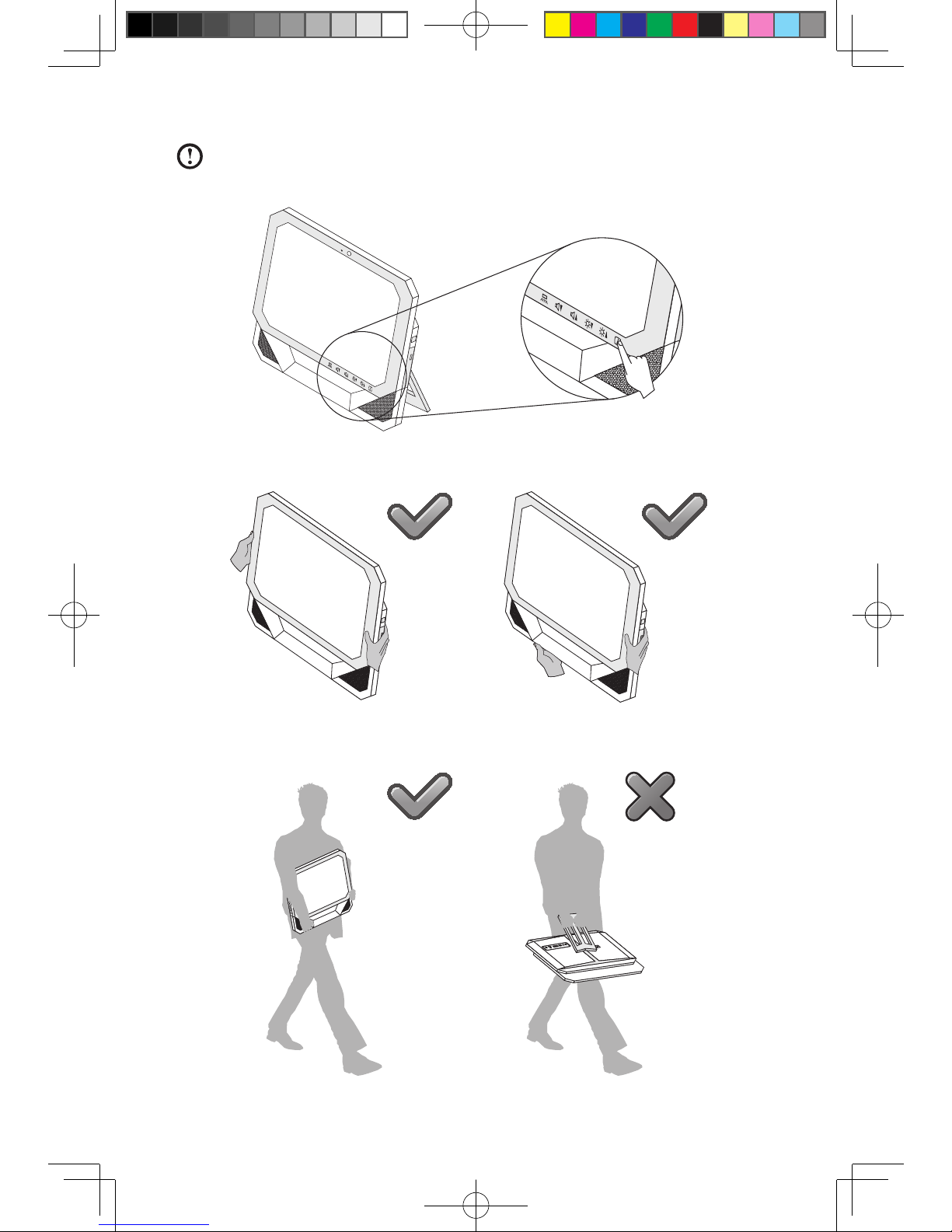

Note: The buttons at the bottom of the screen are touch buttons. When
you touch these, the indicator lights turn on.
Hold the computer tightly when you carry it.
31040007_IC B5_UG_EN_V1.0.indd 10 2009.10.21 4:49:59 PM

11
User Guide

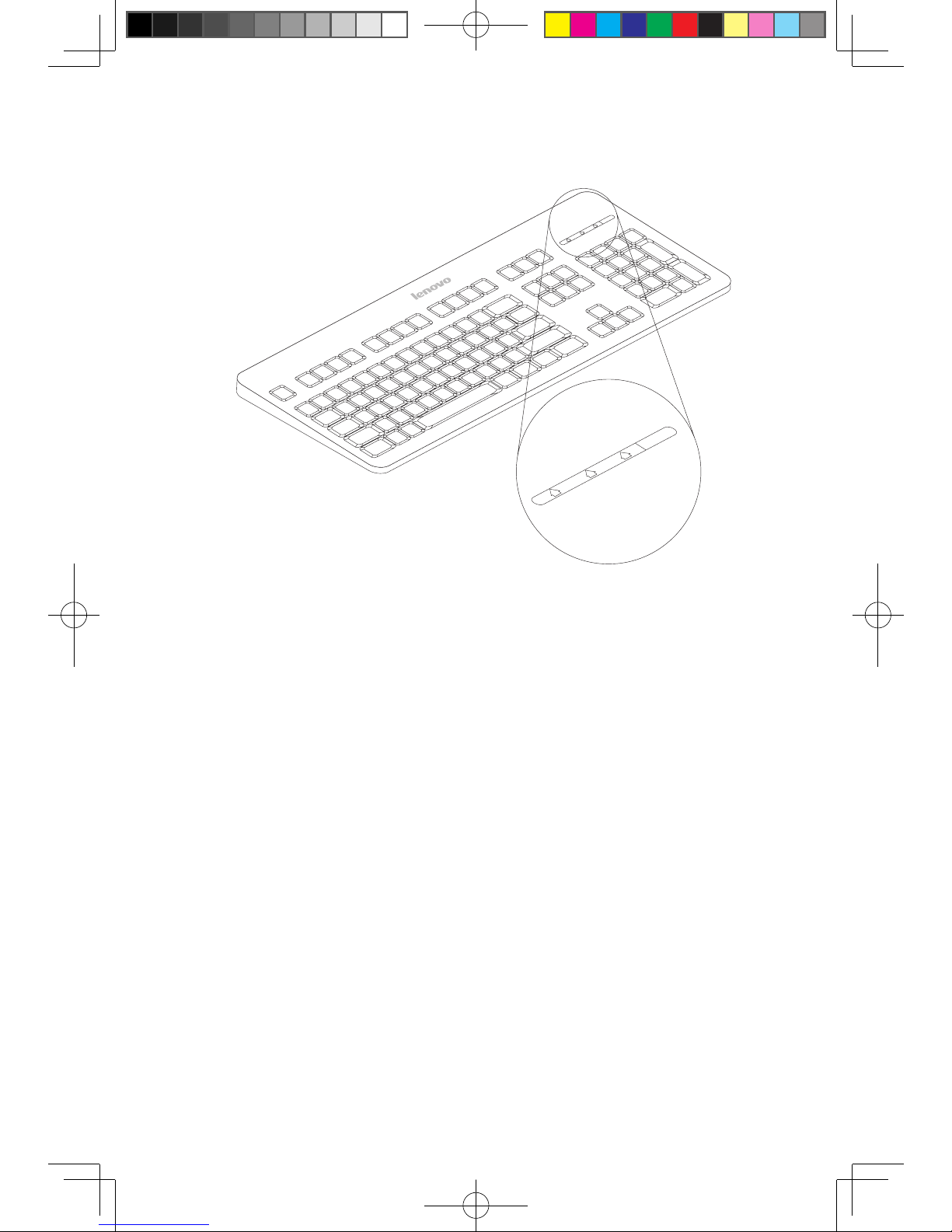

1.7 Keyboard
LVT
LVT
LVT —— After entering Windows, press this key to launch the LVT (Lenovo
Vantage Technology) program, Lenovo’s pre-loaded Home PC software.
In addition to its own functions, the LVT program will allow you to start
other Windows compatible software, specially configured to run on this
model of computer.
F2 —— Your computer has the Lenovo Rescue System installed. To learn more
about this program, turn on the computer, and when the Lenovo logo
appears, press the F2 key and the Lenovo Rescue System will open.
31040007_IC B5_UG_EN_V1.0.indd 11 2009.10.21 4:50:00 PM

12 User Guide

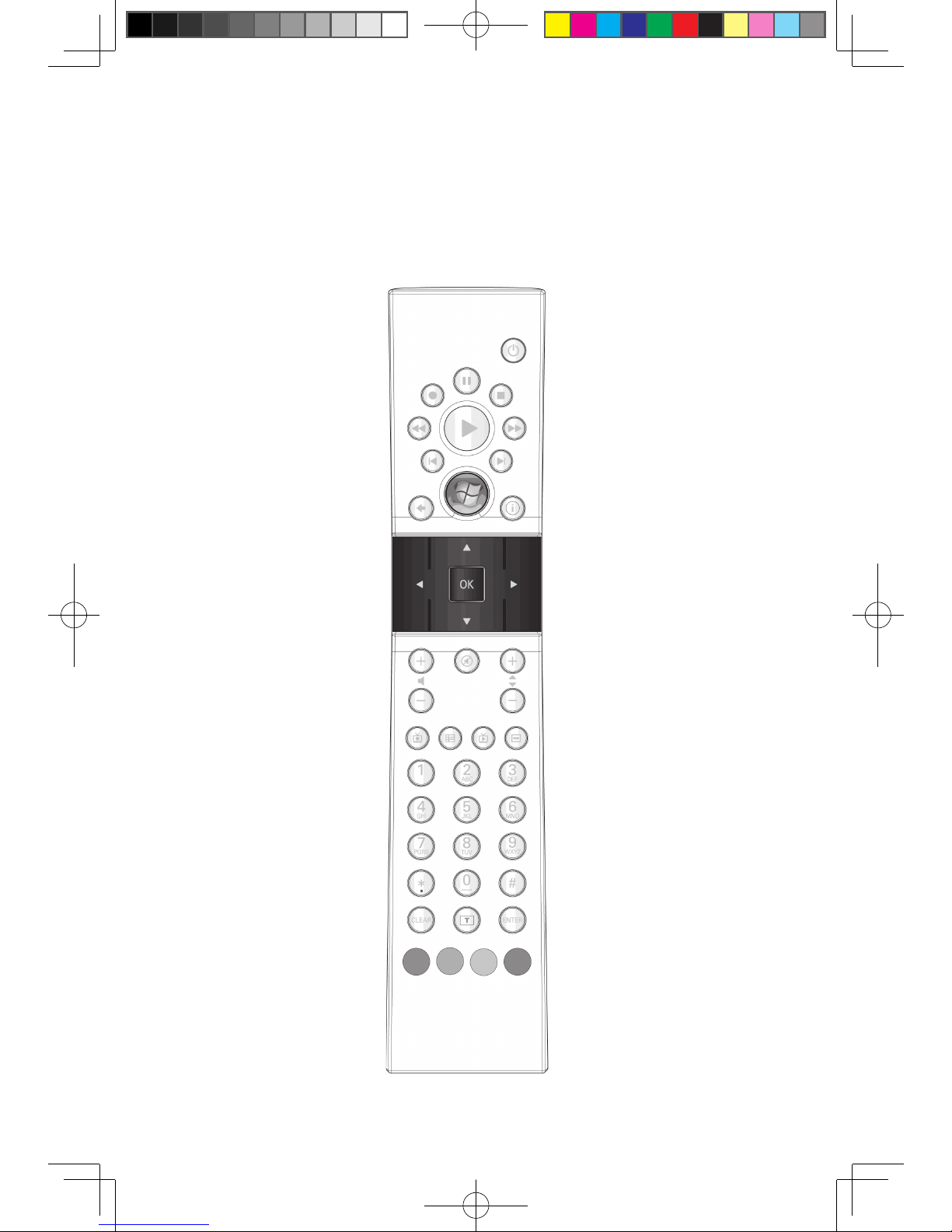

1.8 Using the Infra-red (IR) Remote Control (Only some
models are equipped with IR remote control.)
The IR remote control (only shipped with some types of computers) works with
the remote control receiver on the chassis. Adjust the angle of the remote control
properly.
31040007_IC B5_UG_EN_V1.0.indd 12 2009.10.21 4:50:00 PM

13
User Guide
Buttons on the remote control:
Button Description
Up
Down
Left
Right
OK Confirm
Back
Details
Guide (This function is not available in Microsoft
Windows operating systems.)
Shows live TV on the currently selected channel.
Displays the Recorded TV page in Windows Media
Center.
Play
Pause
Stop
Record
Fast Forward
Rewind
Skip
Replay
31040007_IC B5_UG_EN_V1.0.indd 13 2009.10.21 4:50:03 PM

14 User Guide

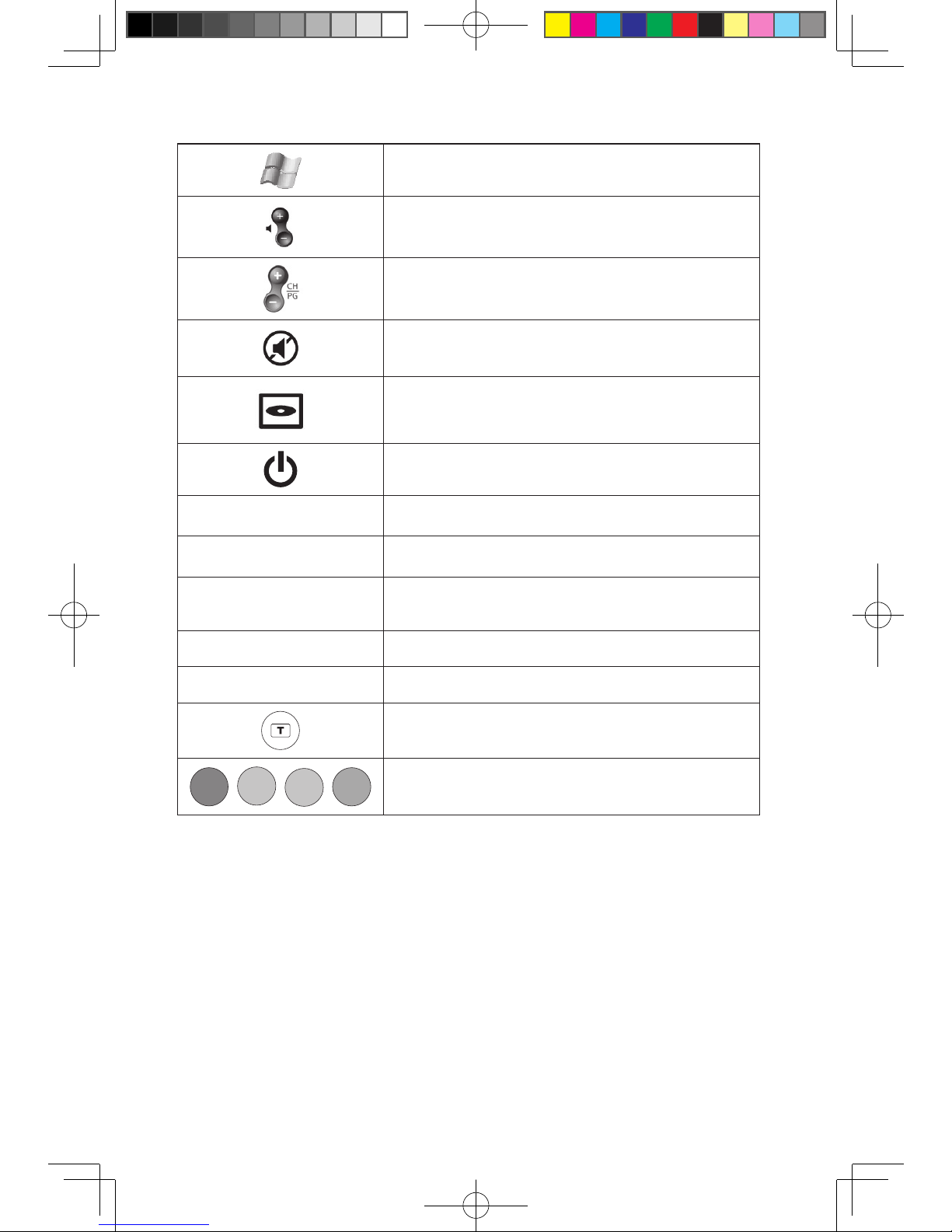

Starts Windows Media Center.
Turns volume up/down
Previous/next channel
Mute
DVD menu
Power supply (standby)
0~9 Number (or Letter) buttons
## key
** key
CLEAR Clear
ENTER Enter
Teletex ON/OFF (Selected models only)
Red, Green, Yellow, Blue (Selected models only)
31040007_IC B5_UG_EN_V1.0.indd 14 2009.10.21 4:50:04 PM

15
User Guide

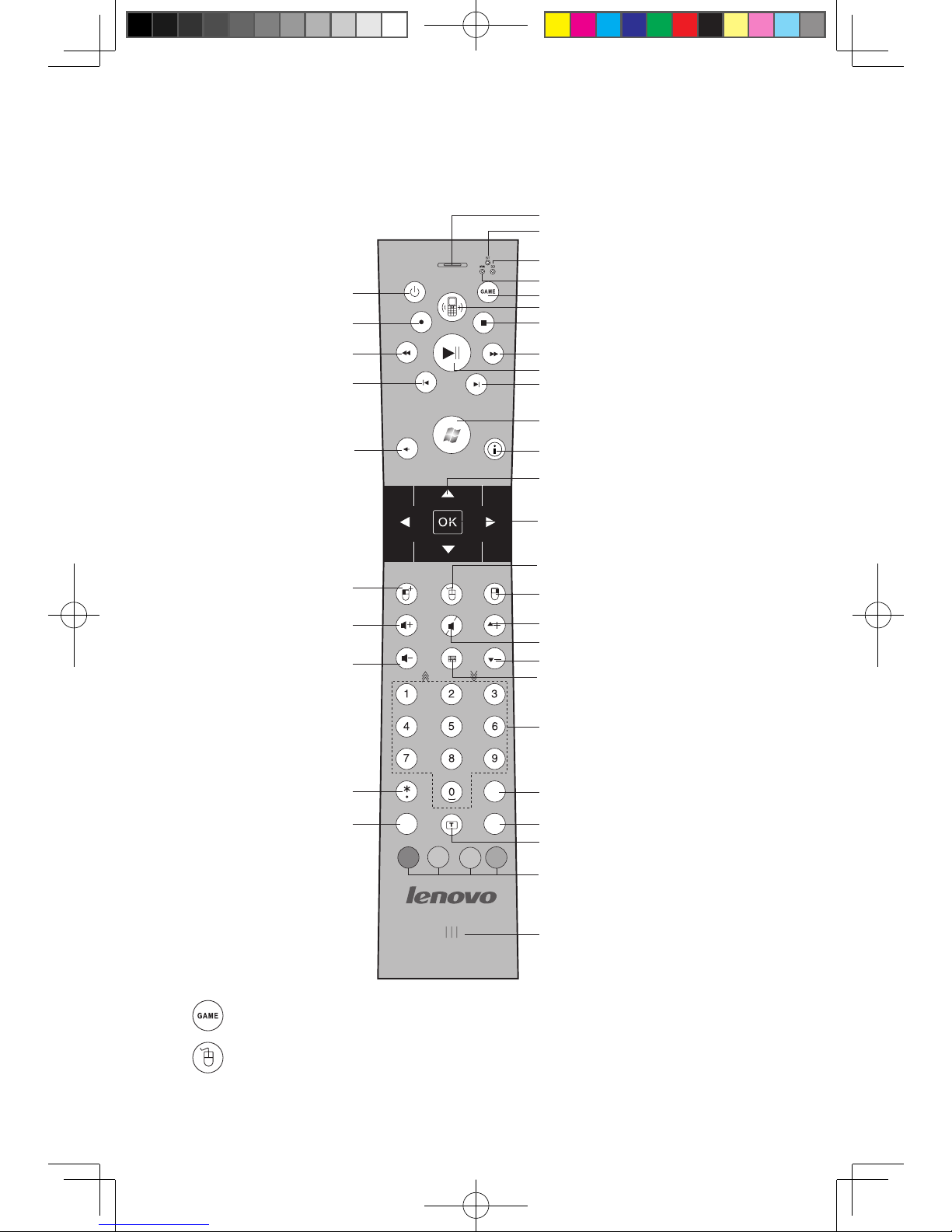

1.9 Using the Bluetooth remote control (Only some
models are equipped with Bluetooth remote control.)
A
X
B
Y
Power
Record
Rewind
Replay
Back
Left air mouse/Game A
Volume up/Game X
Volume down/Game
throttle up
* key
Clear
Headphone
LED indicator of Bluetooth
LED indicator of joystick game
LED indicator of CD game
Game switch
Phone On/Off
Stop
Fast forward
Play or pause
Skip
Windows Media Center Start
More
Direction
OK
Air mouse ON/OFF
Right air mouse/Game B
Channel Up/Game Y
Mute
Channel down/Game throttle down
Guide
Digit/Input sources
# key
Enter
Teletex On/Off (Select models only)
Microphone
ABC DEF
JKLGHI MNO
TUVPQRS WXYZ
ƿ
(Select models only )
— Turn on/off/switch to games
— Turn on/off the air mouse
31040007_IC B5_UG_EN_V1.0.indd 15 2009.10.21 4:50:06 PM
