Lenovo Smart Display User manual

Installation Guide

＊All pictures and illustrations in this document are for your reference only and may dier from the final product.

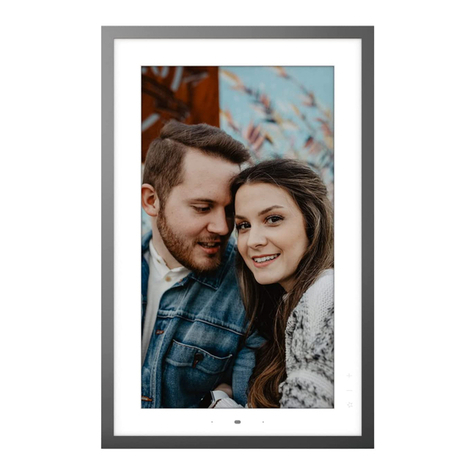

Lenovo Smart
Frame
Metallic outer
frame
Safety, Warranty &
Quick Start Guide
Strong screws Brick wall plugs Drywall plugs
Power adapter Proprietary
Mounting bracket
WHAT’S IN THE BOX

WALL MOUNTING INSTALLATION
Ensure that the level is at the top and the bubble is centered between the guide
lines in a horizontal position
Mark the 4 drill positions of the mount in the wall with a pencil
Use a power drill with a ¼ (6mm) diameter drill bit to drill four holes into the wall
Hammer the wall plugs* into the four newly drilled holes, align the mounting bracket,
and use a screwdriver to screw in all four strong screws to mount the plate in place
*For brick walls, use brick wall plugs and strong screws (4A, 5)
*For drywalls, use drywall plugs and strong screws (4B, 5)
Plug the power adapter into the mounting bracket
Mount the main frame onto the mounting bracket – ensure the Lenovo Smart Frame
pogo pins are aligned with the mounting bracket pogo pins. A clicking sound indicates
it has been installed correctly. The wall mounting bracket has a built-in reel, which you
can wind the cord around for cord management.
1.
2.
3.
4-6.
7.
8.
8
3
4A
4B
1
2
5
6
7
1
2

WALL MOUNTING INSTALLATION
Gently mount the metallic outer frame onto the
Lenovo Smart Frame
Plug the power adaptor into a wall outlet to start
the Lenovo Smart Frame
9.
10.
9
10

If starting from the outer frame, remove from the four corners.
LENOVO SMART FRAME REMOVAL INSTRUCTIONS
Unplug the charger, then pull the left and right unlock buttons outwards to unlock
the frame. If the metallic decorative frame is installed, remove that first
Unmount the frame
Press the unlock key and gently pull the charging head.
1.
2.
3-4.
11 23
4

1
2
3
MOUNTING ON A TABLE FUNCTION KEY
Gently mount the metallic outer frame
onto the Lenovo Smart Frame
Connect the power adapter
Ensure the Lenovo Smart Frame is firmly mounted
against a surface
Plug the charger into the power supply
Single tap: Next item (Photo, Artwork)
Long press: Volume up
Single tap: Previous item (Photo, Artwork)
Long press: Volume down
Single tap: Next channel
Long press (over 1.5s): Mark (or unmark) a photo as favorite
1.
2.
3.
1.
2.
3.
4.
1
2
3
4

GESTURE CONTROL
Swipe left for
next item
Swipe right
for previous item
Swipe up
for next channel
Gesture sensing
detection range
The capacitive buttons located on the right side of the frame will light up when you’re within range, indicating that
the frame is ready to detect your gestures.
To control the frame through gestures, make sure your hand glides parallel to the frame and across the sensing
range of the sensor. Users should stand within the gesture sensing range for an optimal user experience. Sunlight
and bright light (>1,000 lux) environments may aect use.
> 55cm
<
55cm
1.
2.
