Lenovo Smart Frame CD-3L501F User manual

Lenovo Smart Frame
Safety, Warranty & Quick Start Guide
Lenovo CD-3L501F
Read this guide carefully before using your device.

Reading before using your device
Reading first - regulatory information
Device models equipped with wireless communications comply with the radio
frequency and safety standards of any country or region in which it has been
approved for wireless use. In addition, if your product contains a telecom modem,
it complies with the requirements for connection to the telephone network in your
country.
Be sure to read the Regulatory Notice for your country or region before using
the wireless devices contained in your device. To obtain a PDF version of the
Regulatory Notice, go to https://support.lenovo.com.
Getting support
After the frame is installed, use your mobile phone to search for and download the
Lenovo Smart Frame App from Google Play Store or Apple App Store to begin the
setup process. To learn more, go to https://support.lenovo.com.
Accessing your User Guide
Your User Guide contains detailed information about your device. To download
the publications for your device, go to https://support.lenovo.com and follow the
instructions on the screen.
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other
countries, or both.
Other company, product, or service names may be trademarks or service marks of
others.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered
pursuant a General Services Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

Open source information
Lenovo Smart Frame (the “Product”) may include software made publicly available
by Lenovo, including software licensed under the General Public License and/or the
Lesser General Public License (the “open source software”).
You may obtain corresponding copy of machine-readable source code for any such
open source software licensed under the General Public License and/or the Lesser
General Public License (or any other license requiring us to make a written oer to
provide corresponding source code to you) from Lenovo for a period of three years
without charge except for the cost of media, shipping, and handling, upon written
request to Lenovo. This oer is valid to anyone in receipt of this Product. You may
send your request in writing to the address below accompanied by a check or
money order for $15 to:
Lenovo Legal Department
Attn: Open Source Team / Source Code Requests
8001 Development Dr.
Morrisville, NC 27560
Please include the “Model” name and the “Build Number” of this Product as part of
your request, which can be found in the “About Device” menu of the Lenovo Smart
Frame application installed on your mobile device. Be sure to provide a return
address.
The open source software is distributed in hope it will be useful, but WITHOUT
ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or
FITNESS FOR A PARTICULAR PURPOSE. See for example the GNU General Public
License and/or the Lesser General Public License for more information.

What’s in the box
All pictures and illustrations in this document are for your reference only and
may dier from the final product.
Smart Frame
Power adapter
Strong screws
Outer Frame
Mounting bracket
with protection cover
Brick wall plugs
Safety, Warranty &
Quick Start Guide
Drill bit
Drywall plugs

1

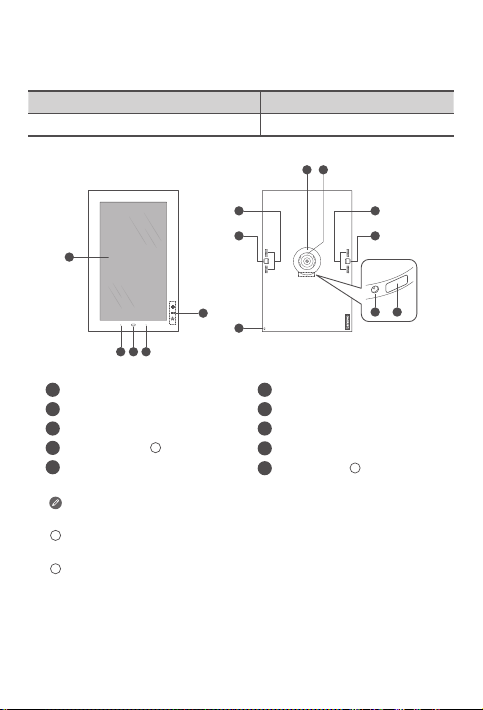

Device overview
Name Model
Lenovo Smart Frame Lenovo CD-3L501F
1Screen
2Microphones
3Gesture/Proximity Sensor
4Virtual buttons 1
5Base
2
1
4
3 2
9
5 6
8
7
10
8
10
7
6Positioning pin
7Speakers
8Unlock buttons
9Power adapter connector
10 Service tool 2
All pictures and illustrations in this document are for your reference
only and may dier from the final product.
1The virtual buttons will light up when you’re near, specific functions
are shown in the Function Key.
2Only used for after-sales service maintenance. Do not open the
service tool cover. Doing so may cause permanent damage to the
Lenovo Smart Frame.

2
1Make sure the level is on top and in a horizontal position.
2Draw the position of the four holes with a pencil.
3
Use a power drill with a  inch (about 6 mm) drill bit to drill four holes
in the wall.
4– 6First install the plugs into the four holes, then place the mounting
bracket and use a screwdriver and four strong screws to fix in place.
• For brick wall, use brick wall plugs and strong screws. (4A, 5)
• For drywall, use drywall plugs and strong screws. (4B, 5)
7Connect the power adapter.
8Place the main frame on the mounting bracket, and make sure the
positioning pin is inserted into the positioning hole 1. A clicking sound
indicates it has been installed correctly.
2The wall mounting bracket has a built-in reel to wind the cord around
and keep the cord tidy.
Wall mounting
8
3
4A
4B
1
2
5
6
7
1
2

3
9
10

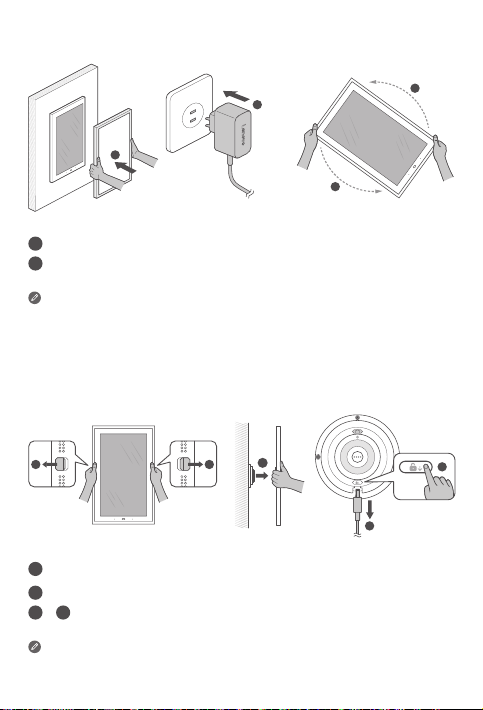

9Install the outer frame gently to avoid accidental damage.
10 Plug the charger into the power outlet.
• Users can choose whether to first install the main frame or outer
frame as needed.
• The product supports horizontal and vertical rotation.
• Caution for outer frame edges.
1Unplug the charger, then pull the left and right unlock buttons
outwards to unlock the frame.
2Remove the frame.
3– 4Press the unlock key, and pull the charging head gently.
Users can also first remove the outer frame and then remove the frame.
If starting from the outer frame, remove from the four corners.
11
11
Removal Instructions
11 23
4

4
Press 2and 3simultaneously for 5 seconds to put the smart frame in
reconfiguration mode.
Desktop mode
Function Key
1
2
3
41Install the outer frame gently to avoid
accidental damage.
2Connect the power adapter.
3Make sure the bottom of the product
fitting on the table completely.
4Plug the charger into the power supply.
• The outer frame does not have an
anti-slip feature, please pay attention
to prevent the product from slipping
when in desktop mode.
• Caution for outer frame edges.
1Single tap: Next item
2Single tap: Previous item
3Single tap: Next channel
Long press (over 1.5s): mark or
unmark a photo as a favorite
1
2
3

5
Gesture Control
> 55cm
<
55cm
• The virtual buttons located on the right side of the frame will light up
when you’re near, indicating the frame is ready for gestures.
• To control the frame with gestures, make sure your hand slides parallel
to the frame and through the range of the sensor. Users should stand
within gesture sensing range for better using experience. Sunlight and
bright light (>1000Lux) environments may aect use.
Swipe left for next item
Swipe up for next channel
Swipe right for previous item
Gesture sensing range

6
Important safety and handling information
Plastic bag notice
Danger: Plastic bags can be dangerous. Keep plastic bags away from babies and
children to avoid danger of suocation.
Safety instructions for parents and adult supervisors
Your device is not a toy. As with all electrical products, precautions should be
observed during handling and using of electrical products to reduce the risk of
electric shock. If parents choose to allow children to use the device, they should
caution his or her child about the potential hazard, for example the outer frame
edges, while using and handling the device.
Parents should inspect the device (including the ac power adapter and the small
part, for example screws and plugs, as applicable) for damage after open the box.
Make sure to keep these small parts away from your child to prevent accidential
hurts especially swallowing. If any small parts have been swallowed or placed inside
any part of the body, see immediate medial attention soon. Routinely check this
device to ensure that the device is working properly and is safe for children to use.

7
Service and support information
Lenovo Limited Warranty notice
This product is covered by the terms of the Lenovo Limited Warranty (LLW), version
L5050010-02 08/2011. Read the LLW at https://www.lenovo.com/warranty/llw_02.
You can view the LLW in a number of languages from this website.
Warranty information
Lenovo provides a warranty period for your device. To check the warranty status of
your device purchase upgrades, go to https://support.lenovo.com/warrantylookup,
and then select the product and follow the on-screen instructions.
Get support
Log into Smart Frame APP, get support from Lenovo by entering “Help” page.
Visit Lenovo’s support website (https://support.lenovo.com) with the device serial
number to get more Lenovo support options, or scan the QR code, and then follow
the on-screen instructions.

8
Recycling information for Japan
Recycling and disposal information for Japan is available at:
http://www.lenovo.com/recycling/japan
Additional recycling statements
Additional information about recycling device components and batteries is in your
User Guide. See “Accessing your User Guide” for details.
Environmental, recycling, and disposal information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment to
responsibly recycle their equipment when it is no longer needed. Lenovo oers a
variety of programs and services to assist equipment owners in recycling their IT
products. For information on recycling Lenovo products, go to
http://www.lenovo.com/recycling.
WEEE information
Electrical and electronic equipment marked with the symbol of a
crossed-out wheeled bin may not be disposed as unsorted municipal
waste. Waste of electrical and electronic equipment (WEEE) shall be
treated separately using the collection framework available to customers
for the return, recycling, and treatment of WEEE. Country-specific
information is available at: http://www.lenovo.com/recycling

9
Restriction of Hazardous Substances Directive (RoHS)
Turkey
Lenovo products sold in Turkey, on or after June 1, 2009, meet the requirements of
the former Republic of Turkey Restriction of Hazardous Substances legislation from
30th of May 2008 and the Control of Waste Electrical and Electronic Equipment
Regulations from 22nd of May 2012 (“Turkey RoHS”).
Ukraine
Lenovo products sold in Ukraine, on or after January 1, 2011, meet the requirements
of the Technical Directive on Restriction of Hazardous Substances in Electric
and Electronic Equipment enforced by the Government, Decision No 1057 dated
2008/12/03” (“Ukraine TR on RoHS”).
India
Lenovo products sold in India, on or after May 1, 2012, meet the requirements of the
India E-waste (Management) Rules (“India RoHS”).
Vietnam
Lenovo products sold in Vietnam, on or after September 23, 2011, meet the
requirements of the Vietnam Circular 30/2011/TT-BCT (“Vietnam RoHS”).
European Union
Lenovo Products meet the requirement of Directive 2011/65/EC on the restriction of
the use of the certain hazardous substances in electrical and electronic equipment
(“RoHS 2”). Lenovo products sold in the European Union, from the 21st July 2019,
meet the requirement of Commission Delegated Directive (EU 2015/863) amending
Directive 2011/65/EU. For more information about Lenovo progress on RoHS, go to:
https://www.lenovo.com/us/en/social_responsibility/RoHS-Communication.pdf
Singapore
Lenovo products sold in Singapore, on or after June 1, 2017, meet the requirements
of Government Gazette order No. S 263/2016 Restriction of Hazardous Substances
in Electrical and Electronic Equipment in Singapore (“SG-RoHS”).

10
European Union compliance statement
European Union conformity
Compliance with the RE Directive
Lenovo PC HK Limited declares that the radio equipment type Lenovo CD-3L501F
is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address:
https://www.lenovo.com/us/en/compliance/eu-doc
This radio equipment operates with the following frequency bands and maximum
radio-frequency power:
Model Name Frequency Bands Maximum Conducted
Power (dBm)
Lenovo CD-3L501F
WLAN 2400-2483.5 <20
WLAN 5150-5250 <20
WLAN 5250-5350 <20
WLAN 5470-5725 <20
WLAN 5725-5850 <14
Bluetooth 2400-2483.5 <10
The above information is for EU countries only. Please refer to the actual
product for supported frequency bands in other countries.

©Copyright Lenovo 2020. V1.3_20200904
72-WANLUT-QSGC1 MC
Printed in China
