Lenovo Smart Frame CD-3L501F How to use

Lenovo Smart Frame
Safety, Warranty & Quick Start Guide
Lenovo CD-3L501F
Read this guide carefully before using your device.
https://support.lenovo.com
https://forums.lenovo.com

Reading before using your device
Reading first - regulatory information
Device models equipped with wireless communications comply with the radio
frequency and safety standards of any country or region in which it has been
approved for wireless use. In addition, if your product contains a telecom modem,
it complies with the requirements for connection to the telephone network in your
country.
Be sure to read the Regulatory Notice for your country or region before using
the wireless devices contained in your device. To obtain a PDF version of the
Regulatory Notice, go to https://support.lenovo.com.
Getting support
To learn more, go to https://support.lenovo.com.
Accessing your User Guide
Your User Guide contains detailed information about your device. To download
the publications for your device, go to https://support.lenovo.com and follow the
instructions on the screen.
Legal notices
Lenovo and the Lenovo logo are trademarks of Lenovo in the United States, other
countries, or both.
Other company, product, or service names may be trademarks or service marks of
others.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Atmos, and the
double-D symbol are trademarks of Dolby Laboratories.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered
pursuant a General Services Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.

1
Device overview
1Screen 2Microphones 3Sensor
Name Model
Lenovo Smart Frame Lenovo CD-3L501F
2
1
3 2

2
1Base
2Positioning post
3Speakers
4Unlock button
5Power adapter connector
6Service tool
All pictures and illustrations in this document are for your reference
only and may dier from the final product.
5
1 2
4
3
6
4
6
3

3
Wall mounting
1Make sure the level is on top and in a horizontal position.
2Draw the position of the four holes with a pencil.
3Use a drill to drill 4 holes in the wall.
3
1
2

4
4– 6Use a screwdriver to insert the screw into the positioning hole above to
fix it. For a brick wall or concrete wall use strong screws and plugs, and
for drywall use drywall plugs.
5
4
6
5
6

5
7Connect the power adapter.
8Place the frame on the buckle.
The wall mounting bracket has a winding function and can tidy up the
wiring harness.
8
7

6
9Install the outer frame.
10 Plug the charger into the power supply.
The outer frame is made of wood and metal. Since the metal is heavier,
users can choose according to the situation whether it should be
installed first.
9
10

7
Removal Instructions
1Push the unlock buttons.
The product supports horizontal and vertical rotation.
11
11
11

8

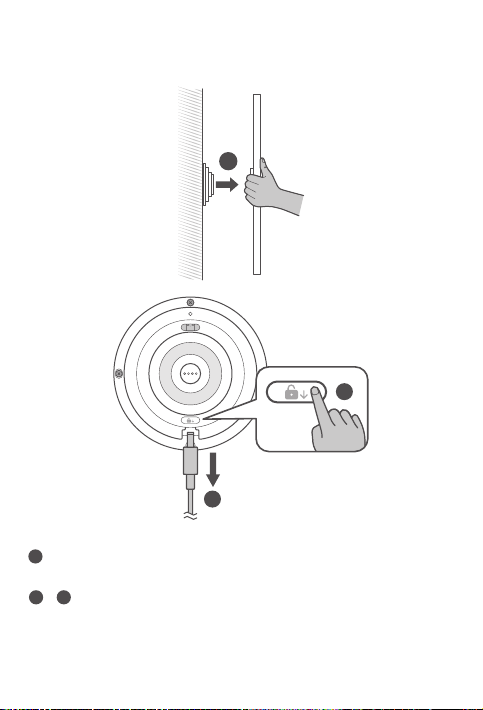

2Remove the frame, you can also first remove the outer frame and then
remove the frame. If starting from the outer frame, remove starting
from the four corners.
3– 4Press the unlock button, and pull the charging head gently.
2
3
4

9
Desktop mode
1
2
1Install the outer frame.
2Connect the power adapter.

10
3
4
3Put it on the table.
4Plug the charger into the power supply.

11
Important safety and handling information
Plastic bag notice
Danger: Plastic bags can be dangerous. Keep plastic bags away from babies and
children to avoid danger of suocation.
Safety instructions for parents and adult supervisors
Your mobile device is not a toy. As with all electrical products, precautions should
be observed during handling and using of electrical products to reduce the risk of
electric shock. If parents choose to allow children to use the device, they should
caution his or her child about the potential hazard while using and handling the
mobile device.
Parents should inspect the mobile device (including the ac power adapter and
the small part, as applicable) periodically for damage. Routinely check this mobile
device to ensure that the device is working properly and is safe for children to use.
Service and support information
Lenovo Limited Warranty notice
This product is covered by the terms of the Lenovo Limited Warranty (LLW),
version L5050010-02 08/2011. Read the LLW at https://www.lenovo.com/
warranty/llw_02. You can view the LLW in a number of languages from this
website.
Warranty information
Lenovo provides a warranty period for your device. To check the warranty status of
your device purchase upgrades, go to https://support.lenovo.com/warrantylookup,
and then select the product and follow the on-screen instructions.

12
Get support
Log into Smart Frame APP, get support from Lenovo by entering
“Help” page.”
Visit Lenovo’s support website (https://support.lenovo.com) with the device serial
number to get more Lenovo support options, or scan the QR code, and then follow
the on-screen instructions.
Environmental, recycling, and disposal information
General recycling statement
Lenovo encourages owners of information technology (IT) equipment to
responsibly recycle their equipment when it is no longer needed. Lenovo oers a
variety of programs and services to assist equipment owners in recycling their IT
products. For information on recycling Lenovo products, go to http://www.lenovo.
com/recycling.
WEEE information
Electrical and electronic equipment marked with the symbol of a
crossed-out wheeled bin may not be disposed as unsorted municipal
waste. Waste of electrical and electronic equipment (WEEE) shall be
treated separately using the collection framework available to customers
for the return, recycling, and treatment of WEEE. Country-specific
information is available at: http://www.lenovo.com/recycling

13
Recycling information for Japan
Recycling and disposal information for Japan is available at:
http://www.lenovo.com/recycling/japan
Additional recycling statements
Additional information about recycling device components and batteries is in your
User Guide. See “Accessing your User Guide” for details.
Restriction of Hazardous Substances Directive (RoHS)
Turkey
Lenovo products sold in Turkey, on or after June 1, 2009, meet the requirements of
the former Republic of Turkey Restriction of Hazardous Substances legislation from
30th of May 2008 and the Control of Waste Electrical and Electronic Equipment
Regulations from 22nd of May 2012(“Turkey RoHS”).
Ukraine
Lenovo products sold in Ukraine, on or after January 1, 2011, meet the requirements
of the Technical Directive on Restriction of Hazardous Substances in Electric
and Electronic Equipment enforced by the Government, Decision No 1057 dated
2008/12/03” (“Ukraine TR on RoHS”).
India
Lenovo products sold in India, on or after May 1, 2012, meet the requirements of the
India E-waste (Management) Rules (“India RoHS”).
Vietnam
Lenovo products sold in Vietnam, on or after September 23, 2011, meet the
requirements of the Vietnam Circular 30/2011/TT-BCT (“Vietnam RoHS”).
European Union
Lenovo Products meet the requirement of Directive 2011/65/EC on the restriction of
the use of the certain hazardous substances in electrical and electronic equipment
(“RoHS 2”). Lenovo products sold in the European Union, from the 21st July 2019,
meet the requirement of Commission Delegated Directive (EU 2015/863) amending
Directive 2011/65/EU. For more information about Lenovo progress on RoHS, go to:
https://www.lenovo.com/us/en/social_responsibility/RoHS-Communication.pdf
Singapore
Lenovo products sold in Singapore, on or after June 1, 2017, meet the requirements
of Government Gazette order No. S 263/2016 Restriction of Hazardous Substances
in Electrical and Electronic Equipment in Singapore (“SG-RoHS”).

14
European Union compliance statement
European Union conformity
Compliance with the RE Directive
Lenovo PC HK Limited declares that the radio equipment type Lenovo CD-3L501F,
is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet
address:
https://www.lenovo.com/us/en/compliance/eu-doc
This radio equipment operates with the following frequency bands and maximum
radio-frequency power:
Model Name Frequency Bands (MHz) Maximum Conducted
Power (dBm)
Lenovo CD-3L501F
WLAN 2400-2483.5 20
WLAN 5150-5250 20
WLAN 5250-5350 20
WLAN 5470-5725 20
WLAN 5725-5850 <14
Bluetooth 2400-2483.5 <10
The above information is for EU countries only. Please refer to the actual
product for supported frequency bands in other countries.

©Copyright Lenovo 2020. V1.0_20200302
SSC8C09735 MC
Printed in China
15

Lenovo
Lenovo CD-3L501F
Regulatory Notice V1.0

Lenovo Regulatory Notice
■Read first —regulatory information
Read this document before using your device. This device complies with the radio
frequency and safety standards of any country or region in which it has been approved for
wireless use. Install and use your device according to the following instructions.
The latest version of this Regulatory Notice has also been uploaded on the Lenovo
Support Web site. To refer to it, go to http://support.lenovo.com/, and then click Guides &
Manuals.
Lisez ce document avant d'utiliser votre appareil . Cet appareil est conforme aux
normes d'un pays ou d'une région fréquence radio et de sécuritédans laquelle il a été
approuvépour une utilisation sans fil. Installez et utilisez votre appareil en suivant les
instructions suivantes .
La dernière version de cet avis de la réglementation a également ététéléchargésur le
site Web de support Lenovo . Pour la consulter , allez àhttp://support.lenovo.com/ ,
puis cliquez sur Guides et manuels .
■USA —Federal Communications Commission (FCC)
I. Integrated WLAN & Bluetooth function
• FCC ID: O57CD3L501F
Wireless LAN function marketed in the USA and Canada do not support nor function in
the extended channels (12ch,13ch).
i) FCC RF Exposure statement:
the radiator and your body.
ii) FCC ID of wireless function:
The FCC ID for the Integrated WLAN & Bluetooth function is indicated on the label
affixed on the bottom side of your device.
iii) Radio Frequency interference requirements:
• This product has been tested and found to comply with the limits for a Class B digital
device pursuant to FCC Part 15 Subpart B and C and E.
II. Simultaneous use of RF transmitters
Please make sure of the following conditions on use of wireless features:
1. When you use any other RF option device, all other wireless features including the
above integrated devices in your Lenovo device are required to be turned off.
The device should be installed and operated with a minimum distance of 20cm between

2. Users must follow the RF Safety instructions on wireless option devices that are
included in the RF option device’s user’s manual.
■Electronic emission notices for North America
Federal Communications Commission (FCC) Supplier’s Declaration
of Conformity
The following information refers to [ Lenovo CD-3L501F ] , machine type: [ZA6G]
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult an authorized dealer or service representative for help.
Lenovo is not responsible for any radio or television interference caused by using
other than recommended cables and connectors or by unauthorized changes or
modifications to this equipment.Unauthorized changes or modifications could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Responsible Party:
Lenovo (United States) Incorporated
7001 Development Drive
Morrisville, NC 27560
Email: [e-mail]
