Chapter 1. Getting to know your computer
Top v i ew --------------------------------------------------------------------------------------
Attention:
•Do not open the display panel beyond 170 degrees. When closing the display panel, be
careful not to leave pens or any other objects in between the display panel and the
keyboard. Otherwise, the display panel may be damaged.
Note: The dashed areas indicate parts that are not visible externally.
g
f
d
e
ab
c
h
i

Chapter 1. Getting to know your computer
2

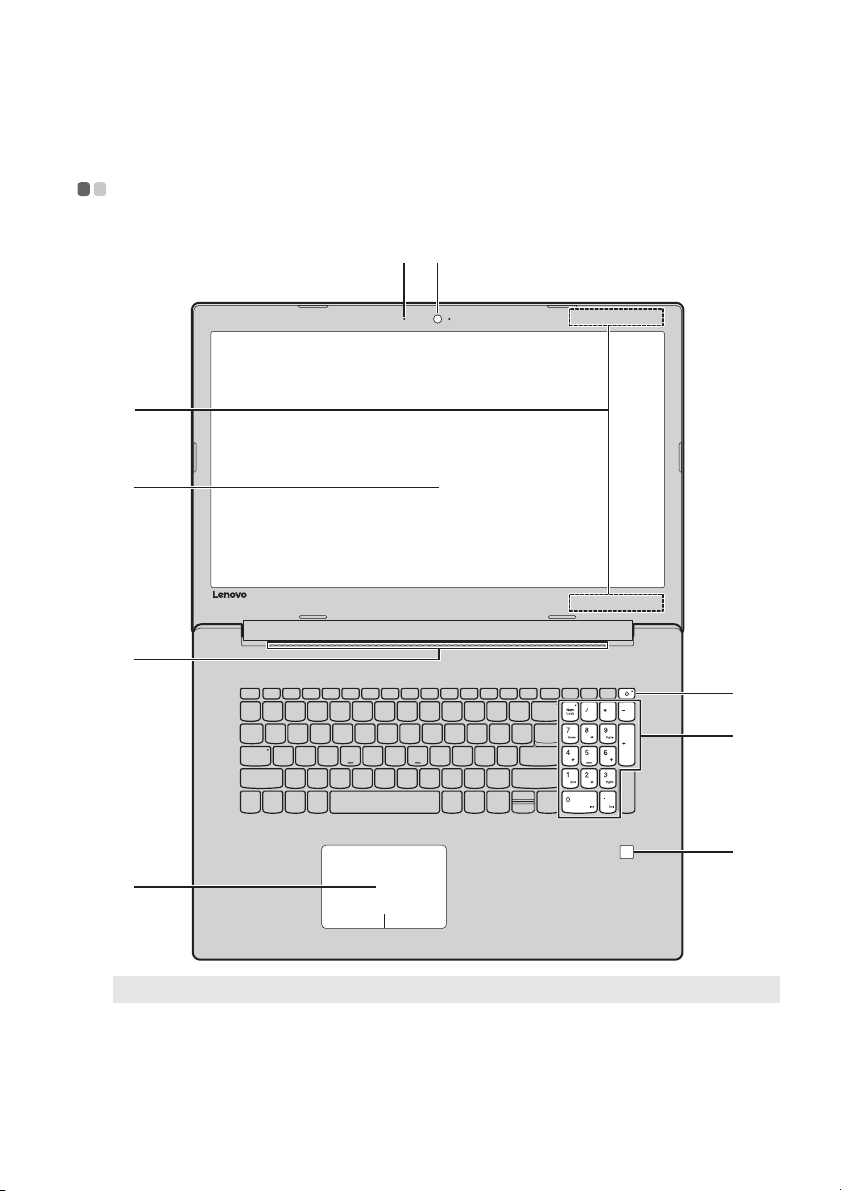

aIntegrated
camera
Use the camera for video communication.
bBuilt-in
microphone
Capture sound which can be used for video conferencing,
voice narration, or audio recording.
cWireless LAN
antennas
Connect to a wireless LAN adapter to send and receive
wireless radio signals.
d Computer display
The LCD display with LED backlight provides brilliant
visual output.
eVentilation slots Dissipate internal heat.
Note: Make sure that none of the ventilation slots are blocked, or else overheating of the
computer may occur.
fTouch pad The touch pad functions as a conventional mouse.
Touch pad: To move the pointer on the screen, slide your
fingertip over the pad in the direction in which you want
the pointer to move.
Touch pad buttons: The functions of the left/right side
correspond to those of the left/right mouse button on a
conventional mouse.
Note: You can enable/disable the touch pad by pressing F6 ( ).
gPower Key Press this key to turn on/off the computer.
By default, when the computer is on, press and hold this
key for more than 1 second, the computer will enter sleep
mode, press and hold it for more than 5 seconds, the
computer will be turned off.
hNumeric keypad For details, see “Using the keyboard” on page 3.
iFingerprint
reader (on select
models)
Registers fingerprints that can be used as passwords to
secure your computer.

Chapter 1. Getting to know your computer
3
Using the keyboard
Your computer has number keys and function keys and may also have a
numeric keypad incorporated into its standard keyboard.
Numeric keypad
The keyboard has a separate numeric keypad. To enable or disable the
numeric keypad, press the Num Lock key.

Chapter 1. Getting to know your computer
4
Using the keyboard
Hotkeys
You can access certain system settings quickly by pressing the appropriate
hotkeys.
:Mutes/unmutes the sound. :Enables/disables airplane
mode.
:Decreases the volume
level. :Enables/disables camera.
:Increases the volume level. :Locks/unlocks the LCD
screen.
:Enables/disables
microphone. :
Enables the external
projector or dangles the
external display.
:Refreshes page. :Decreases display
brightness.
:Enables/disables the touch
pad. :Increases display brightness.
Note: If you changed the Hotkey Mode from Enabled to Disabled in the BIOS setup utility,
you will need to press the Fn key in combination with the appropriate hotkey.

Chapter 1. Getting to know your computer
5
Function key combinations
Through the use of the function keys, you can change operational features
instantly. To use this function, press and hold Fn a; then press one of the
function keys b.
The following describes the features of each function key.
Fn + B: Activate the break function.
Fn + P: Activate the pause function.
Fn + C: Enable/Disable the scroll lock.
Fn + Y: Activate the system request.
Fn + S + V: Set the battery Ship Mode.
a
b

Chapter 1. Getting to know your computer
6
Left-side view ---------------------------------------------------------------------------
aAC power
adapter jack
Connects to the AC power adapter.
bBattery/Charging
status indicator
AC power
adapter status
Indicator status Meaning
Disconnected
Off The computer is in sleep mode or
turned off; The battery has more
than 20% charge.
Solid amber The battery has between 5% and
20% charge.
Fast blinking amber The battery has between 1% and 5%
charge.
Connected
Slow blinking amber The battery is being charged. When
battery charge reaches 20%, the
blinking color changes to white.
Slow blinking white The battery has between 20% and
80% charge and is still charging.
When the battery reaches 80%
charge the light will stop blinking.
Solid white The battery has more than 80%
charge, charging will continue until
the battery is fully charged.
cRJ-45 port Connects the computer to an Ethernet network.
dHDMI port Connects to devices with HDMI input such as a TV or a
display.
a b
c d
e f g
h
i
j

Chapter 1. Getting to know your computer
7
eUSB 3.0 port Connects to USB devices.
Note: For details, see “Connecting USB devices” on page 9.
fCombo audio
jack
Connects to headsets.
Notes:
•The combo audio jack does not support conventional microphones.
•The recording function may not be supported if third-party headphones or headsets are
connected, due to different industry standards.
gType-C port Type-C port support:
•USB 3.1 Gen1
hMemory card slot Insert memory cards (not supplied) here.
Note: For details, see “Using memory cards (not supplied)” on page 10.
iNovo button When the computer is off, press this button to start the
System Recovery or the BIOS setup utility, or to enter the
boot menu.
jPower status
indicator
Indicator Indicator status Meaning
Power status
indicator
On (solid white) The computer is powered on.
Blinking The computer is in sleep mode.
Off The computer is powered off.

Chapter 1. Getting to know your computer
8
Connecting network cables
To insert a network cable, do the following:

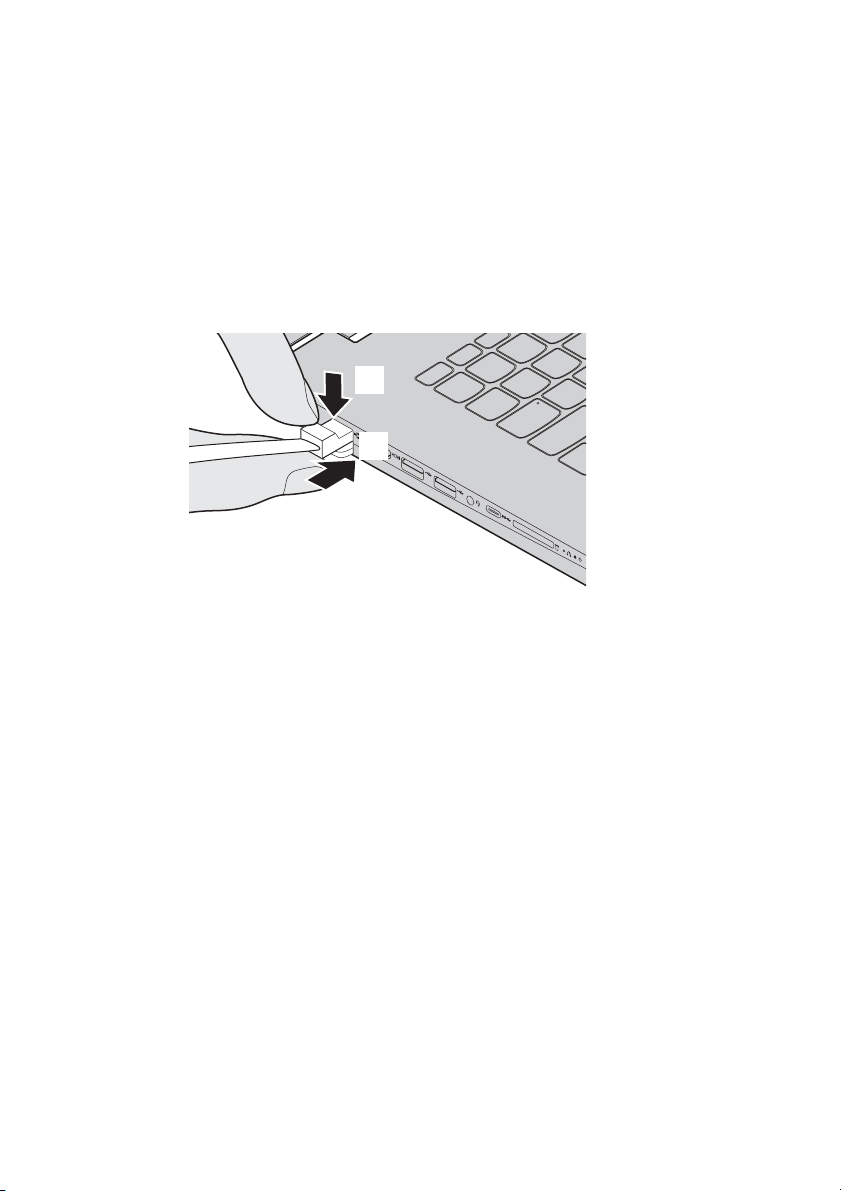

1Hold one connector of the network cable to press the RJ-45 cover down
gently a.
2Insert the connector into the RJ-45 port b.
Software configuration
Consult your Internet Service Provider (ISP) for details on how to configure
your computer.
a
b

Chapter 1. Getting to know your computer
9
Connecting USB devices
You can connect a USB device to your computer by inserting its USB plug
(Type A) into the USB port on your computer.
The first time you plug a USB device into a particular USB port on your
computer, Windows automatically installs a driver for that device. After the
driver has been installed, you can disconnect and reconnect the device
without performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has
finished transferring data to that device. Click the Safely Remove Hardware
and Eject Media icon in the Windows notification area to remove the device
before disconnecting.
Note: Typically, Windows detects a new device after it has been connected, and then installs
the driver automatically. However, some devices may require you to install the driver
before connecting. Check the documentation provided by the device’s manufacturer
before connecting the device.
Note: If your USB device uses a power cord, connect the device to a power source before
connecting it. Otherwise, the device may not be recognized.

Chapter 1. Getting to know your computer
10
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• SD eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)
Inserting a memory card
Insert the memory card until it touches the bottom of the slot.
Removing a memory card
Gently pull the memory card out of the memory card slot.
Notes:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Note: Before removing the memory card, disable it by using the Windows safely remove
hardware and eject media utility to avoid data corruption.

Chapter 1. Getting to know your computer
11
Right-side view -----------------------------------------------------------------------

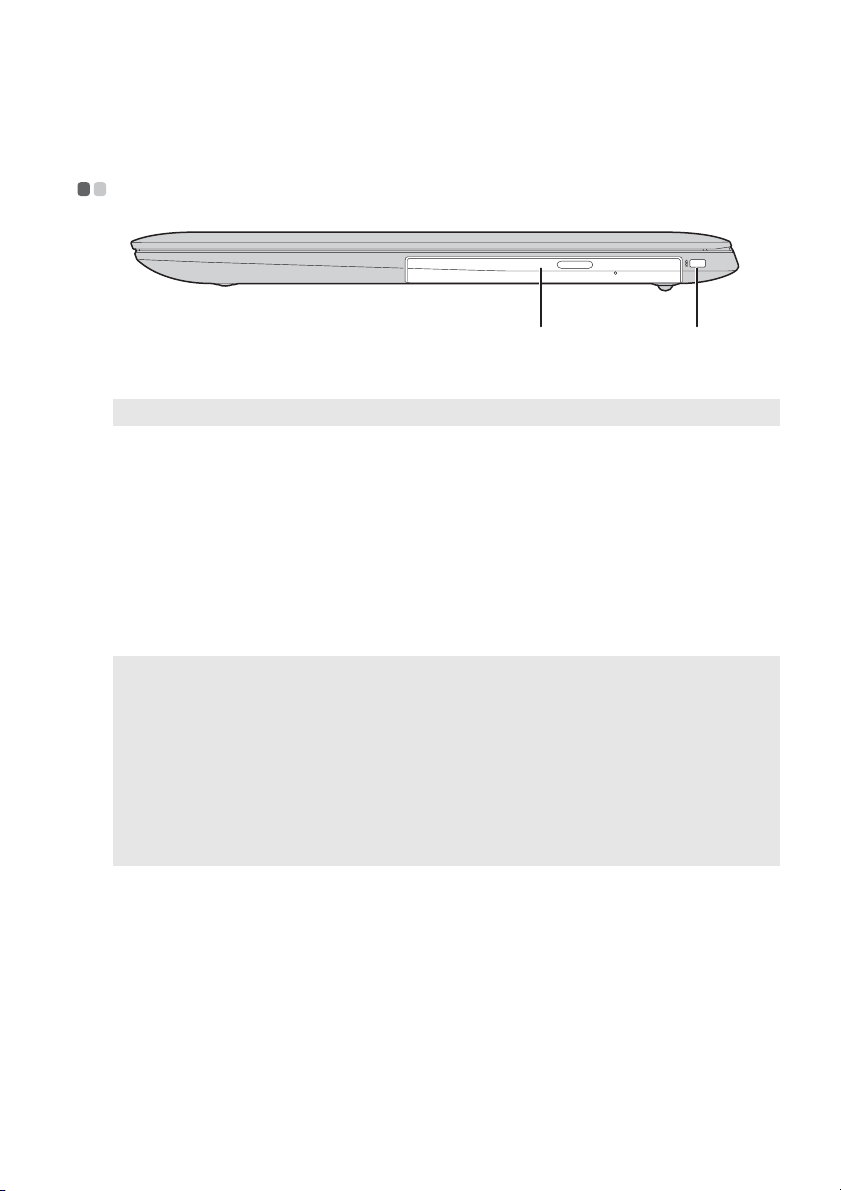

aOptical disc drive Reads/Burns optical discs.
Note: Some models are supplied with a dummy optical disc drive.
bKensington Mini
Security slot
For attaching a Kensington MiniSaverTM Mobile (or
compatible) lock.
Attach a security lock (not supplied) here to help protect
your computer from theft and unauthorized use. You can
attach a security lock to your computer to help prevent it
from being removed without your permission. For details
on installing the security lock, please refer to the
instructions shipped with the security lock that you have
purchased.
Notes:
•Lock is not supplied. When purchasing a lock, choose one that utilizes the CleatTM
locking mechanism and verify its compatibility with the slot before purchase. A lock
utilizing the T-BarTM locking mechanism is not compatible with the Kensington Mini
Security slot.
•Before purchasing any security product, verify that it is compatible with this type of
security keyhole.
•You are responsible for evaluating, selecting, and implementing the locking devices and
security features. Lenovo offers no comment, judgment, or warranty regarding the
function, quality, or performance of locking devices and security features.
ba

Chapter 1. Getting to know your computer
12
Bottom view -------------------------------------------------------------------------------
aVentilation slots Dissipate internal heat.
Note: Make sure that none of the ventilation slots are blocked, or else overheating of the
computer may occur.
bSpeakers Provide audio output.
a
bb

13
Chapter 2. Starting to use Windows 10
Configuring the operating system for the
first time --------------------------------------------------------------------------------------
You may need to configure the operating system when it is first used. The
configuration process may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interfaces -------------------------------------------

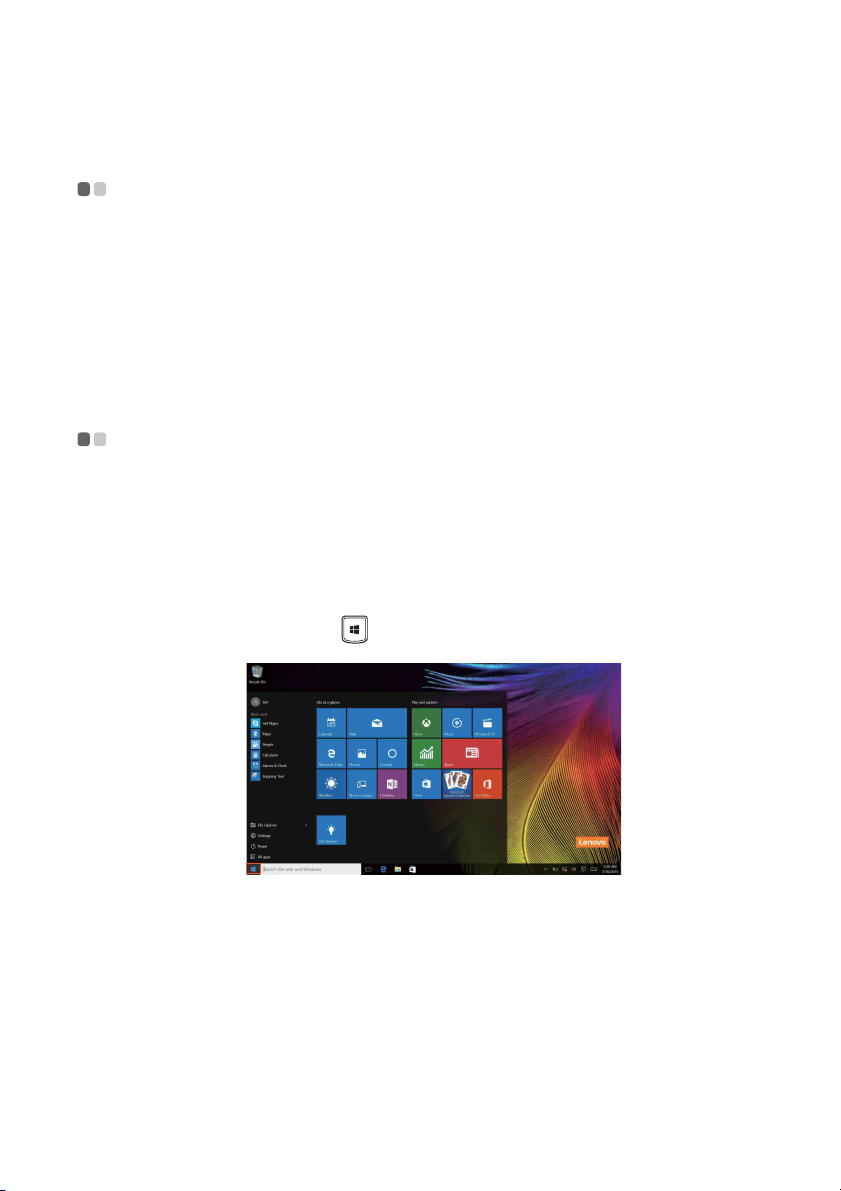

The return of the Start menu
If you click the Start button in the lower-left corner, the Start menu is
displayed.
To open the start menu, do one of the following:
• Select the Start button in the lower-left corner, the Start menu is displayed.
• Press the Windows key on the keyboard.

Chapter 2. Starting to use Windows 10
14
The power button is on the Start menu, select it you can choose to shut down
or restart the computer, or put the computer into sleep mode.
Through the Start menu, you can locate all the installed apps or view the
frequently used apps.

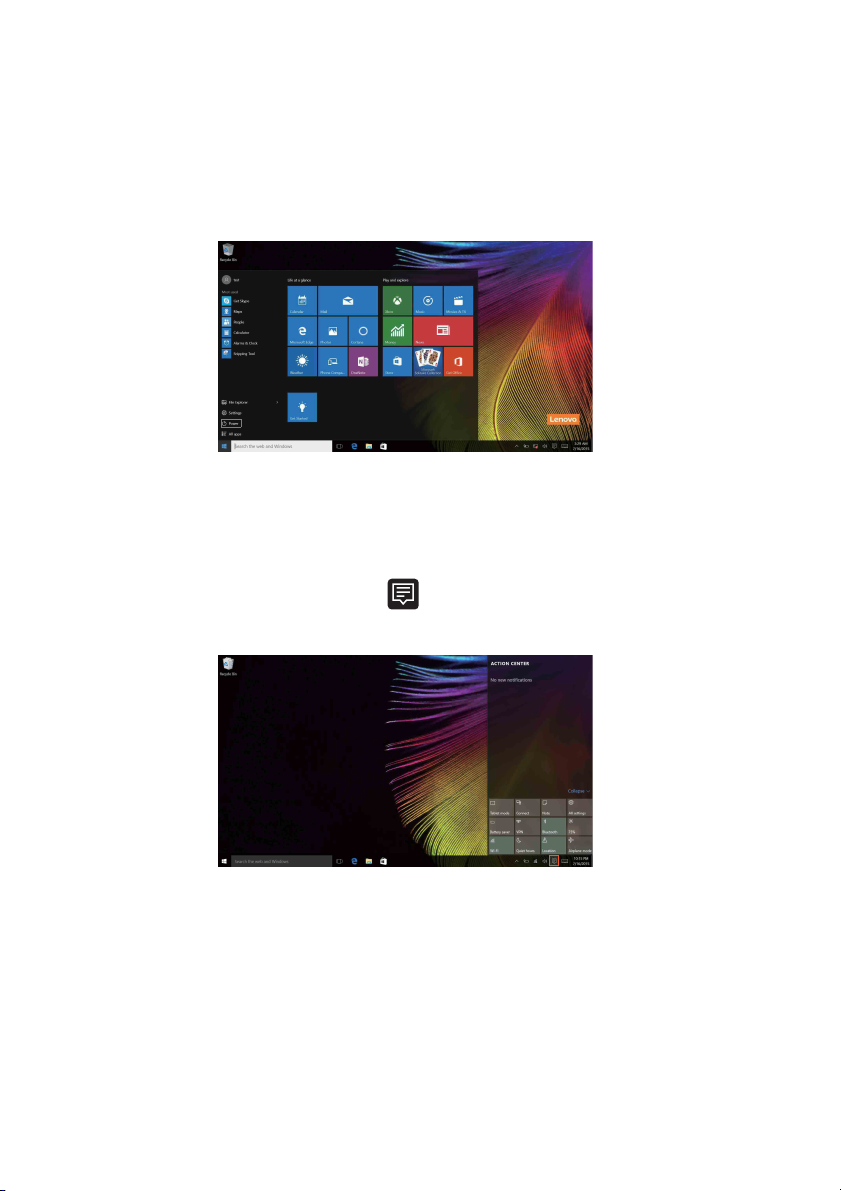

The ACTION CENTER
Select the ACTION CENTER icon on the taskbar and the ACTION
CENTER is displayed.
From the ACTION CENTER, you can examine important notifications from
Windows and your apps. Moreover, you can change common settings
quickly.

Chapter 2. Starting to use Windows 10
15
Task View in taskbar
In Windows 10, you can add a new desktop and switch between different
desktops.
To add a new desktop, do the following:
• Select the Task View icon in the taskbar area.
• Select New desktop.
To switch between desktops, select the Task View icon , then select your
desired desktop.
Also, you can manage apps in the multi-tasking view:
1Select the Task View button to display all apps in use on the screen.
2Select to enter the apps or close the apps.

Chapter 2. Starting to use Windows 10
16
Putting the computer to sleep or shutting
it down ------------------------------------------------------------------------------------------
When you have finished working with your computer, you can put it to sleep
or shut it down.
Putting your computer to sleep
If you will be away from your computer for only a short time, put the
computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use,
bypassing the startup process.
To put the computer to sleep, do one of the following:
• Close the display lid.
• Press and hold the Power key for about 1 to 5 seconds.
• Select the Start button, then select Power →Sleep.
To wake up the computer, perform the following:
• Press any key on the keyboard.
Note: Put your computer to sleep before you move it. Moving your computer while the hard
disk drive is spinning can damage the hard disk, causing loss of data.
