Chapter 1. Getting to know your computer

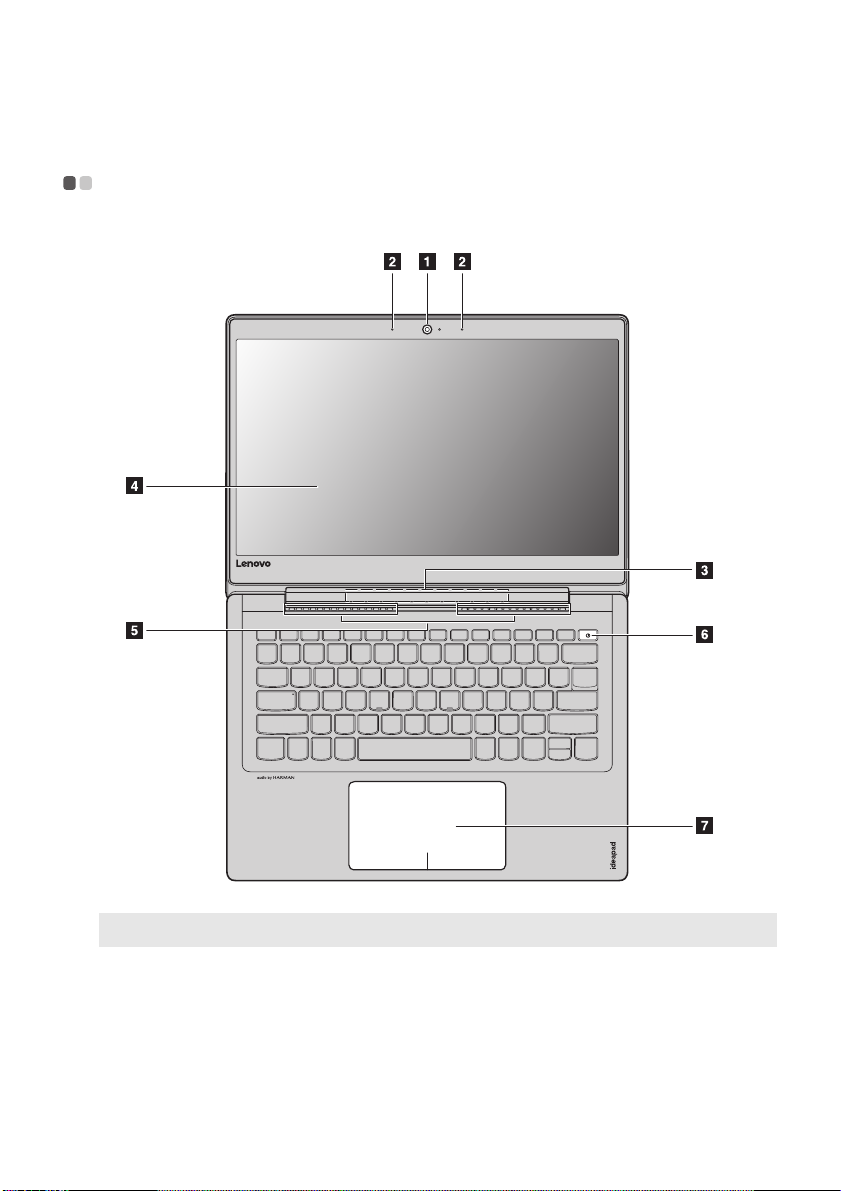

Top view --------------------------------------------------------------------------------------------------------------------------
Attention:
•Do not open the display panel beyond 180 degrees. When closing the display panel, be careful not to leave
pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel
may be damaged.
Note: The dashed areas indicate parts that are not visible externally.

2
Chapter 1. Getting to know your computer
aIntegrated camera Use the camera for video communication or taking photos.
bBuilt-in microphone Captures sound which can be used for video conferencing, voice narration,
or audio recording.
cWireless LAN antennas
Connect to a wireless LAN adapter to send and receive wireless radio signals.
dComputer display Provides brilliant visual output.
eVentilation slots Dissipate internal heat.
Note: Make sure that the ventilation slots are not blocked or else the computer may overheat.
fPower button Press this button to turn on the computer.
gTouchpad The touchpad functions as a conventional mouse.
Touchpad: To move the pointer on the screen, slide your fingertip over the
pad in the direction in which you want the pointer to move.
Touchpad buttons: The functions of the left/right side correspond to that
of the left/right mouse button on a conventional mouse.
Note: You can enable/disable the touchpad by pressing F6 ( ).

Chapter 1. Getting to know your computer
3
Using the keyboard
Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this
function, press and hold Fn ; then press one of the function keys .
The following describes the features of each function key.
Fn + B: Activates the break function.
Fn + P: Activates the pause function.
Fn + C: Enables/disables the scroll lock.
Fn + S: Activates the system request.
Fn + : Activates the Pgup key function.
Fn + : Activates the Pgdn key function.
Fn + : Activates the home key function.
Fn + : Activates the end key function.
Fn + Space
(on select models): Adjusts the keyboard backlight (off dim bright off).
a
b
1
2
2
2

4
Chapter 1. Getting to know your computer
Hotkeys
You can access certain system settings quickly by pressing the appropriate hotkeys.
Setting hotkey mode
By default, the hotkey functions are accessible by pressing the appropriate hotkey.
However, you can disable the hotkey mode in the BIOS setup utility.
To disable the hotkey mode:
1Shut down the computer.
2Press the Novo button and then select BIOS Setup.
3In the BIOS setup utility, open the Configuration menu, and change the setting of HotKey
Mode from Enabled to Disabled.
4Open the Exit menu, and select Exit Saving Changes.
:Mutes/unmutes the sound. :Enables/disables Airplane
mode.
: Decreases the volume level. : Enables/disables the integrated
camera.
:Increases the volume level. :Locks the screen.
:Enables/disables the
microphone. :
Toggles the display between the
computer and an external
display device.
:Refreshes the desktop or the
currently active window. :Decreases the display brightness.
: Enables/disables the touchpad. : Increases the display brightness.
Note: When hotkey mode is disabled, press the Fn key and the appropriate hotkey to access the
corresponding hotkey function.

Chapter 1. Getting to know your computer
5
Left-side view--------------------------------------------------------------------------------------------------------------
aAC power adapter jack Connects to the AC power adapter.
bBattery status indicator
Indicator Indicator
status Charge status Meaning
Battery status
indicator
On
(solid white) Charging The battery has more than 80% charge.
On
(solid amber) Discharging The battery has between 5% and 20% charge.
Blinking
slowly (white) Charging
The battery has between 20% and 80% charge. When the
battery reaches 80% charge, the light will stop blinking.
However, charging will continue until the battery is fully
charged.
Blinking
slowly (amber) Charging
The battery has less than 20% charge. When the battery
charge reaches 20%, the blinking color will change to white.
Blinking
quickly (amber)
Discharging The battery has less than 5% charge.
Off Discharging The battery has more than 20% charge.
cHDMI port Connects to devices with HDMI input such as a TV or an external
display.
dUSB 3.0 port Connects to USB devices.
Note: For details, see “Connecting USB device” on page 6
eType-C port Connects to Type-C devices.
fCombo audio jack Connects to headsets.
Notes:
•The combo audio jack does not support conventional microphones.
•The recording function might not be supported if third-party headphones or headsets are connected,
due to different industry standards.
gPower status indicator
Indicator Indicator status Meaning
Power status
indicator
On (solid white) The computer is powered on.
Blinking The computer is in sleep mode.
Off The computer is powered off.

6
Chapter 1. Getting to know your computer
Connecting USB device
Your computer comes with three USB ports compatible with USB devices.
The first time you plug a USB device into a particular USB port on your computer, Windows
automatically installs a driver for that device. After the driver has been installed, you can
disconnect and reconnect the device without performing any additional steps.
Before disconnecting a USB storage device, make sure your computer has finished transferring
data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows
notification area to remove the device before disconnecting.
Note: Typically, Windows detects a new device after it has been connected, and then installs the driver
automatically. However, some devices may require you to install the driver before connecting.
Check the documentation provided by the device’s manufacturer before connecting the device.
Note: If your USB device uses a power cord, connect the device to a power source before connecting it.
Otherwise, the device may not be recognized.

Chapter 1. Getting to know your computer
7
Right-side view----------------------------------------------------------------------------------------------------------
1Novo button When the computer is off or in hibernation mode, press this button to
start the Lenovo OneKey Recovery System or the BIOS setup utility, or to
enter the boot menu.
Notes:
•You can use the tip of an unfolded paper clip (or similar object without a sharp tip) to gently press the
Novo button.
•For details, see “Lenovo OneKey Recovery System” on page 18.
bMemory card slot Connects to USB devices.
Note: For details, see “Using memory cards (not supplied)” on page 8
cUSB 2.0 port Connects to USB devices.
Notes:
•When the computer is on, the USB port supports charging function.
•When the battery has more than 20% charge, the USB port with the icon can charge external USB
devices while the computer is shut down.
•For details, see “Connecting USB device” on page 6
dKensington mini security
slot
For attaching a Kensington MiniSaver™ Mobile (or compatible) lock.
Note: Lock is not supplied. When purchasing a lock, choose one that utilizes the Cleat™ locking
mechanism and verify its compatibility with the slot before purchase. A lock utilizing the
T-Bar™ locking mechanism is not compatible with the Kensington mini security slot.

8
Chapter 1. Getting to know your computer
Using memory cards (not supplied)
Your computer supports the following types of memory cards:
• Secure Digital (SD) card
• Secure Digital High Capacity (SDHC) card
• Secure Digital eXtended Capacity (SDXC) card
• MultiMediaCard (MMC)
Inserting a memory card
Insert the memory card until it touches the bottom of the slot.
Removing a memory card
Gently pull the memory card out of the memory card slot.
Notes:
•Insert only one card in the slot at a time.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and
eject media utility to avoid data corruption.

Chapter 1. Getting to know your computer
9
Bottom view------------------------------------------------------------------------------------------------------------------
aLouvers Allow air to enter the computer for cooling.
bSpeakers Provide audio output.

10
Chapter 2. Starting to use Windows 10
Configuring the operating system for the first time-----------------
You may need to configure the operating system when it is first used.
The configuration process may include the procedures below:
• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account
Operating system interface ----------------------------------------------------------------------------
Windows 10 comes with a powerful and useful start menu.
To open the start menu, do one of the following:
• Press the Windows key on the keyboard.
• Select Start on the lower-left corner of the desktop.
aGet Started app eStart button
bSettings button fSearch box
cPower button gTask view button
dAll apps button

Chapter 2. Starting to use Windows 10
11

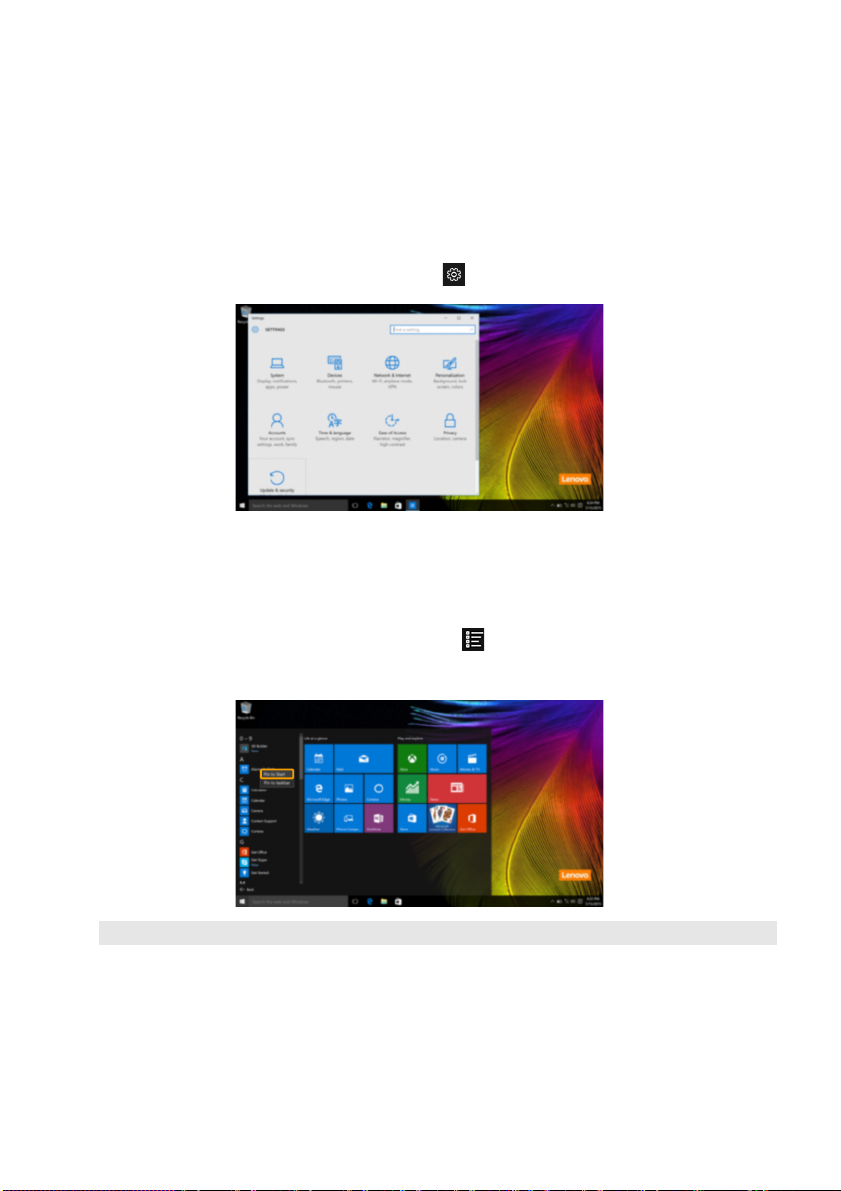

Settings
Settings lets you perform basic tasks. You can also search for more settings with the settings
search box in the upper-right corner.
To open the settings, do the following:
• Open the start menu, and then select Settings .
Personalize the start menu
You can personalize the start menu with your favorite apps.
To personalize the start menu, do the following:
1Open the start menu, and then select All apps to display the apps list.
2Right click the app you want to add to the start menu, and then select Pin to Start.
Note: You can also drag apps from the Most used or All apps columns to add them to the start menu.

12
Chapter 2. Starting to use Windows 10
Putting the computer to sleep or shutting it down--------------------
When you have finished working with your computer, you can put it to sleep or shut it down.
Putting your computer to sleep
If you will be away from your computer for only a short time, put the computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the
startup process.
To put the computer to sleep, do one of the following:
• Close the display lid.
• Press the Power button.
• Open the start menu, and then select Power Sleep.
To wake the computer, do one of the following:
• Press any key on the keyboard.
• Press the Power button.
Note: Wait until the power indicator light starts blinking (indicating that the computer is in sleep mode)
before you move your computer. Moving your computer while the hard disk is spinning can damage
the hard disk, causing loss of data.

Chapter 2. Starting to use Windows 10
13
Shutting down the computer
If you are not going to use your computer for a long time, shut it down.
To shut down the computer, do one of the following:
• Open the start menu, and then select Power Shut down.
• Right-click the Start button in the lower-left corner and select Shut down or sign out
Shut down.

14
Chapter 2. Starting to use Windows 10
Task and desktop management-------------------------------------------------------------------
Task view

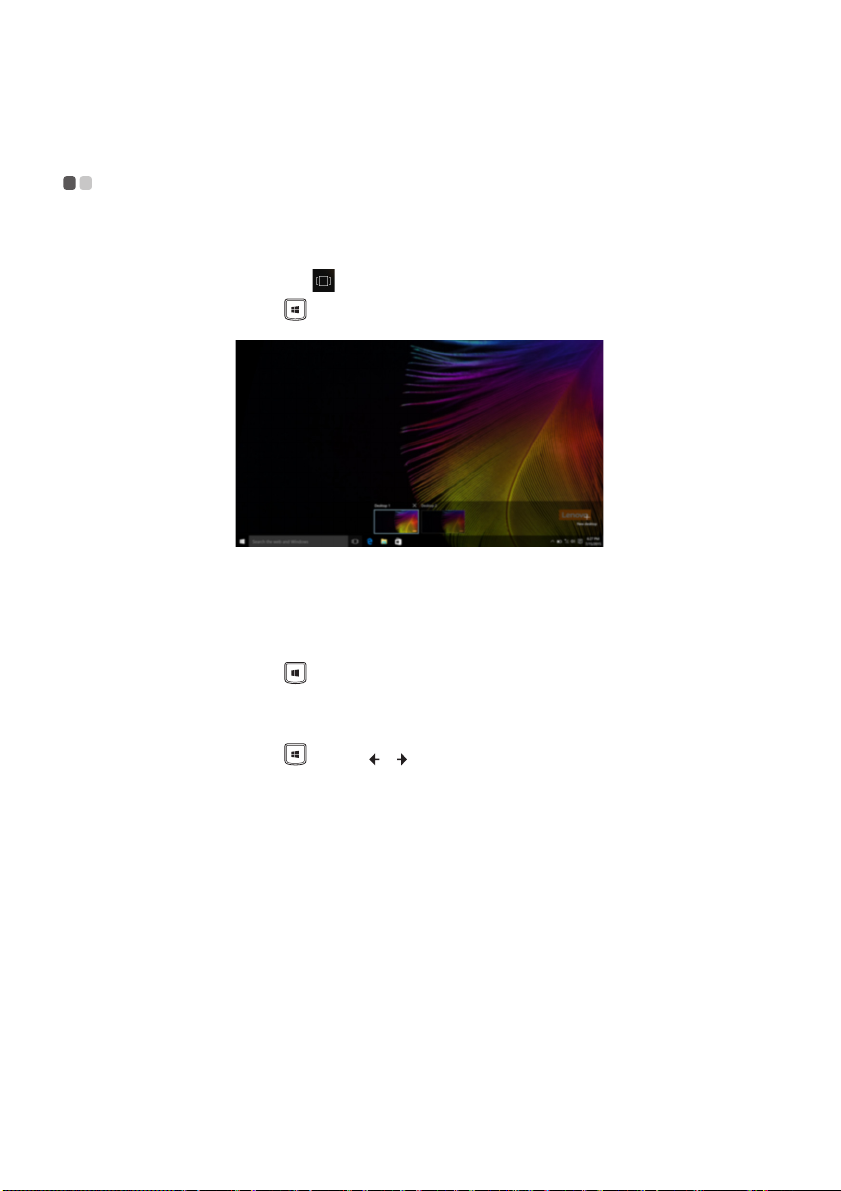

To open the task view, do one of the following:
• Select the Task view button on the task bar.
• Press the Windows key + Tab.
Virtual desktop management
Windows 10 supports the ability to create, manage and switch between virtual desktops.
To create a new virtual desktop, do one of the following:
• Open the task view, and then select New desktop.
• Press the Windows key + Ctrl + D.
To switch between different desktops, do one of the following:
• Open the task view and select the desktop you want active.
• Press the Windows key + Ctrl + / to scroll through the desktops you’ve created.

Chapter 2. Starting to use Windows 10
15
Connecting to a wireless network ------------------------------------------------------------
Enabling wireless connection
To enable wireless functions, do the following:
1Press F7 ( ) to disable airplane mode.

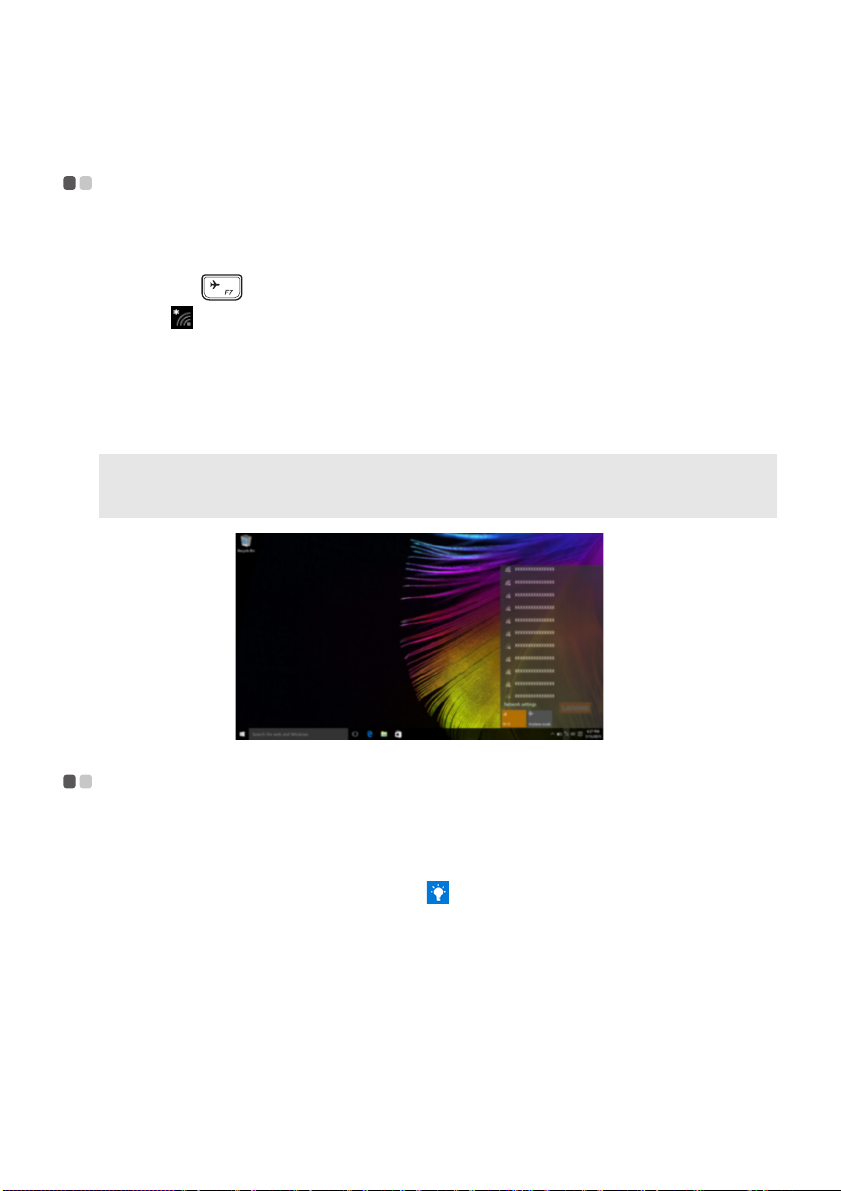

2Click on the lower-right corner of the task bar to open the network configuration page.
Connecting to a wireless network
After wireless has been enabled, the computer will automatically scan for available wireless
networks and display them in the wireless network list. To connect to a wireless network, click
the network name in the list, and then click Connect.
Get Started app ---------------------------------------------------------------------------------------------------------
Windows 10 also provides the Get Started app to explain the new features of Windows 10. You
can find it on the start menu.
To open the Get Started app, do one of the following:
• Open the start menu and select Get Started .
•PressFn + F1 (depending on your keyboard layout).
Note: Some networks require a network security key or passphrase for connection. To connect to one of
those networks, ask the network administrator or the Internet service provider (ISP) for the security
key or passphrase.

16
Chapter 3. Lenovo OneKey Recovery System
The Lenovo OneKey Recovery System is software designed to back up and restore your
computer. You can use it to restore the system partition to its original status in case of a system
failure. You can also create user backups for easy restoration as required.
Backing up the system partition
You can back up the system partition to an image file. This image file can be used to restore the
system partition. To back up the system partition:
1In Windows, press the Novo button or double-click OneKey Recovery icon to start the
Lenovo OneKey Recovery System.
2Click System Backup.
3Select a back-up location and click Next to start the backup.
Restoring
You can choose to restore the system partition to its original status or to a previously created
back-up point. To restore the system partition:
1In Windows, press the Novo button or double-click OneKey Recovery icon to start the
Lenovo OneKey Recovery System.
2Click System Recovery. The computer will restart to the recovery environment.
3Follow the on-screen instructions to restore the system partition to its original status or to a
previously created back-up point.
If Windows cannot be started, then follow the steps below to start the Lenovo OneKey
Recovery System:
1Shut down the computer.
2Press the Novo button. From Novo Button Menu, select System Recovery and press Enter.
Notes:
•If your computer is preinstalled with a GNU/Linux operating system, OneKey Recovery System is
not available.
•To utilize the features of the OneKey Recovery System, your hard disk already includes a hidden
partition by default to store the system image file and the OneKey Recovery System program files. This
default partition is hidden for security reasons, which explains why the available disk space is less than
the stated capacity.
Notes:
•You can choose a back-up location on the local hard disk drive or an external storage device.
•Remove the removable hard disk drive before starting the Lenovo OneKey Recovery System. Otherwise,
data from the removable hard disk drive might be lost.
•The back-up process may take a while.
•The back-up process is only available when Windows can be started normally.
Notes:
•The recovery process is irreversible. Make sure to back up any data you wish to save on the system
partition before starting the recovery process.
•The recovery process may take a while. So be sure to connect the AC power adapter to your computer
during the recovery process.
•The above instructions should be followed when Windows can be started normally.
