Lenovo ideapad D330-10IGM User manual

Lenovo
ideapad D330-10IGM
User Guide

Read the safety noticesand important tipsin the 
included manualsbefore using your computer.

Notes
• Before using the product, be sure to read Lenovo Safety and General Information
Guide first.
• The latest electronic compliance and environmental information are available
from the Lenovo compliance information Web sites.
- To view compliance information go to: 
http://www.lenovo.com/compliance.
- To download environmental information go to: 
http://www.lenovo.com/ecodeclaration.
• Some instructions in this guide may assume that you are using Windows
®
10. If you
are using another Windows operating system, some operations may be slightly
different. If you are using other operating systems, some operations may not apply
to you.
• The features described in this guide are common to most models. Some
features may not be available on your computer or your computer may include
features that are not described in this user guide.
• The illustrations in this manual may differ from the actual product. The
screenshots of operating system are for reference only. Please refer to the actual
product.
Regulatory Notice
• For details, refer to Guides & Manuals at http://support.lenovo.com.
First Edition (May 2018)
© Copyright Lenovo 2018.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant to a General
Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set
forth in Contract No. GS-35F-05925.

i
Contents
Chapter 1. Getting to know your computer ......................................... 1
Top view ..................................................................................................................... 1
Left-side view ............................................................................................................ 3
Right-side view .......................................................................................................... 5
Bottom view ............................................................................................................... 6
Rear View ................................................................................................................. 10
Keyboard dock top view (Optional) ..................................................................... 11
Keyboard dock left-side view (Optional) ............................................................ 14
Keyboard dock right-side view (Optional) ......................................................... 14
To use the Lenovo Active Pen (on select models)............................................... 18
To use the Lenovo Active Pen2 (on select models)............................................. 20
Chapter 2. Starting to use Windows 10 ............................................. 22
Configuring the operating system for the first time .......................................... 22
Operating system interfaces .................................................................................. 22
Putting the computer to sleep or shutting it down ............................................ 25
Touch screen operation .......................................................................................... 27
Connecting to a wireless network ........................................................................ 30
Get help from Windows ......................................................................................... 31
Chapter 3. Recovery system ............................................................... 32
Chapter 4. Troubleshooting ................................................................ 35
Frequently asked questions ................................................................................... 35
Troubleshooting ...................................................................................................... 36
Trademarks .......................................................................................... 39

1
Chapter 1. Getting to know your computer
Top view -------------------------------------------------------------------------
d
e
a
c b c b
Note: The dashed areas indicate parts that are not visible externally.
aFront camera Use the camera for video communication.
bWireless LAN
antennas
Connect to a wireless LAN adapter to send and receive
wireless radio signals.
cWireless WAN
antennas (on
select models)
Connect to a wireless WAN adapter to send and receive
wireless radio signals.
Note: The GPS antenna is included here.
dMulti-touch
screen
Functions as the visual display as well as touchpad input.
Note: For details, see “Touch screen operation” on page 27.
eSpeaker Provides audio output.

Chapter 1. Getting to know your computer
2
Screen orientation
You can rotate the display panel to your preferred orientation.
The orientation of the display automatically changes (alternating between
portrait and landscape modes) depending on how you hold it.

Chapter 1. Getting to know your computer
3
Left-side view ---------------------------------------------------------------
a
aCombo audio
jack
Connects to headsets.
•The combo audio jack does not support conventional microphones.
•The recording function may not be supported if third-party headphones or headsets are
connected, due to different industry standards.
Notes:

Chapter 1. Getting to know your computer
4
Connecting USB devices
You can connect a USB device to your computer by inserting its USB plug
(Type A) into the USB port on your computer.
The first time you plug a USB device into a particular USB port on your
computer, Windows automatically installs a driver for that device. After the
driver has been installed, you can disconnect and reconnect the device
without performing any additional steps.
Note: Typically, Windows detects a new device after it has been connected, and then installs
the driver automatically. However, some devices may require you to install the driver
before connecting. Check the documentation provided by the device’s manufacturer
before connecting the device.
Before disconnecting a USB storage device, make sure your computer has
finished transferring data to that device. Click the Safely Remove Hardware
and Eject Media icon in the Windows notification area to remove the device
before disconnecting.
Note: If your USB device uses a power cord, connect the device to a power source before
connecting it. Otherwise, the device may not be recognized.

Chapter 1. Getting to know your computer
5
Right-side view -------------------------------------------------------------
a b c d
aPower button Press this button to turn on/off the computer.
bVolume up/down
button
Increases/decreases the volume level.
cType-C port Type-C port supports:
• USB 3.1
•DP
• PD (on select models)
dAC power
adapter jack
Connects to the AC power adapter.

Chapter 1. Getting to know your computer
6
Bottom view ------------------------------------------------------------------
a abc
aTablet-keyboard
dock latch
Attaches the tablet to the dock keeping the tablet secured
in place.
Note: For details, see “Combination of tablet and keyboard dock” on page 15.
bKeyboard dock
connector
Connects the tablet to the keyboard dock.
cNano-SIM-card
and microSD
card tray
Accept micro SD card (not supplied) and Nano SIM card
(not supplied).
•Select models may not have the Nano SIM card slot, please refer to the actual product.
•For details, see “Using the Nano-SIM-card and microSD card tray” on page 6.
Using the Nano-SIM-card and microSD card tray
Your computer supports the following types of cards:
• Micro Secure Digital (SD) card
• Nano Subscriber Identity Module (SIM) card (on select models)
•The card tray may have two slots for different types of cards. Insert only one card in one
slot at a time.
•Select models may not have the Nano SIM card slot, please refer to the actual product.
•This card reader does not support SDIO devices (e.g., SDIO Bluetooth and so on.).
•The illustrations are for reference only, please refer to the actual product.
Notes:
Notes:

Chapter 1. Getting to know your computer
7
Inserting card(s)
1Turn off the tablet, and disconnect the AC adapter and any cable(s) from
the tablet.
2Insert a prying pin (not supplied) into the tiny hole on the card tray. Press
firmly and push it straight in until the card tray pops out.

Chapter 1. Getting to know your computer
8
3Gently pull the card tray out of the card reader.
4Put card(s) in the corresponding slot on the card tray.
5Reinsert the card tray.

Chapter 1. Getting to know your computer
9
Removing card(s)
1Turn off the tablet, and disconnect the AC adapter and any cable(s) from
the tablet.
2Insert a prying pin into the tiny hole on the card tray. Press firmly and
push it straight in until the card tray pops out.
3Gently pull the card tray out of the card reader.
4Remove card(s) from the card tray, then reinsert the card tray.
•Do not insert or remove cards while the computer is turned on. Doing so may damage the
card reader.
•Before removing the memory card, disable it by using the Windows safely remove
hardware and eject media utility to avoid data corruption.
Notes:

Chapter 1. Getting to know your computer
10
Rear View -----------------------------------------------------------------------
aRear camera (on
select models)
Use the camera for video communication or taking photos.

Chapter 1. Getting to know your computer
11
Keyboard dock top view (Optional) -------------------------
c
a b a
aTablet-keyboard
dock latch
Attaches the tablet to the dock keeping the tablet secured
in place.
Note: For details, see “Combination of tablet and keyboard dock” on page 15.
bKeyboard dock
connector
Connects the tablet to the keyboard dock.
cTouch pad The touch pad functions as a conventional mouse.
Touch pad: To move the pointer on the screen, slide your
fingertip over the pad in the direction in which you want
the pointer to move.
Touch pad buttons: The functions of the left/right side
correspond to those of the left/right mouse button on a
conventional mouse.
Note: You can enable/disable the touch pad by pressing Fn + ( ).

Chapter 1. Getting to know your computer
12
Function key combinations
Through the use of the function keys, you can change operational features
instantly. To use this function, press and hold Fn a; then press one of the
function keys b.
a
b
b
bb
b
b
b
b
The following describes the features of each function key.
Fn + Esc: Mutes/unmutes the sound.
Fn + `: Closes the currently active window.
Fn + Delete: Enables/disables the touchpad.
Fn + Back space: Enables/disables Airplane mode.
Fn + PgUp: Activates the home key function.
Fn + PgDn: Activates the end key function.
Fn + :Increases the display brightness.
Fn + :Decreases the display brightness.
Fn + :Decreases the volume level.
Fn + :Increases the volume level.
Fn + B: Activates the break function.
Fn + P: Activates the pause function.
Fn + S: Activates the system request.

Chapter 1. Getting to know your computer
13
Fn + K: Enables/Disables the scroll lock.
Fn + I: Activates the insert function.
Fn + T: Activates the print screen function.
Fn + 4: Activates the sleep mode.
Fn + Tab: Activates the Magnifier Utility.
Note: Hidden Functions applied only on systems where applicable.

Chapter 1. Getting to know your computer
14
Keyboard dock left-side view (Optional) ---------------
a
aUSB 2.0 port Connects to USB devices.
Keyboard dock right-side view (Optional) -------------
a
aUSB 2.0 port Connects to USB devices.

Chapter 1. Getting to know your computer
15
Combination of tablet and keyboard dock
The Lenovo ideapad D330-10IGM is not only a tablet. It can be combined
with a keyboard dock and used as a notebook computer.

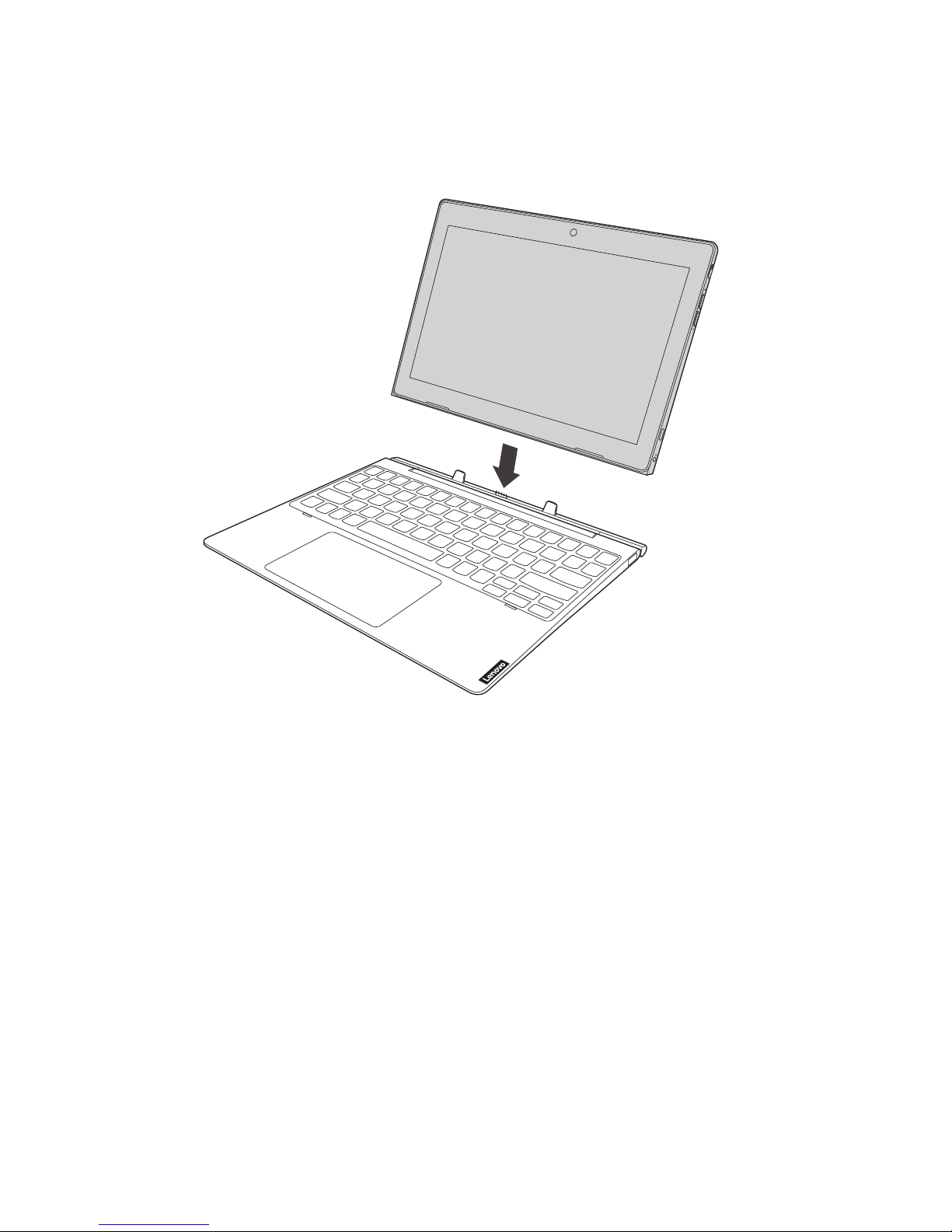

Attaching the tablet
Align the connector of the keyboard dock with the tablet and then attach the
tablet in the direction shown by the arrow.

Chapter 1. Getting to know your computer
16
Attention:
•Do not open the display panel beyond 135 degrees. When closing the display panel, be
careful not to leave pens or any other objects in between the display panel and the
keyboard. Otherwise, the display panel may be damaged.
