Lenovo IdeaPad S10 User manual

S9/S10 User Guide V2.0 EN cover_1-4
Lenovo
IdeaPad
S9/S10
User Guide V2.0
New World. New Thinking.
www.lenovo.com
©Lenovo China 2009
P/N:147002167
Printed in China
TM

S9/S10 User Guide V2.0 EN cover_2-3
Second Edition (February 2009)
Before using this information and the product it supports, be sure to read the following:
• Chapter 6. Safety, use, and care information on page 59.
• Appendix D. Notices on page 124.
•OneKey Rescue System User Guide included in the package with this publication.
Note
U.S. GOVERNMENT USERS – RESTRICTED RIGHTS: Our products and/or services are provided with
RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to the GSA ADP Schedule
contract with Lenovo, if any, or the standard terms of this commercial license, or if the agency is unable to accept
this Program under these terms, then we provide this Program under the provisions set forth in Commercial
Computer Software–Restricted Rights at FAR 52.227-19, when applicable, or under Rights in Data-General, FAR
52.227.14 (Alternate III).
© Copyright Lenovo 2009. All rights reserved.
If your product is not working correctly,
DO NOT RETURN IT TO THE STORE.
For technical assistance, contact a Lenovo support
specialist 24 hours a day by calling toll free 1-877-4
LENOVO (1-877-453-6686).
Additionally, you can find support information and updates
on the Lenovo Web site located at
http://consumersupport.lenovo.com.
* Only for the users from the United States.

ENERGY STAR model information
ENERGY STAR
®
is a joint program of the U.S. Environmental Protection
Agency and the U.S. Department of Energy aimed at saving money and
protecting the environment through energy efficient products and practices.
Lenovo
®
is proud to offer our customers products with an ENERGY STAR
compliant designation. Lenovo computers of the following machine types, if
the ENERGY STAR mark is affixed, have been designed and tested to conform
to the ENERGY STAR 4.0 program requirements for computers.
• 20013, 20015
• 4067, 4231
By using ENERGY STAR compliant products and taking advantage of the
power-management features of your computer, you reduce the consumption of
electricity. Reduced electrical consumption contributes to potential financial
savings, a cleaner environment, and the reduction of greenhouse gas emissions.

For more information about ENERGY STAR, visit
http://www.energystar.gov.
Lenovo encourages you to make efficient use of energy an integral part of
your day-to-day operations. To help in this endeavor, Lenovo has preset
the following power-management features to take effect when your
computer has been inactive for a specified duration:
To awaken your computer from system standby mode, press any key on
your keyboard. For more information about these settings, refer to your
Windows Help and Support information system.
Table 1. ENERGY STAR power-management features, by operating system
Windows
®
XP
•Turn off monitor: After 10 minutes
•Turn off hard disks: After 30 minutes
•System standby: After 20 minutes
•System hibernates: After 2 hours

Explanation of Hard Disk Capacity
Dear user,
While using your computer, you may discover that the nominal hard disk
capacity indicated is somewhat different from the disk capacity
displayed by the operating system. For example, a nominal 80GB hard
disk will appear as less than 80GB in the operating system. This
discrepancy is not an error in hard disk installation nor any other
problem, but a normal phenomenon of computers. This phenomenon is
primarily due to the following reasons:
I. Different standards used by the manufacturer and operating
system when calculating hard disk capacity
Hard disk manufacturers use a radix of 1000, i.e. 1G = 1,000MB, 1MB =
1,000KB, 1KB = 1,000 bytes. However, when identifying hard disk capacity,
operating systems use a radix of 1024, i.e. 1GB = 1,024MB, 1MB = 1,024KB,
1KB = 1,024 bytes. The standard adopted by your computer is that of the
hard disk manufacturers. Since the standards adopted by the hard disk
manufacturer and operating system are different, the hard disk capacity
displayed by the operating system will be different from the nominal hard
disk capacity.
For example, if the hard disk is nominally X G, even when it is completely
empty, the capacity displayed by the operating system will be:
X × 1000 × 1000 × 1000/ (1024 × 1024 × 1024) ≈X × 0.931 G

If a portion of the hard disk space has been used for some specific purpose,
then the capacity indicated by the operating system will be even less than
X × 0.931 G.
II. A portion of the hard disk space is used for specific purposes
Lenovo computers come with preinstalled OneKey Rescue System, so the
hard disk has a special portion partitioned before delivery, which is used to
store hard disk mirror and OneKey Rescue System program files. The size
of the reserved space for this partition varies according to the model,
operating system and software of the computer. For the sake of safety, this
partition is not evident, which is commonly referred to as a “hidden
partition”.
In addition, after the hard disk is partitioned or formatted, the system will
assign a certain amount of hard disk space for the system files.
For the above reasons, the available hard disk space indicated by the
operating system is always less than the computer’s nominal hard disk
capacity.

i
Chapter 1. Getting to know your
computer....................................... 1
Top view........................................1
Left-side view................................3
Right-side view.............................4
Front view......................................5
Bottom view ..................................6
Chapter 2. Using your
computer....................................... 8
Putting your computer to standby
or shutting it down.......................8
Using the touchpad....................10
Using the keyboard....................11
Using memory cards (purchased
separately) ...................................15
Using the integrated camera.....16
Using the Internet.......................17
Securing your computer............25
Installing device drivers............31
Using battery and AC
adapter .........................................31
Chapter 3. Using external
devices.........................................36
Connecting a universal serial bus
(USB) device ................................36
Connecting an ExpressCard/34
device (specific models only)....38
Connecting an external
display..........................................39
Connecting a headphone and
audio device ................................40
Connecting an external
microphone..................................41
Connecting to Bluetooth enabled
devices..........................................42
Chapter 4. Troubleshooting .......43
Frequently asked questions ......43
Troubleshooting..........................45
Chapter 5. Getting help and
service..........................................54
Getting help and service............54
Getting help on the Web............55
Calling the customer support
center ............................................55
Getting help around the
world ............................................58
Contents

ii
Contents
Chapter 6. Safety, use, and care
information.................................. 59
Important safety information...59
Caring your computer...............78
Accessibility and comfort .........86
Maintenance................................ 89
Chapter 7. Using Linpus Linux
Lite ............................................... 93
Using Linpus Linux Lite ........... 93
Appendix A. Lenovo Limited
Warranty.................................... 107
Warranty information ............. 115
Lenovo warranty service
telephone numbers .................. 119
Appendix B. Customer replaceable
units (CRUs).............................. 121
Appendix C. Specifications ..... 122
Specifications ............................122
Appendix D. Notices .................124
Notices .......................................124
Wireless related
information................................127
Electronic emissions notices ...129
WEEE and recycling
statements..................................135
EU WEEE Statements ..............136
Japan Recycling Statements....137
Notice for Users in the
U.S.A. .........................................139
Notice on deleting data from your
hard disk....................................139
Trademarks ...............................141
Index...........................................142

1
Chapter 1. Getting to know your computer
Top view -------------------------------------------------------------------------------------------
* The illustrations in this manual may differ from the actual product.
Please refer to the actual product.
e
g
f
a
b
c
d

2
Chapter 1. Getting to know your computer
Integrated camera ............................................................................ 16
Computer display
The color display with LED-backlit technology provides clear and
brilliant text and graphics.
Power button
Use the power button to turn on the computer.
Microphone (built-in)
The built-in microphone (with noise reduction) can be used for video
conferencing, voice narration, or simple audio recordings.
OneKey™ Rescue System button (for Windows XP users
only) .................................................................................................. 14
Integrated wireless device button
Use this button to enable/disable the wireless radio of all the integrated
wireless devices on your computer.
Wireless antennae (built-in)
Depending on your model, at least one set of antenna are built into the
display for optimized reception.








Chapter 1. Getting to know your computer
3
Left-side view ------------------------------------------------------------------------------
Fan louvers
The fan louvers allow warm air to exit the computer.
Important:
Make sure that paper, books, clothing, cables or other objects do not block
any of the fan louvers or else overheating of the computer may occur.
AC power adapter jack
Connect the power adapter here to supply power to the computer and
charge the battery pack.
Note:
To prevent damage to the computer and battery pack, use the supplied
AC adapter only.
VGA port ........................................................................................... 39
Memory card slot ............................................................................. 15
USB 2.0 port ..................................................................................... 36
dec
ab








4
Chapter 1. Getting to know your computer
Right-side view --------------------------------------------------------------------------
ExpressCard®slot (specific models only)..................................... 38
Headphone jack ............................................................................... 40
Microphone jack............................................................................... 41
USB 2.0 port ..................................................................................... 36
LAN port............................................................................................ 17
Security keyhole
Your computer comes with a security keyhole. You can purchase a
security cable and lock to fit this keyhole.
Note:
Before purchasing any security product, verify that it is compatible with
this type of security keyhole.
efd
ab
c








Chapter 1. Getting to know your computer
5

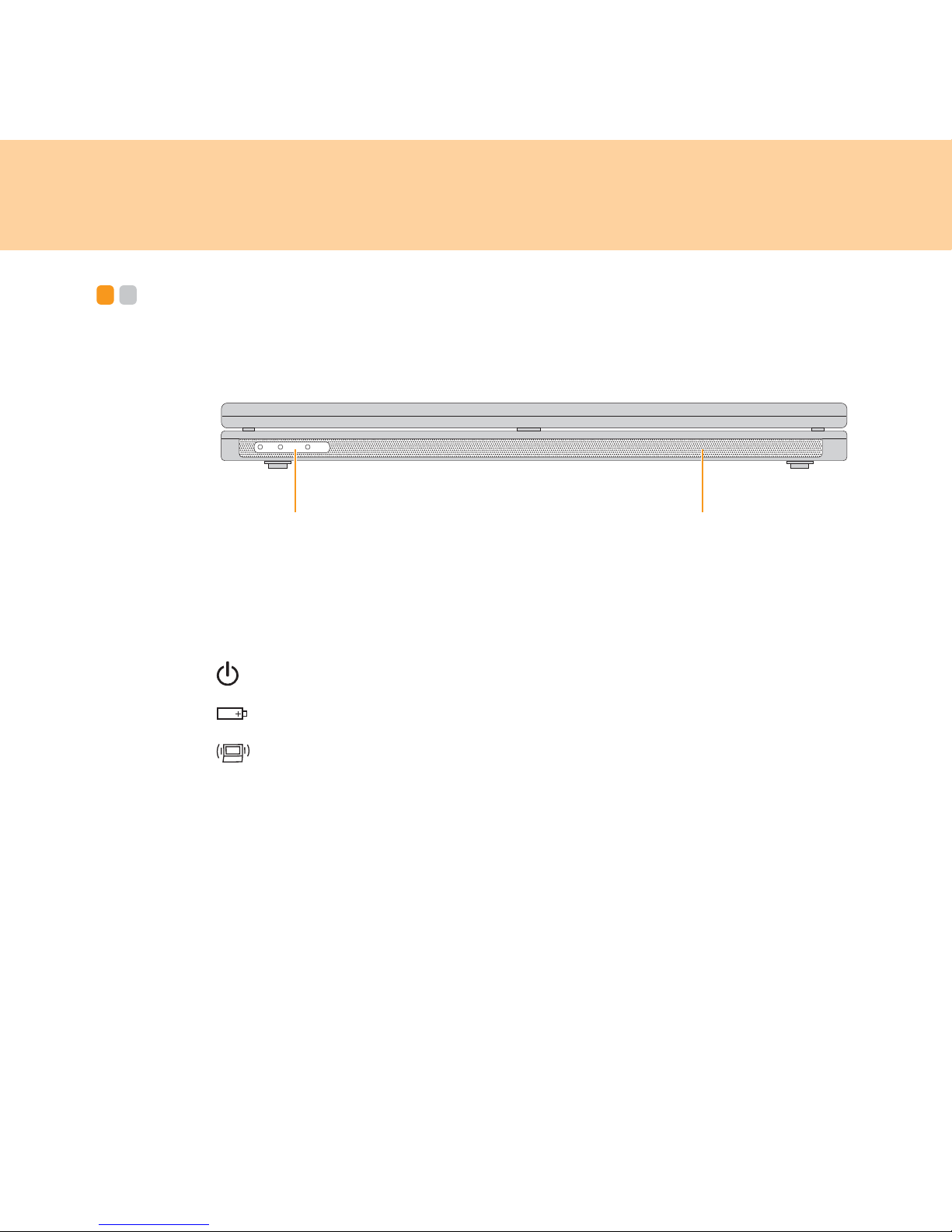

Front view ---------------------------------------------------------------------------------------
System status indicators
The system status indicators show the current status of your computer.
Power indicator
Battery status indicator
Wireless radio status indicator
Speakers
Built-in speakers for rich powerful sound.
* The above illustration may differ from the actual product. Please refer to
the actual product.
ab



6
Chapter 1. Getting to know your computer
Bottom view ----------------------------------------------------------------------------------
* The above illustration may differ from the actual product. Please
refer to the actual product.
e
ba
d
c

Chapter 1. Getting to know your computer
7
Battery latch - spring loaded
The spring-loaded battery latch keeps the battery pack secured in
place. When you insert a battery pack, this latch automatically secures
the battery in place. To remove the battery, hold this latch in the
unlocked position.
Battery pack ..................................................................................... 34
Battery latch - manual
The manual battery latch is used to keep the battery pack secured.
Move the manual battery latch to the unlocked position to insert or
remove the battery pack. Move the manual latch to the locked position
after inserting the battery pack.
Expansion slot compartment (specific models only)
The Mobile Broadband module is secured in this compartment.
Hard disk drive/Memory (RAM) compartment






8
Chapter 2. Using your computer
Note:
Some instructions in this chapter (such as “Putting your computer to
standby or shutting it down” and “OneKey™ Rescue System button”) are
only for Windows XP users.
If you are using the Linpus Linux Lite operating system, see “Using Linpus
Linux Lite” in Chapter 7.
Putting your computer to standby or shutting it down ------
When you finish working with your computer, you can put it to standby or
shut it down.
Putting your computer to standby
If you will be away from your computer for only a short time, put the
computer to standby.
When the computer is in standby, you can quickly wake it and bypass the
startup process.
To put the computer to standby, do one of the following.
Click Start and select Stand By from Turn Off Computer.
Press Fn + F1.


Chapter 2. Using your computer
9
Warning:
Wait until the power indicator light starts blinking (indicating that the
computer is in standby) before you move your computer. Moving your
computer while the hard disk is spinning can damage the hard disk,
causing loss of data.
To wake the computer, press the power button.
Shutting down your computer
If you are not going to use your computer for a day or two, shut it down.
To shut down your computer, click Start and select Tu r n O ff from Turn Off
Computer.


10
Chapter 2. Using your computer
Using the touchpad ---------------------------------------------------------------------
The touchpad consists of a pad and two click buttons at the bottom of
the keyboard. To move the cursor on the screen, slide your fingertip
over the pad in the direction in which you want the cursor to move. The
functions of the left and right click buttons correspond to those of
the left and right mouse buttons on a conventional mouse.




a
dc
b

Chapter 2. Using your computer
11
Note:
You can also attach and use a USB mouse through the USB connector.
For details, see “Connecting a universal serial bus (USB) device” on
page 36.
Using the keyboard ---------------------------------------------------------------------
Your computer has a numeric keypad and function keys incorporated in
the standard keyboard.
Numeric keypad
The keyboard has keys that, when enabled, work as a 10-key numeric
keypad.
To enable or disable the numeric keypad, press Fn+F7.


12
Chapter 2. Using your computer
Function key combinations
Through the use of the function keys, you can change operational features
instantly. To use this function, press and hold the Fn key ; then press one
of the function keys .


a
b
