Lenovo IdeaTab K3011W
User Guide v1.0
Re ad t he sa f et y no t ice s a nd im po rt ant t ips in t he
include d m anua ls be f o re us ing yo ur co m put er.
Notes
Bef ore using the product, be sure to read Important Safety and Handling
Information f irst.
Some instructions in this guide may assume that you are using Windows® 8. If you are using
another Windows operating system, some operations may be slightly dif f erent. If you are using
another operating system, some operations may not apply to you.
The f eatures described in this guide are common to most models. Some f eatures may not be
available on your computer or your computer may include f eatures that are not described in this
user guide.
The illustrations in this manual may dif f er f rom the actual product. Please ref er to the actual product.
Regulatory Not ice
The Regulatory Notice provides inf ormation about the radio f requency and saf ety standards. Be sure to
read it bef ore using wireless devices on your computer.
To ref er to it, go to http://support.lenovo.com/ and click Guides & Manuals.
First Edition (July 2012)
© Copyright Lenovo 2012.
LIMITED AND RESTRICTED RIGHTS NOT ICE: If data or sof tware is delivered pursuant a General Services
Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set f orth in Contract
No. GS-35F-05925.
Chapter 1
Getting to know your computer

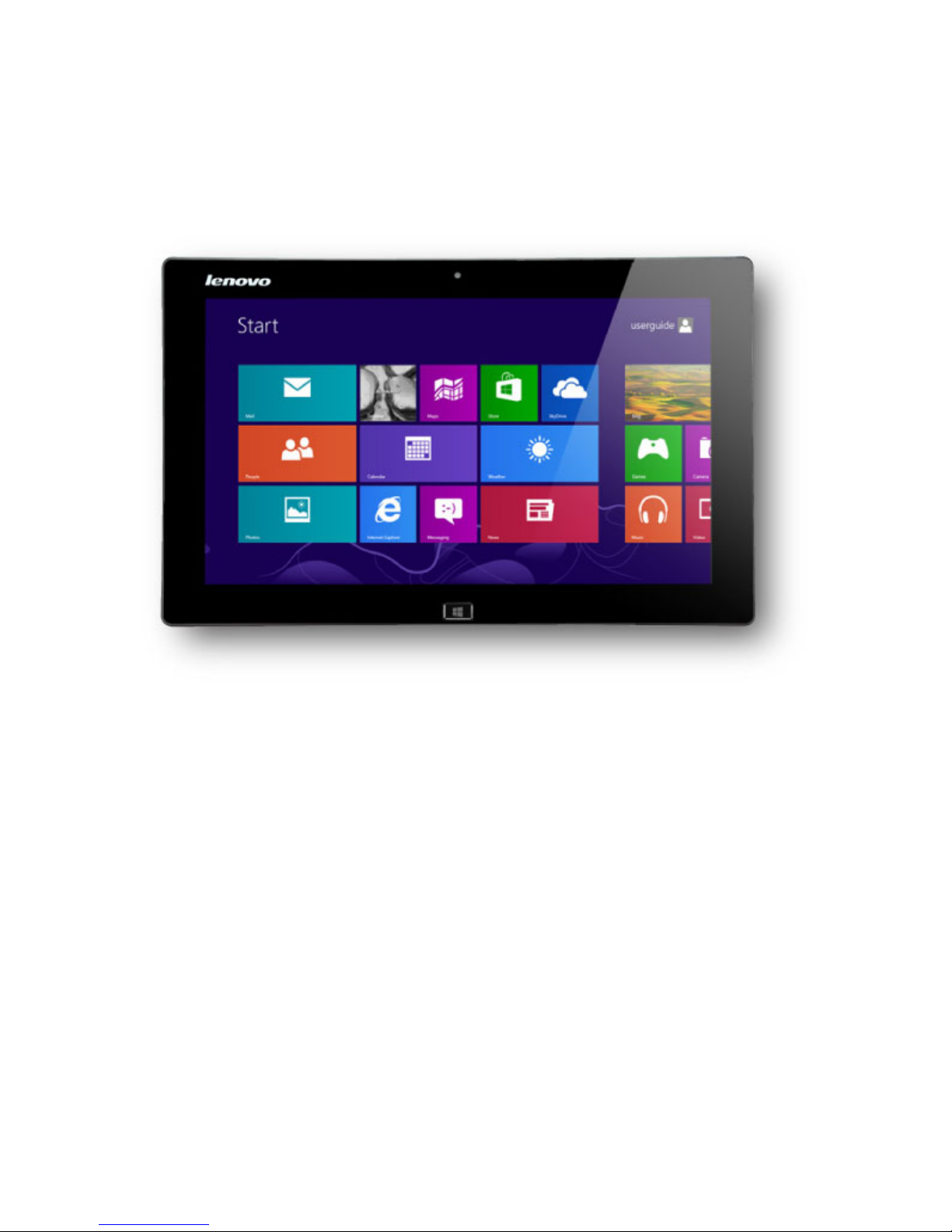

Tablet f ront view

Note: T he dashed areas indicate parts that are not visible externally.
1
Int egrated camera
Use the camera f or video communication and taking photos.
2
Wireless LAN antennas
Connect to the wireless LAN adapter to send and receive wireless radio.
3
Multi-touch screen
Functions as both the visual display as well as one of the two primary input methods.
Note: For details, see “Touch screen operation”.
4
Windows button
Press this button to:

Toggle between the current view and the Start screen.
-or-
Wake up the computer f rom sleep mode.
BACK TO TOP
Tablet lef t -side view
1
Screen rotation lock button
Keeps the screen locked in portrait or landscape orientation.
2
Volume button
Increases/Decreases volume level.
3
Speaker
Provides audio output.
BACK TO TOP
Tablet right-side view
1
Speaker
Provides audio output.
2

Micro HDMI port
Connects to devices with HDMI inputs such as a T V or an external display.
3
Combo audio jack
Connects to headsets.
Notes:
The combo audio jack does not support conventional microphones.
The recording f unction may not be supported if third-party headphones or headsets are connected, due
to dif f erent industry standards.
BACK TO TOP
Tablet t op view
1
Power button
Press this button to turn on the computer.
2
Power status indicator (on tablet)
Symbol Indicator status Meaning
On (solid white) The tablet is connected to the AC adapter and is f ully charged.
On (solid amber) The tablet is charging.
Blinking (white and
amber alternately)
The tablet is connected to the AC adapter, but the charging process has been
paused. T here may be a problem with the battery or battery connection.
Of f The tablet is disconnected f rom the AC adapter.
3
Micro SD card slot

Insert a micro SD card (not supplied) here.
Note: For details, see “Using a micro Secure Digital (SD) card (not supplied)”.
4
Built-in microphone
Captures sound which can be used f or video conf erencing, voice narration, or audio recording.
Using a micro Secure Digit al (SD) card (not supplied)
Your computer supports micro Secure Digital (SD) cards.
Notes:
Insert only one card in the slot at a time.
This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).
A micro SD prying pin was provided with your computer. It was designed to assist with removing the micro
SD card. If you don't have this tool, you may be able to use the end of a small paper clip instead.
Inserting a micro SD card
To insert a micro SD card:
1Turn of f the tablet, and then disconnect the AC adapter and any cable(s) f rom the tablet.
2Open the slot cover.
3Insert the micro SD card until it clicks into place.
4Close the slot cover.
Note: Do not insert or remove the micro SD card while the computer is turned on. Doing so may damage the
micro SD card reader.
Removing a micro SD card
To remove a micro SD card:
1Turn of f the tablet, and then disconnect the AC adapter and any cable(s) f rom the tablet.
2 Open the slot cover.
3 Use the provided micro SD prying pin to push the micro SD card in until you hear a click. When you
release the pressure, the spring- loaded micro SD card will pop out of the slot slightly.

4 Use the micro SD prying pin to pull out the micro SD card.
5 Close the slot cover.
Note: Bef ore removing the micro SD card, disable it by using the Windows saf ely remove hardware and eject
media utility to avoid data corruption.
BACK TO TOP
Tablet bottom view

1
Tablet-docking latch
Connects the tablet to the dock and keeps the tablet secured in place.
Note: For details, see “Combination of tablet and dock”.
2
Multi-function connect or
Connects to the AC power adapter, the USB cable or the dock.
BACK TO TOP
Dock Front view

1
Tablet-docking latch
Attaches the tablet to the dock keeping the tablet secured in place.
Note: For details, see “Combination of tablet and dock”.
2
Tablet connector
Connects the tablet to the dock.
Note: For details, see “Combination of tablet and dock”.
3
Tablet release butt on (spring loaded)
Press and hold the spring-loaded button to release the tablet and detach it f rom the dock.
Note: For details, see “Detaching the tablet”.

4
Keypad
The keypad f unctions as a conventional keyboard.
5
Touchpad
The touchpad f unctions as a conventional mouse.
Touchpad: To move the pointer on the screen, slide your f ingertip over the pad in the direction in which you
want the pointer to move.
Touchpad buttons: The f unctions of the lef t/right side correspond to that of the lef t/right mouse button on a
conventional mouse.
Keyboard funct ion keys
You can access certain system settings quickly by pressing the appropriate f unction keys.
Mutes/unmutes the sound. Toggles the display between the
computer and an external device.
Decreases the volume level. Decreases display brightness.
Increases the volume level. Increases display brightness.

Closes the currently active
window.
Displays the Settings charm.
Ref reshes the desktop or the
currently active window.
Displays the Search charm.
Turns on/of f the backlight of the
LCD screen.
Displays all currently active apps.
Enables/disables wireless
f unction.
Displays all apps with the Search
charm.
Frequent ly used Windows Hotkey
To use the Windows hotkey f unction, press and hold Windows key 1 ; then press one of the hotkeys.
Windows
key
Toggles between displaying the Start screen and the most recently opened app. (If there are
no currently open apps, it will alternate between the Start screen and the desktop.)
Windows
key + Fn +
F1
Opens Windows Help and Support.
Windows
key + C
Opens the Charms.

Windows
key + D
Displays the desktop.
Windows
key + E
Opens Windows Explorer.
Windows
key + F
Opens Files within the Search charm. (press Windows key + F + Ctrl to f ind computers on a
network)
Windows
key + G
Cycles through desktop gadgets.
Windows
key + H
Displays the Share charm.
Windows
key + I
Displays the Settings charm.
Windows
key + J
Switches back to the most recently used open app.
Windows
key + K
Displays the Devices charm.
Windows
key + O
Toggles between locking and unlocking the screen orientation.
Windows
key + Q
Displays the Search charm.
Windows
key + T
Switches f rom the currently active window to the desktop taskbar and cycles through open
desktop apps (if there are two or more open).
Windows
key + V
Cycles through notif ications. (press Windows key + V + Shif t to go backward)
Windows
key + W
Opens Settings within the Search charm.
Windows
key + Z
Opens the app bar.
Windows
key + ,
(comma)
Peeks at the desktop.
Windows
key + .
(period)
Docks a currently open Windows store app on the right side of the screen. (press Windows
key + . (period) + Shif t to dock to the lef t)
Windows
key + Enter
Opens Narrator (press Windows key + Enter + Alt to open Windows Media Center - if
installed)
Windows
key +
Spacebar
Switches the input language and the keyboard layout.
Windows
key + Tab
Cycles through the Windows store app history.
Windows Exits the Magnif ier.

key + Esc
Windows
key + PgUp
Hides/restores any inactive desktop windows.
Windows
key + PgDn
Moves the Start screen to its rightmost position along the horizontal scrollbar.
Windows
key + → / ←
Snaps the currently active desktop window to a position f illing half of the desktop on either
the lef t side or the right side of the screen.
Windows
key + ↑ / ↓
Maximizes/minimizes the currently active desktop window. (press Windows key + ↑ / ↓ + Shif t
to keep the width of the currently active window while maximizing/minimizing.)
BACK TO TOP
Dock right-side view
1
USB port
Connects to USB devices.
Note: For details, see “Connecting USB devices”.
2
AC power adapter jack
Connects to the AC power adapter.
3
Power status indicator (on dock)
Indicator Indicator status Meaning
Power On (solid white) The dock is connected to the AC adapter and is f ully charged.

On (solid amber) The dock is charging.
Blinking (white
and amber
alternately)
The dock is connected to the AC adapter, but the charging process has
been paused. T here may be a problem with the battery or battery
connection.
Blinking (amber) The battery’s charge is less than 10%.
Of f The dock is disconnected f rom the AC adapter.
Connect ing USB devices
The dock comes with two USB ports compatible with USB devices.
The f irst time you plug a USB device into a particular USB port, Windows automatically installs a driver f or that
device. Af ter the driver has been installed, you can disconnect and reconnect the device without perf orming any
additional steps.
Note: Typically, Windows detects a new device af ter connecting it, and then installs the driver automatically.
However, some devices may require you to install the driver bef ore connecting. Check the documentation
provided by the device’s manuf acturer bef ore connecting the device.
Bef ore disconnecting a USB storage device, make sure your computer has f inished transf erring data to or
f rom that device. Click the Safely Remove Hardware icon in the notif ication area of Windows to remove the
device bef ore disconnecting.
Note: If your USB device uses a power cord, connect the device to a power source bef ore connecting it.
Otherwise, the device may not be recognized.

Combinat ion of tablet and dock
Lenovo IdeaTab K3011W is not only a tablet. It can also be combined with a dock to be used together as a
notebook computer.
Tablet Mode
Notebook Mode

At t aching the tablet
To connect the tablet to the dock, insert it into the tablet slot in the direction shown by arrow 1 until it clicks
into place.

Detaching t he tablet
To remove the tablet f rom the dock, press and hold the spring- loaded tablet relase button 1 , while caref ully
lif ting the tablet in the direction shown by the arrow 2.

Note: Be caref ul not to damage the connector when attaching or detaching the tablet.
Screen orient ation
You can rotate the display panel to your pref erred orientation.
The orientation of the display automatically changes (alternating between portrait and landscape
modes) depending upon how you hold the tablet.

To prevent automatic orientation, press the screen rotation lock button. It is located on the lef t edge of
the tablet. (See below illustration).
BACK TO TOP
Chapter 2
Starting to use Windows 8
Configuring t he operating system f or t he first t ime
You may need to conf igure the operating system when it is f irst used. T he conf iguration process may include
the procedures below:
Accepting the end user license agreement
Conf iguring the Internet connection
Registering the operating system
Creating a user account
BACK TO TOP
Operating system interfaces

Windows 8 comes with two main user interf aces: the Start screen and the Windows desktop. To switch f rom
the Start screen to the Windows desktop, do one of the f ollowing:
Select the Windows desktop tile on the Start screen.
Press the Windows button. (Tablet mode only)
Press the Windows key + D. (Notebook mode only)
To switch f rom the desktop to the Start screen, do one of the f ollowing:
Select Start f rom the Charms.
Move the pointer to the lower-lef t corner and then select the Start screen thumbnail when it is
displayed.
Start screen
Deskt op
BACK TO TOP

The Charms
The f ive Charms provide new and f aster ways to perf orm many basic tasks, and are always available
regardless of which app you are currently in.
To display the Charms, do one of the f ollowing:
Move the pointer to the upper-right or lower- right corner until the Charms bar is displayed.
Use one f inger to swipe in f rom the right edge of the screen until the Charms bar is displayed.
Press Windows key + C. (Notebook mode only)
Search charm
The Search charm is a powerf ul new way to f ind whatever you are looking f or, including apps, settings and
f iles.
