Lenovo L79031 User manual

Legion Phone Duel
User Guide V1.1
Lenovo L79031

Basics
Before using this information and the product it supports, be sure to read the
following:
Quick Start Guide
Regulatory Notice
Appendix
The Quick Start Guide and the Regulatory Notice have been uploaded to the website
at www.motorola.com/support.
Note: All pictures and illustrations in this document are for your
reference only and may differ from the final product.
Home screen
The home screen is the starting point for using your phone. For your convenience,
the home screen is already set up with some useful apps and widgets.
Note: Your phone's features and the home screen may be different depending
on your location, language, carrier, and model.
You can customize your home screen at any time.
To change the settings for the home screen, press and hold anywhere on the
home screen except the icons, select Settings, and then select the option that

you want to make changes.
To add a widget to the home screen, press and hold anywhere on the home
screen except the icons, select Widgets, and then swipe left or right to locate
the widget that you want, press and hold the widget until it pops out, drag it to
where you want to place it, and then release it.
Tip: Some widgets are grouped by app, swipe left or right to locate the app
that you want and then tap it to see the available widgets.
To change the wallpaper and Theme, press and hold anywhere on the home
screen except the icons, select Wallpaper, and then choose your favorite
wallpapers and Theme.
To move a widget or an app to another screen, press and hold the widget or app
until its icon enlarges slightly, drag it to where you want to place it, and then
release it.
To remove a widget from the home screen, press and hold the widget until its icon
enlarges slightly, tap .
To uninstall an app, press and hold the app, press and hold the app until its icon
enlarges slightly, tap , and tap OK in the dialogure box.
Note:
Some of the system apps cannot be uninstalled.
Because the processor and the operating system take up parts of the
memory space, the available storage space of the phone may be less than
the physical capacity.
Screen buttons
There are three buttons at the bottom of the screen.
Back button: Tap to return to the default home screen.
Home button: Tap to return to the previous page or exit the current app.
Multitask button: Tap to see recent apps. Then you can do the following:
Tap an app to open it.
Swipe an app window up to close it.
Swipe an app window down to lock it.
Swipe a locked app window down again to unlock it.
Tap to stop running all unlocked app.
Press and hold to stop running all locked app.
In app interface, press and hold to enter split screen mode.
Note: Some apps may not support the split screen.
Screen lock
When your phone is on, press the Power button to lock the screen manually. Press
the Power button again to display the lock screen, and then swipe up from the
bottom of the screen to unlock.
Note: Swipe is the default screen unlocking method. To change your screen
lock, see Settings.
Notifications and Quick Settings
The Notifications panel informs you of new messages, USB connection, and activities

in progress such as file downloading. The Quick Settings panel allows you to access
frequently-used settings such as the WLAN switch.
Notifications and Quick Settings
You can do any of the following:
To see notifications and quick settings, swipe down from the top of the screen.
To close the Notification and Quick Settings panel, swipe up from the bottom of
the screen.
To dismiss a notification, swipe left or right across the notification; or swipe left
across.the notification and then tap to dismiss it.
To dismiss all notifications, tap at the bottom of the Notifications panel.
USB connection
When you connect your phone to a computer using a USB cable, the Notification
panel displays a notification such as "Charging this device via USB". You can tap the
notification, and then select one of the following options:
File Transfer: Select this mode if you want to transfer any files between your
phone and the computer.
USB tethering: Select this mode if you want to share your internet data
connection through a USB cable.
PTP: Select this mode if you want to transfer only photos and videos between
your phone and the computer.
MIDI: Select this mode if you want MIDI-enabled applications on your phone to
work with MIDI software on the computer.
No data transfer: Select this mode if you want to charge your phone only.

Calls
Making a call
Dialing a number manually
1. Open the Phone app.
2. Tap to display the dialpad if necessary.
3. Enter the phone number that you want to dial, and then tap .
Calling from the call log
1. Open the Phone app.
2. Tap the Recents tab.
3. Tap from a call log entry to make a call.
Calling a contact
1. Open the Phone app.
2. Tap the Contacts tab.
3. Locate the contact that you want to call, and tap the contact name to display the
contact details.
4. Tap the phone number that you want to dial.
Receiving calls
Answering or rejecting a call
When you receive a phone call, the incoming call screen appears. You can do one of
the following:
Tap ANSWER to answer the call.
Tap DECLINE to reject the call.
Silencing a call
You have the following ways to silence a call:
Press the volume up button or the volume down button.
Press the Power button.
Options during a call
When you are on a call, the following options are available on the screen:
Add call: displays the dialpad so you can call another person.
Hold: puts the current call on hold or resumes the call.
Mute: turns the microphone on or off.
Record: starts or stops a call recording.
Keypad: displays the keypad.
Speaker: turns the speaker on or off.

: ends the call.
You can also press the volume button to turn the volume up or down.
Note: The Hold function may be different depending on your carrier.
Using the call log
The call log contains missed, outgoing, and received call entries. You can tap a call
log entry, the options menu appears, and then tap an option. For example, you can
tap the Add contact option to add the entry to the Contacts list.

Contacts
Creating a contact
1. Open the Contacts app.
2. Tap .
3. Enter the contact information.
4. Tap Save.
Searching for a contact
1. Open the Contacts app.
2. Do one of the following:
Scroll the Contacts list up or down to locate the desired contact.
Tap Search contacts, and then enter the contact name or initials. Matching
contacts are displayed as you type.
Editing a contact
1. Open the Contacts app.
2. Find and tap the contact that you want to edit.
3. Tap Edit contact, and then edit the contact information.
4. Tap Save.
Sharing a contact
1. Open the Contacts app.
2. Tap > Select, then select the contact that you want to share with others, and
then tap .
Deleting a contact
1. Open the Contacts app.
2. Find and tap the contact to delete.
3. Tap > Select, then select the contact that you want to delete, and then tap
.
Importing contacts
1. Open the Contacts app.
2. Tap > Settings > Import.
3. Select Import contacts from .vcf file or SIM card.
4. Tap OK.
Exporting contacts
1. Open the Contacts app.

2. Tap > Settings > Export.
3. Tap contacts.vcf SAVE.

Messages
Sending a message
You can use the Messages app to send text messages and multimedia messages.
1. Open the Messages app.
2. Tap Start chat.
3. Tap the recipient text box, and then enter a contact name or phone number.
Matching contacts are displayed as you type. Select a contact.
Or tap to add more recipients.
4. Tap the message text box, and then enter a message.
Tip: If you want to send a multimedia message, tap to select a
media object type such as pictures or video clips, and then attach
a desired media object to the message.
5. Tap .
Searching for a message
1. Open the Messages app.
2. Tap , and then enter all or part of the contact name, the phone number, or the
message into the search text box.
Deleting messages
1. Open the Messages app.
2. In the list of message threads, tap a contact name or phone number to view the
message thread.
3. Tap > Delete, and then tap Delete in the popped up dialog box.
Or in the list of message threads, press and hold a message until it is selected, then
tap , and then tap Delete in the popped up dialog box.

Camera
Camera basics
You can use the Camera app to take photos and record videos.
Tap to take a photo in Photo mode.
Tap to record a video in Video mode.
Tap the photo or video thumbnail to view the photo or video in the Gallery app.
For more information, see Gallery.
Tap to switch between the front-facing camera and the rear-facing camera.
Tap > to use HDR (High Dynamic Range).
Tap > to switch between flash modes.
Tap > to switch between face beauty modes.
Tap > to switch between filters.
Tap > to configure the other camera settings.
Tap > to switch on or off AI photo assistant.
Tap > to switch between full-screen and 4:3 camera ratio.
Tap or swipe up or down to zoom in or out.

Tap to switch between shooting modes for camera mode or video mode.
Note:
Shooting modes for camera mode: Pro, Night, Portrait, Panorama, Macro, HD
Shooting modes for video mode: Dual, Pro, Slow-mo, Time-lapse, Macro
Taking a screenshot
Press and hold the Power button and the volume down button at the same time to
take a screenshot.
By default, the screenshots are stored in your phone's internal storage. To view the
screenshots, do one of the following:
Open the Photos app and find the Screenshots album.
Open the Files app and go to the Images > Screenshots folder.

Gallery
Viewing photos and videos
1. Open the Photos app.
2. Tap a photo or video to view it in full-screen mode.
3. Do any of the following:
To see the next or previous photo or video, swipe left or right.
To zoom in or out of a photo, stretch or pinch the photo. When you zoom in,
you can drag to see other parts of the photo.
To view a video, tap .
Sharing photos and videos
When you are viewing a photo or video, tap anywhere on the screen, tap , and
then select a sharing channel such as Messages or Bluetooth to share the photo
or video with others. If you want to share multiple photos and videos at the same
time, do all of the following:
1. Open the Photos app.
2. Long press a photo or a video until a checkbox appears on the upper left corner.
3. Select the photos or videos that you want to share with others.
4. Tap on the upper right corner, and then select a sharing channel such as
Messages or Bluetooth to share the photo or video with others.
Deleting photos and videos
When you are viewing a photo or video, tap anywhere on the screen, and then tap
to delete the photo or video.
If you want to delete multiple photos and videos at the same time, do all of the
following:
1. Open thePhotos app.
2. Long press a photo or a video until a checkbox appears on the upper left corner.
3. Select the photo or video you want to delete.
4. Tap on the upper right corner,and tap Move to trash in the poped dialog
box.

Network
WLAN connection
Turning the WLAN connection on or off
Do one of the following:
Go to the Quick Settings panel, and then tap the WLAN switch to turn the
WLAN connection on or off.
Tip: When you turn on the WLAN connection, a list of detected
WLAN hotspots appears. If the list does not appear, press and hold
the WLAN switch in the Quick Settings panel.
Go to Settings > WLAN , and then tap the switch to turn the WLAN connection
on or off.
Tip: When you turn on the WLAN connection, a list of detected
WLAN hotspots appears. If the WLAN hotspot that you want to
connect to is not listed, tap to manually scan for WLAN hotspots
or tap Add network to manually add the WLAN hotspot.
Connecting to a WLAN network
1. Turn on the WLAN connection and check the list of available WLAN hotspots.
Note: You need to have some valid WLAN hotspots to connect to.
2. Tap the WLAN hotspot that you want to connect to.
3. If you selected a secured network, enter your login name and password, and then
tap Connect.
Data connection
Turning the data connection on or off
Do one of the following:
Go to the Quick Settings panel, tap the Mobile data switch to turn the data
connection on or off.
Go to Settings > Mobile network, and then tap the Cellular Data switch to
turn the data connection on or off.
Note: You need a valid SIM card with a data service. If you do not
have a SIM card, contact your carrier.
Selecting a SIM card for data connection
Your phone comes with dual SIM slots. Both slots support 5G/4G/3G/2G data
services, but you can enable only one SIM card for data connection at a time. To
decide which SIM card to use for data connection, go to Settings > Cellular
networks & SIM > Cellular Data and select a SIM card.
To use 5G network, turn on 5G switch.

Setting up a hotspot
You can use a WLAN hotspot to share an Internet connection with another phone or
other devices.
1. Go to Settings > Hotspot & tethering.
2. Tap the Portable WLAN hotspot switch to turn it on.
Note: You can also share a network via Bluetooth or USB.
3. If this is your first time to turn on the WLAN hotspot, tap Set up WLAN hotspot
to view or change the configuration information.
Note: Tell your friends the Network name and password, and they
can connect to your network.

Chrome
If your phone has been connected to a wireless or a cellular network, you can use
the Chrome app to surf the Internet. For more information about connecting to a
WLAN or a cellular network, see Network.
Visiting websites
1. Open the Chrome app.
2. Tap the address box, enter a website address or your search keywords, and then
tap .
Tip: You do not need to enter a full website address with "http://" to access
the website. For example, to visit http://www.lenovo.com, enter
"www.lenovo.com" in the address box and tap .
3. When viewing a web page, do any of the following:
Tap > to refresh the current page.
Press the Back button to return to the previous web page.
Tap > to go forward to a recent web page.
Press and hold an image on the web page, and then tap Save image to save
the image into your phone's internal storage.
Adding a bookmark
When viewing a web page that you want to bookmark, tap > . The next time
you open the Chrome app, tap > Bookmarks, and then tap the bookmark to
quickly access the web page.
Clearing browser history
1. Open the Chrome app.
2. Tap > History.
3. Tap CLEAR BROWSING DATA.

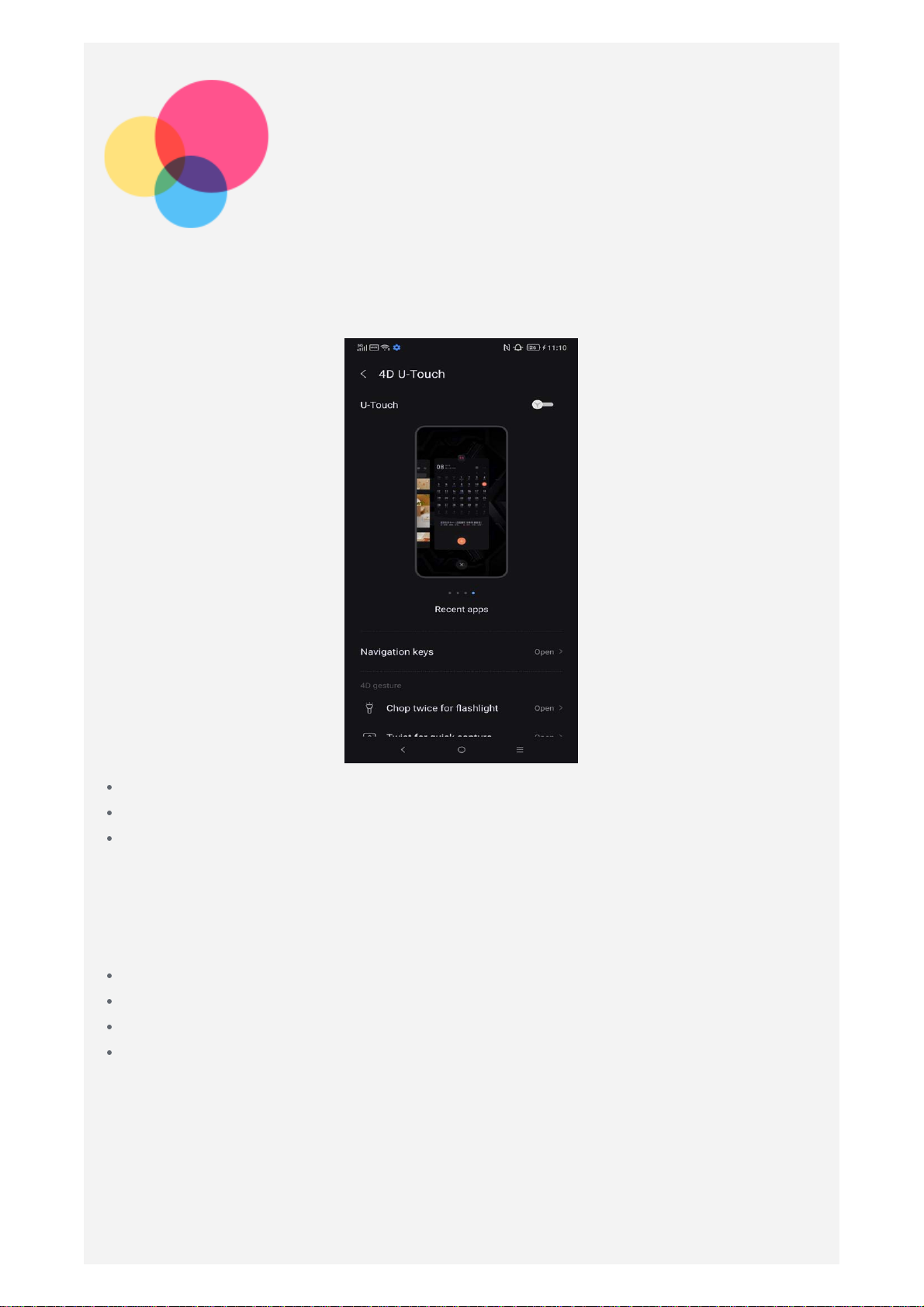

4D U-Touch
Go to Settings > 4D U-Touch, tap U-Touch switch to turn it on, and then learn
to use the U-Touch:
Back: Swipe in from the left or right edge.
Home: Swipe up from the bottom of the screen.
Recents: Swipe up from the bottom of the screen and hold.
Note: The buttons at the bottom of the screen will be hidden.
Also, you can follow the instructions below to open the camera anytime by twisting
your wrist twice:
Go to Settings > 4D U-Touch.
Tap Twist for quick capture.
Make sure the turn on switch is open..
Twist your wrist twice to open the camera..

Fingerprints
Different users can set fingerprints to unlock the phone or switch to their own user
interface quickly.

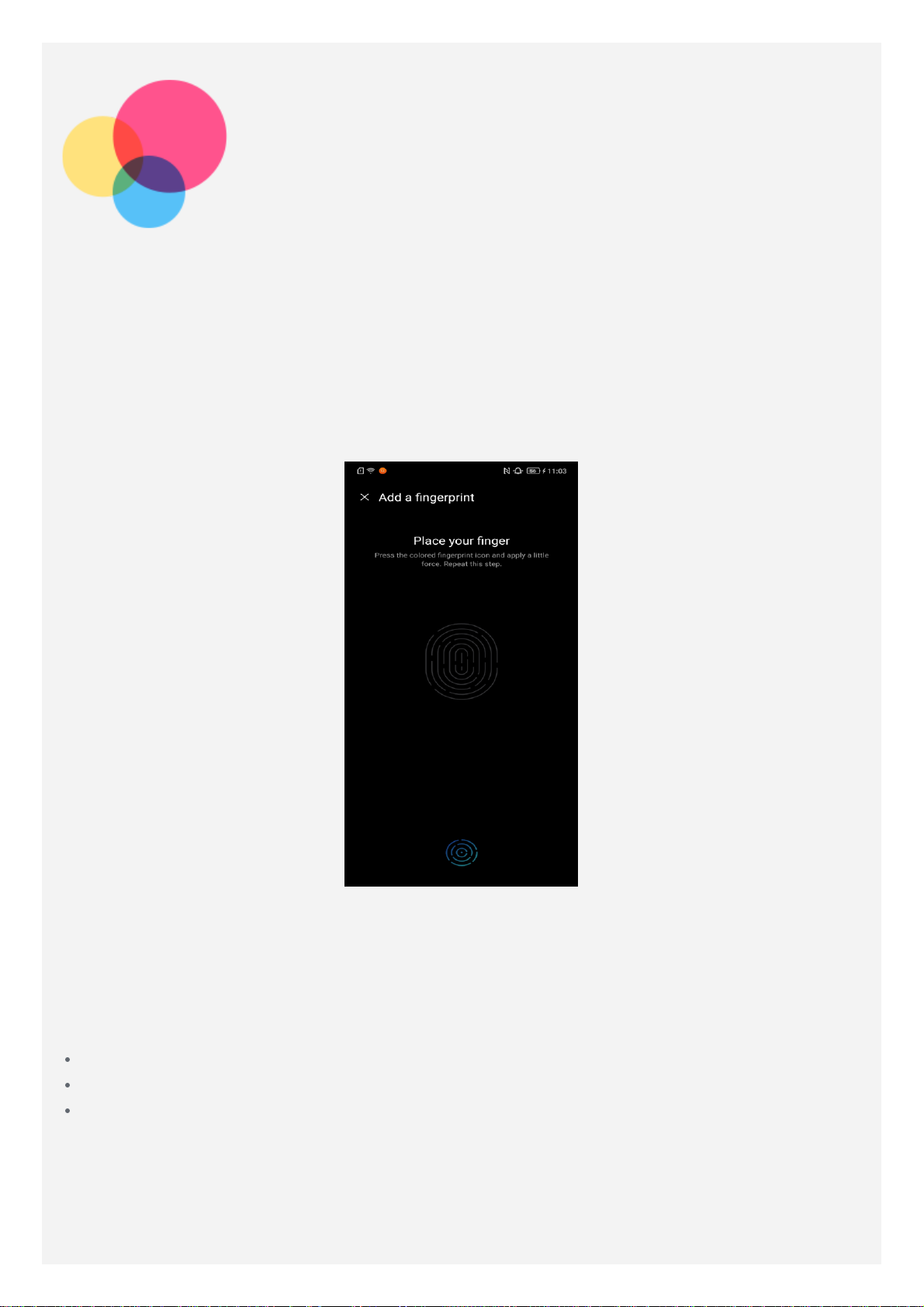

Adding a fingerprint
You can add more than one fingerprint.
Go to Settings > Fingerprints&Passcode >Fingerprints, follow the
instructions on the screen.
Note: A lock screen pattern, PIN, or password is required to use
fingerprint-related functions. Other users can also set individual
fingerprints following the above operations. To set screen lock, go
to Settings > Fingerprints&Passcode > Passcode.
Delete a fingerprint
Go to Settings > Fingerprints&Passcode> Fingerprints.
Use fingerprint, pattern, PIN or password to unlock the screen.
Tap the fingerprint you want to delete, tap Delete fingerprint, and then tap
Delete.
Note: Other users can delete the fingerprints following the above
operations.

Fingerprints
Different users can set fingerprints to unlock the phone or switch to their own user interface
quickly.
Adding a fingerprint
You can add more than one fingerprint.
Go to Settings > Fingerprints&Passcode >Fingerprints, follow the instructions on the
screen.
Note: A lock screen pattern, PIN, or password is required to use
fingerprint-related functions. Other users can also set individual
fingerprints following the above operations. To set screen lock, go to
Settings > Fingerprints&Passcode > Passcode.
Delete a fingerprint
Go to Settings > Fingerprints&Passcode> Fingerprints.
Use fingerprint, pattern, PIN or password to unlock the screen.
Tap the fingerprint you want to delete, tap Delete fingerprint, and then tap Delete.
Note: Other users can delete the fingerprints following the above
operations.

Gaming Features
Legion Wiki
Use the Legion Wiki as a guide to learn gaming features of the phone and start to set
gaming features.
1. Go to Settings > Legion Wiki, tap the gaming feature that you want to know.
Legion Realm
Legion Realm is a game management software in this gaming phone. You can launch a
game or configure the game settings.
Entering the Legion Realm
Do one of the following:
From Y-Triggers
Hold both of the Y-Triggers or ultrasonic buttons of the phone to enter the Legion Realm.
From Settings
Go to Settings > Legion Realm, and then tap the Enter Legion Realm switch at the
bottom to enter the Legion Realm.
Launching a Game
1. Download a game from the Play Store and install it. The game can be identified and added
to the game list in the Legion realm automatically.
2. Tap the game card from Legion Realm or the game from the home screen to launch a
game.
Adding a Game Manually
If the game is not identified by the system and the card is not included in the game list, add
the game card manually.
1. Open the Legion Realm, and tap . The Add games page appears.
2. Type the name of the game installed in the search text box, tap Next to search.
3. Tap to add the game card in the search result.
Configuring Game Settings
To configure the game settings, do one of the following:
From Legion Realm
Tap in the Legion Realm, the Game settings interface appears.
From Settings
Go to Settings > Legion Realm to configure the settings.
Setting Y-Triggers Press Level

Do one of the following:
From Legion Realm
Tap in the Legion Realm, the Game settings interface appears.
Go to Y-Triggers > Tap Press Level, The Tap Force adjustment interface appears.
Tap the Left Key and Right Key correspondently to adjust the forces and tap Finish.
or tap Reset to default to recover.
From Settings
Go to Settings > Legion Realm > Y-Triggers > Tap press level.The Tap Force
adjustment interface appears.
Tap the Left Key and Right Key correspondently to adjust the forces and tap Finish.
or tap Reset to default to recover.
Legion Assistant
Legion assistant is a sliding down panel which have a quick access functionality when you
are in the game.
For more information about Legion Assistant, refer to Legion Wiki on your phone.
Opening and Close Legion Assistant
After the Legion Realm is launched, swipe the screen from top to bottom to open
Legion Assistant.
Tap anywhere outside the panel to close the Legion Assistant.
