Lenoxx PDVD1500 User manual

MODEL NO: PDVD1500
BATCH NO: PR3692
INSTRUCTION MANUAL
Please read and retain this info for future reference.

Features:
· Lightweight, Compact & Portable
· Hi-Res HD Widescreen Display
· Top-Loading CD/DVD Tray
· Built-in Rechargeable Battery
· Dual Full Range Stereo Speakers
· USB Flash & SD Memory Card Readers
· Versatile Digital Media File Compatibility
· Audio, Image & Video File Support
· Swivel Angle Adjustable Display Screen
· Top Panel Button Controls
. Speaker: 3W (2 X 1.5W)
· Headphone Jack, 3.5mm
· Copy MP3 files from a CD to USB stick
· Display Type: 15.4’’ -inch LCD (16:10)
· Monitor Rotation: 270 Degree Left/Right
· Battery: 2500mAh, Li-thium battery 7.4V
· Battery playback time after full charge: 2 hours
· Battery re-charge time: 5 – 6 Hours
· Resolution size pixels: 1280 x 800
· Frequency Response: 20-20kHz
· Dynamic Range: >85dB
· T.H.D.: <1.0%
· CD/DVD Compatibility Type: VCD, CD-RW, DVD-R
· Digital Media File Support: AVI, MP3, WMA, JPG, VCD, EVD, VOB
· Maximum USB/SD Flash Memory Support: Up to 32GB
· Power: 100/240V (12V DC Power Adapter)

IMPORTANT SAFETY INSTRUCTIONS AND PRECAUTIONS
Warning:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE TO MOISTURE. DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL. SERVICE MUST BE CARRIED OUT BY QUALIFIED PERSONNEL ONLY, OR THE
WARRANTY IS NOT VALID.

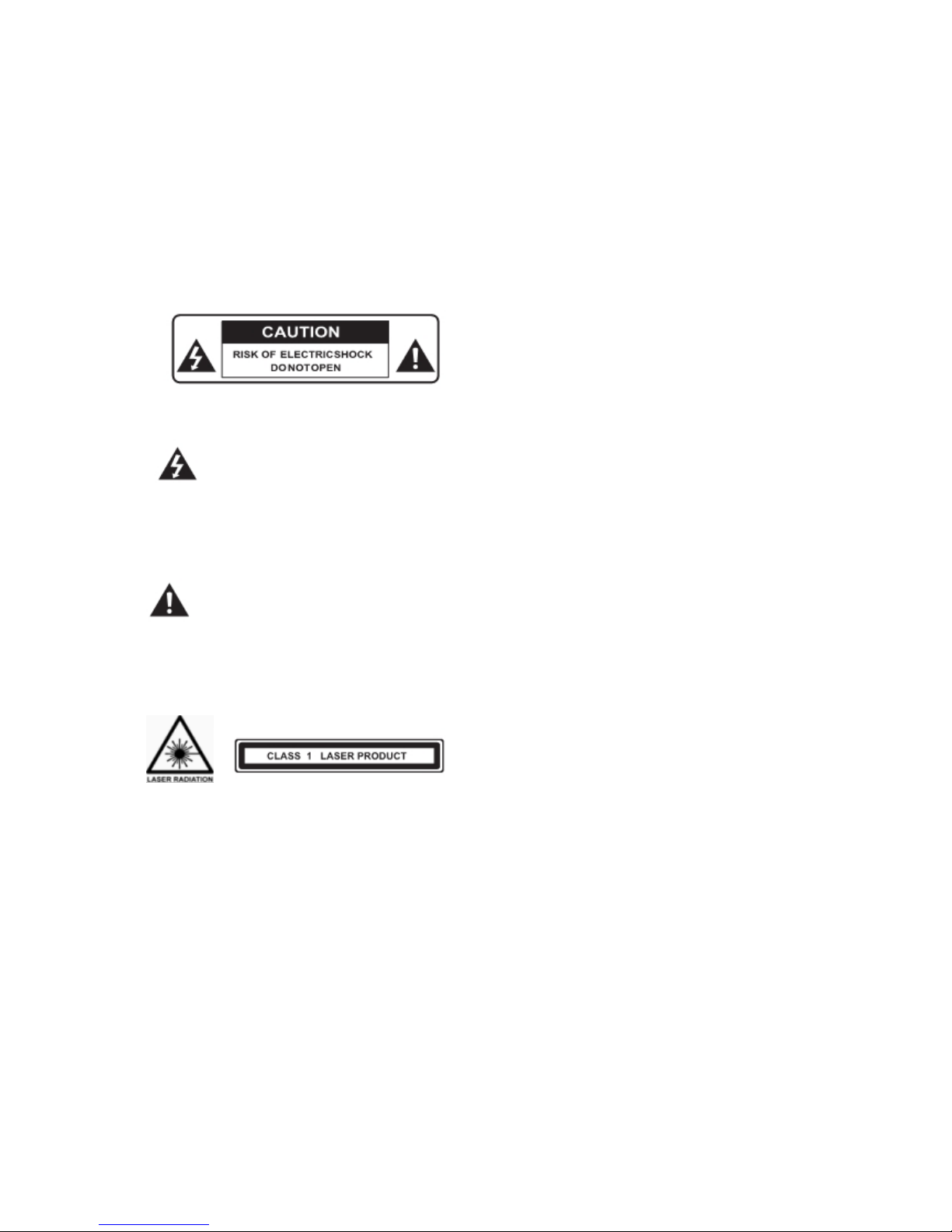

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to
alert the user to the presence of non-insulated dangerous voltage within the product. This may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert user to the presence
of important operating procedures and maintenance (service) instructions in the literature
accompanying the appliance.
Laser product symbol: located on the rear panel of the unit (in some cases at the bottom side),
indicates that this player is a class 1 laser product, it uses only weak laser and no hazardous radiation
outside of the unit.
Installation
Ensure that the portable DVD player is installed in accordance with the instructions and illustrations
provided in this manual.

General Precautions
1) Read through this instruction manual before installation and use.
2) Do not touch the power plug with wet hand.
3) Switch off the main power when the unit is not in use. (Disconnect the power plug from the
power outlet when you do not intend to use the unit for a longer period of time.)
4) Do not open the cover or touch any of the components inside the unit, only for qualified
technicians.
5) Do not expose the unit to direct sunlight or nearby objects that radiate heat to avoid damage to
the unit.
6) Do not place the unit in moist and humid environments.
7) Please ensure the ventilation holes are not covered to avoid overheating and malfunction.
8) Clean the panel and case with soft dry cloth only, do not apply any kind of thinner, alcohol or
sprays.
9) The apparatus shall not be exposed to dripping or splashing, nor should any objects filled with
liquids, such as vases, be placed on the apparatus.
Clean the Machine
1) Please ensure the machine is power off before cleaning.
2) Do not use any chemicals or cleaning agents to clean the machine.
3) Use slightly damp cloth to clean the outside of the machine.
Do not Open
To reduce the risk of Electric Shock, Do not remove cover (or back). No user-serviceable parts
inside. Refer servicing to qualified service personnel.
Care of Disc
1) Do not place disks near heat sources such as direct sunlight or high humidity areas.
2) Stack disks on top of each other, in the same way.
3) Do not touch the disk surface, hold the disc by the edges.
4) Do not use adhesive tape on the disk surface.
5) Wipe the disk from inside to outside with a soft cloth.
6) Do not use gasoline, non-disc special or antistatic cleaning agents to clean the disc because
these substances will cause damage.

WHATS IN THE BOX
1 x Main DVD player with 15.4” LCD screen
1 x Remote control (batteries not included,
requires 2 x AAA batteries)
1 x 12V DC car charger
1 x 240V AC power adapter
1 x AV lead
1 x Instruction manual
1x Warranty card
Please check the contents of the packaging carefully.
INSTALLATION
Indoor Use
1. Locate a spare mains outlet and turn it OFF.
2. Plug the supplied AC adaptor into the outlet.
3. Connect the other end to the SC9-12V/2A DC power input socket on the side of the DVD player.
4. Turn the main outlet ON.
5. Turn the main Power Switch on the Player to the ON position.
In-car Use
1. With the vehicle ignition off, connect the supplied car charger to the vehicle power outlet.
2. Connect the other end to the SC9-12V/2A DC power input on the side of the DVD player.
3. Turn the vehicle ignition to ON or ACC to power the outlet and slide the DVD player power
switch to the ON position.
Note: Care should be taken with all cable and connections with the DVD player.
Please ensure that there is no tension on any connection as this may damage the units.
Tidy any excess cabling to trip hazards that may damage the player.
PLAYBACK
Panel:

BUTTON
FUNCTION
LCD POWER
Press to turn the screen display on or off
MENU
Press to access a DVD discs menu on discs which allow this
function
COPY
For use with the copy from CD disc to flash stick function
VOL-
Press to decrease volume
UP (CH+)
Directional button – up. For use in menus
CH+N/A FOR THIS MODEL
VOL+
Press to increase volume
DOWN (CH-)
Directional button – up. For use in menus
CH- N/A FOR THIS MODEL
LCD MENU
Press to access the LCD setting menu
STOP
Press to stop playback
MODE
Press to change playback mode
USB/CARD
When in disc playback, press to change from disc play mode to
USB/SD mode
SETUP
Press to access the set up menu for the DVD player
REV
Press to rewind in DVD playback. Press to go back a song in CD
playback
PREV
Press to fast forward in DVD playback. Press to go forward a
song in CD playback
FWD
Press to go back a chapter when playing a DVD disc which
allows for this function
NEXT
Press to go forward a chapter when playing a DVD disc which
allows for this function
►║
Press to pause playback, press again to resume playback
OPEN
Switch to open lid for DVD player

Side Panel:
Side panel
The Remote Control
ITEM
FUNCTION
USB
USB port
SD/MMC
SD/MMC Card socket
Ω EARPHONE
Connect earphones to this jack, earphones not
included
AV OUT
Video out signal
AV IN
External video input signal
VOL+
Press to increase volume
OFF/ON
OFF/ON switch to turn the player off and on
SC9-12V/2A DC
power in socket
Socket for connection to mains adaptor or car adaptor

BUTTON
FUNCTION
POWER
Press to put the unit in standby mode, press again to take if off standby
mode
CARD/USB
Press to change the playback method from memory card or USB
ZOOM
When playing a DVD disc, press repeatedly to zoom in or zoom out
MUTE
Press to mute sound un-mute sound
PROG
N/A for this model

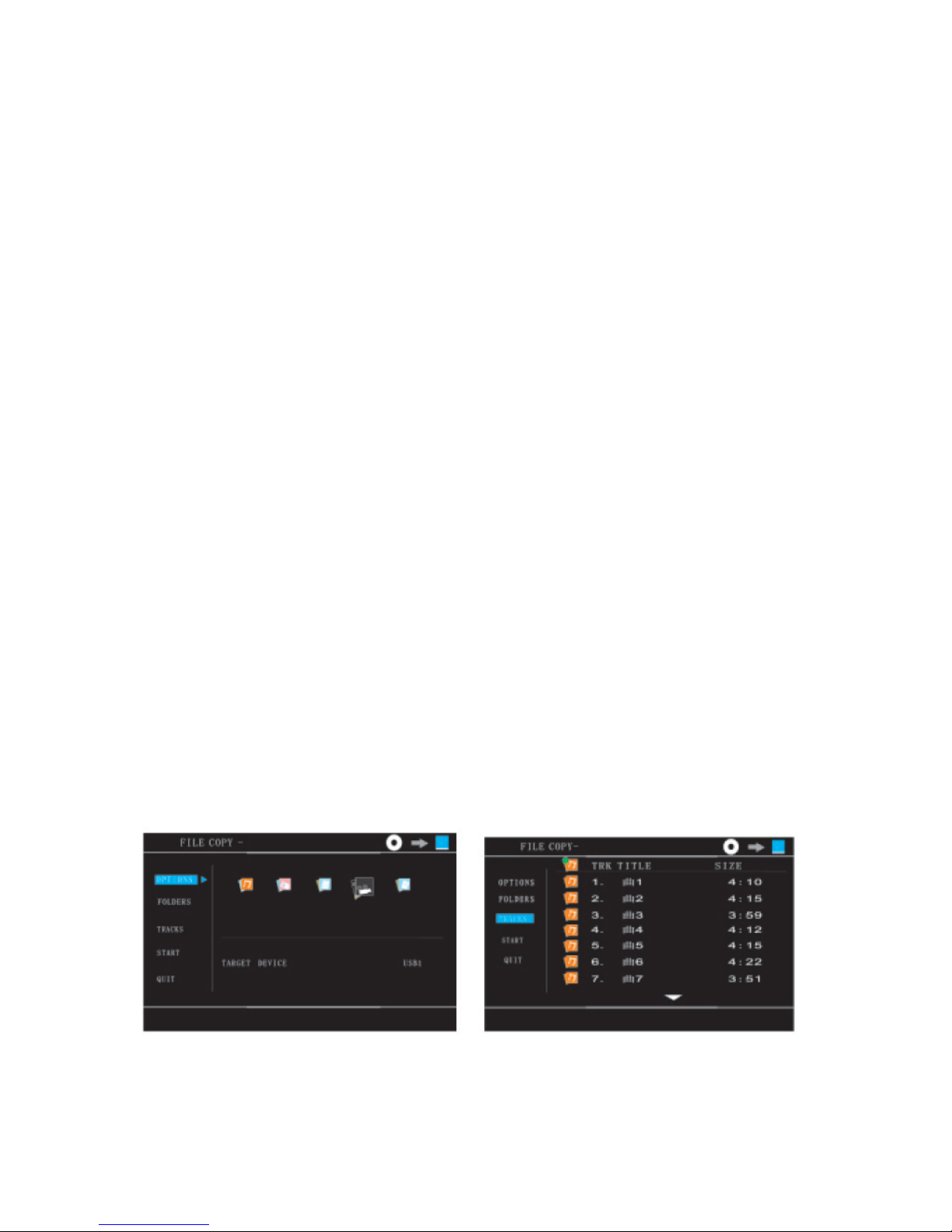

COPY
For use with the function, copy MP3 files from a CD disc to USB stick
OSD
Press to display disc info when playing a DVD/CD disc
REPEAT
Press to repeat current playing music track
SETUP
Press to enter set up menu’s for the DVD player
MODE
Press to change playback mode
◄
◄ Directional button – left. For use in menus
▲
▲ Directional button – up. For use in menus
►
► Directional button – right. For use in menus
▼
▼ Directional button – down. For use on menus
ENTER
Confirmation button for use when using the set up menus
MENU
Press to access the menu for DVD discs which allow for menu selection
■ STOP
Press to stop playback
VOL -
Press to decrease volume
►║ PLAY/PAUSE
Press to pause playback. Press to resume playback
VOL +
Press to increase volume
◄◄
Press to rewind in DVD playback. Press to go back a song in CD
playback.
►►
Press to fast forward in DVD playback. Press to go forward a song
in CD playback.
І◄◄
Press to go back a chapter when playing a DVD disc which allows
for this function
►►І
Press to go forward a chapter when playing a DVD disc which
allows for this function

Batteries in the remote control
1. Remove the battery cover from the rear of the remote control.
2. Add 2 x AAA batteries (not included) to the remote as per the polarity directions in the battery
compartment in the remote control.
3. Put the battery cover back onto the rear of the remote control.
Note:
1. Do not use re-chargeable batteries in the remote control, because they lose power at
a slower rate.
2. Do not mix different brands and type of batteries, do not use old and new batteries
together.
3. When the remote control function is not strong or control range is small, replace the
batteries.
4. If the remote control will not be used for a long time, remove the batteries to avoid
damage to the remote control from battery leakage or corrosion.
5. Do not use the remote control ion hot or humid conditions.
6. Do not disassemble the remote control.
Basic Function Operation
1. Operation
Connect either the 240V mains power adaptor (indoor use) or the 12V car adaptor (in car
use) to the DC input socket on the DVD player.
Switch the ON button on the machine to turn on the DVD player.
Turn the switch to OFF when not in use.
2. TFT picture adjustment
Press LCD MENU to access the LCD setup menu for adjustment.
Use the directional arrow buttons on the remote control to select the desired submenu function and
use the left or right arrows to adjust the function.
1) BIGHTNESS
2) CONTRAST
3) COLOUR
4) TINT
5) RATIO
LCD MENU
Press to access the LCD settings menu
SUBTITLE
Press to access subtitles on discs which allow for this function
AUDIO
Press to switch between left/right/stereo sound playback
GOTO
Press to jump to a particular section when playing a DVD disc that
allows for this function
RETURN
Exits current operation, e.g.: menu
NUMBER KEYS
Press during CD disc playback to jump to a particular track

6) DEFAULT – if this option is selected, the function setting is restored back to the factory
settings.
3. Place disc
1) Press OPEN to open the disc cover.
2) Hold the edge of the disc insert the disc.
3) Close the disc cover.
4. Play /Pause
1) This player will automatically play once the disc is loaded.
2) Press ►║to pause
3) Press ►║once more to resume play.
5. Character display
Press OSD to show disc information and operation function and press OSD once again
to turn off the display.
6. DVD disc menu play
Some DVD discs are recorded with title menu or chapter menu.
When MENU button on the remote controller is pressed, the screen will display the menu
at your choice. Press direction buttons to adjust and press ENTER to confirm and press
number buttons to select. Press MENU button again to return root menu. Press TITLE
button once again to return title menu.
7. Select chapter play direct by number button
Press number buttons to directly select the chapter to play once the player finished the
disc reading.
1) Press number buttons 1-9 for the chapters with the number less than 10.
2) For the chapters with the number above 10, press 10+ button (it switches to 20+,
30+…when pressed in succession) , before pressing number button 0-9
8. Play back from USB/SD/MMC memory card
Press the SD/USB button to play back from USB or memory card.
9. DVD Menu Setup
1) System Setup Page
a. Screen Display: NTSC & PAL & AUTO
b. Last Memory State: When the DVD player is powered off, the system can resume
playback from its last position when the DVD player is turned on again. The options are ON or OFF.
c. Screen Saver: The options are ON or OFF.
d. Display Type: The options are:
4:3 PS: When a wider screen video is played, the left and right edges of the video will be cut off.
4:3 LB: When a wider screen video is played, the top and bottom of the screen will have black strips.
16:9: Suitable for a wide screen display
Note: the play effect is related to the ratio of the video recorded. Therefore, some videos may not
be played in the screen size you have chosen.
e. Password: works with classification disc.
The default password for this model is 0000.
Initially, this option is set as ‘password lock.
