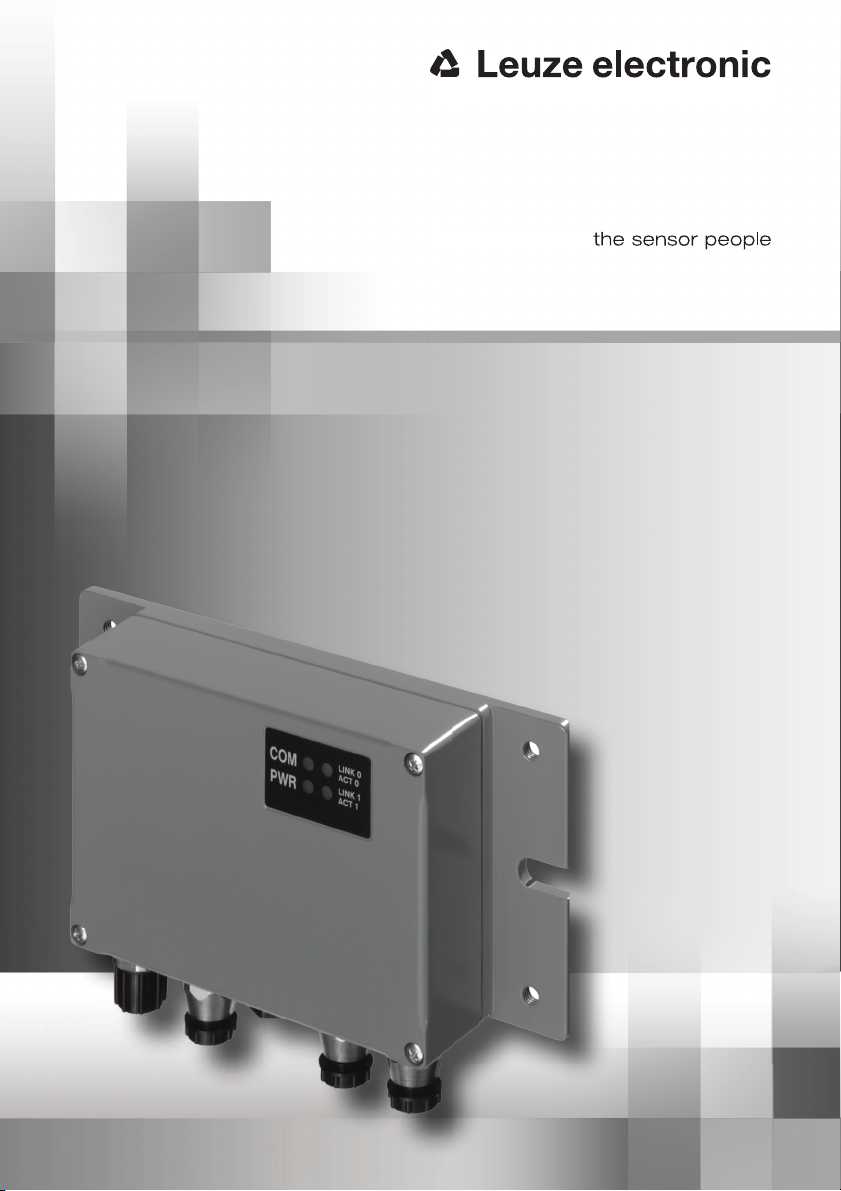

Leuze electronic MA 208i Parts list manual

MA 208i
Modular interfacing unit for Leuze Ident and 
RS 232 devices on Ethernet TCP/IP
TECHNICAL DESCRIPTION
en 02–2012/04 50113024

Condelectric S.A.
Tel. Int. + 54 1148 361053
Fax Int. + 54 1148 361053
Tel. Int. + 43 732 7646-0
Fax Int. + 43 732 7646-785
Balluff-Leuze Pty. Ltd.
Tel. Int. + 61 3 9720 4100
Fax Int. + 61 3 9738 2677
Leuze electronic nv/sa
Tel. Int. + 32 2253 16-00
Fax Int. + 32 2253 15-36
ATICS
Tel. Int. + 359 2 847 6244
Fax Int. + 359 2 847 6244
Leuze electronic Ltda.
Tel. Int. + 55 11 5180-6130
Fax Int. + 55 11 5180-6141
Leuze electronic AG
Tel. Int. + 41 41 784 5656
Fax Int. + 41 41 784 5657
Imp. Tec. Vignola S.A.I.C.
Tel. Int. + 56 3235 11-11
Fax Int. + 56 3235 11-28
Leuze electronic Trading
(Shenzhen) Co. Ltd.
Tel. Int. + 86 755 862 64909
Fax Int. + 86 755 862 64901
Componentes Electronicas Ltda.
Tel. Int. + 57 4 3511049
Fax Int. + 57 4 3511019
Schmachtl CZ s.r.o.
Tel. Int. + 420 244 0015-00
Fax Int. + 420 244 9107-00
Leuze electronic Scandinavia ApS
Tel. Int. + 45 48 173200
SKS-automaatio Oy
Tel. Int. + 358 20 764-61
Fax Int. + 358 20 764-6820
Leuze electronic Sarl.
Tel. Int. + 33 160 0512-20
Fax Int. + 33 160 0503-65
Leuze electronic Ltd.
Tel. Int. + 44 14 8040 85-00
Fax Int. + 44 14 8040 38-08
UTECO A.B.E.E.
Tel. Int. + 30 211 1206 900
Fax Int. + 30 211 1206 999
ALL IMPEX 2001
Tel. Int. + 7 495 9213012
Fax Int. + 7 495 6462092
Leuze electronic Scandinavia ApS
Ingermark (M) SDN.BHD
Tel. Int. + 60 360 3427-88
Fax Int. + 60 360 3421-88
Movitren S.A.
Tel. Int. + 52 81 8371 8616
Fax Int. + 52 81 8371 8588
Leuze electronic BV
Tel. Int. + 31 418 65 35-44
Fax Int. + 31 418 65 38-08
LA2P, Lda.
Tel. Int. + 351 21 4 447070
Fax Int. + 351 21 4 447075
Balluff Sp. z o. o.
Tel. Int. + 48 71 338 49 29
Fax Int. + 48 71 338 49 30
O`BOYLE s.r.l
Tel. Int. + 40 2 56201346
Fax Int. + 40 2 56221036
Elteco A/S
Tel. Int. + 47 35 56 20-70
Fax Int. + 47 35 56 20-99
Great Cofue Technology Co., Ltd.
Tel. Int. + 886 2 2983 80-77
Fax Int. + 886 2 2985 33-73
Countapulse Controls (PTY.) Ltd.
11/2011
Tel. Int. + 27 116 1575-56
Fax Int. + 27 116 1575-13
Schmachtl SK s.r.o.
Tel. Int. + 421 2 58275600
Fax Int. + 421 2 58275601
Tipteh d.o.o.
Tel. Int. + 386 1200 51-50
Fax Int. + 386 1200 51-51
Industrial Electrical Co. Ltd.
Te l . Int. + 66 2 642 6700
Fax Int. + 66 2 642 4250
Leuze electronic San.ve Tic.Ltd.Sti.
Tel. Int. + 90 216 456 6704
Fax Int. + 90 216 456 3650
Balluff Asia Pte Ltd
Tel. Int. + 65 6252 43-84
Fax Int. + 65 6252 90-60
Leuze electronic, Inc.
Tel. Int. + 1 248 486-4466
Fax Int. + 1 248 486-6699
SV Altera OOO
Tel. Int. + 38 044 4961888
Fax Int. + 38 044 4961818
C. Illies & Co., Ltd.
Tel. Int. + 81 3 3443 4143
Fax Int. + 81 3 3443 4118
Profa-Tech Ltd.
Tel. Int. + 254 20 828095/6
Fax Int. + 254 20 828129
Leuze electronic Co., Ltd.
Tel. Int. + 82 31 3828228 Tel. Int. [phone]
Fax Int. + 82 31 3828522
Leuze electronic S.A.
Tel. Int. + 34 93 4097900
Fax Int. + 34 93 49035820
Schmachtl GmbH
SABROW HI-TECH E. & A. LTD.
Tel. Int. + 234 80333 86366
Fax Int. + 234 80333 84463518
Tipteh d.o.o. Beograd
Tel. Int. + 381 11 3131 057
Fax Int. + 381 11 3018 326
Tipteh d.o.o. Skopje
Tel. Int. + 389 70 399 474
Fax Int. + 389 23 174 197
Leuze electronic S.r.l.
Tel. Int. + 39 02 26 1106-43
Fax Int. + 39 02 26 1106-40
Kvalix Automatika Kft.
Tel. Int. + 36 1 272 2242
Fax Int. + 36 1 272 2244
P.T. Yabestindo Mitra Utama
Tel. Int. + 62 21 92861859
Fax Int. + 62 21 6451044
Galoz electronics Ltd.
Tel. Int. + 972 3 9023456
Fax Int. + 972 3 9021990
M + V Marketing Sales Pvt Ltd.
Tel. Int. + 91 124 4121623
Fax Int. + 91 124 434233
Sensortech Company
Tel. Int. + 852 26510188
Fax Int. + 852 26510388
Tipteh Zagreb d.o.o.
Tel. Int. + 385 1 381 6574
Fax Int. + 385 1 381 6577
Leuze electronic GmbH + Co. KG
P.O. Box 1111, D- 73277 Owen
Tel. [phone],
Fax [phone]
[e-mail]฀฀฀฀w.leuze.com
Sales Region East
Phone [phone]
Fax [phone]
Postal code areas
01000-19999
39000-39999
98000-99999
Sales Region North
Phone [phone]
Fax [phone]
Postal code areas
20000-38999
40000-65999
97000-97999
Sales Region South
Phone [phone]
Fax [phone]
Postal code areas
66000-96999
Sales and Service
Worldwide
AT (Austria)
AR (Argentina)
AU + NZ (Australia + New Zealand)
BE (Belgium)
BG (Bulgaria)
BR (Brasil)
CH (Switzerland)
CO (Colombia)
CZ (Czech Republic)
CL (Chile)
CN (China)
DK (Denmark)
FI (Finland)
GB (United Kingdom)
GR (Greece)
FR (France)
RU (Russian Federation)
SE (Sweden)
MY (Malaysia)
MX (Mexico)
NL (Netherlands)
PT (Portugal)
PL (Poland)
RO (Romania)
NO (Norway) TW (Taiwan)
ZA (South Africa)
SK (Slowakia)
SI (Slovenia)
TH (Thailand)
TR (Turkey)
SG + PH (Singapore +
Philippines)
US + CA (United States +
Canada)
UA (Ukraine)
JP (Japan)
KR (South Korea)
ES (Spain)
Germany
KE (Kenia)
NG (Nigeria)
RS (Republic of Serbia)
MK (Macedonia)
IT (Italy)
HU (Hungary)
ID (Indonesia)
IL (Israel)
IN (India)
HK (Hong Kong)
HR (Croatia)
© All rights reserved, especially the right of reproduction and translation. Copying 
or reproduction in any form require the written consent of the manufacturer. 
Product names are used without a guarantee of free usage.
Changes reflecting technical improvements may be made.

Leuze electronic MA 208i1
Table of contents
1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Description of functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Definition of terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Safety notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.1 General safety notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Safety standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Working safely . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3 Fast commissioning / operating principle . . . . . . . . . . . . . . . . . . . 10
3.1 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2 Device arrangement and selection of the mounting location . . . . . . . . . . . . . . . . . . . . 10
3.3 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.3.1 Connecting the Leuze device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.3.2 Connecting the power supply and the bus cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.4 Starting the device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5 MA 208ion Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.5.1 Manually setting the IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.5.2 Ethernet host communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.5.3 TCP/IP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5.4 UDP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Device description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.1 General Information to the connector units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.2 Characteristics of the connector units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.3 Device construction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.4 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.5 Fieldbus systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4.5.1 Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.1 General specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 Dimensioned drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3 Type overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2MA 208iLeuze electronic
Table of contents
6 Installation and mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1 Storage, transportation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.2 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.3 Device arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.3.1 Selecting a mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.4 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
7 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.1 Safety notices for the electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
7.2 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
7.2.1 PWR IN – voltage supply / switching input/output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
7.2.2 PWR OUT switching input/output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.3 BUS IN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.4 BUS OUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.5 Device interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.5.1 RS 232 device interface (accessible after opening the device, internal) . . . . . . . . . . . . . . 31
7.5.2 Service interface (internal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.6 Ethernet wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
7.7 Cable lengths and shielding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8 Status displays and operational controls . . . . . . . . . . . . . . . . . . . . 34
8.1 LED status indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8.1.1 LED indicators on the circuit board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8.1.2 LED indicators on the housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.2 Internal interfaces and operational controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.2.1 Overview of operational controls of the. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.2.2 Connector X30 … connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8.2.3 RS 232 service interface – X33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8.2.4 S10 service switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
8.2.5 Rotary switch S4 for device selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
9 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.1 Connecting the service interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
9.2 Reading out information in Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
10 Telegram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.1 Structure of the fieldbus telegram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
10.2 Description of the input bytes (status bytes). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Leuze electronic MA 208i3
Table of contents
10.2.1 Structure and meaning of the input bytes (status bytes) . . . . . . . . . . . . . . . . . . . . . . . . . 45
10.2.2 Detailed description of the bits (input byte 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
10.2.3 Detailed description of the bits (input byte 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
10.3 Description of the output bytes (control bytes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
10.3.1 Structure and meaning of the output bytes (control bytes) . . . . . . . . . . . . . . . . . . . . . . . 47
10.3.2 Detailed description of the bits (output byte 0). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
11 Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
11.1 Functionality of the data exchange. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
11.1.1 Writing slave data in Collective mode (PLC -> gateway) . . . . . . . . . . . . . . . . . . . . . . . . . 49
11.1.2 Command mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
12 Commissioning and configuration. . . . . . . . . . . . . . . . . . . . . . . . . 52
12.1 Measures to be performed prior to the initial commissioning. . . . . . . . . . . . . . . . . . . . 52
12.2 Starting the device and setting the communication parameters . . . . . . . . . . . . . . . . . 53
12.2.1 Manually setting the IP address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
12.2.2 Ethernet host communication. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
12.2.3 TCP/IP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
12.2.4 UDP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
12.3 Setting the read parameters on the Leuze device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
12.3.1 Specific feature for the use of hand-held scanners 
(bar code and 2D devices, combi devices with RFID) . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
12.3.2 Specific features in the operation of an RFM/RFI. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
13 Diagnostics and troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . 59
13.1 General causes of errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
13.2 Interface errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
14 Type overview and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 61
14.1 Part number code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
14.2 Type overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
14.3 Accessory connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
14.4 Accessory ready-made cables for voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
14.4.1 Contact assignment of PWR connection cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
14.4.2 Specifications of the cables for voltage supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
14.4.3 Order codes of the cables for voltage supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
14.5 Accessory ready-made cables for bus connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
14.5.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
14.5.2 Contact assignments of M12 Ethernet connection cable KB ET… . . . . . . . . . . . . . . . . . 63
14.5.3 Technical data of M12 Ethernet connection cable KB ET… . . . . . . . . . . . . . . . . . . . . . . 64

4MA 208iLeuze electronic
Table of contents
14.5.4 Order codes of M12 Ethernet connection cable KB ET…. . . . . . . . . . . . . . . . . . . . . . . . . 64
14.6 Accessory ready-made cables for connecting Leuze Ident devices . . . . . . . . . . . . . . . 65
14.6.1 Order codes for the device connection cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
14.6.2 Contact assignment for the device connection cables . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
15 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
15.1 General maintenance information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
15.2 Repairs, servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
15.3 Disassembling, packing, disposing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
16 Specifications for Leuze end devices . . . . . . . . . . . . . . . . . . . . . . 67
16.1 Standard setting, KONTURflex (S4 switch position 0) . . . . . . . . . . . . . . . . . . . . . . . . . . 67
16.2 Bar code reader BCL 8 (S4 switch position 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
16.3 Bar code reader BCL 22 (S4 switch position 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
16.4 Bar code reader BCL 32 (S4 switch position 3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
16.5 Bar code reader BCL 300i, BCL 500i (S4 switch position 4). . . . . . . . . . . . . . . . . . . . . . 72
16.6 Bar code reader BCL 90 (S4 switch position 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
16.7 LSIS 122 (S4 switch position 6) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
16.8 LSIS 4x2i (S4 switch position 7) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
16.9 Hand-held scanner (S4 switch position 8) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
16.10 RFI, RFM, RFU RFID readers (S4 switch position 9). . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
16.11 BPS 8 bar code positioning system (S4 switch position A) . . . . . . . . . . . . . . . . . . . . . . 78
16.12 AMS distance measurement device, ODSL xx optical distance sensors 
with RS 232 interface (S4 switch position B). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
16.13 Modular interfacing unit MA 3x (S4 switch position C). . . . . . . . . . . . . . . . . . . . . . . . . . 81
16.14 Resetting the parameters (S4 switch position F) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
17 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
17.1 ASCII Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

General information
Leuze electronic MA 208i5
TNT 35/7-24V
1 General information
1.1 Explanation of symbols
The symbols used in this operating manual are explained below.
Attention!
This symbol precedes text messages which must strictly be observed. Failure to comply with
this information results in injuries to persons or damage to the equipment.
Notice!
This symbol indicates text passages containing important information.
1.2 Declaration of Conformity
The MA 208imodular interfacing units have been designed and manufactured in
accordance with applicable European directives and standards.
Notice!
The Declaration of Conformity for these devices can be requested from the manufacturer.
The manufacturer of the product, Leuze electronic GmbH + Co. KG in D-73277 Owen,
possesses a certified quality assurance system in accordance with ISO 9001.

General information
6MA208iLeuze electronic
1.3 Description of functions
The MA 208imodular interfacing unit is used to connect Leuze devices directly to the
fieldbus.
Bar code reader: BCL 8, 22, 32, 300i, 500i, 90
2D code reader: LSIS 122, LSIS 4x2i
Hand-held scanner ITxxxx, HFU/HFM
RFID read-write devices: RFM 12, 32, 62 & RFI 32, RFU 61, 81
Bar code positioning system: BPS 8
Distance measurement device: AMS 200
Optical distance sensors: ODSL 9, ODSL 30, ODSL 96B
Measuring light curtain: KONTURflex to Quattro-RSX/M12
multiNet master connection box: MA 3x
Additional RS 232 devices: scales, third-party devices
This is accomplished by transmitting the data from the DEV via an RS 232 (V.24) interface
to the MA 208iwhere a module converts it into the Ethernet TCP/IP format. The data format
on the RS 232 interface corresponds to the Leuze standard data format (9600bd, 8N1 and
STX, data, CR, LF).
The corresponding Leuze devices are selected using a rotary code switch on the circuit
board of the connector unit. Many additional RS 232 devices can be connected through a
universal position.

General information
Leuze electronic MA 208i7
TNT 35/7-24V
1.4 Definition of terms
For better understanding of the explanations provided in this document, a definition of terms
follows below:
•Bit designation:
The 1st bit or byte begins with count number "0" and means bit/byte 20.
•Data length:
Size of a valid, continuous data packet in bytes.
•Consistent:
Data which belongs together with regard to content and which must not be separated
is referred to as consistent data. When identifying objects, it must be ensured that
the data is transmitted completely and in the correct order, otherwise the result is
falsified.
•Leuze device (DEV):
Leuze devices, e.g., bar code readers, RFID readers, VisionReader…
•Online command:
These commands refer to the respective, connected ident device and may be differ-
ent depending on the device. These commands are not interpreted by the MA 208i,
but are instead transmitted transparently (see description of Ident device).
•CR:
Cross reference.
•Perspective of I/O data in the description:
Output data is data which is sent by the control to the MA. Input data is data which
is sent by the MA to the control.
•Tog g le b i t s:
Status toggle bit
Each change of state indicates that an action was performed, e.g., bit ND (new data):
each change of state indicates that new received data was transmitted to the PLC.
Control toggle bit
An action is performed on each change of state, e.g., bit SDO: on each change of
state, the registered data is sent by the PLC to the MA 208i.

Safety notices
8MA 208iLeuze electronic
2 Safety notices
2.1 General safety notices
Documentation
All entries in this technical description must strictly be observed, in particular those in the
"Safety notices" section. Keep this technical description in a safe place. It should be
available at all times.
Safety regulations
Observe the locally applicable legal regulations and the rules of the employer's liability
insurance association.
Repair
Repairs must only be carried out by the manufacturer or an authorized representative.
2.2 Safety standards
The devices of the series MA 2xxiwere developed, manufactured and tested in accordance
with the applicable safety standards. They correspond to the state of the art.
2.3 Intended use
Attention!
The protection of personnel and the device is guaranteed only if the device is operated in a
manner corresponding to its intended use.
Areas of application
The MA 208imodular interfacing unit is used for connecting Leuze devices such as barcode-
or 2D code readers, hand-held scanners, RFID read-write devices, etc. directly to the
fieldbus. A detailed list can be found in "Description of functions" on page 6.

Safety notices
Leuze electronic MA 208i9
TNT 35/7-24V
2.4 Working safely
Attention!
Access to or changes on the device, except where expressly described in this operating
manual, is not authorized.
Safety regulations
Observe the locally applicable legal regulations and the rules of the employer's liability
insurance association.
Qualified personnel
Mounting, commissioning and maintenance of the device must only be carried out by
qualified personnel. 
Electrical work must be carried out by a certified electrician.

Fast commissioning / operating principle
10 MA 208iLeuze electronic
3 Fast commissioning / operating principle
Notice!
Below you will find a short description for the initial commissioning of the Ethernet
gateway MA 208i. Detailed explanations for the listed points can be found throughout the
handbook.
3.1 Mounting
The gateway mounting plate MA 208ican be mounted in two different ways:
• using four threaded holes (M6) or
• using two M8x6 screws on the two lateral grooves.
3.2 Device arrangement and selection of the mounting location
Ideally, the MA 208ishould be mounted so that it is easily accessible near the Ident device
in order to ensure good operability, e.g., for configuring the connected device.
Detailed information can be found in chapter 6.3.1.
3.3 Electrical connection
The devices from the MA 2xxifamily feature four M12 connectors/sockets which are coded
differently depending on the interface.
The voltage supply (PWR IN) as well as the switching inputs/outputs (PWR OUT or PWR IN)
are connected there. The number and function of the switching inputs/outputs is dependent
on the connected end device.
An internal RS 232 interface is used for connecting the respective Leuze device. Another
internal RS 232 interface functions as a service interface for configuring the connected
device via a serial null modem cable.

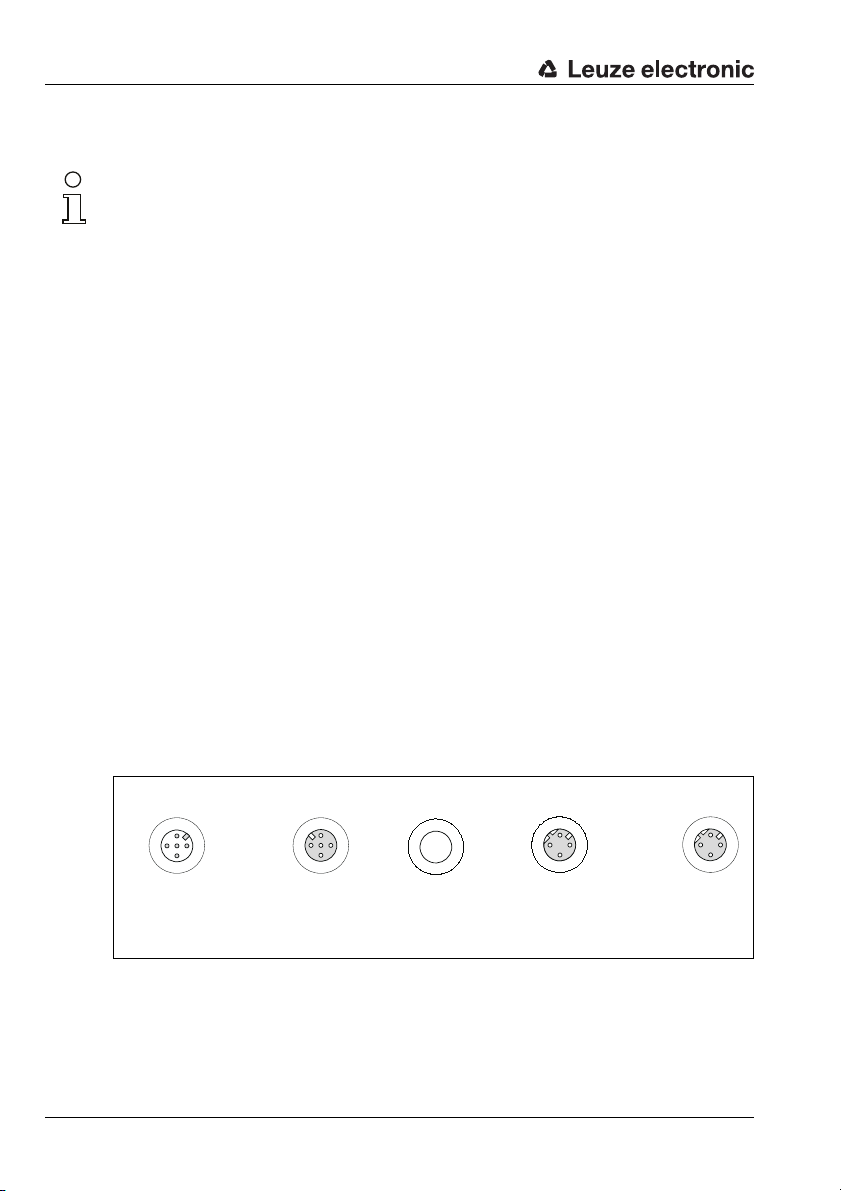

Figure 3.1: MA 208iconnections
Detailed information can be found in chapter 7.
PWR OUT
VOUT 1
2
3
4
SWIO_2
SWIO_1
GND
FE
5
PWR IN
SWIO_1
SWIO_2
3
2
1
4
5
GND VIN
FE
HOST / BUS IN
TD+ 1
2
3
4
RD+
RD-
TD-
LEUZE Device BUS OUT
TD+ 1
2
3
4
RD+
RD-
TD-
M12 connector
(A-coded)
M12 socket
(A-coded)
M12 socket
(D-coded)
M12 socket
(D-coded)

Fast commissioning / operating principle
Leuze electronic MA 208i11
TNT 35/7-24V
3.3.1 Connecting the Leuze device
To connect the Leuze device to the internal RS 232 device interface, open the housing
of the MA 208iand guide the corresponding device cable (see chapter 14.6, e.g., KB 031
for BCL 32) through the middle threaded opening.
Connect the cable to the internal device interface (X30, X31 or X32, see chapter 7.5.1).
Use rotary switch S4 (see chapter 8.2.5) to select the connected device.
Now screw the PG cable gland into the threaded opening to provide strain relief and
ensure protection class IP 65.
Finally, close the housing of the MA 208i.
Attention!
Only then may the supply voltage be applied.

Upon startup of the MA 208i, the device selection switch is queried and the gateway
automatically sets itself to the Leuze device.
Connecting functional earth FE
Ensure that the functional earth (FE) is connected correctly.
Unimpaired operation is only guaranteed when the functional earth is connected properly.
All electrical disturbances (EMC couplings) are discharged via the functional earth
connection.
3.3.2 Connecting the power supply and the bus cable
Ideally, use the ready-made cables listed in chapter 14.4.3 to connect the gateway to the
power supply via the PWR IN connection.
The ready-made cables listed in chapter 14.5.4 are preferred for connecting the gateway
to the fieldbus via the HOST / BUS IN connection.
If applicable, use the BUS OUT connection if you would like to construct a network with
linear topology.
3.4 Starting the device
Apply the supply voltage +18 … 30VDC (typ. +24VDC); the MA 208istarts up.

The PWR LED displays that it is ready for operation.

Fast commissioning / operating principle
12 MA 208iLeuze electronic
3.5 MA 208ion Ethernet
Setting the communication parameters
With the communication parameters, you determine how data is exchanged between
MA 208iand host system, monitor PCs etc.
The communication parameters are independent of the topology in which the MA 208iis
operated (see "Ethernet" on page 18).
On delivery from firmware 1.1.0.0, automatic address assignment is deactivated via DHCP
and a permanent IP address is set:
Device address: 192.168.61.100.
Net mask: 255.255.255.0
The setting can be adapted via Leuze configuration software BCL-Config, BPS-Config or
RF-Config. In these tools, the MA 208ihas been created as a device to enable setting of
parameters in the usual way via the service interface.
3.5.1 Manually setting the IP address
If the IP address of the devices should be permanently set on your system, proceed as
follows:
Have the network administrator specify the data for IP address, net mask and gateway
address of the MA 208i.
Select the connected device via the device selection switch.
Apply the supply voltage +18 … 30VDC (typ. +24VDC); the MA 208istarts up.
Now switch the service switch to "MA".
Notice!
The service switch must be in switch position "MA" here so that the MA 208ican be
addressed via the service interface.
Connect the serial RS 232 Sub-D interface of the MA 208ito the serial interface of your
PC.
Make the necessary settings in the configuration window.

Fast commissioning / operating principle
Leuze electronic MA 208i13
TNT 35/7-24V
Figure 3.2: Setting the parameters manually
3.5.2 Ethernet host communication
The Ethernet host communication enables the configuration of connections to an external
host system. Both UDP as well as TCP/IP (in either client or server mode) can be used. The
connection-free UDP protocol is used primarily to transfer process data to the host (monitor
operation). The connection-oriented TCP/IP protocol can also be used to transfer
commands from the host to the device. With this connection, the data is backed up by the
TCP/IP protocol itself.
If you would like to use the TCP/IP protocol, you must also define whether the MA 208iis
to operate as a TCP client or as a TCP server.
Contact your network administrator to determine which communication protocol is used.

Fast commissioning / operating principle
14 MA 208iLeuze electronic
3.5.3 TCP/IP
Set the TCP/IP mode of the MA 208i.
In TCP client mode, the MA 208iactively establishes the connection to the primary host
system (PC / PLC as server). The MA 208irequires from the user the IP address of the server
(host system) and the port number on which the server (host system) accepts a connection.
In this case, the MA 208idetermines when and with whom a connection is established!
With a MA 208ias TCP client, set the following values:
• IP address of the TCP server (normally the PLC/host computer)
• Port number of the TCP server
• Optional: Timeout for the wait time for an answer from the server
• Optional: Repetition time for renewed communication attempt following a timeout
In TCP server mode, the primary host system (PC / PLC) actively establishes the connec-
tion and the connected MA 208iwaits for the connection to be set up. The TCP/IP stack
requires information from the user regarding the local port of the MA 208i(port number) on
which the connection requests of a client application (host system) are to be accepted. If
there is a connection request and a connection is established by the primary host system
(PC / PLC as client), the MA 208i(server mode) accepts the connection. Data can then be
sent and received.
With a MA 208ias TCP server, also set the following values:
• Port number for the communication of the MA 208iwith the TCP client
The corresponding adjustment options can be found in the configuration tool.
3.5.4 UDP
The MA 208irequires from the user the IP address and the port number of the communi-
cation partner. Correspondingly, the host system (PC / PLC) now also requires the set
IP address of the MA 208iand the selected port number. By assigning these parameters,
a socket is formed via which the data can be sent and received.
Set the following values:
• IP address of the communication partner
• Port number of the communication partner
The corresponding adjustment options can be found in the configuration tool.

Device description
Leuze electronic MA 208i15
TNT 35/7-24V
4 Device description
4.1 General Information to the connector units
The modular interfacing unit of the MA 2xxifamily is a versatile gateway for integrating Leuze
RS 232 devices (e.g., BCL 22 bar code readers, RFID devices, RFM 32, AMS 200) in the
respective fieldbus. The MA 2xxigateways are intended for use in industrial environments
with a high protection class. Various device versions are available for the conventional field-
buses. With a stored parameter structure for the connectable RS 232 devices, commis-
sioning could hardly be simpler.
4.2 Characteristics of the connector units
A special characteristic of the MA 208idevice family are three function modes:
1. Transparent mode
In this function mode, the MA 208ifunctions as a pure gateway with automatic com-
munication from and to the PLC. Absolutely no special programming by the user is
necessary for this purpose. The data is not buffered or stored temporarily, however.
Instead, it is "passed on".
The programmer must make certain to retrieve the datafrom the input memory of the
PLC at the right time, as it isotherwise overwritten by new data.
2. Collective mode
In this operating mode, data and telegram parts are temporarily stored in the memory
(buffer) of the MA and sent to the RS 232 interface or to the PLC in a telegram by means
of bit activation. In this mode, however, all communication control must be pro-
grammed on the PLC.
Thisfunction mode ishelpful, for example, for very long telegramsor when one or
more codeswith long code lengthsare read.
Notice!
The Collective mode is not available for the MA 208i. Due to a variable telegram
length, data can always be transmitted in its entirety independent of its length. It is not
necessary to transfer data in blocks.
3. Command mode
With thisspecial operating mode, it ispossible to use the first bytesof the datarange
to transmit predefined commands to the connected device by means of bit activation.
For this purpose, device-dependent commands (so-called online commands) are pre-
defined via the device selection switch, see chapter 16 "Specifications for Leuze end
devices".

Device description
16 MA 208iLeuze electronic
4.3 Device construction
The MA 208imodular interfacing unit is used for interconnecting Leuze devices, such as
the BCL 8, BCL 22, etc., directly to the fieldbus. This is accomplished by transmitting the
data from the Leuze device via an RS 232 (V.24) interface to the MA 208iwhere a module
converts it into the fieldbus format. The data format of the RS 232 interface corresponds to
the standard Leuze data format.
Figure 4.1: Connection of a Leuze device (BCL, RFI, RFM, VR) to the fieldbus
The cable of the respective Leuze device is guided through cable bushings with PG cable
glands into the MA 208iand connected there with the PCB connectors.
The MA 208iis intended as a gateway for any RS 232 devices, e.g., BCL 90 with MA 90,
hand-held scanners, scales or for coupling a multiNet network.
The RS 232 cables are internally connectable using JST plug connectors. The cable can be
connected to the device using a stable PG cable gland which provide strain relief and protec-
tion against contamination.
With the help of adapter cables with Sub-D 9 or open cable end, other RS 232 devices can
also be connected.
Fieldbus Fieldbus
MA 208i
Leuze
device
Either 
network or other devices
with RS 232
RS 232
(V.24)

Device description
Leuze electronic MA 208i17
TNT 35/7-24V
4.4 Operating modes
For fast commissioning, the MA 208ioffers an additional operating mode, the "Service
mode", in addition to the "Standard mode". To do this, you need a PC/laptop with a suitable
terminal program, as BCL-Config from Leuze or similar.
Service switch
Select between "operation" and "service" modes with the service switch. You have the
following options:
Pos. RUN:
Operation
The Leuze device is connected to the fieldbus and communicates with the PLC.
Pos. DEV:
Service Leuze device
The connection between the Leuze device and the fieldbus is interrupted. With this
switch position, you can communicate directly with the Leuze device at the fieldbus
gateway via RS 232. You can send online commands via the service interface, con-
figure the Leuze device using the corresponding BCL- BPS-, …-Config configuration
software and have the read data of the Leuze device output.
Pos. MA:
Service fieldbus gateway
With this switch setting, your PC/terminal is connected with the fieldbus gateway. In
doing so, the current setting values of the MA (e.g. address, RS 232 parameters) can
be called up via a ’v’ command.

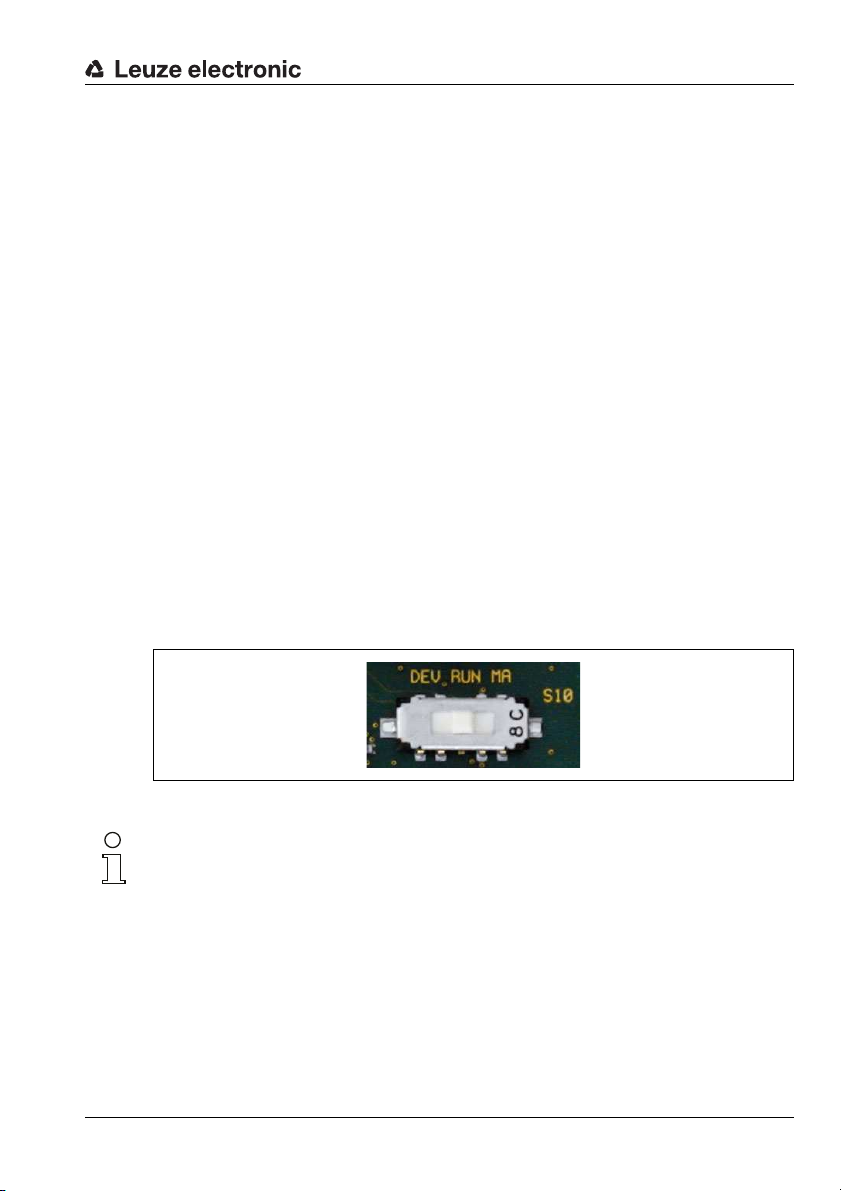

Figure 4.2: Service-switch switch positions
Notice!
If the service switch is on one of the service settings, the PWR LED flashes on the front side
of the device, see chapter 8.1.2 "LED indicators on the housing".
Furthermore, on the control, the SMA service bit of the status bytes signals that the MA is
in service mode.

Device description
18MA 208iLeuze electronic
Service interface
The service interface can be accessed once the MA 208ihousing cover has been removed
and features a 9-pin Sub-D connector (male). A crossed RS 232 connection cable is required
to make the RxD, TxD and GND connections.
Figure 4.3: Connecting the service interface to a PC/terminal
Attention!
For the service PC to function, the RS 232 parameters must be the same as those of the
MA. The Leuze standard setting of the interface is 9600bd, 8N1 and STX, data, CR, LF.
4.5 Fieldbus systems
Various product variants of the MA 2xxiseries are available for connecting to different
fieldbus systems such as PROFIBUS DP, PROFINET-IO, DeviceNet and Ethernet.
4.5.1 Ethernet
The MA 208iis designed as an Ethernet device (acc. to IEEE 802.3) with a standard baud
rate of 10/100 Mbit. A fixed MAC ID is assigned to each MA 208iby the manufacturer; this
ID cannot be changed.
The MA 208iautomatically supports the transmission rates of 10 Mbit/s (10Base T) and
100 Mbit/s (10Base TX), as well as auto-negotiation and auto-crossover.
The MA 208ifeatures multiple M12 connectors / sockets for the electrical connection of the
supply voltage, the interface and the switching inputs and outputs. Additional information
on the electrical connection can be found in chapter 7.
The MA 208isupports the following protocols and services:
• TCP / IP (client / server)
•UDP
•DHCP
•ARP
•PING
5 GND
3TxD
2 RxD
GND 5
TxD 3
RxD 2
1
1
PC/terminal
COM interface
MA 208i
Service interface
