Levana Astra User manual

Astra™
mylevana.com
USER MANUAL
Digital Baby Video
Monitor
CAUTION: Keep small parts away from children.

mylevana.com
CAUTION: Keep small parts away from children.
Strangulation Hazard: Children can become entangled in cords. Power cords should be kept more than 3 feet away
from the crib and baby’s reach at all times. Baby monitors and cameras with power cords should never be hung on or
near the crib.
This product is not a toy and should be kept out of children’s reach.
This product contains small parts. Exercise care when unpacking and assembling the product.
Read and Keep Instructions: All the safety and operating instructions should be read before the video baby monitor is
operated.
This product cannot replace responsible adult supervision.
Water and Moisture: This product is designed for indoor use only. The unit should not be exposed to rain, moisture, dripping or
splashing. No objects filled with liquid should be placed on top of, or beside the product, such as a glass or vase. This item should
not be used near water.
Non-Use Periods: Always unplug the AC adapters from the wall outlets during long periods of non-use.
Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface that may block the ventilation openings, or
be placed in an enclosed area, such as a bookcase or drawer that may impede air flow.
Keep Away from Sources of Heat: This unit should not be exposed to direct heat sources such as a candle, fireplace, radiator, heat
register, stove or other appliance that emits heat. The unit should not be left in direct sunlight.
Power Source: This unit should only be used with the AC power adapters included in this package (rated 6V 800mA)
Damage Requiring Service: This unit should be serviced by qualified personnel only when:
a. Objects have fallen or liquid has been spilled into the product
b. The units have been exposed to rain
c. The units do not appear to operate normally or exhibits a distinct change in performance
d. The units have been dropped or the enclosure damaged
2
SAFETY INSTRUCTIONS

mylevana.com
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful inerference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IC STATEMENT:
This Class A digital apparatus complies with ICES-003.
The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this
equipment. Such modifications could void the user’s authority to operate the equipment.
3
FCC STATEMENT

We take quality very seriously. This is why all of our products come with a one-year warranty from the original purchase
date against defects in workmanship and materials. If you have warranty or support issues please contact us using any of the
following methods:
Phone: [phone] LEVANA Canada LEVANA USA
Web: www.mylevana.com 4080 Montrose Road 60 Industrial Parkway #Z64
Niagara Falls, ON Cheektowaga NY
Canada L2H 1J9 USA 14227
Warranty Terms
1. LEVANA®products are guaranteed for a period of one year from the date of purchase against defects in workmanship
and materials. This warranty is limited to the repair, replacement or refund of the purchase price at LEVANA’s option.
2. This warranty becomes void if the product shows evidence of having been misused, mishandled or tampered with
contrary to the applicable instruction manual.
3. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered under the terms of this warranty.
4. The warranty expressly provided for herein is the sole warranty provided in connection with the product itself and
no other warranty, expressed or implied is provided. LEVANA assumes no responsibilities for any other claims not
specifically mentioned in this warranty.
5. This warranty does not cover the shipping cost, insurance or any other incidental charges.
6. You MUST call LEVANA before sending any product back for repair. You will be sent a Return Authorization form with
return instructions. When returning the product for warranty service, please pack it carefully in the original box with all
supplied accessories, and enclose your original receipt or copy, and a brief explanation of the problem (include RA #).
7. This warranty is valid only in Canada and the continental U.S.
8. This warranty cannot be re-issued.
mylevana.com
Please visit our website at www.myLEVANA.com for information about your
product’s warranty 4

mylevana.com
TABLE OF CONTENTS
SAFETY INSTRUCTIONS ............................................................................................................................................................................................................. 2
FCC STATEMENT.......................................................................................................................................................................................................................... 3
WARRANTY ................................................................................................................................................................................................................................... 4
WHAT’S INCLUDED ..................................................................................................................................................................................................................... 6
BUTTONS AND CONNECTIONS - MONITOR ........................................................................................................................................................................ 7
BUTTONS AND CONNECTIONS - CAMERA........................................................................................................................................................................... 8
SETUP............................................................................................................................................................................................................................................. 9
Battery installation....................................................................................................................................................................................................... 9
Connecting Power to the Monitor / Charging Battery....................................................................................................................................... 10
Connecting Power to the Camera ......................................................................................................................................................................... 10
Screen Icons ................................................................................................................................................................................................................11
OPERATION ................................................................................................................................................................................................................................ 12
Turn on the Monitor .................................................................................................................................................................................................. 12
Pairing the Cameras & Monitor............................................................................................................................................................................... 12
Placement of the Monitor ........................................................................................................................................................................................ 13
Placement of the Camera ........................................................................................................................................................................................ 13
Mounting the Camera on a Tabletop Safely ......................................................................................................................................................... 13
Mounting the Camera on a Wall Safely ................................................................................................................................................................. 14
Night Vision................................................................................................................................................................................................................. 15
Adjusting the Camera Angle .................................................................................................................................................................................... 15
Using the ZOOM Function ....................................................................................................................................................................................... 15
Volume......................................................................................................................................................................................................................... 16
Using the Talk to Baby™ Two-Way Intercom....................................................................................................................................................... 16
Selecting a Lullaby..................................................................................................................................................................................................... 16
Using Power Save Mode............................................................................................................................................................................................17
Changing the Camera View......................................................................................................................................................................................17
Setting the Brightness............................................................................................................................................................................................... 18
Sound Sensitivity Settings ........................................................................................................................................................................................ 18
Contacting Customer Support................................................................................................................................................................................ 19
TROUBLESHOOTING................................................................................................................................................................................................................20
5

mylevana.com
• Pan/Tilt/ZoomNightVisionCamera
• BabyVideoMonitor
• RechargeableBattery
• 2PowerAdapters
• MountingHardware
• InstructionManual
• 1YearWarranty
• LifetimeLiveCustomerSupport
6
This product is not a toy.
This product contains small parts. Exercise care when unpacking and assembling the product.
This product does not replace responsible adult supervision. Check on your child at regular intervals and make sure your monitor is always
adequately charged.
LEVANA®does not endorse any LEVANA®products for illegal activities. Levana is not responsible or liable in any way for any damage, vandalism, theft
or any other action that may occur while a LEVANA®product is in use by the purchaser.
We reserve the right to change models, configuration, or specifications without notice or liability. Product may not be exactly as shown.
©2012 LEVANA®. All rights reserved. LEVANA®, the LEVANA®logo, Astra™and other LEVANA®marks may be registered. All other Trademarks are the
property of their respective owners.
WHAT’SINCLUDED

mylevana.com
7
1. LOCK/UNLOCKBUTTON
Disables ALL function buttons in the LOCK position
2. LCDSCREEN
3. POWERON/OFF
4. POWER INPUT
5. TALK TO BABY™
Press and hold to talk, release
to listen
6. PAN/TILT/ZOOMBUTTON
7. MENU
8. MICROPHONE
9. COLOR-CHANGINGLEDRING
Ring changes color with sound intensity
10. SELECTION/ZOOMBUTTON
11. DIRECTIONALARROWS/VOLUMECONTROL
12. ANTENNA
Extend to improve signal
13. TABLESTAND
14. SPEAKER
15. BATTERY COMPARTMENT
MONITOR
5
6
7
10
9
11
1
2
8
12
14
13
15
3
4

mylevana.com
1. PTZCAMERA
2. MICROPHONE
3. POWERLED
4. NIGHTVISIONLIGHTSENSOR
5. ANTENNA
6. POWER INPUT
7. POWERON/OFF
8. SPEAKER
8
CAMERA
1
2
3
5
46
7
8

mylevana.com
LET’SGETSTARTED!
Battery Installation
1. Gently remove the BATTERY COMPARTMENT COVER on the back of
the monitor.
2. Slide the BATTERY COMPARTMENT COVER down to remove.
3. Insert the battery; the battery connectors on the battery should line up
with the connectors inside the battery compartment.
4. Slide the BATTERY COMPARTMENT COVER back into place.
Power Save Mode: After 1 minute of inactivity, monitor enters standby/sleep mode.
 AdjustableBrightness: Decreasing screen brightness will extend battery life.
6. For extended periods of non-use, please remove battery from baby monitor.
9
SETUP
Battery
connectors
GettheMostOutofYourRechargeableBattery
1. Fully charge battery (4 hours) before first use.
2. To maximize battery life, charge battery before battery is fully drained.
3. Avoid extreme heat or cold as this will aect the life of the battery.
4. Turn LCD screen OFF; press POWER button on the side of the monitor ONCE.
5. Astra™menu settings that increase battery life:

mylevana.com
Note:Babymonitorsandcameraswithpowercordsshouldneverbehungonornearthecribasitisastrangulation
hazard.Powercordsshouldbekeptnolessthan3feetawayfromthecribandthebaby’sreachatalltimes.
10

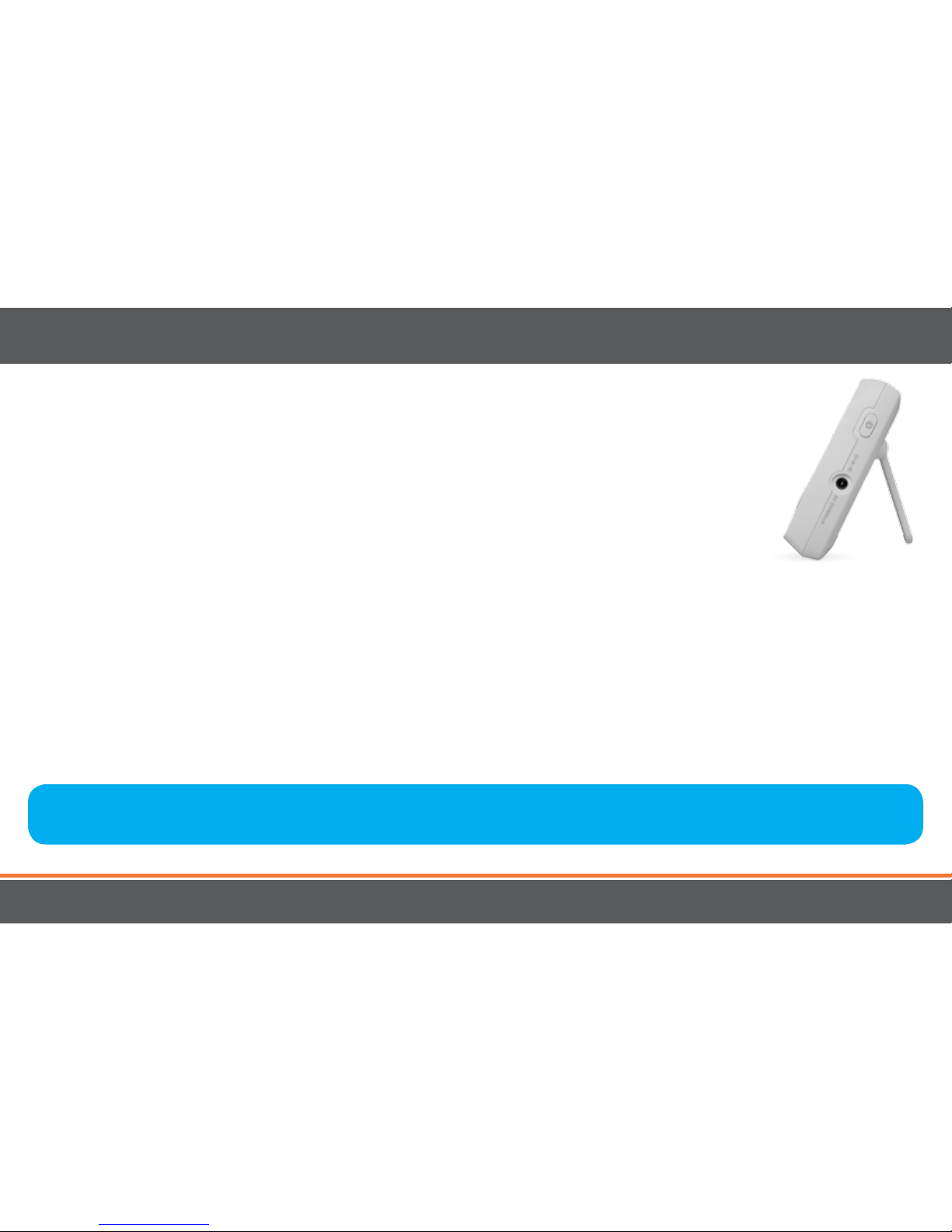

ConnectingPowertotheMonitor/ChargingBattery
1. Connect the small end of one power adapter into the DC input on the side of the monitor as
shown in the diagram. Connect the other end of the adapter into an available wall outlet.
2. Pressandholdthe POWER button on the side of the monitor to turn the monitor ON.
3. The icon in the top right corner of the main screen will show you the battery power status.
4. The LEDRingon the front of the monitor also indicates the battery power status.
SOLIDBLUE = BATTERY FULLY CHARGED SLOWFLASHINGBLUE= BATTERY CHARGING
QUICKFLASHINGBLUE= BATTERY LOW FLASHINGPINK= PAIRING UNSUCCESSFUL
5. For safety reasons, ONLY use the adapters included in the package.
EMPTY CHARGING FULL
ConnectingPowertotheCamera
1. Take the second power adapter and connect the small end of the power adapter into
the DC input on the side of the camera base as shown in the diagram. For safety reasons,
ONLY use the adapters included in the package.
2. On the side of the camera, slide the POWER switch LEFT to the ON position. The
POWERLEDwill light up.
SETUP
ON/OFF
Switch
DCInput
DCInput
LEDRing
