Levana Stella User manual

Stella™
mylevana.com
USER MANUAL

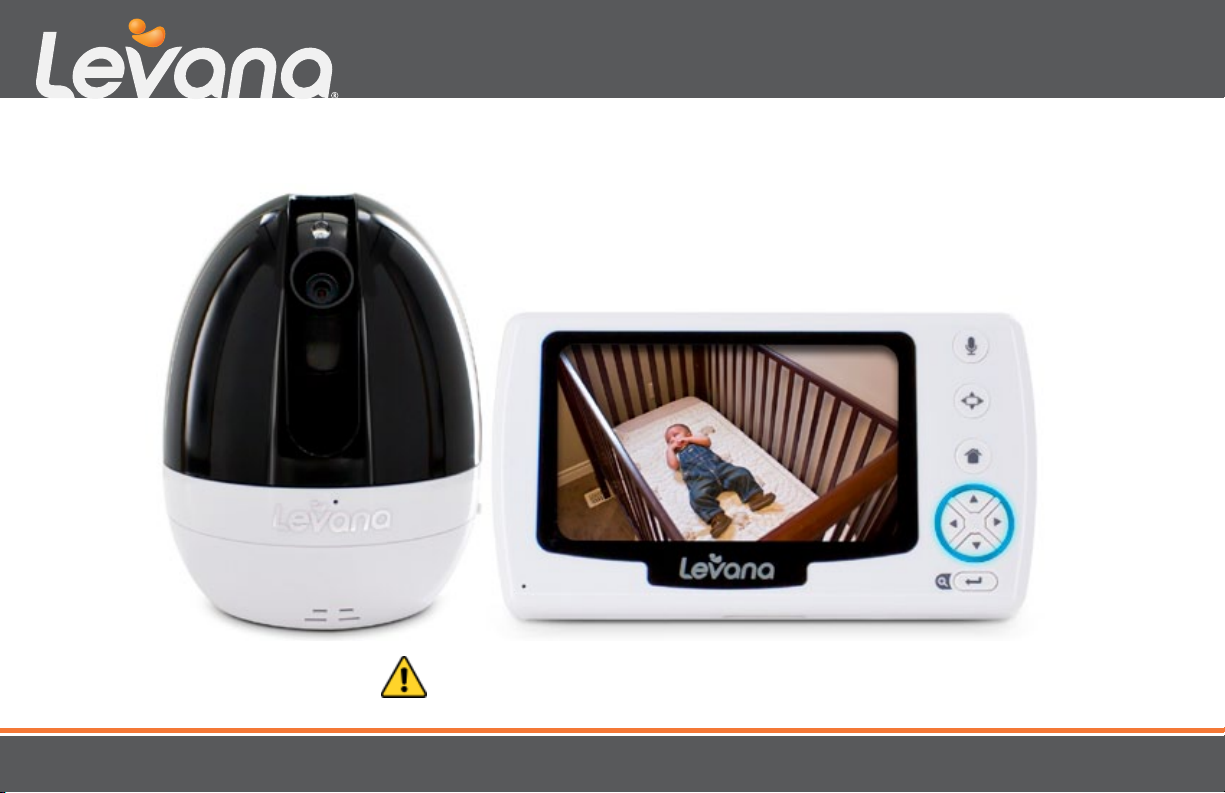

Digital Baby Video Monitor
CAUTION: Keep small parts away from children.

CAUTION: Keep small parts away from children.
Strangulation Hazard: Children can become entangled in
cords. Power cords should be kept more than 3 feet away
from the crib and baby’s reach at all times. Baby monitors and
cameras with power cords should never be hung on or near
the crib.
This product is not a toy and should be kept out of
children’s reach.
This product contains small parts. Exercise care when
unpacking and assembling the product.
Read and Keep Instructions: All the safety and operating
instructions should be read before the video baby monitor
is operated.
This product cannot replace responsible adult supervision.
Use only with provided power supply.
The socket-outlet shall be installed near the equipment and
shall be easily accessible.
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN
INCORRECT TYPE!
Dispose of used batteries according to the instructions.
Use only batteries/power supplies listed in the user manual.
2
SAFETY WARNINGS
Water and Moisture: This product is designed for indoor use only. The unit should not be exposed to rain, moisture, dripping or splashing. No
objects filled with liquid should be placed on top of, or beside the product, such as a glass or vase. This item should not be used near water.
Non-Use Periods: Always unplug the AC adapters from the wall outlets during long periods of non-use.
Ventilation: This baby monitor should not be used on a bed, sofa, rug or similar surface that may block the ventilation openings, or be placed in an
enclosed area, such as a bookcase or drawer that may impede air flow.
Keep Away from Sources of Heat: This unit should not be exposed to direct heat sources such as a candle, fireplace, radiator, heat register, stove
or other appliance that emits heat. The unit should not be left in direct sunlight.
Power Source: This unit should only be used with the AC power adapters included in this package (rated 5.9V 1A)
Damage Requiring Service: This unit should be serviced by qualified personnel only when:
a. Objects have fallen or liquid has been spilled into the product
b. The units have been exposed to rain
c. The units do not appear to operate normally or exhibits a distinct change in performance
d. The units have been dropped or the enclosure damaged
mylevana.com

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.
FCC WARNING
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful inerference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
IC STATEMENT / DÉCLARATION IC:
This Class B digital apparatus complies with ICES-003. / Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with Industry Canada licence-exempt RSS 210 standard(s). Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR 210 d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC STATEMENT
3mylevana.com

We take quality very seriously. This is why all of our products come with a one-year warranty from the original purchase date against
defects in workmanship and materials. If you have warranty or support issues please contact us using any of the following methods:
Web: www.mylevana.com Support: www.mylevana.com/support
LEVANA Canada LEVANA USA
4080 Montrose Road 60 Industrial Parkway #Z64
Niagara Falls, ON Cheektowaga NY
Canada L2H 1J9 USA 14227
Warranty Terms
1. LEVANA®products are guaranteed for a period of one year from the date of purchase against defects in workmanship and materials.
This warranty is limited to the repair, replacement or refund of the purchase price at LEVANA’s option.
2. This warranty becomes void if the product shows evidence of having been misused, mishandled or tampered with contrary to the
applicable instruction manual.
3. Routine cleaning, normal cosmetic and mechanical wear and tear are not covered under the terms of this warranty.
4. The warranty expressly provided for herein is the sole warranty provided in connection with the product itself and no other warranty,
expressed or implied is provided. LEVANA assumes no responsibilities for any other claims not specifically mentioned in this warranty.
5. This warranty does not cover the shipping cost, insurance or any other incidental charges.
6. You MUST contact LEVANA before sending any product back for repair. You will be sent a Return Authorization form with return
instructions. When returning the product for warranty service, please pack it carefully in the original box with all supplied accessories,
and enclose your original receipt or copy, and a brief explanation of the problem (include RA #).
7. This warranty is valid only in Canada and the continental U.S.
8. This warranty cannot be re-issued.
mylevana.com
Please visit our website at www.myLEVANA.com for information about your
product’s warranty
4
mylevana.com

TABLE OF CONTENTS
SAFETY WARNINGS..................................................................................................................................................................................................................... 2
FCC STATEMENT.......................................................................................................................................................................................................................... 3
WARRANTY ................................................................................................................................................................................................................................... 4
WHAT’S INCLUDED ..................................................................................................................................................................................................................... 6
BUTTONS AND CONNECTIONS - MONITOR ........................................................................................................................................................................ 7
BUTTONS AND CONNECTIONS - CAMERA........................................................................................................................................................................... 8
SETUP............................................................................................................................................................................................................................................. 9
Battery installation....................................................................................................................................................................................................... 9
Connecting Power to the Monitor / Charging Battery....................................................................................................................................... 10
Connecting Power to the Camera ......................................................................................................................................................................... 10

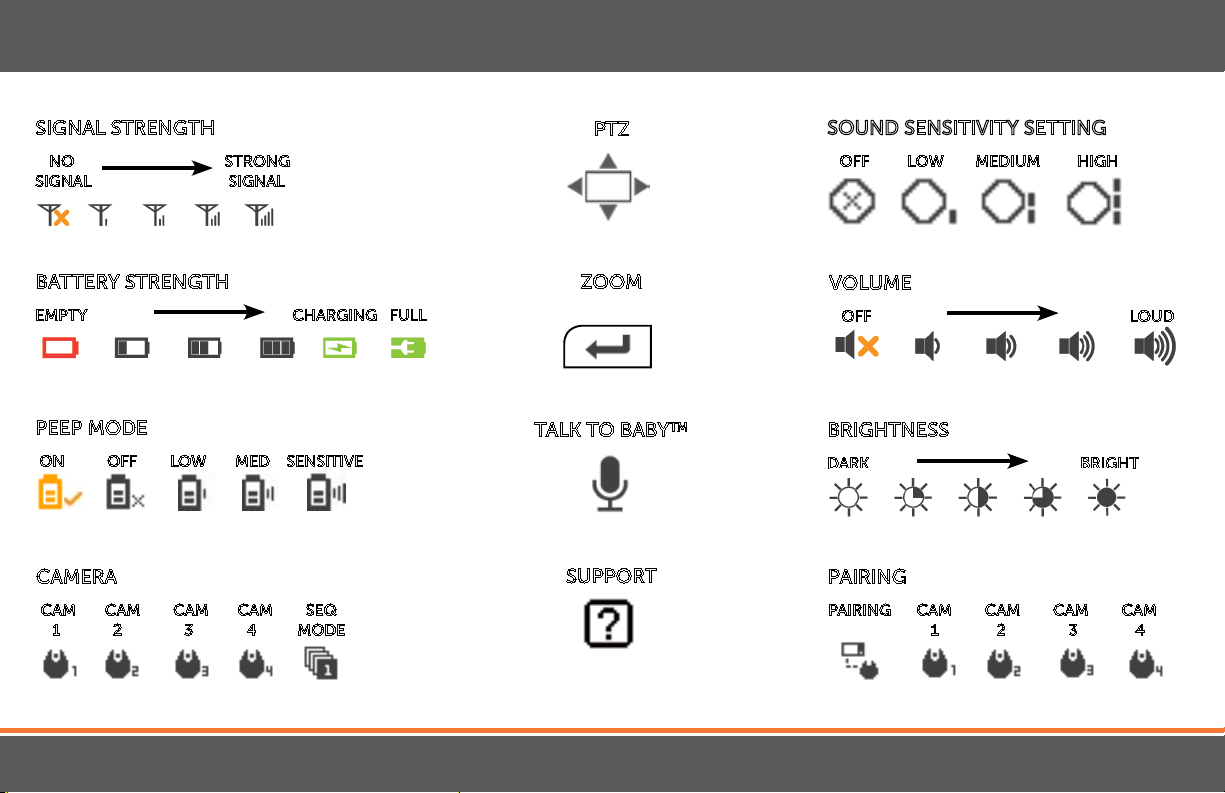

Screen Icons ................................................................................................................................................................................................................11
OPERATION ................................................................................................................................................................................................................................ 12
Turn the Monitor ON/OFF........................................................................................................................................................................................ 12

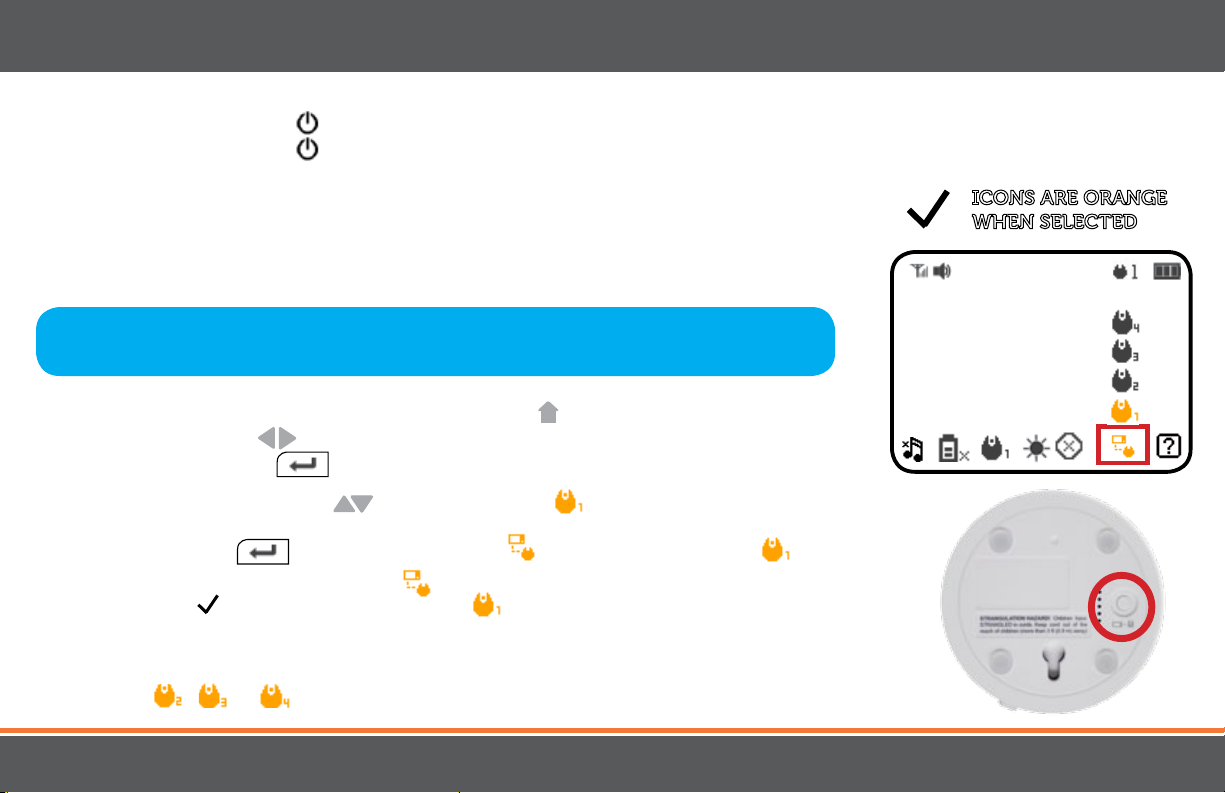

Pairing the Cameras & Monitor............................................................................................................................................................................... 12
Placement of the Monitor ........................................................................................................................................................................................ 13
Placement of the Camera ........................................................................................................................................................................................ 13
Mounting the Camera on a Tabletop Safely ......................................................................................................................................................... 13
Mounting the Camera on a Wall Safely ................................................................................................................................................................. 14
Night Vision................................................................................................................................................................................................................. 15
Adjusting the Camera Angle .................................................................................................................................................................................... 15
Using the ZOOM Function ....................................................................................................................................................................................... 15

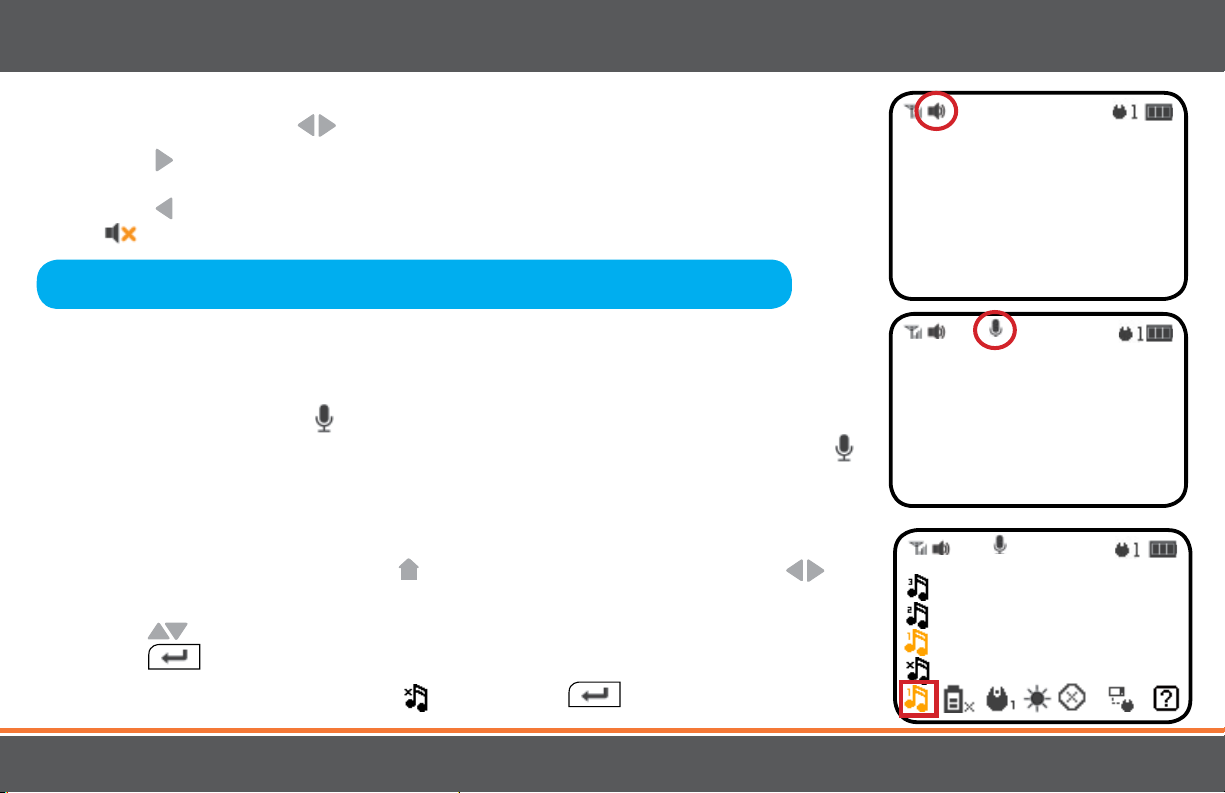

Volume......................................................................................................................................................................................................................... 16
Using the Talk to Baby™ Two-Way Intercom....................................................................................................................................................... 16
Selecting a Lullaby..................................................................................................................................................................................................... 16
Setting the Lullaby Volume .......................................................................................................................................................................................17
Using PEEP Mode........................................................................................................................................................................................................17
Changing the Camera View..................................................................................................................................................................................... 18

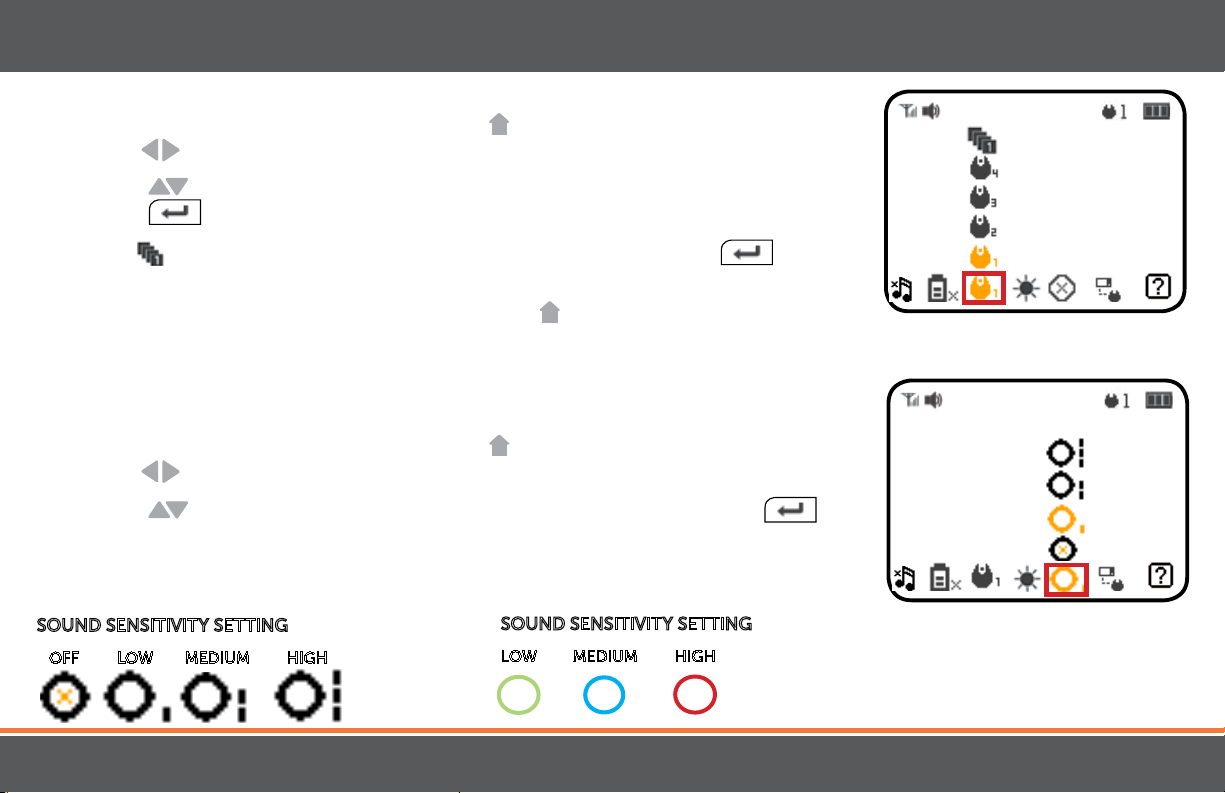

Sound Sensitivity Settings ........................................................................................................................................................................................ 18

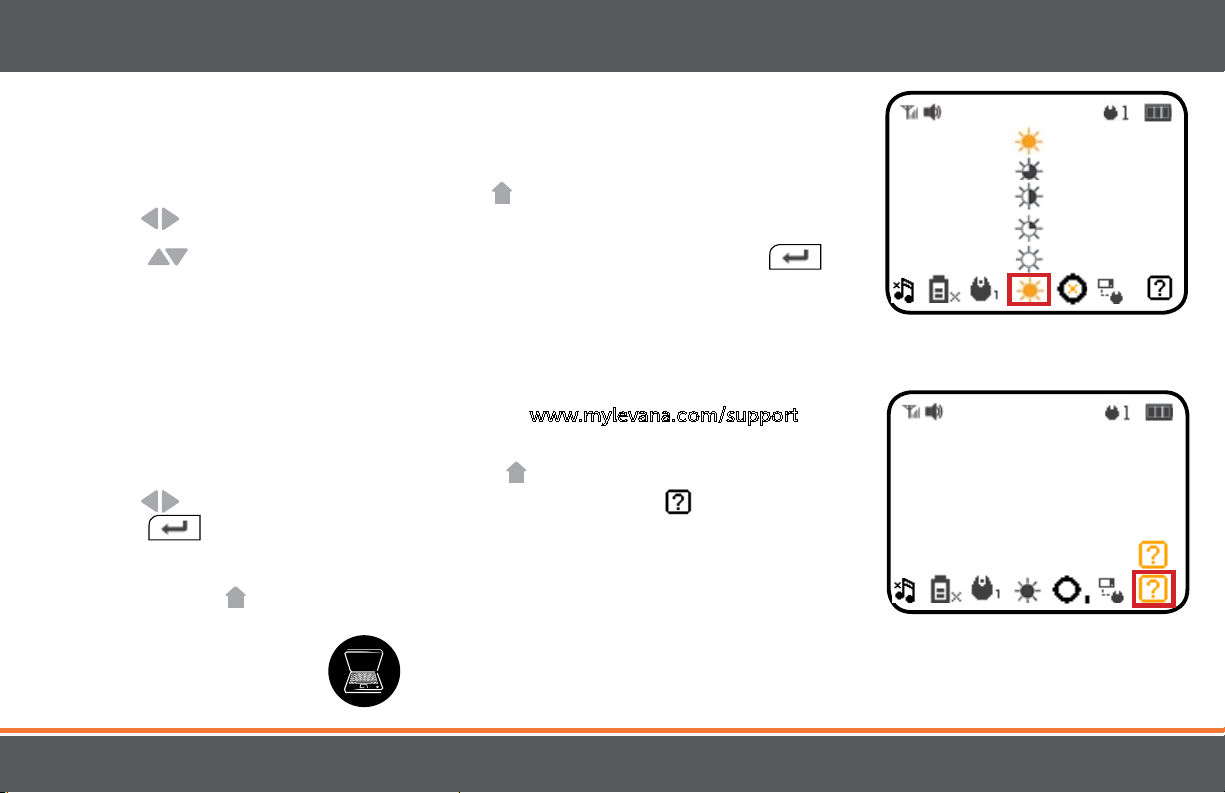

Setting the Brightness............................................................................................................................................................................................... 19
Contacting Customer Support................................................................................................................................................................................ 19
TROUBLESHOOTING................................................................................................................................................................................................................20
SPECIFICATIONS........................................................................................................................................................................................................................ 22
5mylevana.com

• Pan/Tilt/ZoomNightVisionCamera
• BabyVideoMonitor
• RechargeableBattery
• 2PowerAdapters
• QuickStartGuide
• 1YearWarranty
• LifetimeLiveCustomerSupport
This product is not a toy.
This product contains small parts. Exercise care when unpacking and assembling the product.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
This product does not replace responsible adult supervision. Check on your child at regular intervals and make sure your monitor is always adequately charged.
LEVANA®does not endorse any LEVANA®products for illegal activities. Levana is not responsible or liable in any way for any damage, vandalism, theft or any other action that
may occur while a LEVANA®product is in use by the purchaser.
We reserve the right to change models, configuration, or specifications without notice or liability. Product may not be exactly as shown.
©2012 LEVANA®. All rights reserved. LEVANA®, the LEVANA®logo, Stella™and other LEVANA®marks may be registered. All other Trademarks are the property of their
respective owners.
WHAT’S INCLUDED
6
mylevana.com

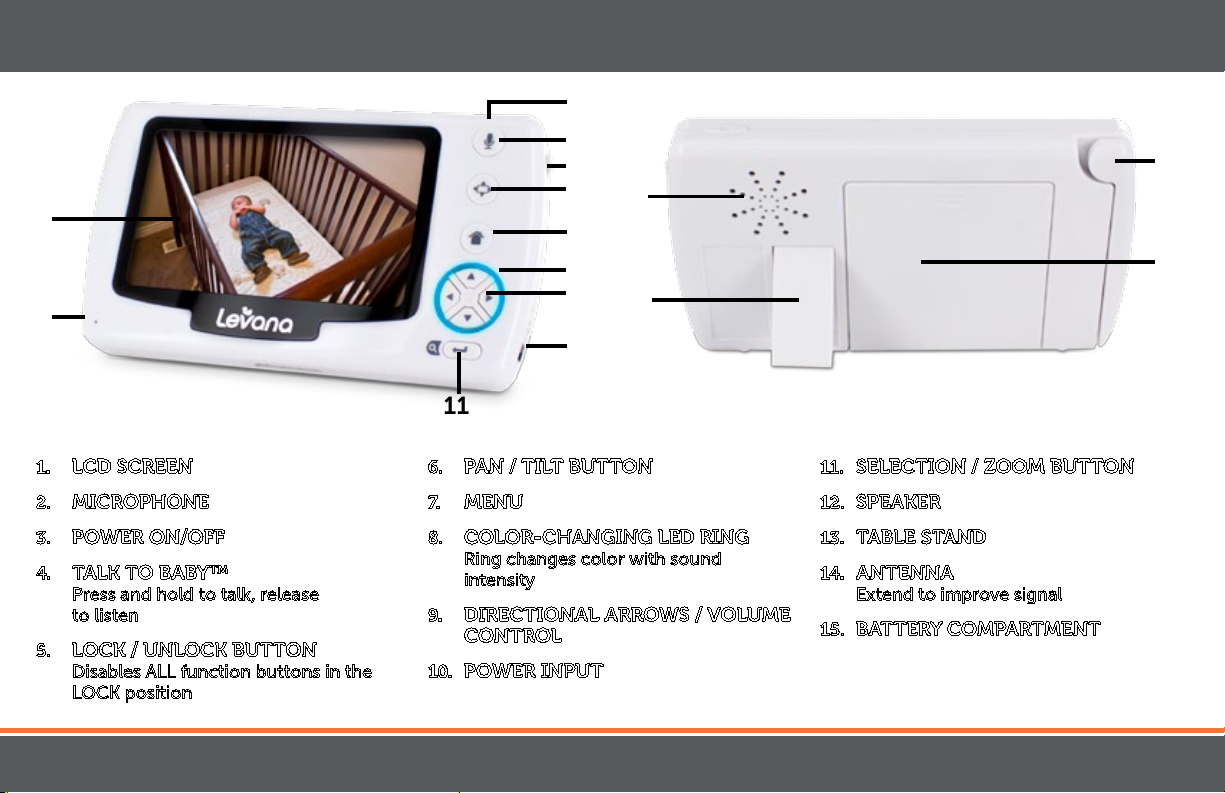

1. LCD SCREEN
2. MICROPHONE
3. POWER ON/OFF
4. TALK TO BABY™
Press and hold to talk, release
to listen
5. LOCK / UNLOCK BUTTON
Disables ALL function buttons in the
LOCK position
6. PAN / TILT BUTTON
7. MENU
8. COLOR-CHANGING LED RING
Ring changes color with sound
intensity
9. DIRECTIONAL ARROWS / VOLUME
CONTROL
10. POWER INPUT
11. SELECTION/ZOOMBUTTON
12. SPEAKER
13. TABLE STAND
14. ANTENNA
Extend to improve signal
15. BATTERY COMPARTMENT
MONITOR
14
15
12
13
11
4
5
6
9
10
3
2
7
1
8
7mylevana.com

1. PHOTO SENSOR
2. PTZCAMERA
3. MICROPHONE
4. SPEAKER
5. INVISIBLE LEDs
6. POWER ON/OFF
7. ANTENNA
8. POWER LED
9. POWER INPUT
CAMERA
1
6
7
8 9
2
3
4
5
8
mylevana.com

7. ANTENNA
8. POWER LED
9. POWER INPUT
LET’S GET STARTED!

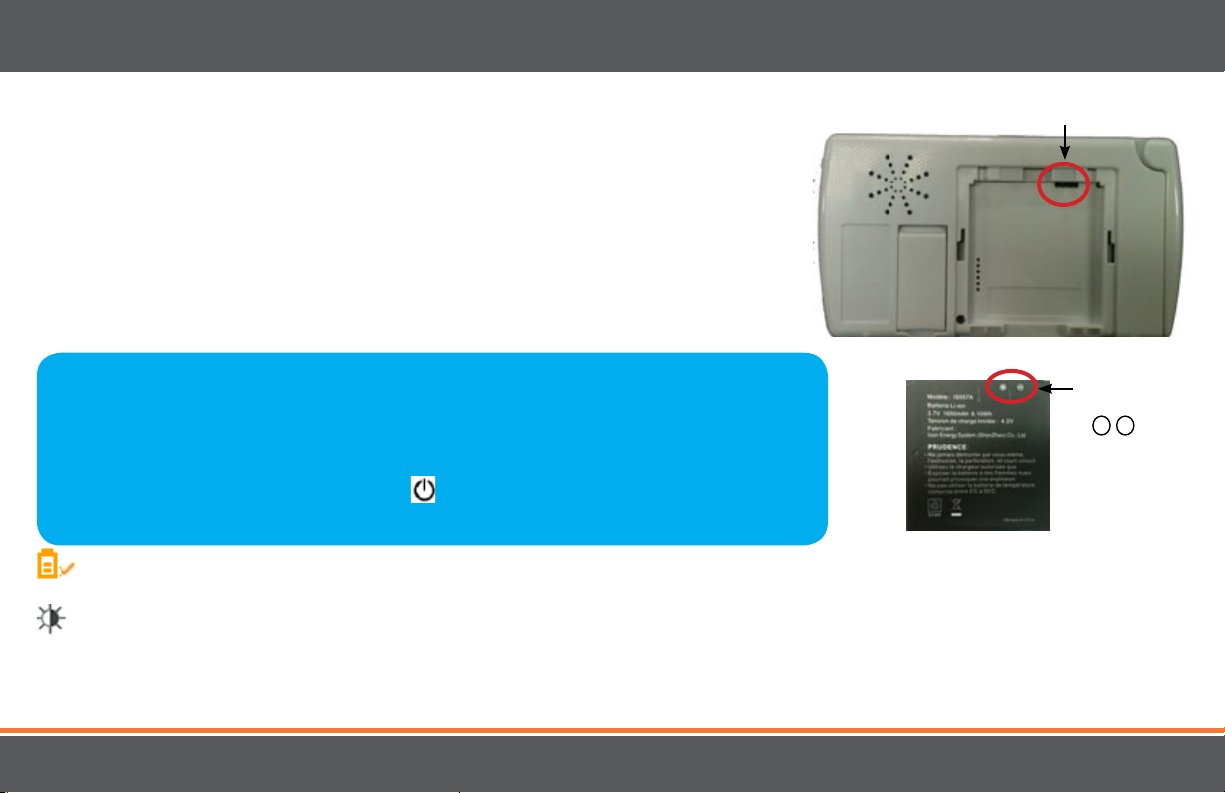

Battery Installation
1. Gently remove the BATTERY COMPARTMENT COVER on the back of
the monitor.
2. Slide the BATTERY COMPARTMENT COVER down to remove.
3. Insert the battery; the battery connectors on the battery should line up
with the connectors inside the battery compartment.
4. Slide the BATTERY COMPARTMENT COVER back into place.
PEEP Mode: After 1 minute of inactivity, monitor enters standby/sleep mode.
Adjustable Brightness: Decreasing screen brightness will extend battery life.
6. For extended periods of non-use, please remove battery from baby monitor.
SETUP
Get the Most Out of Your Rechargeable Battery
1. Fully charge battery (6-7 hours) before first use.
2. To maximize battery life, charge battery before battery is fully drained.
3. Avoid extreme heat or cold as this will aect the life of the battery.
4. Turn LCD screen OFF; press POWER button on the top of the monitor ONCE.
5. Stella™menu settings that increase battery life:
Battery
connectors
Battery
connectors
+ –
9mylevana.com

DC Input

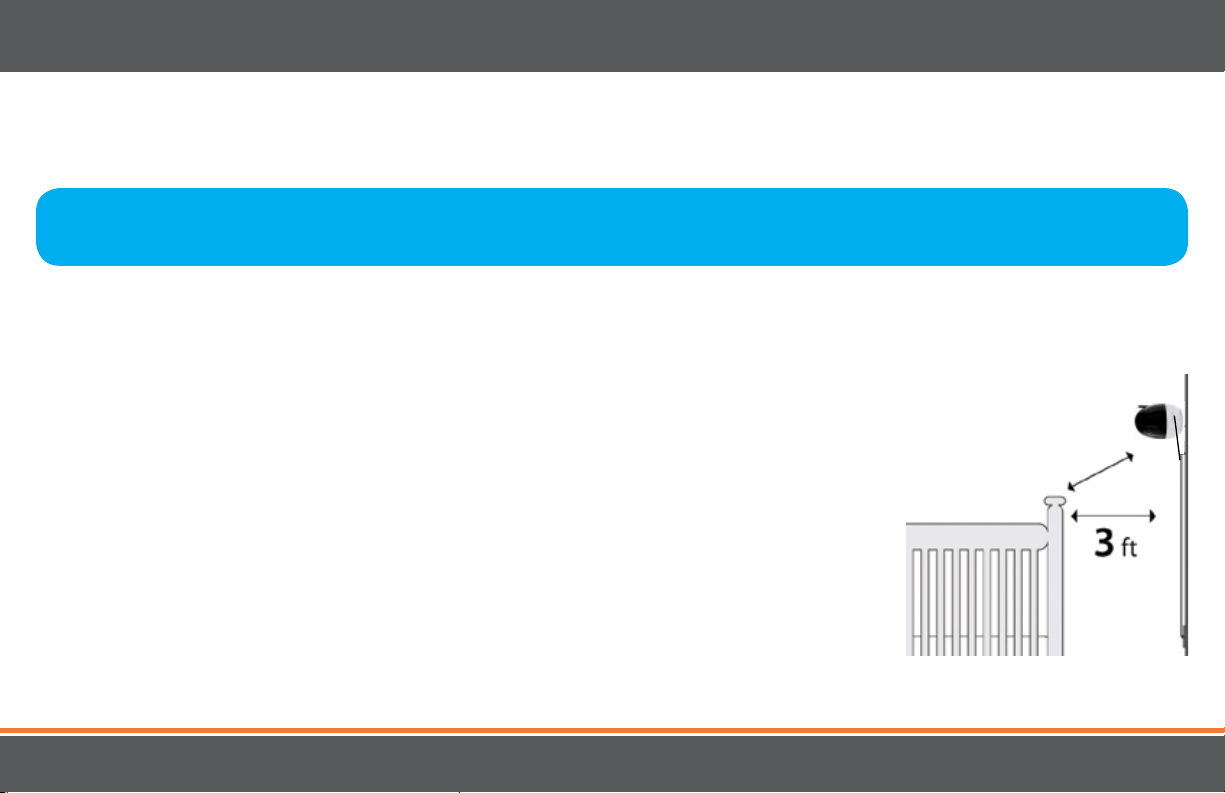

Note: Baby monitors and cameras with power cords should never be hung on or near the crib as it is a strangulation
hazard. Power cords should be kept no less than 3 feet away from the crib and the baby’s reach at all times.
Connecting Power to the Monitor / Charging Battery
1. Connect the small end of one power adapter into the DC input on the side of the monitor as
shown in the diagram. Connect the other end of the adapter into an available wall outlet.
2. Press and hold the POWER button on top of the monitor to turn the monitor ON.
3. The icon in the top right corner of the main screen will show you the battery power status.
4. The LED Ring on the front of the monitor also indicates the battery power status.
SOLID BLUE = BATTERY FULLY CHARGED SLOW FLASHING BLUE = BATTERY CHARGING
QUICKFLASHINGBLUE= BATTERY LOW FLASHING PINK = PAIRING UNSUCCESSFUL
5. For safety reasons, ONLY use the adapters included in the package.
EMPTY CHARGING FULL
Connecting Power to the Camera
1. Take the second power adapter and connect the small end of the power adapter into
the DC input on the side of the camera base. For safety reasons, ONLY use the adapters
included in the package.
2. On the side of the camera, slide the POWER switch LEFT to the ON position. The
POWER LED will light up.
SETUP
LED Ring
ON / OFF
Switch
