LevelOne DOH-1000 User manual

LevelOne
DOH-1000
Domed Outdoor Housing
For FCS-1010/FCS-1040
Quick Installation Guide

CHECK YOUR PACKAGE CONTENTS
Open the shipping cartons and carefully unpacks its contents.
The carton should contain the following items:
 Housing
 Wall Mount Tube
 Cover
 Power Adapter
 Accessory Pack: bracket and screws
 QIG

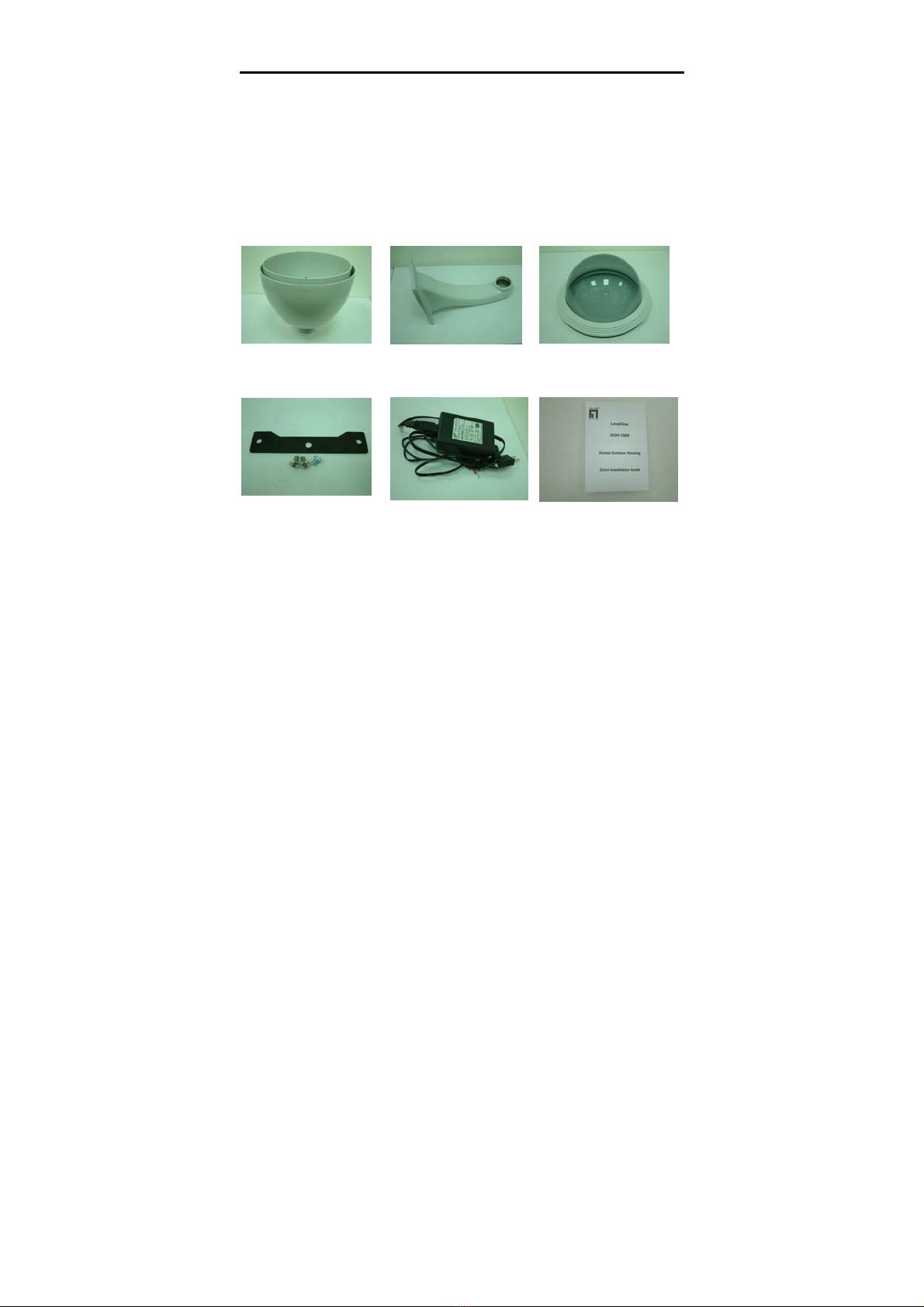

Housing Wall Mount Tube Cover
Bracket and Screws Power adapter QIG
If any item is found missing or damaged, please contact your
local reseller for replacement.

GENERAL FEATURE
 Made of aluminum alloy material.
 Double-deck design.
 Strengthen Acrylic cover
 IP66 waterproof
 Build-in Fan and Heater
INSTALLATION
Step 1: Get the power wire through the bracket first.

Step2: Then through out from the housing part, meanwhile
insert the red and blue plug to the power socket. (PS.
This device is suitable for AC or DC input, no negative or
positive distinguished)

Step 3: Screw the IP camera (LevelOne FCS-1010/FCS-1040)
on the brakets.

Step 4: Screw on the two side screws, and plug the power
supply to the IP camera.

Step 5: Finally screw on the cover, and the installation is
finished.
