LevelOne IES-0910 User manual

IES-0910
8 FE + 1 MM SC Unmanaged Switch -20 to 60, DIN-rail
User Manual
v1.00 -1206

IES-0910 UserManual Page 2
Preface
A member of the growing family of rugged switches, this switch addresses a need for a
smallerswitch.Thisswitch provides an affordable solution for ruggedand outdoor
environment, transportation road-side cabinet, industrial floor shop, multitenant
dwellings or FiberToThe Home (FTTH) applications. Capableof operating at temperature
extremes of -20°C to +60°C,thisis theswitchofchoiceforharshenvironments constrained
by space.
Plug-and-PlaySolution:
The switch is aplug-and-playFast Ethernet Switch in compact size. It doesn't have any
complicatedsoftware to set up.
Thismanualdescribeshowtoinstallandusethehardened EthernetSwitch.This switch
integratesfullwirespeedswitchingtechnology.Thisswitchbringsthe answer to
complicatedhardened networking environments.
To get the most out of this manual, you should havean understanding of Ethernet
networking concepts.
In this manual, you will find:
•Features on the switch
•IllustrativeLED functions
•Installation instructions
•Specifications

IES-0910 UserManual Page 3
Table of Contents
PREFACE ........................................................................................................................................................ 2
PRODUCT OVERVIEW ................................................................................................................................... 4
HARDENED ETHERNETSWITCH ...............................................................................................................................................................4
PACKAGE CONTENTS ................................................................................................................................................................................4
PRODUCT HIGHLIGHTS.............................................................................................................................................................................5
FRONTPANEL DISPLAY.............................................................................................................................................................................6
INSTALLATION............................................................................................................................................... 7
SELECTING A SITE FORTHE SWITCH.........................................................................................................................................................7
DINRAIL MOUNTING ..............................................................................................................................................................................8
CONNECTINGTOPOWER..........................................................................................................................................................................9
CONNECTINGTOYOUR NETWORK........................................................................................................................................................11
SPECIFICATIONS.......................................................................................................................................... 12
APPENDIX A – CONNECTOR PINOUTS........................................................................................................ 13

IES-0910 UserManual Page 4
Product Overview
Hardened Ethernet Switch
Package Contents
When you unpack the product package, you shall find the items listed below. Please
inspect the contents, andreport any apparent damage or missing items immediately to
your authorized reseller.
•IES-0910
8 FE + 1 MM SC Unmanaged Switch -20 to 60, DIN-rail
•Quick Installation Guide
•CD User Manual

IES-0910 UserManual Page 5
Product Highlights
Basic Features
•Meets IEC61000-6-2 EMC Generic Standard Immunity for industrial environment.
•Support 802.3/802.3u/802.3X.
•Auto-negotiation: 10/100Mbps, Full/half-duplex;Auto MDI/MDIX.
•Support 2048 MAC addresses.
•Provides 768Kbits memorybuffer.
•Alarms for power failure by relay output.
•Operating voltage and Max. current consumption: 1.1A @ 12VDC, 0.55A @ 24VDC.
•Power consumption: 13.2W Max.
•Power Supply: Redundant DCTerminal Block power inputs or 12VDC DC JACK with
100-240VAC external power supply.
•Supports DIN-Rail, Panel,orRackMounting installation.

IES-0910 UserManual Page 6
Front Panel Display
Basic Features
•Power Status (PW1, PW2)
These LEDs come on when the switch is properly connectedto power and turned on.
‚Port Status LEDs
The LEDs display status for each respective port.
LED Status Description
PW 1,2
(Green) Steady Power On
Off Power Off
10/100Base-TX or 100Base-FX/BX
LNK/ACT
(Green) Steady Network connection is established
Flashing Transmitting or Receiving data
100
(Yellow) Steady Connection at 100Mbps speed
Off Connection at 10Mbps speed
Physical Ports
This switch provides:
Eight 10/100Base-TX ports
Eight 10/100Base-TX ports + one 100Base-FXport
Six 10/100Base-TX ports + two 100Base-FX ports
Four 10/100Base-TX ports + four 100Base-FX ports
Connectivity
RJ-45 connector
SCor ST connector on 100Base-FX fiber port

IES-0910 UserManual Page 7
Installation
This chapter gives step-by-step instructions about how to install the switch:
Selecting a Site for the Switch
As with anyelectric device, you should place the switch where it will not be subjected to
extreme temperatures, humidity, or electromagnetic interference. Specifically, the site you
select should meet the following requirements:
•The ambient temperature should be between -20to 60 degrees Celsius.
•The relativehumidity should be less than 95 percent, non-condensing.
•Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards.
•Make sure that the switch receives adequate ventilation. Do not block the ventilation
holes on each side of the switch
•The power outlet should be within 1.8 meters of the switch.

IES-0910 UserManual Page 8
DIN Rail Mounting
Fix the DIN rail attachment plate to the back panel of theswitch.
Installation: Place the switch on the DIN rail fromabove using the slot. Push the front of
the switch toward the mounting surface until it audibly snaps into place.
Removal: Pull out the lower edgeand then remove the switch from the DIN rail.

IES-0910 UserManual Page 9
Connecting to Power
Redundant DCTerminalBlockPower Inputs or 12VDC DC Jack (Optional):
Redundant DCTerminal Block Power Inputs
There are two pairs of power inputs can be used to power up this device.You only need to
have one power input connected to run the switch.
Step 1: Connect the DC power cord to the plug-able terminal block on the switch, and
then plug it into a standard DC outlet.
Step 2: Disconnect the power cordif you want to shut down the switch.
12VDC DC Jack (Optional)
Step 1: Connect the supplied AC to DC power adapter to the receptacle onthe topside of
the switch.
Step 2: Connect the power cord to the AC to DC power adapter and attach the plug into a
standard ACoutlet with the appropriate ACvoltage.

IES-0910 UserManual Page 10
Alarms for Power Failure
Step 1:There are two pins on the terminal block are used for power failure detection. It
provides the normally closed output when the power source is active. Use this as a dry
contact application to send a signal for power failure detection.
Terminal Block
PW1 + 12 – 30VDC
–
Power Ground
PW2 + 12 – 30VDC
– Power Ground
Earth Ground
Relay Output 1A @ 12 - 30VDC
1. Therelaycontactopensif Power1 or Power2 falls
Special note:
The relayoutput is normal open position when there is no power to the switch.
Please do not connect anypower source to this terminal to prevent the shortage to
yourpower supply.

IES-0910 UserManual Page 11
Connecting toYour Network
CableType & Length
It is necessary to follow the cable specifications below when connecting the switch to your
network. Use appropriate cables that meet your speed and cabling requirements.
Cable Specifications
Speed Connector Port Speed
Half/Full Duplex Cable Max. Distance
10Base-T RJ-45 10/20 Mbps 2-pair UTP/STPCat. 3, 4, 5 100 m
100Base-TX RJ-45 100/200 Mbps 2-pair UTP/STPCat. 5 100 m
100Base-FX ST, SC 200 Mbps MMF (62.5μm) 2 km
100Base-FX ST, SC 200 Mbps SMF (9 or 10μm) 20, 40, 75, 100 km
Cabling
Step 1: First, ensure the power of the switch and end devices are turned off.
<Note> Always ensure that the power is off before any installation.
Step 2: Preparecable with corresponding connectors for each type of port in use.
<Note> To connect two regular RJ-45 ports between switches or hubs, you need a
straight or cross-over cable.
Step 3: Consult the previous section for cabling requirements based on connectors and
speed.
Step 4: Connect one end of the cable to the switch and the other end to a desired
device.
Step 5: Once the connections between two end devicesare made successfully, turn on
the power and the switch is operational.

IES-0910 UserManual Page 12
Specifications
Hardened Ethernet
Switch 10/100Base-TX auto-negotiating ports with RJ-45 connectors, 100Base-FX fiber ports
Applicable Standards IEEE 802.3 10Base-T
IEEE 802.3u100Base-TX/FX
Switching Method Store-and-Forward
Forwarding Rate
10Base-T:
100Base-TX/FX:
10 / 20Mbps half / full-duplex
100 / 200Mbps half /full-duplex
Performance 148,80pps for 10Mbps
148,810pps for 100Mbps
Cable
10Base-T:
100Base-TX:
100Base-FX:
2-pair UTP/STP Cat. 3, 4, 5
2-pair UTP/STP Cat. 5
Up to 100m (328ft)
MMF (50 or 62.5μm), SMF (9 or10μm)
LED Indicators Per unit – Power status (PWR1, PWR2)
Perport–
10/100TX or100FX –
LNK/ACT (Green), 100 (Yellow)
Dimensions 50mm (W) × 125mm (D) × 135mm (H)
(1.97” (W) ×4.92” (D) × 5.31” (H))
NetWeight 0.8Kg (1.76lbs.)
Power DC Jack: 12VDC, External AC/DC required
Terminal Block: 12-30VDC
OperatingVoltage &
Max. Current
Consumption
1.1A @ 12VDC, 0.55A @ 24VDC
Power Consumption 13.2W Max.
OperatingTemperature -20
℃
to 60
℃
(-4
℉
to 140
℉
)
StorageTemperature -40
℃
to 85
℃
(-40
℉
to 185
℉
)
Humidity 5%-95% non-condensing
Safety UL60950-1,EN60950-1,IEC60950-1
EMI FCC Part 15, Class A
EN61000-6-3:
EN55022,EN61000-3-2, EN61000-3-3
EMS EN61000-6-2:
EN61000-4-2 (ESD Standard)
EN61000-4-3 (Radiated RFI Standards)
EN61000-4-4 (Burst Standards)
EN61000-4-5 (Surge Standards)
EN61000-4-6 (Induced RFI Standards)
EN61000-4-8 (Magnetic Field Standards)
EN61000-4-11 (Voltage Dips Standards)
EnvironmentalTest
Compliance IEC60068-2-6 Fc (Vibration Resistance) IEC60068-2-27 Ea (Shock)
IEC60068-2-32 Ed(Free Fall)

IES-0910 UserManual Page 13
Appendix A – Connector Pinouts

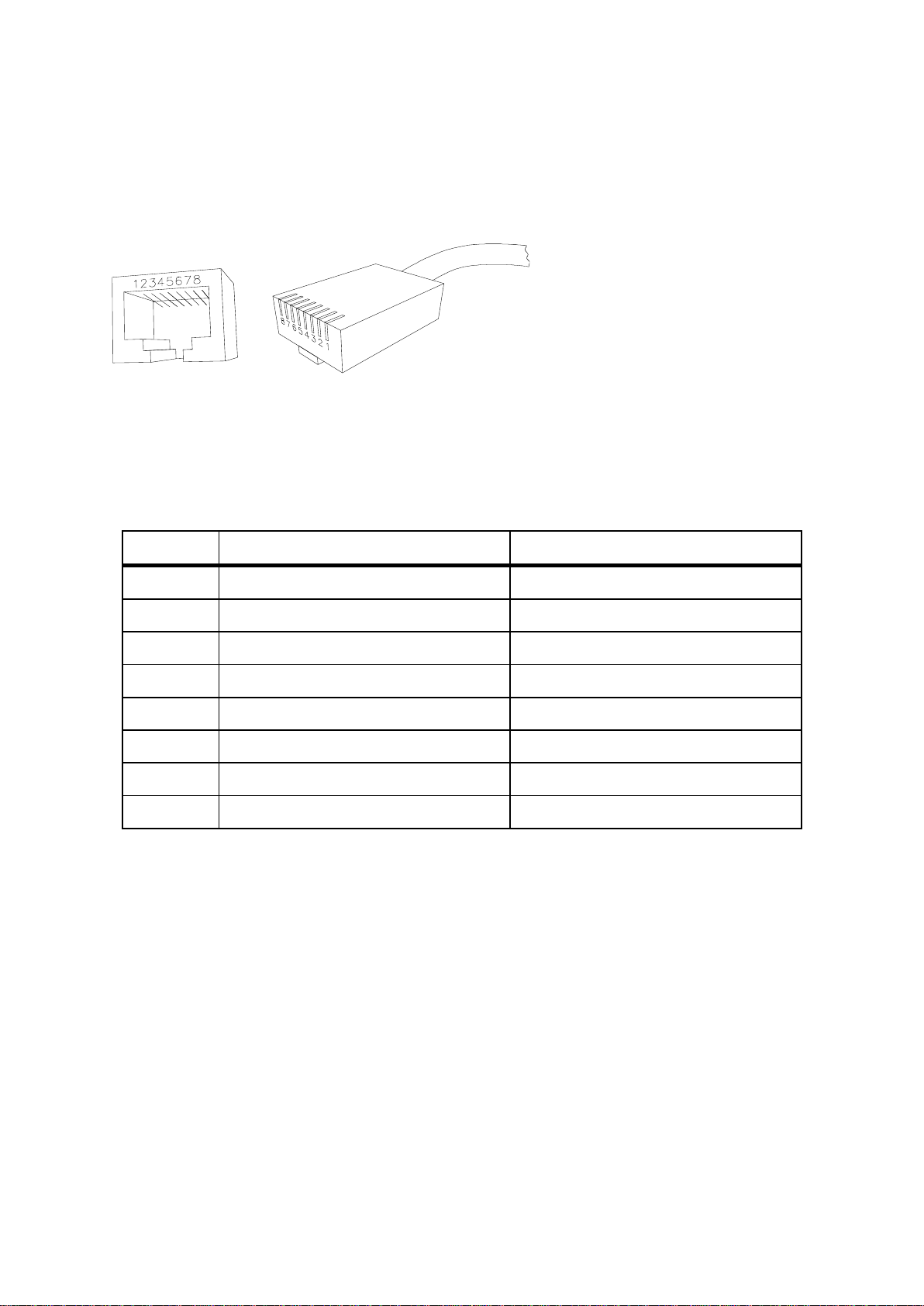

Pin arrangement of RJ-45 connectors:
RJ-45ConnectorandCablePins
The following table lists the pinout of 10/100Base-TXports.
Pin Standard Port Uplink Port
1 OutputTransmit Data + Input Receive Data+
2 OutputTransmit Data - Input ReceiveData -
3 Input Receive Data + OutputTransmitData+
4 NC NC
5 NC NC
6 Input Receive Data - OutputTransmitData-
7 NC NC
8 NC NC
