LevelOne FCS-6020 User manual

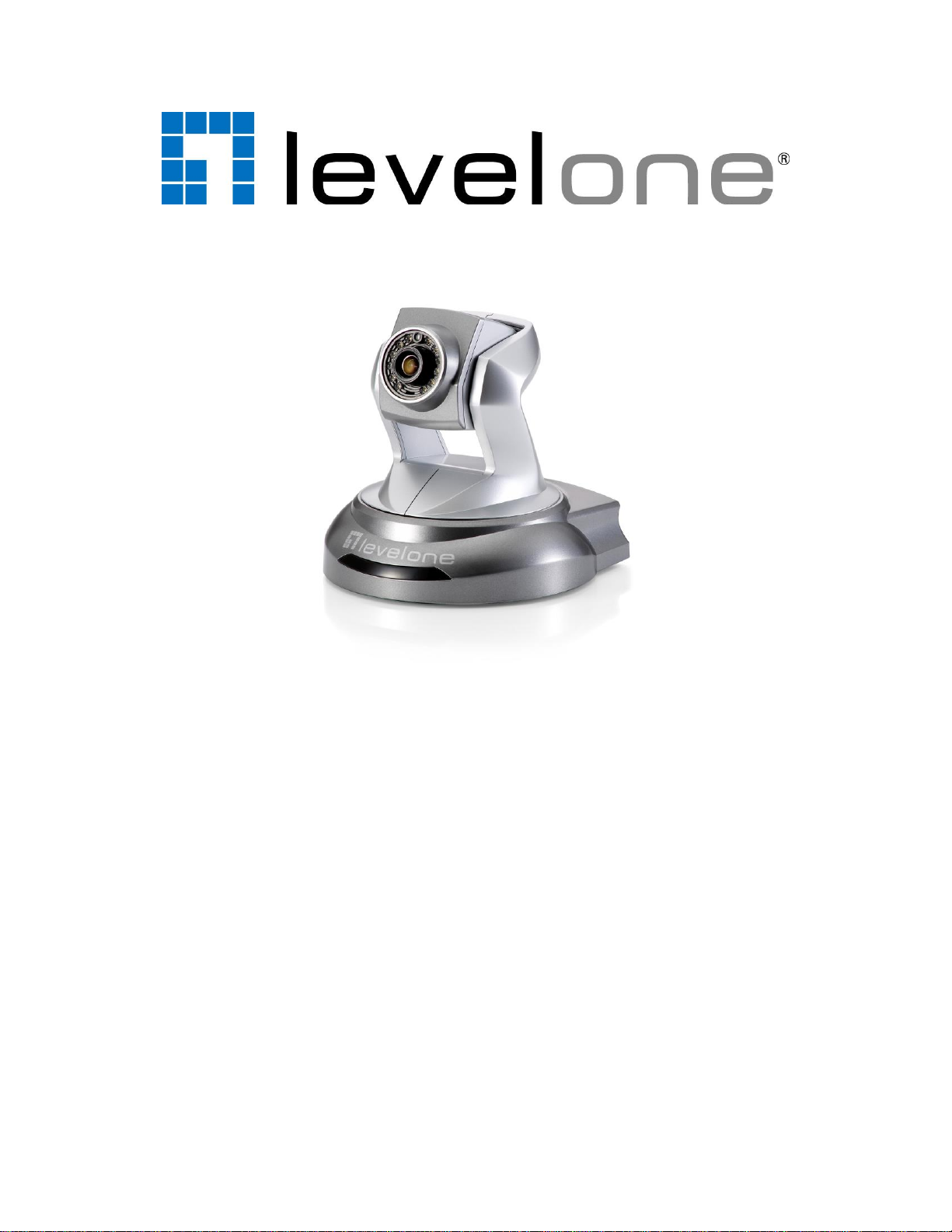

FCS-6020 User Manual
1/56
FCS-6020
PT Network Camera, 2-Megapixel,
Say & Night, PoE 802.3af, IR LEDs,
User Manual
Version 1.0

FCS-6020 User Manual
2/56
Table of Contents
Overview...............................................................................................................3
Package Contents.................................................................................................4
Hardware Description ...........................................................................................5
Hardware Installation............................................................................................7
Connect to the Network Camera.........................................................................10
Install the IP Finder program........................................................................10
Bonjour program..........................................................................................17
ip-discovery.com(Free DDNS service).........................................................18
Initial Access to the Network Camera.................................................................19
Primary user’s capability .....................................................................................20
Main Screen with Camera View...................................................................20
Client Setting ...............................................................................................23
Definitions in Configuration.................................................................................25
System parameters......................................................................................25
User Management.......................................................................................27
Network .......................................................................................................29
Access list....................................................................................................33
Audio and Video setting...............................................................................34
Video record ................................................................................................36
Stream.........................................................................................................38
Camera control............................................................................................40
Application...................................................................................................42
Storage........................................................................................................45
Syslog..........................................................................................................46
Status and Parameters ................................................................................47
Maintenance................................................................................................48
Appendix.............................................................................................................50
A. Troubleshooting & Frequently Asked Questions......................................50
B. Technical specifications...........................................................................55
Default Settings
IP Address
DHCP
Username
root
Password

FCS-6020 User Manual
3/56
Overview
The LevelOne FCS-6020 is a quality yet cost-effective surveillance solution for
the home and office. It is designed for easy and flexible installation, supporting
two power options (12 VDC/PoE) and the motorized Pan and Tilt provides a
viewing angle of ±355°pan and ±135°tilt. Equipped with a 2-Megapixel sensor
and built-in IR cut filter/IR illuminator LEDs, the camera provides high resolution
quality and sharp sensitivity –ideal for security applications both day and night.
The FCS-6020 is equipped with many advanced features such as Level1DNS™
Service, DI/DO for external alarm and sensor, a SD/SDHC card slot and USB
interface for local storage, built-in microphone and external speaker for 2-way
audio communications. Moreover, users can also set up 16 motion-detection
regions with the camera, each with adjustable size and sensitivity. When motion
is detected at the specified regions, the system can send an E-mail alert or send
captured images via FTP upload to a designated storage server. The FCS-6020
is indisputably the top choice for reliable and high performance surveillance.
Law in your country may prohibit the use of surveillance devices. The Network
Camera is not only a high-performance web-ready camera but also can be part
of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of such devices is legal before installing this unit for its intended use.
Minimum System Requirement
Personal Computer
·CPU: Intel® Celeron® Dual-Core @2.70GHz or above
·Memory Size: 2 GB or above recommended
·VGA card resolution: 1024 x 768 or above
Operating System
· Windows XP/ Windows 7
Web Browser
· Microsoft Internet Explorer 6.0 or later
· Firefox
· Chrome
Network Card
· 10Base-T (10 Mbps) or 100Base-TX (100 Mbps) operation
Viewer
· ActiveX control plug-in for Microsoft IE

FCS-6020 User Manual
4/56
Package Contents
Network Camera
Power Adapter
Camera Stand
LAN Cable
Quick Installation Guide
CD Manual / Utility
If any of the above items are missing, please contact your dealer immediately.
Note:Using a power supply with a different voltage than the one included with
the Network Camera may cause damage and void the warranty for this product.

FCS-6020 User Manual
5/56
Hardware Description
1. Light Sensor
Automatically detects lighting condition to turn IR LEDs on/off.
2. Infrared LEDs
There are twelve Infrared (IR) LEDs in front of camera for night vision
purpose. The IR LEDs will auto or manual turn on when the camera is in the
dark environment.
3. Built-in Microphone
The camera has a built-in internal microphone. This microphone is hidden in
the pinhole located on the head of camera.
4. Front LEDs
Red LED indicates power, red LED will turn on always after plug-in power.
Green LED indicates networking, green LED will blink every second after
getting IP address.
Upon powering up, two of front LEDs will become lighted then the camera will
do self-rotation. During the self-rotation, red LED will be on and the network
camera is standing by for getting an IP address.
5. Ethernet Port

FCS-6020 User Manual
6/56
Beside the DC power Jack, the LAN socket is an RJ-45 connector for
connections to 10Base-T or 100Base-TX Fast Ethernet cabling. Please use a
Cat 5 ―straight through‖ cable to connect the Network Camera to an Ethernet
network switch or hub.
6. General I/O Terminal Black
Used for connecting to external input/output devices like alarms or sensors.
7. Line Output
The Network Camera supports two way audio communication so that
operators can transmit and receive audio simultaneously. By using the
Network Camera’s built-in or external microphone and an external speaker,
you can communicate with people around the Network Camera.
8. SD/SDHC Card Slot
The SD/SDHC card slot offers a convenient and portable storage
(snapshots and video clips) option to prevent data loss in case of network
disconnection.
9. Microphone/Line In
The Network Camera supports two way audio communication so that
operators can transmit and receive audio simultaneously. By using the
Network Camera’s built-in or external microphone and an external speaker,
you can communicate with people around the Network Camera.
10.DC Power Jack
The input power is 12VDC. Note that supply the power to the Network
Camera with standard power adapter included in package. Otherwise, the
improper power adapter may damage the unit and result in danger.
11.USB Port
The USB slot offers a convenient and portable storage (snapshots and video
clips) option to prevent data loss in case of network disconnection.

FCS-6020 User Manual
7/56
Hardware Installation

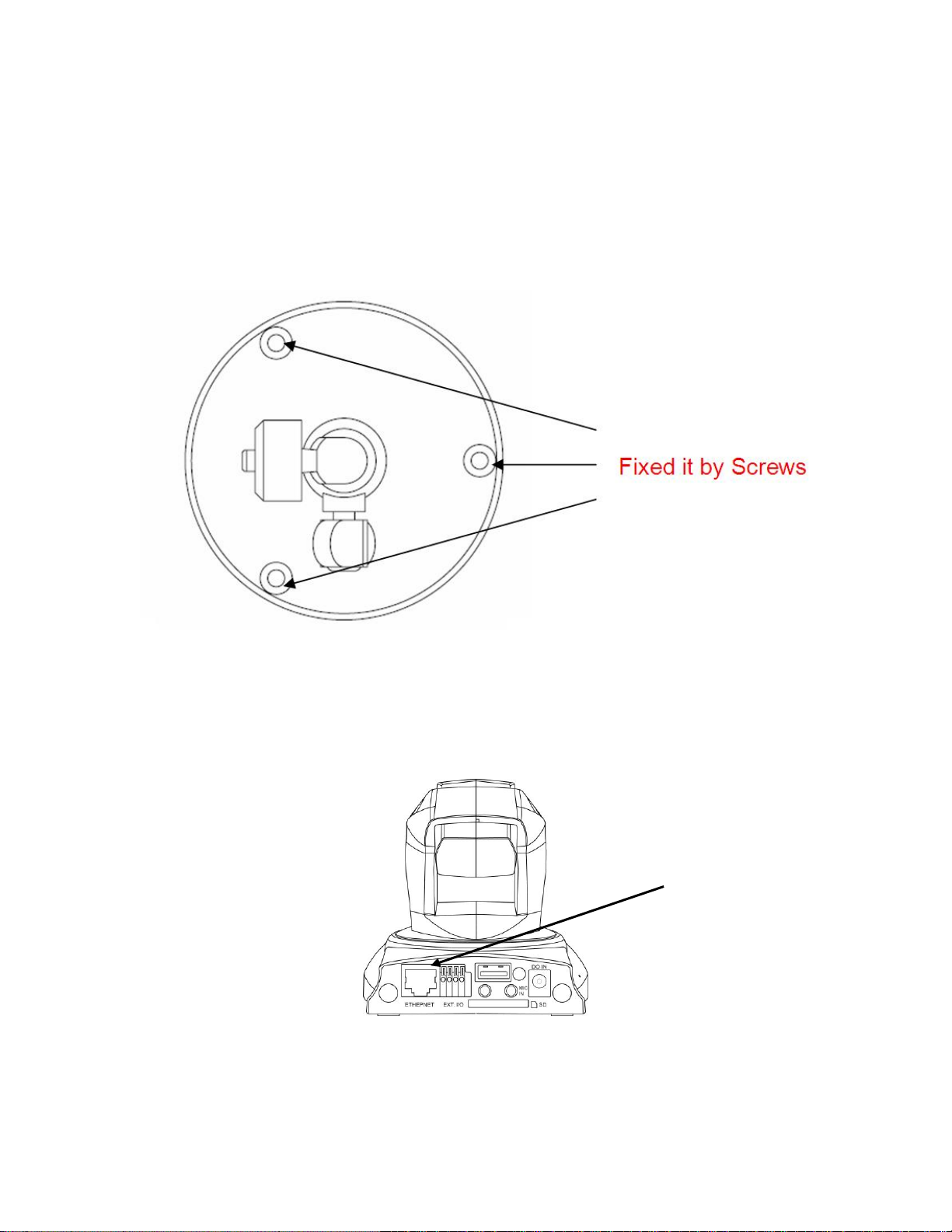

1. Attach the Network Camera with the included stand
2. Place the Camera on the table or fix it onto ceiling or wall
Use screws to fix the Network Camera onto the ceiling or wall. You could also
place the Network Camera on the table directly.
3. Plug a RJ-45 Ethernet cable into the Network Camera
Connect an Ethernet cable to the LAN socket located on the rear of network
camera and connect it to a network.
Ethernet
Cable Socket

FCS-6020 User Manual
8/56

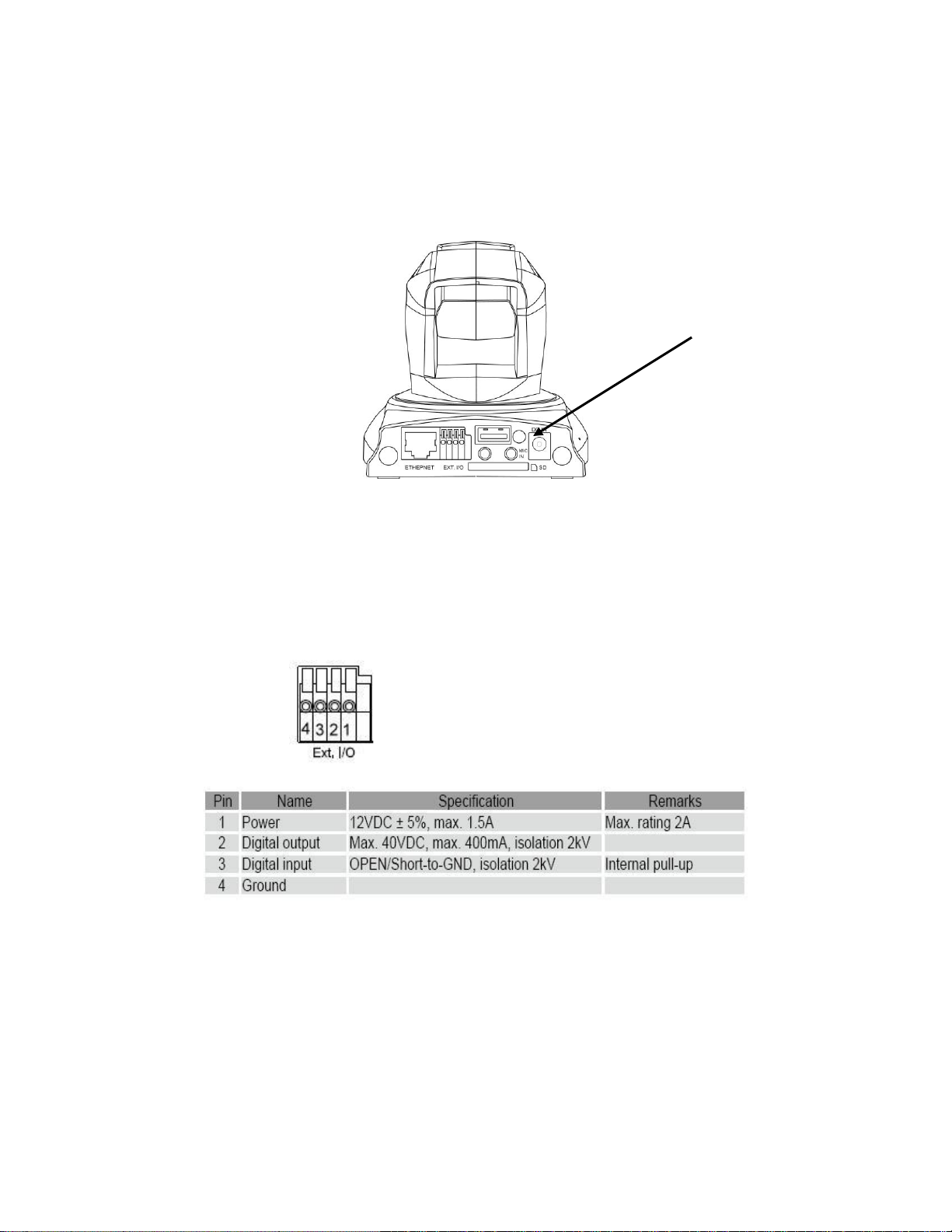

4. Connect the external power supply to the network camera
Connect the attached power adapter to the DC power jack of the Network
Camera. Note: Use the power adapter, 12VDC, included in the package and
connect it to wall outlet for AC power.
Once you have installed the Network Camera well and powered on, the camera
will do self-rotation and then the red LED will turn on and green LED will flash
every second. It means that the system is booting
5. General I/O Terminal Block
If you have external devices such as sensors and alarms, connect it to the I/O
terminal block.
Power
Socket
1: Power
2: Digital output
3. Digital input
4. Ground

FCS-6020 User Manual
9/56

FCS-6020 User Manual
10/56
Connect to the Network Camera
Install the IP Finder program

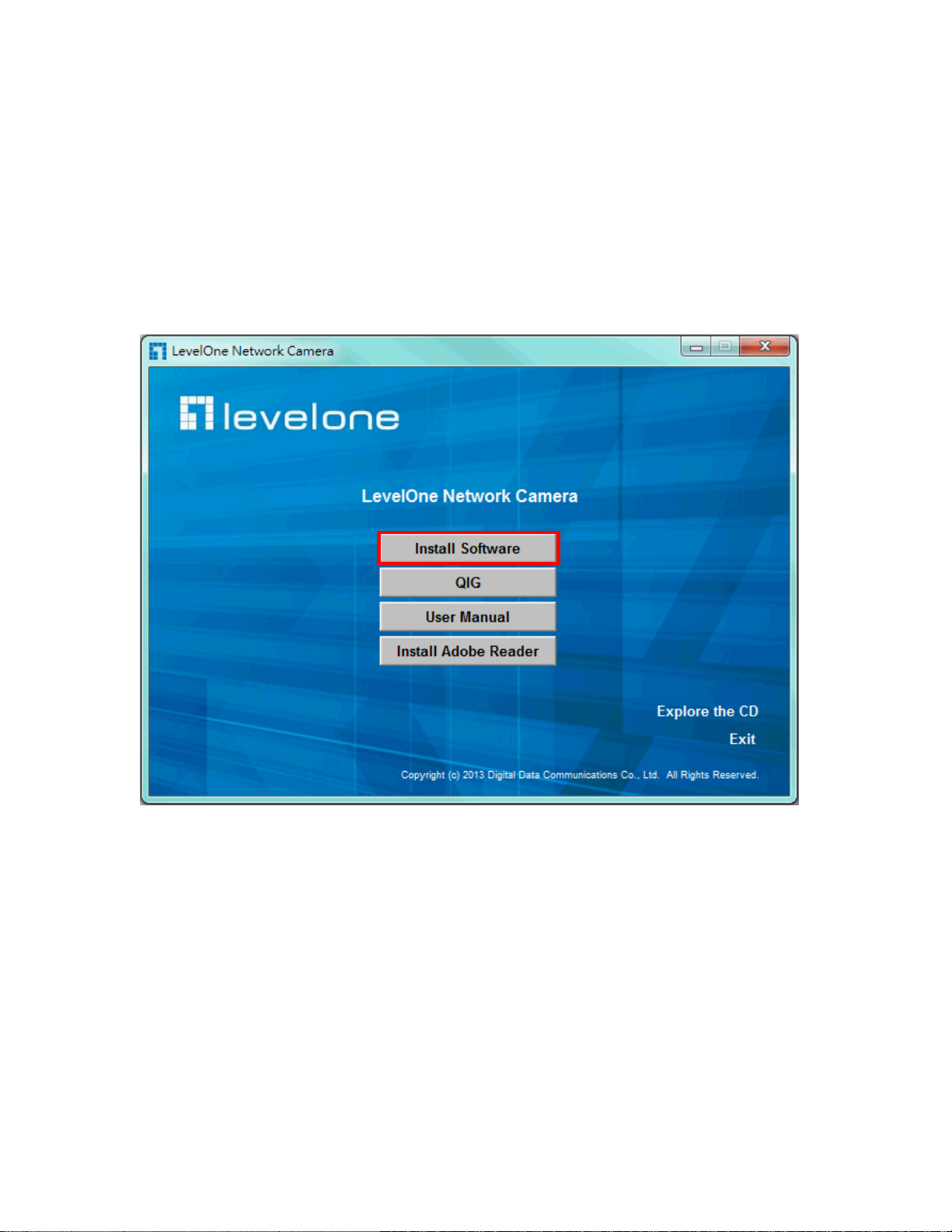

When you installed your Network camera on your LAN environment, you may install ―IP
Finder‖ to discover Network camera’s IP address. The Administrator must place the
product software CD into the CD-ROM drive of the PC running in Microsoft Windows. An
auto-run program will pop up (If the program is not on auto-run, go to the root directory
of the software CD and click on ―autorun.exe‖).

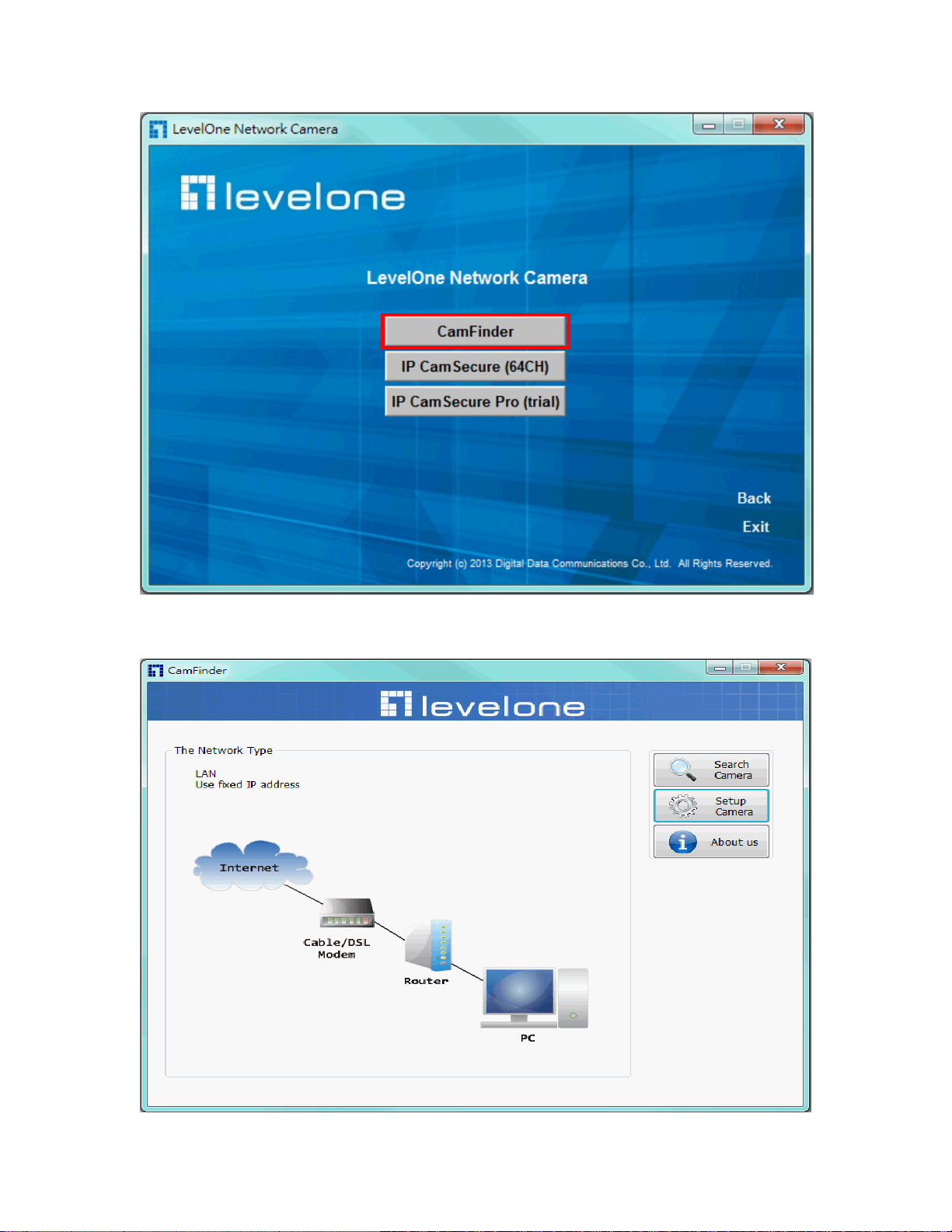

Click on ―Software Utility‖ item, after the window contents changed, click on ―Install IP
Finder‖ to run ―IP Finder‖ program.

Network Camera User’s Manual
11/56
―IP Finder‖ is used to search the IP address of Network Cameras or Video
servers on a LAN. After searching, Video Servers or Network Cameras will be
located by the IP Finder.

Network Camera User’s Manual
12/56

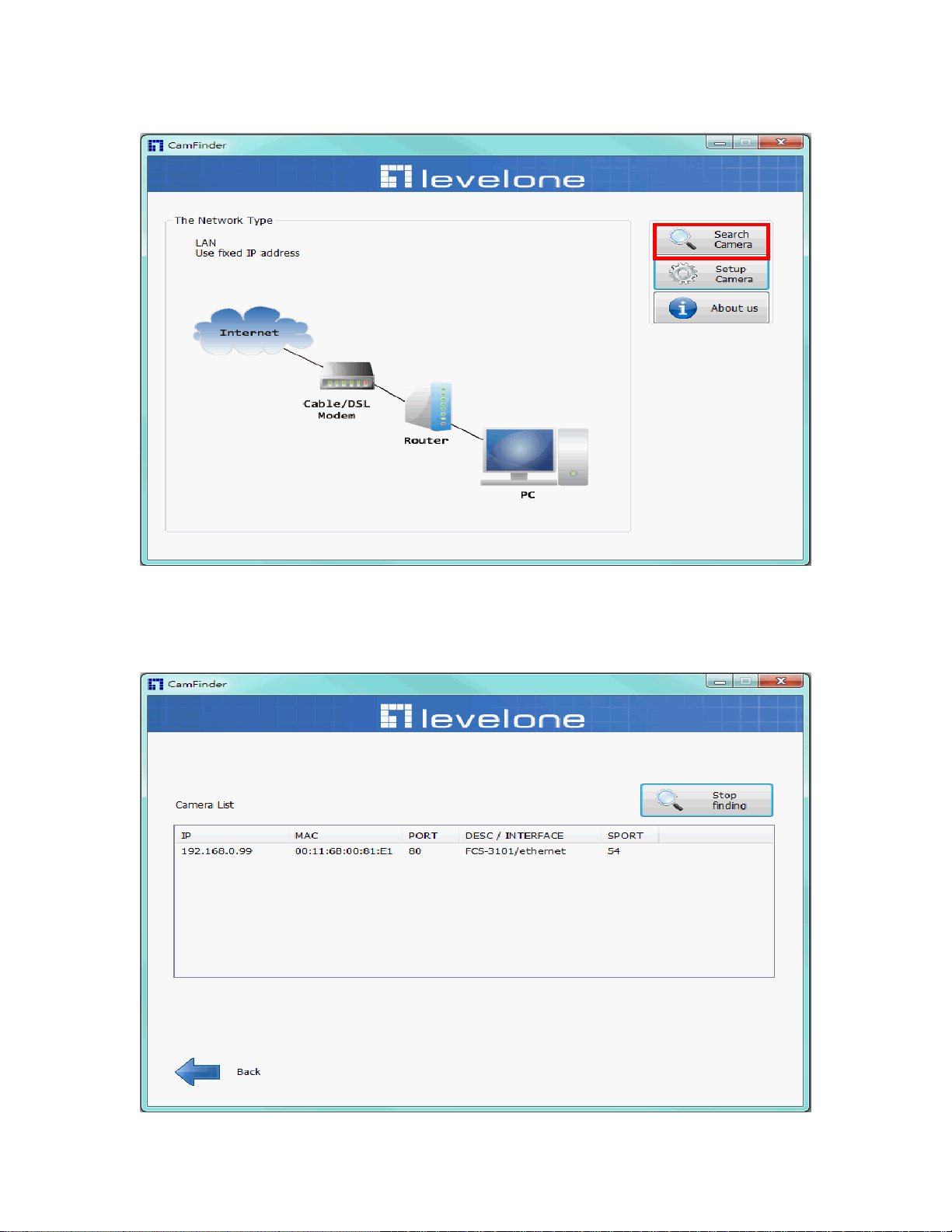

Search Camera
Click search Camera button, The program will search for all family network
devices on the same LAN. After searching, the main installer window will pop up.
Click on the MAC and model name which matches the product label on your
device to connect to the Network Camera via Internet Explorer.

Network Camera User’s Manual
13/56

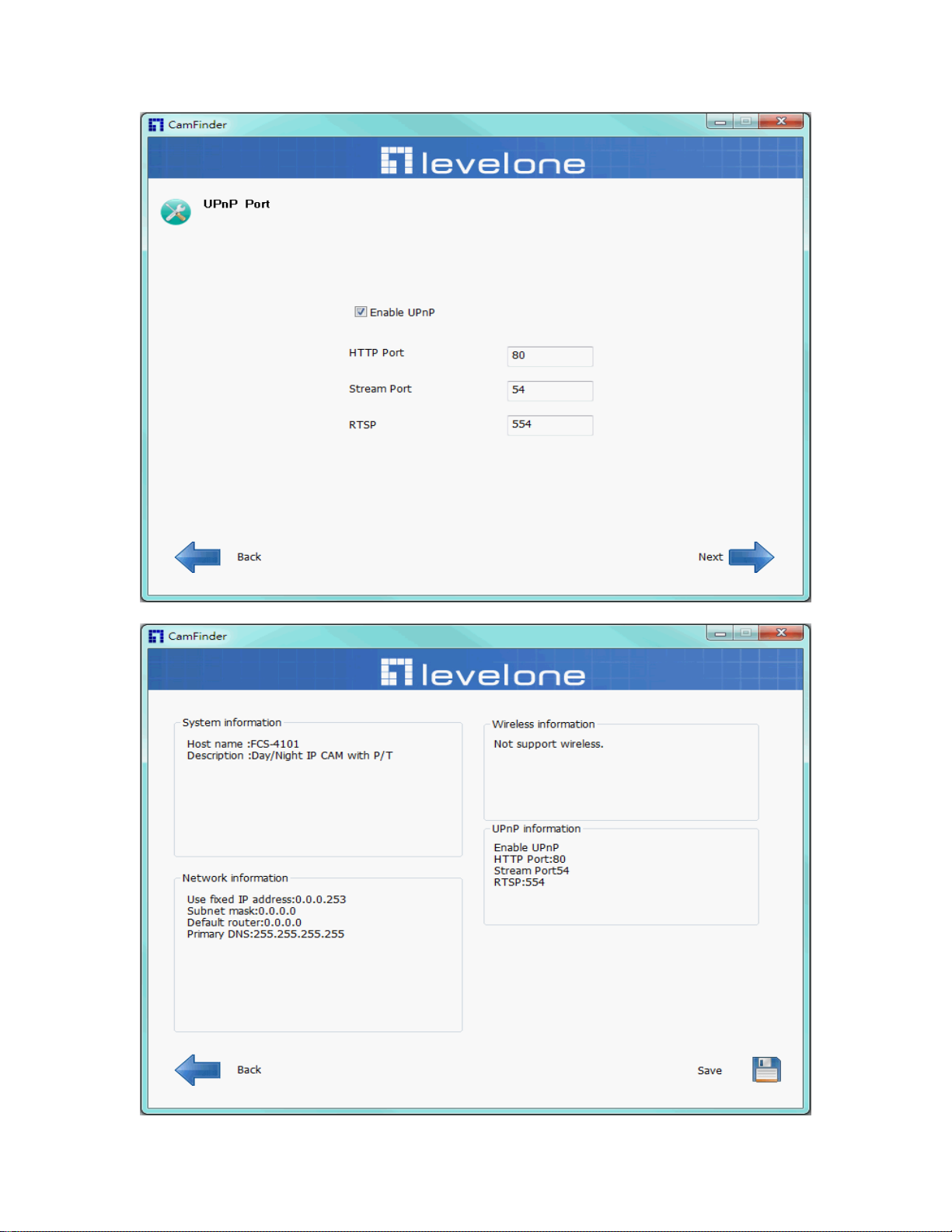

Setup Camera
Auto Install Wizard will be started and that it can auto guide through the
installation process. Press the “Next” button execute next process. For more
information, please refer to the Network section on page 33.

Network Camera User’s Manual
14/56

Network Camera User’s Manual
15/56

Network Camera User’s Manual
16/56

Network Camera User’s Manual
17/56

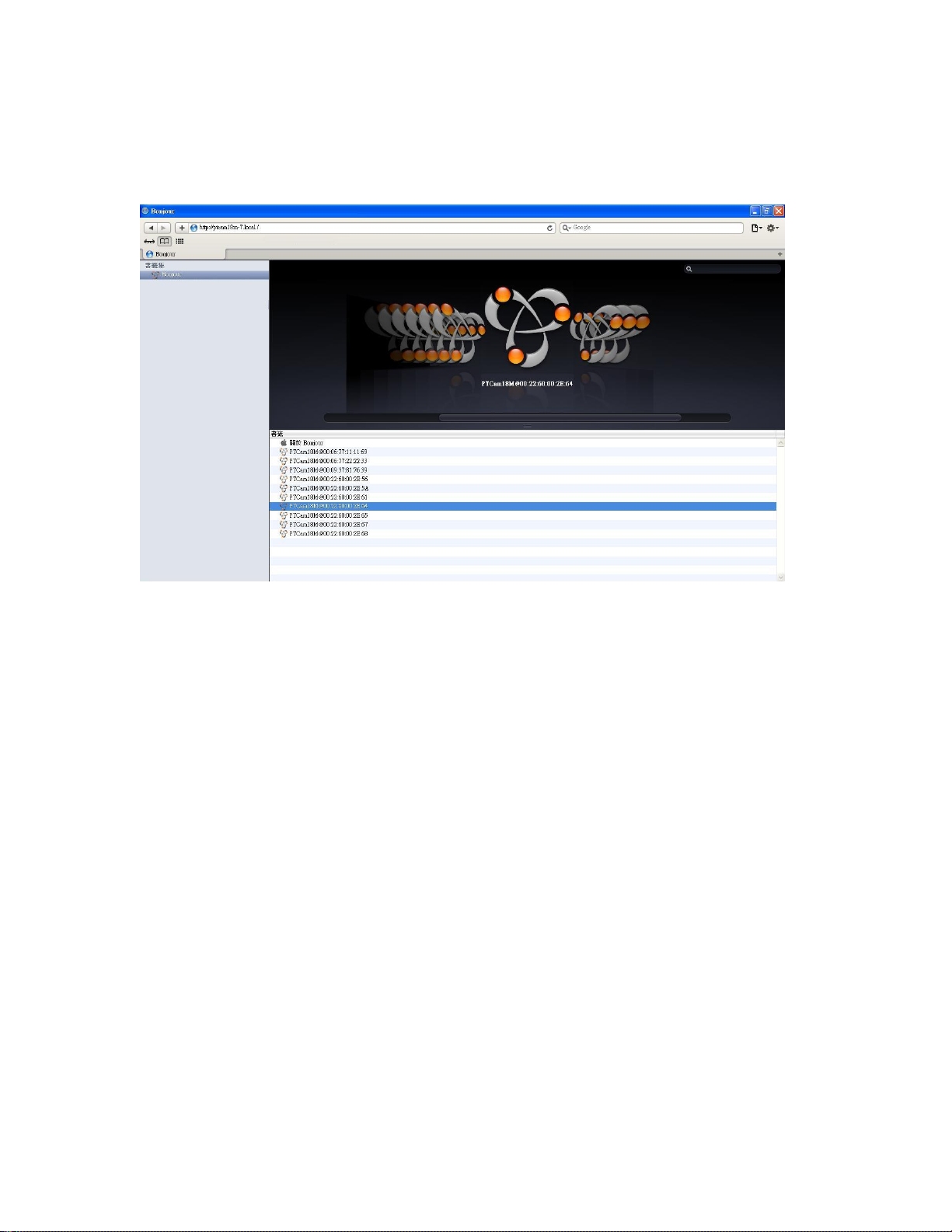

Bonjour program
Safari browser supports Bonjour search program the will search for all family network
devices on the same LAN.

Network Camera User’s Manual
18/56
ip-discovery.com(Free DDNS service)
1. When you want to connect the network camera over Internet, you can use the
service ―C2.mylevel1.com‖. The ―ip-discovery.com‖ is a free DDNS server for
this camera. Make sure that the router must start UPnP and DHCP server
functions. You can get the domain name which you wish very easily after
registration. In Network page—DDNS settings of this camera, you just input the
host name you want and your e-mail address, and click ―Register‖, then you can
have the hostname for this camera not longer than 20 seconds if the DDNS
registration result is OK. Then you can connect to this ip camera by
*http://XXX.c2.mylevel1.com:@@@@
*XXX: the host name you type
*@@@@: The HTTP port (get it automatically by ip-discovery server)
User password: Default the password is last six number of the MAC. To change
―root‖ password at ―Security configuration‖ can change the user password, This
―User password‖ is entered in the c2.mylevel1.com Password.
Note: You must set the ports between your router and camera manually if the registration
is failed.

Network Camera User’s Manual
19/56

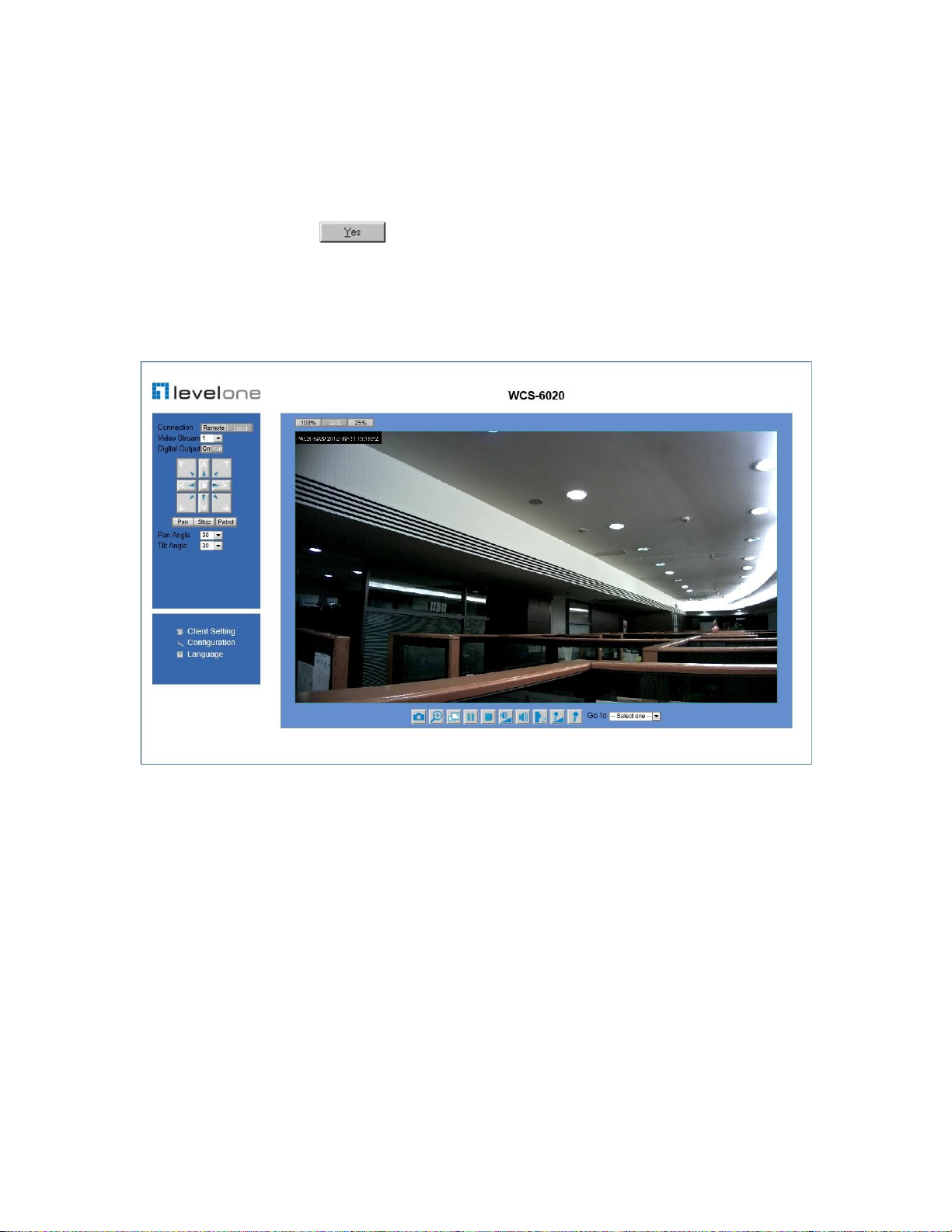

Initial Access to the Network Camera
(1) For the initial access to the Network Camera in Windows, the web browser may
prompt for permission to install a new plug-in for the Network Camera. This plug-in
has been registered for certificate and is used to display the video in the browser.
Users may click on to proceed.
1. Click “Install” and “Run” ActiveX controls
2.The video will be displayed.

Network Camera User’s Manual
20/56
Primary user’s capability

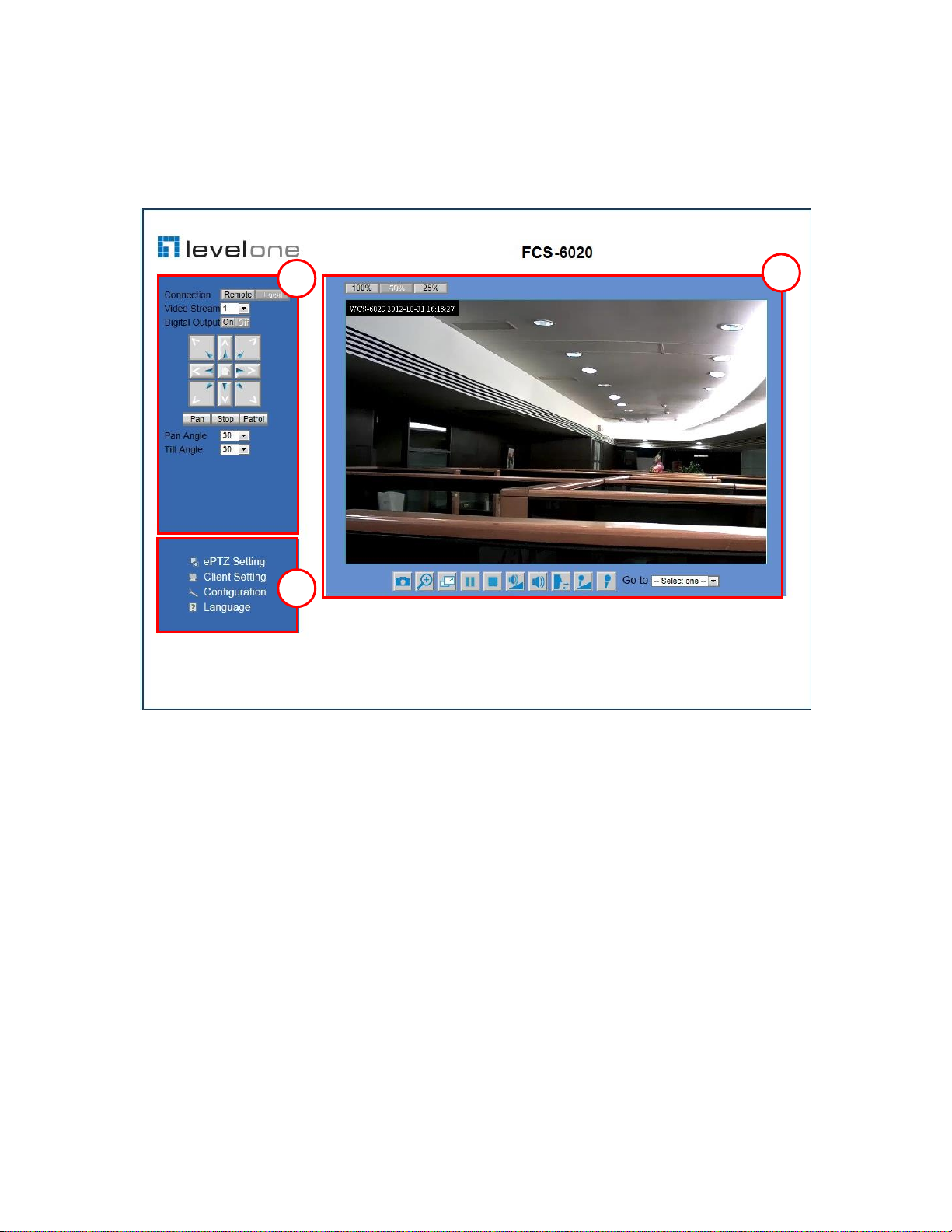

Main Screen with Camera View
The main page has three parts:
1. Configuration functions: The camera can be configured using these user
interfaces.
2. Pan/Tilt & connection control buttons: These buttons provide the direction
to control the pan and tile of camera.
3. Camera View: What the camera sees.
Configuration functions:
ePTZ Settings: Electronic pan/tilt/zoom capabilities that enable users to move to
a target region instantly for close-up shots by simply clicking on the video feeds
on their screen rather than moving the camera physically.
Client Settings: Clicking on this button links you to the client setting page.
Configuration: Please note that only the administrator can access it.
Language: Click this button to choose a language for the user interface.
Note: ePTZ function is only available under image size of 1280x800
1
2
3
