Levitaz Transformer User manual

LEVITAZBoards
Manual

Manual for Levitaz Board
GDM001707-ENG-
B
Creation:
10.03.2017 / D. Breckner
1 / 15
Release:
15.03.2017 / C. Geislinger
Confidentiality code: GREEN

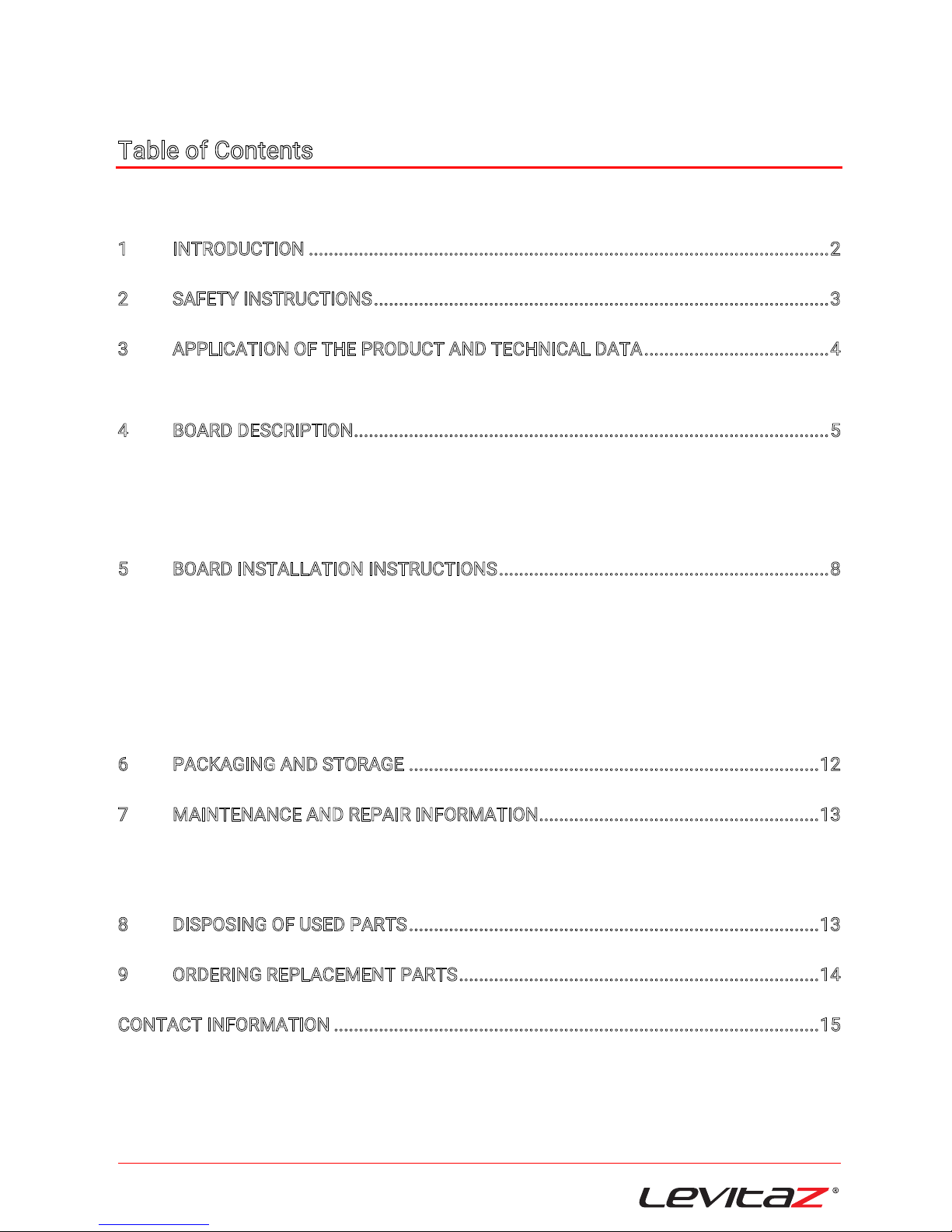

Table of Contents
1 INTRODUCTION ........................................................................................................2
2 SAFETY INSTRUCTIONS...........................................................................................3
3 APPLICATION OF THE PRODUCT AND TECHNICAL DATA.....................................4
3.1 Connection to the kitefoil............................................................................................. 4
4 BOARD DESCRIPTION...............................................................................................5
4.1 Levitaz Transformer..................................................................................................... 5
4.2 Levitaz Exo .................................................................................................................... 6
4.3 Levitaz Raze.................................................................................................................. 7
5 BOARD INSTALLATION INSTRUCTIONS..................................................................8
5.1 Footstraps installation for Transformer and Exo board............................................ 8
5.2 Pad installation to Transformer board ....................................................................... 9
5.3 Fin installation to Transformer board.......................................................................10
5.4 Kitefoil installation to Transformer board ................................................................10
5.5 Kitefoil installation to Exo and Raze board ..............................................................11
6 PACKAGING AND STORAGE ..................................................................................12
7 MAINTENANCE AND REPAIR INFORMATION........................................................13
7.1 Maintenance ...............................................................................................................13
7.2 Repair information......................................................................................................13
8 DISPOSING OF USED PARTS..................................................................................13
9 ORDERING REPLACEMENT PARTS........................................................................14
CONTACT INFORMATION .................................................................................................15

INTRODUCTION
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
2 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
1INTRODUCTION
General information
The Levitaz boards are for kiting on water only.
This manual contains important information about the proper use of the product and its
safety. Follow these instructions carefully and precisely. This helps to reduce the risk of
damage to the product or personal injury.
This manual is part of the product.
Keep this manual in a safe place for the entire life of the product.
If the product is transferred to a new owner, this manual and all associated
documents must be passed on to the new owner.
The meaning and appearance of safety symbols used in this manual are as follows:
The text after the signal word “WARNING!” contains important
information, which must be followed to avoid serious personal
injury or death.
WARNING!
NOTICE!
The text after the signal word “NOTICE!” contains information,
which must be followed to avoid damage to the product.
Because there are inherent risks of injury in the use of this product and kite boarding in
general, even following all of the next instructions will not eliminate the risk of injury to
you or others. Levitaz a brand of Geislinger GmbH is not responsible for injuries or
damage to the product due to misuse or any use not consistent with the “Safety
instructions”.

SAFETY INSTRUCTIONS
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
3 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
2SAFETY INSTRUCTIONS
WARNING!
Kite boarding is an inherently dangerous activity that can result in serious injury or death
to the user or people in proximity to the user, with or without a Levitaz product. These
risks include drowning or being hit by the product if the user loses control of it. The
product may increase the risk of some injuries to users or bystanders by adding
additional structure to the board that may strike users or bystanders; by increasing the
speed at which the kite board can be operated, or by changing the manner in which an
out-of-control kite board reacts as it contacts water or ground during an out-of-control
situation. The use of this product and participation in the sport involves inherent risk of
injury or death. To reduce the risks:
Read the manual for important information about the installation, care and
maintenance of the board before use.
Always wear an approved life and protection vest.
Always wear a suitable helmet.
For use by trained (iko-level 4: advanced) personnel only.
This product is designed for use on water only.
Surf under control and do not use at speeds that exceed the skills of the rider.
Do not use in shallow water or near the shore, docks, pylons, swimmers or other
activities.
The users are responsible for their safety and the safety of those around them.
Components in this product are subject to the random forces of natural elements
and are subject to irregular wear.
Use only original Levitaz replacement parts.
It is the user´s responsibility to inspect equipment for wear before every use.
It is the user´s responsibility to repair and maintain this product.
The use of damaged products is not allowed.
Before riding ensure that the screws are tightened with the tightening torque that
is described in this manual.
Geislinger GmbH is not responsible for injuries or damage to the product due to
misuse or any use not consistent with these instructions.
Do not use this product under the influence of alcohol or drugs.
Minimum age of rider: 18 years
Failure to follow these instructions may increase the risk of serious personal injury or
death, damage to the product or both.

APPLICATION OF THE PRODUCT AND TECHNICAL DATA
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
4 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
3APPLICATION OF THE PRODUCT AND TECHNICAL DATA
The product will only function properly if it has been mounted according to the
instructions contained in this manual. Carefully follow these instructions.
This product is designed for use on water and by trained
personnel (over 18 years) only.
Failure to do so may cause serious personal injury, damage to the
product or both.
WARNING!
If the connection bolts between the kitefoil and the board are not delivered by Levitaz,
please make sure to use stainless bolts provided with a minimum strength class 70.
3.1 Connection to the kitefoil
The distance between bolts onto the mounting surface for the mast is 90 mm wide (and
165 mm long).
The bolt contact surface (between bolt and mast) must be at least 20 mm in
diameter. Levitaz recommends using washers to prevent wear. See figure 3.1.
Figure 3.1: Washer
The user is responsible for compatibility with the kitefoil. Do not
exceed the maximum permissible unevenness of 1mm between
the kitefoil and the board.
Failure to do so may result in the product not operating properly,
can reduce its service life, and possibly result in injury to the user
or others.
WARNING!
min. Ø 20 mm
Mast

BOARD DESCRIPTION
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
5 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
4BOARD DESCRIPTION
4.1 Levitaz Transformer
Special features:
Two-in-one convertible
Surf and foil with the same board
Ideal for traveling
Natural surfboard feeling
Length: 5‘1“ (155 cm)
Width: 19” (49 cm)
Thickness: 2¼” (5,6 cm)
Volume: 25,7 ltrs
Weight: 7,9 lbs (3,6 kg)
Foil mount: Inserts for plate mount
Fin system: 3 fins
Components:
1x Transformer Board
3x Footstraps with bolts and washers
3x fins (mounting inserts on board)
4x M8 bolts with washers (for kitefoil
connection)
Mounting tool for fins
Mounting tool for kitefoil
Accessory bag
Figure 4.1: Symbol photo Levitaz Transformer
The Levitaz Transformer is a modern 5´1” waveboard combined with a kitefoil interface.
It is built with well-balanced volume and a radical design for high speeds, powerful
manoeuvres, and narrow turns. The Levitaz Transformer proves reactivity, speed, and
board control in knee- to head-high waves. In foil mode you will feel the familiar
surfboard feeling which allows you to progress fast with foiling.

BOARD DESCRIPTION
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
6 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
4.2 Levitaz Exo
Special features:
Freeride/Freestyle/Strapless
All-round foilboard for every condition
Length: 4´1” (125 cm)
Width: 17” (43 cm)
Thickness: 2¼” (5,6 cm)
Volume: 16,8 ltrs
Weight: 6,6 lbs (3,0 kg)
Foil mount: Tracks for plate mount
Fin system: No fins
Components:
1x Exo Board
3x Footstraps with bolts and washers
4x M8 bolts with washers and threaded
inserts (for kitefoil connection)
Mounting tool for kitefoil
Accessory bag
Figure 4.2: Symbol photo Levitaz Exo
The Levitaz Exo is your all-round foilboard for every style and condition. Thanks to its
lightness and agility, it allows you to perform your most radical moves. Due to its
compact design, you can easily travel with this board. The Levitaz Exo is equipped with
a track system which lets you assemble and mount it according to your preferences and
skills. Furthermore, the Levitaz Exo comes with a full deck traction pad which enables
perfect grip and comfort, ideally for strapless foiling.

BOARD DESCRIPTION
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
7 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
4.3 Levitaz Raze
Special features:
Race/Competition
High performance board
Beveled edges
Full carbon construction
Length: 4´9” (145 cm)
Width: 17´1/4” (44 cm)
Thickness: 3” (7,6 cm)
Volume: 30,8 ltrs
Weight: 6,2 lbs (2,8 kg)
Foil mount: Tracks for plate mount
Fin system: No fins
Components:
1x Raze Board
4x M8 bolts with washers and threaded
inserts (for kitefoil connection)
Mounting tool for kitefoil
Accessory bag
Figure 4.3: Symbol photo Levitaz Raze
The Levitaz Raze is our high performance race board. The design is based on the
experience of pro tour riders and shaped by vice world champion Olly Bridge and
Bishops Boards, Australia. The special shape enables early planning and highest
efficiency due to low air resistance. It is made for advanced foilers who want to go
superfast with aggressive leaning angles for best upwind courses. The deck is finished
with antiskid varnish for perfect grip and lowest weight.
Shaped by Olly Bridge with Bischops Boards, Australia

BOARD INSTALLATION INSTRUCTIONS
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
8 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
5BOARD INSTALLATION INSTRUCTIONS

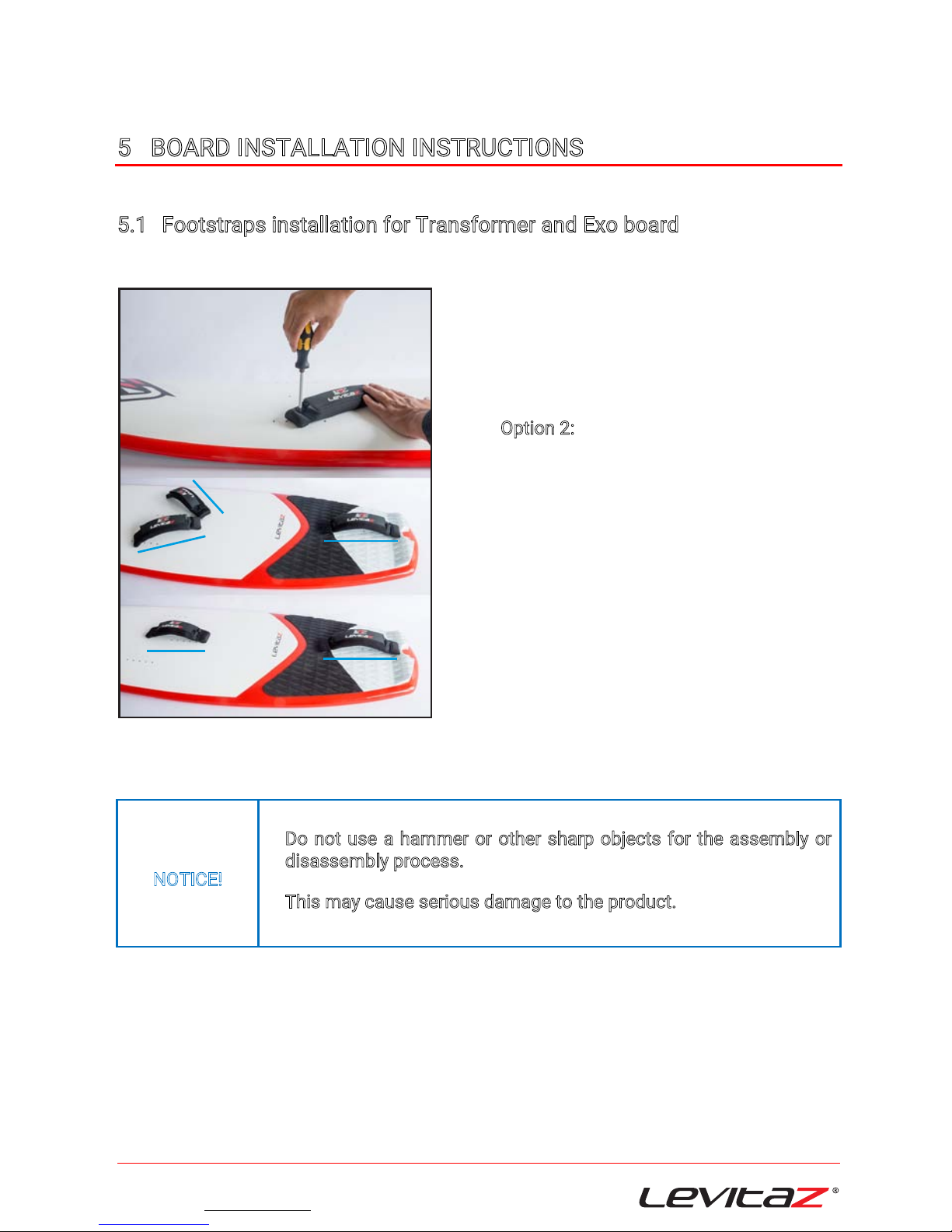

5.1 Footstraps installation for Transformer and Exo board
Mount footstraps with a cross tip screw
driver. Use two of the included M5 bolts
with washers
(between bolt and
footstrap) for one footstrap. Ther
e are
two options (see figure 5.1) possible.
Option 2: Only for Transformer
Figure 5.1: Symbol photo straps installation Option 1+ 2
NOTICE!
Do not use a hammer or other sharp objects for the assembly or
disassembly process.
This may cause serious damage to the product.
Option 1
Option 2

BOARD INSTALLATION INSTRUCTIONS
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
9 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
5.2 Pad installation to Transformer board
Make sure that the pad holes are
congruent to the board threaded
inserts (Pad tip is under LZ-Logo) See
figure 5.2.
Loosen the adhesive film
Stick pad onto the board

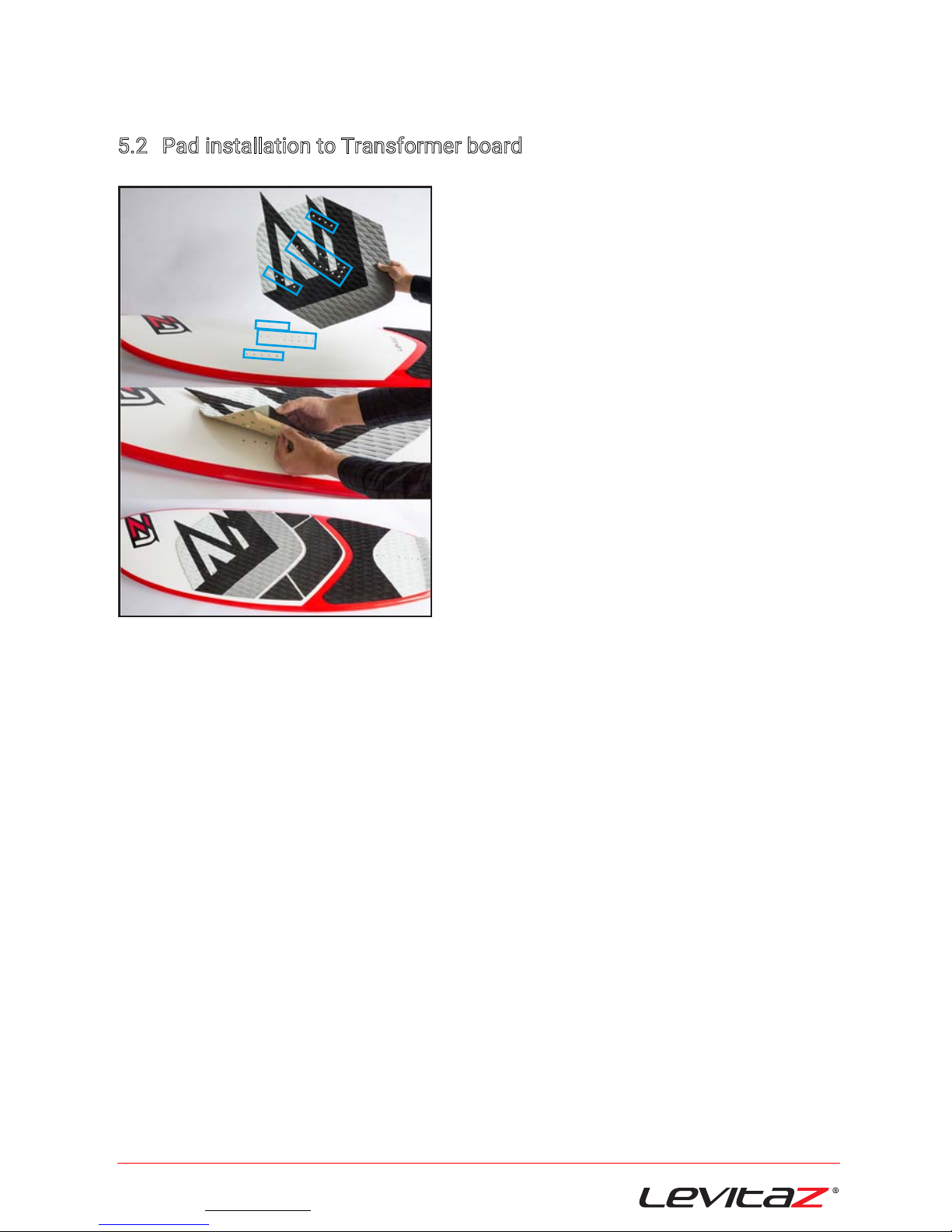

Figure 5.2: Pad installation to Transformer board

BOARD INSTALLATION INSTRUCTIONS
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
10 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
5.3 Fin installation to Transformer board
Mount fins to the Transformer board.
Insert fin with the side of openings to the
threaded pins (Note: the middle fin has
openings on both sides).
Tighten carefully the threaded pins with
the mounting tool.
Figure 5.3: Fin installation to Transformer board
5.4 Kitefoil installation to Transformer board

Mount kitefoil with a hexagon socket
screw. Use the four M8 b
olts with
washers (between bolt and kitefoil
, see
figure 3.1) for mounting the kitefoil to the
board. Tighten all four M8 bolts to 9±1
Nm tightening torque.
Note: For kite foiling Levitaz recommends to
foil without fins.
Figure 5.4: Kitefoil installation to Transformer board

BOARD INSTALLATION INSTRUCTIONS
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
11 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
5.5 Kitefoil installation to Exo and Raze board

Mount kitefoil with a hexagon socket
screw. Use the four M8 b
olts with
washers (between
bolt and kitefoil, see
figure 3.1) and threaded inserts for
mounting.
1. Inse
rt one threaded insert and M8
bolts into each track
2. Dismount the bolts.
Only the two
threaded inserts are in the tracks.
3.
Mount the other two bolts with
washers and threaded inserts into the
two through holes of the Kitefoil (long
wing in front).
4. Insert the
first two bolts with the
threaded inserts into the track of the
board. (See figure 5.5)
5. Slide it in the track until you can insert
the other two bolts with washers into
the threaded inserts in each track
6. Tighten all four M8 bolts to 9 ±1 Nm
tightening torque.
Figure 5.5: Kitefoil installation to Exo and Raze board

PACKAGING AND STORAGE
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
12 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
6PACKAGING AND STORAGE
All parts are packed in a cardboard box and PE film.
Take the product parts out of the box.
Remove the packing film from the product parts. Check the product parts for
possible damage that may have occurred during transportation.
DISPOSAL OF STANDARD PACKAGING
The cardboard box and PE film can be recycled.
STORAGE INSTRUCTIONS
The following instructions must be observed to prevent the product from being
damaged during storage:
NOTICE!
Always store the disassembled product in a suitable bag for
optimal protection.
Failure to do so can reduce the service life of the product.
Do not place heavy parts on top of the product.
Do not leave or store the product in cars.
Protect the product from direct sunlight or heat.
Storage temperatures:
NOT PERMITTED OPTIMAL PERMITTED UP TO NOT PERMITTED
< -30°C ( -22 F ) -10°C −+25°C ( +14 F −+77 F ) +80°C ( +176 F ) > +80°C ( +176 F )

MAINTENANCE AND REPAIR INFORMATION
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
13 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
7MAINTENANCE AND REPAIR INFORMATION
7.1 Maintenance
Clean all board parts with fresh water after every use and dry the parts.
Always store the disassembled product in a suitable bag for optimal protection.
7.2 Repair information
INSPECTED CONDITION
CORRECTIVE MEASURE
It is not clear if the damage is
critical or not.
Take a photo, document the extent of the damage
and contact Levitaz for advice.
If damage or wear to the product is identified contact Levitaz to identify the appropriate
corrective measure. See www.levitaz.com
Dispose of worn parts as instructed in the chapter “Disposing of used parts”.
8DISPOSING OF USED PARTS
After replacing individual components:
All metal parts can be recycled (scrap metal).
The board must be disposed of as residual waste.
Federal, state and local regulations must always be observed when disposing of the
product or parts thereof.

ORDERING REPLACEMENT PARTS
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
14 / 15
Contact:
[e-mail]
Confidentiality code: GREEN

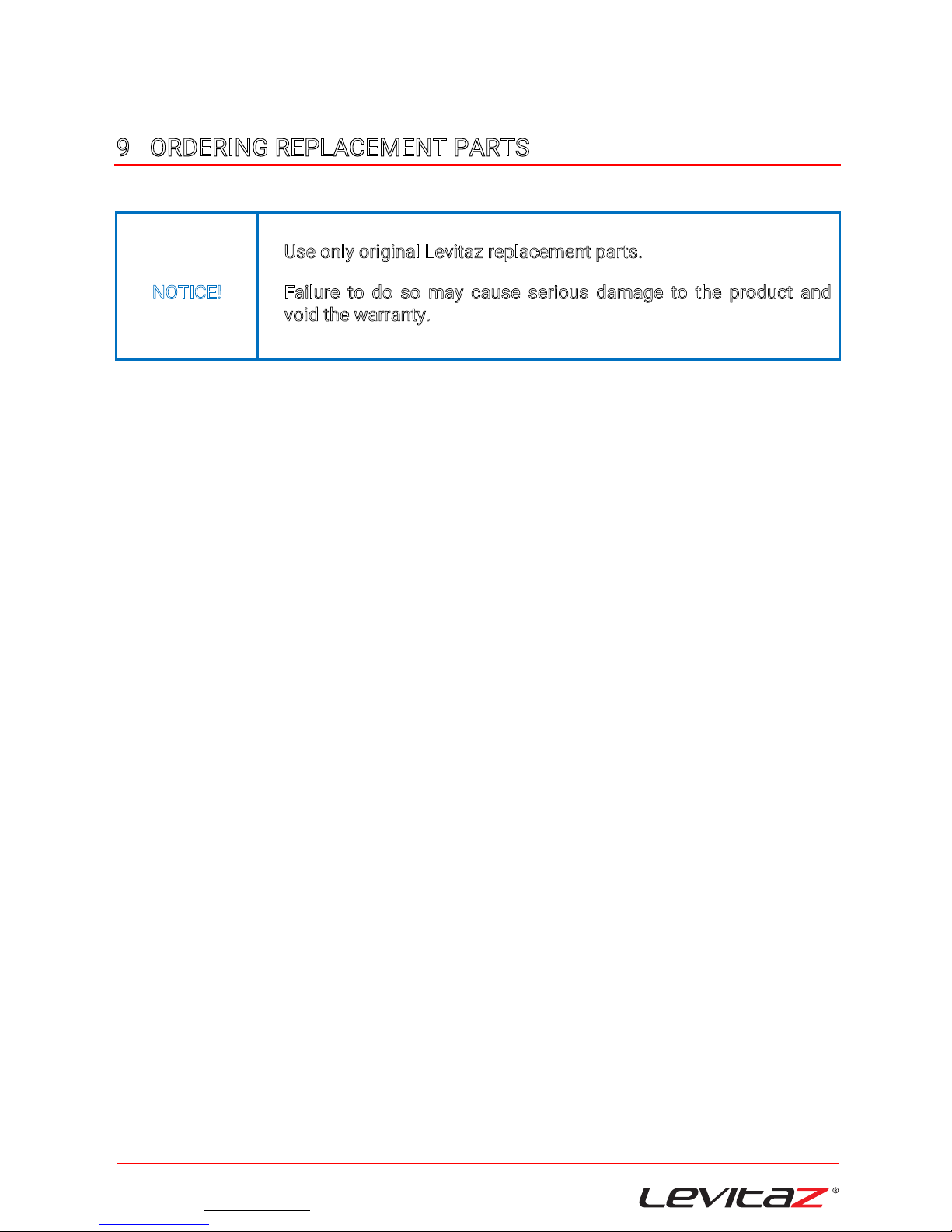

9ORDERING REPLACEMENT PARTS
NOTICE!
Use only original Levitaz replacement parts.
Failure to do so may cause serious damage to the product and
void the warranty.

CONTACT INFORMATION
GDM001707-ENG-
B
Manufacturer:
LEVITAZ
15 / 15
Contact:
[e-mail]
Confidentiality code: GREEN
CONTACT INFORMATION
LEVITAZ
a brand of Geislinger GmbH
Hallwanger Landesstr. 3
5300 Hallwang/Salzburg
AUSTRIA
T: [phone]
F: [phone]
E: [e-mail]
levitaz.com

Levitaz.com
LEVITAZ
a brand of Geislinger GmbH
Hallwanger Landesstr. 3
5300 Hallwang/Salzburg
AUSTRIA
T: [phone]
F: [phone]
E: [e-mail]
Fly over water!
