Leviton EVB32 User manual

Level 2 Electric Vehicle Charging Station
Cat. No. EVB32
User Guide
WARNINGS AND CAUTIONS:
• Carefully read these instructions and the charging instructions in your vehicle owner’s manual before charging your electric vehicle.
FAILURE TO DO SO CAN RESULT IN PROPERTY DAMAGE, INJURY OR DEATH.
• The Charging Station should be installed by an electrician and used in accordance with electrical codes and regulations.
• DO NOT use an extension cord to provide power to the Charging Station.
• DO NOT operate the Charging Station with a visibly damaged AC Receptacle, AC Supply Cord/Plug or Charge Cord/Connector. Inspect equipment before
each use. If any damage is detected, replace the equipment or contact a Customer Service Representative.
WARNINGS AND CAUTIONS:
• DO NOT attempt to repair or service the Charging Station yourself. Opening the enclosure and removing the warranty void padlock will void the warranty.
Refer to the Customer Support section for service information.
• The Charging Station is used to charge electric vehicles equipped with an SAE J1772™ compliant charge port.
• Ensure that the Charge Connector Cord is positioned so it will not be stepped on, tripped over, or otherwise subjected to damage or stress. Always use the
Cord Management hook below the Charging Station to properly stow the Charge Connector Cord and Charge Connector when not in use.
• Retain this guide for future reference.
FEATURES
OVERVIEW
This user guide includes the latest information at the time of printing.
Leviton reserves the right to make changes to this product without further
notice. Changes or modifications to this product by other than an authorized
service provider could void the product warranty. If you have questions about
the use of this product, contact your Customer Service Representative
(refer to the Customer Support section located in this user guide) or visit
www.leviton.com/evrgreen.
Using the Level 2 Electric Vehicle Charging Station to charge your vehicle is
as simple as plugging in any appliance.
Reference Installation Instructions to ensure the Charging Station has been
properly installed and powered up. NOTE: If the Charging Station Power LED
is not illuminated, ensure the AC Supply Cord is plugged into the receptacle
or reset circuit breaker to start power up sequence.
Power Up Sequence
• The Power, Charging and Fault LEDs will illuminate momentarily followed
by just the Power LED. The Charging Station will then initiate a self-test
sequence.
NOTE: DO NOT plug the Charge Connector into the vehicle prior to
the self-test; this may cause the Charging Station to go into Cold Load
Pick-up, and delay charging.
• The Power LED will flash for approximately 3 seconds indicating
the self-test, and then the Power LED will remain lit, indicating that the
Charging Station is ready for use.
NOTE FROM THE MANUFACTURER
ELECTRIC VEHICLE COMPATIBILITY
The Level 2 Electric Vehicle Charging Station is listed by Underwriters
Laboratories (UL) under Electric Vehicle Supply Equipment (EVSE). The
compact physical design of your Charging Station takes up a minimum
amount of wall space, providing the greatest flexibility for mounting locations.
This device incorporates multiple levels of safety for the user, the vehicle
and the charging equipment. It conforms to all industry standards and
recommended practices.
Power LED (Green)
The Power LED illuminates when
power is present. This notifies the
user that the Charging Station is
active and ready to charge the
electric vehicle.
Charging LED (Amber)
The Charging LED blinks
when the Charge Connector is
connected to the electric vehicle
and charging is in-progress.
NOTE: The Charging LED will
blink during Cold Load Pick-up.
Fault LED (Red)
The Fault LED will illuminate or
flash when a fault is present.
During a fault condition the
Charging LED turns off.
AC Supply Plug (sold separately)
UL recognized cord with a NEMA
6-50P configuration plug.
Display Panel
Intuitive LED display.
Enclosure
NEMA Type 4 powder-coated
steel, protects against exposure
to weather.
Cord Management
Storage hook for
convenient stowing
of Charge Connector
Cord.
Warranty Void Padlock
FOR ELECTRICIAN
USE ONLY.
Charge Connector
J1772TM compliant Charge
Connector delivers power
to vehicle for charging.
Charge Connector
Release Button
Used to disconnect from
vehicle charge port.
Charge Connector Cord
18 or 25 foot long UL
recognized Type EV cable
suitable for charging electric
vehicles.
J1772 is a trademark of SAE International
DG-040-EVB32-00A
• SAE J1772TM Compliant - Ensures compatibility with all battery electric
vehicles (BEV) or plug-in hybrid electric vehicles (PHEV) conforming to
this standard.
• Easy to read user interface.
• Self-Testing Sequence - Upon energizing the Charging Station, a
self-test will occur to ensure that the unit is working properly. This
sequence will also occur each time the Charge Connector is plugged into
the vehicle to ensure a proper connection, prior to initiating charging.
• Auto-Restart - Allows charging to resume after fault condition, up to 3
times at 15 minutes intervals. If fault condition clears, no user intervention
is required.
• Ground Monitoring Circuit - Constantly checking for presence of proper
safety ground.
• Contactor Monitoring Circuit - Checks the integrity of the AC charging
path before and after charging.
• Cold Load Pickup - Time delayed and randomized (2-15 minutes)
re-energizing of Charging Station following power outage. This feature
protects electrical grid from overload from simultaneous re-energizing of
chargers. Charging will automatically resume after the randomized delay.
• Excessive Cord Strain Detection - On detection of excessive pressure
on Charge Connector Cord, the EVSE de-energizes the cord.
• NEMA Type 4 Enclosure - Water-tight, dust-tight and sleet resistant
enclosure protects against exposure to weather.
• cULus listed.
Mounting Bracket -
(Sold Separately)
Supports Charging
Station for plug-in wall
mount installation.
Locking Tab
Allows for the charging
enclosure to be safely
locked with the use of a
hand-held lock.
Lock
For hard-wire access
by an electrician during
installation ONLY. Once
installed, the Charging
Station should always
remain locked. If any
servicing is required
after installation, contact
Customer Support.
CHARGING YOUR VEHICLE

Electrical Input
Electrical Output
Environmental Specifications
Amperage
Voltage
Configuration
Operating Temperature
Power
Charging Connector
Storage Temperature
Enclosure
Charge Cord
32A
120/208VAC or 120/240VAC
NEMA 6-50P Plug
-35°C to 50°C
7.7kW (32A@240V)
SAE J1772
TM
18' cable (EVB32-M8L)
-50°C to 80°C
NEMA Type 4 Powder Coated Steel
UL Type EV (Charge Connector)
Standards & Certifications
NEC Article 625 Electric Vehicle Charging System Equipment
SAE J1772
TM
Electric Vehicle Conductive Charge Coupler
Standard
J1772 is a trademark of SAE International
UL 2251 Standard for Plugs, Receptacles and
Couplers for Electric Vehicles
UL 2231 Standard for Personnel Protection Systems
for Electric Vehicle (EV) Supply Circuits
UL 991 Standard for Tests for Safety-Related
Controls Employing Solid-State Devices
UL 1998 Standard for Software in Progammable
Components
UL 62 Standard for Flexible Cords and Cables
UL 2594 Outline of Investigation for Electric Vehicle
Supply Equipment
SAE J1772
TM
25' cable (EVB32-M5L)
CLEANING
Call our Customer Support Hotline at 1-877-338-7473. PLEASE HAVE THE MODEL NUMBER AND
SERIAL NUMBER AVAILABLE WHEN YOU CALL. These can be found on the label on the left side of the
Charging Station enclosure.
If your call is made after business hours or on weekends, please leave your name, telephone number,
the Charging Station's serial number, and a brief description of the problem. A Customer Service
Representative will call back at the earliest opportunity.
For additional products and information, and for complete step by step guidelines on how to install
our Electric Vehicle Chargers and Pre-Wire Kits, please visit our website for our "How To Install" videos -
leviton.com/evrgreen.
Many questions and answers can be found in our knowledge base community.
Just go to leviton.com and click on the Knowledgebase link, or go directly to leviton.com/evrgreen.
CUSTOMER SUPPORT
LIMITED 3 YEAR WARRANTY AND EXCLUSIONS
Leviton warrants to the original consumer purchaser and not for the benefit of anyone else that this product at the time of its sale by Leviton is free of defects in materials and workmanship under normal and proper use for three years from the purchase date. Leviton’s only obligation is to
correct such defects by repair or replacement, at its option. For details visit www.leviton.com or call 1-800-824-3005. This warranty excludes and there is disclaimed liability for labor for removal of this product or reinstallation. This warranty is void if this product is installed improperly
or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied warranties of any kind, including merchantability and
fitness for a particular purpose, but if any implied warranty is required by the applicable jurisdiction, the duration of any such implied warranty, including merchantability and fitness for a particular purpose, is limited to three years. Leviton is not liable for incidental, indirect, special,
or consequential damages, including without limitation, damage to, or loss of use of, any equipment, lost sales or profits or delay or failure to perform this warranty obligation. The remedies provided herein are the exclusive remedies under this warranty, whether based on contract, tort or otherwise.
For more information call 1-877-338-7473 or visit leviton.com/evrgreen DG-040-EVB32-00A© 2015 Leviton Mfg. Co., Inc.
FCC INFORMATION
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received including interference that may cause undesired operation.
CAUTION: Any changes or modifications not expressly approved by Leviton will void the user’s authority
to operate this equipment.

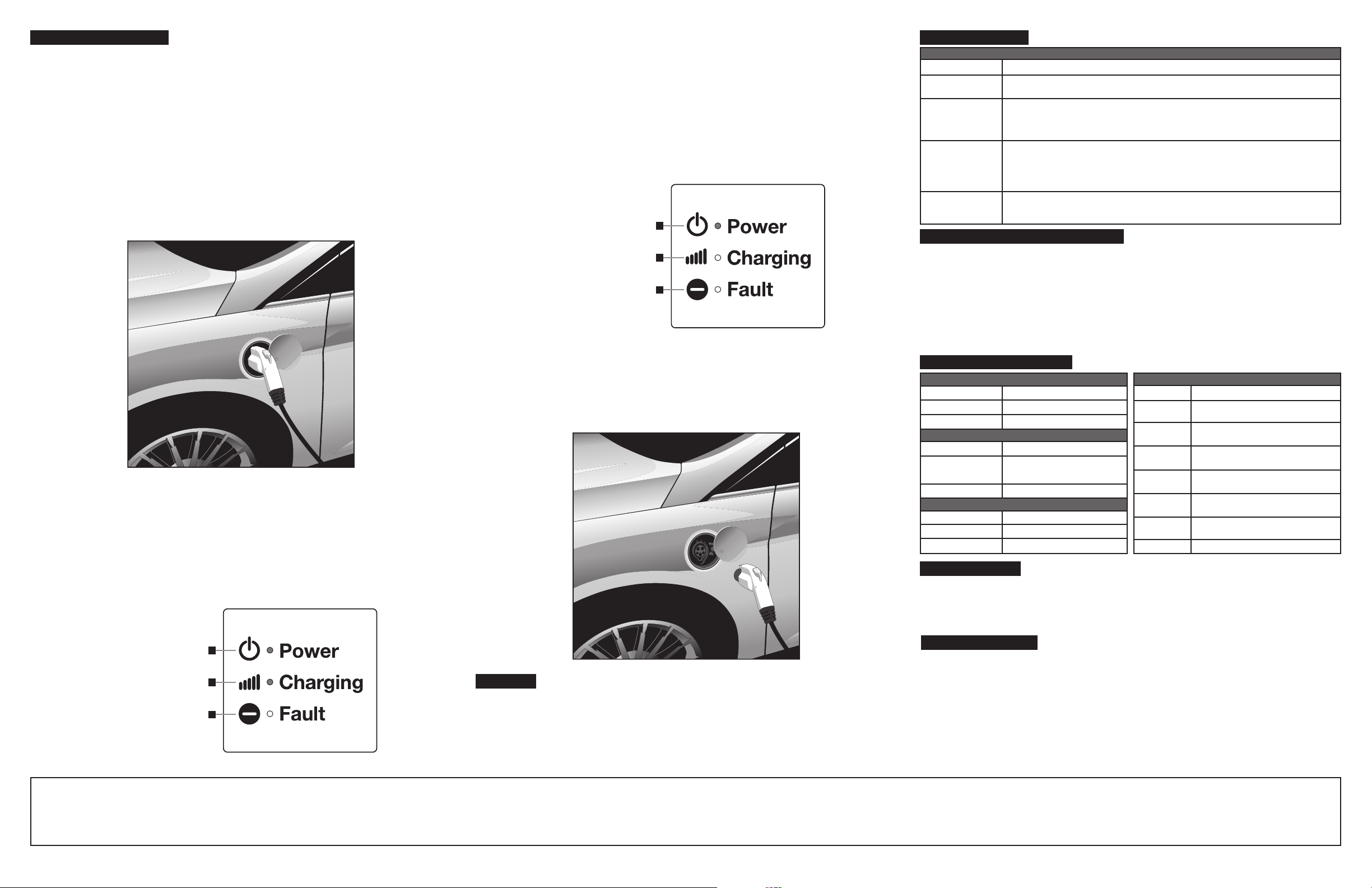

CHARGING YOUR VEHICLE
1. Connect the Charging Station to the Vehicle:
NOTE: The vehicle must be parked close enough to the Charging Station to allow the Charge
Connector to connect to the vehicle charge port without putting any stress on the Charge Connector
Cord. Position the Charge Connector Cord so that it will not be stepped on, tripped over or otherwise
subjected to damage or stress.
Plug the Charge Connector of the Charging Station into the charge port on the vehicle (see vehicle
owner’s manual for location of charge port). Ensure that the Charge Connector is fully engaged,
and cannot be removed from the vehicle without depressing the release button. Once the Charge
Connector is engaged, a self-test will initiate, where the Power LED will flash for approximately
3 seconds. If no fault is detected and a proper connection is made between the vehicle and the
Charging Station, the Power LED will illuminate solid and the Charging LED will start flashing,
indicating charging has begun.
NOTE: The Charge Connector Release Button has to be fully released in order for the charging to
start. The Charge Connector cannot be disengaged from the vehicle charge port without depressing
the Charge Connector Release Button. Pressing the Charge Connector Release Button stops the
charge to the vehicle.
2. Charge Vehicle:
At this point, charging will begin automatically (assuming the battery is not fully charged). Verify that
the Power LED is illuminated and Charging LED is blinking, and the Fault LED is off.
NOTE: Disengaging the Charge Connector from the vehicle charge port while charging will
automatically stop the charging process. Reinserting the Charge Connector into the vehicle charge
port will automatically restart charging after a self-test.
In the event of a power outage, all LEDs will turn off. When power resumes, the Charging Station
will enter a Cold Load Pickup mode. This is a random (2-15 min) delay for the self-test start and is
indicated by a blinking Charging LED. The Power LED will blink for approximately 3 seconds while
performing a self-test. Charging will resume when the self-test is complete.
3. End Charge:
Once the vehicle has been fully charged, the charging process will automatically stop. Verify that the
Power LED is illuminated, and that the Charging and Fault LEDs are off. The total charge time will
vary based on vehicle, initial charge state of battery, and other variables. Consult your vehicle owner's
manual for specific charge rates. If the vehicle is charging longer than the amount of time specified in
the vehicle owner's manual, disconnect the Charging Station from the vehicle and contact the vehicle
manufacturer.
While in the charging state it may be necessary to stop the charging process. To stop the charging
process disconnect the Charge Connector from the vehicle charge port. The Charging LED will turn
off to alert the user that the charging process has ceased.
4. Disconnect Charge Connector:
CAUTION: Once the vehicle is fully charged, the Charge Connector must be disconnected from the
vehicle charge port before the vehicle can be moved. Simply depress the Charge Connector Release
Button on the Charge Connector and unplug it from the vehicle charge port.
Carefully loop the Charge Connector Cord around the storage hook on the bottom of the Charging
Station.
Power LED is ON
Charging LED is OFF
Fault LED is OFF
Power LED is ON
Charging LED is ON
and Blinking
Fault LED is OFF
The Charging Station does not require any maintenance other than occasional cleaning.
NOTE: For Plug-In Unit - Unplug Charging Station before cleaning.
Use a soft, lightly moistened cloth with a mild detergent solution. DO NOT use any type of abrasive
pad, scouring powder, or flammable solvents such as alcohol. DO NOT power up charging station until
completely dry.
TECHNICAL SPECIFICATIONS
ELECTRICAL SYSTEM REQUIREMENTS
TROUBLESHOOTING
No power;
no LED indicators lit
Check that Charging Station is plugged into receptacle.
Check that circuit breaker(s) is turned on. If LEDs still not lit, Call Customer Support Hotline.
Charging LED
not flashing
Check that Charge Connector is fully engaged. The Release Button should be fully released.
Check that vehicle is not fully charged.
Self diagnostic test failed. Unplug Charge Connector and reconnect.
If LED still not lit, Call Customer Support Hotline.
Fault LED flashing Wait to ensure self-test is complete. If a fault is detected, the Fault LED will continue to flash,
and the vehicle will not charge. The Charging Station will go into an Auto-Restart every 15
minutes. If no fault is detected after the Auto-Restart, the Fault LED will turn off, the
Charging LED will illuminate, and charging will commence. If the fault is still detected after 3
attempts, the Fault LED will illuminate solid Red. Call Customer Support Hotline.
Fault LED illuminated
solid Red
The Charging Station has been unable to detect a safety ground, or has failed 3 consecutive
self-tests. Disconnect the Portable Charger from the power source, and begin again from step 1.
If the fault continues, call Customer Support Hotline.
PROBLEM
ACTION
TROUBLESHOOTING
Transformer
It will not function with delta configured transformers including:
• High leg delta
• Impedance grounded delta
• Corner grounded delta
• Ungrounded delta
Breaker
This EVSE required a dedicated 40 Amp circuit breaker.

ARTWORK PRINT SPECIFICATIONS
DIMENSIONS / FOLD SCHEME / BINDERY DIAGRAM
PART NUMBER REV DESCRIPTION
Line Screen:
Angle:
Resolution:
Offset Flexo
Other
Body Material:
Bindery
Thickness:
Trim
Perfect Bind
Die cut Saddle Stitch
Drill
Fold
The information in this document is the exclusive PROPRIETARY property of LEVITON MANUFACTURING COMPANY, INC. It is disclosed
with the understanding that acceptance or review by the recipient constitues an undertaking by the recipient. (1) to hold this information in strict
confidence, and (2) not to disclose, duplicate, copy, modify or use the information for any purpose other than that for which disclosed.
PlantApprovals:
PN-ARN: Pilot Rev:ECR Number:
Released Artwork Format: Production PDF Artwork Release Date:
Artwork Print Specification Sheet Rev A11.eps
PMCQA
Artist:
Notes:
Other
Cust Other
S & A
Mktg Eng
FOR LEVITON USE ONLY
SPECIFICATIONS :
PROCESS :
MANUAL INTERIORS / BINDERY / FOLD SCHEME :
COMMENTS :
For manuals - designates cover specifications
Material:
Thickness:
Finish:
:
Spot
CMYK
1:
4:
3:
2:
Color(s): over
1:
4:
3:
2:
Fonts:
Spot
CMYK
1:
4:
3:
2:
Color(s): over
1:
4:
3:
2:
Fonts:
Fold Line
Die Cut Punch/Drill Hole
Glue
Kiss Cut Cellophane
Fold Line
Perforate
Die Cut
Die Line Key:
DG-040-EVB32-00A
40 lb. Black
1 1
X
Helvetica
Instruction Sheet
X
X
D. Hunt 4/16/15
CI0128-4756
J. Valenzuela01
C. Ramirez
V. LoNigro
F. Tse
G. Molaro
S. Yegin
11
"
17"
Part No.
FINAL
5.5"
8.5"
Part No.
X X
X
XX
X
