Levolor Sheer Shadings User manual

Continuous Cord Loop Operating System
Sistema de funcionamiento circular
continuo con cordón
Système de cordon à boucle continue
LEVOLOR®
Sheer Shadings
Persianas traslúcidas
Stores diaphanes
INSTALLATION • OPERATION • CARE
INSTALACIÓN • FUNCIONAMIENTO • CUIDADO
INSTALLATION • FONCTIONNEMENT • ENTRETIEN

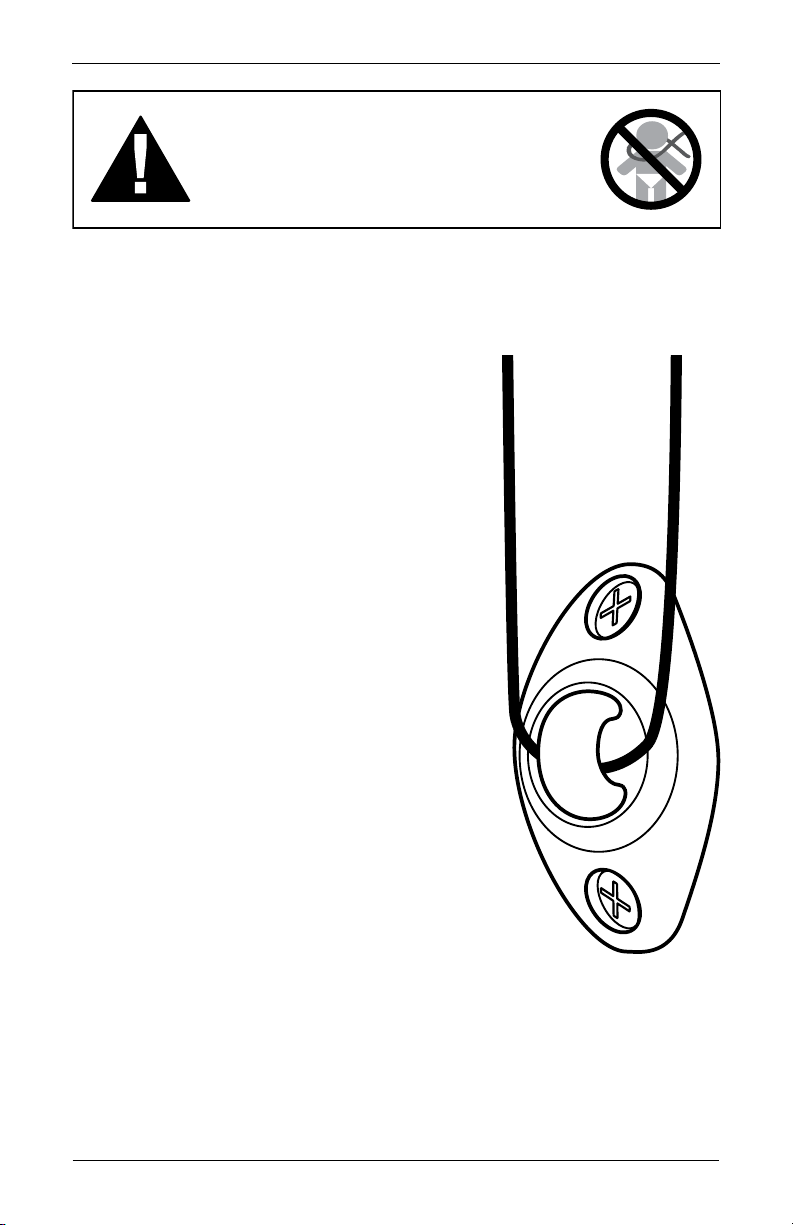

CHILD SAFETY
2
Young children can STRANGLE in cord loops. They can also wrap cords around
their neck and STRANGLE.
• Always keep cords out of the reach of children.
• Move cribs, playpens and other furniture away
from cords. Children can climb furniture to get
to cords.
Cord Loop Shadings
• Attach the tension device on the cord
loop to the wall or window casement.
See “Install the Tension Device” on
page 11. This can prevent children from
pulling cord loops around their necks.
• For the shading to operate properly, the
cord tensioner must be correctly mounted
and secured.
• Fasteners provided in this kit may not
be appropriate for all mounting surfaces.
Use appropriate anchors for mounting
surface conditions.
• Only supplied tension device and hardware
should be used. Replacement parts may be
obtained by contacting customer service at
1-800-538-6567.
WARNING
Continuous Cord Loop Operating System © 2017 LEVOLOR®, Inc.

GETTING STARTED
3
Continuous Cord Loop Operating System
Getting Started
Product View ............................................................................................ 4
Tools and Fasteners Needed ...................................................................5
Installation
Installation Overview ............................................................................... 6
Mount the Installation Brackets — Inside Mount ............................ 7 – 8
Mount the Installation Brackets — Outside Mount ....................... 8 – 10
Mount the Installation Brackets — Side Mount ....................................10
Install the Shading .................................................................................. 11
Install the Tension Device ...................................................................... 11
Attach the Magnetic Hold-Down Brackets (Optional) ........................12
Operation
Operate the Shading ..............................................................................13
Troubleshooting .............................................................................. 14 – 16
Care
Removing the Shading ...........................................................................17
Cleaning Procedures ...................................................................... 17 – 18
Warranty .................................................................................................18

4
GETTING STARTED
Continuous Cord Loop Operating System

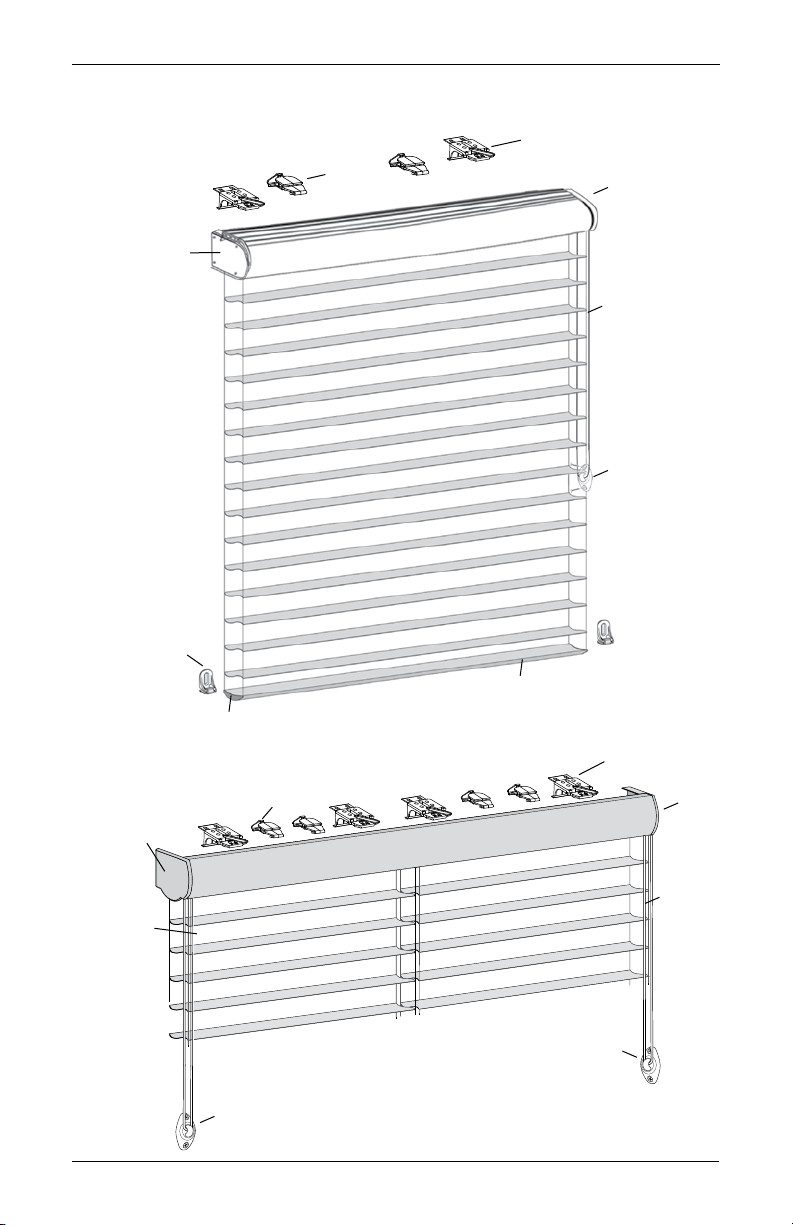

Product View
Tension
Device
Cord Loop
Headrail
Installation
Bracket
Limit
Stop
Headrail
End Cap
Magnetic
Hold-Down
Bracket
(Optional)
End Cap
Bottom
Rail
Single Headrail Shading
Tension
Device
Tension
Device
Limit Stop
Two-On-One Headrail Shading
Cord Loop
Cord Loop
Headrail
Installation
Bracket
Headrail
End Cap

GETTING STARTED
5
Continuous Cord Loop Operating System
Thank you for purchasing LEVOLOR® Sheer Shadings. With proper installation,
operation, and care, your new shadings will provide years of beauty and performance.
Please thoroughly review this instruction booklet before beginning installation.
Tools and Fasteners Needed
• Flat and Phillips head screwdrivers • Level (laser level is recommended)
• Measuring tape and pencil • Pliers and/or scissors (heavy-duty)
• Power drill,
3
/ 32 " drill bit,
and
1
/ 4 " hex driver
In addition, you will need fasteners designed to work with your specific mounting
surface(s).
• #6 Hex Head Screws (Provided). Two 1
1
/ 2 " screws are provided per
installation bracket.
• Longer #6 Hex Head Screws (Not Provided). If using spacer blocks,
use #6 screws long enough for a secure attachment.
• Speed Nuts and Screws (Provided). Extension brackets come with screws
and speed nuts.
• Drywall Anchors (Not Provided). Use drywall anchors when mounting
into drywall.
Speed Nut
and Screw
(Two Provided with
Each Extension Bracket)
#6 x 1
1
/ 2 "
Hex Head Screw
(Provided)
Longer #6 Hex Head Screw
for Use with Spacer Blocks
(Not Provided)
Large Fabric Roll Small Fabric Roll

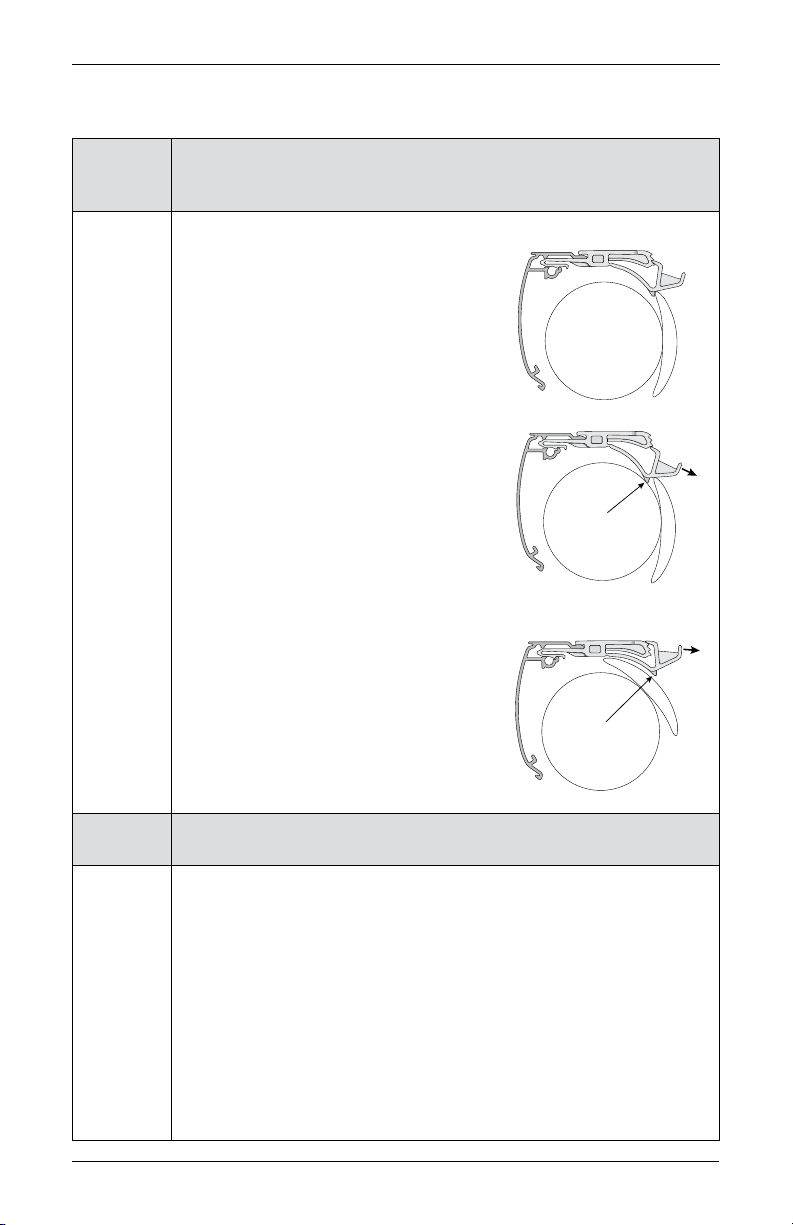

Importance of Limit Stops on Window Shadings
Limit stops serve as the upper travel limit for the bottom rail, preventing it from
rotating around the fabric roll. Limit stops are located 6" from the ends of the
headrail or are centered on shadings less than 36" wide.
When a shading is made, the limit stops are adjusted according to the size of the
fabric roll. Occasionally, this adjustment changes during shipping or installation.
If this happens, problems can be fixed by readjusting the limit stops. See page 16
in the Troubleshooting section if shading operation is difficult or if the bottom rail
rotates around the fabric roll. Shown below are the four possible positions of limit
stops for large to small fabric rolls.

INSTALLATION
6Continuous Cord Loop Operating System

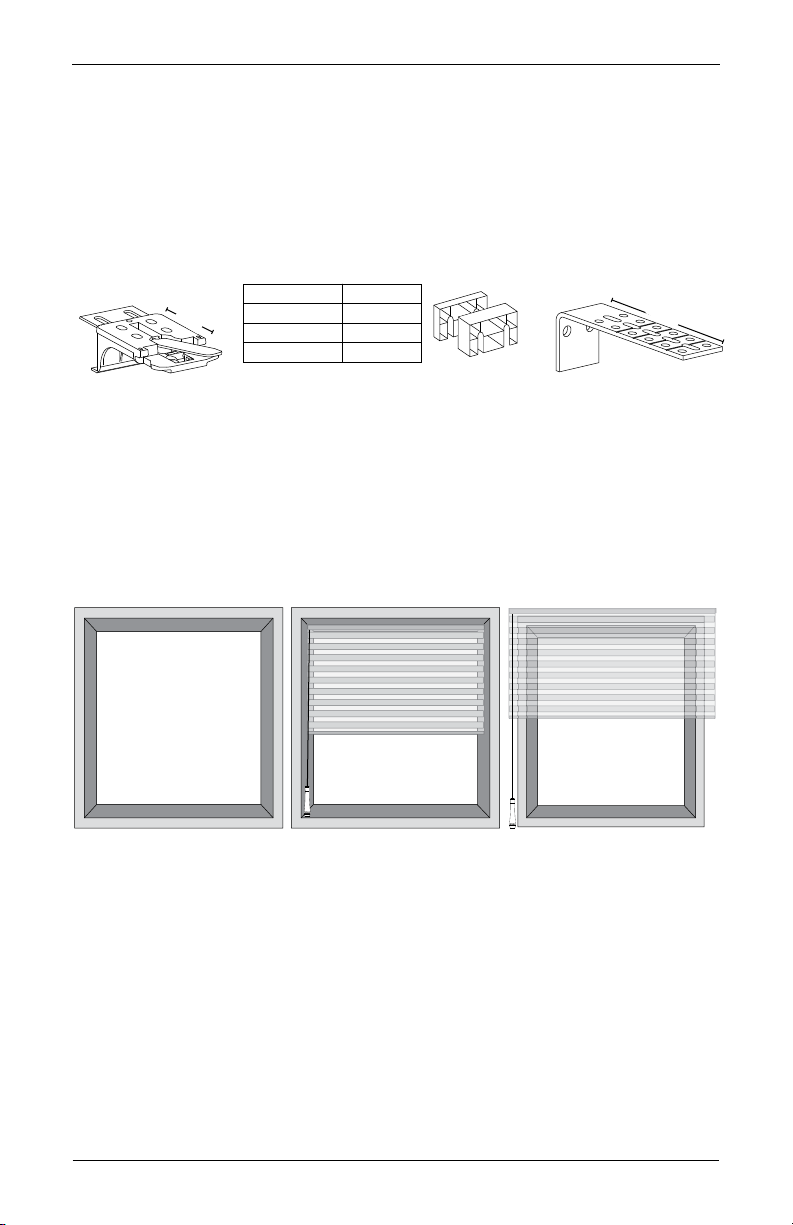

Installation Overview
• Your order will include the correct number of installation brackets for your shading
width, as shown in the table below.
• Shading orders may also include spacer blocks or extension brackets, if they were
specified for added clearance.
— Extension brackets are used for side mount shadings, as well.
• Two-On-One Headrail Shadings. Two additional installation brackets are provided.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process
follows easily. To prepare for this important first step, review the mounting types and
basic window terminology illustrated below.
Shim– A thin strip of material used to align parts to make them fit.
• Refer to the appropriate page below based on your order:
— Inside Mount Page 7
— Outside Mount Page 8
— Side Mount Page 10
Outside Mount
Shading mounts
outside window
opening.
Inside Mount
Shading fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Installation Bracket For Added Clearance
Panel Width Brackets
2
3
4
Extension Bracket
1
/ 4 " and
1
/ 2 "
Spacer Blocks
18" – 36"
36
1
/ 8 " – 79"
79
1
/ 8 " – 84"
2 1⁄8"
3 3⁄16"

INSTALLATION
7
Continuous Cord Loop Operating System
CAUTION: Failure to follow ALL installation instructions may cause the
shading to fall, possibly resulting in injury or property damage.

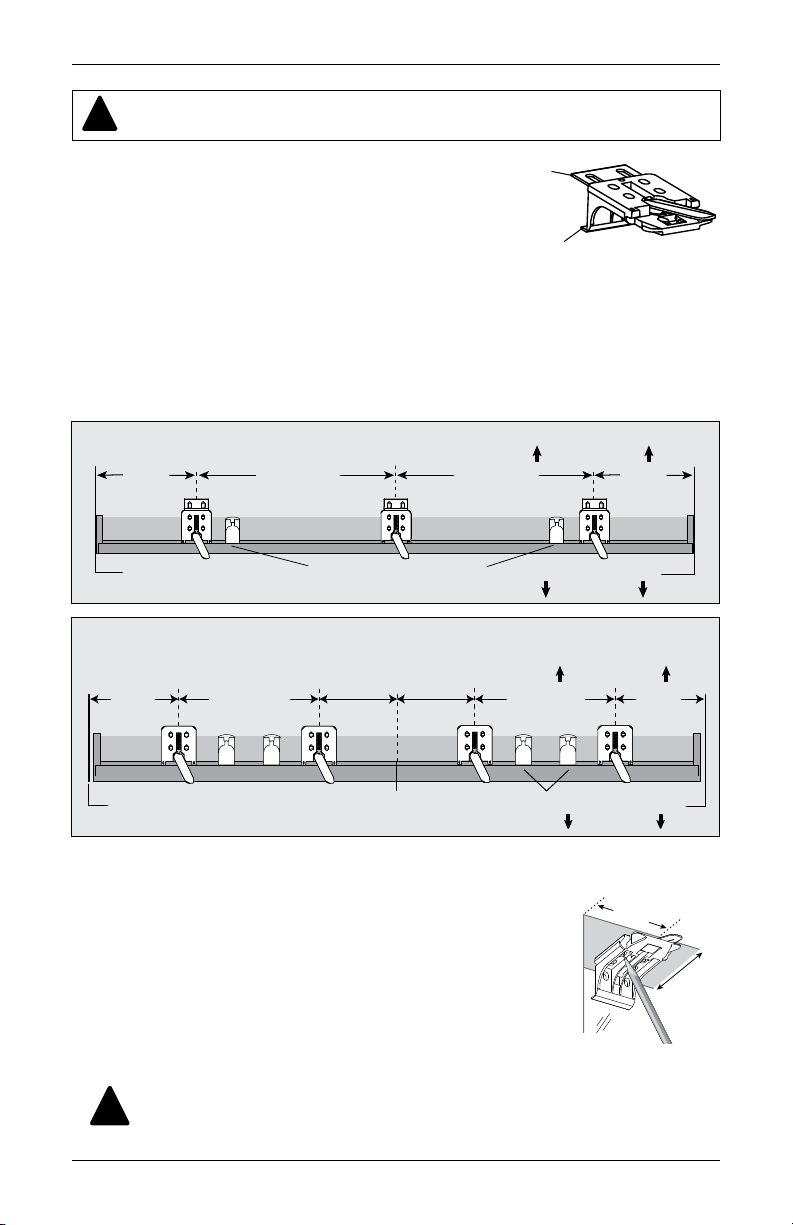

INSIDE MOUNT
Prepare the Installation Brackets
• Use pliers or heavy-duty scissors to remove the TOP
tab ONLY on the installation brackets.
NOTE: Save these tabs once removed. They may be used as shims, if necessary.
Mount the Installation Brackets
• Mark 2" to 3" from each jamb for bracket location.
— If more than two installation brackets came with your order, space additional
bracket(s) evenly between the two end brackets and mark their location. Mount
into wood whenever possible.
• Center the brackets on your marks, then mark the screw hole locations.
— The minimum casement depth for installation brackets is 1". Mark the rear set
of installation bracket holes with shallow mounting depths.
— The minimum casement depth for a fully recessed
mount is 3
1
/ 4 ". Mark the front set of bracket holes
when depth permits.
— Use the rear set of holes with shallow mounting depths.
Use the front set of holes when depth permits.
IMPORTANT: The front edges of the brackets must be level and aligned to each other.
CAUTION: Failure to properly align the brackets could result in the headrail
releasing from the brackets, causing the shading to fall, possibly resulting in
injury or property damage.
2" to 3"
Casement
Depth
JambJamb Limit stops should be equal
distance from the ends of headrail.
Space Evenly
2" to 3" Space Evenly
WINDOW SIDE
ROOM SIDE
2" to 3"
Two-On-One Headrail Shadings.
Single Headrail Shadings.
NOTE: Two additional installation brackets should be placed on each side of the panel split.
Space Evenly
2" to 3" 2" to 3"
Jamb Jamb
Limit Stops
Space Evenly
Panel Split
Space Evenly
3"3"
WINDOW SIDE
ROOM SIDE
!
Top
Tab
Bottom
Tab
!

INSTALLATION
8Continuous Cord Loop Operating System

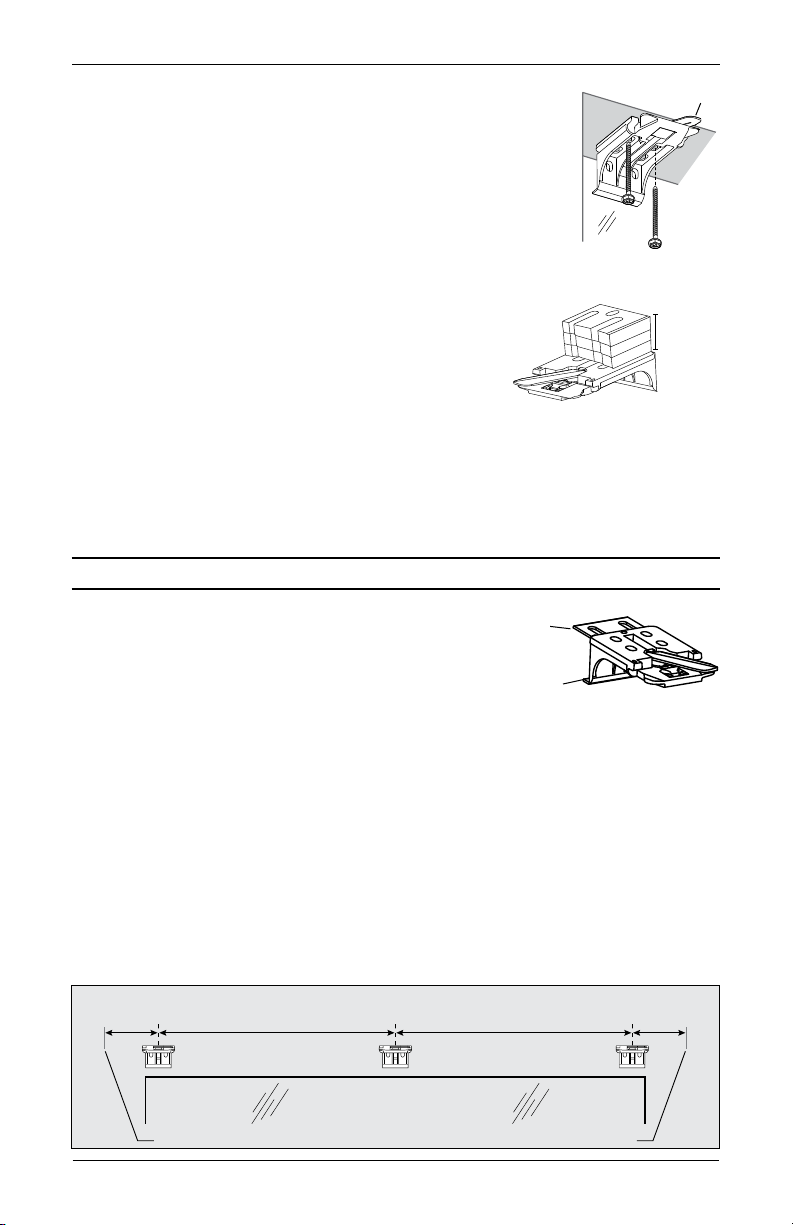

• Drill the screw holes using a
3
/ 32 " drill bit.
IMPORTANT: Use drywall anchors when mounting into drywall.
• Use a level to check that the mounting surface is level.
Shim the brackets, if necessary. (Use the top tab that
was removed from the brackets.)
• Attach the installation brackets using the screws provided.
IMPORTANT: Do not overtighten the screws. Check to ensure the lever can be
moved easily side to side. If not, loosen the screws in one-eighth turn increments
until the lever can be moved easily.
IMPORTANT: The front edges of the installation
brackets must be level and aligned to each other.
• If using spacer blocks:
— Stack spacer block(s) on top of the installation brackets,
— Using #6 Hex Head Screws, long enough for secure installation (not provided),
install screws up through the underside of the installation bracket and spacer
block(s) into mounting surface. Use the front set of bracket holes when
depth permits.
IMPORTANT: Do not add more than 1 ½ in. of clearance using the spacer blocks.
Proceed to “Install the Shading” on page 11.
OUTSIDE MOUNT
Prepare the Installation Brackets
• Use pliers or heavy-duty scissors to remove BOTH
the top and bottom tabs on the installation brackets.
NOTE: Save these tabs once removed. They may be used as shims, if necessary.
Mount the Installation Brackets
• Center the headrail over the window opening at the desired height. Use a pencil to
lightly mark each end of the headrail.
— Alternatively, measure the width of the headrail and use that width to mark the
headrail end points over the window opening.
• Mark 2" to 3" from each end of the headrail.
— If more than two installation brackets came with your order, space additional
bracket(s) evenly between the two end brackets and mark their location. Mount
into wood whenever possible.
Bottom
Tab
Top
Tab
Lever
Single Headrail Shadings.
Window Opening
Space Evenly Space Evenly
2" to 3" 2" to 3"
Headrail End Mark Headrail End Mark
Spacer
Blocks
1 1 ⁄2"
Maximum

INSTALLATION
9
Continuous Cord Loop Operating System
• Center the installation brackets or extension brackets on your marks and mark
where to drill the screw holes.
— A minimum 1 1⁄8" flat vertical surface is required for the installation brackets.
Extension brackets require 1 1⁄4".
— The tops of the installation brackets or extension brackets should be at the
desired height. The brackets should be level and aligned.
IMPORTANT: The rear of the brackets must be flush against a flat mounting
surface. Do NOT mount brackets on curved molding.
• Drill the screw holes using a
3
/ 32 " drill bit.
IMPORTANT: Use drywall anchors when mounting into drywall.
• Attach the installation or extension brackets using the screws provided.
IMPORTANT: The tops of the
installation brackets or extension
brackets must be level with
their front edges aligned.
1
1
/ 8 "Extension
Bracket
1
1
/ 4 "
Two-On-One Headrail Shadings.
NOTE: Two additional installation brackets should be placed on each side of the panel split.
Window Opening
Space Evenly
Panel Split
Space Evenly
2" to 3" 3" 3" 2" to 3"
Headrail End Mark Headrail End Mark

INSTALLATION
10 Continuous Cord Loop Operating System
• If using spacer blocks:
— Stack spacer blocks on the backside of
the installation brackets,
— Using #6 Hex Head Screws long enough for
secure installation (not provided), install screws
through the installation bracket and spacer
blocks into mounting surface.
IMPORTANT: Do not add more than 1 1⁄2"
of clearance using spacer blocks.
IMPORTANT: The tops of the installation
brackets must be level, with the front
edges aligned.
IMPORTANT: Use drywall anchors when
mounting into drywall.
• If using extension brackets, attach an installation
bracket to the underside of each extension bracket
using the speed nuts and screws provided.
Proceed to “Install the Shading” on page 11.
SIDE MOUNT
Prepare the Installation Brackets
• Use pliers or heavy duty scissors to remove BOTH
the top and bottom tabs on the installation brackets.
NOTE: Save these tabs once removed. They may
be used as shims, if necessary.
Mount the Installation Brackets
Side mount the headrail when conventional mounting
techniques will not work — for example, in an arched
window opening.
• Mount the extension brackets on a surface at
least 1 1⁄4" wide.
• Attach the installation brackets to the extension brackets
using the provided screws and speed nuts.
CAUTION: When securing side mounted shadings into a surface other than
a secure wall stud, use medium to heavy-duty wall anchors (not provided).
Match anchors to the wall thickness. Failure to mount the brackets securely
may result in injury or property damage.
NOTE: Spacer blocks cannot be used with side mount installations.
Proceed to “Install the Shading” on page 11.
!
Speed Nuts
Screws
Extension
Bracket
1
1
/ 4 "
Minimum
Depth
1
1
/
2
"
Maximum
Spacer
Blocks
Longer
Screw
Top
Tab
Bottom
Tab

INSTALLATION
11
Continuous Cord Loop Operating System

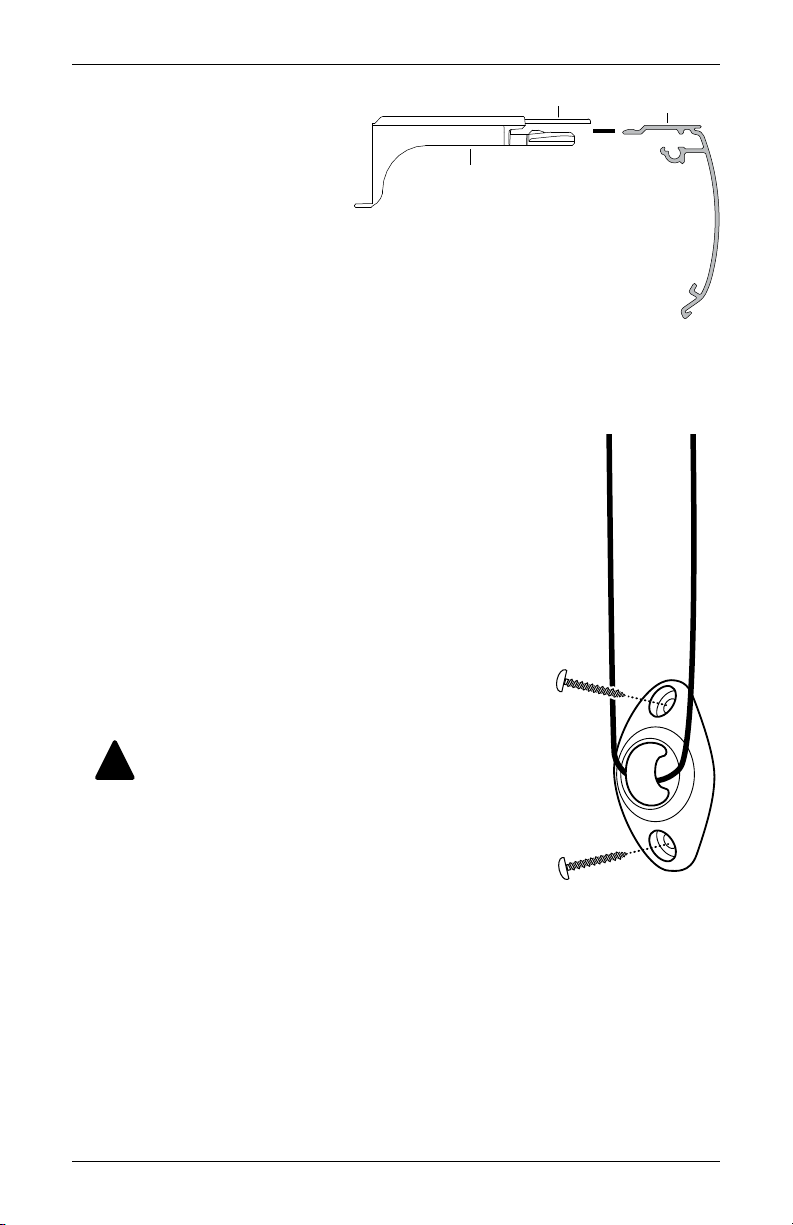

Install the Shading
• Position the shading so that
the front faces you.
• Slide the headrail into the
installation brackets so the
edge of the headrail is between
the lever and the bracket, as shown.
• Firmly push the headrail into each bracket until it clicks and the
lever snaps to the right side of the bracket.
IMPORTANT: Carefully pull on the headrail at each bracket to
ensure it is installed securely.
Install the Tension Device
• Slide the cord tensioner down to the bottom of the cord loop.
• Using the screws provided, attach the tension device to the
wall, allowing some slack for the cord to slide through easily.
IMPORTANT: When installing into drywall or plaster,
use 3⁄16" drill bit and insert wall anchors (size 1⁄2",
not included) before inserting the screws. When
installing in metal, use appropriate anchors for
metal substrate.
IMPORTANT: The tension device provides
smooth operation of the shadings. The shadings
will not operate properly unless the tension device
is installed.
WARNING: It is imperative that the cord tensioner
be properly secured to the wall or window frame
to reduce children’s access to the cord loop. Young
children can strangle in cord loops. They can also
wrap cords around their necks and strangle.
!
Headrail
Installation
Bracket
Lever
Slide the Headrail
between the Lever
and the Bracket.

INSTALLATION
12 Continuous Cord Loop Operating System
Adjust the
bracket
using the
channel.
Attach the Magnetic Hold-Down Brackets (Optional)
• Lower the shading keeping the vanes closed.
• Place the magnetic hold-down bracket onto the bottom rail just
inside the end cap, oriented as shown.
• Hold the bracket while opening and closing the vanes (it may
be necessary to have someone else assist you). Adjust the
bracket to the best overall position.
• Mark the screw location using the mounting options shown below.
— The screw should be placed in the middle of the channel.
This will allow for adjustment.
• Drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting into drywall.
• Attach the hold-down brackets to the mounting surface
using the screws provided.
• If necessary, adjust bracket height by loosening the screw
and sliding the bracket up or down.
Hold-Down
Bracket
Bottom
Rail
Outside Mount
Inside Mount
Preferred Alternate
AlternatePreferred

OPERATION
13
Continuous Cord Loop Operating System
Front
Side of
Shading
Tension
Device
Window
Side of
Shading
Operate the Shading
To Lower the Shading and
Open the Vanes
• Pull the rear cord of the cord loop
to lower the shading.
• With the shading fully lowered,
continue to pull the rear cord
to tilt the bottom rail and open
the vanes.
IMPORTANT: If the
tension device moves
up the cord, you have
not secured it to the
wall or window frame.
You must do so for
the shading to
operate properly
and to help protect
young children from
accidental strangulation.
To Close the Vanes and Raise the Shading
• Pull the front cord of the cord loop to
close the vanes and raise the shading.
• If the tension device moves up the cord,
you have not secured it to the wall
or window frame. You must do so for
the shading to operate properly and
to help protect young children from
accidental strangulation.
IMPORTANT: If the shading raises or
lowers unevenly, the fabric rubs against
one end of the headrail, or the bottom
rail is uneven when fully raised, the
bottom rail weight needs to be adjusted.
See "Adjusting the Bottom Rail Weight"
on page 15.
Front Side of Shading
Lower and Open the Vanes of the Shading
Tension
Device
Front Side
of Shading
Window Side
of Shading
Front Side of Shading
Close Vanes and
Raise the Shading

OPERATION
14 Continuous Cord Loop Operating System
Troubleshooting
Problem The shading headrail will not snap into the installation brackets.
Solution Check that the installation brackets are aligned and level.
Check that the locking lever on the installation bracket slides
over the headrail.
Problem The Tension Device has climbed to the headrail.
Solution Pull down on the spring to relieve tension and pull the Tension
Device to the bottom of the cord loop. Properly mount the Tension
Device. See the Tension Device Installation Instructions on page 11.
Problem The Tension Device grabs onto the cord upon operation.
Solution Check that the Tension Device is mounted properly. Reinstall,
if necessary. See Tension Device Installation Instructions on page 11.
Problem Vanes do not align on side-by-side shadings.
Solution Vane alignment can only be ensured within
1
/ 4 " when shadings are
ordered at the same time, at the same height, with the same color,
operating system and fabric, and when specified on the order form.
Check that the windows are square and the same height.

OPERATION
15
Continuous Cord Loop Operating System
Troubleshooting
Problem The shading raises or lowers unevenly, the fabric rubs against one end of
the headrail, or the bottom rail is uneven when fully raised.
Solution Check that the window is square by measuring the diagonals.
Check that the installation brackets are level. Shim to level, if necessary.
Adjust the bottom rail weight. See below.
Adjusting the Bottom Rail Weight
Release the weight clips by inserting
a flat blade screwdriver into the
weight clip and turning clockwise.
• Move the weight in 1" increments toward the side where the
fabric is gathering.
• Secure the weight clips in position by turning them
counterclockwise after making the adjustment.
• Test and, if necessary, adjust again.
Problem Two-On-One Headrail Shadings Only: The center gap is not even from
the top to the bottom of the shading, interfering with the function of
the shading.
Solution Ensure the entire length of the headrail is straight and level. If the
center portion of the headrail is higher than the ends, the center gap
will close together. If the center portion of the headrail is lower than
the ends, the center gap increases. If necessary, adjust the height of
each bracket by moving it within the screw slots or by using shims.
Weight
Bottom Rail Weight
Clip
Weight
Clip
Fabric Roll
Gathered
Fabric
Move Weight

OPERATION
16 Continuous Cord Loop Operating System
Problem The shading is hard to raise or lower, or the bottom rail does not stop at
the top limit.
Solution Check the adjustment position of ALL
limit stops. The top illustration shows
the correct adjustment. The limit stop
catches the bottom rail, and the bottom
of the limit stop is slightly above or barely
touching the fabric roll.
In the second illustration, the limit stop
adjustment is too tight. The fabric may
not drop freely and could even be
damaged when the shading is raised.
To correct this, the limit stop should be
adjusted one step up. Simply pull back
on the rear of the limit stop to adjust
its position.
In the bottom illustration, the
adjustment is too loose. The bottom
rail can slip under the limit stop. If
the bottom rail rotates through the
headrail, it must be backed out
before adjusting the limit stop.
IMPORTANT: All limit stops
must be adjusted to the same
position or else skewing may occur.
Problem The shading is hard to raise or lower, or will not raise or lower.
Solution Shadings cannot be forced into tight inside mount window
openings. If an inside mount, check that the shading is installed
correctly. Make sure there is clearance between the ends of the
shading and the window casement.
Check that the tension device is mounted correctly.
See “Install the Tension Device” on page 11.
Check that the installation brackets are level. Shim to level,
if necessary.
Check that the shading fabric is not catching on any brackets or
window components.
Troubleshooting
Pull Back
to Adjust
Fabric Roll
Bottom
Rail
Limit StopHeadrail
Pull Back
to Adjust
Too Tight —
Adjust One Step Up
Too Loose —
Adjust One Step Down
Pull Back
to Adjust
Fabric Roll
Bottom
Rail
Limit StopHeadrail
Pull Back
to Adjust
Too Tight —
Adjust One Step Up
Too Loose —
Adjust One Step Down
Pull Back
to Adjust
Fabric Roll
Bottom
Rail
Limit StopHeadrail
Pull Back
to Adjust
Too Tight —
Adjust One Step Up
Too Loose —
Adjust One Step Down

CARE
17
Continuous Cord Loop Operating System

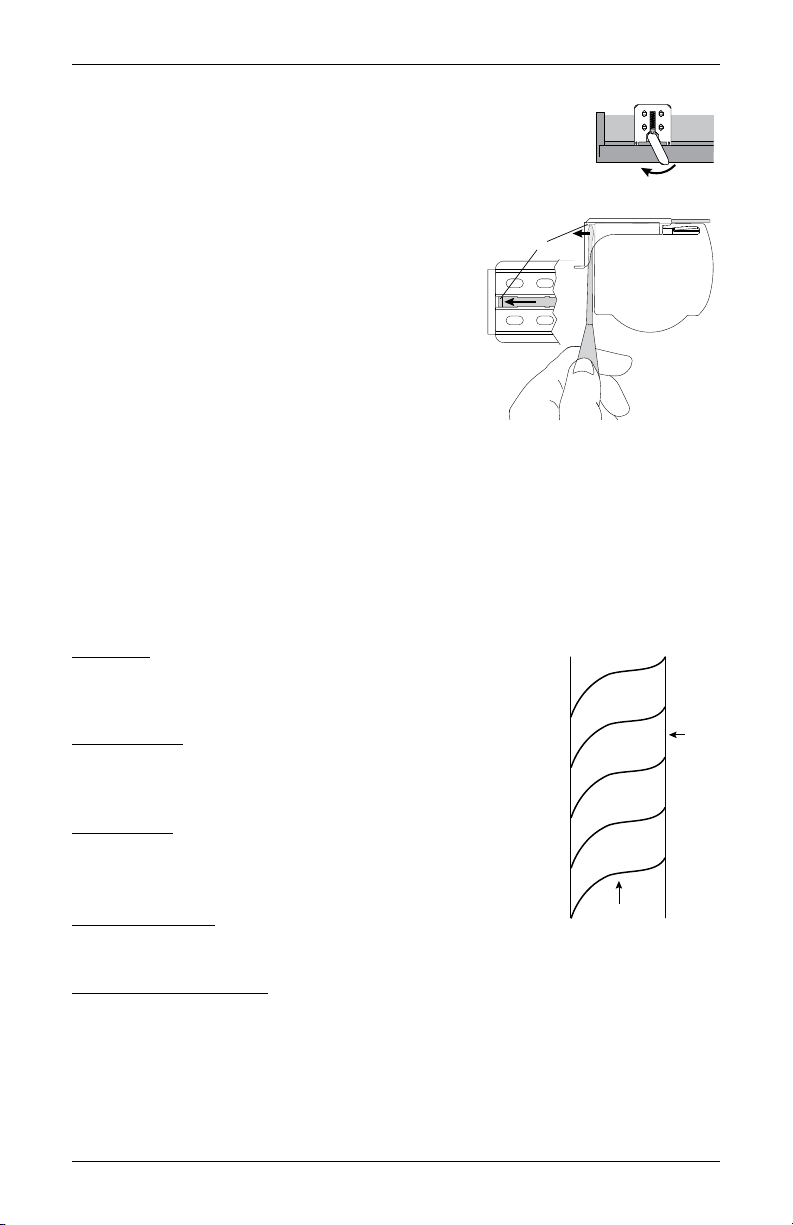

Removing the Shading
• Fully raise the shading.
• Move the lever on the installation brackets to the left
to release the shading.
— A flat head screwdriver can be used to move the lever.
— If the lever is inaccessible or inoperable, lower
the shading until you can see the underside
of the bracket. Carefully reach a small flat
head screwdriver behind the shading to the
tab on bottom of the bracket between the
screw holes.
— Push the tab away from the shading and pull
the headrail to release it from the bracket.
IMPORTANT: Be very careful to not tear or damage any of the fabric.
• Carefully pull the shading to remove it from the brackets.
Cleaning Procedures
Sheer Shadings are made of 100% polyester, which means they are inherently
durable and resilient. However, care must be taken to avoid wrinkling the fabric,
particularly where the vanes meet the facings.
Dusting
• Regular light dusting with a feather duster is all the
cleaning that is needed in most circumstances.
Vacuuming
• Use a low suction, hand-held vacuum for more
thorough dust removal.
Forced Air
• Blow away dirt and debris between the vanes using
clean compressed air.
Spot-Cleaning
• Do NOT spot-clean sheer shadings.
Ultrasonic Cleaning
Sheer Shadings can be ultrasonically cleaned by a professional with the exception of
light-dimming fabrics.
• Specify that a mild detergent solution be used.
• Never immerse the headrail in the solution.
• Dry the shading completely in the lowered position.
Move Lever to Left
Top View
Tab
Installation Bracket
Underside of
Bracket
End Cap
Facing
Vanes

CARE
18 Continuous Cord Loop Operating System
Injection/Extraction
Sheer Shadings can be professionally cleaned using the injection/extraction method.
• A dry method of injection/extraction is required for light-dimming fabrics.
• Never immerse the headrail in the solution.
Electrostatic Cleaning
Do NOT use electrostatic cleaning wipes on any sheer shadings.
A Note About Fabrics
As with all textiles, Sheer Shading fabrics are subject to some variations. Slight
wrinkling, puckering, or bowing is inherent to this textile product and should be
considered normal, acceptable quality. These characteristics are not usually
visible from the front or rear but may be visible from a side angle.
Precautions should be taken to reduce exposure to harsh environmental
elements, such as salt air. Continuous exposure through open windows and
doors will accelerate the fabric deterioration.
NOTE: Improper cleaning may void warranty.
Warranty
For complete warranty information visit levolor.com or call customer service
at 1-800-LEVOLOR or 1-800-538-6567.

Sistema de
funcionamiento
circular continuo
con cordón
LEVOLOR®
Persianas traslúcidas
INSTALACIÓN • FUNCIONAMIENTO • CUIDADO

SEGURIDAD INFANTIL
Los niños pequeños podrían ESTRANGULARSE con el control de cordón.
También pueden enrollarse los cordones en el cuello y ESTRANGULARSE.
• Mantenga siempre los cordones alejados del alcance de los niños.
• Aleje las cunas, los corrales y demás muebles
de los cordones. Los niños pueden trepar a los
muebles para alcanzar los cordones.
Persianas con control de cordón
• Instale el dispositivo tensor del control de
cordón en la pared o el marco de la ventana
giratoria. Consulte "Instalación del dispositivo
tensor" en la página 29. Esto puede evitar que
los niños jalen los controles de cordón y se los
coloquen en el cuello.
• Para que la persiana funcione adecuadamente,
se debe instalar y fijar correctamente el
dispositivo tensor de cordón.
• Los sujetadores que se incluyen en este kit
pueden no ser apropiados para todas las
superficies de montaje. Use las anclas de
expansión adecuadas según la superficie
de montaje.
• Solo se deben usar el dispositivo tensor y
los aditamentos suministrados. Para obtener
piezas de repuesto llame al Servicio al Cliente
al 1-800-538-6567.
ADVERTENCIA
20 Sistema de funcionamiento circular continuo con cordón
© 2017 LEVOLOR®, Inc.
