Lex Computech 2I380D User manual

2I380D
Intel Bay Trail-D J1900 (Quad Core) CPU,
On Board DDR3L, 3 x Intel LAN / USB / VGA / COM
All-In-One
Intel Bay Trail-I D J1900, 2.0 GHz
VGA, PCIe mini card, M.2 B Key SATA
Multi-LAN Board, 4 x USB, 2 x COM
NO. 2I380D_V0.1
Release date: Feb. 10. 2017

i
2I380D
Warning!...........................................................................................................................
Hardware Notice Guide .............................................................................................
CHAPTER 1 GENERAL INFORMATION ........................................................................
1-1 MAJOR FEATURE........................................................................................................
1-2 SPECIFICATION ..........................................................................................................
1-3 DIRECTIONS FOR INSTALLING THE MINI CARD .....................................................
1-4 DIRECTIONS FOR INSTALLING THE M.2B KEY MINI CARD....................................
1-5 PACKING LIST .............................................................................................................
CHAPTER 2 HARDWARE INSTALLATION ....................................................................
2-1 UNPACKING PRECAUTION ........................................................................................
2-2 UNPACKING CHECKUP ..............................................................................................
2-3 DIMENSION-2I380D ....................................................................................................
2-4 LAYOUT-2I380D-CONNECTOR MAP ..........................................................................
2-4-1 LAYOUT-2I380D-FUNCTION MAP ...........................................................................
2-5 DIAGRAM-2I380D .......................................................................................................
2-6 LIST OF JUMPERS ......................................................................................................
2-7 JUMPER SETTING DESCRIPTION ............................................................................
2-8 JSB1: COMS DATA CLEAR .........................................................................................
CHAPTER 3 CONNECTION ..........................................................................................
3-1 LIST OF CONNECTORS..............................................................................................
3-2 BATTERY CONNECTOR .............................................................................................
3-3 DC POWER INPUT ......................................................................................................
3-4 VGA CONNECTOR ......................................................................................................
3-5 COM PORT CONNECTOR ..........................................................................................
3-6 USB 2.0 PORT .............................................................................................................
3-7 LAN CONNECTOR ......................................................................................................
3-8 PCI EXPRESS MINI CARD ..........................................................................................
3-9 PCI EXPRESS M.2 B KEY MINI CARD .......................................................................
CHAPTER 4 INTRODUCTION OF BIOS ........................................................................
4-1 ENTER SETUP ............................................................................................................
4-2 BIOS MENU SCREEN & FUNCTION KEYS ................................................................
4-3 GETTING HELP ...........................................................................................................
4-4 MENU BARS ................................................................................................................
4-5 MAIN ............................................................................................................................
4-6 ADVANCED ..................................................................................................................
4-6-1 BOOT CONFIGURATION .........................................................................................
4-6-2 PCI EXPRESS CONFIGURATION ...........................................................................
4-6-2-1 PCI EXPRESS ROOT PORT 1/2/3/4 .....................................................................
Contents
1
2
4
5
6
7
8
9
10
10
11
12
13
15
17
18
18
19
20
20
21
21
22
22
24
25
26
27
28
28
29
30
31
31
32
33
33
34

ii
34
35
36
37
38
39
39
40
41
41
42
43
44
45
46
49
51
53
55
56
57
59
59
60
63
64
65
4-6-3 USB CONFIGURATION.............................................................................................
4-6-4 Video CONFIGURATION ..........................................................................................
4-6-5 Thermal CONFIGURATION ......................................................................................
4-6-6 SATA CONFIGURATION ..........................................................................................
4-6-7 ACPI TABLE / FEATURES CONTROL ......................................................................
4-7 SECURITY ...................................................................................................................
4-8 POWER .......................................................................................................................
4-9 BOOT ...........................................................................................................................
4-9-1 LEGACY ...................................................................................................................
4-9-2 BOOT TYPE ORDER ................................................................................................
4-10 EXIT ...........................................................................................................................
4-11 DEVICE MANAAGER .................................................................................................
4-11-1 SIO FINTEK81801U ................................................................................................
4-11-2 HARDWARE MONITOR ..........................................................................................
CHAPTER 5 DRIVER INSTALLATION ...........................................................................
5-1 INF INSTALL INTEL BAYTRAIL CHIPSET DRIVER (EXAMPLE FOR WIN8 64BIT) ..............
5-2 VGA INSTALL INTEL BAYTRAIL VGA DRIVER (EXAMPLE FOR WIN8 64BIT) .....................
5-3 Serial IO INSTALL DRIVER BAYTRAIL SERIAL IO Driver (FOR WIN7 ONLY) ...................
5-4 xHCI Install Intel USB 3.0 xHCI Driver (FOR WIN7 ONLY) ..................................................
5-5 HD Audio INSTALL HIGH DEFINITION AUDIO DRIVER (EXAMPLE FOR WIN8 64bit).........
5-6 MBI INSTALL INTEL MBI DRIVER (FOR WIN 8 / 8.1 ONLY) ...............................................
5-7 TXE INSTALL INTEL TXE DRIVER...............................................................................
5-7-1 TXE INSTALL FOR WIN8 / WIN8.1...........................................................................
5-7-2 TXE INSTALL FOR WIN7..........................................................................................
5-8 HOW TO UPDATE LNSYDE BIOS ...............................................................................
APPENDIX A:POWER CONSUMPTION TEST .................................................................
APPENDIX B:RESOLUTION LIST .....................................................................................

Copyright
This manual is copyrighted and all rights are reserved. It does not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental
or consequential damages arising from the use of inability to use the product or
documentation, even if advised of the possibility of such damages.
The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality, and reliability. The author assumes no responsibility for any errors or omissions,
which may appear in this manual, nor does it make a commitment to update the
information contained herein.
Trademarks
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product's name mentioned here are for
identification purposes only, and may be trademarks and/or registered trademarks
of their respective companies or owners.
© Copyright 2017
All Rights Reserved.
User Manual edition 0.1, Feb. 10. 2017

1
Warning !
1. Battery
Batteries on board are consumables.
The life time of them are not guaranteed.
2. Fless solution with HDD
The specification & limitation of HDD should be considered carefully when
the fanless solution is implemented.
3. We will not give further notification in case of changes of
product information and manual.
4. SATA interface does not support Hot SWAP function.
5. There might be a 20% inaccuracy of WDT at room temperature.
6. Please make sure the voltage specification meets the requirement
of equipment before plugging in.
8. Caution! Please notice that the heat dissipation problem could cause the MB
system unstable. Please deal with heat dissipation properly when
buying single MB set.
9. Please avoid approaching the heat sink area to prevent users from
being scalded with fanless products.
12. It is important to install a system fan toward the CPU to decrease
the possibility of overheating / system hanging up issues,
or customer is suggested to have a fine cooling system to dissipate heat
from CPU.
11. DO NOT apply any other material which may reduce cooling
performance onto the thermal pad.
10. If users repair, modify or destroy any component of product unauthorizedly,
We will not take responsibility or provide warranty anymore.
7. There are two types of SSD, commercial grade and industrial grade, which
provide different read/write speed performance, operation temperature and
life cycle. Please contact sales for further information before making orders.

2
Hardware Notice Guide
1. Before linking power supply with the motherboard, please attach DC-in adapter to
the motherboard first. Then plug the adapter power to AC outlet.
Always shut down the computer normally before you move the system unit or
remove the power supply from the motherboard. Please unplug the DC-in adapter first
and then unplug the adapter from the AC outlet.

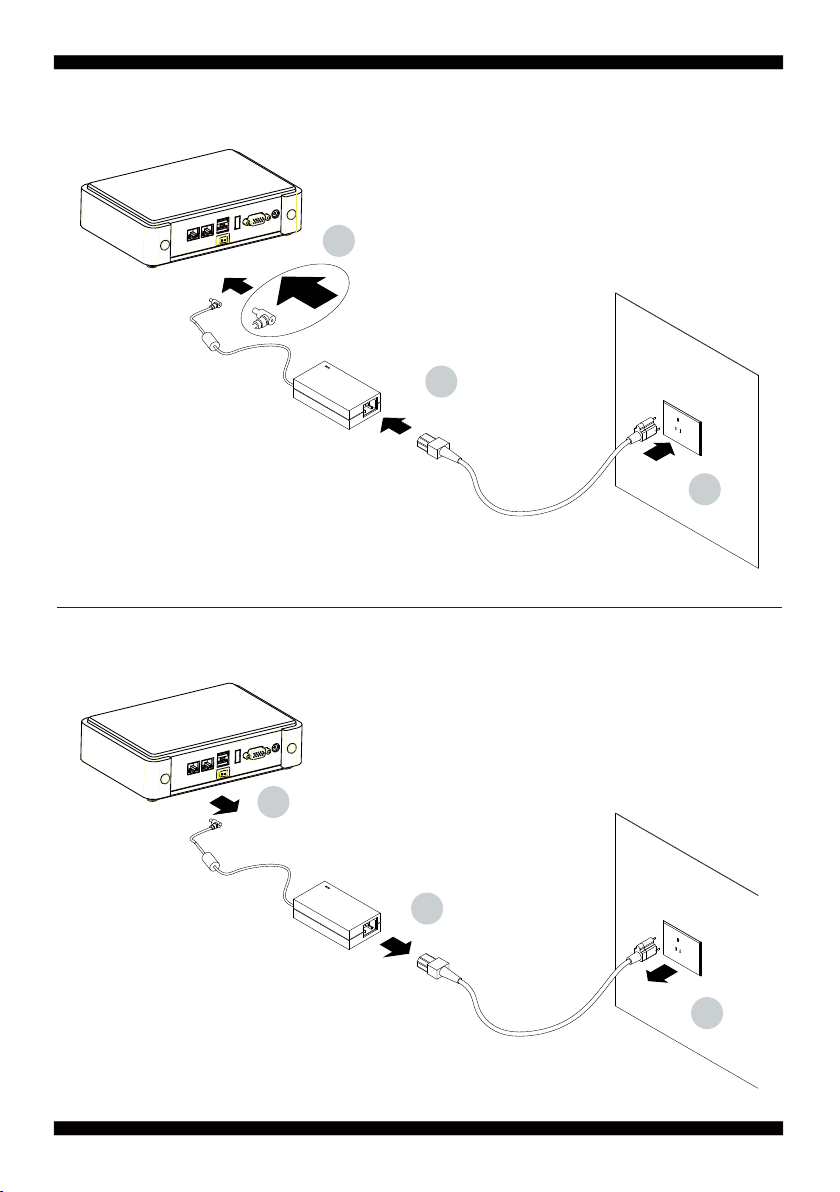

Please refer photo 1 as standard procedures.
2. In case of using DIRECT DC-in (without adapter), please check the allowed range
for voltage & current of cables. And make sure you have the safety protection for
outer issues such as short/broken circuit, overvoltage, surge, lightning strike.
3. In case of using DC-out to an external device, please make sure its voltage and
current comply with the motherboard specification.
4. The total power consumption is determined by various conditions
(CPU/motherboard type, device, application, etc.). Be cautious to the power cable
you use for the system, one with UL standard will be highly recommended.
5. It’s highly possible to burn out the CPU if you change/ modify any parts of
the CPU cooler.
6. Please wear wrist strap and attach it to a metal part of the system unit
before handling a component. You can also touch an object which is
ground connected or attached with metal surface if you don't have wrist strap.
7. Please be careful to handle & don't touch the sharp-pointed components on
the bottom of PCBA.
8. Remove or change any components form the motherboard will VOID the warranty of
the motherboard.
9. Before you install/remove any components or even make any jumper setting
on the motherboard, please make sure to disconnect the power supply first.
(follow the aforementioned instruction guide)
10. "POWERON after PWR-Fair” function must be used carefully as below:
When the DC power adaptor runs out of power, unplug it from the DC current;
Once power returns, plug it back after 5 seconds.
If there is a power outage, unplug it from the AC current, once power returns,
plug it back after 30 seconds. Otherwise it will cause system locked or made
a severe damage.
Remark 1:
Always insert / unplug the DC-in horizontally & directly to / from the motherboard.
DO NOT twist, it is designed to fit snugly.
Moreover, erratic pull / push action might cause an unpredictable damage to the
component & system unit.
*

3
2
1
3
1
2
3
Photo 1 Insert
Unplug

4
Chapter-1
General Information
The 2I380D SBC with built-in 3 x Intel Giga LAN ports, 1 USB 3.0 & 3 USB 2.0 ports as an
economic and flexible hardware platform for industrial communication solution. A reliable
and efficient communication network which connects all the components of the factory to
work together effectively plays an important role of success industrial automation.
LEX 2I380D provides customers a robust, wide range power input and compact computing
system with an industrial design and built-in I/O to handle diverse applications.
2I380D is specially designed for advanced embedded VPN or firewall applications where
the economical use of power is in high demand. With on board 2GB DDR3L memory
2I380D supports with 3 Intel I210-IT LAN chipset for PCIe x 1 V2.1 interface with 10 / 100
/ 1000 Mbps, 1 USB 3.0, 3 USB 2.0 and also offers two COM ports auto selected RS232 /
485 / 422 by BIOS setting (by wafer connection) to meet the needs.
2I380D integrates 1 PCIe mini card for mSATA / PCIe / USB device and 1 M.2(B key 2242)
SATA interface for storage..

5
1. Intel Bay-Trail J1900 2.00GHz SOC (Quad core)
2. Intel Bay-Trail Integrated Graphics chipset, J1900 688 MHz to 854MHz render
clock frequency
3. On board DDR3L SDRAM 2GB Memory, data transfer rate of 1333MT/s
4. Support 3 x 10 / 100 / 1000 Mbps Intel LAN ports
5. Support 2 x RS232 / 485 / 422 selected by BIOS, 1 x USB3.0 and 3 x USB 2.0
6. Support extended 1 x Mini PCIe card for mSATA / PCIe / USB device,
1 x M.2 (B key 2242) SATA interface for storage
7. On board DC +12V / 24V
8. PCB Dimension: 76.25 x 90.8 mm
9. Support VGA display
1-1 Major Feature

6
1. SOC: Intel Bay-Trail J1900 2.00GHz (Qaud core)
2. Memory: DDR3L SDRAM 2GB Memory, data transfer rate of 1333MT/s
3. Graphics: Intel Bay-Trail Integrated Graphics chipset, J1900 688 MHz to 854MHz
render clock frequency
4. I/O Chip: F81801U I/O chipset for 2 ports RS232 / 485 / 422 auto selected
5. 3 Intel I211-AT LAN chipset or Intel I210-IT LAN chipset (Option) with 10 / 100 / 1000
Mbps for PCIe x 1 V2.1 interface
6. 1 type A USB 3.0 and 3 USB 2.0 connector onboard
7. Expansion interface: one full size PCIe Mini card for mSATA / PCIe / USB, 1 M.2
connector for B key 2242
8. Power button & power + HDD LED on board
9. BIOS: Insyde UEFI BIOS
10. Dimension: 76.25 x 90.8 mm
11. Power: On board DC +12V / 24V
1-2 Specification

7

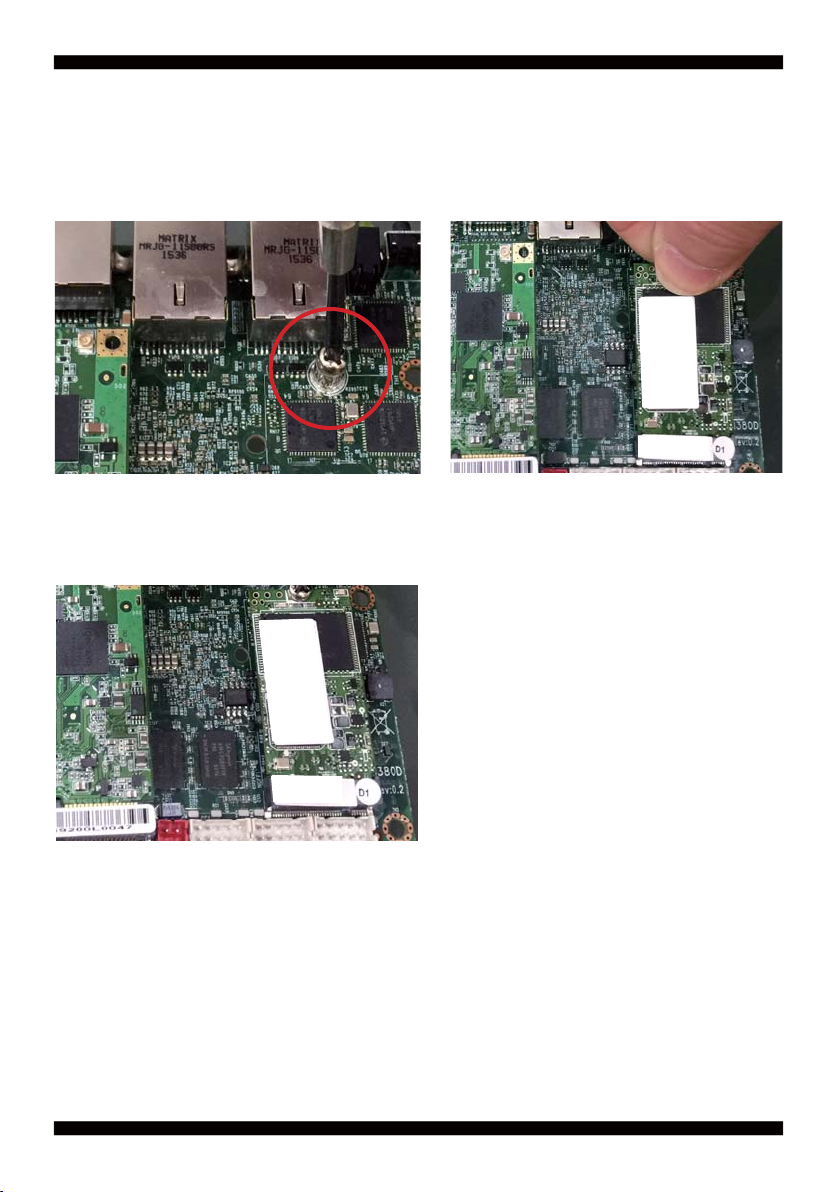

1. Unscrew the screw on the board
3. Gently push down the Mini Card and screw the screw back.
2. Plug in the Mini Card in a 45 angle
1-3 Directions for installing the Mini Card

8

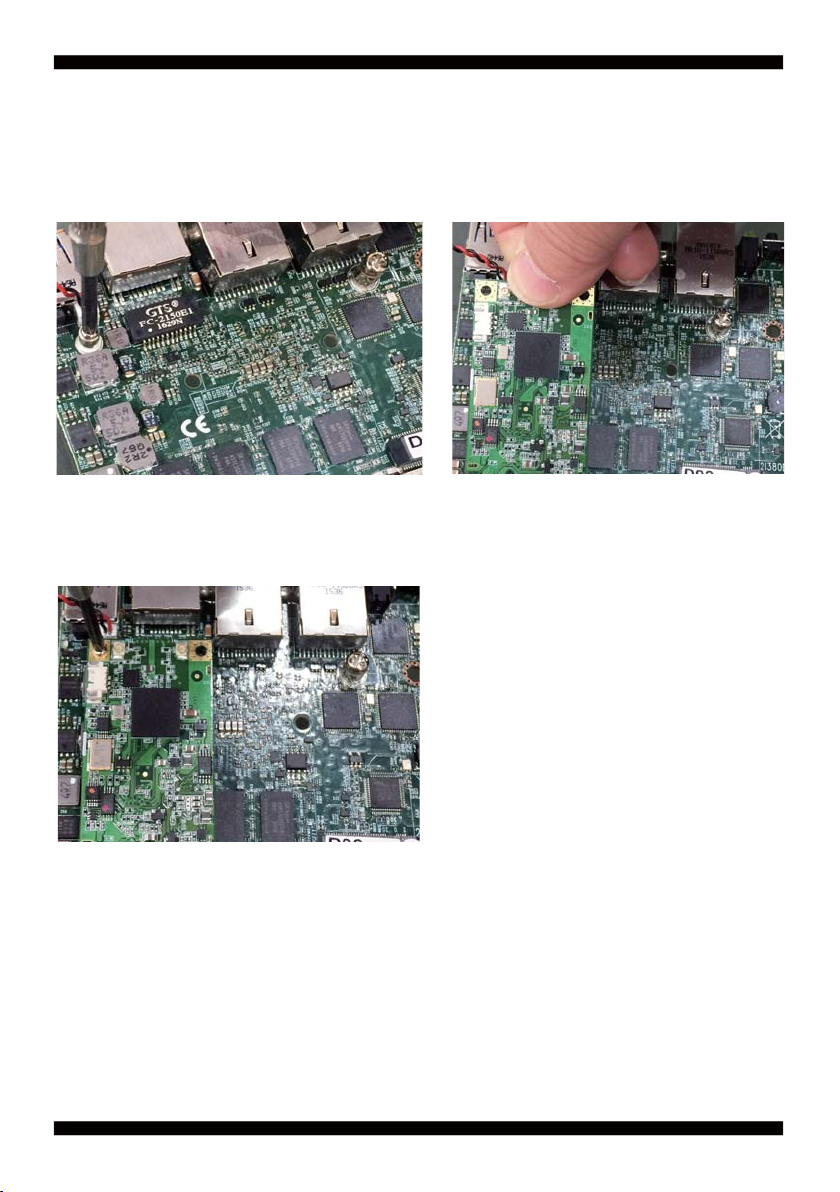

1. Unscrew the screw on the board
3. Gently push down the Mini Card and screw the screw back.
2. Plug in the Mini Card in a 45 angle
1-4 Directions for installing the M.2B Key Mini Card

9

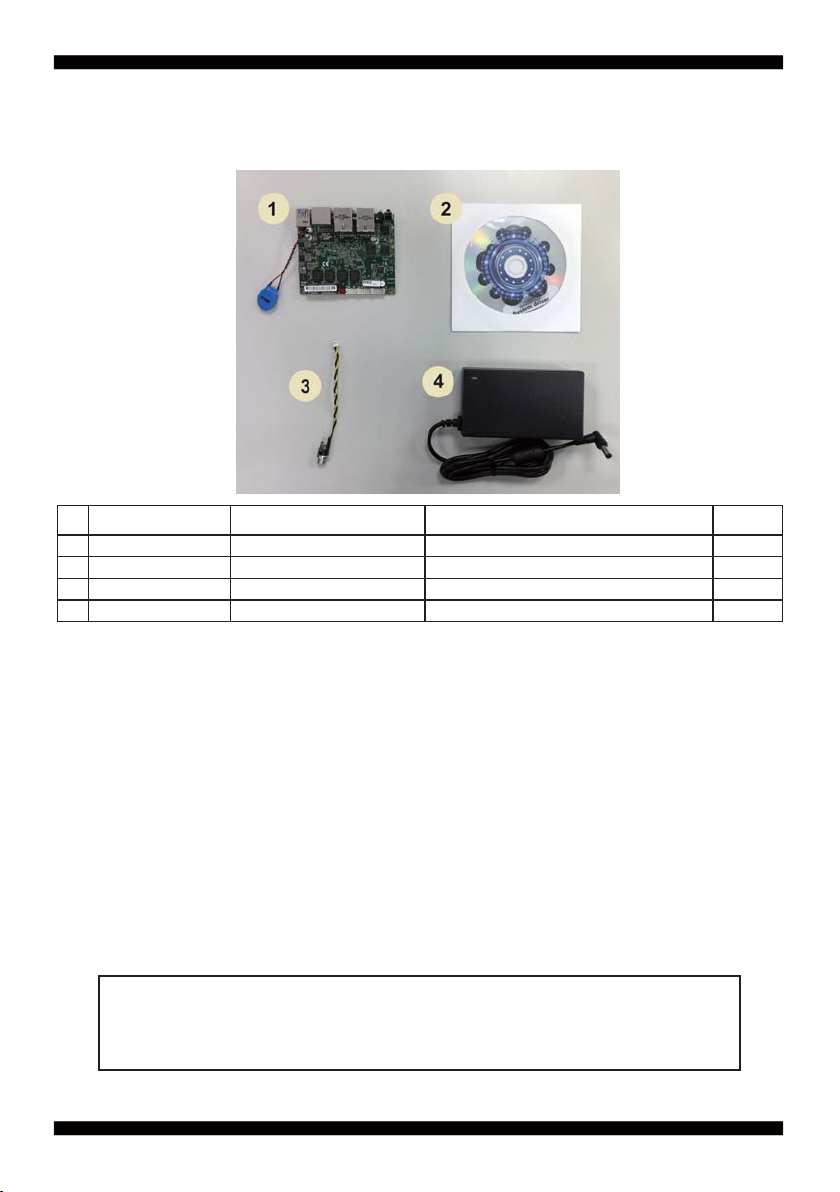

1-5 Packing List
Material Code Description Detail Specification Quantit
17G1901-1640001-0 MB-2I380D-D92-001 LLF,2I380D-D92,Rev.:001 1
26G8006-2349-0100 LEX Product Driver DVD LF, Intel Baytrail Driver,Windows 7/8.1 32/64 1
36G6003-7329-0100 Power Cable LF,L=9cm,2.0 1*2/DC JK 1
46G5212-0301-0600 30W Power Adapter,12V/2.5A LF,L Type,EA1024H1(06),EDAC 1
*The packing list above is for the users who purchase single motherboard. The users
who purchase the board with chassis may refer to the packing list in the Assembly Guide.
Please contact with your dealer if any of these items is missing or damaged
on delivery. And please keep all parts of the delivery package with packing
materials in case if you need to deliver or store the product in the future.

10
Chapter-2
This chapter provides the information how to install the hardware of 2I380D.
Please follow section 1-4, 2-1 and 2-2 to check the delivery package and unpack
carefully. Please follow the jumper setting procedure.
You should follow these
steps to protect the board from the static electric
discharge whenever you handle the board:
1. Ground yourself by a grounded wrist strap at all times when you handle the 2I380D.
Well secure the ALLIGATOR clip of the strap to the end of the shielded wire lead from
a grounded object. Please put on and connect the strap before handling the
2I380D for harmlessly discharge any static electricity through the strap.
2. Please use anti-static pad to put any components, parts, or tools on the pad whenever
you work on them outside the computer. You may also use the anti-static bag instead of
the pad. Please ask your local supplier for necessary parts on anti-static requirement.
3. Do not plug any connector or set any jumper when the power is on.
Hardware Installation
2-1 Unpacking Precaution
NOTE!
1. Do not touch the board or any other sensitive components without all necessary
anti-static protection.
2. Please pay attention to the voltage limitation of DC-IN12 V 5 %.
Overuse of DC-IN voltage limitation or change to another power adapter
( not provided with this system ) will VOID warranty.

11
First of all, please follow all necessary steps of section 2-1 to protect 2I380D from
electricity discharge. With reference to section 1-4 please check the delivery package
again with following steps:
1. Unpack the 2I380D board and keep all packing material,
manual and driver disc etc, do not dispose !
2. Is there any components lose or drops from the board?
DO NOT CONTINUE TO INSTALL THIS BOARD!
CONTACT THE DEALER YOU PURCHASED
THIS BOARD FROM, IMMEDIATELY.
3. Is there any visible damage on the board?
DO NOT CONTINUE TO INSTALL THIS BOARD!CONTACT
THE DEALER YOU PURCHASED THIS BOARD FROM, IMMEDIATELY.
4. Check your optional parts (i.e. DDR, CF etc.), all necessary jumpers
setting to jumper pin-set, and CMOS setup correctly.
Please also refer to all information of jumper settings in this manual.
5. Check your external devices (i.e. Add-On-Card, Driver Type etc.)
for complete add-in or connection and CMOS setup correctly.
Please also refer to all information of connector connection in this manual.
6. Please keep all necessary manual and driver disc in a good condition for future
re-installation if you change your Operating System.
2-2 Unpacking checkup

12

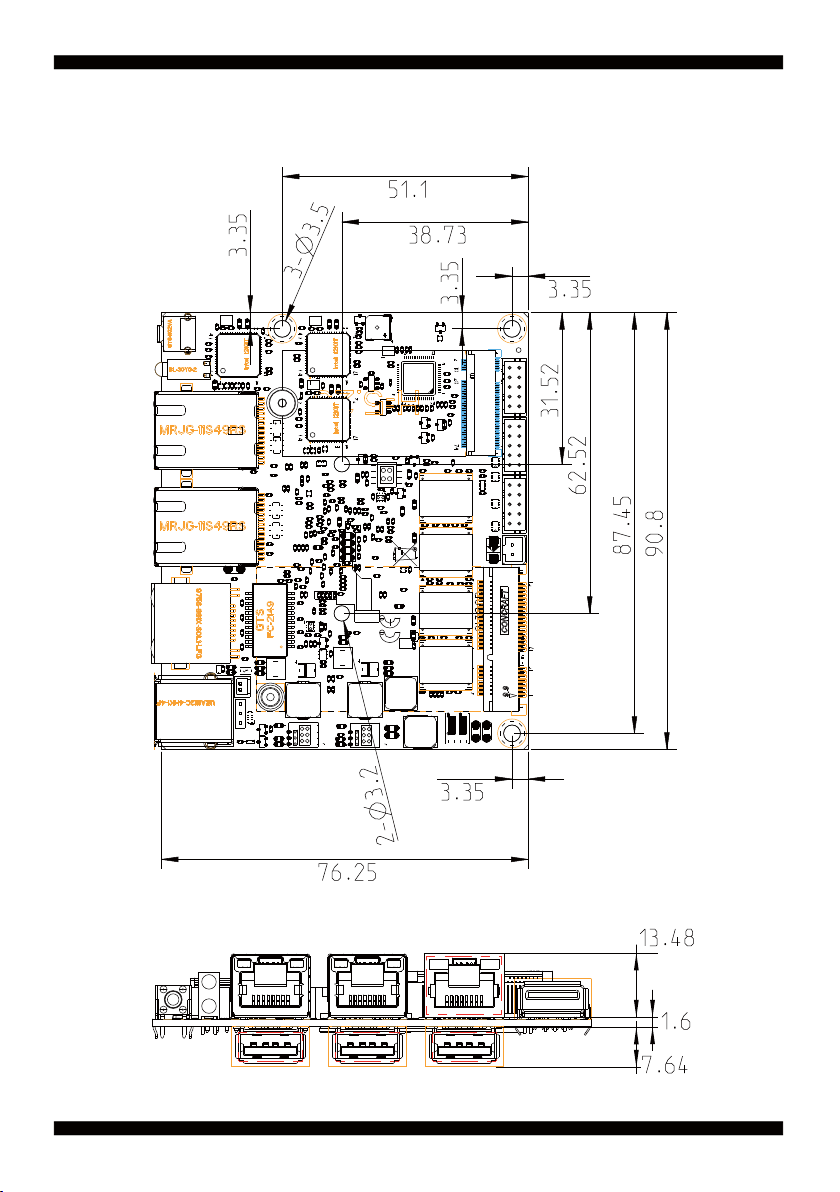

2-3 Dimension-2I380D

13
2-4 Layout-2I380D- Connector MAP
SW1
LED1
NGFF1
CC1
CPI1
MPCE1
CU4 CL3
CL2
CL1
CC2 CG1
JSB1
CBT1
TOP

14
2-4 Layout-2I380D- Connector MAP
BOT
CU1 CU2 CU3

15

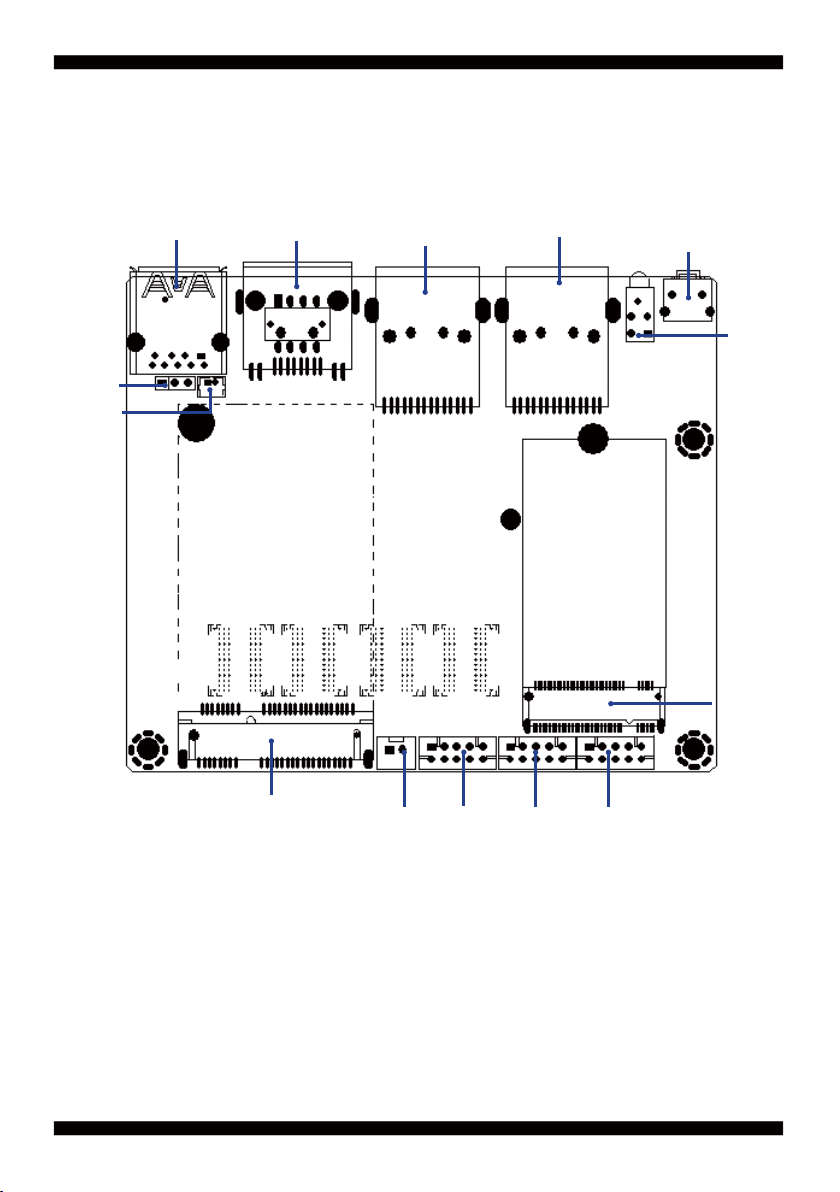

2-4-1 Layout-2I380D-Function MAP
Power Button
COM
DC-IN
Mini PCIe / mSATA / USB
USB3.0 LAN3 RJ45
LAN2 RJ45
LAN1 RJ45
COM VGA
CMOS
Battery
LED1
UP: Power
Down:HDD
NGFF1
M.2 B-Key2242
SATA-based SSD
TOP
JUMPER
+12V / 24V

16
2-4-1 Layout-2I380D-Function MAP
BOT
USB 2.0 USB 2.0 USB 2.0
