Lex Computech 2I385PW User manual

2I385PW
Intel Bay Trail-I E3825/
E3845(Dual Core/Quad Core )CPU, On Board DDR3L,
2 x GbE LAN / USB / VGA / HDMI / COM
All-In-One Pico-Express ® CPU Board
Intel Bay Trail-I E3825/E3845, 1.33/1.91GHz
VGA, HDMI, PCIe mini card, PCIe, 160-pin connector
Multi-LAN Board , USB, Multi-COM, LVDS, Touch
NO. 2I385PW_V0.1
Release date: May. 14. 2016

i
2I385PW
Warning!...........................................................................................................................
Hardware Notice Guide .............................................................................................
CHAPTER 1 GENERAL INFORMATION ........................................................................
1-1 MAJOR FEATURE........................................................................................................
1-2 SPECIFICATION ..........................................................................................................
1-3 DIRECTIONS FOR INSTALLING THE MINI CARD .....................................................
1-4 PACKING LIST .............................................................................................................
CHAPTER 2 HARDWARE INSTALLATION ....................................................................
2-1 UNPACKING PRECAUTION ........................................................................................
2-2 UNPACKING CHECKUP ..............................................................................................
2-3 DIMENSION-2I385PW .................................................................................................
2-4 LAYOUT-2I385PW-CONNECTOR MAP ......................................................................
2-4-1 LAYOUT-2I385PW-CONNECTOR MAP BOTTOM ........................................................
2-4-2 LAYOUT-2I385PW-FUNCTION MAP ........................................................................
2-4-3 LAYOUT-2I385PW-FUNCTION MAP BOTTOM ........................................................
2-5 DIAGRAM-2I385PW ....................................................................................................
2-5-1 BOTTOM SIDE DIAGRAM-2I385PW .......................................................................
2-5-2 LEX PICO EXPRESS® 80-PIN CONNECTOR IO INTERFACE DIAGRAM .............
2-6 QUICK LIST OF JUMPER SETTING ...........................................................................
2-7 LIST OF JUMPERS ......................................................................................................
2-8 JUMPER SETTING DESCRIPTION ............................................................................
2-9 JSB1: COMS DATA CLEAR .........................................................................................
2-10 JVL1: LVDS PANEL POWER SELECT ......................................................................
CHAPTER 3 CONNECTION ..........................................................................................
3-1 LIST OF CONNECTORS..............................................................................................
3-2 COMS BATTERY CONNECTOR .................................................................................
3-3 DC+12V/+5V VOLTGE POWER OUTPUT (4PIN 2.0MM WAFER) .............................
3-4 DIGITAL INPUT/OUTPUT ............................................................................................
3-5 PANEL INVERTER POWER ........................................................................................
3-6 AUDIO PORT ...............................................................................................................
3-7 TOUCH SCREEN .........................................................................................................
3-8 PCI EXPRESS MINI CARD ..........................................................................................
3-9 LVDS CONNECTOR ....................................................................................................
3-10 SATA INTERFACE .....................................................................................................
3-11 SECOND LI 3V BATTERY ..........................................................................................
3-12 CONNEXTOR WAFER OF COMPATIBLE BRAND AND PART NUMBER LIST ........
CHAPTER 4 INTRODUCTION OF BIOS ........................................................................
4-1 ENTER SETUP ............................................................................................................
Contents
1
2
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
23
23
24
25
26
26
27
27
28
29
29
30
31
32
32
33
33
34
34

ii
35
36
37
37
38
39
39
40
41
43
44
45
46
47
47
48
49
49
50
51
52
54
55
57
59
61
63
65
67
68
70
70
72
74
75
76
76
78
84
88
4-2 BIOS MENU SCREEN & FUNCTION KEYS ................................................................
4-3 GETTING HELP ...........................................................................................................
4-4 MENU BARS ................................................................................................................
4-5 MAIN ............................................................................................................................
4-6 ADVANCED ..................................................................................................................
4-6-1 BOOT CONFIGURATION .........................................................................................
4-6-2 PCI EXPRESS CONFIGURATION ...........................................................................
4-6-2-1 PCI EXPRESS ROOT PORT 1/2/3/4 .....................................................................
4-6-3 VIDEO CONFIGURATION ........................................................................................
4-6-4 THERMAL CONFIGURATION ..................................................................................
4-6-5 SATA CONFIGURATION ..........................................................................................
4-6-6 CONSOLE REDIRECTION .......................................................................................
4-6-7 ACPI TABLE/FEATURES CONTROL ........................................................................
4-7 SECURITY ...................................................................................................................
4-8 POWER .......................................................................................................................
4-9 BOOT ...........................................................................................................................
4-9-1 LEGACY ...................................................................................................................
4-9-2 BOOT TYPE ORDER ................................................................................................
4-10 EXIT ...........................................................................................................................
4-11 DEVICE MANAAGER .................................................................................................
4-11-1 SIO FINTEK81801U ................................................................................................
4-11-2 HARDWARE MONITOR ..........................................................................................
4-11-3 SIO FINTEK81216D/DG .........................................................................................
CHAPTER 5 DRIVER INSTALLATION ...........................................................................
5-1 INF INSTALL INTEL BAYTRAIL CHIPSET DRIVER (EXAMPLE FOR WIN8 64BIT) ..............
5-2 VGA INSTALL INTEL BAYTRAIL VGA DRIVER (EXAMPLE FOR WIN8 64BIT) .....................
5-3 SERIAL IO INSTALL DRIVER BAYTRAIL SERIAL IO DRIVER (FOR WINDOWS 7 ONLY)
5-4 XHCI INSTALL INTEL USB 3.0 XHCI DRIVER (FOR WINDOWS 7 ONLY) .........................
5-5 HD AUDIO INSTALL HIGH DEFINITION AUDIO DRIVER ...........................................
5-6 MBI INSTALL INTEL MBI DRIVER (FOR WIN 8/8.1 ONLY) .................................................
5-7 TXE INSTALL INTELTXE DRIVER ..............................................................................
5-7-1 TXE INSTALL FOR WIN8/WIN8.1 ............................................................................
5-7-2 TXE INSTALL FOR WIN7 .........................................................................................
5-8 HOW TO UPDATE INSYDE BIOS ...............................................................................
APPENDIX A:RESOLUTION LIST .....................................................................................
APPENDIX B:F75111N I C DIO DEVICE ............................................................................
1-1 IO DEVICE : F75111 UNDER DOS ..............................................................................
1-2 IO DEVICE : F75111 UNDER WINDOWS ....................................................................
1-3 IO DEVICE : F75111 VB6 UNDER WINDOWS ...........................................................
1-4 IO DEVICE : F75111 UNDER LINUX ...........................................................................
2

Copyright
This manual is copyrighted and all rights are reserved. It does not allow any non
authorization in copied, photocopied, translated or reproduced to any electronic or
machine readable form in whole or in part without prior written consent from the
manufacturer.
In general, the manufacturer will not be liable for any direct, indirect, special, incidental
or consequential damages arising from the use of inability to use the product or
documentation, even if advised of the possibility of such damages.
The manufacturer keeps the rights in the subject to change the contents of this
manual without prior notices in order to improve the function design, performance,
quality, and reliability. The author assumes no responsibility for any errors or omissions,
which may appear in this manual, nor does it make a commitment to update the
information contained herein.
Trademarks
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark ofAward Software, Inc.
All other trademarks, products and or product's name mentioned here are for
identication purposes only, and may be trademarks and/or registered trademarks
of their respective companies or owners.
© Copyright 2016
All Rights Reserved.
User Manual edition 0.1, May. 14. 2016

1
Warning !
1. Battery
Batteries on board are consumables.
The life time of them are not guaranteed.
2. Fless solution with HDD
The specication & limitation of HDD should be considered carefully when
the fanless solution is implemented.
3. We will not give further notication in case of changes of
product information and manual.
4. SATA interface does not support Hot SWAP function.
5. There might be a 20% inaccuracy of WDT at room temperature.
6. Please make sure the voltage specication meets the requirement
of equipment before plugging in.
8. Caution! Please notice that the heat dissipation problem could cause the MB
system unstable. Please deal with heat dissipation properly when
buying single MB set.
9. Please avoid approaching the heat sink area to prevent users from
being scalded with fanless products.
12. It is important to install a system fan toward the CPU to decrease
the possibility of overheating / system hanging up issues,
or customer is suggested to have a ne cooling system to dissipate heat
from CPU.
11. DO NOT apply any other material which may reduce cooling
performance onto the thermal pad.
10. If users repair, modify or destroy any component of product unauthorizedly,
We will not take responsibility or provide warranty anymore.
7. There are two types of SSD, commercial grade and industrial grade, which
provide different read/write speed performance, operation temperature and
life cycle. Please contact sales for further information before making orders.

2
Hardware Notice Guide
1. Before linking power supply with the motherboard, please attach DC-in adapter to
the motherboard rst. Then plug the adapter power to AC outlet.
Always shut down the computer normally before you move the system unit or
remove the power supply from the motherboard. Please unplug the DC-in adapter rst
and then unplug the adapter from the AC outlet.
Please refer photo 1 as standard procedures.
2. In case of using DIRECT DC-in (without adapter), please check the allowed range
for voltage & current of cables. And make sure you have the safety protection for
outer issues such as short/broken circuit, overvoltage, surge, lightning strike.
3. In case of using DC-out to an external device, please make sure its voltage and
current comply with the motherboard specication.
4. The total power consumption is determined by various conditions
(CPU/motherboard type, device, application, etc.). Be cautious to the power cable
you use for the system, one with UL standard will be highly recommended.
5. It’s highly possible to burn out the CPU if you change/ modify any parts of
the CPU cooler.
6. Please wear wrist strap and attach it to a metal part of the system unit
before handling a component. You can also touch an object which is
ground connected or attached with metal surface if you don't have wrist strap.
7. Please be careful to handle & don't touch the sharp-pointed components on
the bottom of PCBA.
8. Remove or change any components form the motherboard will VOID the warranty of
the motherboard.
9. Before you install/remove any components or even make any jumper setting
on the motherboard, please make sure to disconnect the power supply rst.
(follow the aforementioned instruction guide)
10. "POWERON after PWR-Fair” function must be used carefully as below:
When the DC power adaptor runs out of power, unplug it from the DC current;
Once power returns, plug it back after 5 seconds.
If there is a power outage, unplug it from the AC current, once power returns,
plug it back after 30 seconds. Otherwise it will cause system locked or made
a severe damage.
Remark 1:
Always insert/unplug the DC-in horizontally & directly to/from the motherboard.
DO NOT twist, it is designed to t snugly.
Moreover, erratic pull / push action might cause an unpredictable damage to the
component & system unit.

3
2
1
3
1
2
3

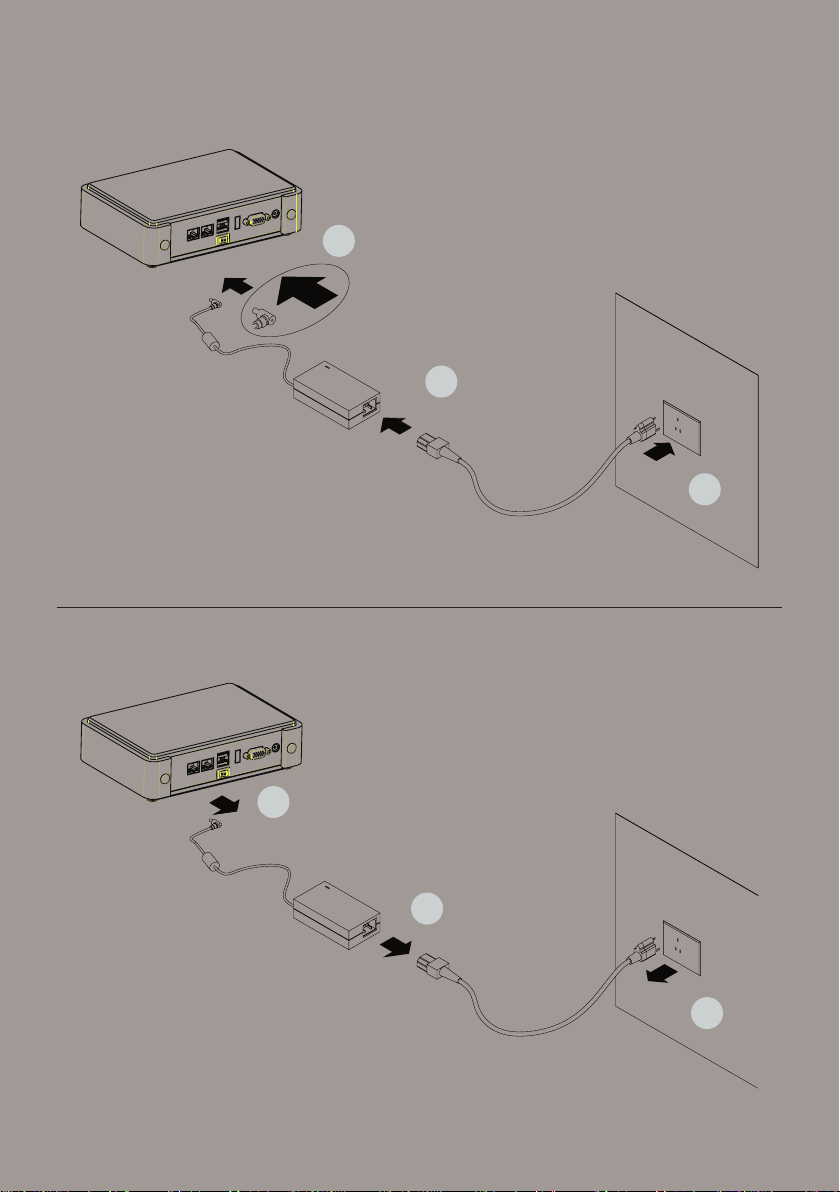

Photo 1 Insert
Unplug

4
Chapter-1
General Information
The 2I385PW is a 2.5 inches form factor with LEX PICO Express® technology (160-pin
expansion connectors) SBC Board. LEX PICO Express® is a board-to-board expansion
capability provides cableless system and project-oriented IO options. 2I385PW’s PICO
Express® design & Evaluation carrier boards is also the ideal solution for embedded
application developers to get up and running quickly on their customized carrier boards for
different OEM/ODM projects.
The 2I385PW SBC board is with Intel BayTrail-I E3825 1.33GHz / E3845 1.91GHz
CPU (Daul / Quad core processor), Intel BayTrail-I E3825/E3845 chipset and BayTrail-I
Integrated Graphics chipset. This integrated platform offers superb performance and PC
specification in the industry. Despite the limited space of 2I385PW, it supports 4 COM
ports, 1 port USB 3.0 and 5 ports of Hi-Speed USB 2.0 to enhance the host controller
interface which will ensure the high performance level and exible expansion.
The 2I385PW supports two LAN ports of 10/100/1G Ethernet for various and seamless
broadband connectivity. With Wake-On LAN function and the PXE function in BIOS, these
are perfect control boards for networking devices. The built-in LAN is Intel I210IT LAN
chipset for PCIe x 1 V2.1 interface, integrated 10/100/1000 transceiver.
The 2I385PW motherboard is built in with onboard DDR3L SDRAM 2GB/4GB, E3825
/ E3845 Memory DDR3 data transfer rate of 1066MT/s / 1333MT/s. The expendable
interfaces include one full size PCIe Mini card for mSATA, PCIe and USB interface, one
full size PCIe Mini card for mSATA interface.
The supported display interfaces include VGA and LVDS touch screen. LVDS and touch
function only for E3845 model. The board has a small footprint of only 102 x 73 mm (2.5
inch) and advanced performance in both computing and graphics.
2I385PW’s PICO Express® design & Evaluation carrier boards is also the ideal solution
for embedded application developers to get up and running quickly on their customized
carrier boards for different OEM/ODM projects.

5
1. Intel Bay-Trail-I E3825 1.33GHz / E3845 1.91GHz SOC (Daul / Quad core)
2. Intel Bay-Trail-I Integrated Graphics chipset, E3825 533 MHz /
E3845 542 MHz render clock frequency
3. On board DDR3L SDRAM 2GB / 4GB Memory,
data transfer rate of 1066MT/s / 1333MT/s
4. Support 2 x 10/100/1000 Mbps Intel LAN ports
5. Support 4 x COM ports 1 x USB3.0 and 5 x USB 2.0
6. Support extended 2 x Mini PCIe card ( 2 x full size)
7. Support one SATA connector with independent DMA operation supported
8. Hardware digital Input & Output, 4 x DI / 4 x DO
Hardware Watch Dog Timer, 0~255 sec programmable
9. On board DC + 9V ~36V
10. PCB Dimension: 102 x 73 mm (2.5 inch)
11. Display interfaces include VGA & LVDS (24/48 bits), LVDS for E3845 model only.
12. COM interface Touch screen controller, support 4-, 5-, 8- wire Analog Resistive
touch screen. Resolution is up to 2048 x 2048, Touch function for E3845 model only.
1-1 Major Feature

6
1. SOC: Intel Bay-Trail-I E3825 1.33GHz / E3845 1.91GHz (Daul / Quad core)
2. Memory: DDR3L SDRAM 2GB / 4GB Memory,
data transfer rate of 1066MT/s / 1333MT/s
3. Graphics: Intel Bay-Trail-I Integrated Graphics chipset, E3825 533 MHz /
E3845 542 MHz render clock frequency
4. Expansion Function
5. SATA: One SATA connector with independent DMA operation supported
6. Sound: ALC886 HD Audio Specication 1.0 Two channel sound chipset
7. Audio Amplier: TPA2011D1 Class-D 2.5W/4Ω or 1.5W/8Ω chipset
8. WDT/DIO: Hardware digital Input & Output, 4 x DI / 4 x DO
Hardware Watch Dog Timer, 0~255 sec programmable
9. Expansion interface: one full size PCIe Mini card for mSATA,
PCIe and USB interface, one Full size PCIe Mini card for mSATA interface
10. BIOS: Insyde UEFI BIOS
11. Dimension: 102 x 73 mm (2.5 inch)
12. Power: On board DC +9V ~ 36V
13. LVDS: 24/48 bits (E3845)
14. Touch function: C8051F321 COM interface Touch screen controller,
support 4-, 5-, 8- wire Analog Resistive touch screen.
Resolution is up to 2048 x 2048 (E3845)
1-2 Specication
PICO Express® 80-pin connector A
COM
USB
PS2
Expansion
LED
Switch
3 x RS232 or RS422 or RS485
4 x USB 2.0, 1 x USB 3.0
KB / MS
1 x PCIe
HDD or LAN or Power LED
Power / Reset
PICO Express® 80-pin connector B
Power
Display
USB
Audio
COM
LAN
Wide Range DC-IN +9~36V
1 x HDMI & 1 x VGA
2 x USB 2.0
Line-out / Mic-in
1 x RS232 or RS422 or RS485
2 x Intel 10 / 100 / 1000 Mbps

7
1. Unscrew the screw on the board
3. Gently push down the Mini Card and screw the screw back.
2. Plug in the Mini Card in a 45 angle
1-3 Directions for installing the Mini Card

8
1-4 Packing List
Material Code Description Detail Specication Quantit
17G1901-1600001-0 MB-2I385PW-I44-001 LF,2I385PW-I44,Rev.:001 1
26G8006-2349-0100 LEX Product Driver DVD LF, Intel Baytrail Driver,Windows 7/8.1 32/64 1
36G8001-2198-0400 Manual LF,M/B,2I385PW 1
*The packing list above is for the users who purchase single motherboard. The users
who purchase the board with chassis may refer to the packing list in the Assembly Guide.
Please contact with your dealer if any of these items is missing or damaged
on delivery. And please keep all parts of the delivery package with packing
materials in case if you need to deliver or store the product in the future.

9
Chapter-2
This chapter provides the information how to install the hardware of 2I385PW.
Please follow section 1-4, 2-1 and 2-2 to check the delivery package and unpack
carefully. Please follow the jumper setting procedure.
You should follow these
steps to protect the board from the static electric
discharge whenever you handle the board:
1. Ground yourself by a grounded wrist strap at all times when you handle the 2I385PW.
Well secure theALLIGATOR clip of the strap to the end of the shielded wire lead from
a grounded object. Please put on and connect the strap before handling the
2I385PW for harmlessly discharge any static electricity through the strap.
2. Please use anti-static pad to put any components, parts, or tools on the pad whenever
you work on them outside the computer. You may also use the anti-static bag instead of
the pad. Please ask your local supplier for necessary parts on anti-static requirement.
3. Do not plug any connector or set any jumper when the power is on.
Hardware Installation
2-1 Unpacking Precaution
NOTE!
1. Do not touch the board or any other sensitive components without all necessary
anti-static protection.
2. Please pay attention to the voltage limitation of DC-IN12 V 5 %.
Overuse of DC-IN voltage limitation or change to another power adapter
( not provided with this system ) will VOID warranty.

10
First of all, please follow all necessary steps of section 2-1 to protect 2I385PW from
electricity discharge. With reference to section 1-4 please check the delivery package
again with following steps:
1. Unpack the 2I385PW board and keep all packing material,
manual and driver disc etc, do not dispose !
2. Is there any components lose or drops from the board?
DO NOT CONTINUE TO INSTALL THIS BOARD!
CONTACT THE DEALER YOU PURCHASED
THIS BOARD FROM, IMMEDIATELY.
3. Is there any visible damage on the board?
DO NOT CONTINUE TO INSTALL THIS BOARD!CONTACT
THE DEALER YOU PURCHASED THIS BOARD FROM, IMMEDIATELY.
4. Check your optional parts (i.e. DDR, CF etc.), all necessary jumpers
setting to jumper pin-set, and CMOS setup correctly.
Please also refer to all information of jumper settings in this manual.
5. Check your external devices (i.e. Add-On-Card, Driver Type etc.)
for complete add-in or connection and CMOS setup correctly.
Please also refer to all information of connector connection in this manual.
6. Please keep all necessary manual and driver disc in a good condition for future
re-installation if you change your Operating System.
2-2 Unpacking checkup

11
2-3 Dimension-2I385PW

12
2-4 Layout-2I385PW-Connector MAP
CPO1
CIO1
CPH2
CALR1
CT1
CBT1
CPH1
JSB1
JVL1
CPP1 MPCE1
LVDS1
MPCE2
BAT1

13

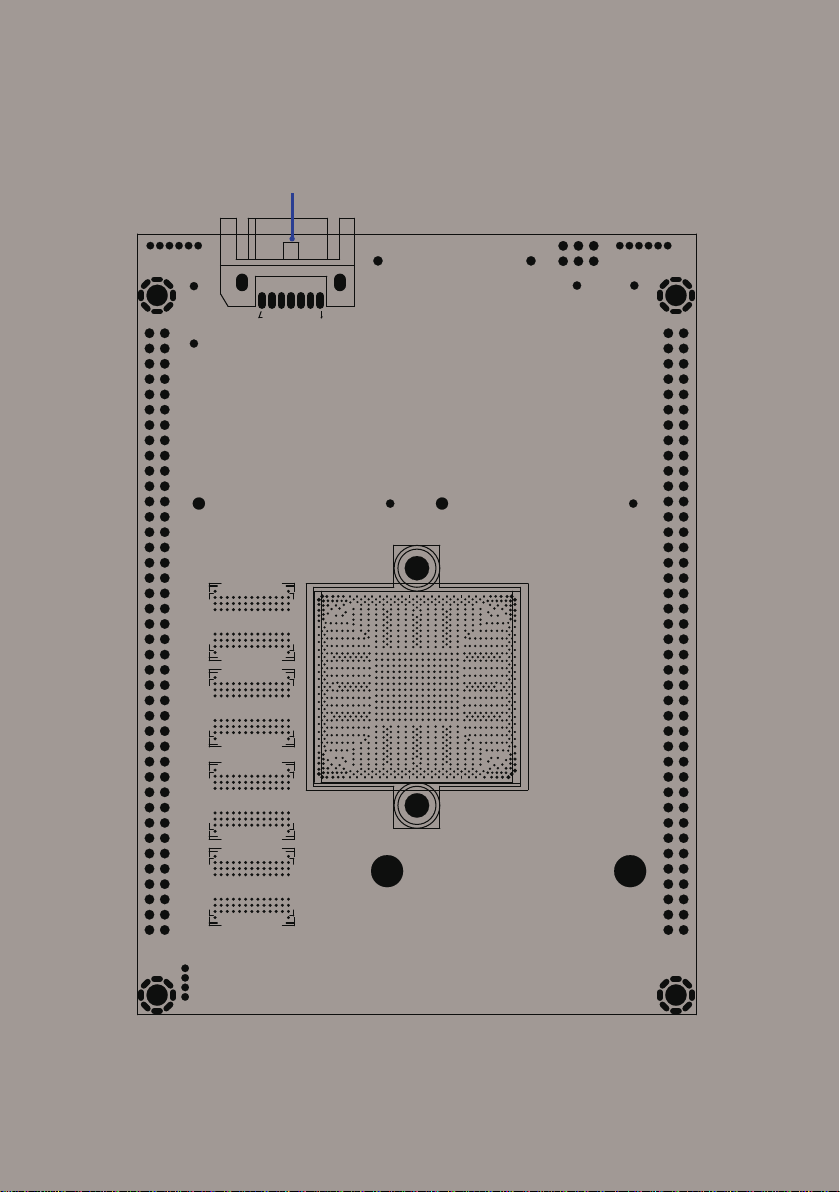

2-4-1 Layout-2I385PW-Connector MAP Bottom
SATA1

14
2-4-2 Layout-2I385PW-Function MAP
+5V/+12V
4DI/4DO
2W AMP
Touch
Pannel
Back light
Power
Clear
COMS
Jumer Pannel
Power
Jumper
mSATA/HDD
auto detect mSATA/PCIe/USB
Front
PIN
Header
Real
PIN
Header
RTC
battery
Seconday
RTC
LVDS

15
2-4-3 Layout-2I385PW-Function MAP Bottom
HDD

16
2-5 Diagram- 2I385PW
CPO1
CIO1
CPH2
CALR1
CT1
CBT1
CPH1
JSB1
JVL1
CPP1 MPCE1
LVDS1
MPCE2
BAT1
