TWO PROCESSORS. TWO UNIQUE APPLICATIONS. ONE RACK SPACE. 32 LEGENDARY LEXICON® EFFECTS. ENDLESS POSSIBILITIES.
Whether you’re looking for raw processing power with instant front-panel access for live performance, or seeking rich, smooth
and complex processing algorithms in the studio, Lexicon® brings the best of both worlds together in the MX200 Dual Reverb/
Eff ects Processor. Designed with both live sound reinforcement and home recording in mind, MX200 features the deep, rich
reverb and eff ects algorithms that built the Lexicon legend, and adds increased versatility with specialty eff ects and dbx® dynam-
ics. Each of the 32 stunning reverbs and eff ects – and their parameters – are all instantly accessible within a single button push
or knob turn on the intelligently designed front panel without wading through bank after bank of tedious menus. Add power-
ful Editor/Librarian and VST® / Audio Units software, and bring 35 years
of Lexicon heritage to your desktop
.
MX200 Dual Reverb/Effects Processor Specification Sheet
MX200
DUAL REVERB/
EFFECTS PROCESSOR
For more information, please contact your local Lexicon Pro dealer or
visit us online at:
www.
lexiconpro.com
SPLIT PERSONALITY
LIVE OPERATION
 ose using the MX200 in the live arena will appreciate
its intuitive front panel layout, with an Active Reverb/
Eff ects Matrix that constantly displays which two of the
32 available eff ects are active, and all functions available
within a single button-push turn of a knob. Dual
independent processor control areas with dedicated
Eff ects Select, Tempo, Bypass and three parameter control
knobs provide instant access with precise and meaningful
control over the most critical parameters for the selected
eff ect. Parameter change LEDs illuminate to indicate any
change from the 99 meticulously crafted Factory or 99
User Programs. Choose from fi ve digitally-recorded audio
samples to Audition the selected eff ects.
STUDIO OPERATION
In the studio, advances in computer-based recording
have led many engineers to value the instant control and
heads-up use of plug-in eff ects – but many still yearn for
the rich, complex sound found in a dedicated hardware
processor. Now, Lexicon provides a USB interface with
intuitive cross-platform VST® and Audio Unit plug-in
windows, allowing the MX200 to function as a “hardware
plug-in” – recognized and functioning within VST and
Audio Units-compatible DAWs as a plug-in eff ect, but still
operating as a dedicated hardware unit.  is unique USB
plug-in feature allows users to easily control the MX200
in their computer-based recordings within the graphical
interface that appears in the recording application like a
plug-in, with full automation and recall features. Now
software-based recording engineers can stay focused on
the heart of their studio
–
the application window of their
recording software. A powerful cross-platform Editor/Li-
brarian software package is included as well. MX-Edit™
lets you create, edit, compare, save and load reverb and
eff ects programs for use with your MX200 on your Mac®
or Windows® XP computer.

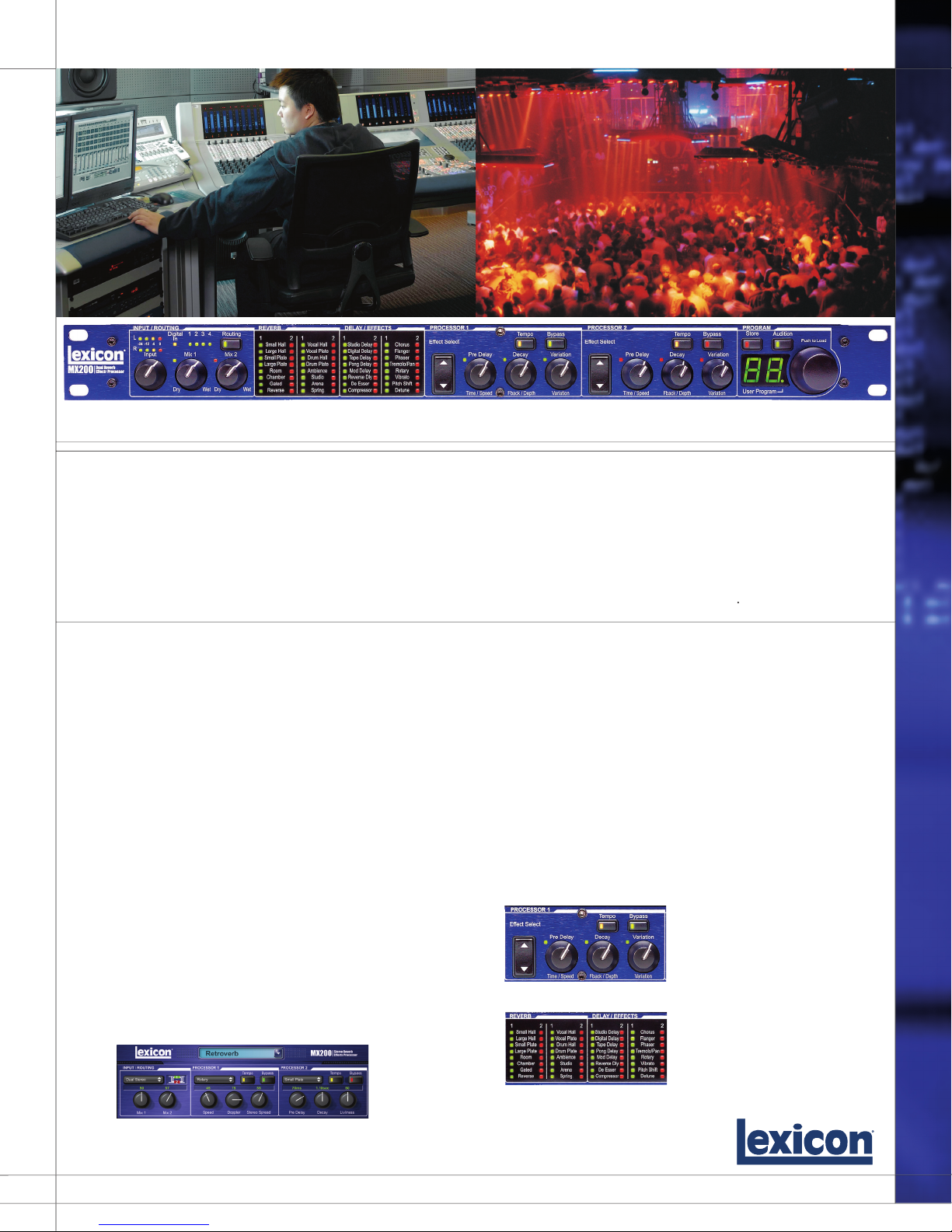

Included VST® and Audio UnitPlug-in Interfaces allow
MX200 to connect to Recording Software via USB as a
Hardware Plug-In.
Dual Independent Controls for each Processor.
Active Reverb/Eff ects Matrix displays
which two eff ects are active at all times.

• 16 legendary Lexicon
®
reverbs
® reverbs ®
• Lexicon delays & modulation effects
• dbx
®
Dynamics
® Dynamics ®
• Dual-Processor design
• 4 Routing Confi gurations:
• 99 Factory/99 User Programs
• USB “Hardware Plug-In” Feature
• VST
®
and Audio Units Plug-In Software
® and Audio Units Plug-In Software ®
•
MX-Edit
™
Editor/Librarian Software
• S/PDIF Digital Input/Output
• 24 bit, 48kHz Sample Rate
LEXICON
| MX200 –
DUAL REVERB/
E
FFECTS PROCES
SOR
MX200
DUAL REVERB
/
EFFECTS
PROCESSOR
SPECIFICATIONS:
Audio Inputs: (2) 1/4” TRS balanced or unbalanced
Audio Inputs: (2) 1/4” TRS balanced or unbalanced
Input Impedance: 20k Ohms balanced, 10k Ohms
Input Impedance: 20k Ohms balanced, 10k Ohms
unbalanced
Input Level: +4dBu Nominal, +20dBu Maximum
Input Level: +4dBu Nominal, +20dBu Maximum
Frequency Response:
20 Hz - 20kHz, ref. 1kHz +/- 1dB
20 Hz - 20kHz, ref. 1kHz +/- 1dB
THD+N: <.007% 20Hz - 20kHz
THD+N: <.007% 20Hz - 20kHz
Audio Outputs: (2) 1⁄4” TRS balanced or unbalanced
Audio Outputs: (2) 1⁄4” TRS balanced or unbalanced
Output Level:
+20dBu Maximum
Dynamic Range: >107dB A-weighted
Dynamic Range: >107dB A-weighted
A/D Converters: 24-bit, 48kHz
A/D Converters: 24-bit, 48kHz
Power: 9V AC (power supply included)
Power: 9V AC (power supply included)
Audio Processor: 24-bit
Audio Processor: 24-bit
Software: WinXP/Mac OSX VST GUI Interface
Software: WinXP/Mac OSX VST GUI Interface
Crosstalk
:
> 80
dB
Siz
e
:
1 RU
Specifi cations subject to change without notice
A Harman International Company
A Harman International Company
A Harman International Company
www.lexiconpro.com
L
exicon Pro
®
– 8760 South Sandy Parkway Sandy, Utah 84070 – (801) 566-
8800
EFFECTS:
FEATURES:
SPLIT PERSONALITY
Either way you choose to use the MX200 – live or in the studio
–
you can choose two legendary Lexicon® reverbs and eff ects at once
in one of four fl exible routing options including: Dual Mono,
Cascade,
Dual Stereo (Parallel), or Mono Split. Featuring
99 carefully
crafted Factory programs, and 99 User programs that allow you to create your own legendary eff ects. Front panel controls include
Input Level, Mix 1 and Mix 2 Wet/Dry controls, Routing button
, independent Tempo, Bypass and 3 control knobs for each Processor,
Program
Select knob
,
Audition
button
(to preview
the selected eff ect)
and Store button.
Reverbs:
Reverbs: Reverbs:
Small Hall
Large Hall
Small Plate
Large Plate
Room
Chamber
Gated
Reverse
Copyright
2005
Delays:
Studio Delay
Digit
al
Delay
Tape Delay
Pong Delay
Mod Delay
Reverse Delay
Vocal Hall
Vocal Plate
Drum Hall
Drum Plate
Ambience
Studio
Arena
Spring
Delays:
Effects:
Chorus
Flanger
Phaser
Tremolo / Pan
Rotary
Vibrato
Pitch Shift
Detune
dbx
®
Dynamics
® Dynamics ®
Compressor
De-Esser
Dynamics
#18-0336
