LG Mega LS090HEV2 Installation and operation manual

SINGLE ZONE MEGA AND MEGA 115V
WALL MOUNTED
ENGINEERING MANUAL
3/4, 1, 1-1/2, and 2 Tons
Mega Models:
LS090HEV2
LS120HEV2
LS180HEV2
LS240HEV2
3/4 and 1 Tons
Mega 115V Models:
LS090HXV LS120HXV

For continual product development, LG Electronics U.S.A., Inc., reserves the right to change specifications without notice.
© LG Electronics U.S.A., Inc.
PROPRIETARY DATA NOTICE
This document, as well as all reports, illustrations, data, information,
and other materials are the property of LG Electronics U.S.A., Inc., and are
disclosed by LG Electronics U.S.A., Inc. only in confidence.
This document is for design purposes only.
A summary list of safety precautions is on page 4.
For more technical materials such as submittals, catalogs, installation,
owner’s, and service manuals, visit www.lghvac.com.

TABLE OF CONTENTS
TABLE OF SYMBOLS
DANGER
This symbol indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
This symbol indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
This symbol indicates situations that may result in equipment or property damage accidents only.
This symbol indicates an action that must not be performed.
UnitNomenclature...........................................................................................................................................................................................................4
LG Air Conditioner Technical Solution (LATS)..........................................................................................................................................................5-6
Mega and Mega 115V Product Data...................................................................................................................................................................7-48
Mechanical Specifications.........................................................................................................................................................................................8
General Data.........................................................................................................................................................................................................9
Electrical Data............................................................................................................................................................................................................12
Functions,Controls,Options.........................................................................................................................................................................................13
OutdoorUnitDimensions.........................................................................................................................................................................................14-17
Indoor Unit Dimensions.........................................................................................................................................................................................18-20
Acoustic Data ........................................................................................................................................................................................................21-26
Refrigerant Flow Diagrams...................................................................................................................................................................................27-28
WiringDiagrams--IndoorUnits...................................................................................................................................................................................29-30
WiringDiagrams--OutdoorUnits..................................................................................................................................................................................31-33
Electrical Connections..........................................................................................................................................................................................27-30
Air Flow, External Pressure, Temp. Distribution.....................................................................................................................................................34-37
Accessories...........................................................................................................................................................................................................47-48
Mega and Mega 115V Performance Data-------------------------------------------------------------------------------------------------------------------------------49-58
Cooling Capacity Data..........................................................................................................................................................................................50-52
Heating Capacity Data..........................................................................................................................................................................................53-54
MaximumHeatingCapacityData..........................................................................................................................................................................................55-56
Equipment Selection Procedure ............................................................................................................................................................................57-58
Mega and Mega 115V Application Guidelines.................................................................................................................................................59-68
Placement Considerations .....................................................................................................................................................................................60-64
Installing Outdoor Unit Indoors .............................................................................................................................................................................65-67
Refrigerant Piping Design .....................................................................................................................................................................................68
INTRODUCTION | 3
Introduction
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

4 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
UNIT NOMENCLATURE
Single Zone Wall Mount Indoor and Outdoor Units
LS N090 HEV 2
Type
N = Indoor Wall Mount Unit
U = Outdoor Heat Pump Unit
Family
LA= Art Cool Premier / Gallery / Mirror
LS= High Efficiency Wall Mount / Standard / Mega
Generation or Revision
1 = First
2 = Second
3 = Third
4 = Fourth
Nominal Capacity
(Nominal cooling capacity in Btu/h)
090 = 9,000
120 = 12,000
180 = 18,000
240 = 24,000
300/307 = 30,000
360 = 36,000
Indoor/Outdoor Product
HEV = Mega
HXV = Mega 115V
HYV = Art Cool Premier
HVP = Art Cool Gallery
HSV = Art Cool Mirror, High Efficiency
HV = Standard
HLV = Extended Pipe

LG AIR CONDITIONER
TECHNICAL SOLUTION (LATS)
Figure 1: Example of LATS CAD2.
LG Air Conditioner Technical Solution (LATS) Software
A properly designed and installed refrigerant piping system is critical to the optimal performance of LG air-conditioning systems. To assist
engineers, LG offers, free of charge, LG Air Conditioner Technical Solution (LATS) software—a total design solution for LG air conditioning
systems. Contact your LG Rep for the best software program for your application.
To reduce the risk of designing an improper applied system or one that will not operate correctly, LG requires that LATS software be used on all
projects.
Formats
LATS is available to LG customers in three user interfaces: LATS HVAC, LATS CAD2, and LATS Revit. All three LATS formats are available
through www.myLGHVAC.com, or contact an LG Sales Representative.
LATS HVAC is a Windows®-based application that aids engineers in designing LG Variable Refrigerant Flow (VRF), Multi F / Multi F MAX,
Single-Zone, and Energy Recovery Ventilator (ERV) systems.
*Windows®is a registered mark of Microsoft®Corporation.
LATS CAD2 combines the LG LATS program with AutoCAD®
software**. It permits engineers to layout and validate LG Multi V
Variable Refrigerant Flow (VRF), Multi F / Multi F MAX, Single-Zone,
and Energy Recovery Ventilator (ERV) systems directly into CAD
drawings.
LATS Revit integrates the LG LATS program with Revit®software**.
It permits engineers to layout and validate Multi V VRF systems
directly into Revit drawings.
**AutoCAD® and Revit® are both registered marks of Autodesk, Inc.
Features
All LG product design criteria have been loaded into the program,
making LATS simple to use: double click or drag and drop the com-
ponent choices. Build systems in Tree Mode where the refrigerant
system can be viewed. Switch to a Schematic diagram to see the electrical and communications wiring.
LATS software permits the user to input region data, indoor and outdoor design temperatures, modify humidity default values, zoning, specify
type and size of outdoor units and indoor units, and input air flow and external static pressure (ESP) for ducted indoor units.
The program can also:
• Import building loads from a separate Excel file.
• Present options for outdoor unit auto selection.
• Automatically calculate component capacity based on design
conditions for the chosen region.
• Verify if the height differences between the various system
components are within system limits.
• Provide the correct size of each refrigerant piping segment and LG
Y-Branches and Headers.
• Adjust overall piping system length when elbows are added.
• Check for component piping limitations and flag if any parameters
are broken.
• Factor operation and capacity for defrost operation.
• Calculate refrigerant charge, noting any additional trim charge.
• Suggest accessories for indoor units and outdoor units.
• Run system simulation.
Features depend on which LATS program is being used, and the type of system being designed.
INTRODUCTION | 5
Introduction
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

LATS Generates a Complete Project Report
LATS software also generates a report containing project design parameters, cooling and heating design data, system component perfor-
mance, and capacity data. The report includes system combination ratio and refrigerant charge calculations; and provides detailed bill of
material, including outdoor units, indoor units, control devices, accessories, refrigerant pipe sizes segregated by building, by system, by pipe
size, and by pipe segments. LATS can generate an Excel GERP report that can imported into the LG SOPS pricing and ordering system.
Proper Design to Install Procedure
LG encourages a two report design-to-install-procedure. After the
design engineer determines building / zone loads and other details,
the engineer opens the LATS program and inputs the project’s infor-
mation. When the design is complete, the “Auto Piping” and “System
Check” functions must be used to verify piping sizes, limitations, and
if any design errors are present. If errors are found, engineers must
adjust the design, and run Auto Piping and System Check again.
When the design passes the checks, then the engineer prints out
a project “Shop Drawing” (LATS Tree Diagram) and provides it to
the installing contractor. The contractor must follow the LATS Tree
Diagram when building the piping system, but oftentimes the design
changes on the building site:
• Architect has changed location and/or purpose of room(s).
• Outdoor unit cannot be placed where originally intended.
• Structural elements prevent routing the piping as planned.
• Air conditioning system conflicts with other building systems (plumbing, gas lines, etc.).
The contractor must mark any deviation from the design on the Shop Drawing, including as-built straight lines and elbows. This “Mark Up”
drawing must be returned to the design engineer or Rep, who must input contractor changes into the LATS file. (Copy the original LATS soft-
ware file, save and rename as a separate file, and modify all piping lengths by double-clicking on each length and editing information.) Like
the shop drawing, the Auto Piping and System Check must also be run on this new “As Built” drawing. The design engineer or Rep must then
provide the final As Built file to the contractor. The Mark Up version must be compared to the As Built version for:
• Differences in pipe diameter(s). If incorrect diameters have been installed, the piping must be changed out. If pipe diameters have changed,
check to see if Y-Branches will also need to be changed.
• Changes to outdoor unit and indoor unit capacities. Capacities changes will impact line length changes.
• Additional refrigerant charge quantity (“Trim Charge”). Trim charge will change if piping lengths and diameters change. The As Built version
must reflect installed piping lengths to ensure correct trim charge.
All documents submitted by the contractor, as well as the Shop Drawing and the As Built Drawing files must be provided for commissioning
purposes. Model and serial numbers for all system components must also be submitted. If the steps previously detailed are not followed, and
all documents are not provided to the commissioning agent, the project runs the risk of not being commissioned and voiding any limited war-
ranty LG offers on the equipment.
Figure 2: Example of a LATS Tree Diagram.
LG AIR CONDITIONER
TECHNICAL SOLUTION (LATS)
Contact your LG representative for the best software program for your application.
6 | INTRODUCTION
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS

PRODUCT DATA
Mechanical Specifications on page 8
General Data on page 9
Electrical Data on page 12
Functions, Controls, Options on page 13
Outdoor Unit Dimensions on page 14
Indoor Unit Dimensions on page 18
Acoustic Data on page 21
Refrigerant Flow Diagrams on page 27
Wiring Diagrams—Indoor Units on page 29
Wiring Diagrams—Outdoor Units on page 31
Electrical Connections on page 34
Air Flow, Static Pressure, and Temperature Distribution
on page 38
Accessories on page 47

8 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
Single Zone Mega and Mega 115V
MECHANICAL SPECIFICATIONS
General
LG Single Zone Mega Wall Mounted systems
comprise of a single outdoor unit connected
to a single indoor unit with a single refriger-
ant circuit.
An LG Single Zone Mega Wall Mounted
system is a Duct-Free Split system that can
operate in either cooling or heating mode.
The system shall be capable of changing
mode within a maximum time of three (3)
minutes to ensure indoor temperature can be
properly maintained.
LG Single Zone Mega systems are manu-
factured in a facility registered to ISO 9001
and ISO 14001, which is a set of standards
applying to environmental protection set by
the International Organization for Standard-
ization (ISO). Wiring in these units are in
accordance with the National Electrical Code
(NEC).
Temperature Ranges
Mega (HEV2)
Operating ranges for outdoor unit of 14°F to
118°F (DB) for cooling; 14°F to 65°F (WB)
for heating.
Operating ranges for indoor unit of 53°F to
75°F (WB) for cooling; 60°F to 86°F (DB) for
heating.
Mega 115V (HXV)
Operating ranges for outdoor unit of 14°F to
118°F (DB) for cooling; 14°F to 65°F (WB)
for heating.
Operating ranges for indoor unit of 53°F to
75°F (WB) for cooling; 60°F to 86°F (DB) for
heating.
Casing / Frame
Outdoor unit is constructed with pre-coated
metal (PCM).
Indoor unit is constructed of heavy duty
Acrylonitrile Butadiene Styrene (ABS) and
High Impact Polystyrene (HIPS) plastic.
Refrigerant System
The refrigeration system consists of a single
refrigeration circuit and uses R410A refriger-
ant. The outdoor unit is provided with factory
installed components, including a refrigerant
strainer, check valves, oil separator, accu-
mulator, four-way reversing valve, EEV, high
and low side charging ports, service valves,
and interconnecting piping.
Refrigeration Oil Control
Heat Pump outdoor units have a centrifugal
oil separator and controls to ensure suf-
ficient oil supply is maintained, and that oil
does not travel with the refrigerant.
Compressors
The outdoor unit is equipped with one
hermetic, digitally controlled, inverter driven,
twin-rotary compressor to modulate capacity
(modulation in 1 Hz increments).
Frequency ranges for the (HEV2) outdoor
units are:
9k Btu/h = 10 to 92 Hz
12k Btu/h = 10 to 98 Hz
18 Btu/h = 10 to 87 Hz
24k Btu/h = 10 to 95 Hz
Frequency ranges for the (HXV) outdoor
units are:
9k Btu/h = 15 to 100 Hz
12k Btu/h = 15 to 100 Hz
Over-current protection and vibration isola-
tion are integrated with the compressor.
Outdoor Unit Coil
Heat Pump outdoor unit coils are of a
nonferrous construction with louvered fins
on copper tubing, and are protected with an
integral coil guard. Coil fins have a factory
applied corrosion resistant GoldFin™ mate-
rial with hydrophilic coating.
Fans and Motors
The outdoor unit includes one direct drive,
variable speed propeller type fan.
The Brushless Digitally Controlled (BLDC)
fan motor has inherent protection, perma-
nently lubricated bearings, and variable
speed with a maximum speed up to 950 rpm.
Raised guards are provided to limit contact
with moving parts.
The outdoor unit has horizontal discharge
airflow.
Electrical
The HEV2 model unit is available in a 208-
230V 60 Hz, 1-phase power supply. The
HXV model unit is available in a 115V 60
Hz, 1-phase power supply. The units are
capable of operating within voltage limits of
±10% rated voltage, and include overcurrent
protection.
Controls
The unit is factory wired with necessary elec-
trical control components, integral micropro-
cessors, printed circuit boards, thermistors,
sensors, terminal blocks, and lugs for power
wiring.
Microprocessor-based algorithms provide
component protection, soft-start capability,
refrigeration system pressure, temperature,
defrost, and ambient control.

PRODUCT DATA | 9
Product Data
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
GENERAL DATA
Mega Pairing Table
Outdoor Unit Model Indoor Unit Model Controller
Mega Inverter
LSU090HEV2
LSU120HEV2
LSN090HEV2
LSN120HEV2
AKB74955602
LSU180HEV2
LSU240HEV2
LSN180HEV2
LSN240HEV2
AKB74955602
Mega 115V
LSU090HXV
LSU120HXV
LSN090HXV
LSN120HXV
AKB73456121
Table 1: Single Zone Mega and Mega 115V Pairing Table
The following table shows the available outdoor and indoor unit, along with the factory provided controller.

10 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
Table 2: 6LQJOH=RQH0HJD6\VWHP6SHFL¿FDWLRQV
GENERAL DATA
0HJD6SHFL¿FDWLRQV
System Model Number (IDU/ODU) LS090HEV2
(LSN090HEV2/
LSU090HEV2)
LS120HEV2
(LSN120HEV2/
LSU120HEV2)
LS180HEV2
(LSN180HEV2/
LSU180HEV2)
LS240HEV2
(LSN240HEV2/
LSU240HEV2)
Cooling Capacity (Min/Rated/Max) (Btu/h) 3,070 ~ 9,000 ~10,330 3,070 ~ 12,000 ~ 13,780 3,685 ~ 18,000 ~ 18,493 3,685 ~ 22,000 ~ 24,000
Cooling Power Input1(kW) 0.72 1.142 1.5 2.0
Heating Capacity (Min/Rated/Max) (Btu/h) 3,070 ~ 10,900 ~ 12,520 3,070 ~ 12,000 ~ 13,780 3,685 ~ 19,000 ~ 22,997 3,685 ~ 22,000 ~25,260
Heating Power Input1(kW) 0.875 1.000 1.583 1.93
COP 12.46 12.00 12.00 11.40
Max. Heating Capacity (Btu/h)
Outdoor 17°F (WB)/Indoor 70°F (DB) 8,760 (80%) 9,640 (80%) 15,270 (80%) 17,680 (80%)
EER 12.5 10.51 12.00 11.00
SEER 20.0 19.0 19.0 19.0
HSPF 10.0 9.5 10.0 9.5
Power Supply (V/Hz/Ø) 208-230/60/1
Outdoor Unit Operating Range
Cooling (°F DB) 14 to 118
Heating (°F WB) 14 to 65
Indoor Unit Operating Range
Cooling (°F WB) 53 to 75
Heating (°F DB) 60 to 86
Indoor Temperature Setting Range
Cooling (°F) 64 to 86
Heating (°F) 60 to 86
Unit Data
Refrigerant Type2R410A
Refrigerant Control EEV
IDU Sound Pressure3dB(A) (H/M/L/Sleep) 42 / 36 / 28 / 21 42 / 36 / 28 / 21 48 / 43 / 38 / 32 48 / 43 / 38 / 32
ODU Sound Pressure3dB(A) 50 50 55 55
Unit Weight (lbs)
IDU (Net / Shipping) 19.2 / 25.4 19.2 / 25.4 26 / 30 26 / 30
ODU (Net / Shipping) 55.3 / 60 55.3 / 60 98.1 / 108 98.1 / 108
Power/Communication Cable4 (No. x AWG) 4 x 18
Compressor
Compressor Type (Qty) Twin Rotary (1)
Fan
Indoor Unit Type (Qty) Cross Flow (1)
Outdoor Unit Type (Qty) Propeller (1)
Motor/Drive Brushless Digital Controlled/Direct
Airflow Rate
Indoor Unit Max/H/M/L (CFM) 459 / 353 / 264 / 148 459 / 353 / 264 / 148 689 / 512 / 459 / 371 689 / 512 / 459 / 371
Outdoor Unit (Max. [CFM]) 953 953 1,730 1,730
Piping
Liquid Line (in, OD) 1/4 1/4 1/4 1/4
Vapor Line (in, OD) 3/8 3/8 1/2 1/2
Condensation Line (OD, ID) 27/32, 5/8 27/32, 5/8 27/32, 5/8 27/32, 5/8
Additional Refrigerant Charge (oz/ft) 0.22 0.22 0.26 0.26
Pipe Length5(Minimum/Maximum)(ft) 9.8 / 49.2 9.8 / 49.2 9.8 / 65.6 9.8 / 65.6
Piping Length5(no add’l refrigerant, ft) 24.6 24.6 24.6 24.6
Max Elevation Difference (ft) 23 23 32.8 32.8
EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit
This unit comes with a dry helium charge.
This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level
difference outdoor and indoor units.
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet
bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
1Power Input is rated at high speed.
2Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A
refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.
3Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.
4All communication / connection (power) cable from the outdoor unit to the indoor unit is field supplied
and must be a minimum of four-conductor, 18 AWG, stranded, shielded or unshielded (if shielded, it
must be grounded to the chassis of the outdoor unit only), and must comply with applicable local and
national codes. For detailed electrical information, please refer to electric characteristics on page 18.
5Piping lengths are equivalent.

PRODUCT DATA | 11
Product Data
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
GENERAL DATA
0HJD96SHFL¿FDWLRQV
Table 3: 6LQJOH=RQH0HJD96\VWHP6SHFL¿FDWLRQV
System Model Number (IDU/ODU) LS090HXV (LSN090HXV/LSU090HXV) LS120HXV (LSN120HXV/LSU120HXV)
Cooling Capacity (Min/Rated/Max) (Btu/h) 1,023 ~ 8,500 ~ 13,785 1,023 ~ 12,000 ~ 13,785
Cooling Power Input1(kW) 0.71 1.14
Heating Capacity (Min/Rated/Max) (Btu/h) 1,023 ~ 10,900 ~ 22,178 1,023 ~ 13,000 ~ 22,178
Heating Power Input1(kW) 0.88 1.09
COP 3.63 3.50
EER 12.01 10.5
SEER 17.0 17.0
HSPF 9.0 9.0
Power Supply (V/Hz/Ø) 115/60/1
Outdoor Unit Operating Range
Cooling (°F DB) 14 to 118
Heating (°F WB) 14 to 65
Indoor Unit Operating Range
Cooling (°F WB) 53 to 75
Heating (°F DB) 60 to 86
Indoor Temperature Setting Range
Cooling (°F) 65 to 86
Heating (°F) 60 to 86
Unit Data
Refrigerant Type2R410A
Refrigerant Control EEV
IDU Sound Pressure3dB(A) (H/M/L/Sleep) 39/33/23/19 39/33/23/19
ODU Sound Pressure3dB(A) 47 47
Unit Weight (lbs)
IDU (Net/Shipping) 23/26 23/26
ODU (Net/Shipping) 67/79 67/79
Power/Communication Cable4 (No. x AWG) 4 x 18
Compressor
Compressor Type (Qty) Single Rotary (1) Single Rotary (1)
Fan
IDU Type (Qty) Cross Flow (1)
ODU Type (Qty) Propeller (1)
Motor/Drive Brushless Digitally Controlled/Direct
Airflow Rate
IDU Max/H/M/L (CFM) 335/272/212/124 335/272/212/124
ODU Max (CFM) 1,000 1,000
Piping
Liquid Line (in, OD) 1/4 1/4
Vapor Line (in, OD) 3/8 3/8
Condensation Line (OD, ID) 27/32, 5/8 27/32, 5/8
Additional Refrigerant Charge (oz/ft) 0.22 0.22
Pipe Length5(Minimum/Maximum)(ft) 6.6 / 49.2 6.6 / 49.2
Piping Length5(no add’l refrigerant, ft) 24.6 24.6
Max Elevation Difference (ft) 23 23
EEV: Electronic Expansion Valve IDU: Indoor Unit ODU: Outdoor Unit
This unit comes with a dry helium charge.
This data is rated 0 ft above sea level with 24.6 of refrigerant line per indoor unit and a 0 ft level
difference outdoor and indoor units.
Cooling capacity rating obtained with air entering the indoor unit at 80ºF dry bulb (DB) and 67ºF wet
bulb (WB) and outdoor ambient conditions of 95ºF dry bulb (DB) and 75ºF wet bulb (WB).
Heating capacity rating obtained with air entering the indoor unit at 70ºF dry bulb (DB) and 59ºF wet
bulb (WB) and outdoor ambient conditions of 47ºF dry bulb (DB) and 43ºF wet bulb (WB).
1Power Input is rated at high speed.
2Take appropriate actions at the end of HVAC equipment life to recover, recycle, reclaim or destroy R410A
refrigerant according to applicable regulations (40 CFR Part 82, Subpart F) under section 608 of CAA.
3Sound Pressure levels are tested in an anechoic chamber under ISO Standard 3745.
4All communication / connection (power) cable from the outdoor unit to the indoor unit is field supplied
and must be a minimum of four-conductor, 18 AWG, stranded, shielded or unshielded (if shielded, it
must be grounded to the chassis of the outdoor unit only), and must comply with applicable local and
national codes. For detailed electrical information, please refer to electric characteristics on page 18.
5Piping lengths are equivalent.

12 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
Nominal
Tons
Unit Model
No. Hertz Voltage Voltage Range
(Min. to Max.) MCA MOP Compressor
Quantity
Compressor Motor
RLA Outdoor Fan Motor Indoor Fan Motor
Cooling Heating W FLA W FLA
3/4 LS090HEV2
60 208 - 230 187-253
10.0 15 1 7.0 7.0 43 0.4 30 0.4
1 LS120HEV2 10.0 15 1 7.0 7.0 43 0.4 30 0.4
1-1/2 LS180HEV2 15.0 20 1 10.0 10.0 85 0.4 58 0.4
2 LS240HEV2 15.0 20 1 10.0 10.0 85 0.4 58 0.4
0HJDDQG0HJD92XWGRRU8QLWV
ELECTRICAL DATA
Table 4: 208-230V, 60Hz, 1-Phase Single-Zone Mega System Electrical Data Table.
Table 5: 115V, 60Hz, 1-Phase Single Zone Single-Zone Mega 115V System Electrical Data Table.
Nominal
Tons
Unit Model
No. Hertz Voltage Voltage Range
(Min. to Max.) MCA MOP Compressor
Quantity
Compressor Motor
RLA Outdoor Fan Motor Indoor Fan Motor
Cooling Heating W FLA W FLA
3/4 LS090HXV
60 115 104-127
13.5 20 1 10.0 10.0 43 0.4 30 0.5
1 LS120HXV 13.5 20 1 10.0 10.0 43 0.4 30 0.5
Electrical Data
Voltage tolerance is ±10%.
Maximum allowable voltage unbalance is 2%.
MCA = Minimum Circuit Ampacity.
Maximum Overcurrent Protection (MOP) is calculated as follows: (Largest motor FLA x 2.25) + (Sum of
other motor FLA) rounded down to the nearest standard fuse size.
RLA = Rated Load Amps.
FLA = Full Load Amps.
Voltage tolerance is ±10%.
Maximum allowable voltage unbalance is 2%.
MCA = Minimum Circuit Ampacity.
Maximum Overcurrent Protection (MOP) is calculated as follows: (Largest motor FLA x 2.25) + (Sum of
other motor FLA) rounded down to the nearest standard fuse size.
RLA = Rated Load Amps.
FLA = Full Load Amps.

PRODUCT DATA | 13
Product Data
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
FUNCTIONS, CONTROLS, OPTIONS
Table 6: Indoor Units—Functions, Controls and Options.
Indoor Unit Type LS090-120-180-240HEV2 LS090-120HXV
$LUÀRZ
Air Supply Outlet 11
Airflow Direction Control (Left / Right) Manual Auto
Airflow Direction Control (Up / Down) Auto Auto
Auto Swing (Left / Right) X¥
Auto Swing (Up / Down) ¥¥
Fan Speed Airflow Steps (Fan / Cool / Heat) 6 / 6 / 6 6 / 6 / 6
Natural Wind (Auto Wind) ¥¥
Jet Cool / Jet Heat (Power Wind) ¥¥ ¥¥
Comfort Air ¥X
Air Purifying
Prefilter (Washable Anti-Bacterial / Anti-Fungal1)¥¥
Deodorizing Filter XX
Functions
Drain Pump XX
Hot Start ¥¥
Self Diagnostics ¥¥
Defrost ¥¥
Dry (Dehumidification) ¥¥
Auto Changeover ¥¥
Auto Cleaning (Coil Dry) ¥¥
Auto Restart ¥ ¥
Child Lock XX
Forced Operation ¥¥
Sleep Mode ¥KRXU ¥
Timer 24 hour (On / Off) / 7 hour (Off) ¥; ¥
Timer (Weekly) XX
Two Thermistor Control XX
Low Ambient ¥ ¥
Overheat Protection ¥¥
Smart Diagnosis ¥X
Indoor Unit Display Type Number Display 3 LED
Indoor Unit Display Light On / Off On / Off
Energy Saving ¥¥
Electric heater XX
Controllers
Wireless Remote Controller AKB74955602 AKB73456121
Simple Controller Xo
Programmable Controller Xo
Premium Programmable Controller Xo
Dry contact Xo
Central control (LGAP) XX
PI 485 XX
Special Function Kit
Zone control XX
CTIE XX
Electro thermostat XX
Wi-Fi Module (Option) XX
Water level sensor connection (for optional AG-9300-LG) oo
Wind baffle kit XX
Other
Mode Lock Cooling Only or Heating Only X
Temperature Control Thermistor X
Smart Inverter Monitoring System (SIMS) ¥¥
1Primary washable filters. ¥ 6WDQGDUGIHDWXUH
o = Optional accessory (must be purchased separately)
X = Not available

14 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
OUTDOOR UNIT DIMENSIONS
LSU090HEV2, LSU120HEV2
Unit: Inch (mm)
9-27/32 (250)
10-5/8 (270)
Drain Hole 2-Ø13/16 (20)
3-1/2 (89)
18-7/32 (463)
5/8 (16)
2-9/16 (65)
28-7/32 (717)
10-1/2 (267)3/16 (5)
19-1/2 (495)
9/16 (14)
9-1/4 (235)
2-7/32 (56)
Ø16-1/4 (413)
9-1/16 (230)
2-13/16 (71)
14-5/8 (371)
5-3/32 (129)
2-15/16 (74)
5 (127)
1-1/4 (31)
21° 21°
Liquid Pipe
Connection
(Flare)
Vapor Pipe
Connection
(Flare)
Service Valve Cover
Power
and
Communication
Cable
Access
Hole
Air Outlet
Control
Box

PRODUCT DATA | 15
Product Data
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
LSU180HEV2, LSU240HEV2
OUTDOOR UNIT DIMENSIONS
Unit: Inch (mm)
5-5/8 (143) 23-1/16 (586)
14-13/32 (366)
15-3/16 (386)
1-1/32 (26)
12-5/16 (313)
12-11/16 (322)
34-1/4 (870)
20-9/32 (515)
3-1/16 (78)
1-1/4 (32)
13 (330)
6-17/32 (166)
4-19/32 (117)
6-25/32 (172)
7-9/16 (192)
3/4 (19)
2-1/16 (52)
25-19/32 (650)
7/8 (22)
25°25° 25°25°
Liquid Pipe
Connection
(Flare)
Vapor Pipe
Connection
(Flare)
Service Valve
Cover Power and
Communication
Cable Access
Hole
Control Box
Air Outlet
Drain Hole 2-
Ø13/16 (20)

16 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
OUTDOOR UNIT CORNER WEIGHT AND CENTER OF
GRAVITY DIMENSIONS
Figure 3: LSU090-120-180-240HEV2 Outdoor Unit Corner Weight and Center of Gravity Dimensions.
e
a
b
c
A d
BC
D
Model No. Weight (lb.) Center of Gravity (Inch) Leg (Inch) Corner Weight (lb.)
Shipping Net a b c d e A B C D
LSU090HEV2, LSU120HEV2 60.0 55.3 18-11/16 8-5/8 4-7/16 18-7/32 10-3/32 3.5 5.7 23.1 23.0
LSU180HEV2, LSU240HEV2 108.0 98.1 22-1/4 10-1/4 5-29/32 23-1/16 14-13/32 11.4 16.0 37.3 33.4
Table 7: LSU090-120-180-240HEV2 Outdoor Unit Corner Weight and Center of Gravity Dimensions.

PRODUCT DATA | 17
Product Data
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
OUTDOOR UNIT DIMENSIONS
LSU090HXV, LSU120HXV
5
4
2
3
28-1/4
Ø17-3/8
10-9/16
9-5/16
19-1/2
2-3/16
2-1/4
7/16
1
Unit: Inch
.
18-1/4
28-1/4
2-1/4
10 -1/16
9-1/16
10-11/16
Discharge Air Grille
Gas Pipe Connection Port
Liquid Pipe Connection Port
Control Box
Ground Terminal

18 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
INDOOR UNIT DIMENSIONS
LSN090HEV2, LSN120HEV2
Unit : Inch (mm)
[30-3/16 (767)]
32-15/16 (837)
3-5/8 (92)
2-3/8 (60)
2-5/16
(59)
12-1/8 (308)
7-7/16 (189)
32-15/16 (837)
1-1/2 (38)
Approx. 11-11/32 (288) to gas pipe
Approx. 8-19/32 (218) to liquid pipe
1-27/32(47)
5-3/16 (132)
In Case of Left Side Piping
Unit Outline
Connecting Gas/Liquid Pipe
12-1/8 (308)
Decoration Cover
Display
and
Remote
Controller
Signal
Receiver
Terminal Block
for Power
Supply and
Communication
Drain Hose Connection
2-7/32(56)
11/32 (9)
Installation Plate
Knock-Out
Refrigerant,
Drain Pipe
and Cable
Routing Hole
5/16 (8)
2 (51)
Air Intake
Air Outlet
Bottom
28-5/32 (715)
Air Outlet Hole
* If airflow direction control is available,
Cooling Heating
Up & Down Left & Right
Air Outlet Hole
Air Intake Hole
[5-29/32 (150)]
Air Intake Hole
Rear Rear
Right
Left
55°
15° 15°
85°
45°
55°
32-15/16 (837)
2-15/32
(63)
12-1/16 (306)
3-21/32 (93)
10-11/32 (263)
5-31/32 (152)
3-27/32 (98)
5-9/32 (134)
12-1/8 (308)
3-11/16 (94)
7-5/8 (194)
Unit Outline
Fixing the Installation Plate, Drilling Hole
29/32 (23)
Ø2-9/16 (65)
1-3/32 (50.2) 1-1/16 (26.2)
2-7/16 (61.5)
1-7/16(33.5)
1/4(6) x 1/8(3)
1/8(3) x 1/4(6)
5/8(15.3) 1-9/32(32.7)
2-13/32(61)
5-31/32 (152)
1-1/4 (31)
2-7/32 (56)
2 (51)
2-7/32 (56)
5-19/32 (142)
Ø2-9/16 (65)
7-27/32 (199)
29/32 (23)
2-15/32 (63)
2-17/32 (64)
Knock-Out
Refrigerant,
Drain Pipe
and Cable
Routing Hole
Knock-Out
Refrigerant,
Drain Pipe
and Cable
Routing Hole

PRODUCT DATA | 19
Product Data
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
INDOOR UNIT DIMENSIONS
LSN180HEV2, LSN240HEV2
Unit : Inch (mm)
[36-5/32 (918)]
Air Intake Hole
[6-11/16 (170)]
Air Intake Hole
ir Outlet Ho
[2-29/32 (74)]
Ale
Rear
39-9/32 (998)
2-1/4 (57)
2-7/32 (56)
3-17/32 (90)
Bottom Air
Outlet
34-11/32 (872)
Air Outlet Hole
13-19/32 (345)
2-3/8 (60)
7/16(11)
Air Intake
8-9/32 (210)
13-19/32 (345)
39-9/32 (998)
6-15/32 (164)
1-15/32 (37)
2-15/32 (63)
In case of Left Side Piping
Unit Outline
Approx. 9-7/16 (240) to gas pipe
Approx. 6-5/16 (160) to liquid pipe
Connecting Gas/Liquid Pipe
2-3/8 (60)
2-3/8 (60)
Rear
Left Right
Decoration Cover Drain Hose Connection
Installation Plate
If airflow direction control is available,*
Cooling Heating
Up & Down Left & Right
50°
15°
20°
85°
45°
50°
39-9/32 (998)
2-23/32 (69)
14-11/16 (373)
5-13/32 (137)
2-3/32 (53)
13-19/32 (345)
Ø2-9/16 (65)
3-9/32 (83)
Unit Outline
Fixing the Installation Plate, Drilling Hole
1-1/16 (27)
5-29/32 (150)
4-17/32 (115)
Ø2-9/16 (65)
3-9/32 (83)
5-9/32 (134)
1-1/16 (27)
2-3/32 (53)
11-13/16 (300)
7/16 (11)
1-3/32 (50.2) 1-1/16 (26.2)
2-7/16 (61.5)
1-7/16(33.5)
1/4(6) x 1/8(3)
1/8(3) x 1/4(6)
5/8(15.3) 1-9/32(32.7)
2-13/32(61)
5-31/32 (152)
1-1/4 (31)
2-3/8 (60)
5-29/32 (150)
7-13/32 (188)
Display
and
Remote
Controller
Signal
Receiver
Terminal Block
for Power
Supply and
Communication
Knock-Out
Refrigerant,
Drain Pipe
and Cable
Routing Hole
Knock-Out
Refrigerant,
Drain Pipe
and Cable
Routing Hole
Knock-Out
Refrigerant,
Drain Pipe
and Cable
Routing Hole

20 | PRODUCT DATA
Single Zone Mega Wall Mounted Engineering Manual
'XHWRRXUSROLF\RIFRQWLQXRXVSURGXFWLQQRYDWLRQVRPHVSHFL¿FDWLRQVPD\FKDQJHZLWKRXWQRWL¿FDWLRQ
© /*(OHFWURQLFV86$,QF(QJOHZRRG&OLIIV1-$OOULJKWVUHVHUYHG³/*´LVDUHJLVWHUHGWUDGHPDUNRI/*&RUS
INDOOR UNIT DIMENSIONS
LSN090HXV, LSN120HXV
34-7/8 8-5/16
11 -1/4
3
2
4
1
Ø
2-13/16
5-1/4
3-3/4
Right rear
piping
Left rear
piping
Installation Plate
Place a level on raised tab
Unit Outline
8-9/16
6-15/16
17-7/16 17-7/16
5
Ø
2-13/16
4
2-5/16
6-5/16
15/16
Unit: Inch
Return Air
G
rill
e
for piping and cable
This manual suits for next models
13
Table of contents
Other LG Air Conditioner manuals

LG
LG ARUN BTE4 Series User manual

LG
LG V-NET PLNWKB000 User manual

LG

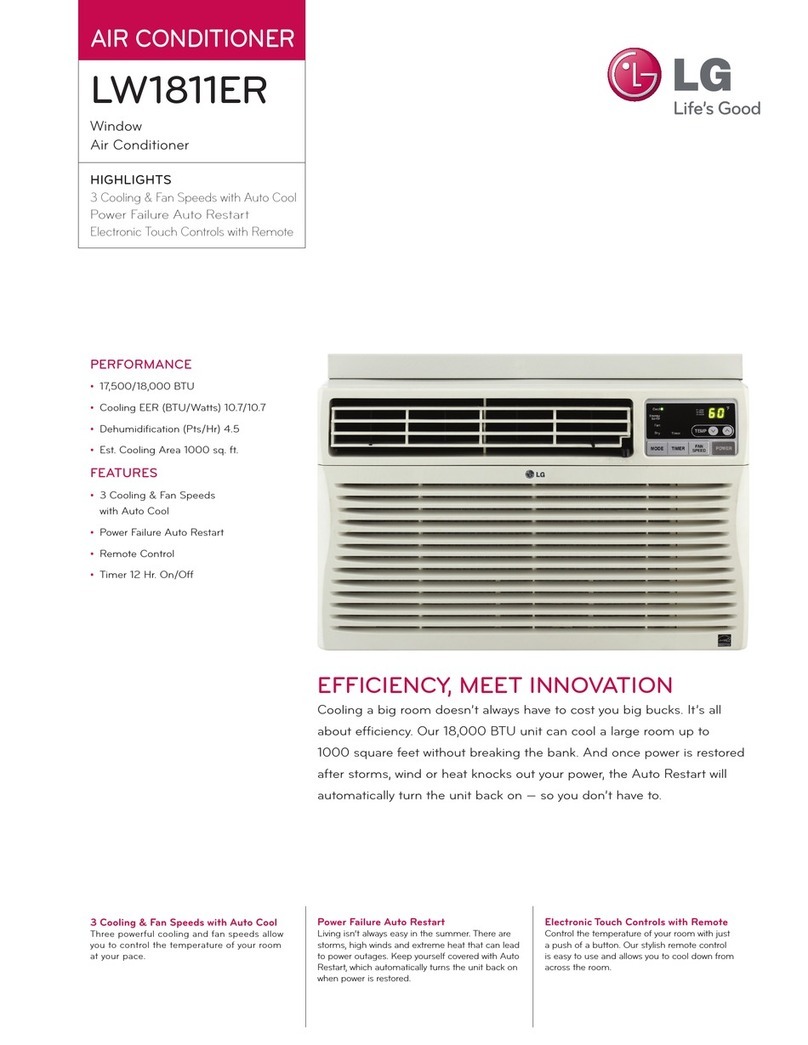

LG LW1811ER User manual

LG
LG W081CA SG2 User manual

LG
LG CEILING CASSETTE - 4WAY User manual

LG
LG LZ-H015GBA2 User manual

LG
LG LP1210BXR User manual

LG
LG Multi V Series User manual

LG
LG MULTI-V CRNN-TE Series User manual

LG

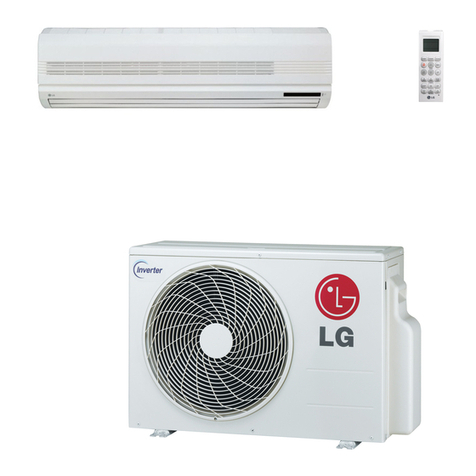

LG LS240HSV3 User manual
