LG LZ-H015GBA2 User manual

www.lg.com
P/NO : MFL67870401
Please read this manual carefully before operating
your set and retain it for future reference.
VENTILATOR
Original instruction
OWNER’S MANUAL
AIR
CONDITIONER
[ Representative ] LG Electronics Inc. EU Representative : LG Electronics European
Shared Service Center B.V. Krijgsman 1, 1186 DM Amstelveen, The
Netherlands
[Manufacturer] LG Electronics Inc. Changwon 2nd factory 84, Wanam-ro,
Seongsan-gu, Changwon-si, Gyeongsangnam-do, KOREA
For more information, Refer to the CD or LG Web site (www.lg.com).
ITALIANO ESPAÑOL
FRANÇAIS
DEUTSCH
ΕΛΛΗΝΙΚΆ
ČEŠTINA
NEDERLANDS
POLSKI
LIMBA ROMÂNĂ
ENGLISH

2Ventilator
Ventilator Owner’s Manual
TABLE OF CONTENTS
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of each unit.
Dealer's Name
Date Purchased
nStaple your receipt to this page in the event you need
it to prove date of purchase or for warranty issues.
READ THIS MANUAL
Inside you will find many helpful hints on how to use
and maintain your ventilator properly. Just a little pre-
ventive care on your part can save you a great deal of
time and money over the life of your Ventilator.
You'll find many answers to common problems in the
chart of check item prior to notify a failure. If you review
our chart of
Check item prior to notify a failure, you may not
need to call for service at all.
PRECAUTION
•Contact the authorized service technician for
repair or maintenance of this unit.
• Contact the installer for installation of this unit.
• The ventilator is not intended for use by young
children or invalids without supervision.
• Young children should be supervised to ensure
that they do not play with the ventilator.
• When the power cord is to be replaced, replace-
ment work shall be performed by authorized per-
sonnel only using only genuine replacement
parts.
• Installation work must be performed in accor-
dance with the National Electric Code by qualified
and authorized personnel only.
Safety Precautions.........................3
Prior to Operation ..........................7
Introduction ....................................8
Operating Instructions
(Accessory)...................................11
Electrical Safety ...........................15
Characteristics.............................16
Maintenance and Service............18
Check Item prior to notify
a failure .........................................22

Owner's Manual 3
Safety Precautions
ENGLISH
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions
must be followed.
nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness
is classified by the following indications.
nMeanings of symbols used in this manual are as shown below.
WARNING
CAUTION
This symbol indicates the possibility of death or serious injury.
This symbol indicates the possibility of injury or damage.
Be sure not to do.
Be sure to follow the instruction.
nInstallation
Do not use a defec-
tive or underrated
circuit breaker. Use
this appliance on a
dedicated circuit.
• There is risk of fire or
electric shock.
For electrical work,
contact the dealer,
seller, a qualified
electrician, or an
Authorized Service
Center.
• Do not disassemble or
repair the product.
There is risk of fire or
electric shock.
Always ground the
product.
• There is risk of fire or
electric shock.
Install the panel and
the cover of control
box securely.
• There is risk of fire or
electric shock.
Always install a dedi-
cated circuit and
breaker.
• Improper wiring or
installation may cause
fire or electric shock
Use the correctly
rated breaker or fuse.
• There is risk of fire or
electric shock.
WARNING

4Ventilator
Safety Precautions
For installation,
always contact the
dealer or an Author-
ized Service Center.
• There is risk of fire,
electric shock, explo-
sion, or injury.
Do not install the
product on a defec-
tive installation
stand.
• It may cause injury,
accident, or damage to
the product.
Do not let the venti-
lator run for a long
time when the
humidity is very high
and a door or a win-
dow is left open.
• Moisture may con-
dense and wet or dam-
age furniture.
For re-installation of
the installed product,
always contact the
dealer or an Authorized
Service Center.
• There is risk of fire,
electric shock, explo-
sion or injury.
Do not open the
maintenance cover
of the main body
during operation.
• Otherwise, it may
cause electrical
shock.
Use the outdoor air
suction hole with the
net installed to
ensure that birds
could not come in.
• Remove estrange
things like the bird’s
nest. Otherwise, it
may cause scarcity of
indoor oxygen.
Install the air intake where pollut-
ed air can not be directly sucked
in.
• It may cause various accidents,
including suffocation, due to the
suction of harmful gasses(CO, etc.)
Install the product a place that
can support its weight.
• Otherwise, it may cause accident
due to falling of the product.
Do not modify or
extend the power
cable.
• There is risk of fire or
electric shock.
Do not install,
remove, or re-install
the unit by yourself
(customer).
• There is risk of fire,
electric shock, explo-
sion, or injury.
Be cautious when
unpacking and
installing the prod-
uct.
• Sharp edges could
cause injury. Be espe-
cially careful of the
case edges and the fins
on the condenser and
evaporator.

Owner's Manual 5
Safety Precautions
ENGLISH
Take care to ensure
that power cable
could not be pulled
out or damaged dur-
ing operation.
• There is risk of fire or
electric shock.
Do not place any-
thing on the power
cable.
• There is risk of fire or
electric shock.
Do not plug or
unplug the power
supply plug during
operation.
• There is risk of fire or
electric shock.
nOperation
Do not store or use
flammable gas or
combustibles near
the product.
• There is risk of fire or
failure of product.
When flammable gas
leaks, turn off the
gas and open a win-
dow for ventilation
before turn the prod-
uct on.
• Do not use the tele-
phone or turn switches
on or off. There is risk
of explosion or fire
If strange sounds, or
small or smoke
comes from product.
Turn the breaker off
• There is risk of elec-
tric shock or fire.
Do not touch(oper-
ate) the product with
wet hands.
• There is risk of fire or
electrical shock.
Do not place a
heater or other appli-
ances near the
power cable.
• There is risk of fire and
electric shock.
Do not allow water to
run into electric
parts.
• It may cause There is
risk of fire, failure of the
product, or electric
shock.
Stop operation and
close the window in
storm or hurricane. If
possible, remove the
product from the
window before the
hurricane arrives.
• There is risk of property
damage, failure of
product, or electric
shock.
When the product is
soaked (flooded or
submerged), contact
an Authorized Serv-
ice Center.
• There is risk of fire or
electric shock.
Be cautious that
water could not
enter the product.
• There is risk of fire,
electric shock, or prod-
uct damage.

6Ventilator
Safety Precautions
Turn the breaker off
when cleaning or
maintaining the
product.
• There is risk of elec-
tric shock.
When the product is
not be used for a long
time, disconnect the
power supply plug or
turn off the breaker.
• There is risk of product
damage or failure, or
unintended operation.
Avoid fire equipment
• There is risk of fire.
Don’t touch a dedicated circuit or
breaker with wet hands.
• There is risk of electric shock.
Use a firm stool or ladder when
cleaning or maintaining the roduct.
• Be careful and avoid personal injury.
CAUTION
Do not expose the
skin directly to cool
air for long periods of
time. (Don't sit in the
draft.)
• This could harm to your
health.
Do not use the product
for special purposes,
such as preserving
foods, works of art, etc.
It is a consumer ventila-
tor, not a precision
refrigeration system.
• There is risk of damage
or loss of property.
Use a soft cloth to
clean. Do not use
harsh detergents, sol-
vents, etc.
•
There is risk of fire, electric
shock, or damage to the
plastic parts of the product.
nOperation
nInstallation
Use two or more people to lift
and transport the product.
• Avoid personal injury.
Do not install the product where
it will be exposed to sea wind
(salt spray) directly.
•
It may cause corrosion on the product.
Corrosion, particularly on the condenser
and evaporator fins, could cause product
malfunction or inefficient operation.
Do not step on or put anyting on
the product. (outdoor units)
• There is risk of personal injury and fail-
ure of product.
Use a firm stool or ladder when
cleaning or maintaining the product.
• Be careful and avoid personal injury.

Owner's Manual 7
Prior to Operation
ENGLISH
Prior to Operation
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Use a dedicated circuit.
4. Do not use an extension cord.
5. Do not start/stop operation by plugging/unplugging the power cord.
6. If the cord/plug is damaged, replace it with only an authorized replacement part.
1. Being exposed to direct airflow for an extended period of time could be hazardous to
your health. Do not expose occupants, pets, or plants to direct airflow for extended
periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together
with stoves or other heating devices.
3. Do not use this ventilator for non-specified special purposes (e.g. preserving preci-
sion devices, food, pets, plants, and art objects). Such usage could damage the
items.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur
when handling sharp metal edges.
2. Do not use water to clean inside the ventilator. Exposure to water can destroy the
insulation, leading to possible electric shock.
3. When cleaning the unit, first make sure that the power and breaker are turned off.
The fan rotates at a very high speed during operation. There is a possibility of injury if
the unit’s power is accidentally triggered on while cleaning inner parts of the unit.
For repair and maintenance, contact your authorized service dealer.
Preparing for operation
Usage
Cleaning and maintenance
Service

Introduction
This symbol alerts you to the risk of electric shock.
This symbol alerts you to hazards that could cause harm to the
ventilator.
This symbol indicates special notes.
NOTICE
Features
2
3
1
5
6
4
Symbols used in this Manual
WARNING: This appliance should be installed in accordance with national wiring reg-
ulations. This guide acts as a guide to help to explain product features.

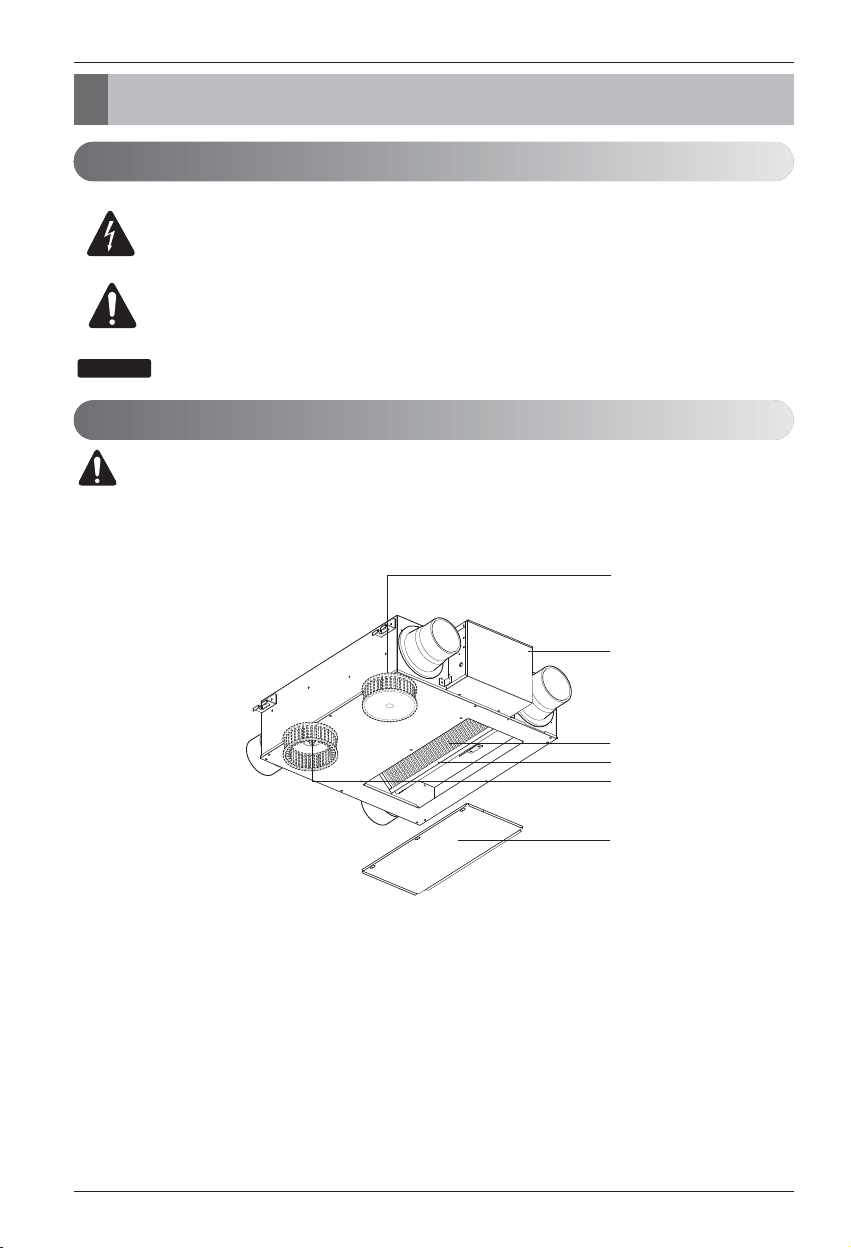

1. Blower for Supply Air
A blower for sucking outside air.
2. Control Box
3. Blower for Exhaust Air
A blower for draining polluted air outside.
4. Maintenance cover
5. Total Heat Exchanger
Exchanges temperature and moisture
between air supply air and exhaust air.
6. Air Filter
Prevents clogging of the Total heat
exchanger due to dust.
hThe figure of Total Heat Exchanger can be different by the product model.
Models: LZ-H015GBA2
8Ventilator
Introduction

Owner's Manual 9
ENGLISH
Introduction
1
2
5
6
3
4
1
5
6
7
8
2
3
4

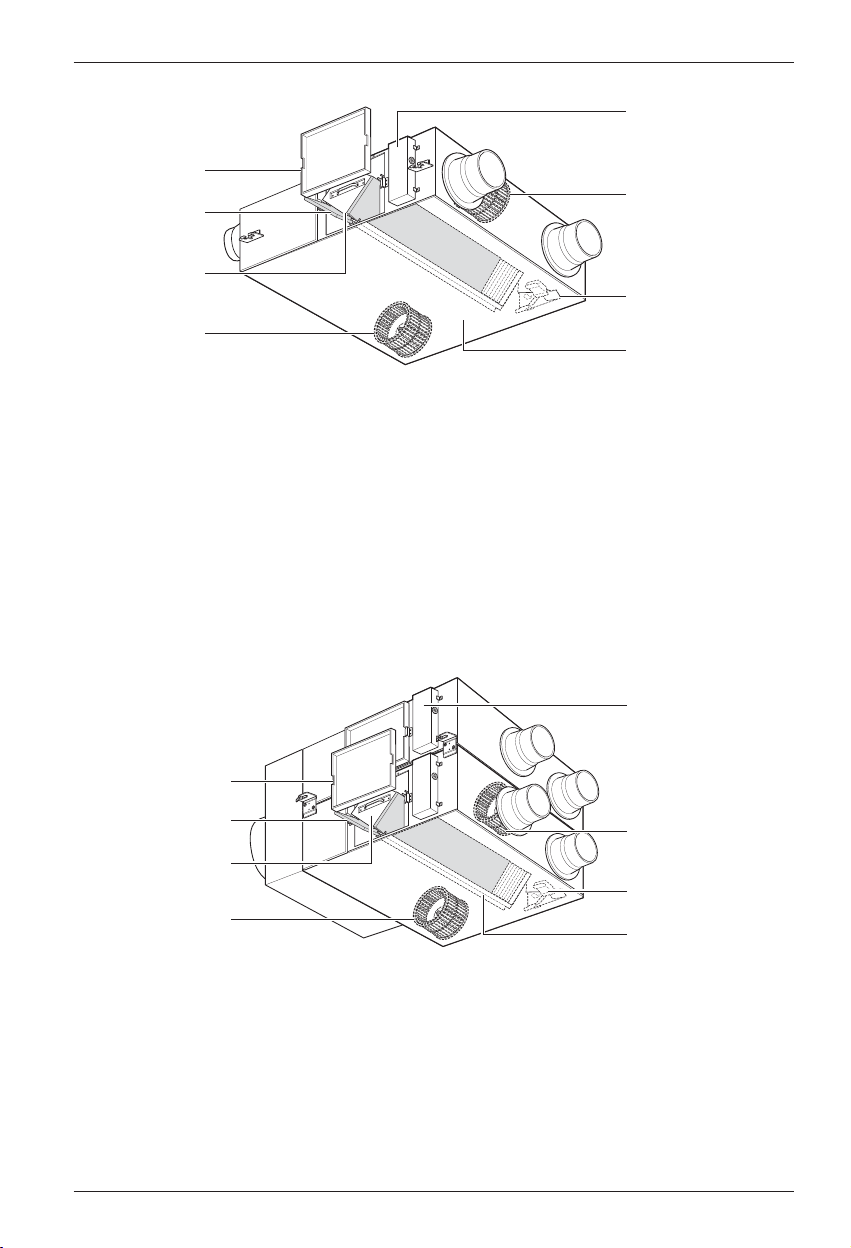

Models: LZ-H025GBA2 / LZ-H035GBA2
1. Blower for Supply Air
A blower for sucking outside air.
2. Control Box
3. Blower for Exhaust Air
A blower for draining polluted air outside.
4. Maintenance cover
5. Total Heat Exchanger
Exchanges temperature and moisture
between air supply air and exhaust air.
6. Air Filter
Prevents clogging of the Total heat
exchanger due to dust.
hThe figure of Total heat Exchanger can be different by the Product Model.
Models: LZ-H050GBA2
1. Maintenance Cover
2. Air Filter
It prevents dust from clogging in Total Heat
Exchanger.
3. Total Heat Exchanger
It changes temperature and humidity
between Supplying Air and exhausted air.
4. Blower for Exhaust Air
It is a fan for discharging the contaminated
air to outdoor.
5. Control box
6. Blower for Supply Air
It is a fan for inhaling exterior air into an
indoor space.
7. Damper plate(board)
It converts exchanging mode between total
heat ventilation and general ventilation.
8. Total Heat Exchanger holder
It is used in guiding for the installation of
Total Heat Exchanger.
hThe figure of Total heat Exchanger can be different by the Product Model.

1
5
6
7
8
2
3
4
Models: LZ-H080GBA2 / LZ-H100GBA2
1. Maintenance Cover
2. Air Filter
It prevents dust from clogging in Total Heat
Exchanger.
3. Total Heat Exchanger
It changes temperature and humidity between
Supplying Air and exhausted air.
4. Blower for Exhaust Air
It is a fan for discharging the contaminated air
to outdoor.
5. Control box
6. Blower for Supply Air
It is a fan for inhaling exterior air into an indoor
space.
7. Damper plate(board)
It converts exchanging mode between total
heat ventilation and general ventilation.
8. Total Heat Exchanger holder
It is used in guiding for the installation of Total
Heat Exchanger.
hThe form of Total Heat Exchanger varies according to models.
hThe form of Total Heat Exchanger varies according to models.
1
2
3
4
5
6
7
8
Models: LZ-H150GBA2 / LZ-H200GBA2
1. Maintenance Cover
2. Air Filter
It prevents dust from clogging in Total Heat Exchanger.
3. Total Heat Exchanger
It changes temperature and humidity between Supply-
ing Air and exhausted air.
4. Blower for Exhaust Air
It is a fan for discharging the contaminated air to out-
door.
5. Control box
6. Blower for Supply Air
It is a fan for inhaling exterior air into an indoor space.
7. Damper plate(board)
It converts exchanging mode between total heat venti-
lation and general ventilation.
8. Total Heat Exchanger holder
It is used in guiding for the installation of Total Heat
Exchanger.
10 Ventilator
Introduction

Owner's Manual 11
ENGLISH
Operating Instructions (Accessory)
1
4
5
7
11
10
9
82
3
6
13
12
Please attach the inform label inside of the door.
Please choose proper language depend on your
country.
14
15
Operating Instructions (Accessory)
LCD Remote Controller (PQRCVSL0 / PQRCVSL0QW)
OPERATION INDICATION
SCREEN
SET TEMPERATURE BUTTON
FAN SPEED BUTTON
ON/OFF BUTTON
OPERATION MODE SELECTION
BUTTON
WIRELESS REMOTE CON-
TROLLER RECEIVER
• Some products don't receive the
wireless signals.
AIR FLOW BUTTON
SUBFUNCTION BUTTON
FUNCTION SETTING BUTTON
VENTILATION BUTTON
RESERVATION
UP, DOWN, LEFT, RIGHT BUT-
TON
• To check the indoor temperature,
press button.
ROOM TEMPERATURE BUT-
TON
SETTING/CANCEL BUTTON
EXIT BUTTON
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
hSome functions may not be operated and displayed depending on the product type.

Press button on the remote
controller control panel.
- It is only used when air conditioner
and general ventilation is
interlinked.
1
Pressing 'Start/Stop' button at ventilation
mode will start ventilation.
2
Pressing button will change the
ventilation operation mode.
Pressing operation selection button
will change the mode in the order of
'Heat exchange → normal → automatic'
❈It only displays on the remote controller
display when it is in ventilation mode, and it
displays the desired temperature when it
returns to air condition mode.
3
Pressing button in general
ventilation mode will change airflow
speed.
Pressing airflow speed button will
change the mode in the order of 'weak →
strong → extra strong'.
If CO2sensor is installed, it can select from
'weak
→ strong → very strong → automatic'.
4
Changing back to air conditioner mode
1)Automatic Conversion : when no button is
pressed for 15 seconds or longer, it
automatically converts back to air
conditioner mode.
2) Manual Conversion : Pressing button
in ventilation mode will manually convert.
5
Ventilation interlinked operation
It is used when air conditioner is interlinked with ventilation product.
It is a function that cools and refreshes indoor air using the ventilation product at the same time oper-
ating the air conditioning function.
Method to Operate and Select Air Volume – Interlinked Operation with Ventilation.
12 Ventilator
Operating Instructions (Accessory)

Owner's Manual 13
Operating Instructions (Accessory)
ENGLISH

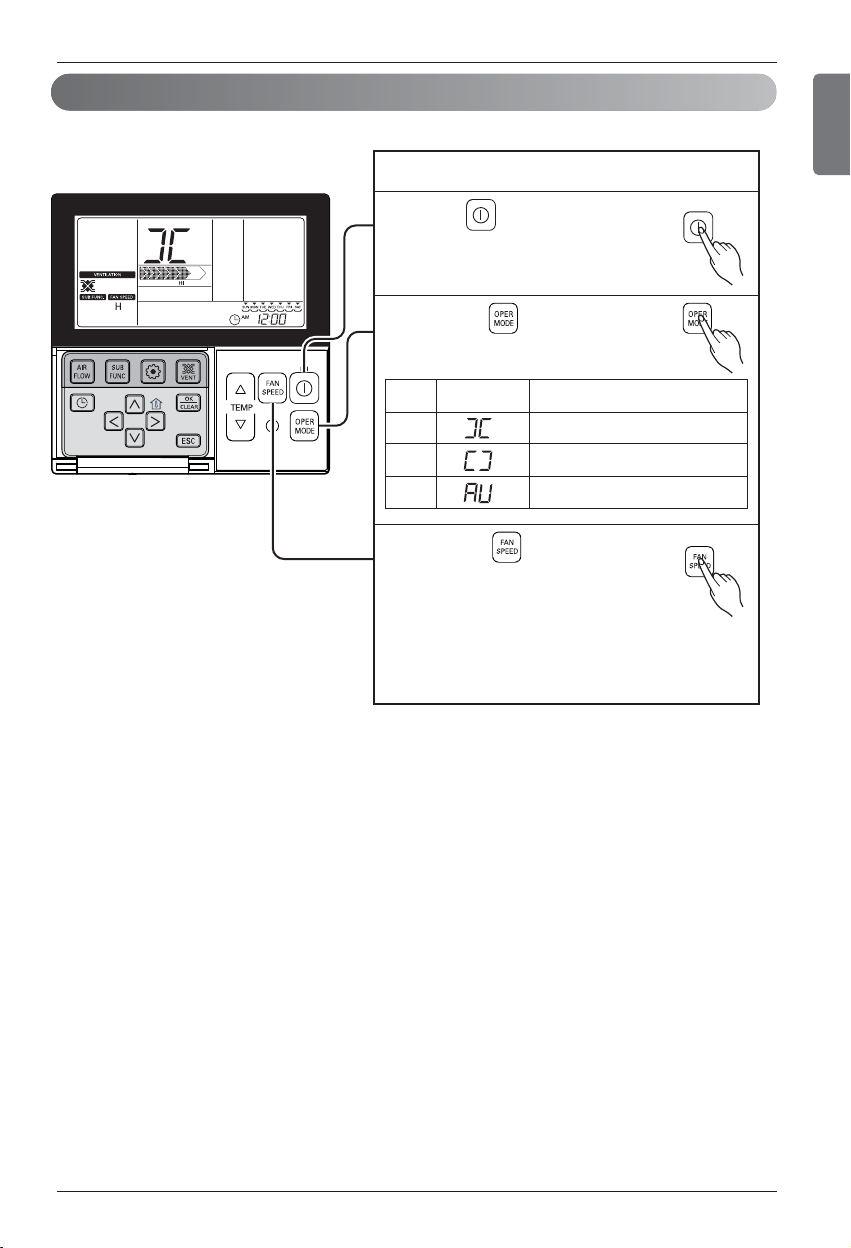

Method to Operate and Select Air Volume –Ventilation Single Operation
Press button on the remote
controller.
1
Pressing button will change
the ventilation mode.
2
Pressing button will change
the strength of the wind
- Pressing the button can select
from 'weak
→ strong → very
strong'.
- If CO2sensor is installed, it can select from
'weak
→ strong → very strong → automatic'.
3
Ventilation single operation
Ventilation
mode
Heat
exchange
Normal
Automatic
Remote Controller
Display Contents
Circulate indoor air without loss of heat
Directly circulate indoor air without going
through heat exchanger
Circulate indoor air with automatically
comparing indoor and outdoor air
It is a function to cool and refresh the indoor air using general ventilation product..

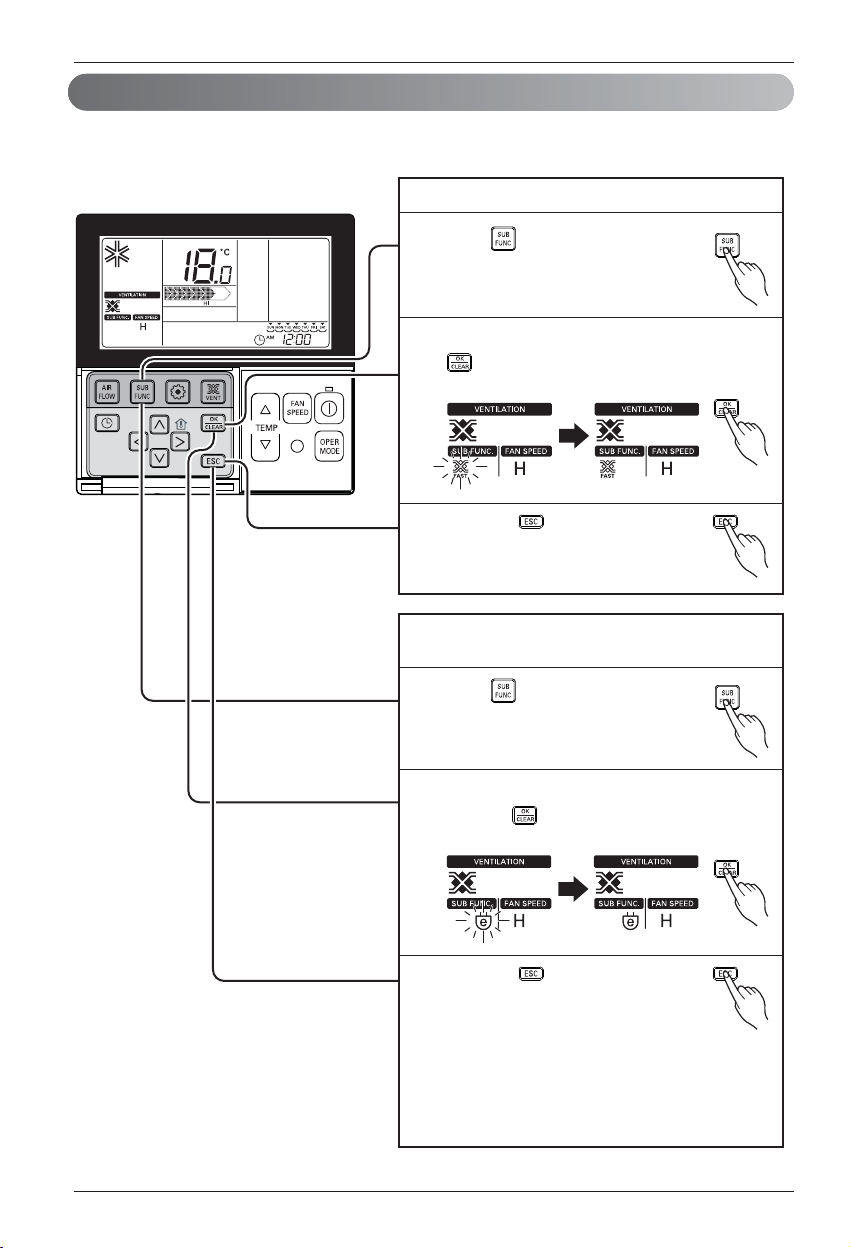

Fast/Energy saving ventilation mode
Press button in ventilation mode.
- It converts in the order of 'fast →
power saving' in ventilation mode.
1
'Fast' is blinking on the display, and pressing
button will stabilize 'fast' icon, and the
function is set.
2
Pressing button will exit the
settings.
3
Press button in ventilation mode.
- It converts in the order of 'fast →
power saving' in ventilation mode.
1
'Power Saving' is blinking on the display, and
pressing button will stabilize 'Power
Saving' icon, and the function is set.
2
Pressing button will exit the
settings.
❈General ventilation and direct expansion
ventilation have the same additional
functions.
❈Ventilation/Heater/Humidifier additional
function settings are the same as air
conditioner.
3
Fast : ventilates fast
Power Saving : efficiently ventilates and performs
power savings.
It is a function to operate ventilation function more efficiently through the ventilation additional func-
tions, fast / power saving settings.
14 Ventilator
Operating Instructions (Accessory)

Owner's Manual 15
Electrical Safety
ENGLISH
Electrical Safety
WARNING: This appliance must be properly grounded.
To minimize the risk of electric shock, you must alway plug into a grounded outlet.
WARNING: Do not cut or remove the grounding prong from the
power wire.
WARNING: Attaching the adapter ground terminal to the wall recep-
tacle cover screw does not ground the appliance unless the cover
screw is metal and not insulated, and the wall receptacle is ground-
ed through the house wiring.
WARNING: If you have any doubt whether the ventilator is properly
grounded, have the wall receptacle and circuit checked by a quali-
fied electrician.
Preferred method
Ensure proper ground
exists before use

16 Ventilator
Characteristics

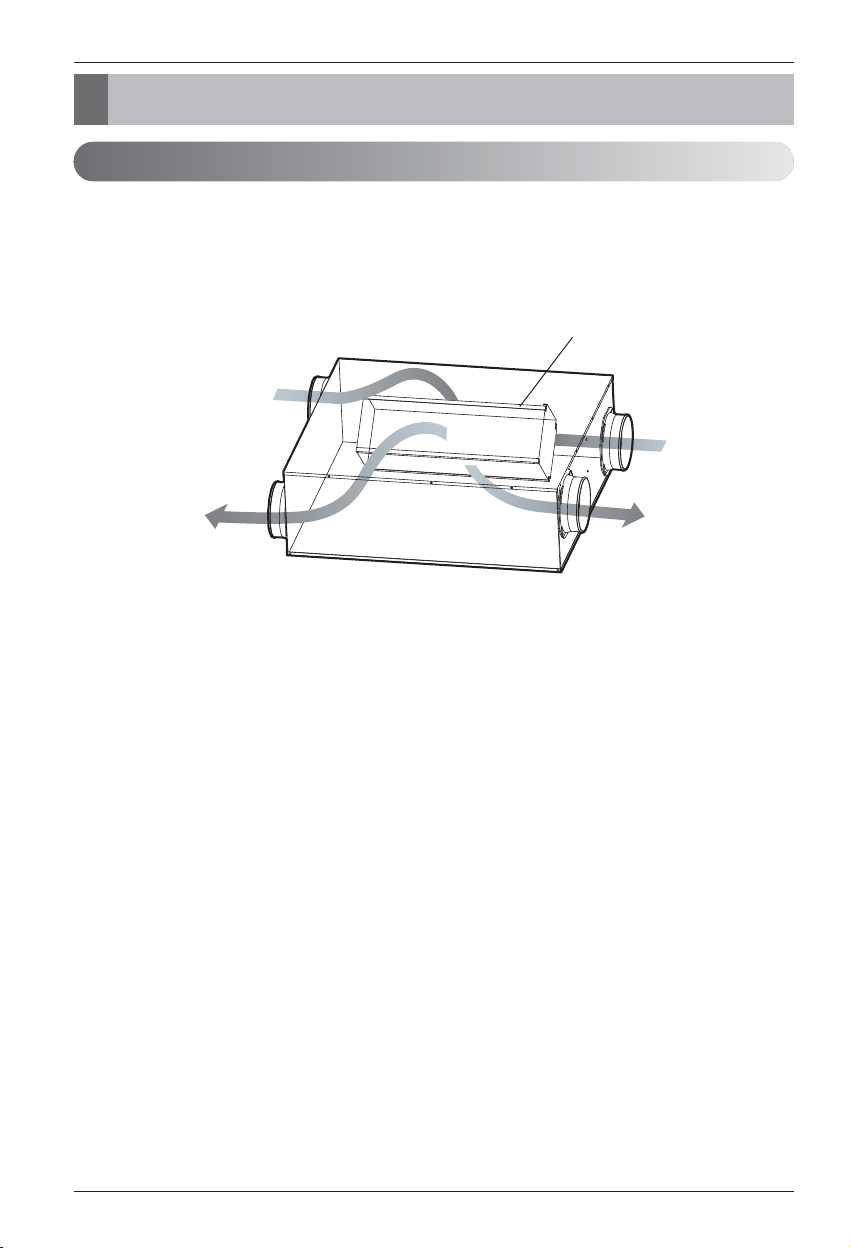

Characteristics
Exhaust air
Outdoor air
Total Heat Exchanger
Return Air
Supply Air
Exhausts indoor air via the Total Heat Exchanger outdoor.
• The outdoor air heat exchanged is supplied to indoor. Operate the ventilator in the
Ventilation via Total heat exchanger in summer/winter when cool/heat operation is done.
Ventilation via Total Heat Exchanger

Owner's Manual 17
ENGLISH
Characteristics
Exhaust air
Outdoor air
Total Heat Exchanger
Damper
Return Air
Supply Air
Exhaust air
Outdoor air
Total Heat Exchanger
Damper
Return Air
Supply Air
Exhausts indoor air via the Total Heat Exchanger outdoor.
• The outdoor air heat exchanged is supplied to indoor. Operate the ventilator in the
Ventilation via Total heat exchanger in summer/winter when cool/heat operation is done.
Ventilation via Total Heat Exchanger
Exhausts the polluted indoor-air directly without via the Total Heat
Exchanger.
• Operate the ventilator in the Normal Ventilation in spring/autumn when the Total heat exchanger
is not required.
Normal Ventilation
CAUTION: In case of high outdoor pollution degree like yellow sand please pause the
ventilator.

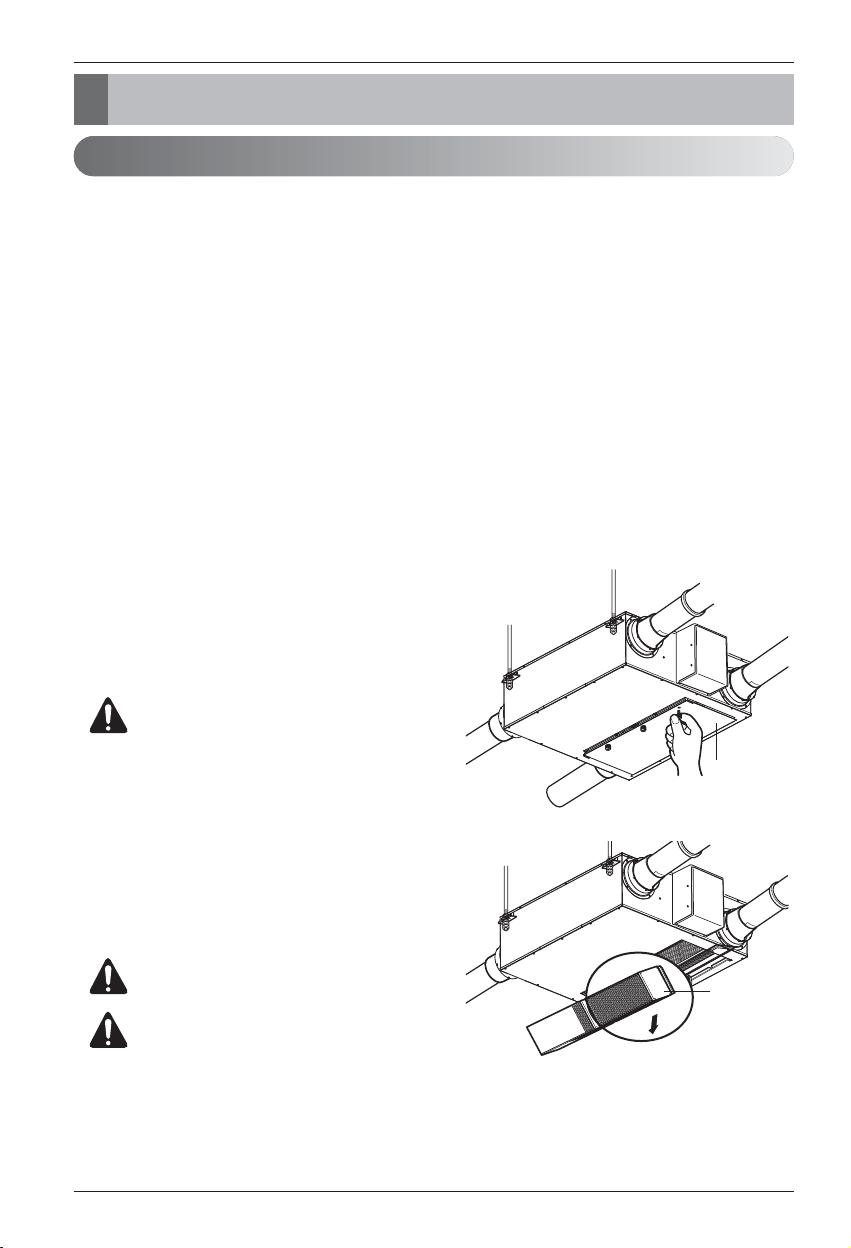

Handling and Cleaning
Maintenance and Service
Maintenance
cover
Total Heat
Exchanger
To prevent function of the ventilator deteriorating, clean dust adhered to the air filter and total heat
exchanger regularly.
Cleaning Cycle
- Air filter: More than once every 6 months.
- Total heat exchanger: More than once every 2 years (Cleaning cycle may increase according to
pollution degree.)
Method to take each part out
Model: LZ-H015GBA2 / LZ-H025GBA2 / LZ-H035GBA2
1. Remove the maintenance cover.
Put the hands inside of the ceiling from the maintenance cover, and pull the maintenance cover up.
(Looser the hinge and detach the maintenance cover.)
2. Take the air filter out.
Take the air filter with each contained to the
left/right downside of the Total heat exchanger.
hIf it adheres to the ceiling in reverse, it is equal
to the left/right topside of the Total heat exchang-
er.
3. Take the Total heat exchanger out.
Catch the handle and then take the Total heat
exchanger out from the main body. (2 units)
CAUTION: Take care to ensure that you
could not damage when taking the air fil-
ter out since there is a sharp part on it.
WARNING: Turn the breaker off when
cleaning the product.
CAUTION: Gloves should be worn when
doing the maintenance work.
18 Ventilator
Maintenance and Service

Owner's Manual 19
Maintenance and Service
ENGLISH

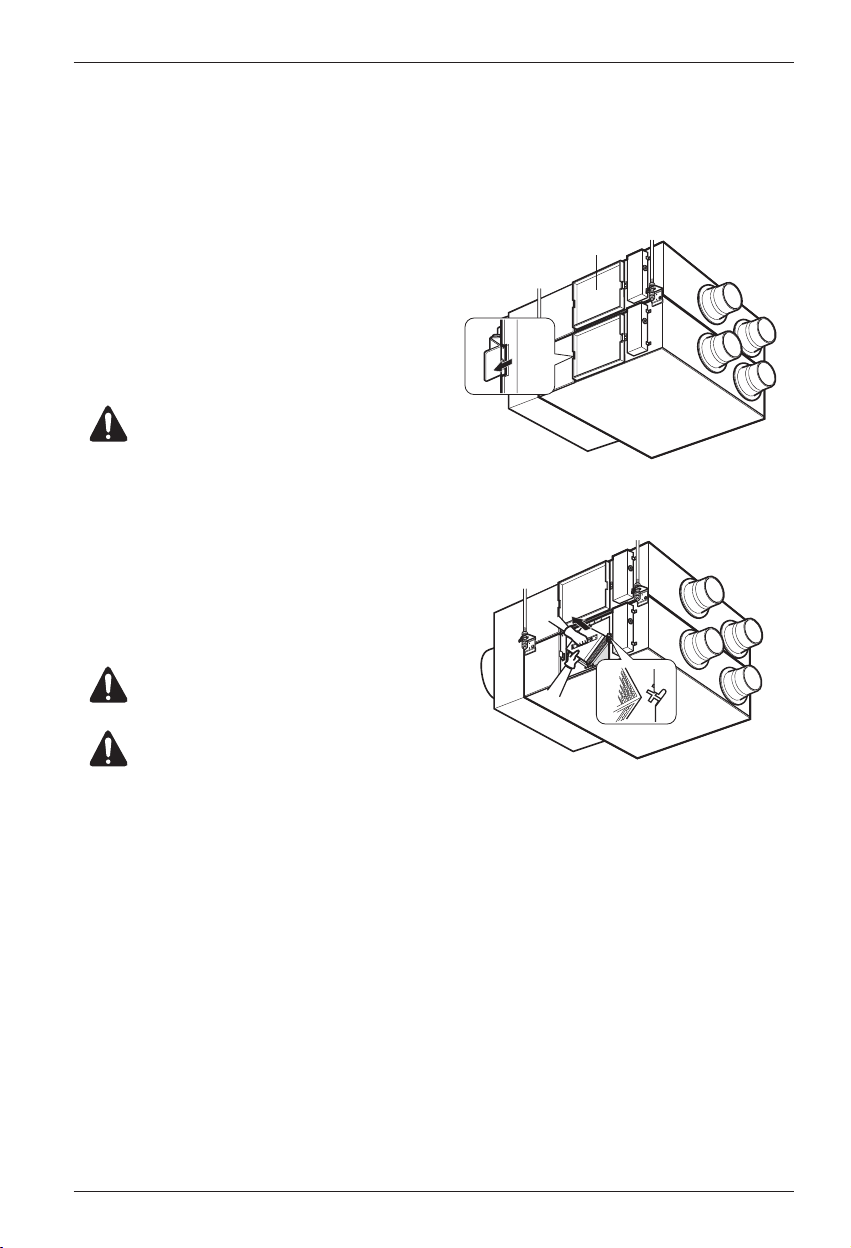

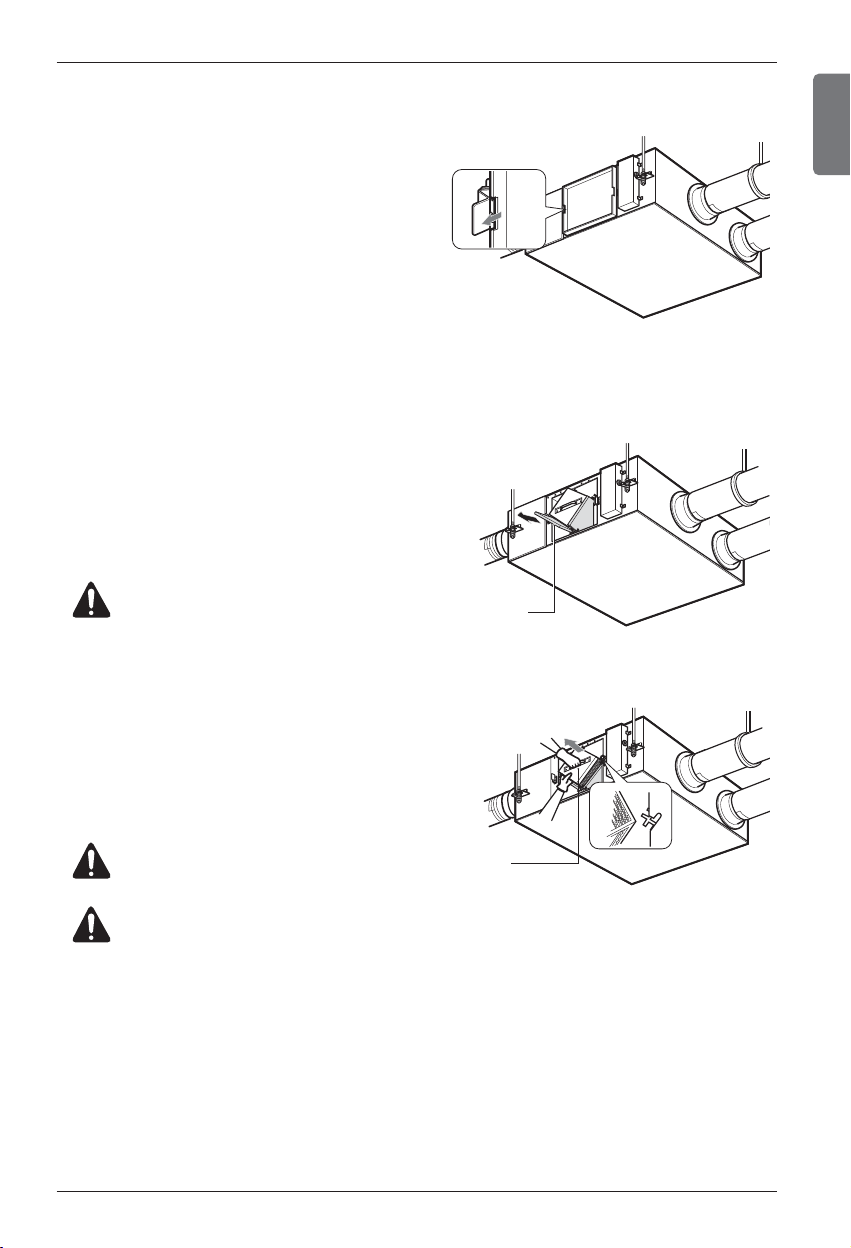

Model: LZ-H050GBA2 / LZ-H080GBA2 / LZ-H100GBA2
1. Remove the maintenance cover.
Put the hands inside of the ceiling from the main-
tenance cover, and pull the maintenance
cover up.
(Looser the hinge and detach the maintenance
cover.)
2. Take the air filter out.
Take the air filter with each contained to the
left/right downside of the Total heat exchanger.
hIf it adheres to the ceiling in reverse, it is
equal to the left/right topside of the Total heat
exchanger.
3. Take the Total heat exchanger out.
Catch the handle and then take the Total heat
exchanger out from the main body. (2 units)
CAUTION: Take care to ensure that you
could not damage when taking the air fil-
ter out since there is a sharp part on it.
WARNING: Turn the breaker off when
cleaning the product.
CAUTION: Gloves should be worn when
doing the maintenance work.
Main Body
Handle
Main Body
Air Filter
Main Body

Model: LZ-H150GBA2 / LZ-H200GBA2
1. Remove the maintenance cover.
Put the hands inside of the ceiling from the maintenance cover, and pull the maintenance cover up.
(Looser the hinge and detach the maintenance cover.)
2. Take the air filter out.
Take the air filter with each contained to the
left/right downside of the Total heat exchanger.
hIf it adheres to the ceiling in reverse, it is
equal to the left/right topside of the Total heat
exchanger.
3. Take the Total heat exchanger out.
Catch the handle and then take the Total heat
exchanger out from the main body. (2 units)
CAUTION: Take care to ensure that you
could not damage when taking the air fil-
ter out since there is a sharp part on it.
WARNING: Turn the breaker off when
cleaning the product.
CAUTION: Gloves should be worn when
doing the maintenance work.
Maintenance Cover
Main body
Main body
20 Ventilator
Maintenance and Service
