OWNER’S MANUAL
AIR CONDITIONER
Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
P/NO : MFL57942719
TYPE : WALL MOUNTED
Indoor Unit
M09AWN-NB11
I09AWN-NB11
M12AWN-NB11
I12AWN-NB11
R09AWN-NB11
R12AWN-NB11
Outdoor Unit
R09AWN-UB11
R12AWN-UB11
ENGLISH

2TIPS FOR SAVING ENERGY
ENGLISH
TIPS FOR SAVING ENERGY
Here are some tips that will help you minimize the power consumption when you use the air
conditioner. You can use your air conditioner more efficiently by referring to the instructions
below:
• Do not cool excessively indoors. This may be harmful for your health and may consume more
electricity.
• Block sunlight with blinds or curtains while you are operating the air conditioner.
• Keep doors or windows closed tightly while you are operating the air conditioner.
• Adjust the direction of the air flow vertically or horizontally to circulate indoor air.
• Speed up the fan to cool or warm indoor air quickly, in a short period of time.
• Open windows regularly for ventilation as the indoor air quality may deteriorate if the air con-
ditioner is used for many hours.
• Clean the air filter once every 2 weeks. Dust and impurities collected in the air filter may block
the air flow or weaken the cooling / dehumidifying functions.
For your records
Staple your receipt to this page in case you need it to prove the date of purchase or for warranty
purposes. Write the model number and the serial number here:
Model number :
Serial number :
You can find them on a label on the side of each unit.
Dealer’s name :
Date of purchase :

SAFETY PRECAUTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product
WARNING
It can result in serious injury or death when the directions are ignored
CAUTION
It can result in minor injury or product damage when the directions are ignored
WARNING
• Installation or repairs made by unqualified persons can result in hazards to you and others.
• Installation MUST conform with local building codes or, in the absence of local codes, with
the Nation Electrical Code NFPA 70/ANSI C1-1003 or current edition and Canadian Electrical
Code Part1 CSA C.22.1.
• The information contained in the manual is intended for use by a qualified service technician
familiar with safety procedures and equipped with the proper tools and test instruments.
• Failure to carefully read and follow all instructions in this manual can result in equipment mal-
function, property damage, personal injury and/or death.
Installation
• Use a standard circuit breaker and fuse conforming with the rating of the air conditioner. Fail-
ure to do so may result in electric shock or product failure.
• Contact an authorized service center when you install or relocate the air conditioner. Failure to
do so may result in serious injury or product failure.
• Always use a power plug and socket with a ground terminal.Failure to do so may result in
electric shock or product failure
• Install the panel and the cover of the control box safely. Failure to do so may result in explo-
sion or fire.
• Install a dedicated electric outlet and circuit breaker before you use the air conditioner. Failure
to do so may result in electric shock or product failure.
• Use a standard circuit breaker and fuse conforming with the rating of the air conditioner. Fail-
ure to do so may result in electric shock or product failure.
• Do not modify or extend the power cable. If the power cable or cord has scratches or skin
peeled off or deteriorated then it must be replaced. It may result in fire or electric shock.
• Be cautious when you unpack or install the air conditioner. Failure to do so may result in seri-
ous injury or product failure.
• Contact an authorized service center when you install or relocate the air conditioner. Failure to
do so may result in serious injury or product failure.
• Do not install the air conditioner on an unstable surface or where there may be a danger of it
falling. It may result in death, serious injury, or product failure.
!
!
!
3
ENGLISH

4SAFETY PRECAUTIONS
ENGLISH
Operation
• Do not let the air conditioner run for a long time when the humidity is very high or when a door or
window has been left open. Failure to do so may result in product failure.
• Make sure that the power cord is not pulled or damaged while the air conditioner is operating. Fail-
ure to do so may result in fire, electric shock, or product failure.
• Do not place any objects on the power cord. It may result in electric shock or product failure.
• Do not turn on or off the air conditioner by plugging in or unplugging the power plug. It may result in
fire or electric shock.
• Do not touch, operate or repair the air conditioner with wet hands. It may result in electric shock or
product failure.
• Do not place a heater or other heating appliances near the power cable. It may result in fire, electric
shock, or product failure.
• Do not allow water to run into the air conditioner. It may result in explosion or fire.
• Do not leave flammable substances such as gasoline, benzene and thinner near the air conditioner.
It may result in explosion or fire.
• Do not use the air conditioner for an extended period of time in a small place without ventilation.
Ventilate the place regularly. Failure to do so may result in explosion or fire.
• When there is a gas leak, ventilate sufficiently before using the air conditioner again. Failure to do so
may result in explosion or fire.
• Unplug the power plug if there is a noise, smell or smoke coming from the air conditioner. Failure to
do so may result in explosion or fire.
• Stop operating and close the window in strom or hurricane.If possible remove the product from the
window before hurricane arrives
• Do not touch the electrostatic filter after opening the front grille. Failure to do so may result in elec-
tric shock or product failure.
• Contact an authorized service center when the air conditioner is submerged into water due to flood-
ing. Failure to do so may result in explosion or fire.
• Be cautious water could not enter the product
• Make sure to ventilate sufficiently when this air conditioner and a heating appliance such as a heater
are used simultaneously. Failure to do so may result in fire, serious injury, or product failure.
• Turn the main power off and unplug the power plug when you clean or repair the air conditioner.
Failure to do so may result in death, serious injury, or product failure.
• Unplug the power plug when the air conditioner is not used for an extended period of time. Failure
to do so may result in product failure.
• Do not place any objects on the air conditioner. It may result in product failure.
• For inner cleaning, contact an Authorized Service Center or a dealer. Do not use harsh detergent
that causes corrosion or damage on the unit. Harsh detergent may also cause failure of product, fire,
or electronic shock.

SAFETY PRECAUTIONS
CAUTION
Installation
• Make sure to check if there is a refrigerant leak after you install or repair the air conditioner. Failure
to do so may result in product failure.
• Install the drain hose properly for smooth drainage of condensed water. Failure to do so may result
in product failure.
• Keep level even when installing the product.
• Install the air conditioner where the noise from the outdoor unit or the exhaust gas will not incon-
venience the neighbors. Failure to do so may result in conflict between neighbors.
• When transporting the equipment, there should be at least 2 or more people, or a forklift. It may re-
sult in serious injury.
• Do not install the air conditioner where it will be exposed to sea wind (salt spray) directly. It may re-
sult in product failure.
Operation
• Do not expose people, animals or plants to the cold or hot wind from the air conditioner. It may re-
sult in serious injury.
• Do not use the product for special purposes, such as preserving foods, works of art, etc. It is a con-
sumer air conditioner, not a precision refrigeration system. It may result in death, fire or electric
shock.
• Do not block the inlet or outlet of air flow. It may result in explosion or product failure.
• Do not use strong cleaning agents or solvents when you clean the air conditioner, or spray water.
Use a smooth cloth. It may result in serious injury or product failure.
• Never touch the metal parts of the air conditioner when you remove the air filter. It may result in se-
rious injury or product failure.
• Do not place any objects on the air conditioner. It may result in product failure.
• Always insert the filter securely after cleaning. Clean the filter every two weeks or more often if
necessary.
• Do not insert hands or other objects through the air inlet or outlet while the air conditioner is operat-
ing. It may result in electric shock.
• Do not drink the water drained from the air conditioner. It may result in serious health complications.
• Use a sturdy stool or ladder when you clean, maintain or repair the air conditioner at a height. Failure
to do so may result in serious injury or product failure.
• Do not mix the batteries for the remote control with other types of batteries or mix new batteries
with used batteries. Failure to do so may result in product failure.
• Do not recharge or disassemble the batteries. Failure to do so may result in explosion, fire or serious
injury.
• Stop using the remote control if there is a battery fluid leak. If your cloth or skin is exposed to the
battery fluid from a leak, wash it off with clean water. Failure to do so may result in serious injury.
• If you swallow the battery fluid from a leak, wash out the inside of your mouth thoroughly and then
consult a doctor. Failure to do so may result in serious health complications.
!
5
ENGLISH

TABLE OF CONTENTS
2TIPS FOR SAVING EN-
ERGY
3IMPORTANT SAFETY IN-
STRUCTIONS
7BEFORE USE
7Components
8Using the remote control

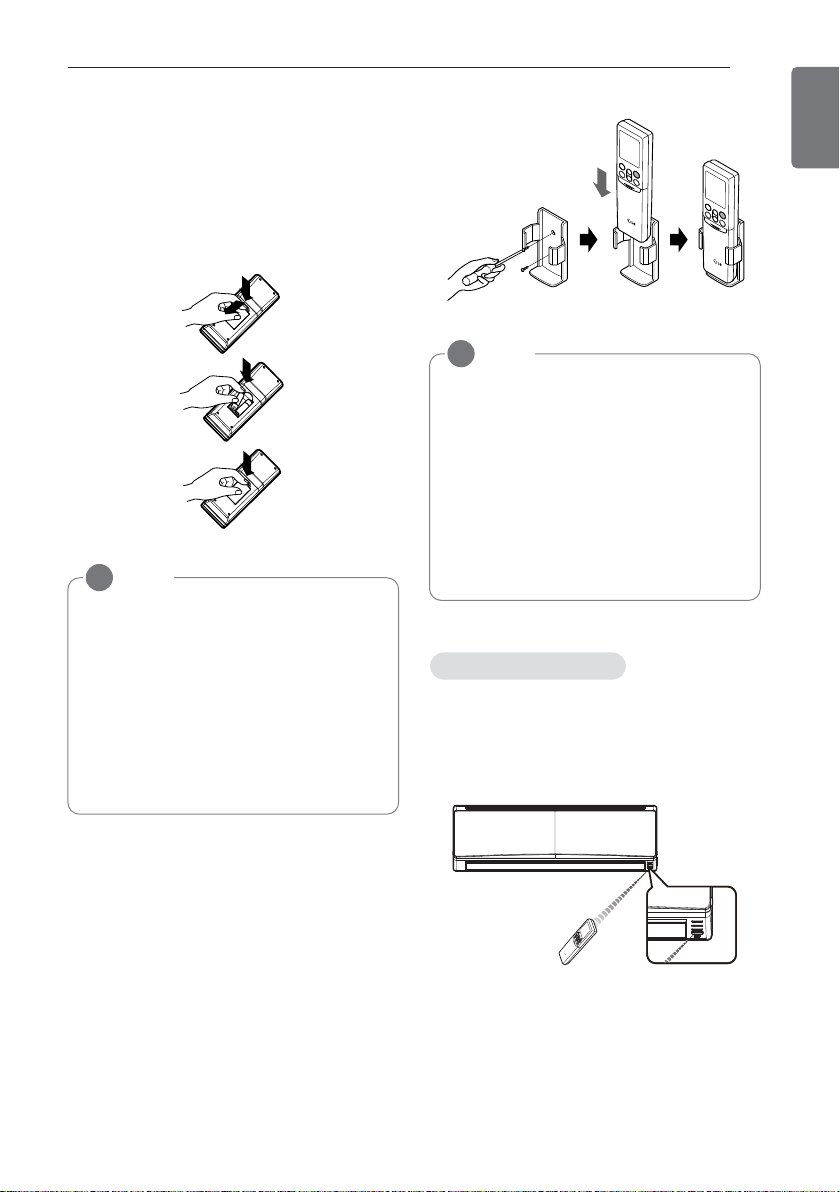

9How to insert the Batteries
9Wireless Remote Controller Mainte-
nance
10 OPERATING
INSTRUCTION
10 Operation Mode
11 Auto Changeover Operation
11 Healthy Dehumidification Operation
12 Air Circulation Operation
12 Auto Clean Operation
12 PLASMA Purification Operation
13 Energy-Saving Cooling Mode
13 Display screen brightness

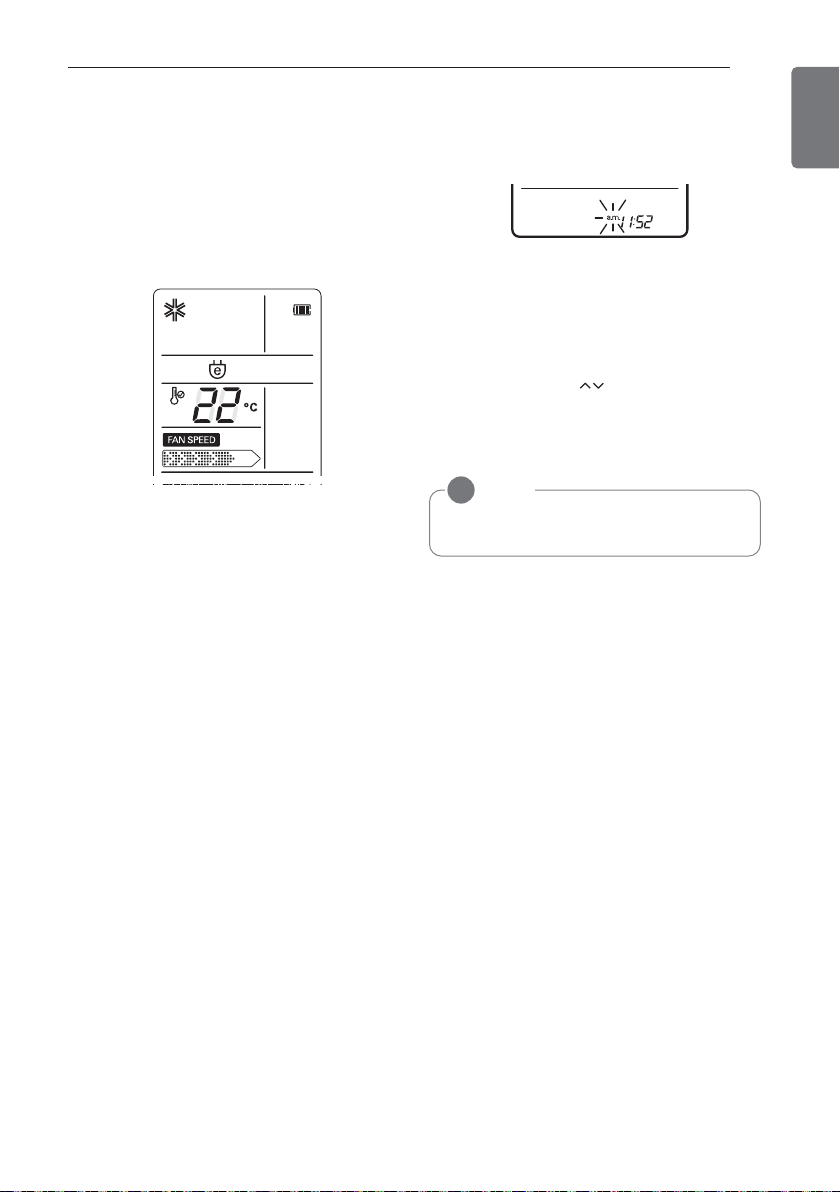

13 Setting the Current Time
14 Timer Setting
14 To cancel the timer setting
14 Sleep Mode Operation
15 Horizontal Vane Control
15 Vertical Louver Control
16 Jet Cool/Heat Operation
17 MAINTENANCE

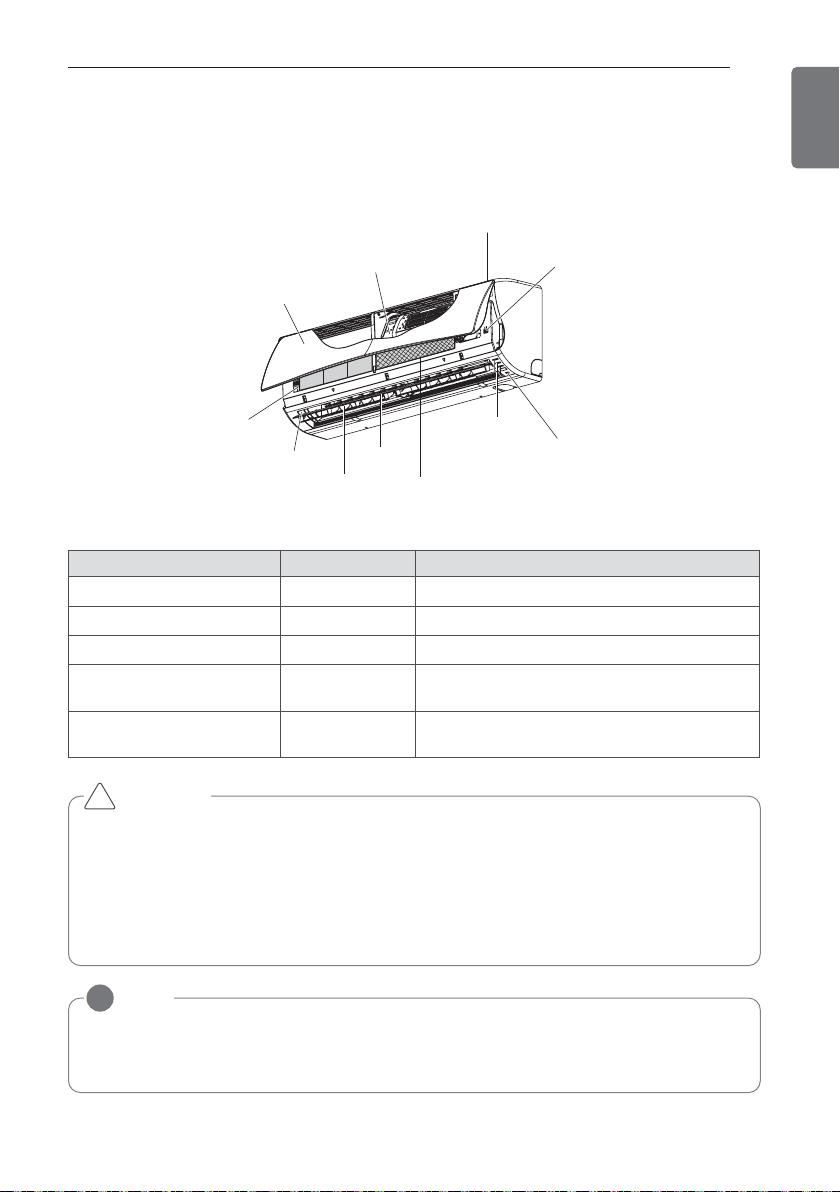

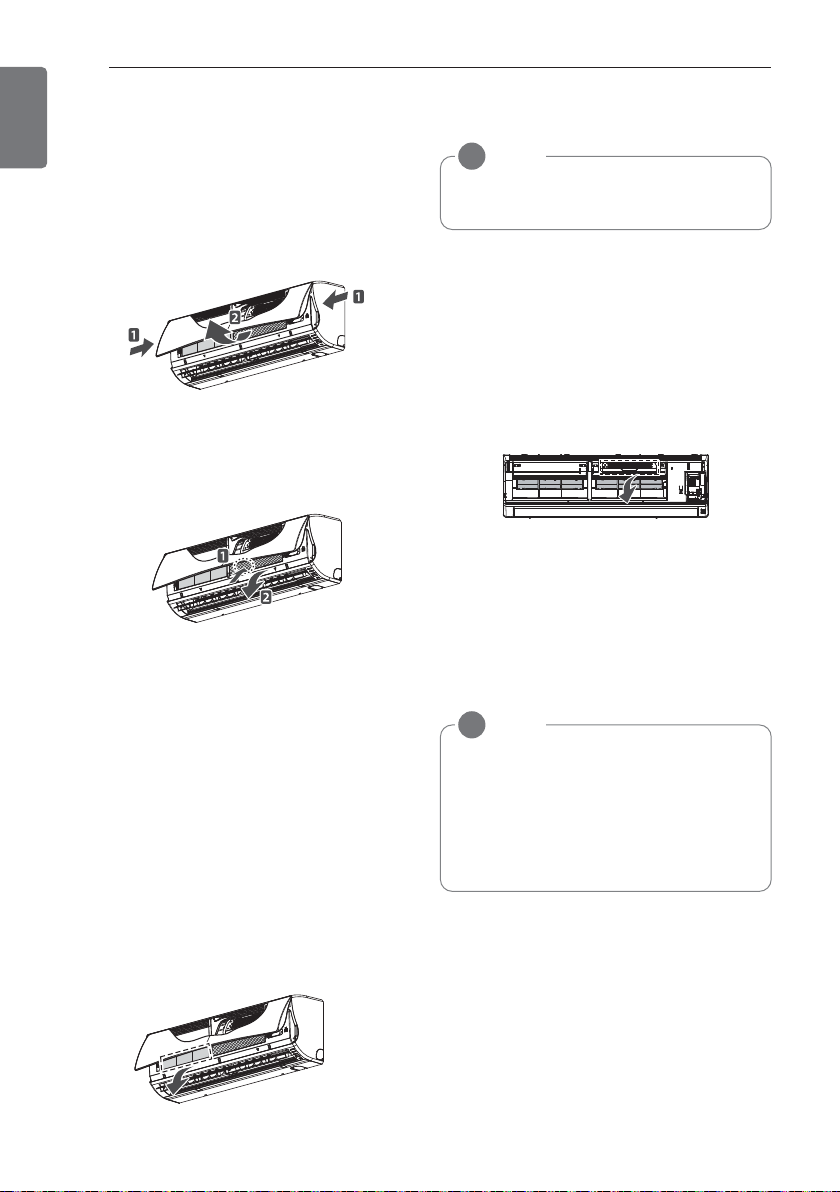

18 Cleaning the air filter
18 Cleaning the anti-allergy filter and
triple filter
18 Cleaning the plasma filter

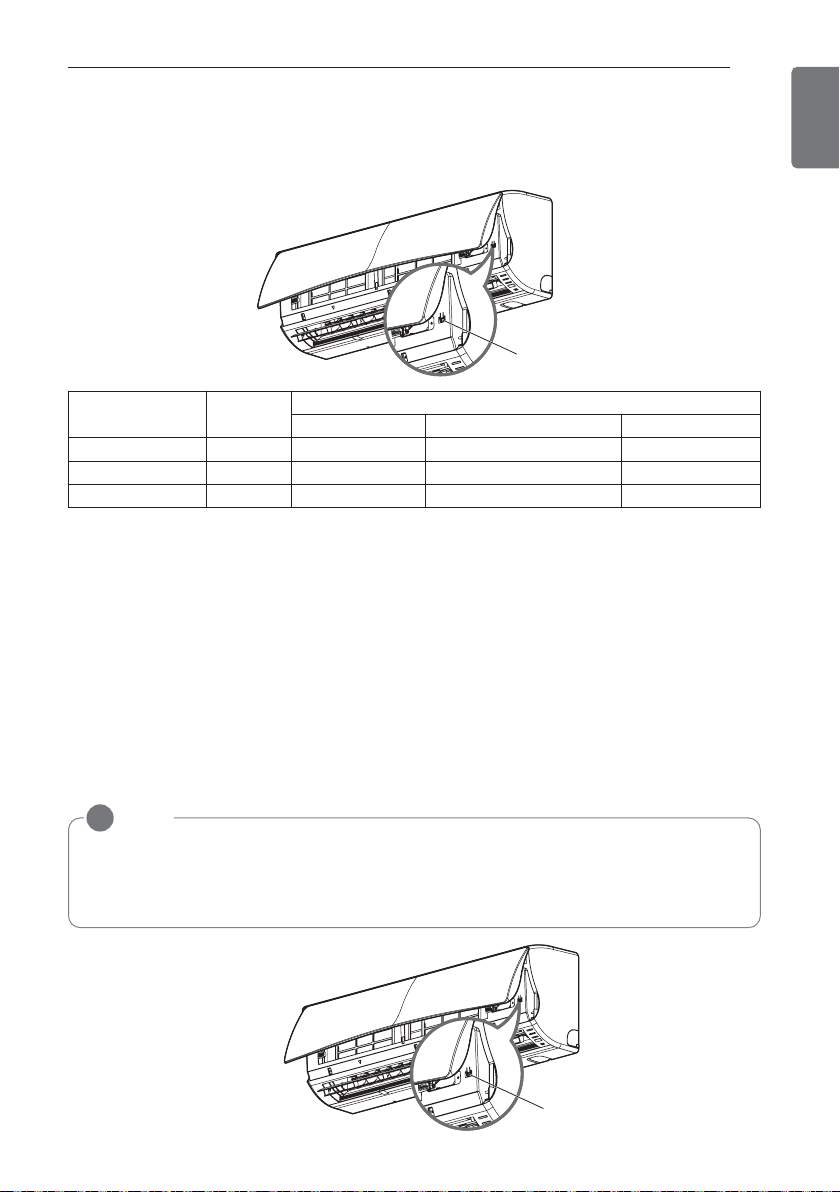

19 Forced operation
19 Auto Restart Function
20 TROUBLESHOOTING
20 Self-diagnosis function
20 Before requesting service
TABLE OF CONTENTS
6
ENGLISH

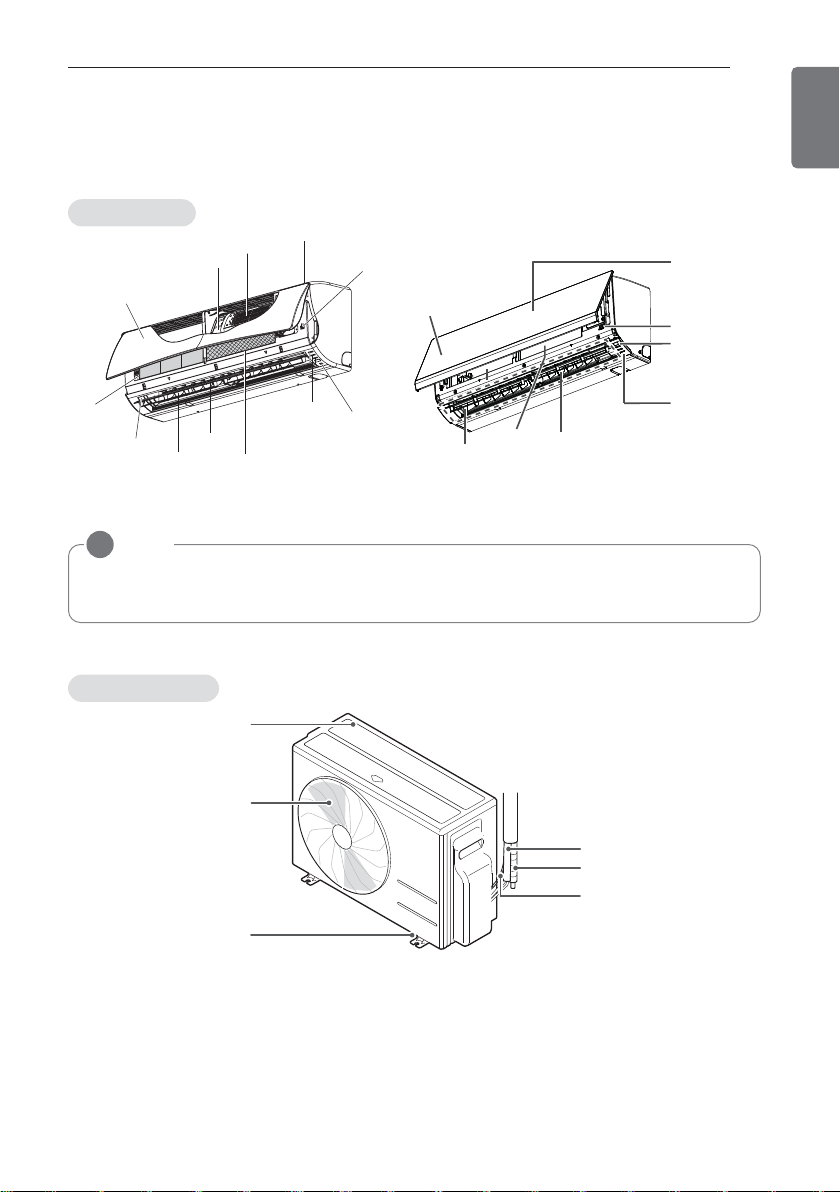

Air inlet vents
Air outlet vents
Base plate
Coolant piping
Connection
wire
Drain hose
BEFORE USE
Components
Outdoor unit
Vertical louver Allergy free filter
Operation lamp Signal Receiver
ON/OFF button
Air outlet Horizontal vane
Horizontal vane
Horizontal vane
Triple filter
Air inlet
Plasma filter
Air filter
Front grille
Front grille
Air filter
Air inlet
On/ Off button
Signal receiver
Operation lamp
Air outlet
Air deflector
(Vertical louver & Horizontal vane)
NOTE
!
The number of operation lamps and their locations may vary, depending on the model of the
air conditioner.
7
BEFORE USE
ENGLISH
Indoor unit
* The feature can be changed according a type of model.
* The feature can be changed according a type of model.

Using the remote control
You can operate the air conditioner more conveniently with the remote control. You will find the
buttons for the additional functions under the cover of the remote control.
Wireless remote control
Signal transmitter
SLEEP
The controls will look like the following.
• Some functions may not be supported, depending on the
model.
Control
panel
Display
screen Description
-On/Off button: Used to turn off/on the
unit.
FPlasma button*: Used to start or stop
the plasma-purification.
=
Sleep mode auto button* : Sets the
sleep mode auto operation.
y
Temperature adjustment buttons: Ad-
justs the room temperature when cool-
ing and heating.
Indoor fan speed button: Adjusts the
fan speed.
AC
DBE
Operation mode selection button*: Se-
lects the operation mode.
Cooling operation (A) / Auto operation
or auto changeover (C) / Dehumidify-
ing operation (D) / Heating operation
(B) / Air circulation (E)
NJet cooling/heating button*: Warms up
or cools down the indoor temperature
within a short period of time.
HI Air flow direction button: Adjusts the air
flow direction vertically.
STemperature display button: Displays
the room temperature.
z
Timer button: Sets the current time and
the start / end time.
JGP
Navigation and functions button*: Ad-
justs the time and sets the special
functions. J: Auto clean / G: Operates
energy saving cooling / PAdjusts the
brightness of the indoor unit display
-Set/clear button: Sets or cancels func-
tions.
-Reset button : Resets the remote con-
trol settings.
BEFORE USE
8
ENGLISH

BEFORE USE 9
ENGLISH
How to insert the Batteries
1Remove the battery cover by pulling it ac-
cording to the arrow direction.
2Insert new batteries making sure that the
(+) and (-) of battery are installed correctly.
3Reattach the cover by sliding it back into
position.
Wireless Remote Controller
Maintenance
1 Choose a suitable place where its safe &
easy to reach.
2Fix the holder to wall etc with the supplied
screws firmly.
3Slide the remote controller inside the
holder.
1The signal receiver is inside the unit.
2Aim the remote controller towards the unit
to operate it. There should not be any
blockage in between.
NOTE
!
• Always use/replace both batteries of
same type.
• If the system is not to be used for a long
time, remove the batteries to save their
working life.
• If the display screen of remote controller
starts, fading replace both of the batter-
ies.
• Use 2 AAA(1.5 volt) batteries.
NOTE
!
• Remote controller should never be ex-
posed to direct sunlight.
• Signal transmitter & receiver should al-
ways be clean for proper communica-
tion. Use a soft cloth to clean them.
• In case some other appliances also get
operated with remote control, change
their position or consult your service-
man.
Operating method

10 OPERATING INSTRUCTION
ENGLISH
Operation Mode
1 Press the ON/OFF BUTTON to turn the unit on. The unit will respond with a beep.
2 Open the cover of the remote controller and press the operation mode button.
Each time the button is pressed, the operation mode is shifted in the direction of the arrow.
2 For cooling or heating operation set the desired indoor temperature by pressing the ROOM
TEMPERATURE SETTING BUTTONS.
For cooling the temperature can be set within 18°C~30°C and for heating the temperature
range is 16°C~30°C.
4 Set the fan speed with the remote controller. You can select the fan speed in six steps : low,
medium-low, medium, medium-high, high and natural wind by pressing the INDOOR FAN
SPEED SELECTION BUTTON.
Each time the button is pressed, the fan speed mode is shifted in the direction of the arrow.
Cooling Auto
Changeover
Healthy
Dehumidification
Heating
(Heat pump model only) Air Circulation
Auto Changeover (Optional)
Natural Wind
Step3(Medium)Step2(Medium-low)Step1(Low) Step4(Medium-high) Step5(High)
Natural wind
For fresher feeling, press the INDOOR FAN SPEED SELECTION BUTTON and set to Natural
wind mode.
In this mode, the wind blows like a natural breeze by automatically changing fan speed.
OPERATING INSTRUCTION

OPERATING INSTRUCTION 11
ENGLISH
Auto Changeover Operation
This operation is basically heating or cooling
function of the air conditioner. But during this
operation the controller changes the operation
mode automatically to keep the temperature
within ±2°C with respect to the setting tem-
perature.
Healthy Dehumidification
Operation
During Healthy Dehumidification Operation
• If you select the dehumidification mode on
the OPERATION MODE
SELECTION BUTTON, the product starts to
run the dehumidification function. It auto-
matically sets the room temperature and air-
flow volume to the best condition for
dehumidification, based on the sensed cur-
rent room temperature.
In this case, however, the setting tempera-
ture is not displayed on the remote
controller and you are not able to control the
room temperature either.
• During the healthy dehumidification func-
tion, the fan speed is automatically set ac-
cording to the optimization algorithm
responding to the current room temperature
status, so that the room condition is kept
healthy and comfortable even in the very
humid season.

12 OPERATING INSTRUCTION
ENGLISH
Air Circulation Operation
This operation circulates the air without cool-
ing or heating. It can be activated by pressing
the OPERATION MODE SELECTION BUT-
TON. Once the air circulation is activated you
can select the fan speed by pressing the IN-
DOOR FAN SPEED SELECTION BUTTON.
Auto Clean Operation
During Auto Clean Operation, moistures left in
indoor units after cooling operation or healthy
dehumidification operation can be removed.
Select Auto Clean Operation by the function
setting button( ) .
Now whenever the unit is turned off, the in-
door fan is still running for about 30 minutes
internally without cooling or dehumidification
operation.
This function dries up any remains of mois-
ture & cleans the unit internally. If you push
the Auto Clean button again, this function is
cancelled.
PLASMA Purification
Operation
Plasma filter is a technology developed by LG
to get rid of microscopic contaminants in the
intake air by generating a plasma of high
charge electrons. This plasma kills and de-
stroys the contaminants completely to provide
clean and hygienic air.
Plasma purification operation can be started
by pressing the PLASMA BUTTON on the re-
mote controller. Repressing it will deactivate
the operation.
NOTE
!
During this opertion , 'Cooling' lamp lights up.
NOTE
!
During Auto Clean fuction, only ON/OFF button,
Plasma button, Auto Clean button is used. Dur-
ing this operation, 'Cooling' lamp lights up.
NOTE
!
• This features can be used in any opera-
tion mode and fan speed by pressing
the plasma button.
• Separate plasma purification operation is
possible in stop condition. It is cancelled
by pressing plasma button or on/off but-
ton.

OPERATING INSTRUCTION 13
ENGLISH
Energy-Saving Cooling Mode
Energy-saving cooling mode can save energy
in cooling operation, because it can operate
efficiently by setting body-adaptation time ac-
cording to the change of time and tempera-
ture and adjusting desired temperature
automatically.
1Press the ON/OFF BUTTON to start the
unit.
2Open the cover of the remote controller.
Select cooling operation.
3Press the energy-saving cooling mode but-
ton.
4To cancel the energy-saving cooling mode,
press the Energy-Saving Cooling ModE but-
ton again and unit will operate in previous
mode(Cooling mode).
Display screen brightness
You can adjust the brightness of the
indoor unit display screen.
1Open the remote control cover.
2Press Prepeatedly to set the brightness.
Setting the Current Time
1Press the TIMER BUTTON For 3 seconds.
2Press the TIMER SETTING BUTTONS until
the desired time is set.
- The order of a.m. and p.m. -> hour -
>minute is repeated whenever you press
the < > button.
- By pressing the button, you can set
the current time.
3Press the SET/CLEAR button.
NOTE
!
Check the indicator for a.m. and p.m.

14 OPERATING INSTRUCTION
ENGLISH
Timer Setting
To cancel the timer setting
• If you wish to cancel all timer setting, press the SET/CLEAR button.
• In order to cancel the timer settings individually, press the Timer button to select Re-
served 'On' or Reserved 'Off'. And then press the Set/Clear button aiming the re-
mote controller at the signal receiver. (the timer lamp on the display will go off)
Sleep Mode Operation
Press the SLEEP MODE AUTO BUTTON to set the time when you want the unit to
stop automatically. The timer is programmed in one-hour increments by pressing the
SLEEP MODE AUTO BUTTON 1 to 7 times. The sleep mode is available for 1 to 7
hours.
Description
Button on the Re-
mote Controller
Indication on the LCD Dis-
play
Press the Timer button once to set on the
Reserved 'On'
(Press the Timer button twice to set the Re-
served 'Off')
Press the Time Setting buttons until the de-
sired time is set.
- The order of a.m. and p.m. ➞hour
➞ minute is repeated whenever you press
the < > button.
- By pressing the button, you can set the
desired time.
Press the SET/CLEAR BUTTON
(Press the SET/CLEAR BUTTON once more
to cancel)
NOTE
!
The sleep mode will operate indoor fan at super low speed in cooling mode and at low
speed in heating mode for pleasant sleep.
In cooling mode or healthy dehumidification mode:
The setting temperature will rise automatically two times by 1°C over next consecutive 30
minutes (Maximum 2°C) for a comfortable sleep. This will be the final setting temperature
as long as sleep mode is functioning.

OPERATING INSTRUCTION 15
ENGLISH
Horizontal Vane Control
The Horizontal Vane can be adjusted by using the remote controller.
1Press the ON/OFF button to start the unit.
2Press the vertical airflow direction button. Each time the button is pressed, the air-flow direc-
tion is changed in the direction of the arrow.
※Press the Vertical Airflow Direction button once more during Auto Swing at the direction of
airflow you want.
Vertical Louver Control
The Vertical Louvers can be adjusted by using the remote controller.
1 Press the ON/OFF button to start the unit.
2 Press the horizontal airflow direction button. Each time the button is pressed, the
airflow direction is changed in the direction of the arrow.
※Press the Horizontal Airflow Direction button once more during Full Auto Swing at the direc-
tion of airflow you want.
STOP
1 Step 2 Step 3 Step 4 Step 5 Step 6 Step Auto Swing
1 Step 2 Step 3 Step 4 Step 5 Step Left Auto Swing Right Auto Swing Full Auto Swing
STOP
NOTE
!
Manually moving the Horizontal Vane or Vertical Louvers by hand could damage the mecha-
nism.When the unit is shut off, the the Horizontal Vane and Vertical Louvers will close the
air outlet vent of the product.

16 OPERATING INSTRUCTION
ENGLISH

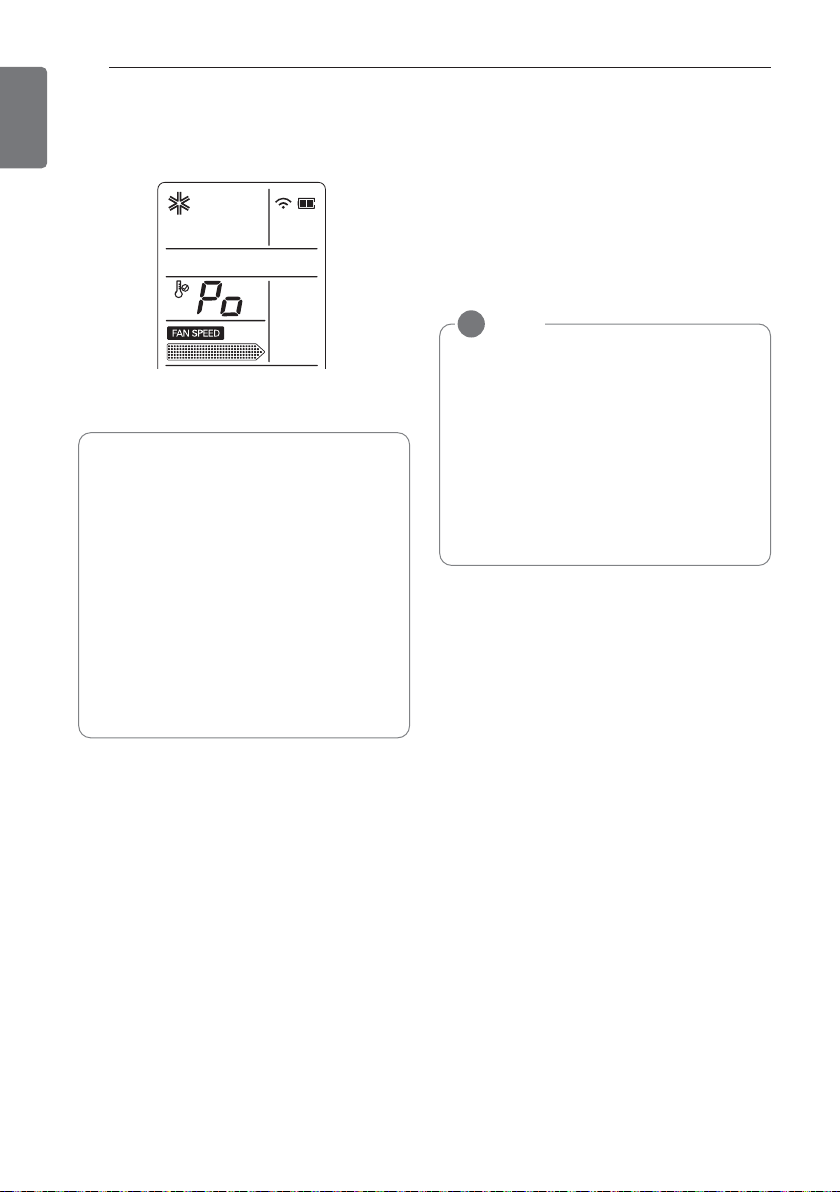

Jet Cool/Heat Operation You can activate this operation by pressing
the JET COOL BUTTON.
To change from jet cool mode to high fan
speed cooling mode, press the JET COOL
BUTTON or INIDOOR FAN SPEED SELECTOR
BUTTON or the ROOM TERPERATURE SET-
TING BUTTON again .
Jet cool function can be used to cool the
room quickly in hot summer. When this
function is turned on, the air conditioner
runs in cooling operation mode with super
high fan speed and 18°C setting tempera-
ture for 30 minutes for fast and effective
cooling.
Similarly, jet heat function (available only in
some models) warms up the room quickly
by operating at super high fan speed and
30°C setting temperature for 30 minutes.
NOTE
!
• Jet Cool/Heat operation cannot be acti-
vated during Air Circulation operation
and auto changeover operation.
• In case of Cooling only model , Jet Cool
cannot be activated during Heating.
• In case of Inverter you can use jet heat
function by pressing JET COOL BUT-
TON for heating operation.

MAINTENANCE 17
ENGLISH
MAINTENANCE
Clean the product regularly to maintain optimal performance and to prevent possible breakdown.
* This may not be provided, depending on the model.
Item Cleaning interval Cleaning method
Air filter 2 weeks See “Cleaning air filter.”
Anti-allergy filter / Triple filter 3 months See “Cleaning anti-allergy filter and triple Filter.”
Plasma filter* 3 months See “Cleaning the plasma filter.”
Indoor unit surface Regularly Use a soft, dry cloth. Do not use bleach or
abrasives.
Outdoor unit Regularly Use steam to clean the heat exchanger coils
and the panel vents (consult with technician).
Vertical louver Allergy free filter
Operation lamp
Signal Receiver
ON/OFF button
Air outlet Horizontal vane
Horizontal vane
Horizontal vane
Triple filter
Air inlet
Air filter
Front grille
CAUTION
• Turn off the power and unplug the power cord before you perform any maintenance; other-
wise it may cause electric shock.
• Never use water that is hotter than 40°C when you clean the filters. It may cause deforma-
tion or discoloration.
• Never use volatile substances when you clean the filters. They may damage the surface of
the product.
!
NOTE
!
• The location and shape of the filters may differ, depending on the model.
• Make sure to clean the heat exchanger coils of the outdoor unit regularly, as dirt collected
in the coils may decrease the operational efficiency or increase energy costs.
* The feature can be changed according a type of model.

18 MAINTENANCE
ENGLISH
Cleaning the air filter
Clean the air filter once every 2 weeks or
more if necessary.
1Turn off the power and unplug the power
cord.
2Open the front cover.
- Lift up both sides of the cover slightly.
* The feature can be changed according a
type of model.
3Hold the knob of the air filter, lift it up
slightly and remove it from the unit.
* The feature can be changed according a
type of model.
4Clean the filter with a vacuum cleaner or
with warm water.
- If dirt is difficult to remove, wash the filter
in lukewarm water with detergent.
5Dry the filter in the shade.
Cleaning the anti-allergy filter
and triple filter
1Turn off the power and unplug the power
cord.
2Open the front cover and remove the air
filter (see “Cleaning air filter”).
3Pull out the anti-allergy filter and the triple
filter.
4Dry the filter in direct sunlight for 2 hours.
Cleaning the plasma filter
1Turn off the power and unplug the power
cord.
2Open the front cover and remove the air
filter (see “Cleaning air filter”).
3Remove the plasma filter in 10 seconds.
4Use a vacuum cleaner to remove any dirt.
- If dirt is difficult to remove, wash the filter
with lukewarm water.
5Dry the filter in the shade.
NOTE
!
The location and shape of the filters may
differ, depending on the model.
NOTE
!
• The location of the filters may differ, de-
pending on the model.
• The plasma filter may not be included in
some models.
• The feature can be changed according a
type of model.
* The feature can be changed according a
type of model.
* The feature can be changed according a
type of model.

MAINTENANCE 19
ENGLISH
ON/OFF
button
Forced operation
Forced operation is used when the remote controller can't be used. The operation will be started
if the ON/OFF button is pressed. If you want to stop the operation, re-press the button.
Test operation
During the TEST OPERATION, the unit operates in cooling mode at high speed fan, regardless of
room temperature and resets in 18 minutes. During test operation, if remote controller signal is
received, the unit operates as remote controller sets. If you want to use this operation, Press and
hold the ON/OFF button for 3~5 seconds, then the buzzer sound 1 'beep'. If you want to stop the
operation, re-press the button.
Auto Restart Function
This function is useful in the situation of power failure.
When power regains after a failure this feature restore the previous operating condition
and the air conditioner will run in the same settings.
Cooling
Model
Heat pump Model
Room Temp. ≥24°C 21°C ≤Room Temp. < 24°C Room Temp. < 21°C
Operating mode Cooling Cooling Healthy Dehumidification Heating
Indoor FAN Speed High High High High
Setting Temperature 22°C 22°C 23°C 24°C
ON/OFF
button
NOTE
!
This feature is enabled by factory default setting, but you can disable it by pressing the
ON/OFF button for 6 seconds. The unit will beep twice and the lamp will blink 6 times.
To enable it, press the button again for 6 seconds. The unit will beep twice and the blue
lamp will blink 4 times.

20 TROUBLESHOOTING
ENGLISH
Self-diagnosis function
This product has a built-in self-diagnosis function. If an error occurs, the lamp of the indoor unit
will blink in 2 second intervals. If this occurs, contact your local dealer or service center.
Before requesting service
Please check the following before you contact the service center. If the problem persists, contact
your local service center.
TROUBLESHOOTING
Case Symptoms Corrective action Ref. Page
Abnormal operat-
ing conditions.
There is a burning smell and a
strange noise coming from
the unit.
Turn off the air conditioner,
unplug the power cord and
contact the installer who per-
formed the installation.
-
Circuit breaker has frequently
been turned off during opera-
tion.
Turn off the air conditioner,
unplug the power cord and
contact the installer who per-
formed the installation.
-
Water leaks from the indoor
unit even when the humidity
level is low.
Consult the installer who per-
formed the installation. -
The air-conditioner
does not start.
Is the air conditioner con-
nected to power?
Check, power cord is plugged
or not. -
Battery setting is wrong in the
remote controller.
Is the battery inserted in Re-
moted controler?
Is the battery inserted with
the correct terminal (+)(-)?
Even if you check the upper
lists, the air-conditioner does
not operate. Please replace
new batteries.
9
The air-conditioner
stops during oper-
ation.
The air conditioner is suddenly
turn off.
The timer function could be
operated.
If the timer function would op-
erate, the air-conditioner can
be turn off.
Check the timer setting is cor-
rect.
14
A power failure has occurred
during operation.
There is the Auto Restart
Function.
It is a default setting. This
function can turn on the unit
automatically when the power
is restored. if you live in fre-
quent power failure area, this
function would be useful.
19
