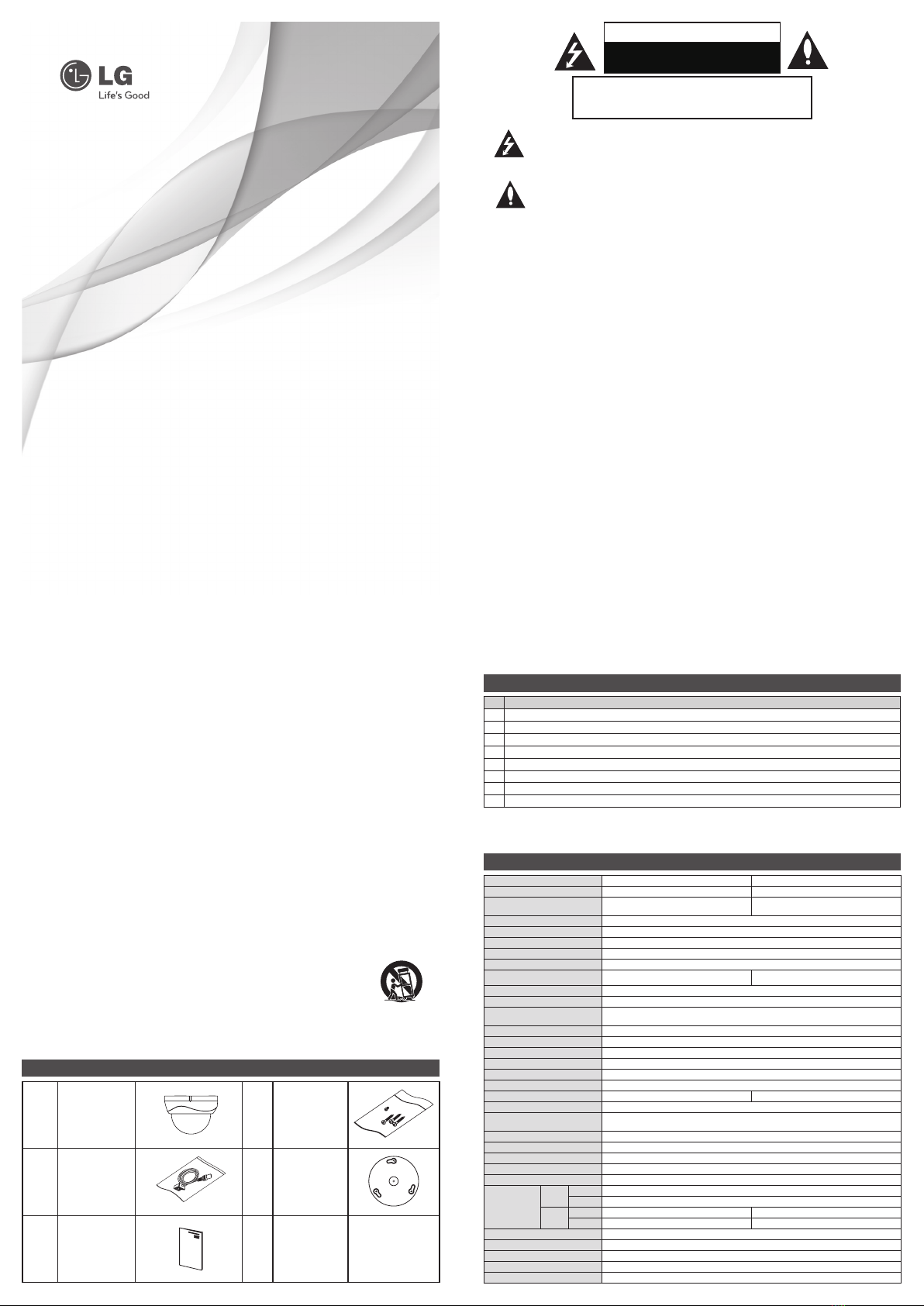

LG L5213R-BN User manual

Please read this manual carefully before operating
your set and retain it for future reference.
INSTALLATION MANUAL
Color Camera
MODELS
L5213R-BN/BP/DN
P/NO : COV30407201
PARTS LIST
NO PART NAME
1TEMPLATE
2Housing Botton
3Holder Panning
4Holder Tlit
5Holder Rotate
6Cover LED
7Housing Top
8Cover, Dome
SPECIFICATIONS
Model L5213R-BP L5213R-BN/DN
Signal System PAL NTSC
Total Pixels No. /
Effective Pixels No. 470K / 440K 410K / 380K
Image Device 1/3" CCD (ICX638/639BK)
DSP XDI-S2
Lens 2.8~11mm Vari-focal lens
Digital Zoom X8
Sync. System Internal
Scanning Frequency (H/V) 15.625 KHz / 50 Hz 15.734 KHz / 59.94 Hz
Horizontal Resolution 620 TV Lines
S/N Ratio 52dB
Minimum Illumination
(30 IRE)
0 Lux (IR LED On)
IR LED Distance : 25 m
Control Method Inner Key button
Video Output Signal 1Vp-p Composite (75Ω)
Day & Night ICR Day / Night / Auto
WDR(BLC) OFF / BLC / HSBLC
DNR 3D-DNR (Off/Low/Middle/High)
Auto Gain Control Off / Low / Middle / High
Electronic Shutter Speed 1/50 ~1/90,000 1/60 ~1/90,000
Electronic Sensitivity OFF/Auto ( x2, x3, x4,…..x 128 )
White Balance ATW / One Push / Manual
(1,700ºk ~ 11,000ºk)
Motion Detection 4 Zones
Privacy Zone Masking 8 Masks
Stabilizer(EIS) On / Off
User Color Mode Standard / Cool / Warm / Vivid
Multi OSD Language 15 Languages
Power
Consumption
Dual LED ON DC12V ±10% Max. 470mA / AC24V ±10% Max.450mA / 6.0W
LED OFF DC12V ±10% Max. 210mA / AC24V ±10% Max.235mA / 3.0W
DC12V LED ON - DC12V ±10% Max. 390mA
LED OFF - DC12V ±10% Max. 160mA
Operation Temp./Humidity -10 ºC ~ 50 ºC ( 0%RH ~ 80%RH )
Storage Temp./Humidity -20 ºC ~ 60 ºC ( 0%RH ~ 85%RH )
Weight 342g
Dimension 96.9(H) x Ø135.0
Accessory TEMPLATE
Important Safety Instructions
1. Read these instructions. - All these safety and
operating instructions should be read before the product is operated.
2. Keep these instructions. - The safety, operating and use instructions should be
retained for future reference.
3. Heed all warnings. - All warnings on the product and in the operating instructions
should be adhered to.
4. Follow all instructions. - All operating and use instructions should be followed.
5. Do not use this apparatus near water. - For example: near a bath tub, wash bowl,
kitchen sink, laundry tub, in a wet basement; near a swimming pool; etc.
6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions. - Slots and openings in the cabinet are provided for ventilation, to
ensure reliable operation of the product, and to protect it from over- heating. The openings should
never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is
provided and the manufacturer’s instructions have been adhered to.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type plug has
two blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not t into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specied by the manufacturer.
12. Use only the cart, stand, tripod, bracket, or table specied by the
manufacturer, or sold with apparatus. When a cart is used, use caution
when moving the cart / apparatus combination to avoid injur from tip-over.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as powersupply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
ACCESSORIES FURNISHED
1 DOME CAMERA 4 SCREW
2VIDEO OUTPUT
TEST CABLE 5 TEMPLATE
3INSTALLATION
MANUAL
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead symbol within an equilateral triangle is intended
to alert the user to the presence of uninsulated dangerous voltage within the product’
s enclosure that may be of sufcient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
FCC WARNING: This equipment may generate or use radio frequency energy. Changes or
modications to this equipment may cause harmful interference unless the modications are
expressly approved in the instruction manual. The user could lose the authority to operate this
equipment if an unauthorized change or modication is made.
Regulatory Notices For U.S.A
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
• A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this product
in the end user.
• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces or
shall be provided with brushings.
Warning: Do not install this equipment in a conned space such as a bookcase or similar unit.
Warning: Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA 70.
Warning: This is a class A product. In a domestic
environment this product may cause radio interference in which case the user may be required to
take adequate measures.
Warning: To reduce a risk of re or electric shock, do not expose this product to rain or moisture.
Caution: This installation should be made by a qualied service person and should conform to all
local codes.
Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualied personnel
only.
Caution: The apparatus should not be exposed to water (dripping or splashing) and no objects lled
with liquids, such as vases, should be placed on the apparatus.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

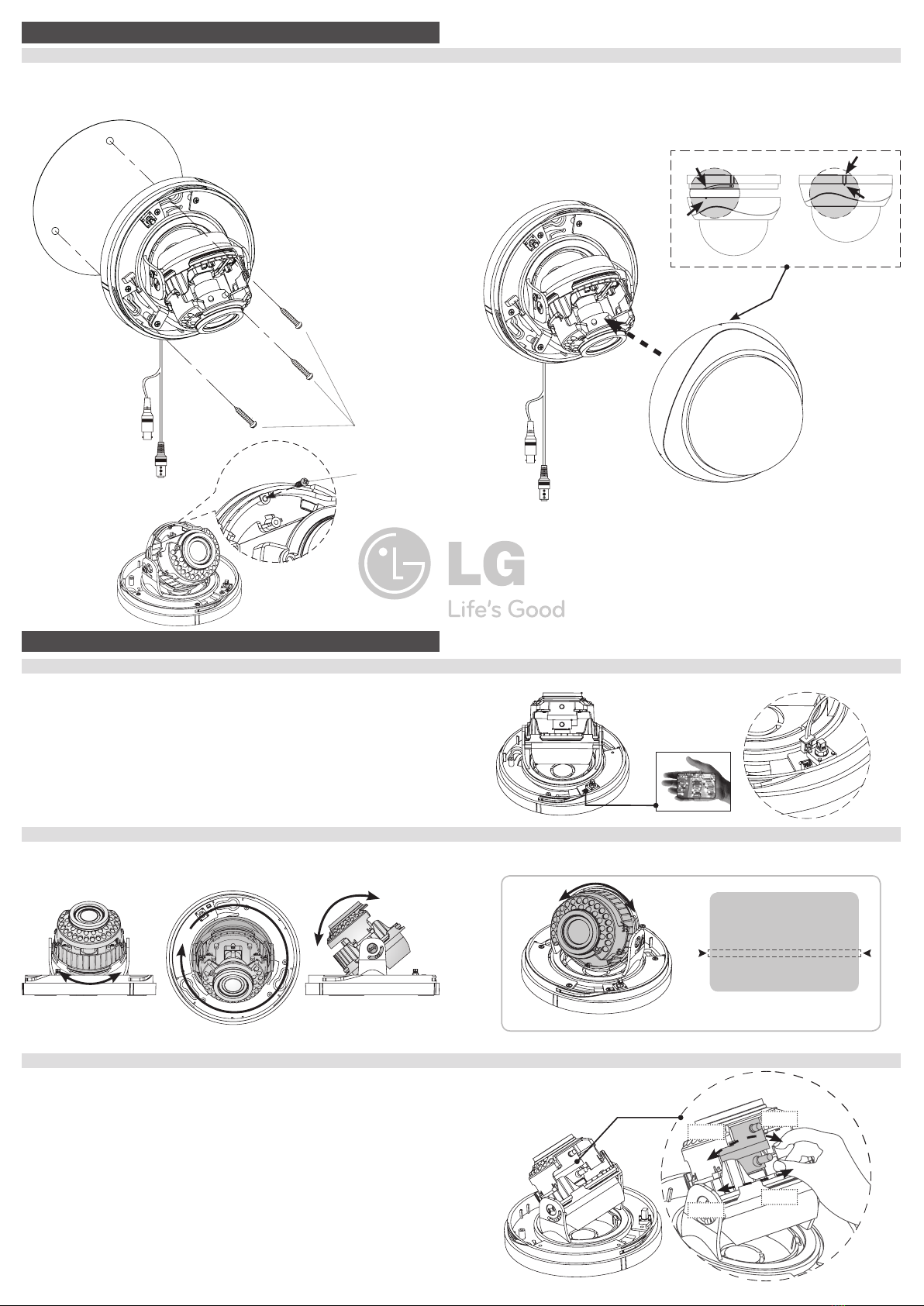

INSTALLATION
Installing the camera on a ceiling or wall
󰎐. Affix the mounting template(supplied) to the mounting surface.
󰎑. Secure the camera mounting bracket to the position where the camera
should be mounted with the supplied screws.
Tapping Type ø4x20mmx3ea
(Supplied)
󰎒. Adjust the camera lens to face the area to be monitored and fix the main body and the
dome cover by aligning the grooves and rotating the body clockwise.
ADJUSTMENT
FAR
NEAR
TELE
WIDE
Service Monitor
TILT 80˚
(Viewable operation
tilt angle 60˚~65˚)
PAN 360˚
ROTATE 360˚
1. Having a better view , adjust the camera
• Rotate angle : 360˚
• Panning angle : 360˚
• Tilting angle : 80˚(Viewable operation tilt angle 60˚~65˚)
2. Follow the instruction provided below to make any lens adjustments.
• Loosen the Zoom & Focus screws.
•Using the screw, move it LEFT or RIGHT to the desired position.
•Once the desired adjustments have been made, tighten the screw to lock in place.
•Adjust the Field of View by moving the screw towards the LEFT(Tele) to
zoom in, or towards the RIGHT(Wide) to zoom out.
•Adjust the Focus the same way as described above after the desired zoom
position is established.
Focus: Far ←→Near
Zoom: Tele ←→Wide
Service Video connector
The Service Video Connector also provides the installer with an easy way
of configuring the camera.
Tapping Type
ø2x7mmx1ea
(Supplied)
Diffused reflection can occur when IR is covered. In this case, the setting as below is required.
Caution: Be careful not to cover the sensor when installing a device.
1. 180˚rotation in LED Part as shown in the picture 2. OSD MENU Setting
SPECIAL: D-EFFECT ; ROTATE
SPECIAL
LANGUAGE
COLOR EFFECT
SHARPNESS
STABILIZER
D-ZOOM
D-EFFECT
MOTION DET
FACTORY RESET
RETURN
ENG
ON
34 ………I……
OFF
OFF
ROTATE
OFF
