Table Of Contents

1. INTRODUCTION..................................................................5

1.1 Purpose............................................................................................... 5

1.2 Regulatory Information ............................................................... 5

1.3 Abbreviations................................................................................... 7

2. PERFORMANCE...................................................................9

2.1 Product Name.................................................................................. 9

2.2 Supporting Standard.................................................................... 9

2.3 Main Parts : GSM Solution........................................................... 9

2.4 HW Features....................................................................................10

2.5 SW Features ....................................................................................12

2.6 HW SPEC. .........................................................................................15

2.7 LG-E900 Figures.............................................................................21

3. TECHNICAL BRIEF.............................................................22

3.1 RF GENERAL DESCRIPTION.......................................................22

3.2 GSM MODE......................................................................................24

3.3 UMTS MODEE.................................................................................28

3.4 GPS MODE.......................................................................................31

3.5 OFF-CHIP RF COMPONENTS ....................................................32

3.6 Digital Baseband(DBB/QSD8650)..........................................36

3.7 Hardware Architecture...............................................................37

3.8 Microprocessor Subsytem(QSD8650)..................................40

3.9 Power Block.....................................................................................41

3.10 H/W Sub System.........................................................................46

3.11 Audio and sound........................................................................50

3.12 Display............................................................................................54

3.13 Proximity Sensor ........................................................................55

3.14 Light Sensor .................................................................................55

3.15 Motion Sensor (Three-axis-accelerometer).....................56

3.16 Compass Sensor.........................................................................56

3.17 LG –E900 Main Features..........................................................58

3.18 Main Component.......................................................................59

4. TROUBLE SHOOTING .......................................................62

4.1 RF Component...............................................................................62

4.2 SIGNAL PATH ..................................................................................64

4.3 Checking TCXO Block..................................................................68

4.4 Checking FEM Block....................................................................70

4.5 Checking WCDMA Block............................................................73

4.6 Checking GSM Block ...................................................................84

4. 7 GPS/WIFI/BT/FM Radio RF components ............................92

4.8 GPS/WIFI/BT Signal path ...........................................................94

4. 9 GPS/WIFI/BT Trouble shooting...............................................96

4.10 Power ON Troubleshooting................................................ 105

4.11 Charger Troubleshooting .................................................... 108

4.12 USB trouble................................................................................ 111

4.13 Audio trouble ........................................................................... 113

4.14 5M Camera trouble ................................................................ 123

4.15 Main LCD trouble.................................................................... 125

4.16 SIM Detect Troubleshooting .............................................. 127

4.17 Key Troubleshooting ............................................................. 129

4.18 VIBRATOR.................................................................................... 130

4.19 Proximity Sensor on/oﬀ trouble ....................................... 131

4.20 Luminance Sensor on/oﬀ trouble....................................133

4.21 Motion Sensor on/oﬀ trouble............................................ 135

5. DOWNLOAD................................................................... 137

6. BLOCK DIAGRAM........................................................... 150

7. CIRCUIT DIAGRAM ........................................................ 159

8. BGA Pin Map.................................................................. 169

9. PCB LAYOUT................................................................... 173

10. RF CALIBRATION ......................................................... 179

10.1 Conﬁguration of Tachyon.................................................... 179

10.2 How to use Tachyon............................................................... 181

11. EXPLODED VIEW & REPLACEMENT PART LIST ......... 185

11.1 EXPLODED VIEW...................................................................... 185

11.2 Replacement Parts.................................................................. 187

11.3 Accessory ................................................................................... 209

- 4 -

Only for training and service purposes

- 5 -

Only for training and service purposes

LGE Internal Use Only

1. INTRODUCTION

1. Introduction

1.1 Purpose

This manual provides the information necessary to repair, calibration, description and download the features

of this model.

1.2 Regulatory Information

A. Security

Toll fraud, the unauthorized use of telecommunications system by an unauthorized part (for example,

persons other than your company’s employees, agents, subcontractors, or person working on your

company’s behalf) can result in substantial additional charges for your telecommunications services. System

users are responsible for the security of own system.

There are may be risks of toll fraud associated with your telecommunications system. System users are

responsible for programming and configuring the equipment to prevent unauthorized use. The

manufacturer does not warrant that this product is immune from the above case but will prevent

unauthorized use of common carrier telecommunication service of facilities accessed through or connected

to it. The manufacturer will not be responsible for any charges that result from such unauthorized use.

B. Incidence of Harm

If a telephone company determines that the equipment provided to customer is faulty and possibly causing

harm or interruption in service to the telephone network, it should disconnect telephone service until repair

can be done. A telephone company may temporarily disconnect service as long as repair is not done.

C. Changes in Service

A local telephone company may make changes in its communications facilities or procedure. If these

changes could reasonably be expected to affect the use of the phones or compatibility with the net work, the

telephone company is required to give advanced written notice to the user, allowing the user to take

appropriate steps to maintain telephone service.

D. Maintenance Limitations

Maintenance limitations on the phones must be performed only by the manufacturer or its authorized agent.

The user may not make any changes and/or repairs expect as specifically noted in this manual. Therefore,

note that unauthorized alternations or repair may affect the regulatory status of the system and may void

any remaining warranty.

E. Notice of Radiated Emissions

This model complies with rules regarding radiation and radio frequency emission as defined by local

regulatory agencies. In accordance with these agencies, you may be required to provide information such as

the following to the end user.

- 6 -

Only for training and service purposes

1. INTRODUCTION

F. Pictures

The pictures in this manual are for illustrative purposes only; your actual hardware may look slightly different.

G. Interference and Attenuation

A phone may interfere with sensitive laboratory equipment, medical equipment, etc. Interference from

unsuppressed engines or electric motors may cause problems.

H. Electrostatic Sensitive Devices

ATTENTION

Boards, which contain Electrostatic Sensitive Device (ESD), are indicated by the sign. Following

information is ESD handling:

• Service personnel should ground themselves by using a wrist strap when exchange system boards.

• When repairs are made to a system board, they should spread the floor with anti-static mat which is also

grounded.

• Use a suitable, grounded soldering iron.

• Keep sensitive parts in these protective packages until these are used.

• When returning system boards or parts like EEPROM to the factory, use the protective package as described.

- 7 -

Only for training and service purposes

LGE Internal Use Only

1. INTRODUCTION

ʹΠΡΪΣΚΘΙΥι ͽ͸ͶΝΖΔΥΣΠΟΚΔΤͺΟΔͲΝΝΣΚΘΙΥΣΖΤΖΣΧΖΕ

΀ΟΝΪΗΠΣΥΣΒΚΟΚΟΘΒΟΕΤΖΣΧΚΔΖΡΦΣΡΠΤΖΤ

ͽ͸ͶͺΟΥΖΣΟΒΝΆΤΖ΀ΟΝΪ 6/140

1.3 Abbreviations

For the purposes of this manual, following abbreviations apply:

Offset Phase Locked LoopOPLL

Light Emitting DiodeLED

Low Drop OutputLDO

Liquid Crystal DisplayLCD

Intermediate FrequencyIF

International Portable User IdentityIPUI

Global System for Mobile CommunicationsGSM

General Purpose Interface BusGPIB

Gaussian Minimum Shift KeyingGMSK

Flexible Printed Circuit BoardFPCB

Electrostatic DischargeESD

Electrical Erasable Programmable Read-Only MemoryEEPROM

Digital Signal ProcessingDSP

dB relative to 1 milli wattdBm

Digital Communication SystemDCS

Digital to Analog ConverterDAC

Constant Current – Constant VoltageCC-CV

Bit Error RatioBER

BasebandBB

Automatic Power ControlAPC

1. INTRODUCTION

- 8 -

Only for training and service purposes

1. INTRODUCTION

ʹΠΡΪΣΚΘΙΥι ͽ͸ͶΝΖΔΥΣΠΟΚΔΤͺΟΔͲΝΝΣΚΘΙΥΣΖΤΖΣΧΖΕ

΀ΟΝΪΗΠΣΥΣΒΚΟΚΟΘΒΟΕΤΖΣΧΚΔΖΡΦΣΡΠΤΖΤ

ͽ͸ͶͺΟΥΖΣΟΒΝΆΤΖ΀ΟΝΪ 7/140

Wireless Application Protocol

WAP

Voltage Control Temperature Compensated Crystal OscillatorVCTCXO

Voltage Controlled OscillatorVCO

Universal Asynchronous Receiver/TransmitterUART

Time Division Multiple AccessTDMA

Time Division DuplexTDD

Travel AdapterTA

Side Tone Masking RatingSTMR

Pseudo SRAMPSRAM

Static Random Access MemorySRAM

Sending Loudness RatingSLR

Subscriber Identity ModuleSIM

Surface Acoustic WaveSAW

Real Time ClockRTC

Root Mean SquareRMS

Receiving Loudness RatingRLR

Radio FrequencyRF

Public Switched Telephone NetworkPSTN

Phase Locked LoopPLL

Programmable Gain AmplifierPGA

Printed Circuit BoardPCB

Power Amplifier ModulePAM

1. INTRODUCTION

- 9 -

Only for training and service purposes

LGE Internal Use Only

2. PERFORMANCE

2.1 Product Name

LGE900 : WCDMA1900/900/2100 + EGSM/GSM850/DCS/PCS

(HSDPA / HSUPA / GPRS / EDGE)

2.2 Supporting Standard

Item Feature Comment

Supporting Standard WCDMA(FDD1,2,8)

EGSM/GSM850/DCS1800/PCS1900

Frequency Range WCDMA(FDD1) TX : 1920 – 1980 MHz

WCDMA(FDD1) RX : 2110 – 2170 MHz

WCDMA(FDD2) TX : 1850 – 1910 MHz

WCDMA(FDD2) RX : 1930 – 1990 MHz

WCDMA(FDD8) TX : 880 – 915 MHz

WCDMA(FDD8) RX : 925 – 960 MHz

EGSM TX : 880 – 915 MHz

EGSM RX : 925 – 960 MHz

GSM850 TX : 824 – 849 MHz

GSM850 RX : 869 – 894 MHz

DCS1800 TX : 1710 – 1785 MHz

DCS1800 RX : 1805 – 1880 MHz

PCS1900 TX : 1850 – 1910 MHz

PCS1900 RX : 1930 – 1990 MHz

2.3 Main Parts : GSM Solution

Item Part Name Comment

Digital Baseband QSD8650 : Qualcomm

Analog Baseband PM7540 : Qualcomm

RF Chip RTR6285 : Qualcomm

- 10 -

Only for training and service purposes

2. PERFORMANCE

2.4 HW Features

Item Feature Comment

Form Factor DOP

1) Capacity

Standard : Li-Ion polymer, 1500mAh

Battery

2) Packing Type : Soft Pack

Size Standard :

125 x 59.8 x 11.5 mm

Weight 150 g

Volume TBD

PCB 3-8 Staggered 10 Layers , 0.8t

Stand by time 2G Up to 430 hrs

3G Up to 400 hrs

@ Paging Period 5 (2G)

@ DRX 7 (3G)

Charging time 3 hrs @ Power Off / 1500mAh

Talk time 2G Up to 250mins

3G Up to 350 mins

@ Tx = Max (2G)

@ Tx = 12dBm (3G)

RX sensitivity WCDMA(FDD1) : -106.7 dBm

WCDMA(FDD2) : -104.7 dBm

WCDMA(FDD5) : -104.7 dBm

EGSM : -105 dBm

GSM850 : -105 dBm

DCS 1800 : -105 dBm

PCS 1900 : -105 dBm

WCDMA/

GSM/

GPRS

WCDMA : 24dBm/3.84MHz,+1/-3dBm

EGSM : 33dBm

GSM850 : 33 dBm

DCS 1800 : 30 dBm

PCS 1900 : 30 dBm

Class3(WCDMA)

Class4 (EGSM)

Class4 (GSM850)

Class1 (PCS)

Class1 (DCS)

output

power

EDGE GSM 900 : 27 dBm

DCS 1800 : 26 dBm

PCS 1900 : 26 dBm

E2 (GSM900)

E2 (PCS)

E2 (DCS)

GPRS compatibility GPRS Class 12

SIM card type Plug-In SIM

3V /1.8V

LCD 3.8”800 x 480 pixels (WVGA)

260K TFT LCD

Built-in Camera 5.0 Mega AF Camera w/o Flash

Status Indicator N/A

Keypad Function Key : 3

Side Key : 2

Function Key:

CAM, Power,

Side Key :

Volume up/down

ANT Main : Internal Fixed Type

System connector 5 Pin

Ear Phone Jack 3.5phi

Memory NAND Flash : 4Gbit

SDRAM : 4Gbit

Speech coding FR, EFR, HR,AMR

Data & Fax Built in Data & Fax support

Vibrator Built in Vibrator

Blue Tooth V2.1 + EDR

- 11 -

Only for training and service purposes

LGE Internal Use Only

2. PERFORMANCE

MIDI(for Buzzer

Function)

SW Decoded 72Poly

Music Player MP3/AAC/AAC+

Video Player MPEG4, H.264,

Camcorder MPEG4, H.264

Voice Recording Yes

Speaker Phone mode

Support

Yes

Travel Adapter Yes

CDROM Yes

Stereo Headset Yes

Data Cable Yes

T-Flash

(External Memory)

- 12 -

Only for training and service purposes

2. PERFORMANCE

2.5 SW Features

Item Feature Comment

RSSI 0 ~ 5 Levels

Battery Charging 0 ~ 4 Levels

Key Volume 0 ~ 5 Level

Audio Volume 0 ~ 5 Level

Time / Date Display Yes

Multi-Language Yes English/French

Quick Access Mode Dialing/ Contact / Menu / Message /

Camera

PC Sync Yes Support with Activesync(MS application).

Contacts, Calandar, E-mail, Tasks, Notes,

Favorites, Files, Media

Speed Dial Yes Voice mail center -> 1 key

Profile Yes not same with feature phone setting

CLIP / CLIR Yes

Phone Book [Outlook contact]

Name / Picture / Company /

Department / Job title / File as /

Work tel / Work fax / Work addr / IM /

E-mail / Mobile tel / Ring tone / Web

page / Office location / Home tel /

Home addr / Categories / Other

addr / Pager / Car tel / Home fax /

Company tel / Work2 tel / Home2 tel

/ Radio tel / IM2 / IM3 / E-mail 2/ E-

mail 3 / Assistant / Assistant tel /

Manager / Govt. ID / Account /

Cutomer ID / Birthday / Anniversary

/ Spouse / Children / Note

[SIM Contact]

Name / Mobile Tel / Work Tel / Home

Tel / E-mail / Work2 Tel

There is no limitation on the number of

items.

It depends on Available memory amount.

E-mail and Messaging Group are editable.

Last Dial Number Yes Last Dial Numbers, Last Received

Numbers and Last Missed Numbers can

store.

Last Received

Number

Yes Last Dial Numbers, Last Received

Numbers and Last Missed Numbers can

store .

Last Missed Number Yes Last Dial Numbers, Last Received

Numbers and Last Missed Numbers can

store.

Search by Number

/ Name

Name

Group Yes There is no limitation on the number of

items.

It depends on

available memory amount.

Fixed Dial Number Yes

Service Dial Number No

Own Number Yes Read only

(add/edit/delete are not

supported)

- 13 -

Only for training and service purposes

LGE Internal Use Only

2. PERFORMANCE

Voice Memo Yes Support voice recorder

Call Reminder No

Network Selection Automatic /Manual

Mute Yes

Call Divert Yes

Call Barring Yes

Call Charge (AoC) No

Call Duration Yes

SMS (EMS) There is no limitation on the

number of items.

It depends on available memory

amount.

EMS does not support.

SMS Over GPRS Yes

EMS Melody / Picture

Send / Receive / Save

MMS MPEG4

Send / Receive / Save

Yes

Long Message Yes

Cell Broadcast No

Download Over the Web

Game Yes

Calendar Yes

Memo Yes There is no limitation on the number of

items.

It depends on available memory amount.

World Clock No

Unit Convert Yes

Stop Watch Yes

Wall Paper Yes

WAP Browser Yes IE Mobile

Download Melody /

Wallpaper

Yes Over web browser

SIM Lock Yes Operator Dependent

SIM Toolkit R99 Class b, c

MMS Yes LG MMS Client

EONS Yes

CPHS Yes V4.2

ENS Yes

Camera Yes 5M AF /

Digital Zoom : x4

JAVA No

Voice Dial Yes Support with voice command (MS

application)

IrDa No

Bluetooth Yes Ver. 2.1+EDR

(HSP,HFP,A2DP,AVRCP)

FM radio Yes

GPRS Yes Class 12

EDGE Yes Class 12

Hold / Retrieve Yes

Conference Call Yes Max. 6

- 14 -

Only for training and service purposes

2. PERFORMANCE

DTMF Yes

Memo pad No

TTY Yes

AMR Yes

SyncML Yes

IM Yes

Email Yes

- 15 -

Only for training and service purposes

LGE Internal Use Only

2. PERFORMANCE

2.6 HW SPEC.

1) GSM transceiver specification

Item Specification

Phase Error Rms : 5°

Peak : 20 °

Frequency Error GSM : 0.1 ppm

DCS/PCS : 0.1 ppm

EMC(Radiated Spurious Emission

Disturbance) GSM/DCS : < -28dBm

Transmitter Output power and Burst

Timing

GSM : 5dBm ~ 33dBm ± 3dB

DCS/PCS : 0dBm ~ 30dBm ± 3dB

Burst Timing <3.69us

Spectrum due to modulation out to

less than 1800kHz offset

200kHz : -36dBm

600kHz : -51dBm/-56dBm

Spectrum due to modulation out to

larger than 1800kHz offset to the

edge of the transmit band

GSM :

1800-3000kHz :< -63dBc(-46dBm)

3000kHz-6000kHz : <-65dBc(-46dBm)

6000kHz < : < -71dBc(-46dBm)

DCS :

1800-3000kHz :< -65dBc(-51dBm)

6000kHz < : < -73dBc(-51dBm)

Spectrum due to switching transient 400kHz : -19dBm/-22dBm(5/0), -23dBm

600kHz : -21dBm/-24dBm(5/0), -26dBm

Reference Sensitivity – TCH/FS Class II(RBER) : -105dBm(2.439%)

Usable receiver input level range 0.012(-15 - -40dBm)

Intermodulation rejection –

Speech channels

± 800kHz, ± 1600kHz

: -98dBm/-96dBm (2.439%)

AM Suppression

TGSM : -31dBm

- DCS : -29dBm

-98dBm/-96dBm (2.439%)

Timing Advance ± 0.5T

- 16 -

Only for training and service purposes

2. PERFORMANCE

2) WCDMA transmitter specification

Item Specification

Transmit Frequency WCDMA900 : 880 MHz ~ 915 MHz

WCDMA1900 : 1850 MHz ~ 1910 MHz

WCDMA2100 : 1920 MHz ~ 1980 MHz

Maximum Output Power +24 dBm / 3.84 MHz, +1 / -3 dB

Frequency Error within ±0.1 PPM

Open Loop Power Control Normal Conditions : within ± 9 dB,

Extreme Conditions : within ± 12 dB

Minimum Transmit Power < -50 dBm /3.84 MHz

Occupied Bandwidth < 5 MHz at 3.84 Mcps (99% of power)

Adjacent Channel Leakage

Power Ratio (ACLR)

> 33 dB @ ±5 MHz,

> 43 dB @ ±10 MHz

Spurious Emissions

|f-fc| > 12.5 MHz

< -36 dBm / 1 kHz RW @ 9 kHz ≤ f < 150 kHz

< -36 dBm / 10 kHz RW @ 150 KHz ≤ f < 30 MHz

< -36 dBm / 100 kHz RW @ 30 MHz ≤ f < 1 GHz

< -30 dBm / 1 MHz RW @ 1 GHz ≤ f < 12.75 GHz

< -60 dBm / 3.84 MHz RW @ 869 MHz ≤ f ≤ 894 MHz

< -60 dBm / 3.84 MHz RW @ 1930 MHz ≤ f ≤ 1900 MHz

< -60 dBm / 3.84 MHz RW @ 2110 MHz ≤ f ≤ 2155 MHz

< -67 dBm / 100 kHz RW @ 925 MHz ≤ f ≤ 935 MHz

< -79 dBm / 100 kHz RW @ 935 MHz < f ≤ 960 GHz

< -71 dBm / 100 kHz RW @ 1805 MHz ≤ f ≤ 1880 MHz

< -41 dBm / 300 kHz RW @ 1884.5 MHz < f < 1919.6 MHz

Transmit Intermodulation < -31 dBc @ 5 MHz & < -41 dBc @ 10 MHz

when Interference CW Signal Level = -40 dBc

Error Vector Magnitude < 17.5 %, when Pout ≥ -20 dBm

Peak Code Domain Error < -15 dB at Pout t-20 dBm

- 17 -

Only for training and service purposes

LGE Internal Use Only

2. PERFORMANCE

3) WCDMA receiver specification

Item Specification

Receive Frequency WCDMA900 : 925 MHz ~ 960 MHz

WCDMA1900 : 1930 MHz ~ 1990 MHz

WCDMA2100 : 2110 MHz ~ 2170 MHz

Reference Sensitivity Level Band1 : BER < 0.001 when Îor = -106.7 dBm / 3.84 MHz

Band8 : BER < 0.001 when Îor = -103.7 dBm / 3.84 MHz

Maximum Input Level BER < 0.001 when Îor = -25 dBm / 3.84 MHz

Adjacent Channel Selectivity

(ACS)

ACS > 33 dB where BER < 0.001 when

Îor = -92.7 dBm / 3.84 MHz

& Ioac = –52 dBm / 3.84 MHz @ ±5 MHz

Blocking Characteristic BER < 0.001 when Îor = -103.7 dBm / 3.84 MHz

& Iblocking = -56 dBm / 3.84 MHz @ Fuw(offset) = ±10 MHz

or Iblocking = -44 dBm / 3.84 MHz @ Fuw(offset) = ±15 MHz

Spurious Response BER < 0.001 when Îor = -103.7 dBm / 3.84 MHz

& Iblocking = -44 dBm

Intermodulation BER < 0.001 when Îor= -103.7 dBm / 3.84 MHz

& Iouw1 = -46 dBm @ Fuw1(offset) = ±10 MHz

& Iouw2 = -46 dBm / 3.84 MHz @ Fuw2(offset) = ±20 MHz

Spurious Emissions < -57 dBm / 100 kHz BW @ 9 kHz ≤ f < 1 GHz

< -47 dBm / 1 MHz BW @ 1 GHz ≤ f ≤ 12.75 GHz

Inner Loop Power Control

In Uplink

Adjust output(TPC command)

cmd 1dB 2dB 3dB

+1 +0.5/1.5 +1/3 +1.5/4

0 -0.5/+0.5 -0.5/+0.5 -0.5/+0.5

-1 -0.5/-1.5 -1/-3 -1.5/-4

group(10equal command group)

+1 +8/+12 +16/+24

- 18 -

Only for training and service purposes

2. PERFORMANCE

4) HSDPA transmitter specification

Item Specification

Transmit Frequency WCDMA900 : 880 MHz ~ 915 MHz

WCDMA1900 : 1850 MHz ~ 1910 MHz

WCDMA2100 : 1920 MHz ~ 1980 MHz

Maximum Output Power Sub-Test

1=1/15, 2=12/15 21~25dBm / 3.84 MHz

3=13/15 4=15/8 20~25dBm / 3.84 MHz

5=15/7 6=15/0 19~25dBm / 3.84 MHz

HS-DPCCH

Sub-test

in table

C.10.1.4

Power

step

Power step slot

boundary

Power

step size,

P [dB]

Transmitter power step

tolerance [dB]

1 Start of

Ack/Nack

6 +/- 2.3

2 Start of CQI 1 +/- 0.6

3 Middle of CQI 0 +/- 0.6

Spectrum Emission Mask

Sub-Test : 1=1/15, 2=12/15, 3=13/15, 4=15/8, 5=15/7, 6=15/0

Frequency offset

from carrier ୞f Minimum requirement Measurement

Bandwidth

2.5 ~ 3.5 MHz -35-15×(୞f-2.5)dBc 30 kHz

3.5 ~ 7.5 MHz -35-1×(୞f-3.5)dBc 1 MHz

7.5 ~ 8.5 MHz -35-10×(୞f-7.5)dBc 1 MHz

8.5 ~ 12.5 MHz -49dBc 1 MHz

Adjacent Channel Leakage

Power Ratio (ACLR)

Sub-Test : 1=1/15, 2=12/15, 3=13/15, 4=15/8, 5=15/7, 6=15/0

> 33 dB @ ±5 MHz

> 43 dB @ ±10 MHz

Error Vector Magnitude < 17.5 %, when Pout ≥ -20 dBm

- 19 -

Only for training and service purposes

LGE Internal Use Only

2. PERFORMANCE

5) HSDPA receiver specification

Item Specification

Receive Frequency

WCDMA900 : 925 MHz ~ 960 MHz

WCDMA1900 : 1930 MHz ~ 1990 MHz

WCDMA2100 : 2110 MHz ~ 2170 MHz

Maximum Input Level

(BLER or R), 16QAM Only

Sub-Test : 1=1/15, 2=12/15, 3=13/15, 4=15/8, 5=15/7, 6=15/0

BLER < 10% or R >= 700kbps

6) WLAN 802.11b transceiver specification

Item Specification

Transmit Frequency 2400 MHz ~ 2483.5 MHz ( CH1~CH13 )

Tx Power Level ≤ 20dBm under (Europe), ≤ 30dBm under (USA)

Frequency Tolerance within ±25 PPM

Chip clock Frequency

Tolerance

within ±25 PPM

Spectrum Mask ≤ -30 @ fc-22MHz< f <fc-11MHz and fc+11MHz< f <fc+22MHz

≤ -50 @ f < fc-22MHz and f > fc+22MHz

Power ramp on/off time ≤ 2us

Carrier Suppression ≤ -15dB

Modulation Accuracy

(Peak EVM)

≤ 35%

Spurious Emissions < -36 dBm @ 30MHz ~ 1GHz

< -30 dBm above @ 1GHz ~ 12.75GHz

< -47 dBm @ 1.8GHz ~ 1.9GHz

< -47 dBm @ 5.15GHz ~ 5.3GHz

Rx Min input Sensitivity ≤ -76dBm(1Mbps,2Mbps,5.5Mbps,11Mbps) @ FER ≤ 8%

Rx Max input Sensitivity ≥ -10dBm(1Mbps,2Mbps,5.5Mbps,11Mbps) @ FER ≤ 8%

Rx Adjacent Channel

Rejection

≥ 35dB @FER ≤ 8%,

interference input signal -70dBm@fc±25MHz(11Mbps)

- 20 -

Only for training and service purposes

2. PERFORMANCE

7) WLAN 802.11g transceiver specification

Item Specification

Transmit Frequency 2400 MHz ~ 2483.5 MHz ( CH1~CH13 )

Tx Power Level ≤ 20dBm under (Europe), ≤ 30dBm under (USA)

Frequency Tolerance within ±25 PPM

Chip clock Frequency

Tolerance

within ±25 PPM

Spectrum Mask ≤ -20 @ ±11MHz offset (9Mhz ~ 11MHz)

≤ -28 @ ±20MHz offset (11MHz ~ 20Mhz)

≤ -40 @ ±30MHz offset (20MHz ~ 30Mhz)

Transmitter constellation error

(rms EVM)

≤ -5dB

Spurious Emissions < -36 dBm @ 30MHz ~ 1GHz

< -30 dBm above @ 1GHz ~ 12.75GHz

< -47 dBm @ 1.8GHz ~ 1.9GHz

< -47 dBm @ 5.15GHz ~ 5.3GHz

Rx Min input Sensitivity PER ≤ 10%

-82dBm@6Mbps, -81dBm@9Mbps, -79dBm@12Mbps

-77dBm@18Mbps, -74dBm@24Mbps, -70dBm@36Mbps

-66dBm@48Mbps, -65dBm@54Mbps

Rx Max input Sensitivity ≥ -20dBm(6,9,12,18,24,36,48,54Mbps) @ PER ≤ 10%

Rx Adjacent Channel

Rejection

PER ≤ 10%,

ACR ≥ 16dB@6Mbps, ACR ≥ 15dB@9Mbps,

ACR ≥ 13dB@12Mbps, ACR ≥ 11dB@18Mbps,

ACR ≥ 8dB@24Mbps, ACR ≥ 4dB@36Mbps

ACR ≥ 0dB@48Mbps, ACR ≥ -1dB@54Mbps

୔ACR shall be measured by setting the desired signal's strength 3 dB

above the rate-dependent

sensitivity specified in min input sensitivity

7) GPS receiver specification

Item Specification

Receive Frequency 1574.42 MHz ~ 1576.42 MHz

Minimum Sensitivity 1 satellite ≥-142dBm, 7 satellites ≥ -147dBm at coarse time aiding

- 21 -

Only for training and service purposes

LGE Internal Use Only

2. PERFORMANCE

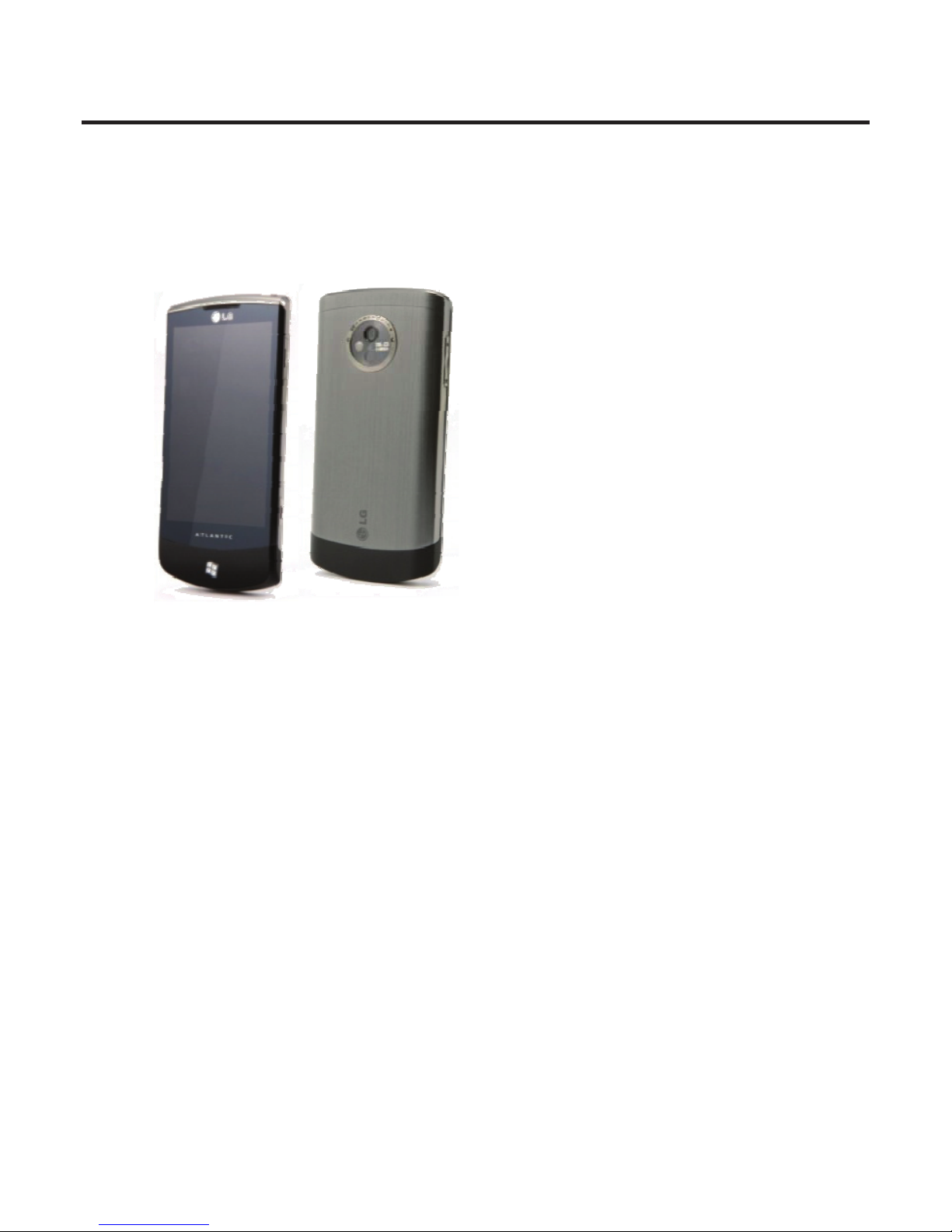

2.7 LGE900g Figures

Other manuals for E900

This manual suits for next models

Table of contents

Popular Cell Phone manuals by other brands

Samsung

Samsung SGH-C130 Serivce manual

MTT

MTT L570 manual

myPhone

myPhone MINI user manual

Motorola

Motorola MOTO Q9H GLOBAL datasheet

Maxcom

Maxcom MM820 Plus user guide

G-Tek

G-Tek PWG-500 quick guide

Lava

Lava 415 user manual

Samsung

Samsung SGH-D428 owner's manual

Docomo

Docomo FOMA D905I manual

Brava

Brava Win-Duo DM-985 user manual

Sony

Sony CMD-Z5 user guide

QVC

QVC E226061 manual

Olympia

Olympia BRIO Touch operating manual

Samsung

Samsung SM-A207M quick start guide

Motorola

Motorola i570 user guide

Samsung

Samsung SGH-X140 user guide

Nokia

Nokia N92 user guide

Pidion

Pidion BM-170 user guide

LG E900 User manual

Popular Cell Phone manuals by other brands
