LG 43UH5J-H User manual

OWNER’S MANUAL
LG Digital Signage
(MONITOR SIGNAGE)
43UH7J
43UH5J
49UH7J
49UH5J
55UH7J
55UH5J
65UH7J
65UH5J
www.lg.com
Copyright © 2022 LG Electronics Inc. All Rights Reserved.
Please read the user manual before using this product to ensure safe and convenient
use.
Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per LG 43UH5J-H o cerca il
tuo prodotto tra le migliori offerte di Monitor

2
ENGLISH
TABLE OF CONTENTS
BASIC .............................................3
- Checking the Accessories ............................................3
- Checking the Optional Accessories.........................4
- Learning the Buttons......................................................5
GETTING READY ...........................6
- Connecting the IR Sensors..........................................6
- Mounting and Removing the
LG Logo Bracket................................................................7
- Kensington Lock Device ................................................8
CHECKING BEFORE
INSTALLATION ..............................9
- Installation Orientation .................................................9
- Installation Location.....................................................10
- Wall Mount Holder .......................................................11
PRECAUTIONS FOR USE............ 12
- Dust.......................................................................................12
- Afterimage ........................................................................12
PRODUCT SPECIFICATIONS...... 14
LICENCE...................................... 19

3
ENGLISH
WARNING - This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may
cause radio interference.
BASIC
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.
•SuperSign Software & Manual
- Visit https://partner.lge.com to download the latest SuperSign software and manual.
Checking the Accessories
X 2
43/49/55/65UH7J
Depending on country

4
ENGLISH
Checking the Optional Accessories
In order to improve product performance, optional accessories are subject to change without prior notice.
The illustrations in this manual may differ from the actual product and its accessories.
Refer to the product manual for the components of the optional accessories.
ST-653T KT-OPSF
NOTE
•Before you attach the OPS (Open Pluggable Specification) PC, connect the cable to the port.

5
ENGLISH
Learning the Buttons
The illustrations may differ depending on the model.
Power On (Press)
Quick Menu (Press 1)
Menu Selection (Press 2)
Power Off 3 (Press and Hold)
Volume Control
Menu Control 2Menu Control 2
1 When the monitor is turned on, press the button one time.
2 You can use the function when you control menu.
3 All running apps will close.
Quick Menu
Turns the power off. Accesses the main menu.
Changes the input source. Close the quick menu.

6
ENGLISH
GETTING READY
Connecting the IR Sensors
Connecting the cable to the product allows it to receive signals from the remote control.
Rotate the IR sensor according to horizontal or vertical use.
- The illustrations may differ depending on the model.
Default Mount - Horizontal Use
(Front) (Back)
Vertical Use
(Front) (Back)

7
ENGLISH
Mounting and Removing the LG Logo Bracket
- Applies only to some models.
- The illustrations may differ depending on the model.
Removing the LG Logo Bracket
Place a clean cloth on the floor, and remove one screw from the LG logo bracket on the lower back of the monitor with
a screwdriver.
LG Logo Bracket
Mounting the LG Logo Bracket on the Right
Screw the LG logo bracket into the hole on the right.
LG Logo Bracket

8
ENGLISH
Kensington Lock Device
(This feature applies only to some models.)
The Kensington lock device connector is located on the back of the monitor. For more information on installation and
use, refer to the user manual provided with the locking device.

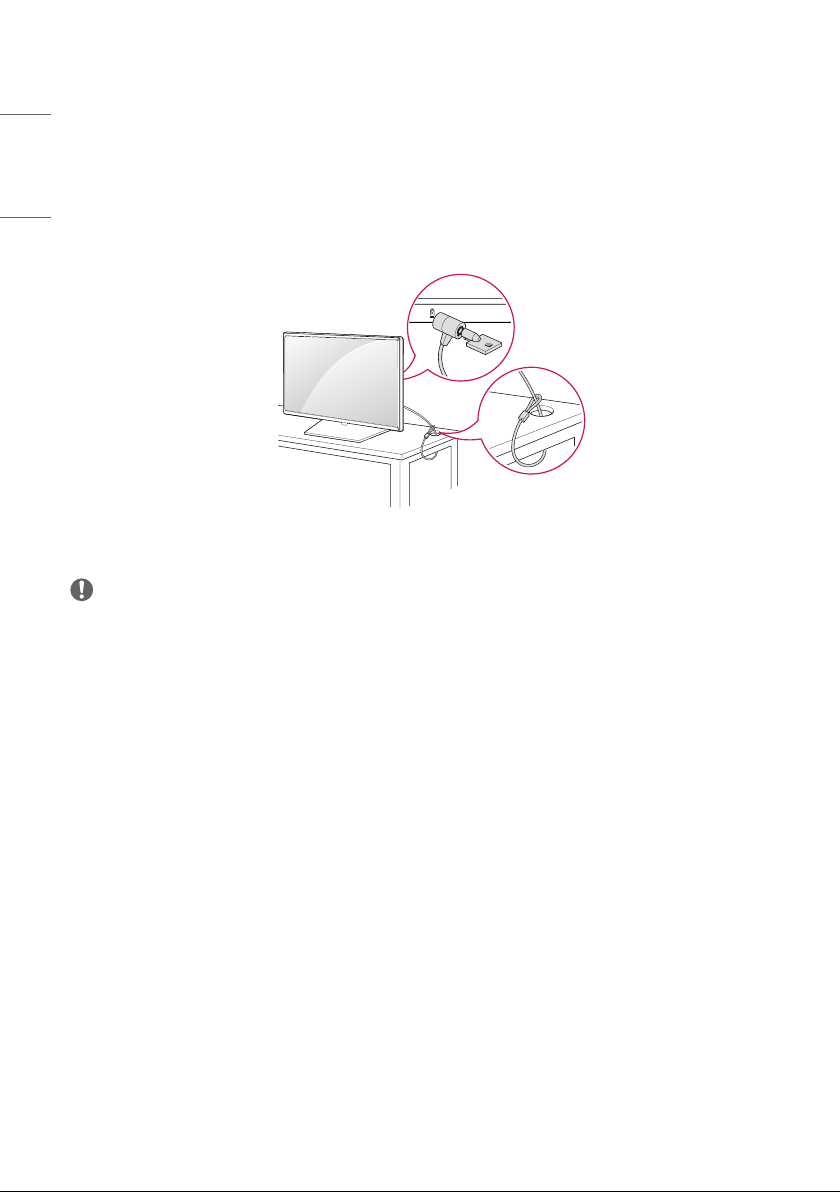

Connect the Kensington security system cable between the monitor and a table.
NOTE
•The Kensington lock device is an optional specification.
•This is a general illustration of installation and may look different from the product held by the customer.

9
ENGLISH
CHECKING BEFORE INSTALLATION
We are not responsible for product damage caused by failure to follow the guide.
Installation Orientation
Using Vertically
When installing vertically, rotate the monitor 90 degrees anti-clockwise while facing the front of the screen.
Tilt Angle
40 mm
15˚
Ceiling, Floor Orientation

10
ENGLISH
Installation Location
We are not responsible for product damage caused by failure to follow the guide.
Indoor
Installing on a Wall
A
C
B
BB
A
A : 40mm (1.5inches)or more
•The warranty will not cover any damage
caused by using the product in direct sunlight
on the front panel.
Installing on a Recessed Wall
A
C
B
BB
A
A : 40mm (1.5inches) or more
B : 50mm (1.9inches) or more
C : 70mm (2.7inches) or more
•The warranty will not cover any damage
caused by using the product in direct sunlight
on the front panel.
Outdoor
Outdoor Enclosed

11
ENGLISH
Wall Mount Holder
To install the monitor on a wall, attach a wall mount holder (optional) to the back of the monitor.
Take caution, and ensure that the wall mount holder (optional) is securely fixed to the monitor and to the wall.
The VESA dimensions of the wall mount by model are as follows.
A
B
Model VESA Dimensions
(A x B) (mm)
Standard
Dimensions
Length (Maximum)
(mm) Quantity
43UH5J
43UH7J 200 x 200 M6 15.6 4
49UH5J
49UH7J 300 x 300 M6 15.6 4
55UH5J
55UH7J 300 x 300 M6 15.6 4
65UH5J
65UH7J 300 x 300 M6 15.6 4
Model VESA Dimensions
(A x B) (inches)
Standard
Dimensions
Length (Maximum)
(inches) Quantity
43UH5J
43UH7J 7.8x7.8 M6 0.6 4
49UH5J
49UH7J 11.8x11.8 M6 0.6 4
55UH5J
55UH7J 11.8x11.8 M6 0.6 4
65UH5J
65UH7J 11.8x11.8 M6 0.6 4
CAUTION
•Disconnect the power cord first, and then move or install the monitor. Otherwise, it may result in electric shock.
•If the monitor is installed on a ceiling or inclined wall, it may fall and result in injury.
•Damage to the monitor by tightening the screws too tightly may void your warranty.
•Use screws and wall mount plates conforming to VESA standards. Breakage or personal injury due to use or misuse
of inappropriate components is not covered by the warranty of this product.
NOTE
•Using screws longer than the indicated depth may damage the inside of the product. Be sure to use the proper length.
•For more information on installation, please refer to the user manual for the wall mount.

12
ENGLISH
PRECAUTIONS FOR USE
Dust
The warranty will not cover any damage caused by using the product in an excessively dusty environment.
Afterimage
•After-image appears when the product is turned off.
- Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screen-
saver function.
- Switching from a screen with high differences in luminance (black and white or grey) to a darker screen may cause
an afterimage. This is normal due to the display characteristics of this product.
•When the LCD screen is in a still pattern for extended periods of use, a slight voltage difference may occur between
the electrodes that operate the liquid crystal (LC). The voltage difference between the electrodes increases over time
and tends to keep the liquid crystal aligned in one direction. At this time, the previous image remains, which is called
an afterimage.
•Afterimages do not occur when continuously changing images are used but take place when a certain screen is fixed
for a long time. The following are operational recommendations for reducing the occurrence of afterimages when
using a fixed screen. The maximum recommended time for switching the screen is 12 hours. Shorter cycles are better
for preventing afterimages.
•Recommended Usage Condition

13
ENGLISH
1 Change the background color and text color at equal intervals.

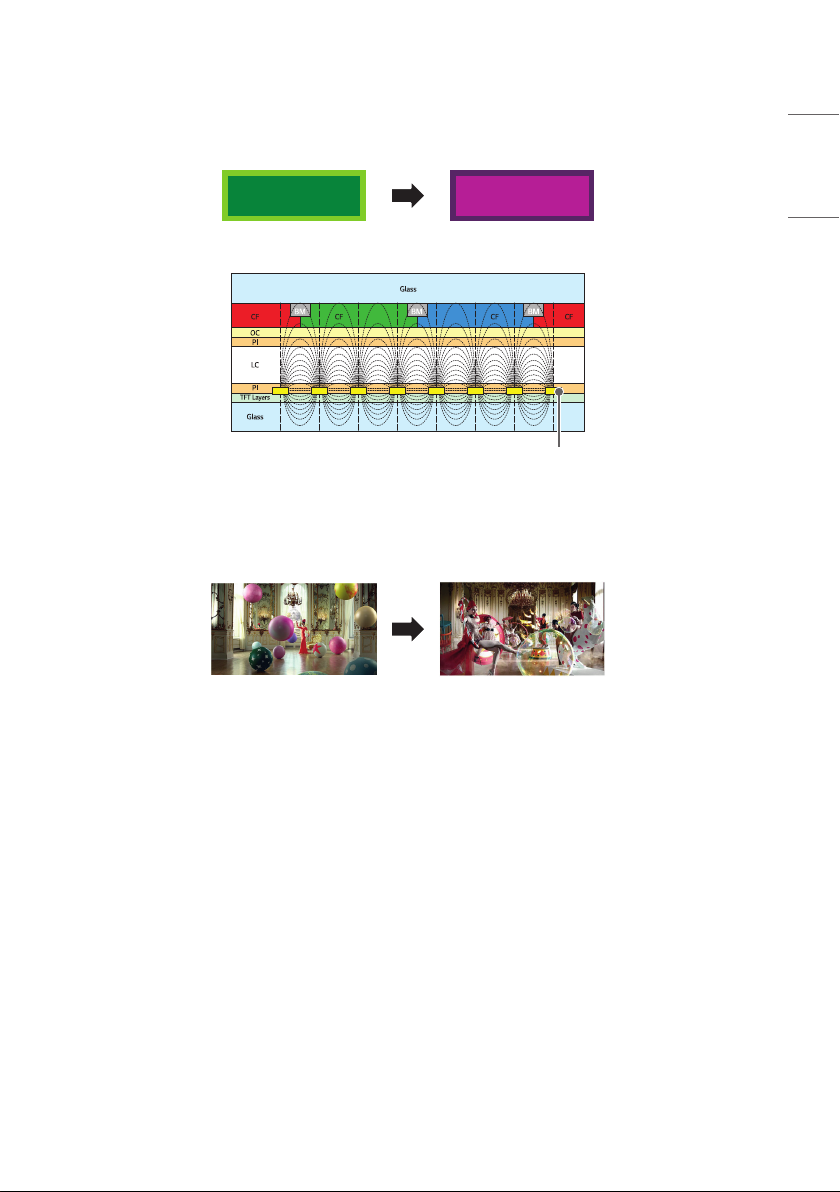

- Afterimages occur less when the colors to be changed are complementary to one another.
AA
ITO or MoTi Pixel Layer
2 Switch the screen at equal time intervals.
- Take caution, and ensure that text or images from before the screen change are not left in the same location after
the screen change.

14
ENGLISH
PRODUCT SPECIFICATIONS
Without prior notice, all product information and specifications contained in this manual are subject to change to
improve the performance of the product.
Input/Output Ports
43/49/55/65UH5J
43/49/55/65UH7J
Resolution
Recommended Resolution HDMI1,2/ DisplayPort: 3840 x 2160 @ 60 Hz
USB Type-C: 3840 x 2160 @ 60 Hz (43/49/55/65UH7J)
HDMI3: 3840 x 2160 @ 30 Hz (43/49/55/65UH5J)
OPS: 3840 x 2160 @ 30 Hz
DVI-D: 1920 x 1080 @ 60 Hz
- This may not be supported on some OS or graphics card
types.
Max Resolution
Embedded battery Applied
Environmental
Conditions
Operating Temperature
Operating Humidity
0°C to40°C (32°F to 104°F)
10% to 80% (Condition for preventing condensation)
Storage Temperature
Storage Humidity
-20°C to60°C (-4°F to 140°F)
5% to 85% (Condition for preventing condensation)
* Product box packaging storage conditions
Audio Input Sensitivity 0.7Vrms
NOTE
•USB-C does not support fast charging. Gender converters for fast charging is also not supported.
•Use a certified USB-C cable (1.5 M (4.9 feet) or less). If you do not do so, the screen may not be displayed or a
connection error may occur.
•USB-C port is not supported to DPM (Sleep mode).

15
ENGLISH
43UH5J, 43UH7J
Power Voltage 100-240 V ~ 50/60 Hz 1.2 A
Power Consumption
On Mode 80 W (Typ.)
Sleep Mode / Standby
Mode ≤ 0.5 W
Dimensions (Width x Height x
Depth) / Weight
Head 962.5 mm x 568.0 mm x 39.9 mm / 11.2 kg
(37.8 inches x 22.3 inches x 1.5 inches / 24.6 lbs)
Head + Stand 962.5 mm x 613.1 mm x 290.0 mm / 11.8 kg
(37.8 inches x 24.1 inches x 11.4 inches / 26.0 lbs)
49UH5J, 49UH7J
Power Voltage 100-240 V ~ 50/60 Hz 1.6 A
Power Consumption
On Mode 100 W (Typ.)
Sleep Mode / Standby
Mode ≤ 0.5 W
Dimensions (Width x Height x
Depth) / Weight
Head 1098.6 mm x 644.5 mm x 39.9 mm / 15.4 kg
(43.2 inches x 25.3 inches x 1.5 inches / 33.9 lbs)
Head + Stand 1098.6 mm x 694.3 mm x 290.0 mm / 16.0 kg
(43.2 inches x 27.3 inches x 11.4 inches / 35.2 lbs)
55UH5J, 55UH7J
Power Voltage 100-240 V ~ 50/60 Hz 1.7 A
Power Consumption
On Mode 110 W (Typ.)
Sleep Mode / Standby
Mode ≤ 0.5 W
Dimensions (Width x Height x
Depth) / Weight
Head 1234.4 mm x 720.9 mm x 39.9 mm / 19.0 kg
(48.5 inches x 28.3 inches x 1.5 inches / 41.8 lbs)
Head + Stand 1234.4 mm x 770.7 mm x 290.0 mm / 19.6 kg
(48.5 inches x 30.3 inches x 11.4 inches / 43.2 lbs)
65UH5J, 65UH7J
Power Voltage 100-240 V ~ 50/60 Hz 1.9 A
Power Consumption
On Mode 130 W (Typ.)
Sleep Mode / Standby
Mode ≤ 0.5 W
Dimensions (Width x Height x
Depth) / Weight
Head 1453.3 mm x 844.0 mm x 39.9 mm / 28.2 kg
(57.2 inches x 33.2 inches x 1.5 inches / 62.1 lbs)
Head + Stand 1453.3 mm x 893.1 mm x 290.0 mm / 28.8 kg
(57.2 inches x 35.1 inches x 11.4 inches / 63.4 lbs)

16
ENGLISH
HDMI/ DVI-D/ DisplayPort/ USB-C/ OPS (PC) Support mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark
800 x 600 37.879 60.317
1024 x 768 48.363 60
1280 x 720 44.772 59.855
1280 x 1024 63.981 60.02
1680 x 1050 65.29 59.954
1920 x 1080 67.5 60
3840 x 2160 67.5 30 HDMI1/2/3, DisplayPort,
USB-C, OPS
3840 x 2160 135 60 HDMI1/2, DisplayPort, USB-C
HDMI/ DisplayPort/ OPS (DTV) Support mode
Resolution Horizontal frequency (kHz) Vertical frequency (Hz) Remark
480/60p 31.5 60
576/50p 31.25 50
720/50p 37.5 50
720/60p 45 60
1080/50i 28.1 50
1080/60i 33.75 60
1080/50p 56.25 50
1080/60p 67.432 59.94
1080/60p 67.5 60
2160/30p 67.5 30 HDMI1/2/3, DisplayPort, OPS
2160/50p 112.5 50 HDMI1/2, DisplayPort
2160/60p 135 60 HDMI1/2, DisplayPort

17
ENGLISH
NOTE
•Horizontal frequency: The horizontal interval is the time taken to display one horizontal line. When 1 is divided by
the horizontal interval, the number of horizontal lines displayed every second can be tabulated as the horizontal
frequency. The unit is kHz.
•Vertical frequency: The product display functions by the screen image changing dozens of times every second like a
fluorescent lamp. The vertical frequency or refresh rate is the number of image displays per second. The unit is Hz.

18
ENGLISH
Wireless module (LGSBWAC92) Specifications
Wireless LAN (IEEE 802.11a/b/g/n/ac)
Frequency range (MHz) Output power (Max.) (dBm)
2400to2483.5
5150to5725
5725to5850
18
18
18
Bluetooth
Frequency range (MHz) Output power (Max.) (dBm)
2400to2483.5 8
•As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is
configured for the regional frequency table.
•For consideration of the user, this device should be installed and operated with a minimum distance of 20cm
(7.8inches) between the device and the body.
•FCC ID: BEJLGSBWAC92 / IC: 2703H-LGSBWAC92

19
ENGLISH
LICENCE
Supported licenses may differ by model. For more information of the licenses, visitwww.lg.com.
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Vision IQ, Dolby Audio, Dolby Atmos,
and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol,
& DTS and the Symbol together, DTS 2.0 Channel, DTS 2.0+Digital Out, DTS-HD, and DTS Virtual:X are registered
trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All Rights Reserved.
.
The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by LG Electronics Inc. is under license. Other trademarks and trade names are those of their respective owners.

This pr
oduct qualifies for ENERGY
ST
AR®.
Changing the factor
y default
c
onfiguration and settings or
enabling
certain optional features
and functionalities ma
y increase
ener
gy consumption beyond the
limits r
equired for ENERGY STAR®
ce
rtification.
Refer to ENERGYS
TAR.gov for
mo
re information on the ENERGY
ST
AR® program.
The model and serial number of the product are
located on the back and on one side of the product.
Record them below in case you ever need service.
MODEL
SERIAL NO.
Temporary noise is normal when powering ON or
OFF this device.
