PRODUCT FEATURES KEY FEATURESSMART APPLIANCE
Enjoy new ways to control your
home with LG smart appliances
• Get notifications when dishes are clean
• Monitor the cycle time from your smartphone
• Works with the LG ThinQ® app
QuadWash™ System
Dynamic Dry™
Height Adjustable 3rd Rack
Glide Rail
EasyRack™ Plus
LoDecibel™ Operation (44dB)
ThinQ® Technology
Energy Star® Qualied
CAPACITY
Total Place Settings 15
Upper Rack Dish Height Limit 7.1"
Lower Rack Dish Height Limit 12.5"
RACKS AND BASKETS
Cutlery Baskets Yes
Cup Rack Yes
Stemware Holder Yes
Fold Down Tines Yes (Half Fold on Upper & Lower)
BPA-Free Nylon Coated Racks and Tines Yes
Rack Handle Yes (Upper/Lower)
Glide Rail Yes (Upper)
EasyRack™ Plus System Yes
Height Adjustable Upper Rack Yes (One Touch; 3 Level)
Height-Adjustable 3rd Rack Yes
STYLE AND DESIGN
Control Panel Location Top
Electronic Controls Hidden SmoothTouch™ Controls with LED Display
SignaLight™ Cycle Indicator Lights 3
Time Remaining Indicator Yes (LED)
Tub Material NeveRust™ Stainless Steel
Handle Flush
Color Stainless Steel
FEATURES
QuadWash® Yes
Inverter Direct Drive Motor Yes
LoDecibel™ Quiet Operation 44 dB
Number of Wash Cycles 9 (Auto, Heavy, Delicate, Normal, Turbo, Download Cycle,
Machine Clean, Rinse, Express)
Number of Options 8 (Dual Zone, Half Load, Energy Saver, High Temp, Extra
Dry, Delay Start, Control Lock, Night Dry)
Number of Spray Arms 3 (Top, Upper, Lower)
SenseClean™ Wash System Yes
Vario Wash Yes
Detergent and Rinse-Aid Dispenser Yes
Hybrid Condensing Drying System Yes
End of Cycle Indicator Yes (Beeper + END indication on display)
Hidden Water Heater Yes
Safety Float Switch (Leaks) Yes
Soil (Turbidity) Sensor Yes
Tub Insulation (Damping Sheet,
Sound Absorbing Material (felt), Base)
Yes
BPA-Free Nylon Coated Racks and Tines Yes
Anti-Bacterial Treatment (Sump, Inner / Outer filter,
Drain pump case, Drain hose)
Yes
Balanced Door Yes
Multi-Level (5) Water Direction Yes (Top Nozzle (Down), Upper Nozzle (Up/Down),
Lower Nozzle (Up/Down)
3-Stage Filtration System Yes
SMART FEATURES
wi-fi Enabled Yes
ThinQ® Yes
Voice Activation Yes
Works with Google Assistant and Amazon Alexa
Cycle Complete Notification Yes
Monitor Cycle Time Yes
POWER RATINGS
ENERGY STAR® Qualified Yes
CEE Tier 1
Energy Use (kWh/Year) 258 kWh
Water Factor (WF) 2.8
DIMENSIONS / CLEARANCES / WEIGHT
Product Dimensions (in) (W x H x D) 23 3/4" x 33 5/8" x 24 5/8"
Product Weight (lbs) 83.8 lbs
Depth with Door Closed with Handle (in) 24 5/8"
Depth with Door Open (in) 50.5"
Carton Dimensions (in) (W x H x D) 28” x 34 3/4” x 29 5/8”
Shipping Weight with Carton (lbs) 97.1 lbs
LIMITED WARRANTY
Labor 1 Year
Parts 1 Year
Control Board and Rack Parts 5 Years
Direct Drive Motor 10 Year s
Stainless Steel Door Liner or Tub Lifetime
UPC CODES
LDPN6761T (Stainless Steel) 048231341936
LDPN6761T
Top Control Dishwasher with QuadWash™

LG COOKING
HOME APPLIANCES
© 2016 LG Electronics USA, Inc. All rights reserved. "LG Life’s Good" is a registered trademark of LG Corp. All other product and brand names are trademarks or registered trademarks of their respective owners. Design, features and specifications are subject to
change without notice. Non-metric weights and measurements are approximate. Some features may require Internet access. Content and services may vary by product and are subject to change without notice. 1/6/16
• Make sure the house water supply is turned off before connecting the
dishwasher water lines.
• Connect the dishwasher
to a hot water supply
with a temperature range
between 120 °F (49 °C)
and 149 °F (65 °C). This
temperature range provides
the best washing results
and shortest cycle time. To
prevent damage to dishes,
the temperature should not
exceed 149 °F (65 °C).
• When connecting the
dishwasher water line,
sealing tape or compound
should be used on pipe threads to avoid leaks. Tape or compound should
not be used on compression ttings.
• The water supply tube must be located in the left side channel.
• This dishwasher is designed to t a standard dishwasher opening. An
opening may be needed on both sides to route plumbing and electrical
connections.
• Select a location as close to the sink as possible for easy connections to
water and drain lines.
• To ensure proper drainage, install the dishwasher no more than 12 ft. from
the sink.
• If installing the dishwasher in a corner,
leave a minimum of 2" between the
dishwasher and the adjacent wall.
• To allow for proper clearance of
plumbing and electrical, use the
template included with the literature
to determine the clearance on the
side of the cabinet where the cabinet
meets the back wall. Using a 2 1/2"
diameter hole saw, drill a hole in
the target area as shown on the
template.
▲
!WARNING
• Don't use existing holes unless they
are in the target area. Otherwise, the water supply and drain hose may be
damaged by being crushed or kinked.
▲
!CAUTION
• Failure to properly locate the hole for the water and drain lines may prevent
the dishwasher from installing ush with the cabinets and could result
in kinked or damaged lines. Installation damage is not covered by the
warranty, and leaks caused by improper installation may result in property
damage.
• Operate this appliance with the correct voltage as shown in your User
Manual and on the rating plate. Connect it to a dedicated, properly
grounded branch circuit which is protected by a time delay fuse. Connect
the appliance using 3-wires, including a ground wire.
• If an outlet and other power connector are used, it should be in an
accessible location adjacent to and not behind the dishwasher and within
4 ft. of the dishwasher's side.
• The wiring must be grounded
properly. If in doubt, have it checked
by a qualied electrician. Do not
connect any other appliance to the
same outlet.
• Route the wiring.
• Make sure the electrical cable is
oriented in the right side channel.
▲
!WARNING
• For personal safety, remove house
fuse or open circuit breaker before installation.
• Do not use an extension cable or adapter with this dishwasher
• If you nd any damage to the dishwasher, contact your retailer or
contractor.
4/2" - 6”
1
Electrical cable
NOTE
• Use new hoses when connecting to the water supply.
Do not reuse old hoses.
2/6" - 7 /4"
13
Water supply line
LG DISHWASHERS
LDPN6761T
Top Control Dishwasher with QuadWash™

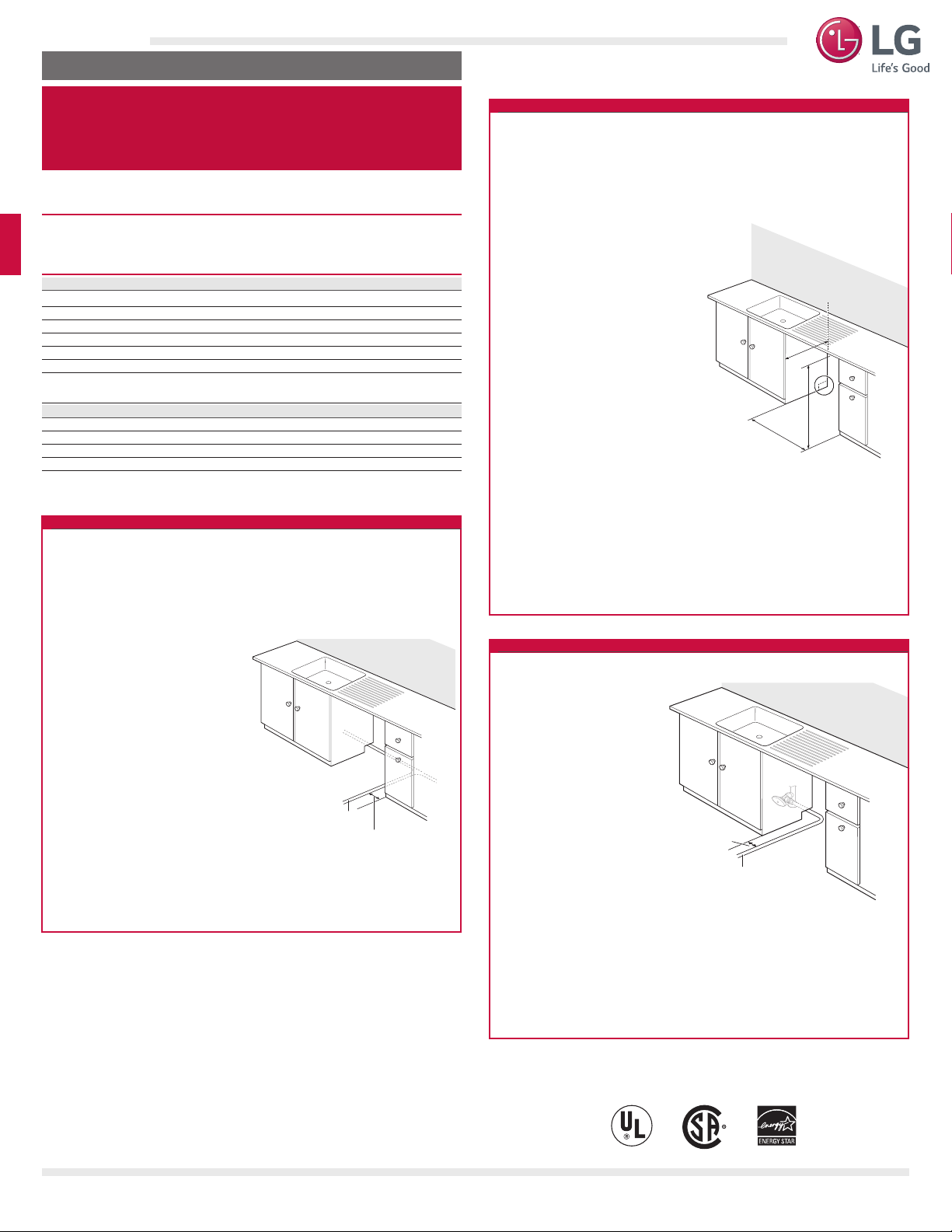

QUICK INSTALL & CLEARANCES
For full installation directions/clearances please refer to
the corresponding User Manual and Installation Guide.
DIMENSIONS / CLEARANCES / WEIGHT
Unit Dimensions (WxHxD) 23 3/4" x 33 5/8" x 24 5/8"
Depth with Door Closed (Handle) 27 1/8"
Depth with Door Open 50.5"
Carton Dimensions (WxHxD) 28” x 34 3/4” x 29 5/8”
Clearances (WxHxD) 24" x 33 1/2" x 24"
Weight (Unit / Carton) 77.2 lbs / 90.4 lbs
Container Stufng Quantity 20 ft Normal : 42 unit
40 ft Normal : 96 unit
40 ft High Cubic : 140 unit
ENERGY / WATER
Water Factor (WF) 2.8
Energy Use (kWh/Year) 258 kWh/Year
ENERGY STAR® Qualied Yes
CEE Tier 1
PREPARING ELECTRICAL WIRING
PREPARING WATER SUPPLY CONNECTION
PREPARING CABINET OPENING
IMPORTANT
