LG DLE2515S User manual

DLE2512W/DLG2522W
DLE2514W/DLG2524W
DLE2515S/DLG2525S
☎☎1-800-243-0000
para el Servicio LG (Atención al Cliente) 24 horas al día, 7 días a la semana

P/No.: 3828EL3004B
DLE2512W/DLG2522W
DLE2514W/DLG2524W
DLE2515S/DLG2525S
☎☎1-800-243-0000
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE

PRODUCT FEATURES
TABLE OF CONTENTS
22
PART1. SPECIFICATIONS .....................................................................................................................................3
PART2. IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS .................................................................4-6
PART3.INITIAL STEPS FOR INSTALLING YOUR DRYER .............................................................................7-12

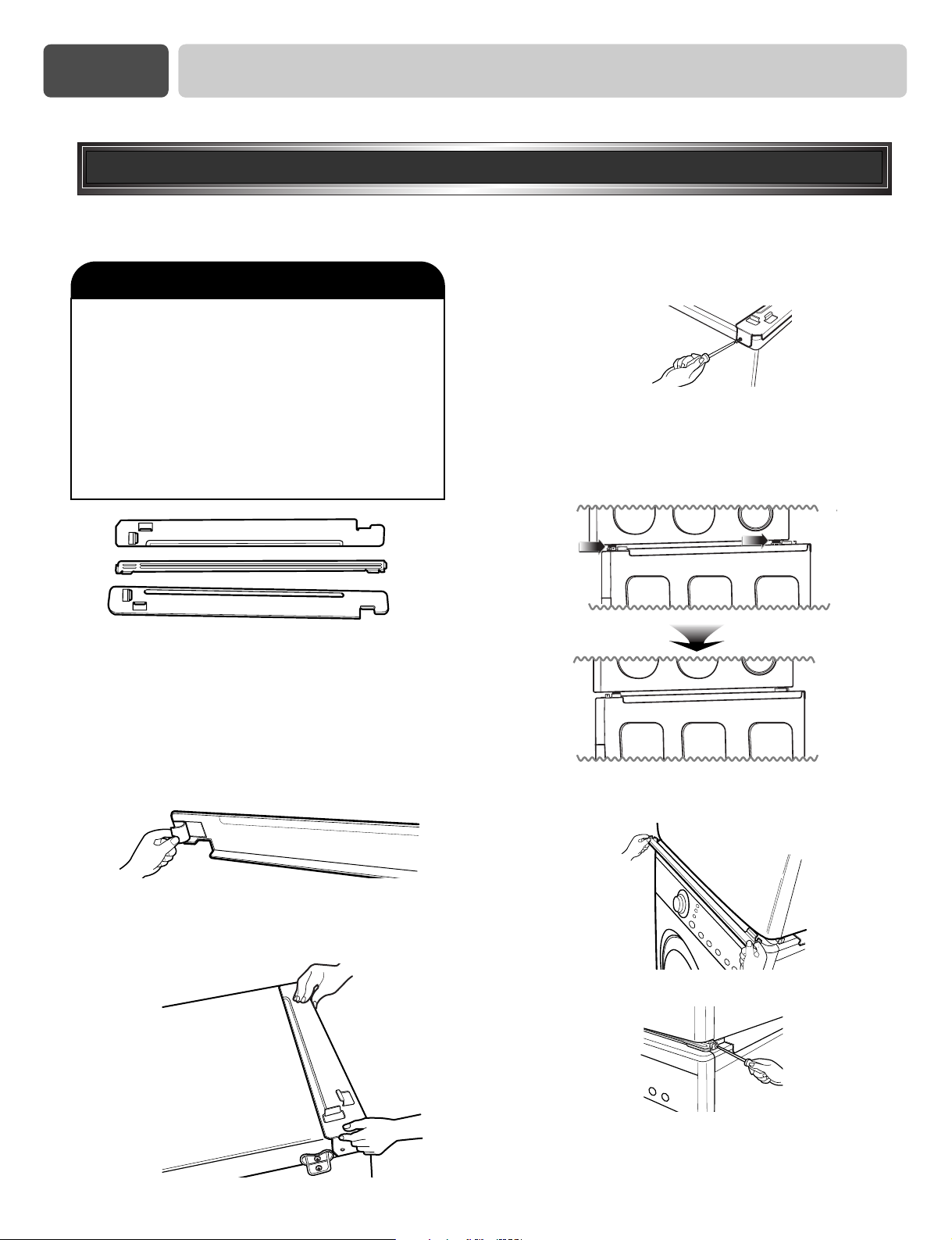

PART4.ACCESSORIES INSTALLATION .......................................................................................................13-14

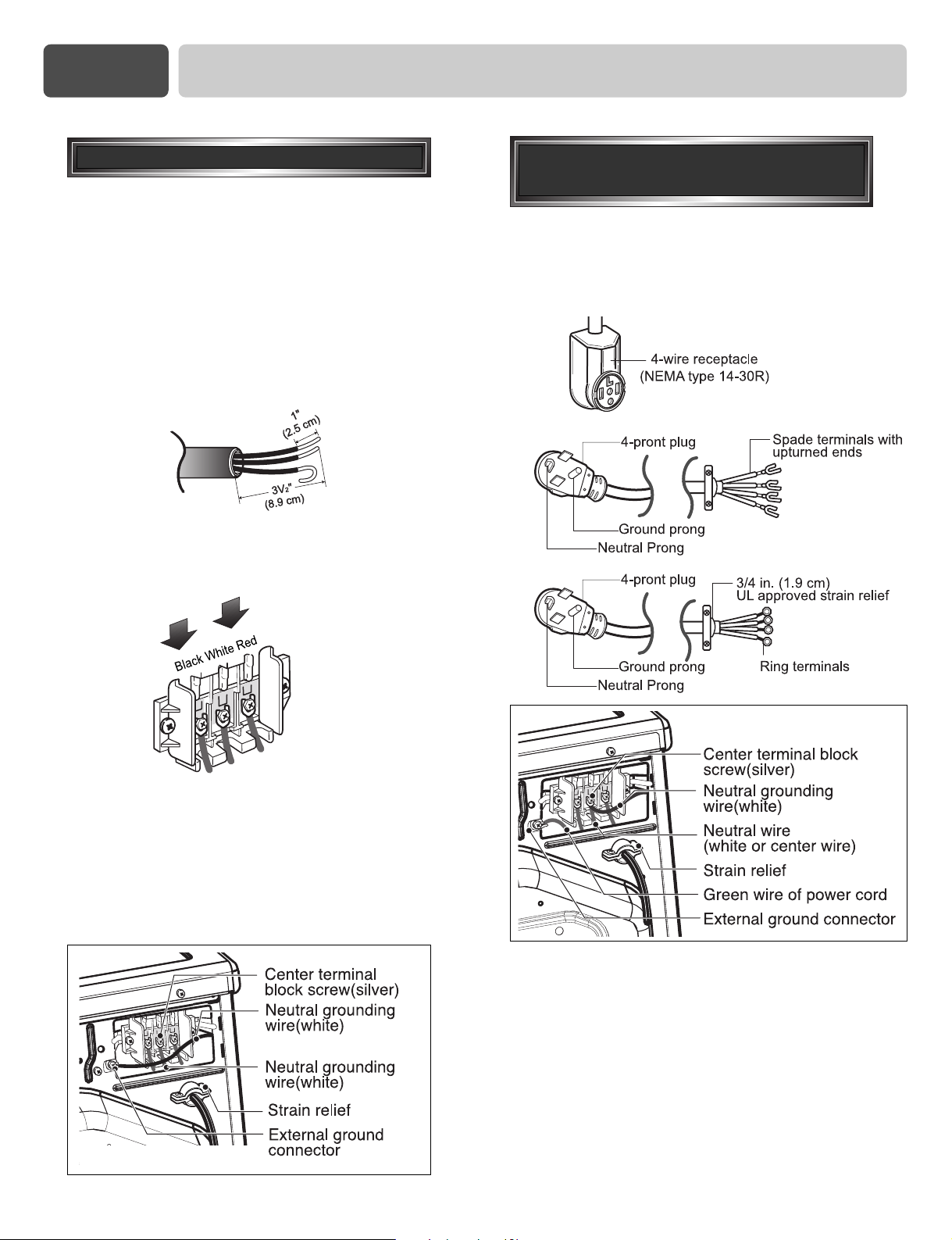

PART5. ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYER ...............................................................15-18
PART6. ELECTRICAL REQUIREMENTS FOR GAS DRYERS ............................................................................19
PART7. GAS REQUIREMENTS AND INSTRUCTIONS........................................................................................20

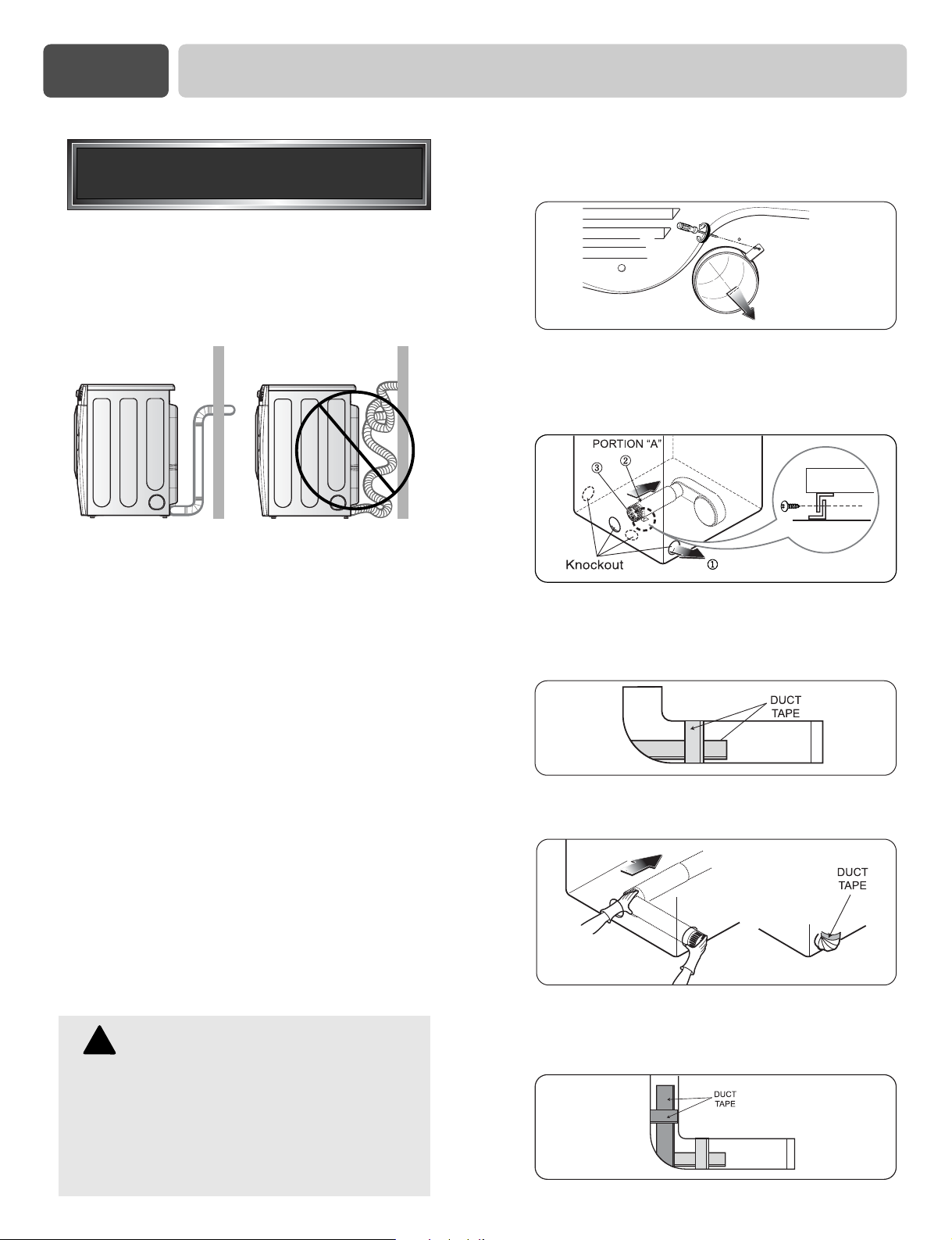

PART8. EXHAUST REQUIREMENTS AND MAINTENANCE..........................................................................21-22
PART9. OPERATING YOUR DRYER...............................................................................................................23-28
PART10. TROUBLESHOOTING GUIDE ..........................................................................................................29-31
LG DRYER LIMITED WARRANTY ........................................................................................................................32
OUTSTANDING PERFORMANCE
Not to mention unmatched big capacity, you can benefit from good
time efficiency, quiet operation and energy saving system.
DOUBLE-COATED STEEL DRUM
It is coated with one metal coating and the other polymer coating in order to guarantee high
durability and the long life.
ARTISTIC DESIGN
Modern front panel look and big crystal-clear glass door make your house look stylish.
DIGITAL FABRIC CARE
Multi-level temperature control heater takes a better care on your valued clothes.
EASY OF USE
A whole selection of user-friendly functions always make you comfortable with dryer operation.
1
2
3
4
5

3
Part 1 SPECIFICATIONS
■Name : Electric and Gas Dryer
■Power supply : Please refer to the rating label regarding detailed
information.
■Size : 68.6 X 96.5 X 73.0 (cm)
■Dryer capacity : IEC 7.0 cu.ft.
■Weight : 126(Ibs)
Specifications are subject to change by manufacturer.

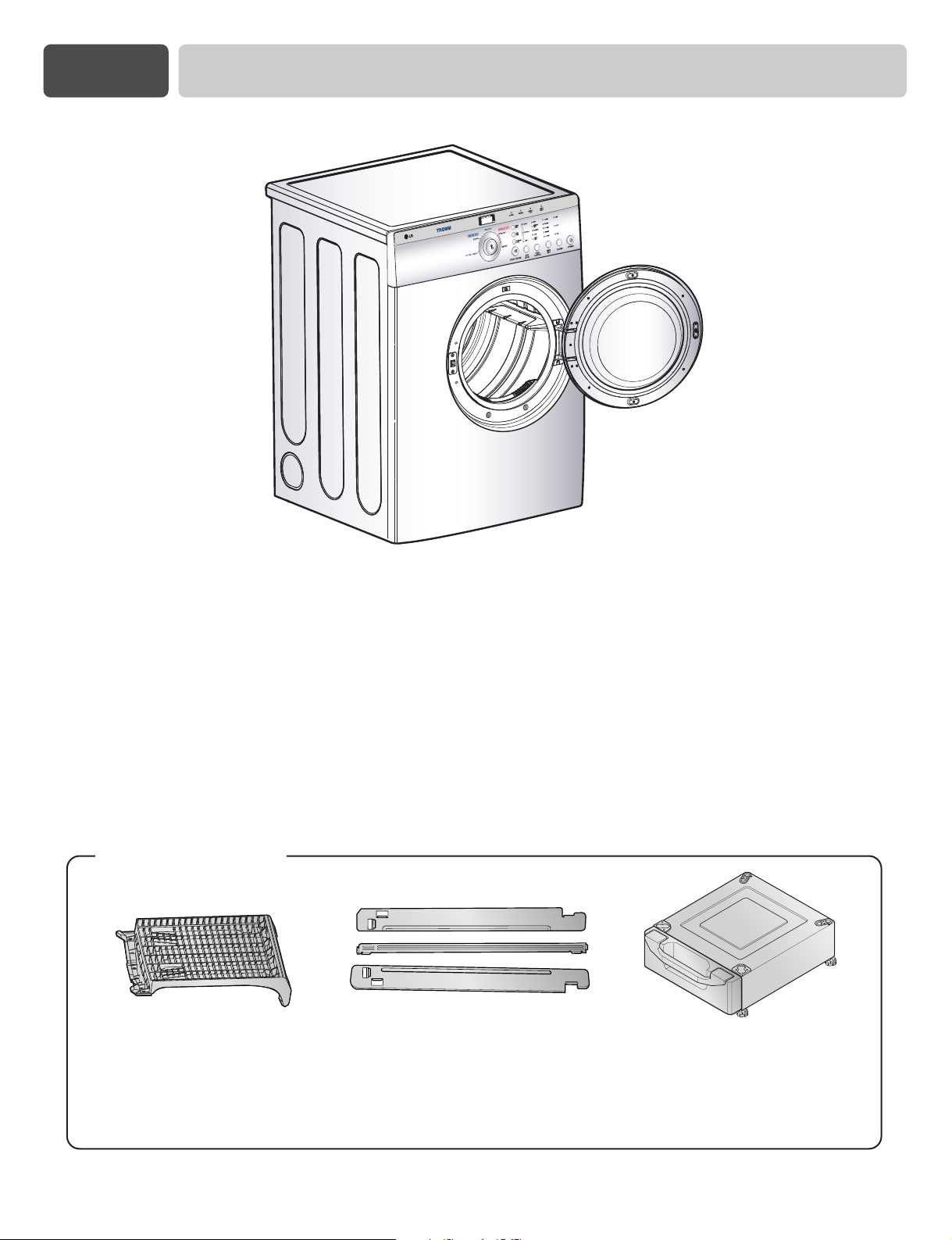

■ ACCESSORIES
Dryer rack (1 each)
See page 26 for how to use. See page 13 for how to use. See page 14 for how to use.
Stacking kit (1 each)
Purchased Separately
Pedestal (1 each)
Purchased Separately

Part 2
4
IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS
SEEKING WARRANTY ASSISTANCE
WARNING!
For your safety, the recommendations in this manual must be followed. To reduce the risk
of fire or explosion, electric shock, or to prevent property damage, personal injury, or
death when using your appliance, follow basic precautions, including the following.
Warranty Service. The warranty for your dryer is printed the end of this manual.
Warranty service is available by contacting your nearest LG Service Center and, for warranty period
from the date of purchase, if this dryer is installed and operated according to the instructions in this
manual, LG will repair or replace any of its mechanical or electrical parts if they are defective in
material or workmanship.
Warranty Restriction: If the dryer is subjected to other than private family use, all warranty
coverage is effective for only 90 days.
You will need the complete model and serial numbers when requesting information. We recommend
that you staple your sales slip or cancelled check here, because proof of original purchase date is
needed to obtain warranty service. Your dryer’s model and serial numbers are located on the Model
and Serial Number Plate located on the front of the dryer behind the door.
Use the space below to record the model number and serial number of your new LG dryer.
Model No.
Serial No.
Date of Purchase
❈ Staple your receipt hear.
!

5
Part 2 IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS
1) Read all instructions before using the appliance.
2) Do not dry articles that have come into contact with
gasoline, dry-cleaning solvents, or other flammable
or explosive substances, as they give off vapors that
could ignite or explode.
3) Do not allow children to play on or in the appliance.
Close supervision of children is necessary when
using the appliance.
4) Before the appliance is removed from service or
discarded, remove the door to the drying
compartment.
5) Do not reach into the appliance if the drum is
moving.
6) Do not install or store this appliance where it will be
exposed to the weather.
7) Do not tamper with controls.
8) Do not repair or replace any part of the appliance or
attempt any servicing unless specifically
recommended in the user-maintenance instructions.
9) Do not use heat to dry articles containing foam
rubber or similarly textured rubber-like materials.
10) Clean lint screen before or after each load.
11) Keep area around the exhaust opening and adjacent
surrounding areas free from the accumulation of
lint, dust, and dirt.
12) The interior of the appliance and exhaust duct
should be cleaned periodically by qualified service
personnel.
13) Do not place items exposed to cooking oils in your
dryer. Items contaminated with cooking oils may
contribute to a chemical reaction that could cause a
load to catch fire.
14) Do not use fabric softners or products to eliminate
static unless recommended by the manufacturer of
the fabric softner or product.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least
resistance for electric current. This appliance is
equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local
codes and ordinances.
WARNING - Improper connection of the equipment-
grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or service
person if you are in doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided with the appliance: if
it will not fit the outlet, have a proper outlet installed by
a qualified electrician.
This appliance must be connected to a grounded metal,
permanent wiring system or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead
on the appliance.
WARNING!
to help reduce any risk of electric shock, fire, or other personal or property injury
when using your dryer, please exercise care and follow basic safety precautions,
including the following:
!
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

Part 2
6
IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS
• Do not try to light a match or cigarette, or turn
on any gas or electrical appliance.
• Do not touch any electrical switches. Do not
use any phone in your building.
• Clear the room, building or area of all
occupants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions carefully.
• If you cannot reach your gas supplier, call the
fire department.
To reduce the risk of fire or explosion, electric
shock, property damage, personal injury or death
when using this appliance, please follow all
instructions and information, including those in
this manual and instructions and information
provided by your gas supplier, including the
following:
• Do not store or use any gasoline, dry-cleaning
solvents any other flammable vapors or
liquids in the area surrounding this appliance.
• Do not dry anything that has ever had anything
flammable on it, even after washing.
• No washer can completely remove oil. Do not
dry any articles that have ever had any kind of
oil on them, including cooking oil.
• Articles containing foam, rubber, rubber-like
materials, plastic or similar materials should be
dried on a clothesline or by using an air cycle.
• Failure to follow these instructions can result in
fire, death or serious injury.
• A qualified service person or company must
perform installation and service of this
appliance.
California safe drinking water and
toxic enforcement act
This act requires the governor of California to
publish a list of substances known to the state to
cause cancer, birth defects or other reproductive
harm and requires businesses to warn customers
of potential exposure to such substances.
Gas appliances can cause minor exposure to four
of these substances, namely benzene, carbon
monoxide, formaldehyde and soot, caused
primarily by the incomplete combustion of
natural gas or LP fuels.
Properly adjusted dryers will minimize
incomplete combustion. Exposure to these
substances can be minimized further by properly
venting the dryer to the outdoors.
WHAT TO DO IF YOU SMELL
GAS:
WARNING!
• Keep flammable materials and vapors, such
as gasoline, away from dryer.
• Place dryer at least 18 inches above the floor
for a garage installation.
• Failure to do so can result in death,
explosion or fire.
!
!
WARNING
!

7
Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER
27"
(68.6 cm)
0"
(0 cm)
0"
(0 cm)
The following instructions will help guide you through the initial steps of setting up your dryer for use.
Please note that every section of this manual provides important information regarding the preparation and
use of your dryer, and it is important that you review this entire manual before proceeding with any
installation or use. More detailed instructions concerning electrical connections, gas connections, and
exhaust requirements are provided at other parts of this manual.
Choose a location with a solid floor for your dryer.
Place the dryer at least eighteen inches above the
floor for a garage installation. After placing the
dryer in the desired location, please confirm that the
dryer has the required clearances through reference
to the following information and manual sections on
Exhaust Requirements and Maintenance.
If you are installing your dryer in a manufactured or
mobile home, please refer to STEP 9 below for
additional instructions.

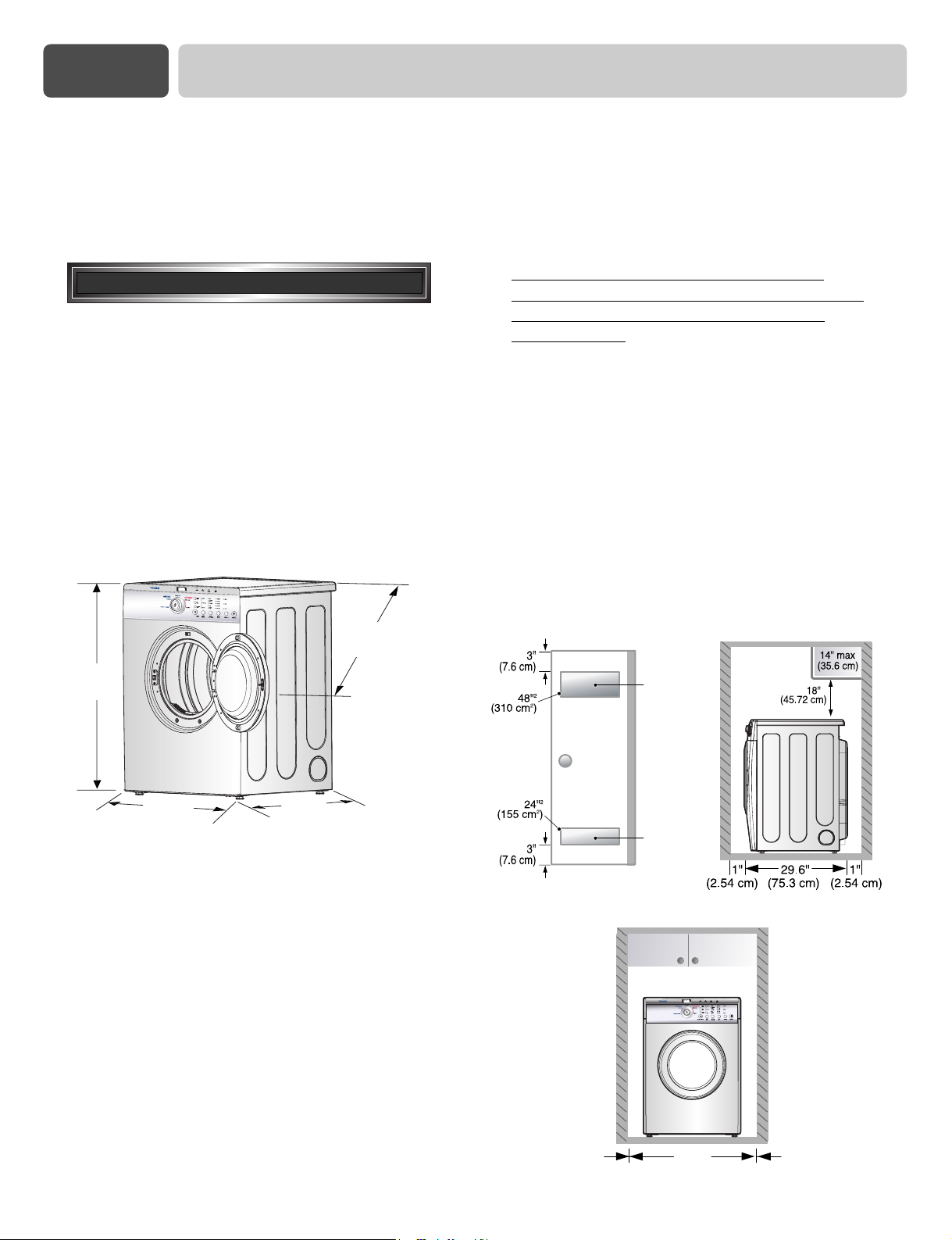

Certain minimum clearance are required
above,behind, and to the sides of the dryer in
the ever you install it any closer of other
recessed area. Those required minimum clearances
are set forth in the picture below. Please also keep the
following instructions in mind when installing in a
closet or recessed area:
• Consider allowing additional clearance for
installation and servicing.
• Wall,door and flow molding may require additional
clearance.
• Additional space of 1inch (2.5cm) is recommended an
all sides in order to reduce noise transfer.
• Consider space needed for companion appliances.
• For closer installation, the picture below shows the
minimum required ventilation openings for the door.
A louvered door with comparable ventilation openings
are also acceptable.
* Most installations require a minimum 5 1/2 in.
(14 cm) clearance behind the dryer for the exhaust
vent with elbow.
<Closet-Side view><Closet door>
ventilation
hole
ventilation
hole
<Closet-Front view>
38.7”
(98.3 cm)
27”
(68.6 cm) 29.6” (75.3 cm)
48.4”
(123 cm)
STEP 1 Positioning the Dryer.

8
Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER
Once in position, adjust the leveling legs of the dryer
until it is level from left to right and from front to
back. The leveling legs must remain firmly on the
floor and the dryer should not rock. The maximum
slope of the dryer from left to right or from front to
back should not exceed 2.5 cm (1 inch). If the dryer
is not level, and if the slope exceeds 2.5 cm (1 inch),
a load may not tumble properly and internal sensors
may malfunction. Note: Other sections of this
manual also provide important information
concerning the placement of and clearances for your
dryer. Please review this entire manual before
proceeding with any installation.
The door on your dryer can be installed to open
either to the left or the right. Follow these
procedures to reverse the direction in which your
door opens:
STEP 2:
1
2
3
STEP 2 Procedure for Reversing
the Door

9
Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER
In addition to the following warnings, please refer
to manual section on Exhaust Requirements and
Maintenance. IMPORTANT: To reduce the risk of
fire, combustion, and gas accumulation, the dryer
must be vented to the outdoors. Please follow the
instructions (and all others in this manual) very
carefully.
• Do not use Plastic or thin foil duct.
• Rigid or semi-rigid metal ducting is recommended
for use as transition ducting between the dryer and
and the wall. In special installations when it is
impossible to make a connection with the above
recommendations, then a UL-listed flexible metal
transition duct may be used between the dryer and
wall connection only. The use of this ducting will
affect dry time.
• Position the dryer where the exhaust duct is
shorter as possible
• Clean old ducts before installing this dryer
• The male end of each section of exhaust duct must
point away from the dryer
• Use fewer elbow joints as possible
• Use duct tape on all duct joints
• Insulate ductwork that runs through unheated
areas in order to reduce condensation and lint
build-up on pipe walls; and
• PLEASE BE AWARE THAT FAILURE TO
EXHAUST THE DRYER CORRECTLY WILL
VOID THE DRYER’S WARRANTY.
WARNING!
• Use a heavy metal vent.
• Do not use plastic or thin foil duct.
• Failure to follow these instructions can
result in death or fire.
• Clean old ducts before installing this dryer
!
■ ALTERNATE EXHAUST DIRECTIONS
1. Remove a screw and exhaust duct.
2-1. Detach and remove a knockout at the
button, left or right side as desired. (Right
Side Vent not available on Gas dryer)
①①, ②②, ③③the order of work.
2-2. Reconnect the another duct[11 in(28cm)]
to the blower housing, and attach the
duct to the base. (Duct is a SVC part)
3-1. Pre-assemble 4" elbow with 4" duct.
Wrap duct tape around joint.
3-2. Insert elbow duct assembly first through the
side opening and connect the elbow to the
internal duct.
STEP 3 Connecting the Exhaust
and Venting System.

10
Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER
(Gas dryer only). In addition to the following,
please refer to manual section on Gas Requirements
and Instructions.
1. Confirm that the type of gas available in your
laundry room is appropriate for the dryer. The
dryer is prepared for Natural Gas with a 3/8"
NPT gas connection.
2. Remove the shipping cap from the gas
connection at the back of the dryer. Make sure
that you don’t damage the threads of the gas
connection pipe when you remove the shipping
cap.
3. Connect the dryer to your laundry room’s gas
supply using a new flexible stainless steel
connector (as noted below, only use a new
stainless steel flexible connector if allowed by
your local codes).
4. Securely tighten all connections between the
dryer and your laundry room’s gas supply. Turn
on your laundry room’s gas supply and check all
pipe connections (both internal and external) for
gas leaks with a non-corrosive leak detection
fluid.
5. For LP (Liquefied Petroleum) gas connection,
refer to this manual’s section entitled Gas
Requirements and Instructions.
1. New stainless steel flexible connector. Use this type of
connector only if allowed by local codes. Use Design AGA
Certified Connector.
2. 1/8" NPT Pipe Plug (for checking inlet gas pressure)
3. Equipment Shut-Off Valve-
Installed within 6’ (1.8 m) of dryer
4. Iron Pipe. Shorter than 20’ (6.1 m)
Use 3/8" pipe. Longer than 20’ (6.1 m) - Use 1/2" pipe.
5. 3/8" N.P.T. Gas Connection
Following are several warnings and instructions
concerning making the electrical connection for
electric dryers. More detailed information
concerning the electrical connection is provided at
the manual section entitled Electrical Requirements
For Electric Dryer and it is important that you
thoroughly review that section, and the remainder of
this manual, before taking any steps to install or use
this dryer.
1. Use only a new U.L. listed No. 10 (copper wire
only) three conductor power supply cord kit rated
240 Volts (minimum) 30 Amperes and labeled as
suitable for use in a clothes dryer.
2. Four-wire cord is required for manufactured
(mobile) home installations and use and where
local codes do not allow grounding of this
appliance through neutral.
3. The wiring diagram is provided inside the dryer
control hood. Label all wires prior to
disconnection when servicing the dryer, because
wiring errors can cause serious injury to you and
your dryer.
4. For additional instruction on connecting the dryer
to an electrical power source, please refer to this
manual’s section on Electrical Requirements and
Electric Dryer.
2
35
1
4
WARNING!
•Use a new UL approved 30 amp power
supply cord or 10 gauge solid copper wire.
•Use a UL approved strain relief.
•Disconnect power before making electrical
connections.
•Connect neutral wire(white or center wire)
to center terminal.
•Ground wire(green or bare wire) must be
connected to green ground connector.
•Securely tighten all electrical connections
•See installation instructions for complete
instructions.
•Failure to do so can result in fire or
electrical shock.
!
STEP 4 Connection of Gas Supply
STEP 5 Electrical Plug Connections
for Electric Dryer Only.

11
Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER
Prior to the first use of this appliance, use all-
purpose cleaning products or a solution of detergent
and water, with damp clothes to remove from the
inside of the dryer drum/drying compartment any
dust or dirt that may have accumulated the inside of
the dryer. Plug-in your dryer after reviewing the
following parts on your dryer’s Electrical
Requirements.

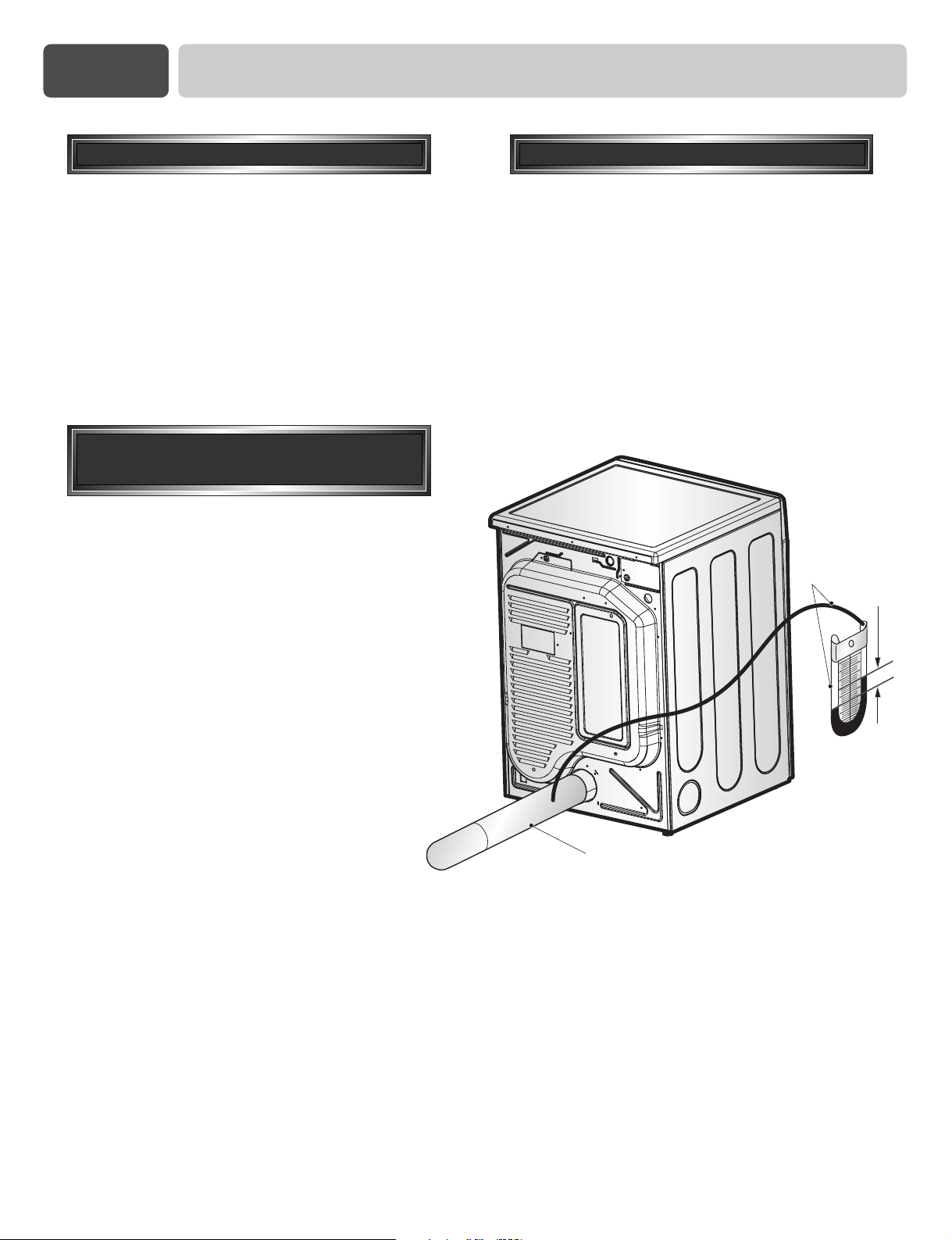

Effective dryer operation requires appropriate dryer
airflow. The adequacy of the airflow can be
measured by evaluating the static pressure. Static
pressure in the exhaust duct can be measured with a
manometer, placed on the exhaust duct
approximately 2 ft. (60.9 cm) from the dryer. Static
pressure in the exhaust duct should not exceed 0.6
inches (1.5 cm). The dryer should be checked with
the dryer running with no load.
Confirming Heat Source in Gas Dryers
Close the door to the dryer drum/drying
compartment and, after completing all steps in this
manual for proper installation of this dryer, start the
dryer on a heat setting, as described more fully in
the operating instructions that accompany the dryer.
After the dryer starts, the igniter will glow red and
the main burner will ignite.
Warning: If all air is not purged from the gas line,
the gas igniter may go off before the gas and the
main burner have ignited. If this happens, the
igniter will re-attempt gas ignition after
approximately two minutes.
Confirming Heat Source in Electric Dryers
Close the door to the dryer drum/drying
compartment and, after completing all steps in this
manual for proper installation of this dryer, start the
dryer on a heat setting, as described more fully in
the operating instructions that accompany the dryer.
The exhaust air or the exhaust pipe should be warm
after the dryer has been operating for three minutes.
1
2
Measuring Static pressure
0.6 inche (1.5 cm)
MAXIMUM STATIC
PRESSURE IN
WATER COLUMN
STEP 6 Preparation of the Dryer. STEP 8 Dryer Airflow.
STEP 7 Confirming Heat Source
Operation.
Manometer
Exhaust Duct

12
Part 3 INITIAL STEPS FOR INSTALLING YOUR DRYER
The following instructions are applicable to
installations of the dryer in a manufactured or
mobile home. Any installation in a manufactured or
mobile home must comply with the Manufactured
Home Construction and Safety Standards Title 24
CFR, Part 32-80 or Standard CAN/CSA0Z240 MH
and local codes and ordinances. If you are
uncertain whether your proposed installation will
comply with these standards, please contact a
service and installation professional for assistance.
The following instructions apply to any installation
of the dryer in a manufactured or mobile home:
1) The gas dryer must be permanently attached to
the floor.
2) The electrical connection for an electric dryer
must be a 4-wire connection. More detailed
information concerning the electrical connection
is provided at the manual section entitled
Electrical Requirements for Electric Dryer
3) To reduce the risk of combustion and fire, the
dryer must be vented to the outside.
4) Electric dryers may be vented to the outside
using the back, left, right, or bottom panel.
5) Gas dryers may be vented to the outside using the
back, left, or bottom panel. Gas dryer may not be
vented to the outside using the right side panel
because of the burner housing.
6) The dryer exhaust duct must be affixed securely
to the manufactured or mobile home structure,
and the exhaust duct must be made of a material
that will resist fire and combustion, and it is
recommended that you use a rigid or flexible
metal pipe.
7) DO NOT connect the exhaust duct with any other
duct, vent, chimney, or other exhaust duct.
8) Make sure the dryer has adequate access to
outside fresh air to ensure proper operation. The
opening for outside fresh air must be at least 25
in2(163 cm2).
9) It is important that the clearance of the duct from
any combustible construction be at least 2 inches
(5 cm), and, when venting the dryer to the
outdoors, the dryer can be installed with a
clearances of 1 inch at the sides and back of the
dryer.
10) Please be aware that venting materials are not
supplied with the dryer. You should obtain the
venting materials necessary for proper
installation.
WARNING!
DO NOT connect exhaust ducts with
metal screws or fasteners that extend
into the duct.
!
WARNING!
DO NOT vent the exhaust duct under the
manufactured or mobile home.
!
STEP 9 Additional Instructions
for Installation of Your
Dryer in a Manufactured
or Mobile Home.

13
Part 4 ACESSORIES INSTALLATION
To ensure safe and secure installation, please
observe the instructions below.
Place washer firmly on a stable, even and
solid floor as product installation instructions
describes in owner’s manual.
Peel protective paper off the tape from the
stacking kit side bracket.
Fit the stacking kit side bracket firmly to the
side of top plate by attaching the double-
faced tape to top plate as picture shows.
Secure stacking kit side bracket to the
washer with a screw on the back of bracket.
Repeat Steps 2, 3, 4 for the other side.
Place the dryer on top of the washer by fitting
legs as shown in the picture. Avoid finger
injuries - be careful not to pinch fingers
between the washer and dryer. Slide washer
slowly backwards to the stopper of kit.
Insert the front stacking kit. Push the front
stacking kit back to the stoppers of side
stacking kit.
Screw both sides of the front kit.
•Do not use stacking kit with a gas dryer in
potentially unstable conditions like a mobile
home.
Stacking kit
Do not attempt installation with one person.
Incorrect installation procedure can cause
serious accidents and physical Injuries.
The weight of the dryer and the height of
installation makes the stacking procedure
too risky for one person. This procedure
should be performed by 2 or more
experienced service personnel.
W ARNING
1
2
3
4
5
6
7
Stacking Kit Installation Instructions

Part 4
14
ACESSORIES INSTALLATION
Pedestal Installation Instructions
3
1 4
5
6
7
2

15
Part 5 ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYERS
Following are additional instructions regarding electrical connections and requirements for electric dryers.
Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding
must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70 and all applicable local
regulations. Please contact a qualified electrician to check your home’s wiring and fuses to ensure that your home
has adequate electrical power to operate the dryer.
120V/ 240V, 60 Hertz, 3-Wire Installation
!
Instructions for Grounding of your Electric
Electric Dryer:
a) Please note that the wiring diagram is provided
inside the dryer control hood.
b) This dryer must be connected to a grounded
metal, permanent wiring system; or an
equipment-grounding conductor must be run
with the circuit conductors and connected to the
equipment-grounding terminal or lead on the
dryer.
c) The dryer has its own terminal block that must
be connected to a separate branch, 60 Hertz,
single phase circuit, AC (alternating current)
circuit, fused at 30 Amperes (the circuit must be
fused on both sides of the line). ELECTRICAL
SERVICE FOR THE DRYER SHOULD BE
OF MAXIMUM RATE VOLTAGE LISTED
ON THE NAMEPLATE. DO NOT CONNECT
DRYER TO 110, 115, OR 120 VOLT
CIRCUIT.
d) If branch circuit to dryer is fifteen feet (4.50 m)
or less in length, use U.L. (Underwriters
Laboratories) listed No. 10 A.W.G. wire
(copper wire only), or as required by local
codes. If over fifteen feet (4.50 m), use U.L.
(Underwriters Laboratories) listed No. 8
A.W.G. wire (copper wire only), or as required
by local codes. Allow sufficient slack in wiring
so dryer can be moved from its normal location
when necessary.
e) The power cord (pigtail) connection between wall
receptacle and dryer terminal block IS NOT
supplied with dryer. Type of pigtail and gauge of
wire must conform to local codes and with
instructions mentioned on the following pages.
f) The method of wiring the dryer is optional and
subject to local code requirements. Refer to
examples on next page.
g) You must select the method by which to wire
your dryer according to local code and ordinance
requirements. Sample methods are included in
the following pages.
WARNING!
Label all wires prior to disconnection
when servicing the dryer, because
wiring errors can cause serious injury
to you and your dryer.
!

16
Part 5 ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYERS
Use the instructions at this section if your home has
a 3-wire receptacle (NEMA type 10-30R) and you
will be using a UL listed, 120/240 volt minimum,
30 amp, dryer power supply cord.
Review the following options to determine the appropriate electrical connection
for your home:
If this type is available at your home. you will be
connecting to a fused disconnect or circuit breaker
box
Important : Grounding through the neutral conductor is
prohibited for (1) new branch-circuit installations, (2)
mobile homes, and (3) recreational vehicles, and (4) areas
where local codes prohibit grounding through the neutral
conductor.
Prepare minimum 5ft(1.52m) of length in order for dryer
to be replaced.
First, peel 5 inch (12.7cm) of covering material from end.
Make a 5 inch of ground wire bared. After cutting 11/2
inch (3.8cm) from 3 other wires. peel insulation back
1inch (2.5cm). Make ends of 3 wires a hook shape.
Then, put the hooked shape end of the wire under the
screw of the terminal block(hooked end facing rightward)
and pinch the hook together and screw tightly.
Use the instructions at this section if your home has
a 4-wire receptacle (NEMA type 14-30R) and you
will be using a UL listed, 120/240 volt minimum,
30 amp, dryer power supply cord.
If this type is available at your home. you will be
connecting to a fused disconnect or circuit breaker
box
1. Connect neutral wire(white) of power cord to center
terminal block screw.
2. Connect red and black wire to the left and right
terminal block screws.
3. Connect ground wire(green) of power cord to external
ground screw and move neutral ground wire of
appliance and connect it to center screw.
4. Make sure that the strain relief screw is tightened.
and be sure that all terminal block nuts are on tight and
power cord is in right position.
3-wire direct
4-wire receptacle
(NEMA type14-30R)
3-wire receptacle
(NEMA type10-30R)
4-wire direct
4-wire connection : Direct wire

17
Part 5 ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYERS
Important : Grounding through the neutral conductor
is prohibited for (1) new branch-circuit installations,
(2) mobile homes, and (3) recreational vehicles, and
(4) areas where local codes prohibit grounding through
the neutral conductor.
Prepare minimum 5ft(1.52m) of length in order for
dryer to be replaced.
First, peel 3 1/2inch (8.9cm) of covering material
from end and bare 1 inch from the ends.
1. Connect neutral wire(white) of power cord to
center terminal block screw.
2. Connect red and black wire to the left and right
terminal block screws.
3. Make sure that the strain relief screw is tightened
and be sure that all terminal block nuts are on
tight and power cord is in right position.
Then, put the hooked shape end of the wire under
the screw of the terminal block(hooked end facing
rightward) and pinch the hook together and screw
tightly.
3-wire connection : Direct wire
1. Connect neutral wire(white) of power cord to
center terminal block screw.
2. Connect red and black wire to the left and right
terminal block screws.
3. Connect ground wire(green) of power cord to
external ground screw and move neutral ground
wire of appliance and connect it to center screw.
4. Make sure that the strain relief screw is tightened.
and be sure that all terminal block nuts are on
tight and power cord is in right position.
• lf your local codes or ordinances do not allow the
use of a 3 wire connection, or you are installing
your dryer in a mobile home, you must use a 4-
wire connection.
Option 1: 4-wire connection with
a Power supply cord.

18
1. Connect neutral wire(white) of power cord to
center terminal block screw.
2. Connect ground wire of appliance and neutral
wire of power cord to center terminal block
screw.
3. Connect red and black wire to the left and right
terminal block screws.
4. Make sure that the strain relief screw is tightened.
and be sure that all terminal block nuts are on
tight and power cord is in right position.
5. Connect a independent ground wire from external
ground connector to proper ground.
Part 5 ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYERS
lf your local codes or ordinances permit the
connection of a frame-grounding conductor to the
neutral wire, use these instructions. If your local
codes or ordinances do not allow the connection of
a frame-grounding conductor to the neutral wire,
use the instructions under Section 3: Optional
3-wire connection.
Option 2: 3-Wire Connection with
a Power Supply Cord
• If your local codes or ordinances do not allow the
connection of a frame-grounding conductor to the
neutral wire, use the instructions under this
section.
Option 3: Optional 3-wire
connection.

19
Part 6 ELECTRICAL REQUIREMENTS FOR GAS DRYERS
120 Volt, 60 Hertz, with 3-Prong Grounding Plug
Following are additional instructions regarding electrical connections and requirements for gas dryers.
Important Warning: To help prevent fire, electric shock, serious injury or death, the wiring and grounding
must conform to the latest edition of the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical
Code, CSA C22.1, and all applicable local regulations. Please contact a qualified electrician to check your home’s
wiring and fuses to ensure that your home has adequate electrical power to operate the dryer.
Electrical Requirements for Your Dryer:
!
a) Please note that the wiring diagram is provided
inside the dryer control hood. Label all wires
prior to disconnection when servicing the dryer,
because wiring errors can cause serious injury to
you and your dryer.
b) Your dryer is designed to be used on a separate
branch, polarized, three-wire, effectively
grounded, 120 Volt, 60 Hertz, AC (alternating
current) circuit protected by a 15 Ampere fuse,
equivalent fusetron or circuit breaker.
c) Use separately fused circuits for washers and
dryers, and DO NOT operate a washer and a
dryer on the same circuit.
a) The dryer has a three-prong plug to help guard
against shock. The plug should be plugged
directed into a properly grounded three-prong
receptacle that is rated 120 Volts AC (alternating
current) 15 Amps. This plug, in order to be
properly and fully effective, must be plugged into
a properly installed outlet that is grounded in
accordance with all local codes and ordinances.
b) The dryer must be grounded in order to reduce
the risk of electric shock, including a
malfunction or breakdown.
c) If your laundry room does not meet the
specifications required by this manual, or if you
are uncertain whether or not your laundry room
meets these specifications, please have a
qualified service person or company, for example
a qualified electrician or your local electric
company, review your laundry room’s electrical
supply for any problems.
WARNING!
Do not overload the circuit by operating
other appliances on the same circuit when
this appliance is operating, by using an
extension cord to connect the dryer to the
power source, or by using any adapter to
allow additional cords to connect to the
same outlet.
!
STANDARD 120 VOLT, 60 HERTZ, 3-WIRE
EFFECTIVELY GROUNDED CIRCUIT
1L1
2Ground
3Neutral Side
4Round Grounding Prong
5Neutral
WARNING!
DO NOT modify the plug provided with
the dryer. If it does not fit the outlet in your
laundry room, a proper outlet will need to be
installed in your laundry room by a qualified
service person or company.
!
