LG DLE2516 User manual

1-800-243-0000
24 HOURSA DAY,7DAYSA WEEK FORLGCUSTOMER SERVICE
il ..........t"
ElectricandGasDryer
DLE2516W /DLG2526W
Thank you for buying an LGDryer.
Pleaseread your manual carefully, as it provides instructions
on safe Installation, useand maintenance.
Record the model and serial numbers,
and retain the manual for future reference.
For more information, visit our website at http:i/us.lge.com
P/No.: 3828EL3004E

OUTSTANDING PERFORMANCE
Not to mention unmatched big capacity, you can benefit from good
time efficiency, quiet operation and energy saving system.
DOUBLE-COATED STEELDRUM
It is coated with one metal coating and the other polymer coating in order to guarantee high
durability and the long life.
ARTISTICDESIGN
Modern front panel look and big crystal-clear glass door make your house look stylish.
DIGITAL FABRICCARE
Multi-level temperature control heater takes a better care on your valued clothes.
EASYOF USE
A whole selection of user-friendly functions always make you comfortable with dryer operation.
Your dryer provides sensor drying and time drying programs.
Sensor Dry
The dryer senses the dampness of the laundry and automatically determines the heat level and operation time. You might
see a sudden increase or decrease in operation time if the sensor determines more or less drying is required. This is not a
malfunction.
Time Dry
Use TIME DRY to select heat level and drying time manually. This can be used if clothes are not as dry as you like them
at the end of the cycle. Use TIME DRY for heaw and bulky items and thick work. J
PART 1 SPECiFiCATiONS ................................................................................................................................................................................................................. 3
PART 2. iMPORTANT WARRANTY AND SAFETY iNSTRUCTiONS ............................................................................................................................................... 4
PART 3 INITLAL STEPS FOR INSTALLING YOUR DRYER .............................................................................................................................................................. 9
PART 4 ACCESSORIES iNSTALLATiON ........................................................................................................................................................................................ 15
PART 5. ELECTRICAL REQUIREMENTS FOR ELECTRIC DRYERS .............................................................................................................................................. 17
PART 6. ELECTRICAL REQUIREMENTS FOR GAS DRYERS ......................................................................................................................................................... 21
PART 7. GAS REQUEREMENTS AND INSTRUCTIONS .................................................................................................................................................................... 22
PART 8. EXHAUST REQUIREMENTS AND MALNTENANCE ........................................................................................................................................................... 23
PART 9. OPERATING YOUR DRYER ................................................................................................................................................................................................ 25
PART 10. TROUBLESHOOTING GUIDE ............................................................................................................................................................................................ 31
LG DRYER LIMITED WARRANTY ...................................................................................................................................................................................................... 34
2

m Type : Electric and Gas Dryer
[] Rating : Please refer to the rating label regarding detailed information.
[] Size : 27 x 29.9 x 38.7(inch)
[] Capacity : IEC 7.0 cu.ft.
[] Weight : 126 Ibs (57,2 kg)
÷ Specifications are subject to change by manufacturer.
ACCESSORIES
Dryer Rack
Purchased Separately
See page 28 Jor instructions.
Stacking Kit
Purchased Separately
See page 15Jor instructions.
:_ Desigu of pede,stals is suhject to
change without ntauaflttttrer_ notice.
Pedestal
Purchased Separately
See page 16 for instructions.
3

SEEKINGWARRANTYSERVICE
The warranty for your dryer is located at the end of this manual. Warranty Service is
available by contacting your nearest LG Service Center. If this product is installed and
operated according to the instructions in this manual, LG will repair or replace any parts
defective in material or workmanship throughout the warranty period, beginning with the
date of purchase.
WARN|NG!
For your safety, the recom mendations in this manual must be followed. To reduce the risk
of fire or explosion, electric shock or to prevent property damage, personal injury, or death
when using your appliance follow basic precautions.
Warranty Restriction: If the dryer is subjected to other than single family use, all warranty
coverage is effective for only 90 days.
You will need the complete model and serial number when requesting warranty service, proof of
purchase date is required.
Use the space below to record the model number and serial number of your new LG dryer.
Model Number.
Serial Number.
Date of Purchase
-_ Staple your receipt here for convenience when contacting service.

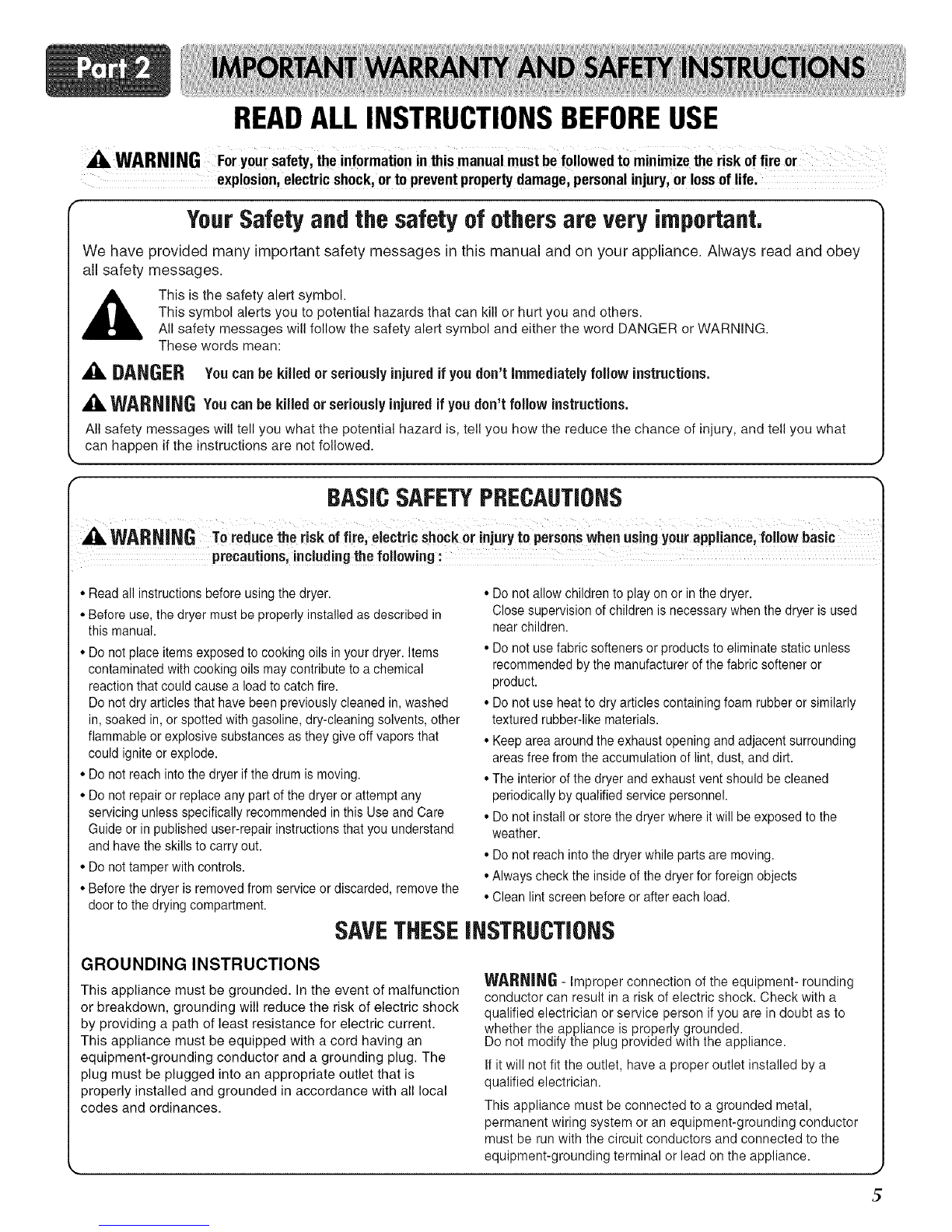

READALLINSTRUCTIONSBEFOREUSE
AWARNING Fory0ursafetylthe information inthismanualmust hefollowed tominimizetheriskof fireOr
explosion, electric shock, orto prevent property damage, personal injury, or loss of life.
YourSafety and the safety of others are very important,
We have provided many important safety messages in this manual and on your appliance. Always read and obey
all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER or WARNING.
These words mean:
A DANGER You can be killed or seriously injured if you don't Immediately follow instructions.
_k. WARNING You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how the reduce the chance of injury, and tell you what
can happen if the instructions are not followed.
BASICSAFETYPRECAUTIONS
&. WARNINGToreducether_skOff_re,e=ectr_cshockOr=njurYtopers0"swheuus_ugy0urappHa.Ce,fo.0wbasic
precautions, including the following :
Read all instructions before using the dryer.
• Before use, the dryer must be properly installedas described in
this manual.
• Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
Do not dry articles that have been previously cleaned in,washed
in, soaked in,or spotted with gasoline, dry-cleaning solvents, other
flammable or explosive substances as they giveoff vapors that
could ignite or explode.
• Do not reach into the dryer if the drum is moving.
• Do not repair or replace any part of the dryer or attempt any
servicing unless specifically recommended in this Use and Care
Guide or in published user-repair instructions that you understand
and have the skills to carry out.
• Do not tamper with controls.
• Before the dryer is removed from service or discarded, remove the
door to the drying compartment.
• Do not allow children to play on or in the dryer.
Closesupervision of children is necessary when the dryer is used
near children.
• Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or
product.
• Do not use heat to dry articles containing foam rubber or similarly
textured rubber-like materials.
• Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust, anddirt.
• The interior ofthe dryer and exhaust vent should be cleaned
periodically by qualified service personnel.
• Do not install or store the dryer where it will be exposed to the
weather.
• Do not reach into the dryer while parts are moving.
• Always check the inside of the dryer forforeign objects
• Clean lint screen before or after each load.
SAVETHESEiHSTRUCTIOHS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction
or breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This appliance must be equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
WARNING - Improper connection of the equipment- rounding
conductor can result in a risk of electric shock. Check with a
qualified electrician or service person if you are in doubt as to
whether the appliance is properly grounded.
Do not modify the plug provided with the appliance.
If it will not fit the outlet, have a proper outlet installed by a
qualified electrician.
This appliance must be connected to a grounded metal,
permanent wiring system or an equipment-grounding conductor
must be run with the circuit conductors and connected to the
equipment-grounding terminal or lead on the appliance.

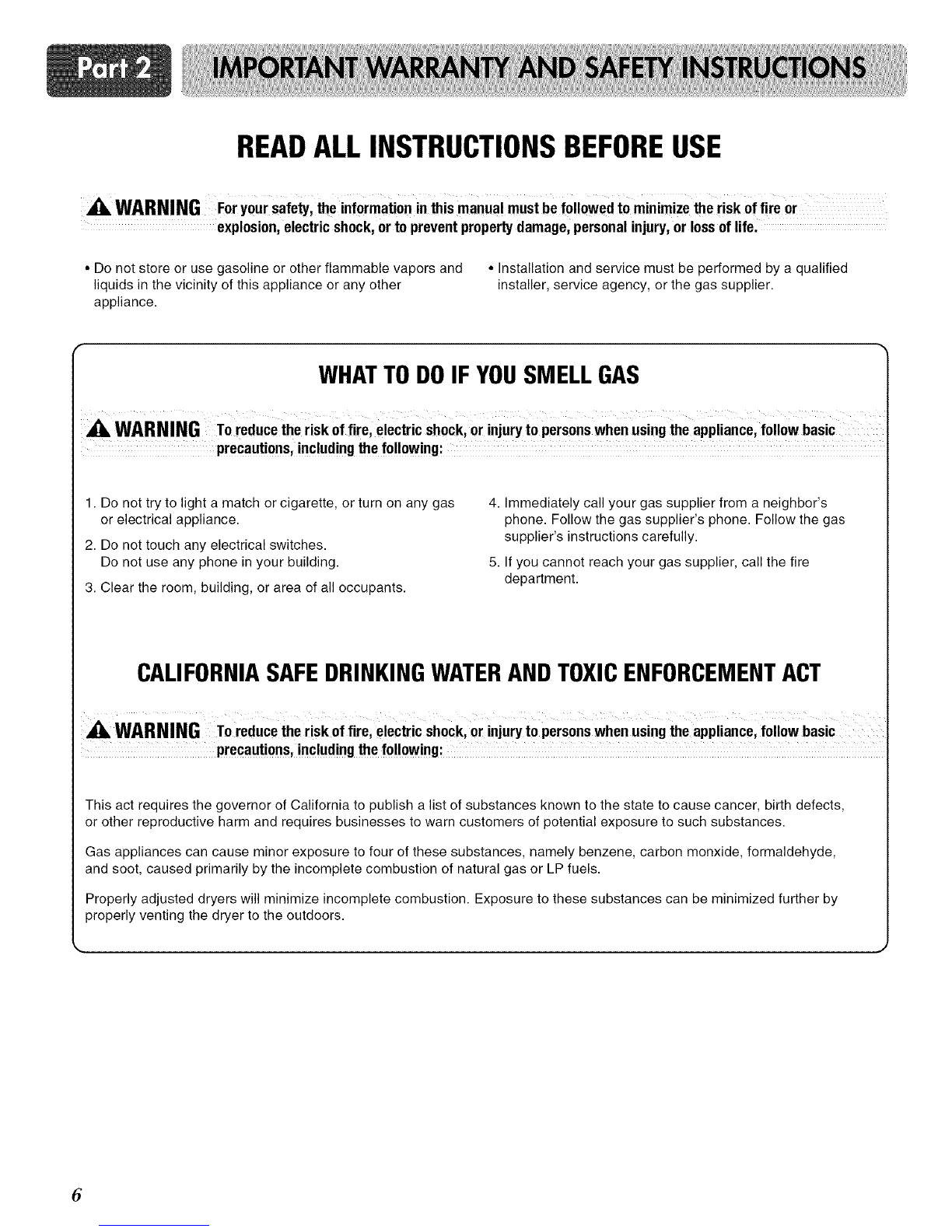

READALLINSTRUCTIONSBEFOREUSE
WARNINGFor Yoursafetyltheinformationinthismanualmustbefollowed tominimizetheriskOffire or
explosion,electricshock,orto preventpropertydamage,personalinjury,or lossoflife,
•Do not store or use gasoline or other flammable vapors and • Installation and service must be performed by a qualified
liquids in the vicinity of this appliance or any other installer, service agency, or the gas supplier.
appliance.
WHATTO DOIF YOUSMELLGAS
!recautions, includingthe following:
1. Do not try to light a match or cigarette, or turn on any gas
or electrical appliance.
2. Do not touch any electrical switches.
Do not use any phone in your building.
3. Clear the room, building, or area of all occupants.
4. Immediately call your gas supplier from a neighboCs
phone. Follow the gas supplier's phone. Follow the gas
supplier's instructions carefully.
5. If you cannot reach your gas supplier, call the fire
department.
CALIFORNIASAFEDRINKINGWATERANDTOXICENFORCEMENTACT
WARNING To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic
precautions, including the following:
This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects,
or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.
Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monxide, formaldehyde,
and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by
properly venting the dryer to the outdoors.
6

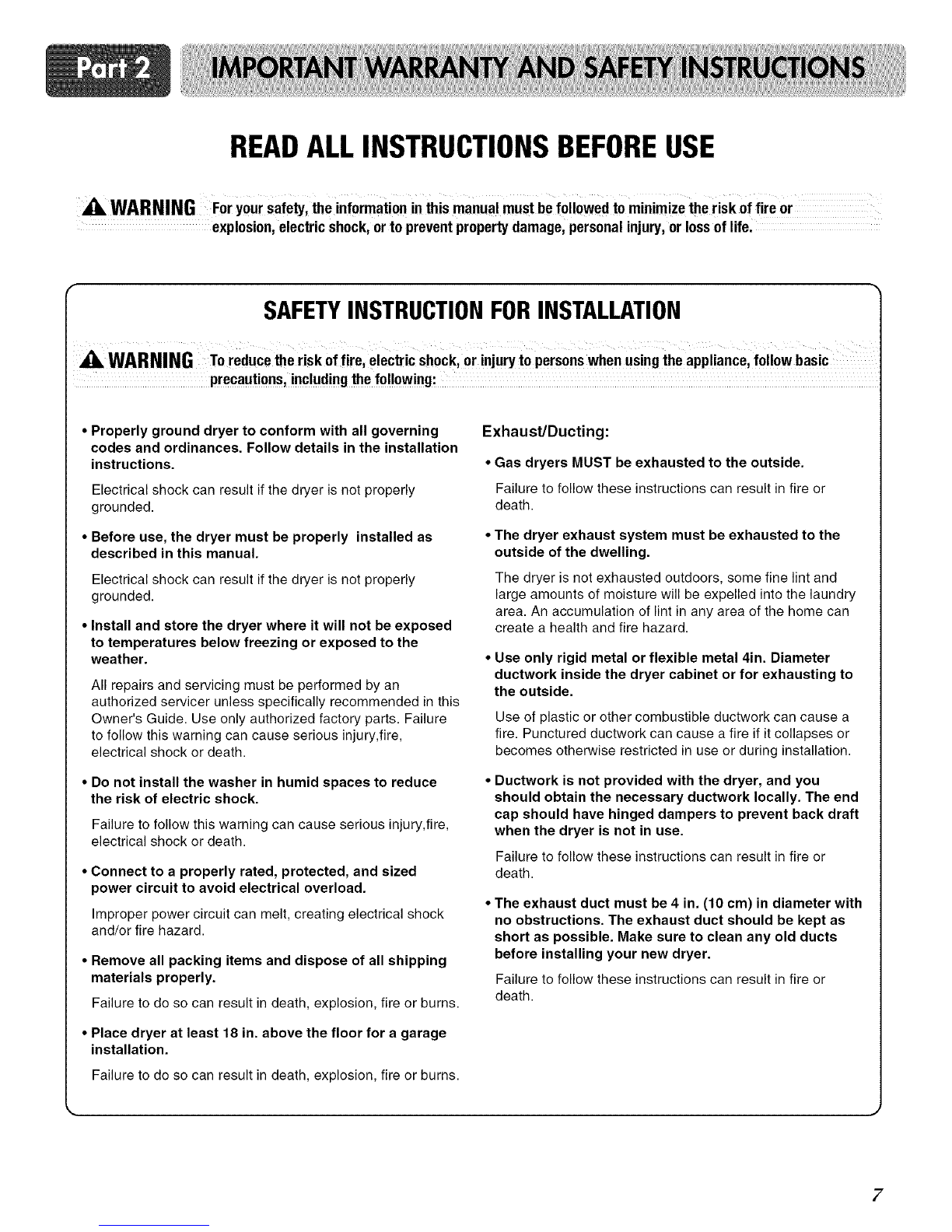

READALLINSTRUCTIONSBEFOREUSE
WARNING ForYoursafety,theinformationin thismanualmustbefollowed tominimizethe riskoffire or
explosion,electricshock,orto preventpropertydamage,personalinjury,or lossoflife.
SAFETYINSTRUCTIONFORINSTALLATION
A WARNING To reduce the risk of fire, electric shock, or injury to persons when using the appliance, follow basic
precautions, including the following:
•Properly ground dryer to conform with all governing
codes and ordinances. Follow details in the installation
instructions.
Electrical shock can result if the dryer is not properly
grounded.
•Before use, the dryer must be properly installed as
described in this manual.
Electrical shock can result if the dryer is not properly
grounded.
•Install and store the dryer where it will not be exposed
to temperatures below freezing or exposed to the
weather.
All repairs and servicing must be performed by an
authorized servicer unless specifically recommended in this
Owner's Guide. Use only authorized factory parts. Failure
to follow this warning can cause serious injury,fire,
electrical shock or death.
•Do not install the washer in humid spaces to reduce
the risk of electric shock.
Failure to follow this warning can cause serious injury,fire,
electrical shock or death.
•Connect to a properly rated, protected, and sized
power circuit to avoid electrical overload.
Improper power circuit can melt, creating electrical shock
and/or fire hazard.
•Remove all packing items and dispose of all shipping
materials properly.
Failure to do so can result in death, explosion, fire or burns.
•Place dryer at least 18 in. above the floor for a garage
installation.
Failure to do so can result in death, explosion, fire or burns.
Exhaust/Ducting:
•Gas dryers MUST be exhausted to the outside.
Failure to follow these instructions can result in fire or
death.
The dryer exhaust system must be exhausted to the
outside of the dwelling.
The dryer is not exhausted outdoors, some fine lint and
large amounts of moisture will be expelled into the laundry
area. An accumulation of lint in any area of the home can
create a health and fire hazard.
Use only rigid metal or flexible metal 4in. Diameter
ductwork inside the dryer cabinet or for exhausting to
the outside.
Use of plastic or other combustible ductwork can cause a
fire. Punctured ductwork can cause a fire if it collapses or
becomes otherwise restricted in use or during installation.
Ductwork is not provided with the dryer, and you
should obtain the necessary ductwork locally. The end
cap should have hinged dampers to prevent back draft
when the dryer is not in use.
Failure to follow these instructions can result in fire or
death.
The exhaust duct must be 4 in. (10 cm) in diameter with
no obstructions. The exhaust duct should be kept as
short as possible. Make sure to clean any old ducts
before installing your new dryer.
Failure to follow these instructions can result in fire or
death.
7

READALLINSTRUCTIONSBEFOREUSE
WARNING ForyourSafety,theinformationinthismanualmustbefollowed to minimizethe riskOfflreor
explosion,electricshock,orto preventpropertydamage,personalinjury,orlossoflife,
SAFETYINSTRUCTIONFORINSTALLATION(cont.)
•Rigid or semi rigid metal ducting is recommended for
use between the dryer and the wall. In special
installations when it is impossible to make a
connection with the above recommendations, a UL-
listed flexible metal transition duct may be used
between the dryer and wall connection only. The use of
this ducting will affect drying time.
Failure to follow these instructions can result in fire or
death.
•DO NOT use sheet metal screws or other fasteners
which extend into the duct that could catch lint and
reduce the efficiency of the exhaust system. Secure all
joints with duct tape. '[]UFor complete details, follow
the Installation Instructions.
Failure to follow these instructions can result in fire or
death.
SAFETYINSTRUCTIONFORCONNECTINGELECTRICITY
AWARNING To reduce the risk Of firel electric shock Or injury to pers0ns when using the appliance; follow basic
precautions, including the following:
•Do not, under any circumstances, cut or remove the
ground prong from the power cord.
To prevent personal injury or damage to the dryer, the
electrical power cord must be plugged into a properly
grounded
•For personal safety, this dryer must be properly
grounded.
Failure to do so can result in electrical shock or injury
•Refer to the installation instructions in this manual for
specific electrical requirements for your model.
Failure to follow these instructions can create electrical
shock and/or a fire hazard.
•This dryer must be plugged into a properly grounded
outlet.
Electrical shock can result if the dryer is not properly
grounded.
•Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly
grounded.
This will prevent shock hazard and assure stability during
operating.
•The dryer should always be plugged into its own
individual electrical outlet which has a voltage rating
that matches the rating plate.
This provides the best performance and also prevents
overloading house wiring circuits which could cause a fire
hazard from overheated wires.
•Never unplug your dryer by pulling on the power cord.
Always grip plug firmly and pull straight out from the
outlet.
The power cord can be cut by any movement of the core,
resulting in electrical shock.
•Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a
cord that shows cracks or abrasion damage along its
length or at either end.
These power cord can melt, creating electrical shock
and/or fire hazard.
•When installing or moving the dryer, be careful not to
pinch, crush, or damage the power cord.
This will prevent injury and damage to the dryer from fire
and electrical shock.

The following instructions will help guide you through the initial steps of setting up your dryer for use.
Please note that every section of this manual provides important information regarding the preparation and
use of your dryer, and it is important that you review this entire manual before proceeding with any
installation or use. More detailed instructions concerning electrical connections, gas connections, and
exhaust requirements are provided in other parts of this manual.
Choose a location with a solid floor for your dryer.
Place the dryer at least eighteen inches above the
floor for a garage installation. After placing the
dryer in the desired location, please make sure that
it has the required clearances shown below. If you
are installing your dryer in a manufactured or
mobile home, please refer to STEP 9 tk_r additional
instructions.
38.7"
(98.3 cm)
/
49.8"
(126.4 cm)
27...... _/_-29"96" ---_
(68.6 cm) (76.1 cm)
* Most installations require a minimum 572 inches.
(14 cm) clearance behind the dryer for the exhaust
vent with elbow.
Leveling legs should be secured.
All four legs are stably placed on a solid and
evenfloor.
If dryer is not level, laundry may not tumble
properly and sensor will not detect accurate
humidity information.
When leveling, please be cautious not to injure
yourfingers and toes.
If you install the dryer on the optional pedstal,
it is nessary to level with the pedestal leveling
legs.
Certain minimum clearances are required
above, behind, and to the sides of the unit, as
shown below. Those required mininmm clearances
are set forth in the picture below. Please keep the
following instructions in mind when installing in a
closet or recessed area:
• Consider allowing additional clearance for
installation and servicing.
• Wall, door and floor molding may necessitate
additional clearances.
• An additional inch of clearance is recommended to
minimize noise transfer.
• Consider space needed for companion appliances.
• For closet installations, the picture below shows the
minimum required ventilation openings t_r the door.
A louvered door with comparable ventilation openings
is also acceptable.
3 B' ..........................................
(7.6cm)
48 t_2.
(310 cm2)
24*'2
(155 cm _)..
(7.6cm)
Closet Door
ventilation
hole
ventilation
i!i_J[iiiiiii
;,_ ax
",_ _ (38.6 cm)
hole 1' 29.96"
(2.54cm) (76.1 cm) (2.54cm)
Closet-side View
0" _ 27" _1_0"
(0 cm) (68.6 cm) (0 cm)
Closet-fl'ont View 9

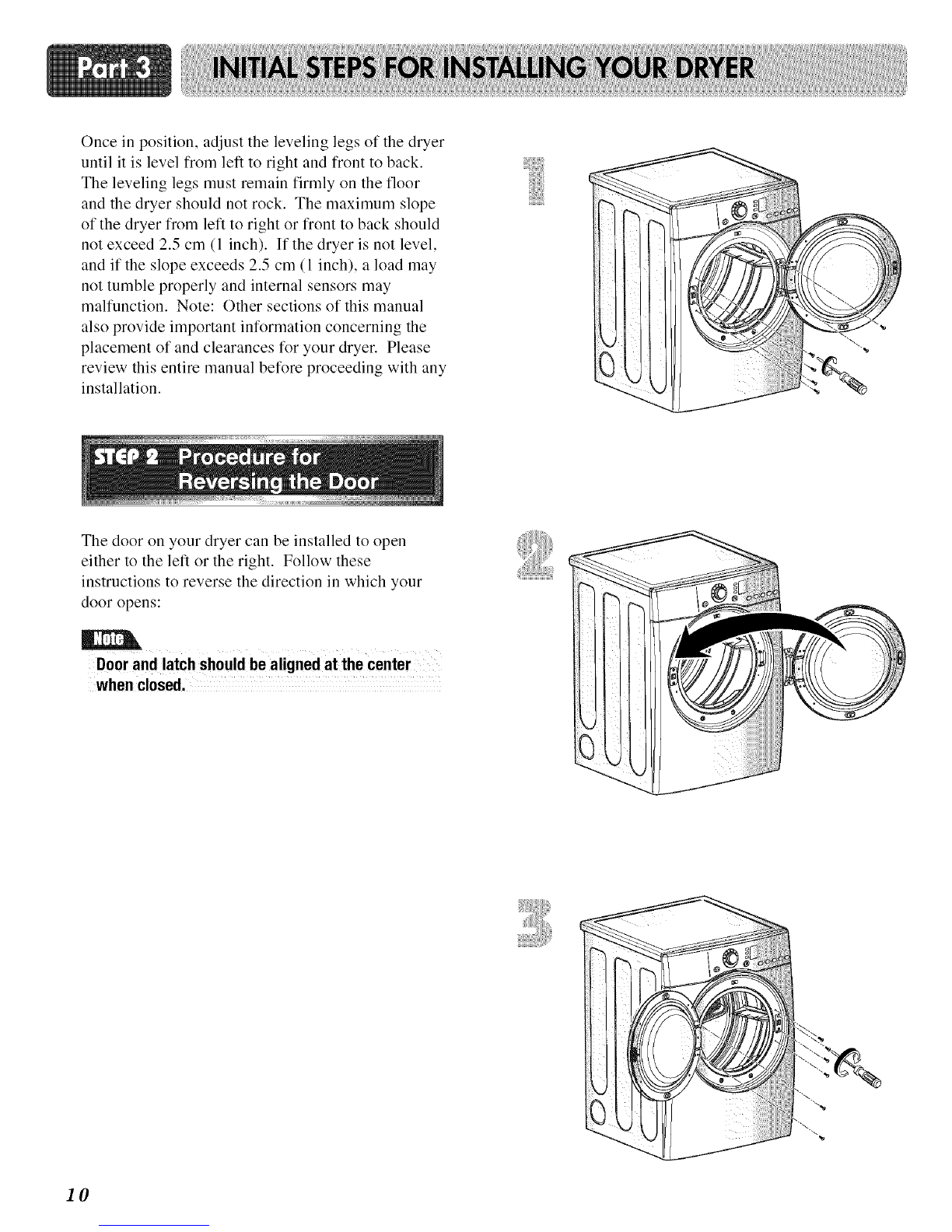

Once in position, adjust the leveling legs of the dryer
until it is level from left to right and front to back.
The leveling legs must remain firmly on the floor
and the dryer should not rock. The maximum slope
of the dryer from left to right or front to back should
not exceed 2.5 cm (1 inch). If the dryer is not level,
and if the slope exceeds 2.5 cm (1 inch), a load may
not tumble properly and internal sensors may
malfunction. Note: Other sections of this manual
also provide important information concerning the
placement of and clearances for your dryer. Please
review this entire manual before proceeding with any
installation.
The door on your dryer can be installed to open
either to the left or the right. Follow these
instructions to reverse the direction in which your
door opens:
Door and latch should be aligned at the center
when closed.
iiiiiiiiiiiiiii .
ii "\ .\_
I0

WARNING!
•Use a heavy metal vent.
•Do not use plastic or thin foil duct.
•Clean old ducts before installing this dryer.
•Failure to follow these instructions can
result in death or fire
Improper taping and incorrect installation will
cause dryer malfunction,
In addition to the following warnings, please refer
to manual section on Exhaust Requirements and
Maintenance. Warning: The dryer must be vented
to the outdoors. Please follow the instructions (and
all others in this manual) very carefully. Failure to
follow these instructions can result in death or fire.
• Do not use plastic or thin foil duct.
• Use 4" (10.2 cm) diameter rigid or semi-rigid
metal duct (NOTE! Venting materials are not
supplied with the dryer, and you should obtain the
venting materials necessary for proper installation)
• Position the dryer such that the exhaust duct run is
as short as possible.
•Clean old duets before installing this dryer
•The male end of each section of exhaust duct must
point away from the dryer.
• Use as few elbow joints as possible.
• Use duct tape on all duct joints.
•Insulate ductwork that runs through unheated
areas in order to reduce condensation and lint
build-up on pipe walls.
•PLEASE BE AWARE THAT FAILURE TO
EXHAUST THE DRYER CORRECTLY WILL
VOID THE DRYER'S WARRANTY.
• ALTERNATE EXHAUST DIRECTIONS
] • Remove screw and exhaust duct.
(Use exhaust kit part #3911 EZ9131X.)
\
2- |. Detach and remove the knockout that
matches the desired venting direction
(Right side not available on Gas Dryers)
f PORTION A
Knockout Q
\2-2. Connect a short piece of duct to the
blower housing and attach the duct to
the base.
f
\3-1. Insert the male end of a 4" elbow into the
female end of a short duct. Tape the joint.
DUCT
TAPE
3-2. Insert this assembly elbow first through the
hole in the dryer and push the female end
of the elbow onto the male end of the
blower output shaft. Tape the joint.
f
II

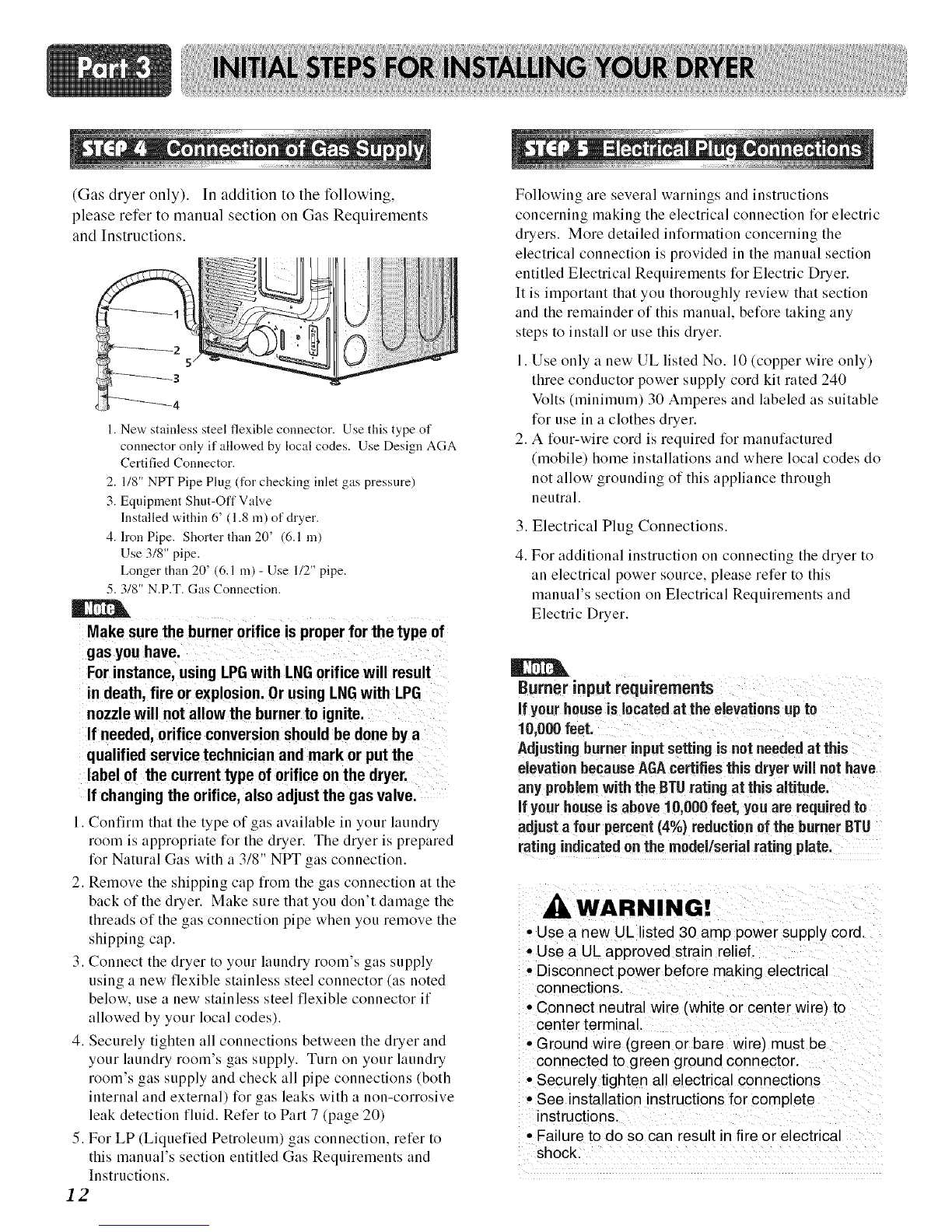

(Gas dryer only). In addition to the following,
please refer to manual section on Gas Requirements
and Instructions.
I. New stainless steel flexible connector. Use this type of
connector only if allowed by local codes. Use Design AGA
Certified Connector.
2. 118" NtYFPipe Plug (for checking inlet gas pressure)
3. Equipment Shut-Off Valve
Installed within 6' (1.8 m) of dryer.
4. Iron Pipe. Shorter than 20' (6.1 in)
Use 318" pipe.
Longer than 20' (6.1 m) - Use 112"pipe.
5.3/8" N.P.T. Gas Connection.
Forinstance, using LPGwith LNG orifice will result
in death, fire or explosion. Or using LNGwith LPG
nozzle will not allow the burner toignite'
If needed, orific econversion should be done by a
qualified service technician and mark or put the
label of the current type of orifice onthe dryer.
If changing the orifice, also adjust the gas valve.
1. Confirm that the type of gas awlilable in your laundry
room is appropriate for the dryer. The dryer is prepared
IBr Natural Gas with a 318" NPT gas connection.
2. Remove the shipping cap fiom the gas connection at the
back of the dryer. Make sure that you don't damage the
threads of the gas connection pipe when you remove the
shipping cap.
3. Connect the dryer to your laundry room's gas supply
using a new flexible stainless steel connector (as noted
below, use a new stainless steel flexible connector if
allowed by your local codes).
4. Securely tighten all connections between the dryer and
your laundry room's gas supply. Turn on your laundry
room's gas supply and check all pipe connections (both
internal and external) IBr gas leaks with a non-corrosive
leak detection fluid. Refer m Part 7 (page 20)
5. For LP (Liquefied Petroleum) gas connection, refer m
this manual's section entitled Gas Requirements and
Instructions.
12
Following are several warnings and instructions
concerning making the electrical connection IBr electric
dryers. More detailed information concerning the
electrical connection is provided in the manual section
entitled Electrical Requirements IBr Electric Dryer.
It is important that you thoroughly review that section
and the remainder of this manual, before taking any
steps to install or use this dryer.
1. Use only a new UL listed No. 10 (copper wire only)
three conductor power supply cord kit rated 240
Volts (minimum) 30 Amperes and labeled as suitable
for usein a clothes dryer.
2. A lbur-wire cord is required Ibr manufactured
(mobile) home installations and where local codes do
not allow grounding of this appliance through
neutral.
3. Electrical Plug Connections.
4. For additional instruction on connecting the dryer to
an electrical power source, please refer to this
manual's section on Electrical Requirements and
Electric Dryer.
Burnerinputrequirements
if yourhouseis locatedat the elevationsup tO
1(
Adjustingburner inputsettingis not needed at this
elevationbecauseA6A certifies this dryerwill not have
any problemwith the BTOrating at this altitude.
if yourhouseisabove f0,000 feet, you arerequired to
adjusta four Percent (4%) reductionof the burner BTU
rating indicated 0n the mode!/sedal rating
WARNING!
•Use a new UL listed 30 amp power supply cord
•Use a UL approved strain relief
•Disconnect power before making electrical
connections
•Connect neutral wire (white or center wire) to
center terminal
•Ground wire (green or bare wire) must be
connected to green ground connector
•Securely tighten all electrical connections
•See installation instructions for complete
instructions
•Failure to do so can result in fire or electrical
shock

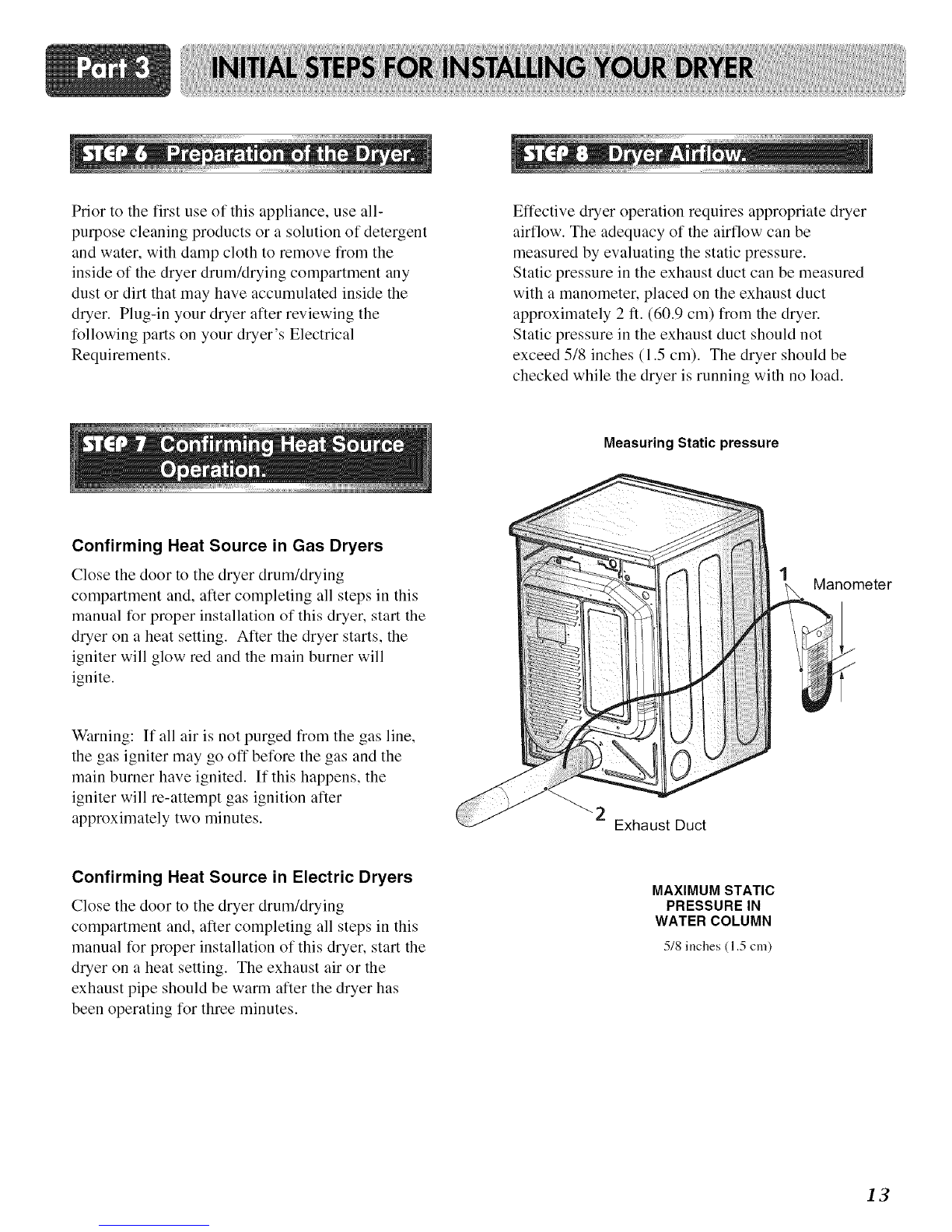

Prior to the first use of this appliance, use all-
purpose cleaning products or a solution of detergent
and water, with damp cloth to remove from the
inside of the dryer drum/drying compartment any
dust or dirt that may have accumulated inside the
dryer. Plug-in your dryer after reviewing the
fonowing parts on your dryer's Electrical
Requirements.
Effective dryer operation requires appropriate dryer
airflow. The adequacy of the airflow can be
measured by evaluating the static pressure.
Static pressure in the exhaust duct can be measured
with a manometer, placed on the exhaust duct
approximately 2 ft. (60.9 cm) from the dryer.
Static pressure in the exhaust duct should not
exceed 518 inches (1.5 cm). The dryer should be
checked while the dryer is running with no load.
Measuring Static pressure
Confirming Heat Source in Gas Dryers
Close the door to the dryer drum/drying
compartment and, alter completing all steps in this
manual for proper installation of this dryer, start the
dryer on a heat setting. Alter the dryer starts, the
igniter will glow red and the main burner will
ignite.
Manometer
Warning: If all air is not purged from the gas line,
the gas igniter may go off before the gas and the
main burner have ignited. If this happens, the
igniter will re-attempt gas ignition after
approximately two minutes. Exhaust Duct
Confirming Heat Source in Electric Dryers
Close the door to the dryer drum/drying
compartment and, alter completing all steps in this
manual for proper installation of this dryer, start the
dryer on a heat setting. The exhaust air or the
exhaust pipe should be warm alter the dryer has
been operating for three minutes.
MAXIMUM STATIC
PRESSURE IN
WATER COLUMN
518 inches (1.5 cm)
13

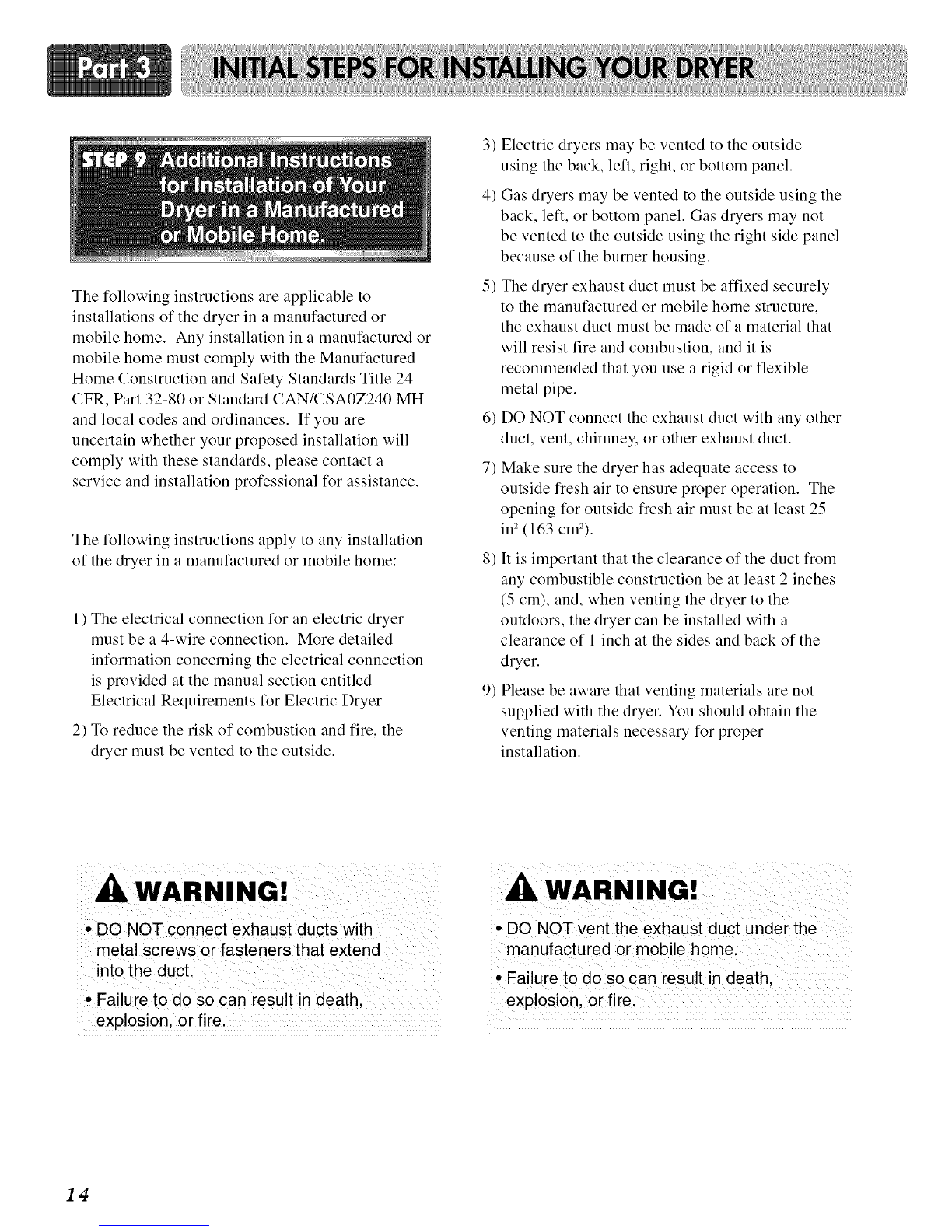

The following instructions are applicable to
installations of the dryer in a manufactured or
mobile home. Any installation in a manufactured or
mobile home must comply with the Manufactured
Home Construction and Safety Standards Title 24
CFR, Part 32-80 or Standard CAN/CSAOZ240 MH
and local codes and ordinances. If you are
uncertain whether your proposed installation will
comply with these standards, please contact a
service and installation professional for assistance.
The following instructions apply to any installation
of the dryer in a manufactured or mobile home:
1) The electrical connection for an electric dryer
must be a 4-wire connection. More detailed
information concerning the electrical connection
is provided at the manual section entitled
Electrical Requirements for Electric Dryer
2) To reduce the risk of combustion and fire, the
dryer must be vented to the outside.
3)
4)
5)
6)
7)
8)
9)
Electric dryers may be vented to the outside
using the back, left, right, or bottom panel.
Gas dryers may be vented to the outside using the
back, left, or bottom panel. Gas dryers may not
be vented to the outside using the right side panel
because of the burner housing.
The dryer exhaust duct must be affixed securely
to the manufactured or mobile home structure,
the exhaust duct must be made of a material that
will resist fire and combustion, and it is
recommended that you use a rigid or flexible
metal pipe.
DO NOT connect the exhaust duct with any other
duct, vent, chimney, or other exhaust duct.
Make sure the dryer has adequate access to
outside fresh air to ensure proper operation. The
opening for outside fresh air must be at least 25
in2(163 cm_).
It is important that the clearance of the duct from
any combustible construction be at least 2 inches
(5 cm), and, when venting the dryer to the
outdoors, the dryer can be installed with a
clearance of 1 inch at the sides and back of the
dryer.
Please be aware that venting materials are not
supplied with the dryer. You should obtain the
venting materials necessary for proper
installation.
• Failure to do so can result in death,
explosion, or fire.
WARNING!
• DO NOT vent the exhaust duct under the
manufactured or mobile home.
• Failure to do so can result in death,
explosion, or fire.
14

To ensure safe and secure installation, please
observe the instructions below.
WARNI NG!
• The weight of the dryer and the height of
installation makes the stacking procedure
too risky for one person. This procedure
should be performed by 2 or more
experienced service personnel
•Incorrect installation can cause serious
accidents.
Stackingkit
Place washer firmly on a stable, even and
solid floor.
Peel protective paper off the tape from the
stacking kit side bracket.
it
Secure stacking kit side bracket to the
washer with a screw on the back of bracket.
Repeat Steps 2, 3, 4 for the other side.
Place the dryer on top of the washer by fitting
legs as shown in the picture. Avoid finger
injuries - be careful not to pinch fingers
between the washer and dryer. Slide dryer
slowly backwards to the stopper of kit.
*Donotstacka washeronthetopofthedryer.
oIncorrectinstallationcancauseserious
accidents.
Fit the stacking kit side bracket firmly to the
side of top plate by attaching the double-
sided tape to top plate as picture shows.
Clean the surface before attaching the brackets
Insert the front rail. Push the front rail back
to the stoppers of side stacking kit.
Attach both sides of the front kit with screws.
•Do not use stacking kit with a gas dryer in potentially
unstable conditions like a mobile home.

Removepedestal,installationhardware,and
instructionsfromtheshippingcarton.
Position dryer on top of the pedestal.
NOTE • Because of the weight of the dryer
two or more people may be needed.
NOTE : If dryer was previously installed,
uninstall it as follows:
A. Uninstalling an electric dryer:
1) Unplug the power supply cord,
2) Pull the dryer away from the wall enough to
loosen the vent clamp. Loosen the clamp and
carefully remove the exhaust vent from the
dryer exhaust outlet.
B. Uninstalling a gas dryer:
1) Shut off gas.
2) Unplug power cord.
3) Disconnect gas line from dryer.
4) Pull away and loosen vent clamp.
5) Disconnect venting.
Attach the double-faced tape of the bracket to the
dryer as shown so the bent parts of the brackets
align with the edge and can be attached to the
pedestal with screws.
NOTE :Attach the bottom first. I
Be sure to press the adhesive parts of the brackets
firmly to the appliance.
for dryer
for washer/
combe
combo
Install the eight (8) screws (supplied) to attach the
brackets to the pedestal.
jJJ
Q=.
16
Remove the paper from the
bracket. Move the dryer to the desired place. NOTE : The appliance and pedestal assembly
must be placed on a solid and level floor
for proper operation. Adjust the legs of the
appliance and pedestal by turning with a
wrench. Then, adjust the Iocknut toward
the pedestal while holding the pedestal leg
using a wrench.

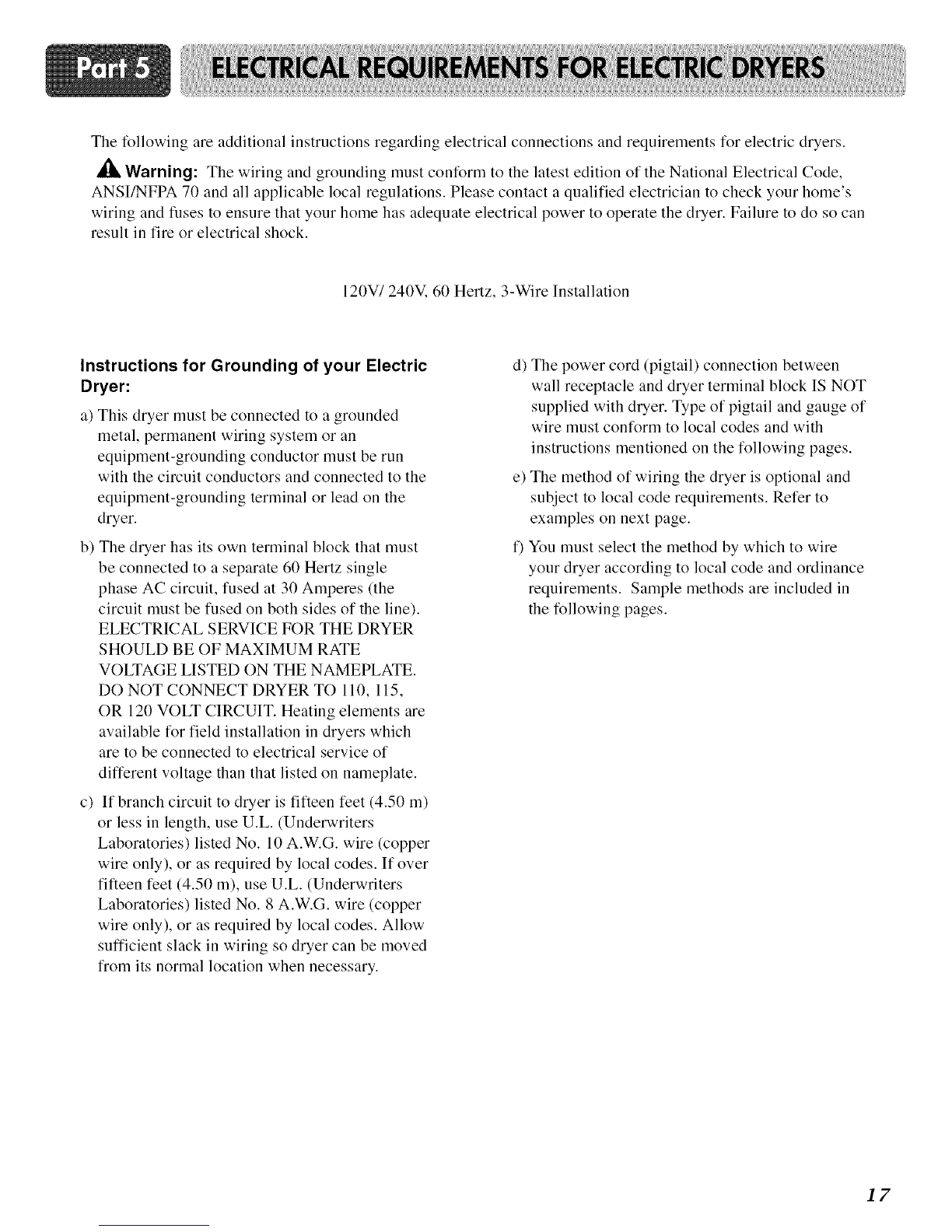

The fonowing are additional instructions regarding electrical connections and requirements for electric dryers.
Warning: The wiring and grounding must conform to the latest edition of the National Electrical Code,
ANSI/NFPA 70 and all applicable local regulations. Please contact a qualified electrician to check your home's
wiring and fuses to ensure that your home has adequate electrical power to operate the dryer. Failure to do so can
result in fire or electrical shock.
120V/240V, 60 Hertz, 3-Wire Installation
Instructions for Grounding of your Electric
Dryer:
a) This dryer must be connected to a grounded
metal, permanent wiring system or an
equipment-grounding conductor must be run
with the circuit conductors and connected to the
equipment-grounding terminal or lead on the
dryer.
b) The dryer has its own terminal block that must
be connected to a separate 60 Hertz single
phase AC circuit, fused at 30 Amperes (the
circuit must be fused on both sides of the line).
ELECTRICAL SERVICE FOR THE DRYER
SHOULD BE OF MAXIMUM RATE
VOLTAGE LISTED ON THE NAMEPLATE.
DO NOT CONNECT DRYER TO 110, 115,
OR 120 VOLT CIRCUIT. Heating elements are
available for field installation in dryers which
are to be connected to electrical service of
different voltage than that listed on nameplate.
c) If branch circuit to dryer is fifteen feet (4.50 m)
or less in length, use U.L. (Underwriters
Laboratories) listed No. 10 A.W.G. wire (copper
wire only), or as required by local codes. If over
fifteen feet (4.50 m), use U.L. (Underwriters
Laboratories) listed No. 8 A.W.G. wire (copper
wire only), or as required by local codes. Allow
sufficient slack in wiring so dryer can be moved
from its normal location when necessary.
d) The power cord (pigtail) connection between
wall receptacle and dryer terminal block IS NOT
supplied with dryer. Type of pigtail and gauge of
wire must conform to local codes and with
instructions mentioned on the following pages.
e) The method of wiring the dryer is optional and
subject to local code requirements. Refer to
examples on next page.
t) You must select the method by which to wire
your dryer according to local code and ordinance
requirements. Sample methods are included in
the fonowing pages.
17

Review the following options to determine the appropriate electrical connection
for your home:
Use the instructions in this section if your home has
a 4-wire receptacle (NEMA type 14-30R) and you
will be using a UL listed, 1201240 volt minimum,
30 amp, dryer power supply cord.
Use the instructions in this section if your home has
a 3-wire receptacle (NEMA type 10-30R) and you
will be using a UL listed, 1201240 volt minimum,
30 amp, dryer power supply cord.
If this type is available at your home. you will be
connecting to a fused disconnect or circuit breaker
box.
If this type is available at your home. you will be
connecting to a fused disconnect or circuit breaker
box.
•Connect the power supply wire to the terminal
block. Colored wire should be connected to
same color screw. Wire color indicated on
manual is connected to the same color screw in
block. Otherwise,a short or excessive current
flow may result.
18
Warning : Grounding through the neutral conductor is
prohibited tk_r(1) new branch-circuit installations, (2)
mobile homes, (3) recreational vehicles, and (4) areas
where local codes prohibit grounding through the
neutral conductor. Failure to do so can result in fire or
electrical shock.
Prepare minimum 5 ft (1.52 m) of length in order tk_r
dryer to be replaced.
First, peel 5 inches (12.7 cm) of covering material from
end. Strip 5 inches of ground wire insulation. Alter
cutting 1% inch (3.8 cm) from 3 other wires peel
insulation back 1inch (2.5 cm). Make ends of 3 wires a
hook shape.
r_.;
Then, put the hooked shape end of the wire under the
screw of the terminal block (hooked end facing to the
right) and pinch the hook together and screw tightly.
1. Connect neutral wire (white) of power cord to center
terminal block screw.
2. Connect red and black wires to the left and right
terminal block screws.
3. Connect _round wire (green) of power cord to external
ground screw and move neutral ground wire of
appliance and connect it to center screw.
4. Make sure that the strain relief screw is tightened.
Be sure that all terminal block nuts are on tight and
power cord is in right position.
Center terminal block
screw (silver)
Neutral 9rounding
wire (white)
Neutral wire
(white or center wire)
Strain relief
Green wire of power cord
External ground connector

Warning : Grounding through the neutral conductor
is prohibited for (1) new branch-circuit installations,
(2) mobile homes, (3) recreational vehicles, and (4)
areas where local codes prohibit grounding through the
neutral conductor. Failure to do so can result in fire or
electrical shock.
Prepare minimum 5 ft (1.52 m) of length in order
for dryer to be replaced.
First, strip 3 72 inches (8.9 cm) of outer sheath from
end and strip 1 inch of insulation from each
conductor. ¢
Then, put the hooked shape end of the wire under
the screw of the terminal block (hooked end facing
rightward) and pinch the hook together and tighten
the screw securely.
1. Connect neutral wire (white) of power cord to
center terminal block screw.
2. Connect red and black wires to the left and right
terminal block screws.
3. Make sure that the strain relief screw is tightened.
Be sure that all terminal block nuts are on tight
and power cord is in right position.
Center terminal
block screw (silver)
Neutral grounding
wire (white)
Neutral grounding
wire (white)
Strain relief
ground
connector
• If your local codes or ordinances do not allow the
use of a 3-wire connection, or you are installing
your dryer in a mobile home, you must use a
4-wire connection.
(N4-wirereceptacle
EMA type 14-30R)
r4-prong plug _ Spade terminals with
_ _pturnedends
_Ground prong
_Neutral prong
do4-prongplug _ 3/4 in. (1.9 cm)
proved strain relief
pgng Ring terminals
Center terminal block
screw (silver)
Neutral 9rounding
wire (white)
Neutral wire
(white or center wire)
Strain relief
Green wire of power cord
External ground connector
1. Connect neutral wire (white) of power cord to
center terminal block screw.
2. Connect red and black wires to the left and right
terminal block screws.
3. Connect ground wire (green) of power cord to
external ground screw and move neutral ground
wire of appliance and connect it to center screw.
4. Make sure that the strain relief screw is tightened.
Be sure that all terminal block nuts are on tight
and power cord is in right position.
19

If your local codes or ordinances permit the
connection of a frame-grounding conductor to the
neutral wire, use these instructions. If your local
codes or ordinances do not allow the connection of
a frame-grounding conductor to the neutral wire,
use the instructions under Section 1: Optional 3-
wire connection.
• If your local codes or ordinances do not allow the
connection of a frame-grounding conductor to the
neutral wire, use the instructions under this
section.
3-wire receptacle
EMA type 1O-3OR)
e plump tadrentedrmi_1s with
rong
3-wire plug _ 3/4 in. (1.9 cm)
pproved strain relief
rona" Ring terminals
'- _ _Neutral (white or center wire
mding
Neutral wire (white)
ground
connector
_parate ground
wire
l
Center terminal
block screw (silver)
Neutral grounding
wire (white)
Neutral grounding
wire (white)
Strain relief
External ground
connector
.
2.
.
4.
.
Connect neutral wire (white) of power cord to
center terminal block screw.
Connect ground wire of appliance and neutral
wire of power cord to center terminal block
screw.
Connect red and black wires to the left and right
terminal block screws.
Make sure the strain relief screw is tightened.
Be sure that all terminal block nuts are on tight
and power cord is in right position.
Connect a independent ground wire from external
ground connector to proper ground.
2O
