2 SPECIAL FEATURES
SPECIAL FEATURES
An entire selection of user-friendly functions make operating the dryer easy.
The wide-opening door provides easy access for loading and unloading.The door hinge can be reversed to adjust for installation location.
The FLOW SENSETMduct blockage sensing system detects and alerts you to blockages in the ductwork that reduce exhaust flow from the
dryer. Clean exhaust systems increase efficiency and reduce drying times.
Should you experience any technical difficulty with your dryer, it has the capability of transmitting data via your telephone to the
Customer Information Center. The call center agent records the data transmitted from your machine and uses it to analyze the issue,
providing a fast and effective diagnosis (Refer to page 34).

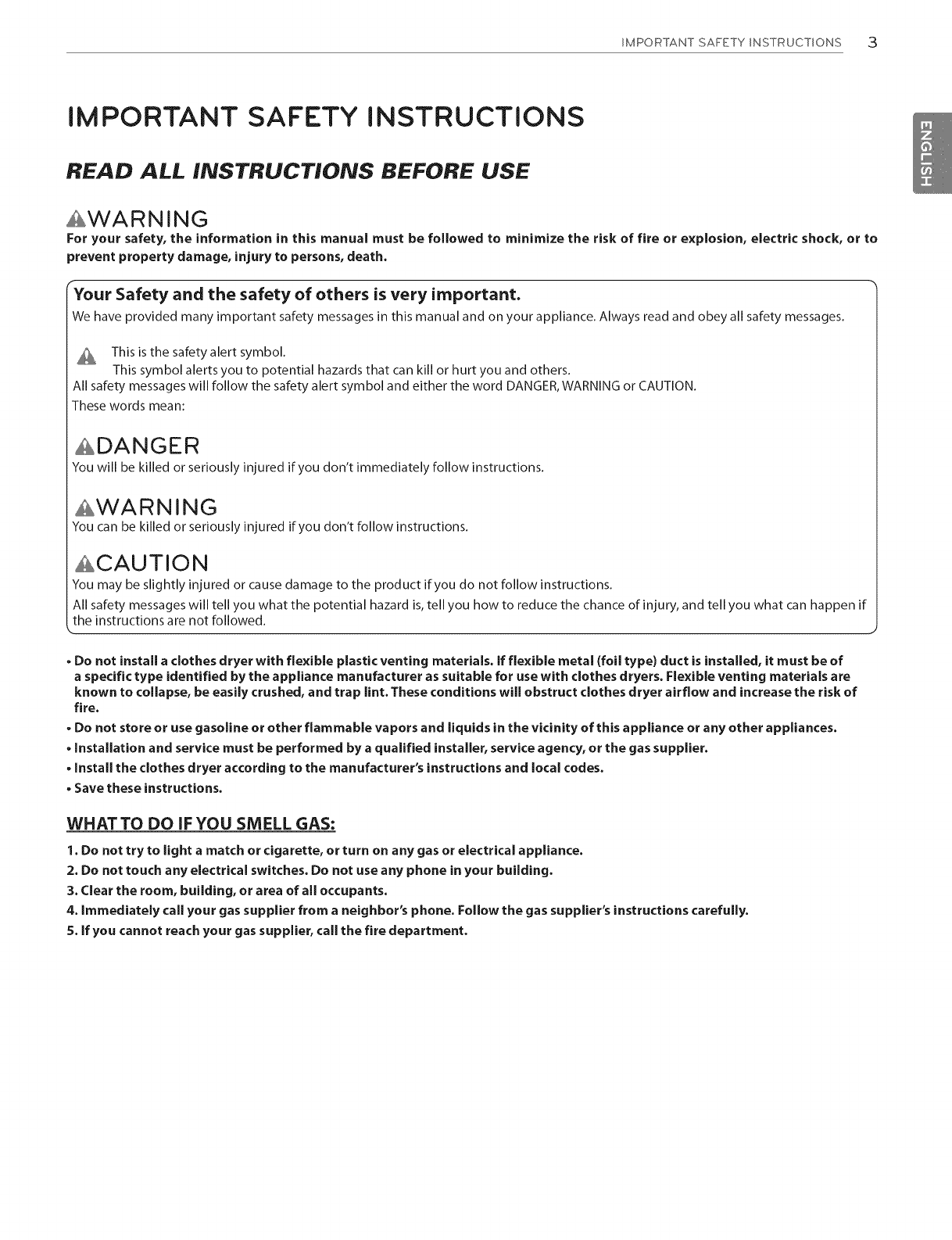

IMPORTANT SAFETY INSTRUCTIONS 3
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, death.
"Your Safety and the safety of others is very important.
We have provided many important safety messagesin this manual and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word DANGER, WARNING or CAUTION.
These words mean:
ADANGER
You will be killed or seriously injured if you don't immediately follow instructions.
AWARNING
You can be killed or seriously injured if you don't follow instructions.
ACAUTION
You may be slightly injured or cause damage to the product if you do not follow instructions.
All safety messages will tell you what the potential hazard is,tell you how to reduce the chance of injury, and tell you what can happen if
the instructions are not followed.
•Do not install aclothes dryer with flexible plastic venting materials. If flexible metal (foil type} duct isinstalled, it must be of
a specific type identified by the appliance manufacturer assuitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer airflow and increase the risk of
fire.
• Do not store or usegasoline or other flammable vapors and liquids in the vicinity of this appliance or any other appliances.
• Installation and service must be performed by a qualified installer, service agency, or the gassupplier.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• Save these instructions.
WHATTO DO IF YOU SMELL GAS:
1. Do net try to light amatch or cigarette, or turn on any gas or electrical appliance.
2. Do not touch any electrical switches. Do not use any phone inyour building.
3. Clear the room, building, or area of all occupants.
4. Immediately call your gassupplier from a neighbor's phone. Follow the gas supplier's instructions carefully.
5. If you cannot reach your gassupplier, call the fire department.

4IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or e×plosion, electric shock, or to
prevent property damage, injury to persons, death.

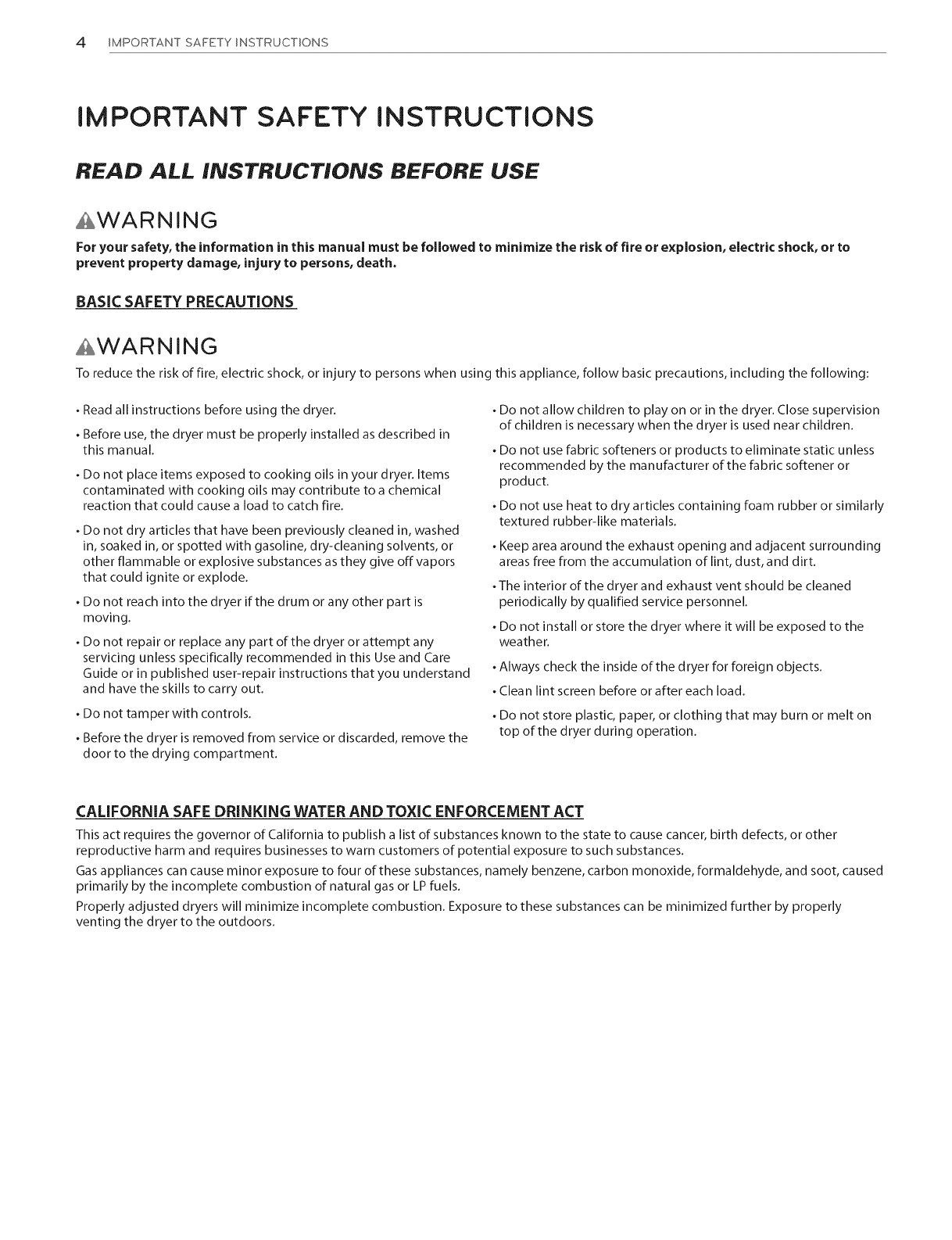

BASIC SAFETY PRECAUTIONS
AWARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
. Read all instructions before using the dryer.
. Before use, the dryer must be properly installed as described in
this manual.
, Do not place items exposed to cooking oils in your dryer. Items
contaminated with cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
. Do not dry articles that have been previously cleaned in, washed
in, soaked in, or spotted with gasoline, dry-cleaning solvents, or
other flammable or explosive substances as they give off vapors
that could ignite or explode.
.Do not reach into the dryer if the drum or any other part is
moving.
, Do not repair or replace any part of the dryer or attempt any
servicing unless specifically recommended in this Use and Care
Guide or in published user-repair instructions that you understand
and have the skills to carry out.
. Do not tamper with controls.
.Before the dryer is removed from service or discarded, remove the
door to the drying compartment.
, Do not allow children to play on or in the dryer. Close supervision
of children is necessary when the dryer is used near children.
.Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or
product.
, Do not use heat to dry articles containing foam rubber or similarly
textured rubber-like materials.
, Keep area around the exhaust opening and adjacent surrounding
areas free from the accumulation of lint, dust, and dirt.
,The interior of the dryer and exhaust vent should be cleaned
periodically by qualified service personnel.
,Do not install or store the dryer where it will be exposed to the
weather.
.Always check the inside of the dryer for foreign objects.
, Clean lint screen before or after each load.
, Do not store plastic, paper, or clothing that may burn or melt on
top of the dryer during operation.
CALIFORNIA SAFE DRINKING WATER AND TOXIC ENFORCEMENT ACT
This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects, or other
reproductive harm and requires businesses to warn customers of potential exposure to such substances.
Gas appliances ca n cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde, and soot, caused
primarily by the incomplete combustion of natural gas or LP fuels.
Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly
venting the dryer to the outdoors.

IMPORTANT SAFETY INSTRUCTIONS .5
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, death.
GROUNDING INSTRUCTIONS
This appliance must be grounded. Inthe event of malfunction
or breakdown, grounding will reduce the riskof electric shock
by providing a path of least resistance for electric current.This
appliance must be equipped with a cord having an equipment-
grounding conductor and a grounding plug.The plug must be
plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Do not modify the plug provided with the appliance. If it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
This appliance must be connected to a grounded metal, permanent
wiring system or an equipment-grounding conductor must be
run with the circuit conductors and connected to the equipment-
grounding terminal or lead on the appliance.
Electric shock can result if the dryer is not properly grounded.
AWARNING
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
service person if you are in doubt that the appliance is properly grounded.
SAFETY INSTRUCTIONS FOR INSTALLATION
AWARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
. Properly ground dryer to conform with all governing codes
and ordinances. Follow details in the installation instructions.
Electric shock can result if the dryer is not properly grounded.
. Before use, the dryer must be properly installed as described
in this manual. Electric shock can result if the dryer is not properly
grounded.
.Install and store the dryer where it will not be exposed to
temperatures below freezing or exposed to the weather.
. All repairs and servicing must be performed by an authorized
servicer unless specifically recommended in this Owner's
Guide. Useonly authorized factory parts. Failure to follow this
warning can cause serious injury, fire, electric shock, or death.
. Toreduce the risk of electric shock, do not install the dryer in
humid spaces. Failureto follow this warning can cause serious
injury, fire, electric shock, or death.
. Connect to a properly rated, protected, and sized power
circuit to avoid electrical overload. Improper power circuit can
melt, creating electric shock and/or fire hazard.
. Remove all packing items and dispose of all shipping
materials properly. Failure to do so can result in death, explosion,
fire, or burns.
.Place dryer at least 18 inches above the floor for a garage
installation. Failure to do so can result in death, explosion, fire, or
burns.
.Keep all packaging from children. Packaging material can be
dangerous for child ren. There is a risk of suffocation.
. Do not install near another source of heat such as a stove,
cooking oven. Failure to do so can cause deform, smoke and fire.
.Do not place candles, smoking materials, or other flammables
on top of the product. Dripping wax, smoke, or fire can result.
. Remove all protective vinyl film from the product. Failure to do
so can cause product damage, smoke or fire.

6 IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, death.
SAFETY iNSTRUCTiONS FOR iNSTALLATiON
AWARNING
Toreduce the riskof injury to persons, follow all industry recommended safety procedures including the use of long sleeved gloves and
safety glasses.Failureto follow all of the safety warnings in this manual could result in property damage, injury to persons or death.
Exhaust/Ducting:
. Gasdryers MUST be exhausted to the outside. Failure to follow
these instructions can result in fire or death.
.The dryer exhaust system must be exhausted to the outside of
the dwelling. If the dryer isnot exhausted outdoors, some fine
lint and large amounts of moisture will be expelled into the
laundry area. An accumulation of lint in any area of the home can
create ahealth and fire hazard.
.Use only rigid metal or flexible metal 4-inch diameter
ductwork inside the dryer cabinet or for exhausting to the
outside. Use of plastic or other combustible ductwork can
causea fire. Punctured ductwork can cause afire if it collapses or
becomes otherwise restricted in use or during installation.
.Ductwork isnot provided with the dryer, and you should
obtain the necessary ductwork locally. The end cap should
have hinged dampers to prevent backdraft when the dryer is
not in use. Failure to follow these instructions can result in fire or
death.
. The exhaust duct must be 4inches (10.2 cm) in diameter with
no obstructions. The exhaust duct should be kept as short as
possible. Make sure to clean any old ducts before installing
your new dryer. Failure to follow these instructions can result in
fire or death.
. Rigid or semi-rigid metal ducting is recommended for use
between the dryer and the wall, In special installations
when it is impossible to make a connection with the above
recommendations, aUUlisted flexible metal transition duct
may be used between the dryer and wall connection only.
The use of this ducting will affect drying time. Failure to follow
these instructions can result in fire or death.
. DO NOT use sheet metal screws or other fasteners which
extend into the duct that could catch lint and reduce the
efficiency of the exhaust system. Secure all joints with duct tape.
For complete details, follow the Installation Instructions. Failure to
follow these instructions can result in fire or death.

IMPORTANT SAFETY INSTRUCTIONS 7
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USE
AWARNING
For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, injury to persons, death.
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
AWARNING
To reduce the risk of fire, electric shock, or injury to persons when using this appliance, follow basic precautions, including the following:
.Do not, under any circumstances, cut or remove the ground
prong from the power cord. Toprevent injury to persons or
damage to the dryer, the electrical power cord must be plugged
into a properly grounded outlet.
.Forpersonal safety, this dryer must be properly grounded.
Failureto do socan result in electric shock or injury.
.Referto the installation instructions in this manual for specific
electrical requirements for your model. Failureto follow these
instructions can create an electric shock hazard and/or a fire
hazard.
.This dryer must be plugged into aproperly grounded outlet.
Electric shock can result if the dryer isnot properly grounded.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet isproperly grounded.
Failureto follow these instructions can create an electric shock
hazard and/or a fire hazard.
.The dryer should always be plugged into its own individual
electrical outlet which hasavoltage rating that matches
the rating plate. This provides the best performance and also
prevents overloading house wiring circuits which could cause a
fire hazard from overheated wires.
. Never unplug your dryer by pulling on the power cord. Always
grip plug firmly and pull straight out from the outlet. The
power cord can be damaged, resulting in arisk of fire and electric
shock.
.Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use acord that
showscracks or abrasion damage along its length or at either
end. The power cord can melt, creating an electric shock and/or
fire hazard.
.When installing or moving the dryer, be careful not to pinch,
crush, or damage the power cord. This will prevent injury and
prevent damage to the dryer from fire and electric shock.
SAVE THESE INSTRUCTIONS

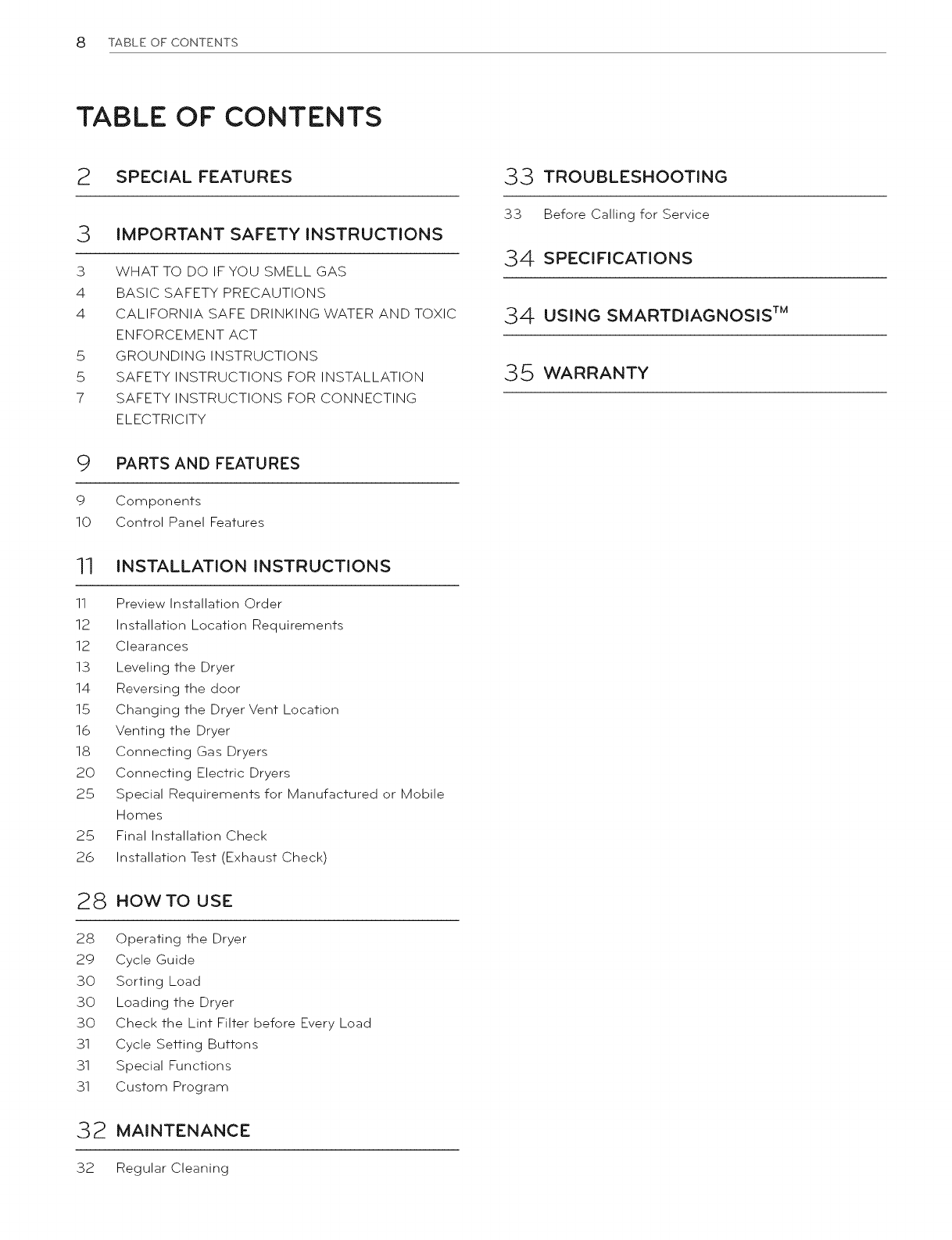

8 TABLE OF CONTENTS
TABLE OF CONTENTS
3
3
4
4
5
5
7
SPECIAL FEATURES
IMPORTANT SAFETY INSTRUCTIONS
WHAT TO DO IF YOU SMELL GAS
BASIC SAFETY PRECAUTIONS
CALIFORNIA SAFE DRINKING WATER AND TOXIC
ENFORCEMENT ACT
GROUNDING INSTRUCTIONS
SAFETY INSTRUCTIONS FOR INSTALLATION
SAFETY INSTRUCTIONS FOR CONNECTING
ELECTRICITY
9 PARTS AND FEATURES
9 Components
10 Control Panel Features
11 INSTALLATION INSTRUCTIONS
11 Preview Installation Order
12 Installation Location Requirements
12 Clearances
13 Leveling the Dryer
14 Reversing the door
15 Changing the Dryer Vent Location
16 Venting the Dryer
18 Connecting Gas Dryers
20 Connecting Electric Dryers
25 Special Requirements for Manufactured or Mobile
Homes
25 Final Installation Check
26 Installation Test (Exhaust Check)
28 HOW TO USE
28 Operating the Dryer
29 Cycle Guide
30 Sorting Load
30 Loading the Dryer
30 Check the Lint Filter before Every Load
31 Cycle Setting Buttons
31 Special Functions
31 Custom Program
32 MAINTENANCE
33 TROUBLESHOOTING
33 Before Calling for Service
34 SPECIFICATIONS
34 USING SMARTDIAGNOSIS TM
35 WARRANTY
32 Regular Cleaning

PARTS AND FEATURES c)
PARTS AND FEATURES
Components
Control panel
Leveling feet
.... Reversible
door
Lint filter""
Terminal Block
Access Panel
(Electric Models)
Gas Connection
Location
(Gas Models)
Power Cord
Location
(Gas Models)
Exhaust Duct
Outlet
@ NOTE
, Contact LGCustomer Service at 1-800-243-0000 (1-888-542-2623 in Canada) if any accessoriesare missing.
, For your safety and for extended product life, useonly authorized components. The manufacturer is not responsible for product
malfunction or accidents caused by the use of separately purchased unauthorized components or parts.
,The images in this guide may be different from the actual components and accessories,and are subject to change by the manufacturer
without prior notice for product improvement purposes.

10 PARTS AND FEATURES

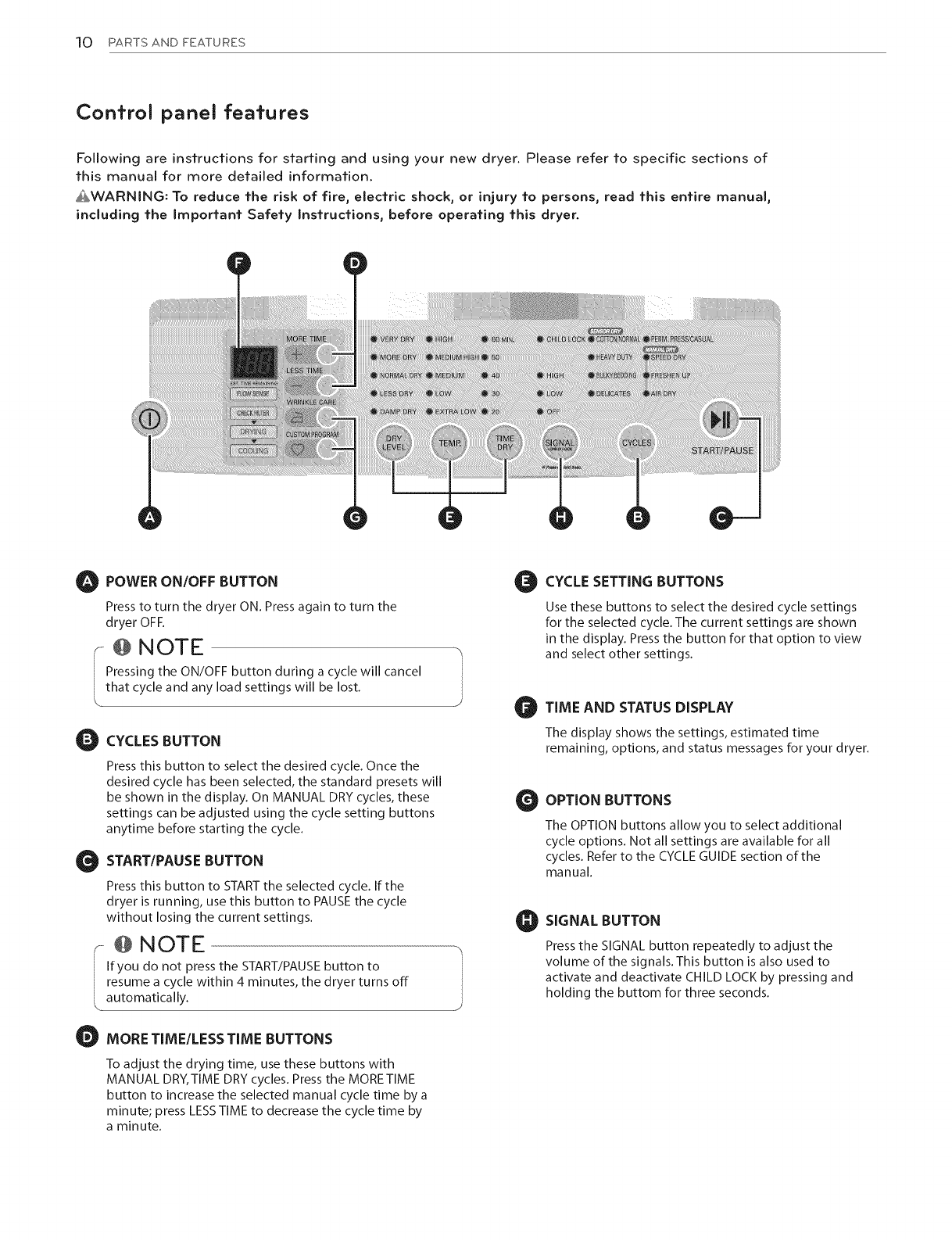

Control panel features
Following are instructions for starting and using your new dryer. Please refer to specific sections of
this manual for more detailed information.
_WARNING: To reduce the risk of fire, electric shock, or injury to persons, read this entire manual,
including the important Safety instructions, before operating this dryer.
OPOWERON/OFF BUTTON
Press to turn the dryer ON. Press again to turn the
dryer OFF.
io om
Pressing the ON/OFF button during a cycle will cancel
that cycle and any load settings will be lost.
OCYCLES BUTTON
Press this button to select the desired cycle. Once the
desired cycle has been selected, the standard presets will
be shown in the display. On MANUAL DRY cycles, these
settings can be adjusted using the cycle setting buttons
anytime before starting the cycle.
OSTART/PAUSE BUTTON
Pressthis button to STARTthe selected cycle. If the
dryer is running, usethis button to PAUSEthe cycle
without losing the current settings.
@ NOTE
I f you do not press the START/PAUSE button to
resume a cycle within 4 minutes, the dryer turns off
automatically.
O MORETIME/LESSTIME BUTTONS
To adjust the drying time, use these buttons with
MANUAL DRY,TIME DRY cycles. Press the MORETIME
button to increase the selected manual cycle time by a
minute; press LESSTIME to decrease the cycle time by
a minute.
OCYCLE SETTING BUTTONS
Usethese buttons to select the desired cycle settings
for the selected cycle. The current settings are shown
in the display. Pressthe button for that option to view
and select other settings.
OTIME AND STATUS DISPLAY
The display shows the settings, estimated time
remaining, options, and status messagesfor your dryer.
O OPTION BUTTONS
The OPTION buttons allow you to select additional
cycle options. Not all settings are available for all
cycles. Refer to the CYCLE GUIDE section of the
manual.
OSIGNAL BUTTON
Press the SIGNAL button repeatedly to adjust the
volume of the signals. This button is also used to
activate and deactivate CHILD LOCK by pressing and
holding the buttom for three seconds.

INSTALLATION INSTRUCTIONS 11
INSTALLATION INSTRUCTIONS
Preview insfallafion order
!ii..................
Checking and choosing Leveling the dryer
the proper location Venting the Dryer
Connecting Gas Dryers Connecting Electric Dryers
(Gas Dryer Type) (Electric Dryer Type)
Plugging in the power
cord and grounding
Duct check test
(Refer to page 26.) Test run

12 INSTALLATIONINSTRUCTIONS
Insfallafion Iocafion requiremenfs
AWARNING
Read all installation instructions completely before installing and operating your dryed It is important that you review this entire
manual before installing and using your dryer. Detailed instructions concerning electrical connections, gas connections, and exhaust
requirements are provided on the following pages.
,A location that allows for proper exhaust installation. A gas dryer
must be exhausted to the outdoors. See Venting Requirements.
,A grounded electrical outlet located within 2 ft. (61 cm) of either
side of the dryer. See Electrical Requirements.
,A sturdy floor to support the total dryer weight of 200 Ibs (90.7
kg).The combined weight of a companion appliance should also
be considered.
,No other fuel-burning appliance can be installed in the same
closet as a dryer.
Do not operate your dryer at temperatures below 45°F (7°C). At lower temperatures, the dryer might not shut off at the end of an automatic
cycle. This can result in longer drying times. The dryer must not be installed or stored in an area where it will be exposed to water and/or
weather. Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes or
sleeping quarters. Contact your local building inspector.
@ NOTE
.A level floor with a maximum slope of 1 inch (2.5 cm) under entire dryer. If slope is greater than 1 inch (2.5 cm), install the Extended Dryer
Feet Kit. Clothes may not tumble properly, and automatic sensor cycles may not operate correctly if dryer is not level.
•For a ga rage installation, you will need to place the dryer at least 18 inches (46 cm) above the floor. If using a pedestal, you will need 18
inches (46 cm) to the bottom of the dryer.
Clearances
14" max.'
21 /4"
57/16.
5.3cm)
LI_ ,I_ 5""
28 15/16"_(73.4cm) (12.7cm)
I
50 1/4"
(127.5cm)
1
_"_11_ 27"_1_ 1"
(2.54 crn) (68.6 crn) (2,54 cm)
3"
(7,6 cm)
48 in.
(310 cm2
0
24 in.2
(155 cm2)
3'r Closet Door Vent
(7.6 cm) Requirements
INSTALLATION SPACING FOR RECESSED AREA OR CLOSET INSTALLATION
The following spacing dimensions are recommended for this dryer. This dryer has been tested for spacing of O inches (0 cm) clearance on
the sides and rear. Recommended spacing should be considered for the following reasons:
.Additional spacing should be considered for ease of installation
and servicing.
.Additional clearances might be required for wall, door and floor
moldings.
,Additional spacing should be considered on all sides of the dryer
to reduce noise transfer.
For closet installation, with a door, minimum ventilation openings
in the top and bottom of the door are required. Louvered doors
with equivalent ventilation openings are acceptable.
,Companion appliance spacing should also be considered.
(i @ NOTE l
here should be at least a little space around the dryer (or any other appliance) to eliminate the transfer of vibration from one to the
ther. Too much vibration, it could cause them to make noise or touch each other causing paint damage and making even more noise.

INSTALLATION INSTRUCTIONS 13
Clearance (Conf.)
RECOMMENDED INSTALLATION SPACING FOR CABINET INSTALLATION
,For cabinet installation with adoor, minimum ventilation openings in the top of the cabinet are required.
*Required spacing
**For side or bottom venting,
2 inches (5.1 cm) spacing is allowed.
7"* (17.8 cm)
J
(12.7 cm)
7"* (17.8 cm)
oo
5.... 28 _s/_6'..... 1" _1I_ 29/32"_11_ 1"
(73.4 cm) (2.5 cm) (2.54 cm) (68.6 cm) (2.54 cm)

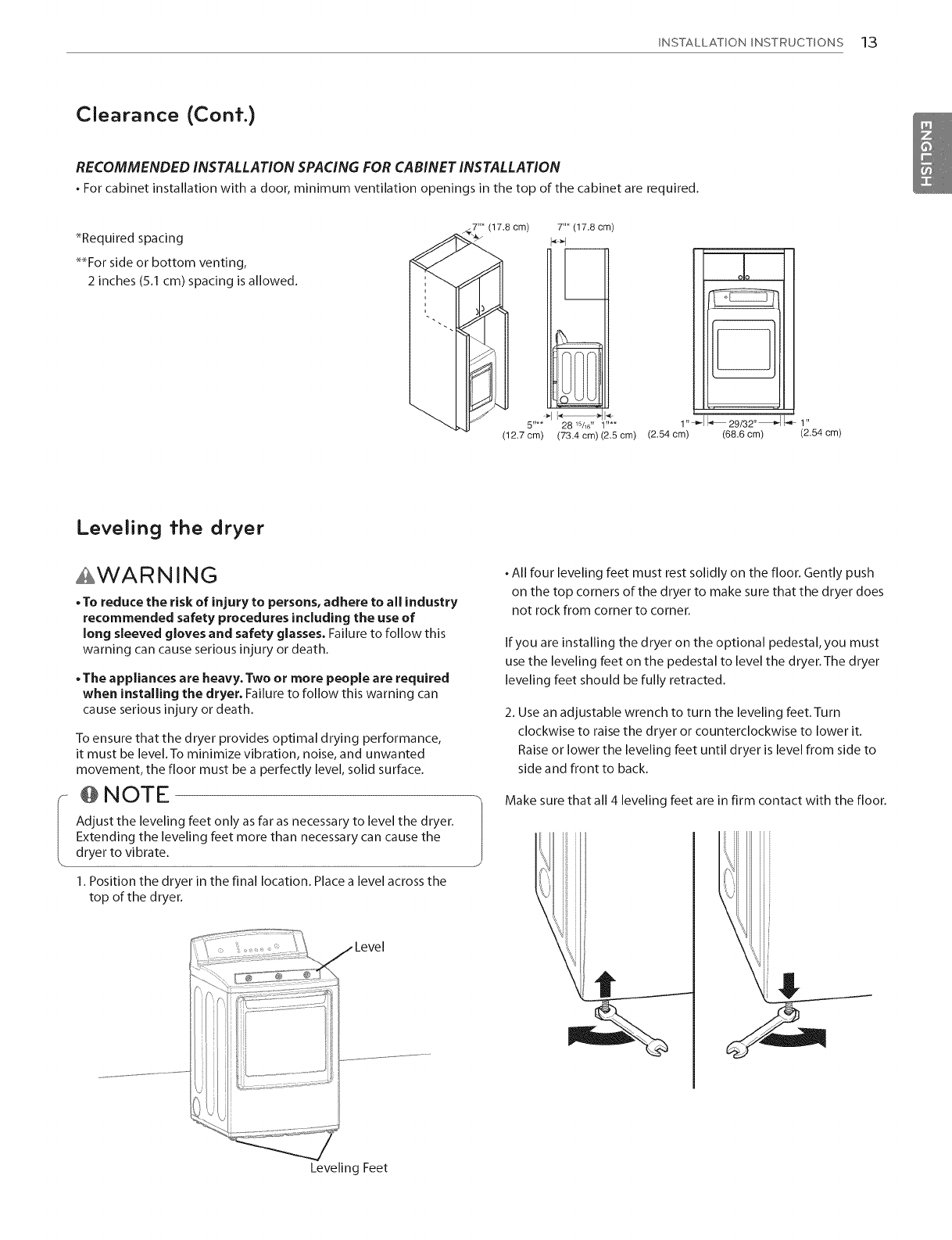

Leveling fhe dryer
AWARNING
•To reduce the risk of injury to persons, adhere to alJ industry
recommended safety procedures including the use of
long sleeved gloves and safety glasses. Failure to follow this
warning can causeserious injury or death.
•The appliances are heavy. Two or more people are required
when installing the dryer. Failure to follow this warning can
cause serious injury or death.
To ensure that the dryer provides optimal drying performance,
it must be level.To minimize vibration, noise, and unwanted
movement, the floor must be a perfectly level, solid surface.
@NOTE
Adjust the leveling feet only as far as necessary to level the dryer.
Extending the leveling feet more than necessary can cause the
dryer to vibrate.
1. Position the dryer in the final location. Place a level across the
top of the dryer.
/Level
, All four leveling feet must rest solidly on the floor. Gently push
on the top corners of the dryer to make sure that the dryer does
not rock from corner to corner.
If you are installing the dryer on the optional pedestal, you must
use the leveling feet on the pedestal to level the dryer.The dryer
leveling feet should be fully retracted.
2. Use an adjustable wrench to turn the leveling feet.Turn
clockwise to raise the dryer or counterclockwise to lower it.
Raise or lower the leveling feet until dryer is level from side to
side and front to back.
Make sure that all 4 leveling feet are in firm contact with the floor.
Leveling Feet

14 INSTALLATION INSTRUCTIONS

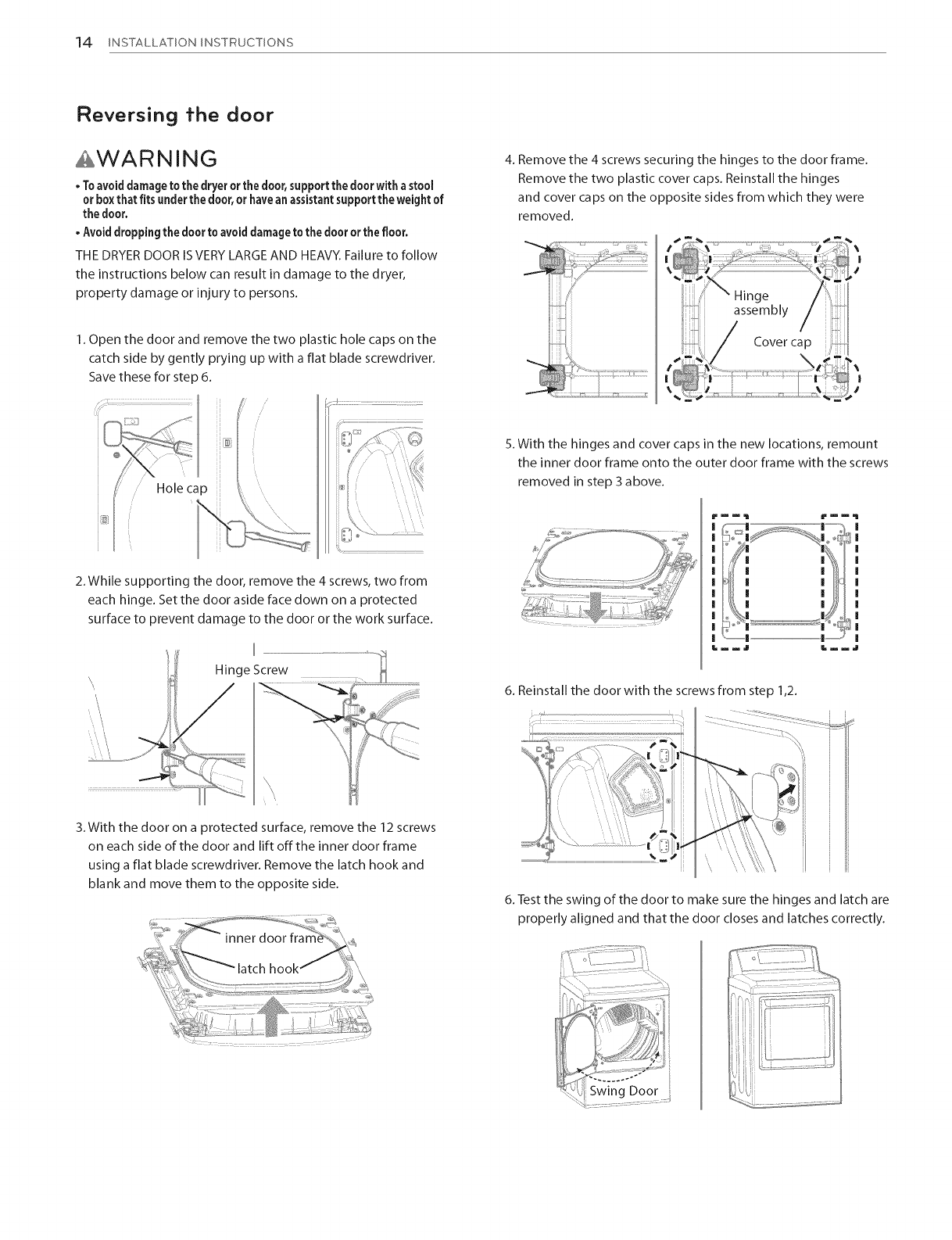

Reversing fhe door
&WARNING
• Toavoid damageto the dryer orthe door,supportthe deer with astool
or boxthat fits underthe door, or haveanassistant supportthe weight of
the door.
•Avoiddropping the doorto avoiddamageto the door orthe floor.
THE DRYER DOOR ISVERY LARGE AND HEAVY. Failure to follow
the instructions below can result in damage to the dryer,
property damage or injury to persons.
1. Open the door and remove the two plastic hole caps on the
catch side by gently prying up with a flat blade screwdriver.
Save these for step 6.
Hole ca o
2. While supporting the door, remove the 4 screws, two from
each hinge. Set the door aside face down on a protected
surface to prevent damage to the door or the work surface.
4. Remove the 4 screws securing the hinges to the door frame.
Remove the two plastic cover caps. Reinstall the hinges
and cover caps on the opposite sides from which they were
removed.
Ii
5. With the hinges and cover caps in the new locations, remount
the inner door frame onto the outer door frame with the screws
removed in step 3 above.
mm_ rm
| | I
| | I
| | I
I
I
',
| I !
6. Reinstall the door with the screws from step 1,2.
I .......... .....
3. With the door on a protected surface, remove the 12 screws
on each side of the door and lift off the inner door frame
using a flat blade screwdriver. Remove the latch hook and
blank and move them to the opposite side. 6.Test the swing of the door to make sure the hinges and latch are
properly aligned and that the door closes and latches correctly.

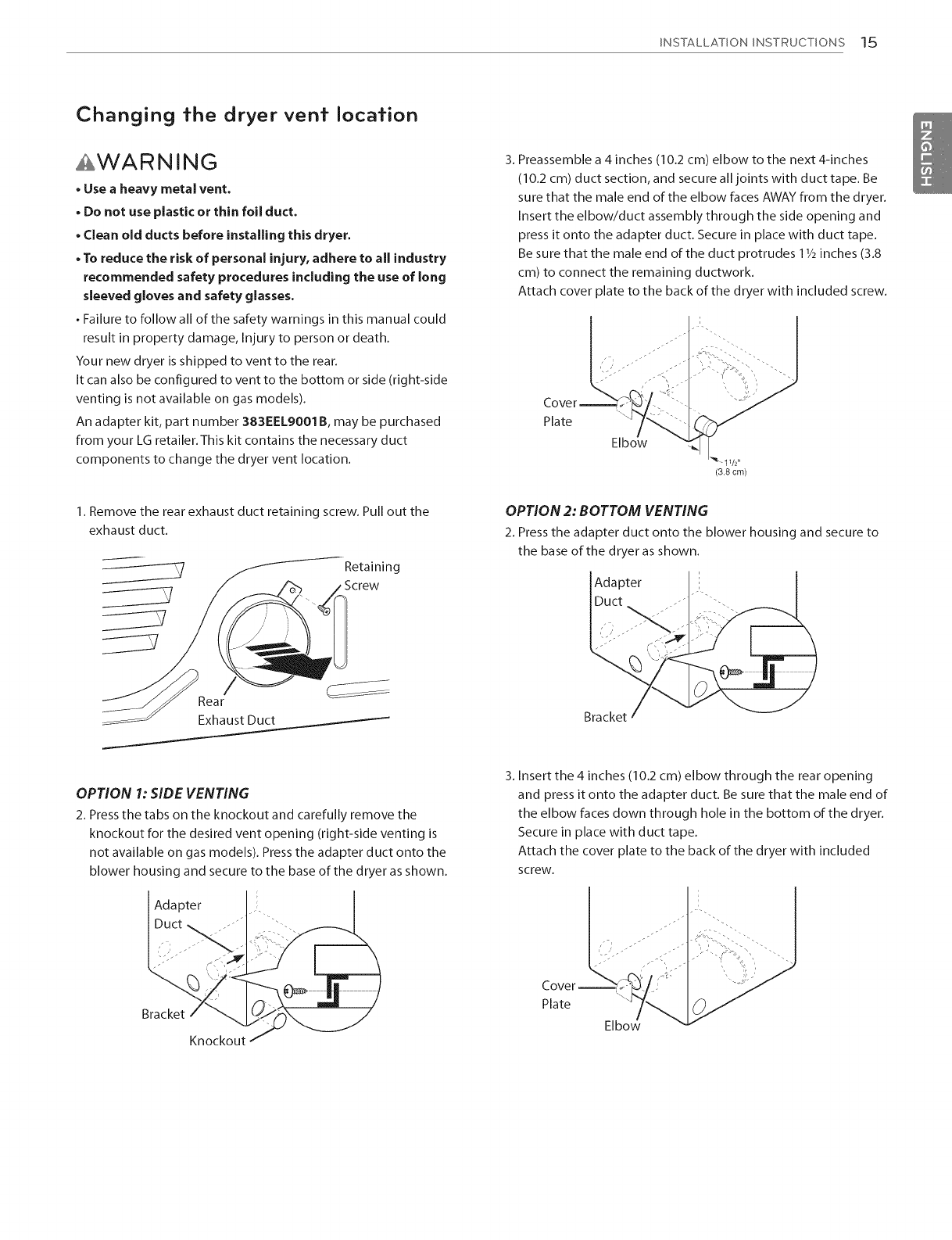

INSTALLATION INSTRUCTIONS 15
Changing fhe dryer venf Iocafion
AWARNING
•Use a heavy metal vent.
• Do not use plastic or thin foil duct.
•Clean old ducts before installing this dryer.
•To reduce the risk of personal injury, adhere to all industry
recommended safety procedures including the use of long
sleeved gloves and safety glasses.
, Failure to follow all of the safety warnings in this manual could
result in property damage, Injury to person or death.
Your new dryer is shipped to vent to the rear.
It can also be configured to vent to the bottom or side (right-side
venting is not available on gas models).
An adapter kit, part number 383EELg001 B, may be purchased
from your LG retailer.This kit contains the necessary duct
components to change the dryer vent location.
3. Preassemble a 4 inches (10.2 cm) elbow to the next 4-inches
(10.2 cm) duct section, and secure all joints with duct tape. Be
sure that the male end of the elbow faces AWAY from the dryer.
Insert the elbow/duct assembly through the side opening and
press it onto the adapter duct. Secure in place with duct tape.
Be sure that the male end of the duct protrudes 11/2inches (3.8
cm) to connect the remaining ductwork.
Attach cover plate to the back of the dryer with included screw.
Plate
" t 1/2"
(3.8 cm)
1. Remove the rear exhaust duct retaining screw. Pull out the
exhaust duct.
f
Retaining
Rear
Exhaust Duct
OPTION 2: BOTTOM VENTING
2. Press the adapter duct onto the blower housing and secure to
the base of the dryer as shown.
!Adapter
Bracket
OPTION 1: SIDE VENTING
2. Press the tabs on the knockout and carefully remove the
knockout for the desired vent opening (right-side venting is
not available on gas models). Press the adapter duct onto the
blower housing and secure to the base of the dryer as shown.
Adapter
Bracket
Knockout
3. Insert the 4 inches (10.2 cm) elbow through the rear opening
and press it onto the adapter duct. Be sure that the male end of
the elbow faces down through hole in the bottom of the dryer.
Secure in place with duct tape.
Attach the cover plate to the back of the dryer with included
screw.
Plate

16 INSTALLATION INSTRUCTIONS
Venfing fhe dryer
AWARNING
To reduce the risk of fire, electric shock, or personal injury when using this appliance, follow basic precautions, including the following:
. Do not crush or collapse ductwork. Failure to follow these
instructions can result in fire or death.
. Do not allow ductwork to rest on or contact sharp objects.
Failure to follow these instructions can result in fire or death.
. If connecting to existing ductwork, make sure it is suitable
and clean before installing the dryer. Failure to follow these
instructions can result in fire or death.
. Venting must conform to local building codes. Failure to follow
these instructions can result in fire or death.
. Gas dryers MUST exhaust to the outdoors.
Failure to follow these instructions can result in fire or death.
. Use only 4-inch (10.2 cm) rigid or flexible metal ductwork
inside the dryer cabinet and for venting outside. Failure to
follow these instructions can result in fire or death.
. To reduce the risk of fire, combustion, or accumulation of
combustible gases, DO NOT exhaust dryer air into an enclosed
and unventUated area, such as an attic, wall, ceiling, crawl
space, chimney, gas vent, or concealed space of abuilding.
Failure to follow these instructions can result in fire or death.
. Toreduce the risk of fire, DO NOTexhaust the dryer with
plastic or thin foil ducting.
Failureto follow these instructions can result in fire or death.
. The exhaust duct must be 4 inches (10.2 cm) in diameter with
no obstructions. The exhaust duct should be kept as short as
possible. Make sure to clean any old ducts before installing
your new dryer. Failure to follow these instructions can result in
fire or death.
. Rigid or semirigid metal ducting is recommended for use
between the dryer and the wall. In special installations
when it is impossible to make a connection with the above
recommendations, aUL-listed flexible metal transition duct
may be used between the dryer and wall connection only.
The use of this ducting will affect drying time. Failure to follow
these instructions can result in fire or death.
. DO NOT use sheet metal screws or other fasteners which
extend into the duct that could catch lint and reduce the
efficiency of the exhaust system. Secure all joints with duct
tape. Failure to follow these instructions can result in fire or death.
. To maximize operating results, please observe the duct length
limitations noted in the chart next page. Failure to follow these
instructions can result in fire or death.
. Ductwork is not provided with the dryer. You should obtain
the necessary ductwork locally. The end cap should have
hinged dampers to prevent backdraft when the dryer is not in
use. Failure to follow these instructionscan result in fire or death.
. The Total length of flexible metal duct shall not exceed 8ft.
(2.4 m)
.In Canada, that only those foil-type flexible ducts, if any,
specifically identified for use with the appliance by the
manufacturer shall be used. In the United States, that only those
foil-type flexible ducts, if any, specifically identified for use with
the appliance by the manufacturer and that comply with the
Outline for Clothes Dryer Transition Duct, Subject 2158A, shall be
used.

INSTALLATION INSTRUCTIONS 17
Venfing fhe dryer (conf.)
Ductwork
Recommended
(10.2 cm)
(10.2 cm)
UseOnly for Short
Run Installations
(6.35 cm)
0
I
2
3
4
0
I
2
3
4
65 ft. (19.8 m)
55 ft. (16.8 m)
47 ft. (14.3 m)
36 ft. (11.0 m)
28 ft. (8.5 m)
55 ft. (16.8 m)
47 ft. (14.3 m )
41 ft. (12.5 m)
30 ft. (9.1 m)
22 ft. (6.7 m) Y
-@ NOTE
Deduct 6 fL (1.8 m) for each additional elbow. It is not recommended |
to use more than four 90° elbows. .]
ROUTINGANDCONNECTINGDUCTWORK
@NOTE -,
Follow the guidelines below to maximize drying performance and
reduce lint buildup and condensation in the ductwork.
Ductwork and fittings are NOT included and must be purchased
separately.
• Use 4-inch (10.2 cm) diameter rigid or semirigid metal ductwork.
• The exhaust duct run should be as short as possible.
• Use as few elbow joints as possible.
• The male end of each section of exhaust duct must point away from
the dryer.
• Use duct tape on all duct joints.
• Insulate ductwork that runs through unheated areas in order to
reduce condensation and lint buildup on duct surfaces.
• Failure to exhaust the dryer correctly will void the dryer's warranty.
CORRECT VENTING
INCORRECTVENTING

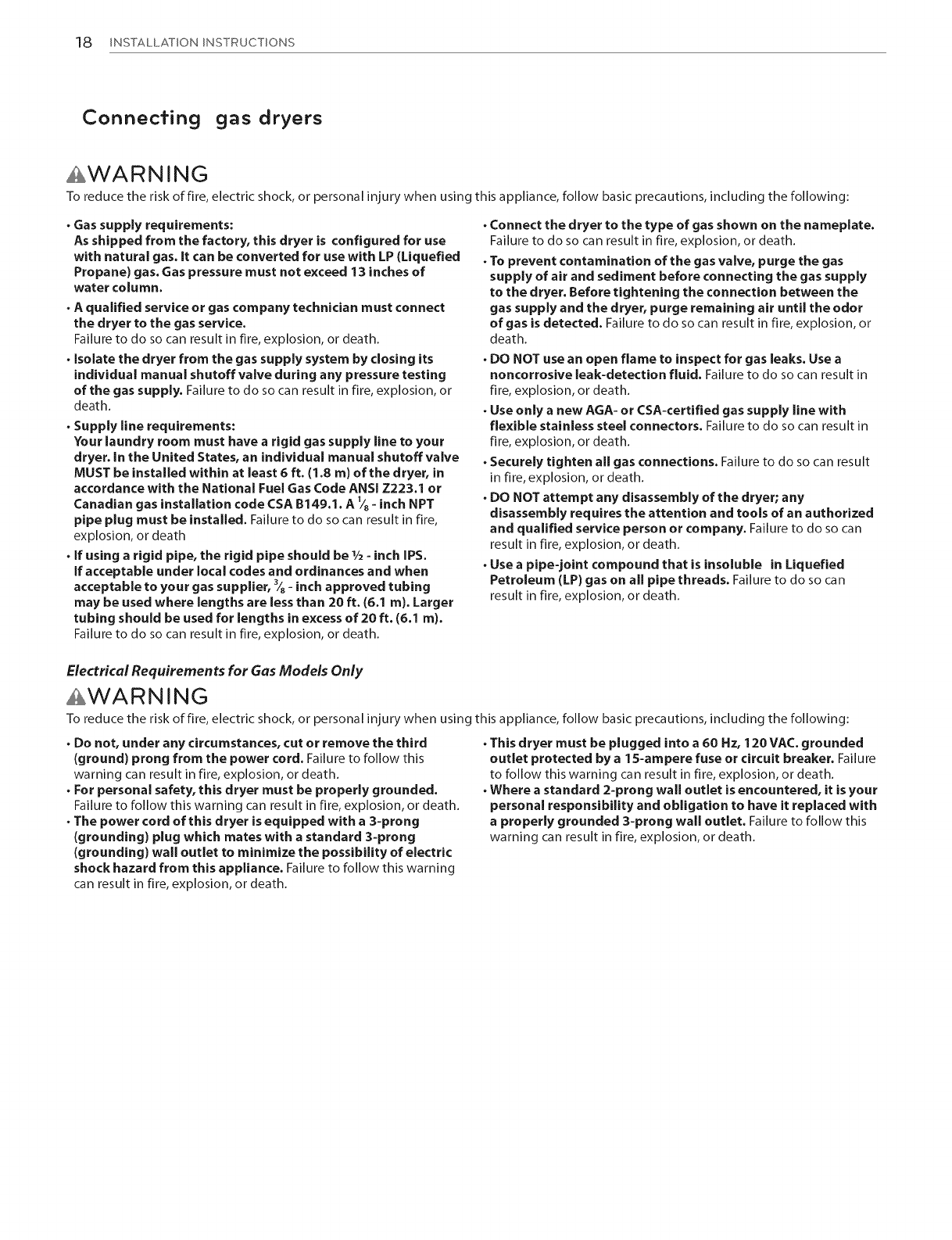

18 INSTALLATION INSTRUCTIONS
Connecfing gasdryers
AWARNING
To reduce the risk of fire, electric shock, or personal injury when using this appliance, follow basic precautions, including the following:
. Gas supply requirements:
As shipped from the factory, this dryer is configured for use
with natural gas. It can be converted for use with LP (Liquefied
Propane) gas. Gas pressure must not exceed 13 inches of
water column.
. A qualified service or gas company technician must connect
the dryer to the gas service.
Failure to do so can result in fire, explosion, or death.
. Isolate the dryer from the gas supply system by closing its
individual manual shutoff valve during any pressure testing
of the gas supply. Failure to do so can result in fire, explosion, or
death.
. Supply line requirements:
Your laundry room must have arigid gas supply line to your
dryer. In the United States, an individual manual shutoff valve
MUST be installed within at least 6 ft. (1.8 m) of the dryer, in
accordance with the National Fuel Gas Code ANSI Z223.1 or
Canadian gas installation code CSA B149.1. A 1/s- inch NPT
pipe plug must be installed. Failure to do so can result in fire,
explosion, or death
.If using a rigid pipe, the rigid pipe should be 1/2- inch IPS.
If acceptable under local codes and ordinances and when
acceptable to your gas supplier, 3/s- inch approved tubing
may be used where lengths are less than 20 ft. (6.1 m). Larger
tubing should be used for lengths in excess of 20 ft. (6.1 m).
Failure to do so can result in fire, explosion, or death.
. Connect the dryer to the type of gas shown on the nameplate.
Failure to do so can result in fire, explosion, or death.
. To prevent contamination of the gas valve, purge the gas
supply of air and sediment before connecting the gas supply
to the dryer. Before tightening the connection between the
gas supply and the dryer, purge remaining air until the odor
of gas is detected. Failure to do so can result in fire, explosion, or
death.
.DO NOT use an open flame to inspect for gas leaks. Use a
noncorrosive leak=detection fluid. Failure to do so can result in
fire, explosion, or death.
. Use only anew AGA- or CSA-certified gas supply line with
flexible stainless steel connectors. Failure to do so can result in
fire, explosion, or death.
. Securely tighten all gas connections. Failure to do so can result
in fire, explosion, or death.
. DO NOT attempt any disassembly of the dryer; any
disassembly requires the attention and tools of an authorized
and qualified service person or company. Failure to do so can
result in fire, explosion, or death.
.Use a pipe-joint compound that is insoluble in Liquefied
Petroleum (LP) gas on all pipe threads. Failure to do so can
result in fire, explosion, or death.
Electrical Requirements for Gas Models Only
AWARNING
To reduce the risk of fire, electric shock, or personal injury when using this appliance, follow basic precautions, including the following:
. Do not, under any circumstances, cut or remove the third
(ground) prong from the power cord. Failure to follow this
warning can result in fire, explosion, or death.
. For personal safety, this dryer must be properly grounded.
Failure to follow this warning can result in fire, explosion, or death.
. The power cord of this dryer is equipped with a3=prong
(grounding) plug which mates with astandard 3=prong
(grounding) wall outlet to minimize the possibility of electric
shock hazard from this appliance. Failure to follow this warning
can result in fire, explosion, or death.
. This dryer must be plugged into a 60 Hz, 120 VAC. grounded
outlet protected by a 15=ampere fuse or circuit breaker. Failure
to follow this warning can result in fire, explosion, or death.
. Where astandard 2=prong wall outlet is encountered, it is your
personal responsibility and obligation to have it replaced with
a properly grounded 3=prong wall outlet. Failure to follow this
warning can result in fire, explosion, or death.

INSTALLATION INSTRUCTIONS 19
Connecfing gas dryers (conf.)
&WARNING
To reduce the risk of fire, electric shock, or personal injury when
using this appliance, follow basic precautions, including the
following:
. Installation and service must be performed by a qualified
installer, service agency, or the gas supplier. Failure to do so
can result in fire, explosion, or death.
. Use only anew stainless steel flexible connector and a new
AGA-certified connector. Failure to do so can result in fire,
explosion, or death.
.Agas shutoff valve must be installed within 6ft. (1.8 m} of
the dryer. Failure to do so can result in fire, explosion, or death.
, The dryer is configured for Natural Gas when shipped from
the factory. Make sure that the dryer is equipped with the
correct burner orifice for the type of gas being used (Natural
Gas or Liquefied Petroleum). Failure to do so can result in fire,
explosion, or death.
. If necessary, the correct orifice (for the LP orifice kit order
part number 383EEL3002D) should be installed by a
qualified technician and the change should be noted on the
dryer. Failure to do socan result in fire, explosion, or death.
. All connections must be in accordance with local codes and
regulations. Failure to do so can result in fire, explosion, or
death.
.Gas dryers MUST exhaust to the outdoors. Failure to do so can
result in fire, explosion, or death.
Connecting the Gas Supply
1. Make sure that the gas supply to the laundry room is turned
OFF. Confirm that the type of gas available in your laundry room
is appropriate for the dryer.The dryer is prepared for Natural
Gas with a 3/8- inch NPT gas connection.
2. Remove the shipping cap from the gas connection at the back
of the dryer. Be careful not to damage the threads of the gas
connector when removing the shipping cap.
3. Connect the dryer to your laundry room's gas supply using a
new flexible stainless steel connector with a _/8- inch NPT fitting.
4. Securely tighten all connections between the dryer and your
laundry room's gas supply.Turn on your laundry room's gas
supply and check all pipe connections (both internal and
external) for gas leaks with a noncorrosive leak-detection fluid.
Electrical Connection
Plug dryer into a 120 VAC, 60
Hz grounded 3-prong outlet.
1/8" NPT Pipe
3/8"NPTGas Plug
Connection Gas Supply
AGA/CSA-Certified ShutoffValve
Stainless Steel Flexible
Connector
High-Altitude Installations
The BTU rating of this dryer is AGA-certified for elevations below
10,000 feet.
If your gas dryer is being installed at an elevation above 10,000
feet, it must be derated by a qualified technician or gas supplier.

20 INSTALLATION INSTRUCTIONS
Connecfing elecfric dryers
AWARNING
To help prevent fire,electric shock, serious injury, or death, the
wiring and grounding must conform to the latest edition of the
National Electrical Code, ANSI/NFPA70 and all applicable local
regulations. Pleasecontact a qualified electrician to check your
home's wiring and fuses to ensure that your home has adequate
electrical power to operate the dryer.
Electrical Requirernentsfor ElectricModels Only
AWARNING
To reduce the risk of fire, electric shock, or injury to persons when
using this appliance, follow basic precautions, including the
following:
.This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the dryer. Failure to do so can result in fire, explosion, or death.
. The dryer has its own terminal block that must be connected
to a separate 240 VAC, 60-Hertz, single-phase circuit, fused
at 30 amperes (the circuit must be fused on both sidesof the
line). ELECTRICALSERVICEFORTHE DRYERSHOULD BEOF
THE MAXIMUM RATEVOLTAGELISTED ON THE NAMEPLATE.
DO NOTCONNECT DRYERTO 110-, 115=,OR 120=VOLT
CiRCUiT.Failureto follow these instructions can result in fire,
explosion, or death.
. If branch circuit to dryer is 1Sft. (4.5 m) or less in length,
use UL (Underwriters Laboratories) listed No.-lO AWG wire
(copper wire only), or asrequired by local codes, if over
1Sft. (4.5 m), use UL=listed No.-8 AWG wire (copper wire
only), or asrequired by local codes. Allow sufficient slack in
wiring so dryer can be moved from its normal location when
necessary. Failure to do socan result in fire, explosion, or death.
. The power cord (pigtail) connection between wall receptacle
and dryer terminal block iS NOT supplied with dryer. Type of
pigtail and gauge of wire must conform to local codes and
with instructions on the following pages. Failure to follow
these instructions can result in fire, explosion, or death.
. A4=wire connection is required for all mobile and
manufactured home installations, aswell asall new
construction after January 1,1996. A4=wire connection must
be used where local codes do not permit grounding through
the neutral wire. Failureto do so can result infire, explosion, or
death.
AWARNING
To reduce the risk of fire, electric shock, or personal injury when
using this appliance, follow basic precautions, including the
following:
• Do not modify the plug and internal wire provided with the
dryer.
•The dryer should be connected to 4=hole outlet.
• if it does not fit the outlet, a proper outlet will need to be
installed by a qualified electrician.
AWARNING
To reduce the risk of fire, electric shock, or personal injury when
using this appliance, follow basic precautions, including the
following:
. Any installation in amanufactured or mobile home must
comply with the Manufactured Home Construction and
Safety Standards Title 24 CFR,Part 32=80 or Standard CAN/
CSAOZ240 MH and local codes and ordinances.
. A 4=wire connection isrequired for all mobile and
manufactured home installations, as well as all new
construction after January 1, 1996. Failure to do socan result
in fire, explosion, or death.
