Thank
you
for
buying
an LG
Dryer.
Please read
your
manual
carefully,
as
it
provides
instructions
on safe
Installation,
use and maintenance.
Record the model and serial
numbers,
and retain the manual for future reference.
For more
information,
visit our website at
http://us.lge.com
1-800-243-0000
24
HOURS
A
DAY,
7 DAYS
A
WEEK FOR LG CUSTOMER SERVICE

PRODUCT FEATURES
TABLE
OF CONTENTS
2
PART 1. SPECIFICATIONS .................................................................................................................................................................................................................3
PART 2. IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS .................................................................................... ............................................................4
PART 3. INITIAL STEPS FOR INSTALLING YOUR DRYER ....................................................................................... .......................................................................7
PART 4. ACCESSORIES INSTALLATION ........................................................................................................................................................................................15
PART 5. ELECTRICAL
REQUIREMENTS
FOR ELECTRIC DRYER............................................................................. ....................................................................17
PART 6. ELECTRICAL
REQUIREMENTS
FOR GAS DRYERS.........................................................................................................................................................21
PART 7. GAS
REQUIREMENTS
AND INSTRUCTIONS ...................................................................................... ..............................................................................22
PART 8. EXHAUST
REQUIREMENTS
AND MAINTENANCE ...........................................................................................................................................................23
PART 9. OPERATING YOUR DRYER ................................................................................................................................................................................................25
PART 10. TROUBLESHOOTING GUIDE............................................................................................................................................................................................31
LG DRYER LIMITED WARRANTY...................................................................................................... ................................................................................................34
OUTSTANDING PERFORMANCE
Besides the
large capacity, you
can benefit from faster
drying
time,
quiet operation,
and
energy efficiency.
STAINLESS STEEL DRUM
Stainless steel drum doesn't rust.
ARTISTIC DESIGN
Modern front
panel
look and
big crystal-clear glass
door make
your dryer stylish.
DIGITAL FABRIC CARE
Multi-Level
temperature
control takes better care of
your
clothes.
EASE OF USE
An
entire selection of
user-friendly
functions make
operating
the
dryer easy.
USING
THE RLM
(REMOTE
LAUNDRY
MONITOR)
The
RLM
monitors status of
your dryer.
You can
plug
the
display
unit into
any power
outlet
in
your
home.
The
RLM
Display
Unit can be
purchased separately
for this
dryer.
ADAPTABLE
CONTROL
The control
panel
can be
in
the
top
or bottom
position
to allow
easy
access whether
side-by-side
or stacked
on a washer.
ONE TOUCH SELECTIONS
To choose an
option, press
its button once. No need to
press
buttons
multiple
times to scroll
through
a list of
options.
1
2
3
4
5
6
7
8
What are Sensor
Dry
and Time
Dry?
Your
dryer provides
sensor
drying
and time
drying programs.
Sensor
Dry
The
dryer
senses the dampness of the
laundry
and
automatically
determines the heat level and
operation
time. You
might
see a sudden increase or decrease
in
operation
time
if
the sensor determines more or less
drying
is
required.
This is not a
malfunction.
Time
Dry
Use
TIME DRY
to select heat level and
drying
time
manually.
This can be used
if
clothes are not as
dry
as
you
like them
at the end of the
cycle.
Use
TIME DRY
for
heavy
and
bulky
items and thick work.

3
Part
1
SPECIFICATIONS
Type
:
Electric and Gas
Dryer
Rating
:
Please refer to the
rating
label
regarding
detailed information.
Size:27x30.1x38.7inches
Capacity
:
IEC 7.3 cu.ft.
(22.5 lb)
Weight
:
131 Ibs
(59.4
kg)
Specifications
are
subject
to
change by
manufacturer.
ACCESSORIES
Dryer
Rack
See
page
27
for
instructions. See
page
15
for
instructions. See
page
16
for
instructions.
Stacking
Kit
Pedestal
Purchased
Separately
Remote
Laundry
Monitor
Purchased
Separately
Design of pedestals
is
subject
to
change
without
manafaturers
notice.

The
warranty
for
your dryer
is located at the end of this manual.
Warranty
Service is
available
by contacting your
nearest LG Service Center.
If
this
product
is installed and
operated
according
to the instructions
in
this
manual,
LG
will
repair
or
replace
any
parts
defective
in
material or
workmanship
throughout
the
warranty
period,
beginning
with
the
date of
purchase.
Warranty
Restriction:
If the
dryer
is
subjected
to other than
single family
use,
all
warranty
coverage
is effective for
only
90
days.
You will need the
complete
model and serial number when
requesting warranty
service.
proof
of
purchase
date is
required.
Use
the
space
below to record the model number and serial number of
your
new
LG
dryer.
Model
Number.
Serial Number.
Date of Purchase
Staple your receipt
here for convenience when
contacting
service.
Part
2
4
IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS
SEEKING WARRANTY SERVICE
WARNING!
For
your safety,
the recommendations
in
this manual must be followed. To reduce the risk
of fire or
explosion,
electric shock or to
prevent property damage, personal injury,
or death
when
using your appliance
follow basic
precautions.
!

5
Part
2
IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS
1)
Read all instructions before
using
the
appliance.
2)
Do not
dry
articles that have come into contact with
gasoline, dry-cleaning
solvents,
or other flammable or
explosive
substances,
as
they give
off
vapors
that could
ignite
or
explode.
3)
Do not allow children to
play
on or in the
appliance.
Close
supervision
of children is
necessary
when
using
the
appliance.
4)
Before the
appliance
is removed from service or
discarded,
remove the door to the
drying compartment.
5)
Do not reach into the
appliance
if the drum is
moving.
6)
Do not install or store this
appliance
where it will be
exposed
to the
weather.
7)
Do not
tamper
with
controls.
8)
Do not
repair
or
replace any part
of the
appliance
or
attempt any servicing
unless
specifically
recommended
in the user-maintenance
instructions.
9)
Do not use heat to
dry
articles
containing
foam rubber
or
similarly
textured rubber-like
materials.
10)
Clean
lint screen before or after each
load.
11)
Keep
area around the exhaust
opening
and
adjacent
surrounding
areas free from the accumulation of
lint,
dust,
and
dirt.
12)
The interior of the
appliance
and exhaust duct should
be cleaned
periodically by qualified
service
personnel.
13)
Do not
place
items
exposed
to
cooking oils
in
your
dryer.
Items contaminated with
cooking
oils
may
contribute to a chemical reaction that could cause a
load to catch
fire.
14)
Do not use fabric softners or
products
to eliminate
static unless recommended
by
the manufacturer of the
fabric softner or
product.
15)
This
dryer
is
designed only
for residential
use.
GROUNDING INSTRUCTIONS
This
appliance
must be
grounded.
In the event of
malfunction or
breakdown,
grounding
will reduce the risk
of electric shock
by providing
a
path
of least resistance for
electric
current.
This
appliance
must be
equipped
with a
cord
having
an
equipment-grounding
conductor and a
grounding plug.
The
plug
must be
plugged
into an
appropriate
outlet that is
properly
installed and
grounded
in accordance with all local codes and
ordinances.
WARNING
-
Improper
connection of the
equipment-
grounding
conductor can result in a risk of electric
shock.
Check
with a
qualified
electrician or service
person
if
you
are in doubt as to whether the
appliance
is
properly
grounded.
Do not
modify
the
plug provided
with the
appliance.
If it will not fit the
outlet,
have a
proper
outlet installed
by
a
qualified
electrician.
This
appliance
must be connected to a
grounded
metal,
permanent wiring system
or an
equipment-grounding
conductor must be run with the circuit conductors and
connected to the
equipment-grounding
terminal or lead on
the
appliance.
USING INSTRUCTIONS
1)
Do not
put
overload into the drum to avoid the
poor
drying
and
wrinkling.
2)
Do not over
dry
fabrics such as knitted fabrics and
flannel.
3)
Do not
dry
items such as elastic
bands,
plastics,
rubberized
items,
or sneakers that
might
melt or
ignite
in the
dryer.
4)
Check
the lint filter is in
place.
5)
Make sure the
laundry
is not
caught
when the door is
closed to
prevent
fabric
damage.
6)
Check
the filter
every cycle
because a
clogged
filter is a
fire hazard and affects the
efficiency
of the
dryer.
7)
When
cleaning
the surface of the
drum,
you
should use
a non-abrasive stainless steel
cleaner.
8)
To
prevent
a short circuit or
penetrating
moisture,
make
sure the
lamp
cover is
firmly
closed.
WARNING!
To
help
reduce
any
risk of electric
shock, fire,
or other
personal injury
or
property damage
when
using your dryer, please
exercise care and follow basic
safety precautions, including
the
following:
!
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

Part
2
6
IMPORTANT WARRANTY AND SAFETY INSTRUCTIONS
?
Do not
try
to
light
a match or
cigarette,
or turn
on
any gas
or electrical
appliance.
?
Do not touch
any
electrical
switches.
Do not
use
any phone
in
your building.
?
Clear
the
room,
building
or area of all
occupants.
?
Immediately
call
your gas supplier
from a
neighbor's phone.
Follow the
gas supplier's
instructions
carefully.
?
If
you
cannot reach
your gas supplier,
call the
fire
department.
To reduce the risk of fire or
explosion,
electric
shock,
property damage, personal injury
or death
when
using
this
appliance, please
follow all
instructions and
information,
including
those in
this manual and instructions
provided by your
gas supplier.
?
Do not store or use
any gasoline, dry-cleaning
solvents other flammable
vapors
or
liquids
in the area
surrounding
this
appliance.
?
Do not
dry anything
that has ever had
anything
flammable on
it,
even after
washing.
?
No
washer can
completely
remove
oil.
Do not
dry any
articles that have ever had
any
kind of
oil on
them,
including cooking
oil.
?
Articles
containing
foam, rubber,
rubber-like
materials,
plastic
or similar materials should be
air
dried.
?
Failure to follow these instructions can result in
fire,
death or serious
injury.
?A
qualified
service
person
or
company
must
perform
installation and service of this
appliance.
California Safe
Drinking
Water
and Toxic Enforcement Act
This act
requires
the
governor
of
California
to
publish
a list of substances known to the state to
cause
cancer,
birth defects or other
reproductive
harm and
requires
businesses to warn customers
of
potential exposure
to such
substances.
Gas
appliances
can cause minor
exposure
to four
of these
substances,
namely
benzene,
carbon
monoxide,
formaldehyde
and
soot,
caused
primarily by
the
incomplete
combustion of
natural
gas
or LP
fuels.
Properly adjusted dryers
will minimize
combustion.
Exposure
to these substances can be
minimized further
by properly venting
the
dryer
to the
outdoors.
WHAT
TO DO
IF
YOU SMELL GAS:
WARNING!
?
Keep
flammable materials and
vapors,
such
as
gasoline, away
from
dryer.
?
Place
dryer
at least 18 inches above the floor
for a
garage
installation.
?
Failure to do so can result
in
death,
explosion
or fire.
!
!
WARNING
!

7
Part 3 INITIAL STEPS FOR INSTALLING YOUR
DRYER
76.5
30.1
The
following
instructions will
help guide you through
the initial
steps
of
setting up your dryer
for
use.
Please note that
every
section of this manual
provides important
information
regarding
the
preparation
and
use of
your dryer,
and it is
important
that
you
review this entire manual before
proceeding
with
any
installation or
use.
More detailed instructions
concerning
electrical
connections,
gas
connections,
and
exhaust
requirements
are
provided
in other
parts
of this
manual.
Choose
a location with a solid floor for
your dryer.
Place the
dryer
at least
eighteen
inches above the
floor for a
garage
installation.
After
placing
the
dryer
in the desired
location,
please
make sure that
it has the
required
clearances shown
below.
If
you
are
installing your dryer
in a manufactured or
mobile
home,
please
refer to
STEP 9
for additional
instructions.
Certain minimum clearances are
required
above, behind,
and to the sides of the
unit,
as
shown below.
Those
required
minimum clearances
are set forth in the
below.
Please
keep
the
following
instructions in mind when
installing
in a
closet or recessed
area:
?
Consider
allowing
additional clearance for
installation and
servicing.
?
Wall,
door and floor
molding may
necessitate
additional
clearances.
?
An additional inch of clearance is recommended to
minimize noise
transfer.
?
Consider
space
needed for
companion appliances.
?
For closet
installations,
the
below shows the
minimum
required
ventilation
openings
for the
door.
A louvered door with
comparable
ventilation
openings
is also
acceptable.
*
Most installations
require
a minimum
5
1
/2
inches.
(14 cm)
clearance behind the
dryer
for the exhaust
vent with
elbow.
Closet-side View Closet
Door
ventilation
hole
ventilation
hole
Closet-front View
STEP 1
Positioning
the
Dryer.
Leveling legs
should be secured.
All
four
legs
are
stably placed
on a solid and
even floor.
If
dryer
is not
level, laundry may
not tumble
properly
and sensor
will
not detect accurate
humidity
information.
When
leveling, please
be cautious not to
injure
your fingers
and toes.
If
you
install the
dryer
on the
optional pedstal,
it
is
nessary
to level
with
the
pedestal leveling
legs.
Note
38.7"
(98.3 cm)
27"
(68.6 cm)
30.1"
(76.5 cm)
49.8"
(126.4 cm)

8
Part 3 INITIAL STEPS FOR INSTALLING YOUR
DRYER
Once
in
position, adjust
the
leveling legs
of the
dryer
until it is level from left to
right
and front to
back.
The
leveling legs
must remain
firmly
on the floor
and the
dryer
should not
rock.
The maximum
slope
of the
dryer
from left to
right
or front to back should
not exceed
2.5
cm
(1 inch).
If the
dryer
is not
level,
and if the
slope
exceeds
2.5
cm
(1 inch),
a load
may
not tumble
properly
and internal sensors
may
malfunction. Note: Other
sections of this manual
also
provide important
information
concerning
the
placement
of and clearances for
your dryer.
Please
review this entire manual before
proceeding
with
any
installation.
The door on
your dryer
can be installed to
open
either to the left or the
right.
Follow these
instructions to reverse the direction in which
your
door
opens:
STEP 2
Procedure for
Reversing
the Door
Door and latch should be
aligned
at the center
when closed.
Note
1
2
3

9
Part 3 INITIAL STEPS FOR INSTALLING YOUR
DRYER
2
Push the
cap
on the
right
side of control
panel.
2
Remove the
screw.
2
Slide
the control
panel
to the
right
about
an
inch.
STEP 3
Procedure of Control Panel
Change
1
Push the
housing
hook and disassemble the
panel.
2
Remove the
safety
cover.
1
Attach the
housing
of control
panel
until it
clicks into
place.
2
Remove the
plate by lifting
it
up slightly.
3
2
Push the
cap
on the
right
side of lower
cover.
2
Remove the
screw.
2
Slide
the lower cover to the
right
about an
inch.
4
Disassemble
Assemble
WARNING!
WARNING!
!
!
?
Disconnect
power
before
servicing.
?
Replace
all
parts
and
panels
before
operating.
?
Be careful of the
sharp edge
on frame which makes
you
hurt.
?
Failure to follow these instructions can result
in
death or electrical shock.
Housing
Hook
Frame
Control Panel
Cap
Plate
Lower,
Cover
Cap
Safety
Cover
Housing
Frame
2
2
2
2
2
LG is not
responsible
for
any damages
to
your
dryer
incurred while a customer is
changing.
Note
Be careful of
dropping
the control
panel.
WARNING!
!
Make sure that the
housing
is attached
correctly.
If
not,
the
dryer may
not
operate.
2

Part 3 INITIAL STEPS FOR INSTALLING YOUR
DRYER
10
Install the hooks of the
plate
in the holes
of the
frame.
Slide
the
plate
to the left until it clicks into
place.
7
8
Assemble
2
Attach the
panel by sliding
to the left in
clicks into
place.
2
Turn the screw to the
right.
2
Close
the
cap.
Attach the
safety
cover.
4
5
2
Attach the lower cover in the
upper
position
where the control
panel
was
removed.
2
Tighten
the
screw.
2
Push the
cap.
6
Safety
Cover
Put the hooks of the
panel
into the left side holes of
frame
correctly.
Next
the surface of the A is located in the
higher
place
than the surface of the
B.
Then,
Push the
panel
until it is
aligned
three holes
on the
top
of the
frame.
3
A
B
Frame
Cap
2
2
2
Control Panel
Cap
2
2
LG is not
responsible
for
any damages
to
your
dryer
incurred while a customer is
changing.
Note
WARNING!
!
Be sure the screw is
properly tightened.
If it
isn't,
the control
panel
could come off.
WARNING!
!
Be sure the screw is
properly tightened.
If it
isn't the lower cover could come off.
WARNING!
!
Be sure to install the
safety
cover to
avoid electric shock.
2

11
Part 3 INITIAL STEPS FOR INSTALLING YOUR
DRYER
In addition to the
following warnings, please
refer
to manual section on Exhaust
Requirements
and
Maintenance. IMPORTANT:
To reduce the risk of
fire, combustion,
and
gas
accumulation,
the
dryer
must be vented to the
outdoors.
Please follow the
instructions
(and
all others in this
manual)
very
carefully.
?
Do not use
plastic
or thin foil
duct.
?
Use
4"
(10.2 cm)
diameter
rigid
or
semi-rigid
metal duct
(NOTE!
Venting
materials are not
supplied
with the
dryer,
and
you
should obtain the
venting
materials
necessary
for
proper
installation)
?
Position the
dryer
such that the exhaust duct run is
as short as
possible.
?
Clean old ducts
before installing
this
dryer
?
The male end of each section of exhaust duct must
point away
from the
dryer.
?
Use
as few elbow
joints
as
possible.
?
Use
duct
tape
on all duct
joints.
?
Insulate ductwork that runs
through
unheated
areas in order to reduce condensation and lint
build-up
on
pipe
walls.
?
PLEASE
BE AWARE THAT
FAILURE TO
EXHAUST
THE DRYER
CORRECTLY
WILL
VOID
THE
DRYER'S
WARRANTY.
WARNING!
?
Use a
heavy
metal vent.
?
Do not use
plastic
or
thin
foil duct.
?
Failure to follow these instructions can
result
in
death or fire.
?
Clean old ducts before
installing
this
dryer.
!
ALTERNATE
EXHAUST DIRECTIONS
1.
Remove screw and exhaust duct.
(Use
exhaust
kit
part #3911EZ9131X.)
2-1.
Detach and remove the knockout that
matches the desired
venting
direction
(Right
side not available on Gas
Dryers)
2-2.
Connect a short
piece
of duct to the
blower
housing
and attach the duct to
the base.
3-1.
Insert the male end of a
4"
elbow into the
female end of a short duct.
Tape
the
joint.
3-2.
Insert this
assembly
elbow first
through
the
hole
in
the
dryer
and
push
the female end
of the elbow onto the male end of the
blower
output
shaft.
Tape
the
joint.
STEP 3
Connecting
the Exhaust
and
Venting System.
The exhaust must be vented to the outside.
Improper taping
and incorrect installation
will
cause
dryer
malfunction.
Note

12

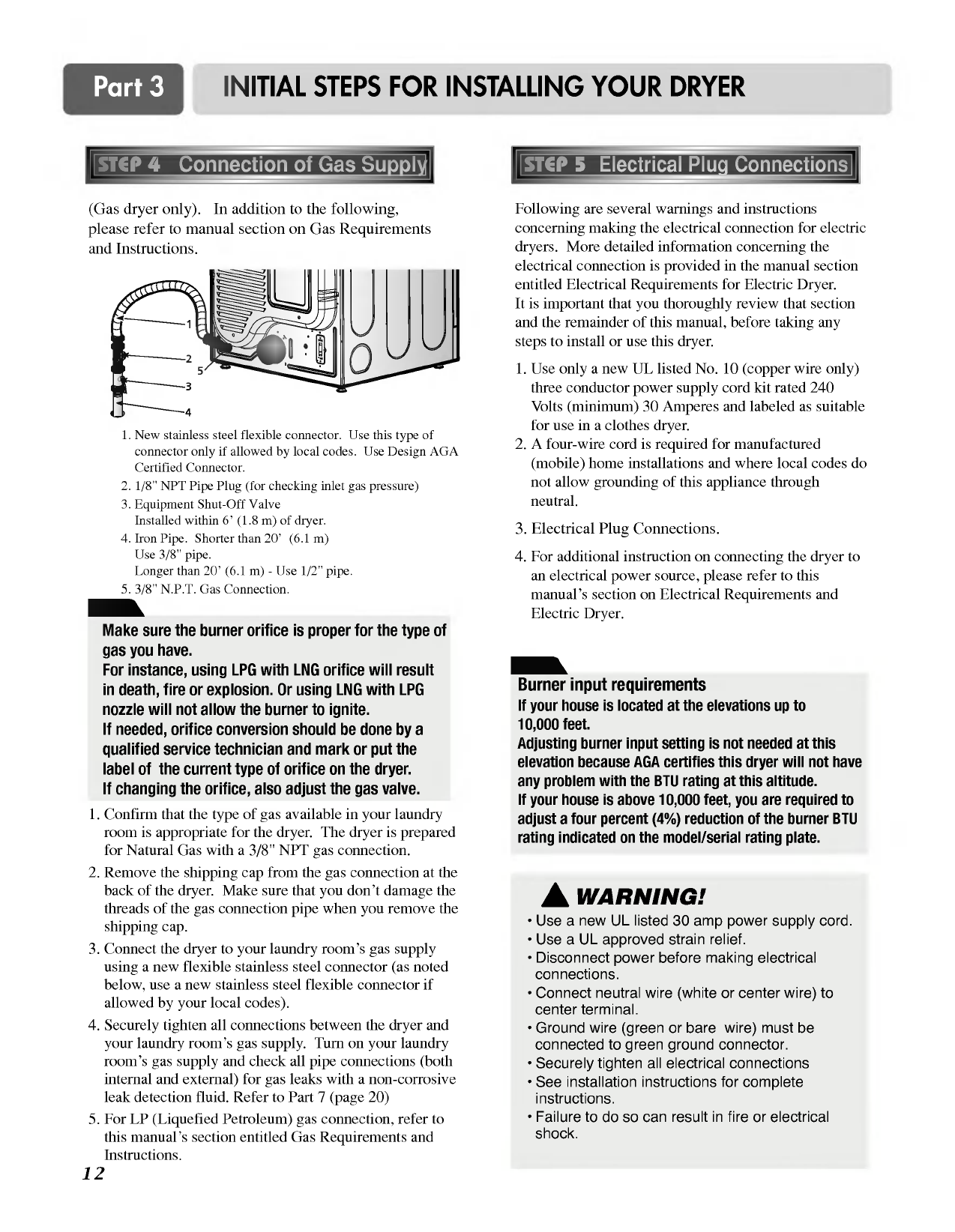

Part 3 INITIAL STEPS FOR INSTALLING YOUR
DRYER
(Gas
dryer only).
In addition to the
following,
please
refer to manual section on
Gas
Requirements
and
Instructions.
1. Confirm
that the
type
of
gas
available in
your laundry
room is
appropriate
for the
dryer.
The
dryer
is
prepared
for
Natural Gas
with a
3/8"
NPT
gas
connection.
2.
Remove the
shipping cap
from the
gas
connection at the
back of the
dryer.
Make sure that
you
don't
damage
the
threads of the
gas
connection
pipe
when
you
remove the
shipping cap.
3. Connect
the
dryer
to
your laundry
room's
gas
supply
using
a new flexible stainless steel connector
(as
noted
below,
use a new stainless steel flexible connector if
allowed
by your
local
codes).
4.
Securely tighten
all connections between the
dryer
and
your laundry
room's
gas
supply.
Turn on
your laundry
room's
gas
supply
and check all
pipe
connections
(both
internal and
external)
for
gas
leaks with a non-corrosive
leak detection
fluid.
Refer to Part
7
(page
20)
5.
For LP
(Liquefied
Petroleum)
gas
connection,
refer to
this manual's section entitled
Gas
Requirements
and
Instructions.
1.
New
stainless steel flexible connector. Use this
type
of
connector
only
if allowed
by
local codes. Use
Design
AGA
Certified Connector.
2.
1/8"
NPT
Pipe Plug
(for
checking
inlet
gas pressure)
3.
Equipment
Shut-Off Valve
Installed within 6'
(1.8 m)
of
dryer.
4. Iron
Pipe.
Shorter than 20'
(6.1 m)
Use
3/8"
pipe.
Longer
than 20'
(6.1 m)
-
Use
1/2"
pipe.
5.
3/8"
N.P.T.
Gas Connection.
Following
are several
warnings
and instructions
concerning making
the electrical connection for electric
dryers.
More detailed information
concerning
the
electrical connection is
provided
in the manual section
entitled Electrical
Requirements
for Electric
Dryer.
It is
important
that
you thoroughly
review that section
and the remainder of this
manual,
before
taking any
steps
to install or use this
dryer.
1. Use
only
a new
UL
listed
No. 10
(copper
wire
only)
three conductor
power supply
cord kit rated
240
Volts
(minimum)
30
Amperes
and labeled as suitable
for use in a clothes
dryer.
2.
A four-wire cord is
required
for manufactured
(mobile)
home installations and where local codes do
not allow
grounding
of this
appliance
through
neutral.
3.
Electrical
Plug
Connections.
4.
For additional instruction on
connecting
the
dryer
to
an electrical
power
source,
please
refer to this
manual's section on Electrical
Requirements
and
Electric
Dryer.
2
3
5
1
4
WARNING!
?
Use a new UL listed 30
amp power supply
cord.
?
Use a UL
approved
strain relief.
?
Disconnect
power
before
making
electrical
connections.
?
Connect neutral wire
(white
or center
wire)
to
center terminal.
?
Ground wire
(green
or bare
wire)
must be
connected to
green ground
connector.
?
Securely tighten
all electrical connections
?
See installation instructions for
complete
instructions.
?
Failure to do so can result
in
fire or electrical
shock.
!
STEP 4
Connection of Gas
Supply
Make sure the burner orifice is
proper
for the
type
of
gas you
have.
For
instance, using
LPG
with
LNG orifice
will
result
in
death,
fire or
explosion.
Or
using
LNG
with
LPG
nozzle
will
not allow the burner to
ignite.
If
needed,
orifice conversion should be done
by
a
qualified
service technician and mark or
put
the
label of the current
type
of orifice on the
dryer.
If
changing
the
orifice,
also
adjust
the
gas
valve.
Note
Burner
input requirements
If
your
house is located at the elevations
up
to
10,000
feet.
Adjusting
burner
input setting
is not needed at this
elevation because AGA certifies this
dryer
will
not have
any problem
with
the BTU
rating
at this altitude.
If
your
house is above
10,000 feet,
you
are
required
to
adjust
a four
percent (4%)
reduction of the burner BTU
rating
indicated on the model/serial
rating plate.
Note
STEP 5
Electrical
Plug
Connections

13

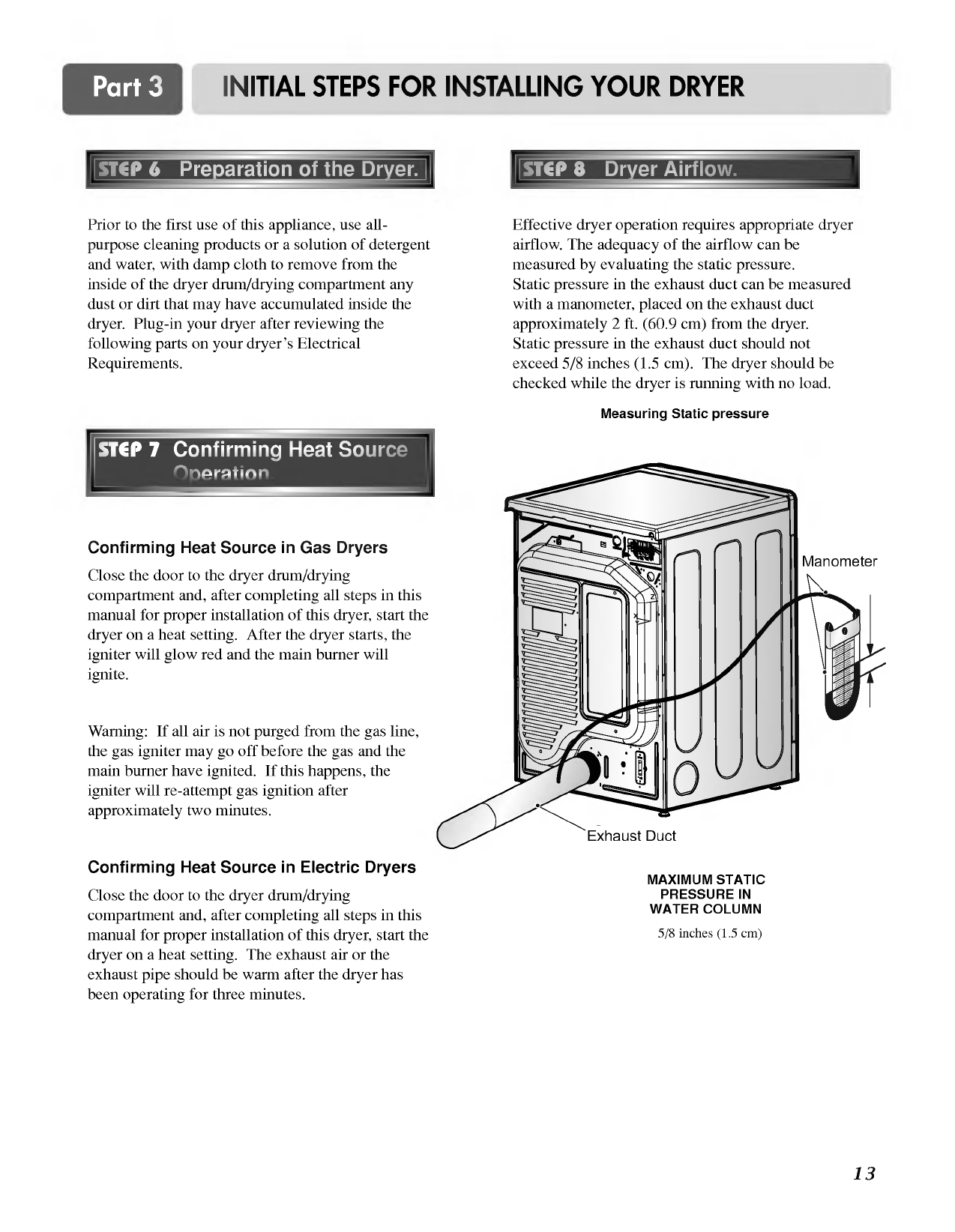

Part 3 INITIAL STEPS FOR INSTALLING YOUR
DRYER
Prior to the first use of this
appliance,
use all-
purpose cleaning products
or a solution of
detergent
and
water,
with
damp
cloth to remove from the
inside of the
dryer drum/drying compartment any
dust or dirt that
may
have accumulated inside the
dryer. Plug-in your dryer
after
reviewing
the
following parts
on
your dryer's
Electrical
Requirements.
Effective
dryer operation requires appropriate dryer
airflow.
The
adequacy
of the airflow can be
measured
by evaluating
the static
pressure.
Static
pressure
in the exhaust duct can be measured
with a
manometer,
placed
on the exhaust duct
approximately
2
ft.
(60.9 cm)
from the
dryer.
Static
pressure
in the exhaust duct should not
exceed
5/8
inches
(1.5 cm).
The
dryer
should be
checked while the
dryer
is
running
with no
load.
Confirming
Heat Source
in
Gas
Dryers
Close
the door to the
dryer drum/drying
compartment
and,
after
completing
all
steps
in this
manual for
proper
installation of this
dryer,
start the
dryer
on a heat
setting.
After the
dryer
starts,
the
igniter
will
glow
red and the main burner will
ignite.
Warning:
If all air is not
purged
from the
gas
line,
the
gas igniter may go
off before the
gas
and the
main burner have
ignited.
If this
happens,
the
igniter
will
re-attempt gas ignition
after
approximately
two
minutes.
Confirming
Heat Source
in
Electric
Dryers
Close
the door to the
dryer drum/drying
compartment
and,
after
completing
all
steps
in this
manual for
proper
installation of this
dryer,
start the
dryer
on a heat
setting.
The exhaust air or the
exhaust
pipe
should be warm after the
dryer
has
been
operating
for three
minutes.
2
Measuring
Static
pressure
5/8
inches
(1.5 cm)
MAXIMUM STATIC
PRESSURE IN
WATER COLUMN
STEP
6
Preparation
of the
Dryer.
STEP
8
Dryer
Airflow.
STEP 7
Confirming
Heat Source
Operation.
Manometer
Exhaust Duct

14
Part 3 INITIAL STEPS FOR INSTALLING YOUR
DRYER
The
following
instructions are
applicable
to
installations of the
dryer
in a manufactured or
mobile
home.
Any
installation in a manufactured or
mobile home must
comply
with the Manufactured
Home
Construction
and
Safety
Standards
Title 24
CFR,
Part
32-80
or
Standard
CAN/CSA0Z240
MH
and local codes and
ordinances.
If
you
are
uncertain whether
your proposed
installation will
comply
with these
standards,
please
contact a
service and installation
professional
for
assistance.
The
following
instructions
apply
to
any
installation
of the
dryer
in a manufactured or mobile
home:
1)
The electrical connection for an electric
dryer
must be a 4-wire
connection.
More detailed
information
concerning
the electrical connection
is
provided
at the manual section entitled
Electrical
Requirements
for Electric
Dryer
2)
To reduce the risk of combustion and
fire,
the
dryer
must be vented to the
outside.
3)
Electric
dryers may
be vented to the outside
using
the
back, left,
right,
or bottom
panel.
4)
Gas
dryers may
be vented to the outside
using
the
back, left,
or bottom
panel.
Gas
dryers may
not
be vented to the outside
using
the
right
side
panel
because of the burner
housing.
5)
The
dryer
exhaust duct must be affixed
securely
to the manufactured or mobile home
structure,
the exhaust duct must be made of a material that
will resist fire and
combustion,
and it is
recommended that
you
use a
rigid
or flexible
metal
pipe.
6)
DO NOT
connect the exhaust duct with
any
other
duct, vent,
chimney,
or other exhaust
duct.
7)
Make sure the
dryer
has
adequate
access to
outside fresh air to ensure
proper operation.
The
opening
for outside fresh air must be at least
25
in
2
(163
cm
2
).
8)
It is
important
that the clearance of the duct from
any
combustible construction be at least 2 inches
(5 cm),
and,
when
venting
the
dryer
to the
outdoors,
the
dryer
can be installed with a
clearance of 1 inch at the sides and back of the
dryer.
9)
Please be aware that
venting
materials are not
supplied
with the
dryer.
You should obtain the
venting
materials
necessary
for
proper
installation.
WARNING!
DO NOT connect exhaust ducts
with
metal screws or fasteners that extend
into the duct.
!
WARNING!
DO NOT vent the exhaust duct under the
manufactured or mobile home.
!
STEP 9
Additional Instructions
for Installation of Your
Dryer
in
a Manufactured
or Mobile Home.

15
Part
4
ACCESSORIES INSTALLATION
To ensure safe and secure
installation,
please
observe the instructions below.
Place washer
firmly
on a
stable,
even and
solid floor.
Peel
protective paper
off the
tape
from the
stacking
kit
side bracket.
Fit
the
stacking
kit
side bracket
firmly
to the
side of
top plate by attaching
the double-
sided
tape
to
top plate
as
shows.
Secure
stacking
kit
side bracket to the
washer
with
a screw on the back of bracket.
Repeat Steps
2, 3,
4
for the other side.
Place the
dryer
on
top
of the washer
by fitting
legs
as shown
in
the
picture.
Avoid
finger
injuries
-
be careful not to
pinch fingers
between the washer and
dryer.
Slide
dryer
slowly
backwards to the
stopper
of
kit.
Insert the front rail. Push the front rail back
to the
stoppers
of side
stacking
kit.
Attach both sides of the front
kit with
screws.
?
Do not use
stacking
kit with
a
gas dryer
in
potentially
unstable conditions like a mobile home.
Stacking
kit
1
2
3
4
5
6
7
Stacking
Kit Installation Instructions
Clean the surface before
attaching
the brackets
and double-sided
tape.
WARNING!
!
Note
Incorrect Installation can cause serious
accidents.
The
weight
of the
dryer
and the
height
of
installation makes the
stacking procedure
too
risky
for one
person.
This
procedure
should be
performed by
2
or more
experienced
service
personnel.
WARNING!
!
Do not stack a washer on the
top
of the
dryer.
Dryer
Washer

Part
4
16
ACCESSORIES INSTALLATION
Pedestal Installation Instructions
for washer/
combo
for
dryer
for washer/
combo
for
dryer
3
1 4
5
6
7
2
1)
Shut off
gas.
2)
Unplug
power
cord.
3)
Disconnect
gas
line from
dryer.
4)
Pull
away
and loosen vent
clamp.
5)
Disconnect
venting.

17
Part 5 ELECTRICAL
REQUIREMENTS
FOR ELECTRIC DRYERS
The
following
are additional instructions
regarding
electrical connections and
requirements
for electric
dryers.
Important Warning:
To
help prevent
fire,
electric
shock,
serious
injury
or
death,
the
wiring
and
grounding
must conform to the latest edition of the
National
Electrical
Code,
ANSI/NFPA
70
and all
applicable
local
regulations.
Please contact a
qualified
electrician to check
your
home's
wiring
and fuses to ensure that
your
home
has
adequate
electrical
power
to
operate
the
dryer.
120V/
240V,
60
Hertz,
3-Wire
Installation
!
Instructions for
Grounding
of
your
Electric
Dryer:
a)
This
dryer
must be connected to a
grounded
metal,
permanent wiring system
or an
equipment-grounding
conductor must be run
with the circuit conductors and connected to the
equipment-grounding
terminal or lead on the
dryer.
b)
The
dryer
has its own terminal block that must
be connected to a
separate
60
Hertz
single
phase
AC
circuit,
fused at
30
Amperes
(the
circuit must be fused on both sides of the
line).
ELECTRICAL SERVICE FOR
THE DRYER
SHOULD
BE
OF MAXIMUM
RATE
VOLTAGE LISTED ON
THE
NAMEPLATE.
DO NOT CONNECT
DRYER
TO
110, 115,
OR 120 VOLT CIRCUIT.
Heating
elements are
available for field installation in
dryers
which
are to be connected to electrical service of
different
voltage
than that listed on
nameplate.
c)
If branch circuit to
dryer
is fifteen feet
(4.50 m)
or less in
length,
use
U.L.
(Underwriters
Laboratories)
listed
No. 10 A.W.G.
wire
(copper
wire
only),
or as
required by
local
codes.
If over
fifteen feet
(4.50 m),
use
U.L.
(Underwriters
Laboratories)
listed
No. 8 A.W.G.
wire
(copper
wire
only),
or as
required by
local
codes.
Allow
sufficient slack in
wiring
so
dryer
can be moved
from its normal location when
necessary.
d)
The
power
cord
(pigtail)
connection between
wall
receptacle
and
dryer
terminal block
IS NOT
supplied
with
dryer. Type
of
pigtail
and
gauge
of
wire must conform to local codes and with
instructions mentioned on the
following pages.
e)
The method of
wiring
the
dryer
is
optional
and
subject
to local code
requirements.
Refer to
examples
on next
page.
f)
You must select the method
by
which to wire
your dryer according
to local code and ordinance
requirements. Sample
methods are included in
the
following pages.

18
Part 5 ELECTRICAL
REQUIREMENTS
FOR ELECTRIC DRYERS
Use
the instructions in this section if
your
home has
a
3-wire
receptacle
(NEMA
type
10-30R)
and
you
will be
using
a
UL
listed,
120/240
volt
minimum,
30
amp, dryer power supply
cord.
Review the
following options
to determine the
appropriate
electrical connection
for
your
home:
If this
type
is available at
your
home.
you
will be
connecting
to a fused disconnect or circuit breaker
box.
Important
:
Grounding through
the neutral conductor
is
prohibited
for
(1)
new branch-circuit
installations,
(2)
mobile
homes,
(3)
recreational
vehicles,
and
(4)
areas where local codes
prohibit grounding through
the
neutral
conductor.
Prepare
minimum
5
ft
(1.52 m)
of
length
in order for
dryer
to be
replaced.
First,
peel
5
inches
(12.7 cm)
of
covering
material from
end.
Strip
5
inches of
ground
wire
insulation.
After
cutting
1
1
/2
inch
(3.8 cm)
from
3
other wires
peel
insulation back 1 inch
(2.5 cm).
Make ends of
3
wires a
hook
shape.
Then,
put
the hooked
shape
end of the wire under the
screw of the terminal block
(hooked
end
facing
to the
right)
and
pinch
the hook
together
and screw
tightly.
Use
the instructions in this section if
your
home has
a 4-wire
receptacle
(NEMA
type
14-30R)
and
you
will be
using
a
UL
listed,
120/240
volt
minimum,
30
amp, dryer power supply
cord.
If this
type
is available at
your
home.
you
will be
connecting
to a fused disconnect or circuit breaker
box.
1. Connect
neutral wire
(white)
of
power
cord to center
terminal block
screw.
2. Connect
red and black wires to the left and
right
terminal block
screws.
3. Connect
ground
wire
(green)
of
power
cord to external
ground
screw and move neutral
ground
wire of
appliance
and connect it to center
screw.
4.
Make sure that the strain relief screw is
tightened.
Be sure that all terminal block nuts are on
tight
and
power
cord is in
right position.
3-wire direct
4-wire
receptacle
(NEMA
type14-30R)
3-wire
receptacle
(NEMA
type10-30R)
4-wire direct
4-wire connection
:
Direct wire
?
Connect the
power supply
wire to the terminal
block. Colored wire should be connected to
same color screw. Wire color indicated on
manual is connected to the same color screw
in
block.
Otherwise,a
short or excessive current
flow
may
result.
Note

19
Part 5 ELECTRICAL
REQUIREMENTS
FOR ELECTRIC DRYERS
Important
:
Grounding through
the neutral conductor
is
prohibited
for
(1)
new branch-circuit
installations,
(2)
mobile
homes,
(3)
recreational
vehicles,
and
(4)
areas where local codes
prohibit grounding through
the
neutral
conductor.
Prepare
minimum
5
ft
(1.52 m)
of
length
in order
for
dryer
to be
replaced.
First,
strip
3
1
/2
inches
(8.9 cm)
of outer sheath from
end and
strip
1 inch of insulation from each
conductor.
1. Connect
neutral wire
(white)
of
power
cord to
center terminal block
screw.
2. Connect
red and black wires to the left and
right
terminal block
screws.
3.
Make sure that the strain relief screw is
tightened.
Be sure that all terminal block nuts are on
tight
and
power
cord is in
right position.
Then,
put
the hooked
shape
end of the wire under
the screw of the terminal block
(hooked
end
facing
rightward)
and
pinch
the hook
together
and
tighten
the screw
securely.
3-wire connection
:
Direct wire
1. Connect
neutral wire
(white)
of
power
cord to
center terminal block
screw.
2. Connect
red and black wires to the left and
right
terminal block
screws.
3. Connect
ground
wire
(green)
of
power
cord to
external
ground
screw and move neutral
ground
wire of
appliance
and connect it to center
screw.
4.
Make sure that the strain relief screw is
tightened.
Be sure that all terminal block nuts are on
tight
and
power
cord is in
right position.
?
lf
your
local codes or ordinances do not allow the
use of a
3-wire
connection,
or
you
are
installing
your dryer
in a mobile
home,
you
must use a
4-wire
connection.
Option
1:
4-wire connection with
a
power supply
cord.
