LG ZDA-311 Installation guide

Installation and Operating Guide | Warranty
Model Number | ZDA-311 |DVD Player
©Copyright 2005, LG Electronics U.S.A., Inc.

CAUTION: THESE SERVICING INSTRUCTIONS ARE FOR USE BY
QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK
OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING
OTHER THAN THAT CONTAINED IN THE OPERATING
INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.
Caution: The apparatus should not be exposed to water (dripping or
splashing) and no objects filled with liquids, such as vases, should be
placed on the apparatus.
CAUTION: This product employs a Laser System.
To ensure proper use of this product, please read this owner’s manual
carefully and retain for future reference. Should the unit require
maintenance, contact an authorized service center.
Use of controls, adjustments, or the performance of procedures other
than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the
enclosure. Visible laser radiation when open. DO NOT STARE INTO
BEAM.
WARNING: Do not install this equipment in a confined space such as
a bookcase or similar unit.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance and has no
additional outlets or branch circuits. Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall
outlets, extension cords, frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions could result in
electric shock or fire. Periodically examine the cord of your appliance, and if its
appearance indicates damage or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an exact
replacement part by an authorized servicer.
Protect the power cord from physical or mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked upon. Pay particular attention to
plugs, wall outlets, and the point where the cord exits the appliance.
SERIAL NUMBER:
You can find the serial number on the back of the unit. This number is unique to
this unit and not available to others. You should record requested information here
and retain this guide as a permanent record of your purchase.
Model No. ______________________________
Serial No. ______________________________
Date of Purchase_________________________
Safety Precautions
2
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

3
Introduction
Safety Precautions (Continued)
CAUTION: The apparatus should not be exposed to water
(dripping or splashing) and no objects filled with liquids, such as vases, should be
placed on the apparatus.
FCC WARNING: This equipment may generate or use radio frequency energy.
Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly
approved in the instruction manual. The user could lose the authority to operate
this equipment if an unauthorized change or modification is made.
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the product is
operated in a residential installation. This product generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this product does cause harmful interference to radio or television
reception, which can be determined by turning the product off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the product and
receiver.
Connect the product into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC COMPLIANCE: The responsible party for this product’s compliance is:
Marketed and Distributed by LG Electronics U.S.A., Inc.,
1000 Sylvan Avenue, Englewood Cliffs, NJ.
Phone: [phone].
COPYRIGHTS:
It is forbidden by law to copy, broadcast, show, broadcast via cable, play in public,
or rent copyrighted material without permission.
This product features the copy protection function developed by Macrovision.
Copy protection signals are recorded on some discs. When recording and playing the
pictures of these discs on a VCR, picture noise will appear.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by
Macrovision Corporation. Reverse engineering or disassembly is prohibited.
CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION
TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND
MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE
OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS
RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE
‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND
625p DVD PLAYER,PLEASE CONTACT OUR CUSTOMER SERVICE
CENTER.

Table of Contents
4
Introduction
Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Symbol Used in this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
About the Symbol Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Notes on Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Remote Control Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Maintenance and Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Types of Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

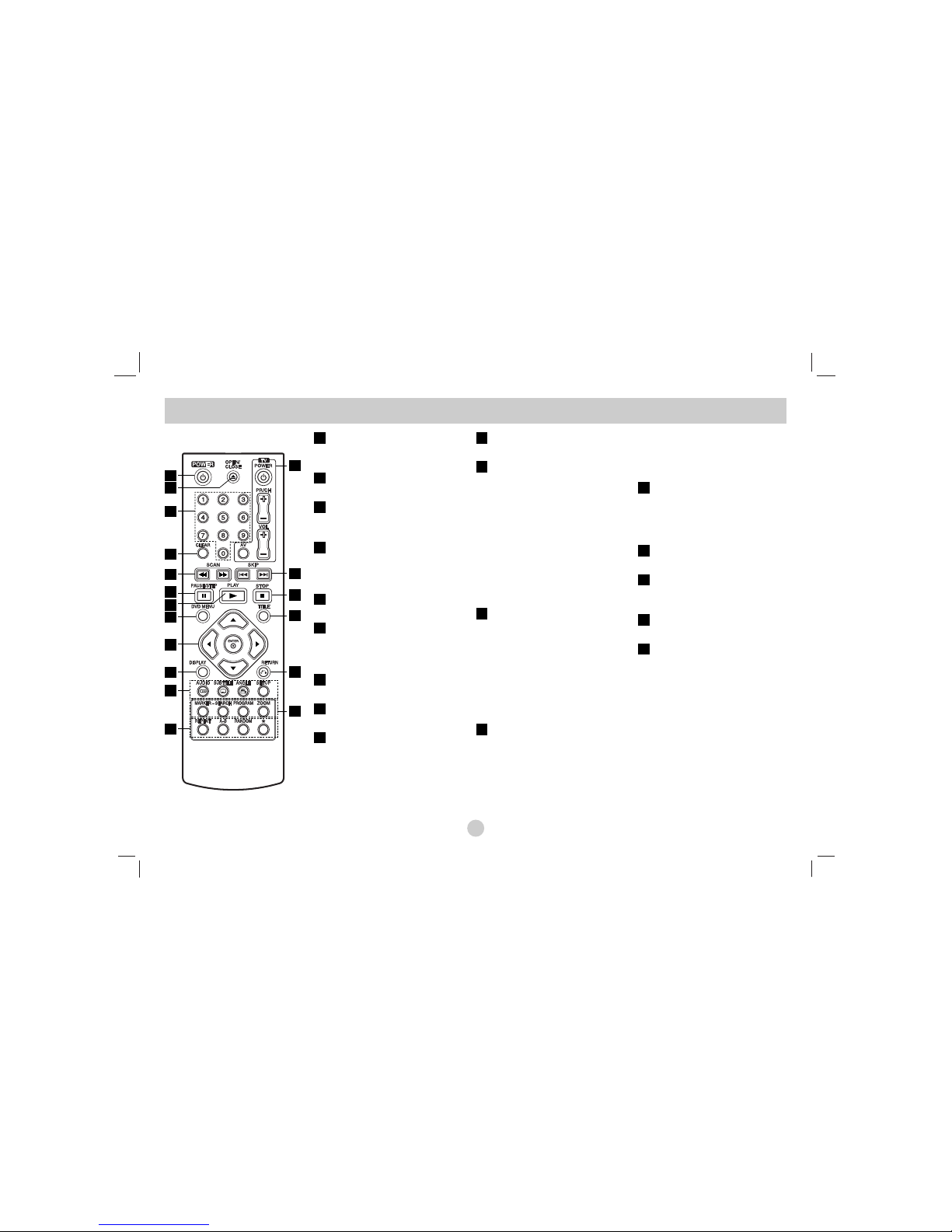

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Setting up the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-10
DVD Player Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

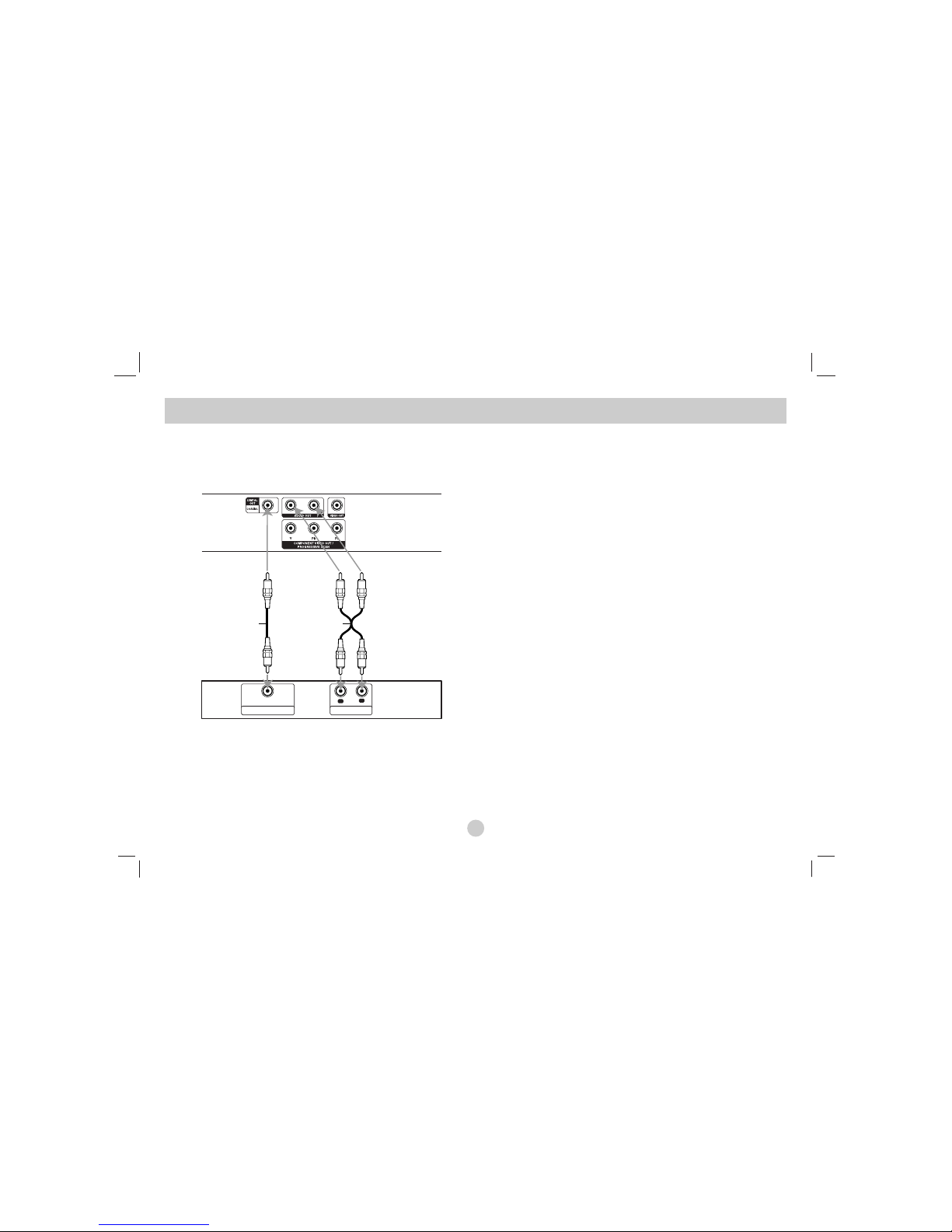

Audio Connection to Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Advanced Operations
General Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-17
On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Moving to another CHAPTER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Slow Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Title Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disc Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Changing the Audio Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Still Picture and Frame-by-Frame Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Marker Search. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Repeat. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Camera Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Last Scene Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Screen Saver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Playing an Audio CD and MP3/WMA Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
MP3 / WMA disc compatibility with this player is limited as follows:. . . . . . . . . . . 14
Audio CD and MP3/WMA Disc Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
•Pause . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
•Moving to another Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
•Random . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
•Repeat Track/ All/ Normal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
•Repeat A-B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
•Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Viewing a JPEG disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
•Moving to another File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
•To rotate picture. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
•Still Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
•Zoom. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
•JPEG disc compatibility with this player is limited as follows:. . . . . . . . . . . . . 16
Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
•Erasing a Track from program list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Initial Settings
Initial Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-23
General Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
AUDIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
LOCK (Parental Control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-22
OTHERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Reference
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Controlling other TVs with the remote control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Language Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Area Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Introduction
Before Use
To ensure proper use of this product, please read this owner’s manual
carefully and retain for future reference.
This manual provides information on the operation and maintenance of
your DVD player. Should the unit require service, contact an authorized
service location.
Symbol Used in this Manual
The lightning flash symbol alerts you to the presence of
dangerous voltage within the product enclosure that may
constitute a risk of electric shock.
The exclamation point alerts you to the presence of important
operating and maintenance / servicing instructions.
Indicates hazards likely to cause harm to the unit itself or other
material damage.
DVD and finalized DVD±R/RW
Audio CDs.
MP3 discs.
WMA discs.
JPEG discs.
NOTE
Indicates special notes and operating features.
TIP
Indicates tips and hints for making the task easier.
Asection whose title has one of the following symbols is applicable only
to the disc represented by the symbol.
About the Symbol Display
“ ” may appear on your LCD display during operation and indicates
that the function explained in this owner’s manual is not available on that
specific DVD video disc.
Notes on Discs
Handling Discs
Do not touch the playback side of the disc. Hold the disc by the edges so that
fingerprints do not get on the surface. Never stick paper or tape on the disc.
Storing Discs
After playing, store the disc in its case. Do not expose the disc to direct sunlight or
sources of heat and never leave it in a parked car exposed to direct sunlight.
Cleaning Discs
Fingerprints and dust on the disc can cause poor picture quality and sound
distortion. Before playing, clean the disc with a clean cloth. Wipe the disc from
the center out.
Do not use strong solvents such as alcohol, benzine, thinner, commercially
available cleaners, or anti-static spray intended for older vinyl records.
Remote Control Battery installation
Detach the battery cover on the rear of the remote control, and insert two
batteries (size AAA) with and aligned correctly.
JPEG
WMA
MP3
CD
DVD
5

6
Before Use (Continued)
Maintenance and Service
Refer to the information in this chapter before contacting a service
technician.
Handling the Unit
When shipping the unit
Please save the original shipping carton and packing materials. If you need to ship
the unit, for maximum protection, re-pack the unit as it was originally packed at
the factory.
Keeping the exterior surfaces clean
•Do not use volatile liquids such as insecticide spray near the unit.
•Do not leave rubber or plastic products in contact with the unit for a long
period of time. since they leave marks on the surface.
Cleaning the unit
To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a
soft cloth lightly moistened with a mild detergent solution.
Do not use strong solvents such as alcohol, benzine, or thinner, as these might
damage the surface of the unit.
Maintaining the Unit
The DVD player is a high-tech, precision device. If the optical pick-up lens and
disc drive parts are dirty or worn, the picture quality could be diminished.
Depending on the operating environment, regular inspection and maintenance are
recommended after every 1,000 hours of use.
For details, please contact your nearest authorized service center.
Types of Playable Discs
This unit plays DVD, Audio CD, DVD±R, DVD±RW, and CD-R or CD-RW
that contains audio titles, MP3, WMA or JPEG files.
Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic”, and the double-D symbol are trademarks of Dolby
Laboratories.
DTS and DTS Digital Out are trademarks of Digital Theater
Systems, Inc.
NOTES
•Depending on the conditions of the recording equipment or the
CD-R/RW (or DVD ± R/±RW) disc itself, some CD-R/RW
(or DVD ± R/±RW) discs cannot be played on the unit.
•Do not attach any seal or label to either side (the labeled side or the recorded
side) of a disc.
• Do not use irregularly shaped CDs (e.g., heart-shaped or octagonal) since they
may result in malfunctions.
Notes on DVDs
Some playback operations of DVDs may be intentionally programmed by software
manufacturers. This unit plays DVDs according to disc content designed by the
software manufacturer, therefore some playback features may not be available or
other functions may be added.
Regional code
This DVD player is designed and manufactured for playback
of region “1” encoded DVD software. This unit can play only
DVD discs labeled “1” or “ALL”.
If you try to play a DVD with a different region code from
your player, the message “Check Regional Code” appears on
the TV screen.
1

7
Introduction
Front Panel
STOP ( x)
Stops playback.
PLAY ( N)
Starts playback.
OPEN / CLOSE ( Z)
Opens or closes the disc tray.
Disc Tray
Insert a disc here.
POWER
Switches the player ON and OFF.
Display Window
Shows the current status of the player.
Remote Sensor
Point the DVD Player Remote Control here.

8
Remote Control
POWER
Switches DVD Player ON and
OFF.
OPEN / CLOSE
Opens and closes the disc tray.
0-9 number buttons
Selects numbered items in a
menu.
CLEAR
Removes a track number on the
Playlist or a mark on the
MARKER SEARCH menu.
SCAN ( m/ M)
Search backward or forward.
PAUSE / STEP ( X)
Pauses playback temporarily/
press repeatedly for frame-by-
frame playback.
PLAY ( N)
Starts playback.
DVD MENU
Accesses menu on a DVD disc.
• bBvV
(left/right/up/down)
Selects an item in the menu.
• ENTER
Confirms menu selection.
DISPLAY
Accesses On-Screen display.
• AUDIO
Selects an audio language
(DVD).
• SUBTITLE
Selects a subtitle language.
• ANGLE
Selects a DVD camera angle if
available
• SETUP
Accesses or removes setup
menu.
• REPEAT
Repeat chapter, track, title all.
• A-B
Repeat sequence.
• RANDOM
Plays tracks in random order.
• *
This button is not available.
TV Control Buttons
TV POWER:
Turns the TV on or off.
TV PR/CH +/–:
Selects TV’s channel.
TV VOL +/–:
Adjusts TV’s volume.
AV:
Selects the TV’s source.
SKIP (./ >)
Go to next chapter or track.
Returns to beginning of current
chapter or track or go to
previous chapter or track.
STOP ( x)
Stops playback.
TITLE
Displays title menu,
if available.
RETURN
Removes the setup menu.
• MARKER
Marks any point during
playback.
• SEARCH
Displays MARKER SEARCH
menu.
• PROGRAM
Places a track on the program
list.
• ZOOM
Enlarges video image.
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
2

9
Introduction
DVD Player Connections
Depending on your TV and other equipment there are various ways you
can connect the player. Please refer to the manuals of your TV, stereo
system or other devices as necessary for additional connection
information.
Video and Audio Connections to Your TV
Make sure the DVD player is connected directly to the TV and not to a
VCR, otherwise the DVD image could be distorted by the copy
protection system.
Video: Connect the VIDEO OUT jack on the DVD player to the
video in jack on the TV using the video cable (V).
Component Video (Color Stream®): Connect the COMPONENT
VIDEO OUT/PROGRESSIVE SCAN jacks on the DVD Player to
the corresponding in jacks on the TV using an Y Pb Pr cable (C).
Audio Connection to Your TV:
Connect the left and right AUDIO OUT jacks of the DVD Player to the
audio left and right IN jacks on the TV (A) using the audio cables. Do
not connect the DVD Player’s AUDIO OUT jack to the phone in jack
(record deck) of your audio system.
Progressive Scan (ColorStream®pro):
• If your television is a high-definition or “digital ready” television,
you may take advantage of the DVD Player’s progressive scan
output for the highest video resolution possible.
• If your TV does not accept the Progressive Scan format,
the picture will appear scrambled if you try Progressive Scan
on the DVD Player.
NOTES
•Set the Progressive to “On” on the setup menu for progressive signal,
see page 19.
•
Set the progressive to “Off” by removeing any disc from the unit and close the
disc tray. Confirm that “no disc” is displayed on the display window. Then press
STOP and hold it for five seconds before releasing it.
•Progressive scan does not work with the composite video connection
(yellow VIDEO OUT jack).
Setting up the Player

10
Audio Connection to Optional Equipment
Connect the DVD player to your optional equipment for audio output.
Amplifier equipped with 2-channel analog stereo or Dolby Pro Logic
ll / Pro Logic: Connect the left and right AUDIO OUT jacks on the DVD
player to the audio left and right IN jacks on your amplifier, receiver, or
stereo system, using the audio cables (A).
Amplifier equipped with 2-channel digital stereo (PCM) or audio /
video receiver equipped with a multi-channel decoder (Dolby
Digital™, MPEG 2, or DTS): Connect one of the DVD Player’s DIGI-
TAL AUDIO OUT jacks (COAXIAL X) to the corresponding in jack on
your amplifier. Use an optional digital (coaxial X) audio cable.
Digital Multi-channel sound
Adigital multi-channel connection provides the best sound quality. For
this you need a multi-channel audio / video receiver that supports one or
more of the audio formats supported by your DVD player such as MPEG
2, Dolby Digital and DTS. Check the receiver manual and the logos on
the front of the receiver.
NOTES
•If the audio format of the digital output does not match the capabilities of your
receiver, the receiver may produce a strong, distorted sound or no sound at all.
•Six Channel Digital Surround Sound via a digital connection can only be
obtained if your receiver is equipped with a Digital Multi-channel decoder.
•To see the audio format of the current DVD in the on-screen display, press
AUDIO.
Setting up the Player (continued)
Amplifier (Receiver)
Rear of DVD player
AX
R
L
AUDIO INPUTDIGITAL INPUT
COAXIAL

11
Advanced Operations
On-Screen Display
Some items can be changed using the menu.
1. Press DISPLAY during playback.
2. Press b/Bto select an item.
The selected item is highlighted.
3. Press v/Vto change the setting.
Press ENTER.
You can also use the number buttons if appropriate
(e.g. inputting the title number).
: Title(Track) Number, : Time search
: Chapter Number (DVD disc only)
Moving to another CHAPTER
When a title on a disc has more than one chapter or a disc has more than
one track, you can move to another chapter as follows:
Press SKIP .or >briefly during playback to select the next
chapter or to return to the beginning of the current chapter.
Press SKIP .twice briefly to step back to the previous chapter.
Slow Motion
1. Press PAUSE/STEP (X) during playback.
The player will now go into PAUSE mode.
2. Use the SCAN Mto select the required speed:
T1/16, T1/8, T1/4, or T1/2 (forward).
3. To exit slow motion mode, press PLAY.
Title Menu
Checking the contents of DVD discs: Menus
DVDs may offer menus that allow you to access special features. To use
the disc menu, press TITLE.
Input the corresponding number or use the bBvVbuttons to highlight
your selection. Then press ENTER.
Disc Menu
Press DVD MENU and the disc menu is displayed.
Press DVD MENU again to exit.
Changing the Audio Language
Press AUDIO repeatedly during playback to hear a different audio
language or audio track.
Search
1. Press SCAN (mor M)during playback.
2. Press SCAN (mor M)repeatedly to select the required speed.
DVD; X2, X4, X16 or X32
3. To exit Search mode, press PLAY.
Still Picture and Frame-by-Frame Playback
Press PAUSE/STEP on the remote control during playback. Advance the
picture frame-by-frame by pressing PAUSE/STEP repeatedly.
Press PLAY to exit still motion mode.
DVD
DVD
DVD
DVD
DVD
DVD
DVD
02/04
0:08:2002/04
DVD
General Features

12
Marker Search
To enter a Marker
You can start playback from up to nine memorized points. To enter a
marker, press MARKER at the desired point on the disc. The Marker
icon appears on the TV screen briefly. Repeat to enter up to nine
markers.
To Recall or Clear a Marked Scene
1. During disc playback, press SEARCH. The marker search menu
appears on the screen.
2. Within 10 seconds, press b/Bto select a marker number that you
want to recall or clear.
3. Press ENTER and playback starts from the marked scene.
Or, Press CLEAR and the marker number is erased from the list.
4. You can play any marker by inputting its number on the marker
search menu.
Repeat A-B
To repeat a sequence.
1. Press A-B at your chosen starting point. “A ” appears briefly on the
TV screen.
2. Press A-B again at your chosen end point.
“A B” appears briefly on the TV screen and the repeat sequence
begins.
3. Press A-B again to cancel.
Repeat
Press REPEAT during playback to select a desired repeat mode.
DVD Video Discs
• Chapter: repeats the current chapter.
• Title: repeats the current title.
• Off: does not play repeatedly.
NOTES
If you press SKIP (>) once during Repeat Chapter playback, the repeat play-
back cancels.
DVD
DVD
DVD
General Features (continued)

13
Advanced Operations
General Features (continued)
Zoom
Use zoom to enlarge the video image.
1. Press ZOOM during playback to activate the Zoom function.
2. Each press of the ZOOM button changes the screen in the sequence:
200% →300% →400% →Normal (4 steps).
3Use the b B v V buttons to move through the zoomed picture.
4. To resume normal playback, press CLEAR.
NOTE
Zoom may not work on some DVDs.
Camera Angle
If the disc contains scenes recorded at different camera angles, you can
change to a different camera angle during playback.
Press ANGLE repeatedly during playback to select a desired angle.
Note that the number of the current angle appears on the display.
Subtitles
Press SUBTITLE repeatedly during playback to display the different
subtitle languages.
Last Scene Memory
This player memorizes last scene from the last disc that is viewed. The
last scene remains in memory even if you remove the disc from the
player or switch off the player. If you load a disc that has the scene
memorized, the scene is automatically recalled.
NOTE
This player does not memorize the scene of a disc if you switch off the
player before commencing to play the disc.
Screen Saver
The screen saver appears when you leave the DVD player in Stop mode
for about five minutes. If the Screen Saver is displayed for five minutes,
the DVD Player automatically turns itself off.
CDDVD
DVD
DVD
DVD

14
Audio CD
Once you insert an audio CD a menu appears on the TV screen.
Press v/Vto select a track then press PLAY or ENTER to playback
starts.
MP3 / WMA
1. Press v/ Vto select a folder, and press PLAY or ENTER to see the
folder contents.
2. Press v/ Vto select a track then press PLAY or ENTER. Playback
starts.
TIPS
•If you are in a file list on the MUSIC menu and want to return to the Folder list,
use the v/ Vto highlight and press PLAY or ENTER.
•Press DVD MENU to move to the next page.
Press TITLE to move to the previous page.
•On a CD with MP3/WMA and JPEG you can switch MP3/WMA and JPEG.
Press v/ Vto select a folder, and press ENTER to see the folder contents.
MP3 / WMA disc compatibility with this player is limited as
follows:
•Sampling frequency: within 8 - 48 kHz (MP3),
within 32 - 48kHz (WMA)
•Bit rate: within 8 - 320kbps (MP3),
32 - 192kbps (WMA)
•The player cannot read an MP3/WMA file that has a file extension other than
“.mp3” / “.wma”.
•CD-R physical format should be ISO 9660
•If you record MP3 / WMA files using software that cannot create a file system
(eg. Direct-CD) it is impossible to playback MP3 / WMA files.
We recommend that you use Easy-CD Creator, which creates an ISO 9660 file
system.
•File names should have a maximum of 8 letters and must incorporate an .mp3
or .wma extension.
•They should not contain special letters such as / ? * : “ < > l etc.
•The total number of files on the disc should be less than 648.
This DVD player requires discs and recordings to meet certain technical
standards in order to achieve optimal playback quality. Pre-recorded DVDs are
automatically set to these standards. There are many different types of recordable
disc formats (including CD-R containing MP3 or WMA files) and these require
certain pre-existing conditions (see above) to ensure compatible playback.
Customers should note that permission is required in order to download
MP3 / WMA files and music from the Internet. Our company has no right
to grant such permission. Permission should always be sought from the
copyright owner.
Playing an Audio CD or MP3/WMA Disc
TRACK 02
TRACK 03
TRACK 01
TRACK 04
TRACK 05
TRACK 06
Normal
CD
001 / 022
00:00 /00:00
Add
DISPLAY
PROGRAM
Program List
Music 01
Music 02
Music 03
Music 04
Music 05
Normal
003 / 036
00:00 /00:00
Program List Add
DISPLAY
PROGRAM

15
Advanced Operations
Audio CD and MP3 / WMA Disc Features
Pause
1. Press PAUSE/STEP during playback.
2. To return to playback, press PLAY, ENTER or
press PAUSE/STEP again.
Moving to another Track
1. Press SKIP (.or >) briefly during playback to go to the next
track or to return to the beginning of the current track.
2. Press SKIP .twice briefly to go back to the previous track.
3. You can play any track by inputting its number.
Random
1. Press RANDOM during playback. Random Playback begins
immediately and RANDOM appears on the menu screen.
2. To return to normal playback, press RANDOM repeatedly until
Normal appears on the menu screen.
TIP
By pressing SKIP >during random playback, the unit selects another track and
resumes random playback.
Repeat Track/All/Normal
You can play a track/all on a disc.
1. Press REPEAT when playing a disc. The repeat icon appears.
2. Press REPEAT to select a desired repeat mode.
• Track: repeats the current track
• All: repeats all the tracks on a disc.
• Normal: does not play repeatedly.
NOTE
If you press SKIP (>) once during Repeat Track playback, the repeat playback
cancels.
Repeat A-B
1. To repeat a sequence during disc playback press A-B at your chosen
starting point. The Repeat icon and “A” appear on the menu screen.
2. Press A-B again at your chosen end point. The Repeat icon and
“A B” appear on the menu screen, and the sequence begins to play
repeatedly.
3. To exit the sequence and return to normal play, press A-B again.
Search
1. Press SCAN (mor M)during playback.
2. Press SCAN (mor M)repeatedly to select the required speed.
2X, 4X or 8X
3. To exit Search mode, press PLAY.
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
WMA
MP3CD
Playing an Audio CD or MP3/WMA Disc (continued)

Using this DVD Player you can view discs with JPEG files.
1. Insert a disc and close the tray.
The PHOTO menu appears on the TV screen.
2. Press v/ Vto select a folder, and press ENTER or PLAY.
Alist of files in the folder appears. If you are in a file list and want to
return to the previous Folder list, use the v/Vbuttons on the remote
to highlight and press ENTER or PLAY.
3. If you want to view a particular file, press v/ Vto highlight a file
and press ENTER or PLAY. Viewing the file proceeding starts.
While viewing a picture, you can press STOP to move to the
previous menu (PHOTO menu).
TIPS
•Press DVD MENU to move to the next page.
Press TITLE to move to the previous page.
•On a CD with MP3/WMA and JPEG you can switch MP3/WMA and JPEG.
Press v/ Vto select a folder, and press ENTER to see the folder contents.
Moving to another File
Press SKIP (.or >) once while viewing a picture to advance to
the next or previous file.
To rotate picture
Press b /Bduring showing a picture to rotate the picture clockwise or
counter clockwise.
Still Picture
1. Press PAUSE/STEP during slide show.
The player will now go into PAUSE mode.
2. To return to the slide show, press PLAY, ENTER or press
PAUSE/STEP again.
Zoom
Use zoom to enlarge the video image.
1. Press ZOOM during playback to activate the Zoom function.
2. Each press of the ZOOM button changes the screen in the sequence:
100% →150% →200% →100%
3Use the b B v V buttons to move through the zoomed picture.
4. To resume normal playback, press CLEAR or press ZOOM
repeatedly to select the 100%.
JPEG disc compatibility with this player is limited as follows:
•Depending upon the size and number of JPEG files, it could take a long time
for the DVD player to read the disc’s contents. If you don’t see an on-screen
display after several minutes, some of the files may be too large — reduce the
resolution of the JPEG files to less than 2M pixels as 2760 x 2048 pixels and
burn another disc.
•The total number of files and folders on the disc should be less than 648.
•Ensure that all the selected files have the “.jpg” extensions when copying into
the CD layout.
•If the files have “.jpe” or “.jpeg” extensions, please rename them as “.jpg”
file.
•File names without “.jpg” extension will not be able to be read by this DVD
player. Even though the files are shown as JPEG image files in Windows
Explorer.
JPEG
JPEG
JPEG
Viewing a JPEG Disc
File 01
File 02
File 03
File 04
File 05
Normal
001 / 052
00:00 /00:00
Program List Add
DISPLAY
PROGRAM
16

17
Advanced Operations
The program function enables you to store your favorite tracks from any
disc in the player memory.
Aprogram can contain 30 tracks (Audio CD, MP3/WMA).
1. Insert a disc. (Audio CD, MP3 or WMA.)
2. Press v/ V to select the desired file.
3. Press PROGRAM during playback or in the stop mode.
Repeat press PROGRAM to place additional tracks on
the program list.
4. Press DISPLAY. Program List menu appear.
Press v/ V to select the track you want to start playing.
Press DVD MENU to move to the next page.
Press TITLE to move to the previous page.
Audio CD Menu MP3/WMA Menu
5. Press PLAY or ENTER to start.
6. To resume normal playback from programmed playback.
Press DISPLAY then select a track of list and then press PLAY or
ENTER.
Erasing a Track from program list
1. Use v/ Vto select the track that you wish to erase from
the program list.
2. Press CLEAR. Repeat to erase additional tracks on the list.
For details on each operation item, refer to relevant page.
Programmed Playback WMA
MP3CD
TRACK 02
TRACK 03
TRACK 01
TRACK 04
TRACK 05
TRACK 06
Normal
CD
001 / 022
00:00 /00:00
DISPLAY
Return Delete
CLEAR
Program List
Music 02
Music 03
Music 04
Music 05
Music 06
Normal
003 / 036
00:00 /00:00
Return
Program List
Delete
DISPLAY
CLEAR
Music 01

18
By using the Setup menu, you can make various adjustments to items
such as picture and sound. You can also set a language for the subtitles
and the Setup menu, among other things. For details on each Setup menu
item, see pages 18 to 23.
To display and exit the Menu:
Press SETUP to display the menu. A second press of SETUP will take
you back to initial screen.
To go to the next level:
Press Bon the remote control.
To go back to the previous level:
Press bon the remote control.
General Operation
1. Press SETUP. The Setup menu appears.
2. Use b /Bto select the desired option then press Vor ENTER to
move to the second level. The screen shows the current setting for the
selected item, as well as alternate setting(s).
3. Use v/Vto select the second desired option then press Bto move
to the third level.
4.
Use v/Vto select the desired setting then press ENTER to confirm
your selection. Some items require additional steps.
5. Press SETUP, RETURN or PLAY to exit the Setup menu.
LANGUAGE
Menu Language
Select a language for the Setup menu and on-screen display.
Disc Audio / Subtitle / Menu
Select the language you prefer for the audio track (disc audio), subtitles,
and the disc menu.
Original: Refers to the original language in which the disc was recorded.
Other: To select another language, press number buttons then Press
ENTER
to enter the corresponding 4-digit number according to the language
code list in the reference chapter
. If you enter the wrong language code,
press CLEAR.
DVD
Initial Settings
Menu Language English
Original
Off
Original
Disc Audio
Disc Subtitle
Disc Menu
Move Select Exit
LANGUAGE

19
Initial Settings
Initial Settings (continued)
DISPLAY
TV Aspect
4:3:
Select when a standard 4:3 TV is connected.
16:9: Select when a 16:9 wide TV is connected.
Display Mode
Display Mode setting works only when the TV Aspect mode is set to
“4:3”.
LetterBox: Displays a wide picture with bands on the upper and lower
portions of the screen.
Panscan:
Automatically displays the wide picture on the entire screen and
cuts off the portions that do not fit.
Progressive Scan
Progressive Scan Video provides the highest quality pictures with less
flickering. If you are using the Component Video jacks for connection to
a TV or monitor that is compatible with a progressive scan signal, set
Progressive Scan to On. Press ENTER to confirm your selection.
The confirm menu will appear.
Caution
If your TV does not accept the Progressive Scan format, the picture will
appear scrambled if you try Progressive Scan on the DVD Player.
If you set Progressive Scan to On in error, you must reset the unit.
1) Press B. Select “Off” using the v/Vbuttons.
The Setup menu appears.
2) Press STOP and hold it for five seconds before releasing it. The video
output will be restored to the standard setting and a picture will once
again be visible on a conventional analog TV or monitor.
DVD
DVD
TV Aspect 4:3
Letterbox
Off
YPbPr
Display Mode
Progressive Scan
TV Output Select
DISPLAY
Move Select Exit

20
AUDIO
Each DVD disc has a variety of audio output options. Set the player’s
AUDIO options according to the type of audio system you use.
Dolby Digital / DTS / MPEG
Bitstream: Select “Bitstream” if you connect the DVD Player’s
DIGITAL OUT jack to an amplifier or other equipment with a Dolby
Digital, DTS or MPEG decoder.
PCM (for Dolby Digital / MPEG): Select when connected to a
two-channel digital stereo amplifier. DVDs encoded in Dolby Digital
or MPEG will be automatically downmixed to two-channel PCM
audio.
Off (for DTS): If you select “Off”, the DTS signal is not output
through the DIGITAL OUT jack.
Sample Freq. (Frequency)
If your receiver or amplifier is NOT capable of handling 96 KHz signals,
select 48 KHz. When this choice is made, this unit automatically
converts any 96 KHz signals to 48 KHz so your system can decode them.
If your receiver or amplifier is capable of handling 96 KHz signals, select
96 KHz. When this choice is made, this unit passes each type of signal
through without any further processing.
Check the documentation for your amplifier to verify its capabilities.
DRC (Dynamic Range Control)
With the DVD format, you can hear a program’s soundtrack in the most
accurate and realistic presentation possible, thanks to digital audio
technology. However, you may wish to compress the dynamic range of
the audio output (the difference between the loudest sounds and the
quietest ones). This allows you to listen to a movie at a lower volume
without losing clarity of sound. Set DRC to On for this effect.
DVD
DVD
DVD
Initial Settings (continued)
Dolby Digital Bitstream
Bitstream
PCM
Off
48KHz
DTS
MPEG
DRC
Sample Freq.
AUDIO
Move Select Exit
