LG M5201Cs User manual

Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the product and give the information to your dealer when you ask
for service.
M5201C
User’s Guide

1
Using the Remote Control

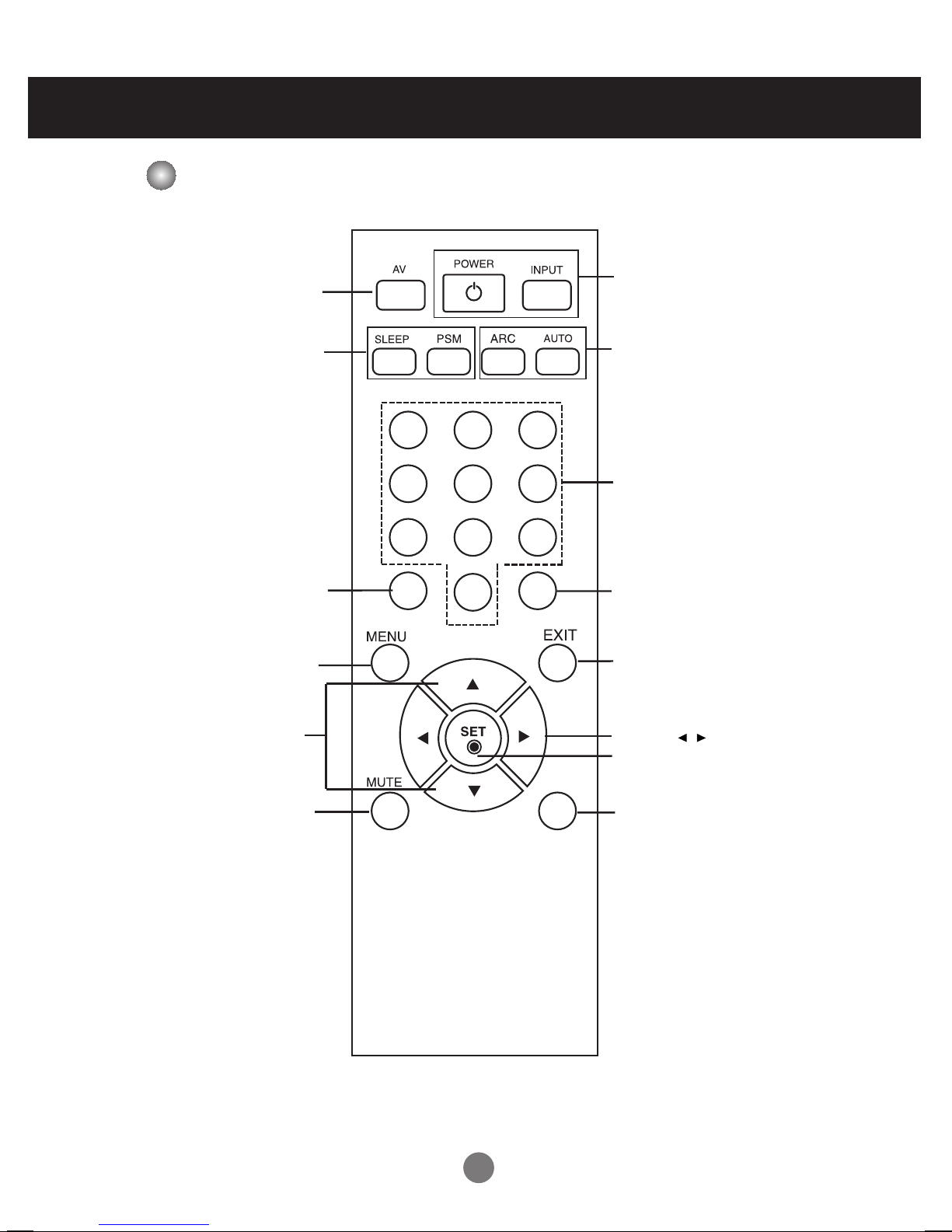

Name of the Remote Control Buttons
1 2 3
4 5 6
7 8
0
9
*
• AV Button
• Sleep Button
When watching AV/S-Video/RGB/HDMI
/ Component1/ Component2
The product will be automatically turned
off after a certain period of time.
Press this button repetitively to
select an appropriate time duration
• PSM Button
- Automatically adjusts the image.
Press this button repetitively to set
the intended screen.
• Menu Button
• Check Button
• Volume Button
• Mute button
There is not a function
which is supported
• UP and Down buttons
Bring up and down direction
adjustment.
• ARC button
To select the image size of the
screen.
• Auto Button
Automatic adjustment function
(Operational for the analog signal only)
• Exit Button
There is not a function
which is supported
There is not a function
which is supported
There is not a function
which is supported
• Power On/Off Button
• Input Select Button
(See next page)

2
Input
Using the Remote Control
AV Component1
Component2 RGB
HDMI/DVI

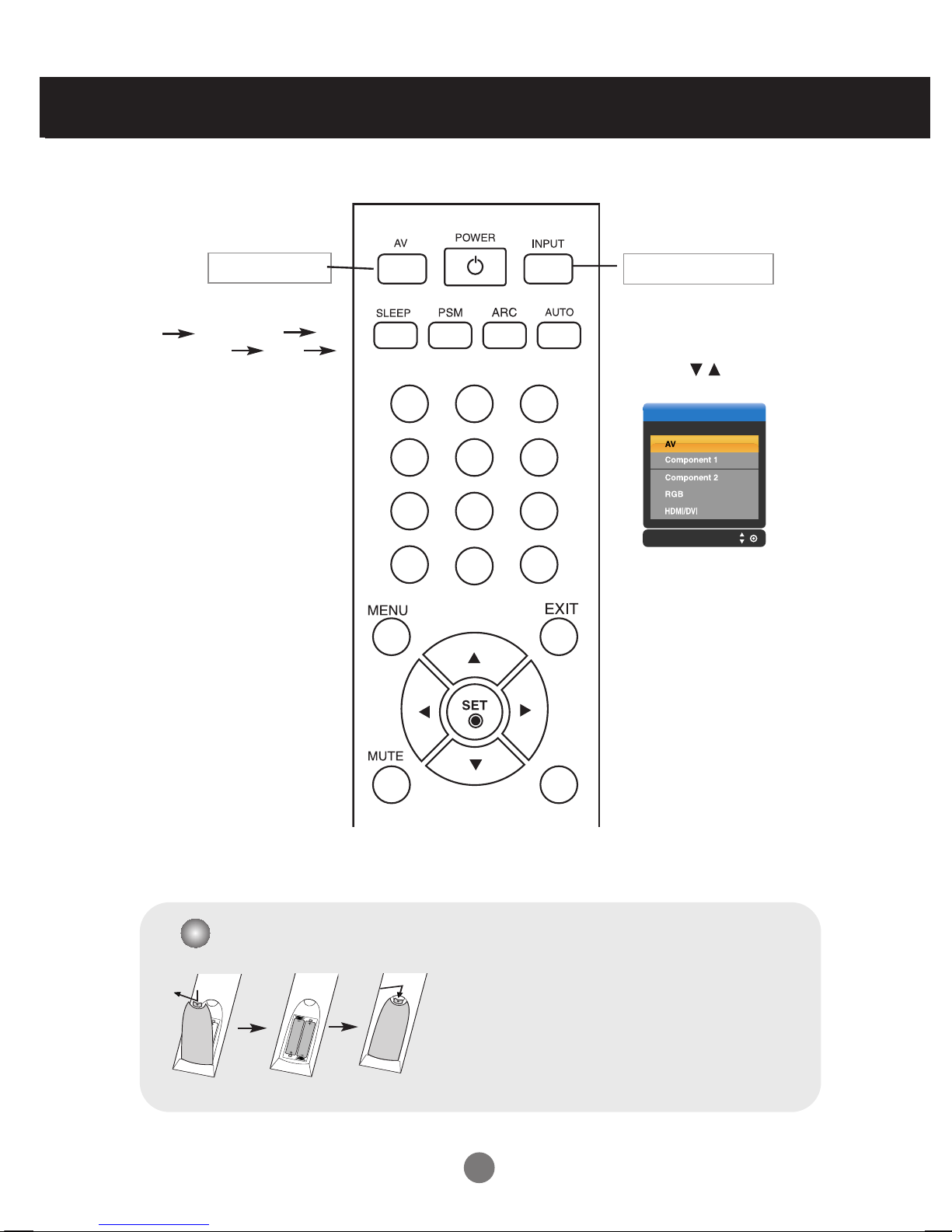

• AV Button
Each time you press the Input
button it will change to
1 2 3
4 5 6
7 8
0
9
*
If you press the button once,
the following Input Signal
Window will appear. Select
the signal type you want
using the button.
• Input Select Button
1. Take out the battery cap.
2. Insert the batteries with correct polarity (+/-).
3. Close the battery cap.
• Dispose of used batteries in the recycle bin to prevent
environmental pollution.
Inserting batteries into remote control.

3

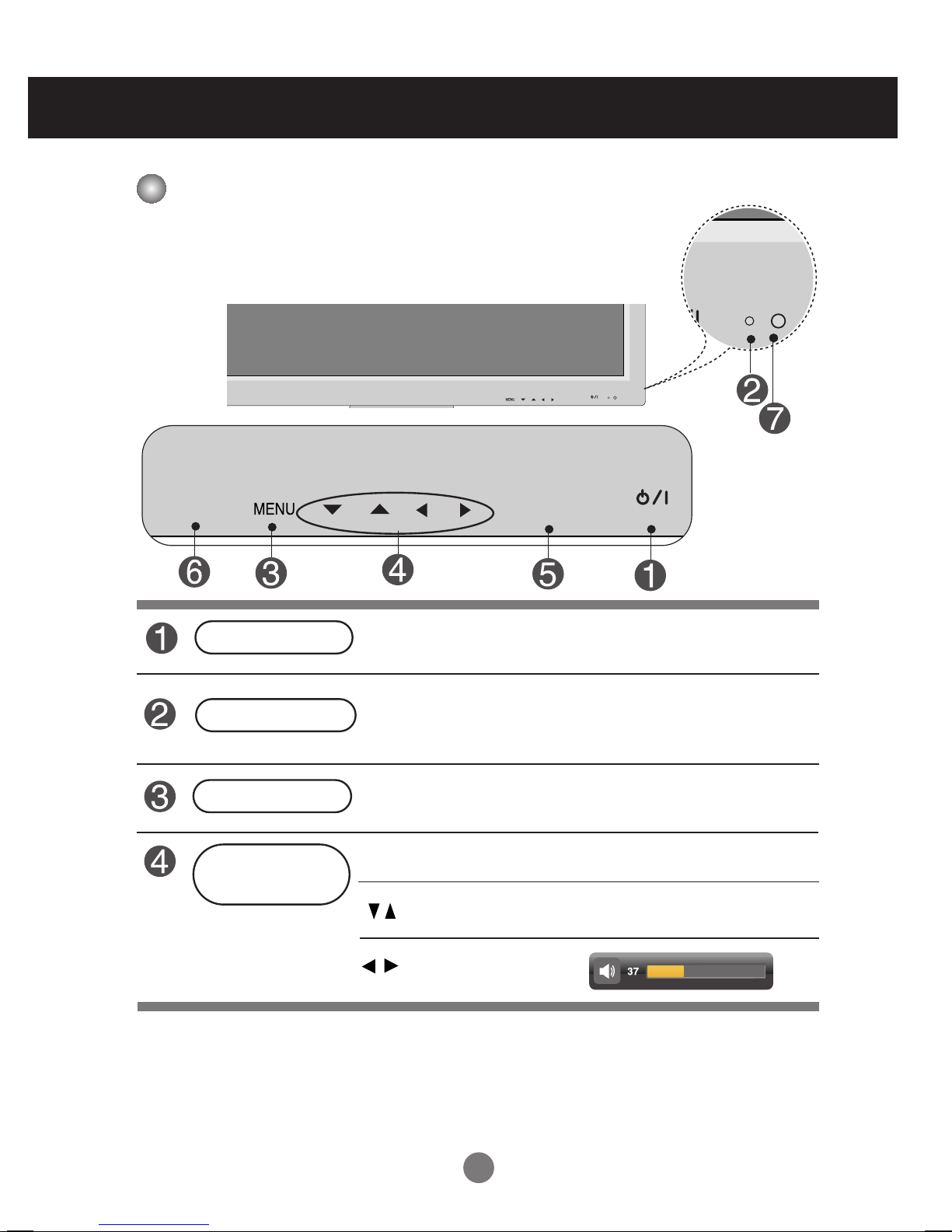

Name and Function of the Parts
Rear View
Power Connector : Connect the power cord
Wired Remote Control Port
RS-232C Serial Ports
RGB, HDMI/DVI Ports
PC Sound Jack
: Connect the audio cable to the *LINE OUT jack of the PC sound card.
AV Ports
Speaker Ports
OUT
IN
VIDEO
L-AUDIO-R
VIDEO
YP B P R
RGB IN
RGB OUT
HDMI/DVIIN
L-AUDIO-R
COMPONENT IN
AV
OUT
AV IN SPEAKER
(8)
(R) (L)
REMOTE
CONTROL IN
RS-232C
(CONTROL&
SERVICE)
1
2
AUDIO
(RGB/DVI)
S-VIDEO
++
--
*LINE OUT
A terminal used to connect to the speaker including a built-in amplifier (Amp). Make sure that
the connecting terminal of the PC sound card is checked before connecting. If the Audio Out of
PC sound card has only Speaker Out, reduce the PC volume.
If the Audio Out of the PC sound card supports both Speaker Out and Line Out, convert to Line Out using
the card jumper of the program (Refer to the Sound Card Manual).
OUT
IN
VIDEO
L-AUDIO-R
VIDEO
YP B P R
RGB IN
RGB OUT
HDMI/DVI IN
L-AUDIO-R
COMPONENT IN
AV
OUT
AV IN SPEAKER
(8)
(R) (L)
REMOTE
CONTROL IN
RS-232C
(CONTROL&
SERVICE)
1
2
AUDIO
(RGB/DVI)
S-VIDEO ++
--
* The product image in the user’s guide could be different from the actual image.

4
RGB IN
HDMI/DVI IN
First of all, see if the computer, product and the peripherals are turned off.
Then, connect the signal input cable.
When connecting with the D-Sub signal input cable.
When connecting with the HDMI to DVI signal input cable (not included).
MAC
Macintosh Adapter (not included)
Use the standard Macintosh adapter since an incompatible
adapter is available in the market. (Different signaling system)
OUT
IN
VIDEO
L-AUDIO-R
VIDEO
YP B P R
RGB IN
RGB OUT
HDMI/DVI IN
L-AUDIO-R
COMPONENT IN
AV
OUT
AV IN SPEAKER
(8)
(R) (L)
REMOTE
CONTROL IN
RS-232C
(CONTROL&
SERVICE)
1
2
AUDIO
(RGB/DVI)
S-VIDEO
++
--
Rear side of the product.
Connecting to External Devices
Connect the power cord.
B
A
B
A
PC
When Connecting to your PC
PC/ MAC
PC
Rear side of the product.
Rear side of the product.
AUDIO
(RGB/DVI)
PC
Rear side of the product.
Connect the Audio cable.
(not included)

5

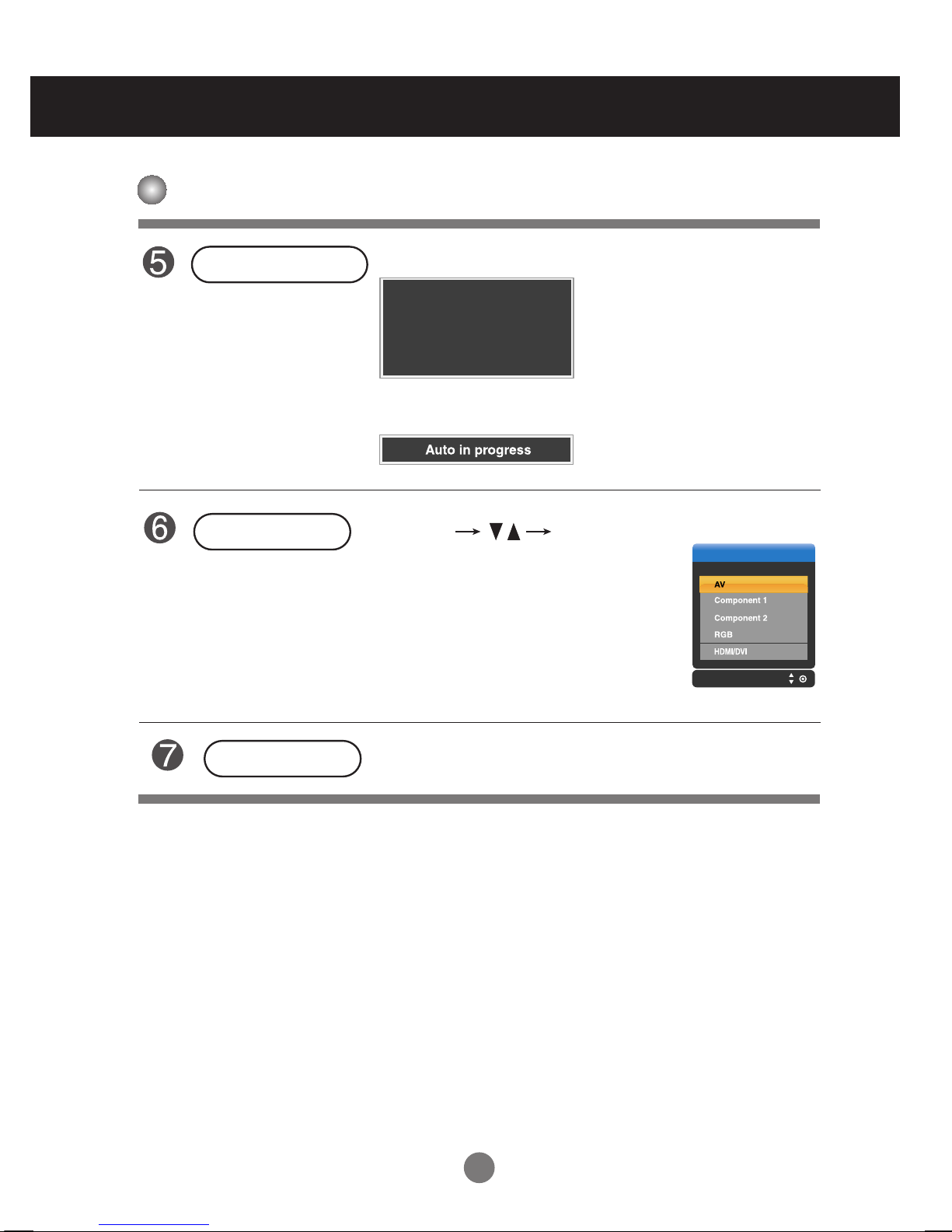

Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the bottom of the product.
INPUT SET
• How to connect to two computers.
Connect the signal cables (HDMI to DVI and D-Sub) to each computer.
Press the INPUT button on the remote control to select the computer to use.
• Directly connect to a grounded power outlet on the wall or a power bar with a ground
wire.
Note

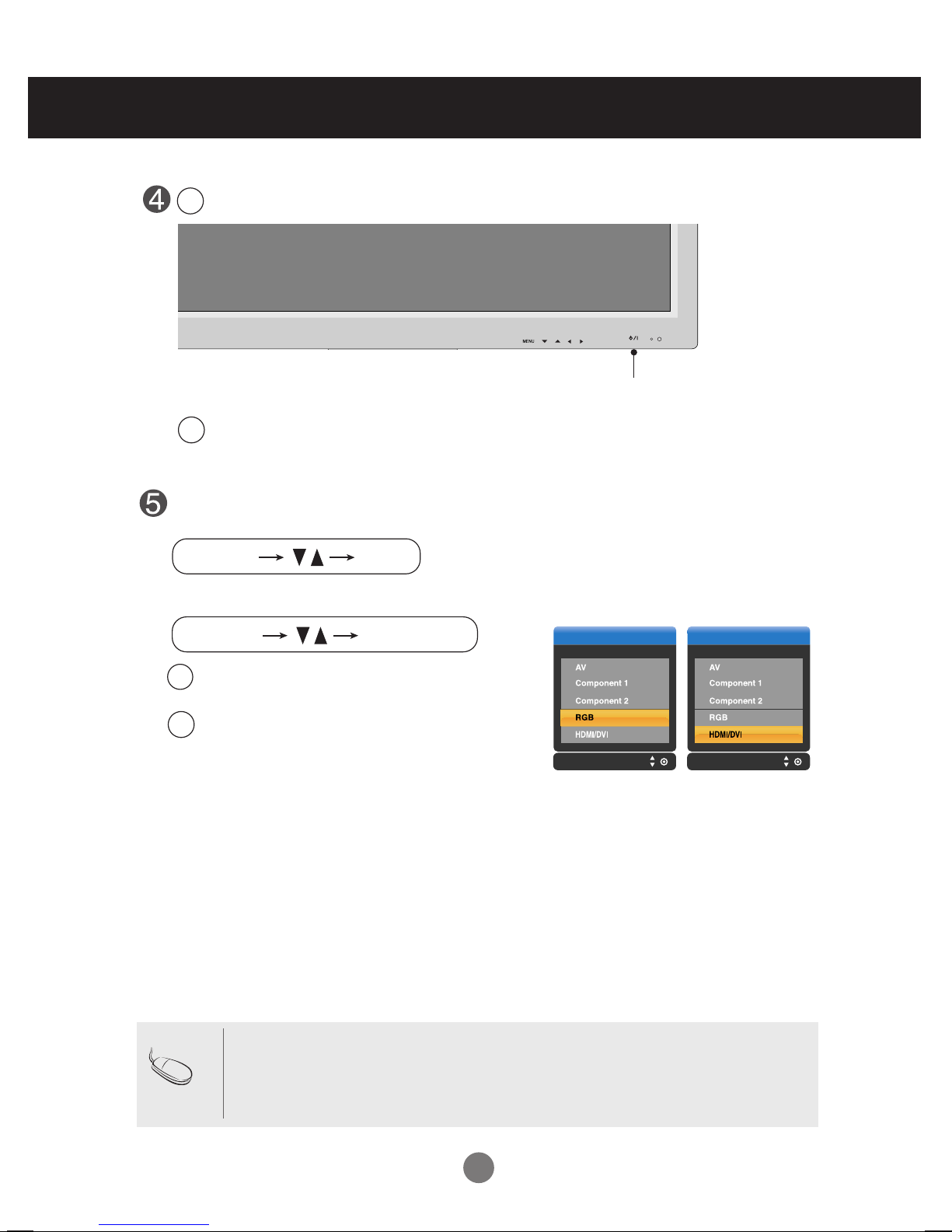

Turn on power by pressing the power button on the product.
Turn on the PC.
ON/OFF
AUTO/SET
SOURCE
Power button
Input Input
SOURCE AUTO/SET
When connecting with a D-Sub signal input cable.
•Select RGB : 15-pin D-Sub analog signal.
When connecting with a HDMI to DVI signal input cable.
•Select HDMI/DVI : HDMI to DVI Digital signal.
B
A
Connecting to External Devices
2
1

6
Use this function when displaying ANALOG RGB inputs of a PC to the other product.
RGB IN
RGB OUT
RGB IN
RGB OUT
RGB IN
RGB OUT
RGB IN
RGB OUT
Product 1
• To use different products connected to each other
Connect one end of the signal input cable(15-pin D-Sub Signal Cable) to the RGB OUT
connector of product 1 and connect the other end to the RGB IN connector of other
products.
Watching RGB Outputs
PC
Product 2 Product 3 Product 4
15-pin D-Sub Signal Cable
Connecting to External Devices
•When multi-connecting in/out cascade format, no loss cables are recommended.
We recommend that you should use cable distributor.
Note
PC

7
Connecting to External Devices
When connecting with an BNC cable.
•
Select AV.
When connecting with an S-Video cable.
• Select AV.
B
A
L-AUDIO-R
VIDEO
AV
OUT
AV IN
S-VIDEO
When connecting with a S-Video cable.
• Connect to the S-Video input terminal to
watch high image quality movies.

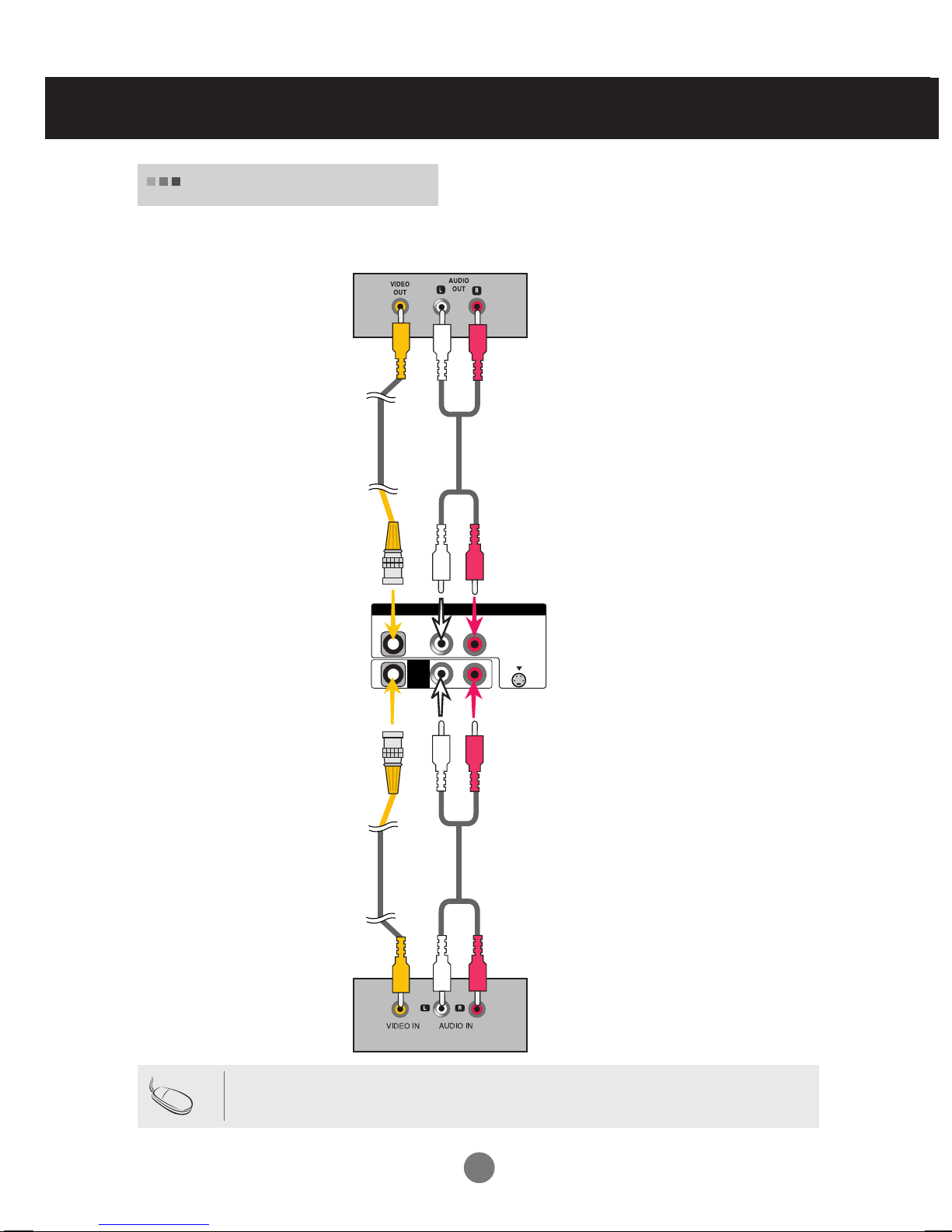

Connect the video cable as shown in the below figure and then connect the power
cord (See page 4).
B
When connecting with a BNC cable.
• Connect the input terminal with a
proper color match.
A
BNC Cable
(not included)
Product
VCR/DVD Receiver
Input
When watching VCR / DVD
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the bottom of the product.
INPUT SET
SOURCE AUTO/SET
•When the BNC cable is connected simultaneously with S-Video cable, S-Video input has a priority.
Note
Audio Cable
(not included)
L-AUDIO-R
VIDEO
AV
OUT
AV IN
S-VIDEO
S-Video Cable
(not included)
Audio Cable
(not included)
Product
VCR/DVD Receiver

8

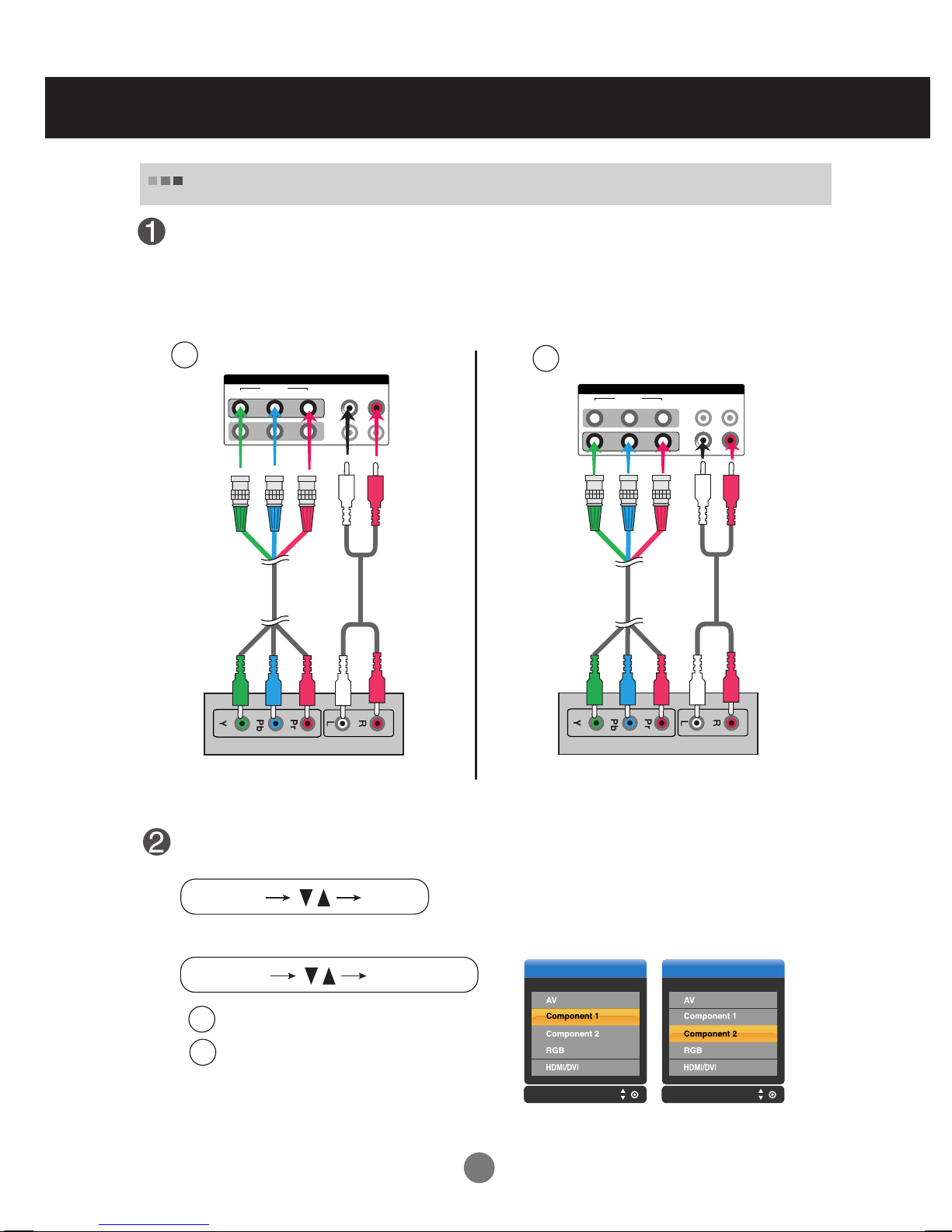

• Select Component 1
• Select Component 2
B
A
VIDEO
YP
B P RL-AUDIO-R
COMPONENT IN
1
2
Connect the video/audio cable as shown in the below figure and then, connect the
power cord (See page 4).
•
Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
HDTV Receiver
Input Input
When watching HDTV/DVD(480p/576p/720p/1080p/1080i/480i/576i)
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the bottom of the product.
INPUT SET
SOURCE AUTO/SET
Audio Cable
(not included)
VIDEO
YP
B P RL-AUDIO-R
COMPONENT IN
1
2
Product
HDTV Receiver
B
A
BNC Cable
(not included)
Audio Cable
(not included)
Connecting to External Devices

9
RGB IN
RGB OUT
HDMI/DVI IN AUDIO
(RGB/DVI)
RGB IN
RGB OUT
HDMI/DVI IN AUDIO
(RGB/DVI)

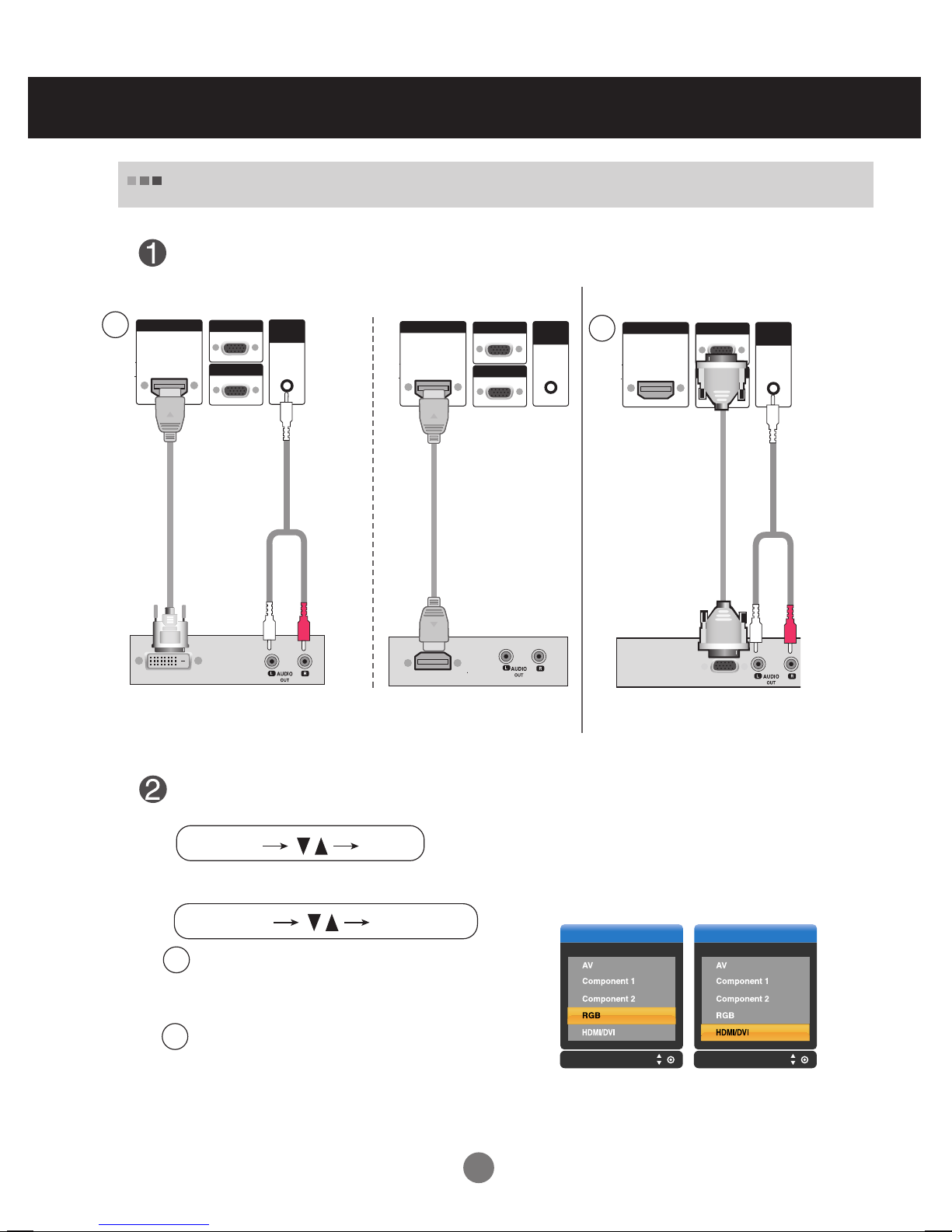

Connect the video/audio cable as shown in the below figure and then connect the
power cord (See page 4).
RCA-PC
Audio Cable
Product
VCR/DVD/Set-top Box
HDMI to DVI
Signal Cable
(not included)
Input Input
When watching HDMI/DVI/RGB from the VCR/DVD/Set-top Box (480p/576p/720p/1080p/1080i)
VCR/DVD/Set-top Box
Product
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE button on the bottom of the product.
INPUT SET
SOURCE AUTO/SET
HDMI Signal Cable
(not included)
Connecting to External Devices
RGB IN
RGB OUT
HDMI/DVI IN AUDIO
(RGB/DVI)
VCR/DVD/Set-top Box
Product
D-Sub Signal
Cable
RCA-PC
Audio Cable
When connecting with a HDMI to DVI signal input cable.
When connecting with a HDMI signal input cable.
•Select HDMI/DVI
When connecting with a D-Sub signal input cable.
•Select RGB
B
A
A
