LG LUU180HV User manual

HYBRID HEAT PUMP
(LG OUTDOOR UNIT +
A-COIL + GAS FURNACE)
SALES GUIDE
LUU180HV (18,000 Btu/h)
LUU240HV (24,000 Btu/h)
A-Coil
(Nortek)
LG Heat Pump
Outdoor Unit
Gas Furnace
(Nortek)
Third-Party
Thermostat
LUU360HV (30,000 and 36,000 Btu/h)
LUU420HV (42,000 Btu/h)
LUU480HV (48,000 Btu/h)
LG Heat Pump
Outdoor Unit
A-Coil
(Nortek)
Gas Furnace
(Nortek)
Third-Party
Thermostat

For continual product development, LG Electronics U.S.A., Inc., reserves the right to change specifications without notice.
© LG Electronics U.S.A., Inc.
PROPRIETARY DATA NOTICE
This document, as well as all reports, illustrations, data, information,
and other materials are the property of LG Electronics U.S.A., Inc., and are
disclosed by LG Electronics U.S.A., Inc. only in confidence.
This document is for design purposes only.
A summary list of safety precautions is on page 3.
For more technical materials, visit www.lghvac.com.
Proper sizing and installation of equipment is critical to achieve optimal performance. Split system air conditioners and heat pumps
(excluding ductless systems) must be matched with appropriate coil components to meet ENERGY STAR®criteria. Ask your contractor for
details or visit www.energystar.gov.
(ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency.)

3
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
TABLE OF CONTENTS
TABLE OF SYMBOLS
This symbol indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
This symbol indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
This symbol indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
This symbol indicates situations that may result in equipment or property damage accidents only.
This symbol indicates information related to the current procedure.
This symbol indicates an action that should not be performed.
DANGER
NOTE
LG Heat Pump Nomenclature���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 4
Pairing Table ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 5
LG Heat Pump Mechanical Specications������������������������������������������������������������������������������������������������������������������������������������������������������������������� 6
General Data �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7-10
Electrical Data��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 11
LG Heat Pump Outdoor Unit Dimensions ������������������������������������������������������������������������������������������������������������������������������������������������������������� 12-13
LUU180HV, LUU240HV.............................................................................................................................................................................................. 12
LUU360HV, LUU420HV, LUU480HV.......................................................................................................................................................................... 13
Nortek A-Coil Dimensions ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 14
Nortek Gas Furnace Dimensions�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 15
LG Heat Pump Wiring Diagrams ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 16-17
LUU180HV, LUU240HV.............................................................................................................................................................................................. 16
LUU360HV, LUU420HV, LUU480HV.......................................................................................................................................................................... 17
LG Heat Pump to Furnace / A-Coil Wiring Diagram �������������������������������������������������������������������������������������������������������������������������������������������������� 18
LG Heat Pump Performance Data������������������������������������������������������������������������������������������������������������������������������������������������������������������������������ 19-
Cooling Capacity Tables ........................................................................................................................................................................................ 19-24
Heating Capacity Tables........................................................................................................................................................................................ 25-27
Correction Factors...................................................................................................................................................................................................... 28
Comm� Line Connections and DIP Switch Settings�������������������������������������������������������������������������������������������������������������������������������������������������� 29
Sequence of Operations ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 30
LG Heat Pump Placement Considerations������������������������������������������������������������������������������������������������������������������������������������������������������������ 31-36

4
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Hybrid Heat Pump (LG Outdoor Unit + A-Coil + Gas Furnace) Sales Guide
LG HEAT PUMP NOMENCLATURE
U180 H
System Type:
Style:
V = Standard Inverter
Nominal Capacity
(Nominal cooling capacity in Btu/h):
Frame Type:
U: ODU – Cassette / Duct / VAHU / Third-Party A-Coil
L = LG
180 = 18,000
240 = 24,000
360 = 30,000 / 36,000
420 = 42,000
480 = 48,000
L VU
U: Outdoor Unit
H = Heat Pump
Heat Pump Outdoor Units
For Nortek A-Coil and gas furnace specications, see Nortek technical materials at www.nortekhvac.com.

5
Introduction
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
PAIRING TABLE
Table 1: LG Hybrid Heat Pumps (Outdoor Unit) and Nortek A-Coil / Gas Furnace Combination Data.
LG Heat Pump Outdoor Unit Model A-Coil (Nortek) Model Gas Furnace (Nortek) Model
LUU180HV C74BHM-X24C-B FG7TC-060D-V24B
LUU240HV
LUU360HV C74BHM-X36C-B,
C74BHMX36C-C
FG7TC-060D-V24B,
FG7TC-080D-V35C,
FG7TC-100D-V35C
LUU420HV C74BHM-X48C-C FG7TC-080D-V35C,
FG7TC-100D-V35C
LUU480HV C74BHM-X48C-C FG7TC-080D-V35C,
FG7TC-100D-V35C

6
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Hybrid Heat Pump (LG Outdoor Unit + A-Coil + Gas Furnace) Sales Guide
LG HEAT PUMP MECHANICAL SPECIFICATIONS
LG Heat Pump Outdoor Unit
The Single zone HVAC system is a variable capacity, direct
expansion (DX) heat pump system consisting of a single outdoor
unit and single indoor unit. The outdoor unit is equipped with a
single inverter compressor with provision to be connected to a
third-party A-Coil / gas furnace with piping and control wiring via a
communication kit (provided by LG; embedded in the outdoor unit) /
third-party thermostat. The outdoor unit includes an adapater kit for
either flare or braze piping connections.
The heat pump outdoor unit will be available in 208/230V, 60Hz,
1 phase and uses R410A refrigerant. All refrigerant piping from
outdoor unit to A-Coil are field installed / insulated.
Casing
The outdoor unit cabinet is made of pre-coated metal (PCM) with
removable front/side panels of the outdoor unit for access to internal
components. The outdoor unit cabinet is tested in accordance with
ASTM B-117 salt spray test procedure for a minimum of 1,000 hours.
All access panels are provided with gasket seals to minimize air
leakage. The unit case is designed to accept an internal, optional,
LG drain pan heater. The unit bears the CSA label. Unit breaker,
fuses, and / or disconnect are provided by others.
Microprocessor Control
Factory installed microprocessor controls in the outdoor unit perform
functions via communication kit to efficiently operate the single zone
system and communicate to a third party A-Coil via minimum 14
AWG, 3 conductor, stranded, shielded or unshielded communication
cable. If shielded, it must be grounded to chassis at ODU only.
The third-party gas furnace requires a separate power supply
of 115V, 60Hz, 1 phase. Follow instructions provided by the gas
furnace manufacturer.
Compressors
The 18,000 and 24,000 outdoor units are equipped with one
hermetically sealed, digitally controlled, inverter-driven twin rotary
compressor to modulate capacity (modulation in 1 Hz increments).
The 36,000, 42,000, and 48,000 Btu/h outdoor units are equipped
with one hermetically sealed, digitally controlled, inverter-driven
scroll compressor to modulate capacity (modulation in 1 Hz
increments).
Teflon coated bearings, overcurrent protection, and vibration
isolation are integrated with the compressor.
Frequency ranges for the 18,000 and 24,000 Btu/h outdoor units are:
Cooling: 15 to 80 Hz
Heating: 15 to 100 Hz
Frequency ranges for the 36,000, 42,000, and 48,000 Btu/h outdoor
units are:
Cooling: 10 to 120 Hz
Heating: 10 to 135 Hz
Controls
An LG wired controller cannot be used with the outdoor unit and
third-party A-Coil / gas furnace. A third-party thermostat that
supports dual-fuel function is required. The outdoor unit include an
embedded communication kit with a terminal block to connect to
the third-party wired thermostat and the third-party gas furnace. An
outdoor air sensor (field supplied) is required to sense the outdoor
air temperature for dual fuel system.
Condensate
The outdoor unit is designed for gravity draining of condensate.
Outdoor Unit Heat Pump Coil
Outdoor unit heat pump coils are made of nonferrous louvered
aluminum fins protected with an integral coil guard. The coil for each
outdoor unit has a minimum of 14 fins per inch (FPI); heat exchanger
has two rows. The coil fins have a factory applied corrosion resistant
GoldFin™ material with hydrophilic coating tested in accordance
with ASTM B-117 salt spray test procedure for a minimum of 1,000
hours. Coils are factory tested to a pressure of 551 psig.

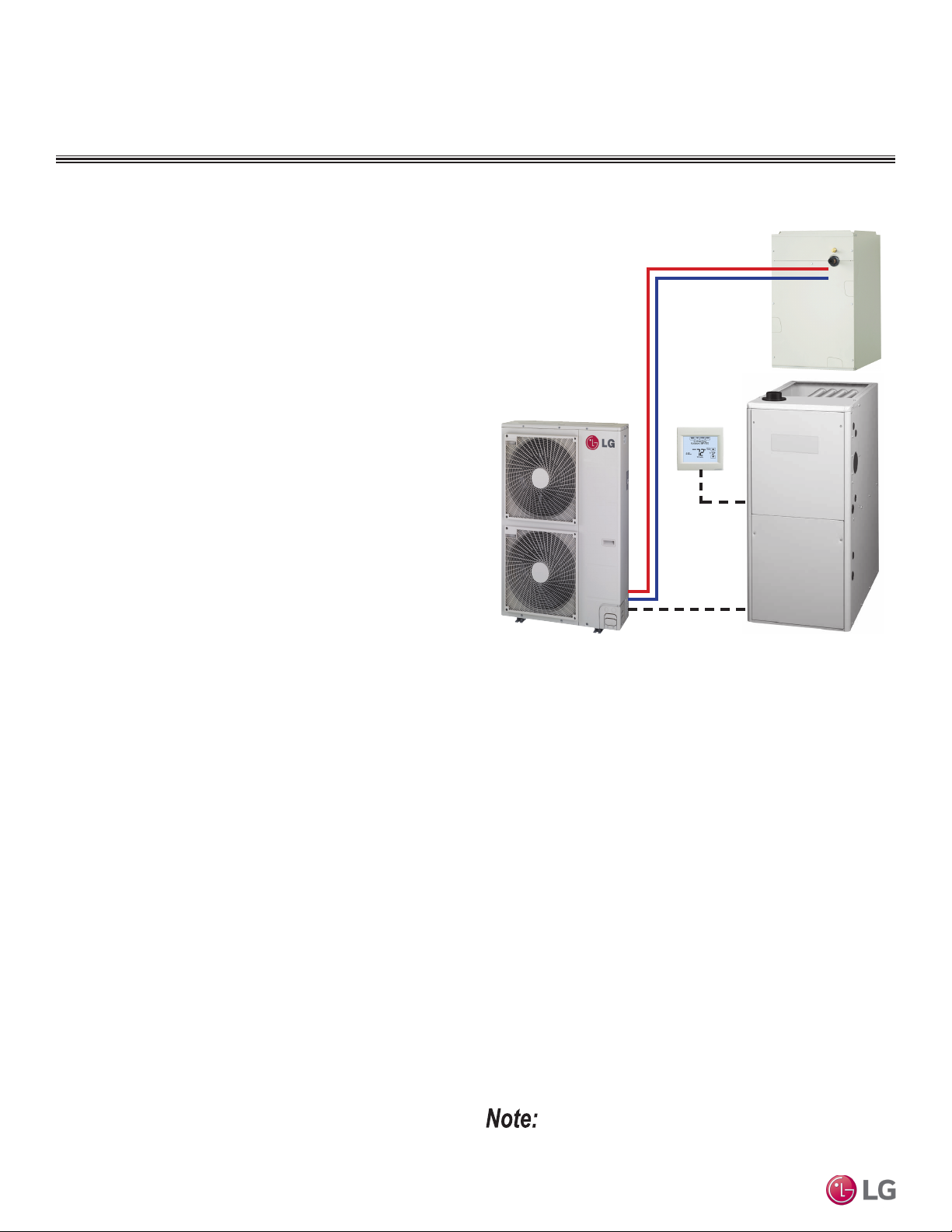

Figure 1: LG Hybrid Outdoor Unit Heat Pumps LUU360HV, LUU420HV,
LUU480HV with Nortek A-Coil / Gas Furnace.
For Nortek A-Coil and gas furnace specications, see Nortek
technical materials at www.nortekhvac.com.
LG Outdoor Unit
A-Coil
(Nortek)
Gas Furnace
(Nortek)
Third-Party
Thermostat

PRODUCT DATA |7
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
LG Outdoor Unit Model Number LUU180HV LUU240HV
A-Coil (Nortek) Model Number C74BHM-X24C-B C74BHM-X24C-B
Gas Furnace1(Nortek) Model Number FG7TC-060D-V24B1FG7TC-060D-V24B1
Cooling2Min. ~ Rated ~ Max. Btu/h 7,200 18,000 22,000 9,600 23,000 29,000
Cooling Power Input2Min. ~ Rated ~ Max. kW 0.45 1.44 2.60 0.59 1.96 3.30
EER2 (@95°F) 12.50 11.70
SEER2 17.5 17.1
Heating2Min. ~ Rated ~ Max. Btu/h 8,000 20,000 24,000 10,000 26,000 30,000
Heating Power Input2Min. ~ Rated ~ Max. kW 0.53 1.915 2.47 0.65 2.385 3.20
COP (@47°F) 3.06 3.20
HSPF2 9.1 9.0
Maximum Heating
(@ ID 70ºF DB)
OD 19ºF / 17ºF DB / WB Btu/h 19,500 23,500
OD 6ºF / 5ºF DB / WB Btu/h 17,100 21,400
OD -3ºF / -4ºF DB / WB Btu/h 14,260 18,920
Maximum Heating
Power Input
(@ ID 70ºF DB)
OD 19ºF / 17ºF DB / WB W 2,620 3,120
OD 6ºF / 5ºF DB / WB W 2,720 3,290
OD -3ºF / -4ºF DB / WB W 2,500 3,030
ENERGY STAR / Cold Climate ENERGY STAR Yes / Yes Yes / Yes
AHRI Reference Number 213307887 213307504
LG Outdoor Unit Heat Pump Data
Air Flow Rate Max. Air Flow (CFM) 2,048 2,048
Max. External Static Pressure (in. w.g.) 0.1 0.1
Fan Motor Speed Cooling, Min. - Max. (rpm) 150~760 150~760
Heating, Min. - Max. (rpm) 150~760 150~760
Sound Pressure Level Cooling, Rated (dB[A]) 48 48
Heating, Rated (dB[A]) 52 52
Sound Power Level Maximum (dB[A]) 67 67
Dimensions (W x H x D) Net (inches) 37-13/32 x 32-27/32 x 13 37-13/32 x 32-27/32 x 13
Shipping (inches) 44-7/8 x 36-5/32 x 18-5/32 44-7/8 x 36-5/32 x 18-5/32
Weight (lbs.) Net (lbs.) / Shipping (lbs.) 130.1 / 147.7 130.1 / 147.7
Piping
Installed Liquid Pipe Size (inches) 3/8 3/8
Installed Vapor Pipe Size (inches) 5/8~3/4 5/8~3/4
Outdoor Unit Liquid Connection Size (inches) 3/8 3/8
Outdoor Unit Vapor Connection Size (inches) 5/8 5/8
A-Coil Liquid Connection Size (inches) 3/8 3/8
A-Coil Vapor Connection Size (inches) 3/4 3/4
Connection Method3Flare or Braze3Flare or Braze3
Piping Between
Outdoor Unit and
A-Coil
Max. System Piping Length (feet) 164 164
Piping Length (No Additional Charge) (feet) 24.6 24.6
Min. to Max. Main (feet) 16.4~164 16.4~164
Max. Elev. Diff. (ODU to A-Coil) (feet) 98.4 98.4
Refrigerant
Type R410A R410A
Pre-Charge (oz.) 70.5 70.5
Additional Charge (Main) (oz. / feet) 0.43 0.43
Control4Thermal Expansion Valve4Thermal Expansion Valve4
Compressor Type Twin Rotary Twin Rotary
Oil Type PVE PVE
Fan
Type x Qty. Propeller x 1 Propeller x 1
Motor Type Brushless Digitally Controlled Brushless Digitally Controlled
Motor Output x Qty. (W) 124 x 1 124 x 1
Table 2: 18,000 and 24,000 Btu/h LG Hybrid Heat Pumps (Outdoor Units) and Nortek A-Coil / Gas Furnace Combination Data.
GENERAL DATA
For Nortek A-Coil and gas furnace
specications, see Nortek technical
materials at www.nortekhvac.com.
1Gas Furnace: 95% AFUE.
2Test conditions are based on AHRI 210 / 240.
3Outdoor unit includes adapter kit for either flare or braze piping connections.
4The refrigerant control device is located in the Nortek A-Coil component; see Nortek technical materials for more information.
5Power supply, power wiring / communication cables, and circuit breakers are field-supplied and must comply with applicable local and national codes.

8|PRODUCT DATA
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Hybrid Heat Pump (LG Outdoor Unit + A-Coil + Gas Furnace) Sales Guide
Table 3: 30,000 Btu/h and 36,000 Btu/h LG Hybrid Heat Pumps (Outdoor Units) and Nortek A-Coil / Gas Furnace Combination Data.
GENERAL DATA
LG Outdoor Unit Model Number LUU360HV LUU360HV LUU360HV
A-Coil (Nortek) Model Number C74BHM-X36C-B C74BHM-X36C-C C74BHM-X36C-C
Gas Furnace1(Nortek) Model Number FG7TC-060D-V24B1FG7TC-080D-V35C1FG7TC-100D-V35C1
Cooling2Min. ~ Rated ~ Max. Btu/h 13,200 33,200 36,000 14,400 36,000 40,000 14,400 36,000 40,000
Cooling Power Input2Min. ~ Rated ~ Max. kW 0.87 2.79 3.50 1.00 2.95 3.80 1.00 2.95 3.80
EER2 (@95°F) 11.90 12.20 12.20
SEER2 17.6 18.2 18.2
Heating2Min. ~ Rated ~ Max. Btu/h 14,000 36,000 39,000 16,000 40,000 44,000 16,000 40,000 44,000
Heating Power Input2Min. ~ Rated ~ Max. kW 1.00 3.05 4.10 1.00 3.20 4.30 1.00 3.20 4.30
COP (@47°F) 3.46 3.66 3.66
HSPF2 8.5 9.2 9.2
Maximum Heating
(@ ID 70ºF DB)
OD 19ºF / 17ºF DB / WB Btu/h 33,000 38,000 38,000
OD 6ºF / 5ºF DB / WB Btu/h 30,000 33,800 33,800
OD -3ºF / -4ºF DB / WB Btu/h 26,450 28,830 28,830
Maximum Heating
Power Input
(@ ID 70ºF DB)
OD 19ºF / 17ºF DB / WB W 4,420 5,100 5,100
OD 6ºF / 5ºF DB / WB W 4,750 5,290 5,290
OD -3ºF / -4ºF DB / WB W 4,370 4,870 4,870
ENERGY STAR / Cold Climate ENERGY STAR Yes / Yes Yes / Yes Yes / Yes
AHRI Reference Number 213307505 213307506 213307507
LG Outdoor Unit Heat Pump Data
Air Flow Rate Max. Air Flow (CFM) 1,942 x 2 1,942 x 2 1,942 x 2
Max. ESP (in. w.g.) 0.1 0.1 0.1
Fan Motor Speed Cooling, Min. - Max. (rpm) 150~750 150~750 150~750
Heating, Min. - Max. (rpm) 150~750 150~750 150~750
Sound Pressure Level Cooling, Rated (dB[A]) 52 52 52
Heating, Rated (dB[A]) 54 54 54
Sound Power Level Maximum (dB[A]) 65 65 65
Dimensions (W x H x D) Net (inches) 37-13/32 x 54-11/32 x 13 37-13/32 x 54-11/32 x 13 37-13/32 x 54-11/32 x 13
Shipping (inches) 44-7/8 x 57-9/16 x 18-5/32 44-7/8 x 57-9/16 x 18-5/32 44-7/8 x 57-9/16 x 18-5/32
Weight (lbs.) Net (lbs.) / Shipping (lbs.) 193.1 / 217.4 193.1 / 217.4 193.1 / 217.4
Piping
Installed Liquid Pipe Size (inches) 3/8 3/8 3/8
Installed Vapor Pipe Size (inches) 5/8~7/8 5/8~7/8 5/8~7/8
Outdoor Unit Liquid Conn. Size (inches) 3/8 3/8 3/8
Outdoor Unit Vapor Conn. Size (inches) 5/8 5/8 5/8
A-Coil Liquid Connection Size (inches) 3/8 3/8 3/8
A-Coil Vapor Connection Size (inches) 7/8 7/8 7/8
Connection Method3Flare or Braze3Flare or Braze3Flare or Braze3
Piping Between
Outdoor Unit and
A-Coil
Max. System Piping Length (feet) 246 246 246
Piping Length (No Add’l Charge) (feet) 24.6 24.6 24.6
Min. to Max. Main (feet) 16.4~246 16.4~246 16.4~246
Max. Elev. Diff. (ODU to A-Coil) (feet) 98.4 98.4 98.4
Refrigerant
Type R410A R410A R410A
Pre-Charge (oz.) 120 120 120
Additional Charge (Main) (oz. / feet) 0.43 0.43 0.43
Control4Thermal Expansion Valve4Thermal Expansion Valve4Thermal Expansion Valve4
Compressor Type R1 Scroll R1 Scroll R1 Scroll
Oil Type PVE PVE PVE
Fan
Type x Qty. Propeller x 2 Propeller x 2 Propeller x 2
Motor Type Brushless Digitally Controlled
Motor Output x Qty. (W) 124 x 2 124 x 2 124 x 2
For Nortek A-Coil and gas furnace
specications, see Nortek technical
materials at www.nortekhvac.com.
1Gas Furnace: 95% AFUE.
2Test conditions are based on AHRI 210 / 240.
3Outdoor unit includes adapater kit for either flare or braze piping connections.
4The refrigerant control device is located in the Nortek A-Coil component; see Nortek technical materials for more information.
5Power supply, power wiring / communication cables, and circuit breakers are field-supplied and must comply with applicable local and national codes.

PRODUCT DATA |9
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
GENERAL DATA
Table 4: 42,000 Btu/h LG Hybrid Heat Pumps (Outdoor Units) and Nortek A-Coil / Gas Furnace Combination Data.
LG Outdoor Unit Model Number LUU420HV LUU420HV
A-Coil (Nortek) Model Number C74BHM-X48C-C C74BHM-X48C-C
Gas Furnace1(Nortek) Model Number FG7TC-080D-V35C1FG7TC-100D-V35C1
Cooling2Min. ~ Rated ~ Max. Btu/h 17,000 42,000 47,000 17,000 42,000 47,000
Cooling Power Input2Min. ~ Rated ~ Max. kW 1.28 3.59 5.20 1.28 3.59 5.20
EER2 (@95°F) 11.70 11.70
SEER2 17.2 17.2
Heating2Min. ~ Rated ~ Max. Btu/h 18,000 45,000 51,000 18,000 45,000 51,000
Heating Power Input2Min. ~ Rated ~ Max. kW 1.40 3.60 5.15 1.40 3.60 5.15
COP (@47°F) 3.66 3.66
HSPF2 9.3 9.3
Maximum Heating
(@ ID 70ºF DB)
OD 19ºF / 17ºF DB / WB Btu/h 40,000 40,000
OD 6ºF / 5ºF DB / WB Btu/h 38,000 38,000
OD -3ºF / -4ºF DB / WB Btu/h 35,640 35,640
Maximum Heating
Power Input
(@ ID 70ºF DB)
OD 19ºF / 17ºF DB / WB W 5,410 5,410
OD 6ºF / 5ºF DB / WB W 6,110 6,110
OD -3ºF / -4ºF DB / WB W 5,620 5,620
ENERGY STAR / Cold Climate ENERGY STAR Yes / Yes Yes / Yes
AHRI Reference Number 213307888 213307889
LG Outdoor Unit Heat Pump Data
Air Flow Rate Max. Air Flow (CFM) 1,942 x 2 1,942 x 2
Max. External Static Pressure (in. w.g.) 0.1 0.1
Fan Motor Speed Cooling, Min. - Max. (rpm) 150~750 150~750
Heating, Min. - Max. (rpm) 150~750 150~750
Sound Pressure Level Cooling, Rated (dB[A]) 52 52
Heating, Rated (dB[A]) 54 54
Sound Power Level Maximum (dB[A]) 67 67
Dimensions (W x H x D) Net (inches) 37-13/32 x 54-11/32 x 13 37-13/32 x 54-11/32 x 13
Shipping (inches) 44-7/8 x 57-9/16 x 18-5/32 44-7/8 x 57-9/16 x 18-5/32
Weight (lbs.) Net (lbs.) / Shipping (lbs.) 193.1 / 217.4 193.1 / 217.4
Piping
Installed Liquid Pipe Size (inches) 3/8 3/8
Installed Vapor Pipe Size (inches) 5/8~7/8 5/8~7/8
Outdoor Unit Liquid Connection Size (inches) 3/8 3/8
Outdoor Unit Vapor Connection Size (inches) 5/8 5/8
A-Coil Liquid Connection Size (inches) 3/8 3/8
A-Coil Vapor Connection Size (inches) 7/8 7/8
Connection Method3Flare or Braze3Flare or Braze3
Piping Between
Outdoor Unit and
A-Coil
Max. System Piping Length (feet) 246 246
Piping Length (No Additional Charge) (feet) 24.6 24.6
Min. to Max. Main (feet) 16.4~246 16.4~246
Max. Elev. Diff. (ODU to A-Coil) (feet) 98.4 98.4
Refrigerant
Type R410A R410A
Pre-Charge (oz.) 120 120
Additional Charge (Main) (oz. / feet) 0.43 0.43
Control4Thermal Expansion Valve4Thermal Expansion Valve4
Compressor Type R1 Scroll R1 Scroll
Oil Type PVE PVE
Fan
Type x Qty. Propeller x 2 Propeller x 2
Motor Type Brushless Digitally Controlled Brushless Digitally Controlled
Motor Output x Qty. (W) 124 x 2 124 x 2
For Nortek A-Coil and gas furnace
specications, see Nortek technical
materials at www.nortekhvac.com.
1Gas Furnace: 95% AFUE.
2Test conditions are based on AHRI 210 / 240.
3Outdoor unit includes adapater kit for either flare or braze piping connections.
4The refrigerant control device is located in the Nortek A-Coil component; see Nortek technical materials for more information.
5Power supply, power wiring / communication cables, and circuit breakers are field-supplied and must comply with applicable local and national codes.

10 |PRODUCT DATA
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Hybrid Heat Pump (LG Outdoor Unit + A-Coil + Gas Furnace) Sales Guide
Table 5: 48,000 Btu/h LG Hybrid Heat Pumps (Outdoor Units) and Nortek A-Coil / Gas Furnace Combination Data.
LG Outdoor Unit Model Number LUU480HV LUU480HV
A-Coil (Nortek) Model Number C74BHM-X48C-C C74BHM-X48C-C
Gas Furnace1(Nortek) Model Number FG7TC-080D-V35C1FG7TC-100D-V35C1
Cooling2Min. ~ Rated ~ Max. Btu/h 18,000 48,000 52,000 18,000 48,000 52,000
Cooling Power Input2Min. ~ Rated ~ Max. kW 1.51 4.90 6.00 1.51 4.90 6.00
EER2 (@95°F) 9.80 9.80
SEER2 16.8 16.8
Heating2Min. ~ Rated ~ Max. Btu/h 19,000 50,000 56,000 19,000 50,000 56,000
Heating Power Input2Min. ~ Rated ~ Max. kW 1.48 4.14 5.75 1.48 4.14 5.75
COP (@47°F) 3.54 3.54
HSPF2 9.0 9.0
Maximum Heating
(@ ID 70ºF DB)
OD 19ºF / 17ºF DB / WB Btu/h 42,000 42,000
OD 6ºF / 5ºF DB / WB Btu/h 40,000 40,000
OD -3ºF / -4ºF DB / WB Btu/h 37,640 37,640
Maximum Heating
Power Input
(@ ID 70ºF DB)
OD 19ºF / 17ºF DB / WB W 5,750 5,750
OD 6ºF / 5ºF DB / WB W 6,160 6,160
OD -3ºF / -4ºF DB / WB W 5,670 5,670
ENERGY STAR / Cold Climate ENERGY STAR No / Yes No / Yes
AHRI Reference Number 213307508 213307509
LG Outdoor Unit Heat Pump Data
Air Flow Rate Max. Air Flow (CFM) 1,942 x 2 1,942 x 2
Max. ESP (in. w.g.) 0.1 0.1
Fan Motor Speed Cooling, Min. - Max. (rpm) 150~750 150~750
Heating, Min. - Max. (rpm) 150~750 150~750
Sound Pressure Level Cooling, Rated (dB[A]) 52 52
Heating, Rated (dB[A]) 54 54
Sound Power Level Maximum (dB[A]) 68 68
Dimensions (W x H x D) Net (inches) 37-13/32 x 54-11/32 x 13 37-13/32 x 54-11/32 x 13
Shipping (inches) 44-7/8 x 57-9/16 x 18-5/32 44-7/8 x 57-9/16 x 18-5/32
Weight (lbs.) Net (lbs.) / Shipping (lbs.) 193.1 / 217.4 193.1 / 217.4
Piping
Installed Liquid Pipe Size (inches) 3/8 3/8
Installed Vapor Pipe Size (inches) 5/8~7/8 5/8~7/8
Outdoor Unit Liquid Conn. Size (inches) 3/8 3/8
Outdoor Unit Vapor Conn. Size (inches) 5/8 5/8
A-Coil Liquid Connection Size (inches) 3/8 3/8
A-Coil Vapor Connection Size (inches) 7/8 7/8
Connection Method3Flare or Braze3Flare or Braze3
Piping Between
Outdoor Unit and
A-Coil
Max. System Piping Length (feet) 246 246
Piping Length (No Add’l Charge) (feet) 24.6 24.6
Min. to Max. Main (feet) 16.4~246 16.4~246
Max. Elev. Diff. (ODU to A-Coil) (feet) 98.4 98.4
Refrigerant
Type R410A R410A
Pre-Charge (oz.) 120 120
Additional Charge (Main) (oz. / feet) 0.43 0.43
Control4Thermal Expansion Valve4Thermal Expansion Valve4
Compressor Type R1 Scroll R1 Scroll
Oil Type PVE PVE
Fan
Type x Qty. Propeller x 2 Propeller x 2
Motor Type Brushless Digitally Controlled Brushless Digitally Controlled
Motor Output x Qty. (W) 124 x 2 124 x 2
GENERAL DATA
For Nortek A-Coil and gas furnace
specications, see Nortek technical
materials at www.nortekhvac.com.
1Gas Furnace: 95% AFUE.
2Test conditions are based on AHRI 210 / 240.
3Outdoor unit includes adapater kit for either flare or braze piping connections.
4The refrigerant control device is located in the Nortek A-Coil component; see Nortek technical materials for more information.
5Power supply, power wiring / communication cables, and circuit breakers are field-supplied and must comply with applicable local and national codes.

PRODUCT DATA |11
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ELECTRICAL DATA
Model
Name Hz Voltage Phase
Voltage
Range
(Min� to Max�)
MCA MOP Compressor
Quantity
Compressor
Motor RLA
(Cooling)
Condenser
Fan Motor(s)
Condenser
Fan
Quantity
Condenser
Fan
Motor FLA
LUU180HV
60 208/230 1 187~253
20.0 30 1 13.5 1 1.6
LUU240HV 20.0 30 1 13.5 1 1.6
LUU360HV 32.0 40 1 22 2 1.6 x 2
LUU420HV 32.0 40 1 22 2 1.6 x 2
LUU480HV 32.0 40 1 22 2 1.6 x 2
Table 6: LG Heat Pump Outdoor Unit Electrical Data.
Voltage tolerance is ±10%.
Maximum allowable voltage unbalance is 2%.
RLA = Rated Load Amps.
MCA = Minimum Circuit Ampacity.
Maximum Overcurrent Protection (MOP) is calculated as follows: (Largest motor FLA x 2.25) + (Sum of
other motor FLA) rounded down to the nearest standard fuse size.
Table 7: Nortek Gas Furnace Electrical Data.1
Model Name Hz Voltage Phase Voltage Range
(Min� to Max�) Maximum Furnace Amps Maximum Fuse or Circuit Breaker Amps
FG7TC-060D-V24B
60 115 1 103-127
7.0 15
FG7TC-080D-V35C 9.4 15
FG7TC-100D-V35C 9.4 15
1Gas Furnace: 95% AFUE.
2Time-delay fuses or circuit breakers are required.
3Separate power supply required for gas furnace. For Nortek A-Coil and gas furnace specications, see Nortek
technical materials at www.nortekhvac.com.

12 |PRODUCT DATA
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Hybrid Heat Pump (LG Outdoor Unit + A-Coil + Gas Furnace) Sales Guide
LG HEAT PUMP DIMENSIONS
LUU180HV, LUU240HV
Figure 2: LUU180HV, LUU240HV Heat Pump Outdoor Unit Dimensions.

PRODUCT DATA |13
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
LG HEAT PUMP DIMENSIONS
LUU360HV, LUU420HV, LUU480HV
Figure 3: LUU360HV, LUU420HV, LUU480HV Heat Pump Outdoor Unit Dimensions.

14 |PRODUCT DATA
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Hybrid Heat Pump (LG Outdoor Unit + A-Coil + Gas Furnace) Sales Guide
C74BHM- X24C-B X36C-B X36C-C X48C-C
Nominal Capacity (Btu/h) 24,000 36,000 36,000 48,000
Width (W, in�) 17.5 17.5 21 21
Height (H, in�) 26.75 26.75 26.75 30.25
Height of Liquid Line (HL, in�) 23.5 23.5 23.5 27
Height of Suction Line (HS, in�) 21.5 21.5 21.5 25
Liquid Line Connection (in�) 3/8 3/8 3/8 3/8
Suction Line Connection (in�) 3/4 7/8 7/8 7/8
Cased Coil (Horizontal Left) Cased Coil
W
HSHL
H
5/8
4
17 3/4
20 3/4
Front
Top
NORTEK A-COIL DIMENSIONS
Figure 4: Nortek A-Coil Dimensional Drawing.
Table 8: Nortek A-Coil Dimensions Table.
For additional Nortek A-Coil and gas furnace specications, see Nortek technical materials at www.nortekhvac.com.

PRODUCT DATA |15
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
FG7TC- 060D-VB 080D-VC 100D-VC
Dimension A (in�) 17-1/2 21
Dimension B (in�) 15-7/8 19-3/8
Dimension C (in�) 16-1/8 19-5/8
A
23-1/2
C
34-1/2
22-1/2
2-3/4
Bottom
Panel
25-3/8
22-1/2
17-1/4
17-7/8
28
B
19
22-1/2
24-7/8
15
23 1-1/4
Front Brace
Bottom
Top
4 Knockouts
(both sides)
1
Left Right
3-1/4
Gas (Ø 1-5/8)
T-stat
(Ø 7/8) Electric (Ø 7/8)
Vent pipe
(Ø 3”)
Cond. (Ø 1-1/16)
T-stat
(Ø 7/8)
Electric
(Ø 7/8)
Gas
(Ø 1-5/8)
Condensate
(Ø 1-1/16)
Vent pipe
(Ø 3”)
Combustion Air
Front
FLANGES
NORTEK GAS FURNACE DIMENSIONS
Figure 5: Nortek Gas Furnace Dimensional Drawing.
Table 9: Nortek A-Coil Dimensions Table.
For additional Nortek A-Coil and gas furnace specications, see Nortek technical materials at www.nortekhvac.com.

16 |PRODUCT DATA
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Hybrid Heat Pump (LG Outdoor Unit + A-Coil + Gas Furnace) Sales Guide
LG HEAT PUMP WIRING DIAGRAMS
LUU180HV, LUU240HV
Figure 6: LUU180HV, LUU240HV Heat Pump Outdoor Unit Wiring Diagram.
MEZ68866120_Rev.00 080423
*This function can be optional or factory installed depending on the application model.
Optional or Factory installed*
Field Wiring
Factory Wiring
• You need to buy a dedicated circuit separately.
INFORMATION
BK
BL
BR
YL
RD
WH
GR(GN)/YL
EEV
MOTOR
: BLACK
: BLUE
: BROWN
: YELLOW
: RED
: WHITE
: GREEN/YELLOW
: ELECTRONIC EXPANSION VALVE
: FAN MOTOR
Thermistor
(Suction)
CN_SUCTION
_GR
CN_MID
_BR
Thermistor
(Middle)
CN_DISCHARGE
_BK
CN_AIR
_YL
CN_LGMV
CN_COM1 CN_POWER
CN_EEV1
CN_FAN_DC
CN_COMP
Thermistor
(Discharge)
Thermistor
(Air) MV_JIG
CN_H_PRESS
_RD
PRESSURE
SENSOR
CN_C_PIPE
_VI
Thermistor
(Cond. Out)
CN_HEATER_BL
CN_4WAY_YL
4WAY
VALVE
BASE PAN
HEATER
USE COPPER SUPPLY WIRES.
1Φ, 208/230 V, 60 Hz
SW1
OR : ORANGE
※When installing the PI485,
remove the Unitary Comm. Kit
(Including the Wires).
R C WY1
Y2/Y
O/B
TO FURNACE
(THERMOSTAT)
CN_POWER_DO CN_DI AC_COMM
Unitary Comm. Kit
CN_2
SW02
SW01
DIP Switch
DIP Switch
1 2 3 4 5 6 7 81 2
CN_1
SW03 SW04
WH RD
BL BR YL BL
1)
1) Only when installing the furnace (thermostat),
connect comm. line (BK) to “TO INDOOR UNIT” line 3.
(The comm. line is located on clamp in control box.)
* Default O type
11-23
For Nortek A-Coil and gas furnace specications, see Nortek technical materials at www.nortekhvac.com.
WARNING
All power wiring and communication cable installation must be performed by trained service providers working in accordance with local, state, and
National Electrical Code (NEC) / UL / ETL federal regulations related to electrical equipment and wiring, and following the manufacturer product
diagrams, requirements, and instructions in this manual. Failure to do so will lead to electric shock which can cause physical injury or death.

PRODUCT DATA |17
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
LG HEAT PUMP WIRING DIAGRAMS
LUU360HV, LUU420HV, LUU480HV
Figure 7: LUU360HV, LUU420HV, LUU480HV Heat Pump Outdoor Unit Wiring Diagram.
MEZ68866109 Rev.02_080423
FUSE 250V / T 5A
FUSE
250 V,
35 A
250V T 3.15A
USE COPPER SUPPLY WIRES.
F01/FAN_FUSE_01
250V T 3.15A
F03/FAN_FUSE_02
250V T 3.15A
F01X
FUSE1
FUSE1
250V / T 3.15A
1Φ, 208/230 V, 60 Hz
SW01D
DIP Switch
※When installing the
PI485, remove the
Unitary Comm. Kit
(Including the Wires).
R C WY1 Y2/Y O/B
TO FURNACE
(THERMOSTAT)
CN_POWER_DO CN_DI AC_COMM
Unitary Comm. Kit
CN_2
SW02
SW01
DIP Switch
DIP Switch
1 2 3 4 5 6 7 81 2
CN_1
SW03 SW04
BK WH RD
BL BR YL BL
BK
1)
1) Only when installing the furnace (thermostat),
connect comm. line (BK) to “TO INDOOR UNIT” line 3.
(The comm. line is located on clamp in control box.)
BK
* Default
O type
11-23
For Nortek A-Coil and gas furnace specications, see Nortek technical materials at www.nortekhvac.com.
WARNING
All power wiring and communication cable installation must be performed by trained service providers working in accordance with local, state, and
National Electrical Code (NEC) / UL / ETL federal regulations related to electrical equipment and wiring, and following the manufacturer product
diagrams, requirements, and instructions in this manual. Failure to do so will lead to electric shock which can cause physical injury or death.

18 |PERFORMANCE DATA
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Hybrid Heat Pump (LG Outdoor Unit + A-Coil + Gas Furnace) Sales Guide
LG HEAT PUMP TO FURNACE / A-COIL WIRING
DIAGRAM
Heat Pump with Two-Stage Thermostats
S – Indoor and Outdoor Wired Sensors
R, C:
• 24 Voltage Supply for Thermostat and
Communication Kit (Heat Pump)
• 24 VAC Power From the Gas Furnace (R,C)
should be connected to both Heat Pump R,C)
and Thermostat (R,C)
W (Heat Pump) - Gas Furnace Operation Signal
when Heat Pump Enters Defrost Mode (If W
is connected to W1 at Gas Furnace; If W is
connected to W2 at Gas Furnace)
W1 (Gas Furnace) - Heating Stage 1 (75% of
Stage 2)
W2 (Gas Furnace) - Heating Stage 2 (100% per
specifications listed in manufacturer’s manual)
Y1 – Compressor Stage 1 (Cooling; Cooling
Target Pressure: 114 psi [780 kPa])
Y / Y2 – Compressor Stage 2 (Cooling; Cooling
Target Pressure: 102 psi [700 kPa])
G (Gas Furnace): Fan Operation at Gas
Furnace
O/B – Reversing Valve for Heat Pump Systems
Figure 8: Detailed Two-Stage Wiring Diagram.
RCY1Y / Y2 GW2 W1
Gas Furnace
(Nortek)
A-Coil
(Nortek)
24V Communication
Terminal Block in Gas Furnace
24V Communication Kit Terminal Block
(Factory-Installed in the LG Outdoor Unit)
R C W Y1 Y / Y2 O / B
LG Heat Pump Outdoor Unit
1(L1) 2 or N
(L2)
Terminal Block for Heat Pump
Power Supply
To Power Supply
(208-230V / 60Hz / 1 Phase)
For Nortek A-Coil and gas furnace specications, see Nortek
technical materials at www.nortekhvac.com.
Third-Party
Thermostat
(Needs to Support
Dual-Fuel Function)
To Power Supply
(115V / 60Hz / 1 Phase)
Terminal Block for
Gas Furnace
Power Supply
Outside Air Sensor
(Required)
WARNING
All power wiring and communication cable installation must be performed by trained service providers working in accordance with local, state, and
National Electrical Code (NEC) / UL / ETL federal regulations related to electrical equipment and wiring, and following the manufacturer product
diagrams, requirements, and instructions in this manual. Failure to do so will lead to electric shock which can cause physical injury or death.

PERFORMANCE DATA |19
Performance Data
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
-4 17.70 13.52 0.85 18.80 14.28 0.88 19.89 13.83 0.92 20.69 14.12 0.93 22.09 14.24 0.94 23.19 14.51 0.96
-0.4 17.69 13.60 0.86 18.79 14.36 0.89 19.88 13.91 0.93 20.68 14.20 0.94 22.08 14.32 0.95 23.18 14.59 0.97
5 17.67 13.72 0.88 18.77 14.49 0.91 19.87 14.03 0.94 20.66 14.32 0.95 22.06 14.45 0.97 23.16 14.72 0.99
10 17.66 13.83 0.89 18.76 14.60 0.92 19.85 14.14 0.95 20.64 14.44 0.97 22.05 14.56 0.98 23.14 14.84 1.00
15 17.65 13.93 0.90 18.74 14.72 0.93 19.84 14.25 0.97 20.63 14.55 0.98 22.03 14.68 1.00 23.12 14.95 1.02
20 17.63 14.04 0.91 18.73 14.84 0.95 19.82 14.36 0.98 20.61 14.67 0.99 22.01 14.79 1.01 23.11 15.07 1.03
25 17.62 14.15 0.93 18.71 14.95 0.96 19.81 14.48 1.00 20.60 14.78 1.01 22.00 14.90 1.03 23.09 15.19 1.05
30 17.60 14.26 0.94 18.70 15.06 0.97 19.79 14.59 1.01 20.58 14.89 1.02 21.98 15.02 1.04 23.07 15.30 1.06
35 17.59 14.37 0.95 18.68 15.18 0.99 19.78 14.70 1.02 20.57 15.01 1.04 21.96 15.13 1.05 23.05 15.42 1.08
40 17.58 14.48 0.97 18.67 15.29 1.00 19.76 14.81 1.04 20.55 15.12 1.05 21.94 15.25 1.07 23.04 15.54 1.09
45 17.56 14.59 0.98 18.66 15.41 1.01 19.75 14.92 1.05 20.53 15.23 1.06 21.93 15.36 1.08 23.02 15.65 1.11
50 17.55 14.69 0.99 18.64 15.52 1.03 19.73 15.03 1.07 20.52 15.35 1.08 21.91 15.47 1.10 23.00 15.77 1.12
55 17.54 14.80 1.00 18.63 15.64 1.04 19.72 15.14 1.08 20.50 15.46 1.09 21.89 15.59 1.11 22.98 15.88 1.13
60 17.52 14.91 1.02 18.61 15.75 1.05 19.70 15.25 1.09 20.49 15.57 1.11 21.88 15.70 1.13 22.97 16.00 1.15
65 17.51 15.02 1.03 18.60 15.86 1.07 19.69 15.36 1.11 20.47 15.68 1.12 21.86 15.81 1.14 22.95 16.11 1.16
70 17.50 15.12 1.04 18.58 15.98 1.08 19.67 15.47 1.12 20.46 15.79 1.13 21.84 15.93 1.16 22.93 16.23 1.18
75 17.08 14.87 1.10 18.16 15.73 1.14 19.24 15.25 1.18 20.03 15.58 1.20 21.41 15.73 1.22 22.50 16.05 1.24
80 16.66 14.62 1.16 17.74 15.48 1.20 18.82 15.03 1.24 19.60 15.37 1.26 20.98 15.54 1.28 22.06 15.86 1.31
85 16.24 14.35 1.21 17.32 15.22 1.26 18.40 14.79 1.30 19.17 15.14 1.32 20.55 15.33 1.34 21.63 15.66 1.37
90 15.82 14.08 1.27 16.90 14.96 1.32 17.97 14.55 1.36 18.75 14.91 1.38 20.12 15.11 1.40 21.20 15.45 1.43
95 15.37 13.93 1.33 16.44 14.82 1.37 17.51 14.44 1.42 18�00 14�58 1�44 19.65 15.03 1.47 20.72 15.38 1.50
100 14.99 13.56 1.38 16.06 14.45 1.43 17.13 14.10 1.48 17.77 14.35 1.50 19.28 14.71 1.53 20.35 15.07 1.56
105 14.62 13.19 1.44 15.69 14.08 1.49 16.76 13.76 1.54 17.53 14.13 1.56 18.90 14.38 1.59 19.97 14.75 1.62
110 14.24 12.74 1.49 15.32 13.62 1.55 16.39 13.33 1.61 17.16 13.71 1.62 18.53 13.98 1.65 19.60 14.35 1.69
115 13.87 12.36 1.55 14.94 13.24 1.61 16.01 12.98 1.67 16.79 13.36 1.68 18.15 13.64 1.72 19.22 14.02 1.75
118 13.65 12.27 1.58 14.72 13.16 1.64 15.79 12.91 1.70 16.56 13.30 1.72 17.93 13.60 1.75 19.00 13.98 1.79
122 13.57 12.24 1.63 14.64 13.13 1.69 15.71 12.89 1.75 16.49 13.28 1.77 17.85 13.58 1.80 18.92 13.97 1.84
Cooling Capacity Table for LUU180HV (18,000 Btu/h)
(When Combined with C74BHM-X24C-B + FG7TC-060D-V24B).
DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)
SHC: Sensible Capacity (kBtu/h) PI: Power Input (kW) (includes compressor, indoor fan motor and
outdoor fan motor)
1. All capacities are net, evaporator fan motor heat is deducted.
2. Cooling range can be extended from 5°F down to -4°F using the Low Ambient Wind Baffle Kit (sold
separately).
3. Grey shading indicates reference data. When operating at this temperature, these values can be
different if the system is not running consistently.
4. Direct interpolation is permissible. Do not extrapolate.
Test conditions are based on AHRI 210 / 240.
LG HEAT PUMP PERFORMANCE DATA
Cooling Capacity Tables
Table 10: Cooling Capacity Table for LUU180HV (When Combined with C74BHM-X24C-B + FG7TC-060D-V24B).

20 |PERFORMANCE DATA
Due to our policy of continuous product innovation, some specications may change without notication.
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Hybrid Heat Pump (LG Outdoor Unit + A-Coil + Gas Furnace) Sales Guide
Outdoor Air
Temp.
(°F DB)
Indoor Air Temp. °F DB / °F WB
68 / 57 73 / 61 77 / 64 80 / 67 86 / 72 90 / 75
TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI TC SHC PI
-4 22.61 17.27 1.16 24.02 18.25 1.20 25.42 17.67 1.25 26.44 18.04 1.26 28.23 18.19 1.28 29.63 18.54 1.31
-0.4 22.60 17.38 1.17 24.00 18.35 1.22 25.41 17.77 1.26 26.42 18.15 1.27 28.21 18.30 1.30 29.62 18.65 1.32
5 22.58 17.53 1.19 23.98 18.51 1.23 25.39 17.93 1.28 26.40 18.30 1.29 28.19 18.46 1.32 29.59 18.81 1.35
10 22.56 17.67 1.21 23.97 18.66 1.25 25.37 18.07 1.30 26.38 18.45 1.31 28.17 18.61 1.34 29.57 18.96 1.37
15 22.55 17.81 1.23 23.95 18.81 1.27 25.35 18.21 1.32 26.36 18.60 1.33 28.15 18.75 1.36 29.55 19.11 1.39
20 22.53 17.94 1.24 23.93 18.96 1.29 25.33 18.35 1.34 26.34 18.74 1.35 28.13 18.90 1.38 29.53 19.26 1.41
25 22.51 18.08 1.26 23.91 19.10 1.31 25.31 18.50 1.36 26.32 18.89 1.37 28.10 19.05 1.40 29.50 19.41 1.43
30 22.50 18.22 1.28 23.89 19.25 1.33 25.29 18.64 1.37 26.30 19.03 1.39 28.08 19.19 1.42 29.48 19.55 1.44
35 22.48 18.36 1.30 23.87 19.40 1.34 25.27 18.78 1.39 26.28 19.18 1.41 28.06 19.34 1.44 29.46 19.70 1.46
40 22.46 18.50 1.31 23.86 19.54 1.36 25.25 18.92 1.41 26.26 19.32 1.43 28.04 19.48 1.46 29.44 19.85 1.48
45 22.44 18.64 1.33 23.84 19.69 1.38 25.23 19.06 1.43 26.24 19.46 1.45 28.02 19.63 1.47 29.41 20.00 1.50
50 22.43 18.77 1.35 23.82 19.83 1.40 25.21 19.20 1.45 26.22 19.61 1.47 28.00 19.77 1.49 29.39 20.15 1.52
55 22.41 18.91 1.37 23.80 19.98 1.42 25.19 19.34 1.47 26.20 19.75 1.49 27.98 19.92 1.51 29.37 20.30 1.54
60 22.39 19.05 1.39 23.78 20.12 1.44 25.17 19.48 1.49 26.18 19.89 1.51 27.95 20.06 1.53 29.35 20.44 1.56
65 22.37 19.19 1.40 23.76 20.27 1.45 25.15 19.62 1.51 26.16 20.04 1.52 27.93 20.21 1.55 29.32 20.59 1.58
70 22.36 19.32 1.42 23.75 20.41 1.47 25.13 19.76 1.53 26.14 20.18 1.54 27.91 20.35 1.57 29.30 20.74 1.60
75 21.82 19.01 1.50 23.20 20.10 1.55 24.59 19.49 1.61 25.59 19.91 1.63 27.36 20.10 1.66 28.75 20.50 1.69
80 21.28 18.68 1.57 22.66 19.79 1.63 24.04 19.20 1.69 25.04 19.64 1.71 26.81 19.85 1.74 28.19 20.26 1.78
85 20.75 18.34 1.65 22.13 19.45 1.71 23.50 18.90 1.77 24.50 19.35 1.79 26.26 19.58 1.83 27.64 20.01 1.86
90 20.22 17.99 1.73 21.59 19.11 1.79 22.96 18.60 1.86 23.96 19.05 1.88 25.71 19.31 1.91 27.09 19.74 1.95
95 19.64 17.80 1.80 21.00 18.94 1.87 22.37 18.46 1.94 23�00 18�63 1�96 25.11 19.21 2.00 26.48 19.66 2.04
100 19.16 17.33 1.88 20.53 18.46 1.95 21.89 18.02 2.02 22.70 18.34 2.04 24.63 18.79 2.08 26.00 19.25 2.12
105 18.68 16.85 1.96 20.05 17.99 2.03 21.42 17.58 2.10 22.40 18.05 2.13 24.15 18.38 2.17 25.52 18.85 2.21
110 18.20 16.27 2.03 19.57 17.40 2.11 20.94 17.03 2.18 21.93 17.51 2.21 23.67 17.86 2.25 25.04 18.33 2.30
115 17.72 15.79 2.11 19.09 16.91 2.19 20.46 16.58 2.27 21.45 17.07 2.29 23.20 17.43 2.34 24.56 17.92 2.38
118 17.44 15.67 2.16 18.80 16.81 2.23 20.17 16.50 2.32 21.16 16.99 2.34 22.91 17.37 2.39 24.28 17.87 2.43
122 17.34 15.63 2.22 18.71 16.78 2.30 20.08 16.47 2.38 21.07 16.97 2.41 22.81 17.35 2.45 24.18 17.85 2.50
Cooling Capacity Table for LUU240HV (24,000 Btu/h)
(When Combined with C74BHM-X24C-B + FG7TC-060D-V24B).
LG HEAT PUMP PERFORMANCE DATA
Cooling Capacity Tables
Table 11: Rated Cooling Capacity Table for LUU240HV (When Combined with C74BHM-X24C-B + FG7TC-060D-V24B).
DB: Dry Bulb Temperature (°F) WB: Wet Bulb Temperature (°F) TC: Total Capacity (kBtu/h)
SHC: Sensible Capacity (kBtu/h) PI: Power Input (kW) (includes compressor, indoor fan motor and
outdoor fan motor)
1. All capacities are net, evaporator fan motor heat is deducted.
2. Cooling range can be extended from 5°F down to -4°F using the Low Ambient Wind Baffle Kit (sold
separately).
3. Grey shading indicates reference data. When operating at this temperature, these values can be
different if the system is not running consistently.
4. Direct interpolation is permissible. Do not extrapolate.
Test conditions are based on AHRI 210 / 240.
