LG MULTI V 5 ARUV096BTE5 Product guide

Heat Pump 220V
R410A(50Hz/60Hz)
6CVV0-01L (Replaces 6CVV0-01K)
P/No. : MFL67474054

Multi V 5
Cooling Only
General Information
Outdoor Units
Installation of Outdoor Units
Special Guide
Control System

General Information
Multi V 5
Cooling Only
1.Model Line-up & External Appearance
2.Combination of Outdoor Units
3.Nomenclature
4.Indoor Unit and Outdoor Unit Capacity Index

2
Multi V 5 Cooling Only General Information

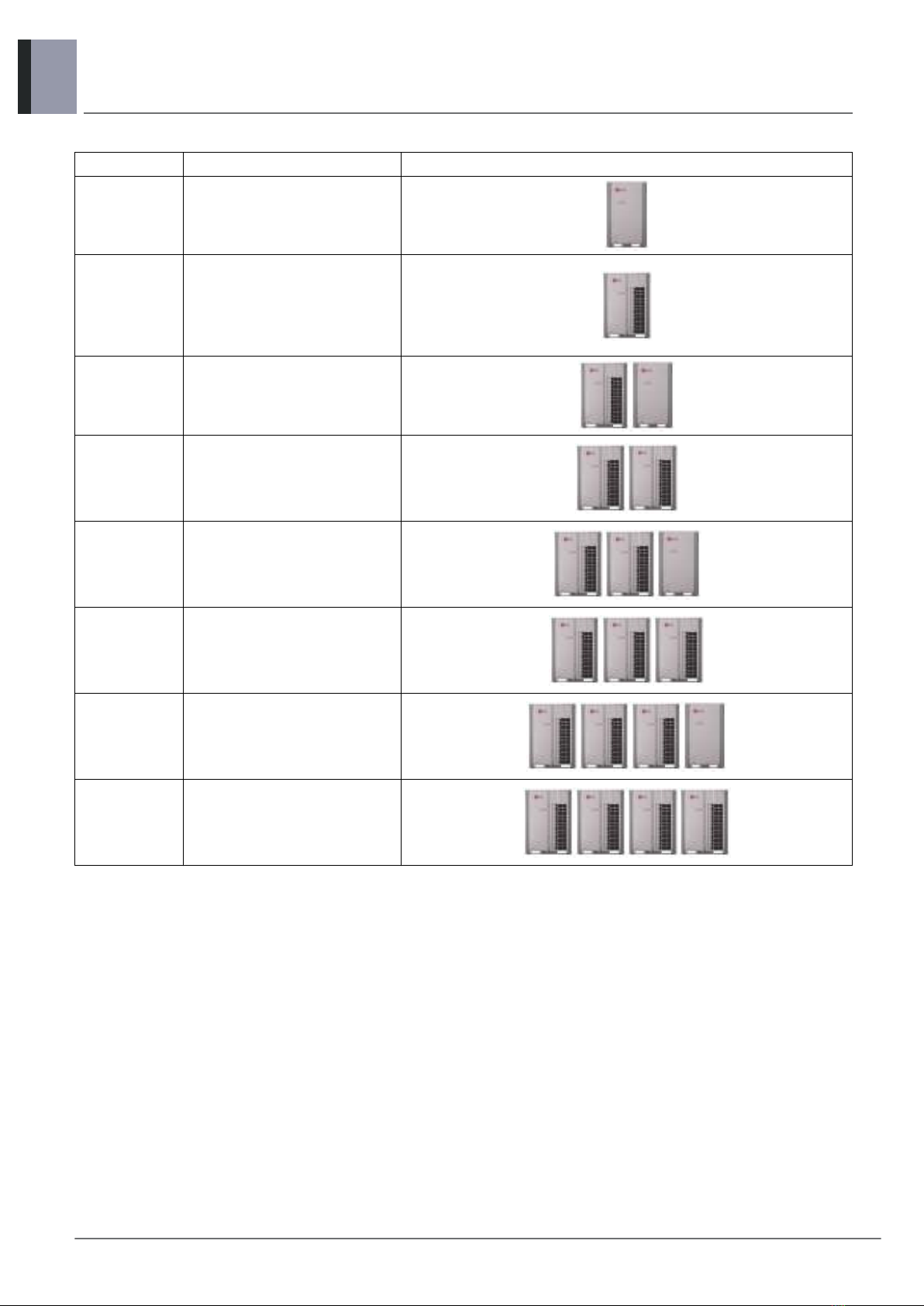

1. Model Line-up & External Appearance
220V
CHASSIS Model Name Model
UXA ARUV096BTE5
ARUV121BTE5
UXB
ARUV144BTE5
ARUV168BTE5
ARUV192BTE5
ARUV216BTE5
ARUV241BTE5
ARUV264BTE5
UXB
UXA
ARUV288BTE5
ARUV312BTE5
ARUV336BTE5
ARUV360BTE5
UXB
UXB
ARUV384BTE5
ARUV408BTE5
ARUV432BTE5
ARUV456BTE5
ARUV480BTE5
UXB
UXB
UXA
ARUV504BTE5
ARUV530BTE5
ARUV554BTE5
ARUV578BTE5
ARUV603BTE5
UXB
UXB
UXB
ARUV626BTE5
ARUV650BTE5
ARUV674BTE5
ARUV698BTE5
ARUV723BTE5
UXB
UXB
UXB
UXA
ARUV747BTE5
ARUV771BTE5
ARUV795BTE5
ARUV819BTE5
ARUV844BTE5
UXB
UXB
UXB
UXB
ARUV867BTE5
ARUV891BTE5
ARUV915BTE5
ARUV939BTE5
ARUV964BTE5

1. Model Line-up & External Appearance
3
Multi V 5 Cooling Only General Information
460V
CHASSIS Model Name Model
UXA ARUV096DTE5
ARUV121DTE5
UXB
ARUV144DTE5
ARUV168DTE5
ARUV192DTE5
ARUV216DTE5
ARUV241DTE5
ARUV264DTE5
UXB
UXA
ARUV288DTE5
ARUV312DTE5
ARUV336DTE5
ARUV360DTE5
UXB
UXB
ARUV384DTE5
ARUV408DTE5
ARUV432DTE5
ARUV456DTE5
ARUV480DTE5
UXB
UXB
UXA
ARUV504DTE5
ARUV530DTE5
ARUV554DTE5
ARUV578DTE5
ARUV603DTE5
UXB
UXB
UXB
ARUV626DTE5
ARUV650DTE5
ARUV674DTE5
ARUV698DTE5
ARUV723DTE5
UXB
UXB
UXB
UXA
ARUV747DTE5
ARUV771DTE5
ARUV795DTE5
ARUV819DTE5
ARUV844DTE5
UXB
UXB
UXB
UXB
ARUV867DTE5
ARUV891DTE5
ARUV915DTE5
ARUV939DTE5
ARUV964DTE5

4
Multi V 5 Cooling Only General Information
2. Combination of Outdoor Units
220V
RT Model Name Number of
Units
Module(RT)
8 10121416182022
8 ARUV096BTE5 1 1
10 ARUV121BTE5 1 1
12 ARUV144BTE5 1 1
14 ARUV168BTE5 1 1
16 ARUV192BTE5 1 1
18 ARUV216BTE5 1 1
20 ARUV241BTE5 1 1
22 ARUV264BTE5 1 1
24 ARUV288BTE5 2 1 1
26 ARUV312BTE5 2 1 1
28 ARUV336BTE5 2 1 1
30 ARUV360BTE5 2 1 1
32 ARUV384BTE5 2 1 1
34 ARUV408BTE5 2 1 1
36 ARUV432BTE5 2 1 1
38 ARUV456BTE5 2 1 1
40 ARUV480BTE5 2 2
42 ARUV504BTE5 3 1 1 1
44 ARUV530BTE5 3 1 1 1
46 ARUV554BTE5 3 1 1 1
48 ARUV578BTE5 3 1 1 1
50 ARUV603BTE5 3 1 2
52 ARUV626BTE5 3 1 2
54 ARUV650BTE5 3 1 2
56 ARUV674BTE5 3 1 2
58 ARUV698BTE5 3 1 2
60 ARUV723BTE5 3 3
62 ARUV747BTE5 4 1 1 2
64 ARUV771BTE5 4 1 1 2
66 ARUV795BTE5 4 1 1 2
68 ARUV819BTE5 4 1 1 2
70 ARUV844BTE5 4 1 3
72 ARUV867BTE5 4 1 3
74 ARUV891BTE5 4 1 3
76 ARUV915BTE5 4 1 3
78 ARUV939BTE5 4 1 3
80 ARUV964BTE5 4 4

2. Combination of Outdoor Units
5
Multi V 5 Cooling Only General Information
460V
RT Model Name Number of
Units
Module(RT)
8 10121416182022
8 ARUV096DTE5 1 1
10 ARUV121DTE5 1 1
12 ARUV144DTE5 1 1
14 ARUV168DTE5 1 1
16 ARUV192DTE5 1 1
18 ARUV216DTE5 1 1
20 ARUV241DTE5 1 1
22 ARUV264DTE5 1 1
24 ARUV288DTE5 2 1 1
26 ARUV312DTE5 2 1 1
28 ARUV336DTE5 2 1 1
30 ARUV360DTE5 2 1 1
32 ARUV384DTE5 2 1 1
34 ARUV408DTE5 2 1 1
36 ARUV432DTE5 2 1 1
38 ARUV456DTE5 2 1 1
40 ARUV480DTE5 2 2
42 ARUV504DTE5 3 1 1 1
44 ARUV530DTE5 3 1 1 1
46 ARUV554DTE5 3 1 1 1
48 ARUV578DTE5 3 1 1 1
50 ARUV603DTE5 3 1 2
52 ARUV626DTE5 3 1 2
54 ARUV650DTE5 3 1 2
56 ARUV674DTE5 3 1 2
58 ARUV698DTE5 3 1 2
60 ARUV723DTE5 3 3
62 ARUV747DTE5 4 1 1 2
64 ARUV771DTE5 4 1 1 2
66 ARUV795DTE5 4 1 1 2
68 ARUV819DTE5 4 1 1 2
70 ARUV844DTE5 4 1 3
72 ARUV867DTE5 4 1 3
74 ARUV891DTE5 4 1 3
76 ARUV915DTE5 4 1 3
78 ARUV939DTE5 4 1 3
80 ARUV964DTE5 4 4

6
Multi V 5 Cooling Only General Information
3. Nomenclature
Model
Name ARU V 144 B T E 5
No.1234567
No. Signification
1Multi V System with Outdoor Unit using R410A
ARU : Global line-up
2Combination of Inverter Type and Cooling Only, Heat Pump or Heat Recovery
V : Inverter, Cooling Only
3Total Cooling capacity in Btu/h unit
EX) 144kBtu/h ˧'144', 96kBtu/h ˧'096'
4Electrical Ratings
B : 3Ø, 220-240 V, 50 Hz / 3Ø, 220V, 60 Hz
D : 3Ø, 460 V, 60 Hz
5Air Discharge Type
T : Top Discharge
6Efficiency
E : High Efficiency
7Serial Number

7
Multi V 5 Cooling Only General Information
4. Indoor Unit and Outdoor Unit Capacity Index
4.1 Indoor Unit Selection
See the indoor unit capacity tables for given Indoor and Outdoor temperature
Select the unit whose capacity is the nearest to or bigger than given load.
Note
Individual Indoor Unit capacity is subject to change by combination. Actual capacity has to be calculated accord-
ing to the combination by using Outdoor unit capacity table.
4.2 Outdoor Unit Selection
Allowable combinations are indicated below. In general, outdoor unit can be selected depending on the location
of the unit, zoning and usage of the rooms.
The indoor and outdoor unit combination is determined by comparing the sum of indoor unit capacity index with
each Outdoor Unit. It is recommended to be the nearest to 100% combination ratio or to be smaller than that. Refer
the table below. To manage cooling/heating load properly, it's better to be selected the bigger capacity outdoor unit
rather than the nearest, if the installation space is large enough.
Allowable Total Capacity Index Table of Combined Indoor Units
Outdoor Unit
Capacity(RT) Indoor Unit Combination Ratio
50% 60% 70% 80% 90% 100% 110% 120% 130% 160% 200%
8 14.1 16.9 19.7 22.5 25.3 28.1 30.9 33.7 36.5 45.0 56.2
10 17.6 21.1 24.6 28.2 31.7 35.2 38.7 42.2 45.8 56.3 70.4
12 21.1 25.3 29.5 33.8 38.0 42.2 46.4 50.6 54.9 67.5 84.4
14 24.6 29.5 34.4 39.4 44.3 49.2 54.1 59.0 64.0 78.7 98.4
16 28.2 33.8 39.4 45.0 50.7 56.3 61.9 67.6 73.2 90.1 112.6
18 31.7 38.0 44.3 50.6 57.0 63.3 69.6 76.0 82.3 101.3 126.6
20 35.2 42.2 49.2 56.2 63.3 70.3 77.3 84.4 91.4 112.5 140.6
22 38.7 46.4 54.2 61.9 69.7 77.4 85.1 92.9 100.6 123.8 154.8
24 42.2 50.6 59.1 67.5 76.0 84.4 92.8 101.3 109.7 135.0 -
26 45.7 54.8 64.0 73.1 82.3 91.4 100.5 109.7 118.8 146.2 -
28 49.3 59.1 69.0 78.8 88.7 98.5 108.4 118.2 128.1 157.6 -
30 52.8 63.3 73.9 84.4 95.0 105.5 116.1 126.6 137.2 168.8 -
32 56.3 67.5 78.8 90.0 101.3 112.5 123.8 135.0 146.3 180.0 -
34 59.8 71.8 83.7 95.7 107.6 119.6 131.6 143.5 155.5 191.4 -
36 63.3 76.0 88.6 101.3 113.9 126.6 139.3 151.9 164.6 202.6 -
38 66.8 80.2 93.5 106.9 120.2 133.6 147.0 160.3 173.7 213.8 -
40 70.4 84.4 98.5 112.6 126.6 140.7 154.8 168.8 182.9 225.1 -
42 73.9 88.6 103.4 118.2 132.9 147.7 162.5 177.2 192.0 - -
44 77.4 92.8 108.3 123.8 139.2 154.7 170.2 185.6 201.1 - -
46 80.9 97.1 113.3 129.4 145.6 161.8 178.0 194.2 210.3 - -
48 84.4 101.3 118.2 135.0 151.9 168.8 185.7 202.6 219.4 - -
50 87.9 105.5 123.1 140.6 158.2 175.8 193.4 211.0 228.5 - -
52 91.5 109.7 128.0 146.3 164.6 182.9 201.2 219.5 237.8 - -
54 95.0 113.9 132.9 151.9 170.9 189.9 208.9 227.9 246.9 - -
56 98.5 118.1 137.8 157.5 177.2 196.9 216.6 236.3 256.0 - -
58 102.0 122.4 142.8 163.2 183.6 204.0 224.4 244.8 265.2 - -
60 105.5 126.6 147.7 168.8 189.9 211.0 232.1 253.2 274.3 - -
62 109.0 130.8 152.6 174.4 196.2 218.0 239.8 261.6 283.4 - -
64 112.6 135.1 157.6 180.1 202.6 225.1 247.6 270.1 292.6 - -
66 116.1 139.3 162.5 185.7 208.9 232.1 255.3 278.5 301.7 - -
68 119.6 143.5 167.4 191.3 215.2 239.1 263.0 286.9 310.8 - -

Multi V 5 Cooling Only
4. Indoor Unit and Outdoor Unit Capacity Index
8
General Information
* Capacity Index is same as the capacity(kW).
INDOOR UNIT CAPACITY INDEX
* Capacity Index is same as the capacity(kW).
CAUTION
Combination Ratio(50~200%)
Notes:
1. We can guarantee the operation only within 130% Combination Ratio.
If you want to connect more than 130% combination Ratio, please contact us and discuss the
requirement.
2. In case that operating indoor units ratio to rated capacity of outdoor unit is more than 130%, the airflow
should be operated as low step in the all indoor units.
70 123.1 147.7 172.3 197.0 221.6 246.2 270.8 295.4 320.1 - -
72 126.6 151.9 177.2 202.6 227.9 253.2 278.5 303.8 329.2 - -
74 130.1 156.1 182.1 208.2 234.2 260.2 286.2 312.2 338.3 - -
76 133.7 160.4 187.1 213.8 240.6 267.3 294.0 320.8 347.5 - -
78 137.2 164.6 192.0 219.4 246.9 274.3 301.7 329.2 356.6 - -
80 140.7 168.8 196.9 225.0 253.2 281.3 309.4 337.6 365.7 - -
Unit
Capacity
(Btu/h) 5k 7k 9k 12k 15k 18k 21k 24k 28k 30k 36k 42k 48k 54k 60k 76k 96k
Capacity
Index 1.6 2.2 2.8 3.6 4.5 5.6 6.2 7.1 8.2 9.0 10.6 12.3 14.1 15.8 17.5 22.4 28.0
Number of Outdoor units Combination Ratio
Single Unit 200%
Two Units combination 160%
Three or more Units combination 130%
Outdoor Unit
Capacity(RT) Indoor Unit Combination Ratio
50% 60% 70% 80% 90% 100% 110% 120% 130% 160% 200%

Outdoor Units
Multi V 5
Cooling Only
1.Specifications
2.Dimensions
3.Piping Diagrams
4.Wiring Diagrams
5.Field Wiring
6.Electric Characteristics
7.Capacity Tables
8.Capacity Correction Factor
9.Operation Limits
10.Sound Levels
11.Accessories

2
Multi V 5 Cooling Only Outdoor Units
1. Specifications
1.1 220V
RT 8 10
Model Name
Combination Unit ARUV096BTE5 ARUV121BTE5
Independent Unit
ARUV096BTE5 ARUV121BTE5
Capacity
Cooling (Norminal) Btu/h 96,000 120,000
kW 28.1 35.2
Cooling (Rated) Btu/h 92,000 114,000
kW 27.0 33.4
Input Cooling (Norminal) kW 5.90 8.51
Cooling (Rated) kW 5.49 7.86
EER (Norminal) 4.76 4.14
EER (Rated) 4.92 4.25
Power Factor Rated - 0.93 0.93
Exterior Color Morning Gray / Dawn Gray Morning Gray / Dawn Gray
RAL (Classic) RAL 7030 / RAL 7037 RAL 7030 / RAL 7037
Heat Exchanger Wide Louver Plus Wide Louver Plus
Compressor
Type Hermetically Sealed Scroll Hermetically Sealed Scroll
Piston Displacement cm3/rev 62.1 62.1
Number of Revolution rev/min 3,600 3,600
Motor Output x Number W x No. 5,300 × 1 5,300 × 1
Starting Method Inverter Inverter
Oil Type FVC68D(PVE) FVC68D(PVE)
Fan
Type Propeller fan Propeller fan
Motor Output x Number W 1,200 × 1 1,200 × 1
Air Flow Rate(High) m3/min 240 × 1 240 × 1
ft3/min 8,476 × 1 8,476 × 1
Drive DC INVERTER DC INVERTER
Discharge Side / Top TOP TOP
Pipe
Connctions
Liquid mm(inch) 9.52(3/8) 12.7(1/2)
Gas mm(inch) 22.2(7/8) 28.58(1-1/8)
Dimensions(W x H x D) mm (930 × 1,690 × 760) × 1 (930 × 1,690 × 760) × 1
inch (36-5/8 × 66-17/32 × 29-29/32) × 1 (36-5/8 × 66-17/32 × 29-29/32) × 1
Net Weight kg 188 × 1 188 × 1
lbs 414 × 1 414 × 1
Sound Pressure Level (Cooling) dB(A) 58.0 59.0
Sound Power Level (Cooling) dB(A) 78.0 79.0
Protection
Devices
High pressure protection High pressure sensor / High pressure switch
Compressor/Fan Over-heat protection / Fan driver overload protector
Inverter Over-heat protection / Over-current protection
Communication Cable (VCTF-SB) No.×㎟2C × 1.0 ~ 1.5 2C × 1.0 ~ 1.5
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national codes. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Power factor could vary less than ±1% according to the operating conditions.
4. Sound pressure level is measured on the rated condition in the anechoic rooms by ISO 3745 standard.
Sound power level is measured on the rated condition in the reverberation rooms by ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
5. Sound values of combination model are calculated values based on sound results of independent models.
Sound values can be increased owing to ambient or installation conditions during operation.
Sound values of system [dB(A)] = 10*log [10^(A1/10)+ ... +10^(An/10)] , A1~An means sound values of independent models.
6. Performances are based on the following conditions :
• *Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Interconnected Pipe Length is 7.5m and difference of Elevation (Outdoor ~ Indoor Unit) is 0m.
7. *** : The number in parentheses means maximum connectable indoor units in accordance with outdoor units combination (160~200%).
The recommended ratio is 130%.
8. This product contains Fluorinated greenhouse gases.(R410A, GWP(Global warming potential) = 2,087.5)

1. Specifications
3
Multi V 5 Cooling Only Outdoor Units
Refigerant
Refigerant name R410A R410A
Precharged Amount kg 10.0 10.0
lbs 22.0 22.0
Control Electronic Expansion Valve Electronic Expansion Valve
Power Supply V, Ø, Hz 220-240, 3, 50 220-240, 3, 50
220, 3, 60 220, 3, 60
Number of maxmum connectable indoor units 16(25) 20(30)
RT 8 10
Model Name
Combination Unit ARUV096BTE5 ARUV121BTE5
Independent Unit
ARUV096BTE5 ARUV121BTE5
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national codes. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Power factor could vary less than ±1% according to the operating conditions.
4. Sound pressure level is measured on the rated condition in the anechoic rooms by ISO 3745 standard.
Sound power level is measured on the rated condition in the reverberation rooms by ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
5. Sound values of combination model are calculated values based on sound results of independent models.
Sound values can be increased owing to ambient or installation conditions during operation.
Sound values of system [dB(A)] = 10*log [10^(A1/10)+ ... +10^(An/10)] , A1~An means sound values of independent models.
6. Performances are based on the following conditions :
• *Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Interconnected Pipe Length is 7.5m and difference of Elevation (Outdoor ~ Indoor Unit) is 0m.
7. *** : The number in parentheses means maximum connectable indoor units in accordance with outdoor units combination (160~200%).
The recommended ratio is 130%.
8. This product contains Fluorinated greenhouse gases.(R410A, GWP(Global warming potential) = 2,087.5)

Multi V 5 Cooling Only
1. Specifications
4
Outdoor Units
RT 12 14
Model Name
Combination Unit ARUV144BTE5 ARUV168BTE5
Independent Unit
ARUV144BTE5 ARUV168BTE5
Capacity
Cooling (Norminal) Btu/h 144,000 168,000
kW 42.2 49.2
Cooling (Rated) Btu/h 138,000 160,000
kW 40.4 46.9
Input Cooling (Norminal) kW 10.32 12.39
Cooling (Rated) kW 9.65 10.20
EER (Norminal) 4.09 3.97
EER (Rated) 4.19 4.60
Power Factor Rated - 0.93 0.93
Exterior Color Morning Gray / Dawn Gray Morning Gray / Dawn Gray
RAL (Classic) RAL 7030 / RAL 7037 RAL 7030 / RAL 7037
Heat Exchanger Wide Louver Plus Wide Louver Plus
Compressor
Type Hermetically Sealed Scroll Hermetically Sealed Scroll
Piston Displacement cm3/rev 62.1 62.1 × 1 + 43.8 × 1
Number of Revolution rev/min 3,600 3,600 × 2
Motor Output x Number W x No. 5,300 × 1 5,300 × 1 + 4,200 × 1
Starting Method Inverter Inverter
Oil Type FVC68D(PVE) FVC68D(PVE)
Fan
Type Propeller fan Propeller fan
Motor Output x Number W 900 × 2 900 × 2
Air Flow Rate(High) m3/min 320 × 1 320 × 1
ft3/min 1,1301 × 1 1,1301 × 1
Drive DC INVERTER DC INVERTER
Discharge Side / Top TOP TOP
Pipe
Connctions
Liquid mm(inch) 12.7(1/2) 15.88(5/8)
Gas mm(inch) 28.58(1-1/8) 28.58(1-1/8)
Dimensions(W x H x D) mm (1,240 × 1,690 × 760) × 1 (1,240 × 1,690 × 760) × 1
inch (48-13/16 × 66-17/32 × 29-29/32) × 1 (48-13/16 × 66-17/32 × 29-29/32) × 1
Net Weight kg 222 × 1 264 × 1
lbs 488 × 1 581 × 1
Sound Pressure Level (Cooling) dB(A) 60.0 60.5
Sound Power Level (Cooling) dB(A) 82.0 83.0
Protection
Devices
High pressure protection High pressure sensor / High pressure switch
Compressor/Fan Over-heat protection / Fan driver overload protector
Inverter Over-heat protection / Over-current protection
Communication Cable (VCTF-SB) No.×㎟2C × 1.0 ~ 1.5 2C × 1.0 ~ 1.5
Refigerant
Refigerant name R410A R410A
Precharged Amount kg 13.0 13.0
lbs 28.7 28.7
Control Electronic Expansion Valve Electronic Expansion Valve
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national codes. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Power factor could vary less than ±1% according to the operating conditions.
4. Sound pressure level is measured on the rated condition in the anechoic rooms by ISO 3745 standard.
Sound power level is measured on the rated condition in the reverberation rooms by ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
5. Sound values of combination model are calculated values based on sound results of independent models.
Sound values can be increased owing to ambient or installation conditions during operation.
Sound values of system [dB(A)] = 10*log [10^(A1/10)+ ... +10^(An/10)] , A1~An means sound values of independent models.
6. Performances are based on the following conditions :
• *Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Interconnected Pipe Length is 7.5m and difference of Elevation (Outdoor ~ Indoor Unit) is 0m.
7. *** : The number in parentheses means maximum connectable indoor units in accordance with outdoor units combination (160~200%).
The recommended ratio is 130%.
8. This product contains Fluorinated greenhouse gases.(R410A, GWP(Global warming potential) = 2,087.5)

1. Specifications
5
Multi V 5 Cooling Only Outdoor Units
Power Supply V, Ø, Hz 220-240, 3, 50 220-240, 3, 50
220, 3, 60 220, 3, 60
Number of maxmum connectable indoor units 23(35) 26(40)
RT 12 14
Model Name
Combination Unit ARUV144BTE5 ARUV168BTE5
Independent Unit
ARUV144BTE5 ARUV168BTE5
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national codes. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Power factor could vary less than ±1% according to the operating conditions.
4. Sound pressure level is measured on the rated condition in the anechoic rooms by ISO 3745 standard.
Sound power level is measured on the rated condition in the reverberation rooms by ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
5. Sound values of combination model are calculated values based on sound results of independent models.
Sound values can be increased owing to ambient or installation conditions during operation.
Sound values of system [dB(A)] = 10*log [10^(A1/10)+ ... +10^(An/10)] , A1~An means sound values of independent models.
6. Performances are based on the following conditions :
• *Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Interconnected Pipe Length is 7.5m and difference of Elevation (Outdoor ~ Indoor Unit) is 0m.
7. *** : The number in parentheses means maximum connectable indoor units in accordance with outdoor units combination (160~200%).
The recommended ratio is 130%.
8. This product contains Fluorinated greenhouse gases.(R410A, GWP(Global warming potential) = 2,087.5)

Multi V 5 Cooling Only
1. Specifications
6
Outdoor Units
RT 16 18
Model Name
Combination Unit ARUV192BTE5 ARUV216BTE5
Independent Unit
ARUV192BTE5 ARUV216BTE5
Capacity
Cooling (Norminal) Btu/h 192,000 216,000
kW 56.3 63.3
Cooling (Rated) Btu/h 184,000 206,000
kW 53.9 60.4
Input Cooling (Norminal) kW 13.91 15.54
Cooling (Rated) kW 11.85 14.55
EER (Norminal) 4.05 4.07
EER (Rated) 4.55 4.15
Power Factor Rated - 0.93 0.93
Exterior Color Morning Gray / Dawn Gray Morning Gray / Dawn Gray
RAL (Classic) RAL 7030 / RAL 7037 RAL 7030 / RAL 7037
Heat Exchanger Wide Louver Plus Wide Louver Plus
Compressor
Type Hermetically Sealed Scroll Hermetically Sealed Scroll
Piston Displacement cm3/rev 62.1 × 2 62.1 × 2
Number of Revolution rev/min 3,600 × 2 3,600 × 2
Motor Output x Number W x No. 5,300 × 2 5,300 × 2
Starting Method Inverter Inverter
Oil Type FVC68D(PVE) FVC68D(PVE)
Fan
Type Propeller fan Propeller fan
Motor Output x Number W 900 × 2 900 × 2
Air Flow Rate(High) m3/min 320 × 1 320 × 1
ft3/min 1,1301 × 1 1,1301 × 1
Drive DC INVERTER DC INVERTER
Discharge Side / Top TOP TOP
Pipe
Connctions
Liquid mm(inch) 15.88(5/8) 15.88(5/8)
Gas mm(inch) 28.58(1-1/8) 28.58(1-1/8)
Dimensions(W x H x D) mm (1,240 × 1,690 × 760) × 1 (1,240 × 1,690 × 760) × 1
inch (48-13/16 × 66-17/32 × 29-29/32) × 1 (48-13/16 × 66-17/32 × 29-29/32) × 1
Net Weight kg 276 × 1 276 × 1
lbs 607 × 1 607 × 1
Sound Pressure Level (Cooling) dB(A) 62.0 60.5
Sound Power Level (Cooling) dB(A) 86.0 83.0
Protection
Devices
High pressure protection High pressure sensor / High pressure switch
Compressor/Fan Over-heat protection / Fan driver overload protector
Inverter Over-heat protection / Over-current protection
Communication Cable (VCTF-SB) No.×㎟2C × 1.0 ~ 1.5 2C × 1.0 ~ 1.5
Refigerant
Refigerant name R410A R410A
Precharged Amount kg 14.0 14.0
lbs 30.9 30.9
Control Electronic Expansion Valve Electronic Expansion Valve
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national codes. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Power factor could vary less than ±1% according to the operating conditions.
4. Sound pressure level is measured on the rated condition in the anechoic rooms by ISO 3745 standard.
Sound power level is measured on the rated condition in the reverberation rooms by ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
5. Sound values of combination model are calculated values based on sound results of independent models.
Sound values can be increased owing to ambient or installation conditions during operation.
Sound values of system [dB(A)] = 10*log [10^(A1/10)+ ... +10^(An/10)] , A1~An means sound values of independent models.
6. Performances are based on the following conditions :
• *Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Interconnected Pipe Length is 7.5m and difference of Elevation (Outdoor ~ Indoor Unit) is 0m.
7. *** : The number in parentheses means maximum connectable indoor units in accordance with outdoor units combination (160~200%).
The recommended ratio is 130%.
8. This product contains Fluorinated greenhouse gases.(R410A, GWP(Global warming potential) = 2,087.5)

1. Specifications
7
Multi V 5 Cooling Only Outdoor Units
Power Supply V, Ø, Hz 220-240, 3, 50 220-240, 3, 50
220, 3, 60 220, 3, 60
Number of maxmum connectable indoor units 29(45) 32(50)
RT 16 18
Model Name
Combination Unit ARUV192BTE5 ARUV216BTE5
Independent Unit
ARUV192BTE5 ARUV216BTE5
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national codes. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Power factor could vary less than ±1% according to the operating conditions.
4. Sound pressure level is measured on the rated condition in the anechoic rooms by ISO 3745 standard.
Sound power level is measured on the rated condition in the reverberation rooms by ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
5. Sound values of combination model are calculated values based on sound results of independent models.
Sound values can be increased owing to ambient or installation conditions during operation.
Sound values of system [dB(A)] = 10*log [10^(A1/10)+ ... +10^(An/10)] , A1~An means sound values of independent models.
6. Performances are based on the following conditions :
• *Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Interconnected Pipe Length is 7.5m and difference of Elevation (Outdoor ~ Indoor Unit) is 0m.
7. *** : The number in parentheses means maximum connectable indoor units in accordance with outdoor units combination (160~200%).
The recommended ratio is 130%.
8. This product contains Fluorinated greenhouse gases.(R410A, GWP(Global warming potential) = 2,087.5)

Multi V 5 Cooling Only
1. Specifications
8
Outdoor Units
RT 20 22
Model Name
Combination Unit ARUV241BTE5 ARUV264BTE5
Independent Unit
ARUV241BTE5 ARUV264BTE5
Capacity
Cooling (Norminal) Btu/h 240,000 264,000
kW 70.3 77.4
Cooling (Rated) Btu/h 222,000 252,000
kW 65.1 73.9
Input Cooling (Norminal) kW 19.20 22.24
Cooling (Rated) kW 17.40 20.80
EER (Norminal) 3.66 3.48
EER (Rated) 3.74 3.55
Power Factor Rated - 0.93 0.93
Exterior Color Morning Gray / Dawn Gray Morning Gray / Dawn Gray
RAL (Classic) RAL 7030 / RAL 7037 RAL 7030 / RAL 7037
Heat Exchanger Wide Louver Plus Wide Louver Plus
Compressor
Type Hermetically Sealed Scroll Hermetically Sealed Scroll
Piston Displacement cm3/rev 62.1 × 2 62.1 × 2
Number of Revolution rev/min 3,600 × 2 3,600 × 2
Motor Output x Number W x No. 5,300 × 2 5,300 × 2
Starting Method Inverter Inverter
Oil Type FVC68D(PVE) FVC68D(PVE)
Fan
Type Propeller fan Propeller fan
Motor Output x Number W 900 × 2 900 × 2
Air Flow Rate(High) m3/min 320 × 1 320 × 1
ft3/min 1,1301 × 1 1,1301 × 1
Drive DC INVERTER DC INVERTER
Discharge Side / Top TOP TOP
Pipe
Connctions
Liquid mm(inch) 15.88(5/8) 19.05(3/4)
Gas mm(inch) 34.9(1-3/8) 34.9(1-3/8)
Dimensions(W x H x D) mm (1,240 × 1,690 × 760) × 1 (1,240 × 1,690 × 760) × 1
inch (48-13/16 × 66-17/32 × 29-29/32) × 1 (48-13/16 × 66-17/32 × 29-29/32) × 1
Net Weight kg 279 × 1 279 × 1
lbs 614 × 1 614 × 1
Sound Pressure Level (Cooling) dB(A) 65.0 65.0
Sound Power Level (Cooling) dB(A) 88.0 88.0
Protection
Devices
High pressure protection High pressure sensor / High pressure switch
Compressor/Fan Over-heat protection / Fan driver overload protector
Inverter Over-heat protection / Over-current protection
Communication Cable (VCTF-SB) No.×㎟2C × 1.0 ~ 1.5 2C × 1.0 ~ 1.5
Refigerant
Refigerant name R410A R410A
Precharged Amount kg 16.0 16.0
lbs 35.3 35.3
Control Electronic Expansion Valve Electronic Expansion Valve
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national codes. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Power factor could vary less than ±1% according to the operating conditions.
4. Sound pressure level is measured on the rated condition in the anechoic rooms by ISO 3745 standard.
Sound power level is measured on the rated condition in the reverberation rooms by ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
5. Sound values of combination model are calculated values based on sound results of independent models.
Sound values can be increased owing to ambient or installation conditions during operation.
Sound values of system [dB(A)] = 10*log [10^(A1/10)+ ... +10^(An/10)] , A1~An means sound values of independent models.
6. Performances are based on the following conditions :
• *Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Interconnected Pipe Length is 7.5m and difference of Elevation (Outdoor ~ Indoor Unit) is 0m.
7. *** : The number in parentheses means maximum connectable indoor units in accordance with outdoor units combination (160~200%).
The recommended ratio is 130%.
8. This product contains Fluorinated greenhouse gases.(R410A, GWP(Global warming potential) = 2,087.5)

1. Specifications
9
Multi V 5 Cooling Only Outdoor Units
Power Supply V, Ø, Hz 220-240, 3, 50 220-240, 3, 50
220, 3, 60 220, 3, 60
Number of maxmum connectable indoor units 35(44) 39(48)
RT 20 22
Model Name
Combination Unit ARUV241BTE5 ARUV264BTE5
Independent Unit
ARUV241BTE5 ARUV264BTE5
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national codes. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Power factor could vary less than ±1% according to the operating conditions.
4. Sound pressure level is measured on the rated condition in the anechoic rooms by ISO 3745 standard.
Sound power level is measured on the rated condition in the reverberation rooms by ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
5. Sound values of combination model are calculated values based on sound results of independent models.
Sound values can be increased owing to ambient or installation conditions during operation.
Sound values of system [dB(A)] = 10*log [10^(A1/10)+ ... +10^(An/10)] , A1~An means sound values of independent models.
6. Performances are based on the following conditions :
• *Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Interconnected Pipe Length is 7.5m and difference of Elevation (Outdoor ~ Indoor Unit) is 0m.
7. *** : The number in parentheses means maximum connectable indoor units in accordance with outdoor units combination (160~200%).
The recommended ratio is 130%.
8. This product contains Fluorinated greenhouse gases.(R410A, GWP(Global warming potential) = 2,087.5)

Multi V 5 Cooling Only
1. Specifications
10
Outdoor Units
RT 24 26
Model Name
Combination Unit ARUV288BTE5 ARUV312BTE5
Independent Unit
ARUV168BTE5 ARUV192BTE5
ARUV121BTE5 ARUV121BTE5
Capacity
Cooling (Norminal) Btu/h 288,000 312,000
kW 84.4 91.5
Cooling (Rated) Btu/h 274,000 298,000
kW 80.3 87.3
Input Cooling (Norminal) kW 20.90 22.42
Cooling (Rated) kW 18.06 19.71
EER (Norminal) 4.04 4.08
EER (Rated) 4.45 4.43
Power Factor Rated - 0.93 0.93
Exterior Color Morning Gray / Dawn Gray Morning Gray / Dawn Gray
RAL (Classic) RAL 7030 / RAL 7037 RAL 7030 / RAL 7037
Heat Exchanger Wide Louver Plus Wide Louver Plus
Compressor
Type Hermetically Sealed Scroll Hermetically Sealed Scroll
Piston Displacement cm3/rev (62.1 × 2) + (43.8 × 1) 62.1 × 3
Number of Revolution rev/min 3,600 × 3 3,600 × 3
Motor Output x Number W x No. (5,300 × 2) + (4,200 × 1) 5,300 × 3
Starting Method Inverter Inverter
Oil Type FVC68D(PVE) FVC68D(PVE)
Fan
Type Propeller fan Propeller fan
Motor Output x Number W (900 × 2) + (1,200 × 1) (900 × 2) + (1,200 × 1)
Air Flow Rate(High) m3/min (320 × 1) + (240 × 1) (320 × 1) + (240 × 1)
ft3/min (11,301 × 1) + (8,476 × 1) (11,301 × 1) + (8,476 × 1)
Drive DC INVERTER DC INVERTER
Discharge Side / Top TOP TOP
Pipe
Connctions
Liquid mm(inch) 19.05(3/4) 19.05(3/4)
Gas mm(inch) 34.9(1-3/8) 34.9(1-3/8)
Dimensions(W x H x D)
mm (1,240 × 1,690 × 760) × 1
+ (930 × 1,690 × 760) × 1
(1,240 × 1,690 × 760) × 1
+ (930 × 1,690 × 760) × 1
inch (48-13/16 × 66-17/32 × 29-29/32) × 1
+ (36-5/8 × 66-17/32 × 29-29/32) × 1
(48-13/16 × 66-17/32 × 29-29/32) × 1
+ (36-5/8 × 66-17/32 × 29-29/32) × 1
Net Weight kg (264 × 1) + (188 × 1) (276 × 1) + (188 × 1)
lbs (581 × 1) + (414 × 1) (607 × 1) + (414 × 1)
Sound Pressure Level (Cooling) dB(A) 62.8 63.8
Sound Power Level (Cooling) dB(A) 84.5 86.8
Protection
Devices
High pressure protection High pressure sensor / High pressure switch
Compressor/Fan Over-heat protection / Fan driver overload protector
Inverter Over-heat protection / Over-current protection
Communication Cable (VCTF-SB) No.×㎟2C × 1.0 ~ 1.5 2C × 1.0 ~ 1.5
Note
1. Due to our policy of innovation some specifications may be changed without notification.
2. Wiring cable size must comply with the applicable local and national codes. And “Electric characteristics” chapter should be considered for electrical
work and design. Especially the power cable and circuit breaker should be selected in accordance with that.
3. Power factor could vary less than ±1% according to the operating conditions.
4. Sound pressure level is measured on the rated condition in the anechoic rooms by ISO 3745 standard.
Sound power level is measured on the rated condition in the reverberation rooms by ISO 9614 standard.
Therefore, these values can be increased owing to ambient conditions during operation.
5. Sound values of combination model are calculated values based on sound results of independent models.
Sound values can be increased owing to ambient or installation conditions during operation.
Sound values of system [dB(A)] = 10*log [10^(A1/10)+ ... +10^(An/10)] , A1~An means sound values of independent models.
6. Performances are based on the following conditions :
• *Cooling : Indoor Ambient Temp. 27°CDB / 19°CWB, Outdoor Ambient Temp. 35°CDB / 24°CWB
• Interconnected Pipe Length is 7.5m and difference of Elevation (Outdoor ~ Indoor Unit) is 0m.
7. *** : The number in parentheses means maximum connectable indoor units in accordance with outdoor units combination (160~200%).
The recommended ratio is 130%.
8. This product contains Fluorinated greenhouse gases.(R410A, GWP(Global warming potential) = 2,087.5)
