LG Smart 3D Blu-Ray BH6830SW User manual

Please read this manual carefully before operating
your set and retain it for future reference.
www.lg.com
BH6830SW (BH6830SW, S63S3-S/ C, S63T1-W, T2, W3-2)
OWNER’S MANUAL
SMART 3D Blu-ray™
HOME THEATER SYSTEM

1 Getting Started
Getting Started2
Getting Started
1
Safety Information
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning ash with arrowhead
symbol within an equilateral triangle
is intended to alert the user to the
presence of uninsulated dangerous
voltage within the product’s
enclosure that may be of sucient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature accompanying the
product.
WARNING: This product contains chemicals known
to the State of California to cause cancer and birth
defects or other reproductive harm. Wash hands
after handling.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
conned space such as a book case or similar unit.
CAUTION: Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the
product and to protect it from over heating. The
openings shall be never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product shall not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the manufacturer’s
instruction has been adhered to.
CAUTION : CLASS 1M VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. DO NOT VIEW DIRECTLY
WITH OPTICAL INSTRUMENTS
Use of controls, adjustments or the performance of
procedures other than those specied herein may
result in hazardous radiation exposure.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specication page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or re. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
This device is equipped with a portable battery or
accumulator.
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery should not be exposed
to excessive heat such as sunshine, re or the like.

Getting Started 3
Getting Started
1
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects lled
with liquids, such as vases, shall be placed on the
apparatus.
FCC Compliance Statement
This device complies with part 15 of the FCC rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference
received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment o and
on, the user is encouraged to try to correct the
interference by one or more of the following
measures:
yReorient or relocate the receiving antenna.
yIncrease the separation between the equipment
and receiver.
yConnect the equipment into an outlet on a
circuit dierent from that to
ywhich the receiver is connected.
yConsult the dealer or an experienced radio/TV
technician for help.
CAUTION: Any changes or modications not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate this equipment
FCC RF Radiation Exposure Statement : This
equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
This equipment should be installed and operated
with minimum distance 20 cm between the
radiator and your body. End users must follow the
specic operating instructions for satisfying RF
exposure compliance. This transmitter must not be
co-located or operating in conjunction with any
other antenna or transmitter.
FCC Radio Frequency Interference
Requirements
This device is restricted to indoor use due to its
operation in the 5.15 to 5.25 GHz frequency range.
FCC requires this product to be used indoors for
the frequency range 5.15 to 5.25 GHz to reduce the
potential for harmful interference to co-channel
Mobile Satellite systems. High power radars are
allocated as primary users of the 5.25 to 5.35 GHz
and 5.65 to 5.85 GHz bands. These radar stations
can cause interference with and/or damage this
device. This device cannot be co-located with any
other transmitter.
CAUTION: Regulations of the FCC and FAA prohibit
airborne operation of radio-frequency wireless
devices because their signals could interfere with
critical aircraft instruments.
Responsible Party :
LG Electronics USA, Inc. 1000 Sylvan Avenue
Englewood Clis, NJ 07632
TEL. : [phone]

Getting Started4
Getting Started
1
Notes on copyrights
yBecause AACS (Advanced Access Content
System) is approved as content protection
system for Blu-ray Disc format, similar to use of
CSS (Content Scramble System) for DVD format,
certain restrictions are imposed on playback,
analog signal output, etc., of AACS protected
content. The operation of this product and
restrictions on this product may vary depending
on your time of purchase as those restrictions
may be adopted and/or changed by AACS after
the production of this product.
yFurthermore, BD-ROM Mark and BD+ are
additionally used as content protection systems
for Blu-ray Disc format, which imposes certain
restrictions including playback restrictions for
BD-ROM Mark and/or BD+ protected content. To
obtain additional information on AACS, BD-ROM
Mark, BD+, or this product, please contact an
authorized Customer Service Center.
yMany BD-ROM/DVD discs are encoded with
copy protection. Because of this, you should only
connect your player directly to your TV, not to a
VCR. Connecting to a VCR results in a distorted
picture from copy-protected discs.
yThis product incorporates copyright protection
technology that is protected by U.S. patents
and other intellectual property rights. Use of
this copyright protection technology must be
authorized by Rovi Corporation, and is intended
for home and other limited viewing uses only
unless otherwise authorized by Rovi Corporation.
Reverse engineering or disassembly is prohibited.
yUnder the U.S. Copyright laws and Copyright
laws of other countries, unauthorized recording,
use, display, distribution, or revision of television
programs, videotapes, BD-ROM discs, DVDs, CDs
and other materials may subject you to civil and/
or criminal liability.
yWatching a 3D content for a long period
time may cause dizziness or tiredness.
yIt is not recommended to watch a movie
in 3D mode for inrm, child and pregnant
woman.
yIf you are experiencing headache, tiredness
or dizziness while viewing content in 3D,
it is strongly recommended to stop the
playback and rest until you feel normal.
> Caution

Getting Started 5
Getting Started
1
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
9. Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong. The wide blade or
the third prong are provided for your safety. If
the provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by
the manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold
with the apparatus. When a
cart is used, use caution when
moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms
or when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.

Table of Contents6
Table of Contents
1 Getting Started
2 Safety Information
8 Introduction
8 – Playable discs and symbols used in
this manual
9 – About the “7” symbol display
9 – Regional code
10 Remote Control
11 Front Panel
11 Rear Panel
2 Connecting
12 Positioning the System
13 Speaker Connection
13 – Attaching the speakers to the player
14 – Wireless speakers connection
16 Connecting to Your TV
17 – What is SIMPLINK?
17 – ARC (Audio Return Channel) function
18 – Resolution setting
19 Antenna Connection
19 Connections with External Device
19 – AUX connection
20 – PORT. IN connection
20 – OPTICAL IN connection
21 Connecting to Your Home Network
21 – Wired network connection
21 – Wired network setup
23 – Wireless network connection
23 – Wireless network setup
3 System Setting
26 Initial Setup
27 Settings
27 – Adjust the setup settings
28 – [NETWORK] menu
29 – [DISPLAY] menu
30 – [LANGUAGE] menu
31 – [AUDIO] menu
33 – [LOCK] menu
34 – [OTHERS] menu
35 Sound Effect
4 Operating
36 Home Menu Display
36 – Using [HOME] menu
36 – Using the Smart Share
37 Playing the Linked Devices
37 – Playing a disc
37 – Playing Blu-ray 3D disc
38 – Playing a file on disc/USB device
39 – Playing a file on a network server
40 Using Home Network Server for PC
40 – Installing Nero MediaHome 4
Essentials
40 – Sharing files and folders
41 – About Nero MediaHome 4 Essentials
41 – System requirements
42 General Playback
42 – Basic operations for video and audio
content
42 – Basic operations for photo content
42 – Using the disc menu
43 – Resume playback
43 – Last scene memory
44 On-Screen Display
44 – To control video playback
44 – Displaying content information on-
screen
46 Advanced Playback
46 – Repeat playback
46 – Repeating a specific portion
46 – Playing from selected time
47 – Selecting a subtitle language
47 – Hearing a different audio
47 – Watching from a different angle
47 – Changing the TV Aspect Ratio
48 – Changing Subtitle Code Page
48 – Changing the Picture Mode
48 – Viewing content information
49 – Changing content list view
49 – Selecting a subtitle file
50 – Listening to music during slide show
50 – Setting the [3D] option
51 Advanced Features
51 – Wi-Fi Direct™

Table of Contents 7
1
2
3
4
5
6
52 – Enjoying BD-Live™
52 – LG AV Remote
52 – Private Sound Mode
53 – Viewing information from Gracenote
Media Database
54 – Audio CD recording
54 – Recording from FM radio or AUX/
PORTABLE source
55 Radio Operations
55 – Listening to the radio
55 – Presetting the radio stations
55 – Deleting a saved station
55 – Deleting all the saved stations
55 – Improving poor FM reception
56 Playing the iPod
56 – Enjoying iPod on the screen
56 – Enjoying the iPod IN mode
58 Using Bluetooth technology
58 – Listening to music stored on the
Bluetooth devices
60 Using the Premium
60 Using the LG Smart World
61 – Signing in
61 – Searching online content
62 Using the My Apps Menu
5 Troubleshooting
63 Troubleshooting
63 – General
64 – Network
65 – Picture
65 – Sound
65 – Customer Support
65 – Open Source Software Notice
6 Appendix
66 Controlling a TV with the Supplied
Remote Control
66 – Setting up the remote to control your
TV
67 Network Software Update
67 – Network update notification
67 – Software update
69 Additional Information
69 – File requirement
70 – AVCHD (Advanced Video Codec High
Definition)
71 – About DLNA
71 – Certain system requirements
71 – Compatibility notes
72 Audio Output Specifications
73 Area Code List
74 Language Code List
75 Trademarks and Licenses
78 Specifications
80 Maintenance
80 – Handling the unit
80 – Notes on discs
81 Important Information relating to Network
Services
Some of the content in this manual may dier from your player depending on the software of the
player or your service provider.

Getting Started8
Getting Started
1
Introduction
Playable discs and symbols used in this manual
Media/Term Logo Symbol Description
Blu-ray
e
yDiscs such as movies that can be purchased or
rented.
y“Blu-ray 3D” discs and “Blu-ray 3D ONLY” discs.
yBD-R/RE discs that are recorded in BDAV format.
y
u
i
yBD-R/RE discs that contain Video, Audio or
Photo les.
yISO 9660+JOLIET, UDF and UDF Bridge format
DVD-ROM
DVD-R
DVD-RW
DVD+R
DVD+RW
(8 cm, 12 cm)
r
yDiscs such as movies that can be purchased or
rented.
yVideo mode and nalized only
ySupports the dual layer disc also
oFinalized AVCHD format
y
u
i
yDVD±R/RW discs that contain Video, Audio or
Photo les.
yISO 9660+JOLIET, UDF and UDF Bridge format
DVD-RW (VR)
(8 cm, 12 cm) rVR mode and nalized only
Audio CD
(8 cm, 12 cm) tAudio CD
CD-R/RW
(8 cm, 12 cm)
y
u
i
yCD-R/RW discs that contain Video, Audio or
Photo les.
yISO 9660+JOLIET, UDF and UDF Bridge format
Note –,Indicates special notes and operating features.
Caution –>Indicates cautions for preventing possible damages
from abuse.

Getting Started 9
Getting Started
1
yDepending on the conditions of the
recording equipment or the CD-R/RW (or
DVD±R/RW) disc itself, some CD-R/RW (or
DVD±R/RW) discs cannot be played on the
unit.
yDepending on the recording software & the
nalization, some recorded discs (CD-R/RW,
DVD±R/RW, BD-R/RE) may not be playable.
yBD-R/RE, DVD±R/RW and CD-R/RW discs
recorded using a personal computer or a
DVD or CD Recorder may not play if the
disc is damaged or dirty, or if there is dirt or
condensation on the player’s lens.
yIf you record a disc using a personal
computer, even if it is recorded in a
compatible format, there are cases in which
it may not play because of the settings of
the application software used to create the
disc. (Check with the software publisher for
more detailed information.)
yThis player requires discs and recordings to
meet certain technical standards in order to
achieve optimal playback quality.
yPre-recorded DVDs are automatically set to
these standards. There are many dierent
types of recordable disc formats (including
CD-R containing MP3 or WMA les) and
these require certain pre-existing conditions
to ensure compatible playback.
yCustomers should note that permission
is required in order to download MP3 /
WMA les and audio from the Internet.
Our company has no right to grant such
permission. Permission should always be
sought from the copyright owner.
yYou have to set the disc format option
to [Mastered] in order to make the discs
compatible with the LG players when
formatting rewritable discs. When setting
the option to Live System, you cannot use
it on LG player. (Mastered/Live File System :
Disc format system for windows Vista)
, Note About the “7” symbol display
“7”may appear on your TV display during
operation and indicates that the function explained
in this owner’s manual is not available on that
specic media.
Regional code
This unit has a regional code printed on the rear of
the unit. This unit can play only BD-ROM or DVD
discs labeled same as the rear of the unit or“ALL”.

Getting Started10
Getting Started
1
INFO/MENU
FUNCTION
INFO/MENU
FUNCTION
INFO/MENU
FUNCTION
INFO/MENU
FUNCTION
Battery Installation
Remove the battery cover on the
rear of the Remote Control, and
insert R03 (size AAA) battery with
4and 5matched correctly.
• • • • • • a • • • • • •
FUNCTION: Changes input mode.
SUBTITLE: Selects a subtitle
language.
1(POWER): Switches the player
ON or OFF.
B(OPEN/CLOSE): Ejects a disc.
SLEEP: Sets a certain period of
time after which the unit will
switch to o.
INFO/MENU (m): Displays or
exits On-Screen Display.
HOME ( ): Displays or exits the
[Home Menu].
DISC MENU: Accesses menu on a
disc.
• • • • • • b • • • • •
Direction buttons: Selects an
option in the menu.
PRESET +/-: Selects programme
of Radio.
TUNING +/-: Tunes in the desired
radio station.
ENTER (b): Acknowledges menu
selection.
BACK ( ): Exits the menu or
returns to the previous screen.
TITLE/POPUP: Displays the DVD
title menu or BD-ROM’s pop-up
menu, if available.
Z(STOP): Stops playback.
z(PLAY): Starts playback.
M(PAUSE/STEP): Pauses
playback.
C/V (SKIP): Goes to the
next or previous chapter / track /
le.
c/v (SCAN): Searches
backward or forward.
• • • • • • c • • • • •
SPEAKER LEVEL: Sets the sound
level of desired speaker.
SOUND EFFECT: Selects a sound
eect mode.
VOL +/-: Adjusts speaker volume.
OPTICAL/ TV SOUND : Changes
input mode to optical directly.
MUTE: Mute the unit.
Colored (R, G, Y, B) buttons:
- Use to navigate BD-ROM menus.
They are also used as shortcut
buttons for specic menus.
- B button: Selects mono/ stereo
in FM mode.
0-9 numerical buttons: Selects
numbered options in a menu.
CLEAR: Removes a mark on the
search menu or a number when
setting the password.
REPEAT (h): Repeats a desired
section or sequence.
MUSIC ID: When connected
to the network, can provide
information about the current
song while movie playback.
AUDIO: Selects an audio language
or audio channel.
X(REC): Records from an Audio
CD, FM radio or AUX source to
USB.
?: Marked button is not available.
• • • • • • d • • • • •
TV Control Buttons: See page
66.
Remote Control

Getting Started 11
Getting Started
1

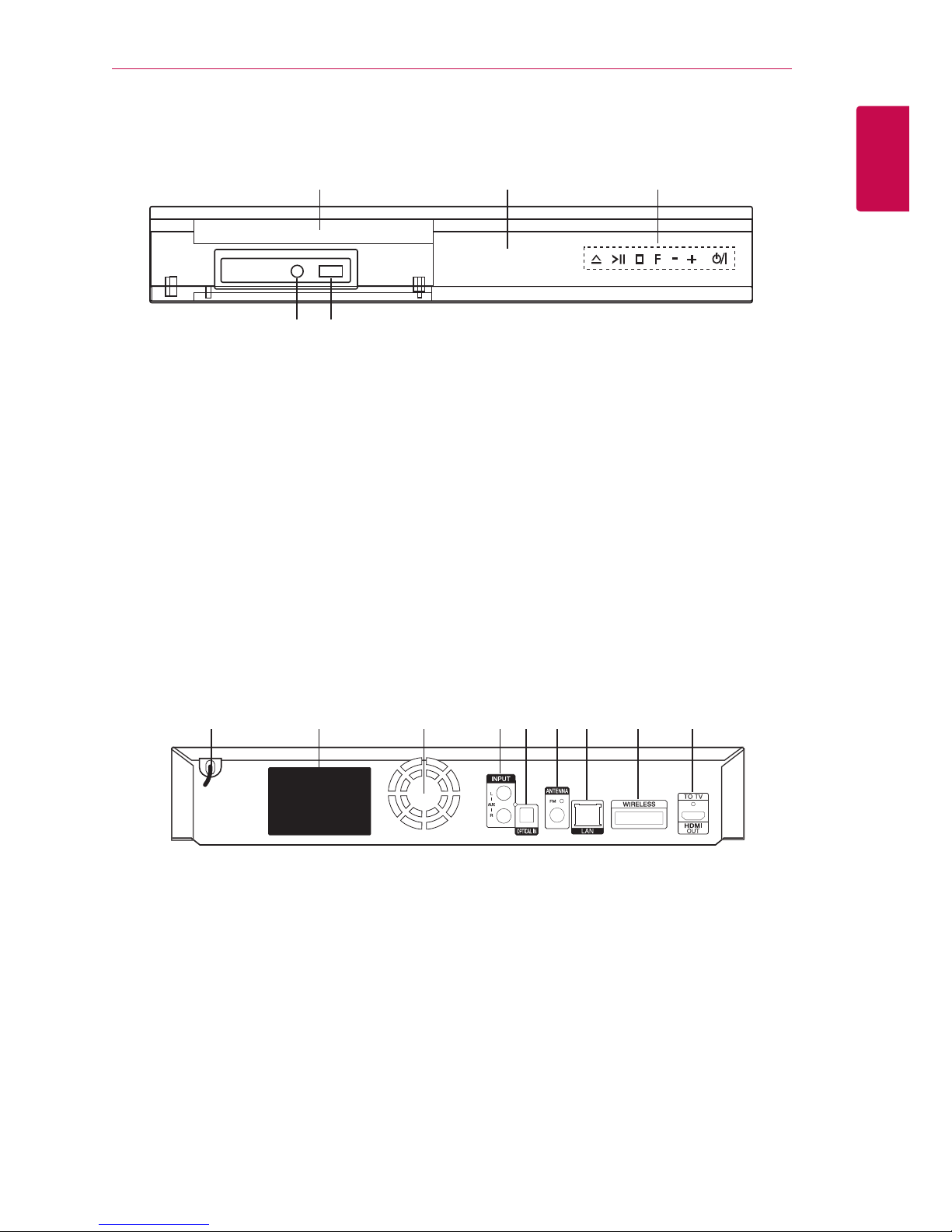

Front Panel
abc
de
abc
ef
d
aDisc Tray
bDisplay Window
cOperation buttons
R(Open / Close)
T(Play / Pause)
I(Stop)
F (Function)
Changes the input source or function.
VOL -/+
1/! (Power)
dPORT. IN
eUSB (iPod/iPhone/iPad) Port
Rear Panel
abcdefgh i
aAC power cord
bSpeakers connectors
cCooling Fan
dAUX (L/R) INPUT
eOPTICAL IN
fAntenna Connector
gLAN port
hWIRELESS connector
iHDMI OUT TO TV

2 Connecting
Connecting12
Connecting
2
Positioning the System
The following illustration shows an example of
positioning the system. Note that the illustrations
in these instructions dier from the actual unit for
explanation purposes.
For the best possible surround sound, all the
speakers other than the subwoofer should be
placed at the same distance from the listening
position (
A
B
D
D
E
E
F
F
AAA
A
A
G
G
C
C
A
B
A
).
A
B
D
D
E
E
F
F
AAA
A
A
G
G
C
C
AB A
A
B
D
D
E
E
F
F
AAA
A
A
G
G
C
C
A
B
A
Front left speaker (L)/
A
B
D
D
E
E
F
F
AAA
A
A
G
G
C
C
A
B
A
Front right speaker (R):
Place the front speakers to the sides of the monitor
or screen and as ush with the screen surface as
possible.
A
B
D
D
E
E
F
F
AAA
A
A
G
G
C
C
A
B
A
Center speaker:
Place the center speaker above or below the
monitor or screen.
A
B
D
D
E
E
F
F
AAA
A
A
G
G
C
C
A
B
A
Surround left speaker (L)/
A
B
D
D
E
E
F
F
AAA
A
A
G
G
C
C
A
B
A
Surround right speaker (R):
Place these speakers behind your listening position,
facing slightly inwards.
A
B
D
D
E
E
F
F
AAA
A
A
G
G
C
C
A
B
A
Subwoofer:
The position of the subwoofer is not so critical,
because low bass sounds are not highly directional.
But it is better to place the subwoofer near the
front speakers. Turn it slightly toward the center of
the room to reduce the wall reections.
A
B
D
D
E
E
F
F
AAA
A
A
G
G
C
C
A
B
A
Unit
yBe careful to make sure children not to put
their hands or any objects into the *speaker
duct.
*Speaker duct: A hole for plentiful bass
sound on speaker cabinet (enclosure).
yPlace the center speaker at a safe distance
from the child’s reach.
Otherwise it may result in the speaker falling
down and causing personal injury and/or
property damage.
yThe speakers contain magnetic parts, so
colour irregularity may occur on the CRT
TV screen or PC monitor screen. Please use
the speakers away from the TV screen or PC
monitor screen.
yBefore using the subwoofer, remove the
protective vinyl.
> Caution

Connecting 13
Connecting
2
Speaker Connection
Attaching the speakers to the
player
1. Connect the wires to the unit.
Match each wire’s colored band to the same
colored connection terminal on the rear of the
unit. To connect the cable to the unit, press
each plastic finger pad to open the connection
terminal. Insert the wire and release the finger
pad.
Connect the black stripe of each wire to the
terminals marked -(minus) and the other end
to the terminals marked + (plus).
Connect a woofer cord to the player. When
connecting a woofer cord to the player, insert
the connector until it clicks.
2. Connect the wires to the speakers.
Connect the other end of each wire to the
correct speaker according to the color coding:
Color Speaker Position
Green Center Center
Orange Sub
woofer Any front position
Red Front Front right
White Front Front left
To connect the cable to the speakers, press each
plastic nger pad to open the connection terminals
on the base of each speaker. Insert the wire and
release the nger pad.
yBe careful to make sure children do not put
their hands or any objects into the *speaker
duct.
*Speaker duct : A hole for plentiful bass
sound on speaker cabinet (enclosure).
yThe speakers contain magnet parts, so color
irregularity may occur on the TV screen or
PC monitor screen. Please use the speakers
far away from either TV screen or PC
monitor.
> Caution

Connecting14
Connecting
2
Wireless speakers connection
LED indicator of wireless receiver
LED Color Operation
Yellow The wireless receiver is receiving
the signal of the wireless TX.
Red The Wireless Receiver is in
standby mode.
O (No
display)
The power cord of wireless
receiver is disconnected.
Setting up the wireless receiver for
the first time
1. Connect the Wireless Receiver and the rear
speaker (right, left) with the speaker cables.
Color Speaker Position
Grey Rear Rear right
Blue Rear Rear left
2. Connect the power cord of the Wireless
Receiver to the outlet.
3. Turn off the unit and insert the Wireless TX into
the WIRELESS connector on the rear of the unit.
Line
4. Turn on the main unit: The main unit and
wireless receiver will be automatically
connected.
yInsert the Wireless TX with the marked
“Wireless TX" facing upwards to rear on the
unit.
yInsert the Wireless TX to the line on the
Wireless TX into the WIRELESS connector on
the rear of the unit.
yDo not insert a wireless dongle other than
the Wireless TX dongle dedicated for the
product. The product might be damaged or
it may not be removed easily.
> Caution
Manually pairing wireless receiver
When your connection is not completed, you can
see the red LED on the wireless receiver and rear
speakers are not made sound. To solve the problem,
follow the below steps.
1. Press and hold ISTOP button on the unit
and MUTE button on the remote control
simultaneously.
- Displays the “REMATE”.
2. Press PAIRING on back of the wireless receiver.
- The yellow LED will flicker
3. Turn off and on the unit.
- If you see “yellow” LED, it’ s successful.
4. If you don’t see “yellow” LED, try again Step 1 -
Step 3.
yIf you operate main unit then wireless
receiver (rear speakers) sound within a few
seconds in standby mode.
ySet the distance between this unit and
wireless receiver within 10 m (32 ft.).
yOptimum performance can be
implemented only when the unit and the
wireless receiver within distance of 2 m (6 ft.)
to 10 m (32 ft.) is used since communication
failure may occur if longer distance is used.
yIt takes a few seconds (and may take longer)
for the Wireless TX and wireless receiver to
communicate with each other.
, Note

Connecting 15
Connecting
2
About Ferrite Core (for EMI only)
Be sure to attach the ferrite core to the power cord
(for connecting to this unit and wireless receiver).
This ferrite core can reduce noises.

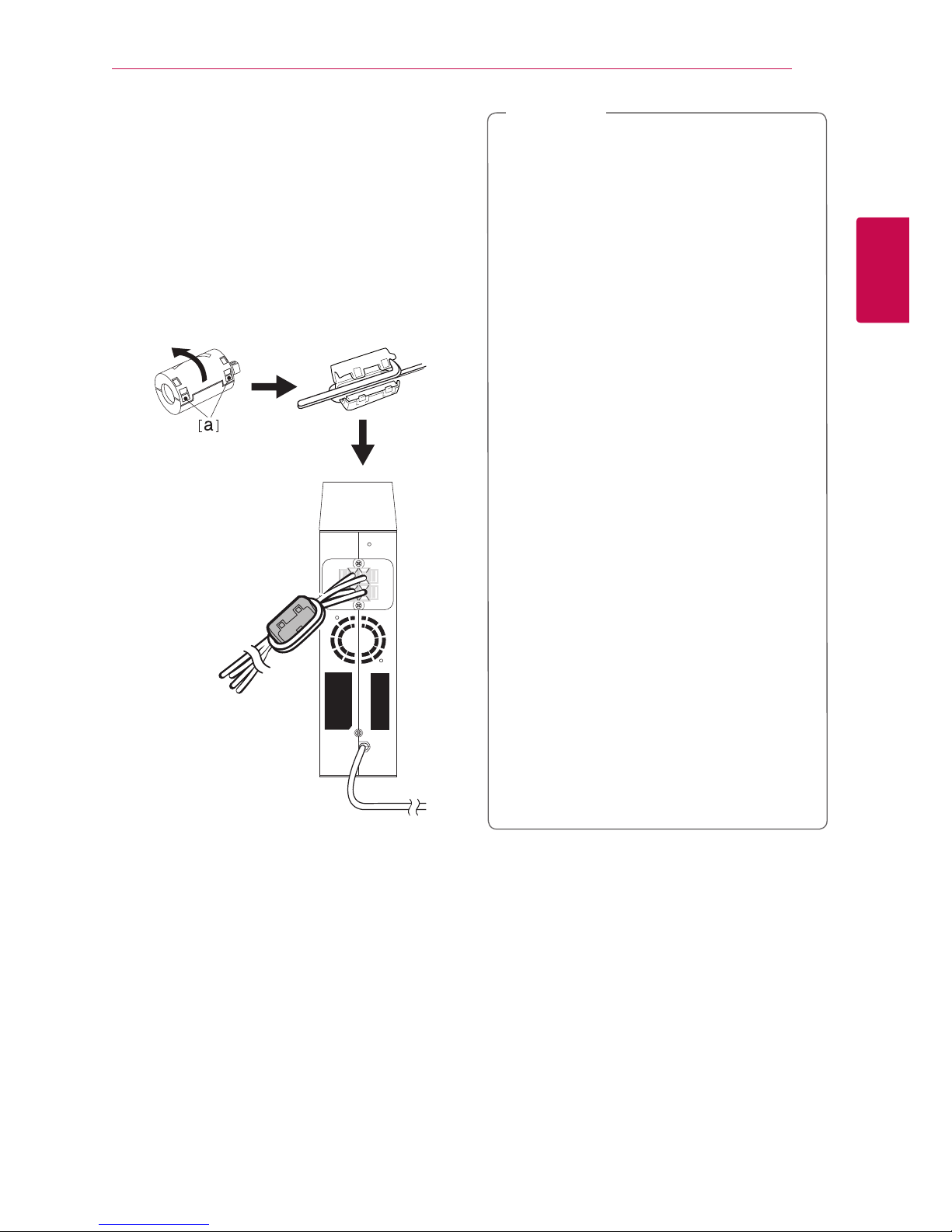

How to attach the ferrite core
1. Pull the stopper [a] of the ferrite core to open.
2. Wind the rear speaker cables around the ferrite
core twice.
3. Close the ferrite core until it clicks.
yIf there is a strong electromagnetic wave
product nearby, interference may occur. Put
the unit (Wireless Receiver and main unit)
away from there.
yIf there is no audio signal for longer than
10 minutes, the Wireless Receiver will
automatically switch to standby mode. In
power saving mode, both LEDs will turn
red. LEDs will turn yellow when there is any
audio signal back.
yIf you operate main unit then wireless
speakers (rear speakers) sound within a few
seconds in standby mode.
ySet the distance between this unit and
Wireless Receiver within 10 m (32 ft.).
yOptimum performance can be
implemented only when the Wireless TX
and the Wireless Receiver within distance
of 2 m (6 ft.) to 10 m (32 ft.) is used since
communication failure may occur if longer
distance is used.
yBe sure to match the speaker cable to the
appropriate terminal on the components:
+ to + and – to –. If the cables are reversed,
the sound will be distorted and will lack
bass.
yIt takes a few seconds (and may take longer)
for the Wireless TX and Wireless Receiver to
communicate with each other.
yUse the rear speaker at least 30 cm (11 inch)
away from either TV screen or PC monitor.
, Note

Connecting16
Connecting
2
Connecting to Your TV
If you have a HDMI TV or monitor, you can connect
it to this player using a HDMI cable (Type A, High
speed HDMI™ cable with Ethernet). Connect the
HDMI jack on the player to the HDMI jack on a
HDMI compatible TV or monitor.
Rear of the unit
TV
HDMI cable not included
Set the TV’s source to HDMI (refer to TV’s Owner’s
manual).
Additional Information for HDMI
yWhen you connect a HDMI or DVI compatible
device make sure of the following:
-Try switching o the HDMI/DVI device and
this player. Next, switch on the HDMI/DVI
device and leave it for around 30 seconds,
then switch on this player.
-The connected device’s video input is set
correctly for this unit.
-The connected device is compatible with
720x480p, 1280x720p, 1920x1080i or
1920x1080p video input.
yNot all HDCP-compatible HDMI or DVI devices
will work with this player.
-The picture will not be displayed properly
with non-HDCP device.
yIf a connected HDMI device does not accept
the audio output of the player, the HDMI
device’s audio sound may be distorted or
may not output.
yWhen you use HDMI connection, you can
change the resolution for the HDMI output.
(Refer to“Resolution setting”on page 18 )
ySelect the type of video output from the
HDMI OUT jack using [HDMI Color Setting]
option on the [Settings] menu (see page
30).
yChanging the resolution when the
connection has already been established
may result in malfunctions. To solve the
problem, turn o the player and then turn it
on again.
yWhen the HDMI connection with HDCP
is not veried, TV screen is changed to
black screen. In this case, check the HDMI
connection, or disconnect the HDMI cable.
yIf there are noises or lines on the screen,
please check the HDMI cable (length is
generally limited to 4.5 m(15 ft.)).
, Note

Connecting 17
Connecting
2
What is SIMPLINK?
Some functions of this unit are controlled by the
TV’s remote control when this unit and LG TV’s with
SIMPLINK are connected through HDMI connection.
Controllable functions by LG TV’s remote control;
Play, Pause, Scan, Skip, Stop, Power O, etc.
Refer to the TV owner’s manual for the details of
SIMPLINK function.
LG TV’s with SIMPLINK function has the logo as
shown above.
Depending on the disc type or playing status,
some SIMPLINK operation may dier from your
purpose or not work.
, Note
ARC (Audio Return Channel)
function
The ARC function enables an HDMI capable TV to
send the audio stream to HDMI OUT of this player.
To use this function:
-Your TV must support the HDMI-CEC and ARC
function and the HDMI-CEC and ARC must be
set to On.
-The setting method of HDMI-CEC and ARC may
dier depending on the TV. For details about
ARC function, refer to your TV manual.
-You must use the HDMI cable (Type A, High
Speed HDMI™ cable with Ethernet).
-You must connect with the HDMI IN that
supports the ARC function using the HDMI OUT
on this player.
-You can connect only one Home Theater to TV
compatible with ARC.
To activate [SIMPLINK / ARC] function, set this
option to [On]. (page 34)
, Note

Connecting18
Connecting
2
Resolution setting
The player provides several output resolutions for
HDMI OUT jack. You can change the resolution
using [Settings] menu.
1. Press HOME ( ).
2. Use A/D to select the [Settings] and press
ENTER (b). The [Settings] menu appears.
3. Use W/S to select [DISPLAY] option then
press Dto move to the second level.
4. Use W/S to select the [Resolution] option
then press ENTER (b) to move to the third level.
5. Use
W/S to select the desired resolution then
press ENTER (b) to confirm your selection.
yIf your TV does not accept the resolution
you have set on the player, you can set
resolution to 480p as follows:
1. Press
Bto open the disc tray.
2 Press
Z(STOP) for more than 5 seconds.
yIf you select a resolution manually and then
connect the HDMI jack to TV and your TV
does not accept it, the resolution setting is
set to [Auto].
yIf you select a resolution that your TV
does not accept, the warning message
will appear. After resolution change,
if you cannot see the screen, please
wait 20 seconds and the resolution will
automatically revert back to the previous
resolution.
yThe 1080p video output frame rate may
be automatically set to either 24 Hz or
60 Hz depending both on the capability
and preference of the connected TV and
based on the native video frame rate of the
content on the BD-ROM disc.
, Note

Connecting 19
Connecting
2

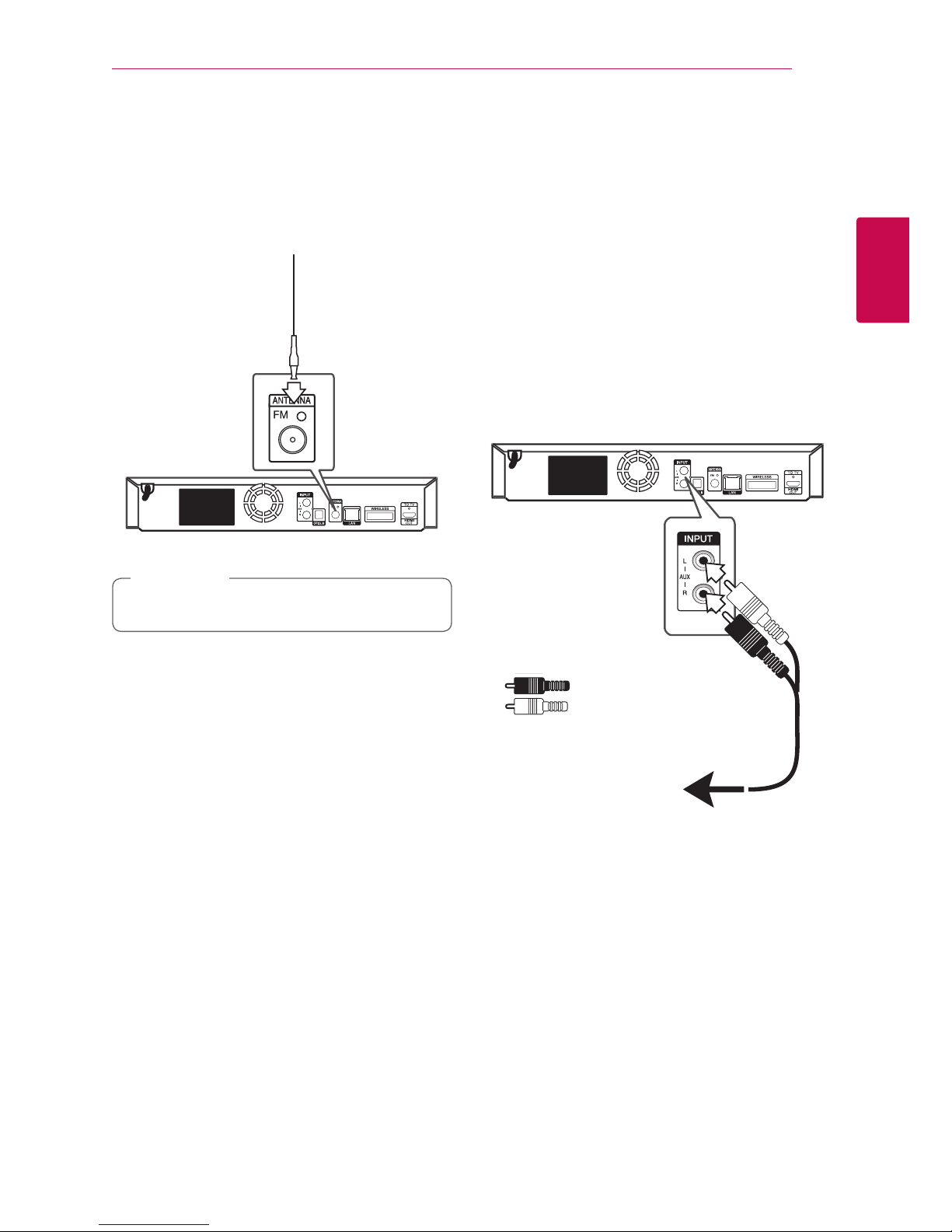

Antenna Connection
Connect the supplied antenna for listening to the
radio.
Rear of the unit
Be sure to fully extend the FM wire antenna.
, Note
Connections with
External Device
AUX connection
You can enjoy the sound from an external
component through the speakers of this system.
Connect the analog audio output jacks of your
component into the AUX L/R (INPUT) on this unit.
And then select the [AUX] option by pressing
FUNCTION.
You can also use the F (Function) button on the
front panel to select the input mode.
To the audio output jacks
of your component
(TV, VCR, etc.)
Rear of the unit
Red
White

Connecting20
Connecting
2
PORT. IN connection
You can enjoy the sound from your portable audio
player through the speakers of this system.
Connect the headphones (or line out ) jack of the
portable audio player into the PORT. IN socket of
this unit. And then select the [PORTABLE] option by
pressing FUNCTION.
You can also use the F (Function) button on the
front panel to select the input mode.
MP3 player, etc...
OPTICAL IN connection
You can enjoy the sound from your component
with a digital optical connection through the
speakers of this system.
Connect the optical output jack of your component
into the OPTICAL IN jack on the unit. And then
select the [OPTICAL] option by pressing FUNCTION.
Or press OPTICAL / TV SOUND to select directly.
You can also use the F (Function) button on the
front panel to select the input mode.
To the digital
optical output jack
of your component
Rear of the unit
Optical cable
not included
