LG STYLER S3*F Series User manual
OWNER’S MANUAL
STYLER
Read this owner’s manual thoroughly before operating
the appliance and keep it handy for reference at all times
www.lg.com
S3*F*
MFL66101244
MFL66101244_Singapore.indd 1 2017. 7. 4. 오후 5:00
2TABLE OF CONTENTS
3 PRODUCT FEATURES
4 IMPORTANT SAFETY INSTRUCTIONS
4 Safety Instructions for Installation
5 Safety Instructions for Connecting Electricity
6 Basic Safety Precautions
7 Grounding Instructions
8 PRODUCT OVERVIEW
8 Parts
9 Accessories
10 The Moving Hanger
10 The Pants Crease Care
11 The Shelf
11 Choosing Styler Features
12 INSTALLATION
12 Installation Overview
12 ProductSpecications
13 Unpacking the Styler
13 Choosing the Proper Location
14 Installation Location Requirements
14 Clearances
16 Leveling the Styler
17 Reversing the Door
17 Installing the Anti-Tip Device
18 Assembling the Drip Tray
18 Installing Cap Covers
18 Installing Hinge Covers
19 OPERATION
19 Before Use
20 Using the Styler
21 Sorting Loads
Fabric Care Labels
Grouping Similar Items
Choosing Styler-Safe Clothing
22 Fabric Care Guide
24 Checking the Filters Before
Every Load
Checking the Lint Filter
Changing the Aroma Sheet
25 Checking the Water Tanks
25 Loading the Styler
Hangers
Using the Moving Hanger
Pants Hanger or Pants Crease Care
Shelf
29 Control Panel
Control Panel Features
31 Cycle Guide
Cycle Processes
32 Choosing a Cycle
33 Cycle Settings and Options
34 EXTRA Functions
Locking the Controls
Setting a Delayed Start Time
Smart Diagnosis™
Night Care
36 SMART FUNCTIONS
36 SmartThinQ Application
38 Smart Diagnosis™ Function
39 MAINTENANCE
39 Regular Cleaning
Cleaning the Interior and Exterior
Cleaning the Lint Filter
Cleaning the Aroma Filter
Cleaning the Water Tanks
41 TROUBLESHOOTING
41 FAQs
42 Before Calling for Service
45 SMART DIAGNOSISTM
46 WARRANTY
TABLE OF CONTENTS
MFL66101244_Singapore.indd 2 2017. 7. 4. 오후 5:00
3PRODUCT FEATURES
PRODUCT FEATURES
REMOVE ODORS
Use the Styler's Refresh cycle to quickly and easily remove odors from clothes.
REFRESH CLOTHING OR ADD AN AROMA
Infuse items with the aroma from your favorite dryer fabric softener sheets to keep clothes
and accessories looking, feeling, and smelling refreshed.
REDUCE WRINKLES
The Refresh cycle also uses steam and a moving hanger that vibrates approximately 180
times per minute to remove the wrinkles in clothing. Performance may vary depending on
fabric type.
SHARPEN CREASES IN PANTS
Hang dress trousers flat in the Styler's Pants Crease Care feature. It will crease the pants
legs and reduce wrinkles elsewhere.
GENTLY AND EFFECTIVELY DRY
The heat pump drying technology of the Gentle Dry cycle provides low-heat drying which
draws moisture from clothes without the shrinking or damage associated with hot-air
drying. Gently and safely dry alpaca, camelhair and other non-washable fabrics that have
become damp from rain or snow, and wool sweaters, hand-washable knits, and other dry-
flat items after washing.
SANITIZE AND REMOVE ALLERGENS
The Styler's Sanitary cycle uses TrueSteam™ to destroy bacteria and other microorganisms
without damaging clothes. It maintains the optimal temperature necessary to sanitize each
garment, destroying bacteria that persist even when clothes are dried in sunlight.
SMART DIAGNOSIS™
Should you experience any technical difficulty with the Styler, it has the capability of
transmitting data by phone to the Customer Information Center. The call center agent
records the data transmitted from your machine and uses it to analyze the issue, providing
a fast and effective diagnosis. (Refer to page 45.)
Wi-Fi CYCLE DOWNLOAD
Download additional Styler cycles to meet individual needs. Download one new cycle at a
time.
MFL66101244_Singapore.indd 3 2017. 7. 4. 오후 5:00
4IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USINGTHE APPLIANCE.
There are many important safety messages in this manual and on your appliance.
Always read and obey all safety messages.
WARNING
To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or
death when using this appliance, follow basic safety precautions, including the following:
WARNING Indicates a hazardous situation which, if not avoided, could result in death
or serious injury.
CAUTION Indicates a hazardous situation which, if not avoided, may result in minor or
moderate injury, or product damage.
This is the safety alert symbol. This symbol alerts you to potential hazards that can
result in product damage, property damage, or serious bodily harm or death.
The safety alert symbol will be followed by either the hazard signal word
WARNING or CAUTION. These words mean:
• Do not install the Styler where there may be
a danger of the unit falling.The product is not
designed for use on ships or airplanes. Check
with an authorized LG service center for use
under other special circumstances.
• Do not tamper with controls.
• Install the product where the floor is firm and
level. The product may vibrate excessively and
eventually fall if installed on an unstable surface,
causing damage or injury.
• Keep the front side protected when
transporting the appliance. Do not truck from
the front. The tempered glass panel on the front
of the appliance may break, causing damage or
injury.
• Properly ground the appliance to conform
with all governing codes and ordinances.
Follow the details in the installation instructions.
Electric shock can result if the appliance is not
properly grounded.
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not play
with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
Children of less than 3 years should be
kept away unless continuously supervised.
• Contact an authorized service center before
installing or relocating the Styler to avoid
injury or product damage when moving the
product.
• When moving the Styler away from the wall,
be careful not to roll over or damage the
power cord.
• The appliance is heavy. Two or more people
are necessary to move and install the
appliance to prevent damage or injury.
• Prior to use, ensure that you are connecting
this product to a dedicated grounded
electrical outlet rated for use with this
product. It is the user’s responsibility to replace
a standard 2-prong wall outlet with a standard
3-prong wall outlet.
• Before use, the appliance must be properly
installed as described in this manual. Electric
shock can result if the appliance is not properly
grounded.
Children in the household
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
For use in Europe:
This appliance can be used by children
SAFETY INSTRUCTIONS FOR INSTALLATION
MFL66101244_Singapore.indd 4 2017. 7. 4. 오후 5:00
5IMPORTANT SAFETY INSTRUCTIONS
WARNING
For your safety, the information in this manual must be followed to minimize the risk of fire,
explosion, or electric shock, or to prevent property damage, injury to persons, or death.
SAFETY INSTRUCTIONS FOR INSTALLATION
SAFETY INSTRUCTIONS FOR CONNECTING ELECTRICITY
• Do not, under any circumstances, cut or
remove the ground prong from the power
cord. To prevent personal injury or damage to
the appliance, the electrical power cord must
be plugged into a properly grounded outlet.
• This appliance must be plugged into a 230-
VAC, 50-Hz grounced outlet protected by
a 8-ampere fuse or circuit breaker. Failure
to follow these instructions can result in fire,
explosion, or death.
• This appliance must be plugged into a
properly grounded outlet. Electrical shock
can result if the appliance is not properly
grounded. Have the wall outlet and circuit
checked by a qualified electrician to make
sure the outlet is properly grounded. Failure
to follow these instructions can create an
electric shock hazard and/or a fire hazard.
• Install the appliance where the plug is
easily accessible. Unplug the appliance
when not in use to avoid risk of fire or
electric shock.
• Unplug the appliance before disassembly
or repair to avoid risk of electric shock.
• The appliance should always be plugged
into its own individual electrical outlet
which has a voltage rating that matches
the rating plate. This provides the best
performance and also prevents overloading
house wiring circuits which could cause a fire
hazard from overheated wires.
• Do not use an extension cord to connect
to an outlet. Doing so could result in a fire or
electric shock.
• Never unplug your appliance by pulling on
the power cord. Always grip the plug firmly
and pull straight out from the outlet. The
power cord can be damaged, resulting in a
risk of fire and electric shock.
• Contact LG or a qualified repair person
immediately to repair or replace all
power cords that have become frayed or
otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along
its length or at either end. The power cord
can melt, creating electric shock and/or fire
hazard.
• When installing or moving the appliance,
be careful not to pinch, crush, or damage
the power cord. This will prevent injury and
damage to the appliance from fire and electric
shock.
• Install and store the appliance where it
will not be exposed to temperatures below
freezing or exposed to the weather. Allow the
product to warm to room temperature before
use if it was delivered in winter or at sub-sero
temperature.
• Do not repair or replace any part of the
appliance or attempt any servicing unless
specifically recommended in the user-
maintenance instructions or in published user-
repair instructions that you understand and
have the skills to carry out. Failure to follow this
warning can cause serious injury, fire, electric
shock, or death.
• To reduce the risk of electric shock, do not
install the appliance in humid spaces such as
a bathroom. Failure to follow this warning can
cause death, serious injury, fire, electric shock,
or product deformation or malfunction.
• Remove all packing items and dispose of all
shipping materials properly. Failure to do so can
result in burns, fire, explosion, or death.
• Connect to a properly rated, protected,
and sized power circuit to avoid electrical
overload. Improper power circuits can melt,
creating electric shock and/or fire hazard.
• If the supply cord is damaged,
it must be replaced by the
manufacturer or its service agents
or similarly qualified person in
order to avoid a hazard.
• Keep all packaging from children. Packaging
material can be dangerous for children. There is
a risk of suffocation.
• Do not install near another heat source such
as a stove, oven or heater. Failure to follow this
warning can cause product deformation, smoke,
or fire.
• Do not place candles, smoking materials,
or other flammables on top of the product.
Dripping wax, smoke, or fire can result.
• Remove all protective vinyl film from the
product. Failure to do so can cause product
damage, smoke, or fire.
• The appliance shall be installed in
accordance with national wiring
regulations
MFL66101244_Singapore.indd 5 2017. 7. 4. 오후 5:00
6IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USINGTHE APPLIANCE.
WARNING
To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or
death when using this appliance, follow basic safety precautions, including the following:
eliminate static unless recommended by
the manufacturer of the fabric softener or
product.
• Do not place hands or body near steam
nozzle during operation. The steam is hot
and could cause an injury.
• Do not insert objects into the steam
nozzle. Excessive noise and fire could result.
• Do not drink the water from the water
supply or drain tanks.
• Do not disassemble or modify the Styler.
• Do not put hands, feet, or metal objects
below the Styler.
• Do not operate the Styler or touch the
power cord with wet hands.
• Keep fingers out of pinch point areas;
clearances between the door and cabinet
are necessarily small. Be careful closing door
when children are nearby.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning the use of the
appliance by a person responsible for their
safety.
• Do not place items exposed to cooking
oils in the Styler. Items contaminated with
cooking oils may contribute to a chemical
reaction that could cause a load to catch fire.
• Do not dry articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, or other flammable or explosive
substances, as they give off vapors that could
ignite or explode.
USE
• Do not allow children to play on or in the
appliance. Close supervision of children is
necessary when the appliance is used near
children.
• Do not climb, stand, or hang on the Styler
door or on the shelf or anywhere inside the
appliance. The appliance could fall over or
be damaged, or other damage or injury could
occur.
• Do not step on the doors to the water
tanks. The Styler could fall and cause damage
and injury.
• Do not place heavy or dangerous objects
on top of the Styler.
• Do not put live animals inside the Styler.
• Do not allow children to climb into the
product when it is in use.
• In the event of a gas leak (propane/LPG),
ensure adequate ventilation and contact an
authorized service center before resuming
use. Do not touch or disassemble the
electrical outlet of the Styler.
• Do not use or place flammable substances
(chemicals, medicine, cosmetics, etc) near
the Styler or store them inside the Styler.
Do not place the Styler in the vicinity of
flammable gas.
• Disconnect the power cord immediately
if you hear a noise, smell a strange odor or
detect smoke coming from the appliance.
• In the event of a flood: Do not go near the
product when its base is submerged under
water. Contact the service center. There is a
risk of electric shock or fire.
• Do not use fabric softeners or products to
BASIC SAFETY PRECAUTIONS
MFL66101244_Singapore.indd 6 2017. 7. 4. 오후 5:00
7IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire or explosion, electric shock, property damage, injury to persons or
death when using this appliance, follow basic safety precautions, including the following:
GROUNDING INSTRUCTIONS
WARNING
Improper connection of the equipment-
grounding conductor can result in a risk
of electric shock. Check with a qualified
electrician or service person if you are
in doubt that the appliance is properly
grounded.
yThis appliance must be connected to
a grounded metal, permanent wiring
system or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead on
the appliance. Electric shock can result if
the appliance is not properly grounded.
yThis appliance must be grounded. In
the event of malfunction or breakdown,
grounding will reduce the risk of electric
shock by providing a path of least resistance
for electric current.
yThis appliance must be equipped with
a cord having an equipment-grounding
conductor and a grounding plug. The
plug must be plugged into an appropriate
outlet that is properly installed and grounded
in accordance with all local codes and
ordinances.
yDo not modify the plug.Ifitwillnottthe
outlet, have a proper outlet installed by a
qualiedelectrician.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber-like
materials.
• Do not open door during operation. The
performance of the product may be adversely
affected.
• Do not use the product for other than the
intended purposes. Damage incurred by
using the product for purposes other than
those specified in this user manual are not
covered by the warranty.
MAINTENANCE AND DISPOSAL
• Wipe foreign objects (such as dust and
water) off the prongs of the power plug
and contact areas regularly. Do not use a
wet or damp cloth when cleaning the plug.
• Do not use an appliance to dry the interior.
Do not light a candle to remove interior
odors.
• Do not spray water onto the product
directly when cleaning. A fire or electric
shock may occur.
• Wipe the interior with a dry cloth after use.
• Clean the lint screen before or after each
load.
• Do not use a bleaching agent such as
oxygen or chlorine-based bleaches on the
exterior of the product. Clorox or OxiClean
may cause discoloration when applied to the
surface of the product.
• Do not use sharp objects when cleaning
or operating the controls. An electric shock
may occur.
• Avoid hitting the front glass panel with
heavy objects. Although it is made of
tempered glass, the panel may break in the
event of a strong impact and cause injury.
• Keep product free from rodents, insects,
and other foreign objects. They may damage
wires, causing fire or electric shock.
• Before the appliance is removed from
service or discarded, remove the door to
the drying compartment. Cut off the power
plug and destroy the button section to prevent
reuse.
MFL66101244_Singapore.indd 7 2017. 7. 4. 오후 5:00
8PRODUCT OVERVIEW
PRODUCT OVERVIEW
PARTS
* The door swing can be reversed by the installer to fit the installation location.
moving hanger
interior light
interior light
shelf holder
hot air
circulation vent
water
drain tank
water
supply tank
hooks for
Pants Crease Care
door*
clip
steam nozzle
Pants Crease Care
aroma filter
shelf
drip tray
MFL66101244_Singapore.indd 8 2017. 7. 4. 오후 5:00
9PRODUCT OVERVIEW
ACCESSORIES
Included Accessories
NOTE
yContact the store where the product was purchased or LG customer service at +65 65120555 if
any accessories are damaged or missing. Accessories can be purchased separately online at
http://www.lg.com
yFor your safety and for extended product life, use only authorized components. The
manufacturer is not responsible for product malfunction or accidents caused by the use of
separately purchased unauthorized components or parts.
yThe images in this guide may be different from the actual components and accessories, which
are subject to change by the manufacturer without prior notice for product improvement
purposes.

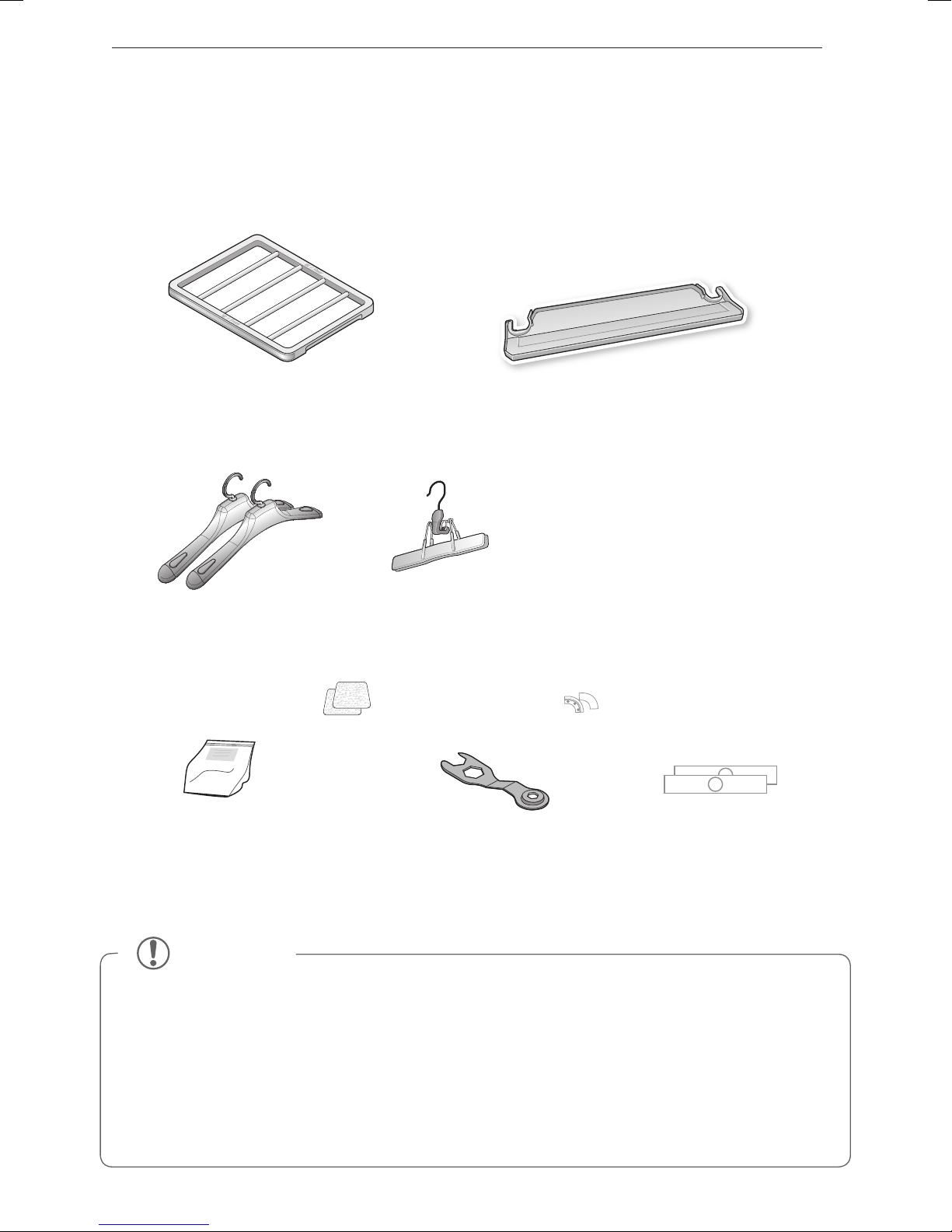

2 hangers* pants hanger*
shelf drip tray
*An ordinary metal/plastic hanger can be used if the hook is less than 5/32 in. (4 mm) thick. The hook must fit in
the indentation in the moving hanger snugly. If the fit is too loose, it may result in vibration, noise, and damage
to clothing.
anti-tip kit
2 non-skid pads
2 hinge covers
2 rear cap covers
wrench
MFL66101244_Singapore.indd 9 2017. 7. 4. 오후 5:00
10 PRODUCT OVERVIEW
THE MOVING HANGER
Hang clothes on the moving hanger using the
hangers provided with the Styler, or use any
plastic or metal hanger that hooks snugly into the
indentations in the moving hanger.
• Use the moving hanger for suits, coats,
jackets, blouses, dresses, skirts, and pants
that don’t require a crease. Use the Pants
Crease Care to crease pants.
• Anything that can be securely placed on a
hanger and steamed or dried without retaining
hanger marks or other damage can be placed
on the moving hanger.
• Dry sweaters or knits on the shelf to avoid
hanger marks.
• Clothing should be securely fastened, with
zippers and buttons closed, so that it does not
fall off the moving hanger during the cycle.
• Arrange clothing so it does not touch the sides
or rear of the cabinet, if possible. Condensation
may form on the interior surface of the cabinet,
and items in contact with the surface may
remain damp at the end of the cycle. Hang
larger items on the diagonal indentations on
the moving hanger.
THE PANTS CREASE CARE
Hang clothes in the Pants Crease Care using
the pants hanger provided with the Styler or any
pants hanger that fits into the hooks above the
door to the Pants Crease Care.
• Open the door to the Pants Crease Care by
pressing the icon on the front.
• The Pants Crease Care keeps pants legs
creased while removing wrinkles elsewhere.
• Pants can be pressed while refreshing other
items in the same cycle.
• For optimum results, use the Trouser Wrinkle
Care cycle which is designed for use with
the Pants Crease Care feature. This cycle can
be downloaded using the LG SmartThinQ
app and used as the Downloaded cycle. For
instructions, see Smart Functions, page 36,
and the instructions in the application.
CAUTION
yDo not lean on or hang heavy items on
the door of the Pants Crease Care. The
unit may tip, resulting in damage or injury.
yDo not allow children to play with or
hang onto the door of the Pants Crease
Care. The unit may tip, resulting in damage
or injury.
yKeep fingers out of pinch point areas
when closing the door of the Pants
Crease Care. Supervise nearby children to
prevent injuries.
CAUTION
yDo not lean or pull on the moving hanger.
Do not allow children play with or hang
onto the moving hanger. The unit could tip,
resulting in damage or injury.
NOTE
To avoid double creases, run the strong course
with the moving hanger to remove any existing
knife pleats, and then use the pants press.
MFL66101244_Singapore.indd 10 2017. 7. 4. 오후 5:00
11PRODUCT OVERVIEW
THE SHELF
Use the shelf when styling clothes or other items
that are difficult to hang or that may be damaged
by hang drying.
• Use the shelf for stuffed toys, pillows, hats,
and other accessories.
• Use the shelf for sweaters, knits, lingerie, or
delicate blouses that can show hanger marks,
stretching, or other damage if dried on a
hanger.
• For best drying performance, do not stack
items on the shelf. Dry single items or place
items side by side with space between.
• When not in use, store the shelf on the shelf
holder knobs in the back of the cabinet.
• For instructions on installing the shelf, see
Assembling the Shelf, page 28. Do not use
the shelf for storing heavy items.
• Arrange items on the shelf so they do not
touch the sides or rear of the cabinet, if
possible. Condensation may form on the
interior surface of the cabinet, and items in
contact with the surface may remain damp at
the end of the cycle.
CHOOSING STYLER FEATURES
item how to style it
suit coat, blazer moving hanger
coat, jacket (short)
coat (long) moving hanger
(remove shelf)
dress (short) moving hanger
dress (long) moving hanger
(remove shelf)
skirt
moving hanger
lightweight blanket, throw
baby blanket
pants (not creased)
shorts
children’s clothes
scarf
moving hanger
or shelf
tie
shawl
lingerie moving hanger or
shelf (if delicate)
shirt, blouse
pants (creased) Pants Crease
Care
cap, hat
shelf
stuffed toys
pillow
sweater
knitwear
infant clothes
CAUTION
yDo not use the shelf to store heavy
items. The shelf may fall, resulting in
damage or injury.
yDo not step or sit on the shelf. The shelf
may fall or the unit may tip, resulting in
damage or injury.
MFL66101244_Singapore.indd 11 2017. 7. 4. 오후 5:00
12 INSTALLATION
INSTALLATION

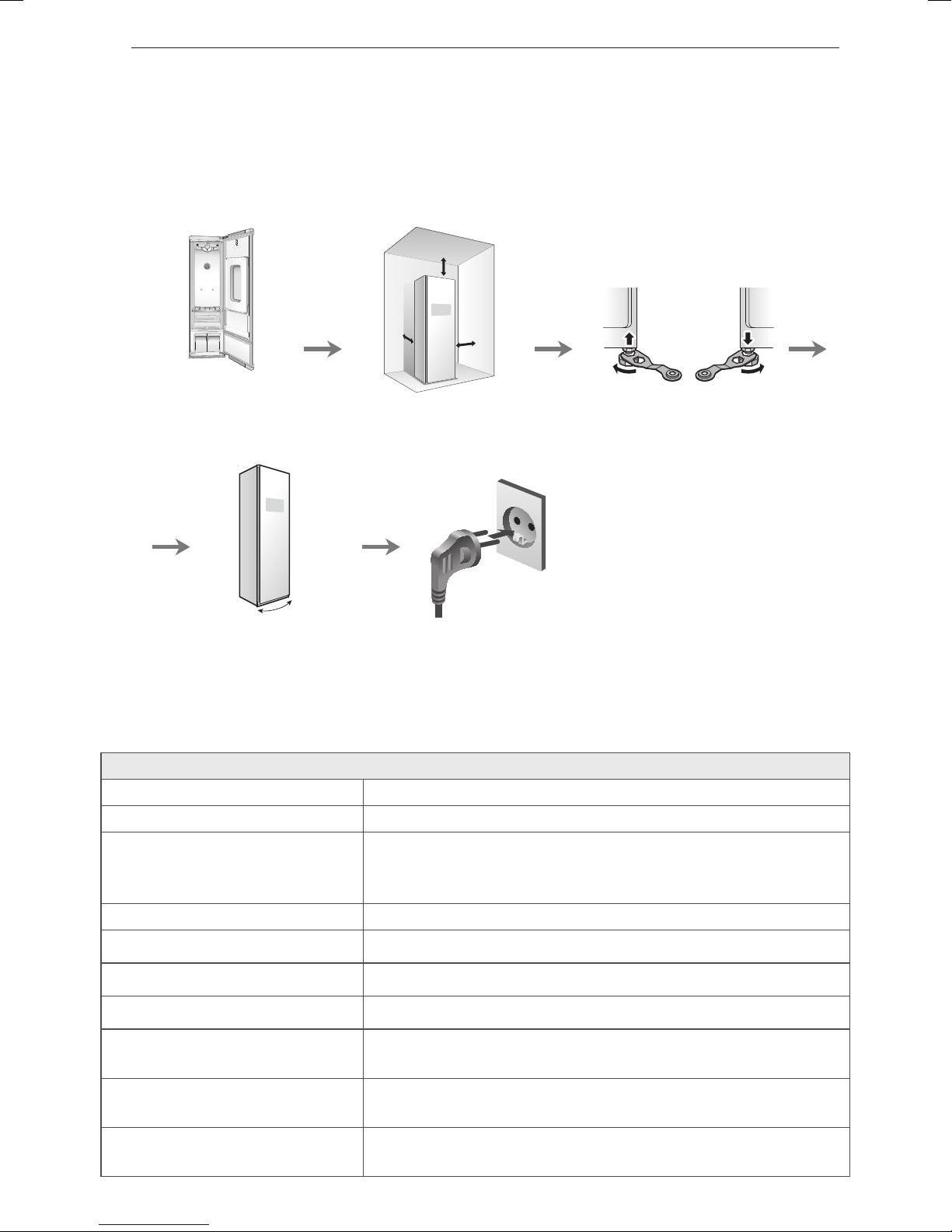

INSTALLATION OVERVIEW
Please read the following installation instructions first after
purchasing this product or transporting it to another location.
PRODUCT SPECIFICATIONS
The appearance and specifications listed in this manual may vary due to constant product improvements.
steam clothing care S3*F*
description electric machine for maintaining clothing
electrical requirements please refer to the rating label regarding detailed information
dimensions
17 ½ in. (W) X 23 in. (D) X 72 13/16 in. (H), 39 ¾ in. (D with door open)
445 mm (W) X 585 mm (D) X 1850 mm (H), 1010 mm (D with door
open)
net weight 183 lb (83 kg)
maximum capacity 4 items
power consumption 1850 W
safety device double overheating safety device, thermal fuse, programming
details of type and rating of
fuses
65TL Ceramic AC 250V 15A
maximum and minimum water
or brine operating temperatures
5~35ºC(41~95℉)
maximum and minimum water
or brine operating pressures
Atmospheric pressure
Check and choose the
proper location
Level the Styler
Reverse the door swing
(if needed)
Connect to grounded outlet
7
3/4
in.
20cm over
2 in.
5cm over
2 in.
5cm over
Unpack and remove
shipping material
Remove material from
inside and outside of cabinet
MFL66101244_Singapore.indd 12 2017. 7. 4. 오후 5:00
13INSTALLATION
UNPACKING THE STYLER • Remove tape and any temporary labels
from the Styler before using.
Do not remove any warning labels, the model
and serial number label, or the Tech Sheet
that is located under the front of the Styler.
• To remove any remaining tape or glue, rub
the area briskly with your thumb.
Tape or glue residue can also be easily
removed by rubbing a small amount of liquid
dish soap over the adhesive with your fingers.
Wipe with warm water and dry.
• Do not use sharp instruments, rubbing
alcohol, flammable fluids, or abrasive
cleaners to remove tape or glue.
These products can damage the surface of
the Styler.
WARNING
yUse two or more people to move and
install the Styler. Failure to do so can result
in back injury or other injury.
yThe Styler is heavy. Use the wheels at the
bottom of the product to move it. Push the
Styler slowly from about halfway down the
front side.
yKeep the Styler upright when moving it. If
you lay the Styler on its side, refrigerant may
leak and cause the appliance to malfunction.
yKeep flammable materials and vapors,
such as gasoline, away from the Styler.
Failure to do so can result in fire, explosion,
or death.
CHOOSING THE PROPER LOCATION
Electricity Install where an outlet is easily accessible.
Use an individual, grounded outlet:230 Volts, 50 Hz, AC, 8 Amps minimum.
WARNING: Do not plug in multiple appliances in the same outlet
with the Styler. Overloading house wiring can cause a fire hazard.
To reduce the risk of electric shock, do not install the Styler in a
wet or damp area.
Floor Floor must be level and solid enough to support 183 lb (83 kg).
Adjust the leveling legs to compensate for any unevenness in the floor.
Do not install on a platform or a weakly supported structure.
Ambient temperature Temperature must be between 50°F (10°C) and 95°F (35°C).
If the ambient temperature is too low or high, performance may be affected.
Do not install in direct sunlight or where the temperature may fall below
32°F (0°C).
Clearances Allow at least 18 in. (46 cm) in front to open the door.
Allow at least 2 in. (5 cm) on both sides and between the back of the Styler
and the wall. Allow at least 7 3/4 in. (20 cm) between the top of the Styler and
any overhanging shelves or cabinets.
If the Styler is too close to adjacent items, performance may decrease and
electricity consumption may increase.
MFL66101244_Singapore.indd 13 2017. 7. 4. 오후 5:00
14 INSTALLATION
INSTALLATION LOCATION REQUIREMENTS
WARNING Read all installation instructions completely before installing and operating the
Styler. It is important to review this entire manual before installing and using the Styler.
Clearances
CAUTION
• The floor must be level, with a maximum slope of 1 inch (2.5 cm) under the Styler. If the
slope is greater than 1 inch (2.5 cm), the appliance cannot be leveled properly.
• Do not install the Styler on a hollow or flexible platform. Doing so may cause excessive
noise and vibration and result in damage or injury if the product tips over.
The installation requires:
yA grounded electrical outlet located within
2 ft. (61 cm) of either side of the appliance.
yA sturdy floor to support the total appliance
weight of 183 lbs (83 kg). The combined
weight of any other laundry appliances
should also be considered.
2 3/64 in.
(52 mm)
15 5/32 in. (385 mm)
56½ in.
(1435 mm)
16 5/16 in.
(415 mm)
72 13/16 in.
(1850 mm)
23 in.
(585 mm)
17 1/2in.
(445 mm)
WARNING
• Do not install or store the Styler in an area where it will be exposed to water and/or
weather. Failure to follow this warning could result in risk of electric shock, injury, or product
damage or malfunction.
MFL66101244_Singapore.indd 14 2017. 7. 4. 오후 5:00
15INSTALLATION
For closet installation, with a door,
minimum ventilation openings in the
top and bottom of the door are required.
Louvered doors with equivalent ventilation
openings are acceptable.
Closet Ventilation Requirements
Closets with doors must have both an upper and
lower vent to prevent heat and moisture buildup
in the closet. One upper vent opening with a
minimum opening of 48 sq. in. (310 cm2) must
be installed no lower than 6 feet above the floor.
One lower vent opening with a minimum opening
of 24 sq. in. (155 cm2) must be installed no more
than one foot above the floor. One example
shown uses vent grilles in the door.
Installation Spacing for Recessed Area or Closet Installation
There should be at least a little space around the Styler (or any other appliance) to avoid contact with
walls, furniture, or other appliances during operation. Allow a minimum of 1 3/16 inch (3 cm) on all sides
of the Styler to avoid increased noise or damage.
48 sq. in.
(310 sq. cm)
24 sq. in.
(155 sq. cm)
3"
(7.6 cm)
3"
(7.6 cm)
Vent
Vent
in.
in.
closet door vent
requirements
7 3/4 in.
(20 cm)
2 in.
(5 cm) 2 in.
(5 cm)
18 in. (46 cm)
in front
25 ½ in.
(650mm)
18 in. (455mm)
10 in. (250mm)
Built-In Installation
Wall
Wall
①
②
2 in. (50 mm)
1
3
/16
in. (30 mm)
1 in. (25 mm)
1
3
/16
in. (30 mm)
Wall
Ceiling
Recommended Installation Spacing
The following clearances are recommended for
the Styler. Although the Styler has been tested
for clearances of 13/16 inch (3 cm) on the sides
and rear, recommended clearances should be
considered for the following reasons:
Additional space should be considered for
ease of installation and servicing.
Additional space might be required for
wall, door and floor moldings.
Additional space should be considered
on all sides of the Styler to reduce noise
transfer.
Additional laundry appliance spacing
should also be considered.
Minimum vent opening for built-in
installation is 31 ½sq. in. (200 cm2).
19 in. (485 mm)24.8 in. (630 mm)
73.8 in. (1,875 mm)
18 in. (455 mm)
15.75 in. (400 mm)
2 in. (50 mm)
74.4 in.
(1,889)
MFL66101244_Singapore.indd 15 2017. 7. 4. 오후 5:00
16 INSTALLATION

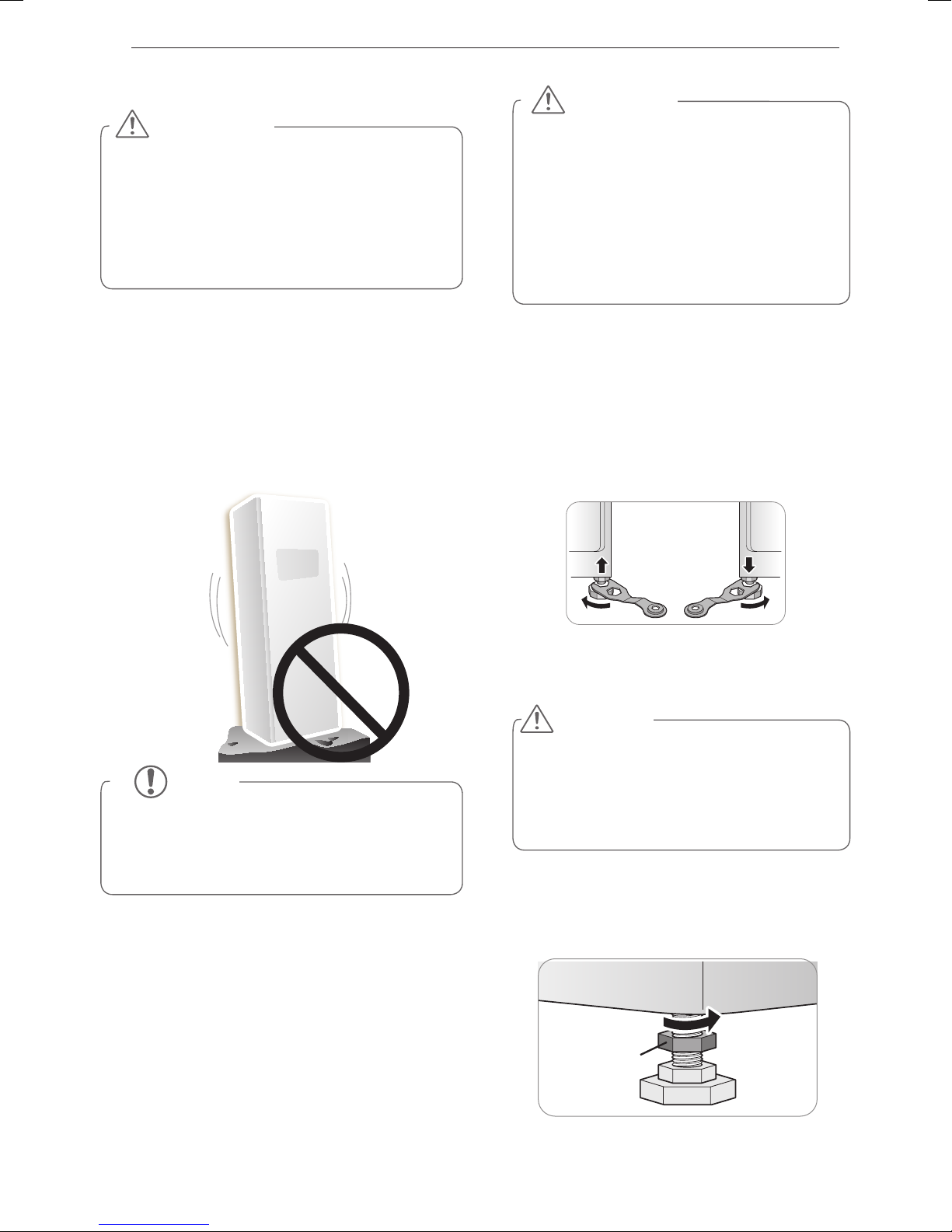

LEVELING THE STYLER
yThe appliance is heavy. Two or more
people are required when installing the
Styler. Failure to follow this warning can
cause serious injury or death.
yTo ensure that the Styler provides optimal
performance, it must be level. To minimize
vibration, noise, and unwanted movement, the
floor must be a perfectly level, solid surface.
1 PositiontheStylerinthenallocation.
Checktomakesureitislevel.
yAll leveling feet must rest solidly on the
floor. Gently push on the corners of the
Styler to make sure that it does not rock
from corner to corner. Make sure there are
no gaps between the front leveling feet
and the floor.
2 Usethewrench(packagedwiththe
manual)toturnthelevelingfeet.
Unscrew the front feet to raise the Styler or
screw in the feet to lower it. If unable to level
the unit using only the front feet, install the two
rear leveling feet by tipping the unit. Do not lay
the unit down to install the leveling feet.
Raise or lower the unit using the leveling feet
until the Styler is level from side to side and
front to back.
3 WhentheStyleriscompletelystableand
alllevelingfeetarerestingsolidlyonthe
oor,tightenthelockingnuts.
NOTE
Adjust the leveling feet only as far as
necessary to level the Styler. Extending the
leveling feet more than necessary can cause
the Styler to vibrate.
locking
nut
WARNING
yTo reduce the risk of injury to persons,
adhere to all industry recommended
safety procedures including the use of
long-sleeved gloves and safety glasses.
Failure to follow this warning can cause
serious injury or death.
WARNING
yThe Styler is heavy. Use two or more
people if installing the rear leveling feet.
Failure to do so can result in back injury or
other injury.
yKeep the Styler upright when moving
and installing it. If you lay the Styler on
its side, refrigerant may leak and cause
the appliance to malfunction.
CAUTION
Make sure that all leveling feet are
in firm contact with the floor. If the
Styler is used without leveling, it may
fall, causing injury, damage, or product
malfunction.
MFL66101244_Singapore.indd 16 2017. 7. 4. 오후 5:00
17INSTALLATION

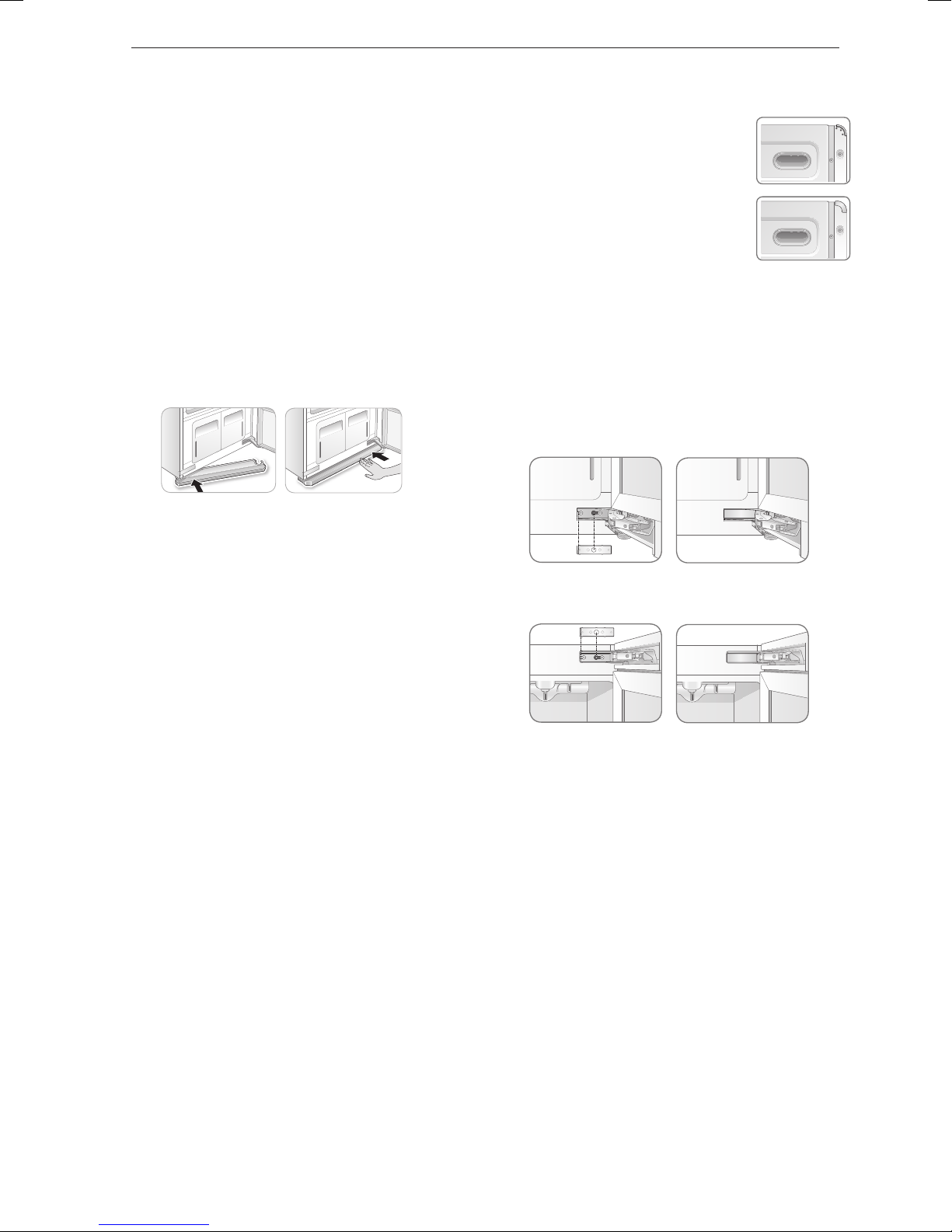

REVERSING THE DOOR
It is possible to reverse the direction of the door
swing. This should be done by the installer at the
time of installation, if desired.

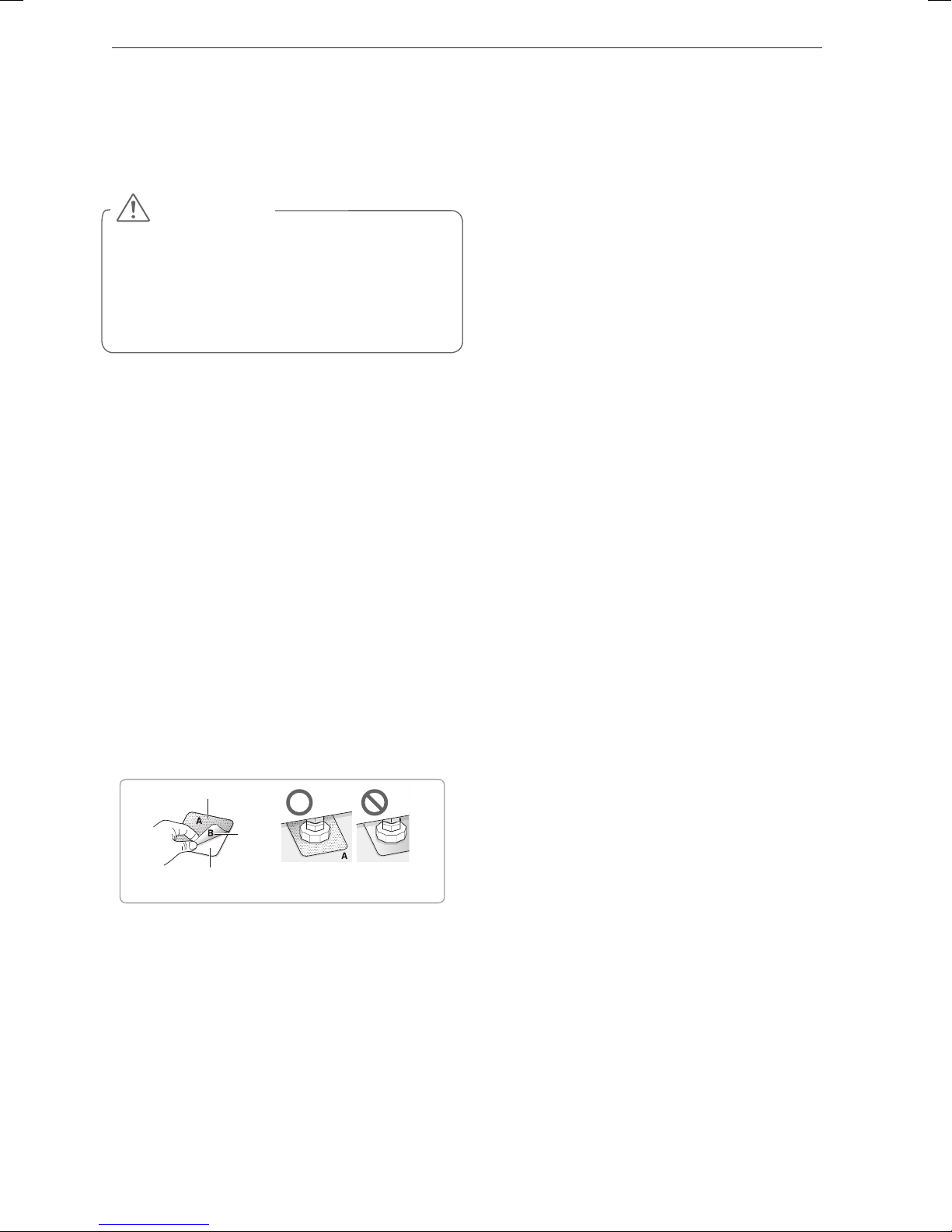

USING NON-SKID PADS
(OPTIONAL)
Non-skid pads prevent the product from shaking
or shifting when opening or closing the door.
1 Clean the floor to attach the non-skid
pads. Use a dry rag to remove and clean for-
eign objects or moisture. If moisture remains,
the non-skid pads may slip.
2 Adjust the level after placing the Styler in
the installation area.
3 Place the adhesive side of the non-skid
pad on the floor.
4 Recheck the Styler's levelness.
Push or rock the edges of the appliance gently
to make sure that the Styler does not rock. If
the Styler rocks, level the appliance again.
• The pads may leave a sticky residue when
they are removed. The residue can be
removed with alcohol.
INSTALLING THE ANTI-TIP
DEVICE
• Appliances can tip, resulting in damage or
injuries. Do not operate the unit without the
anti-tip device in place and engaged.
If an anti-tip device is not properly installed,
the appliance could be unexpectedly tipped
by a child or adult standing, sitting, leaning, or
placing excessive weight on an open door or
the interior parts.
• Install the anti-tip device packed with the
Styler to reduce the risk of tipping.
Refer to the instructions provided with the anti-
tip kit for proper anti-tip device installation.
• Check that the anti-tip device is properly
installed.
With the appliance in its final location, make
sure that the slide adjuster on the cord is
adjusted until there is about one inch of slack
in the cord.
• The use of the anti-tip device does not
preclude tipping of the appliance when it is
not properly installed.
WARNING
Do not attempt to reverse the door swing
yourself. If the direction of the door swing
needs to be changed after installation, contact
the LG Customer Information Center at
+65 65120555.
Remove
backing
This side up
Adhesive
side
B
MFL66101244_Singapore.indd 17 2017. 7. 4. 오후 5:00
18 INSTALLATION
ASSEMBLING THE DRIP TRAY
Before using the Styler, insert the drip tray onto
the bottom of the cabinet.
1 Holdthetraysothearrowandletteron
thefrontofthetrayfaceup.
2 Insertonesideofthetrayrst,then
theother.Pushthetrayuntilitslides
completely in.
3 Todetach,pullonesideoutthentheother.
If the tray collects water, detach it and empty
the water. After emptying it, re-assemble the
tray.
• Do not operate the Styler without
installing the drip tray. Doing so could lead
to water damage caused by leaking.
INSTALLING CAP COVERS
1 Lineupthenubsonthecap
coverwiththeholesinthetop
cornerofthecabinet.
2 Snapthecapcoverintoplace.
Repeatwiththeremainingcap
coverontheothercorner.
INSTALLING HINGE COVERS
1 OpentheStylerdoor.
2 Snapthehingecoverontothelowerhinge
assemblywiththebentedgeonthefar
sidefromthehinge.
3 Repeatwiththeremaininghingecoveron
theupperhingeassembly.
MFL66101244_Singapore.indd 18 2017. 7. 4. 오후 5:00
19OPERATION
OPERATION
BEFORE USE
Clean the Styler.
Clean the Styler thoroughly and wipe off all dust that accumulated during shipping.
See Maintenance, page 39. Do not plug in or operate the appliance until the
interior and exterior have thoroughly dried.
Connect the power supply.
Check if the power supply is connected before use.
Wash dirty clothes if necessary before putting them in the
Styler.
The Styler does not have a washing function. Stains and loose dirt from
one item may transfer to others during a cycle. Wash or brush off dust
and dirt, or spot-clean items, to avoid setting stains or transferring dirt or
odors.
CAUTION
yDo not scratch the Styler with a sharp object or use a detergent that
contains alcohol, bleach, a flammable liquid or an abrasive when removing
any tape or adhesive from the Styler,.
yDo not peel off the model or serial number label or the technical information
on the rear surface of the Styler.
NOTE
Remove adhesive residue by wiping it off with your thumb or dish detergent.
Unpack accessories.
Unpack the shelf and hangers. For instructions on installing or using accessories,
see Loading the Styler, pages 25-28. Accessories can be purchased separately
from the LG Customer Information Center. +65 65120555.
Assemble the drip tray.
Insert the drip tray at the bottom of the cabinet. See
Assembling the Drip Tray, page 18.
MFL66101244_Singapore.indd 19 2017. 7. 4. 오후 5:00
20 OPERATION

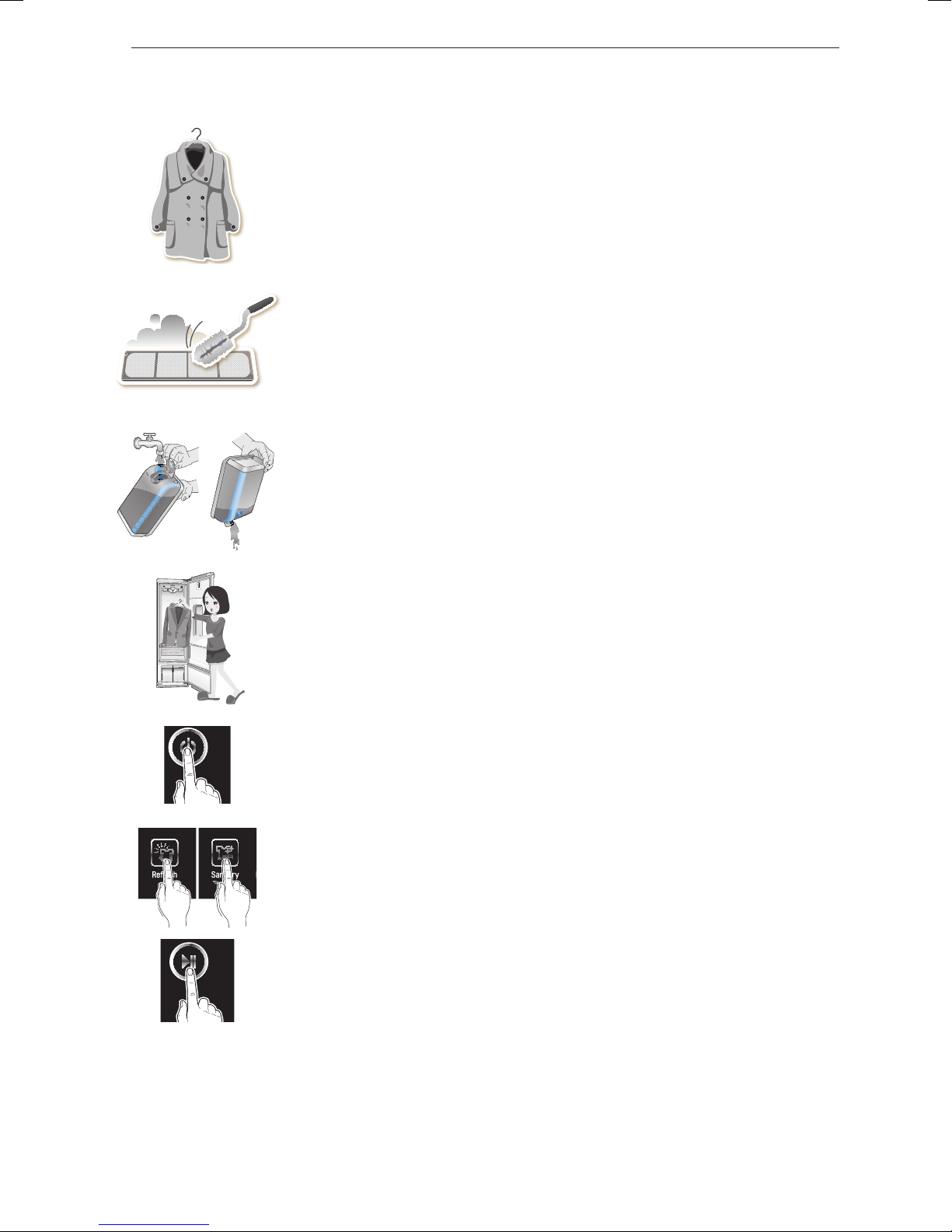

USING THE STYLER
1PREPARE ITEMS
• Wash clothes first, if needed.
• No heat-sensitive items or items that can be damaged by exposure
to water. See Choosing Styler-Safe Clothing, page 21.
• Place items on hangers or the shelf.
• Fasten buttons and close zippers to keep items on moving hangers
and prevent damage.
2CLEAN LINT FILTER, CHANGE SHEET IN AROMA FILTER
Lift out filter and remove lint from last load for faster and more efficient
performance. Reinstall filter, checking alignment when closing grill. Do
not operate the Styler without the lint filter in place. See Checking the
Lint Filter, page 24. If using a fabric softener sheet in the aroma filter,
change it after every use. See Changing the Aroma Sheet, page 24.
3 CHECK WATER TANKS
Fill water supply tank if needed. Empty water drain tank if needed. Use
clean tap water in the supply tank for better product performance and
lifespan. Do not use distilled water or reuse water from the drain tank.
See Checking the WaterTanks, page 25.
4LOAD STYLER
Pay attention to fabric care labels and cycle choice. If clothing is
not appropriate for the cycle selected, it may shrink or be seriously
damaged. See Loading the Styler, page 25.
Remove all empty hangers to avoid noise, friction, and damage to clothing.
5 TURN ON STYLER
Touch Power to turn on the Styler.
6SELECT CYCLE
Touch icons to select desired cycle and settings. See the Cycle
Guide, page 31.
7BEGIN CYCLE
Touch and hold Start/Pause to begin cycle. Pause cycle at any time by
touching Start/Pause again. Restart cycle within four minutes of pausing it,
or the Styler shuts off and settings are lost. Do not open door during cycle.
If steam or hot air escape from open door, condensation may collect on
floor or walls, resulting in damage or mold.
8 END OF CYCLE
Remove items when cycle finishes. Leave door open to let hot air
escape. Interior light shuts off after 60 minutes if door is left open.
MFL66101244_Singapore.indd 20 2017. 7. 4. 오후 5:00
Table of contents
Other LG Indoor Furnishing manuals
