LG WDP4 Series User manual

1
SERVICE MANUAL
PEDESTAL
For washer, dryer, and combo
LG 27"
CAUTION : READ THIS MANUAL CAREFULLY TO DIAGNOSE
CORRECTLY BEFORE SERVICING THE UNIT.
MODEL : WDP4* / LWP-277*

2
PEDESTAL KIT
INTRODUCTION
The pedestal accessory includes:
• Drawer divider (1) • Wrench
• Screws (18) † • Retainers (4)††
• Floor Pads (4)
Tools Needed for Installation:
• Phillips-head screwdriver
• Wrench (supplied)
† Dryer installation only uses 8 screws
†† For dryer only
To ensure safe and secure installation, please
thoroughly follow the instructions below.
•Incorrect installation can cause serious
accidents.
•The appliances are heavy. Two or more
people are required when installing the
pedestal. There is a risk of serious back injury
or other injuries.
•Do not allow children to play in or on the
drawer. There is a risk of suffocation or injury.
•Do not step on the handle. There is a risk of
serious injury.
•If appliances are already installed,
disconnect them from all power, water, or
gas lines and from draining or venting
connections. Failure to do so can result in
electrical shock, fire, explosion, or death.
• Wear gloves during installation.
WARNING

3
PEDESTAL KIT
PEDESTAL INSTALLATION – WASHER
1
Tighten all 4
locknuts securely
2
For dryer
For washer/combo
Make sure the leveling feet of the appliance
are fully retracted.
Once the leveling feet of the washer are fully
retracted, tighten all locknuts securely.
NOTE: The appliance and pedestal assembly
must be placed on a solid, sturdy, level floor for
proper operation.
Position the appliance on top of the pedestal.
The washer feet will fi t into the outermost
corner positions and the dryer feet will fi t into
the innermost positions as shown.
3 4
Make sure the back feet are in the correct
positions.
The washer feet will fi t into the outermost
corner positions and the dryer feet will fi t into
the innermost positions as shown.
Make sure the holes on the pedestal align with
the holes in the appliance, then install 4 screws
at each corner to securely attach the appliance
to the pedestal.
NOTE: If the screws are not installed properly,
noise and vibration may result.
Move the appliance to the desired location.

4
PEDESTAL KIT
PEDESTAL INSTALLATION – DRYER
1
Then loosen
1-1/2 turns
Retract fully
2
Retainer
T- clip
To set the dryer to the same height as the
washer, fully retract the leveling feet of the
dryer by turning them clockwise, then turn
them counterclockwise 1-1/2 turns.
NOTE: The appliance and pedestal assembly
must be placed on a solid, sturdy, level floor
for proper operation.
Insert the T-clip of the 4 retainers into the
dryer base as shown. Press up on the back of
the clip and pull outward to lock into place.
3 4
Place the dryer on the pedestal. Make sure
the front and back feet are in the correct
positions. The dryer feet will fi t into the
innermost positions as shown.
Make sure the holes on the pedestal align
with the holes in the retainers, then install 2
screws at each corner to securely attach the
appliance to the pedestal.
NOTE: If the screws are not installed
properly, noise and vibration may result.
Move the appliance to the desired location.
For dryer
For washer/combo

5
PEDESTAL KIT

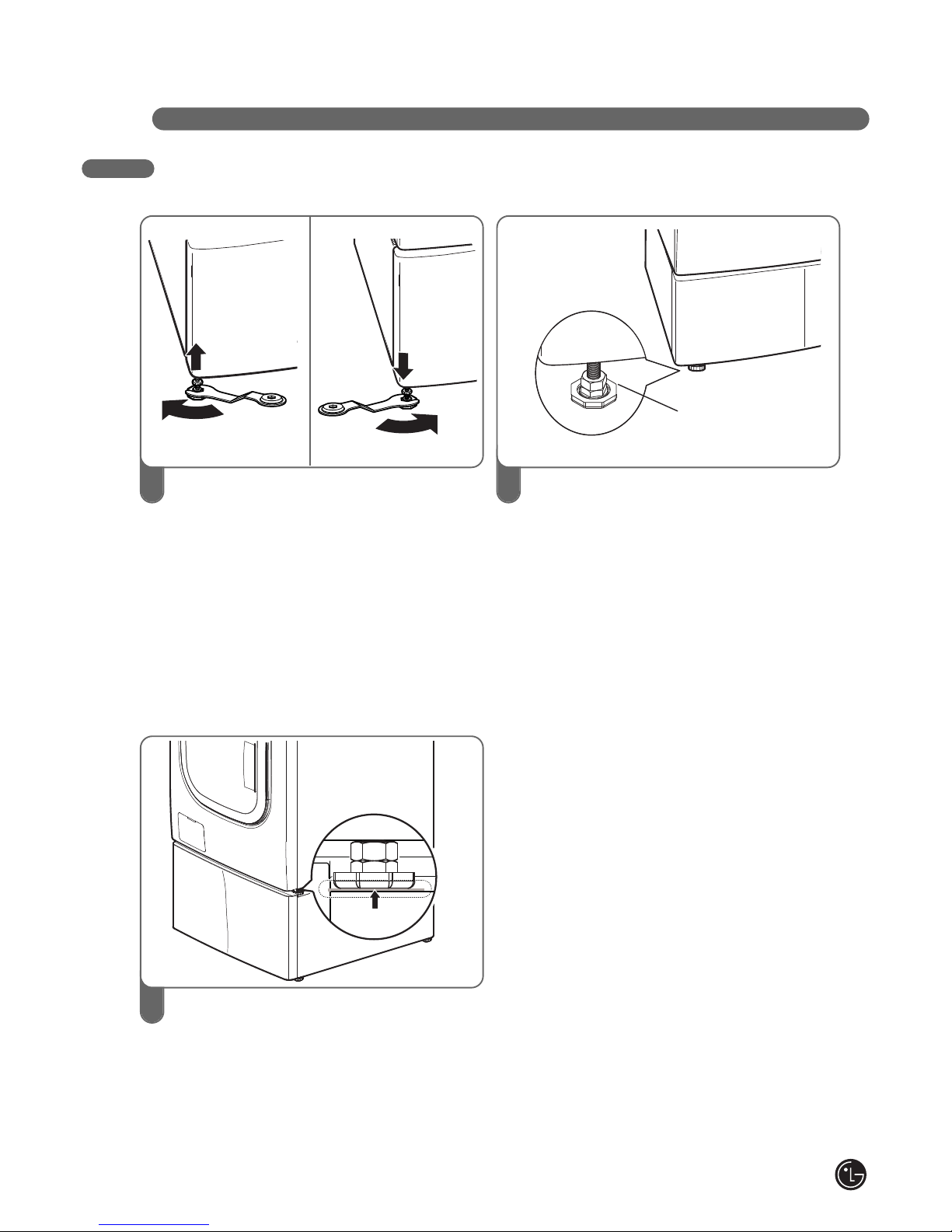

PEDESTAL INSTALLATION – FINAL INSTALLATION
1
Lower
Raise
2
Locknut
Loosen the locknuts on all 4 leveling feet of
the pedestal until you can turn them with the
wrench. Turn clockwise to raise or
counterclockwise to lower until the pedestal is
level and all 4 feet are solidly against the
floor.
When installing the pedestal on a wooden fl
oor, place the fl oor pads included with your
appliance under the legs of the pedestal. This
will help reduce vibration when the appliance
is operating.
Using the Floor Pads
Securely tighten all locknuts by hand.
NOTE: Noise and vibration may result if
locknuts are not tightened.
Be sure to connect the appliances to all water,
power, or gas lines and draining or venting
connections before operation.
If there is excessive vibration during the first
operation after installation, slightly adjust the
leveling feet.
3To make sure the appliance is well set on the
pedestal.
Please adjust all four adjustable feet and lock
nuts of the appliance accordingly.
GAP

6
PEDESTAL KIT

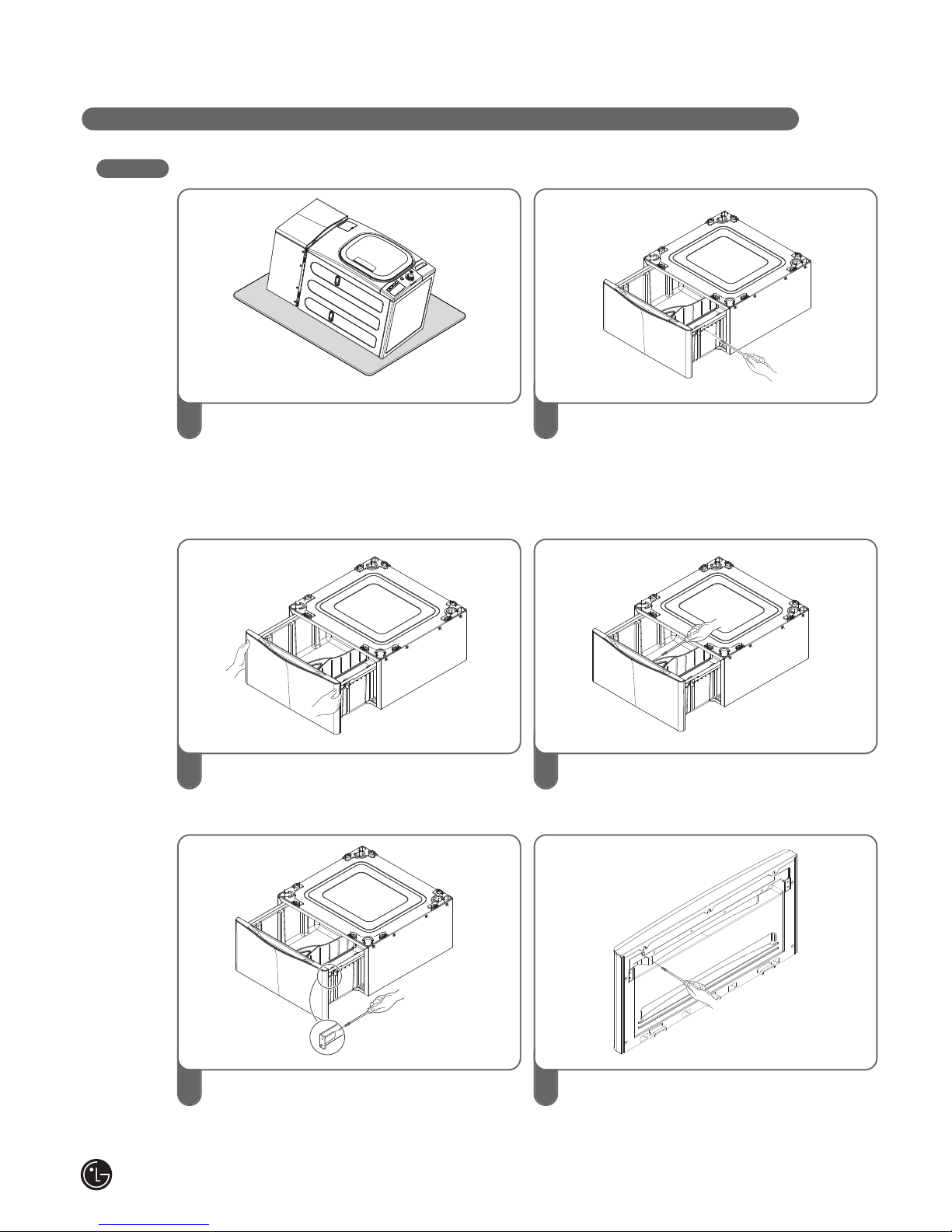

DISASSEMBLY INSTRUCTIONS
1 2
Protect the floor with a large piece of
cardboard.
Lay the appliance on the cardboard.
Be sure the cardboard is under the entire
lower back of the appliance.
Open the drawer, and then remove the four (4)
screws (two on each side) on both side of
drawer.
3 4
Pull up the drawer to disassemble. Remove four (4) screws on the drawer.
5 6
Remove two (2) screws on the either side of
the drawer.
Remove Eleven(11) screws on the cover
assembly. (Upper Cover 3EA, Bottom 4EA,
Back 4EA)

7
PEDESTAL KIT
DISASSEMBLY INSTRUCTIONS
7 8
Loosen the leg using the wrench.(supplied)
9Remove four (4) screws (two on each side) on
both side of slide.
Remove twelve (12) screws on the bottom of
the pedestal.

8
P E D E S T A L K I T

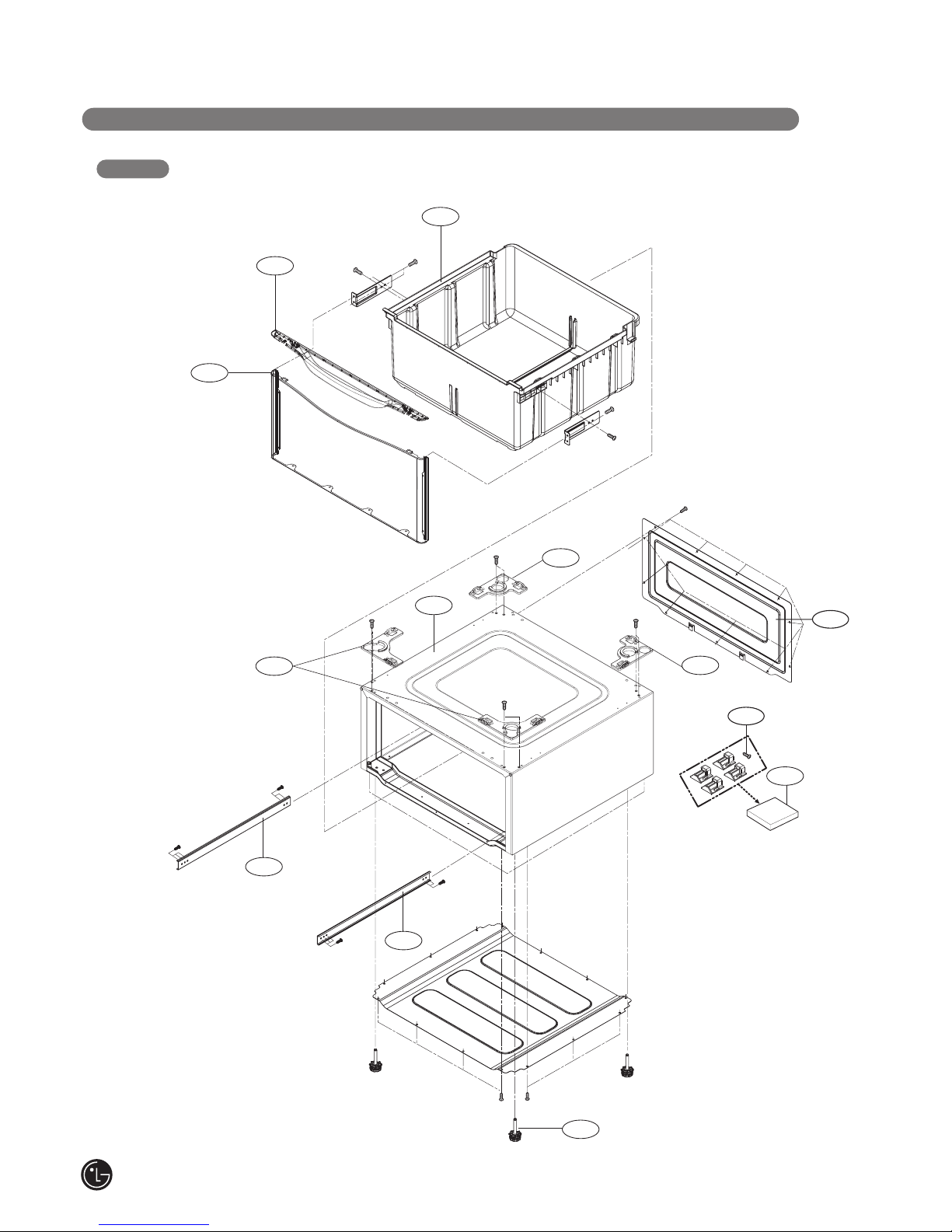

EXPLODED VIEW
A140
A100
A101
A102
A103
A120
A110
A130
A210
A150
A160
A190
A200
PEDESTAL HOLDER
SERVICE KIT

9
JAN. 2010 PRINTED IN KOREA P/NO:MFL62880605
