LG 15LW1R User manual

Wireless
LCD
TV
User's Guide
(15LW1R/15LW1RA)
Please read the
"Safety
Precautions" section
carefully
to use this
product properly

2
Major
Functions of Wireless LCD
TV
Wireless
TV
Function
*
Wireless transmission unit enables
you
to watch TV in a
place
where there is no
antenna/cable connection available in a convenient location.
Media
Player
Function
*
When connected to
your
PC,
you
can
play
back
pictures,
music files or video.
Thank
you purchasing
LG
product.
Please check whether the
following
accessories are included in the wireless TV
package.
*
Actual wireless TV and its accessories
may
look
differently.
*
The maximum
usage
distance is
35m;
limited
by
obstacles or other interference
to the wireless network.
*
A mosaic screen
may appear
if network connection is
poor,
since
broadcasting
is converted to the MPEG format before transmitted
wirelessly.
*
Connection
quality
can be affected
by
other devices that transmit radio waves.
*
There is
approximately
a 1.5 second
delay
between the
signal
source and the
display.
O
WE
R
PO
W
E
R
Wireless TV
Max. 35m
PC
Wireless transmission unit
Wireless
transmission unit
Wireless TV
Max. 35m
PC
Wireless TV Accessories
Remote Control
and Batteries
(AAA x2)
User's
Guide,
Software,
and other
cards.
2 Power cords RCA cable S-video cable 2 Antenna
cables
Distributor
(cable splitter)
2 DC
adaptors
TV
battery
pack
Mounting
stand
(only
use with
15LW1R
)
Wireless
transmission unit

/ Contents 04
22
28
Before
you
Use
Warning
Safety
Information
SAR(Specific Absorption Rates)
Information
Safety
instructions
Safety
Precautions
Name and Functions of Wireless TV Parts
Front/Upper
view of the wireless TV:
Adjustment
buttons
Rear view of the wireless TV/ wireless transmission unit
Watching
the wireless TV
using
the
mounting
tstand
(Only
use with
15LW1R)
Wireless TV
Battery pack
Installing
a
battery pack
Remote Control
Connection and
Usage
Power Connection
Connecting
the Antenna
Connecting
more than 2 TV Sets
Connecting
VCR/DVD
Connecting
Cable TV Converter
Connecting
External Devices like a Camcorder
Adjustment
when
Using
the Wireless
TV
Watching
the Wireless TV
Language
Selection
On-screen Menus
Language
Selection
Programming
the Channels
Memorizing
all
broadcasting
channels
Memorizing
or
clearing
the
specific
channels
Setting
Favorite Channels
Watching
the selected channel
only
Adjusting
the Picture
Adjusting
the
picture automatically
Adjusting
contrast
Adjusting brightness
Adjusting depth
of color
Adjusting sharpness
Adjusting
tint
04
05
06
07
09
16
16
17
18
19
19
20
22
23
24
25
26
27
28
29
29
30
30
30
31
31
32
32
32
33
33
34
34
43
62
Adfusting
Sound
Adjusting
best sound
automatically
Using
the SAP
(Secondary
Audio
Program)
function
AVL
(Auto
Volume
Leveler)
Adjusting
sound balance
Special
Menu
Options
Selecting
the
Input Signal
Watching
the
Program
with
Caption
Text
Settings
the
Captions
Closed
Captions
Setting
the
Sleep
Timer
Setting
the
key
lock
Parental Lock
Options
Setting
the lock function
Changing
the
password setting
Using
Media Browser
Using
Media Browser
Setting
the wireless network
(Setting
method
1)
Setting
the wireless network in the
Computer
Installing
the "Media
Library"
Server in
you computer
Setting
Wireless Network
(Setting
method
2)
Using
Media
Library Manager
Viewing
Pictures
Playing
Musics
Playing
Movies
Changing Settings
Note
Check before
reporting
malfunction
Product
Specification
35
35
35
36
36
37
37
37
38
39
40
40
41
41
41
43
43
45
47
50
53
54
56
59
61
62
66
Contents

4
Warning
NOTE TO CABLE/TV INSTALLER:
This reminder is
provided
to call the CATV
system
installer's attention to Article 820-40 of the National Electric Code
(U.S.A.).
The code
provides guidelines
for
proper grounding
and,
in
particular, specifies
that the cable
ground
shall be connected to the
grounding system
of the
building,
as
close to the
point
of the cable
entry
as
practical.
REGULATORY INFORMATION
This
equipment
has been tested and found to
comply
with the limits for a Class B
digital
device,
pursuant
to Part 15 of the FCC Rules. These limits are
designed
to
provide
reasonable
protection against
harmful interference in a residential installation. This
equipment generates,
uses and can radiate radio
frequency energy
and,
if not installed and used in accordance with the
instructions,
may
cause harmful interference to radio communications.
However,
there is no
guarantee
that interference will not occur in a
particular
installation. If this
equipment
does cause harmful interference to radio or television
reception,
which can be determined
by turning
the
equipment
off and
on,
the user is
encouraged
to
try
to correct the interference
by
one or more of the
following
measures:
-
Reorient or relocate the
receiving
antenna.
-
Increase the
separation
between the
equipment
and receiver.
-
Connect the
equipment
into an outlet on a circuit different from that to which the receiver is connected.
-
Consult the dealer or an
experienced
radio/TV technician for
help.
Any changes
or modifications not
expressly approved by
the
party responsible
for
compliance
could void the user 's
authority
to
operate
the
equipment.
CAUTION:
Do not
attempt
to
modify
this
product
in
any way
without written authorization from LG Electronics
Corporation.
Unauthorized modification could void the user's
authority
to
operate
this
product.
U.S.A.
only
------------------------------------------------
COMPLIANCE:
The
responsible party
for this
product's compliance
is:
LG Electronics
U.S.A.,
Inc.
1000
Sylvan
Avenue,
Englewood
Cliffs,
NJ 07632
Phone: [phone]
http://www.lgusa.com
-----------------------------------------------------------------

5

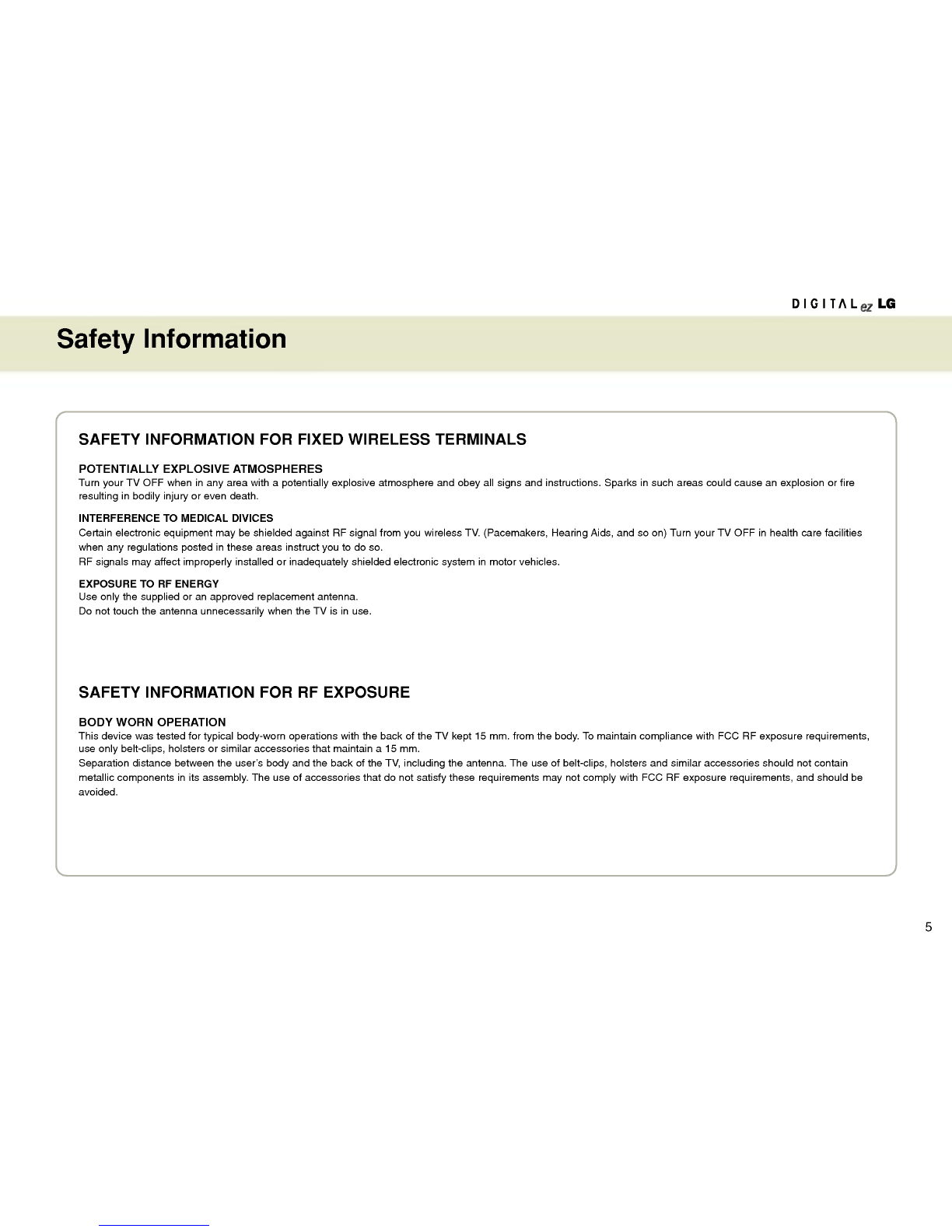

Safety
Information
SAFETY INFORMATION FOR
FIXED
WIRELESS TERMINALS
POTENTIALLY EXPLOSIVE ATMOSPHERES
Turn
your
TV OFF when in
any
area with a
potentially explosive atmosphere
and
obey
all
signs
and instructions.
Sparks
in such areas could cause an
explosion
or fire
resulting
in
bodily injury
or even death.
INTERFERENCE TO MEDICAL DIVICES
Certain electronic
equipment may
be shielded
against
RF
signal
from
you
wireless TV.
(Pacemakers, Hearing
Aids,
and so
on)
Turn
your
TV OFF in health care facilities
when
any regulations posted
in these areas instruct
you
to do so.
RF
signals may
affect
improperly
installed or
inadequately
shielded electronic
system
in motor vehicles.
EXPOSURE TO RF ENERGY
Use
only
the
supplied
or an
approved replacement
antenna.
Do not touch the antenna
unnecessarily
when the TV is in use.
SAFETY INFORMATION FOR
RF
EXPOSURE
BODY WORN OPERATION
This device was tested for
typical body-worn operations
with the back of the TV
kept
15 mm. from the
body.
To maintain
compliance
with FCC RF
exposure requirements,
use
only belt-clips,
holsters or similar accessories that maintain a 15 mm.
Separation
distance between the user 's
body
and the back of the
TV,
including
the antenna. The use of
belt-clips,
holsters and similar accessories should not contain
metallic
components
in its
assembly.
The use of accessories that do not
satisfy
these
requirements may
not
comply
with FCC RF
exposure requirements,
and should be
avoided.

6
Before
you
Use
SAR
(Specific Absorption
Rates)
Information
THIS MODEL TV MEETS THE GOVERNMENT'S
REQUIREMENTS
FOR EXPOSURE TO RADIO WAVES.
Your wireless TV is a radio transmitter and receiver. It is
designed
and manufactured not to exceed the emission limits for
exposure
to
radiofrequency (RF) energy
set
by
the Federal Communications Commission of the U.S. Government. These limits are
part
of
comprehensive
guidelines
and establish
permitted
levels of RF
energy
for the
general population.
The
guidelines
are based on standards that were
developed by
independent
scientific
organizations through periodic
and
thorough
evaluation of scientific studies. The standards include a substantial
safety margin
designed
to assure the
safety
of all
persons, regardless
of
age
and health. The
exposure
standard for wireless TV
employs
a unit of measurement
known as the
Specific Absorption
Rate,
or SAR. The SAR limit set
by
the FCC is 1.6
W/kg.
*Tests for SAR are conducted with the TV
transmitting
at its
highest
certified
power
level in all tested
frequency
bands.
Although
the SAR is determined at the
highest
certified
power
level,
the actual SAR level of
the TV while
operating
can be well below the maximum value. This is because the TV is
designed
to
operate
at
multiple power
levels so as to use
only
the
power required
to reach the network. In
general,
the closer
you
are to a wireless base station
antenna,
the lower the
power output.
Before a
TV model is available for sale to the
public,
it must be tested and certified to the FCC that it does not exceed the limit established
by
the
government
adopted requirement
for safe
exposure.
The tests are
performed
in
positions
and locations
(e.g.,
at the ear and worn on the
body)
as
required by
the
FCC for each model. The
highest
SAR value for this model when tested for use when worn on the
body,
as described in this user
guide,
is 0.094
W/Kg
(Wireless
Transmission
Unit),
0.200
W/Kg(Wireless TV). (Body-worn
measurements differ
among
models,
depending upon
available accessories and
FCC
requirements).
While there
may
be differences between the SAR levels of various and at various
positions, they
all meet the
government
requirement
for safe
exposure.
The FCC has
granted
an
Equipment
Authorization for this model with all
reported
SAR levels evaluated as in
complince
with the FCC RF
exposure guidelines.
SAR information on this model is on file with the FCC and can be found under the
Display
Grant section of
http://www.fcc.gov/
oet/fccid after
searching
on FCC ID:
BEJ15LW1T(Wireless
Transmission
Unit), BEJ15LW1R(Wireless TV).
Additional information on
Specific Absorption
Rates
(SAR)
can be found on the Cellular Telecommunications
Industry
Association
(CTIA)
web-site at
http://www.wow-com.com.
*
In the United States and
Canada,
the SAR limit for mobile TV used
by
the
public
is 1.6
watts/kg (W/kg) averaged
over one
gram
of tissue.
The standard
incorporates
a sub-stantial
margin
of
safety
to
give
additional
protection
for the
public
and to account for
any
variations in measurements.

7
Safety
instructions
WARNING:
To reduce the risk of fire or electric
shock,
DO NOT
expose
this
apparatus
to rain or moisture.
Apparatus
shall not be
exposed
to
dripping
or
splashing
and no
objects
filled with
liquids,
such as
vases,
shall be
placed
on the
apparatus.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2.
Keep
these instructions.
3. Heed all
warnings.
4. Follow all instructions.
5. Do not use this
apparatus
near water.
6. Clean
only
with a
dry
cloth.
7. Do not block
any
of the ventilation
openings.
Install in accordance with the manufacturer 's instructions.
8. Do not install near
any
heat sources such as
radiators,
heat
registers,
stoves,
or other
apparatus (including amplifiers)
that
produce
heat.
9. Do not defeat the
safety purpose
of the
polarized
or
grounding type plug.
A
polarized plug
has two blades with one wider than the other. A
grounding type plug
has
two blades and a third
grounding prong.
The wide blade or the third
prong
is
provided
for
your safety.
When the
provided plug
does not fit into
your
outlet,
consult an
electrician for
replacement
of the obsolete outlet.
10. Protect the
power
cord from
being
walked on or
pinched particularly
at
plugs,
convenience
receptacles,
and the
point
where
they
exit from the
apparatus.
11.
Only
use the attachments / accessories
specified by
the manufacturer.
12. Use
only
with a
cart, stand,
tripod,
bracket,
or table
specified by
the
manufacturer,
or sold with the
apparatus.
When a cart is
used,
use caution when
moving
the cart /
apparatus
combination to avoid
injury
from
tip-over.

8
Before
you
Use
Safety
instructions continued
13.
Unplug
this
apparatus during lightning
storms or when unused for
long periods
of time.
14. Refer all
servicing
to
qualified
service
personnel. Servicing
is
required
when the
apparatus
has been
damaged
in
anyway,
such as
power supply
cord or
plug
is
damaged, liquid
has been
spilled
or
objects
have fallen into the
apparatus,
the
apparatus
has been
exposed
to rain or
moisture,
does not
operate normally,
or has been
dropped.
On
Disposal
a. The fluorescent
lamp
used in this
product
contains a small amount of
mercury.
b. Do not
dispose
of this
product
with
general
household waste.
Disposal
of this
product
must be carried out in accordance to the
regulations
of
your
local
authority.
FCC
Compliance
Information
This device
complies
with Part 15 of FCC Rules.
Operation
is
subject
to the
following
two conditions:
(1)
This device
may
not cause harmful
interference,
and
(2)
This device must
accept any
interference received.
Including
interference that
may
cause undesired
operation.

9
Safety
Precautions
The
following safety precautions
are
provided
to
prevent
an
unexpected
accident or
damage, through
safe and accurate
usage
of the
product.
Safety precautions
can be
grouped
into
"Warning"
and "Caution" and have the
following meaning.
Warning:
if instruction is
ignored
or
violated,
you
can be
seriously injured
or even killed.
Caution: If instruction is
ignored
or
violated,
you
can be
slightly injured
or the
product
can be
damaged.
Prohibited: You must not do the
thing
described after this
symbol.
If
smoke,
strange
sounds,
or a bad
smell emanates from the
product,
unplug
and contact a service center.
You can receive an electric shock or a fire
can break out.
if instruction is
ignored
or
violated,
you
can be
seriously injured
or even killed.
?
Please
keep
this User's Guide at the
place
where
everybody
can
easily
access,
after
reading
this User's Guide.
Installation
Take care in
placements
of
cables;
do
not cross
walking paths.
If
somebody
is
caught by
the cord and
collapses,
he can receive an electric shock
or be
injured,
or the
product
can be
damaged
Do not
put heavy objects
on the
TV or let children or
pets
crawl
on the TV.
Warn the children
against injury by
collapsing
or
falling
down.
Do not insert
any
metallic
object
such as
coin,
hairpin,
etc.
or combustible
object.
Also warn children not to do so.
You could receive an electric shock or it could cause a fire. If
any foreign object
is
inserted,
unplug
the
power
cord and con-
tact a service center.
Keep
anti-moisture
packages,
bags,
and other
packing
materi-
als out of reach of children.
If swallowed
by
mistake,
induce
vomiting
and consult a doctor
immediately.

10
Before
you
Use
Safety
Precautions
Only
a
qualified
technician
should
disassemble,
repair
or
modify
the
product.
You could receive an electric shock
or it could cause a fire.

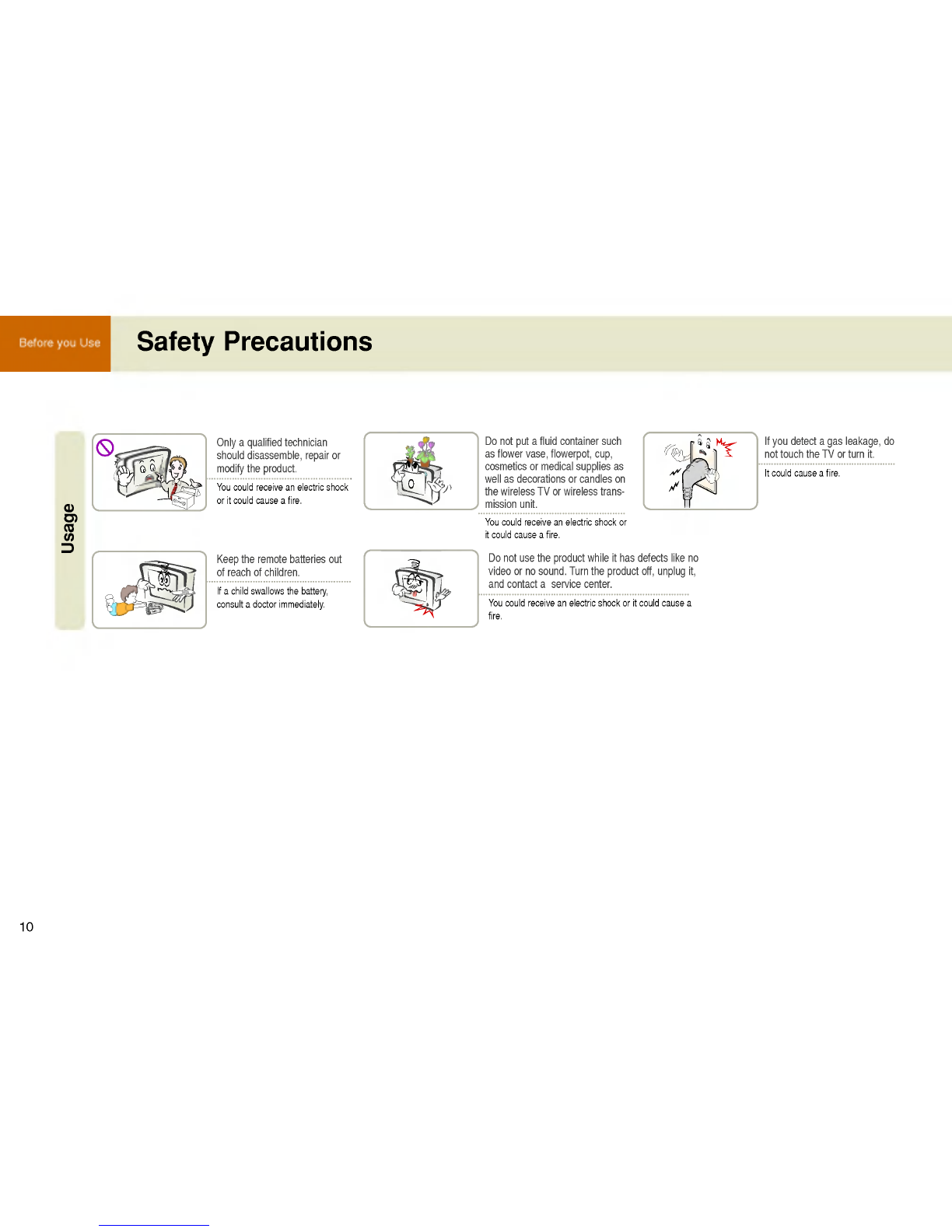

Usage
Keep
the remote batteries out
of reach of children.
If a child swallows the
battery,
consult a doctor
immediately.
Do not
put
a fluid container such
as flower
vase,
flowerpot, cup,
cosmetics or medical
supplies
as
well as decorations or candles on
the wireless TV or wireless trans-
mission unit.
You could receive an electric shock or
it could cause a fire.
Do not use the
product
while it has defects like no
video or no sound. Turn the
product
off,
unplug
it,
and contact a service center.
You could receive an electric shock or it could cause a
fire.
If
you
detect a
gas leakage,
do
not touch the TV or turn it.
It could cause a fire.

11
Safety
Precautions
Ensure the
power
cable is connect-
ed
properly
to the
grounded power
outlet.
You could receive an electric
shock.
Power Related Precautions
Do not use several devices at the
same time when
using
a
power
strip.
Use a
grounded power strip
designed
for
computers.
A fire
may
break out due to
overheating.
Use the
specified
rated
voltage.
The wireless TV can be
damaged,
or
you
can be
injured.
Do not touch the
power plug
with
wet hands. If the
power
connector
is wet or covered with
dust,
dry
it
completely
or scrub it off before
use.
You could receive an electric
shock.
Firmly plug
in the
power plug
so
that it does not shake.
A
plug
not connected
firmly
is a
fire hazard.
Hold the
plug
with
your
hand when
pulling
out the
power
cable. Do not
bend the cord with excessive
force,
or
put
a
heavy object
on it.
An electric wire can be
damaged,
which
can cause an electric shock or a fire.
Unplug
the
product
when not in
use for a
long
time.
The
product
can be covered
with
dust,
which can cause
electric
leakage,
electric shock
or fire due to
heating, ignition
or
worn-out insulation.
Do not insert
any
conductive
material into the
opening
of the
power
cable.
You could receive an electric
shock.
CAUTION
concerning
the
Power Cord
Most
appliances
recommend
they
be
placed upon
a dedicated
circuit;
that
is,
a
single
outlet circuit which
powers only
that
appliance
and has no additional outlets or ranch
circuits. Check the
specification page
of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets,
loose or
damaged
Wall
outlets,extension
cords,frayed power
cords,
or
damaged
or cracked wire insulation are dan-
gerous. Any
of these conditions could result in electric shock or fire.
Periodically
examine the cord of
your appliance,and
if its
appearance
indicates
damage
or
deterioration,
unplug
it,
discontinue use of the
appliance,
and have the cord
replaced
with an exact
replacement part by
an authorized servicer.
Protect the
power
cord from
physical
or mechanical
abuse,
such as
being
twisted, kinked,
pinched,
closed in a
door,
or walked
upon.
Pay particular
attention to
plugs,
wall
outlets,and
the
point
where the cord exits the
appliance.

12
Before
you
Use
Safety
Precautions
Ensure that ventilation
open-
ings
are not blocked
by
a table-
cloth,
curtain or similar material.
The
product
could be
damaged
due
to the internal
temperature rising
or
it could cause a fire.
Installation
Do not install the
product
in
direct
sunlight.
The
product
could be
damaged
or a fire can break out.
Install the
product
on a flat and
stable surface that has no risk of
moving
or
collapsing.
If the
product
falls
you
can be
injured
or the
product
could be
broken.
Do not install the
product
on an
unstable and
vibrating
surface.
The
product
could fall or be turned
over,
which could cause
injury.
When
installing
in an entertainment center or on a
shelf,
ensure that the front of the
product
is not
projecting
out
beyond
the front of the cabinet or
shelf.
The centre of
gravity
can be
unbalanced,
which
could cause an
injury
or breakdown of the
product.
Install the
product
in a
place
free of
electromagnetic
interference.
Do not install the
product
where
it
may
have direct contact with
oil or moisture
--
such as beside
a kitchen table or a humidifier.
You could receive an electric
shock or it could cause a fire.
If instruction is
ignored
or
violated,
you
can be
slightly injured
or the
product
can be
damaged.

13
Do not throw
away
the
original
packing
and box.
Use the
package
box when
moving
the
product.
Movement
Power Related
Precautions
Cleaning
Do not
unplug
the
power
cord while
the device is on and the
battery
is not
mounted.
The
product
could be
damaged by
electric shock.
Do not
drop
or
bang
the device
when
carrying
or
transporting.
You could be
injured
or the
product
could be
damaged.
If the
power plug
or the outlet is
covered with
dust,
clean it.
It could cause a fire.
Unplug
the
power
cable,
the
signal
cable,
and the
battery
before
cleaning
the
product.
You could receive an electric shock or
it could cause a fire.
Consult with customer service or a
service center about
cleaning
once a
year.
A fire can break out or the
product
is bro-
ken or if
you
don't clean the
product.

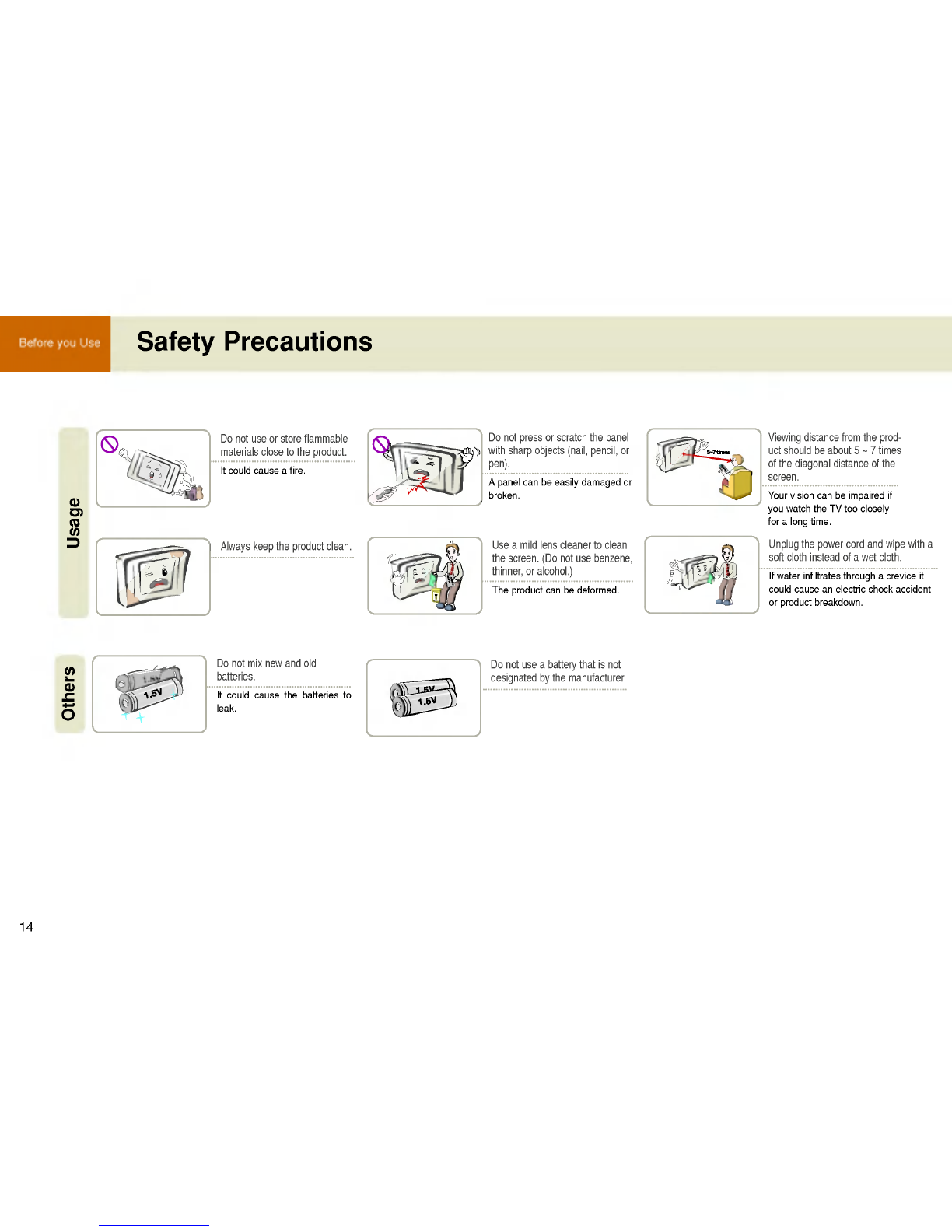

Safety
precautions

14
Before
you
Use
Safety
Precautions
Do not use or store flammable
materials close to the
product.
It could cause a fire.
Usage
Always keep
the
product
clean.
Do not
press
or scratch the
panel
with
sharp objects (nail, pencil,
or
pen).
A
panel
can be
easily damaged
or
broken.
Use a mild lens cleaner to clean
the screen.
(Do
not use
benzene,
thinner,
or
alcohol.)
The
product
can be deformed.
Unplug
the
power
cord and
wipe
with a
soft cloth instead of a wet cloth.
If water infiltrates
through
a crevice it
could cause an electric shock accident
or
product
breakdown.
Viewing
distance from the
prod-
uct should be about 5
~
7 times
of the
diagonal
distance of the
screen.
Your vision can be
impaired
if
you
watch the TV too
closely
for a
long
time.
Others
Do not use a
battery
that is not
designated by
the manufacturer.
Do not mix new and old
batteries.
It could cause the batteries to
leak.

15
Safety
Precautions
Do not
charge
the
battery pack
using
another
power supply
device or circuit.
The
battery pack
can be
damaged.
Battery pack
Only
use a
battery pack
approved
and certified
by
LG
Electronics.
There is a risk of an
explosion
or a fire.
Be careful the
battery pack
terminals do not short circuit.
There is a risk of an
explosion.
Ensure that the
battery pack
is
firmly
inserted.
There is a risk of an
explosion
or a fire.
Do not throw
away
the used
battery pack carelessly.
There is a risk of an
explosion
or a fire.
Disposal
method can
be different for each
country
or
region.
Use the
proper disposal
method.
Do not
keep
the
battery pack
close to a metallic
object
like a
key
or a
clip.
The
battery pack
could be dam-
aged,
it could cause a
fire,
or
you
could be burned due to
rapid temperature rising by
over-current.
Do not store
high temperature
(over
60
degrees)
or
humidity
area.
There is a risk of an
explosion
or a fire.
Handle the
battery pack
with
care since it contains lithium.
There is a risk of an
explosion
or a fire.
Do not throw or disassemble
the
battery pack.
Thereisariskofafireoran
explosion
due to a
damaged
battery pack.
Do not store the
product
near a
heat-generating
item like a
heater.
It could cause a fire or the
product
could be
damaged.
Keep
out of reach of the
children.
Children could be
injured
or the
product
could be broken.
Use the same
type
of
battery
pack
when
replacing
with a new
one.

16
Before
you
Use
Name and Functions of Wireless
TV
Parts
Front view of wireless
TV:
Adjustment
buttons
Upper
view of the wireless
TV:
Adjustment
buttons
4
98 765
3
2
1
10
1
5
6
7
8
9
10
2
3
4
Network status
LED
Battery
status
LED
Power/Standby
indicator
Remote controller sensor
Power button
TV/AV button
Menu button
ENTER
button
Volume button
Channel button
Shows the status of the wireless transmission unit
in the
system
or connection to the
computer.
Shows the
battery
status of the
system.
For more
details,
see
page
19.
Shows blue color under normal
operation.
Brightness
becomes dimmer as time
goes by.
Press the button to turn on and
press again
to turn off.
Each time
you press
this
button,
the
signal
will be switched in the
following
order.
Shows/Hides the OSD
(On
Screen
Display)
menu screen while the
wireless TV is on.
Displays
the
channel/battery
information while the wireless TV is on.
Or,
you
will save the wireless TV
adjustment settings.
Adjusts
the volume.
Adjusts
the channel.
TV -> Video -> S-Video

Name and Functions of Wireless
TV
Parts
17
Rear view of the wireless
TV
Wireless transmission unit
1
4
2
4
3
1
2
4
3
5
8
9
6
7
Rear view of
the transmission unit
Handle
Stand
You can insert a
battery by separating
a stand. Or
you
can connect to the VESA standard
counterparty
object by separating
a stand.
(See
the below
figure)
Theft
prevention locking
device
This device is used to
prevent
theft
by connecting
the
locking
cable
(optional).
See the below
figure.
Headphone/Earphone
DC
adaptor port
Connect to the
power
VESA
standard
counterparty object
Stand and wall
mounting
type (Not included)
Theft
prevention
locking
device
(Not included)
Rear view of the wireless
TV
Wireless Transmission Unit
1
2
3
4
5
6
Power Button
Press the button to turn on and
press
again
to turn off.
Power/
Standby
indicator
Network status
indicator
Shows the
power
status of the wireless
transmission unit. Red
during
normal
oper-
ation and
yellow
while in
standby
mode.
Wireless TV connection indicator. Blue
when a network connection has been
established with wireless TV.
S-video
output port
2
3
1
RS-232C
(Bottom
of the wireless
TV,
bottom of the wireless
transmission
unit)
S-video
input port
AV
output port
AV
input port
DC
adaptor port
Connect to the
adaptor.
Antenna
input port
Connect ot an antenna or cable TV connection.
7
8
9
Theft
prevention locking
device
-
This TV is
equipped
with a
Kensington Security System
connector on
the back
panel.
The
Kensington Security System
is an
optional
accessory.
For further
information,
visit
http://www.kensington.com.
Kensington
sells
security systems
for
expensive
electronic
equipment
such as notebook PCs and LCD
projectors.
-
The
Kensington Security System
is an
optional accessory.
Service
port. Only
to be
used
by
a
qualified
servicer.

18
Before
you
Use
Wireless
TV
stand
Watching
the wireless
TV
using
the
mounting
stand
(Only
use with
15LW1R)
1
2
Front view Side View
Wireless
TV
Mounting
stand
(Applicable
for
15LW1R model
only)
Lift
up
the wireless TV while
holding
down the "Push" button
to
separate.
You can watch the wireless TV at
any angle using
the
mounting type
stand.
Unfold the wireless TV stand and
put
it on the
mounting
stand.
If the stand is not fixed
properly,
the stand can be
separated
and broken down.
Press the TV until
you
hear a "click" sound to fix it in
place firmly.
10°~35°
TV stand.
Adjust
the
angle
of the stand as shown below.
Be careful because the stand
can be broken if
you apply
excessive force while the
stand is unfolded.
When
watching
the wireless
TV
using
the wireless
TV
stand.
When
watching
the wireless
TV
using
the
mounting
stand
155°
-5°

19
Installing
a
battery pack
12
34
Cover the floor with soft cloth or a cushion. Place the
wireless TV face down and unfold the TV's stand.
Unscrew the screws at both sides as shown in the
figure.
You can use a coin or a screwdriver to loosen the
screws.
1. Connect the DC
adaptor
to the wireless TV.
2. Connect the
power
cord to the DC
adaptor
and
then,
connect to the
power supply.
Front of the wireless TV
DC
adaptor
Power cord
Side of the
wireless TV
Separate
the wireless TV stand.
Insert the
battery pack
down into the
battery pack
holder
(1),
then slide it left
(2).
Replace
the cover and screws
after
installing
the
battery pack.
*
The maximum
battery pack usage
time can differ
according
to the
usage temperature
or
usage
duration.
*
If the
battery pack
is not used for a
long
time,
it can be dis-
charged.
In this
case,
charge
the
battery pack
first before use.
Wireless
TV
Battery
pack
1
2
To
charge
the
battery
Battery pack
Status
LED
Battery pack Charging
and Maximum
Usage
time
When
using
the
battery pack
(DC adaptor
is
not
connected)
Remaining
Amount
(%)
30~100
10~30
Under 10
0
Green
Yellow
Yellow
(blinking)
off
Status
LED
Color
When
charging
the
battery pack
(DC adaptor
is
connected)
Charging
Amount
(%)
Under 97
Over 98
Yellow
Green
Status
LED
Color
When
charging
the
battery pack
(DC adaptor
is
connected)
IfTVisoff
IfTVison
Max. 4 hours
Max. 6 hours
Maximum
battery
pack usage
time
IfTVison Max.3hours

20
Before
you
Use
Remote Control
How
to
change
the batteries
Slide the
battery
cover downward to
open
it.
Then,
insert the batteries
(1.5V,
2 AAA
type
alkaline
batteries)
to the
(+)
and
(-)
direction as marked inside the remote
control
battery
holder.
Then,close
the
cover.
?
Put used batteries into a
recycling
bin.
POWER
TV/AV
Each time
you press
the
button,
TV -> Video -> S-Video will
be
displayed sequentially.
SLEEP
TV will be
automatically
turned off after a certain amount of time.
Set the time duration
you
want
by pressing
this button
repeatedly.
CC
See
page
37.
NUMBER buttons
*
No function
TV/MEDIA
Use this button to use the Media Browser in the
TV,
or vice
versa.
FLASHBK
Use this button to select the
previous
channel.
SURF
See
page
31.
CH/PAGE
TV:
Changes
the channel.
Media
Browser:
Moves the list
page by page.
VOL
Use this button to
adjust
the volume.
MUTE
Use this button to
suppress
the sound from the
speaker.
Media
handling
buttons
Used in the Media Browser.
MENU
TV:
Adjusts
the TV functions.
Media
Browser:
Moves to the
setting
screen.
Moves to the
previous
menu in the Menu screen.
MOVE/SELECT buttons
TV:
Changes
TV/AV
settings.
Media
Browser:
Moves the list.
HOME
Media
Browser:
Moves to the home screen.
EXIT
TV: Hides the Menu screen.
Media
Browser:
Stops
the slide show.
MARK
Media
Browser:
Selects the list or cancels list selection.
1 8 14
15
16
17
18
9
10
11
12
13
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
10
13
14 17
18
15
16
11
12
