LG 223DCH - 22In Wide Lcd Hdtv Spk 1366X768 Hospital... User manual

Life's Good
LCD TV
OWNER'S MANUAL
22LG3DCH
26LG3DCH
32LG3DCH
32LG3DC
Please read this manual carefully before operating
your set.
Retain it for future reference.
Record model number and serial number of the set.
See the label attached on the back cover and quote
this information to your dealer
when you require service.
(Only 32LG3DC model)
This product qualifies for ENERGYSTARin the "factory default
(Home mode)" setting and this isthe setting in which power
savings will be achieved.
Changing the factory default picture setting or enabling other
features will increasepower consumption that could exceed the
limits necessary to quality for Energy Star rating. P/NO :SAC30708026 (090S-REV09)

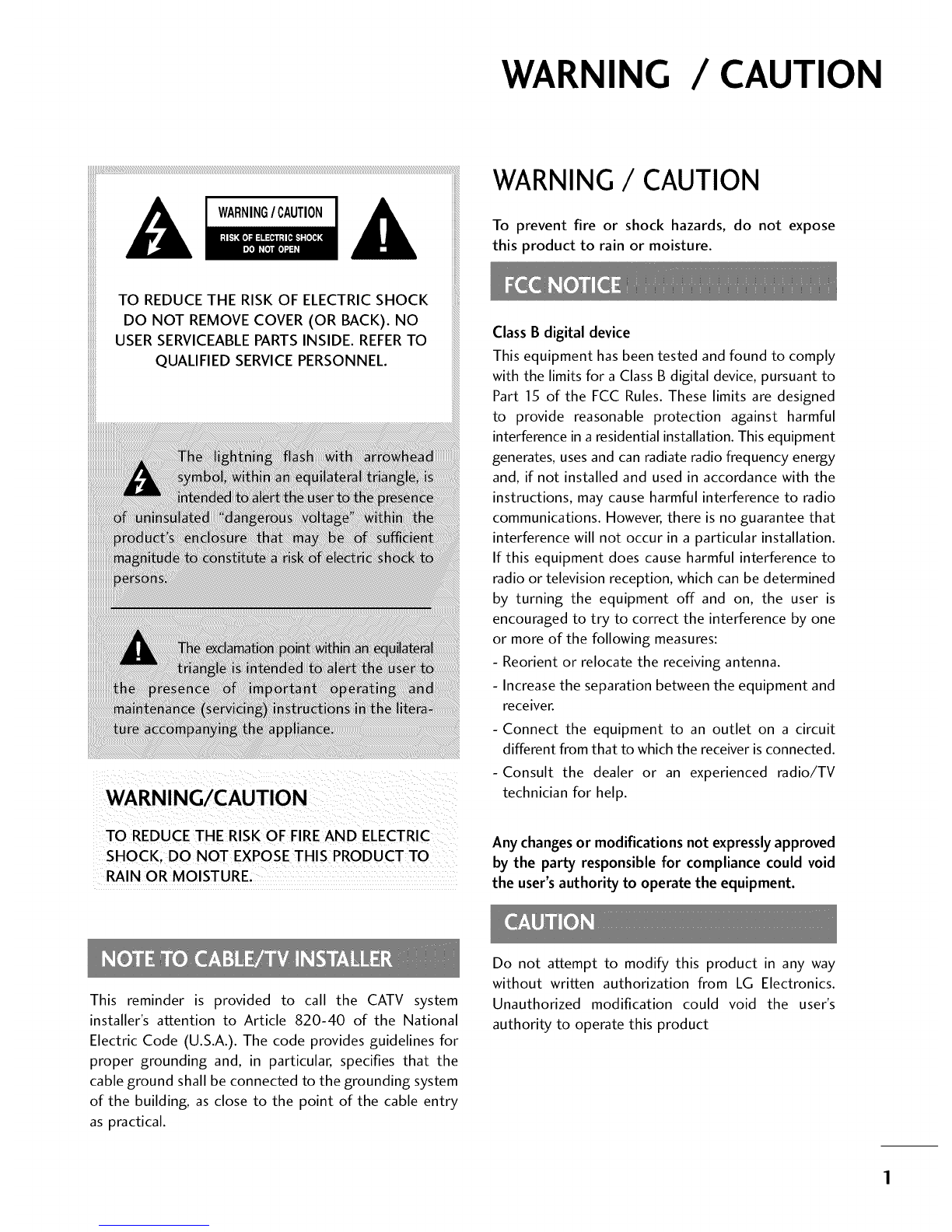

WARNING /CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLEPARTSINSIDE. REFERTO
QUALIFIED SERVICEPERSONNEL.
WARNING/CAUTION
TO REDUCE THE RISK OF FIREAND ELECTRIC
SHOCK. DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
WARNING /CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
Class B digital device
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
Any changes or modifications not expressly approved
by the party responsible for compliance could void
the user's authority to operate the equipment.
This reminder is provided to call the CATV system
installer's attention to Article 820-40 of the National
Electric Code (U.S.A.). The code provides guidelines for
proper grounding and, in particular, specifies that the
cable ground shall be connected to the grounding system
of the building, as close to the point of the cable entry
as practical.
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user's
authority to operate this product

SAFETYINSTRUCTIONS
IMPORTANT SAFETYINSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
O Do not usethis apparatus near water.
Clean only with dry cloth.
Do not block ventilation openings. Install in
any
accordance with the manufacturer's instructions.
0Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers)that produce heat.
0Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong, The wide blade or the third
prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
0Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
Only use attachments/accessories specified by
the manufacturer.
0Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lighting storms or
when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way,such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
2

O
®
®
O
Never touch this apparatus or antenna during a
thunder or lighting storm.
When mounting a TV on the wall, make sure not to
install the TV by the hanging power and signal
cables on the back of the TV.
Do not allow an impact shock or any objects to fall
into the product, and do not drop onto the screen
with something.
CAUTION concerning the Power Cord :
It is recommend that appliances be placed upon a
dedicated circuit; that is,a single outlet circuit which
powers only that appliance and has no additional
outlets or branch circuits. Check the specification
page of this owner's manual to be certain.
Do not connect too many appliances to the same
AC power outlet asthis could result in fire or elec-
tric shock.
Do not overload wall outlets. Overloaded wall out-
lets, loose or damaged wall outlets, extension cords,
frayed power cords, or damaged or cracked wire
insulation are dangerous. Any of these conditions
could result in electric shock or fire. Periodically
examine the cord of your appliance, and if its
appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and
have the cord replaced with an exact replacement
part by an authorized servicer. Protect the power
cord from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in adoor, or
walked upon. Payparticular attention to plugs, wall
outlets, and the point where the cord exits the
appliance.
Do not make the TV with the power cord plugged
in. Do not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the power
cord. Do not pull on the power cord to unplug the
TV.
O
@
O
O
WARNING - To reduce the risk of fire or electrical
shock, do not expose this product to rain,moisture
or other liquids. Do not touch the TV with wet
hands. Do not install this product near flammable
objects such as gasoline or candles or expose the
TV to direct air conditioning.
Do not exposeto dripping or splashingand do not
placeobjectsfilledwith liquids,suchasvases,cups,
etc.on or overthe apparatus(e.g.on shelvesabove
the unit).
GROUNDING
Ensure that you connect the earth ground wire to
prevent possible electric shock (i.e. a TV with a
three-prong grounded AC plug must be connected
to a three-prong grouned AC outlet) If grounding
methods are not possible, have a qualified electri-
cian install a separate circuit breaker.
Do not try to ground the unit by connecting it to
telephone wires, lightening rods, or gas pipes.
Short-circuit
Breaker
Power
Supply
DISCONNECTING DEVICE FROM MAINS
Mains plug is the disconnecting device. The plug
must remain readily operable.
Keep the product away from direct sunlight.
3

ANTENNAS
Outdoor antenna grounding
If an outdoor antenna is installed, follow the precau-
tions below. An outdoor antenna system should not
be located in the vicinity of overhead power linesor
other electric light or power circuits, or where it can
come in contact with such power lines or circuits as
death or serious injury can occur.
Besurethe antenna system isgrounded so as to pro-
vide some protection against voltage surges and
built-up static charges.
Section 810 of the National Electrical Code (NEC) in
the U.S.A.provides information with respect to prop-
er grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna dis-
chargeunit, sizeof grounding conductors, location of
antenna discharge unit, connection to grounding
electrodes and requirements for the grounding elec-
trode.
Antenna grounding according to the
National Electrical Code, ANSI/NFPA 70
Ground Clamp Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Arf 250, Part H)
NEC: National Electrical Code
O leaning
When cleaning, unplug the power cord and scrub
gently with asoft cloth to prevent scratching. Do not
spray water or other liquids directly on the TV as
electric shock may occur. Do not clean with chemi-
cals such asalcohol, thinners or benzene.
t_ Moving
Make sure the product is turned off, unplugged
and all cables have been removed. It may take 2 or
more people to carry larger TVs. Do not press
against or put stress on the front panel of the TV.
@Ventilation
Install your TV where there isproper ventilation. Do
not install in a confined space such as a bookcase.
Do not cover the product with cloth or other mate-
rials (e.g.) plastic while plugged in. Do not install in
excessivelydusty places.
Ifyou smell smoke or other odors coming from the
TV or hear strange sounds, unplug the power cord
contact an authorized service center.
i1_ press strongly upon panel a or
Do not the with hand
sharp object such as nail, pencil or pen, or make a
scratch on it
4

CONTENTS
WARNING /CAUTION ............................ 1
SAFETY INSTRUCTIONS ..........................2
FEATURES OF THIS TV ............................. 6
PREPARATION
Accessories ...................................................... 7
Front Panel Information ..................................... 8
Back Panel Information ...................................... 9
Stand Instruction ............................................. 11
Cable Management ......................................... 12
Desktop Pedestal Installation ............................ 13
Swivel Stand.................................................... 13
Attaching the TV to a desk ............................... 13
VESAWall Mounting ........................................ 14
Securing the TV to the wall to prevent falling
Whenthe TV is usedon a stand .......................... 15
Antenna or Cable Connection .......................... 16
EXTERNAL EQUIPMENT SETUP
HD ReceiverSetup ......................................... 17
DVD Setup ..................................................... 20
VCR Setup ..................................................... 22
Other A/V Source Setup ................................. 24
Pillow Speaker Setup ....................................... 25
PC Setup ........................................................ 26
Z Z7 7 ..................................
WATCHING TV /CHANN EL CONTROL
Remote Control Functions ............................... 32
Turning On TV ................................................ 34
Channel Selection ........................................... 35
Volume Adjustment ......................................... 35
On-Screen Menus Selection ............................ 36
Channel Setup
- Auto Scan (Auto Tuning) ........................... 37
- Add /Delete Channel (Manual Tuning) ...... 38
- Channel Editing ........................................ 39
Channel Label ................................................. 40
Input List ........................................................ 41
PICTURE CONTROl.
Picture Size (Aspect Ratio) Control .................. 42
Preset Picture Settings
- Picture Mode - Preset ............................... 45
- Color Tone - Preset ................................... 46
Manual Picture Adjustment
- Picture Mode - User Mode ........................ 47
- Picture Mode - Expert Control .................. 48
Picture Improvement Settings ........................... 49
Advanced Control- Black (Darkness) Level....... 50
Advanced Control- RealCinema ...................... 51
Picture Reset ................................................. 52
...............
SOUND &LANGUAGE CONTROL
Auto Volume Leveler (Auto Volume) ................. 53
Clear Voice ..................................................... 54
Preset Sound Settings (Sound Mode) ............... 55
Sound Setting Adjustment - User Mode ........... 56
Balance .......................................................... 58
TV Speakers On/Off Setup .............................. 59
Audio Reset ................................................... 60
Stereo/SAP Broadcast Setup ........................... 61
Audio Language .............................................. 62
On-Screen Menus Language Selection ............. 63
Caption Mode
- Analog Broadcasting System Captions ....... 64
- Digital Broadcasting System Captions ........ 65
- Caption Option ....................................... 66
TIME SETTING
Clock Setting
- Auto Clock Setup .................................... 67
- Manual Clock Setup ................................. 68
Auto On/Off Time Setting .............................. 69
Sleep Timer Setting ......................................... 70
Auto Shut-off Setting ....................................... 71
Set Password& Lock System ........................... 72
Channel Blocking ............................................ 75
Movie & TV Rating .......................................... 76
Downloadable Rating ...................................... 79
External Input Blocking .................................... 80
APPEN DI×
Troubleshooting .............................................. 81
Maintenance ................................................... 83
Product Specifications ..................................... 83
IRCodes ....................................................... 84
S

FEATURES OF THIS TV
I I HDMI TM, the HDMI logo and High-Definition r_l DOLBY
H.'-tml j Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing." DIGITAL ]
Manufactured under license from Dolby Laboratories.
"Dolby "and the double-D symbol are trademarks of
Dolby Laboratories.
USB IN USB port shall be used for software update by service SRSCO) ®
SERVUGEONLY personnel only. II¢t_]'_' l'1'TI':'_:i_
_' is a trademark of SRS Labs, Inc.
TruSurround XT technology is incorporated under
license from SRS Labs, Inc.
FOR LCD "IV
_ If the TV feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong
with TV.
_Some minute dot defects may be visible on the screen,appearing as tiny red,green, or blue spots. However,they haveno adverse
effect on the monitor's performance.
_ Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some
temporary distortion effects on the screen.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury. Do not dispose of this product with general
household waste.Disposal of this product must be carried out in accordance to the regulations of your local authority.
6

PREPERATION

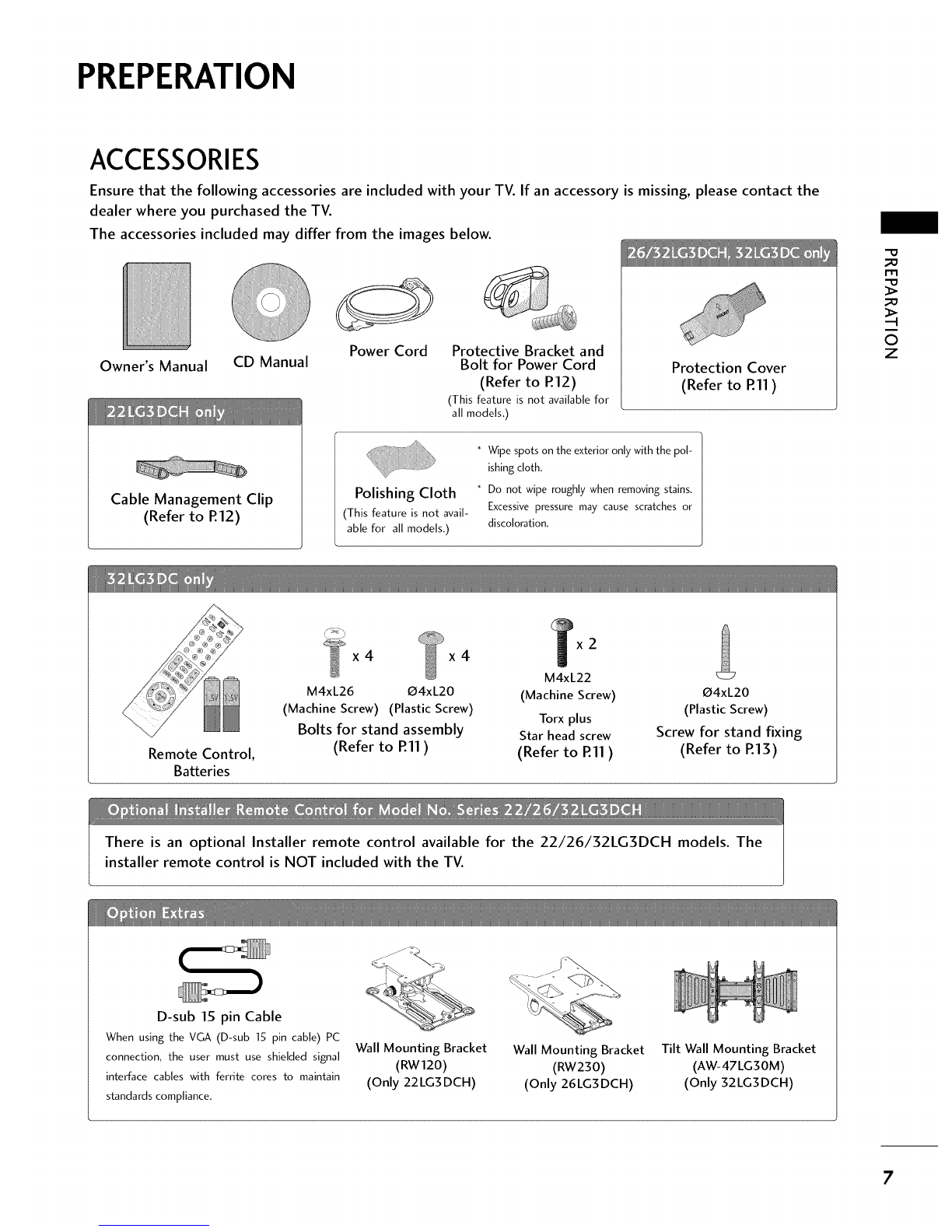

ACCESSORIES
Ensure that the following accessories are included with your TV. If an accessory is missing, please contact the
dealer where you purchased the TV.
The accessories included may differ from the images below.
Owner's Manual CD Manual
Cable Management Clip
(Refer to R12)
Power Cord Protective Bracket and
Bolt for Power Cord
(Refer to R12)
(This feature is not available for
all models.)
Polishing Cloth
(This feature is not avail-
able for all models,)
* Wipe spots on the exterior only with the pol-
ishing cloth.
* Do not wipe roughly when removing stains.
Excessive pressure may cause scratches or
discoloration.
Protection Cover
(Refer to Rll )
_D
rT1
_D
©
z
Remote Control,
Batteries
x4 x4
M4xL26 _4xL20
(Machine Screw) (Plastic Screw)
Bolts for stand assembly
(Refer to Rll )
M4xL22
(Machine Screw)
Torx plus
Star head screw
(Refer to Rll )
_4xL20
(Plastic Screw)
Screw for stand fixing
(Refer to R13)
installer remote control is NOT included with the TV.
D-sub 15 pin Cable
When using the VGA (D-sub 15 pin cable) PC
connection, the user must use shielded signal
interface cables with ferrite cores to maintain
standards compliance.
Wall Mounting Bracket
(RW120)
(Only 22LG3 DCH)
Wall Mounting Bracket
(RW230)
(Only 26LG3 DCH)
Tilt Wall Mounting Bracket
(AW-47LG30M)
(Only 32LG3DCH)
7

?RERARATION
-0
_o
m
_o
©
z

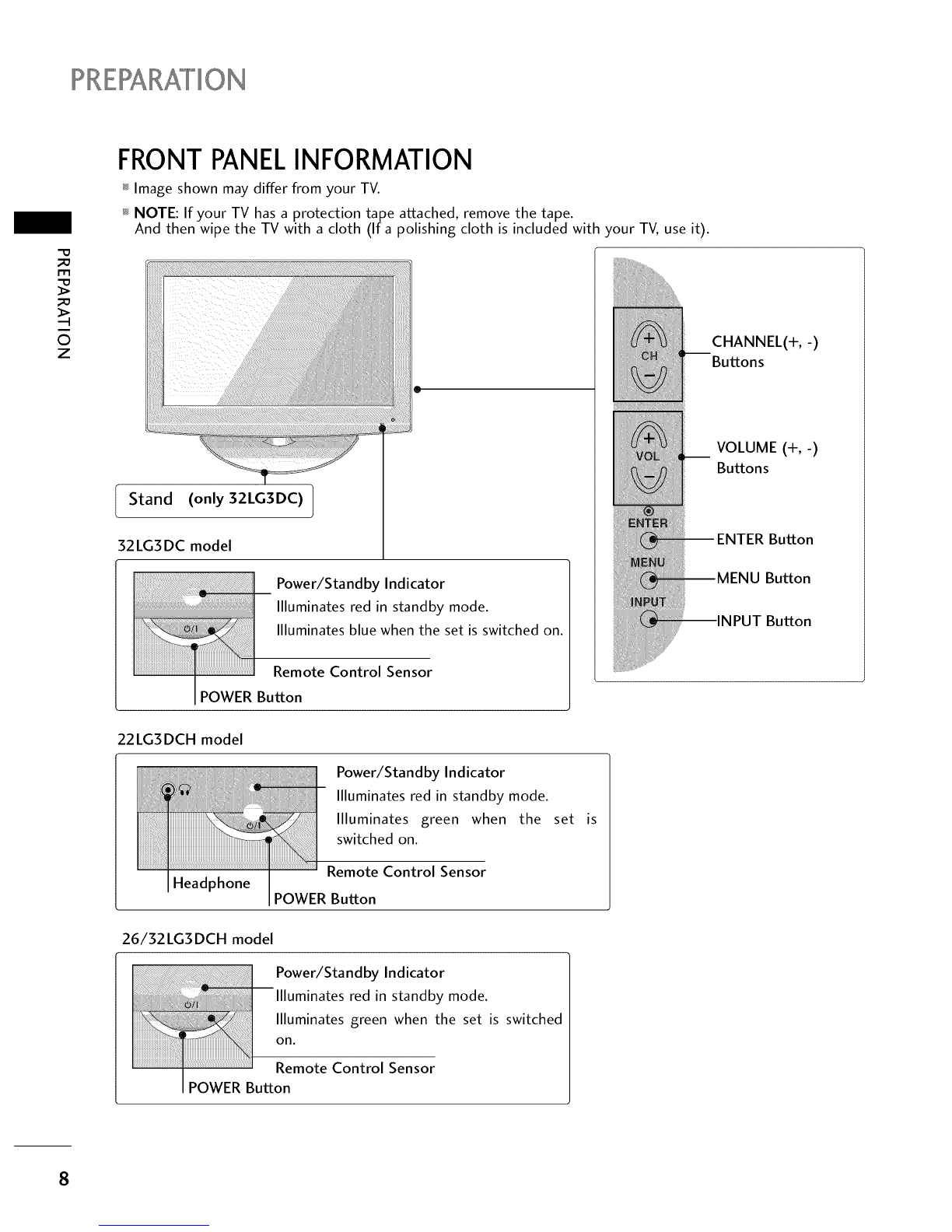

FRONTPANELINFORMATION
_ Image shown may differ from your TV.
_ NOTE: If your TV has a protection tape attached, remove the tape.
And then wipe the TV with a cloth (If a polishing cloth is included with your TV, use it).
IStand (only 32LG3DC) I
32LG3DC model
Power/Sta nd by Indicator
llluminates red in standby mode.
llluminates blue when the set is switched on.
Remote Control Sensor
POWER Button
CHANNEL(+, -)
Buttons
__ VOLUME (+,-)
Buttons
Button
Button
Button
22LG3DCH model
Power/Standby Indicator
llluminates red in standby mode.
llluminates green when the
switched on.
Headphone Remote ControlSensor
POWER Button
26/32LG3DCH model
Power/Standby Indicator
llluminates red in standby mode.
llluminates green when the set is switched
on.
Remote Control Sensor
POWER Button
set is
8

BACKPANELINFORMATION
_ Image shown may differ from your TV.
For 32LG3DC
26/32LG3DCH "O
_o
m
_o
©
z
(only 26/32LG3DCH model)
9

?RERARATION

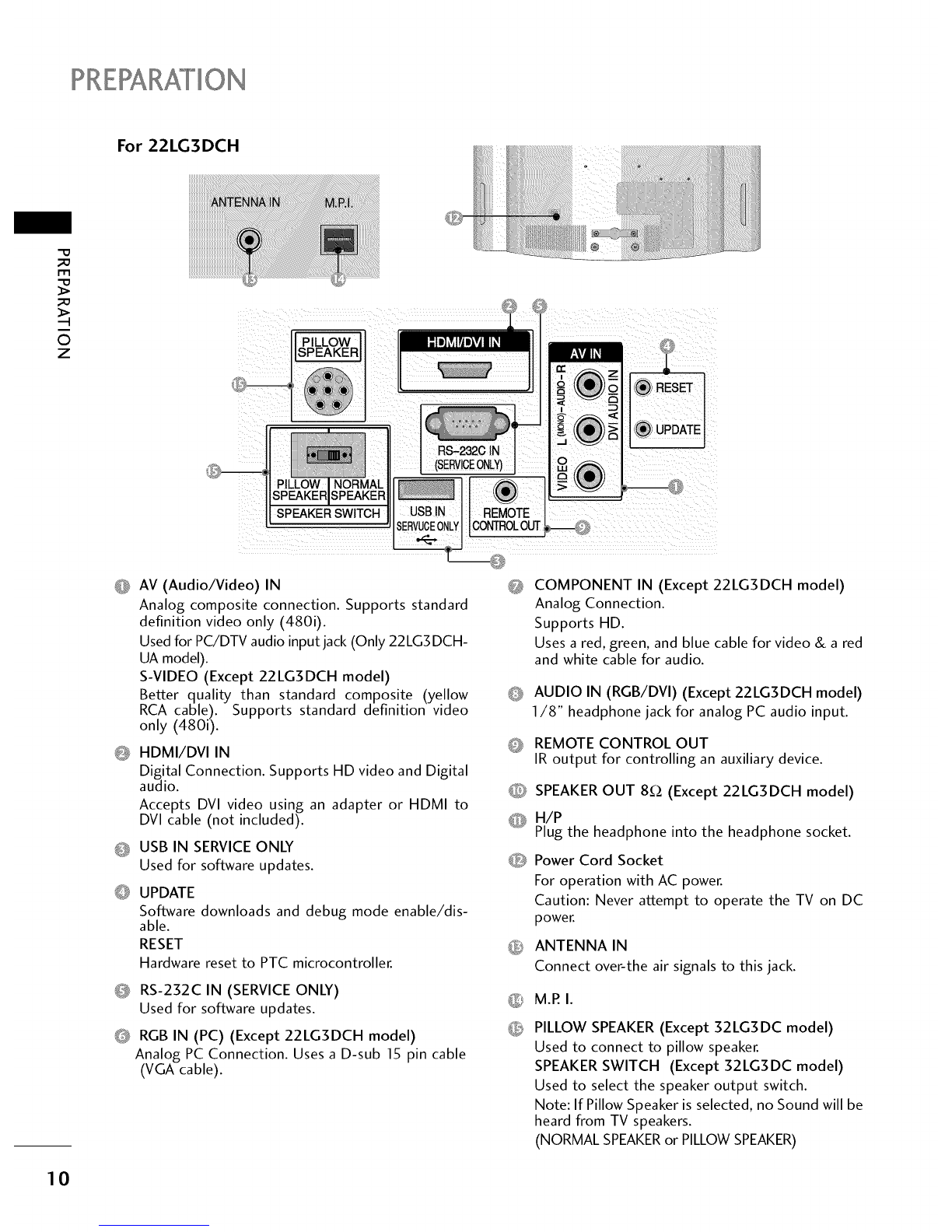

For 22LG3DCH
"O
_o
m
_o
O
z
z
iii i -- SPEAKERSWITCH
RS-232CIN
(SERVICEONLY)
@ AV (Audio/Video) IN
Analog composite connection. Supports standard
definition video only (480i).
Used for PC/DTV audio input jack (Only 22LG3DCH-
UA model).
S-VIDEO (Except 22LGgDCH model)
Better quality than standard composite (yellow
RCA cable). Supports standard definition video
only (480i).
O HDMI/DVl IN
Digital Connection. Supports HD video and Digital
audio.
Accepts DVI video using an adapter or HDMI to
DVI cable (not included).
0 USB IN SERVICE ONLY
Used for software updates.
0 UPDATE
Software downloads and debug mode enable/dis-
able.
RESET
Hardware reset to PTC microcontroller.
O
@
@
@
©
@
@
@
@
RS-232C IN (SERVICEONLY)
Used for software updates.
RGB IN (PC) (Except 22LGgDCH model)
Analog PC Connection. Uses a D-sub 15 pin cable
(VGA cable).
©
@
l
_ RESET
/,_ UPDATE
COMPONENT IN (Except 22LG3DCH model)
Analog Connection.
Supports HD.
Uses a red, green, and blue cable for video & a red
and white cable for audio.
AUDIO IN (RGB/DVI) (Except 22LG3DCH model)
1/8" headphone jack for analog PC audio input.
REMOTE CONTROL OUT
IR output for controlling an auxiliary device.
SPEAKER OUT 8£2 (Except 22LG3DCH model)
H/P
Plug the headphone into the headphone socket.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
ANTENNA IN
Connect over-the air signals to this jack.
M.RI.
PILLOW SPEAKER (Except 32LG3DC model)
Used to connect to pillow speaker.
SPEAKER SWITCH (Except 32LG3DC model)
Used to select the speaker output switch.
Note: If Pillow Speaker is selected, no Sound will be
heard from TV speakers.
(NORMAL SPEAKERor PILLOW SPEAKER)
10

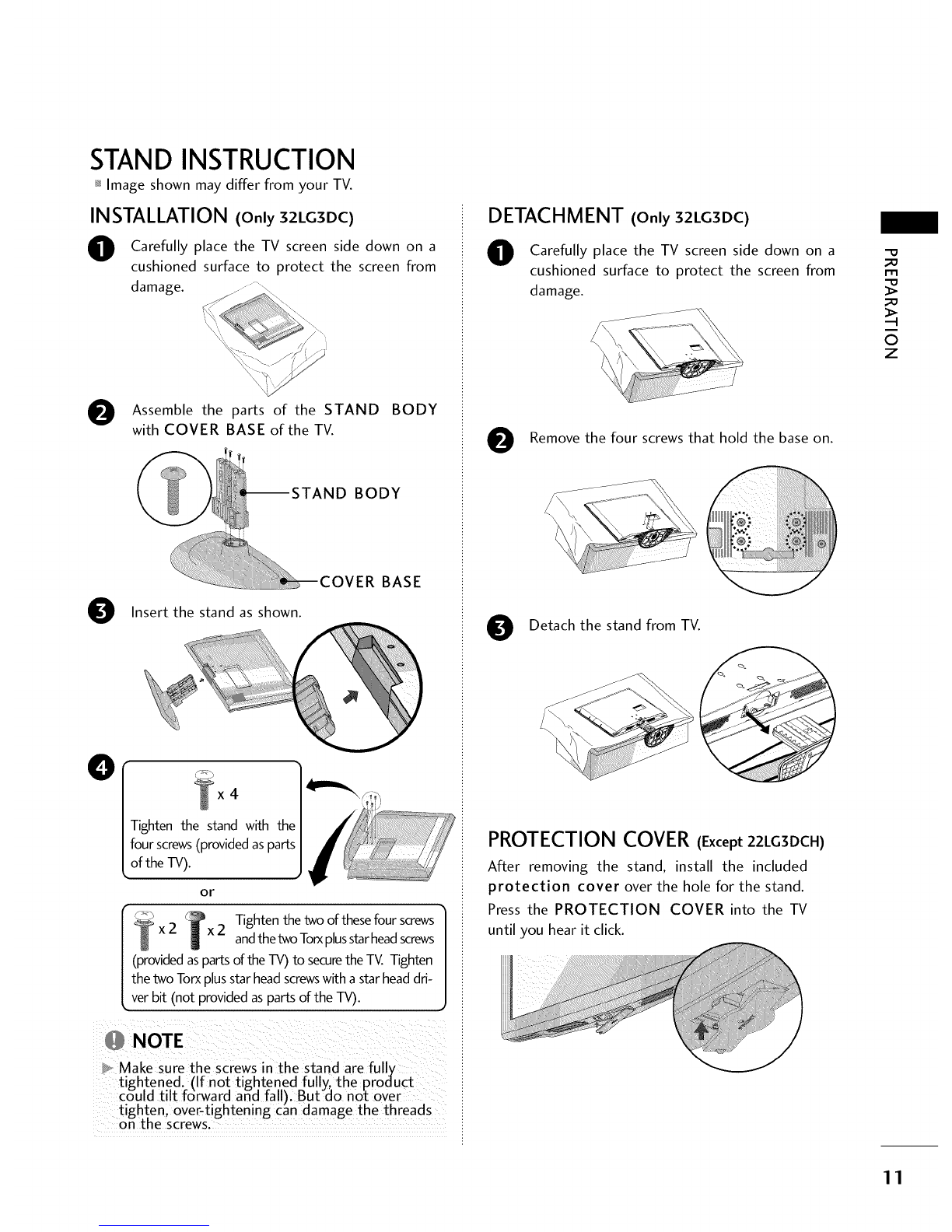

STAND INSTRUCTION
_ Image shown may differ from your TV.
INSTALLATION (Only32LG3DC)
O Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
O Assemble the parts of the STAND BODY
with COVER BASE of the TV.
D BODY
0
O
BASE
Insert the stand as shown.
.....iii,,ii !!!!ii!i!!_i
_!_' ¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸¸7¸¸¸¸_ !
x4
Tighten the stand with the
four screws(provided as parts
of the TV).
or
,,_''ii:i_!i!i!i!i!i!i!!:i_i!_!_!_i_!_!_!_!_!_!_!!i!!ii!i!i!_i!_i_i_i_ii_ii_ii_ii_ii_ii_i_i_i_!_i_i_i!_!_i¸I!!!i_ii¸_¸'¸¸¸¸¸
I b Tighten the two of thesefour screws
x2 x2 andthe two Torxplusstarheadscrews
(provided asparts of the TV) to securethe TV. Tighten
the two Torx plusstar headscrewswith a starhead dri-
ver bit (not provided asparts of the TV).
Make sure the screws in the stand are fully
tigh.tened. (If not tightened fully,, the product
could tilt forward and fall). But do not over
tighten, over-tightening can damage the threads
on the screws.
DETACHMENT (Only 32LG3DC)
O Carefully place the TV screen side down on a
cushioned surface to protect the screen from
damage.
@Remove the four screws that hold the base on.
0Detach the stand from TV.
PROTECTION COVER (Except221G3DCH)
After removing the stand, install the included
protection cover over the hole for the stand.
Press the PROTECTION COVER into the TV
until you hear it click.
;o
rr3
;o
©
z
11

?RERARATION
m
©
z
CABLEMANAGEMENT
_ Image shown may differ from your TV.
For 26/32LG3DCH, 32LG3DC
O Connect the cables as necessary.
To connect additional equipment, see the
EXTERNAL EQUIPMENT SETUP section.
Secure the power cable with the
PROTECTIVE BRACKET and the screw as
shown. It will help prevent the power cable
from being removed by accident.
PROTECTIVE BRACKET
(This feature is not available
for all models.)
O Install the CABLE MANAGEMENT CLIP as
shown.
iiiiP' i
CABLE MANAGEMENT CLIP
O ut the cables inside the CABLE MANAGEMENT
CLIP and snap it closed.
For 22LG3DCH
OConnect the cables as necessary.
To connect additional equipment, see the
EXTERNAL EQUIPMENT SETUP section.
Secure the power cable with the
PROTECTIVE BRACKET and the screw as
shown. It will help prevent the power cable
from being removed by accident.
O
PROTECTIVE BRACKET
(This feature is not available
for all models.)
Install the CABLE MANAGEMENT CLIP as
shown.
CABLE MANAGEMENT CLIP
OFit the CABLE MANAGEMENT CLIP as shown.
f_
/,/
How to remove the [
CABLE MANAGEMENT CLI_ I
t__Hold the CABLE MANAGE-
MENT CLIP with both hands
and pull it backward.
If the TV is dropped, you may be injured or the product may be brokenl
12

DESKTOP PEDESTALINSTALLATION
_ Image shown may differ from your TV.
* This feature is not available for all models.
For proper ventilation, allow a clearance of 4 inches on all four sides.
4 inches
4 inches
4inches 4 inches ©
z
SWIVELSTAND (Only 32LG3DC)
The TV can be conveniently swivelled on its stand 90 ° to the left or right to provide the optimum viewing angle.
ATTACHING THE TV TO A DESK (Only 32LG3DC)
The TV must be attached to a desk so it cannot be pulled in a forward/backward direction, potentially causing
injury or damaging the product. Use only the included screw.
1-Screw
(provided as parts of the product)
Stand
Desk
_ To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation
instructions. Tippingi shakingl 0r rocking the TV may cause injury •
13

?RERARATION
VESAWALL MOUNTING
-O
_a
rrl
_a
O
z
Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materi-
als, please contact your nearest dealer.
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
We recommend that you use an LG brand wall mount when mounting the TV to a wall.
A
J
26LG3 DCH, 32 LG3 DCH 200 • 100 M4 4
LCDTV 32LG3DC
22LG3DCH 100 • 100 M4 4
NOTE
Screw length needed depends on the wall mount
used. For further information, refer to the instruc-
tions included with the mount.
Standard dimensions for wall mount kits are shown
in the table.
When purchasing our wall mount kit. a detailed
installation manua and all parts necessary for
assembly are provided.
standard screw specifications, the length of the
screws may differ depending on their specifica-
tions.
Do not use screws that do not comply with the
VESA standard screw specifications.
Do not tighten the screws too much. It may dam-
age the TV or allow the TV to a fall and cause per-
sonal injury. LG is not liable for these kinds of acci-
Do not use screws longer then the standard dimen- dents.
sion. as they may cause damage to the inside to LG is not liable for TV damage or personal injury
the TV. when a non-VESA or non specified wall mount is
For wall mounts that do not comply with the VESA used or the consumer fails to follow the TV installa-
tion in structions.
CAUTION
Do not install your wall mount kit while the TV is plugged in. It may result in personal injury due to electric
shock.
WARNING
To prevent injury, this apparatus must be securelv attached to the wall in accordance with the installa-
tion instructions.
14

SECURINGTHE TV TO THE WALLTO PREVENTFALLING
WHEN THE TV IS USED ON A STAND
_ You should purchase necessary components to prevent TV from falling off of the stand.
_ Image shown may differ from your TV.
* This feature is not available for all models.
We recommend that you set the TV close to a wall so it cannot fall over if pushed backwards.
Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction,
potentially causing injury or damaging the product.
Caution: Please make sure that children don't climb on or hang from the TV.
_D
m
_D
©
z
_ Insert eye-bolts (or TV brackets and bolts) to attach the product to the wall as shown in the picture.
If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.
Insert the eye-bolts or TV brackets/bolts and tighten them securely in the upper holes.
Secure the wall brackets with screws (sold separately) to the wall. Match the height of the bracket that
is mounted on the wall to the holes in the product.
Ensure the eye-bolts or brackets are tightened securely.
Use a sturdy rope or cord (sold separately) to tie the product. It is
safer to tie the rope so it becomes horizontal between the wall and
the product (the less slack in the rope, the better).
NOTE
Use a platform or cabinet strong enough and large enough to support the size and weight of the TV.
To use the TV safely, make sure that the height of the bracket on the wall and the one on the TV are
the same.
15

?RERARATION
_ To prevent damage do not connect to the power outlet until all connections are made between the devices.
ANTENNA OR CABLECONNECTION
l-rl
©
z
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box
Connection.
For optimum picture quality, adjust the direction if needed.
,_Multi-family Dwellings/Apartments
Wall enna socket)
Antenna
Soc e, I I
Outdoor _" ] RFCoaxial Wire (75 ohm) !"\
Antenna
VHF, UHF sng e-fam yDwe ngs/Houses ..... _u.-_ ..............
( HF) ISingle-family Dwelli, ICopper W,re
)(Connect to wall jack for outdoor antenna) I ' '
I Be careful not to bend the copper wire
Iwhen connecting the antenna.
2. CaNe
Cable TV
Wall Jack ...........................................................................%
...........Ui.
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
If the antenna needs to be split for two TV's, install a 2-Way Signal Splitter.
If the antenna is not installed properly, contact your dealer for assistance.
16

EXTERNAL EQUIPMENT SETUP
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
This part of EXTERNAL EQUIPMENT SETUP mainly uses the picture for 32LG3 DC model.
HD RECEIVERSETUP
This TV can receive Digital Over-the-air or Digital Cable signals without an external digital set-top box. However,
if you do receive digital signals from a digital set-top box or other digital external device, refer to the figure as
shown below.
Component Connection (Except22LG3DCH)
1. How to connect
OConnect the video outputs (Y, PB,PR) of the digital set-
top box to the COMPONENT IN VIDEO jacks on
the TV. Match the jack colors (Y = green, PB = blue, and
PR = red).
O onnect the audio output of the digital set-top box to
the COMPONENT IN AUDIO jacks on theTV.
2. How to use
Turn on the digital set-top box.
(Refer to the owner's manual for the digital set-top box.)
Select Component input source using the INPUT button
on the remote control.
I"11
x
m
_D
z
>
m
X_
c
"O
m
z
m
c
Supported Resolutions Y, CB/PB,CR/PR
480i
480p
1080i
1080p
Yes
Yes
Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
15.73 59.94
720x480i 15.73 60.00
31.47 59.94
720x480p 31.50 60.00
44.96 59.94
1280x720p 45.00 60.00
...................................................................................
33.72 59.94
1920x 1080i 33.75 60.00
17

EXTERNALEQUIPMENT SETUP
HDMI Connection
1. How to connect
m
x
m
po
z
m
X:)
c
"O
m
z
m
c
Connect the digital set-top box to HDMI/DVI IN
O jack on the TV.
O No separate audio connection is necessary.
HDMI supports both audio and video.
2. How to use
Turn on the digital set-top box.
(Refer to the owner's manual for the digital set-top box.)
Select HDMI input source with using the INPUT button
on the remote control.
HDMI-DTV
15.73 59.94
720x480i 15.73 60.00
31.469 59.94
720x480p 31.500 60.00
44.96 59.94
1280x720p 45.00 60.00
33.72 59.94
1920x1080i 33.75 60.00
1920x1080p 6Z50 60.00
18

DVI to HDMI Connection
1. How to connect 26/32LG3DCH,
32LG3DC model
O onnect the DVI output of the digital set-top box to
the HDMI/DVl IN jack on the TV.
O Connect the audio output of the digital set-top box to
the AUDIO IN(RGB/DVl) orAV IN AUDIO jack
on the TV.
2. How to use
Turn on the digital set-top box. (Refer to the owner's man-
ual for the digital set-top box.)
Select the HDMI input source on the TV using the INPUT
button on the remote control.
x
m
_o
z
m
XD
c
m
z
m
c
"O
NOTE
A DVl to HDMI cable or adapter is required for this
connection. DVl doesn't support audio, so a separate
audio connection is necessary.
22LG3DCH model
19
