LG 26LC7C User manual

R
LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LA75C
MODEL : 26LC7D(C) 26LC7D(C)-UK
website:http://biz.LGservice.com
Internal Use Only

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ..................................................................................3
SPECIFICATION ........................................................................................6

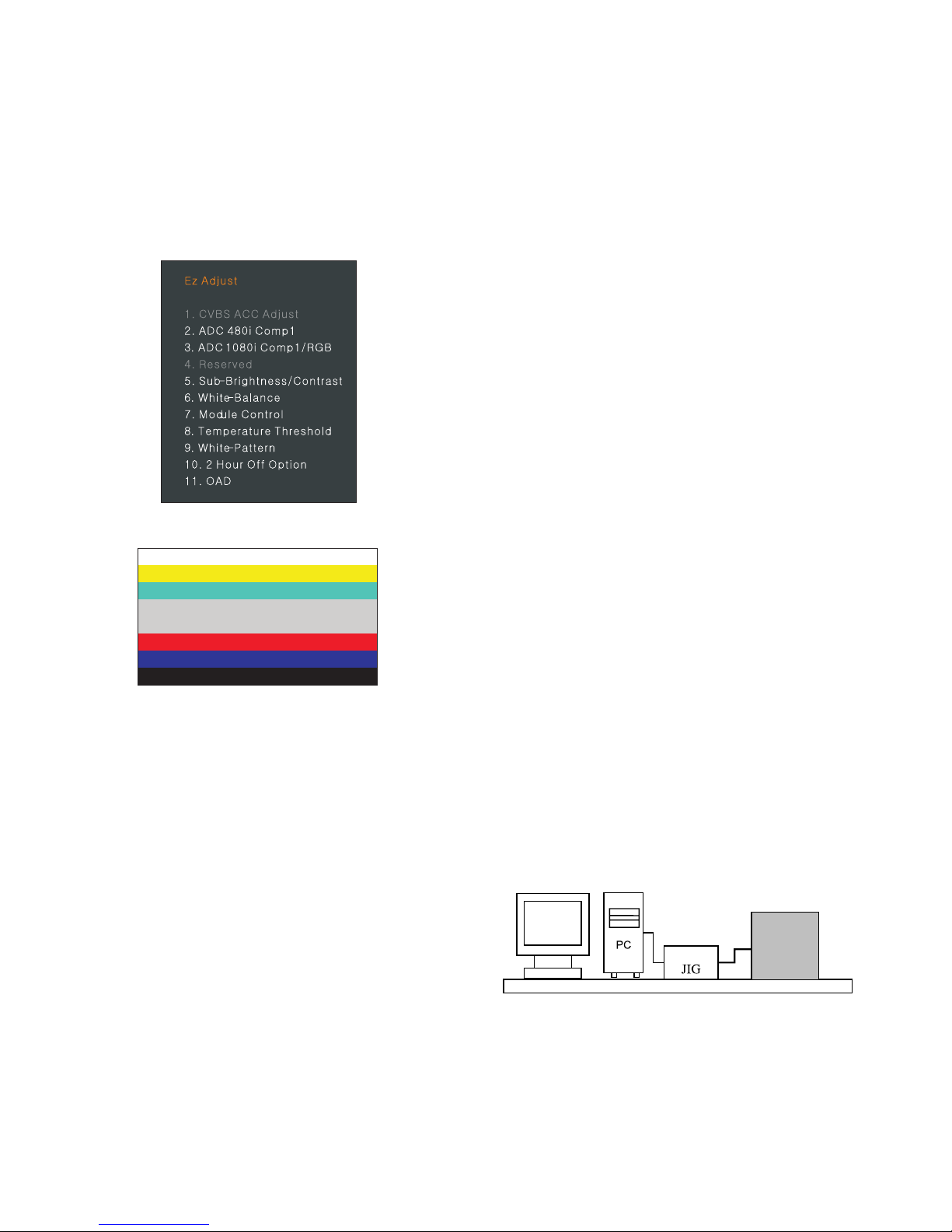

ADJUSTMENT INSTRUCTION .................................................................9
TROUBLE SHOOTING ............................................................................14
BLOCK DIAGRAM...................................................................................17

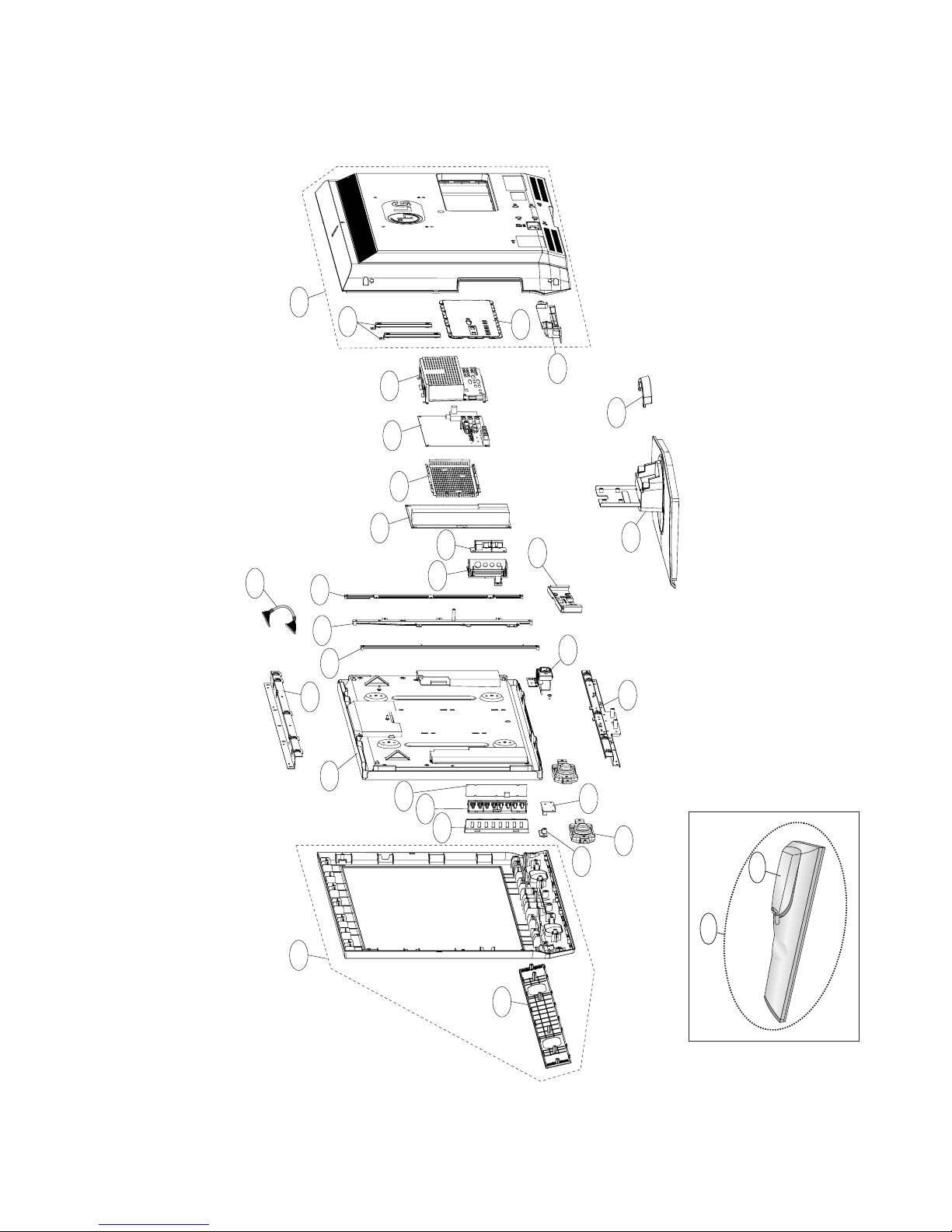

EXPLODED VIEW .................................................................................. 18
REPLACEMENT PARTS LIST ............................................................... 20
SVC. SHEET ...............................................................................................

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500ºF to 600ºF.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500ºF to 600ºF)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500ºF to 600ºF)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
4. General Specification(TV)
No. Item Specification Remark
1. Receiving System ATSC/64 & 256 QAM/ NTSC-M
2. Available Channel 1) VHF : 02~13
2) UHF : 14~69
3) DTV : 02-69
4) CATV : 01~135
5) CADTV : 01~135
3. Input Voltage 100 - 240V~, 50/60Hz
4. Market NORTH AMERICA
5. Screen Size 26 inch Wide - 26 inches (582.96 mm)
6. Aspect Ratio 16:9
7. Tuning System FS
8. LCD Module T260XW03V3
9. Operating Environment 1) Temp : 0 ~ 40 deg
2) Humidity : ~ 80 %
10. Storage Environment 1) Temp : -20 ~ 60 deg
2) Humidity : 0 ~ 90 %
1. Application Range.
This specification sheet is applied to the LCD TV used LA75C
chassis.
2. Specification
Each part is tested as below without special appointment
2.1 Temperature : 25±5°C(77±9°F), CST : 40±5°C
2.2 Relative Humidity : 65±10%
2.3 Power Voltage : Standard input voltage
(100-240V@ 50/60Hz)
• Standard Voltage of each products is marked by models
2.4 Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM .
2.5 The receiver must be operated for about 20 minutes prior
to the adjustment.
3. Test method
3.1 Performance : LGE TV test method followed.
3.2 Demanded other specification
Safety : UL, CSA, IEC specification
3.3 EMC : FCC, ICES, IEC specification

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 7 -
5. Chroma & Luminance Specification
No Item Min Typ Max Unit Remark
1. White peak brightness 350 450 cd/m2HDMI input, full white,
Video Black level = High
400 500 cd/m2MODULE SPEC.
2. Contrast ratio 800:1 1000:1 Non dimming mode
3. Brightness uniformity 1.3
4. Color coordinate RED X 0.633 ± 0.03
Y 0.339 ± 0.03
GREEN X 0.286 ± 0.03
Y 0.610 ± 0.03
BLUE X 0.147 ± 0.03
Y 0.065 ± 0.03
WHITE X 0.276 ± 0.03
Y 0.283 ± 0.03
5. Viewing angle 178 R/L, U/D
6. Color Temperature Standard 8,300 9,300 10,300 <Test Signal>
Cool 10,000 11,000 12,000 HDMI input
Warm 5,500 6,500 7,500 Dynamic/ Cool 85 IRE
6. Component Video Input (Y, PB, PR)
No. Specification Remark
Resolution H-freq(kHz) V-freq(Hz)
1. 720*480 15.73 59.94 SDTV ,DVD 480I
2. 720*480 15.73 60.00 SDTV ,DVD 480I
3. 720*480 31.47 59.94 SDTV 480P
4. 720*480 31.50 60.00 SDTV 480P
5. 1280*720 44.96 59.94 HDTV 720P
6. 1280*720 45.00 60.00 HDTV 720P
7. 1920*1080 33.72 59.94 HDTV 1080I
8 1920*1080 33.75 60.00 HDTV 1080I
9 1920*1080 27 24 HDTV 1080P
10 1920*1080 26.97 23.976 HDTV 1080P
11 1920*1080 33.75 30 HDTV 1080P
12 1920*1080 33.71 29.97 HDTV 1080P
13 1920*1080 67.432 59.94 HDTV 1080P
14 1920*1080 67.500 60.00 HDTV 1080P

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 8 -
7. RGB Input(PC)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark
PC DDC
1 640*350 31.469 70.08 25.17 DOS
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
7 1280*768 47.776 59.87 79.50 CVT(WXGA) O
8 1360*768 47.720 59.799 84.75 CVT(WXGA) O
9 1366*768 47.13 59.65 72
8. HDMI Input (PC/DTV)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark
PC DDC
1. 640*480 31.469 59.94 25.17 VESA(VGA) O
2. 800*600 37.879 60.31 40.00 VESA(SVGA) O
3. 1024*768 48.363 60.00 65.00 VESA(XGA) O
4. 1280*768 47.776 59.87 79.50 CVT(WXGA) O
5. 1360*768 47.720 59.799 84.75 CVT(WXGA) O
6. 1366*768 47.13 59.65 72
DTV
1 720*480 31.50 60 27.027 SDTV 480P
2 720*480 31.47 59.94 27.00 SDTV 480P
3 1280*720 45.00 60.00 74.25 HDTV 720P
4 1280*720 44.96 59.94 74.176 HDTV 720P
5 1920*1080 33.75 60.00 74.25 HDTV 1080I
6 1920*1080 33.72 59.94 74.176 HDTV 1080I
7 1920*1080 67.500 60 148.50 HDTV 1080P
8 1920*1080 67.432 59.939 148.352 HDTV 1080P
9 1920*1080 27.000 24.000 74.25 HDTV 1080P
10 1920*1080 26.97 23.976 74.176 HDTV 1080P
11 1920*1080 33.75 30.000 74.25 HDTV 1080P
12 1920*1080 33.71 29.97 74.176 HDTV 1080P

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 9 -
ADJUSTMENT INSTRUCTION
1. Application Range
These instructions are applied to all of the LCD TV, LA75C
Chassis.
2. Notice
1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test instrument.
2) Adjustment must be done in the correct order. But it is
flexible when its factory local problem occurs.
3) The adjustment must be performed in the circumstance of
25±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
2.4 The input voltage of the receiver must keep 100~220V,
50/60Hz.
2.5 Before adjustment, execute Heat-Run for 30 minutes.
OAfter Receive 100% Full white pattern (06CH) then
process Heat-run
(Or 6. White Pattern condition of Ez – Adjust)
OHow to make set white pattern
A. Press Power ON button of Service Remocon
B. Press ADJ button of Service remocon to enter “Ez-
Adjust”. Select "6. WHITE PATTERN" and press A
key. And 100% Full White pattern appear.
In this status you can maintain Heat-Run useless any
pattern generator.
Notice) If you maintain one picture over 20 minutes
(Especially sharp distinction black with white pattern
– 13Ch, or Cross hatch pattern – 09Ch) then it can
appear image stick near black level
3. MICOM Download(Option)
3-1. Required Test Equipment
(1) JIG-LEVER TYPE for adjusting: 1EA
(2) PC & MONITOR: 2EA
(3) BOARD for INTERFACE: IIC & ISP BOARD: 2EA
(4) 15P D-SUB CABLE: 2EA
(5) Using the 12/15 line of D-SUB 15P
12-SDA/15-SCL
3-2. JIG Connection
3-3. Establishment Program
(1) Establish LGE Monitor Tools v1.1
(2) The program work and it is opened program window as
seen below.
(3) Click the first icon shown in fig.9. The window seen in
fig.10 should appear.
connection
to PC
connection
to PC

- 10 -
3-4. Set Method
(1) MCU Select: MTV412M128
(2) Option
R/W Option: Auto Write(Verity)
Jig Option: Myson
Transmit Speed: Medium
(3) Check: Just do it with blank micom.
(4) PORT
Chose Parallel Port (normal LPT1)
Attention: You must chose EPP when select Rom BIAS at
LPT
3-5. Download Method
(1) Click the Load File.
(2) Locate and select the correct file from your computer.
(*.hex).
(3) Click the Send.
(4) When you see (ISP COMPLETE) the download is
complete.
4. Using RS-232C
(1) Necessary items before Adjustment items
- Pattern Generator : (MSPG-925FA)
- Adjust 480i Comp1 (MSPG-925FA:model :209 , pattern :65)
- Adjust 1080p Comp1/RGB (MSPG-925FA : model : 225,
pattern :65)
(2) Adjustment sequence
- ad 00 00 : Enter the ADC Adjustment mode.
- kb 00 04 : Change the mode to Component1 (No actions)
- ad 00 10 : Adjust 480i Comp1(Change the mode and
adjustment action)
- kb 00 06 : Change to RGB-DTV mode(No action)
- ad 00 10 : Adjust 1080p Comp1/RGB(Change the mode and
adjustment action)
- ad 00 90 : End of the adjustment
(3) Adjustment protocol
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Order Command Set response
1. Inter the Adjustment mode ad 00 00 d 00 OK00x
2. Change the Source kb 00 04 b 00 OK04x (Adjust 480i Comp1)
kb 00 06 b 00 OK06x (Adjust 1080p Comp1/RGB)
3. Start Adjustment ad 00 10
4. Return the Response OKx ( Success condition )
NGx ( Failed condition )
5. Read Adjustment data (main) (main)
ad 00 20 000000000000000000000000007c007b006dx
(sub) (Sub)
ad 00 21 000000070000000000000000007c00830077x
6. Confirm Adjustment ad 00 99 NG 03 00x (Failed condition)
NG 03 01x (Failed condition)
NG 03 02x (Failed condition)
OK 03 03x (Success condition)
7. End of Adjustment ad 00 90 d 00 OK90x

- 11 -
5. ADC-Set adjustment
5-1. Synopsis
ADC-set is Gain and Black level setting at Analog to Digital
converter, and compensate the RGB deviation
5-2. Test Equipment
Service R/C, 801GF(802V, 802F, 802R) or MSPG925FA
Pattern Generator (It can output 480i/1080i horizontal 100%
color bar pattern signal, and its output level must setting
0.7V±0.1V p-p correctly)’
5-3. Adjustment
(1) ADC 480i Component1 adjustment
1) Set Component 480i mode and 100% Horizontal Color
Bar Pattern(HozTV31Bar), then set TV set to
Component1 mode and its screen to "NORMAL"
2) After get the signal, wait more a second and enter the
"Ez-Adjust" with press ADJ key of Service remocon.
After then select "2.ADC 480i Comp1" with navigator
button and press "Enter". It is automatically adjustment
3) You can see "ADC Component1 Success" message
after Adjustment success
Error Messages: When its adjustment is not correct,
"ADC Component1 480i Fail" message displayed. If
component is not connection "Component1 Not
Connected", its format is not 480i then "Not Valid
Format", its signal don’t out then "Check Signal Status"
message displayed. These messages will be displayed
just a second.
(2) ADC 1080p Component1 / RGB adjustment
- Check connection both of Component1 and RGB
- MSPG-925FA -> Model: 225, Pattern 65
1) Set Component 1080p mode and 100% Horizontal Color
Bar Pattern(HozTV31Bar), then set TV set to
Component1 mode and its screen to "NORMAL"
2) After get the signal, wait more a second and enter the
"Ez-Adjust" with press ADJ key of Service remocon.
After then select "4.ADC 1080p Comp1/RGB" with
navigator button and press "Enter". First, it is
automatically adjustment Component1.
3) If adjustment is correctly finished, "ADC Component1
Success" message will be displayed. But adjustment is
not correctly finished, "ADC Component1 1080p Fail"
message will be displayed.
4) After adjustment Component1 mode, move to RGB-DTV
mode automatically and RGB adjustment start. After
RGB Adjustment successfully finished, "ADC RGB
1080P Success" message will be displayed.
5) If Adjustment doesn’t success, check conditions all of
the adjustment condition and adjustment again. See
"Error Messages" sentence.
6) After adjustment finished, press "ADJ" key and exit from
Adjustment mode.
6. EDID (The Extended Display Identification Data) /
DDC (Display Data Channel) Download
6-1. Summary
It is established in VESA, for communication between PC and
Monitor without order from user for building user condition. It
helps to make easily use realize "Plug and Play" function.
6-2. Write HDMI EDID data
(1) Using instruments
1) Jig. (PC Serial to D-Sub connection) for PC, DDC
adjustment.
2) S/W for DDC recording (EDID data write and read)
3) D-sub jack
4) Additional HDMI cable connection Jig.
(2) Preparing and setting.
1) Set instruments and Jig. Like fig.4), then turn on PC and
Jig.
2) Operate DDC write S/W (EDID write & read)
3) It will operate in the DOS mode.
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
<Fig. 3> Device configuration diagram for HDMI EDID Data input
<Fig. 1> Adjustment Mode
<Fig. 2> Adjustment Pattern: 480i/1080P 60Hz HozTV30 Bar Pattern
LCD TV SET
(or Digital Board)

6-3. EDID DATA for LA75C
(1) EDID data for LA75A Chassis
- HDMI1 EDID (DDC (Display Data Channel) Data
- HDMI2 EDID (DDC (Display Data Channel) Data
- Analog (RGB) EDID table
* See Working Guide if you want more information about EDID
communication.
7. Adjustment of White Balance
- Purpose: to reduce the difference in color temperature
among modules
- Principal: A module is in full dynamic range when RGB Gain
on OSD is 192. To adjust the white balance without causing
full dynamic range and full data, fix one of RGB Gains at 192
and control the other two by reducing them from 192.
7-1. Required Equipment
(1) Color Analyzer : CA-110 or CA-210
(2) Automatic adjustor (with automatic adjustment necessity
and the RS-232C communication being possible)
7-2. Connection Diagram of Equipment
for Measuring (Automatic Adjustment)
Use the internal pattern to adjust White Balance. The pattern
is automatically given when the automatic adjustment device
is connected or when a user presses ADJ on the remote
controller to start Ez Adjust and then selects 6.White-Balance.
*
When you adjust LCD color temperature, on color analyzer
(CA-210), you should use Channel 9 which is Matrix
compensated (White, Red, Green, Blue revised) by CS-1000
and adjust in accordance with White balance adjustment
coordinate which is specified on the next.
7-3. Adjustment of White Balance
(Automatic Adjustment)
(1) Turn on the POWER ON(Â) of the remote controller to set
the adjustment and then start the automatic adjustment or
set the Baud Rate to 115200.
(2) Start the adjustment from “wb 00 00” and complete it at
“wb 00 ff”. (Adjust the offset if necessary)
- wb 00 00 the automatic adjustment of White Balance is
started.
- wb 00 10 adjusting gain (internal pattern appears) is
started.
- ja 00 ff adjusting data
- jb 00 c0
- ...
- wb 00 1f adjusting gain is completed.
- Adjust the offset (from wb 00 20 to wb 00 2f) if necessary.
- wb 00 ff the automatic adjustment of White Balance
(internal pattern disappears) is completed.
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 11 01 03 68 73 41 96 0A CF 30 A3 57 4C B0 23
20 09 50 4E A1 08 00 01 01 01 01 01 01 01 01 01 01
30 01 01 01 01 01 01 1B 21 50 A0 51 00 1E 30 48 88
40 35 00 C4 8E 21 00 00 1E 0E 1F 00 80 51 00 1E 30
50 40 80 37 00 C4 8E 21 00 00 1C 00 00 00 FD 00 38
60 4B 1F 3C 09 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 00 09
0123456789ABCDEF
0 020317F14784050302 20221023110750
10 66 03 0C 00 20 00 80 01 1D 00 72 51 D0 1E 20 6E
20 28 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16
30 20 58 2C 25 00 C4 8E 21 00 00 9E 8C 0A D0 8A 20
40 E0 2D 10 10 3E 96 00 C4 8E 21 00 00 18 8C 0A D0
50 8A 20 E0 2D 10 10 3E 96 00 13 8E 21 00 00 18 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 07
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1E 0E 1F 00 80 51 00 1E 30
50 40 80 37 00 C4 8E 21 00 00 1E 00 00 00 FD 00 38
60 4B 1F 3C 09 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 96
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1E 0E 1F 00 80 51 00 1E 30
50 40 80 37 00 C4 8E 21 00 00 1E 00 00 00 FD 00 38
60 4B 1F 3C 09 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 96
0123456789ABCDEF
0 020317F14784050302 20221023110750
10 66 03 0C 00 10 00 80 01 1D 00 72 51 D0 1E 20 6E
20 28 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16
30 20 58 2C 25 00 C4 8E 21 00 00 9E 8C 0A D0 8A 20
40 E0 2D 10 10 3E 96 00 C4 8E 21 00 00 18 8C 0A D0
50 8A 20 E0 2D 10 10 3E 96 00 13 8E 21 00 00 18 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 17
- 12 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
CA-100+
COLOR
ANALYZER
TYPE; CA-100+
Full W hite Pattern
RS-232C
Connection Diagram of Automatic Adjustment

- 13 -
* RS-232C Command (Automatic Adjustment)
- LA75C Chassis Model All
7-4. White Balance Adjustment(Manual)
(1) Test Equipment: CA-210
(2) Manual adjustment sequence is like bellowed one.
1)Turn to "Ez-Adjust" mode with press ADJ button of
service remocon.
2) Select "9.Test Pattern" with CH+/- button and press
enter. Then set will go on Heat-run mode. Over 30
minutes set let on Heat-run mode.
3) Let CA-210 to zero calibration and must has gap more
10cm from center of LCD module when adjustment.
4) Press "ADJ" button of service remocon and select
"6.White-Balance" in "Ez-Adjust" then press " G" button
of navigation key. (When press " G" button then set will
go to full white mode)
5) Adjust at three mode (Cool, Medium, Warm)
- When R Gain is fixed at 192
:
Control G Gain and B Gain by reducing them from 192.
- When B Gain is fixed at 192,
:
Control R Gain and G Gain by reducing them from 192.
- When G Gain is fixed to 192,
: Control R Gain and B Gain by reducing them from 192.
Fix one of three Gains (R Gain, G Gain, and B Gain) at 192
and control the other two by reducing values from 192 to
prevent it from increasing.
(When RGB Gains are all 192, the module is in full dynamic
range.)
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
R Gain
G Gain
B Gain
R Cut
G Cut
B Cut
jg
jh
ji
Cool
ja
jb
jc
Mid
RS-232C COMMAND
[CMD ID DATA]
CENTER
(DEFAULT)(Decimal)
jd
je
jf
00
00
00
192
192
192
Warm
Min
Max
(Deci
mal)
64
64
64
Cool
64
64
64
Mid
64
64
64
Warm

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 14 -
TROUBLESHOOTING
1. TV/CATV(Analog) doesn’t display
2. Video doesn’t display
Check T U 1 Pin23(Video output )
Can you see the normal signal?
Check th e in pu t(Pin 1) of Low-Pass Filter
(IC808).
Can you see the normal waveform?
Check th e output(p in8) of Low-Pass
Filter(IC808).
Can you see the normal waveform?
Check the Capaciter(C658) in fro nt of
BCM3552 ch ip.
Can you see the normal waveform?
YES
YES
YES
NO Could you measu re VCC voltage(5Pin) of
TU801 & IIC lines(8,9Pin )?
Are they all normal?
YES
You shou ld rep lace TUNER.
NO
After ch eckin g th e C800(0.1uF Cap), you can
suspect that PCB is bad.
NO After ch eckin g th e Power of L ow-Pass Filter you
should decide to replace Low - Pass Filter or not.
NO
After ch eckin g th e pattern between pin8 of IC808
and C658, you can susp ect th at PCB is bad ..
YES This bo ard has big problem because Main
chip(BCM3 552) have some trouble s.
After checking thoro ugh ly all pa th onc e again,
You shou ld decid e to rep lace BCM3552 or not.
Check JP7004.
Can you see the normal waveform?
Check the R707.
Can you see the normal waveform?
YES
YES
NO JK701 may have problem. Replace th is
Jack.
Check the C651 in fro nt of BCM3552 chip .
Can you see the normal waveform?
NO
replace Part R707.
YES This bo ard has big problem because Main
chip(BCM3 552) have some trouble s.
After checking thoro ugh ly all pa th onc e again,
You shou ld decid e to rep lace BCM3552 or not.
NO
After ch eck th e pattern between R707 and C651,
You can suspect that PCB is bad.

- 15 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Check JP7 001,J7015.
Can you see the normal wavefo rm?
Check th e L700, L704.
Can you see the normal waveform?
Check th e C638, C628 in fro nt of BCM3553.
Can you see the normal waveform?
YES
YES
NO JK700, JK70 2 may have problem. Rep lace th is
Jack.
NO
Replace the Part (L700, L704)
NO After ch eck th e pattern between L703 and C651,
You can suspect that PCB is bad.
YES This bo ard has big problem because Main
chip(BCM3 553) have some trouble s.
After checking thoro ugh ly all pa th onc e again,
You shou ld decid e to rep lace BCM3 553 or not.
3. Component doesn’t display
Check JP7032, JP7033, JP7034.
Can you see the normal waveform?
Check the C635, C636, C637 in front of
BCM3552.
Can you see the normal waveform?
YES
NO
JK705 may have problem. Replace th is Jack.
NO After check the pattern be tween input of
BCM3552 and JK705 ,
You can suspect that PCB is bad.
YES This bo ard has big problem because Main
chip(BCM3 552) have some trouble s.
After checking thoro ugh ly all pa th onc e again,
You shou ld decid e to rep lace BCM3552o r not.
Check JP7 029,JP7030.
Can you see the normal waveform?
YES
NO
JK705 may have problem. Replace th is Jack.
YES
Check the R756, R759 in fro nt of BCM3553.
Can you see the normal waveform?
NO After check the pattern be tween input of
BCM3552 and JK705 ,
You can suspect that PCB is bad.
4. RGB_PC doesn’t display

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 16 -
Check input c onnect JK602.
Can you see the normal waveform?
Check DD C commu nication lines
(IC601 Pin5,6)
Check th e inpu t of PI3HDMI341ART(IC600)
This signal is TMDS.
Can you see the normal waveform?
YES
YES
NO
JK602 may have problem. Replace th is Jack.
Check th e output of
PI3HDMI341ART(IC600 ).
Can you see the normal waveform?
YES
Check th e inpu t and outpu t of BCM3552.
Especially you sh ould check
The H,V sync and c loc k.
Can you see the normal waveform?
YES
NO
NO After checking th e trace of TMDS lines and power of
PI3HDMI341ART, you should decide to replace
PI3HDMI341ART or not .
NO
YES This bo ard has big problem because Main
chip(BCM3 552) have some trouble s.
After checking thoro ugh ly all pa th onc e again,
You shou ld decid e to rep lace BCM3552 or not.
Afte r checkin g th e Power of this chip, you
should decide to replace this or not.
After ch eckin g the Power of PI3HDMI341ART
you should decide to replace PI3HDMI341A
RT or not.
YES
Check HD CP communication lines
(IC102 Pin5,6)
NO
Afte r checkin g the Power of th is ch ip, you
should decide to replace this or not.
5. HDMI doesn’t display

- 17 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
BLOCK DIAGRAM
74F08D
TMDS341A
(AUDIO L/R)
WXGA(768P)
Single LVDS Connector

- 18 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
EXPLODED VIEW
300
301
200
801
512
511
510
120
500
501
802
550
803 804 805
521 520
900
402
401
403
910
530
540
400
806
820
821
LV1
A21
A2

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 19 -
EXPLODED VIEW PARTS LIST
No. PART NO. DESCRIPTION
120 EAB30826701 Speaker,Full Range EN1527C-6603-1. ND 7W 8OHM 80DB 170HZ 71.5 X 42 X 29.5 LUG
200 EAJ41476801 LCD,Module-TFT T260XW03-V3 WXGA 1366X768 500CD COLOR 72% 16/9 800:1 LCD driving
300 ABJ32488703 Cabinet Assembly 26LC7D LA73E 26” H&C FOR North America ABS XG569
301 ABA32699201 Bracket Assembly BRACKET 26LC7D LA73E SPEAKER GRIIL HI-GLOSSSY & WITH SHEET
400 ACQ32380019
Cover Assembly,Rear 26LC7D-UK CHICAGO 26” BACKCOVER ASSEMBLY CHICAGO ‘16’-CKD
401 MCK36577104 Cover MOLD HIPS 26LC7D-UK HIPS 51SF REAR A/V CHICAGO FOR N.AMERICA
402 MCK34645301 Cover,Rear MOLD HIPS 51SF 26LC3R/27LC7R ABS stand rear cover HIPS 51SF
403 MGJ32425801 Plate PRESS EGI T1.6 METAL HGI
500 EBR41561101
PCB Assembly,Sub SUB T.T LA75C 26LC7D-UK SWMYLJM Chicago WXGA, PreAmp Total Assy
EBR42592701 PCB Assembly,Sub SUB T.T LA75C 42LC7D-UK . PRE-AMP. LPL Vitiaz-II. CKD
501 MKC34384901 Window MOLD PMMA WINDOW 32/37/42/47LC7 PMMA LED & PRE AMP
510 EBR38433801 Hand Insert PCB Assembly,Sub M.I LA75C 42LC7D-UK AUSVLHX CONTROL KEY M.I ASSY
EBR42593701
Hand Insert PCB Assembly,Sub SUB M.I LA75C 42LC7D-UK . CONTROL KEY. LPL Vitiaz-II. CKD
511 MBG32421501 Button MOLD ABS CONTROL 26LC4D-AA ABS 8KEY
512 MCK32424401 Cover MOLD ABS 26LC4D-AA ABS
520 EBR39280601 Hand Insert PCB Assembly,Sub M.I LA75C 26LC7D-UK AUSWLHX Chicago WXGA SIDE_AV
EBR42617401 Hand Insert PCB Assembly,Sub SUB M.I LA75C 26LC7D-UK . AUO. CKD
521 MCK32547704 Cover MOLD ABS 32LC4D-NF ABS SIDE A/V , DOMESTIC
530 EAY33030301 SMPS,AC/DC LGLP2627 HEP 90VTO264V 140W 47-63 UL/CSA/SEMKO HE/AT/YY
540 EBU41561001 Main Total Assembly 26LC7D-UK BRAND LA75C
550 EBT36230501 Chassis Assembly POWER(SMPS) LD73A 26” LCD AC-Inlet Assembly
801 MGJ32424607 Plate PRESS H-GI T1.0 METAL HGI 26LC7D top bar “A” CORE CKD P/NO.
802 MGJ32424710 Plate PRESS EGI T1.2 METAL HGI 26LC7R/D METAL BOTTOM BAR FOR AUO/CPT CKD
803 MGJ32425003 Plate PRESS EGI T1.0 METAL HGI 26LC4 METAL BAR POWER CKD P/NO
804 MGJ39998002 Plate,Metal PRESS SECC 1.0 METAL EGI 26LC4/7 METAL BAR CENTER ‘01’-CKD
805 MGJ39998802 Plate,Metal PRESS SECC 1.0 METAL EGI 26LC4/7 METAL BAR, MAIN ‘01’-CKD
806 MGJ33990402 Plate,Metal PRESS H-GI 1.6 METAL SECC METAL BRACKET JIG BOTTOM CKD
820 MGJ39304001 Plate,Shield PRESS SPTE 0.5 SHIELD SPTE PRESS SPTE 0.5 26_32 CHICAGO CHASSIS
821 MGJ39860902 Plate,Shield PRESS GALVALUME 0.6 SHIELD EGI GALVALUME 26”/32”
900 AAN32698602
Base Assembly STAND 26LC7D LA73E 26LC7D STAND BASE ASSY HI-GLOSSY ABS XG569 CKD
910 MCK32425401 Cover MOLD ABS 26LC4D-AA ABS -
A2 MKJ32022834 Remote Controller COMPLEX LA73E 32LC4D-UA PACIFIC 2.5 (BCM CHASSIS)
A21 3550V00590A Cover MOLD ABS 50PC3DD-UE.AUSRSHR ABS -
LV1 EAD35683002 Harness,Single LVDS LPL STANDARD FI-X30HL(JAE) FI-X30HL(JAE) 300mm 1.00MM 30P
The components identified by mark is
critical for safety.
Replace only with part number specified.

- 20 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
C100 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C101 0CH4471K416 C2012C0G1H471JT 470pF 5% 50V C0G -55TO+125
C101 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C102 0CH5101K416 C2012C0G1H101JT 100pF 5% 50V C0G -55TO+125
C102 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C103 0CE107SF6DC VMV107M016S0ANE010 100uF 20% 16V 91MA -40T
C103 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C104 0CH4471K416 C2012C0G1H471JT 470pF 5% 50V C0G -55TO+125
C105 0CH4471K416 C2012C0G1H471JT 470pF 5% 50V C0G -55TO+125
C105 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C106 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C108 0CE107SF6DC VMV107M016S0ANE010 100uF 20% 16V 91MA -40T
C108 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C109 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C110 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C111 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C112 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C113 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C114 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C123 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C124 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C125 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C126 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C127 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C128 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C129 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C130 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C131 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C132 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C200 0CK475DD57A C2012X5R1A475KT 4.7uF 10% 10V X5R -55TO+85
C201 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C202 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C203 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C204 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C205 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C206 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C207 0CK101BK4EA C1005C0G1H101JT 100pF 5% 50V C0G -55TO+125
C208 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C209 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C210 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C211 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C212 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C213 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C214 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C215 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C216 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C217 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C218 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C219 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C220 EAE33970001 CS1005X5R105K6R3NR 1uF 10% 6.3V X5R -55TO+
C221 EAE33970001 CS1005X5R105K6R3NR 1uF 10% 6.3V X5R -55TO+
C222 EAE32479401 CH1005CG471J500NR 470pF 5% 50V C0G -55TO+1
C223 EAE32479401 CH1005CG471J500NR 470pF 5% 50V C0G -55TO+1
C224 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C227 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C228 0CK105CD56A C1608X7R1A105KT 1uF 10% 10V X7R -55TO+125C
C229 0CC120CK41A C1608C0G1H120JT 12pF 5% 50V C0G -55TO+125C
C230 0CC120CK41A C1608C0G1H120JT 12pF 5% 50V C0G -55TO+125C
C232 0CZZB00035A GRM1555C1H330J 33pF 5% 50V C0G -55TO+125C
C234 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C235 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C236 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C237 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C238 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C239 0CK106DC67A JMK212JB106MG-T 10uF 20% 6.3V X5R -55TO+85
C240 0CK106DC67A JMK212JB106MG-T 10uF 20% 6.3V X5R -55TO+85
C241 0CE476WH6DC MVK8.0TP25VC47M 47uF 20% 25V 80MA -40TO+10
C242 0CE336WH6D8 MVK6.3TP25VC33M 33uF 20% 25V 45MA -40TO+10
C243 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C244 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C245 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C246 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C247 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C248 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C249 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C250 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C251 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C252 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C253 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C254 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C255 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C256 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C257 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C258 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C259 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C260 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C2600 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C2601 0CH8106F691 MVK4.0TP16VC10M 10uF 20% 16V 16MA -40TO+10
C2602 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C2603 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C2604 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C261 0CK106DC67A JMK212JB106MG-T 10uF 20% 6.3V X5R -55TO+85
C262 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C263 0CK103BH56A C1005X7R1E103KT- 10nF 10% 25V X7R -55TO+12
C264 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C265 0CK475CC94A C1608Y5V0J475ZT 4.7uF -20TO+80% 6.3V Y5V -
C266 0CK102BK56A 0402B102K500CT 1nF 10% 50V X7R -55TO+125C
C2662 0CK104BF56A C1005X7R104KET 100nF 10% 16V X7R -55TO+125
C2663 0CC100BKF1A 0402N100J500LT 10pF 5% 50V C0G -55TO+125C
LOC. NO. PART NO. DESCRIPTION / SPECIFICATION LOC. NO. PART NO. DESCRIPTION / SPECIFICATION
REPLACEMENT PARTS LIST
DATE: 2007. 10. 11.
CAPACITORs
LGE Internal Use Only
