LG 32LC2D Series User manual

R
LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LA63E
FACTORY NAME : 32LC2D(U)-UE/37LC2D-UE/42LC2D-UE
MODEL : 32LC2D(U)/37LC2D/42LC2D
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ..................................................................................3
SPECIFICATION........................................................................................6
ADJUSTMENT INSTRUCTION ...............................................................10
TROUBLE SHOOTING............................................................................15
BLOCK DIAGRAM...................................................................................22
EXPLODED VIEW .................................................................................. 23
REPLACEMENT PARTS LIST ............................................................... 29
SVC. SHEET ...............................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.

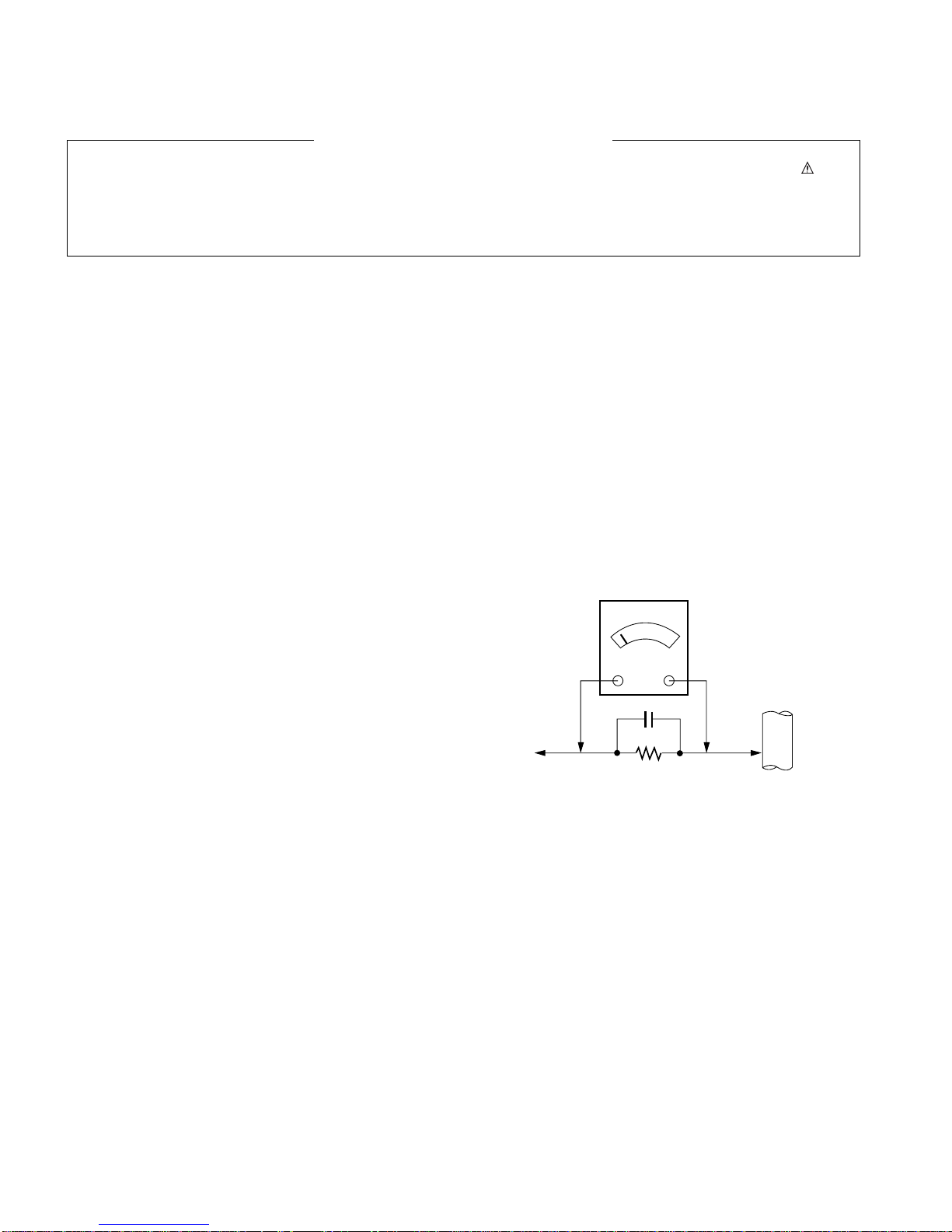

Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500¡£F to 600¡£F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500¡£F to 600¡£F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the
circuitboard printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500¡£F to 600¡£F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
4.General Specification(TV)
No Item Specification Remark
1. Receiving System ATSC/64 & 256 QAM/ NTSC-M
2. Available Channel 1) VHF : 02~13
2) UHF : 14~69
3) DTV : 02-69
4) CATV : 01~135
5) CADTV : 01~135
3. Input Voltage 1) AC 100 ~ 240V 50/60Hz
4. Market NORTH AMERICA
5. Screen Size 32 inch Wide For 32LC2D
37 inch Wide For 37LC2D
42 inch Wide For 42LC2D
6. Aspect Ratio 16:9
7. Tuning System FS
8. LCD Module T315XW01 V5 For 32LC2D
LC370WX1-SL15 For 37LC2D
LC420W02-SLA1 For 42LC2D
9. Operating Environment 1) Temp : 0 ~ 40 deg
2) Humidity : ~ 80 %
10. Storage Environment 1)Temp : -20 ~ 60 deg
2) Humidity : 0 ~ 90 %
1. Application range
1.1 This spec sheet is applied all of the 32/37/42" LCD TV with
LA63E chassis.
1.2 Not included spec and each product spec in this spec
sheet apply correspondingly to the following each country
standard and requirement of Buyer
2. Specification
Each part is tested as below without special appointment.
2.1 Temperature : 20±5°C
2.2 Relative Humidity : 65±10%
2.3 Power Voltage : Standard input voltage
(110~240V@50/60Hz)
* Standard Voltage of each product is marked by models
2.4 Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
2.5 The receiver must be operated for about 20 minutes prior
to the adjustment.
3. Test method
3.1 Performance : LGE TV test method followed
3.2 Demanded other specification
Safety : UL, CSA, IEC specification
EMC : FCC, ICES, IEC specification

- 7 -
5. Chroma & Brightness
5.1 FOR 32LC2D
CONDITION : EZ-Picture "Normal"
No Item Min Typ Max Unit Remark
1. White peak brightness 400 450 cd/m2HDMI input, full white
2. Contrast Ratio 600:1 800:1
3. Brightness uniformity 1.3 Refer to LCD SPEC.
4. Color coordinate RED X 0.633 +/- 0.03
Y 0.339 +/- 0.03
GREEN X 0.286 +/- 0.03
Y 0.610 +/- 0.03
BLUE X 0.147 +/- 0.03
Y 0.065 +/- 0.03
WHITE X 0.272 +/- 0.03
Y 0.278 +/- 0.03
5. Viewing angle 178 R/L, U/D
6. Color Temperature Standard 8,300 9,300 10,300 <Test Signal>
Cool 11,000 12,000 13,000 HDMI input,
Warm 5,500 6,500 7,500 Daylight/Cool85 IRE
No Item Min Typ Max Unit Remark
1. White peak brightness 400 500 cd/m2HDMI input, full white
2. Contrast Ratio 600:1 800:1
3. Brightness uniformity 1.3 Refer to LCD SPEC.
4. Color coordinate RED X 0.633 +/- 0.03
Y 0.339 +/- 0.03
GREEN X 0.286 +/- 0.03
Y 0.610 +/- 0.03
BLUE X 0.147 +/- 0.03
Y 0.065 +/- 0.03
WHITE X 0.272 +/- 0.03
Y 0.278 +/- 0.03
5. Viewing angle 178 R/L, U/D
6. Color Temperature Standard 8,300 9,300 10,300 <Test Signal>
Cool 11,000 12,000 13,000 HDMI input, With 16-gray
Warm 5,500 6,500 7,500 pattern, 6th bar from right
5.2 FOR 37LC2D
CONDITION : EZ-Picture "Normal"

- 8 -
6. Component Video Input (Y, CB/PB, CR/PR)
No Resolution H-freq(kHz) V-freq(Hz) Pixel clock Proposed
1. 720*480 15.73 59.94 SDTV ,DVD 480I
2. 720*480 15.73 60.00 SDTV ,DVD 480I
3. 720*480 31.47 59.94 SDTV 480P
4. 720*480 31.50 60.00 SDTV 480P
5. 1280*720 44.96 59.94 HDTV 720P
6. 1280*720 45.00 60.00 HDTV 720P
7. 1920*1080 33.72 59.94 HDTV 1080I
8. 1920*1080 33.75 60.00 HDTV 1080I
9 1920*1080 27 24 HDTV 1080P
10 1920*1080 33.75 30 HDTV 1080P
7. RGB Iinput (PC/DTV)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
PC
1 640*350 31.469 70.08 25.17 DOS O
2 720*400 31.469 70.08 28.32 DOS O
3 640*480 31.469 59.94 25.17 VESA(VGA) O
4 800*600 37.879 60.31 40.00 VESA(SVGA) O
5 1024*768 48.363 60.00 65.00 VESA(XGA) O
6 1280*768 47.776 59.87 79.50 VESA(WXGA) O
7 1360*768 47.712 60.01 85.50 VESA(WXGA) O
8 1366*768 60.023 60.00 80.00
No Item Min Typ Max Unit Remark
1. White peak brightness 400 500 cd/m2HDMI input, full white
2. Contrast Ratio 600:1 800:1
3. Brightness uniformity 1.3 Refer to LCD SPEC.
4. Color coordinate RED X 0.633 +/- 0.03
Y 0.339 +/- 0.03
GREEN X 0.286 +/- 0.03
Y 0.610 +/- 0.03
BLUE X 0.147 +/- 0.03
Y 0.065 +/- 0.03
WHITE X 0.272 +/- 0.03
Y 0.278 +/- 0.03
5. Viewing angle 178 R/L, U/D
6. Color Temperature Standard 8,300 9,300 10,300 <Test Signal>
Cool 11,000 12,000 13,000 HDMI input
Warm 5,500 6,500 7,500 Daylight/Cool85 IRE
5.3 FOR 42LC2D
CONDITION : EZ-Picture "Normal"

- 9 -
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
PC DDC
1. 640*480 31.469 59.94 25.17 VESA(VGA) O
2. 800*600 37.879 60.31 40.00 VESA(SVGA) O
3. 1024*768 48.363 60.00 65.00 VESA(XGA) O
4. 1280*768 47.776 59.87 79.50 VESA(WXGA) O
5. 1360*768 47.712 60.01 85.50 VESA(WXGA) O
6. 1366*768 60.023 60.00 80.00
DTV
7. 720*480 31.469 59.94 27.00 SDTV 480P
8. 720*480 31.500 60.00 27.03 SDTV 480P
9. 1280*720 44.96 59.94 74.17 HDTV 720P
10. 1280*720 45.00 60.00 74.25 HDTV 720P
11. 1920*1080 33.72 59.94 74.17 HDTV 1080I
12. 1920*1080 33.75 60.00 74.25 HDTV 1080I
13. 1920*1080 27 24.00 74.25 HDTV 1080P
14. 1920*1080 33.75 30.00 74.25 HDTV 1080P
8. HDMI Input (PC/DTV)
9. Mechanical specification
<32LC2D>
<37LC2D>
No, Item Content Remark
1 Product Dimenson Width(W) Length(D) Height(H)
Before Packing 944 286 726 With Stand
After Packing 1052 383 855
2 Product Weight Only SET 27.44Kg With Stand
With Box 29.74Kg
<42LC2D>
No, Item Content Remark
1 Product Dimenson Width(W) Length(D) Height(H)
Before Packing 1054 286 813.5 With Stand
After Packing 1166 402 953
2 Product Weight Only SET 37Kg With Stand
With Box 42.3Kg
No, Item Content Remark
1 Product Dimenson Width(W) Length(D) Height(H)
Before Packing 811 235 630 With Stand
After Packing 912 316 695
2 Product Weight Only SET 22Kg With Stand
With Box 25.5Kg

- 10 -
ADJUSTMENT INSTRUCTION
1. Application Object
These instructions are applied to all of the LCD TV, LA63E.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test equipment.
(2) Adjustments must be done in the correct order.
(3) The adjustments must be performed in the circumstance of
20±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver be must kept 110V, 60Hz
when adjusting.
(5) The receiver must be operational for about 15 minutes
prior to the adjustments.
¡Perform preliminary operation after receiving 100%
White Pattern (06CH).
(Or 3. White Pattern status of Ez-Adjust)
¡White Pattern entry method

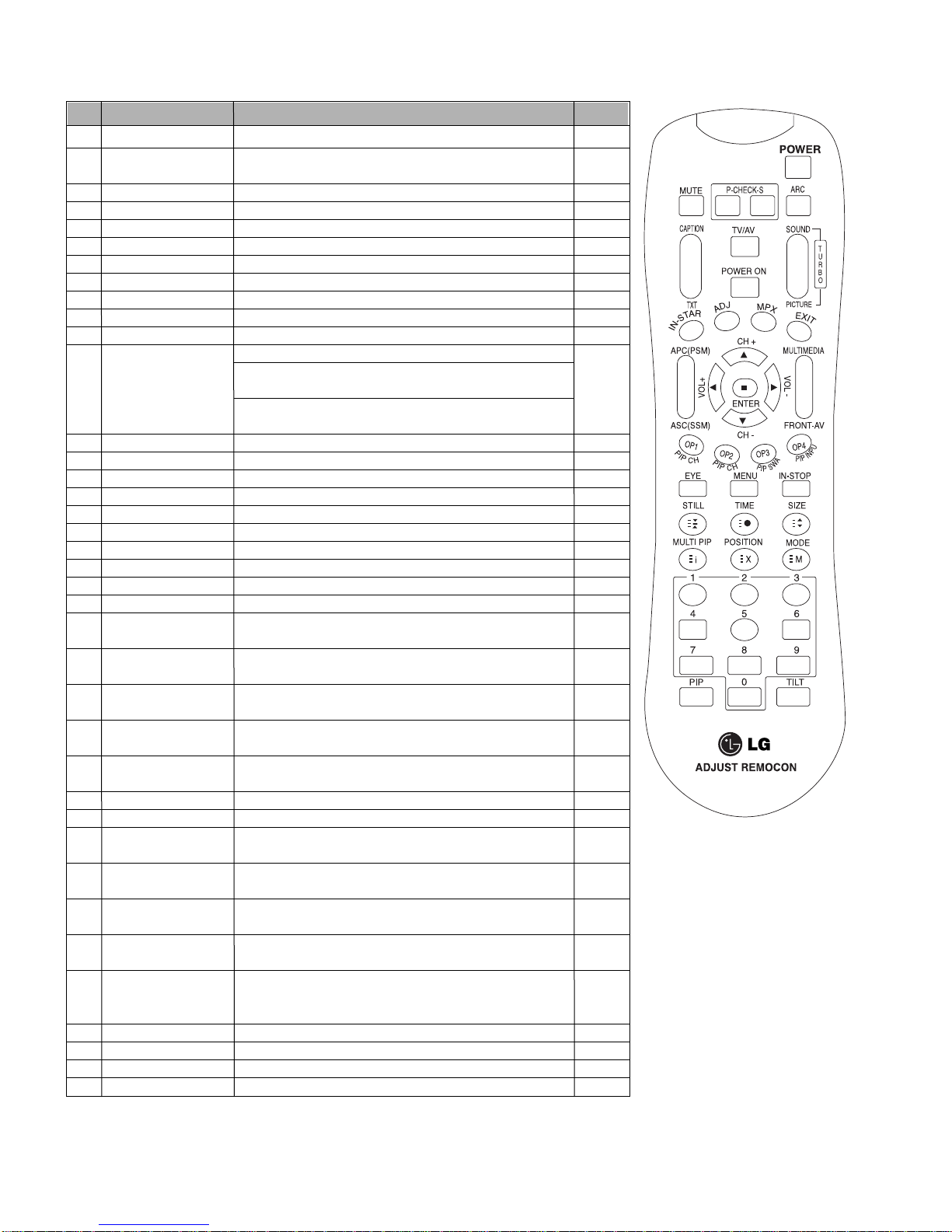

A) Enter into Ez-Adjust by pressing the ADJ key on
the adjustment R/C.
B) 100% FULL WHITE PATTERN appears if pressing
the OK (¡Æ) key after selecting the 3.WHITE
PATTERN with the CH + / - KEY.
* It is possible to heat run the set without a separate
signal generator in this mode.
Caution : Care must be taken as afterimage
phenomena may occur about the black level part of
screen If leaving pause image turned on for more
than 20 minutes (especially inner digital pattern (13
CH), Cross Hatch Pattern (09CH) with significant
black/white contrast).
3. MICOM Download(Option)
3-1. Required Test Equipment
(1) JIG-LEVER TYPE for adjusting: 1EA
(2) PC & MONITOR: 2EA
(3) BOARD for INTERFACE: IIC & ISP BOARD: 2EA
(4) 15P D-SUB CABLE: 2EA
(5) Using the 12/15 line of D-SUB 15P
12-SDA/15-SCL

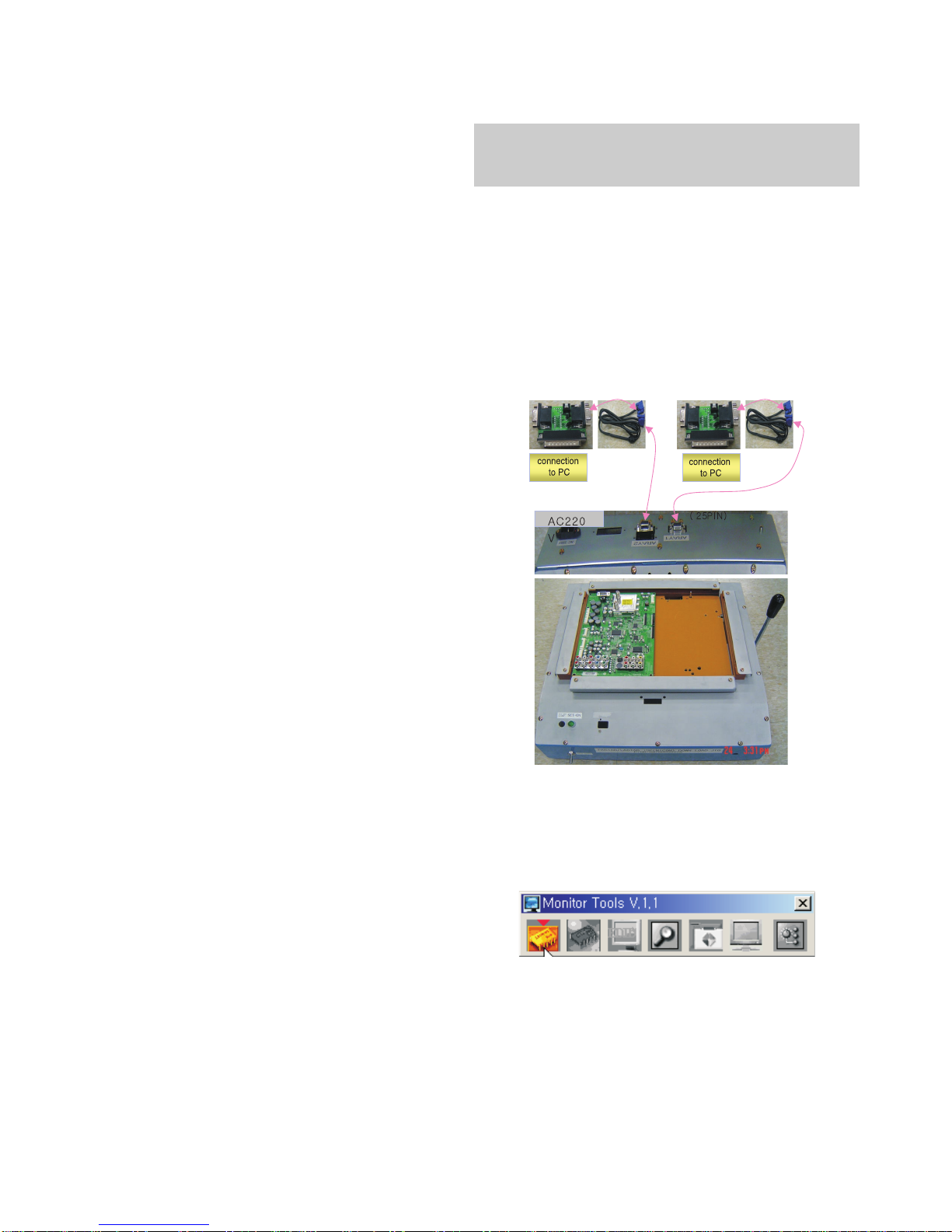

3-2. JIG Connection
3-3. Establishment Program
(1) Establish LGE Monitor Tools v1.1
(2) The program work and it is opened program window as
seen below.
If you turn on a still screen more than 20 minutes (Especially
Digital pattern(13 CH), Cross Hatch Pattern), an afterimage
may occur in the black level part of the screen.

- 11 -

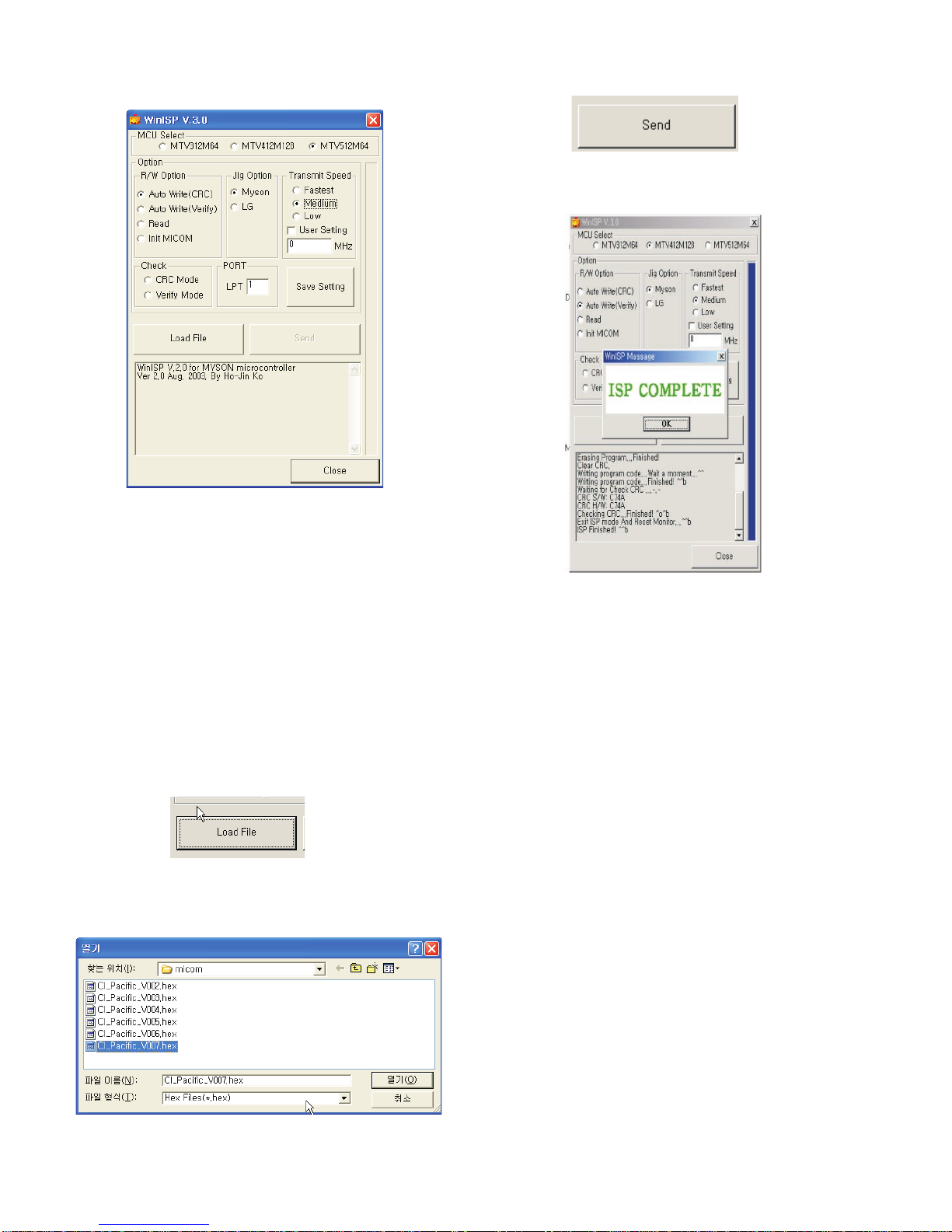

(3) Click the first icon shown in fig.9. The window seen in
fig.10 should appear.
3-4. Set Method
(1) MCU Select: MTV512M64
(2) Option
R/W Option: Auto Write(Verity)
Jig Option: Myson
Transmit Speed: Medium
(3) Check: Just do it with blank micom.
(4) PORT
Chose Parallel Port (normal LPT1)
Attention: You must chose EPP when select Rom BIAS at
LPT
3-5. Download Method
(1) Click the Load File.
(2) Locate and select the correct file from your computer.
(*.hex).
(3) Click the Send.
(4) When you see (ISP COMPLETE) the download is
complete.

- 12 -

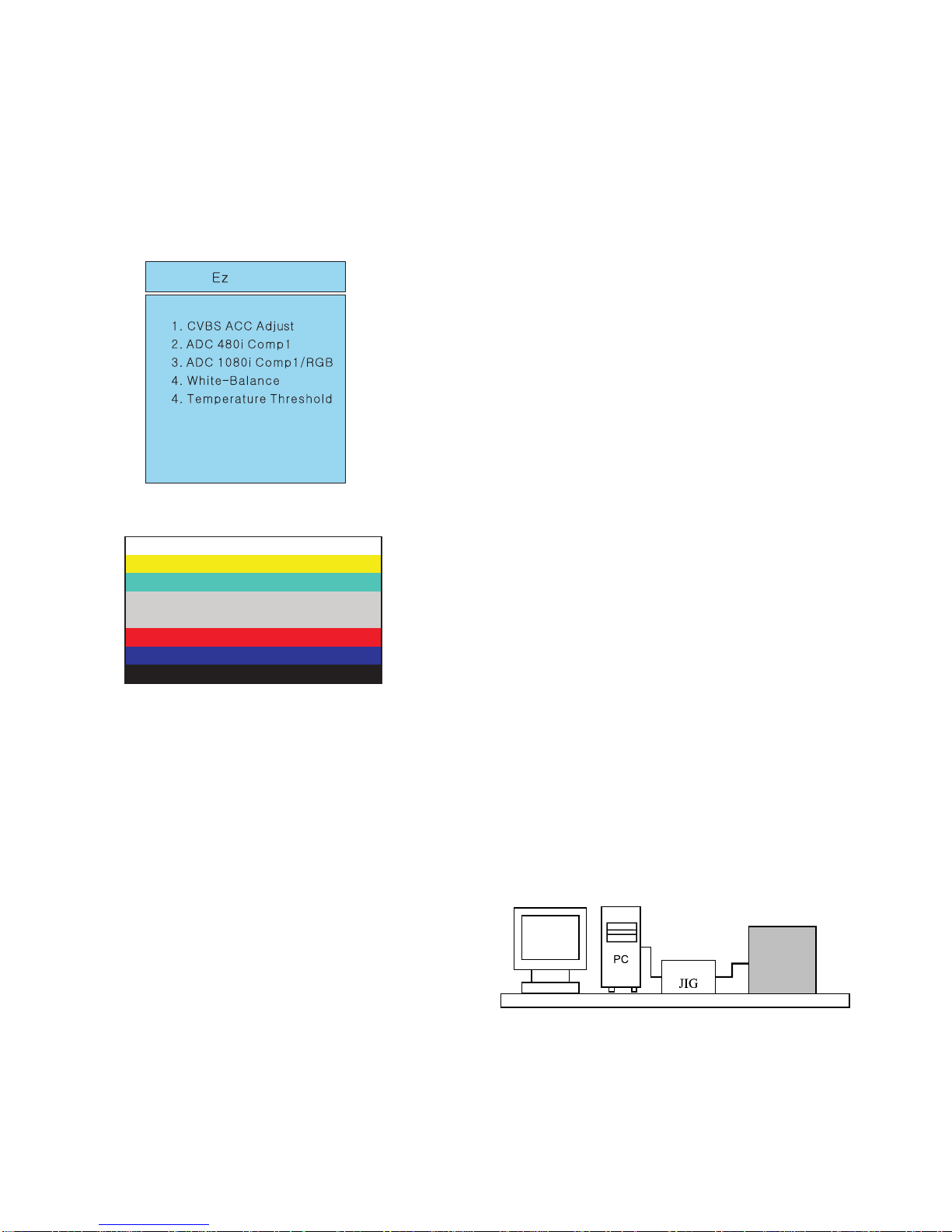

4. ADC-Set Adjustment
4-1. Synopsis
ADC-Set adjustment to set the black level and the Gain to
optimum.
4-2. Test Equipment
Service R/C, 801GF(802V, 802F, 802R) or MSPG925FA
Pattern Generator
(480i/1080i The Horizontal 100% Color Bar Pattern adjust to
within 0.7±0.1Vp-p)
4-3. Adjustment
(1) Select Component1 as the input with 100% Horizontal
Color Bar Pattern(HozTV31Bar) in 480i Mode
(2) After receiving signal for at least 1 second, press the ADJ
Key on the Service R/C to enter the ‘Ez - Adjust’ and select
the ‘2. ADC 480i Comp1’.
Pressing the Enter Key to adjust automatically.
(3) When the adjustment is over, 'MST3361 Component
Success’ is displayed. If the adjustment has errors,
'MST3361 Configuration Error’ is displayed.
(4) Select Component1 as the input with 100% Horizontal
Color Bar Pattern(HozTV31Bar) in 1080i Mode.
(5) After receiving signal for at least 1 second, press the ADJ
Key on the Service R/C to enter the ‘Ez - Adjust’ and select
the ‘3. ADC 1080i Comp1/RGB’.
Pressing the Enter Key to adjust automatically.
(6) When the adjustment is over, 'MST3361 Component
Success’ is displayed. If the adjustment has errors,
'MST3361 Configuration Error’ is displayed.
(7) After the Component MST3361 adjustment is over, convert
the RGB-DTV Mode and display Pattern.
When the adjustment is over, 'MST3361 RGB_DTV
Success’ is displayed.
(8) Readjust after confirming the case Pattern or adjustment
condition where the adjustment errors.
(9) After adjustment is complete, exit the adjustment mode by
pressing the ADJ KEY.
6. EDID(The Extended Display
Identification Data)/DDC
(Display Data Channel) Download
This is the function that enables “Plug and Play".
6-1. HDMI EDID Data Input
(1) Required Test Equipment
1) PC, Jig for adjusting DDC. (PC serial to D-sub
Connection equipment)
2) S/W for writing DDC(EDID data write & read)
3) D-Sub cable
4) Jig for HDMI Cable connection
(2) Preparation for Adjustments &
Setting of Device
1) Set devices as below and turn on the PC and JIG.
2) Open S/W for writing DDC (EDID data write & read).
(operated in DOS mode)
<Adjustment Mode>
<Adjustment Pattern: 480i/1080i 60Hz HozTV31Bar Pattern>
PDP TV SET
(or Digital Board)
<Fig. 2>

- 13 -
6-2. EDID DATA for LA-63E
[32LC2DU]
: EDID for HDMI-1 (DDC (Display Data Channel) Data)
EDID Block 0 table =
EDID Block 1 table =
: EDID for HDMI-2 (DDC (Display Data Channel) Data)
EDID Block 0 table =
EDID Block 1 table =
: EDID for RGB-PC
EDID Block 0 table =
[37LC2DU]
: EDID for HDMI-1 (DDC (Display Data Channel) Data)
EDID Block 0 table =
EDID Block 1 table =
: EDID for HDMI-2 (DDC (Display Data Channel) Data)
EDID Block 0 table =
EDID Block 1 table =
: EDID for RGB-PC
EDID Block 0 table =
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 10 03 00 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1E 0E 1F 00 80 51 00 1E 30
50 40 80 37 00 C4 8E 21 00 00 1C 00 00 00 FD 00 38
60 4B 1F 3C 09 00 0A 20 20 20 20 02 20 00 00 00 FC
70 00 33 32 4C 43 32 44 55 2D 55 45 0A 20 20 01 2F
0123456789ABCDEF
0 020315F1468405030220222315075065
10 03 0C 00 10 00 01 1D 00 72 51 D0 1E 20 6E 28 55
20 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20 58
30 2C 25 00 C4 8E 21 00 00 9E 8C 0A D0 8A 20 E0 2D
40 10 10 3E 96 00 C4 8E 21 00 00 18 8C 0A D0 8A 20
50 E0 2D 10 10 3E 96 00 13 8E 21 00 00 18 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A7
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 10 03 00 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 01 01 01 01 01 01 01 1D 00 72 51 D0 1E 20 6E 28
40 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20
50 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 FC 00 33
60 32 4C 43 32 44 55 2D 55 45 0A 20 20 00 00 00 FD
70 00 38 4B 1F 3C 09 00 0A 20 20 20 20 20 20 01 DF
0123456789ABCDEF
0 020315F1468405030220222315075065
10 03 0C 00 20 00 8C 0A D0 8A 20 E0 2D 10 10 3E 96
20 00 C4 8E 21 00 00 18 8C 0A D0 8A 20 E0 2D 10 10
30 3E 96 00 13 8E 21 00 00 18 00 00 00 00 00 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 35
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 10 03 00 68 73 41 96 0A CF 30 A3 57 4C B0 23
20 09 50 4E A1 08 00 01 01 01 01 01 01 01 01 01 01
30 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88
40 36 00 98 07 32 00 00 18 0E 1F 00 80 51 00 1E 30
50 40 80 37 00 C4 8E 21 00 00 1C 66 21 50 B0 51 00
60 1B 30 40 70 36 00 C4 8E 21 00 00 1E 00 00 00 FC
70 00 33 32 4C 43 32 44 55 2D 55 45 0A 20 20 00 E4
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 10 03 00 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1E 0E 1F 00 80 51 00 1E 30
50 40 80 37 00 C4 8E 21 00 00 1C 00 00 00 FD 00 38
60 4B 1F 3C 09 00 0A 20 20 20 20 02 20 00 00 00 FC
70 00 33 37 4C 43 32 44 55 2D 55 45 0A 20 20 01 2A
0123456789ABCDEF
0 020315F1468405030220222315075065
10 03 0C 00 10 00 01 1D 00 72 51 D0 1E 20 6E 28 55
20 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20 58
30 2C 25 00 C4 8E 21 00 00 9E 8C 0A D0 8A 20 E0 2D
40 10 10 3E 96 00 C4 8E 21 00 00 18 8C 0A D0 8A 20
50 E0 2D 10 10 3E 96 00 13 8E 21 00 00 18 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A7
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 10 03 00 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 01 01 01 01 01 01 01 1D 00 72 51 D0 1E 20 6E 28
40 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20
50 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 FC 00 33
60 37 4C 43 32 44 55 2D 55 45 0A 20 20 00 00 00 FD
70 00 38 4B 1F 3C 09 00 0A 20 20 20 20 20 20 01 DA
0123456789ABCDEF
0 020315F1468405030220222315075065
10 03 0C 00 20 00 8C 0A D0 8A 20 E0 2D 10 10 3E 96
20 00 C4 8E 21 00 00 18 8C 0A D0 8A 20 E0 2D 10 10
30 3E 96 00 13 8E 21 00 00 18 00 00 00 00 00 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 35
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 10 03 00 68 73 41 96 0A CF 30 A3 57 4C B0 23
20 09 50 4E A1 08 00 01 01 01 01 01 01 01 01 01 01
30 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88
40 36 00 98 07 32 00 00 18 0E 1F 00 80 51 00 1E 30
50 40 80 37 00 C4 8E 21 00 00 1C 66 21 50 B0 51 00
60 1B 30 40 70 36 00 C4 8E 21 00 00 1E 00 00 00 FC
70 00 33 37 4C 43 32 44 55 2D 55 45 0A 20 20 00 DF

- 14 -
[42LC2DU]
: EDID for HDMI-1 (DDC (Display Data Channel) Data)
EDID Block 0 table =
EDID Block 1 table =
: EDID for HDMI-2 (DDC (Display Data Channel) Data)
EDID Block 0 table =
EDID Block 1 table =
: EDID for RGB-PC
EDID Block 0 table =
7. Adjustment of White Balance
7-1. Required Equipment
(1) Color analyzer (CA-100 or CA210 similar product)
(2) Automatic adjustor (with automatic adjustment necessity
and the RS-232C communication being possible)
(3) Pattern Generator(MSPG-925FA): DVI Output
7-2. Connection Diagram of Equipment
for Measuring (Automatic Adjustment)
[ RS-232C Command (Automatic Adjustment)
7-3. Adjustment of White Balance
(1) Enter ‘Ez - Adjust’by pressing ADJ KEY on the Service
Remote Control.
(2) Select "9. WHITE PATTERN" using CH +/- Key and HEAT
RUN at least 30 minutes by pressing the ENTER Key.
(3) Calibrate of the CA-210+, then attach sensor to LCD
module surface when you adjust.
(4) After attaching sensor to center of screen, select ‘6. White-
Balance’of ‘Ez - Adjust’by pressing the ADJ KEY on the
Service R/C. Then enter adjustment mode by pressing the
Right KEY (
G ) .
Full White Pattern
COLOR
ANALYZER
TYPE; CA-210+
<Fig. 3> Connection Diagram of Automatic Adjustment
R Gain
G Gain
B Gain
R Cut
G Cut
B Cut
Jg
Jh
Ji
Cool
Ja
Jb
Jc
Mid
RS-232C COMMAND
[CMD ID DATA]
CENTER
(DEFAULT)(Decimal)
Jd
Je
Jf
00
00
00
192
192
192
Warm
Min
Max
(Deci
mal)
64
64
64
Cool
64
64
64
Mid
64
64
64
Warm
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 10 03 00 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1E 0E 1F 00 80 51 00 1E 30
50 40 80 37 00 C4 8E 21 00 00 1C 00 00 00 FD 00 38
60 4B 1F 3C 09 00 0A 20 20 20 20 02 20 00 00 00 FC
70 00 34 32 4C 43 32 44 55 2D 55 45 0A 20 20 01 2E
0123456789ABCDEF
0 020315F1468405030220222315075065
10 03 0C 00 10 00 01 1D 00 72 51 D0 1E 20 6E 28 55
20 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20 58
30 2C 25 00 C4 8E 21 00 00 9E 8C 0A D0 8A 20 E0 2D
40 10 10 3E 96 00 C4 8E 21 00 00 18 8C 0A D0 8A 20
50 E0 2D 10 10 3E 96 00 13 8E 21 00 00 18 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 A7
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 10 03 00 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C 2F CE 00 31 40 45 40 61 40 01 01 01 01
30 01 01 01 01 01 01 01 1D 00 72 51 D0 1E 20 6E 28
40 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C 16 20
50 58 2C 25 00 C4 8E 21 00 00 9E 00 00 00 FC 00 34
60 32 4C 43 32 44 55 2D 55 45 0A 20 20 00 00 00 FD
70 00 38 4B 1F 3C 09 00 0A 20 20 20 20 20 20 01 DE
0123456789ABCDEF
0 020315F1468405030220222315075065
10 03 0C 00 20 00 8C 0A D0 8A 20 E0 2D 10 10 3E 96
20 00 C4 8E 21 00 00 18 8C 0A D0 8A 20 E0 2D 10 10
30 3E 96 00 13 8E 21 00 00 18 00 00 00 00 00 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 35
0123456789ABCDEF
0 00FFFFFFFFFFFF001E6D010001010101
10 00 10 03 00 68 73 41 96 0A CF 30 A3 57 4C B0 23
20 09 50 4E A1 08 00 01 01 01 01 01 01 01 01 01 01
30 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88
40 36 00 98 07 32 00 00 18 0E 1F 00 80 51 00 1E 30
50 40 80 37 00 C4 8E 21 00 00 1C 66 21 50 B0 51 00
60 1B 30 40 70 36 00 C4 8E 21 00 00 1E 00 00 00 FC
70 00 34 32 4C 43 32 44 55 2D 55 45 0A 20 20 00 E3

- 15 -
8. Shipping Conditions
No Item Condition Remark
1. Input Mode TV02CH
2. Volume Level 30
3. Mute Off
4. Aspect Ratio 16:9
5. Video EZ Picture Daylight
Contrast 100
Brightness 40
Color 70
Sharpness 70
Tint 0
Color-temperature Cool
XD Auto(On)
Advanced Cinema3:2 Mode(Off) Black Level(RF,HDMI=>Low)
6. Audio Audio Language Off
EZ Sound Normal
Balance 0
Treble 50
Bass 50
Front Surround Off
TV Speaker On
7. Timer Auto clock Off
Manual Clock Off
Off Timer Off
On Timer Off
Sleep Time Off
Auto Off Off
8. Option Aspect Ratio 16:9
Caption/Text Off
Caption Option Set By Program
Language English
9. Lock Lock System Off
Set password On (Default : 0000)
Block channel None
Movie Rating Off
TV Rating-Children None
TV Rating-General None
Input Block Off
10. Channel Memory RF : 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 30, 51, 63
CATV : 15, 16, 17

- 16 -
SVC REMOCON
NO KEY FUNTION REAMARK
1 POWER
2 POWER ON
3 MUTE
4 P-CHECK
5 S-CHECK
6 ARC
7 CAPTION
8 TXT
9 TV/AV
10 TURBO SOUND
11 TURBO PICTURE
12 IN-START
13 ADJ
14 MPX
15 EXIT
16 APC(PSM)
17 ASC(SSM)
18 MULTIMIDIA
19 FRONT-AV
20 CH¡
21 VOL¡
22 ENTER
23 PIP CH-(OP1)
24 PIP CH+(OP2)
25 PIP SWAP(OP3)
26 PIP INPUT(OP4)
27 EYE
28 MENU
29 IN-STOP
30 STILL
31 TIME
32 SIZE
33 MULTI PIP
34 POSITION
35 MODE
36 PIP
37 TILT
38 0~9
To turn the TV on or off
To turn the TV on automatically if the power is supplied to the TV. (Use the
POWER key to deactivate): It should be deactivated when delivered.
To activate the mute function.
To check TV screen image easily.
To check TV screen sound easily
To select size of the main screen (Normal, Spectacle, Wide or Zoom)
Switch to closed caption broadcasting
To toggle on/off the teletext mode
To select an external input for the TV screen
To start turbo sound
To start turbo picture
To enter adjustment mode when manufacturing the TV sets.
To adjust the screen voltage (automatic):
In-start ¡mute ¡Adjust ¡AV(Enter into W/B adjustment mode)
W/B adjustment (automatic):
After adjusting the screen ¡W/B adjustment ¡Exit two times (Adjustment completed)
To enter into the adjustment mode. To adjust horizontal line and sub-brightness.
To select the multiple sound mode (Mono, Stereo or Foreign language)
To release the adjustment mode
To easily adjust the screen according to surrounding brightness
To easily adjust sound according to the program type
To check component input
To check the front AV
To move channel up/down or to select a function displayed on the screen.
To adjust the volume or accurately control a specific function.
To set a specific function or complete setting.
To move the channel down in the PIP screen.
To use as a red key in the teletext mode
To move the channel in the PIP screen
To use as a green key in the teletext mode
To switch between the main and sub screens
To use as a yellow key in the teletext mode
To select the input status in the PIP screen
To use as a blue key in the teletext mode
To set a function that will automatically adjust screen status to match
the surrounding brightness so natural color can be displayed.
To select the functions such as video, voice, function or channel.
To set the delivery condition status after manufacturing the TV set.
To halt the main screen in the normal mode, or the sub screen at the PIP screen.
Used as a hold key in the teletext mode (Page updating is stopped.)
Displays the teletext time in the normal mode
Enables to select the sub code in the teletext mode
Used as the size key in the PIP screen in the normal mode
Used as the size key in the teletext mode
Used as the index key in the teletext mode (Top index will be
displayed if it is the top text.)
To select the position of the PIP screen in the normal mode
Used as the update key in the teletext mode (Text will be
displayed if the current page is updated.)
Used as Mode in the teletext mode
To select the simultaneous screen
To adjust screen tilt
To manually select the channel.
Shortcut keys
Shortcut keys
Shortcut keys
Use the AV
key to enter
the screen
W/B
adjustment
mode.
Shortcut keys
Shortcut keys
Shortcut keys

- 17 -
TROUBLESHOOTING
1. TV/CATV doesn't display
Check TU4001 Pin9(Video output) Can you see the normal signal?
Could you measure voltage of TU4001 & IIC lines? Are they all normal? You should replace TUNER.
You should check power line & IIC lines.
Check the input(Pin63) of AV switch(IC5003). Can you see the normal waveform? After checking the Power of AV switch you should
decide to replace AV switch or not.
Yes
Yes
No No No No No No Yes
Yes Yes Yes Yes
Check the output(Pin56) of AV switch(IC5003). Can you see the normal waveform? After checking the Power of AV switch you should
decide to replace AV switch or not.
Check the input(Pin1) of LPF(IC4006). Can you see the normal waveform? After checking the Power of LPF you should
decide to replace LPF or not.
Check the output(Pin8) of LPF(IC4006). Can you see the normal waveform? After checking the Power of LPF you should
decide to replace LPF or not.
Check the input(PinH26) of BCM3550(IC4006). Measure waveform at C1010 because it’s more easy to check. Can you see the normal waveform?
This board has big problem because Main chip (BCM3550) have some troubles. After checking thoroughly all path once again, You should decide to replace BCM3550 or not.

- 18 -
2. Video doesn't display
Check J5007 Pin3C Can you see the normal waveform? J5007 may have problem. Replace this Jack. Check the input(Pin1 or Pin8) of AV switch (IC5003). Pin1 is for video1,Pin8 is for video 2. Can you see the normal waveform?
After checking the Power of AV switch you should decide to replace AV switch or not.
Yes
No No No No No Yes
Yes Yes Yes Yes
Check the output(Pin56) of AV switch(IC5003). Can you see the normal waveform? After checking the Power of AV switch you should
decide to replace AV switch or not.
Check the input(Pin1) of LPF(IC4006). Can you see the normal waveform? After checking the Power of LPF you should
decide to replace LPF or not.
Check the output(Pin8) of LPF(IC4006). Can you see the normal waveform? After checking the Power of LPF you should
decide to replace LPF or not.
Check the input(PinH26) of BCM3550(IC4006). Measure waveform at C1010 because it’s more easy to check. Can you see the normal waveform?
This board has big problem because Main chip(BCM3550) have some troubles. After checking thoroughly all path once again, You should decide to replace BCM3550 or not.

- 19 -
3. Component doesn't display
Check J5004,J5005. Can you see the normal waveform? J5004,J5005 may have problem. Replace this
Jack.
Check the input of Component switch(IC5001,IC5002). Can you see the normal waveform?
After checking the input TR of component, you should decide to replace component switch or not.
No No No No No Yes
Yes Yes Yes Yes
Check the output of Component switch(IC5001,IC5002). Can you see the normal waveform?
After checking the Power of component switch you should decide to replace component switch or not.
Yes
Check the input of MST3361(IC7004 Pin41,44,46). Can you see the normal waveform?
After checking the Power of MST3361 you should decide to replace MST3361 or not.
Check the output of MST3361(IC7004 ). Can you see the normal waveform? After checking the Power of MST3361 you should
decide to replace MST3361 or not.
Check the input and output of BCM3550(IC4006). Especially you should check The H,V sync and clock. Can you see the normal waveform?
This board has big problem because Main chip(BCM3550) have some troubles. After checking thoroughly all path once again, You should decide to replace BCM3550 or not.

- 20 -
4. RGB_PC doesn't display
Check input connect P7004. Can you see the normal waveform? P7004 may have problem. Replace this Jack. Check the input of Component switch(IC5002). Can you see the normal waveform?
After checking the input TR of RGBHV, you should decide to replace these components or not.
No No No No No Yes
Yes Yes Yes Yes
Check the output of Component switch(IC5002). Can you see the normal waveform? After checking the Power of RGB switch you
should decide to replace component switch or not.
Yes
Check the input of MST3361(IC7004 Pin41,44,46). Can you see the normal waveform?
After checking the Power of MST3361 you should decide to replace MST3361 or not.
Check the output of MST3361(IC7004 ). Can you see the normal waveform? After checking the Power of MST3361 you should
decide to replace MST3361 or not.
Check the input and output of BCM3550(IC4006). Especially you should check The H,V sync and clock. Can you see the normal waveform?
This board has big problem because Main chip(BCM3550) have some troubles. After checking thoroughly all path once again, You should decide to replace BCM3550 or not.
