LG 32LG30 Series User manual

LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : LA85A
MODEL : 32LG30 32LG30-UA
website:http://biz.LGservice.com
Internal Use Only

- 2 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ..................................................................................3
SPECIFICATION ........................................................................................6
ADJUSTMENT INSTRUCTION .................................................................9
TROUBLE SHOOTING ...........................................................................15
BLOCK DIAGRAM...................................................................................17
EXPLODED VIEW .................................................................................. 18
REPLACEMENT PARTS LIST ............................................................... 20
SVC. SHEET ...............................................................................................

- 3 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩ and 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.

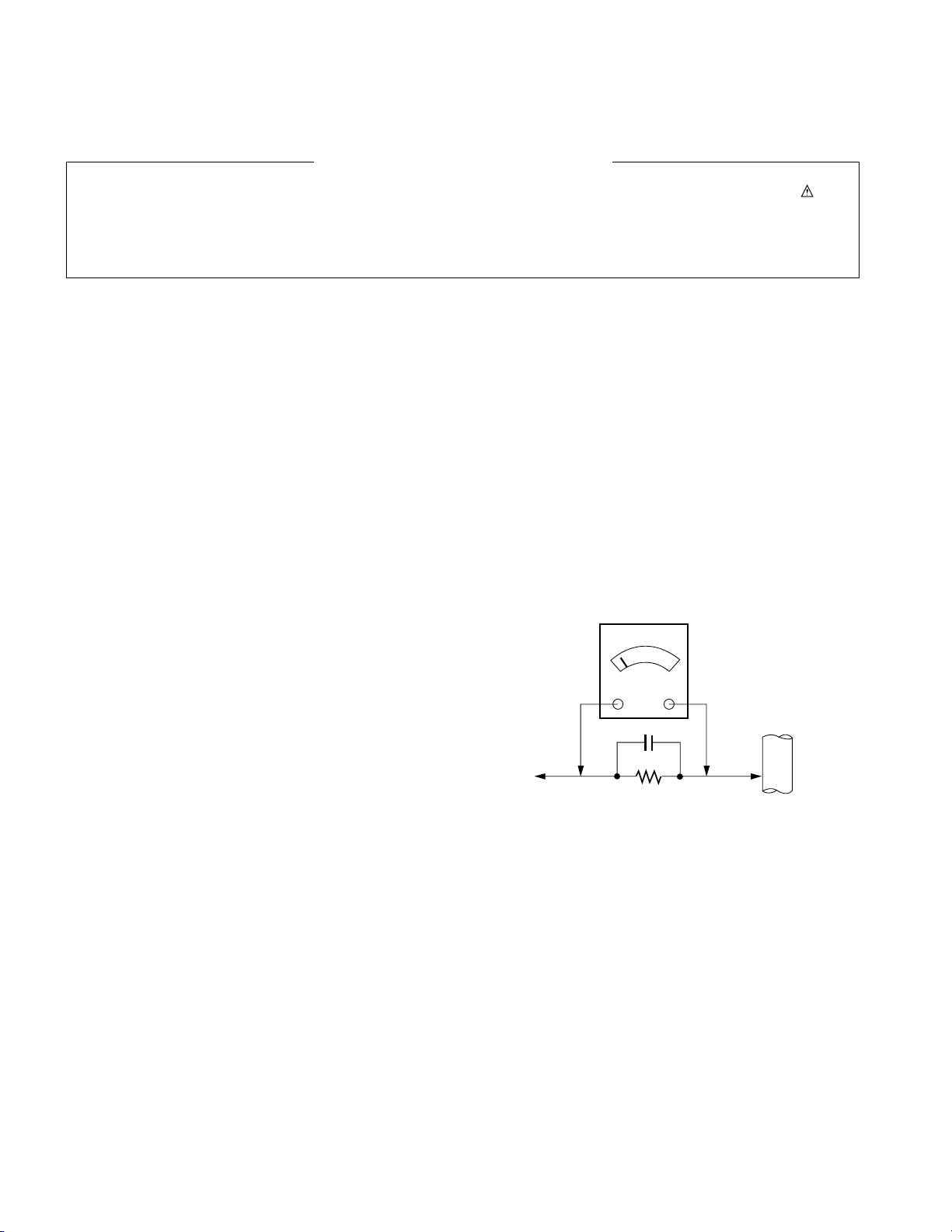

Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument's
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

- 5 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 6 -
4. General Specification(TV)
No. Item Specification Remark
1. Receiving System ATSC/ NTSC-M
2. Available Channel 1) VHF : 02~13
2) UHF : 14~69
3) DTV : 02-69
4) CATV : 01~135
5) CADTV : 01~135
3. Input Voltage 1) 100- 240V~, 50/60Hz Mark : 110V, 60Hz
4. Market NORTH AMERICA
5. Screen Size 26 inch Wide (1366 x 768)
32 inch Wide (1366 x 768)
6. Aspect Ratio 16:9
7. Tuning System FS
8. LCD Module T260XW003 V3(26inch) AUO
V315B 1-L07(32inch) CMO
9. Operating Environment 1) Temp : 0 ~ 40 deg
2) Humidity : ~ 80 %
10. Storage Environment 1) Temp : -20 ~ 60 deg
2) Humidity : 0 ~ 85 %
1. Application Range
This spec sheet is applied to the 26"/32" LCD TV used LA85A
chassis.
2. Specification
Each part is tested as below without special appointment
1) Temperature : 20 ±5°C
2) Relative Humidity : 65 ±10%
3) Power Voltage : Standard input voltage
(100-240V@ 50/60Hz)
• Standard Voltage of each products is marked by models
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance : LGE TV test method followed.
2) Demanded other specification
- Safety : UL1492, CSA C22.2 No.1
- EMC : FCC Class B, IC Class B
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 7 -
5. Chroma & Brightness
No Item Min. Typ. Max. Unit Remark
1 White peak brightness 400 500 cd/m226LG30-UA
(Center 1-point / Full White Pattern) 400 500 cd/m232LG30-UA
2 White average brightness cd/m2N/A
3 Brightness uniformity 80 % Full white
4 Color coordinate RED X 0.642 ± 0.03
Y 0.333 ± 0.03
GREEN X 0.285 ± 0.03
Y 0.597 ± 0.03
BLUE X 0.146 ± 0.03
Y 0.065 ± 0.03
WHITE X 0.280 ± 0.03
Y 0.290 ± 0.03
5 Color coordinate uniformity N/A
6 Contrast ratio 700:1 800:1 26LG30-UA
1200:1 1500:1 32LG30-UA
7 Color Temperature Cool 10,000 11,000 12,000 <Test Signal>
Standard 8,300 9,300 10,300 HDMI input, 85% Full white
Warm 5,500 6,500 7,500 pattern
8 Color Distortion, DG 10.0 %
9 Color Distortion, DP 10.0 deg
10 Color S/N, AM/FM 43.0 dB
11 Color Killer Sensitivity -80 dBm
6. Component Video Input (Y, PB, PR)
No. Specification Remark
Resolution H-freq(kHz) V-freq(Hz) Pixel clock
1 720*480 15.73 59.94 13.5135 SDTV ,DVD 480I
2 720*480 15.73 60.00 13.5 SDTV ,DVD 480I
3 720*480 31.47 59.94 27.027 SDTV 480P
4 720*480 31.47 60.00 27.0 SDTV 480P
5 1280*720 45.00 60.00 74.25 HDTV 720P
6 1280*720 44.96 59.94 74.176 HDTV 720P
7 1920*1080 33.75 60.00 74.25 HDTV 1080I
8 1920*1080 33.72 59.94 74.176 HDTV 1080I
9 1920*1080 67.5 60 148.50 HDTV 1080P
10 1920*1080 67.432 59.939 148.352 HDTV 1080P

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 8 -
No. Specification Remark
Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz)
PC DDC
1. 640*350 31.469 70.08 25.17 DOS
2. 720*400 31.469 70.08 28.32 DOS O
3. 640*480 31.469 59.94 25.17 VESA(VGA) O
4. 800*600 37.879 60.31 40.00 VESA(SVGA) O
5. 1024*768 48.363 60.00 65.00 VESA(XGA) O
6. 1280*768 47.776 59.87 79.50 CVT(WXGA) O
7. 1360*768 47.720 59.799 84.75 CVT(WXGA) O
8. 1366*768 47.13 59.65 72
7. RGB input (PC)
8. HDMI input (PC/DTV)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark
PC DDC
1. 640*480 31.469 59.94 25.17 VESA(VGA) O
2. 800*600 37.879 60.31 40.00 VESA(SVGA) O
3. 1024*768 48.363 60.00 65.00 VESA(XGA) O
4. 1280*768 47.776 59.87 79.50 CVT(WXGA) O
5. 1360*768 47.720 59.799 84.75 CVT(WXGA) O
6. 1366*768 47.13 59.65 72
DTV
1. 720*480 31.50 60 27.027 SDTV 480P
2. 720*480 31.47 59.94 27.00 SDTV 480P
3. 1280*720 45.00 60.00 74.176 HDTV 720P
4. 1280*720 44.96 59.94 74.25 HDTV 720P
5. 1920*1080 33.75 60.00 74.25 HDTV 1080I
6. 1920*1080 33.72 59.94 74.176 HDTV 1080I
7. 1920*1080 67.500 60 148.50 HDTV 1080P
8. 1920*1080 67.432 59.939 148.352
9. 1920*1080 27.000 24.00 74.25 HDTV 1080P
10. 1920*1080 26.97 23.976 74.176 HDTV 1080P
11. 1920*1080 33.75 30.00 74.25 HDTV 1080P
12. 1920*1080 33.71 29.97 74.176 HDTV 1080P

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 9 -
ADJUSTMENT INSTRUCTION
1. Application Object
These instructions are applied to all of the LCD TV, LA85A.
2. Notes
(1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer. However, the use of isolation
transformer will help protect test equipment.
(2) Adjustments must be done in the correct order.
(3) The adjustments must be performed in the circumstance of
20±5°C of temperature and 65±10% of relative humidity if
there is no specific designation.
(4) The input voltage of the receiver be must kept 220V, 60Hz
when adjusting.
(5) The receiver must be operational for about 15 minutes
prior to the adjustments.
(6) Perform preliminary operation after receiving 100% White
Pattern (06CH). (Or 3. White Pattern status of Ez-Adjust)
(7) White Pattern entry method
1) Enter into Ez-Adjust by pressing the ADJ key on the
adjustment R/C.
2) 100% FULL WHITE PATTERN appears if pressing the
OK (A) key after selecting the 3.WHITE PATTERN with
the CH + / - KEY.
* It is possible to heat run the set without a separate
signal generator in this mode.
Caution : Care must be taken as afterimage phenomena
may occur about the black level part of screen If leaving
pause image turned on for more than 20 minutes
(especially inner digital pattern (13 CH), Cross Hatch
Pattern (09CH) with significant black/white contrast).
3. ADC-Set Adjustment
3-1. Synopsis
ADC-set is Gain and Black level setting at Analog to Digital
converter, and compensate the RGB deviation.
3-2. Test Equipment
1) Service R/C
2) 801GF(802B, 802F, 802R) or MSPG925FA Pattern Generator
- Revolution : 480i, 1080i
- Pattern name : Horizontal 100% Color Bar Pattern
- Pattern level : 0.7±0.1Vp-p)

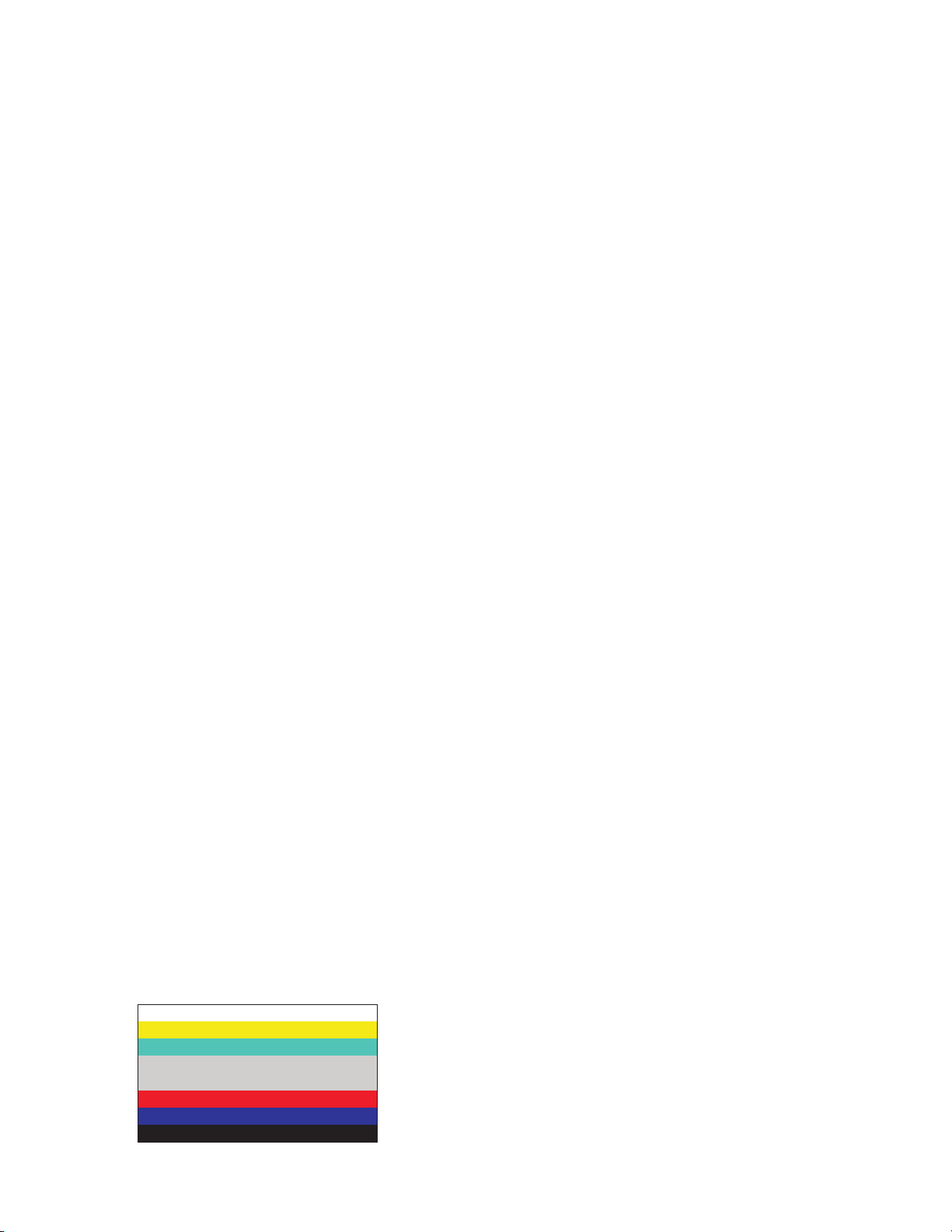

- Image
3-3. Adjustment
(1) ADC 480i Component1 adjustment
1) Check the Component1 connection condition from the
used device.
2) Apply 480i Mode, Horizontal 100% Color Bar Pattern to
Comp1 port.(MSPG-925FA => Model: 209, Pattern: 65)
3) Set the input to Component1 and select °ÆNormal°Ø as
video.
4) Wait for one second or longer after receiving the signal,
press the ADJ key of the R/C to enter into 'Ez-Adjust',
select '3. ADC 480i Comp1', and press the Enter key to
automatically adjust.
5) If it is normally adjusted, the message "ADC
Component1 Success" is displayed.
6) If it is not normally adjusted, the message 'ADC
Component1 480i Fail' is displayed. If the component is
not connected, the message Component1 Not
Connected, or if the input format is not 480i, the
message 'Not Valid Format', or if there is no input signal,
the message 'Check Signal Status' is displayed for one
second.
7) If the adjustment is failed, check the pattern or the
adjustment condition and then readjust
(2) ADC 1080p Component1 / RGB adjustment
1) Check the connection condition of Component1 and
RGB from the device to use.
2) Apply 1080p Mode, 100% Horizontal Color Bar Pattern
to Comp1 and RGB port.
(MSPG-925 Series => model:225 , pattern:65 )
3) Set the input to Component1 and select °ÆNormal°Ø as
video.
4) Wait for one second or longer after receiving the signal,
press the ADJ key of the R/C to enter into 'Ez-Adjust',
select '4. ADC 1080p Comp1/RGB', and press the Enter
key to automatically adjust the component1.
5) If it is normally adjusted, the message "ADC
Component1 Success" is displayed, or if not, the
message 'ADC Component1 1080p Fail' is displayed.
6) When adjusting the Component1 is ended, it is
automatically switched to the RGB-DTV Mode and the
RGT adjustment is started. If it is normally adjusted, the
message "ADC RGB 1080P Success" is displayed.
7) If it is not normally adjusted, check the pattern or the
adjustment condition, and then readjust. The error
message is same to 6).
8) If the adjustment is ended, press the ADJ key to exit
from the adjustment mode. If the 7) adjustment is ended,
press the ADJ or the Exit of the adjustment R/C to exit
from the adjustment mode.

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 10 -
4. EDID (The Extended Display
Identification Data)/ DDC(Display
Data Channel) Download
4-1. Summary
It is established in VESA, for communication between PC and
Monitor without order from user for building user condition. It
helps to make easily use realize "Plug and Play" function.
4-2. Required Test Equipment
1) PC (with S/W : EDID Data write & Read)
2) EDID DOWNLOAD JIG
3) HDMI Cable, D-Sub cable
4-3. Connection diagram(Setting of DL device)
1) Set devices as above and turn on the PC and JIG.
2) Operate the DDC program.(EDID data write & read).
3) In menu, enter to ‘model -> open’ and select EDID Data
4-4. How to download
1) Configure the download environment as shown at the
adjustment wiring diagram and turn on the PC.
2) Execute the DDC program. (EDID Data Write & Read)
3) Go to Model -> Open, and select the EDID data of the
desired model.
4) Check the item to download from the <Test> item
4-1) HDMI & RGB: Check Digital & Analog
4-2) (Only)HDMI: Check Digital only
5) Press ESC(Cancel Mode) -> F8(Auto Mode). (Set Auto
Detecting)
6) Connect the desired signal cable to the set.
7) Make sure that the popup "Proceed to write?" is displayed.
8) Press the Enter key or the space key to download.
9) After downloading, check the OK message and disconnect
the connected cable.
4-4. EDID DATA for LA73E
* It is possible to download on only POWER ON MODE.
OHDMI-1 [C/S : 8A27]
EDID Block 0 table =
EDID Block 1 table =
OHDMI-2 [C/S : 8A17]
EDID Block 0 table =
EDID Block 1 table =
OHDMI-3 [C/S : 8A07]
EDID Block 0 table =
012 3 4 5 67 8 9 A BCD EF
000FFFFFFFFFFFF001E6D01000101 0101
10 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C AF CF 00 31 40 45 40 61 40 81 80 A9 40
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 C4 8E 21 00 00 1E 00 00 00 FD 00 30
60 58 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 8A
012 3 4 5 67 8 9 A BCD EF
0020318F1478405030220221023150750
10 67 03 0C 00 10 00 B8 2D 01 1D 00 72 51 D0 1E 20
20 6E 28 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C
30 16 20 58 2C 25 00 C4 8E 21 00 00 9E 8C 0A D0 8A
40 20 E0 2D 10 10 3E 96 00 C4 8E 21 00 00 18 8C 0A
50 D0 8A 20 E0 2D 10 10 3E 96 00 13 8E 21 00 00 18
60 26 36 80 A0 70 38 1F 40 30 20 25 00 C4 8E 21 00
70 00 1A 00 00 00 00 00 00 00 00 00 00 00 00 00 27
012 3 4 5 67 8 9 A BCD EF
000FFFFFFFFFFFF001E6D01000101 0101
10 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C AF CF 00 31 40 45 40 61 40 81 80 A9 40
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 C4 8E 21 00 00 1E 00 00 00 FD 00 30
60 58 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 8A
012 3 4 5 67 8 9 A BCD EF
0020318F1478405030220221023150750
10 67 03 0C 00 20 00 B8 2D 01 1D 00 72 51 D0 1E 20
20 6E 28 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C
30 16 20 58 2C 25 00 C4 8E 21 00 00 9E 8C 0A D0 8A
40 20 E0 2D 10 10 3E 96 00 C4 8E 21 00 00 18 8C 0A
50 D0 8A 20 E0 2D 10 10 3E 96 00 13 8E 21 00 00 18
60 26 36 80 A0 70 38 1F 40 30 20 25 00 C4 8E 21 00
70 00 1A 00 00 00 00 00 00 00 00 00 00 00 00 00 17
012 3 4 5 67 8 9 A BCD EF
000FFFFFFFFFFFF001E6D01000101 0101
10 00 11 01 03 80 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C AF CF 00 31 40 45 40 61 40 81 80 A9 40
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1E 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 C4 8E 21 00 00 1E 00 00 00 FD 00 30
60 58 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 8A

EDID Block 1 table =
ORGB [C/S : F6BC]
EDID Block 0 table =
EDID Block 1 table =
5. White Balance
5-1. The Purpose and Principal of Color
Temperature Adjustment
(1) Purpose: to reduce the difference in color temperature
among modules
(2) Principal: A module is in full dynamic range when RGB
Gain on OSD is 192. To adjust the white balance without
causing full dynamic range and full data, fix one of RGB
Gains at 192 and control the other two by reducing them
from 192.
5-2. Required Equipment
(1) Color Analyzer : CA-210 (NCG : CH 9 / WCG : CH12)
(2) Automatic adjuster (with automatic adjustment necessity
and the RS-232C communication being possible)
(3) Remote control for adjustment
(4) Video Signal Generator MSPG-925F 720p, 216Gray
(Model : 217, Pattern 78)=> Applied only when the inner
pattern cannot be used
*Use the Color Analyzer with the matrix calibrated by the CS-
1000
5-3. Adjustment command (Protocol)
(1) Protocol
<Command Format>
- LEN : Number of Data Byte
- CMD : Command
- VAL : Value of FOS Data
- CS : Checksum
- A : Acknowledge
Ex) [Send: JA_00_DD] / [Ack: A_00_okDDX}
(2) RS-232C Command(Automatic adjustment)
Ex) wb 00 00 : Start Auto-adjustment of white balance.
wb 00 10 : Start Gain Adjustment (Inner pattern)
ja 00 ff : Adjustment data
jb 00 c0 :
…
…
wb 00 1f : End of Gain adjustment
* (wb 00 20(start), wb 00 2f(end)) -> In the case of Off-
set adjustment
wb 00 ff : End of white balance adjustment
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 11 -
012 3 4 5 67 8 9 A BCD EF
0020318F14784050302 20221023150750
10 67 03 0C 00 30 00 B8 2D 01 1D 00 72 51 D0 1E 20
20 6E 28 55 00 C4 8E 21 00 00 1E 01 1D 80 18 71 1C
30 16 20 58 2C 25 00 C4 8E 21 00 00 9E 8C 0A D0 8A
40 20 E0 2D 10 10 3E 96 00 C4 8E 21 00 00 18 8C 0A
50 D0 8A 20 E0 2D 10 10 3E 96 00 13 8E 21 00 00 18
60 26 36 80 A0 70 38 1F 40 30 20 25 00 C4 8E 21 00
70 00 1A 00 00 00 00 00 00 00 00 00 00 00 00 00 07
012 3 4 5 67 8 9 A BCD EF
000FFFFFFFFFFFF001E6D01000101 0101
10 00 11 01 03 18 73 41 96 0A CF 74 A3 57 4C B0 23
20 09 48 4C AF CF 00 31 40 45 40 61 40 81 80 A9 40
30 01 01 01 01 01 01 66 21 50 B0 51 00 1B 30 40 70
40 36 00 C4 8E 21 00 00 1A 02 3A 80 18 71 38 2D 40
50 58 2C 45 00 C4 8E 21 00 00 1E 00 00 00 FD 00 30
60 58 1F 64 11 00 0A 20 20 20 20 20 20 00 00 00 FC
70 00 4C 47 20 54 56 0A 20 20 20 20 20 20 20 01 F6
012 3 4 5 67 8 9 A BCD EF
0020304000E1F008051 001E3040803700
10 C4 8E 21 00 00 1C F1 27 00 A0 51 00 25 30 50 80
20 37 00 C4 8E 21 00 00 1C 26 36 80 A0 70 38 1F 40
30 30 20 25 00 C4 8E 21 00 00 0A 00 00 00 00 00 00
40 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
50 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
60 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
70 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 BC
Color Analyzer
Computer
Pattern Generator
RS-232C
RS-232C
RS-232C
Probe
Signal Source
* Not used when the inner pattern of the TV set is used
Connection Diagram of Automatic Adjustment
RS-232C COMMAND Meaning
[CMD ID DATA]
wb 00 00 White Balance adjustment start.
wb 00 10 Start of adjust gain (Inner white pattern)
wb 00 1f End of gain adjust
wb 00 20 Start of offset adjust(Inner white pattern)
wb 00 2f End of offset adjust
wb 00 ff
End of White Balance adjust(Inner pattern disappeared)
LEN CMD VAL CS

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 12 -
(3) Adjustment Map
5-4. Adjustment of White Balance
(Automatic Adjustment)
1) The adjustment condition should be set by the Power On
key.
2) Perform the zero calibration of the Color Analyzer and
place the probe close to the display center.
3) Connect the communication cable (RS-232C).
4) Select the desired model of the adjustment program and
perform the adjustment.
5) After the adjustment is ended (check the OK sign), check
the adjustment condition for each mode of the set.
(Warm, Medium, Cool)
6) Disconnect the probe and the communication cable to end
the adjustment.
* The adjustment should be started with "wb 00 00" and
ended with "wb 00 ff", and the offset should be adjusted
when necessary.
5-5. Manual white Balance
1) The adjustment condition should be set by the Power On
key.
2) Press the ADJ of the R/C to enter into 'EZ-ADJUST'.
3) Select '10.TEST PATTERN' with the CH +/- key and press
the Enter key for 30 minutes or longer to perform the heat
run.
4) Perform the zero calibration of the Color Analyzer and fix
the sensor with the 10cm or less distance at the center of
the LCD module surface when adjusting.
5) Press the ADJ of the R/C to select '7.White-Balance' of the
Ez-Adjust and press the right arrow key(G) to enter into the
adjustment mode. (As soon as you press 'G', the screen is
entered into the full white inner pattern.)
6) Fix one of the R/G/B gains to 192 and decrease the
remaining two gains to adjust not to exceed 192.
7) The adjustment is done at three white balances of Cool,
Medium and Warm.
* The inner pattern is basically used, and if it is not possible,
the adjustment can be done by selecting the HDMI input.
NONE, INNER or HDMI can be selected by the bottom
option at the Ez Adjust Menu 7.White Balance menu and it is
set to INNER as default. If the adjustment cannot be done by
the inner pattern, select the HDMI to adjust.
* Adjustment environment and reference
1) Environment illuminance
Adjust it to 10 LUX or less at the place where the light
source such as lamp should be blocked at maximum.
2) Probe location
: Maintain the Color Analyzer (CA-210) close to the
module surface by 10cm or less and keep the probe of
the Color Analyzer perpendicular to the module
surface (80°~ 100°).
3) Aging time
- Keep the power on after the aging start (with no power
off) to perform the heat run for 15 minutes or longer.
- Make sure that the back light is turned on by using no
signal and the full white pattern or others.
5-6. Reference
(1) Brightness: Full white 216 Gray
(2) Standard color coordinate and white balance when using
the CS-1000
(3) Standard color coordinate and white balance when using
the CA-210 (CH 10)
6. Select the option by country
6-1. Overview
1) The option selection is applied to the North American
model only, which selects the rating related country.
2) Applied models: LA84A Chassis applied None USA
Model(Canada, Mexico)
6-2. How to select
1) Press the In-Start key of the R/C and press the red oval
OP1(PIP CH-) key to enter into the Factory Option menu.
2) Select 1.USA, 2.CANADA or 3.MEXICO from the country
select according to the destination. At this time, use the
volume +/- key to adjust
ITEM Command Data Range Defaulta
(Hex.) (Decimal)
Cmd 1 Cmd 2 Min Max
Cool R-Gain j g 00 C0 TBD
G-Gain j h 00 C0 TBD
B-Gain j i 00 C0 TBD
R-Cut TBD
G-Cut TBD
B-Cut TBD
Medium R-Gain j a 00 C0 TBD
G-Gain j b 00 C0 TBD
B-Gain j c 00 C0 TBD
R-Cut TBD
G-Cut TBD
B-Cut TBD
Warm R-Gain j d 00 C0 TBD
G-Gain j e 00 C0 TBD
B-Gain j f 00 C0 TBD
R-Cut
G-Cut
Mode Color Coordination Temp ∆UV
xy
COOL 0.276 0.283 11000K 0.0000
MEDIUM 0.285 0.293 9300K 0.0000
WARM 0.313 0.324 6500K 0.0000
Mode Color Coordination Temp ∆UV
xy
COOL 0.276±0.002 0.283±0.002 11000K 0.0000
MEDIUM 0.285±0.002 0.293±0.002 9300K 0.0000
WARM 0.313+0.002 0.324±0.002 6500K 0.0000

7. Set the shipping mode (In-stop)
- After completing the final test, in order to set the set to the
shipping condition, press the In-Stop key of the R/C to make
sure that the set is turned off.
8. GND and resisting pressure test
8-1. How to test
(1) Preparing for the automatic test on the GND & resisting
pressure
- Make sure that the power cord is completely inserted into
the set. (When it is disconnected or loosened, test after
inserting it)
(2) Perform the automatic test on the GND & resisting pressure
1) The set with power cord, the cord and the A/V
completely inserted into the tuner is loaded on the pallet
and entered into the automatic test process.
2) Connect the D-terminal AV JACK tester
3) Turn on the automatic (GWS103-4)
4) Perform the GND TEST
5) If it is not good, the buzzer is operated to notify the test
result to the operator.
6) If it is OK, it is automatically switched to the resisting
pressure test. (Disconnect the cord and the A/V from the
AV JACK BOX)
6) Perform the resisting pressure test
7) If it is not good, the buzzer is operated to notify the test
result to the operator.
8) If it is OK, the GOOD LAMP is turned and the stopper is
moves down, and it moves to the next process.
8-2. Items to manage
(1) TEST voltage
- GND:1.5KV/min at 100mA
- SIGNAL:3KV/min at 100mA
(2) TEST time:1 second
(3) TEST POINT
- GND test = between Power cord GND and Signal cable
metal GND
- Resisting pressure test = between Power cord GND and
Live & Neutral
(4) LEAKAGE CURRENT: Set to 0.5mArms
9. ISP Download (option)
9-1. Overview
The Micom upgrade via the external port for the service for
the customer.
9-2. Device to use
1) PC
2) B/D for the interface (IIC & ISP)
3) Jig for downloading (for the power supply)
9-3. Adjustment wiring diagram (Download
device configuration diagram)
9-4. Adjustment condition (Download
condition)
1) IC name & circuit number: MYSON MTV416GMF & IC4015
2) Power supply: 5V (P4004 Pin 3)
3) SCL: D-sub Pin 10
4) SDA: D-sub Pin 7
9-5. How to adjust (for downloading)

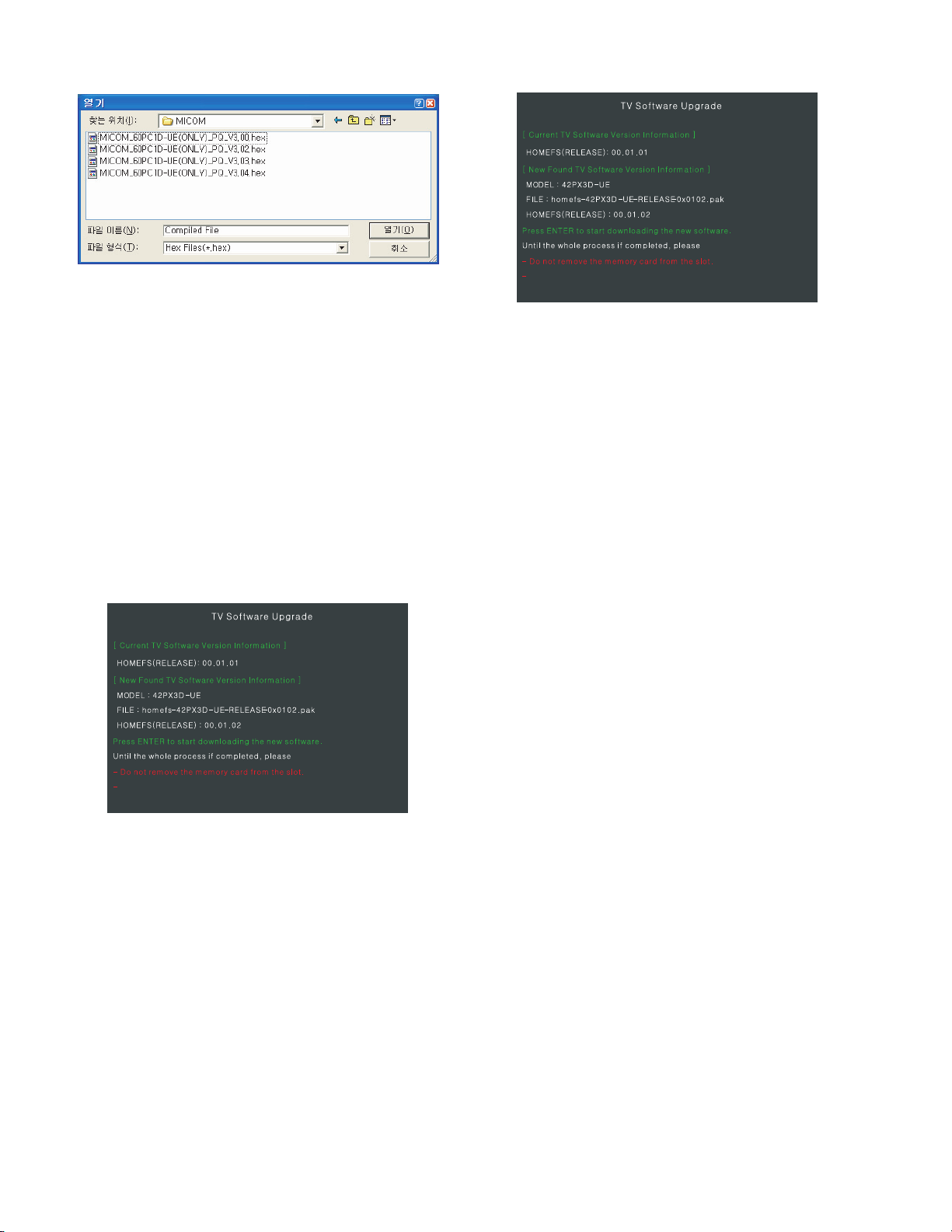

1) fter executing LGE Monitor Tools v1.1, click the first icon.
(See the figure)
2) When the screen is displayed as shown at the below figure,
set the items as follows:
- MCU Select: MTV512M64
- R/W Option: Auto Write(Verify)
- Jig Option: Myson
- Transmit Speed: Medium
- Check: blank
- PORT: Select the Parallel Port to use (LPT1 in general)
* caution: Select the EPP as LPT from the ROM BIAS setting.
3) Click the Load File Button, and select the desired Hex File
to download. (If no file is displayed, make sure that the file
format is selected as Hex file (*.hex))
- 13 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Interface B/D
Main B/D
PC
Pin301

4) Click 'Send Button
10. USB S/W Download (option)
10-1. Overview
The USB download is for the quick service response via the
S/W upgrade and for applying the S/W upgrade necessary for
the board adjustment
10-2. How to dowunload
1) After turning on the set, make sure that the display screen
is turned on.
2) When the USB Memory Stick with the upgrade file applied
is inserted into the USB jack on the main board, the
following screen (example) is displayed after several
seconds
3) Check the current version at [Current TV Software Version
Information], check the S/W version to upgrade at [New
Found TV Software Version Information], and press the
Enter button of the TV remote controller.
4) Downloading is proceeded as shown at the below screen,
and when it is ended, turning on/off is automatically done.
(When the automatic proceeding is not smoothly done,
manually perform the power On/Off).
5) When downloading is ended, remove the USB Memory
Stick from the USB jack.
6) Press the IN-START button of the remote controller to
check the upgraded S/W version.
- 14 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Do not plug off.
Press EXIT to cancel the upgrade.
Do not plug off.
Press EXIT to cancel the upgrade.

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 15 -
TROUBLESHOOTING
1. TV/CATV doesn’t display.
Check TU1 Pin 16 (Video out put).
Can you see the normal signal?
Check the input (Pin 1) of LPF (IC808).
Can you see the normal waveform?
Could you measure voltage of TU1 & IIC
lines? Are they all normal?
You should replace TUNER.
Yes
No
Yes
Yes
Check the input (PinAN16) of BCM355x
(IC100). Measure waveform at C658
because it;s more easy to chek.
Can you see the normal waveform?
You should check power line
& IIC lines
No
After checking video signal line & the Power of
LPF you should decide to replace item or not.
No
Check the output (Pin 1) of LPF(IC808).
Can you see the normal waveform?
Yes
Yes
After checking Power of LPF you should decide
to replace item or not.
No
This board has big problem because Main chip
(BCM355x) have some troubles.
After checking throughly all path once again,
You should dicide to replace BCM355x or not.
No
2. Video doesn’t display.
Check JK701, JK707.
Can you see the normal waveform?
Check the input (PinAN17, AM19) of
BCM355x (IC100). Measure waveform at
C651 because it’s more easy to check.
Can you see the normal waveform?
JK701, JK707 may have problem.
Replace this Jack.
No
This board has big problem because Main chip
(BCM355x) have some troubles.
After checking throughly all path once again,
You should dicide to replace BCM355x or not.
No

- 16 -
Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Yes
3. Component doesn’t display.
Check JK700, JK702.
Can you see the normal waveform?
Check the input and output of BCM355x
(IC100). Especially you should check the
H,V sync and clock.
Can you see the normal waveform?
JK700, JK702 may have problem.
Replace this Jack.
No
This board has big problem because Main chip
(BCM355x) have some troubles.
After checking throughly all path once again,
You should dicide to replace BCM355x or not.
No
Yes
4. RGB_PC doesn’t display.
Check JK705.
Can you see the normal waveform?
Check the input and output of BCM355x
(IC100). Especially you should check the
H,V sync and clock.
Can you see the normal waveform?
JK705 may have problem.
Replace this Jack.
No
This board has big problem because Main chip
(BCM355x) have some troubles.
After checking throughly all path once again,
You should dicide to replace BCM355x or not.
No
Check DDC communication lines.(IC601,IC603, IC701)
Yes
Check the input and output of BCM355x(IC100).
Especially you should check the H,V sync and clock.
Can you see the normal waveform?
After checking the Powerof th chip, you should
decide to replace this or not.
No
Check the input connect JK601, JK602, JK708.
Can you see the normal waveform?
Yes
JK601, JK602, JK708 mayhave prolbem
Replace this Jack.
No
Check HDCP communication lines. (IC102)
Yes
After checking the Powerof th chip, you should
decide to replace this or not.
No
This board has big problem because Main chip
(BCM355x) have some troubles.
After checking throughly all path once again,
You should dicide to replace BCM355x or not.
No
5. HDMI doesn’t display.

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 17 -

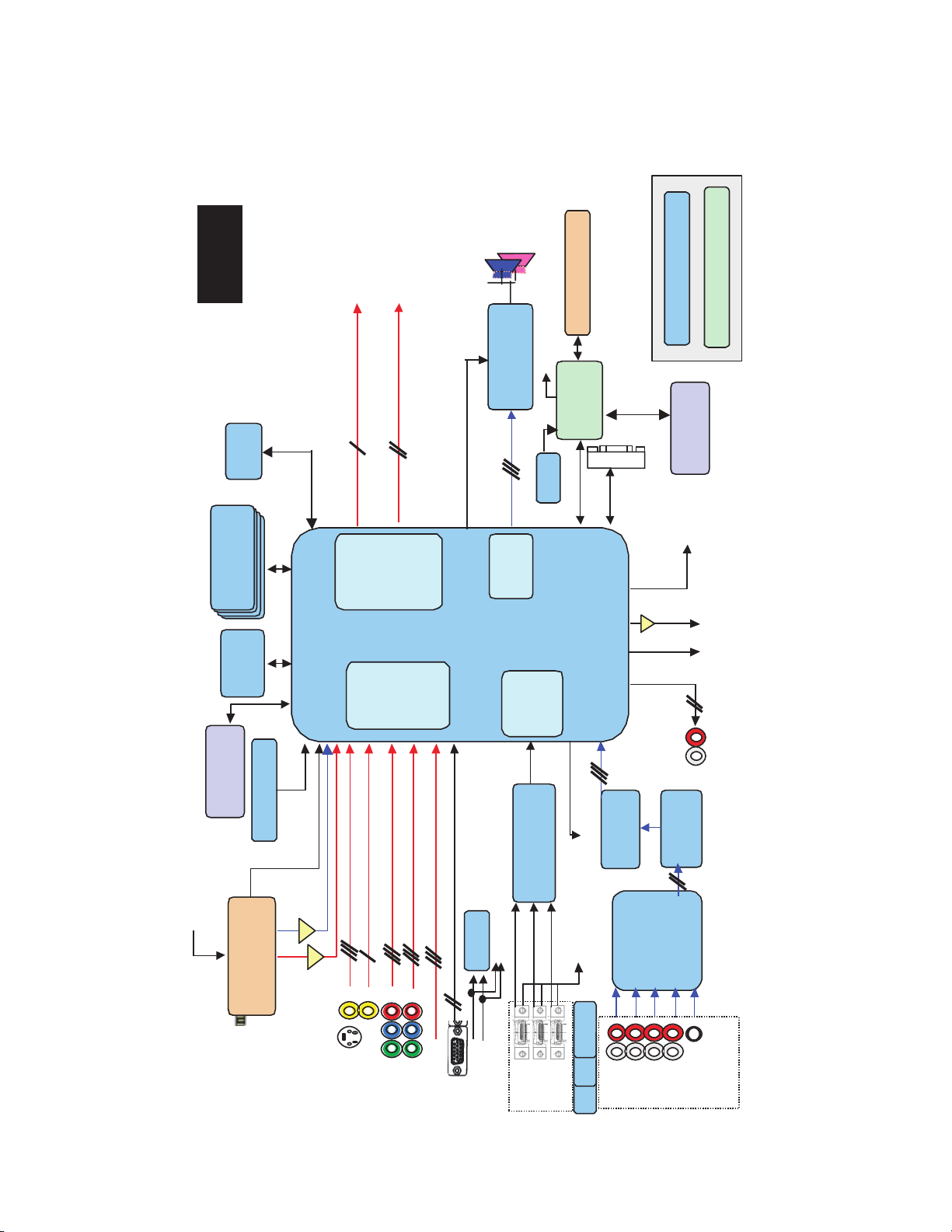

BLOCK DIAGRAM
Audio L/R
Flash
(16MB)
DDR(32MB)
(4x16x4)
DDR(32MB)
(4x16x4)
74LVC14APW
TEA6420D
(Audio SW) MC33078
(AMP)
CS5340
(A/D)
MTV416
( Micom)
NTP3000 (D-AMP)
X200
X-tal(54 MHz)
PI3HDMI341ATR
(3x1,S/W)
EEPROM
AT/NT Tuner
64Bit I/F
Reset
CVBS
CVBS/Y/C Y/ Cb/Cr
R/G/B
H/V Sync
Audio L/R
I2S
MNT out
(L/R)
SPDIF
OUT
I2S
Dual LVDS Connector (FHD)
Full HD(1080P)
RS-232C
Dead IC when Standby
Alive IC when Standby
Video Front
End
Dual HDMI
Rx
HD/SD Video
Encoder
Audio
DSP
BCM3552(HD) BCM3553(FHD)
MCLK
MCLK
HDMI CEC
HDMI CEC(To Micom)
To Micom
SDA
SCL
SIF
IF(AT)
Buffer
Digital out
Single LVDS Connector (HD)
Digital out WXGA(768P)
IR & Local KEY
BufferBuffer
24C16
AGC CTL (From BCM)
USB2.0
I2S Audio Input
VSB/QAM/NTSC/SIF
AV1 AV2
COMP1 COMP2
CVBS
DDR(32MB)
(4x16x4)
DDR(32MB)
(4x16x4)
DDR(32MB)
(4x16x4)
DDR(32MB)
(4x16x4)
DDR(32MB)
(4x16x4)
DDR(32MB)
(4x16x4)
DDR (128MB)
RGB
Y/ Cb/Cr
HDMI1 HDMI2 HDMI3
AV1 AV2
COMP1 COMP2
RGB
Coaxial OUT (LG50)
USB
LG30: HD LG50: FHD
X400
X-tal(24 MHz)
NVRAM
24C512
EEPROMEEPROMEEPROM

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
- 18 -
EXPLODED VIEW
300 200
510
500
120
122
400
401
800
801
802
804
803 530
540
521
820
821
805 550
910
904
902 901
905
903
900
830
822
121

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
TP1113
4.7K
R2145
LVDS_TX_OUT_PINPORT_TB1-_TO_TXA2+
BCM3553
IC100
BCM3553
OB_AGC
AK34
OB_ADCAV1P2
AM30
OB_ADCAV2P5
AL30
OB_AVSS_1
AK29
OB_AVSS_2
AM31
OB_PLLAVDD1P2
AL29
OB_I_N
AN31
OB_I_P
AP31
OB_IFVCO_N
AP32
OB_IFVCO_P
AP33
PKT0_CLK
A33
PKT0_DATA
B33
PKT0_SYNC
C31
HSX_CLK
C30
HSX_DATA
D30
HSX_SYNC
B32
CHIP2POD_CRX
H28
CHIP2POD_DRX
H29
POD2CHIP_MCLKI
G29
POD2CHIP_MDI0
E28
POD2CHIP_MDI1
B34
POD2CHIP_MDI2
C32
POD2CHIP_MDI3
K28
POD2CHIP_MDI4
K27
POD2CHIP_MDI5
J29
POD2CHIP_MDI6
J28
POD2CHIP_MDI7
J27
POD2CHIP_MISTRT
D32
POD2CHIP_MIVAL
C34
CHIP2POD_MCLKO
F32
CHIP2POD_MDO0
H27
CHIP2POD_MDO1
F34
CHIP2POD_MDO2
F33
CHIP2POD_MDO3
H31
CHIP2POD_MDO4
F30
CHIP2POD_MDO5
E30
CHIP2POD_MDO6
E33
CHIP2POD_MDO7
E32
CHIP2POD_MOSTRT
H30
CHIP3POD_MOVAL
G28
VDAC_BGVDD2P5
AL26
VDAC_AVDD3P3_1
AM28
VDAC_AVDD3P3_2
AL27
VDAC_AVSS1
AJ26
VDAC_AVSS2
AK27
VDAC_AVSS3
AK26
VDAC_AVDD1P2
AJ27
VDAC_DREG
AP26
VDAC_RBIAS
AM27
VDAC_0
AN27
VDAC_1
AN26
VDAC_2
AM26
VDAC_3
AM25
HD_DVI_0
AM5
HD_DVI_1
AN4
HD_DVI_2
AP4
HD_DVI_3
AL6
HD_DVI_4
AM6
HD_DVI_5
AP5
HD_DVI_6
AN5
HD_DVI_7
AL7
HD_DVI_8
AL8
HD_DVI_9
AN6
HD_DVI_10
AM7
HD_DVI_11
AK9
HD_DVI_12
AN7
HD_DVI_13
AK8
HD_DVI_14
AH9
HD_DVI_CLK_N
AJ11
HD_DVI_CLK_P
AK10
HD_DVI_DE
AH12
HD_DVI_HSYNC
AK11
HD_DVI_VSYNC
AH13
DVO_0_0 H7
DVO_0_1 E1
DVO_0_2 K8
DVO_0_3 J6
DVO_0_4 G4
DVO_0_5 E2
DVO_0_6 F3
DVO_0_7 L6
DVO_0_8 K5
DVO_0_9 H2
DVO_0_10 H6
DVO_0_11 H5
DVO_0_12 K7
DVO_0_13 G1
DVO_0_14 H3
DVO_0_15 G2
DVO_0_16 J5
DVO_0_17 G3
DVO_0_18 F2
DVO_0_19 H4
DVO_0_20 J7
DVO_0_21 J8
DVO_0_22 H1
DVO_0_23 K6
DVO_0_24 K2
DVO_0_25 K3
DVO_0_26 J2
DVO_0_27 K4
DVO_0_28 J3
DVO_0_29 J4
DVO_0_CLK_NEG G8
DVO_0_CLK_POS G7
DVO_0_DE F4
DVO_0_HSYNC D2
DVO_0_VSYNC D1
LVDS_TX_0_DATA_0_N B7
LVDS_TX_0_DATA_0_P C7
LVDS_TX_0_DATA_1_N D7
LVDS_TX_0_DATA_1_P E7
LVDS_TX_0_DATA_2_N B6
LVDS_TX_0_DATA_2_P C6
LVDS_TX_0_DATA_3_N B5
LVDS_TX_0_DATA_3_P C5
LVDS_TX_0_DATA_4_N D5
LVDS_TX_0_DATA_4_P E5
LVDS_TX_1_DATA_0_N A4
LVDS_TX_1_DATA_0_P B4
LVDS_TX_1_DATA_1_N D4
LVDS_TX_1_DATA_1_P E4
LVDS_TX_1_DATA_2_N A3
LVDS_TX_1_DATA_2_P B3
LVDS_TX_1_DATA_3_N B2
LVDS_TX_1_DATA_3_P B1
LVDS_TX_1_DATA_4_N F6
LVDS_TX_1_DATA_4_P F5
LVDS_TX_0_CLK_N D6
LVDS_TX_0_CLK_P E6
LVDS_TX_1_CLK_N C3
LVDS_TX_1_CLK_P C2
LVDS_TX_AVSS_1 A6
LVDS_TX_AVSS_2 D8
LVDS_TX_AVSS_3 H9
LVDS_TX_AVSS_4 G6
LVDS_TX_AVSS_5 C1
LVDS_TX_AVDD2P5_1 A7
LVDS_TX_AVDD2P5_2 E8
LVDS_PLL_AVDDC1P2 G5
LVDS_TX_AVDDC1P2 G9
PCI_REQ0 I8
HDMI_POWER_2 6:C4;6:L3
0.1uF 16V
C130
EBI_WEb1
J2
HB-1M1608-102JT
L105
EBI_ADDR22/PCI_STOPb
J3
TP1081
TP1002
EBI_ADDR24
G8
NAND_PB
N7
TP1102
TP1144
0
R2100
DVO_2
22
R2126
LVDS_TX_OUT_PINPORT_TA2-_TO_TXB3+
1KR111
LVDS_TX_OUT_PINPORT_TB2+_TO_TXA3-
TP1070
2.7KR2148
HDMI_POWER_1 6:C7;6:L2
0.1uF
16V
C123
TP1091
TP1029
TP1112
COMPOSITE1_SW 7:E2
SCL0_5V 8:E6
RST_OUTb
2:C4
COMP2_SW 7 : C 7
EBI_ADDR20/PCI_PAR
G7
EBI_TA
N7
D3.3V_BCM
TP1040
4.7K
R2144
DVO_14
DVO_1
LVDS_TX_OUT_PINPORT_TA2+_TO_TXB3-
TP1003
TP1101
LVDS_TX_OUT_PINPORT_TB4-_TO_TXA0+
TP1122
A1.2V_BCM
S-VIDEO1_SW 7:E2
TP1069
SDA0_5V 8:E6
TP1009
TP1090
TP1030
EBI_RDb
G9
EBI_ADDR18/PCI_CBE2
G7
BCM_RX 4:E1
TP1111
+5.0V
0.1uF
16V
C125
DVO_14
PCI_REQ2
N7
DVO_3
EBI_DATA[0-15]
H4
2.7KR2147
LVDS_TX_OUT_PINPORT_TA3-_TO_TXB1+
LVDS_TX_OUT_PINPORT_TAC+_TO_TXBC-
TP1079
1K
R109
TP1000
22
R2150
TP1100
EBI_ADDR17/PCI_CBE1
N1
TP1121
SCL1_5V H2;4:G5;5:E7
4.7K
R2153
D3.3V_BCM
22 R2124
EBI_ADDR17/PCI_CBE1
G7
TP1068
HDMI_SEL_2 6:F4
PCI_REQ1 I8
BCM_TX 4:G2
DVO_3
2.7K R2163
22
R135
4.7K
R199
TP1089
TP1031
PCI_REQ1
N7
LVDS_TX_OUT_PINPORT_TA3+_TO_TXB1-
EBI_ADDR[1-15]
H5
TP1110
LVDS_TX_OUT_PINPORT_TAC-TO_TXBC+
EBI_ADDR23/PCI_DEVSELb
G7
TP1042
4.7K
R195
TP1099
22 R2118
SDA1_5V H2;4:G5;5:E7
REV_SEL0
J5
TP1120
EBI_CSb0
M4
PCI_REQ2 I8
DVO_2
LVDS_TX_OUT_PINPORT_TA4-_TO_TXB0+
PCI_REQ0
N7
22 R2115
22 R2116
LVDS_TX_OUT_PINPORT_TBC-_TO_TXAC+
TP1067
TP1088
TP1032
BCM3553_AUD_MCLK 5:C2;5:H8
1KR110
D3.3V_BCM
22
R2151
TP1109
OPT
R2112
A1.2V_BCM
EBI_WEb1
G9
HDMI_SEL_0 6:F4
TP1176
EBI_ADDR24
J1
TP1077
REV_SEL1
J5
EBI_ADDR16/PCI_CBE0
G6
SCL3_3.3V 4:K9
TP1098
TP1023
LVDS_TX_OUT_PINPORT_TA4+_TO_TXB0-
4.7K
R2161
4.7K
64MB
R102
TP1119
LVDS_TX_OUT_PINPORT_TBC+_TO_TXAC-
+5.0V
TP1004
HDMI_SEL_1 6:F4
0.1uF
16V
C101
TP1066
TP1054
D3.3V_BCM
COMP1_SW 7 : A 7
TP1087
TP1033
0 R2121
0 R2114
TP1108
0.1uF 16V
C127
0.1uF
16V
C103
EBI_DATA[0-15]
N1
REV_SEL2
K8
HDMI_HPD_1 6:D8
LVDS_TX_OUT_PINPORT_TB1+_TO_TXA2-
TP1148
SDA3_3.3V 4:K9
2.7K
R2152
0.1uF 16V
C131
0 R2122
TP1044
0
R2113
TP1097
TP1024
+5.0V
4.7K
R2157
TP1118
4.7K
R198
RGB_SW 7:L7
D3.3V_BCM
4.7K
R194
EBI_ADDR22/PCI_STOPb
G8
TP1065
4.7K
R2162
TP1086
22 R113
TP1107
4.7K
R2139
LVDS_TX_OUT_PINPORT_TB3+_TO_TXA1-
HDMI_HPD_0 6:D2
SCL2_3.3V 4:J2;5:C5
TP1128
0.1uF
16V
C100
0 R2123
SCL1_5V
L9;4:G5;5:E7
S29GL128N90TFIR10
IC101
26
A1
27
NC_2
28
NC_3 29 VIO
30 NC_4
31 A0
32 CE#
33 VSS_1
34 OE#
35 DQ0
36 DQ8
37 DQ1
38 DQ9
39 DQ2
40 DQ10
41 DQ3
42 DQ11
43 VCC
44 DQ4
45 DQ12
46 DQ5
47 DQ13
48 DQ6
49 DQ14
50 DQ7
17
RY/BY#
3
A15
6
A12
16
WP#/ACC
15
A21
14
RESET#
13
WE#
12
A20
11
A19
10
A8
9
A9
8
A10
7
A11
4
A14
5
A13
25
A2
24
A3
23
A4
2
A22
22
A5
21
A6
1
NC_1
20
A7
19
A17
18
A18
51 DQ15/A-1
52 VSS_2
53 BYTE#
54 A16
55 NC_5
56 NC_6
TP1075
TP1096
TP1025
TP1117
REV_SEL0 M8
EBI_ADDR21/PCI_IRDYb
G7
4.7K
R136
4.7K
READY
R101
HDMI_POWER_0 6:C1;6:L1
0
R179
HDMI_HPD_2 6:D5
LVDS_TX_OUT_PINPORT_TB0+_TO_TXA4-
D3.3V_BCM
TP1147
TP1056
4.7K
R2158
TP1085
EBI_ADDR20/PCI_PAR
J2
4.7K
R197
SDA2_3.3V 4:J3;5:C5
TP1106
TP1005
TP1011
SDA1_5V
L9;4:G5;5:E7
0.1uF 16V
C132
22 R112
TP1074
EBI_ADDR[1-15]
J1
TP1095
TP1026
4.7K
R2140
REV_SEL1 M8
+5.0V
LVDS_TX_OUT_PINPORT_TB2-_TO_TXA3+
4.7uF
6.3V
C102
22
R2130
TP1116
22
R2127
EBI_RDb
M3
EBI_ADDR21/PCI_IRDYb
J2
EBI_ADDR18/PCI_CBE2
J3
TP1149
4.7K
R2143
TP1084
TP1105
4.7K
R137
4.7K
R193
4.7K
READY
R100
22
R2125
LVDS_TX_OUT_PINPORT_TA0-_TO_TXB4+
4.7K
R2159
LVDS_TX_OUT_PINPORT_TB3-_TO_TXA1+
4.7K
R196
TP1073
REV_SEL2 M8
0
R2101
EBI_CSb0
G8
TP1094
TP1115
0.1uF 16V
C124
+5.0V
EBI_ADDR23/PCI_DEVSELb
J1
VBR_A
A2.6V_BCM
2.7K
READY
R106
TP1083
TP1037
LVDS_TX_OUT_PINPORT_TA0+_TO_TXB4-
TP1104
TP1013
LVDS_TX_OUT_PINPORT_TB4+_TO_TXA0-
EBI_ADDR19/PCI_CBE3
G7
TP1125
EBI_TA G9
4.7K
R2146
EBI_ADDR19/PCI_CBE3
J3
A2.6V_BCM
TP1072
0 R2119
A3.3V_BCM
COMPOSITE2_SW 7:N6
VBR_B
TP1093
TP1006
TP1114
22 R2117
4.7K
R138
TP1001
DVO_1
LVDS_TX_OUT_PINPORT_TA1-_TO_TXB2+
OPT
R2102
LVDS_TX_OUT_PINPORT_TB0-_TO_TXA4+
2.7KR2149
0 R2120
TP1082
TP1038
BCM3553
IC100
BCM3553
PCI_AD00
AC32
PCI_AD01
AC33
PCI_AD02
AB31
PCI_AD03
AB32
PCI_AD04
AB33
PCI_AD05
AA31
PCI_AD06
AA32
PCI_AD07
Y30
PCI_AD08
Y31
PCI_AD09
Y33
PCI_AD10
Y32
PCI_AD11
AA27
PCI_AD12
AA28
PCI_AD13
AA30
PCI_AD14
AA29
PCI_AD15
Y27
PCI_AD16
U32
PCI_AD17
U33
PCI_AD18
U31
PCI_AD19
T32
PCI_AD20
T33
PCI_AD21
T31
PCI_AD22
W29
PCI_AD23
W30
PCI_AD24
V28
PCI_AD25
V30
PCI_AD26
V29
PCI_AD27
U27
PCI_AD28
U28
PCI_AD29
U29
PCI_AD30
U30
PCI_AD31
T27
PCI_CBE00
AA33
PCI_CBE01
Y28
PCI_CBE02
V32
PCI_CBE03
V27
PCI_CLK_IN
R30
PCI_CLK_OUT
R32
PCI_DEVSEL
W33
PCI_FRAME
V33
PCI_GNT0
P33
PCI_GNT1
N33
PCI_GNT2
T29
PCI_INT_A0
R27
PCI_INT_A1
R31
PCI_INT_A2
R29
PCI_IRDY
V31
PCI_PAR
Y29
PCI_PERR
W28
PCI_REQ0
R28
PCI_REQ1
R34
PCI_REQ2
T28
PCI_RST
T30
PCI_SERR
W27
PCI_STOP
W31
PCI_TRDY
W32
PCI_VIO_0
P29
PCI_VIO_1
P28
PCI_VIO_2
P30
EBI_ADDR24
R33
EBI_ADDR25
P32
EBI_CS0
AD31
EBI_CS1
AE33
EBI_CS2
AD32
EBI_CS3
AC30
EBI_CS4
AD34
EBI_DS
AC29
EBI_RD
AB28
EBI_RW
AB27
EBI_TA2
AB29
EBI_TA
AB30
EBI_TS
N32
EBI_TSIZE0
AD33
EBI_TSIZE1
AC31
EBI_WE0
AC27
EBI_WE1
AC28
NAND_PB
P31
GPIO_00 AJ9
GPIO_01 AH10
GPIO_02 AJ10
GPIO_03 AH11
GPIO_04 AM8
GPIO_05 F29
GPIO_06 D31
GPIO_07 G27
GPIO_08 C33
GPIO_09 F28
GPIO_10 E31
GPIO_11 F31
GPIO_12 AL9
GPIO_13 AP7
GPIO_14 L31
GPIO_15 J33
GPIO_16 AD7
GPIO_17 AC8
GPIO_18 AP8
GPIO_19 AN8
GPIO_20 AM9
GPIO_21 AL10
GPIO_22 AN9
GPIO_23 K32
GPIO_24 K30
GPIO_25 M27
GPIO_26 K31
GPIO_27 L29
GPIO_28 J34
GPIO_29 G30
GPIO_30 G32
GPIO_31 G31
GPIO_32 E29
GPIO_33 L30
GPIO_34 AG33
GPIO_35 AG34
GPIO_36 L33
GPIO_37 M30
GPIO_38 L32
GPIO_39 K33
GPIO_40 AP25
GPIO_41 AN25
GPIO_42 AM10
GPIO_43 AL24
GPIO_44 AL11
GPIO_45 AN10
GPIO_46 M28
GPIO_47 M29
GPIO_48 AF33
GPIO_49 AE32
GPIO_50 AC6
GPIO_51 AE1
GPIO_52 AC7
GPIO_53 AD4
GPIO_54 AE2
GPIO_55 G33
GPIO_56 D33
GPIO_57 J30
GPIO_58 J32
GPIO_59 J31
GPIO_60 H33
GPIO_61 H32
GPIO_62 L28
GPIO_63 L27
SGPIO_00 AD29
SGPIO_01 AD30
SGPIO_02 AE31
SGPIO_03 AE30
SGPIO_04 AD6
SGPIO_05 AD5
SGPIO_06 AE4
SGPIO_07 AE3
TP1103
NAND_PB G9
TP1017
EBI_ADDR16/PCI_CBE0
J1
22
R2128
TP1145
TP1071
2.7K
READY
R105
TP1092
LVDS_TX_OUT_PINPORT_TA1+_TO_TXB2-
OPT
R2103
A3.3V_BCM
BCM3552XKFEB5G
IC100-*1
BCM3552
GND_1
A10
GND_2
A13
GND_3
A16
GND_4
A19
GND_5
A22
GND_6
A25
GND_7
A28
GND_8
A31
GND_9
A32
GND_10
B30
GND_11
B31
GND_12
C4
GND_13
C8
GND_14
C29
GND_15
D3
GND_16
D10
GND_17
D34
GND_18
E9
GND_19
E27
GND_20
F7
GND_21
F8
GND_22
F24
GND_23
F27
GND_24
H8
GND_25
H10
GND_26
H11
GND_27
H12
GND_28
H13
GND_29
H14
GND_30
H15
GND_31
H16
GND_32
H17
GND_33
H18
GND_34
H19
GND_35
H20
GND_36
H21
GND_37
H22
GND_38
H23
GND_39
H24
GND_40
H25
GND_41
H26
GND_42
J9
GND_43
J10
GND_44
L5
GND_45
L7
GND_46
L26
GND_47
M8
GND_48
M26
GND_49
M34
GND_50
N1
GND_51
N8
GND_52
N34
GND_53
P8
GND_54
P14
GND_55
P15
GND_56
P16
GND_57
P17
GND_58
P18
GND_59
P19
GND_60
P20
GND_61
P21
GND_62
R8
GND_63
R14
GND_64
R15
GND_65
R16
GND_66
R17
GND_67
R18
GND_68
R19
GND_69
R20
GND_70
R21
GND_71
R26
GND_72
T1
GND_73
T8
GND_74
T14
GND_75
T15
GND_76
T16
GND_77
T17
GND_78
T18
GND_79
T19
GND_80
T20
GND_81
T21
GND_82
T26
GND_83
T34
GND_84
U8
GND_85
U14
GND_86
U15
GND_87
U16
GND_88
U17
GND_89
U18
GND_90
U19
GND_91
U20
GND_92
U21
GND_93
V8
GND_94
V14
GND_95
V15
GND_96
V16
GND_97
V17
GND_98
V18
GND_99
V19
GND_100
V20
GND_101
V21
GND_102
W1
GND_103
W8
GND_104
W14
GND_105
W15
GND_106
W16
GND_107
W17
GND_108 W18
GND_109 W19
GND_110 W20
GND_111 W21
GND_112 W26
GND_113 W34
GND_114 Y8
GND_115 Y9
GND_116 Y14
GND_117 Y15
GND_118 Y16
GND_119 Y17
GND_120 Y18
GND_121 Y19
GND_122 Y20
GND_123 Y21
GND_124 Y26
GND_125 AA8
GND_126 AA9
GND_127 AA14
GND_128 AA15
GND_129 AA16
GND_130 AA17
GND_131 AA18
GND_132 AA19
GND_133 AA20
GND_134 AA21
GND_135 AB1
GND_136 AB6
GND_137 AB8
GND_138 AB14
GND_139 AB15
GND_140 AB16
GND_141 AB17
GND_142 AB18
GND_143 AB19
GND_144 AB20
GND_145 AB21
GND_146 AB34
GND_147 AC3
GND_148 AC4
GND_149 AC5
GND_150 AC14
GND_151 AC15
GND_152 AC16
GND_153 AC17
GND_154 AC18
GND_155 AC19
GND_156 AC20
GND_157 AC21
GND_158 AC26
GND_159 AD2
GND_160 AD3
GND_161 AD26
GND_162 AD27
GND_163 AD28
GND_164 AE7
GND_165 AE8
GND_166 AE27
GND_167 AE28
GND_168 AE29
GND_169 AE34
GND_170 AF7
GND_171 AF9
GND_172 AF15
GND_173 AF16
GND_174 AF17
GND_175 AF18
GND_176 AF19
GND_177 AF20
GND_178 AF21
GND_179 AF22
GND_180 AF23
GND_181 AF31
GND_182 AF32
GND_183 AG9
GND_184 AG10
GND_185 AG11
GND_186 AG12
GND_187 AG13
GND_188 AG14
GND_189 AG15
GND_190 AG16
GND_191 AG17
GND_192 AG18
GND_193 AG19
GND_194 AG20
GND_195 AG21
GND_196 AG22
GND_197 AG24
GND_198 AG25
GND_199 AG26
GND_200 AG29
GND_201 AG31
GND_202 AH15
GND_203 AH25
GND_204 AH26
GND_205 AH27
GND_206 AH30
GND_207 AJ13
GND_208 AK28
GND_209 AK30
GND_210 AL20
GND_211 AN30
GND_212 AN33
GND_213 AN34
GND_214 AP10
CAT24C08WI-GT
IC102
3
A2
2
A1
4
VSS
1
A0
5SDA
6SCL
7WP
8VCC
75
READY
R185
TP1146
0.1uF 16V
READY
C107
0.01uF
25V
C109
HB-1M1608-102JT
L101
TP1141
560R188
0.1uF
16V
C110
75
READY
R184
A2.6V_BCM
4.7uF
6.3V
C105
75
READY
R186
A3.3V_BCM
TP1143
75
READY
R187
0.1uF
16V
C106
HB-1M1608-102JT
L100
TP1142
0.1uF
C129
HB-1M1608-102JT
L102
0.1uF
16V
C108
0.1uF
C128
A1.2V_BCM
A1.2V_BCM
TP1134
0.1uF 16V
C111
0.1uF 16V
C112
HB-1M1608-102JT
L104
0.1uF 16V
C114
0.1uF 16V
C113
TP1131
A2.6V_BCM
4.7uF 6.3V
C126
HB-1M1608-102JT
L103
TP1135
TP1132
2.7K
R2141
2.7K
R2142
TP1016
TP1130
EBI_ADDR[7]
EBI_ADDR[10]
EBI_DATA[12]
EBI_ADDR[2]
EBI_ADDR[15]
EBI_ADDR[2]
EBI_ADDR[4]
EBI_DATA[10]
EBI_DATA[0]
EBI_ADDR[11]
EBI_ADDR[14]
EBI_ADDR[9]
EBI_DATA[9]
EBI_DATA[5]
EBI_DATA[2]
EBI_ADDR[6]
EBI_ADDR[12]
EBI_ADDR[14]
EBI_ADDR[4]
EBI_ADDR[1-15]
EBI_ADDR[8]
EBI_DATA[5]
EBI_DATA[6]
EBI_ADDR[1]
EBI_DATA[8]
EBI_DATA[13]
EBI_DATA[15]
EBI_DATA[15]
EBI_DATA[14]
EBI_ADDR[12]
EBI_ADDR[6]
EBI_ADDR[5]
EBI_ADDR[7]
EBI_DATA[0]
EBI_DATA[1]
EBI_ADDR[5]
EBI_ADDR[11]
EBI_ADDR[10]
EBI_DATA[12]
EBI_DATA[4]
EBI_DATA[6]
EBI_DATA[1]
EBI_ADDR[13]
EBI_ADDR[8]
EBI_ADDR[13]
EBI_DATA[2]
EBI_DATA[8]
EBI_DATA[11]
EBI_DATA[11]
EBI_DATA[4]
EBI_DATA[9]
EBI_ADDR[15]
EBI_ADDR[3]
EBI_ADDR[3]
EBI_DATA[14]
EBI_DATA[13]
EBI_DATA[3]
EBI_DATA[7]
EBI_DATA[10]
EBI_DATA[3]
EBI_ADDR[9]
EBI_ADDR[1]
EBI_DATA[7]
91 Boot STRAP & FLASH
2007.10.25LA84A/LA85A
Board Configurtion
HDMI_HDCP KEY MEMORY
Bootstrap
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
JP2008
54MHz
X200
TP2024
D3.3V_BCM
READY
ZD207
47uF
25V
C241
2.7uH
L206
0.1uF
16V
C245
47uF
25V
C273
READY
R207
+5.0V
TP2040
TP2020
0.1uF
16V
C279
0.1uF
16V
C274
0R236
0.1uF
C288
JP2007
TP2028
0.1uF
16V
C234
2.7K
R228
USB_PWRFLT1 C4
0.1uF
16V
C280
MBW3216-501TF
L204
TP2047
READY
ZD205
0.1uF
C298
TPS2052BDRG4
IC201
3
EN1
2
IN
4
EN2
1
GND
5OC2
6OUT2
7OUT1
8OC1
4.7uF
6.3V
C235
0.1uF16V
C291
BCM3553
IC100
BCM3553
GND_1
A10
GND_2
A13
GND_3
A16
GND_4
A19
GND_5
A22
GND_6
A25
GND_7
A28
GND_8
A31
GND_9
A32
GND_10
B30
GND_11
B31
GND_12
C4
GND_13
C8
GND_14
C29
GND_15
D3
GND_16
D10
GND_17
D34
GND_18
E9
GND_19
E27
GND_20
F7
GND_21
F8
GND_22
F24
GND_23
F27
GND_24
H8
GND_25
H10
GND_26
H11
GND_27
H12
GND_28
H13
GND_29
H14
GND_30
H15
GND_31
H16
GND_32
H17
GND_33
H18
GND_34
H19
GND_35
H20
GND_36
H21
GND_37
H22
GND_38
H23
GND_39
H24
GND_40
H25
GND_41
H26
GND_42
J9
GND_43
J10
GND_44
L5
GND_45
L7
GND_46
L26
GND_47
M8
GND_48
M26
GND_49
M34
GND_50
N1
GND_51
N8
GND_52
N34
GND_53
P8
GND_54
P14
GND_55
P15
GND_56
P16
GND_57
P17
GND_58
P18
GND_59
P19
GND_60
P20
GND_61
P21
GND_62
R8
GND_63
R14
GND_64
R15
GND_65
R16
GND_66
R17
GND_67
R18
GND_68
R19
GND_69
R20
GND_70
R21
GND_71
R26
GND_72
T1
GND_73
T8
GND_74
T14
GND_75
T15
GND_76
T16
GND_77
T17
GND_78
T18
GND_79
T19
GND_80
T20
GND_81
T21
GND_82
T26
GND_83
T34
GND_84
U8
GND_85
U14
GND_86
U15
GND_87
U16
GND_88
U17
GND_89
U18
GND_90
U19
GND_91
U20
GND_92
U21
GND_93
V8
GND_94
V14
GND_95
V15
GND_96
V16
GND_97
V17
GND_98
V18
GND_99
V19
GND_100
V20
GND_101
V21
GND_102
W1
GND_103
W8
GND_104
W14
GND_105
W15
GND_106
W16
GND_107
W17
GND_108 W18
GND_109 W19
GND_110 W20
GND_111 W21
GND_112 W26
GND_113 W34
GND_114 Y8
GND_115 Y9
GND_116 Y14
GND_117 Y15
GND_118 Y16
GND_119 Y17
GND_120 Y18
GND_121 Y19
GND_122 Y20
GND_123 Y21
GND_124 Y26
GND_125 AA8
GND_126 AA9
GND_127 AA14
GND_128 AA15
GND_129 AA16
GND_130 AA17
GND_131 AA18
GND_132 AA19
GND_133 AA20
GND_134 AA21
GND_135 AB1
GND_136 AB6
GND_137 AB8
GND_138 AB14
GND_139 AB15
GND_140 AB16
GND_141 AB17
GND_142 AB18
GND_143 AB19
GND_144 AB20
GND_145 AB21
GND_146 AB34
GND_147 AC3
GND_148 AC4
GND_149 AC5
GND_150 AC14
GND_151 AC15
GND_152 AC16
GND_153 AC17
GND_154 AC18
GND_155 AC19
GND_156 AC20
GND_157 AC21
GND_158 AC26
GND_159 AD2
GND_160 AD3
GND_161 AD26
GND_162 AD27
GND_163 AD28
GND_164 AE7
GND_165 AE8
GND_166 AE27
GND_167 AE28
GND_168 AE29
GND_169 AE34
GND_170 AF7
GND_171 AF9
GND_172 AF15
GND_173 AF16
GND_174 AF17
GND_175 AF18
GND_176 AF19
GND_177 AF20
GND_178 AF21
GND_179 AF22
GND_180 AF23
GND_181 AF31
GND_182 AF32
GND_183 AG9
GND_184 AG10
GND_185 AG11
GND_186 AG12
GND_187 AG13
GND_188 AG14
GND_189 AG15
GND_190 AG16
GND_191 AG17
GND_192 AG18
GND_193 AG19
GND_194 AG20
GND_195 AG21
GND_196 AG22
GND_197 AG24
GND_198 AG25
GND_199 AG26
GND_200 AG29
GND_201 AG31
GND_202 AH15
GND_203 AH25
GND_204 AH26
GND_205 AH27
GND_206 AH30
GND_207 AJ13
GND_208 AK28
GND_209 AK30
GND_210 AL20
GND_211 AN30
GND_212 AN33
GND_213 AN34
GND_214 AP10
1000pF
50V
C258
TP2044
A3.3V_BCM
1000pF
50V
C262
BCM3553
IC100
BCM3553
BSC_S_SCL
M32
BSC_S_SDA
M31
CLK54_AVDD1P2
AH32
CLK54_AVDD2P5
AG30
CLK54_AVSS
AH31
CLK54_XTAL_N
AH33
CLK54_XTAL_P
AH34
CLK54_MONITOR
AG32
VCXO_AGND1
AF30
VCXO_AVDD1P2
AF29
BYP_XTAL_EN
AH29
BYP_CPU_CLK
N29
BYP_SYS175_CLK
N28
BYP_SYS216_CLK
P27
BYP_DS_CLK
AF28
BYP_SYS9_CLK
AG28
USB_AVSS1
AM13
USB_AVDD1P2
AL12
USB_AVDD1P2PLL
AL13
USB_AVDD2P5
AJ15
USB_AVDD3P3
AK13
USB_RREF
AK15
USB_AVDD2P5REF
AK14
USB_DM1
AP14
USB_DP1
AN14
USB_DM2
AL14
USB_DP2
AM14
USB_MONCDR
AJ14
USB_MONPLLCDR
AH14
USB_PWRFLT_1
AP13
USB_PWRFLT_2
AM12
USB_PWRON_1
AN13
USB_PWRON_2
AN12
RESET_OUT
K34
RESET
AD8
NMI
K29
TMODE_0
AF2
TMODE_1
AF1
TMODE_2
AE6
TMODE_3
AE5
EJTAG_TCK
AG3
EJTAG_TDI
AF3
EJTAG_TDO
AG2
EJTAG_TMS
AF4
EJTAG_CE
AF6
EJTAG_TRST
AF5
PLL_MIPS_AVDD1P2
N31
PLL_MIPS_AGND
N30
PLL_MAIN_MIPS_RPTR_TESTOUT
M33
VCXO_PLL_AUD_TESTOUT
AH28
PLL_DS_TESTOUT
AJ28
PLL_OB_TESTOUT
AJ29
PLL_VAFE_AVDD1P2
AH17
PLL_VAFE_AVSS
AH18
PLL_VAFE_TESTOUT
AH19
DDR1_VDDO2P5_1
P1
DDR1_VDDO2P5_2
U1
DDR1_VDDO2P5_3
Y1
DDR1_VDDO2P5_4
AC1
DDR1_VDDO2P5_5
AB7
DDR1_VDDO2P5_6
N9
DDR1_VDDO2P5_7
P9
DDR1_VDDO2P5_8
R9
DDR1_VDDO2P5_9
T9
DDR1_VDDO2P5_10
U9
DDR1_VDDO2P5_11
V9
DDR1_VDDO2P5_12
W9
DDR1_ADDR00 T3
DDR1_ADDR01 U4
DDR1_ADDR02 U2
DDR1_ADDR03 V2
DDR1_ADDR04 V4
DDR1_ADDR05 V3
DDR1_ADDR06 U3
DDR1_ADDR07 U5
DDR1_ADDR08 U6
DDR1_ADDR09 V5
DDR1_ADDR10 T2
DDR1_ADDR11 V6
DDR1_ADDR12 V7
DDR1_BA0 R2
DDR1_BA1 R3
DDR1_DATA00 AB2
DDR1_DATA01 AA7
DDR1_DATA02 AB3
DDR1_DATA03 AA6
DDR1_DATA04 AA3
DDR1_DATA05 AA2
DDR1_DATA06 AA5
DDR1_DATA07 AA4
DDR1_DATA08 W5
DDR1_DATA09 W2
DDR1_DATA10 W4
DDR1_DATA11 W3
DDR1_DATA12 Y3
DDR1_DATA13 W6
DDR1_DATA14 Y2
DDR1_DATA15 Y4
DDR1_DATA16 R4
DDR1_DATA17 R7
DDR1_DATA18 P2
DDR1_DATA19 P5
DDR1_DATA20 N2
DDR1_DATA21 P4
DDR1_DATA22 P6
DDR1_DATA23 P3
DDR1_DATA24 M6
DDR1_DATA25 M3
DDR1_DATA26 L2
DDR1_DATA27 M4
DDR1_DATA28 M2
DDR1_DATA29 M5
DDR1_DATA30 N4
DDR1_DATA31 N3
DDR1_DM0 Y6
DDR1_DM1 Y5
DDR1_DM2 N5
DDR1_DM3 N6
DDR1_DQS0 Y7
DDR1_DQS1 W7
DDR1_DQS2 P7
DDR1_DQS3 N7
DDR1_RAS T7
DDR1_CAS R5
DDR1_WE R6
EXT_DDR1_CLK M7
DDR1_CLK0 T5
DDR1_CLK0B T4
DDR1_CKE U7
DDR1_CSB0 T6
DDR1_VREF0 AC2
DDR1_VREF1 L1
DDR1_BVDD1P2_0 AB5
DDR1_BVDD1P2_1 L4
DDR1_BVSS_0 AB4
DDR1_BVSS_1 L3
DDR1_PLL_AIO K1
READY
ZD206
USB_DM1
C3
JP2006
TP2030
A1.2V_BCM
TP2039
JP2015
0.1uF
C292 0.1uF
C296
TP2029
USB_PWRON1
C4
22
R233
0.01uF
25V
C225
12pF
50V
C230
TP2046
1000pF
50V
C236
TP2027
JP2017
TP2043
TP2023
0.1uF
16V
C226
A1.2V_BCM
4.7uF
6.3V
C253
TP2026
D1.2V_BCM
0.1uF
C294
10uF
6.3V
C272
10uF
6.3V
C261
604 R220
4.7uF
6.3V
C246
10uF
16V
C277
OPT
R229
READY
JP2014
0.01uF
25V
C237
0.1uF
16V
C289
0.01uF
25V
C259
620
READY
R235
D2.6V_BCM
0.1uF
C293
READY
R208
TP2011
0
R225
0.1uF 16V
C290
3.9K
R206
0.01uF
25V
C252
OPT
R231
READY
10uF
6.3V
C239
120
R241
1000pF
50V
C254
4.7uF
6.3V
C265
=========== ========== CUTTING PIN LIST =========== ==========
A1, A2, A5, A8, A11, A14, A17, A20, A23, A26, A29, A34,
E3, E34, F1, H34, J1,
K10, K11, K12, K13, K14, K15, K16, K17, K18, K19, K20, K21, K22, K23, K24, K25,
L10, L11, L12, L13, L14, L15, L16, L17, L18, L19, L20, L21, L22, L23, L24, L25, L34,
M1, M10, M11, M24, M25,
N10, N11, N24, N25,
P10, P11, P24, P25, P34,
R1, R10, R11, R24, R25,
T10, T11, T24, T25,
U10, U11, U24, U25, U34,
V1, V10, V11, V24, V25,
W10, W11, W24, W25,
Y10, Y11, Y24, Y25, Y34,
AA1, AA10, AA11, AA24, AA25,
AB10, AB11, AB24, AB25,
AC10, AC11, AC24, AC25, AC34,
AD1, AD10, AD11, AD12, AD13, AD14, AD15, AD16, AD17, AD18, AD19, AD20, AD21, AD22, AD23, AD24, AD25,
AE10, AE11, AE12, AE13, AE14, AE15, AE16, AE17, AE18, AE19, AE20, AE21, AE22, AE23, AE24, AE25,
AF34, AG1, AJ34, AK1,
AP1, AP6, AP9, AP12, AP15, AP18, AP21, AP24, AP27, AP30, AP34
BCM3553
IC100
BCM3553
VDDC_1
M12
VDDC_2
M13
VDDC_3
M14
VDDC_4
M15
VDDC_5
M16
VDDC_6
M17
VDDC_7
M18
VDDC_8
M19
VDDC_9
M20
VDDC_10
M21
VDDC_11
M22
VDDC_12
M23
VDDC_13
N12
VDDC_14
N13
VDDC_15
N14
VDDC_16
N15
VDDC_17
N16
VDDC_18
N17
VDDC_19
N18
VDDC_20
N19
VDDC_21
N20
VDDC_22
N21
VDDC_23
N22
VDDC_24
N23
VDDC_25
P12
VDDC_26
P13
VDDC_27
P22
VDDC_28
P23
VDDC_29
R12
VDDC_30
R13
VDDC_31
R22
VDDC_32
R23
VDDC_33
T12
VDDC_34
T13
VDDC_35
T22
VDDC_36
T23
VDDC_37
U12
VDDC_38
U13
VDDC_39
U22
VDDC_40
U23
VDDC_41
V12
VDDC_42
V13
VDDC_43
V22
VDDC_44
V23
VDDC_45
W12
VDDC_46
W13
VDDC_47
W22
VDDC_48
W23
VDDC_49
Y12
VDDC_50
Y13
VDDC_51
Y22
VDDC_52
Y23
VDDC_53
AA12
VDDC_54
AA13
VDDC_55
AA22
VDDC_56
AA23
VDDC_57
AB12
VDDC_58
AB13
VDDC_59
AB22
VDDC_60
AB23
VDDC_61
AC12
VDDC_62
AC13
VDDC_63
AC22
VDDC_64
AC23
VDDO_1
G34
VDDO_2
J26
VDDO_3
K9
VDDO_4
K26
VDDO_5
L8
VDDO_6
L9
VDDO_7
M9
VDDO_8
N26
VDDO_9
P26
VDDO_10
U26
VDDO_11
V26
VDDO_12
V34
VDDO_13
AA26
VDDO_14
AA34
VDDO_15
AB9
VDDO_16
AB26
VDDO_17
AC9
VDDO_18
AD9
VDDO_19
AE9
VDDO_20
AE26
VDDO_21
AF12
VDDO_22
AF13
VDDO_23
AF14
VDDO_24
AF24
VDDO_25
AF25
VDDO_26
AF26
VDDP_1
N27
VDDP_2
AF10
VDDP_3
AF11
VDDP_4
AF27
VDDP_5
AG27
AGC_VDDO1
AJ32
10uF
6.3V
C240
TP2052
1000pF
50V
C266
1000pF
50V
C269
1000pF
50V
C243
D2.6V_BCM
0.01uF
25V
C255
0.01uF
25V
C263
TP2021
0.1uF
16V
C264
12pF
50V
C229
4.7uF
6.3V
C276
0.01uF
25V
C248
D3.3V_BCM
TP2045
HB-1M2012-800JT
L207
TP2042
0.1uF
16V
C238
0.1uF
16V
C271
READY
ZD204
D3.3V_BCM
1000pF
50V
C251
33uF
25V
C242
0.01uF
25V
C267
1000pF
50V
C247
0.1uF
16V
C249
D1.2V_BCM
0.01uF
25V
C244
TP2019 4.7uF
6.3V
C257
0.1uF
16V
C256
0.1uF
C287
+5.0V
HB-1M1608-102JT
L200
HB-1M1608-102JT
L203
HB-1M1608-102JT
L201
GND
HB-1M1608-102JT
L202
TP2018
JP2009
A3.3V_BCM
USB_POWER_OUT_1
F8
USB_PWRON1
D9
A2.6V_BCM
USB_PWRFLT1
F8
USB_DM1
B8
USB_DP1
B8
0.01uF
25V
C270
TP2003
22
R232
TP2017
A1.2V_BCM
A1.2V_BCM
A1.2V_BCM
TP2031
0.01uF
25V
C275
0.1uF
16V
C260
0.01uF
25V
C216
0.1uF
16V
C215
+3.3V
1000pF
50V
C214
TP2016
0.1uF
16V
C212
1000pF
50V
C217
0.01uF
25V
C213
0.1uF
16V
C210
D2.6V_BCM
4.7uF6.3V
C211
33pF
50V
READY
C231
D2.6V_BCM
TP2033
4.7uF
6.3V
C209
0.1uF
16V
C208
TP2041
4.7K
R217
33pF
50V
C232
OPT
R218
1K
R219
EJTAG_RSTb 4:A1
TP2015
OPT
R209
JP2001
JP2000
JP2002
JP2003
JP2004
JP2005
1K AR200
1uF
10V
C228
D3.3V_BCM
OPT
R214
OPT
R215
D1.2V_BCM
OPT
R216
OPT
R213
0R211
4.7uF
6.3V
C250
BCM_RESET
4:C2
4.7K
R210
D3.3V_BCM
RST_OUTb
1:J2
0.1uF
C295
JP2016
TP2025
100K
R212
TP2014
4.7uF6.3V
C204
+3.3V
0.1uF
16V
C203
0.1uF
16V
C202
0
R201
A2.6V_BCM A1.2V_BCM
0.1uF
16V
C201
1K
R230
0
R226
GND
0
R200
54MHz_XTAL_N
H6
USB_DP1
C3
54MHz_XTAL_P
H6
0.1uF
16V
C268
54MHz_XTAL_N C2
0.1uF
C297
USB_POWER_OUT_1
C8
TP2013
54MHz_XTAL_P C2
1.5K
R202 1.5K
R203
100pF 50V
C207
4.7uF
6.3V
C200
TP2032
0.1uF
16V
C205
4.7uF
6.3V
C206
0
R245
READY
0
R246READY
0
R243 READY
0
R244 READY
TP2034
470pF
50V
C223
0.1uF
16V
C218
L211
HB-1M1608-102JT
L208
1uF
6.3V
C220
A1.2V_BCM
470pF
50V
C222
0.1uF
16V
C219
4.7uF C227
TP2035
D1.2V_BCM
1uF
6.3V
C221
0R242
A3.3V_BCM
4.7K R9927
USB DOWN STREAM
KJA-UB-4-0004
JK202
12
3
4
5
TP2012 TP2036
TP2037
SMW250-04
P200
1
2
3
4
9 BCM PO, USB
2007.10.25LA84A/LA85A
2
OWER, USB
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
OPT
R445
220 R432
TP4060
TP4080
D3.3V_BCM
0
R418
OPT
C417
0.1uF
16V
C403
D3.3V_BCM
TP4058
RXD
G1
4.7K
R2409
UCOM_RX
F1
TP4007
47uF
16V
C442
220
R431
0
R400
TXD
G1
TP4029
47K
R448
3.3K
R456
0.1uF
16V
C434
TP4001
TP4016
TP4005
47K
R412
0 R466
SDA3_3.3V
1:L9
TP4021
22
R415
0.047uF
25V
C406
47uF
16V
C422
JP4002
4.7K
R430
3.3VST_MICOM
330
R401
TP4008
TP4000
TP4079
TP4077
HDMI_CEC
6:E2;7:K1
0
R419
TP4022
100
READY
R490
TP4006
TP4032
100
R2425 READY
TP4043
3.3VST_MICOM
47K
R411
TP4057
1KR499
TP4003
100K
R2440
LED_R
F8
0
R2441
OPT C418
GND
GND
JP4001
TP4048
GND
0.33uF 16V C404
GND
0.33uF 16V C407
22R440
TP4056
TP4015
100
R494
3.3VST_MICOM
100
R2427
READY
TP4004
220pF
50V
C409
TP4061
0.1uF
16V
C440
JP4000
TP4035
TP4030
UCOM_TX
G2
0.1uF
16V
C419
3.3VST_MICOM
GND
TP4041
33K
R498
TP4040
TP4049
4.7KR459
100R495
TP4039
15K
R444
100
R2424
READY
3.3VST_MICOM
47K R425
47uF
16V
C424
0 R465
6.8K
R457
22
R436
OPT
R438
100
R454
TP4009
TP4042
1K
R464
EJTAG_RSTb
2:A5 D3.3V_BCM
KDS184 D400
A2
C
A1
TP4023
OPT
R458
24MHz
X400
Power_CTL_3.3V
8:J5
MTV416GMF
IC407
1
HSYNC/P1.5
2
VSYNC/P1.6
3
P1.7/SOGI
4
RST
5
HSCL1/P3.0/RXD
6
P4.3/AD3
7
HSDA1/P3.1/TXD
8
P3.2/INT0
9
P3.3/INT1
10
ISDA/P3.4/T0
11
ISCL/P7.5
12
HSDA2/P7.4
13
HSCL2/P7.3
14
X2
15
X1
16
VSS
17
P4.0/AD0
18
P6.0/CLKO1
19
P6.1
20
P6.2
21
P6.3
22
P6.4
23 P6.5
24 P6.6
25 P6.7
26 P7.2/HCLAMP
27 P7.1/VBLANK
28 P4.1/AD1
29 P7.0/HBLANK
30 P5.7/CLKO2
31 P5.6
32 P5.5
33 P5.4
34 P5.3 35 P5.2 36 P5.1
37 P5.0 38 VDD 39 P4.2/AD2 40 P1.0/ET2 41 P1.1/DA0 42 P1.2/DA1 43 P1.3/DA2 44 P1.4/DA3
100
R2405
0.1uF
16V
C441
10uF
16V
C400
47K
READY
R491
3.3VST_MICOM
GND
D3.3V_BCM
MICOM_RESET
UCOM_TX
I7
0
R404
ST_5V
TP4011
INV_ON/OFF
TXD
C4
SDC15
D401
A1
C
A2
PEJ024-01
JK402
6B T_TERMINAL2
8SHIELD_PLATE
7B B_TERMINAL2
5T_SPRING 4R_SPRING
7A B_TERMINAL1 6A T_TERMINAL1
3E_SPRING
IR
F8
+3.3V
TP4034
BCM_TX
1:J8
220pF
50V
C410
TP4020
TP4078
MC14053BDR2G
0ISTL00024A
IC408
3
Z1
2
Y0
4
Z
1
Y1
6
INH
5
Z0
7
VEE
8
VSS 9C
10 B
11 A
12 X0
13 X1
14 X
15 Y
16 VDD
GND
TP4075
0.1uF
16V
C430
4.7K
R2408
LVDS_PANEL_CTRL
AC_DET
GND
47K
READY
R492
GND
22pF
50V
C436
TP4026
TP4055
IR_FINAL
F3
100
R2400
DDC_SDA
7:L8
3.3VST_MICOM
DDC_SCL
7:L8
TP4024
TP4052
10K R426
SCL3_3.3V
1:L9
100
R429
0
R406
47K R423
Led_Breathing
22
R446
BCM_RESET
2:C4
HB-1M2012-800JT
L416
22
R435
100
R2404
KIA7029AF
IC400
2
G
3O 1
I
+5.0V
TP4002
UCOM_RX
I7
AZ1117H-3.3
IC404
2
OUTPUT
3
INPUT 1ADJ/GND
22pF
50V
C435
GND
GND
TP4027
RXD
GND
0.1uF
16V
C431
KEY1
F7
0.1uF
16V
C408
BCM_RX
1:J8
6.8K
R453
0.33uF 16V C405
0.1uF
16V
C402
Power_CTL_2.6V
8:K4
8.2K R403
0.1uF 16V
C438
0
R407
ST_5V
TP4047
22
R447
10uF
16V
C401
GND
0.1uF
16V
C423
100R433
TP4014
0
R2442
TP4044
SDC15
D402
A1
C
A2
68K
R493
GND
5V_MNT
8:B3
TP4054
TP4059
47K
R413
/W_PROTECT
3.3VST_MICOM
MUTE1
5:C5
TP4031
100uF
16V
C429
TP4050
GND
LED_G
F8
TP4033
IR_FINAL
H7
0.1uF
16V
C428
2SC3875S
Q400
E
B
C
4.7K
R462
KIA7029AF
IC405
2
G
3O 1
I
TP4036
0
R416
22
R2402
OPT
C432
GND
TP4017
100
R2403
TP4025
4.7K
R2406
1KR497
GND
4.7K
R442
100
R452
KEY2
F7
0
R417
+5.0V
SCL2_3.3V
ZD403
0.1uF
16V
C439
GND
GND
0.1uF
16V
C425
GND
ST_5V
ST_5V
TP4019
SDA2_3.3V
OPT R405
TP4028
TP4081
TP4051
AT24C16AN-10SI-2.7
IC406
3A2
2A1
4GND
1A0
5
SDA
6
SCL
7
WP
8
VCC
GND
22
R434
TP4053
RL_ON
MBW3216-501TF
L406
MUTE2
6:N3
22
R439
TP4037
22
R414
0.1uF
C437
GND
GND
22
R2401
4.7K
R441
GND
3.3VST_MICOM
2SC3875S
Q419
E
B
C
4.7K
R2446
EYEQ_SDA
F5
IR
G3
PWM_LED
K3
0.1uF
16V
C443
0.1uF
16V
C444
0.1uF
16V
C445
0.1uF
16V
C446
5pF
READY
C447
ST_5V
LED_G
K4
EYEQ_SCL
F5
KEY2
N8
EYE_Q_RESET
M5
KEY1
N9
0
R2448
+3.3V
0.1uF
16V
C448
0.1uF
16V
C449
LED_R
K4
IR-GND
5pF
READY
C450
0
EYEQR2449
0.1uF
16V
C451
0.1uF 16V
C452
IR-GND
0
EYEQR2450
EYEQ_SDA SDA1_5V
22
R2451
SCL1_5V
EYEQ_SCL
22
R2452
PWM_LED
F8
100 R2423
EYE_Q_RESET
22
R496
+3.3V
1K R402
2.7K
R9930
0
R2458
0
R2459
0
R2460
0
R2461
0
R2462
750
R2407
750 R2421
IR-GND
TMUE312GAB
SW400
12
43
5
100
R455
220
R437
0
R2447
4.7K
R2463
12505WS-08A00
P403
IR_08P_only_26INCH
1
2
3
4
5
6
7
8
9
12505WS-15A00
P404
IR_15P
1SCL_EYEQ
2SDA_EYEQ
3GND
4GND
5KEY_1
6KEY_2
73.3V
85V_ST
9PWM_LED
10 IR
11 EYEQ_RESET
12 GND
13 LED_G
14 LED_R
16
GND
15 GND
MAX3232CDR
IC402
3
C1-
2
V+
4
C2+
1
C1+
6
V-
5
C2-
7
DOUT2
8
RIN2 9ROUT2
10 DIN2
11 DIN1
12 ROUT1
13 RIN1
14 DOUT1
15 GND
16 VCC
KCN-DS-1-0088
JK400
1
2
3
4
5
6
7
8
9
10
47K
Led_Non_Breating
R424
33K
R428
JP4003
JP4004
JP4005
JP4006
JP4007
JP4008
JP4009
JP4010
JP4014
TP4063TP4064
TP4123
TP4090
TP4108 TP4116
TP4107
TP4114 TP4119
TP4121
TP4120
TP4115 TP4118TP4113
TP4085
TP4084
TP4073
TP4072
TP4070
TP4067
TP4066
TP4069
TP4065
TP4071
TP4074
TP4068
TP4083
TP4076
TP4082 TP4111
TP4097
TP4100
TP4096
TP4104
TP4124
TP4099
TP4098
TP4117
TP4106
TP4112TP4109
TP4126
TP4103
TP4105
TP4127
TP4128
TP4129
TP4130
TP4122
TP4087
TP4086
TP4010
TP4125
TP4101
TP4093
UBW2012-121F
L417
UBW2012-121F
L418
UBW2012-121F
L420
UBW2012-121F
L421
UBW2012-121F
L422
UBW2012-121F
L423
AT24C512W-10SI-2.7
IC403
3
NC
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
0
R408
READY
74LVC14APW
IC401
3
2A
2
1Y
4
2Y
1
1A
6
3Y
5
3A
7
GND 84Y
94A
10 5Y
11 5A
12 6Y
13 6A
14 VCC
0
R409
IR_GND
0
R410
IR_GND
UBW2012-121F
L419
IR-GND
IR-GND
IR-GND
0
R451
READY
Power_CTL_1.2V 8:G10
0
R420
NVRAM
RESET
Serial Port
RxD
TxD
9 MICOM, TTL
2007.10.25LA84A/LA85A
4
Detect +3.3V for Power Sequence(BCM 1.2V, 2.6V, 3.3V)
Key1
Key2
GND
ST_5V
GND
IR
LED G
LED R
OPTION FOR LED
R423: For 32~52Inch
R424: For 26Inch
MAIN & IR GND PART CONNECTION
75
R3009
DDR0_CASb
0.1uF
16V
C314
128MB
150
R3137
75
R3175
470pF
50V
C389
75
R3168
33
R3005
0.01uF
50V
C354
75R3069
75
R3184
128MB
150
R3131
DDR0_RASb
DDR0_CKE
100uF
16V
C358
0.01uF
25V
C322
DDR0_DQM7
K3
DDR0_ADDR[0-12]
A5;F1;F4;F8;L1
470pF
50V
C325
470pF
50V
C390
33 R3142
150
R3110
75R3071
128MB
33
R3050
D2.6V_BCM
75
R3147
128MB
0.01uF
50V
C360
0.1uF
16V
C363
DDR0_DQM_4
J10
DDR0_DQM0
DDR0_CLK1
DDR0_DQM_4
F7
1000pF
50V
C345
D2.6V_BCM
0.01uF
25V
C380
33
R3006
DDR0_CASb
0.1uF
16V
C2604
DDR0_DQS5
L4
470pF
50V
C315
128MB
75
R3199
128MB
75
R3204
128MB
DDR0_CASb
200
R3003
128MB
4.7uF
C397
33
R3007
DDR0_DQM_1
A8
470pF
50V
C388
DDR0_WEb
D2.6V_BCM
33
AR316
128MB
DDR0_VTT
DDR0_WEb
DDR0_CKE
C4;C8;E4;F8;G7
0.1uF
16V
C321
DDR0_DQS6
75
R3180
75
R3153
0.1uF
16V
C349
33
AR308
128MB
DDR0_DQM3
K3
0.1uF
16V
C3005
DDR0_CLK1b
F3;L4
DDR0_BA_1
K3
200
R3002
128MB
DDR0_DQM6
DDR0_VTT
DDR0_ADDR[0-12]
DDR0_RASb
2.2uF
10V
C357
0.1uF
16V
C355
33
R3019
128MB
33
R3018
128MB
DDR0_BA0
75
R3181
DDR0_DQM1
75
R3176
128MB
DDR0_BA_0
0.1uF
16V
C346
2700pF
50V
C330
0.01uF
25V
C395
150
R3114
DDR0_CLK0
0.1uF
16V
C3013
0.01uF
25V
C383
0.1uF
16V
C3001
DDR0_DQS0
L3
D2.6V_BCM
75
R3187
128MB
100uF
16V
C326
DDR0_DQM_2
C3
DDR0_DQM_7
J9
75
R3202
D2.6V_BCM
DDR0_BA1
75
R3182
1/16W
22
AR356
75
R3156
300
R3126
75
R3178
33
R3143
128MB
1000pF
50V
C342
D2.6V_BCM
DDR0_RASb
ACM2012-361-2P-T-002
L301
128MB
1
23
4
DDR0_DQS4
DDR0_ADDR[0-12]
A9;F1;F4;F8;L1
33
AR302
0.01uF
25V
C385
33
AR305
128MB
BCM3553
IC100
BCM3553
DDR0_DATA00
B9
DDR0_DATA01
F10
DDR0_DATA02
C10
DDR0_DATA03
E10
DDR0_DATA04
E12
DDR0_DATA05
B10
DDR0_DATA06
G10
DDR0_DATA07
D11
DDR0_DATA08
F13
DDR0_DATA09
C12
DDR0_DATA10
E13
DDR0_DATA11
B12
DDR0_DATA12
D12
DDR0_DATA13
G12
DDR0_DATA14
B11
DDR0_DATA15
C11
DDR0_DATA16
B13
DDR0_DATA17
G13
DDR0_DATA18
D14
DDR0_DATA19
E14
DDR0_DATA20
E15
DDR0_DATA21
B14
DDR0_DATA22
F14
DDR0_DATA23
C14
DDR0_DATA24
E16
DDR0_DATA25
B16
DDR0_DATA26
G16
DDR0_DATA27
C16
DDR0_DATA28
C15
DDR0_DATA29
D16
DDR0_DATA30
B15
DDR0_DATA31
D15
DDR0_DATA32
B20
DDR0_DATA33
F20
DDR0_DATA34
D20
DDR0_DATA35
F21
DDR0_DATA36
C21
DDR0_DATA37
B21
DDR0_DATA38
E21
DDR0_DATA39
E20
DDR0_DATA40
F23
DDR0_DATA41
D22
DDR0_DATA42
G23
DDR0_DATA43
B23
DDR0_DATA44
C22
DDR0_DATA45
E23
DDR0_DATA46
B22
DDR0_DATA47
D21
DDR0_DATA48
B24
DDR0_DATA49
E24
DDR0_DATA50
C24
DDR0_DATA51
G25
DDR0_DATA52
C25
DDR0_DATA53
D24
DDR0_DATA54
F25
DDR0_DATA55
B25
DDR0_DATA56
D27
DDR0_DATA57
B27
DDR0_DATA58
C28
DDR0_DATA59
B28
DDR0_DATA60
C26
DDR0_DATA61
C27
DDR0_DATA62
D25
DDR0_DATA63
B26
DDR0_ADDR00 C19
DDR0_ADDR01 D18
DDR0_ADDR02 B18
DDR0_ADDR03 B17
DDR0_ADDR04 D17
DDR0_ADDR05 C17
DDR0_ADDR06 C18
DDR0_ADDR07 G18
DDR0_ADDR08 E18
DDR0_ADDR09 G17
DDR0_ADDR10 B19
DDR0_ADDR11 F17
DDR0_ADDR12 E17
DDR0_BA0 C20
DDR0_BA1 D19
DDR0_DM0 F11
DDR0_DM1 G11
DDR0_DM2 F15
DDR0_DM3 G15
DDR0_DM4 E22
DDR0_DM5 F22
DDR0_DM6 F26
DDR0_DM7 D26
DDR0_DQS0 E11
DDR0_DQS1 F12
DDR0_DQS2 G14
DDR0_DQS3 F16
DDR0_DQS4 G21
DDR0_DQS5 G22
DDR0_DQS6 E25
DDR0_DQS7 E26
DDR0_RAS E19
DDR0_CAS G19
DDR0_WE G20
EXT_DDR0_CLK G26
DDR0_CLK0 C13
DDR0_CLK0B D13
DDR0_CLK1 D23
DDR0_CLK1B C23
DDR0_CKE F18
DDR0_CSB0 F19
DDR0_VREF0 B8
DDR0_VREF1 B29
DDR0_BVDD1P2_0 D9
DDR0_BVDD1P2_1 D28
DDR0_BVSS_0 C9
DDR0_BVSS_1 D29
DDR0_PLL_AIO A30
DDR0_VDDO2P5_1 A9
DDR0_VDDO2P5_2 A12
DDR0_VDDO2P5_3 A15
DDR0_VDDO2P5_4 A18
DDR0_VDDO2P5_5 A21
DDR0_VDDO2P5_6 A24
DDR0_VDDO2P5_7 A27
DDR0_VDDO2P5_8 F9
DDR0_VDDO2P5_9 J11
DDR0_VDDO2P5_10 J12
DDR0_VDDO2P5_11 J13
DDR0_VDDO2P5_12 J14
DDR0_VDDO2P5_13 J15
DDR0_VDDO2P5_14 J16
DDR0_VDDO2P5_15 J17
DDR0_VDDO2P5_16 J18
DDR0_VDDO2P5_17 J19
DDR0_VDDO2P5_18 J20
DDR0_VDDO2P5_19 J21
DDR0_VDDO2P5_20 J22
DDR0_VDDO2P5_21 J23
DDR0_VDDO2P5_22 J24
DDR0_VDDO2P5_23 J25
DDR0_VDDO2P5_24 G24
0.1uF
16V
C3006
33
R3049
300
R3117
0.1uF
16V
C361
DDR0_ADDR10
DDR0_DQS5
75
R3205
128MB
1000pF
50V
C373
DDR0_CASb
DDR0_DQM2
DDR0_DQM4
300
R3115
0.01uF
25V
C393
0.1uF
16V
C3014
DDR0_WEb
DDR0_ADDR10
K3
10
AR355
75
R3164
75
R3171
D2.6V_BCM
0.01uF
25V
C347
0.1uF
16V
C3009
33
AR315
128MB
300
R3135
75R3066
75R3068
D2.6V_BCM
150
R3129
0.01uF
25V
C302
0.1uF
16V
C327
75
R3070
128MB
300
R3099
0.1uF
16V
C318
128MB
100uF
16V
C306
150
R3130
470pF
50V
C387
DDR0_REF
D2.6V_BCM
0.01uF
25V
C381
DDR0_DQM_3
B3
DDR0_DQM_0
C8
1000pF
50V
C371
DDR0_CSBb
300
R3100
75
R3166
150
R3122
300
R3116
0.01uF
25V
C377
DDR0_DQS7
L4
DDR0_DQM0
K3
0.1uF
16V
C316
DDR0_CASb
75
R3172
128MB
33
R3055 128MB
33
R3145
128MB
1uF
6.3V
C335
150
R3111
0.01uF
25V
C379
2700pF
50V
C310
0.1uF
16V
C365
33
AR311
D2.6V_BCM
DDR0_CLK0b
33
R3138
33 R3144
128MB
0.1uF
16V
C367
75
R3189
128MB
0.01uF
25V
C386
75
R3197
1000pF
50V
C372
0.1uF
16V
C307
DDR0_BA_1
DDR0_DQS2
33
R3139
75
R3186
0.01uF
25V
C378
300
R3112
75
R3152
128MB
300
R3124
75
R3198
0.1uF
16V
C364
DDR0_CSBb
10
AR354
0.1uF
16V
C3010
DDR0_DQM1
K3
DDR0_DQS1
75
R3159
33
R3053 128MB
DDR0_DQS4
L4
DDR0_DQS0
300
R3120
0.1uF
16V
C3004
0.047uF
25V
C329
200
R3000
0.01uF
25V
C382
150
R3102
300
R3101
75
R3201
128MB
470pF
50V
C336
0.1uF
16V
C366
150
R3106
300
R3133
DDR0_CLK0
75
R3149
128MB
10
AR353
DDR0_DQM6
K3
0.01uF
25V
C344
D2.6V_BCM
DDR0_VTT
33 R3140
128MB
470pF
50V
C374
DDR0_VTT
DDR0_BA0
75
R3158
0
R3048
D2.6V_BCM
75
R3191
0.1uF
16V
C3008
0.1uF
C2603
DDR0_ADDR[0-12]
A9;A5;F1;F4;L1
75
R3162
128MB
10uF
6.3V
C339
0.01uF
50V
C356
1000pF
50V
C348
470pF
50V
C311
DDR0_ADDR[0-12]
DDR0_CLK0b
33
AR309
0.01uF
25V
C308
75
R3200
128MB
A1.2V_BCM
33
AR303
DDR0_DQM_6
F3
0.1uF
C2602
DDR0_CLK1b
DDR0_CKE
DDR0_DQM5
K3
300
R3103
DDR0_CKE
0.047uF
25V
C303
300
R3107
DDR0_REF
0.1uF
16V
C343
75
R3169
DDR0_DQM_6
J9
33
R3017
128MB
DDR0_CSBb
150
R3136
DDR0_BA0
0.01uF
25V
C376
75
R3155
128MB
75
R3012
DDR0_DQS6
L4
33
AR306
128MB
33
R3016
128MB
D2.6V_BCM 75
R3042
128MB
DDR0_VTT
470pF
50V
C391
75
R3207
128MB
300
R3134
0.1uF
16V
C3012
75
R3170
128MB
75
R3150
DDR0_BA0
75
R3193
75
R3209
128MB
DDR0_BA1
1uF
6.3V
C334
300
R3109
1uF
10V
C359
DDR0_RASb
100uF
16V
C300
33
AR310
75
R3163
128MB
75
R3183
128MB
1000pF
50V
C351
33
AR313
128MB
75
R3173
128MB
ACM2012-361-2P-T-002
L302
1
23
4
100uF
16V
C353
75R3073
128MB
0.01uF
25V
C328
33R3052
DDR0_DQM4
K3
33
AR304
DDR0_BA0
0.01uF
25V
C394
1000pF
50V
C368
470pF
50V
C313
75
R3043
128MB
75
R3157
128MB
200
R3001
DDR0_REF
33
AR312
DDR0_BA1
DDR0_DQM_5
D7
75R3067
0.01uF
25V
C392
DDR0_CLK0
470pF
50V
C375
33
AR307
128MB
75
R3154
128MB
470pF
50V
C331
DDR0_RASb
150
R3121
33
AR301
D2.6V_BCM
300
R3098
SC2595STR
IC304
3
V_SENSE
2
GND
4
VREF
1
NC
5VDDQ
6AVCC
7PVCC
8VTT
0.1uF
16V
C333
75
R3195
DDR0_DQM_1
75
R3151
470pF
50V
C317
DDR0_DQM_7
D3
33
R3051
DDR0_CSBb
300
R3108
0.1uF
16V
C301
DDR0_DQ[0-63]
I1
DDR0_VTT
75
R3203
DDR0_DQS3
0.1uF
16V
C3002
75
R3160
150
R3125
DDR0_CLK1b
75
R3194
75R3072
128MB
75
R3179
DDR0_CLK0b
0.047uF
25V
C309
DDR0_BA_0
K3
DDR0_WEb
75
R3148
33
R3056 128MB
0.1uF
16V
C3016
DDR0_BA1
DDR0_BA0
300
R3128
0.1uF 16V
C332
DDR0_CKE
75
R3196
128MB
2700pF
50V
C324
DDR0_BA1
470pF
50V
C319
128MB
75
R3174
75
R3167
HB-1M1608-102JT
L300
DDR0_DQM2
K3
75
R3041
128MB
0.1uF
16V
C398
75
R3192
128MB
75
R3161
DDR0_DQS3
L3
DDR0_DQS7
300
R3132
0.047uF
25V
C323
300
R3123
22R3057
150
R3118
0.01uF
25V
C384
0.1uF
16V
C3007
300
R3105
300
R3127
0.01uF
25V
C341
0.1uF
16V
C362
DDR0_DQS1 L3
DDR0_DQM5
470pF
50V
C305
100uF
16V
C320
100uF
16V
C352
DDR0_VTT
300
R3113
DDR0_CLK1
75
R3040
128MB
33
R3054 128MB
300
R3119
DDR0_REF
DDR0_DQM7
DDR0_DQM3
0.1uF
16V
C3015
0.1uF
16V
C3011
75
R3008
DDR0_DQM_2
0.1uF
16V
C312
DDR0_REF
33
AR314
128MB
33 R3141
75
R3013
DDR0_DQS2
L3
DDR0_CLK1
F4;L4
75
R3146
128MB
DDR_DATA[0-63]
A3;L1
75
R3206
128MB 1000pF
50V
C370
DDR0_VTT
33
R3004
DDR0_WEb
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
300
R3104
0.01uF
25V
C396
DDR_DATA[0-63]
H1;L1
DDR0_DQ[0-63]
I1
1uF
10V
C3003
DDR0_DQM_5
J9
DDR0_ADDR[0-12]
A9;A5;F1;F4;F8
DDR0_DQM_0
I9
0.01uF
25V
C350
75
R3165
DDR_DATA[0-63]
A3;H1
DDR0_CASb
1000pF
50V
C369
2700pF
50V
C304
DDR0_WEb
DDR0_CSBb
75
R3190
128MB
75
R3177
128MB
DDR0_BA1
0.1uF
16V
C3017
DDR0_RASb
DDR0_DQM_3
I9
0.1uF
16V
C340
75
R3185
128MB
DDR0_VTT
75
R3188
128MB
10
AR352
470pF
50V
C337
DDR0_CSBb
DDR0_REF
75
R3208
128MB
DDR0_CKE
22R3210
22R3211
22R3212 128MB
22R3213
128MB
HY5DU561622FTP-D43-C
IC301
26
BA0
27
BA1
28
A10/AP
29
A0
30
A1
31
A2
32
A3
33
VDD_3 34 VSS_1
35 A4
36 A5
37 A6
38 A7
39 A8
40 A9
41 A11
42 A12
43 NC_5
44 CKE
45 CK
46 /CK
47 UDM
48 VSS_2
49 VREF
50 NC_6 17
NC_2
3
VDDQ_1
6
VSSQ_1
16
LDQS
15
VDDQ_3
14
NC_1
13
DQ7
12
VSSQ_2
11
DQ6
10
DQ5
9
VDDQ_2
8
DQ4
7
DQ3
4
DQ1
5
DQ2
25
NC_4
24
/CS
23
/RAS
2
DQ0
22
/CAS
21
/WE
1
VDD_1
20
LDM
19
NC_3
18
VDD_2
51 UDQS
52 VSSQ_3
53 NC_7
54 DQ8
55 VDDQ_4
56 DQ9
57 DQ10
58 VSSQ_4
59 DQ11
60 DQ12
61 VDDQ_5
62 DQ13
63 DQ14
64 VSSQ_5
65 DQ15
66 VSS_3
HY5DU561622FTP-D43-C
IC303
26
BA0
27
BA1
28
A10/AP
29
A0
30
A1
31
A2
32
A3
33
VDD_3 34 VSS_1
35 A4
36 A5
37 A6
38 A7
39 A8
40 A9
41 A11
42 A12
43 NC_5
44 CKE
45 CK
46 /CK
47 UDM
48 VSS_2
49 VREF
50 NC_6 17
NC_2
3
VDDQ_1
6
VSSQ_1
16
LDQS
15
VDDQ_3
14
NC_1
13
DQ7
12
VSSQ_2
11
DQ6
10
DQ5
9
VDDQ_2
8
DQ4
7
DQ3
4
DQ1
5
DQ2
25
NC_4
24
/CS
23
/RAS
2
DQ0
22
/CAS
21
/WE
1
VDD_1
20
LDM
19
NC_3
18
VDD_2
51 UDQS
52 VSSQ_3
53 NC_7
54 DQ8
55 VDDQ_4
56 DQ9
57 DQ10
58 VSSQ_4
59 DQ11
60 DQ12
61 VDDQ_5
62 DQ13
63 DQ14
64 VSSQ_5
65 DQ15
66 VSS_3
HY5DU561622FTP-D43-C
IC302
26
BA0
27
BA1
28
A10/AP
29
A0
30
A1
31
A2
32
A3
33
VDD_3 34 VSS_1
35 A4
36 A5
37 A6
38 A7
39 A8
40 A9
41 A11
42 A12
43 NC_5
44 CKE
45 CK
46 /CK
47 UDM
48 VSS_2
49 VREF
50 NC_6 17
NC_2
3
VDDQ_1
6
VSSQ_1
16
LDQS
15
VDDQ_3
14
NC_1
13
DQ7
12
VSSQ_2
11
DQ6
10
DQ5
9
VDDQ_2
8
DQ4
7
DQ3
4
DQ1
5
DQ2
25
NC_4
24
/CS
23
/RAS
2
DQ0
22
/CAS
21
/WE
1
VDD_1
20
LDM
19
NC_3
18
VDD_2
51 UDQS
52 VSSQ_3
53 NC_7
54 DQ8
55 VDDQ_4
56 DQ9
57 DQ10
58 VSSQ_4
59 DQ11
60 DQ12
61 VDDQ_5
62 DQ13
63 DQ14
64 VSSQ_5
65 DQ15
66 VSS_3
HY5DU561622FTP-D43-C
IC300
26
BA0
27
BA1
28
A10/AP
29
A0
30
A1
31
A2
32
A3
33
VDD_3 34 VSS_1
35 A4
36 A5
37 A6
38 A7
39 A8
40 A9
41 A11
42 A12
43 NC_5
44 CKE
45 CK
46 /CK
47 UDM
48 VSS_2
49 VREF
50 NC_6 17
NC_2
3
VDDQ_1
6
VSSQ_1
16
LDQS
15
VDDQ_3
14
NC_1
13
DQ7
12
VSSQ_2
11
DQ6
10
DQ5
9
VDDQ_2
8
DQ4
7
DQ3
4
DQ1
5
DQ2
25
NC_4
24
/CS
23
/RAS
2
DQ0
22
/CAS
21
/WE
1
VDD_1
20
LDM
19
NC_3
18
VDD_2
51 UDQS
52 VSSQ_3
53 NC_7
54 DQ8
55 VDDQ_4
56 DQ9
57 DQ10
58 VSSQ_4
59 DQ11
60 DQ12
61 VDDQ_5
62 DQ13
63 DQ14
64 VSSQ_5
65 DQ15
66 VSS_3
DDR0_DQ[10]
DDR0_DQ[46]
DDR_DATA[0]
DDR0_DQ[5]
DDR0_DQ[11]
DDR_DATA[44]
DDR0_DQ[36]
DDR_DATA[42]
DDR_DATA[5]
DDR_DATA[26]
DDR0_ADDR[10]
DDR_DATA[7]
DDR_DATA[31]
DDR_DATA[33]
DDR0_DQ[38]
DDR0_ADDR08
DDR0_ADDR[7]
DDR_DATA[3]
DDR_DATA[16]
DDR_DATA[55]
DDR_DATA[12]
DDR0_ADDR[11]
DDR0_DQ[20]
DDR_DATA[0-63]
DDR_DATA[60]
DDR0_ADDR[12]
DDR0_DQ[9]
DDR_DATA[25]
DDR0_ADDR[8]
DDR_DATA[5]
DDR_DATA[7]
DDR0_ADDR[11]
DDR0_DQ[8]
DDR0_DQ[33]
DDR0_DQ[18]
DDR0_DQ[40]
DDR0_DQ[16]
DDR0_DQ[0-63]
DDR_DATA[4]
DDR_DATA[0-63]
DDR0_DQ[32]
DDR0_DQ[53]
DDR0_DQ[4]
DDR0_DQ[28]
DDR0_DQ[2]
DDR0_DQ[63]
DDR0_DQ[41]
DDR0_DQ[29]
DDR0_DQ[35]
DDR0_ADDR[2]
DDR0_DQ[14]
DDR0_DQ[3]
DDR_DATA[24]
DDR0_ADDR[12]
DDR0_ADDR[10]
DDR0_ADDR[12]
DDR0_DQ[43]
DDR_DATA[15]
DDR_DATA[31]
DDR_DATA[28]
DDR0_DQ[35]
DDR0_ADDR[12]
DDR_DATA[36]
DDR0_ADDR06
DDR0_DQ[45]
DDR0_ADDR01
DDR0_ADDR[8]
DDR_DATA[33]
DDR_DATA[38]
DDR_DATA[39]
DDR0_ADDR[9]
DDR0_DQ[24]
DDR0_BA1
DDR0_DQ[31]
DDR_DATA[2]
DDR_DATA[49]
DDR_DATA[48]
DDR0_DQ[61]
DDR0_ADDR[4]
DDR0_ADDR[10]
DDR0_DQ[19]
DDR0_DQ[44]
DDR_DATA[0-63]
DDR_DATA[38]
DDR0_DQ[29]
DDR_DATA[23]
DDR0_ADDR[12]
DDR0_CLK0b_L302
DDR0_DQ[13]
DDR_DATA[60]
DDR0_DQ[37]
DDR_DATA[52]
DDR0_DQ[24]
DDR_DATA[20]
DDR0_ADDR[8]
DDR0_DQ[47]
DDR_DATA[34]
DDR_DATA[2]
DDR_DATA[10]
DDR_DATA[37]
DDR_DATA[22]
DDR_DATA[30]
DDR0_DQ[37]
DDR0_ADDR[0]
DDR0_DQ[62]
DDR0_ADDR[6]
DDR0_DQ[30]
DDR_DATA[19]
DDR0_ADDR[3]
DDR0_DQ[20]
DDR0_DQ[0]
DDR0_ADDR[0]
DDR_DATA[14]
DDR_DATA[51]
DDR_DATA[1]
DDR_DATA[8]
DDR_DATA[30]
DDR0_DQ[6]
DDR_DATA[39]
DDR_DATA[14]
DDR_DATA[35]
DDR0_DQ[12]
DDR0_ADDR10
DDR_DATA[9]
DDR_DATA[15]
DDR_DATA[56]
DDR_DATA[23]
DDR_DATA[18]
DDR_DATA[49]
DDR0_DQ[32]
DDR0_ADDR[10]
DDR_DATA[62]
DDR_DATA[44]
DDR_DATA[1]
DDR0_ADDR[8]
DDR_DATA[59]
DDR_DATA[29]
DDR0_DQ[55]
DDR_DATA[30]
DDR_DATA[48]
DDR0_DQ[18]
DDR_DATA[6]
DDR0_ADDR[9]
DDR_DATA[11]
DDR0_DQ[15]
DDR_DATA[17]
DDR0_ADDR[4]
DDR0_ADDR[11]
DDR_DATA[23]
DDR_DATA[40]
DDR0_DQ[58]
DDR_DATA[44]
DDR0_DQ[57]
DDR_DATA[11]
DDR0_DQ[40]
DDR0_ADDR[2]
DDR0_DQ[19] DDR_DATA[28]
DDR0_DQ[12]
DDR0_DQ[15]
DDR_DATA[57]
DDR0_ADDR[11]
DDR_DATA[34]
DDR_DATA[50]
DDR_DATA[4]
DDR_DATA[16]
DDR0_ADDR[4]
DDR_DATA[35]
DDR_DATA[40]
DDR0_ADDR[8]
DDR_DATA[22]
DDR0_ADDR[0]
DDR0_ADDR[7]
DDR0_ADDR03
DDR0_ADDR05
DDR0_DQ[58]
DDR_DATA[47]
DDR_DATA[37]
DDR0_DQ[27]
DDR_DATA[29]
DDR0_ADDR[1]
DDR0_ADDR[3]
DDR0_ADDR[11]
DDR_DATA[45]
DDR_DATA[49]
DDR0_ADDR[9]
DDR_DATA[11]
DDR_DATA[21]
DDR_DATA[9]
DDR0_ADDR12
DDR_DATA[50]
DDR0_ADDR[1]
DDR0_ADDR[6]
DDR_DATA[6]
DDR_DATA[50]
DDR0_DQ[44]
DDR_DATA[21]
DDR0_DQ[42]
DDR0_DQ[47]
DDR0_ADDR10
DDR_DATA[48]
DDR0_DQ[41]
DDR0_DQ[53]
DDR_DATA[0]
DDR0_DQ[1]
DDR_DATA[10]
DDR_DATA[14]
DDR0_DQ[9]
DDR_DATA[8]
DDR_DATA[37]
DDR0_DQ[5]
DDR0_DQ[62]
DDR0_BA_0
DDR0_DQ[21]
DDR0_DQ[55]
DDR_DATA[5]
DDR0_DQ[10]
DDR0_ADDR[9]
DDR_DATA[36]
DDR0_ADDR[8]
DDR_DATA[41]
DDR_DATA[43]
DDR0_DQ[2]
DDR0_DQ[39]
DDR0_DQ[11]
DDR_DATA[13]
DDR0_DQ[54]
DDR_DATA[0]
DDR_DATA[12]
DDR_DATA[3]
DDR_DATA[0-63]
DDR0_DQ[25]
DDR0_DQ[21]
DDR0_ADDR[5]
DDR_DATA[39]
DDR0_ADDR[1]
DDR_DATA[56]
DDR_DATA[13]
DDR0_DQ[36]
DDR0_DQ[59]
DDR0_DQ[51]
DDR0_ADDR[6]
DDR0_ADDR[1]
DDR_DATA[42]
DDR_DATA[27]
DDR_DATA[12]
DDR0_ADDR[7]
DDR0_DQ[52]
DDR_DATA[53]
DDR_DATA[2]
DDR0_DQ[4]
DDR_DATA[51]
DDR_DATA[47]
DDR_DATA[29]
DDR0_DQ[48]
DDR0_DQ[1]
DDR0_DQ[3]
DDR0_DQ[59]
DDR0_ADDR[6]
DDR0_ADDR[9]
DDR_DATA[60]
DDR_DATA[52]
DDR0_ADDR[2]
DDR0_ADDR07
DDR0_ADDR[3]
DDR_DATA[63]
DDR_DATA[41]
DDR0_DQ[31]
DDR_DATA[7]
DDR0_DQ[39]
DDR0_ADDR[2]
DDR_DATA[1]
DDR_DATA[22]
DDR0_DQ[54]
DDR0_DQ[27]
DDR0_DQ[26]
DDR_DATA[54]
DDR0_DQ[25]
DDR_DATA[9]
DDR0_ADDR[4]
DDR0_DQ[13]
DDR_DATA[61]
DDR0_DQ[52]
DDR0_DQ[46]
DDR0_DQ[63]
DDR0_DQ[0]
DDR0_ADDR[5]
DDR_DATA[40]
DDR0_DQ[23]
DDR_DATA[26]
DDR0_ADDR[5]
DDR0_ADDR02
DDR_DATA[59]
DDR_DATA[56]
DDR_DATA[58]
DDR_DATA[21]
DDR_DATA[61]
DDR0_ADDR[10]
DDR_DATA[10]
DDR0_ADDR[2]
DDR_DATA[19]
DDR0_ADDR[7]
DDR_DATA[62]
DDR_DATA[32]
DDR0_DQ[34]
DDR_DATA[63]
DDR0_DQ[34]
DDR0_DQ[22]
DDR_DATA[28]
DDR0_ADDR[0]
DDR_DATA[55]
DDR0_DQ[43]
DDR_DATA[13]
DDR0_ADDR04
DDR_DATA[58]
DDR_DATA[54]
DDR0_ADDR[5]
DDR_DATA[8]
DDR0_DQ[61]
DDR0_ADDR09
DDR0_ADDR[0]
DDR0_DQ[45]
DDR0_DQ[60]
DDR_DATA[27]
DDR_DATA[46]
DDR_DATA[52]
DDR_DATA[31]
DDR0_ADDR[3]
DDR0_ADDR[4]
DDR_DATA[43]
DDR0_ADDR[11]
DDR0_DQ[57]
DDR_DATA[57]
DDR0_DQ[60]
DDR_DATA[43]
DDR_DATA[58]
DDR_DATA[46]
DDR0_ADDR[3]
DDR_DATA[6]
DDR0_DQ[49]
DDR0_DQ[49]
DDR0_DQ[48]
DDR_DATA[26]
DDR_DATA[53]
DDR0_DQ[56]
DDR_DATA[47]
DDR0_DQ[38]
DDR_DATA[59]
DDR0_DQ[26]
DDR_DATA[4]
DDR_DATA[54]
DDR_DATA[25]
DDR_DATA[35]
DDR0_ADDR[9]
DDR0_ADDR[12]
DDR_DATA[61]
DDR_DATA[55]
DDR0_DQ[22]
DDR0_ADDR[7]
DDR_DATA[25]
DDR0_ADDR[6]
DDR0_ADDR[10]
DDR_DATA[0-63]
DDR_DATA[16]
DDR0_DQ[7]
DDR_DATA[45]
DDR0_ADDR[0] DDR0_DQ[50]
DDR_DATA[53]
DDR0_ADDR[5]
DDR0_ADDR[2]
DDR0_DQ[16]
DDR_DATA[34]DDR_DATA[27]
DDR0_DQ[6]
DDR0_DQ[14]
DDR0_DQ[56]
DDR0_DQ[50]
DDR0_ADDR11
DDR0_DQ[7]
DDR_DATA[24]
DDR_DATA[38]
DDR_DATA[42]
DDR0_ADDR[6]
DDR0_DQ[33]
DDR0_DQ[8]
DDR_DATA[57]
DDR_DATA[20]
DDR_DATA[46]
DDR_DATA[32]
DDR_DATA[41]
DDR0_BA0
DDR_DATA[24]
DDR_DATA[33]
DDR_DATA[63]
DDR0_DQ[30]
DDR0_DQ[51]
DDR_DATA[18]
DDR0_ADDR00
DDR0_DQ[28]
DDR_DATA[36]
DDR0_DQ[42]
DDR_DATA[62] DDR_DATA[18]
DDR0_BA_1
DDR0_ADDR[7]
DDR0_ADDR[4]
DDR_DATA[51]
DDR0_ADDR[1]
DDR_DATA[32]
DDR0_ADDR[5]
DDR_DATA[45]
DDR0_ADDR[3]
DDR0_DQ[23]
DDR_DATA[19]
DDR0_ADDR[1]
DDR0_DQ[17]
DDR0_DQ[17]
DDR_DATA[17]
DDR_DATA[15]
DDR_DATA[3]
DDR_DATA[20]
DDR_DATA[17]
2007.10.26LA84A/LA85A
DDR 93

Copyright © 2007 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
5.1V
ZD712
AV_R_IN_2
5:D8
SDA_HDMI_0
4.7K
R784
82
R716
READY
82
R719
READY
JP7025
HDMI_POWER_0
5.6K
R795
47K
R7022
MNT_L_OUT
6:M9
JP7002
GND
GND
TP7057
1K
R788
HDMI_CEC
TP7056
BSS83
Q702
S B D
G
TP7062
5.6K
R792
/W_PROTECT
TP7061
10V
VR702
5.1V
ZD715
TP7081
GND
TP7100
82
R728
READY
GND
SCL_HDMI_0
1uF
C731
TP7059
KRC102S
Q701
E
B
C
COMP2_SW
1:K5
47K
R7021
VR700
5.6K
R793
TP7063
JP7038
JP7039
JP7040
TP7064
JP7014
ZD725
5.1V
82
R731
READY
ZD724
5.1V
JP7008
JP7003
AV_L_IN_2
5:B8
3.3VST_MICOM
GND
TP7058
5.6K
R780
JP7007
MNT_R_OUT
6:M9
JP7004
TP7070
JP7005
5.1V
ZD708
ZD726
5.1V
470K R722
JP7019
5.1V
ZD701
TP7005
JP7041
4.7K
R724
22R7013
GND
TP7082
JP7018
1K
R7023
10V
VR701
0
R787
HDMI_POWER_0
1:M5;M1
COMP_R_IN_2
5:D9
75
R789
READY
5.6K
R794
470K R737
5.1V
ZD702
PMJ029-01
JK701
4A [YL]CONTACT
2A [YL]1P_CAN
3A [YL]0_SPRING
2B [WH]1P_CAN
5B [WH]C_LUG_L
2C [RD]1P_CAN
4C [RD]CONTACT
3C [RD]0_SPRING
6 [S-VHS]GROUND_TER
7A [S-VHS]C_LUG_L1
7B [S-VHS]C_LUG_L2
7C [S-VHS]C_LUG_L3
7D [S-VHS]C_LUG_L4
8 [S-VHS]0_SPRING
KDS184
D700
A2
C
A1
TP7034 0.01uF
50V
C741
READY
0.01uF
50V
C742
READY
JP7013
+5.0V
+5.0V +5.0V
5.6K
R796
470K R738
GND
JP7024
TP7085
+5.0V
PPJ209-02
JK702
4A [GN]CONTACT 2A [GN]1P_CAN 3A [GN]O_SPRING
2B [BL]1P_CAN 5B [BL]C_LUG_L 2C [RD]1P_CAN1 5C [RD]C_LUG_L
2D [WH]1P_CAN 5D [WH]C_LUG_L
2E [RD]1P_CAN2 4E [RD]CONTACT 3E [RD]O_SPRING
470K R723
JP7015
TP7088
TP7072
OPT
C745
COMPOSITE2_SW
1:K6
5.1V
ZD709
470K R739
GND
470K
R781
COMP_L_IN_2
5:B9
82
R734
READY
5.6K
R797
ZD730
5.1V
0
R7019
1uF
50V
C734
470K R740
1uF
50V
C735
82
R713
READY
PPJ209-02
JK700
4A [GN]CONTACT 2A [GN]1P_CAN 3A [GN]O_SPRING
2B [BL]1P_CAN 5B [BL]C_LUG_L 2C [RD]1P_CAN1 5C [RD]C_LUG_L
2D [WH]1P_CAN 5D [WH]C_LUG_L
2E [RD]1P_CAN2 4E [RD]CONTACT 3E [RD]O_SPRING
470K
R786
AT24C02BN-10SU-1.8
IC701
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
+5.0V
TP7077
1uF
25V
C739
JP7011
5.1V
ZD710
5.1V
ZD707
JP7010
5.6K
R776
JP7023
JP7021
GND
GND
5.1V
ZD714
HDMI_HPD_0
JP7042
22R7016
5.1V
ZD700
TP7083
GND
SDA_HDMI_0
100pF
50V
C729
0.1uF
16V
C744
5.1V
ZD711
0
READY
R7011
GND
TP7087
GND
OPT
C743
1uF
25V
C737
COMP_L_IN_1
5:B8
JP7009
1uF
C730
COMPOSITE2_IN
6:H8
TP7074
0
R7020
4.7K
R709
1uF
25V
C736
1uF
25V
C738
TP7076
0R7017
SCL_HDMI_0
TP7078
22
R7007 TP7075
JP7020
TP7073
GND
TP7043
JP7022
TP7044
0
R7024
100pF
50V
C728
RGB_R_IN
5:D9
TP7007
TP7008
TP7009
RGB_L_IN
5:B9
JP7016
TP7084
PEJ024-01
JK703
6B T_TERMINAL2
8SHIELD_PLATE
7B B_TERMINAL2
5T_SPRING
4R_SPRING
7A B_TERMINAL1
6A T_TERMINAL1
3E_SPRING
5.1V
ZD713
JP7017
COMP_R_IN_1
5:D8
JP7012
JP7001
TP7086
PPJ200-07
JK704
3A
2A
4A
2B
5B
JP7000
COMP1_SW
1:K5
5.1V
ZD736 5.1V ZD738 5.1V ZD739
5.1V
ZD740 5.1V
ZD741 5.1V ZD742
5.1V
ZD743
75
R700
GND
TP7006
GND
LCF41P060-TM
L 70 3READY
OUT
IN
GND
4.7K
R701
+5.0V
0
R743
ZD718
5.1V
TP7003
GND
5.1V
ZD734
ZD705
5.1V
470K R703
GND
470K
R704
ZD706
5.1V
1uF
50V
C700
TP7002
GND
TP7029
AV_R_IN_1
5:D8
TP7033
LCF41P060-TM
L707
READY
OUT
IN
GND
1uF
50V
C701
62
R708
READY
0
R745
COMPOSITE1_IN
6:H8
TP7031
TP7004
TP7032 AV_L_IN_1
5:B8
0
R732
GND
82
R746
READY
5.6K
R706
75
R747
5.1V
ZD735
S-VIDEO1_C
6:H7
COMPOSITE1_SW 1:K6
5.1V
ZD703
100 R741
READY
TP7027
ZENER
ZD717
ZD704
5.1V
100pF
C702
READY
TP7026
75
R742
S-VIDEO1_SW
1:K5
LCF41P060-TM
L708
READY
OUT
IN
GND
TP7028
5.1V
ZD737
4.7K
R744
100pF
C703
READY
GND
S-VIDEO1_L
6:H7
0
R707
TP7030
5.6K
R705
+5.0V
ZD716
5.1V
GND
TP7037
FI-A2012-271KJT
L702
TP7040
0 R710
75
R711
FI-A2012-271KJT
L700
75
R718
TP7038
27pF
50V
C704
27pF
50V
C709
27pF
50V
C707
COMP1_Pb
6:E6
27pF
50V
C706
TP7039
0 R715
COMP1_Pr
6:E6
0 R720
0 R729
READY
75
R721
0 R714
READY
COMP1_Y
6:E6
0 R727
READY
TP7041
FI-A2012-271KJT
L701
27pF
50V
C705
TP7042
27pF
50V
C708
COMP2_Pb
6:G6
TP7045
0
READY
R2702
0 R735
TP7050 TP7051
COMP2_Pr
6:G6
FI-A2012-271KJT
L704
27pF
50V
C710 27pF
50V
C712
TP7049
27pF
50V
C711
27pF
50V
C714
75
R726
FI-A2012-271KJT
L705
75
R736
27pF
50V
C713
27pF
50V
C715
75
R733
0
READY
R2700
0 R725
COMP2_Y
6:G6
0 R730
0
READY
R2701
TP7046
FI-A2012-271KJT
L706
75
R752
GND
AT24C02BN-10SU-1.8
IC702
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
8.2V
ZD746
DDC_SCL
4:I7
GND
2SC3875S
Q711
E
B
C
10K
R764
22pF
C719
TP7053
1K
R774
10K
R773
1K R702
GND
GND
2SC3875S
Q710
E
B
C
GND
6.8K R717
2SC3875S
Q712
E
B
C
15K
R754
0.1uF
16V
C726
22
R756
22
R757
0R7002
22
R755
0
R750
RGB_VS
6:I6
TP7025
8.2V
ZD723
8.2V
ZD747
RGB_G
6:G6
JP7029
1K R759
22
R7028
+5.0V
15pF
50V
C721
GND
OPT
R769
1K
R770
8.2V
ZD748
GND
TP7052
10K
R760
GND
OPT
C740
8.2V
ZD719
15K R7027
/W_PROTECT
4:N7;6:J1;6:J2;6:J3;H5
JP7026
0.1uF
16V
C747
ZD729
5.1V
75
R748
6.8K R778
JP7033
JP7035
GND
0R7003
GND
GND
+5.0V
JP7030
OPT
C722
100R766
10uF
16V
C733
8.2V
ZD720
+5.0V
8.2V
ZD721
GND
GND
10uF
16V
C717
JP7031
8.2V
ZD722
OPT
C724
GND
RGB_HS
6:I6
JP7028
JP7032
22pF
C720
OPT
R762
100
R765
22
R758
TP7018
TP7024
10uF
16V
C718
RGB_SW
1:K8
DDC_SDA
4:I7
OPT
R761
OPT
C723
15pF
50V
C725
6.8K R779
15K R782
47uF
16V
C727
0
R753
+9V
10K
R768
TP7055
0
R772
JP7034
0.1uF
16V
C732
GND
GND
RGB_B
6:G6
75
R749
TP7017
10uF
16V
C716
10K
R767
GND
0
R751
KRC102S
Q700
E
B
C
OPT
R763
TP7054
GND
RGB_R
6:G6
JP7027
1K R783
GND
0R771
MMBD301LT1G
D701
PPJ218-01
JK707
5C [RD]CONTACT 2C [RD]U_CAN 4C [RD]O_SPRING 2B [WH]U_CAN 3B [WH]C_LUG 2A [YL]U_CAN 5A [YL]CONTACT 4A [YL]O_SPRING
+5V_HPD
5.1V
ZD749
5.1V
ZD750
5.1V
ZD751
0R790
0R791
0 R777
75
R775
KCN-DS-1-0089 JK705
1
2 3 4 5
6 7 8 9
10
11 12 13 14
15
16
100K
R7009
JP7045
JP7006
JP7043
TP7091
TP7094
TP7013
TP7022
TP7068
TP7069
TP7071
TP7048
TP7060
TP7065
TP7036
TP7023TP7021
TP7035 TP7047
TP7067
TP7066
TP7011
TP7010
TP7001
TP7098
TP7000
TP7019
TP7012
TP7014
TP7093
TP7015 TP7020
TP7016
TP7092
TP7099
TP7080
TP7097
TP7096
TP7095
120OHM
L709
DC1R019NBH
JK708
14
NC
13
CEC
5
DATA1_SHIELD
20
JACK_GND
12
CLK-
11
CLK_SHIELD
2
DATA2_SHIELD
19
HPD
18
+5V_POWER
10
CLK+
4
DATA1+
1
DATA2+
17
DDC/CEC_GND
9
DATA0-
8
DATA0_SHIELD
3
DATA2-
16
SDA
7
DATA0+
6
DATA1-
15
SCL
TMDS0_RX1+
TMDS0_RXC-
TMDS0_RX2-
TMDS0_RX2+
DDC_SDA0
DDC_SCL0
TMDS0_RX0+
TMDS0_RXC+
TMDS0_RX1-
TMDS0_RX0-
0
R2704
0
R2705
0
R2706
0
R2707
0
R2708
0
R2709
0
R2710
0
R2711
9 INPUT CONNECTOR
2007.10.25LA84A/LA85A
7
PROTECT
WRITABLE
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
TC74VHC04FT
IC503
11A
21Y
32A
42Y
53A
63Y
7GND 8 4Y
94A
10 5Y
11 5A
12 6Y
13 6A
14 VCC
TEA6420_R_OUT
B9
22000pF
50V
C523
+3.3V
SDA2_3.3V
SCL2_3.3V
COMP_L_IN_2
7:D7
0.1uF
50V
C542
Fiber Optic
JST1223-001
JK501
1
GND
2
VCC
3
VINPUT
4
FIX_POLE
100
R537
4.7K
R516
0.1uF
50V
C541
0R564
BCM3553_I2S_SCLK_OUT
SCL1_5V
1:H2;1:L9;4:G5
TP5003
4.7K
R552
47pF
C570
22000pF
50V
C512
75
R540
DA-8580
L521
2S
1S 1F
2F
0.01uF
C578
22uF
16V
C576
0.01uF
C546
1K
R543
10K
R545
COMP_R_IN_1
7:C7
4.7K
R519
+3.3V
1uF
C525
22000pF
50V
C524
MC33078DR2G
IC504
3
INPUT1+
2
INPUT1-
4
VEE
1
OUTPUT1
5INPUT2+
6INPUT2-
7OUTPUT2
8VCC
MC33078_L_OUT
I5
PPJ204-06
JK500
1O_SPRING
2CONTACT
3U_CAN
1uF
50V
C586
1uF
50V
C583
1uF
50V
C587
+3.3V
BCM3553_SPDIF_OUT
K3;6:L5
0.1uF
50V
C540
100
R505
+3.3V
0.1uF
16V
C585
330uF
35V
C527
P_+16V
0.1uF
C591
100uF
16V
C554
TP5046
LFM
C3
AV_L_IN_2
7:M6
10K
R556
+3.3V
3.3
R522
OPT
R544
22uF
16V
C577
TP5000
0.1uF
C592
0.1uF
C504
100
R538
4.7K
R549
3.3
R507
0.01uF
C556
AV_R_IN_2
7:M6
+3.3V
BCM3553_I2S_LRCLK_OUT
0
R500
22uF
16V
C568
0.01uF
C547
33pF
50V
C508
22000pF
50V
C515
10K
R531
AV_R_IN_1
7:E3
100
R530
33pF
50V
C511
22
R559
DA-8580
L520
2S
1S 1F
2F
22uF
16V
C569
68K
R503
READY
0.1uF
READY
C502
1uF
C521
TP5002
MC33078_R_OUT
K9
TP5004
RGB_L_IN
7:H3
0.1uF
16V
C579
MC33078_R_OUT
N5
33pF
50V
C510
0.1uF
C517
0.1uF
C516
5.6B
ZD501
100
R502
150
R546
BCM3553_AUD_MCLK
1:K7;C2
SDA1_5V
1:H2;1:L9;4:G5
3.3
R523
110
R541
+1.8V_NTP
0.1uF
C566
0.47uF
50V
C544
MUTE1
4:L9
0.1uFC588
AV_L_IN_1
7:E2
3.3K
R501
MICOM_RESET
4:N5;K9
COMP_L_IN_1
7:B7
CS5340-CZZR
IC502
3
VL
2
MCLK
4
SDOUT
1
M0
6
VD
5
GND
7
SCLK
8
LRCK 9RST
10 AINL
11 VQ
12 AINR
13 VA
14 REF_GND
15 FILT+
16 M1
0.1uF
C529
0.1uF
C528
+1.8V_NTP
0.1uF
C590
100R504
0.1uF
C518
0.01uF
C567
100pF
C500
TP5001
100
R529
270
R548
TEA6420_L_OUT
B9
0.01uF
C548
OPT
R557
LFM
A3
TEA6420_R_OUT
N6
0.1uF
C589
MC33078_L_OUT
K9
MICOM_RESET
4:N5;A2
0.1uF
C572
100pF
C565
120
R539
0.01uF
C545
270
R554
0.1uF
16V
C580
TEA6420_L_OUT
I6
0.1uF
C571
100pF
C564
0.1uF
16V
C584
+1.8V_NTP
+5.0V
P_+16V
0.1uF
C562
0.1uF
16V
C582
SMAW250-04
P501
1
2
3
4
RGB_R_IN
7:H2
3.3
R520
BCM3553_AUD_MCLK
1:K7;H8
0.1uF
C573
1/16W 10K 5% R562
0.1uF
C563
BCM3553_I2S_LRCLK_IN
6:L5
0.47uF
50V
C543
22
R558
BCM3553_I2S_SCLK_IN
6:L5
0.1uF
C526
BCM3553_I2S_DATA_OUT
22uF
16V
C555
1000pF
C501
BCM3553_I2S_DATA_IN
6:L5
+9V
22
R561
150
R555
10uF
16V
C506
22
R560
10uF
16V
C505
0.01uF
C520
+1.8V_NTP
1uF
C522
+9V
0R563
10uF
16V
C519
1uF
C509
330uF
35V
C513
4.7K
R550
COMP_R_IN_2
7:E7
47pF
C574
4.7K
R551
4.7K
R518
0.1uF
C503
OPT
ZD500
BCM3553_SPDIF_OUT
K1;6:L5
3.3
R506
0
R565
4.7K
R517
TEA6420D
IC500
3
VS
2
CAPACITANCE
4
L1
1
GND
6
L3
5
L2
7
NC1
8
NC2
9
L4
10
L5
11
LOUT1
12
ROUT1
13
LOUT2
14
ROUT2 15 LOUT3
16 ROUT3
17 LOUT4
18 ROUT4
19 R5
20 R4
21 NC3
22 NC4
23 R3
24 R2
25 R1
26 ADDR
27 SCL
28 SDA
27
R542
0.1uF
50V
C539
0.1uF
C514
3.3
R521
100uF
16V
C575
0.1uF
C507
0.01uF
C530
4.7K 1% 1/10W R553
4.7K 1% 1/10W R547
1uF
10V
C581
NTP3000[8INCH WAFER]
IC501
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 16 17 18 19 20 21 22 23 24 25 26 27 28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43 44 45 46 47 48 49 50
51 52 53 54 55 56
TP5016
120OHM
L500
120OHM L501
120OHM L502
120OHM
L503
120OHM
L508
120OHM
L509
120OHM
L511
120OHM
L510
120OHM
L512
120OHM
L513
120OHM
L514
120OHM
L515
1000pF
50V
C534
1000pF
50V
C533
1000pF
50V
C532
1/4W
4.7
R509
1/4W
4.7
R511
1/4W
4.7
R510
1/4W
4.7
R508
1000pF
50V
C531
MCLK : 12.288MHz
AUDIO SWITCH
PWM_MOD/AMP
MCLK : 12.288MHz
IIC CH4
OP AMP
ADDR 0x9A
0x54
AUDIO ADC
Coaxial Out(LG50)
SPDIF OUT
9
AUDI0
2007.10.25LA84A/LA85A
5
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
GND
GND
1.5M R2603
READY
22
R630
TP6028
34
R2604
0
R2678
0
R646
2K
R2677
2K
R2679
GND
0.1uF
16V
C633
Tu_CVBS_INCM1
E6
3.6K
R685
0.01uF 25V C601
AT24C02BN-10SU-1.8
IC602
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
RGB_HS
7:H7
BCM3553
IC100
BCM3553 DS_AGCT_CTL
AK33
DS_AGCI_CTL
AJ33
EDSAFE_AVSS_1
AJ30
EDSAFE_AVSS_2
AK32
EDSAFE_AVSS_3
AL34
EDSAFE_AVSS_4
AK31
EDSAFE_DVDD1P2
AJ31
EDSAFE_AVDD2P5_1
AL32
EDSAFE_AVDD2P5_2
AL33
EDSAFE_AVDD2P5_3
AL31
EDSAFE_IF_P
AM33
EDSAFE_IF_N
AM34
PLL_DS_AVDD1P2
AM32
PLL_DS_AGND
AN32
SD_R
AK16
SD_G
AN15
SD_B
AM15
RGB_HSYNC
AH16
RGB_VSYNC
AJ16
SD_INCM_RGB
AL15
SD_Y1
AM21
SD_PR1
AL21
SD_PB1
AN21
SD_INCM_COMP1
AM20
SD_Y2
AN22
SD_PR2
AL22
SD_PB2
AP22
SD_INCM_COMP2
AM22
SD_L1
AL17
SD_C1
AL16
SD_INCM_LC1
AP16
SD_L2
AN18
SD_C2
AM18
SD_INCM_LC2
AM17
SD_L3
AL19
SD_C3
AP19
SD_INCM_LC3
AN19
SD_CVBS1
AN16
SD_CVBS2
AN17
SD_CVBS3
AM19
SD_CVBS4
AP20
SD_CVBS5
AN24
SD_INCM_CVBS1
AM16
SD_INCM_CVBS2
AP17
SD_INCM_CVBS3
AL18
SD_INCM_CVBS4
AN20
SD_INCM_CVBS5
AM24
SD_SIF1
AN23
SD_SIF2
AL23
SD_INCM_SIF1
AP23
SD_INCM_SIF2
AM23
SD_V1_AVSS
AH22
SD_V2_AVSS
AH20
SD_V3_AVSS
AH23
SD_V4_AVSS
AH21
SD_V5_AVSS
AK23
SD_V6_AVSS
AJ17
SD_CLKTST
AG23
SD_V1_AVDD2P5
AJ18
SD_V2_AVDD2P5
AJ22
SD_V3_AVDD2P5
AJ19
SD_V4_AVDD2P5
AJ23
SD_V5_AVDD2P5
AJ21
SD_V6_AVDD2P5
AJ20
SD_V1_AVDD1P2
AK20
SD_V2_AVDD1P2
AK21
SD_V3_AVDD1P2
AK17
SD_V4_AVDD1P2
AK19
SD_V5_AVDD1P2
AK22
SD_V6_AVDD1P2
AK18
I2S_CLK_IN AH24
I2S_DATA_IN AJ24
I2S_LR_IN AK24
I2S_CLK_OUT AK25
I2S_DATA_OUT AL25
I2S_LR_OUT AJ25
AUD_LEFT_N AP28
AUD_LEFT_P AN28
AUD_VDDO2P5 AM29
AUD_VSSO AL28
AUD_RIGHT_N AN29
AUD_RIGHT_P AP29
AUD_SPDIF AP11
SPDIF_AVDD2P5 AK12
SPDIF_AVSS AJ12
SPDIF_IN_N AM11
SPDIF_IN_P AN11
HDMI_RX_0_CEC_RES AP3
HDMI_RX_0_CEC_DAT AL5
HDMI_RX_0_HTPLG_IN AL3
HDMI_RX_0_HTPLG_OUT AL2
HDMI_RX_0_DDC_SCL AL1
HDMI_RX_0_DDC_SDA AK4
HDMI_RX_0_RESREF AL4
HDMI_RX_0_CLK_N AM1
HDMI_RX_0_CLK_P AM2
HDMI_RX_0_DATA0_N AN1
HDMI_RX_0_DATA0_P AN2
HDMI_RX_0_DATA1_N AM3
HDMI_RX_0_DATA1_P AM4
HDMI_RX_0_DATA2_N AP2
HDMI_RX_0_DATA2_P AN3
HDMI_RX_0_VDD3P3 AK6
HDMI_RX_0_VDD1P2 AJ7
HDMI_RX_0_VDD2P5 AK5
HDMI_RX_0_PLL_AVDD1P2 AG8
HDMI_RX_0_AVSS AJ8
HDMI_RX_0_PLL_AVSS AG7
HDMI_RX_1_CEC_RES AJ4
HDMI_RX_1_CEC_DAT AK3
HDMI_RX_1_HTPLG_IN AG4
HDMI_RX_1_HTPLG_OUT AF8
HDMI_RX_1_DDC_SCL AG6
HDMI_RX_1_DDC_SDA AG5
HDMI_RX_1_RESREF AH6
HDMI_RX_1_CLK_N AH2
HDMI_RX_1_CLK_P AH1
HDMI_RX_1_DATA0_N AH3
HDMI_RX_1_DATA0_P AH4
HDMI_RX_1_DATA1_N AJ1
HDMI_RX_1_DATA1_P AJ2
HDMI_RX_1_DATA2_N AJ3
HDMI_RX_1_DATA2_P AK2
HDMI_RX_1_VDD3P3 AH7
HDMI_RX_1_VDD1P2 AJ5
HDMI_RX_1_VDD2P5 AH5
HDMI_RX_1_PLL_AVDD1P2 AJ6
HDMI_RX_1_AVSS AH8
HDMI_RX_1_PLL_AVSS AK7
TP6053
IF_P
8:E7
0R611
READY
R663
TMDS1_RX0- C8
0
R675
MNT_R_OUT
7:G1
3.3V
ZD600
BCM_R_OUT
D9
0.1uF
16V
C664
4.7uF
6.3V
C668
+5.0V
0
R619
0.1uF
16V
C665
GND
3.3V_TMDS_SW
HDMICEC
0.1uF
16V
C687
0.01uF
25V
C608
A2.6V_BCM
0
R699
47K
R682
TP6034
1.5M R2624
READY
10V
VR604
HB-1M1608-102JT
L610
IF_N
8:E7
22
R631
HB-1M1608-102JT
L612
1.5M R696
0.01uF
25V
C609
OPT
C616
TMDS_RX0-_BCM
G4
0
R606
TMDS1_RX2- C9
47K
R679
0
R603
COMP1_Pr
7:B5
1.5M R2626
READY
0.1uF
16V
READY
C662
+5.0V
1.5M
R2615
READY
OPT
C614
0.1uF
16V
C619
0
R2619
0
R2663
TMDS1_RX2+ C9
10
R2636
0.1uF 16VC652
3.3VST_MICOM
BCM_R_OUT2
MUTE2
4:L9
0.1uF
C677
TP6061
/W_PROTECT
4:N7;J1;J2;7:H5;7:K7
TP6022
0.01uF
25V
C607
22
R634
0.1uF
16V
C686
/W_PROTECT
4:N7;J1;J3;7:H5;7:K7
GND
0
R674
TP6056
COMP2_Pb
7:D5
READY
R649
22
R661
PI3HDMI341ART
IC600
1
OC_S3
2
SDA1
3
SCL1
4
GND_1
5
B11
6
A11
7
BCC
8
B12
9
A12
10
GND_2
11
B13
12
A13
13
VCC_1
14
B14
15
A14
16
GND_3
17
VCC_2
18
OC_S1
19
OC_S0
20
OC_S2
21
S1
22
S2
23
S3
24
GND_4
25
Y4
26
Z4
27
VCC_3
28
Y3
29
Z3
30
GND_5
31
Y2
32
Z2
33
VCC_4
34
Y1
35
Z1
36
GND_6
37
GND_7
38
SCL_SINK
39
SDA_SINK
40
HPD_SINK
41 EQ_S0
42 OE
43 VCC_5
44 HPD3
45 SDA3
46 SCL3
47 GND_8
48 B31
49 A31
50 VCC_6
51 B32
52 A32
53 GND_9
54 B33
55 A33
56 VCC_7
57 B34
58 A34
59 GND_10
60 EQ_S1
61 VCC_8 62 HPD2 63 SDA2 64 SCL2 65 GND_11 66 GND_12 67 B21 68 A21 69 VCC_9 70 B22 71 A22 72 GND_13 73 B23 74 A23 75 VCC_10 76 B24 77 A24 78 GND_14 79 VCC_11 80 HPD1
TP6042
0
R2680
BCM_R_OUT2
GND
HB-1M1608-102JT
L604
1K R690
22 R2647
SIF
8:D8
DDC_SDA_BCM
I4
0
R2673
TP6060
RGB_B 7:H6
4.7K
READY R2656
510
R2649
BCM_R_OUT1
L5
TP6039
OPT
C613
TP6052
+5.0V
22
R633
TP6033
2K
R692
COMP2_Y
7:C5
READY
R664
470K
R2644
+5.0V
BCM3553_I2S_SCLK_IN 5:H9
0.1uFC630
16V
TP6057
A2.6V_BCM
IF_AGC
8:E7
0
R612
0.01uF
25V
C610
1.5K
R2642
0.1uF
16V
C683
1.5M
R2609
+9V
0
R607
34
R2605 0
R2665
BCM3553_SPDIF_OUT
5:K1;5:K3
200
R2643
BCM3553_I2S_SCLK_OUT
5:C5
10
R2627
0
R2623
TMDS_RX0+_BCM
L6
TMDS_RX2-_BCM
G4
DDC_SCL1 D8
0.1uFC640
16V
GND
1K
R667
DDC_SDA1 D8
499
R2639
0
R617
COMPOSITE1_IN 7:E2
0.1uF
C680
1K R689
1K
R666
0.01uF
25V
C699
1.5M
R2613
READY
0.1uF
16V
C681
BSS83
Q600
S
B
D
G
0
R608
1.5M R2621
READY
L602
BCM3553_I2S_LRCLK_IN 5:H9
SDA_HDMI_1
B8
34
R694
10V
VR605
TP6037
1.5M R697
10KR2668
GND
0.1uF
16V
C685
0R652
BCM_L_OUT2
G7;L9;M2
0
R609
MNT_L_OUT
7:G1
34
R2612
470K
R2641
0.1uFC639
16V
0R2676
OPT
C615
TP6038
10V
VR600
1.5M R2608
READY
GND
0.1uF
16V
READY
C666
0.1uF
16V
C641
34
R2602
KDS184
D601
A2
C
A1
0.1uF
16V
C2662
2SA1504S
Q607
E
B
C
2SC3875S
Q609
E
B
C
BCM_L_OUT2
A3.3V_BCM
0.1uF
16V
C2663
COMP1_Y
7:A5
3.3V_TMDS_SW
HDMI_POWER_1
1:M5;C7
1K
R698
A1.2V_BCM
1.5M R2611
READY
0.1uF
16V
C637
COMP1_Pb
7:B5
TMDS1_RXC+ C8
5.1
R2646
3.3V_TMDS_SW
0.01uF
25V
C606
34
R693
0.1uF 16VC651
0.1uF
16V
C688
TMDS1_RXC- C8
TP6059
TP6029
0
R2654
2SC3875S
Q610
E
B
C
HB-1M1608-102JT
L608
A2.6V_BCM
BCM_L_OUT1
1.5M R2629
READY
0.1uF
16V
C658
0.1uF
C678
TP6046
1uF
10V
C698
S-VIDEO1_C 7:E1
0
READY R2666
0
R669
0R651
A1.2V_BCM
SDA_HDMI_2
B5
+5.0V
1.5M
R2625
BCM_L_OUT1
L5
TMDS_RX1-_BCM
G4
AT24C02BN-10SU-1.8
IC601
3
A2
2
A1
4
GND
1
A0
5SDA
6SCL
7WP
8VCC
GND
TP6040
1.5M R2601
READY
BCM_R_OUT1
SCL_HDMI_1
B8
27
R2638
RGB_R 7:G6
TMDS_RX1+_BCM
G4
1.5M R2622
READY
TMDS_RX2+_BCM
G4
0.1uF
16V
C625
0.1uF
16V
C642
0
R676
0
R618
0.01uF
25V
C693
10V
VR601
0
R673
S-VIDEO1_L 7:E1
0
R615
2SA1504S
Q608
E
B
C
TMDS_RXC+_BCM
H4
COMPOSITE2_IN 7:M6
0R650
1.5K
R2645
TP6049
KRC102S
Q604
E
B
C
HDMI_POWER_2
1:M5;C4
1.5M
R2618
READY
TMDS_RX0+_BCM
G4
TMDS1_RX0+ C9
L613
0
R2648
BCM_L_OUT
E7
3.6K
R686
0.1uF
16V
C635
0.1uF
16V
C684
0.1uF
16V
C626
0.1uF 16VC648
BCM3553_I2S_LRCLK_OUT
5:C4
499R2671
0.01uF
25V
C672
DDC_SCL_BCM
I4
0
R670
+5.0V
0.1uF
16V
C636
0.1uF
16V
C620
TMDS1_RX1+ C9
TP6032
TP6027
TP6043
MMBD301LT1G
D603
L609
1.5M R2616
READY
0.1uF
C679
TP6047
TP6030
47K
R681
0.1uF
16V
C653
KDS184
D602
A2
C
A1
GND
L607
GND
SCL_HDMI_2
B5
3.3V_TMDS_SW
0
R614
22
R662
22
R632
0
R2614
0
R605
0.1uF 16VC649
TP6045
0
R616
1.5M
R2607
0.01uF
25V
C692
1.5M
R2600
GND
3.3V_TMDS_SW
10V
VR606
GND
HDMICEC
0.01uF
25V
C605
GND
L606
KRC102S
Q605
E
B
C
0.1uF
C628
16V
TP6035
1.5M
R2606
READY
0.01uF 25V C600
GND
HDMI_CEC
4:J5;7:K1
10V
VR607
TP6062
0.1uF
C638
16V
TP6007
TP6006
0.1uF
16V
C645
0
R604
HDMI_HPD_2 1:K5
TMDS_RX1-_BCM
L7
A3.3V_BCM
0
R2662
TMDS1_RX1- C9
0
R613
DDC_SDA_BCM M6
10
R2635
TMDS_RX2-_BCM
L7
TMDS2_RXC- D5
0.1uF
C2600
RGB_G 7:G6
0.01uF
25V
C603
TMDS0_RX1+
D3
GND
0
R610
A1.2V_BCM
100uF
16V
C695
1.5M
R2617
2SC3875S
Q611
E
B
C
10
R2637
A2.6V_BCM
TP6044
HDMI_POWER_2
1:M5;L1
TP6011
0.01uF
25V
C671
TMDS0_RXC-
D2
TMDS_RXC-_BCM
H4
0.01uF
25V
C611
TP6008
L605
HDMI_SEL_2
1:K6
DC1R019WDH
JK601
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
TMDS0_RX2-
D3
BCM_R_OUT2
F9;L9;M3
TMDS2_RX0- D5
0
R2664
499
R2640
34
R695
COMP2_Pr
7:E5
TP6031
TMDS2_RX1- D6
0.1uF
16V
C627
47K
R678
SCL_HDMI_1
L4
TMDS_RX2+_BCM
L7
DDC_SDA2 F2
DDC_SCL0
D2
34
R2620
HDMI_SEL_1
1:K6
0.01uF
25V
C604
HDMI_SEL_0
1:K6
1.5M
R2610
0.1uF
16V
C650
BCM_L_OUT2
HDMI_HPD_1
1:K5
0.01uF
25V
C602
RGB_VS 7:H7
Tu_CVBS
8:E9
0
READY R2667
GND
JP6004
+9V
SDA_HDMI_1
L4
DDC_SDA0
D2
Tu_CVBS_INCM1
J7
DDC_SDA2 D5
DDC_SCL2 D5
TMDS0_RX0-
D2
1K
R601
0.1uFC629
16V
TP6001
0.1uF
16V
C689
HDMI_POWER_1
1:M5;L3
BCM3553_I2S_DATA_IN 5:H8
DC1R019WDH
JK600
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
TMDS0_RX1-
D3
TMDS0_RX0+
D3
0
READY
R640
TMDS_RXC+_BCM
L6
TP6004
TMDS0_RXC+
D2
TMDS2_RXC+ D5
1K
R602
JP6005
TMDS2_RX2- D6
TP6002
TMDS2_RX2+ D6
SCL_HDMI_2
L2
0
R620
TMDS2_RX0+ D6
TMDS_RX0-_BCM
L6
2K
R691
TP6013
22
R629
GND
DDC_SDA1
I3
TP6012
READY R645
1.5M R2631
JP6002
0
R2661
TP6050
TP6010
TMDS0_RX2+
D3
4.7uF
6.3V
C656
0.1uF16V
C655
SDA_HDMI_2
L2
DDC_SCL1
I3
DDC_SCL_BCM M6
TMDS_RXC-_BCM
L6
JP6001
TP6018
TMDS2_RX1+ D6
DDC_SCL2 F2
HB-1M1608-102JT
L603
TP6009
TMDS_RX1+_BCM
L7
BCM3553_I2S_DATA_OUT
5:C4
GND
470
R3604
BCM_L_OUT2
3.3uF
50V
C2665
1K
R3603
2SC3875S
Q615
E
B
C
1K
R3611
+5.0V
0
R3606
READY
2SA1504S
Q614
E
B
C
2SC3875S
Q613
E
B
C
15K
R3602
0
R3608
0
R3607
30K
R3601
HB-1M1608-102JT
L614
30K
R3609
1.5K
R3613
3.3uF
50V
C2666
15K
R3610
3.3uF
50V
C2667
BCM_R_OUT2
3.3uF
50V
C2668
BCM_L_OUT
N1
2SA1504S
Q616
E
B
C
GND
0
R3614
READY
+5.0V
470
R3612
0
R3615
HB-1M1608-102JT
L615
0
R3600
BCM_R_OUT
1.5K
R3605
0.1uFC646
0.1uFC632
L616
4.7uFC621
4.7uFC622
L600
A2.6V_BCM
3.3V_TMDS_SW
READY
R648
3.3V_TMDS_SW
READY
R641
1K
R2658
1K
R2657
READY
+5V_HPD
+5V_HPD
0.1uFC643
4.7uFC624 READY
4.7uFC623
0.1uFC644 READY
0.1uFC647
4.7uFC634
4.7uFC631
0.1uFC654
L617
L618
L619
L620
100K
R639
HB-1M1608-102JT
L601
A1.2V_BCM
0.1uFC673
0.1uF
C657
0.1uF
C659
0.1uF
C660
0.1uF
C661
0.1uF
C663
TP6005
JP6007
JP6008
TP6065
TP6070
TP6089
TP6067
TP6079
TP6071
TP6069
TP6077
TP6078
TP6073
TP6068
TP6080
TP6090
TP6088
TP6066
TP6091
TP6092
TP6093
TP6125TP6120TP6119
TP6118
TP6117
TP6116
TP6075
TP6074
TP6109
TP6108
TP6102
TP6124
TP6123
TP6122
TP6121
TP6084
TP6081
TP6126
TP6127
TP6113
TP6111
TP6100
TP6095
TP6110
TP6094
TP6101
TP6072
TP6112
TP6107
TP6085
TP6087
TP6086
TP6064
TP6098
TP6099
TP6103
TP6106
TP6114
TP6129
TP6128
TP6115
KRA102S Q612
E
B
C
OPT
C694
OPT
C697
4.7K
R2660
4.7K
R2659
1K
R642
3.3V_TMDS_SW
4.7K
R2632
4.7K
R2633
TMDS2_RX2- F3
TMDS2_RX0- F2
TMDS2_RXC+ F2
TMDS2_RX1- F3
TMDS2_RX2+ F3
TMDS2_RX0+ F2
TMDS2_RXC- F2
TMDS2_RX1+ F3
TMDS1_RX1- I2
TMDS1_RX0- I2
TMDS1_RXC+ I3
TMDS1_RX2- I2
TMDS1_RX1+ I2
TMDS1_RX2+ I2
TMDS1_RX0+ I2
TMDS1_RXC- I3
10KR2669
10KR2670
0.1uF
16V
C682
10uF
16V
C2664
10uF
16V
C2601
PROTECT
WRITABLE
PROTECT
WRITABLE
9 VIDEO EXT. INPUT
2007.10.25LA84A/LA85A
6
THE SYMBOL MARK OF THIS SCHEMETIC DIAGRAM INCORPORATES
SPECIAL FEATURES IMPORTANT FOR PROTECTION FROM X-RADIATION.
FILRE AND ELECTRICAL SHOCK HAZARDS, WHEN SERVICING IF IS
ESSENTIAL THAT ONLY MANUFATURES SPECFIED PARTS BE USED FOR
THE CRITICAL COMPONENTS IN THE SYMBOL MARK OF THE SCHEMETIC.
TP8017
RL_ON
+3.3V
GND
ST_5V
+5.0V_SUB
4.7K R844
READY
A2.6V_BCM
VBR_B
4.7uF
10V
C871
TP8050
0.1uF
16V
C800
47K R869
AC_DET
+5.0V_SUB
0
READY
R817
P_+16V
TP8049
0.1uF
16V
C888
+5.0V_SUB
SC1566I5M-2.5TRT
IC810
1
VIN
2
EN
3
GND
4ADJ
5VO
100
R811
0.1uF
C848
16V
TP8055
HB-1M2012-800JT
L810
0
R832
READY
4.7uF
6.3V
C835
0
R831
S_Common_without_32CMO(HD)_42AUO_52Sharp(FHD)
47uF
10V
C840
0.01uF
25V
C834
TP8061
Power_CTL_3.3V
GND
0
READY
R800
0.01uF
C8800
0.1uF
16V
C884
Power_CTL_2.6V
4:L9
TP8012
5V_MNT
100uF
16V
C851
GND
1K
R814
0.1uF
16V
C833
8.2K R863
1K
R820
15K R862
+5.0V_SUB
D3.3V_BCM
SC156515M-1.8TR
IC809
2
VIN
1
EN
3
GND
5ADJ
4VO
TP8008 0
R801
33uF
10V
C841
JP8003
TP8019
1K
R815
TP8018
+5.0V_SUB
1uF
C8801
GND
TP8063
0.1uF
16V
C887
ST_5V
1K
R868
GND
0.1uF
16V
C825
22R867
0
R872
READY
0.1uF
16V
C886
TP8026
LD803
A2[GN]
C
A1[RD]
0
READY
R818
0.1uF
16V
C827
0
R834
S_Common_without_47CMO(FHD)
GND
TP8060
TP8009
47uF
16V
C828
TP8024
0.1uF
16V
C842
A3.3V_BCM
1uF
C896
HB-1M2012-800JT
L806
0.1uF
16V
C885
0.1uF
C881
16V
GND
0.1uF
C847
16V
TDVF-H051F
TU1
14 SIF
13 AUDIO_OUT
5NC_2
12 IF_AGC
11 DIGITAL_IF2
2RF_AGC
10 DIGITAL_IF1
4VTU
1NC_1
9AS
8SCL
3+B[5V]
16 VIDEO_OUT
7SDA
6GND
15 IF_AS
17
SHIELD
TP8025
TP8010
430
R822
NFE31PT222Z1E9L
L805
OUTIN
GND
0
R835
GND
A2.6V_BCM
VBR_A
GND
100uF
16V
C846
2SC3875S
Q803
E
B
C
+12.0V
10K
R871
READY
TP8013
18
R810
GND
0.1uF
C899
0
R873
JP8014
10uF
25V
C813
33uF
10V
C882
GND
0.1uF
16V
C852
A3.3V_BCM
INV_ON/OFF
100uF
16V
C898
TP8051
47uF
C895
TP8004
0
R816
FMS6400CS1X
IC808
3
GND
2
ASEL
4
CIN
1
YIN
5COUT
6CVOUT
7VCC
8YOUT
SI4925BDY
Q804
3S2
2G1
4G2
1S1
5 D2_1
6 D2_2
7 D1_1
8 D1_2
0.1uF
16V
C818
10uF
16V
C819
0.01uF
25V
C872
0
R842
READY
365
R823
Tu_CVBS
6:I7
47uF
16V
C865
IF_N 6: J5
IF_P 6:J5
12K
R806
D2.6V_BCM
OPT
R808
1uF
6.3V
C838
27pF
50V
C804
27pF
50V
C802
AZ1117H-1.8TRE1(EH13A)
IC807
2
OUTPUT
3
INPUT 1ADJ/GND
0.1uF
16V
C864
47uF
16V
C863
+1.8V_NTP
3.3V_TMDS_SW
RL_ON
GND
4.7uF
6.3V
C823
0.01uF
25V
C822
0.1uF
16V
C821
HB-1M2012-800JT
L804
AZ1117H-3.3
IC802
2
OUTPUT
3
INPUT 1ADJ/GND
47uF
16V
C816
0.1uF
16V
C815
0.1uF
16V
C817
0.1uF
16V
C844
JP8000
GND
GND
0.1uF
16V
C843
READY
47uF
16V
C805
TP8015
0R805
TP8016
SCL0_5V
1:L9
0.01uF
25V
C801
TP8003
100
R812
TP8007
IF_AGC
6:I5
SIF
6:I8
SDA0_5V
1:L9
470
R809
100
R813
2SA1504S
Q800
E
B
C
TP8005
0.01uF
C806
10K
R807
0.1uF
16V
C803
470 R870
HB-1M2012-800JT
L813
HB-1M2012-800JT
L801
SMW200-24C
P800
19
14
9
4
18
13
8
3
17
12
7
2
16
11
6
1
20
15
10
5
21 22
23 24
0R859
S_Common_without_32CMO(HD)_47CMO(FHD)
0
S_Common_without_32CMO(HD)_47CMO(FHD)_52Sharp(FHD)
R874
GND
VBR_B
0
S_Only_32CMO(HD)
R875
0
S_Only_32CMO(HD)
R876
4.7uF
6.3V
C8803
4.7uF
6.3V
C8802
4.7uF
6.3V
C814
KA7809ERTM
IC811
2
G
3O 1
I
+9V
0.1uF
16V
C8804 100uF
16V
C8805
+12.0V
GND
6.8K
R877
10uF
16V
C8806
+5.0V
+5.0V
+5.0V
+5.0V
820 R804
47uF
16V
C8807
KIA78R05F
IC812
1
VIN
2
VC
3
VOUT
4
NC
5
GND1
6
GND2
0.1uF
16V
C8808
0.01uF
25V
C8809
HB-1M2012-800JT
L814
0.33uF
16V
C8810
0.1uF
C8811
2.7K
R878
READY
+3.3V
0.1uF
16V
C8812
+5V_HPD
+5.0V
100uF
16V
C897
0.47uF
50V
C8813
0
S_Only_47CMO(FHD)
R819
INV_ON/OFF
0
S_Only_47CMO(FHD)
R803
L802
10pFC807
0
R857
0
R858
10uF
16V
READY
C878
JP8008
JP8007
JP8006
JP8001
TP8037
TP8014
TP8020
TP8059
TP8002
TP8001
TP8000
TP8034
TP8011 TP8022
TP8033
TP8036
TP8035
TP8032
TP8021
TP8029
TP8028
TP8031
TP8030
TP8027
TP8044
TP8039
TP8040
TP8041
TP8058
TP8047
TP8046
TP8023TP8006
TP8048
TP8038
UBW2012-121F
L800
UBW2012-121F
L811
UBW2012-121F
L812
UBW2012-121F
L815
JP8012
JP8002
JP8005
JP8009
CB4532UK121E
L803
CB4532UK121E
L809
CB4532UK121E
L816
100pF
50V
C808
100pF
50V
C809
100pF
50V
C810
22uF
C830
D1.2V_BCM
2K
R802
0.1uF
C826
10
R827
22uF
C831
15K
1%
R824
0.1uF
16V
C837
10uH
L808
+5.0V_SUB
BD9132MUV
IC803
1SW_1
3SW_3
7PVCC_2 9BST
10 VCC
11
GND
12
ADJ
13
ITH
14
NC_1
15
NC_2
16
NC_3
17
EN
18
PGND_1
19
PGND_2
20
PGND_3
5SW_5
8PVCC_3 6PVCC_1
4SW_4
2SW_2
47uF
10V
C832 33uF
10V
C836
0.47uF
25V
C820
0.1uF
16V
C829
MBW3216-501TF
L807
100uF
16V
C824
1K
R826
12K
R825
UBW2012-121F
L817
6.34K
1%
R821
33uF
10V
C839
Power_CTL_1.2V
4:L9
1000pF
50V
C812
1000pF
C811
A1.2V_BCM
L818
9 TUNER, POWER
2007.10.25LA84A/LA85A
8
POWER PIN MAP
INVERTER MAIN
P11 <-> P21
P12 <-> P20
P13 <-> P22
P14 <-> P17
Vcc filter for Soft start
