LG 32LD452C User manual

lcd tv
LCD Commercial Widescreen
w w w. LG s o l u t i o n s . c o m
PUBLIC DISPLAY SE INGS - CLONING CAPABLE
EcoSmart™
Energy Saving Levels
ENERGY S AR®4.1 AND RoHS COMPLIAN
AU O SENSING REMO E JACK PACK (RJP) COMPA IBLE*
Pro:Centric™ S
DYNAMIC CON RAS RA IO
60,000:1
NA IVE DISPLAY RESOLU ION
1920 x 1080 full HD 1080p (37”/42”/47” class)
1366 x 768 (32” class)
BUIL -IN A SC/N SC/QAM CLEAR UNER
INVISIBLE SPEAKER SYS EM
Hidden speaker grilles
LG'S EXCLUSIVE XD ENGINE®
MUL I REMO E IR CODE
USB 2.0 MEDIA HOS FOR PHO OS AND MUSIC
USB CLONING
CLEAR VOICE II
REAL CINEMA™
2 HDMI™ INPU S WI H HDCP
V.1.3 with deep color
2 YEAR LIMI ED WARRAN Y
(parts and labor)
Integrated HD V
*NOTE: Contact your LG Sales representative on the RJPs that are
compatible with the LD452C series.
47" class (47.0" measured diagonally) 47LD452C
42" class (42.0" measured diagonally) 42LD452C
37" class (37.0" measured diagonally) 37LD452C
32" class (31.5" measured diagonally) 32LD452C

•EcoSmart
Energy Saving Levels - Manually select your choice for the brightness level for the
television.
•RoHS Compliant - Meets directive on restriction of hazardous substances.
•Energy Star 4.1 Qualified - Meets current reduction requirements of energy
consumption.
L F E ’ S G O O D . . .
WHEN T’sGREEN.
LG is committed to improving product development,
manufacturing and usage to meet the demand
for environmentally friendlier products. Our
LD452C televisions have technologies to reduce
power consumption and in return increase cost
savings per room. We’ve also placed limits in the
amounts of harmful materials used in these
televisions.
LG’s newest core technology, Picture Wizard, enables easy self-
calibration by providing on-screen reference points for key picture quality
elements such as black level, color, tint, sharpness and backlight levels. By
using this easy-to-use calibration process, the picture setting can be set to
better fit the type of room application.
Picture Wizard
With Picture Wizard, you can adjust the picture quality of the
original image.
G
NextPrevious
PHOTO LIST MUSIC LIST
Enter
Move

Aspect Ratio : 16:9
Picture Wizard
Energy Saving : Off
Picture Mode:Standard
•Backlight 70
• Contrast90
•Brightness50
• Sharpness70
USB 2.0 will support JPG and MP3 files from a USB storage device.
Page 2/3 No Marked
Photo List
Up Folder
1366x768, 125KB
KY101 06/10/2008
KY102 04/03/2008
JMJ001 01/01/2000
JMJ002 06/15/2008
JMJ003 04/03/2008
JMJ004 02/18/2008
KY103 03/30/2008
KY104 06/19/2008
KY105 01/31/2008
JMJ005 05/13/2008
JMJ006 05/26/2008
JMJ007 02/18/2008
JMJ008 02/18/2008
Up Folder
Drive1
JMJ001
Music List
Up Folder
noitaruDeltiT
Page 2/3 No Marked
Drive1
AA00:00 / 04:16
Up Folder
SB 2.0
M E D I A H O S T
Dramatizations
Manually select your choice for the brightness level for the television. By
selecting Minimum, Medium, or Maximum, the power consumption will
be reduced and an increase in energy savings can be achieved. (Note:
Selecting minimum level may slightly increase power consumption on some models)
Enter
Move
▼
Aspect Ratio:16:9
Picture Wizard
Energy Saving : Off
Picture Mode:Standard
•Backlight 70
• Contrast90
• Brightness50
•Sharpness70
Off
Minimum
Medium
Maximum
Screen off
ENERGY SAVING LEVELS
CONNECTIVITY
As a versatile addition to the TV viewing experience, LG's optional auto-
sensing Remote Jack Packs (RJP)*, can serve as a multimedia hub that can
be installed conveniently on a table or in a wall. Connect portable
devices such as a laptop, mp3 player, or a digital camera to display
images, play video or music from the set.
BED1/2/3/4 REMOTE CONTROLABILITY
LG TVs with Bed 1/2/3/4 function eliminates the remote control signal
interference between TVs in multiple dwelling rooms. This system will work
using the same LG TV model.

47LD452C
42LD452C
37LD452C
32LD452C

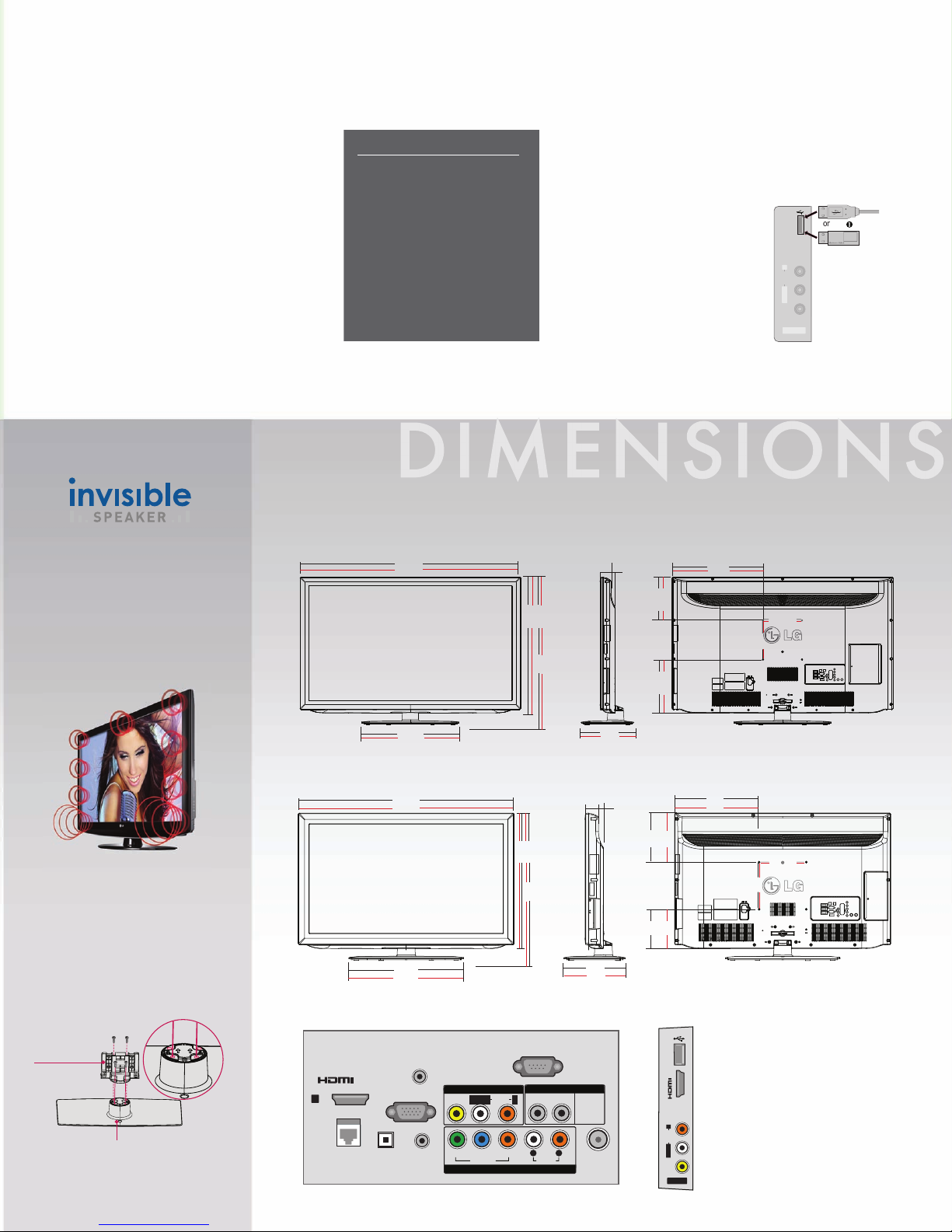

STAND BODY
COVER BASE
4-Screws
(provided)
MO NTING HOLES ON STAND
1
/DVI IN
RS-232C IN
( CONTROL&SERVICE)
ANTENNA
/CABLE IN
RGB IN (PC)
VIDEO
YPBPRL R
AUDIO
COMPONENT IN
OPTICAL
DIGITAL
AUDIO OUT
AUDIO IN
(RGB/DVI)
AV IN 1
VIDEO AUDIO
L(MONO)
R
RJP
REMOTE
CONTROL IN
EXTERNAL SPEAKER OUT
LR
44.7”
40.3”
19.7”
19.2”
27.5”
29.8”
25.0”
27.0”
2.2”
2.4”
10.6”
10.3”
18.4”
16.2”
8.8”
8.4”
10.8”
8.7”
200mm
200mm
200mm
200mm
3.0”
3.0”
REAR SIDE
AVIN2
L/MONO
R
AUDIO
VIDEO
USBIN
36.1”
19.2”
22.6”
24.6”
2.9”
2.2”
10.3”
11.8”
6.1”
9.8”
200mm
200mm
31.5”
15.7” 8.14”
19.9”
21.9”
3.0”
2.2”
8.2”
6.6”
14.1”
200mm
100mm
SO ND IS HEARD, NOT SEEN
Enjoy a combination of smart technology
and stylish design with the invisible
speaker system custom tuned by audio
expert Mr. Mark Levinson. This unique
system provides a clean, polished look
and an enhanced auditory experience
by increasing the sweet spot and
providing a wider sound field.
P BLIC DISPLAY SETTINGS
When used in public areas, these HDTVs can be
easily programmed by the installer to have the
TV turn on at a specified channel/volume level,
set the minimum/ maximum volume, lock out the
control panel/remote, set the aspect ratio, and
return to a factory reset. By using Power
Management, these displays can be
programmed to turn off if there has been no
activity (remote or control panel buttons) for a
preset time (1-7) hours.
Public Display Mode No
Start Channel No
Ch. Type TV
Major 2
Minor 0
Minimum Volume 0
Maximum Volume 100
Start Volume No
Level 20
Power Management No
Setting 1
Key Management 0
Factory Reset 0
Aspect Ratio 0
PDM Plus
Public Display Setting
IN 2
VIDEO
AUDIO
L(MONO)
R
USB IN
AV IN 2
SB CLONING
USB cloning will allow for easy transfer of Public
Display Settings from the “Master TV” to an unlimited
number of same type televisions.

All screen images are simulated. Dimensions and weights are approximate.
Design, features and specifications subject to change without notice.
© Copyright 2011 LG Electronics USA, nc. All Rights Reserved. “LG Life’s Good” is a
registered trademark of LG Corp. XD Engine is a registered trademark of LG Electronics,
nc. HealthView and EcoSmart are trademarks of LG Corp.
Dolby and the double-D
symbol are registered trademarks of Dolby Laboratories. SRS and the SRS symbol,
TruSurround XT and WOW are trademarks or registered trademarks of SRS Labs, nc.
VESA is a trademark of Video Electronics Standards Association. All other product and
brand names are trademarks or registered trademarks of their respective companies.
Printed in the USA. April 2011
XT
®
specifications
www.LGsolutions.com
lcd tv
LCD SPECIFICATION
Screen Size (Class) 47” class (47.0” measured diagonally)
42” class (42.0” measured diagonally)
37” class (37.0” measured diagonally)
32” class (31.5” measured diagonally)
Native Display Resolution 1920 x 1080 (37”,42”, 47” class)
1366 x 768 (32” class)
Dynamic Contrast Ratio 60,000:1
Viewing Angle 178°/178°
Color Reproduction 10 Bit
Response Time (G to G) 4ms
True Viewing Angle Yes
Life Span (Typical) 60,000 hrs
BROADCASTING SYSTEM
Analog Yes
ATSC/NTSC/Clear QAM Yes
MPEG4 Yes
VIDEO
Aspect Ratio 16:9
Aspect Ratio Correction 6 Modes (16:9/Just scan/Set by program /
4:3/Zoom/Cinema Zoom)
Color Temperature Control 3 Modes (Cool/Medium/Warm)
Picture Status Mode 7 Modes (Vivid/Standard/Cinema/Sport/
Game/Expert 1/Expert 2)
Just Scan (0% over scan)
HDM 1080i/1080p/720p
Component 1080i/1080p/720p
RF/DTV 1080i/720p
24p Real Cinema (24p 5:5/2:2 Pull down) Yes
Eye Care (Anti Dazzling) Yes
Fresh White Yes
Expert Mode/ SF Ready Yes
Picture Wizard Yes
AV Mode (Cinema/Game/Sport) Yes
xvyCC Yes
DTV Signal Strength Yes
A DIO
Audio Output 10W x 2
nvisible Speaker System Details 1 Way 2 Speaker
Dolby Digital 5.1 Decoder Yes
Surround System Type nfinite Sound
Bass/Treble/Balance Controls Yes
Auto Volume Leveler Yes
EZ Sound Mode/SSM 5 Modes
Clear Voice Yes
SPECIAL FEAT RES
XD Engine Yes
Energy Saving Modes Yes (Backlight Control, Video Mute)
EPG(S ) Yes (Pro:Centric)
1080p Source nput Yes HDM /Component (60/30/24p),
RGB (WXGA)
A/V nput Navigation Yes
nput Labeling/Sub-title Yes
LG S MPL NK™ (HDM CEC) Yes
Parental Control w/V-Chip Yes
Key Lock/Child Lock Yes
Customizable Closed Caption/Sub-title Yes
Splash mage - Logo (on start up) Yes
Multi Remote R code (Bed1/2/3/4) Yes
Auto-Sensing RJP compatible Yes (with select RJP versions)
Bed 1/Bed 2/ Bed 3/ Bed 4 Control Yes
PictureWizard Yes
TVLink-Protocol (Tuner, Loader) Yes
USB Cloning (USB Link Loader) Yes
1080p Source nput
HDM 60p/30p/24p
Component 60p/30p/24p
RGB WXGA
Quick View (Flashback) Yes
e-Streamer Yes (for shop mode)
OSD Language 4 (English/Spanish/French/Korean)
Quick Menu (Round Type-8 menus selectable) Yes (Aspect Ratio/SAP/Picture Mode/Sound
Mode/Audio/Sleep Timer/Ch Add/USB Eject)
Alvin U Yes
Function Menu Yes
nstallation Menu Yes (v2.6)
CONVENIENCE FEAT RES
Auto Tuning/Programming Yes
Channel Add/Delete Yes
Favorite Channel Programming Yes
Auto/Manual Clock Yes
On/Off Timer Yes
Sleep Timer Yes
Auto Off/Auto Sleep (When no video is present) Yes
A DIO/VIDEO INP TS/O TP TS
RF n (Antenna/Cable) 1
L/R Audio/Composite Video n 1 (rear), 1(side)
HD Component Video n (Y, Pb, Pr) + L/R Audio1
Digital Audio Out (Optical) 1
HDM /HDCP nput (V1.3 with Deep Color) 1(side), 1(rear)
RGB n (D-Sub 15pin) - PC 1 (1920 x 1080)
PC Audio nput 1
RS-232c n (Control/Service) 1
USB 2.0 nput 1 (side) Media Host (JPEG, MP3),
Cloning, and Service
Remote Control Port n 1
RJ45 (for RJP interface - non P P) 1
CABINET/ACCESSORIES
Cabinet Color Glossy Black
Swivel Stand (degrees) +20°/-20°
Top Side Mounting Screw Yes
TORX Security Screw (2 each) Yes
Power ndicator Yes (on/off)
Fire Retardant Cabinet Material Yes
Kensington Security System Slot Yes
VESA® Mount Compatible Yes
Remote Control Yes
POWER
Voltage, Hz 100V - 240V, 50/60 Hz
Stand-by Mode (typ.) 0.2W (EPA 4.0)
Power Consumption Max 180W(32” class), 200W (37” class)
260W (42” class), 330W (47” class)
Power Consumption Typical 78W(32” class), 95W (37” class)
115W (42” class), 138W (47” class)
Dynamic Power Savings Yes
Static Power Savings Yes
REQ IRED APPROVALS
ENERGY STAR® 4.1 Qualified Yes
RoHS Compliant Yes
UL, cUL, NOM Yes
DIMENSIONS & WEIGHT
TV without stand (WxHxD) 31.5" x 19.9" x 2.9" (32” class)
36.1" x 22.6" x 3.0" (37” class)
40.3" x 25.0" x 3.0" (42” class)
44.7" x 27.5" x 3.0" (47” class)
TV with stand (WxHxD) 31.5" x 21.9" x 8.1" (32” class)
36.1" x 24.6" x 10.3" (37” class)
40.3" x 27.0" x 10.3" (42” class)
44.7" x 29.8" x 10.6" (47” class)
Shipping Dimensions (WxHxD) 38.0" x 23.2" x 7.5" (32” class)
39.2" x 26.0" x 9.0" (37” class)
43.6" x 30.3" x 9.0" (42” class)
48.8" x 31.6" x 10.0" (47” class)
TV without stand weight 17.9 bs (32” class)
23.8 bs (37” class)
29.8 bs (42” class)
38.6 bs (47” class)
TV with stand weight 20.1 bs (32” class)
27.6 bs (37” class)
33.3 bs (42” class)
43.0 bs (47” class)
ShippingWeight 24.9 bs (32” class)
35.1 bs (37” class)
41.7 bs (42” class)
52.7 bs (47” class)
SERVICE/LIMITEDWARRANTY 2Years (Parts/Labor)
PC CODE
32LD452C 7 19192 90204 6
37LD452C 7 19192 90205 3
42LD452C 7 19192 90206 0
47LD452C 7 19192 90207 7
LG Electronics U.S.A., nc.
Commercial Displays
2000 Millbrook Drive
Lincolnshire, L 60069
Customer Service: 888.865.3026
www.LGsolutions.com/support
Contact your LG Regional Sales Representative
Vertical Markets: 800.897.8788
Channel: 800.897.8871
Hospitality: 800.228.1236
E-mail: [e-mail]
SPEC_LD452C_041120_PR
47LD452C 47" class (47.0" measured diagonally)
42LD452C 42" class (42.0" measured diagonally)
37LD452C 37" class (37.0" measured diagonally)
32LD452C 32" class (31.5" measured diagonally)
