LG 32LD650H User manual

Commercial Mode Setup
pages 13–14
Cloning Information
pages 28–33
b-LAN™ Setup & Overview
page 40
EXPERIENCED INSTALLER
Commercial Mode Setup Guide
Note: Selected features shown in this guide may not be available on all models.
Lodging Guest Interactive Pro:Centric™ TVs
32LD650H 37LD650H 42LD650H 47LD650H 55LD650H
32LD655H 37LD655H 42LD655H
32LG710H 37LG710H 42LG710H
© Copyright 2010, LG Electronics U.S.A., Inc. P/N: 206-4137 (Rev B)

2206-4137
MODEL and SERIAL NUMBER
The model and serial numbers of this TV are located on the
back of the cabinet. For future reference, LG suggests that
you record those numbers here:
Model No._________________Serial No. _______________
WARNING:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to
the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instructions in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
Power Cord Polarization:
This product is equipped with a 3-wire grounding-type alternating current power plug. This plug will fit into the power
outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, contact your elec-
trician to replace your obsolete outlet. Do not defeat the safety purpose of the 3-wire grounding-type plug.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric
Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.
REGULATORY INFORMATION:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can be determined by turning the equip-
ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
Do not attempt to modify this product in any way without written authorization from LG Electronics U.S.A., Inc.
Unauthorized modification could void the user’s authority to operate this product.
COMPLIANCE:
The responsible party for this product’s compliance is: LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632, USA • Phone: [phone]
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
© Copyright 2010, LG Electronics U.S.A., Inc.
For Customer Support/Service, please call:
1-888-865-3026
The latest product information and documentation is
available online at:
www.LGsolutions.com/products
Marketed and Distributed in the United States by LG Electronics U.S.A., Inc.
1000 Sylvan Avenue, Englewood Cliffs, NJ 07632

3
206-4137
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources, such as radi-
ators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding-
type plug has two blades and a third grounding
prong. The wide blade or the third prong are pro-
vided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched, particularly at plugs, convenience recepta-
cles, and the point where it exits from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination in
order to avoid injury from tip-over.
13. Unplug this apparatus during lighting storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the appara-
tus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. Never touch this apparatus or antenna during a thun-
der or lighting storm.
16. When mounting a TV on the wall, make sure not to
install the TV by the hanging power and signal cables
on the back of the TV.
17. Do not allow an impact shock or any objects to fall into
the product, and do not drop objects onto the screen.
18. Power Cord
Caution: It is recommended that appliances be
placed upon a dedicated circuit; that is, a single
outlet circuit which powers only that appliance and
has no additional outlets or branch circuits. Check
the specification page of the Owner’s Manual to be
certain.
Periodically examine the cord of your appliance, and
if its appearance indicates damage or deterioration,
unplug it, discontinue use of the appliance, and have
the cord replaced with an exact replacement part by an
authorized servicer. Protect the power cord from physi-
cal or mechanical abuse, such as twisting, kinking, or
pinching or being closed in a door or walked upon. Pay
particular attention to plugs, wall outlets, and the point
where the cord exits the appliance.
Do not use a damaged or loose power cord. Be sure
to grasp the plug when unplugging the power cord. Do
not pull on the power cord to unplug the TV.
19. Overloading
Do not connect too many appliances to the same AC
power outlet as this could result in fire or electric shock.
Do not overload wall outlets. Overloaded wall outlets,
loose or damaged wall outlets, extension cords, frayed
power cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could result in
fire or electric shock.
20. Outdoor Use/Wet Location
Warning: To reduce the risk of fire or elec-
trical shock, do not expose this product to
rain, moisture or other liquids.
Do not touch the TV with wet hands. Do not install this
product near flammable objects such as gasoline or
candles or expose the TV to direct air conditioning.
Do not expose to dripping or splashing and do not place
objects filled with liquids, such as vases, cups, etc., on
or over the apparatus (e.g., on shelves above the unit).
(Continued on next page)
PORTABLE CART WARNING

4206-4137
IMPORTANT SAFETY INSTRUCTIONS
(Continued from previous page)
21. Grounding
Ensure that you connect the earth ground wire to pre-
vent possible electric shock (i.e., a TV with a three-
prong grounded AC plug must be connected to a
three-prong grounded AC outlet). If grounding meth-
ods are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to ground
the unit by connecting it to telephone wires, lightening
rods, or gas pipes.
22. Disconnect Device
The mains plug is the disconnecting device. The plug
must remain readily operable.
As long as this unit is connected to the AC wall outlet,
it is not disconnected from the AC power source even
if you turn off this unit by SWITCH.
23. Outdoor Antenna Grounding
If an outside antenna or cable system is connected to
the product, follow the precautions below.
An outdoor antenna system should not be located in
the vicinity of overhead power lines or other electric
light or power circuits or where it can come into con-
tact with such power lines or circuits as death or seri-
ous injury can occur.
Be sure the antenna system is grounded so as to pro-
vide some protection against voltage surges and built-
up static charges.
Article 810 of the National Electrical Code (NEC) in
the U.S.A. provides information with respect to proper
grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna-discharge
unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding elec-
trodes, and requirements for the grounding electrode.

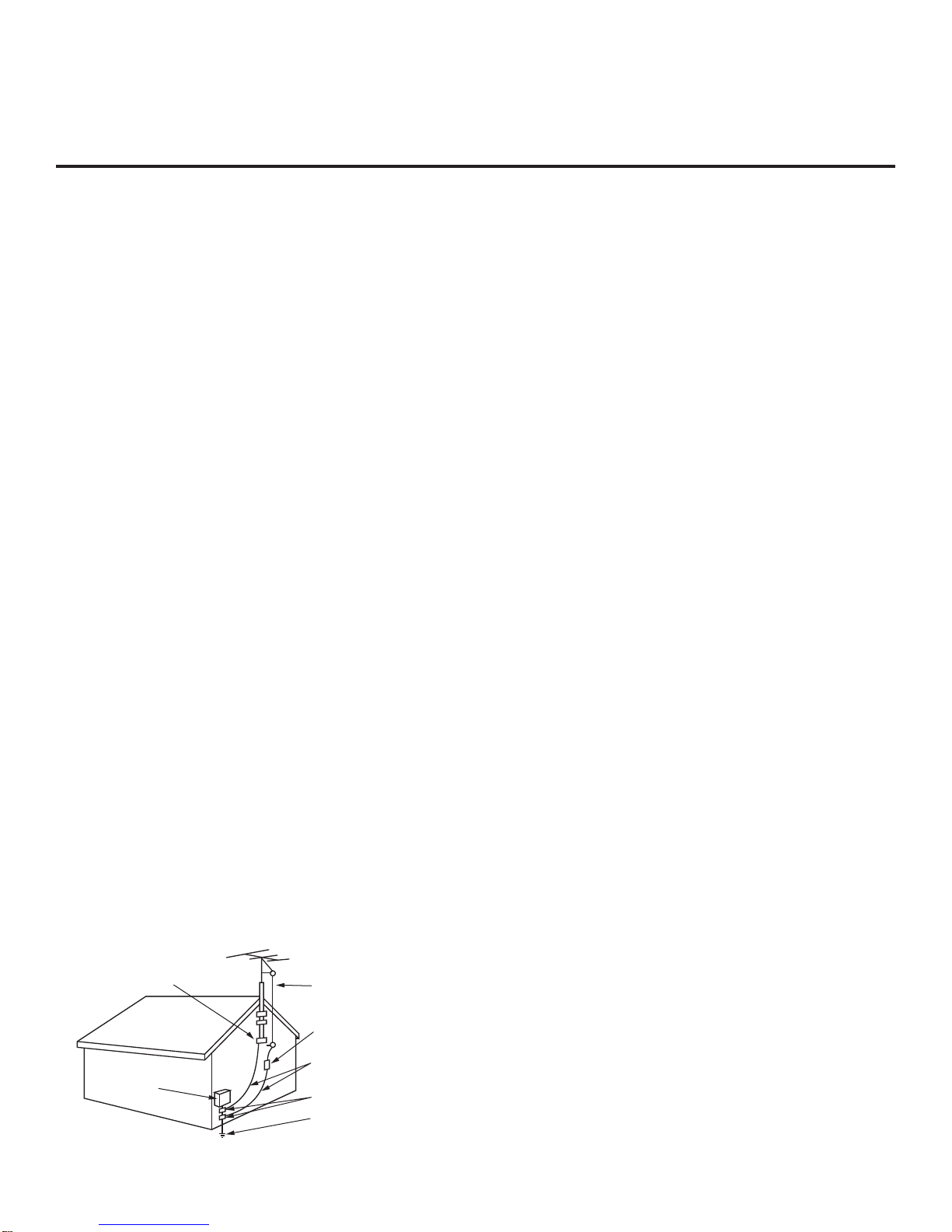

Antenna Grounding According to NEC, ANSI/NFPA 70
24. Cleaning
When cleaning, unplug the power cord and rub gently
with a soft cloth to prevent scratching. Do not spray
water or other liquids directly on the TV as electric
shock may occur. Do not clean with chemicals such
as alcohol, thinners or benzene.
25. Transporting Product
Make sure the product is turned Off and unplugged
and that all cables have been removed. It may take
two or more people to carry larger TVs. Do not press
against or put stress on the front panel of the TV.
26. Ventilation
Install the TV where there is proper ventilation. Do not
install in a confined space such as a bookcase. Do
not cover the product with cloth or other materials
(e.g., plastic) while it is plugged in. Do not install in
excessively dusty places.
27. Do not touch the ventilation openings, as they may
become hot while the TV is operating.
28. If you smell smoke or other odors coming from the TV
or hear strange sounds, unplug the power cord, and
contact an authorized service center.
29. Do not press strongly on the panel with a hand or
sharp object (e.g., a nail, pencil, or pen) or make a
scratch on it.
30. Keep the product away from direct sunlight.
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductor
(NEC Section 810-21)
Ground Clamps
Power Service Grounding
Electrode System (NEC
Art 250, Part H)
Ground Clamp
Electric Service
Equipment

5
206-4137
Table of Contents
Safety Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Safety Instructions . . . . . . . . . . . . . . . . . . . 3 – 4
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Setup Checklist / Overview . . . . . . . . . . . . . . . . . . . . . . 6
Pro:Centric TV Interactive Menu Features. . . . . . . . . . . 7

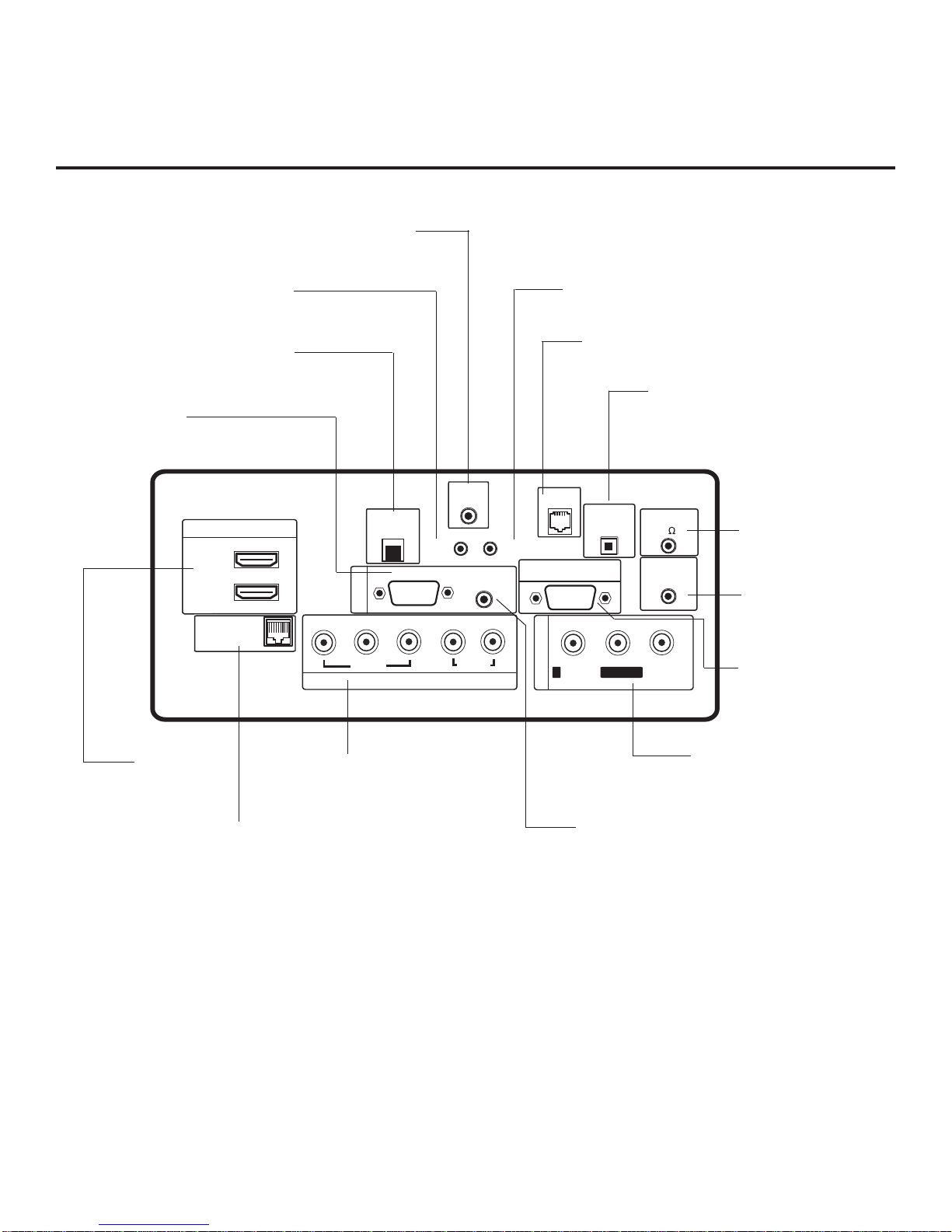

LD650H/LD655H Rear Jack Panel . . . . . . . . . . . . . . . . 8
LG710H Rear Jack Panel . . . . . . . . . . . . . . . . . . . . . . . 9

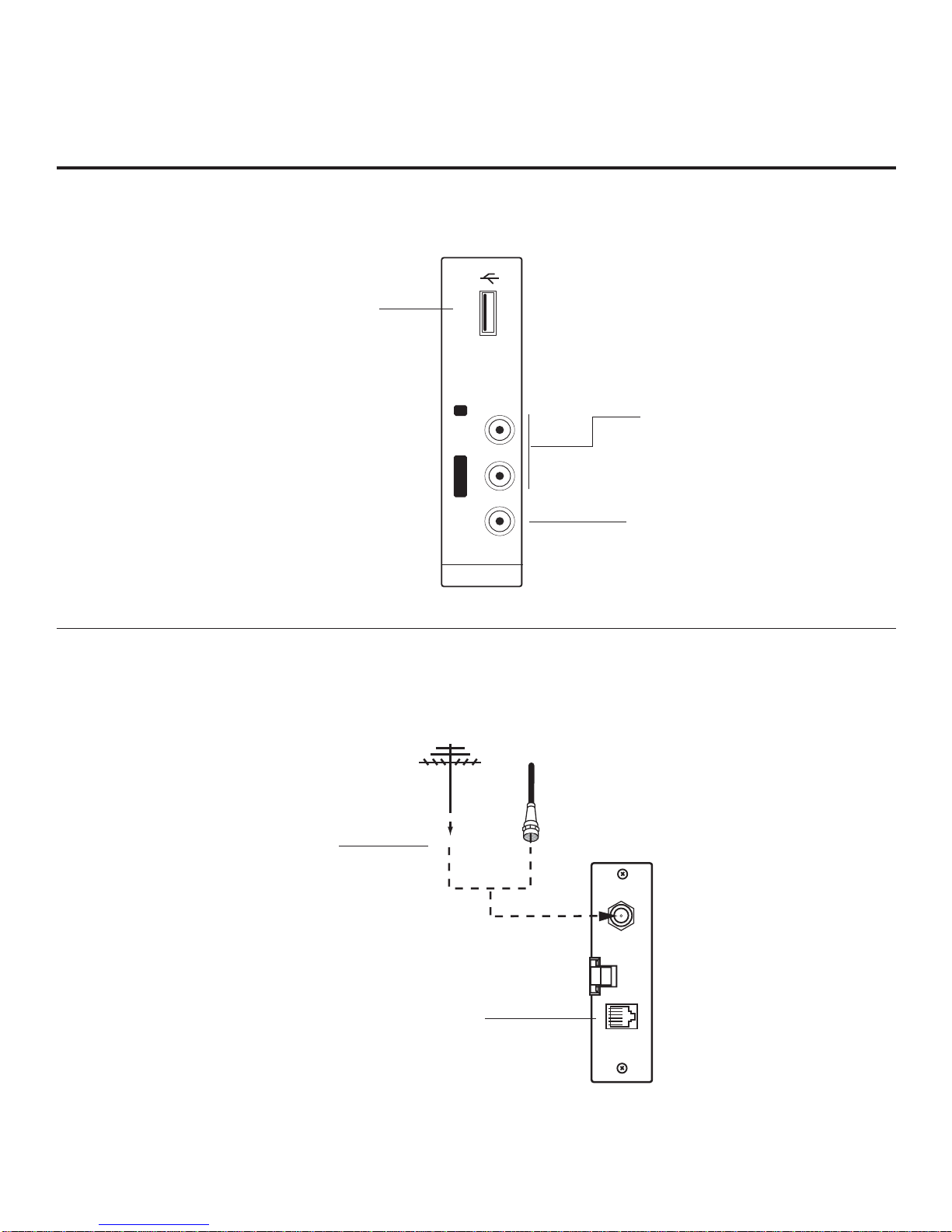

Side Connections Panel / RF Antenna Connection . . . 10
Installer Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installer Remote Control Typical Key Functions . . . . . 12
Commercial Mode Setup for Master TV. . . . . . . . . 13 – 14
Installer Menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 – 21
TV Setup Menus Overview . . . . . . . . . . . . . . . . . . . . . 22
Adding Channel Icons / Custom Channel Labels
(2-5-4 + MENU Mode) . . . . . . . . . . . . . . . . . . . . . . . . . 23
FTG Mode of Operation. . . . . . . . . . . . . . . . . . . . . 24 – 27
FTG Setup Overview . . . . . . . . . . . . . . . . . . . . . . . . 24
Determining the TV Operating Mode / FTG
Channel Map Configuration Utility Overview . . . . . . 25
FTG Channel Map Configuration Utility / FTG
Channel Map Editor Overview . . . . . . . . . . . . . . . . . 26
FTG Installer Menu Configuration Utility Overview. . 27
Cloning Overview / Clonable Menu Features . . . . . . . 28
Cloning Procedures . . . . . . . . . . . . . . . . . . . . . . . . 29 – 33
Learning / Teaching a Master TV Setup using
a USB Memory Device . . . . . . . . . . . . . . . . . . . . . . . 29
Learning / Teaching a Master TV Setup using
a TLL-1100A Clone Programmer . . . . . . . . . . . . 30 – 31
Learning / Teaching a Master TV Setup using
an LT2002 Clone Programmer . . . . . . . . . . . . . . 32 – 33
Remote Jack Pack / TV Connections & Setup . . . . . . 34
Reference: Upgrading TV/PTC Software with a
USB Memory Device . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Reference: Power Consumption Settings . . . . . . . 36 – 37
32/37/42LD650H/LD655H. . . . . . . . . . . . . . . . . . . . . 36
32/37/42LG710H. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Reference: TV Camport Auto Sense Operation. . . . . . 38
Reference: TV Aux Input Configuration . . . . . . . . . . . . 39
Reference: b-LAN Setup & Overview. . . . . . . . . . . . . . 40
Reference: RJP Model List and Input
Auto-sensing Hierarchy . . . . . . . . . . . . . . . . . . . . . . . . 41
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 – 45
General Troubleshooting. . . . . . . . . . . . . . . . . . . . . . 42
Troubleshooting Flowchart . . . . . . . . . . . . . . . . . . . . 43
Commercial Mode Check / FTG Operating
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Clone Programmer Troubleshooting. . . . . . . . . . . . . 45
Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Document Revision History / Notes . . . . . . . . . . . . . . . 47
Back Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
For Customer Support/Service, please call:
1-888-865-3026
www.LGsolutions.com
Note: Design and specifications subject to change without prior notice.

6206-4137
Installation and Setup Checklist
__ Unpack TV and all accessories.
__ Install batteries in remote control.
__ Install TV on VESA mount or stand.
Note: It may be advisable to make all cable
connections before installing on VESA mount or
stand, as appropriate.
Hardware Connections
__ Install any additional hardware as
appropriate to your institution, LAN, etc.
Cable Connections
__ Make all connections to rear jack panel and RF
antenna on MPI/PPV card.
__ Make all connections to signal, interactive
resources, and Aux sources, as appropriate.
Commercial Mode Setup
__ Complete Commercial Mode Setup (configure
all relevant Installer Menu items as required of
your institution and configure display features
for the end user).
Software Installation
__ Install or configure any software, as applicable,
for example, PPV, etc.
Setup Checklist / Overview
Setup Checklist
Commercial Mode Setup Overview
This document describes how to set up LD650H/LD655H/LG710H Pro:Centric™ TVs for Commercial Mode
either while in the Embedded b-LAN™ (EBL) module’s Pass-through Mode or its Free-To-Guest (FTG)
Mode.
Note: The b-LAN module is internal to the TV and allows the hotel/institution head end equipment to com-
municate with the TV for configuration and control. See Reference section, “b-LAN Setup & Overview,” for
further information. The b-LAN module also comprises the data tuner required for Pro:Centric operation
(see next page).
Pass-through Mode
This mode allows you to configure a Master TV Setup for cloning purposes as well as external VOD/PPV
control. Use the Installer Remote to configure Installer Menu items as required for TV operation and set up
TV features (Channel, Picture, Audio, etc.). See pages 13 to 14 for detailed information.
FTG Mode
This mode enables Pro:Idiom® decryption and also allows logical channel mapping of physical channels to
remove the need for dash tuning. FTG Configuration Application software is used to configure and/or edit
Channel Map and Installer Menu settings. See pages 24 to 27 for further information on FTG Mode and lo-
cal configuration using a PC with the FTG Configuration Application. Since these TV models are equipped
with the EBL Module, they can also be broadcast configured in FTG Mode by a Free-To-Guest Manage-
ment Appliance (FMA) head end device. Refer to the Free-To-Guest (FTG) Configuration Application
manual and/or the Installation & Setup manual for the FMA device.

7
206-4137
Important: Pro:Centric operation requires that Installer Menu item 119 DATA
CHANNEL be set appropriately and that the TV be in PPV or FTG Mode.
The interactive Pro:Centric TV enables guests—from the comfort of their hotel
rooms—to view and select from a complete listing of hotel services and amenities.
The Pro:Centric TV is connected to the hotel's billing computer, and service/amenities
charges are billed at the time of order.
Interactive amenities may include:
• Hotel information, news, and events
• Directory services (tourist attractions, restaurants, etc.)
• Reservation services (business meetings, fitness, spa, etc.)
• Weather and traffic information
• Shopping services (delivery to guest room)
• Room service (menu ordering, memo service, morning wake up call, laundry, etc.)
• Ticketing services
• Check-out service (in the guest room)
• Gaming services
• E-mail resources/account access
Use the Installer Remote to operate both interactive menus and regular TV features.
Press PORTAL on the Installer Remote to access the interactive menus.
Channel Guide
Shows available TV programs. Indicates the channel and the program start and finish
times and also identifies the TV network.
Information
Typically displays hotel information, for example, photos of guest rooms, dining rooms,
business centers, fitness and pool facilities, etc. Information may also include resourc-
es, such as local school programs, run in cooperation with the hotel.
Remote Help
Provides help for navigating the interactive menus.
Watch TV
Removes the interactive menu from the screen and returns to the previously tuned TV
channel.
Pro:Centric TV Interactive Menu Features
Channel Guide
Information
Remote Help
Watch TV
123
456
789
0
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
PIP CH- PIP CH+
PIP SWAP PIP INPUT
PIP SAP
FLASHBK
REMOVE
ALPHA/NUM
P
A
G
E
MUTE
TIMER
MENU
RETURN
VOL CH
POWER
GUIDE
INPUT
CC
ENTER
TV DVD
VCR
STB
&@
.:/,
RATIO
PORTAL INFO i

8206-4137
COMPONENT
IN
RS-232C IN
(SERVICE ONLY)
UPDATE
RESET
AUDIO IN
(RGB/DVI)
.....
....
RL P B YP R
..........
2
1
HDMI/DVI IN
OPTICAL
DIGITAL
RJP
INTERFACE
VIDEO L/MONO-AUDIO-R
AV IN 1
RGB IN (PC)
.....
.....
.....
LAN
TV-LINK
CFG
GAME CONTROL
/MPI
..........
AUDIO OUT
REMOTE
CONTROL
OUT
SPEAKER
OUT
8
ANTENNA
IN
LD650H/LD655H Rear Jack Panel
LAN
Restricted to
service use only.
RGB IN (PC)
Connection for RGB
output from PC.
TV-LINK CFG
Use for local FTG
configuration.
UPDATE
Restricted to software updates.
RESET
Press RESET to
re-initialize the TV.
GAME CONTROL/MPI
(Game Control—LodgeNet PPV Mode only)
MPI functionality enables VOD/PPV devices or
STBs to control the TV when the EBL is in
Pass-through Mode.
OPTICAL DIGITAL AUDIO OUT
Use for amps and home theater systems. Note: In
standby mode, this port is not enabled.
AUDIO/VIDEO IN 1
Connection for composite audio/video
output from external device.
SPEAKER OUT (8Ω)
Connect to 8 ohm
external speaker input.
REMOTE
CONTROL OUT
IR output for controlling
an auxiliary device.
RS-232C IN
Use for downloading
software updates, etc.
COMPONENT IN
Connection for component
output from external device.
AUDIO IN (RGB/DVI)
Audio connection for
RGB or DVI device.
RJP INTERFACE
Connection for Remote Jack
Pack (RJP) Control cable.
HDMI/DVI IN
Connection for HDMI/DVI
output from external device.
ANTENNA IN
47/55LD650H only.
Connect an antenna
to receive over-the-air
signals.

9
206-4137
REMOTE
CONTROL OUT
SPEAKER OUT
8
VIDEO
L/MONO
COMPONENT IN
VIDEO AUDIO
R
L
RS-232C IN
(SERVICE ONLY)
UPDATE
RESET
AUDIO
(RGB/DVI)
PB
YPR
.....
....
..........
2
1(DVI)
HDMI/DVI IN
OPTICAL
DIGITAL
AUDIO OUT
RJP
INTERFACE
RGB IN
R-AUDIO-
AV IN 1
RGB(PC)
.....
.....
.....
LAN
(SERVICE ONLY)
TV-LINK
CFG GAME
CONTROL
..........
LG710H Rear Jack Panel
AUDIO IN (RGB/DVI)
Audio connection for
RGB or DVI device.
COMPONENT IN
Connection for component
output from external device.
LAN
Restricted to
service use only.
AUDIO/VIDEO IN 1
Connection for composite audio/
video output from external device.
SPEAKER OUT (8Ω)
Connect to 8 ohm external
speaker input.
REMOTE CONTROL OUT
IR output for controlling an
auxiliary device.
RGB IN (PC)
Connection for RGB
output from PC.
TV-LINK CFG
Use for local FTG
configuration.
RS-232C IN
Use for downloading
software updates, etc.
UPDATE
Restricted to software updates.
RESET
Press RESET to
re-initialize the TV.
GAME CONTROL
(LodgeNet PPV Mode only)
OPTICAL DIGITAL AUDIO OUT
Use for amps and home theater
systems. Note: In standby mode,
this port is not enabled.
RJP INTERFACE
Connection for Remote Jack
Pack (RJP) Control cable.
HDMI/DVI IN
Connection for HDMI/DVI
output from external device.

10 206-4137
Side Connections Panel / RF Antenna Connection
AV IN 2
L/MONO -AUDIO- R
VIDEO USB IN
USB IN
Insert USB device for software
updates or for picture/music
entertainment, as applicable.
Antenna
or CATV
ANTENNA IN MP I
RF Antenna Connection
(32/37/42LD650H/LD655H/LG710H TVs)
Side Connections Panel
(All LD650H/LD655H/LG710H TVs)
VIDEO IN
Connect to video output
port on external device.
L/MONO-AUDIO-R IN
Connect to audio output
jacks on external device.
For only mono audio output,
connect to Left audio input.
A/V 2 Input
RF ANTENNA
Connect to
Antenna/Cable
input on MPI card.
MPI PORT
Connect external MPI
control devices (i.e.,
clone programmer,
PPV provider, etc.).
Note: 47/55LD650H
Antenna and MPI connec-
tions are on the rear jack
panel (see page 8).

11
206-4137
Installer Overview
This is the Commercial Mode Setup Guide only.
Installer Menu / Commercial Mode Setup
To set up a Master TV, you will need to know how to enter the TV
Installer Menu and make changes to the default values as required.
Similarly, to configure a single TV’s Installer Menu settings in FTG Mode,
you will need to know how to access and use the FTG Configuration
Application utilities. If necessary, familiarize yourself with the Installer
Menu and how to make and save changes. Refer to page 15 for informa-
tion on accessing the Installer Menu in Pass-through Mode. Refer to
page 24 for information on accessing the FTG Installer Menu
Configuration Utility in the FTG Configuration Application. Pages 16 to 20
describe Installer Menu items in detail.

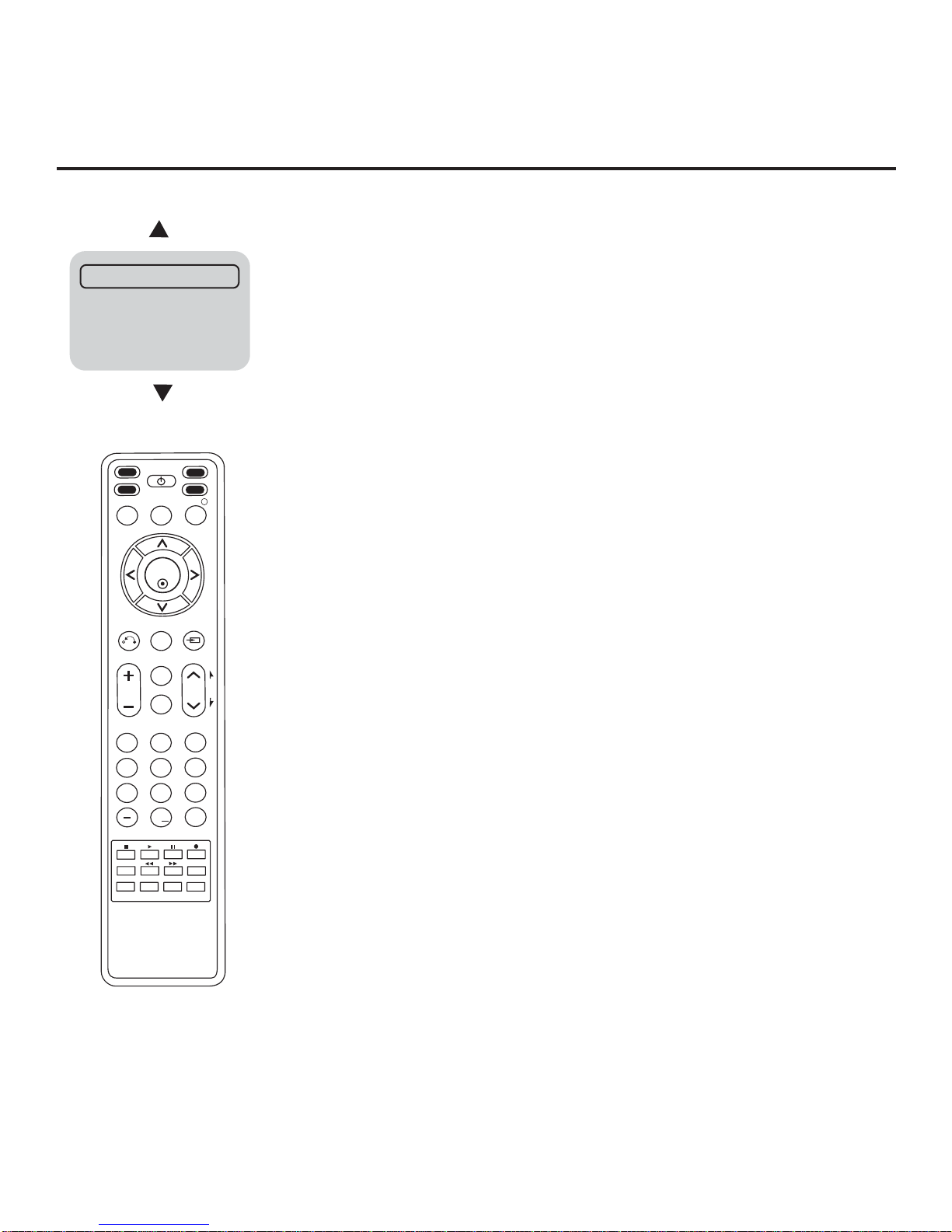

Installer Remote
The LG Installer Remote is supplied with and dedicated to operate the
TV. See next page for typical key functions in TV operating mode. Some
DVD and VCR controls may be available for selected LG DVD/VCR
products.
Cloning
Cloning refers to the process of capturing a Master TV Setup and trans-
ferring it to a Target TV. The Master TV’s clonable features need to be
configured as part of the Commercial Mode Setup. This is a critical step.
If the Master TV’s clonable features—channel icons or labels, digital font
options, etc.—are not set up correctly, the cloned TVs will all have prob-
lems. Pages 28 to 33 provide detailed information on cloning require-
ments and procedures.
Typical Installer Menu
123
456
789
0
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
PIP CH- PIP CH+
PIP SWAP PIP INPUT
PIP SAP
FLASHBK
REMOVE
ALPHA/NUM
P
A
G
E
MUTE
TIMER
MENU
RETURN
VOL CH
POWER
GUIDE
INPUT
CC
ENTER
TV DVD
VCR
STB
&@
.:/,
RATIO
PORTAL INFO i
XXLG710H PTC INSTALLER MENU
000 INSTALLER SEQ 000
UPN 000-000-000-000 FPGA E0F1
PTC V1.00.000 CPU V3.06.00
+ AAA
AAA +
Installing Batteries in Installer
Remote
• Open the battery compartment cover on the back side of the remote.
• Install two high-quality alkaline 1.5V AAA batteries. Never mix old
or used batteries with new ones. Install batteries matching correct
polarity as shown (+ with + and - with -).
• Replace the battery compartment cover.

12 206-4137
Installer Remote Control Typical Key Functions
123
456
789
0
ABC DEF
GHI JKL MNO
PQRS TUV WXYZ
PIP CH- PIP CH+
PIP SWAP PIP INPUT
PIP SAP
FLASHBK
REMOVE
ALPHA/NUM
P
A
G
E
MUTE
TIMER
MENU
RETURN
VOL CH
POWER
GUIDE
INPUT
CC
ENTER
TV DVD
VCR
STB
&@
.:/,
RATIO
PORTAL INFO i
NUMBER Buttons (0 - 9) DASH
Use to enter a program number or channel.
Dash is used for sub-channel numbers such
as 2-1, 2-2, 9-1, 9-2, 100-3, 100-4, etc.
FLASHBK (FLASHBACK)
Returns to the previously tuned channel.
RATIO
Adjusts the picture aspect ratio.
TIMER
Sets the amount of time before the TV
automatically turns itself OFF.
SAP
Selects MTS sound: Mono, Stereo, and SAP
in analog mode. Changes the audio language
in DTV mode, if additional languages are
available.
SAP Notes:
• If SAP is selected and no SAP is provided,
sound may not be heard on channel.
• Each analog channel may have its own SAP
setting.
• Digital channels will reset to default audio
language with a power off/on.
The LG Installer Remote illustrated below and throughout this document shows typical remote control functions and
is provided for reference only. This Installer Remote may vary from the Installer Remote supplied with the TV.
VCR/DVD BUTTONS
Controls some video cassette recorders
or DVD players. (RECORD button not
functional in DVD mode.) Set up for VCR
recording: Once, Regularly, Weekly, Off.
(RECORD button only.)
VOLUME UP/DOWN
Increases/decreases sound level.
CC
Press to activate English subtitles.
MUTE
Switches sound ON or OFF.
CHANNEL UP/DOWN
Selects available channels found with Auto
Tuning. Moves to next available page in
electronic program guide.
THUMBSTICK
Up/Down/Left/Right/ENTER
Use to navigate on-screen menus and adjust
TV settings to your requirements.
RETURN
Returns one level to the previous menu/display.
MENU
Provides access to the TV setup menus on the
screen. Also, enters or exits the on-screen menu
system.
INPUT
Selects RGB, HDMI/DVI1, HDMI2, Component
Input, AV1, and AV2 sources.
GUIDE
Use to view program information.
Press INFO for additional information.
PORTAL
Displays and removes an interactive
menu.
INFO
Use to view current program information,
including program start and end times and,
if available, the program rating.
PIP
Toggles through PIP options.
PIP CH +/-
Changes the PIP channel.
PIP SWAP
Exchange the main/sub images.
PIP INPUT
Select the connected input source for the
sub-picture.
TV/STB/DVD/VCR
Select the remote’s operating mode: TV, STB,
DVD, or VCR.
POWER
Turns TV or any other programmed equipment
On or Off, depending on mode.

13
206-4137
Commercial Mode Setup for Master TV
XXLG710H PTC INSTALLER MENU
000 INSTALLER SEQ 000
UPN 000-000-000-000 FPGA E0F1
PTC V1.00.000 CPU V3.06.00
117 FACT DEFAULT 001
003 BAND/AFC 00X
Typical TV Installer Menu
Note: The Installer Menu header will vary
depending on the TV you are setting up.
Adjust the settings for these
Installer Menu items.
1. Set Installer Menu items.
a) Use the Installer Remote to enter the TV Installer Menu: Press
MENU repeatedly until the on-screen menu locks up, and then
press 9-8-7-6+ ENTER. Refer to pages 15 to 20 for detailed
information on Installer Menu items.
b) Set Installer Menu item 117 FACT DEFAULT to 001 and press
ENTER on the Installer Remote.
This clears all Installer Menu custom settings, channel labels/
icons, etc. and reloads the factory default settings. The value
will change back to 0 after the internal TV controller (Protocol
Translator Card [PTC]) has been restored to factory default
condition. This step ensures that the TV Channel Memory will
be the active Channel List.
c) Set Installer Menu item 003 BAND/AFC, as appropriate.
• Broadcast: Set to 000.
• CATV: Set to 001 (default).
• HRC: Set to 002.
• IRC: Set to 003.
d) Set any other Installer Menu items that affect your TV program-
ming network to the required configuration. For example, en-
able/disable Aux sources, set a Start Channel, etc.
e) After you have adjusted all required Installer Menu item set-
tings, press ENTER on the Installer Remote to exit the menu
and save your changes.
2. Set up TV features.
On-screen setup menus control the features of the TV (see page
22). Press MENU on the Installer Remote to access the setup
menus, and then set Channel, Picture, Audio, Lock, Time, etc.
options to the desired configurations. See also the Clonable Menu
Features list on page 28.
Note: If desired, you can run Auto Tuning (see step 3) prior to
completing this step.
This section describes how to set up a Master TV when the EBL is in Pass-through Mode.
Note: Disconnect all Aux inputs. Under certain conditions, Auto Tuning (Channel Search) is disabled if
there is an Aux input active.
Note: Refer to “FTG Mode of Operation” on pages 24 to 27 for information on configuring/editing
Channel Map and Installer Menu settings for an individual TV in FTG Mode.
(Continued on next page)
Set the TV features to the desired
configuration for the end user.
CHANNEL PICTURE AUDIO TIME
INPUT USB
OPTION LOCK

14 206-4137
028 CH. OVERIDE 000
After verifying the TV Setup, set Installer
Menu item 028 CH. OVERIDE to 000.*
Commercial Mode Setup for Master TV (Cont.)
DIGITAL 19-3
WXYZ
MONO STEREO SAP
Custom Text Label “WXYZ” created in
2-5-4 + MENU (Add Channel Label) Mode.
(Continued from previous page)
3. Run Auto Tuning (Channel Search).
a) Search for all available analog and digital channels: Go to the
Channel Menu, select the Auto Tuning option, and follow the
on-screen instructions.
b) Use the Channel Edit option in the Channel Menu to edit the
channel lineup, as necessary, to include free to guest channels
only.
• Add/delete channels per your system requirements. Note that
physical channel numbers are used to identify virtual channels.
• Use the Channel Label option in the Channel Menu to add
familiar channel trademarks/logos such as ABC, CBS, NBC,
etc. to the Channel-Time on-screen display. Identifiable labels
(logos) should enable the end user to readily know what com-
mon networks are available. (You can add the channel labels
in this step, or you can add channel logos or labels for chan-
nels without icons in step 5.)
4. Transfer the TV Setup to the internal TV Controller (PTC):
2-5-5 + MENU Mode
After the TV channel lineup has been edited and channel label icons
added, enter the Installer Menu. Once in the Installer Menu, press
2-5-5 +MENU on the Installer Remote to initiate the transfer of the
Master TV Setup to the PTC. Once the transfer is complete, the TV
will exit the Installer Menu.
Note: The maximum number of active channels that can be trans-
ferred is 141. Total channels numbering more than 141 will result in
erratic TV operation.
5. Add Custom Channel and Aux Source Labels for Analog
Channels: 2-5-4 + MENU Mode
Enter the Installer Menu, and press 2-5-4 +MENU on the Installer
Remote. Add/edit custom text labels to channel on-screen displays.
Note that digital channels often have a broadcaster generated label
(see 2-5-4 + MENU procedural information on page 23). When you
are finished, press MENU to exit 2-5-4 + MENU Mode.
CHANNEL Enter
Move
Auto Tuning
Manual Tuning
Channel Edit
Channel Label
Run Auto Tuning, edit channels, and select
familiar channel trademarks/logos using
Channel Menu options.
6. Verify the TV setup.
At this point, verify that the channel lineup, channel icons, and cus-
tom labels are correct. Make sure the TV features are set per your
requirements.
7. Lock the channel lineup.
Enter the Installer Menu, and set item 028 CH. OVERIDE to 000 to
lock the channel lineup and restrict access to the TV setup menus.*
Press ENTER to exit the Installer Menu and save your changes.
The Master TV Setup is now ready to be copied to a clone programmer
(see cloning information in this document).
*This step prevents end users from
accessing channel settings. In addition,
selected picture, audio, and time set-
tings will be inaccessible (i.e., grayed
out).

15
206-4137
Installer Menu
Typical TV Installer Menu
XXLG710H PTC INSTALLER MENU
000 INSTALLER SEQ 000
UPN 000-000-000-000 FPGA E0F1
PTC V1.00.000 CPU V3.06.00
Use the Installer Menu to set up or change operational settings.
Refer to the table starting on the next page for brief descriptions of Installer Menu
items. More detailed descriptions follow the table listing.
Accessing the Installer Menu
Make sure the TV is ON. Using an Installer Remote, press MENU repeatedly
until the on-screen menu locks up, and then press 9-8-7-6 + ENTER to ac-
cess the Installer Menu.
The Installer Menu opens with item 000 INSTALLER SEQ 000. Use the Up/
Down arrow keys to sequence through the available menu items, or access
an item directly by keying in the line number and then pressing MENU. For
example, to access the SLEEP TIMER option, which is item 015, press 0-1-5
+ MENU. To change a setting, use the Left/Right arrow keys, or enter a value
directly.
Using the Installer Menu
Items 000 ~ 119 are immediately accessible only upon entering the Installer
Menu. Refer to the table on pages 16 and 17 for an overview of Installer
Menu items, including item numbers, functions, ranges, and default values.
Installer Menu items not relevant to these TV series are not present on the
Installer Menu; therefore, some numbers are missing. For example, item 006
will not appear.
Exiting the Installer Menu and Activating Updates
To exit the Installer Menu, press ENTER again. Any changes you make will
be stored in non-volatile memory. Turn the TV OFF and then back ON to
activate changes.

16 206-4137
Installer Menu (Cont.)
Installer Menu Items 000 through 071
Menu
Item Function Value Range Default Value Brief Description of Function and Comments
000 INSTALLER SEQ 0 ~ 3 0 Leave default set to 0.
001 POWER MANAGE 0 ~ 7 0 Sets number of hours of no activity before automatic shutoff.
002 AC ON 0 / 1 0 Set to 1 to enable Auto Turn ON when AC power is applied.
003 BAND/AFC 0 ~ 3 1 Selects Tuning Band: 0=Broadcast, 1=CATV, 2=HRC, 3=IRC
004 STRT CHANNEL 0 ~ 127, 255 255
Channel tuned when TV is turned ON. (Set to 255 to tune to channel
tuned before TV turned OFF.)
005 CHAN LOCK 0 / 1 0 If set to 1, cannot tune from current channel.
007 STRT VOLUME 0 ~ 63, 255 255 Volume level when TV is turned ON. (Set to 255 to use volume level
before TV turned OFF.)
008 MIN VOLUME 0 ~ 63 0 Sets minimum allowable volume setting.
009 MAX VOLUME 0 ~ 63 63 Sets maximum allowable volume setting.
010 MUTE DISABLE 0 / 1 0 Set to 1 to disable Mute Function.
011 KEY DEFEAT 0 / 1 0 Set to 1 to disable menu navigation keys on display panel.
015 SLEEP TIMER 0 / 1 1 Set to 1 to enable Sleep Timer.
016 EN TIMER 0 / 1 0 Set to 1 to enable On/Off Timers.
017 ALARM 0 / 1 1 Set to 1 to enable Alarm.
021 V-CHIP 0 / 1 1 Set to 1 to enable V-Chip (Parental Control) functions.
022 MAX BLK HRS 0 ~ 99 12 Sets number of V-Chip blocking hours.
023 CAPTION LOCK 0 / 1 0 Set to 1 to retain caption setting set before TV turned OFF.
028 CH. OVERIDE 0 / 1 1 If set to 0, limits direct access to favorite channels.
029 OLD OCV 0 / 1 0 Set to 1 to change MPI operation to OCV.
030 ACK MASK 0 / 1 0 If set to 1, changes MPI for some OCV boxes.
031 POLL RATE 20 ~ 169 94 Selects poll rate for MPI.
032 TIMING PULSE 186 ~ 227 207 Sets baud rate for MPI.
034 CAMPORT EN 0 / 1 1 Set to 1 to enable Video 2 input.
035 COMPPORT EN. 0 / 1 1 Set to 0 to disable HDMI 1. Set to 1 enable HDMI 1.
038 YPrPb EN. 0 / 1 1 Set to 1 to enable display panel Component Video 1 input jacks.
039 REAR AUX EN 0 / 1 1 Set to 1 to enable display panel Video 1 input jack.
040 AUTO CAMPORT 0 / 1 1 Set to 1 to automatically switch to Camport. If set to 1, STRT AUX SRCE
cannot be set to 2.
046 STRT AUX SRCE 1 ~ 6, 255 6 Sets the starting Aux source (if item 004 STRT CHANNEL is set to 0).
047 AUX STATUS 0 / 1 0 Set to 1 for MPI Aux source to be reported as a channel number instead of
Channel 0.
053 DIS. CH-TIME 0 / 1 0 Set to 1 to disable Channel-Time display.
069 EN. CH-T COL. 0 / 1 1 Set to 1 to enable custom color for the Channel-Time display.
070 FOR. CH-TIME 0 ~ 7 2 Chooses custom foreground color for the Channel-Time display.
071 BCK. CH-TIME 0 ~ 7 2 Chooses custom background color for the Channel-Time display.

17
206-4137
Installer Menu Items 073 through 119
Menu
Item Function Value Range Default Value Brief Description of Function and Comments
073 CH NOT AVBLE 0 / 1 0 If set to 1 and Channel Override is 0, “NOT AVAILABLE” message is displayed
when directly accessing a channel not in the favorite Channel List.
075 REVERT CH 0 / 1 0 If set to 1 and loss of MPI communication occurs, TV tunes to Start Channel.
078 UPN MSB 0 ~ 255 0 User programmable number, most significant byte.
079 UPN MSB-1 0 ~ 255 0 User programmable number, most significant byte - 1.
080 UPN MSB-2 0 ~ 255 0 User programmable number, most significant byte - 2.
081 UPN LSB 0 ~ 255 0 User programmable number, least significant byte.
082 CHKSM ERROR 0 / 1 1 Enforces rigid MPI checksum.
083 HANDSHK TIME 0 ~ 5 5 Relaxes MPI timing to be compatible with PC-based Windows-
controlled systems.
084 PERMANENT BLK 0 / 1 0 Removes block hours setting for Parental Control and makes block permanent.
087 REAR RGB EN.
0 / 1 / 17 (LD65xH)
0
/ 2 / 18 (LG710H)
1 (LD65xH)
2 (LG710H)
Dependent on item 093 RJP AVAILABLE setting. Set to 0 to disable RGB1.
Set to 1 (LD65 x H) / 2 (LG710H) to enable for RGB PC. Set to 17 (LD65 x H) /
18 (LG710H) for Auto Configure.
088 EN NOISE MUTE 0 / 1 1 If set to 1, audio is muted if no signal is present.
090 KEY LOCK 0 / 1 0 If set to 1, keyboard is locked out, IR is still functional.
091 YPrPb2 EN 0 / 1 1 Set to 1 to enable HDMI 2 input.
093 RJP AVAILABLE 0, 1, 2, 5, 6 0 Set to 0 to disable. Set to 1, 2, 5, or 6 for HDMI or DVI Mode. (See
detailed descriptions.)
094 SAP MENU EN 0 / 1 1 Set to 0 to disable feature on Function Menu. Set to 1 to enable feature on
Function Menu.
096 DEF. ASP. RATIO 0 ~ 4 2 Sets default aspect ratio at power up. See detailed descriptions and item 106.
099 BACK LIGHTING
1 ~ 100, 101 ~
200, 201, 202, 255
202 Sets the level of the TV picture back lighting. (See detailed descriptions.)
102 ATSC BAND 0 ~ 4 4 Selects ATSC band.
103 ATSC TUNE MODE 0 / 1 1 Set to 1 (default) for Physical Channel scan. Set to 0 for Virtual Channel scan.
104 START MINOR CH 0 ~ 255 0 Selects Minor Start Channel. Set to 0 for NTSC.
106 ASP RATIO LOCK 0 / 1 0 To retain set aspect ratio on power cycle, set to 1. Set to 0 for default ratio on
power cycle.
116 VIDEO MUTE EN 0 / 1 0 Set to 0 for Normal. Set to 1 for Blank.
117 FACT DEFAULT 0 / 1 0 Set to 0 for Normal. Set to 1 to load presets for all Installer Menu settings.
118 POWER SAVINGS 1 / 3 / 7 3
If set to 1, the b-LAN module is always powered. If set to 3, the b-LAN module
is only powered when TV is turned ON. If set to 7, the b-LAN module is never
powered. For LD65xH TVs: If an MPI card is installed, POWER SAVINGS
must be set to 1. (See detailed descriptions.)
119 DATA CHANNEL 0 ~ 135 0 Set to 0 to disable. Set to the RF channel number of the Data Channel for
Pro:Centric operation.
Installer Menu (Cont.)

18 206-4137
Installer Menu (Cont.)
Detailed Descriptions of Installer Menu Items
000 - INSTALLER SEQUENCE
Specifies entry sequence to the Installer Menu.
0 = 9876 1 = 4321
2 = 1478 3 = 3698
001 - POWER MANAGE (Power Management)
Determines hours of no activity before automatic shutoff. The
Power Management function is for saving energy. If set to 0,
Power Manage is Off. Settings range from 0 ~ 7, with 1 ~ 7 rep-
resenting the hours that the unit will remain ON, unless there has
been activity from either the control panel or remote control.
002 - AC ON (AC Power Switchable)
If set to 1, this allows the TV to turn ON whenAC power is ap-
plied. Pressing the ON button is not necessary. This is desirable
if the TV is plugged into a cable box or a power outlet controlled
by a wall switch. Use the Left/Right arrow keys to choose 0 or 1,
where 0 is the default (OFF), and 1 is ON.
Note: If set to 1 (ON), the TV does not respond to On/Off com-
mands from either the remote or the display control panel, and the
SLEEP TIMER is also nonfunctional.
003 - BAND/AFC (Band/Automatic Frequency Control)
There are four possible settings for this option:
0 = Broadcast 1 = CATV (default)
2 = HRC 3 = IRC
If some channels were not found by Auto Tuning (Channel
Search), select the appropriate Band setting here, and add the
channels using the Channel Edit option in the Channel Menu.
004 - STRT CHANNEL (Start Channel)
If active, this function allows you to determine the initial channel
number when the TV is turned ON. This feature is useful for an
in-house information channel, since the TV would always select
that channel when it is turned ON. Setting this to 255 causes the
last channel viewed when the TV was turned OFF, to be the tuned
to channel when the TV is turned ON again.
Note: For a digital Start Channel, always remember to set item
104 to the Minor Start Channel number.
255 = Last channel 1 ~ 125 = Ch X 0 = Aux
126 Map to Channel 3. 127 Map to Channel 4.
005 - CHAN LOCK (Channel Lock)
Channel Lock is ideal if the system must always be on the same
channel. Changing channels with the Channel Up/Down or key-
pad numbers is impossible. Channel Lock is inactive if set to 0
(default).
Generally, this feature is used in connection with STRT CHAN-
NEL (Installer Menu item 004) where the Start Channel may, for
example, be set to 3 or 4. If the Start Channel is 3, then the TV
will remain locked on channel 3.
NOTE: For items 007, 008, and 009
For legacy reasons, the scale used is 0–63. The PTC software
will translate this to the 0–100 scale used by the TV.
To translate a TV volume level to the Installer Menu value, use
the following formula:
Installer Value = TV Value x 63
100
Enter only the whole number (disregard fractions).
007 - STRT VOLUME (Start Volume)
This function allows the Installer to determine the initial volume
level setting when the TV is turned ON. This feature is useful
for an in-house information channel, since the TV would always
select that volume level when it is turned ON. The range of values
are 0 - 63, 255. If 255 is selected, the current volume level will be
retained in memory when the TV is turned OFF; at turn ON, the
volume level will be automatically set at the previous or last level.
008 - MIN VOLUME (Minimum Volume)
This function determines the minimum volume level allowable
with the Volume (VOL) Up/Down control. In this way, for example,
someone cannot set the volume too low to hear. The value range
is from 0 to 63. Use the Left/Right arrow keys to change values.
The factory default is 0, which provides the full range of volume
control, if item 009 MAX VOLUME is also set to 63. It may be best
to set the same value on every TV.
Note: The minimum volume level cannot have a value setting
higher than the maximum volume level (described below).
009 - MAX VOLUME (Maximum Volume)
This function determines the maximum volume level allowable
with the Volume (VOL) Up/Down control. In this way, for example,
someone can not set the volume level high enough to disturb oth-
ers. The value range is 0 to 63, with 63 as the default, which gives
the user the full range of volume control, if item 008 MIN VOLUME
is also set at 0. Use the Left/Right arrow keys to change values. It
may be best to set the same value on every TV.
Note: The maximum volume level cannot have a value setting
lower than the minimum volume level (described above).
010 - MUTE DISABLE
Enables or disables sound mute function. If set to 1, sound cannot
be muted. If set to 0, sound can be muted.
011 - KEY DEFEAT (Keyboard Defeat)
If set to 1, KEY DEFEAT prevents the end user from accessing
the on-screen menus from the display panel—MENU, ENTER,
and menu navigation keys do not function. If set to 0, those keys
do function.
Note: Users can always access the menus by pressing MENU on
the remote.

19
206-4137
Installer Menu (Cont.)
015 - SLEEP TIMER
If set to 1, the Sleep Timer feature may be used. If set to 0, the
Sleep Timer is not available.
016 - EN TIMER (Enable On/Off Timers) *
If set to 1, the Timer function is available to the end user and
enabled continuously. Set to 0 to disable On/Off Timers.
Note: Clock must be set in order to use timers.
017 - ALARM *
Gives the installer the option of making the Alarm
function available to the end user. If set to 1, theAlarm
function is available to the end user. Set to 0 to disable
the Alarm function.
Note: Clock must be set before the Alarm function will work.
021 - V-CHIP (Parental Control) *
Set to 1 to activate V-Chip (Parental Control) and have it available
to the end user to filter and control or otherwise restrict program-
ming content that can appear. Set to 0 to turn the V-Chip feature
Off (not available to user); no programming restrictions can be set.
022 - MAX BLK HRS (Maximum Block Hours) *
Sets hours from 0 to 99 for the maximum V-Chip (Parental Con-
trol) block hours. Default setting is for 12 blocking hours.
023 - CAPTION LOCK
If set to 0, captions are OFF when the TV is turned ON. Set to 1 to
use the caption setting configured before the TV was turned OFF
when the TV is turned ON.
028 - CH. OVERIDE (Channel Override)
If set to 1, the user can select channels with either Channel Up/
Down or by direct keypad entry. If set to 0, only those channels
that are active in the TV’s memory can be selected.
029 - OLD OCV (On Command Video™)
Set to 1 for operation with systems from On Command Corporation.
030 - ACK MASK
MPI Communication Parameter. Leave at default setting unless
changed by Pay-Per-View provider. When set to 1, changes MPI
for some OCV boxes.
031 - POLL RATE
MPI Communication Parameter. Selects Poll Rate for MPI. Leave
at default setting unless changed by Pay-Per-View provider. Step
size of 16 ms.
032 - TIMING PULSE
MPI Communication Parameter. Leave at default setting unless
changed by Pay-Per-View provider. Sets baud rate. Step size of
4.3 uS.
* Only affects Function Menu if enabled by some PPV providers.
034 - CAMPORT EN. (Camera Port Enable)
Set to 1 to enable Video 2 input on display panel. If set to 0, Video
2 input on display panel is not functional.
Note: S-Video overrides Video.
035 - COMPPORT EN. (Computer Port Enable)
Enable/disable TV display panel HDMI 1 input jack. Set to 0 to
disable HDMI1. Set to 1 to enable HDMI1.
Note: This setting is ignored if item 093 RJPAVAILABLE is set to 1.
038 - YPrPb EN. (Rear Component Video Enable)
Set to 1 to enable display panel rear Component Video input
jacks. Set to 0 to disable display panel rear Component Video
input jacks.
039 - REAR AUX EN. (Rear Aux Enable)
Set to 1 to enable display panel rear Aux (Video 1) input. Set to 0
to disable display panel rear Aux (Video 1) input.
Note: S-Video overrides Video.
040 - AUTO CAMPORT
Set to 1 to automatically switch to Camport when equipment is
connected to front Video input. Set to 0 to disable front Video
automatic source selection.
Note: If set to 1, item 093 RJPAVAILABLE is automatically set to 0.
046 - STRT AUX SRCE (Start Aux Source)
Sets the starting Aux source. When turned ON, the TV will tune to
starting Aux source if item 004 STRT CHANNEL is set to 0.
If item 093 RJPAVAILABLE is set to 0 and item 040 AUTO
CAMPORT is set to 0:
1 = Video 1 4 = RGB 255 = Last Aux
2 = Video 2 5 = HDMI 2
3 = HDMI 1 6 = Component
If item 093 RJPAVAILABLE is set to 1:
2 = Video 2 5 = HDMI 2 6 = Component
If item 040 AUTO CAMPORT is set to 1:
1 = Video 1 5 = HDMI 2
3 = HDMI 1 6 = Component
4 = RGB
047 - AUX STATUS
Set to 1 for MPI Aux source to be reported as a channel number
instead of channel 0. Set to 0 to disable Aux identification change.
Controls MPI status channel response for Aux inputs.
053 - DIS. CH-TIME (Disable Channel-Time)
Set to 1 to disable the Channel-Time display; Channel-Time dis-
play will not appear. Set to 0 to enable the Channel-Time display.
069 - EN. CH-T COL. (Enable Channel-Time Custom Color)
Set to 1 to enable custom color for the Channel-Time display. Set
to 0 to disable custom color for the Channel-Time display.

20 206-4137
Installer Menu (Cont.)
070 - FOR. CH-TIME (Channel-Time Display Foreground Color)
Set according to Color Chart:
0 = Black 3 = Cyan 6 = Yellow
1 = Blue 4 = Red 7 = White
2 = Green 5 = Violet
Note: If foreground color and background color are the same,
the menu background will be transparent.
071 - BCK. CH-TIME (Channel-Time Display Background
Color)
Set according to Color Chart:
0 = Black 3 = Cyan 6 = Yellow
1 = Blue 4 = Red 7 = White
2 = Green 5 = Violet
Note: If foreground color and background color are the same,
the menu background will be transparent.
073 - CH NOT AVBLE (Channel Not Available)
If set to 1 and item 028 CH. OVERIDE is set to 0, a “NOTAVAIL-
ABLE” message is displayed when directly accessing a channel
not in the channel scan list available in memory.
075 - REVERT CH (Revert to Start Channel)
If set to 1 and loss of MPI communication occurs, TV automati-
cally tunes to the specified Start Channel.
078 - UPN MSB (UPN Most Significant Byte)
User programmable number, most significant byte readable by
MPI command. Not linked to serial number.
079 - UPN MSB-1 (UPN Most Significant Byte-1)
User programmable number, most significant byte-1 readable by
MPI command. Not linked to serial number.
080 - UPN MSB-2 (UPN Most Significant Byte-2)
User programmable number, most significant byte-2 readable by
MPI command. Note: Not linked to serial number.
081 - UPN LSB (UPN Least Significant Byte)
User programmable number, least significant byte readable by
MPI command. Note: Not linked to serial number.
082 - CHKSM ERROR (Checksum Error)
Enforces rigid MPI checksum validation. Set to 1 for validation.
Set to 0 to disable (does not check checksum on MPI async port).
SPI is always checked.
083 - HANDSHK TIME (Handshake Time)
Adds an additional delay to the handshake time which is 64 msec,
thus relaxing MPI timing requirements to be compatible with PC-
based Windows controlled systems. Range is 0 - 5.
(Timeout = 25.5MS + [25.5 MS* Handshake time].)
084 - PERMANENT BLK (Permanent Block)
Allows Lock (Parental Control) blocking schemes to be permanent
by disabling the blocking hours function. Set to 1 to install Paren-
tal Control restrictions permanently. Set to 0 for user-specified
hours control of blocking schemes.
087 - REAR RGB EN. (Rear RGB Enable)
Controls access to rear RGB input on TV. Set to 0 to disable RGB
input. Set to 1 (LD65xH) / 2 (LG710H) to enable for PC RGB
input. Set to 17 (LD65xH) / 18 (LG710H) to initiate a one-time
automatic configuration after an AC power cycle; otherwise,
automatic adjustment will be performed each time the RGB input
is accessed.
088 - EN NOISE MUTE (Enable Noise Mute)
If set to 1, audio mutes if no signal is present.
090 - KEY LOCK
If set to 1, front keyboard buttons Channel, Volume, and Cap-
tions are disabled, Power button remains enabled. If set to 0, front
keyboard Channel, Volume, Captions and Power buttons are all
enabled.
091 - YPrPb2 EN. (HDMI2 Enable)
Set to 0 to disable display panel HDMI2 input. Set to 1 to enable
DTV mode. Set to 2 to enable PC mode.
093 - RJP AVAILABLE (Remote Jack Pack Available)
• 0 = Remote jack pack is not available or disabled.
• 1 = Legacy Model RJPs: HDMI Mode
Enables RJP feature for use with full cable bundle models. In
this mode, when an HDMI source is connected to the RJP, both
digital video and audio are expected via the HDMI cable. If no
digital audio is present, no audio will be heard.
• 2 = Legacy Model RJPs: DVI Mode
Enables RJP feature for use with full cable bundle models. In
this mode, when an HDMI/DVI source is connected to the RJP,
only digital video is expected via the HDMI cable. Analog audio
is provided via a separate cable, from the source, connected to
an RJPAUDIO IN. If no analog audio cable is connected, tuner
audio will be heard.
• 5 = Scaler Model RJPs: HDMI Mode
Enables RJP feature for use with reduced cable bundle models.
In this mode, when an HDMI source is connected to the RJP,
both digital video and audio are expected via the HDMI cable. If
no digital audio is present, no audio will be heard.
