LG 42LC2RR Series User manual

R
LCD TV
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE CHASSIS,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
CHASSIS : MF-056M
FACTORY MODEL : 42LC2RR-ZL
MODEL : 42LC2RR
website:http://biz.LGservice.com
e-mail:http://www.LGEservice.com/techsup.html

- 2 -
CONTENTS
CONTENTS .............................................................................................. 2
PRODUCT SAFETY ..................................................................................3
SPECIFICATION ........................................................................................6
ADJUSTMENT INSTRUCTION................................................................11
SVC REMOCON ......................................................................................17
TROUBLE SHOOTING GUIDE................................................................18
AUDIO TROUBLE SHOOTING&BLOCK DIAGRAM..............................25
EXPLODED VIEW .................................................................................. 28
EXPLODED VIEW PARTS LIST..............................................................29
REPLACEMENT PARTS LIST ............................................................... 30
SVC. SHEET ...............................................................................................

- 3 -
SAFETY PRECAUTIONS
Many electrical and mechanical parts in this chassis have special safety-related characteristics. These parts are identified by in the
Schematic Diagram and Replacement Parts List.
It is essential that these special safety parts should be replaced with the same components as recommended in this manual to prevent
Shock, Fire, or other Hazards.
Do not modify the original design without permission of manufacturer.
General Guidance
An isolation Transformer should always be used during the
servicing of a receiver whose chassis is not isolated from the AC
power line. Use a transformer of adequate power rating as this
protects the technician from accidents resulting in personal injury
from electrical shocks.
It will also protect the receiver and it's components from being
damaged by accidental shorts of the circuitry that may be
inadvertently introduced during the service operation.
If any fuse (or Fusible Resistor) in this TV receiver is blown,
replace it with the specified.
When replacing a high wattage resistor (Oxide Metal Film Resistor,
over 1W), keep the resistor 10mm away from PCB.
Keep wires away from high voltage or high temperature parts.
Before returning the receiver to the customer,
always perform an AC leakage current check on the exposed
metallic parts of the cabinet, such as antennas, terminals, etc., to
be sure the set is safe to operate without damage of electrical
shock.
Leakage Current Cold Check(Antenna Cold Check)
With the instrument AC plug removed from AC source, connect an
electrical jumper across the two AC plug prongs. Place the AC
switch in the on position, connect one lead of ohm-meter to the AC
plug prongs tied together and touch other ohm-meter lead in turn to
each exposed metallic parts such as antenna terminals, phone
jacks, etc.
If the exposed metallic part has a return path to the chassis, the
measured resistance should be between 1MΩand 5.2MΩ.
When the exposed metal has no return path to the chassis the
reading must be infinite.
An other abnormality exists that must be corrected before the
receiver is returned to the customer.
Leakage Current Hot Check (See below Figure)
Plug the AC cord directly into the AC outlet.
Do not use a line Isolation Transformer during this check.
Connect 1.5K/10watt resistor in parallel with a 0.15uF capacitor
between a known good earth ground (Water Pipe, Conduit, etc.)
and the exposed metallic parts.
Measure the AC voltage across the resistor using AC voltmeter
with 1000 ohms/volt or more sensitivity.
Reverse plug the AC cord into the AC outlet and repeat AC voltage
measurements for each exposed metallic part. Any voltage
measured must not exceed 0.75 volt RMS which is corresponds to
0.5mA.
In case any measurement is out of the limits specified, there is
possibility of shock hazard and the set must be checked and
repaired before it is returned to the customer.
Leakage Current Hot Check circuit
1.5 Kohm/10W
To Instrument’s
exposed
METALLIC PARTS
Good Earth Ground
such as WATER PIPE,
CONDUIT etc.
AC Volt-meter
IMPORTANT SAFETY NOTICE
0.15uF

- 4 -
CAUTION: Before servicing receivers covered by this service
manual and its supplements and addenda, read and follow the
SAFETY PRECAUTIONS on page 3 of this publication.
NOTE: If unforeseen circumstances create conflict between the
following servicing precautions and any of the safety precautions on
page 3 of this publication, always follow the safety precautions.
Remember: Safety First.
General Servicing Precautions
1. Always unplug the receiver AC power cord from the AC power
source before;
a. Removing or reinstalling any component, circuit board
module or any other receiver assembly.
b. Disconnecting or reconnecting any receiver electrical plug or
other electrical connection.
c. Connecting a test substitute in parallel with an electrolytic
capacitor in the receiver.
CAUTION: A wrong part substitution or incorrect polarity
installation of electrolytic capacitors may result in an
explosion hazard.
2. Test high voltage only by measuring it with an appropriate high
voltage meter or other voltage measuring device (DVM,
FETVOM, etc) equipped with a suitable high voltage probe.
Do not test high voltage by "drawing an arc".
3. Do not spray chemicals on or near this receiver or any of its
assemblies.
4. Unless specified otherwise in this service manual, clean
electrical contacts only by applying the following mixture to the
contacts with a pipe cleaner, cotton-tipped stick or comparable
non-abrasive applicator; 10% (by volume) Acetone and 90% (by
volume) isopropyl alcohol (90%-99% strength)
CAUTION: This is a flammable mixture.
Unless specified otherwise in this service manual, lubrication of
contacts in not required.
5. Do not defeat any plug/socket B+ voltage interlocks with which
receivers covered by this service manual might be equipped.
6. Do not apply AC power to this instrument and/or any of its
electrical assemblies unless all solid-state device heat sinks are
correctly installed.
7. Always connect the test receiver ground lead to the receiver
chassis ground before connecting the test receiver positive
lead.
Always remove the test receiver ground lead last.
8. Use with this receiver only the test fixtures specified in this
service manual.
CAUTION: Do not connect the test fixture ground strap to any
heat sink in this receiver.
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid-state) devices can be damaged easily
by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES
devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques
should be used to help reduce the incidence of component
damage caused by static by static electricity.
1. Immediately before handling any semiconductor component or
semiconductor-equipped assembly, drain off any electrostatic
charge on your body by touching a known earth ground.
Alternatively, obtain and wear a commercially available
discharging wrist strap device, which should be removed to
prevent potential shock reasons prior to applying power to the
unit under test.
2. After removing an electrical assembly equipped with ES
devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or
exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES
devices.
4. Use only an anti-static type solder removal device. Some solder
removal devices not classified as "anti-static" can generate
electrical charges sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective
package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads
electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the
leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be
installed.
CAUTION: Be sure no power is applied to the chassis or circuit,
and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged
replacement ES devices. (Otherwise harmless motion such as
the brushing together of your clothes fabric or the lifting of your
foot from a carpeted floor can generate static electricity
sufficient to damage an ES device.)
General Soldering Guidelines
1. Use a grounded-tip, low-wattage soldering iron and appropriate
tip size and shape that will maintain tip temperature within the
range or 500°F to 600°F.
2. Use an appropriate gauge of RMA resin-core solder composed
of 60 parts tin/40 parts lead.
3. Keep the soldering iron tip clean and well tinned.
4. Thoroughly clean the surfaces to be soldered. Use a mall wire-
bristle (0.5 inch, or 1.25cm) brush with a metal handle.
Do not use freon-propelled spray-on cleaners.
5. Use the following unsoldering technique
a. Allow the soldering iron tip to reach normal temperature.
(500°F to 600°F)
b. Heat the component lead until the solder melts.
c. Quickly draw the melted solder with an anti-static, suction-
type solder removal device or with solder braid.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
6. Use the following soldering technique.
a. Allow the soldering iron tip to reach a normal temperature
(500°F to 600°F)
b. First, hold the soldering iron tip and solder the strand against
the component lead until the solder melts.
c. Quickly move the soldering iron tip to the junction of the
component lead and the printed circuit foil, and hold it there
only until the solder flows onto and around both the
component lead and the foil.
CAUTION: Work quickly to avoid overheating the circuit
board printed foil.
d. Closely inspect the solder area and remove any excess or
splashed solder with a small wire-bristle brush.
SERVICING PRECAUTIONS

- 5 -
IC Remove/Replacement
Some chassis circuit boards have slotted holes (oblong) through
which the IC leads are inserted and then bent flat against the
circuit foil. When holes are the slotted type, the following technique
should be used to remove and replace the IC. When working with
boards using the familiar round hole, use the standard technique
as outlined in paragraphs 5 and 6 above.
Removal
1. Desolder and straighten each IC lead in one operation by gently
prying up on the lead with the soldering iron tip as the solder
melts.
2. Draw away the melted solder with an anti-static suction-type
solder removal device (or with solder braid) before removing the
IC.
Replacement
1. Carefully insert the replacement IC in the circuit board.
2. Carefully bend each IC lead against the circuit foil pad and
solder it.
3. Clean the soldered areas with a small wire-bristle brush.
(It is not necessary to reapply acrylic coating to the areas).
"Small-Signal" Discrete Transistor
Removal/Replacement
1. Remove the defective transistor by clipping its leads as close as
possible to the component body.
2. Bend into a "U" shape the end of each of three leads remaining
on the circuit board.
3. Bend into a "U" shape the replacement transistor leads.
4. Connect the replacement transistor leads to the corresponding
leads extending from the circuit board and crimp the "U" with
long nose pliers to insure metal to metal contact then solder
each connection.
Power Output, Transistor Device
Removal/Replacement
1. Heat and remove all solder from around the transistor leads.
2. Remove the heat sink mounting screw (if so equipped).
3. Carefully remove the transistor from the heat sink of the circuit
board.
4. Insert new transistor in the circuit board.
5. Solder each transistor lead, and clip off excess lead.
6. Replace heat sink.
Diode Removal/Replacement
1. Remove defective diode by clipping its leads as close as
possible to diode body.
2. Bend the two remaining leads perpendicular y to the circuit
board.
3. Observing diode polarity, wrap each lead of the new diode
around the corresponding lead on the circuit board.
4. Securely crimp each connection and solder it.
5. Inspect (on the circuit board copper side) the solder joints of
the two "original" leads. If they are not shiny, reheat them and if
necessary, apply additional solder.
Fuse and Conventional Resistor
Removal/Replacement
1. Clip each fuse or resistor lead at top of the circuit board hollow
stake.
2. Securely crimp the leads of replacement component around
notch at stake top.
3. Solder the connections.
CAUTION: Maintain original spacing between the replaced
component and adjacent components and the circuit board to
prevent excessive component temperatures.
Circuit Board Foil Repair
Excessive heat applied to the copper foil of any printed circuit
board will weaken the adhesive that bonds the foil to the circuit
board causing the foil to separate from or "lift-off" the board. The
following guidelines and procedures should be followed whenever
this condition is encountered.
At IC Connections
To repair a defective copper pattern at IC connections use the
following procedure to install a jumper wire on the copper pattern
side of the circuit board. (Use this technique only on IC
connections).
1. Carefully remove the damaged copper pattern with a sharp
knife. (Remove only as much copper as absolutely necessary).
2. carefully scratch away the solder resist and acrylic coating (if
used) from the end of the remaining copper pattern.
3. Bend a small "U" in one end of a small gauge jumper wire and
carefully crimp it around the IC pin. Solder the IC connection.
4. Route the jumper wire along the path of the out-away copper
pattern and let it overlap the previously scraped end of the good
copper pattern. Solder the overlapped area and clip off any
excess jumper wire.
At Other Connections
Use the following technique to repair the defective copper pattern
at connections other than IC Pins. This technique involves the
installation of a jumper wire on the component side of the circuit
board.
1. Remove the defective copper pattern with a sharp knife.
Remove at least 1/4 inch of copper, to ensure that a hazardous
condition will not exist if the jumper wire opens.
2. Trace along the copper pattern from both sides of the pattern
break and locate the nearest component that is directly
connected to the affected copper pattern.
3. Connect insulated 20-gauge jumper wire from the lead of the
nearest component on one side of the pattern break to the lead
of the nearest component on the other side.
Carefully crimp and solder the connections.
CAUTION: Be sure the insulated jumper wire is dressed so the
it does not touch components or sharp edges.

- 6 -
SPECIFICATION
NOTE : Specifications and others are subject to change without notice for improvement .
4.General Specification(TV)
1. Application range
1) This spec sheet is applied all of the 42" LCD TV with
MF056M chassis.
2) Not included spec and each product spec in this spec sheet
apply correspondingly to the following each country
standard and requirement of Buyer
2. Specification
Each part is tested as below without special appointment.
1) Temperature : 20±5°C
2) Relative Humidity : 65±10%
3) Power Voltage : Standard input voltage
(100~240V@50/60Hz)
* Standard Voltage of each product is marked by models
4) Specification and performance of each parts are followed
each drawing and specification by part number in
accordance with BOM.
5) The receiver must be operated for about 20 minutes prior to
the adjustment.
3. Test method
1) Performance : LGE TV test method followed
2) Demanded other specification
Safety : UL, CSA, IEC specification
EMC : FCC, ICES, IEC specification
No Item Specification Remark
1. Video input applicable system PAL-D/K, B/G, I, NTSC-M, SECAM
NTSC 4.43
2. Receivable Broadcasting System 1) PAL/SECAM BG NTSC M(Option)
2) PAL/SECAM DK
3) PAL I/I
4) SECAM L/L'
3. RF Input Channel VHF : E2 ~ E12 PAL
UHF : E21 ~ E69
CATV : S1 ~ S20
HYPER : S21~ S47
L/L' : B, C, D FRANCE
4. Input Voltage AC 100 ~ 240V/50Hz, 60Hz
5. Market EU
6. Picture Size 940.3mm (diagonal) 37.02 inch
7. Tuning System FVS 100 program PAL, 200 PR.(Option)
8. Operating Environment 1) Temp : 0 ~ 35 deg
2) Humidity : 10~80 %RH
9. Storage Environment 3) Temp : -20 ~ 60 deg
4) Humidity : 10~80 %
10. Display LCD Module LPL
11. Aspect ratio 16:9

- 7 -
No Item Specification Remark
1 Panel 37" TFT WXGA LCD
2 Frequency range H : 31 ~ 61Khz PC Input
V : 56 ~ 75Hz
3 Control Function 1) Contrast/Brightness
2) H-Position / V-Position
3) Tracking : Clock / Phase
4) Auto Configure
5) Reset
4 Component Jack 1 : Y Middle east / China
3 : Pb
5 : Pr
7 : LINE1 Ready
9 : LINE2
11 : LINE3
13 : LINE3 Ready
5 H/V-Sync Video Power consumption LED
Power ON - - ≤250W White
Stand by ≤3.0W Red
Rec. on Stand by - - ≤3.0W Amber
AC Power off - - -*
6 LCD Module Type Size 37" 877.0 x 516.8 x 55.5 (H)x(V)x(D)
Pixel Pitch 37" 0.200 x 0.600 x RGB
Pixel Format 1366 horiz. By 768 vert.
Pixels RGB strip arrangement
Coating Hard coating(3H), Anti-glare
reatment of the front polarizer
Back Light 37" 20EEFL
5. General Specification

- 8 -
6.Optical Feature(LCD Module)
No Item Specification
Min. Typ. Max. Remark
1 Viewing Angle <CR
≥ 10> R/L, U/D 178
2 Luminance Luminance(cd/m2) 400 500
Unit : cd/m
2
Condition:Maximum
Luminance of LCD Module
250 350 Condition:RF/AV,
PSM:Dynamic,Full White
250 300 Condition:PC/HDMI,
PSM:Dynamic,Full White
Variation 1.3 MAX/MIN
3 Contrast Ratio CR 600 800
CR D (With AI) 1200 1600
4 CIE Color Coordinates White Wx Typ 0.285 Typ LPL(37")
Wy -0.03 0.293 +0.03 Condition:216 Pattern
Red Xr 0.640 (85IRE), PSM Dynamic
Yr 0.341
Green Xg 0.287
Yg 0.610
Blue Xb 0.146
Yb 0.069
7. Component Video Input (Y, CB/PB, CR/PR)
No Resolution H-freq(kHz) V-freq.(kHz) Pixel clock(MHz) Proposed
1. 720*480 15.73 59.94 13.500 SDTV, DVD 480I(525I)
2. 720*480 15.75 60.00 13.514 SDTV, DVD 480I(525I)
3. 720*576 15.625 50.00 13.500 SDTV, DVD 576I(625I)
4. 720*480 31.47 59.94 27.000 SDTV 480P
5. 720*480 31.50 60.00 27.027 SDTV 480P
6. 720*576 31.25 50.00 27.000 SDTV 576P
7. 1280*720 44.96 59.94 74.176 HDTV 720P
8. 1280*720 45.00 60.00 74.250 HDTV 720P
9. 1280*720 37.50 50.00 74.25 HDTV 720P 50Hz
10. 1920*1080 33.72 59.94 74.176 HDTV 1080I
11. 1920*1080 33.75 60.00 74.250 HDTV 1080I
12. 1920*1080 28.125 50.00 74.250 HDTV 1080I 50Hz,
9. Mechanical specification
No, Item Content Remark
1 Product Dimension Width(W) Length(D) Height(H)
Before Packing 944 286 726 With Stand
After Packing 1052 383 855
2 Product Weight Only SET 32.2Kg
With Box 37.1kg

- 9 -
8. RGB PC/DTV
9. HDMI Input (PC/DTV)
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
PC
1 720*400 31.468 70.8 28.321
2 640*480 31.469 59.94 25.17 VESA
37.684 75.00 31.5 VESA
3 800*600 37.879 60.31 40.00 VESA
46.875 75 49.5 VESA
4 832*624 49.725 74.55 57.283
5 1024*768 48.363 60.00 65.00 VESA(XGA)
56.47 70.00 75.00 VESA(XGA)
60.123 75.029 78.75 VESA(XGA)
6 1280*768 47.776 59.870 79.50 VESA(WXGA)
7 1360*768 47.720 59.799 84.75 VESA(WXGA)
8 1366*768 47.720 59.799 84.75 Supported
DTV
9 720*576 31.25 50.00 SDTV 576p 50Hz
10 720*480 31.47 59.94 SDTV 480p 60Hz
11 1280*720 45.00 50.00 HDTV 720p 50Hz HDCP
12 1280*720 44.96 59.94 HDTV 720p 60Hz HDCP
13 1920*1080 28.13 50.00 HDTV 1080i 50Hz HDCP
14 1920*1080 33.72 59.94 HDTV 1080i 60Hz HDCP
No Resolution H-freq(kHz) V-freq.(Hz) Pixel clock(MHz) Proposed
PC
1 720*400 31.468 70.8 28.321
2 640*480 31.469 59.94 25.17 VESA
37.684 75.00 31.5 VESA
3 800*600 37.879 60.31 40.00 VESA
46.875 75 49.5 VESA
4 832*624 49.725 74.55 57.283
5 1024*768 48.363 60.00 65.00 VESA(XGA)
56.47 70.00 75.00 VESA(XGA)
60.123 75.029 78.75 VESA(XGA)
6 1280*768 47.776 59.870 79.50 VESA(WXGA)
7 1360*768 47.720 59.799 84.75 VESA(WXGA)
8 1366*768 47.720 59.799 84.75 Supported
DTV
9 720*576 31.25 50.00 SDTV 576p 50Hz
10 720*480 31.47 59.94 SDTV 480p 60Hz
11 1280*720 45.00 50.00 HDTV 720p 50Hz HDCP
12 1280*720 44.96 59.94 HDTV 720p 60Hz HDCP
13 1920*1080 28.13 50.00 HDTV 1080i 50Hz HDCP
14 1920*1080 33.72 59.94 HDTV 1080i 60Hz HDCP

- 10 -
10. Mechanical specification
<Table 1> Scart Arrangement 1.(Full Scart)
Pin Signal Signal Level Impedance
1 Audio Output B (right) 0.5 Vrms < 1KΩ
2 Audio Input B (right) 0.5 Vrms > 10KΩ
3 Audio Output A (left) 0.5 Vrms < 1KΩ
4 Ground (audio) - -
5 Ground (blue) - -
6 Audio input A (left) 0.5 Vrms > 10KΩ
7 Blue input 0.7 V 75 Ω
8 Function Select (AV control) High (9.5 - 12V)-AV Mode
Mid (5 - 8V) - Wide Screen, Low (0 - 2V) - TV Mode
> 10KΩ
9 Ground (Green) - -
10 -
11 Green input 0.7 V 75 Ω
12 -
13 Ground (Red) - -
14 - - -
15 Red input 0.7 V 75 Ω
16 RGB Switching Control High (1 ?3V) ?RGB, Low (0 - 0.4V) -Composite 75 Ω
17 Ground (Video input & Output) - -
18 Ground (RGB Switching Control) - -
19 Video output (Composite) 1V including sync 75 Ω
20 Video input (Composite) 1V including sync 75 Ω
21 Common ground (Shield) - -
<Table 2> Scart Arrangement 2.(Half Scart)
Pin Signal Signal Level Impedance
1 Audio Output B (right) 0.5 Vrms < 1KΩ
2 Audio Input B (right) 0.5 Vrms > 10KΩ
3 Audio Output A (left) 0.5 Vrms < 1KΩ
4 Ground (audio) - -
5 Ground (audio) - -
6 Audio input A (left) 0.5 Vrms > 10KΩ
7- - -
8 Function Select (AV control)
High (9.5 - 12V) - AV Mode
Mid (5 - 8V) - Wide Screen, Low (0 - 2V) - TV Mode > 10KΩ
9- - -
10 - - -
11 - - -
12 - - -
13 Ground - -
14 - - -
15 S-Video C input
16 - - -
17 Ground (Video input & Output) - -
18 Ground - -
19 Video output (Composite) 1V including sync 75 Ω
20 Video input (Composite / S-Video Y) 1V including sync 75 Ω
21 Common ground (Shield) - -

- 11 -
ADJUSTMENT INSTRUCTION
1. Application Range
This spec sheet is applied all of the 42" LCD TV, MF-056M
chassis by manufacturing LG TV Plant or sort plants.
2. Specification.
1) Because this is not a hot chassis, it is not necessary to use
an isolation transformer.
However, the use of isolation transformer will help to
protect test instruments.
2) Adjustment must be done in the correct sequence.
3) The adjustment must be performed at 25±5°C temperature
and 65±10% relative humidity if there is no specified
designation.
4) The input voltage of the receiver must be kept between
100~220V, 50/60Hz.
Before adjustment, execute Heat-Run for 30 minutes at RF
no signal.
3. Channel Memory
3.1. Setting up the LGIDS
1) Install the LGIDS
2) After installation, restart your PC.
3) Extract [files.zip] to folder [c:\LGIDS\files]
4) Start LGIDS.
3.2. Channel memory method
1) Press TILT key in Adjust remocon(Automatic setting).
2) Setting up like bottom figure
Confirmation : Press ADJ Key in the Adjust remocon.
Select "System Control" by using D/E(CH+/-) key, and
press V(ENTER).
3) Connect RS232 cable. (Use the general RS-232C Twisted
Serial Cable)
4) Operate LGIDS.
5) Select "Hurricane" and "ALL" on Model dialog and check
your connection in Communication dialog.
(If your connection is 'NG', then set your PORT
(COM1,2,3,...) correctly.
If your connection has completed, you can see [READY]
6) Select proper CH_memory file(*.nvm) for each model at
[Channel Download]$[Write Batch]. Next, select proper
binary file(*.bin) including the CH information for each
model at [Channel Download] $ [NVRAM File].
7) Click the [Download] button.
It means the completion of the CH memory download if all
items show 'OK' and Status is changed by 'PASS' at the
lower right corner of the window
4. Sub Program Download
4.1. Sub Program Download for "Hudson"
1) Press TILT key in Adjust remocon(Automatic setting).
2) Setting up like bottom figure
(Confirmation: Press ADJ Key in the Adjust remocon.
Select "System Control" by using D/E(CH+/-) key, and
press V(ENTER).)
Cortez Version 1.00
1.00Hudson Version
40 Hr.Panel Used
59Tool Option
16Area Option
102OPTION 1
2OPTION 2
OPTION 3 3
OPTION 4
System Control
Panel Control
192
MF-056A
System 4-SYS
5%Over Scan
2Orbit Fixel
Orbit Step 2
120Orbit Time
Sec.
30Inv.Time
Min.
System Control
Cortez Version 1.00
1.00Hudson Version
40 Hr.Panel Used
59Tool Option
16Area Option
102OPTION 1
2OPTION 2
OPTION 3 3
OPTION 4
System Control
Panel Control
192
MF-056A
System 4-SYS
5%Over Scan
2Orbit Fixel
Orbit Step 2
120Orbit Time
Sec.
30Inv.Time
Min.
System Control

- 12 -
3) Connect RS232 cable(Use Download Jig and general RS-
232C Twisted Serial Cable)
* Before upgrading "Hudson flash memory", push the switch
on the download jig 'inside'.4) Operate LGIDS.
5) Select “Hurricane” and “ALL” on Model dialog and check
your connection in Communication dialog.
(If your connection is “NG”, then set your PORT
(COM1,2,3,...¶) correctly.
If your connection has completed, you can see [Ready].
6) First, select proper Batch file(*.flm) for each model at [ROM
Download] $ [Batch File].
Second, select proper RAM file(*.hex) for each model at
[ROM Download] $ [RAM File].
Third, select roper Flash File(*.hex) for each model at
[ROM Download] $ [Flash File].
7) Click the [Download] button.
It means the completion of the Hudson download if all
items show 'OK' and Status is changed by 'PASS'
at the lower right corner of the window.
4.2. Sub Program Download for “DVR”
1) Download Setup
- You must change the DVR Download mode by using the
Turbo Sound Key on the remote controller.
2) MDS Program Setup
-Open the MDS Program

5. EDID (The Extended Display Identification Data) / DDC (Display Data
Channel) Download
* Use the proper signal cable for EDID Download - Analog EDID : Pin3 exists
Caution:Never connect HDMI & D-sub cable at the same time.
5.1. EDID Data
5.2. Data
1) ANALOG (128byte)
2) HDMI (256byte)
- 13 -
For RGB EDID For HDMI EDID
Item
Manufacturer
Version
Revision
GSM
Digital : 1
Digital : 3
1E6D
01
03
Condition Data
0x00
0x01
0x02
0x03
0x04
0x05
0x06
0x07
00
(C)
11
61
35
40
48
00
FF
(C)
49
40
00
80
1F
(d)
FF
01
4B
01
BC
37
3D
(d)
FF
03
A5
01
88
00
09
(d)
FF
01
6E
01
21
BC
00
(d)
FF
46
80
01
00
88
0A
(d)
FF
27
31
1B
00
21
20
(d)
00
78
40
21
1C
00
20
(d)
1E
0A
01
50
4E
00
20
(d)
6D
D9
01
A0
1F
18
20
(d)
(a)
B0
01
51
00
00
20
(d)
(a)
A3
01
00
80
00
20
0A
(b)
57
45
1E
51
00
00
20
(b)
49
40
30
00
FD
00
20
(b)
9C
01
48
1E
00
00
00
(b)
25
01
88
30
38
FC
(e)
0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F
0x00
0x01
0x02
0x03
0x04
0x05
0x06
0x07
00
(C)
11
61
35
40
48
00
FF
(C)
49
40
00
80
(d)
38
FF
01
4B
01
BC
37
(d)
4B
FF
03
A5
01
88
00
(d)
1F
FF
80
6E
01
21
BC
(d)
3D
FF
46
80
01
00
88
(d)
09
FF
27
31
1B
00
21
(d)
00
00
78
40
21
1C
00
(d)
0A
1E
0A
01
50
4E
00
(d)
20
6D
D9
01
A0
1F
18
0A
20
(a)
B0
01
51
00
00
20
20
(a)
A3
01
00
80
00
20
20
(b)
57
45
1E
51
00
00
20
(b)
49
40
30
00
FC
00
20
(b)
9C
01
48
1E
00
00
01
(b)
25
01
88
30
(d)
FD
(e)
0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F
0x00
0x01
0x02
0x03
0x04
0x05
0x06
0x07
02
07
0C
BC
96
28
16
00
03
07
00
88
00
60
20
00
24
23
10
21
13
35
58
00
F1
09
00
00
8E
00
2C
00
49
07
01
00
21
00
25
00
85
07
1D
1E
00
00
00
00
04
23
00
8C
00
32
C4
00
02
09
80
0A
18
00
8E
00
01
07
51
D0
2A
00
21
00
03
07
D0
8A
12
1C
00
00
11
83
1C
20
00
01
00
00
12
01
20
E0
10
1D
9E
00
13
00
40
2D
41
80
00
00
14
00
80
10
43
18
00
00
23
65
35
10
17
71
00
00
09
03
00
3E
20
1C
00
6B
0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0A 0x0B 0x0C 0x0D 0x0E 0x0F

- Detail EDID Options are below ((a), (b), (c), (d), (e))
(a) Product ID
(b) SerialNo : Controlled on production line
(c) Month, Year : Controlled on production line
: ex) Monthly : ‘03’ -> ‘03’ / Year : ‘2005’ -> ‘0F’
(d) Model Name(Hex)
(e) Checksum : Changeable by total EDID data
6. ADC Calibrate
6.1. Adjustment of RF/AV/S-VIDEO
(1) Required Equipment
1) Remote controller for adjustment
2) MSPG-925F Pattern Generator (Which has Video
Signal: 100% Color Bar Pattern shown in [Fig. 1])
-> Model: 202 / Pattern: 33
Case1) EC and FC model use PAL-BGDHI (composite
signal)
(2) Method of Auto RF/AV/S-VIDEO Color Balance.
1) Input the Video Signal: 100% Color Bar signal into
AV4(ZL)/AV3(CL)
2) Set the PSM to Dynamic mode in the Picture menu.
3) Press IN-START key on R/C for adjustment.
4) Press the G(Vol. +) key to operate the set, then it
becomes automatically.
5) Auto-RGB OK means the adjustment is completed.
6.2. Adjustment of Component
(1) Required Equipments
1) Remote controller for adjustment
2) MSPG-925F Pattern Generator -> Model:217/Pattern:33
(Which has 720p/ 60Hz YPbPr output Pattern shown in
[Fig. 2])
(2) Method of Auto Component Color Balance
1) Input the Component 720p/60Hz 100% Color
Bar(MSPG-925F model:217, pattern:33) signal into
Component.
2) Set the PSM to Dynamic mode in the Picture menu.
3) Press the IN-START key on R/C for adjustment.
4) Press the G(Vol. +) key to operate the set, then it
becomes automatically.
5) Auto-RGB OK means the adjustment is completed.
- 14 -
Model Name
37LC2RR-ZL
42LC2RR-ZL
42LC2RR-CL
30083(A)
30084(D)
40035(A)
40036(D)
40053(A)
40054(D)
Dec
30083(A)
30084(D)
40035(A)
40036(D)
40053(A)
40054(D)
Hex
7583
7584
9C63
9C64
9C75
9C76
EDID Table
6175
6275
6175
6275
6175
6275
Product ID Product ID
RF/AV/S-VIDEO
INPUT select AV4 - ZL
AV3 - CL
Model: 202(PAL-BGDHI)
Pattern: 33
* PAL 100% Color Bar
ADC
MSPG9225F
Component
Model:217(720P)
Pattern: 33
* 720P 100%
Color Bar
DVI(RGB)
Model: 37
(1024*768 60Hz)
Pattern: 33
* Color Bar
Model Name
37LC2RR-ZL
42LC2RR-ZL
42LC2RR-CL
33 37 4C 43 32 52 52 2D 5A 4C
34 32 4C 43 32 52 52 2D 5A 4C
34 32 4C 43 32 52 52 2D 43 4C
Model Name (HEX)

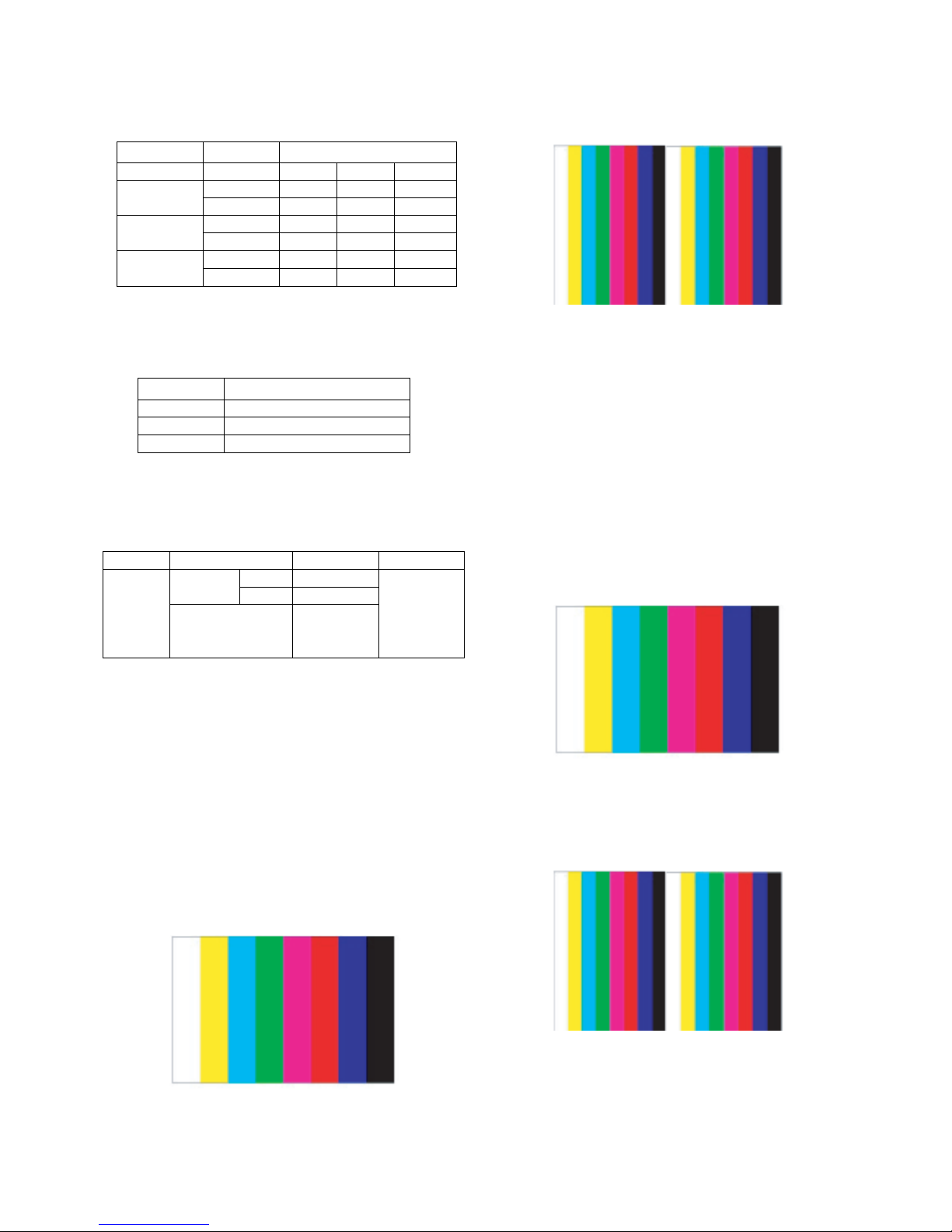

[Fig. 1]
[Fig. 21]

6.3. Adjustment of RGB
(1) Required Equipment
1) Remote controller for adjustment
2) MSPG-925F Pattern Generator
(Which has XGA [1024*768] 60Hz 100% Color Bar pattern
shown in [Fig. 3])
(2) 6.3.1 Method of Auto RGB Color Balance
1) Input the PC 1024x768 @ 60Hz 100% Color Bar pattern
(MSPG-925F model:37, pattern:33) into RGB. (using D-
sub to D-sub cable)
2) Set the PSM to Dynamic mode in Picture menu.
3) Press the IN-START key on R/C for adjustment.
4) Press the G(Vol. +) key operate To set , then it becomes
automatically.
5) Auto-RGB OK means adjustment is completed.
6.4 Adjustment of DVR (42LC2RR-CL, 42LC2RR-TL)
(1) Required Equipment
1) Remote controller for adjustment
2) MSPG-925F Pattern Generator
( Which has 576i YPbPr output with Standard (0.7Vpp)
Vertical 100% Color Bar Pattern shown in [Fig. 4])
(2) Method of Auto DVR Color Balance
1) Input the Component 576i 100% Color Bar signal into
Component1(CL,TL).
2) Set the PSM to Dynamic mode in Picture menu.
3) Press the IN-START key and then TURBO PICTURE
Key on R/C for adjustment.
4) Press the G(Vol. +) key operate To set, then it becomes
automatically.
5) Auto-RGB OK means completed adjustment.
6) Auto-RGB OK means adjustment is completed.
7) If the result is ‘NG’, Try once more.
* Before White-balance, the AV ADC should be done.
7. White Balance
<Caution>
- System control RS-232 Host should be “PC” for
adjustment.
- AV ADC should be done before White-balance.
7.1. Test Equipment
1) Color Analyzer (CA-110)
2) PC (for communication through RS-232C)
-> UART Baud rate : 115200
3)Pattern Generator (MSPG-925F)
7.2. Target Value (PSM: Dynamic, CSM: Normal)
1) Normal(9300K) x:0.283±0.003, y: 0.298±0.003
2) Luminance(Y)
- PC : more than 250 Cd/m2(Typ: 300 Cd/m2)
- AV/COMP : more than 250 Cd/m2(Typ: 350 Cd/m2)
- 15 -
[Fig. 3]
[Fig. 4]
High 216 Gray
White balance
MSPG925F Model : 202
Pattern : 78
* Pal Video
PSM : Dynamic
AV4(ZL)/AV3(CL)

- 16 -
7.3. Manual White Balance (AV4(ZL)/ AV2(CL))
<Caution>
- It is very important to use the correct adjustment of the White
Balance.
OJust adjust White Balance with R and B gain. Must fix the G
Gain and G offset.
ODO NOT change the default values of the G gain(B3) and G
offset(7F).
OInitially, the default values of the R/G/B gain and R/G/B
offset are fixed as follows
Red Gain : B3, Green Gain : B3, Blue Gain : B0
Red Offset : 7F Green Offset : 7F, Blue Offset : 82
1) Press the FRONT-AV key on R/C for adjustment Remocon.
(Set: RS-232 Host: PC, Baud Rate: 115200bps, Download:
Cortez, Input: AV4(ZL)/AV2(CL) )
2) Execute CA-110 Zero Calibration.
3) Execute the SET Heat Run for 30minutes.
4) Push the IN-START Button then you can see the OSD.
5) Push the IN-START Button again for White Balance mode.
6) Adjust High light with R/B Gain/Offset(G Gain fix, G Offset fix)
* If B is max, adjust R/G additionally.
7.4. Auto White Balance (AV4(ZL)/ AV2(CL))
1) Press the FRONT-AV key on R/C for adjustment Remocon
(Set: RS-232 Host: PC, Baud Rate: 115200bps
Download: Cortez, Input: AV4(ZL)/ AV2(CL))
* Input Select Data
RF(10), AV1~4(20,21,22,23), SAV(30), COMP(40),
DVI(RGB)(50 or 60), HDMI(90)
8. Input the Shipping Option Data
1) Push the ADJ key in a Adjust Remocon.
2) Input the AREA Code & Tool Option Number that was
specified in the BOM, into the Shipping area.
3) The work is finished, Push VKey.
9. Language Group
10. Teletext Language Group
- It is not active when ‘EU-All’ is selected on language group.
- Then all teletext Language can be choose on user°Øs menu.
- This is the default.
XB
J
J
J
J
J
J
B
A
B
C
D
E
F
Input Select
R-Gain
G-Gain
B-Gain
R-Offset
G-Offset
B-Offset
command 1 command 2 Set ID Default Value
Data
Min Max
00
00
00
00
00
00
00
00h
00h
00h
00h
00h
00h
00h
90h
E0h
E0h
E0h
90h
90h
90h
B3
B3
B0
7F
7F
82
0-EU5
English
France
German
Spain
Italy
1-EU-8
English
France
German
Spain
Italy
Netherland
Portugal
Greece
EU-All
English
France
German
Spain
Italy
Netherland
Portugal
Greece
Sweden
Norway
Denmark
Poland
Russia
2-EU-North
English
France
German
Spain
Italy
Sweden
Norway
Denmark
3-EU-East
English
France
German
Spain
Italy
Poland
Russia
4-N-EU 8
English
France
German
Spain
Italy
Russia
China
Thai
5-Non-EU etc.
English
France
German
Spain
Italy
0
English
German
Swedish
Italian
French
Spanish
Turkish
Greek
1
Polish
German
Estonian
Lettish
French
Serbocroat
Czech
Rumanian
2
English
German
Estonian
Lettish
Cyrillic2
Cyrillic3
Czech
English
3
English
German
Swedish
Italian
French
Hebrew
Turkish
Arabic
4
English
German
Swedish
Italian
French
Hebrew
Turkish
Farsi

- 17 -
SVC REMOCON
NO KEY FUNCTION
REMARK
1 POWER
2 POWER ON
3 MUTE
4 P-CHECK
5 S-CHECK
6 ARC
7 CAPTION
8 TXT
9 TV/AV
10 TURBO SOUND
11 TURBO PICTURE
12 IN-START
13 ADJ
14 MPX
15 EXIT
16 APC(PSM)
17 ASC(SSM)
18 MULTIMEDIA
19 FRONT-AV
20 CH°æ
21 VOL°æ
22 ENTER
23 PIP CH-(OP1)
24 PIP CH+(OP2)
25 PIP SWAP(OP3)
26 PIP INPUT(OP4)
27 EYE
28 MENU
29 IN-STOP
30 STILL
31 TIME
32 SIZE
33 MULTI PIP
34 POSITION
35 MODE
36 PIP
37 TILT
38 0~9
To turn the TV on or off
To turn the TV on automatically if the power is supplied to the TV. (Use the
POWER key to deactivate): It should be deactivated when delivered.
To activate the mute function.
To check TV screen image easily.
To check TV screen sound easily
To select size of the main screen (Normal, Spectacle, Wide or Zoom)
Switch to closed caption broadcasting
To toggle on/off the teletext mode
To select an external input for the TV screen
To start turbo sound
To start turbo picture
To enter adjustment mode when manufacturing the TV sets.
To adjust the screen voltage (automatic):
In-start
$ mute $ Adjust $ AV(Enter into W/B adjustment mode)
W/B adjustment (automatic):
After adjusting the screen $ W/B adjustment $ Exit two times (Adjustment completed)
To enter into the adjustment mode. To adjust horizontal line and sub-brightness.
To select the multiple sound mode (Mono, Stereo or Foreign language)
To release the adjustment mode
To easily adjust the screen according to surrounding brightness
To easily adjust sound according to the program type
To check component input
To check the front AV
To move channel up/down or to select a function displayed on the screen.
To adjust the volume or accurately control a specific function.
To set a specific function or complete setting.
To move the channel down in the PIP screen.
To use as a red key in the teletext mode
To move the channel in the PIP screen
To use as a green key in the teletext mode
To switch between the main and sub screens
To use as a yellow key in the teletext mode
To select the input status in the PIP screen
To use as a blue key in the teletext mode
To set a function that will automatically adjust screen status to match
the surrounding brightness so natural color can be displayed.
To select the functions such as video, voice, function or channel.
To set the delivery condition status after manufacturing the TV set.
To halt the main screen in the normal mode, or the sub screen at the PIP screen.
Used as a hold key in the teletext mode (Page updating is stopped.)
Displays the teletext time in the normal mode
Enables to select the sub code in the teletext mode
Used as the size key in the PIP screen in the normal mode
Used as the size key in the teletext mode
Used as the index key in the teletext mode (Top index will be
displayed if it is the top text.)
To select the position of the PIP screen in the normal mode
Used as the update key in the teletext mode (Text will be
displayed if the current page is updated.)
Used as Mode in the teletext mode
To select the simultaneous screen
To adjust screen tilt
To manually select the channel.
Shortcut keys
Shortcut keys
Shortcut keys
Use the AV
key to enter
the screen
W/B
adjustment
mode.
Shortcut keys
Shortcut keys
Shortcut keys

- 18 -
TROUBLESHOOTING GUIDE
<VSC Board>
1. No Power
(1) Symptom
ØDoes’t minute discharge at module.
ØNon does not come in into the front LED.
(2) Check following
Is plug in power cord? Plug in power cord.
Yes
No
Is the Line Filter and Power
Board Cable connected? Connect the Cable.
Yes
No
Is the Fuse on Power
Board normal? Replace the Fuse.
Yes
No
Is the Power Board and 13P of
VSC Board Cable connected? Connect the Cable.
Yes
No
After the cable connect is remved
to Power Board(except the CN101
connection cable), the AC voltage
marking is authorized on manual.
When ST-BY 5V is not operated,
replace Power Board.

- 19 -
2. Protect Mode
(1) Symptom
ØAfter once shining, it does not discharge minutely
from module
ØThe Rely falls(The sound is audible “click”)
ØIt is converted with the color where the front LED
is pink from white.
(2) Check following
Is the Power Board
normal ?
Replace Power
Board.
Is output the normality Low/High
voltage except Stand-by 5V?
Yes
No No
Is the each connector
normal?
Replace the
connector.
After connecting well each connector,
the normality it operates?
Yes
No No
Is the VSC Board
normal?
After remove P1001, P1100
normal operation :
Replace VSC Board.
Is the output voltage normal after
remove P10001, P1100?
No Yes
3. No Raster
(1) Symptom
ØDoes’t minute discharge at module.
ØIt maintains the condition where the front LED is white.
(2) Check following
Is the Power Board
normal?
Replace the
Power Board.
Is output the normality Low/High
voltage except Stand-by 5V?
Yes
No No
Is the each connector
normal?
Replace the
connector.
After connecting well each connector,
the normality it operates?
Yes
No No
Is the VSC Board
normal?
After remove P1001, P1100
normal operation
: Replace VSC Board.
Is the output voltage normal after
remove P1001, P1100?
No Yes

- 20 -
4. In case of occurring strange screen into specific mode
4-1. In case the OSD does not displayed
(1) Symptom
ØLED is white.
ØThe minute discharged continuously becomes
accomplished from module.
(2) Check following
Is the LVDS cable
normal ?
Is the VSC Board
normal?
Is the LVDS cable
connected well?
Cable inserts well.
Yes
No
No
Yes
Does the FIL8532 IC
(IC800) Operates ?
Replace FIL8532
IC(IC800).
No
Is the Ctrl Board of
Module normal? Replace Ctrl B/D.
No
No
Yes
Replace VSC B/D.
Replace the cable.
Yes
